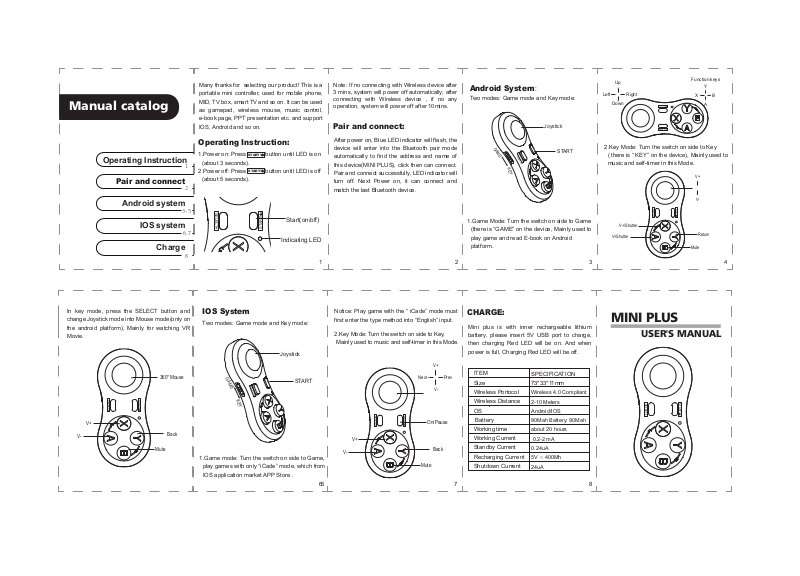

MIJOY Technology MINIPLUS User Manual
Manual catalog
Operating Instruction
Pair and connect
Android system
IOS system
Charge
Many thanks for selecting our product! This is a
portable mini controller, used for mobile phone,
MID, TV box, smart TV and so on. It can be used
as gamepad, wireless mouse, music control,
e-book page, PPT presentation etc. and support
IOS, Android and so on.
Operating Instruction:
1.Power on: Press button until LED is on
(about 3 seconds).
1
2.Power off: Press button until LED is off
(about 5 seconds).
2
3-5
SELECT
6.7
8
START/
START/
Start(on/off)
START/
Indicating LED
Note: If no connecting with Wireless device after
3 mins, system will power off automatically; after
connecting with Wireless device , if no any
operation, system will power off after 10mins.
Pair and connect:
After power on, Blue LED indicator will flash, the
device will enter into the Bluetooth pair mode
automatically to find the address and name of
this device(MINI PLUS), click then can connect.
Pair and connect successfully, LED indicator will
turn off. Next Power on, it can connect and
match the last Bluetooth device.
1
START/
Function keys
Y
X
B
A
V+
V-
Return
Mute
Android System：
Two modes: Game mode and Key mode:
Joystick
GAME
SELECT
KEY
1.Game Mode: Turn the switch on side to Game
(there is “GAME” on the device, Mainly used to
play game and read E-book on Android
platform.
START
Up
Left Right
Down
START/
SELECT
2.Key Mode: Turn the switch on side to Key
( there is “ KEY” on the device), Mainly used to
music and self-timer in this Mode.
SELECT
V+/Shutter
V-/Shutter
2 3 4
In key mode, press the SELECT button and
change Joystick mode into Mouse mode(only on
the android platform), Mainly for watching VR
Movie.
360 ° Mouse
SELECT
V+
V-
START/
Back
Mute
IOS System
Two modes: Game mode and Key mode:
Joystick
GAME
SELECT
KEY
1.Game mode: Turn the switch on side to Game,
play games with only “iCade” mode, which from
IOS application market APP Store .
START
6 7 85
Notice: Play game with the “ iCade” mode must
first enter the type method into “English” input.
2.Key Mode: Turn the switch on side to Key,
Mainly used to music and self-timer in this Mode.
V+
Next
SELECT
V+
V-
START/
Prev
V-
On/ Pause
Back
Mute
CHARGE:
Mini plus is with inner rechargeable lithium
battery, please insert 5V USB port to charge,
then charging Red LED will be on. And when
power is full, Charging Red LED will be off.
ITEM
Size
Wireless Portocol
Wireless Distance
OS
Battery
Working time
Working Current
Standby Current
Recharging Current
Shutdown Current
SPECIFICATION
73*33*11mm
Wireless 4.0 Compliant
2-10 Meters
Android/IOS
90Mah Battery: 90Mah
about 20 hours
0.2-2 mA
0.24uA
5V ＜400Mh
24uA
MINI PLUS
USER'S MANUAL
SELECT
START/
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
