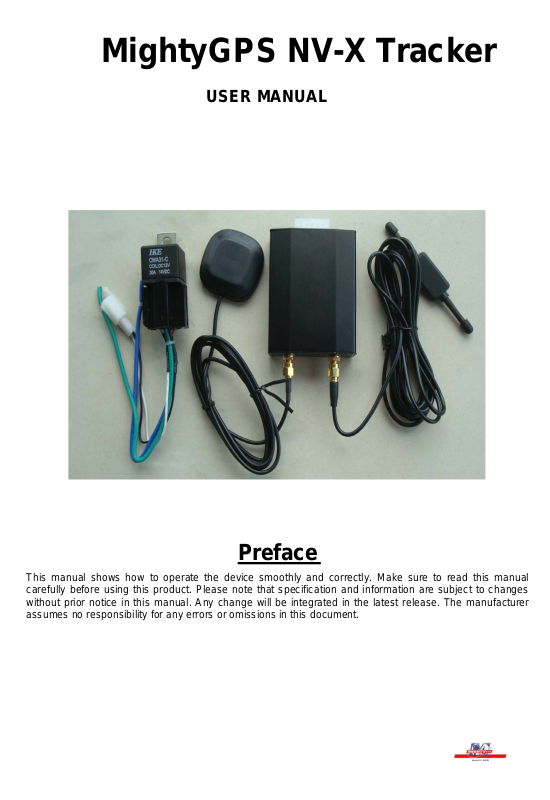

MightyGPS NV-X Tracker
USER MANUAL
Preface
This manual shows how to operate the device smoothly and correctly. Make sure to read this manual
carefully before using this product. Please note that specification and information are subject to changes
without prior notice in this manual. Any change will be integrated in the latest release. The manufacture
assumes no responsibility for any errors or omissions in this document.
Content
1 Summary -------------------------------------------------------------------- ----------------------------- 3
2 Application ------------------------------------------------------------------------------------------ 3
3 Hardware Description
3.1 Wires Connection ---------------------------------------------------------------------------- 3
3.2 Interior ------------------------------------------------------------------------------------- ------- 4
3.3 External Relay Connection ---------------------------------------------------------- ----- 4
4 Specifications ---------------------------------------------------------------------------------------- 4
5 Battery and SIM Card Installation --------------------------------------------------------- --------- 4
6 Startup ------------------------------------------------------------------------------------- ----------- 5
7 Usage --------------------------------------------------------------------------------------------------- -- 5
8 Fortifying Mode --------------------------------------------------------------------------------- --------- 5
8.1 Engine Started Alert ---------------------------------------------- --------- -------- 5
8.2 Movement Alert --------------------------------------------------------- --------- -------- 6
8.3 Power Cutoff Alert-------------------------------------------------------- --------- -------- 6
8.4 Remote Engine Cut-off Fuction--------------------------------------- --------- -------- 6
8.5 Checking the Working Status ----------------------------------------- --------- -------- 7
9 Tracking Mode -------------------------------------------- --------- -------- -------- 8
9.1 Initialization ---------------------------------- --------- -------- 9
9.2 Change the Password ---------------------------------- --------- -------- 9
9.3 Authorization ---------------------------------- --------- -------- 9
9.4 Auto Track ---------------------------------- --------- -------- 10
9.5 Geo-fence ---------------------------------- --------- -------- 10
9.6 Movement Alert ---------------------------------- --------- -------- 11
9.7 Overspeed Alert ---------------------------------- --------- -------- 11
9.8 IMEI Checking ------------------------------ --------- -------- 12
9.9 SOS --------------------------------- --------- -------- 12
9.10 Low Battery Alert --------------------------- --------- -------- 12
9.11 Hidden Number Tracking ---------------------------- --------- -------- 12
9.12 SMS Center ------------------------------ --------- -------- 13
9.13 GSM ID
9.14 Motion Sensor ----------------------------------------------------------- --------- 13
9.15 SD Card Function -------------------------------------------------------------------- 14
10 Monitoring Mode ------------------------------ --------- -------- 14
11 GPRS Setting -------------------------------------------------------------------- 15
12 Cautions --------------------------------------------------------------------- 17
13 Faults & Solutions --------------------------------------------------------------------- 18
-------------------------------------------------------------------- 13
1 Summary
f
Working Based on existing GSM/GPRS network and GPS satellites, this product can
locate and monitor any remote targets by SMS or GPRS,and guard against theft o
Vehicle.
2 Applications
Rental vehicle / Fleet management etc
Covert tracking
3 Hardware Description
3.1 Wires Connection
8
Wire 1: LED indicator of working status
Wire2: ACC ‘-‘
Wire3 ACC ‘+’
Wire 4: 12V ‘+’
Wire 5: 12V ‘-‘
Wire 6: Microphone
Wire 7: On/off & SOS button
Wire 8: external relay plug
1
2
3
7
6
5
4
3.2 Interior
3.3 External relay Connection
4 Specs.
e
Content Specs.
Dimension. 80mm x 60mm x 25mm
Weight 100g
Network GSM/GPRS
Band 850/1800/1900Mhz or 900/1800/1900Mhz
GPS chip SIRF3 chip
GSM/GPRS module Simcom300/Simcom340
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix Reacquisition 0.1s Cold status 45s
Warm status 35s
Hot status 1s
Car charger 12—24V input
5V output
Wall charger
Battery Chargeable changeable 3.7V 1100mAh Li-ion batt
Standby 50hours
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing
110－220V input
5V output

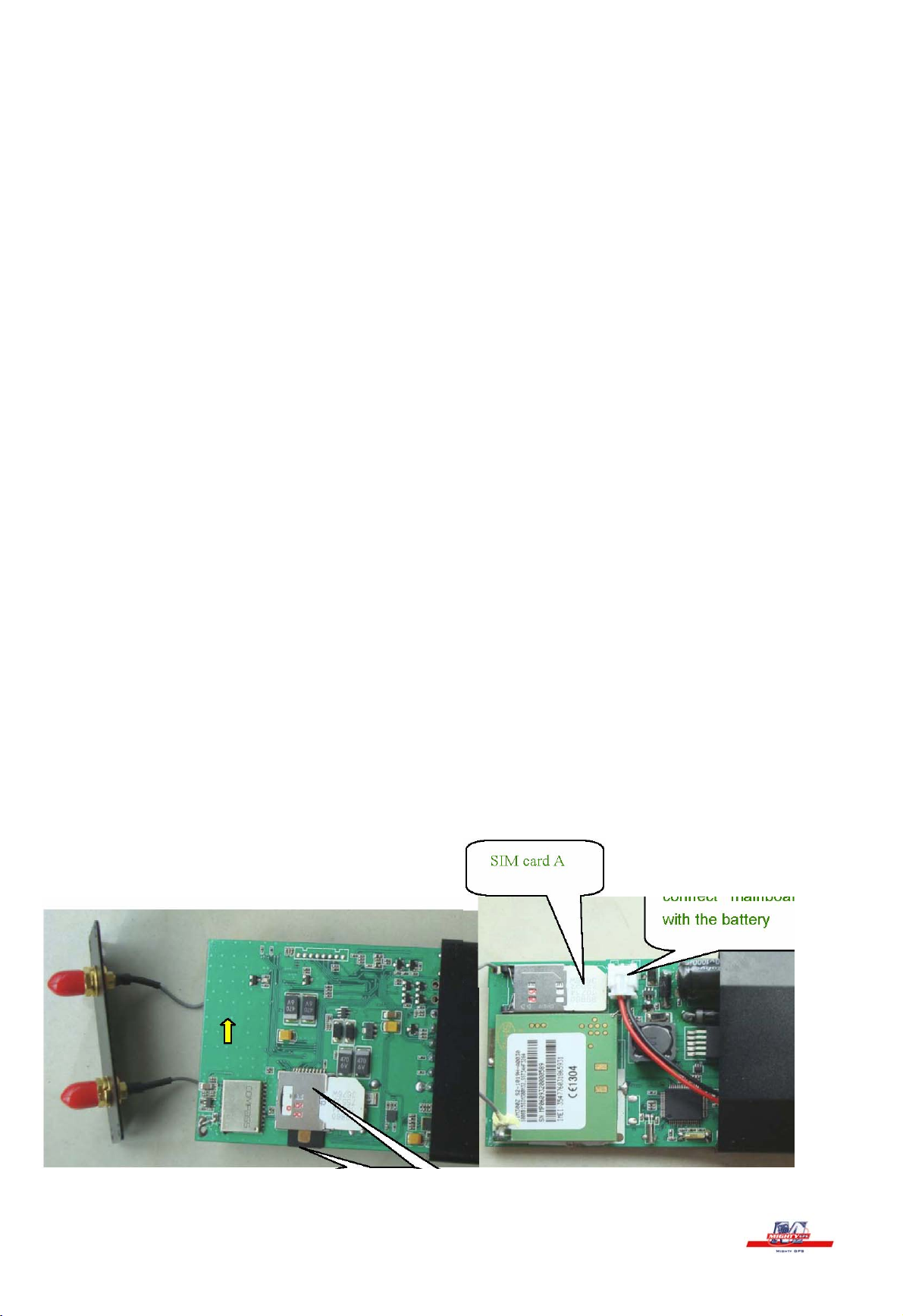

Put SIM card A here
(front side)
Put SIM card B here
(back side)
Put a SD card here
Wire for car oil
connecting
Wire for car oil connecting
External relay
Connect here with the
tracker (ref Wire 8 )
