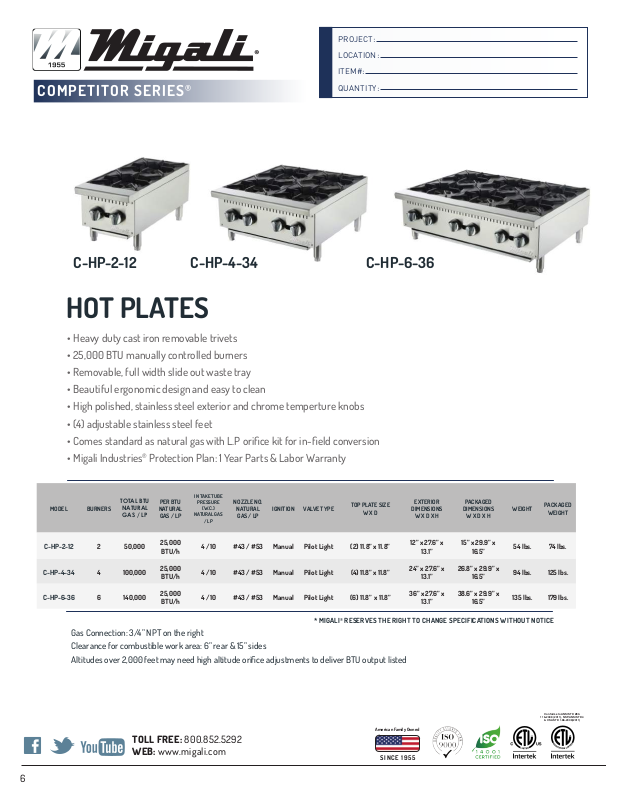

Migali CHP636 Specifications
SINCE 1955
American Family Owned
Conforms to ANSI STD Z83.
11b-2009 (2011), NSF/ANSI STD 4
& CSA STD 1.8b-2009(2011)
TOLL FREE: 800.852.5292
WEB: www.migali.com
CM W
®
PROJECT:
LOCATI ON:
ITEM#:
QUANTITY:
COMPETITOR SERIES
®
6
C-HP-2-12 C-HP-4-34 C-HP-6-36
MODEL BURNERS
TOTAL BTU
NATURAL
GAS / LP
PER BTU
NATURAL
GAS / LP
IN TAKE TUBE
PRESSURE
(W.C.)
NATURAL GAS
/ LP
NOZZLE NO.
NATURAL
GAS / LP
IGNITION VALVE TYPE
TOP PLATE SIZE
W X D
EXTERIOR
DIMENSIONS
W X D X H
PACKAGED
DIMENSIONS
W X D X H
WEIGHT
PACKAGED
WEIGHT
C-HP-2-12 2 50,000
25,000
BTU/h
4 /10 #43 / #53 Manual Pilot Light (2) 11.8” x 11.8”
12” x 27.6” x
13.1”
15” x 29.9” x
16.5”
54 lbs. 74 lbs.
C-HP-4-34 4 100,000
25,000
BTU/h
4 /10 #43 / #53 Manual Pilot Light (4) 11.8” x 11.8”
24” x 27.6” x
13.1”
26.8” x 29.9” x
16.5”
94 lbs. 125 lbs.
C-HP-6-36 6 140,000
25,000
BTU/h
4 /10 #43 / #53 Manual Pilot Light (6) 11.8” x 11.8”
36” x 27.6” x
13.1”
38.6” x 29.9” x
16.5”
135 lbs. 179 lbs.
HOT PLATES
• Heavy duty cast iron removable trivets
• 25,000 BTU manually controlled burners
• Removable, full width slide out waste tray
• Beautiful ergonomic design and easy to clean
• High polished, stainless steel exterior and chrome temperture knobs
• (4) adjustable stainless steel feet
• Comes standard as natural gas with L.P orice kit for in-eld conversion
• Migali Industries® Protection Plan: 1 Year Parts & Labor Warranty
* MIGALI® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE
Gas Connection: 3/4” NPT on the right
Clearance for combustible work area: 6” rear & 15” sides
Altitudes over 2,000 feet may need high altitude orice adjustments to deliver BTU output listed
®
MIGALI® REMAINS AN AMERICAN FAMILY COMPANY SINCE 1955
DIMENSIONAL DRAWINGS
7
C-HP-2-12 C-HP-4-34 C-HP-6-36
SIDE VIEW
