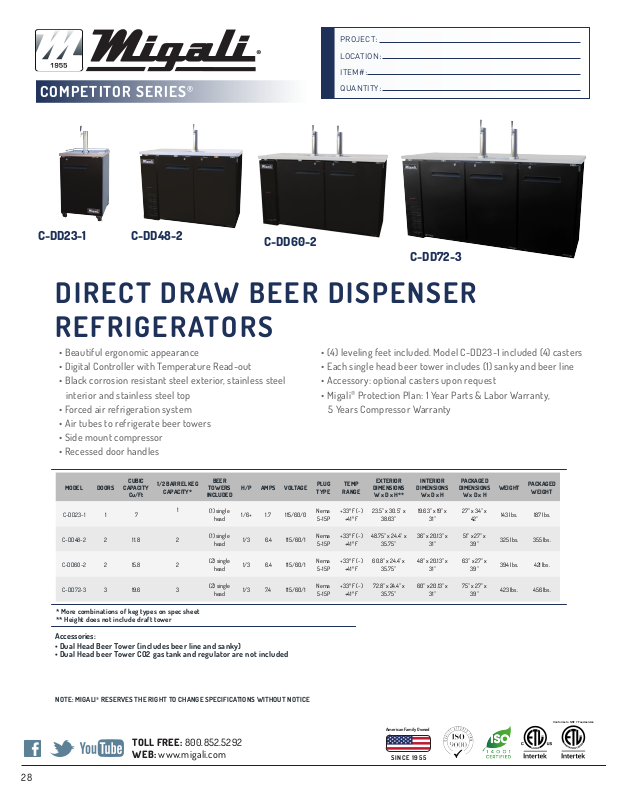

Migali CDD723HC, CDD231HC, CDD602HC, CDD482HC Specifications
TOLL FREE: 800.852.5292
WEB: www.migali.com
CM W
SINCE 1955
American Family Owned
Conforms to NSF 7 Foodservice
®
PROJECT:
LOCATI ON:
ITEM#:
QUANTITY:
COMPETITOR SERIES
®
28
C-DD48-2C-DD23-1
C-DD72-3
DIRECT DRAW BEER DISPENSER
REFRIGERATORS
• Beautiful ergonomic appearance
• Digital Controller with Temperature Read-out
• Black corrosion resistant steel exterior, stainless steel
interior and stainless steel top
• Forced air refrigeration system
• Air tubes to refrigerate beer towers
• Side mount compressor
• Recessed door handles
• (4) leveling feet included. Model C-DD23-1 included (4) casters
• Each single head beer tower includes (1) sanky and beer line
• Accessory: optional casters upon request
• Migali® Protection Plan: 1 Year Parts & Labor Warranty,
5 Years Compressor Warranty
C-DD60-2
MODEL DOORS
CUBIC
CAPACITY
Cu/Ft
1/2 BARREL KEG
CAPACITY*
BEER
TOWERS
INCLUDED
H/P AMPS VOLTAGE
PLUG
TYPE
TEMP
RANGE
EXTERIOR
DIMENSIONS
W x D x H**
INTERIOR
DIMENSIONS
W x D x H
PACKAGED
DIMENSIONS
W x D x H
WEIGHT
PACKAGED
WEIGHT
C-DD23-1 1 7
1
(1) single
head
1/6+ 1.7 115/60/0
Nema
5-15P
+33º F (~)
+41º F
23.5” x 30.5” x
38.63”
19.63” x 19” x
31”
27” x 34” x
42”
143 lbs. 187 lbs.
C-DD48-2 2 11.8 2
(1) single
head
1/3 6.4 115/60/1
Nema
5-15P
+33º F (~)
+41º F
48.75” x 24.4” x
35.75”
36” x 20.13” x
31”
51” x 27” x
39”
325 lbs. 355 lbs.
C-DD60-2 2 15.8 2
(2) single
head
1/3 6.4 115/60/1
Nema
5-15P
+33º F (~)
+41º F
60.8” x 24.4” x
35.75”
48” x 20.13” x
31”
63” x 27” x
39”
394 lbs. 421 lbs.
C-DD72-3 3 19.6 3
(2) single
head
1/3 7.4 115/60/1
Nema
5-15P
+33º F (~)
+41º F
72.8” x 24.4” x
35.75”
60” x 20.13” x
31”
75” x 27” x
39”
423 lbs. 456 lbs.
NOTE: MIGALI® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE
Accessories:
• Dual Head Beer Tower (includes beer line and sanky)
• Dual Head beer Tower CO2 gas tank and regulator are not included
* More combinations of keg types on spec sheet
** Height does not include draft tower
DIMENSIONAL DRAWINGS
MIGALI® REMAINS AN AMERICAN FAMILY COMPANY SINCE 1955
®
29
48
3/4
”
48
3/4
”
60
4/5
”
60
4/5
”
72
4/5
”
72
4/5
”
C-DD48-2
C-DD23-1
C-DD48-2 TOP VIEWC-DD23-1 TOP VIEW
C-DD60-2
C-DD60-2 TOP VIEW
C-DD72-3
C-DD72-3 TOP VIEW
SIDE VIEW (1,2,3 DOORS)
