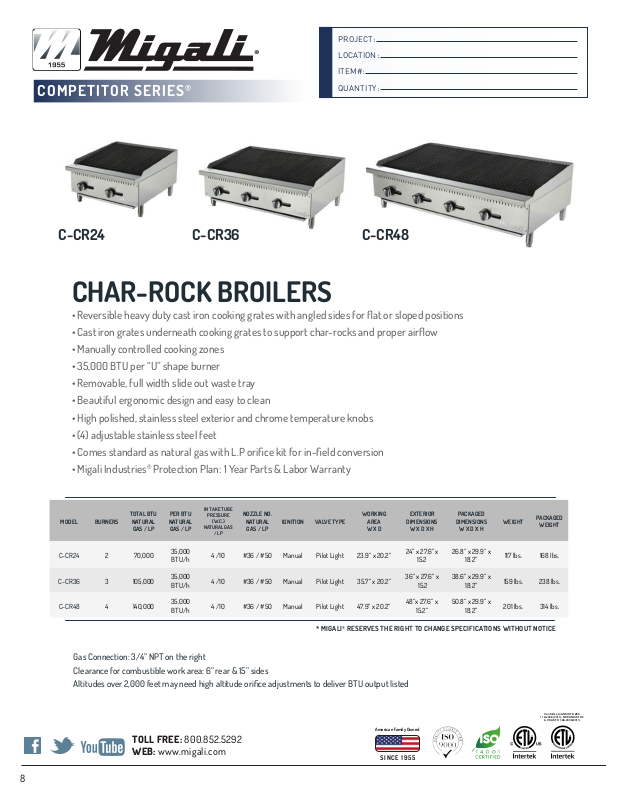

Migali CCR48 Specifications
SINCE 1955
American Family Owned
Conforms to ANSI STD Z83.
11b-2009 (2011), NSF/ANSI STD 4
& CSA STD 1.8b-2009(2011)
TOLL FREE: 800.852.5292
WEB: www.migali.com
CM W
®
PROJECT:
LOCATI ON:
ITEM#:
QUANTITY:
COMPETITOR SERIES
®
8
C-CR24 C-CR36 C-CR48
MODEL BURNERS
TOTAL BTU
NATURAL
GAS / LP
PER BTU
NATURAL
GAS / LP
IN TAKE TUBE
PRESSURE
(W.C.)
NATURAL GAS
/ LP
NOZZLE NO.
NATURAL
GAS / LP
IGNITION VALVE TYPE
WORKING
AREA
W X D
EXTERIOR
DIMENSIONS
W X D X H
PACKAGED
DIMENSIONS
W X D X H
WEIGHT
PACKAGED
WEIGHT
C-CR24 2 70,000
35,000
BTU/h
4 /10 #36 / #50 Manual Pilot Light 23.9” x 20.2”
24” x 27.6” x
15.2
26.8” x 29.9” x
18.2”
117 lbs. 168 lbs.
C-CR36 3 105,000
35,000
BTU/h
4 /10 #36 / #50 Manual Pilot Light 35.7” x 20.2”
36” x 27.6” x
15.2
38.6” x 29.9” x
18.2”
159 lbs. 238 lbs.
C-CR48 4 140,000
35,000
BTU/h
4 /10 #36 / #50 Manual Pilot Light 47.9” x 20.2”
48”x 27.6” x
15.2”
50.8” x 29.9” x
18.2”
201 lbs. 314 lbs.
CHAR-ROCK BROILERS
* MIGALI® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE
Gas Connection: 3/4” NPT on the right
Clearance for combustible work area: 6” rear & 15” sides
Altitudes over 2,000 feet may need high altitude orice adjustments to deliver BTU output listed
• Reversible heavy duty cast iron cooking grates with angled sides for at or sloped positions
• Cast iron grates underneath cooking grates to support char-rocks and proper airow
• Manually controlled cooking zones
• 35,000 BTU per “U” shape burner
• Removable, full width slide out waste tray
• Beautiful ergonomic design and easy to clean
• High polished, stainless steel exterior and chrome temperature knobs
• (4) adjustable stainless steel feet
• Comes standard as natural gas with L.P orice kit for in-eld conversion
• Migali Industries® Protection Plan: 1 Year Parts & Labor Warranty
®
MIGALI® REMAINS AN AMERICAN FAMILY COMPANY SINCE 1955
DIMENSIONAL DRAWINGS
9
C-CR24
C-CR36 C-CR48
SIDE VIEW
