Page 1

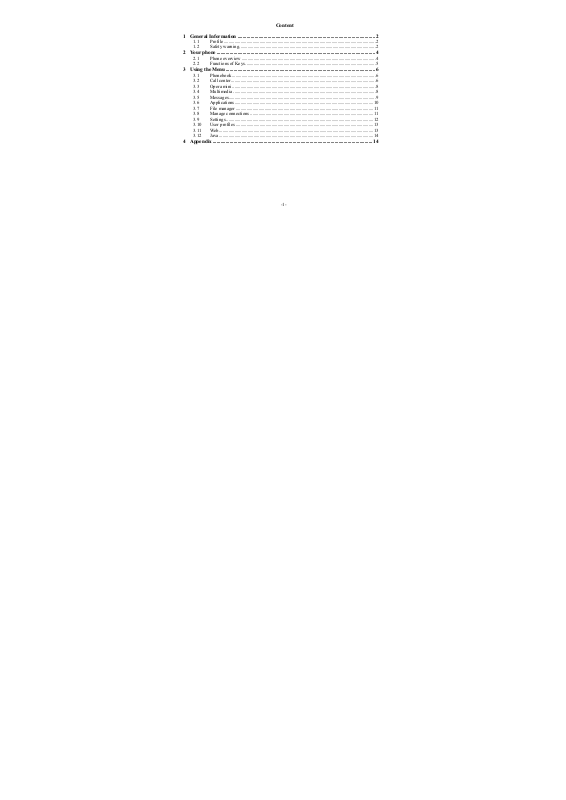

Content
1
General Information ......................................................................................................... 2
1.1Profile ............................................................................................................................... 2
1.2Safety warning .................................................................................................................. 2
2Your phone ......................................................................................................................... 4
2.1Phone overview ................................................................................................................ 4
2.2Functions of Keys ............................................................................................................. 5
3Using the Menu .................................................................................................................. 6
3.1Phonebook ........................................................................................................................ 6
3.2Call center ......................................................................................................................... 6
3.3Opera mini ........................................................................................................................ 8
3.4Multimedia ....................................................................................................................... 8
3.5Messages ........................................................................................................................... 9
3.6Applications .................................................................................................................... 10
3.7File manager ................................................................................................................... 11
3.8Manage connections ....................................................................................................... 11
3.9Settings ........................................................................................................................... 12
3.10User profiles ................................................................................................................... 13
3.11Web ................................................................................................................................. 13
3.12Java ................................................................................................................................. 14
4Appendix .......................................................................................................................... 14
-1-
Page 2
1.1 Profile
Please read this pamphlet carefully in order to make your phone in perfect condition.
Our company may change this mobile phone without prior written notice and reserves the final right
to interpret the performance of this mobile phone.
Due to different software and network operators, display on your phone may be different, refer to
your phone for details.
1.2 Safety warning
¾ ROAD SAFETY COMES FIRST
Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while
driving. In some countries, dialing or receiving calls while driving is illegal!
¾ SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. Using a mobile phone in flight is illegal and risky.
Please make sure that your mobile phone is powered off in flight.
¾ SWITCH OFF BEFORE ENTERING RISKY AREAS
Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn
off your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank,
chemical plant or a place where a blasting process is under way.
¾ OBSERVE ALL SPECIAL REGULATIONS
Follow any special regulations in force in any area such as hospitals and always switch off your phone
whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile
phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical
devices, as it may cause interference to such apparatuses.
¾ INTERFERENCE
The conversation quality of any mobile phone may be affected by radio interference. An antenna is built
inside the mobile phone and located below the microphone. Do not touch the antenna area during a
conversation, lest that the conversation quality deteriorate.
1 General Information
-2-
Page 3
¾ ACCESSORIES AND BATTERIES
Use only approved accessories and batteries.
¾ EMERGENCY CALLS
Ensure the phone is switched on and in service, enter the emergency number, e.g. 112, then press the Dial
key. Give your location and state your situation briefly. Do not end the call until told to do so.
Note: Just like all other mobile phones, this mobile phone does not necessarily support all the features
described in this manual due to network or radio transmission problems. Some networks even do not
support the emergency call service. Therefore, do not rely solely on the mobile phone for critical
communications such as first aid. Please consult the local network operator.
-3-
Page 4
2.1 Phone overview
2 Your phone
-4-
Page 5
2.2 Functions of Keys
The mobile phone provides the following keys:
Dial key
Press it to originate a call by entering the called number or selecting a contact from the phonebook; or
press it to receive an incoming call; or press it in standby state to show the latest call records
End key
Press it to end a call being dialed or end an ongoing call; or press it to exit the menu and return to the
standby state; or hold it for two or three seconds to power on or off the mobile phone.
Direction key
Press them to scroll the options when browsing a function list. In edit state, press direction keys to
navigate. In conversation status，you can press up or down direction ke y to tune volume.
Left and right soft key
The bottom line on the screen displays the functions of the Left and Right soft key.
OK key
In idle screen, press it to access Facebook; in other cases, press it to confirm a selection.
Space key
Press it in the edit interface to get a blank.
Delete key
Press it to delete a character before cursor.
Linefeed
In idle screen, this key helps to switch to another line.
Sym key
Press it in the edit interface to input a symbol.
Shift key
Press it to switch between input methods.
Alt. key
In edit interface, press it to input an alternative symbol or number.
Number keys, letter keys
-5-
Page 6
Press number keys 1 through 9 in input or edit state to input numbers and characters; Press letter keys
A through Z in input or edit state to input letters and characters;In idle screen, you can long press # key
to lock/unlock keypad.
3.1 Phonebook
You can save numerous phone numbers in the phonebook. The amount of telephone numbers that an SIM
card can store depends on the storage capacity of the SIM card. The telephone numbers stored in the
mobile phone and in the SIM cards form a phonebook.
3.2 Call center
Call history
Missed calls: You can view a list of the latest missed calls.
Dialed calls: You can view the latest dialed calls. Choose dialed calls and then select a dialed call to
delete, save, dial, or edit (or send a short message to it).
Received calls: You can view the latest received calls. Choose received calls and then select a
received call to delete, save, dial, or edit (or send a short message to it).
Delete call logs: You can delete the latest call records. Choose Delete call logs and then select to
delete all the numbers in the call history, or delete only the numbers in the missed calls list, the dialed
calls list or the received calls list.
Call timers: Choose call timers to view the last call time, the total time of all dialed calls and the
total time of all received calls, and/or to reset all the time.
Call cost: Choose call cost to view the cost of the last call a nd the cost of all calls, reset the call cost,
modify the maximum cost allowed, and/or set the call tariff.
Note: The call cost function relates to the SIM card. Some SIM cards do not support this function. The
PIN2 is provided by the network operator. To obtain the PIN2, contact the network operator.
Text msg. counter: Choose text msg. counter to set the number of short messages sent and the
number of short messages received.
Note: This function does not relate to the SIM card. The number of short messages sent and the number
3 Using the Menu
-6-
Page 7
of short messages received do not change even after the SIM card is replaced.
GPRS counter: Access this menu to view the sent/received GPRS volume or to reset counter.
Call settings
Caller ID: You can select the ID set by the network, hide the ID, or send the ID. By default, the ID
set by the network is chosen.
Call waiting: If the call waiting function is activated, the network will alert you and the mobile
phone screen will display the incoming call number if others are calling you while you are already in
a conversation.
Call diverts: This network function enables you to forward incoming calls to another number you
have previously specified.
Call barring： Call barring function enables you to bar calls as needed.
Line switching: Switch to Line 1 or Line 2. By default, Line 1 is used.
Note: If you choose Line 2, dialing may fail. This depends on the implementation of the network operator.
Closed user group: This function requires network support. For details, consult the local network
operator.
Note: SIM on the service is required.
Advanced settings
Blacklist: Access this menu to set blacklist members & status.
Auto redial: Set it to On or Off to enable or disable auto redial function. If you set Auto redial to
On, the mobile phone will automatically redial the number a moment later if the called party does not
reply. The number of auto redial times can be set to a maximum of 10. In the auto redial period, you
cannot dial other numbers. To end the auto redial process, press the End key.
Note: This function requires support from the network operator to which the SIM card is registered.
IP dial: Access this menu to set IP dial relates parameters.
Call time display: To display call time during a call.
Call time reminder: To set single or circle tone in a call to make you know the time.
Reject by SMS: Reject an incoming call and reply the caller a short message to state that you are not
available at this moment.
-7-
Page 8
3.3 Opera mini
Access the Opera mini Mobile site by clicking on the Opera mini icon. (GPRS Connection charges may
apply)
3.4 Multimedia
Camera
Use this function to capture pictures. In the capture interface, you can press left or right dir ection key to
adjust exposure value; up or down direction key to zoom in or zoom out; OK key to capture photos; left
soft key to access Options; right soft key to exit capture interface.
Audio Player
Use this function to play audio files. By pressing the direction key can you control the playing process of
audio player: play/pause（up directio n key）, switch to last song/next song （press left or right direction
key）, fast forward (pr ess and hold right directi on key) and rewind (pr ess and hold left direction key),
stop (down direction key). In audio player interface, you can press I/- or O/+ key to tune volume.
Sound Recorder
The phone support WAV and AMR. The AMR takes the compression algorithm. So in the same memory
condition, it has longer recording time than WAV.
After accessing the sound recorder, you can press left soft key to perform the following operations:
New record: select this function to record a new file.
List: recorded files are listed in this menu.
Settings: Through this function, you can set storage position and format for record files.
Video recorder
This function enables yo u to record dynamic pictures. you can press le ft or right direction key to adjust
exposure value; OK key to capture videos clip; left soft key to access Options; right soft key to exit
capture interface.
Video player
Use this function to play video files. By pressing the direction key can you control the playing process of
video player: play/pause（OK key）, fast forward (press and hold right direction key) and rewind (press
-8-
Page 9
and hold left direction key). In video player interface, you can press I/- or O/+ key to tune volume.
FM Radio
You can use the application as a traditional FM radio with automatic tuning and saved channels. In FM
radio interface, you can press left or right direction key to search channels manually, down direction key
to play/pause the playing process of the current channel, up direction key to enable auto search (once this
is enabled, you can pre ss left or right direction key to search channels automatically). You can press I/- or
O/+ key to tune volume.
Image viewer
Pictures taken by camera can be scanned through this function. While browsing an image, you can press
W or E key to zoom in or zoom out the selected image, R key to rotate the selected images.
Melody composer
You can press number key to compose melody. After finis hing composing, you ca n play the melody, set
play speed and select different instruments to play the melody.
3.5 Messages
Write message: Input the content of the short message to be sent.
Inbox: received messages are listed in this item.
Drafts: Draft messages are listed in this item.
Outbox: All the messages that have been sent failed are stored in the Outbox.
Temp l at e s: You can define some templates and store it in this item. Or use the default templates to
create a new message.
SMS settings: This function enables you to set the default features about the SMS.
MMS: Access this function to create or read a new MMS.
Broadcast message: This network service enables you to receive a variety of text messages, such as
broadcast messages about weather forecast or road conditions.
-9-
Page 10
3.6 Applications
Alarm
Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them as
needed. For each alarm clock, the ringing date and the ringing time can be set.
Calendar
Once you enter this menu, there is a monthly-view calendar for you to keep track of important
appointments, etc. Days with events entered will be marked.
Calculator
The calculator can add, subtract, multiply and divide. To use the calculator:
Press the up, down, left and right key to select ＋ , －, ×, ÷, ＝ respectively.
Press right soft key to delete the figure.
Tasks
Choosing date, call or anniversary to create new memo, which you can view, add, edit, delete, delete
overdue task, delete all, jump to date, send route and saved as file. If you have set the alarm for the
memo, alarm will sound when time is up, the content of memo will display at the same time.
E-book reader
E-book reader enables you to read TXT file. Through the USB connecting line putting files to E-book
folder of phone or T-Flash card. After finishing downloading, you can find the folder and open the
E-book to read text directly.
Unit converter
To exchange between Kg and Pound, Km and Mile.
Stopwatch
Stopwatch is simple application for measuring time with possibility to register several results and
suspend/resume measurement.
Currency converter
By entering current exc hange rate, you can do currency conversio n between domestic and foreign.
World clock
Access this menu to view time of main cities in various time zones.
-10-
Page 11
MSN
Access the MSN Mobile site by clicking on the MSN icon. (GPRS Connection charges may apply).
Yahoo
Access the Yahoo Mobile site by clicking on the Yahoo icon. (GPRS Connection charges may apply)
Facebook
Access the Facebook Mobile site by clicking on the Facebook icon. (GPRS Connection charges may
apply)
Twitter
Access the Twitter Mobile site by clicking on the Twitter icon. (GPRS Connection charges may apply)
3.7 File manager
The phone provides a certain space for users to manage files and supports the T-Flash card.
You can use this function to format all the data in the memory. The system will re-create a default folder.
The formatted data cannot be recovered. Therefore, think twice before using the formatting function.
3.8 Manage connections
Bluetooth
With Bluetooth, you can make a wireless connection to other compatible devices, such as mobile phones,
computers, headsets and car kits. You can use the Bluetooth to send images, video clips, music, sound
clips and notes, and transfer files from your compatible pc.
Dual SIM Settings
Dual SIM open: Both SIM cards are standby if you set this option.
Only SIM1 open: Only SIM card 1 can be identified if you set this option.
Only SIM2 open: Only SIM card 2 can be identified if you set this option.
Flight mode: when this function is engaged, it will suspend many of the device's signal transmitting
functions – thereby disabling the device's capacity to place or receive calls or text messages– while
still permitting use of other functions that do not require signal transmission (e.g., games, built-in
camera, MP3 player.)
-11-
Page 12
3.9 Settings
Network Settings
Contact the network op erator to obtain the following network ser vices:
Network selection: Set Network selection mode to Automatic or Manual. Automatic is
recommended.
Preferred networks: Select the preferred networks. By default, the network where the current SIM
card is registered will be displayed.
Security settings
This function provides you with related settings about safety use
SIM lock: To set the SIM lock, you need to input the PIN. You can set the SIM lock only after
inputting the correct PIN. If you set SIM lock to On, you need to input the PIN each time you power
on the mobile phone. In the case you input a wrong PIN for three consecutive times, you need to
input the PIN Unblocking Key (PUK). The PUK is used to unlock and change the locked PIN. To
obtain the PUK, contact the network operator.
Fixed dial: This function requires the SIM card's support and the network operator's support. When
the fixed dial function is activated, you can dial only the numbers in the fixed dial list. To activate the
fixed dial function, you need to input the PIN2.
Barred dial: Activate or deactivate the barring of some or all calls. This function requires the SIM
card's support.
Change password: To change PIN code of SIM card.
Phone lock: The function enables you to lock/unlock the phone. Entering password to switch on or
off the phone. Password is required when the phone is locked. The password is 4 to 8 digits. The
initial password is 1122.
Auto keypad lock: The function enables you to lock/unlock the keypad. Setting the auto locking
time that 5s, 30s, 1min or 5mins is available. The keypad will be auto locked with no operation
during the period.
Change password: to change phone password.
Phone Settings
Time and date: Access this menu to set home city, time/date, display format, etc.
-12-
Page 13
Schedule power on/off: Set the time when the mobile phone will be automatically powered on or off.
Language: Select the display language for the mobile phone.
Writing language: Select an input method as preferred method.
Display: Users can access this item to set wallpaper, screen saver, power on/off display, etc.
UART settings: SIM1 or SIM2 are available for you to choose.
LCD backlight: Access this menu to set LCD backlight brightness and duration.
Restore Factory Settings
Use this function to restore factory settings, the initial password is 1122.
3.10 User profiles
The mobile phone provides multiple user profiles, so that you can customize some settings to adapt to the
specific events and environments.
3.11 Web
STK
STK service is the tool kit of SIM card. This phone supports the service function .The specific items are
depended by SIM card and network. Service menu will be auto added to the phone menu when supported
by network and SIM card.
Internet service
This function enables you to view the internet. Your phone will ask you with existed way. You can star t
to view only by starting corresponding way.
Homepage: indicates the default website of the internet
Bookmarks: used to save most commonly- used websites
Recent Pages: browse the record of the recently browsed web pages
Input Address: input the website to be searched and press finish button to access to the network
directly
Service Inbox: save the short messages sent from the website
-13-
Page 14
position.
Contact your network ser vice provider
Check the SIM card
Clean the SIM card with a clean cloth
-14-
Settings: set up WAP-related service
Note: Consulting the local network operator for related fee and specific setup.
Data account
This function enables you to set GPRS-related parameters.
3.12 Java
Java is a folder where downloaded games and applications are stored.
Java settings: You can set the java audio(1-7 or off), Java backlight(on/off), Java vibration(on/off),
Select SIM(1/2), Java SIM1 Profile, Java SIM2 Profile, Heap size.
Java default security: Set Java default security related parameters as needed.
Games: Two games are embedded in this menu. For specific operation, please refer to ‘help’ option
of each game.
Appendix 1：Troubleshooting
If you find exceptions when operating the mobile phone, restore the factory settings and then refer to the
following table to solve the problem. If the problem persists, contact the distributor or service provider.
Fault Cause Solution
SIM card error
4 Appendix
The SIM card is
damaged.
The SIM card is not in
The metal face of the
SIM card is polluted.
Page 15
Poor received signal
quality
The mobile phone
cannot be powered
on
Calls cannot be
dialed
The mobile phone
cannot connect the
network
Signals are
obstructed. For
instance, radio waves
cannot be effectively
transmitted nearby a
high building or in a
basement.
Line congestions
occur when you use
the mobile phone in
high-traffic hours
The battery energy is
exhausted.
Call barring is
activated
The SIM card is
invalid
The mobile phone is
not in a service area
of the GSM network
The signal is weak
Move to a place where signals can be
effectively transmitted
Avoid using the mobile phone in
high-traffic hours
Charge the battery
Cancel call barring
Contact your network ser vice provider
Move to the network operator's service
Move to a place where the signal quality
-15-
area
is high
Page 16
The battery cannot be
charged
The charging voltage
does not match the
voltage range
indicated on the
charger
An improper charger
is used
Poor contact
Ensure the charging voltage matches the
voltage range indicated on the charger
Use the charger specially designed for
the mobile phone
Ensure the charger plug is in good
contact with the mobile phone
-16-
Loading...
