Miele TWJ660 Installation Guide

Download
Page 1
Operating instructions Heat pump tumble dryer
It is essential to read these operating instructions before installing and using the appliance. This prevents both personal injury and damage to the appliance.
en-AU, NZ M.-Nr. 11 420 951
Page 2
Contents
Care label symbols......................................................................................... 27
Selecting the correct drying level................................................................... 27
Selecting a drying level with a drying programme ......................................... 31
Selecting timed drying programmes and other programmes ........................ 31
2
Page 3
Contents
Removing the protective seal from the fragrance flacon................................ 46
Inserting the fragrance flacon......................................................................... 47
Removing the fragrance flacon ...................................................................... 50
Removing visible fluff ..................................................................................... 50
Cleaning the fluff filters and air flow openings thoroughly ............................. 51
Cleaning the fluff filters with water ................................................................. 52
Removing the plinth filter ............................................................................... 53
Cleaning the plinth filter.................................................................................. 54
Cleaning the plinth filter flap........................................................................... 55
3
Page 4
Contents
Transporting the tumble dryer to its installation site ...................................... 67
Levelling the dryer .......................................................................................... 68
Downtime after installation............................................................................. 68
Ventilation....................................................................................................... 69
Before moving the tumble dryer again (e.g. when moving house)................. 69
Installation conditions requiring a non-return valve ....................................... 70
Arranging the drain hose ................................................................................ 71
Examples........................................................................................................ 71
Changing the hinging over ............................................................................. 73
Refitting .......................................................................................................... 78
4
Page 5
Contents
Display............................................................................................................ 86
Sensors active................................................................................................ 86
Sensors inactive ............................................................................................. 86
Running a RemoteUpdate.............................................................................. 90
5
Page 6

Caring for the environment

Disposal of the packing material

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of your old appliance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.
Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances. You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.
6
Page 7

Warning and Safety instructions

It is essential to read these instructions.
This tumble dryer complies with current local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the tumble dryer, please read these instructions carefully before using it for the first time. They contain important information on its safety, installation, use and maintenance.
Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.

Correct application

This tumble dryer is designed for domestic use and for use in
similar environments by guests in hotel or motel rooms, bed & breakfasts and other typical living quarters. This does not include common/shared facilities or commercial facilities within hotels, motels or bed & breakfasts.
This tumble dryer is not suitable for outdoor use.It must only be used to dry items which have been washed in a
water solution and which are marked on the manufacturer's care label as being suitable for tumble drying. If using dry cleaning kits, do so at your own risk, and follow the instructions provided on the packaging. Any other applications may be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.
7
Page 8
Warning and Safety instructions
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they are supervised whilst using it or have been shown how to use it by a person responsible for their safety.

Safety with children

Young children must not be allowed to use this appliance.Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
Children must not be allowed to clean or maintain the tumble
dryer unsupervised.
Please supervise children in the vicinity of the tumble dryer and do
not let them play with it.
8
Page 9
Warning and Safety instructions

Technical safety

Before setting up the tumble dryer, check it for any externally
visible damage. Do not install or use a damaged tumble dryer.
Before connecting the tumble dryer, ensure that the connection
data on the data plate (fuse rating, voltage and frequency) matches the mains electricity supply. If in any doubt, consult a qualified electrician.
The electrical safety of this tumble dryer can only be guaranteed
when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
Reliable and safe operation of this tumble dryer can only be
assured if it has been connected to the mains electricity supply.
Do not connect the tumble dryer to the mains electricity supply by
an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).
If the connection cable is faulty, it must only be replaced by a
Miele authorised technician to protect the user from danger.
Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the warranty.
Faulty components must only be replaced by genuine Miele spare
parts. Miele can only guarantee the safety of the appliance when Miele replacement parts are used.
9
Page 10
Warning and Safety instructions
In the event of a fault or for cleaning purposes, the tumble dryer is
only completely isolated from the electricity supply when:
– it is switched off at the wall socket and the plug is withdrawn, or
– it is switched off at the mains circuit breaker.
This tumble dryer must not be installed and operated in mobile
installations (e.g. on a ship).
Do not make any alterations to the tumble dryer, unless authorised
to do so by Miele.
Heat pump technology and refrigerant:
The heat pump in this tumble dryer uses a gaseous refrigerant. The refrigerant, which is brought to a higher temperature and liquefied by condensing, is transferred in a closed circuit through the heat exchanger unit where heat exchange takes place with the circulating drying air.
Damage to the tumble dryer by switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer, wait for at least one hour before switching it on.
– The humming noises caused by the heat pump during the drying
process are normal. They do not impair the efficient functioning of the dryer.
– The refrigerant is not flammable or explosive.
10
Page 11
Warning and Safety instructions
Please observe the instructions in “Installation” and “Technical
data”.
The plug and socket must be accessible at all times in order to be
able to disconnect the tumble dryer from the power supply.
Do not block the gap between the bottom of the tumble dryer and
the floor with plinth facings, deep pile carpet etc. This would hinder a sufficient flow of air to the tumble dryer.
Make sure the dryer door can be opened without hindrance after
installation.
11
Page 12
Warning and Safety instructions

Correct use

Warning: Risk of fire / Flammable materials.
To avoid the possible danger of fire, please read these warnings carefully.
A clogged filter is a fire hazard!
The fluff filter must be cleaned after every programme.
The maximum load for this tumble dryer is 9.0 kg (dry weight). See
the “Programme chart” for the maximum recommended loads for individual programmes.
To prevent the risk of fire, do not connect the tumble dryer via a
controllable socket (e.g. a timer or a peak-load switch-off device). If the drying programme is interrupted before the end of the cooling down phase, this could cause the laundry to self-ignite.
12
Page 13
Warning and Safety instructions
To prevent the risk of fire, the following textiles must not be dried
in this tumble dryer:
– Items which have not been washed.
– Items which have been cleaned using chemicals (e.g. professional
dry-cleaning agents).
– Items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other desposits (such as cosmetics, lotions etc). If items have not been thoroughly cleaned, there is a danger that these might ignite when heated, even after they have been removed from the dryer at the end of the programme.
– Items that have been soiled with substances such as cooking oil,
acetone, petrol, kerosene, spot removers, turpentine, waxes, wax removers and other chemicals (e.g. mops and floor cloths).
– Items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
– Fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex foam rubber, shower caps, waterproof textiles, rubberised articles and items of clothing and pillows with foam rubber filling.
– Damaged fabrics which contain padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of it igniting in the dryer.
When washing such heavily soiled items ensure that you use sufficient detergent and select a high temperature. If in doubt, wash the items several times.
13
Page 14
Warning and Safety instructions
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard. If it is unavoidable that fabrics contaminated with vegetable or cooking oil, or hair care products, be placed in a tumble dryer, they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.
Remove all items from pockets (e.g. lighters, matches).Warning: Ensure that you always wait until the end of the
programme before removing the laundry. If the drying programme is stopped prematurely, remove the laundry immediately and hang it up or spread it out to cool it down.
Fabric softener and similar products must be used according to
the instructions on the manufacturer's packaging.
In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when you remove them (this also avoids the danger of the laundry self­igniting). The programme is not finished until the cooling down phase has been completed. As soon as the programme has finished, remove all laundry from the drum.
Do not let anyone sit or lean on the door, as this can cause the
tumble dryer to tip up.
Always close the door after use. This way you will avoid the
danger of:
– children climbing onto or into the dryer or hiding things in it.
– pets or other small animals climbing into it.
14
Page 15
Warning and Safety instructions
The tumble dryer must not be used
– without the fluff filters in place or with damaged fluff filters.
– without the plinth filter in place or with a damaged plinth filter.
This would cause an excessive build-up of fluff which in turn would cause a fault.
The fluff filters must be cleaned after every drying cycle.
Fluff must not be allowed to accumulate around the tumble dryer.
The fluff filters and the plinth filter must be thoroughly dried after
cleaning. Do not replace them if they are damp or wet. Damp or wet filters could cause operational faults.
Do not install the tumble dryer in a room where there is a risk of
frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.
If the water is drained externally through the drain hose instead of
being collected in the condensed water container, make sure the drain hose is securely attached if you hang it in a laundry tub to avoid the hose slipping and the water causing damage.
Condensed water is not drinking water.
It can cause health problems in both people and animals.
Always keep the area around the tumble dryer free of dust and
fluff. Dust drawn into the tumble dryer can cause blockages in the heat exchanger over time.
The tumble dryer must not be hosed down.
15
Page 16
Warning and Safety instructions

Using a fragrance flacon (optional accessory)

Only use genuine Miele original fragrance flacons.The fragrance flacon must be stored in its packaging so please
make sure you retain this.
Caution. The fragrance can run out of the flacon. Make sure that
you always keep the flacon, or the fluff filter with the flacon inserted in it, upright when carrying and do not tip it or place it down on any surface.
Use an absorbent cloth immediately to wipe up any fragrance
which has run out of the flacon onto the floor, the dryer or any dryer components (e.g. the fluff filter).
If fragrance which has run out of a flacon should come in contact
with the skin - wash the skin thoroughly with soap and water; come in contact with the eyes - rinse the eyes with clean water for at least 15minutes; be swallowed - rinse out the mouth thoroughly with clean water. Seek medical advice in the case of contact with the eyes or if fragrance has been swallowed.
If fragrance which has run out of a flacon comes in contact with
clothing, change the clothing immediately. Wash the clothing or any cloths used for mopping up fragrance thoroughly with plenty of water and detergent.
There is the risk of fire or damage to the tumble dryer if the
following instructions are not observed:
– Never refill a flacon with fragrance.
– Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
16
Page 17
Warning and Safety instructions

Accessories

Only use genuine Miele spare parts and accessories with this
appliance. If spare parts or accessories from other manufacturers are used, this will invalidate the warranty, and Miele cannot accept liability.
A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer.
Miele cannot be held liable for damage caused by non­compliance with these Warning and Safety instructions.
17
Page 18

Operating the tumble dryer

Control panel

a
Control panel
The control panel consists of a display and various sensor controls. The individual sensors are explained in the following.
b
Display
The following values are shown in the display and/or selected from it:
1. The programme names, the drying level and the duration of the selected programme.
2. The individual values of the selection lists for settings.
c
Sensor controls 
Values shown in the display can be changed with the  sensors. The sensor increases the value or moves the selection list up; the sensor decreases the value or moves the selection list down.
d
OK sensor
Confirm selected values with the OK sensor.
e
Perfect Dry indicator
With programmes with a selectable drying level, the Perfect Dry system calculates the residual moisture present in the laundry to ensure a precise drying result. The Perfect Dry indicator . . . . . . flashes after the programme has started and goes out when the programme duration appears in the display. . . . lights up when the selected drying level is reached near the end of the programme. . . . remains dark with the following programmes: Woollens handcare,
Silks handcare, Cool air, Warm air, Basket programme.
18
Page 19
Operating the tumble dryer
f
Optical interface
For service technicians.
g
Sensor controls for Extras
You can select extra options to augment the drying programmes. When a drying programme is selected, the sensor controls for the possible Extras light up dimly.
h
sensor You can use the sensor to call up an energy consumption forecast for the selected drying programme. See “Washing environmentally and economically - EcoFeedback” for more information.
i
sensor controls The sensor starts the Delay start function. With Delay start you can delay the start of a programme. The start of the programme can be delayed from 15minutes up to a maximum of 24 hours. This allows you to make use of night-time economy electricity rates, for example. Further information can be found in chapter 4 - “Selecting programme settings”.
j
Start/Add laundry sensor
Touching the Start/Add laundrysensor starts a programme.
The current programme can be interrupted to add laundry. The programme can be started when the sensor is flashing on and off. The sensor lights up constantly once the programme has started.
k
Programme selector
For selecting programmes and for switching off the appliance. The dryer is switched on by selecting a programme, and switched off by turning the programme selector to the position.

Operating the sensor controls

The sensor controls react to fingertip contact. Selection is possible as long as the respective sensor is illuminated.
If a sensor is brightly lit, this means: currently selected
If a sensor is dimly lit, this means: selection possible
19
Page 20
Operating the tumble dryer
OK
Normal 0:55
OK
2:00
OK
Language 
OK
On
OK
:0000
Start in h

Display

The standard display shows the following for a drying programme:
– The selected drying level and the
expected programme duration.
– After the programme has started, the
drying level reached and the remaining programme duration.
The standard display shows only the programme duration for a time­controlled programme:

Examples on how to operate the appliance

Scrolling through a list

The scroll bar in the display indicates
that a list of choices is available.

Identifying the selected option

An activated option in a list will have a tick next to it.

Setting numerical values

The numerical value is highlighted in white. Touching the sensor decreases the value. Touching the sensor increases the value. The OK sensor is used to activate the value shown in the display.

Exiting a submenu

Select Back  to exit the submenu.
Touching the sensor scrolls down the list to the next option and touching the sensor scrolls up the list to the next option. The OK sensor is used to activate the option shown in the display.
20
Page 21

Before using for the first time

Downtime after installation

Damage to the tumble dryer by
switching it on too soon. This can damage the heat pump. After setting up the tumble dryer,
wait for at least one hour before switching it on.

Removing the protective foil and stickers

Remove:
– the protective foil from the door
– any stickers from the front and the lid
Please do not remove any labels (e.g. the data plate) which are visible when you open the door.

Miele@home

Your tumble dryer is equipped with an integrated Wi-Fi module.
In order to use it you need:
– a Wi-Fi network
– the Miele@mobile App
– a Miele user account. The user
account can be created via the Miele@mobile App.
The Miele@mobile App will guide you as you connect your tumble dryer to your home Wi-Fi network.
Once your tumble dryer is connected to your Wi-Fi network, you can use the App, for example, to carry out the following activities:
– Operate the tumble dryer remotely
– Call up information on the operating
status of your appliance
– Call up information on the
programme sequence of your tumble dryer
Connecting your tumble dryer to your Wi-Fi network will increase energy consumption, even when the tumble dryer is switched off.
Before installing the tumble dryer in its final location, ensure the signal strength of your Wi-Fi network is sufficient.
21
Page 22
Before using for the first time
OK
deutsch

Availability of the Wi-Fi connection

The Wi-Fi connection shares a frequency range with other appliances (including microwave ovens and remote control toys). This may result in sporadic or even complete connection failures. Therefore, a constant availability of featured functions cannot be guaranteed.

Miele@home availability

The ability to use the Miele@mobile App depends on the availability of the Miele@home service in your country.
The Miele@home service is not available in every country.
For information about availability, please visit www.miele.com.

Miele@mobile App

You can download the Miele@mobile App from the Apple App Store® or the
Google Play Store™ free of charge (only functional in selected countries).

Switching on the tumble dryer

Turn the programme selector to the
Cottons programme.
The welcome tone will sound and the welcome screen will light up.

Setting the language

You will be asked to select the language you require for the display. It is possible to change the language at any time by turning the programme selector to the Further programmes/ position and then selecting the Settings  submenu.
Touch the  sensor until the
language you want appears in the display.
Confirm your selection of the
language by touching the OK sensor.
22
Page 23
Before using for the first time
OK
Set up now
OK
Connect. successful

Setting up Miele@home

Your tumble dryer is equipped with an integrated Wi-Fi module. The tumble dryer can be connected to the household Wi-Fi network.
You will then be able to operate the tumble dryer via the Miele@mobile App.
The following message appears in the display: Miele@home
Touch the OK sensor.
To set up Miele@home now:
Touch the OK sensor.
To postpone setup until later:
Touch the sensor until Set up later appears in the display and press OK to confirm.

Continuing setup

Confirm with the OK sensor.Refer to chapter 1. “Notes on correct
laundry care”.
You can then select a programme
and load the tumble dryer as described in chapters 2. “Loading the tumble dryer” and 3. “Selecting a programme”.
The procedure for using for the first time is completed when a programme lasting longer than one hour has been carried out in full.
Select the required connection type
from the display.
1. Connect via WPS
2. Connect via App
Before installing the tumble dryer in its final location, ensure the signal strength of your Wi-Fi network is sufficient.
If the connection is successful, the following will appear in the display:
Confirm with the OK sensor.
23
Page 24

Energy saving tips

Energy saving tips

This dryer with heat-pump technology is designed for energy-saving drying cycles. You can save even more energy with the following measures, because the drying time is not extended unnecessarily.
– Make sure your laundry is spun at the
maximum spin speed before drying. The higher the spin speed, the greater the savings that can be made in energy and time during drying, e.g. approx. 20% energy can be saved if spinning laundry at 1600rpm instead of 1000rpm.
– Use the maximum load quantity for
the drying programme being used. This will mean that the energy consumption for the amount of laundry is the most economical.
– Make sure that the room temperature
is not too high. If there are other heat producing appliances in the room in which the dryer is located, make sure the room is well ventilated and switch the other appliances off, if possible.
– If possible, make use of time-
variable, low-cost electricity tariffs. Ask your energy supplier for information. Your tumble dryer's Delay start function will be useful as you can select when during the next 24hours you want drying to start automatically.
– Clean the fluff filters in the door
opening after every drying cycle.
Please refer to “Cleaning and care” for information on cleaning the fluff filters and the plinth filter.
24
Page 25
Energy saving tips
OK
      
OK
Energy
< 0.1 kWh

EcoFeedback

You can view information about the energy consumption of your tumble dryer with the sensor.
The following information will appear in the display:
– An estimate of the energy
consumption before the programme ends.
– The actual energy consumption
during the programme or at the end of the programme.

1. Estimate

After selecting a drying programme,
touch the sensor.
The estimated energy consumption will be displayed as a bar chart.
The more bars () are visible, the higher the energy consumption.
The estimate will vary depending on the drying programme, the drying level and any Extras selected.
Touch the OK sensor or wait until the
display automatically returns to the standard display.

2. Actual consumption

You can view the actual energy consumption during the programme or at the end of the programme.
Touch the sensor.
The consumption will alter as the programme progresses.
It is also possible to view the level of soiling in the filters as a percentage at the end of the programme before opening the door.
Touch the sensor to switch to the
Filter display.
0% = lightly soiled, 50% = moderately
soiled, 100% = heavily soiled. With increased soiling, the programme duration is extended, which increases energy consumption.
If the door is opened or the appliance has switched off automatically at the end of the programme, the data will revert to the estimated consumption.
Useful tip: You can view the consumption data for the last drying programme in Settings under
Consumption.
25
Page 26

1. Notes on correct laundry care

Points to note regarding washed laundry

– When washing very heavily soiled
items, ensure that you use sufficient detergent and select a high temperature. If in doubt, wash the items several times.
– Do not put soaking wet items into the
tumble dryer. Make sure your laundry is thoroughly spun before drying. The higher the spin speed, the greater the savings that can be made in energy and time during drying.
– New dark coloured garments should
be washed and dried separately from light coloured garments to avoid the risk of colours running and discolouring other garments or even plastic components in the dryer. Dark coloured fibres can also settle on light coloured garments and vice versa.
– Starched laundry can be dried in the
tumble dryer. To achieve the usual finish, double the amount of starch should be used.
Risk of fire due to incorrect use
and operation. The laundry can burn and destroy
the dryer and the surroundings. See “Warning and Safety
instructions” for further information.
– Sort the laundry according to the type
of fibre and weave, size, garment care label symbol and the drying level required.
– Check seams and stitching to ensure
that padding and linings are intact. This way you will avoid the danger of fillings coming out. These could catch fire when being dried.
– Untangle the laundry.
– Tie together textile belts and apron
ties.
– Fasten duvet covers and pillow cases
to prevent small items from being rolled up inside them.
– Fasten hooks and eyes.
– Leave jackets open and undo any
long zips so that textiles dry evenly.

Preparing the laundry before drying

Damage due to foreign objects
which were not removed from the laundry.
Foreign objects can melt, burn, or explode.
Ensure that any foreign objects, e.g. detergent dispensing balls, lighters, etc. have been removed from the laundry.
26
– Sew in or remove loosened
underwiring from bras.
– Reduce the size of the load. Minimum
iron fabric tends to crease more the larger the load. This is particularly the case for garments made from very fine weave fabric, such as shirts or blouses.
Page 27
1. Notes on correct laundry care

Drying

Useful tip: See the “Programme chart”.
It lists all programmes and their maximum load.
– Always observe the maximum
recommended load for each programme. This will mean that the energy consumption for the amount of laundry is the most economical.
– Down-filled garments have linings
which have a tendency to shrink, depending on the quality of the item. Only use the Pre-ironing programme for these textiles.
– Pure linen should only be tumble
dried if it is specified as suitable on the care label. The surface of the fabric may otherwise become rough. Only use the Pre-ironing programme for these textiles.
– Woollens and wool blends are
susceptible to becoming matted or shrinking. Only use the Woollens handcare programme for these textiles.
– Loopknit garments (e.g. T-Shirts,
underwear) have a tendency to shrink after the first wash. Do not overdry these fabrics to prevent further shrinking. When buying loopknit garments, it is advisable to take their shrinkage potential into account.

Care label symbols

Drying
Normal/higher temperature
Reduced temperature*
* Select Gentle tumble
Do not tumble dry
Ironing
Very hot
Warm

Selecting the correct drying level

– Extra dry for hard wearing and thicker
fabrics.
– Normal plus if you want to fold the
laundry after drying and put it away.
– Normal for textiles that can shrink,
such as light cotton or jersey textiles.
– Slightly dry for particularly delicate
garments that you wish to line dry afterwards.
– Hand iron/ or Machine iron if you
want to iron the laundry after drying.
Hot
Do not iron
– With fabrics that are particularly heat-
sensitive or susceptible to creasing, reduce the drying load and select Gentle tumble.
27
Page 28

2. Selecting a programme

Switching on the tumble dryer

The dryer is switched on by selecting a programme, and switched off by turning the programme selector to the position.
Turn the programme selector to a
programme.
When a programme is selected, the programme name and the maximum load (weight of dry laundry) possible for the programme will appear in the display for a few seconds.

Selecting a programme

There are three possible ways to select a programme:

1. Selecting standard programmes with the programme selector

Turn the programme selector to the
required programme.
The selected programme will be shown in the display. This will then be replaced by the standard display.
28
Page 29
2. Selecting a programme
OK
Warm air
2. Selecting programmes via the “Further programmes/” setting and the display:
Turn the programme selector.
You can select the programme you want via the display.
Touch the  sensors until the
programme you want appears in the display.
3. Selecting programmes via the MobileStartprogramme selector position and the Miele@mobile App
Useful tip: In order to use
MobileStart, the tumble dryer must be logged on to the Wi-Fi network and
Remote control must be switched on.
Turn the programme selector.Follow the instructions in the display.Touch the Start/Add laundrysensor.
Confirm the programme with the OK
sensor.
The selected programme will be shown in the display. This will then be replaced by the standard display.
The dryer can now be operated via a mobile device together with the Miele@mobile App.
29
Page 30

3. Loading the tumble dryer

Loading the laundry

Textiles may be damaged. Before loading the dryer, read “1.
Notes on correct laundry care”.
Check that the drum is empty.
Remove any items that might be blocking the drum.
Unfold the laundry and load loosely
into the drum.

Two positions for inserting a fragrance flacon

See the section “Fragrance flacon” for information on how to use fragrance flacons.
If you are not using a fragrance flacon: push the tab down completely (see arrow) so that the socket is closed. Otherwise, lint will accumulate here.

Closing the door

Do not overload the drum. Overloading can cause unnecessary wear and tear to the laundry and give a disappointing drying result. It can also cause more creasing.
When closing the door, make sure that laundry does not get trapped in the door opening.
This can result in damage to the laundry.
30
Shut the door with a gentle swing.
Page 31

4. Selecting programme settings

OK
Normal 0:55
OK
2:00

Programme settings

Selecting a drying level with a drying programme

Cottons, Minimum iron, Delicates, Pre­ironing, Shirts, Express, Denim, Outerwear, Sportswear, Bed linen, Automatic plus
The preset drying level for the programme can be changed if required.
Touch the or sensors to select a
drying level.
Any drying level can be selected for the Cottons, Express, and Bed linen programmes. A limited range is available with the other programmes.

Selecting timed drying programmes and other programmes

Warm air, Cool air, Basket programme
You can change the duration in 10 minute increments.
Cool air: 20 min.–1:00 h. Warm air: 20 min.–2:00 h. Basket programme: 40 min.–2:30 h.
Touch the or sensor controls to
select a duration.
Cottons, Woollens handcare, Pillows, Proofing, Silks handcare
The drying level is preset by the dryer and cannot be altered.
31
Page 32
4. Selecting programme settings
Anti-crease
Gentle tumble
Buzzer
Freshen up
OK
:0000
Start in h
OK
4506:
Start in h

Selecting Extras

Touch a sensor control to select the
desired Extra.
The relevant sensor control will light up brightly.
Freshen up and Gentle tumble cannot be combined, see “Extras” for further information.

Delay start/SmartStart

Delay start

With Delay start you can delay the start of a programme.
This function is active when the
SmartGrid is switched off.
The hours can be set from 00 to 24. The minutes can be set in 15 minute increments from 00 to 45.

Setting the Delay start time

Touch the sensor.
The following will appear in the display:
Set the hours with the  sensors.
Confirm with the OK sensor.
The display will change:
Set the minutes with the  sensors.
Confirm with the OK sensor.
Useful tip: The values will count upwards and downwards automatically if you keep your finger on the or sensor control.

Altering Delay start

The selected Delay start time can be changed before the programme starts.
Touch the sensor.Change the specified time and
confirm with the OK sensor.
32
Page 33
4. Selecting programme settings

Cancelling Delay start

The selected Delay start time can be cancelled before the programme starts.
Touch the sensor.
The selected Delay start time will appear in the display.
Set a time value of 00:00 h with the
 sensors. Confirm with the OK sensor.
The selected Delay start time has been cancelled.
After the programme has started, the selected Delay start time can only be changed or cancelled by interrupting the programme.

Adding laundry during the Delay start period

Follow the instructions in the sections
“Changing the programme sequence” and “Adding or removing laundry”.

SmartStart

The SmartStart function (only functional in selected countries) lets you define a time period during which your tumble dryer will start automatically. The machine will start on receipt of a signal, e.g. from your energy supplier, that indicates that the electricity rate is particularly economical.
This function is active when the
SmartGrid setting is switched on.
The timeframe can be defined between 15 minutes and 24 hours. During this period, the tumble dryer waits for the signal from the energy supplier. If no signal is sent during the defined period, the tumble dryer starts the drying programme.
33
Page 34
4. Selecting programme settings
OK
SmartStart

Setting the timeframe

If you have activated the SmartGrid function in Settings, SmartStart in instead of Start in will appear in the display when you touch the sensor (see “Settings – SmartGrid”).
The procedure for setting this is the same as for setting the time for Delay start.
Use the  sensors to enter the
hours and confirm your entry with the OK sensor.
The hours will be saved and the minute number block will be highlighted.
Use the  sensors to enter the
minutes and confirm your entry with the OK sensor.
Press the Start/Add laundry sensor to
start the drying programme with SmartStart.
The following will appear in the display:
34
Page 35

5. Starting the programme

Starting a programme

Touch the flashing Start/Add laundry
sensor.
The Start/Add laundry sensor lights up and Drying appears in the display.
Notes
If a Delay start time has been selected, it will count down in the time display. At the end of the Delay start time or immediately after the programme has started (if no Delay start time has been selected), the programme duration will appear in the time display.
With a longer Delay start time, the drum will rotate occasionally to untangle the laundry. This is not a fault.
– The Perfect Dry indicator will only
flash/light up with programmes with selectable drying levels (see also “Operating the tumble dryer”).
– The dryer measures the residual
moisture of the laundry and calculates the required programme duration. If a small load or dry laundry is placed in the dryer, it is dried/aired for a preset duration. In this case the Perfect Dry indicator does not light up at the end of the programme.
The drying level reached for the selected drying programme will light up in the display. You can view the selected drying level or time again:
Touch the or sensor.
– Before the programme finishes, the
laundry is cooled.
Energy savings
After 10minutes, the indicators dim. The Start/Add laundry sensor flashes slowly.
Touch the Start/Add laundry sensor
to switch the indicators on again (this does not have any effect on a running programme).
The drum lighting switches off once the programme has started.

Adding laundry

You can add laundry after the programme has started.
Follow the instructions in the sections
“Changing the programme sequence” and “Adding or removing laundry”.
Laundry items and fabrics can wear out unnecessarily.
Avoid over-drying laundry and garments.
35
Page 36

6. End of programme - unloading the drum

At the end of the programme

The programme is finished when Finish/
Anti-crease or Finished appears in the
display. The Start/Add laundry sensor light goes out.
The dryer will switch off automatically 15minutes after the end of the Anti­crease phase (or 15minutes after the programme with programmes without an Anti-crease phase).

Removing the laundry

Only open the door when the drying process has finished. Otherwise, the laundry will not be properly dried and cooled down.
Pull the door open at the side with
the orange marker.
Remove the fluff from the 2 fluff filters
in the door opening (see “Cleaning and care - Fluff filters”).
Shut the door with a gentle swing.Empty the condensed water
container.
We recommend that you drain the condensed water externally through the drain hose when drying a full load using the Cottons and Cottons programmes. This will avoid having to empty the condensed water container during the programme.

Drum lighting

The lighting helps to ensure that all items are removed from the drum. The drum lighting will go out automatically to save energy.
Remove the laundry.
Always remove all items from the drum.
Items left in the dryer could be damaged by overdrying when the dryer is used the next time.
Turn the programme selector to the
position.
36
Page 37

Programme chart

All weights marked with * are based on the weight of dry laundry.

Programmes on the control panel

Cottons Max. load 9.0 kg*
Items Cotton items such as those described under Cottons Normal with
normal residual moisture.
Notes Items are dried to a Normal level only.
Cottons Max. load 9.0 kg*
Extra dry, Normal plus, Normal, Slightly dry
Items Single and multi-layered cotton fabrics. For example: towelling,
jerseywear, T-shirts, underwear, baby clothes, workwear, covers, jackets, bathrobes, and flannelette bed linen.
Notes – Select Extra dry for multi-layered and very thick fabrics.
– Do not use Extra dry for jersey fabric (e.g. T-shirts, underwear), as
they have a tendency to shrink.
Set programme “Cottons Extra dry” for test in accordance to AS/NZS 2442.1 & AS/NZS 2442.2
Hand iron , Hand iron , Machine iron
Items Cotton or linen fabric requiring further processing. For example: ta-
ble linen, bed linen, or starched laundry.
Notes Roll up laundry that you want to machine iron to prevent it from
drying out, until you are ready for ironing.
Minimum iron Max. load 4.0 kg*
Normal plus, Normal, Slightly dry, Hand iron, Hand iron
Items Minimum iron items made of cotton, synthetic, or mixed fibre. For
example: tops, dresses, shirts, skirts, trousers, workwear, aprons, pullovers, leggings, and table linen.
37
Page 38
Programme chart
Delicates Max. load 2.5 kg*
Normal plus, Normal, Slightly dry, Hand iron, Hand iron
Items Delicate items with the symbol on the care label made of
synthetic fibre, mixed fibre, rayon, and easy care cotton. For example: shirts, blouses, lingerie, and appliquéd garments.
Notes The load should be reduced further for a particularly crease-free
drying result.
Woollens handcare Max. load2.0kg*
Items Woollen garments and fabric containing wool blends, e.g. pullovers,
cardigans, stockings.
Notes – Wool and wool blend items are only fluffed up; they are not dried
completely.
– Remove garments as soon as the programme has finished.
Shirts Max. load 2.0 kg*
Normal plus, Normal, Slightly dry, Hand iron, Hand iron
Items Shirts and blouses.
MobileStart
The Miele@mobile App is used for selecting programmes and operating the machine.
Denim Max. load 3.0 kg*
Normal plus, Normal, Slightly dry, Hand iron, Hand iron
Items Denim garments, e.g. jackets, jeans, shirts, and skirts.
Bed linen Max. load 4.0 kg*
Extra dry, Normal plus, Normal, Slightly dry, Hand iron , Hand iron , Machine iron
Items Bed linen, pillow cases.
38
Page 39
Programme chart
Proofing Max. load 2.5 kg*
Items Microfibre fabric, skiwear, outerwear, fine close weave cotton
garments (poplin), or tablecloths which are suitable for drying in a tumble dryer and have been treated to provide a water and dirt­resistant finish.
Notes – Items are dried to a Normal level only.
– This programme includes a proofing fixing phase.
– Only use proofing agents which are stated by the manufacturer as
being “suitable for use on membrane textiles”. These agents contain fluorochemical compounds.
– Do not dry items which have been treated with proofing agents
containing paraffin. Fire hazard!
Pre-ironing Max. load 1.0 kg*
Normal, Hand iron
Items – Cotton and linen fabrics.
– Minimum iron items made of cotton, synthetic or mixed fibre. For
example: cotton trousers, jackets, anoraks, and shirts.
Notes – This programme smoothes out creasing caused during the spin
cycle in the washing machine.
– This programme is also suitable for dry fabrics.
– Please remove the garments as soon as the programme has
finished.
39
Page 40
Programme chart

Further programmes

Warm air Max. load 9.0 kg*
Items – For completely drying multi-layered fabrics whose layers have
different drying characteristics, e.g. jackets, pillows, sleeping bags and other voluminous items.
– For drying individual items, e.g. bath towels, bathing suits, tea
towels and small loads.
Notes Do not select the longest drying time to start with. Check the items
as you are drying them to find the optimum time.
Outerwear Max. load 2.5 kg*
Normal, Hand iron
Items Outerwear which is suitable for drying in a tumble dryer.
Express Max. load 4.0 kg*
Extra dry, Normal plus, Normal, Slightly dry, Hand iron , Hand iron , Machine iron
Items Hard-wearing garments suitable for the Cottons programme.
Notes The programme duration is shorter.
Sportswear Max. load 3.0 kg*
Normal plus, Normal, Slightly dry, Hand iron, Hand iron
Items Sportswear which is suitable for drying in a tumble dryer.
Automatic plus Max. load5.0kg*
Normal plus, Normal, Slightly dry, Hand iron, Hand iron 
Items Mixed loads of garments suitable for the Cottons and Minimum iron
programmes.
40
Page 41
Programme chart
Pillows 1-2 pillows 40x80cm
1 pillow 80 x 80 cm
Items Pillows suitable for drying in a tumble dryer, with feather, down, or
synthetic fillings.
Notes Items are dried to a Normal level only.
Notes – Feathers are a natural product and may develop odours when
exposed to heat. Allow bedding to air outside the dryer after drying.
– Pillows can still feel damp after being dried. You can use this
programme several times until the pillow feels dry.
Cool air Max. load 9.0 kg*
Items Any item which only needs airing.
Basket programme Max. load for basket 3.5 kg
Notes – This programme must only be used with the Miele drying basket
TRK 555 (optional accessory) fitted.
– It is essential to observe the operating instructions for the drying
basket.
– Make sure that the load (bag, boots ...) does not touch the drum:
The dryer drum rotates, which can damage the basket and the drum if loaded incorrectly.
Fabric type/Items
Silks handcare Max. load1.0kg*
Items Silk garments which are suitable for drying in a tumble dryer, e.g.
Notes – This programme reduces creasing. Items are not dried completely.
Use this programme to dry or air items which are suitable for drying in a tumble dryer but which are not suitable for drying using mechanical action.
blouses and shirts.
– Remove garments as soon as the programme has finished.
41
Page 42

Extras

Anti-crease

Gentle tumble

Buzzer

Freshen up

The drying programmes can be supplemented with various Extras. However, Freshen up and Gentle tumble cannot be combined.
Gentle tumble
Delicate fabric (with the symbol on
the care label, e.g. acrylic garments) is dried at a lower temperature. The programme duration is longer.
Freshen up
You can use the Freshen up Extra to help remove or reduce odours in clean (dry or damp) clothing.
The drying air is heated for a specific length of time. After this, the garments are aired to the Normal drying level without any more heat being added. The drying level cannot be altered.
Anti-crease
After the programme has finished, the drum will continue to rotate at intervals. This helps prevent creasing if the laundry is not removed immediately after the end of the programme.
Buzzer
A buzzer sounds to let you know the programme has finished. The buzzer will always sound when there is a fault, even if it has been switched off.
This Extra will be more effective if you dampen the garments a little beforehand, use a fragrance flacon and reduce the load. Please note that odours will not be removed as effectively from parts of garments made of synthetic fibres.
42
Page 43

Drying programme overview - Extras

Extras
Freshen up
1
Gentle tumble
1
Anti-crease Buzzer
Cottons – – X X
Cottons X X X X
Minimum iron X X X X
Delicates – X X
Woollens
– – X X
handcare
Shirts X X X X
Denim X X X X
Bed linen – – X X
Proofing – – X X
Pre-ironing – X X
Warm air – X X X
Outerwear – X X
Express – – X X
Sportswear – X X X
Automatic
– X X X
plus
Standard
– – X X
pillows
Cool air – – X X
Basket
– – – X
programme
Silks handcare – – X X
1
= these Extras cannot be combined
X = can be selected – = cannot be selected
= automatically selected
43
Page 44

Changing the programme sequence

Changing a programme after it has started

It is no longer possible to change the selected programme. This prevents the appliance being operated unintentionally, e.g. by children.
If you adjust the programme selector, Cannot be changed will light up in the display. This indicator goes out when you select the original programme.

Cancelling the current programme

Turn the programme selector to the
position.
The programme is cancelled.
You can now select a new programme.

Adding or removing laundry

You have forgotten an item of laundry, but the programme has already started.
Touch the Start/Add laundrysensor.
The following appears in the display:
Door can be opened. The Start/Add laundry sensor flashes slowly.
Risk of burning when touching
hot laundry in the drum. You could burn yourself.
Open the door.Add or remove laundry.
You can also change the programme selection.
Close the door.Touch the Start/Add laundrysensor.
The programme will continue.

Exceptions to adding laundry

44
In some cases, e.g. during the cooling phase or in the Proofing programme, you cannot add laundry.
In exceptional cases, the door can be opened while the programme is running.
Page 45

Condensed water container

Emptying the condensed water container

The condensed water is collected in the condensed water container. Empty the condensed water container after every drying programme.
When the maximum level in the condensed water container is reached, the following message will light up in the display: Empty container. See  To delete the message:
Open and close the door (with the
dryer switched on).
Damage to the door and the
fascia panel when removing the condensed water container*.
The door and the fascia panel can get damaged.
Always close the door completely.
*This does not apply to right-hand hinged models.
To prevent water running out, keep it
in a horizontal position when carrying it. Hold the condensed water container by the front panel and at the back.
Empty the container.Replace the container in the dryer.
Condensed water can cause health problems in people and animals.
Do not drink condensed water.
Condensed water can be put to household use (e.g. used in a steam iron or humidifier). To ensure that any residual particles of fluff in the condensed water are removed before use, pass it through a fine sieve or paper filter first.
Pull out the condensed water
container.
45
Page 46

Fragrance flacon

FragranceDos – 2 positions for inserting a fragrance flacon

Fragrance flacons (optional accessories) can be used to give your laundry a pleasant scent.
This dryer has 2 places for inserting fragrance flacons. This gives you a choice of how to use them.
– Use both positions if you wish to
change from one scent to another. You can close the fragrance flacon that you are not using.
– Both positions can be used for a
more intense scent of the same fragrance.
– Use one socket only if you only want
to use the one fragrance.
Risk of fire and harm to health if
fragrance flacons are used incorrectly.
Leaked fragrance can be harmful to your health if it comes into contact with your body. Leaked fragrance can cause a fire.
Before using a fragrance flacon, please read the section "Using a fragrance flacon (optional accessory)” in the Warning and Safety instructions.

Using a fragrance flacon

Removing the protective seal from the fragrance flacon

Only hold the fragrance flacon as illustrated. Do not hold it at an angle or tip it as the fragrance will leak out.
Hold the fragrance flacon securely so
that you do not open it by mistake.
Pull off the protective seal.
46
Page 47

Inserting the fragrance flacon

Open the door of the tumble dryer.
The fragrance flacon is inserted in the upper fluff filter. It can be inserted on the left or the right-hand side beside the grip.
Fragrance flacon
Insert the fragrance flacon in the
opening as far as it will go.
Open the cover using the tab until the
tab is right at the top as shown.
To prevent the accumulation of fluff, the cover of the unused socket must remain closed.
Push the tab of the cover to the bottom (see arrow), until you hear it click into position.
Markers and must line up with
each other.
47
Page 48
Fragrance flacon
Turn the outer ring clockwise a
little.
The fragrance flacon can slip out.
Turn the outer ring so that markers and line up.

Opening the fragrance flacon

Before drying, you can select the intensity of the fragrance.
The fragrance will also be noticeable in the room air during the process. The Cool Air programme will not generally apply fragrance.

Closing the fragrance flacon

After drying, the fragrance flacon should be closed to prevent the fragrance from escaping needlessly.
Turn the outer ring anti-clockwise
until marker b is in position _.
Turn the outer ring clockwise: the
further you open the fragrance flacon, the more intense the fragrance.
Damp laundry and longer drying durations with sufficient heat transfer are needed for the fragrance to be released into the laundry effectively.
48
If you wish to dry laundry without adding fragrance: remove the fragrance flacon and store it in its original packaging.
When the intensity of the fragrance is no longer sufficient, replace the fragrance flacon with a new one.
Page 49

Removing/replacing the fragrance flacon

Turn the outer ring anti-clockwise
until markers a and b line up.
Fragrance flacon
Fragrance can leak. Do not lay the fragrance flacon
down.
Replace the fragrance flacon with a
new one.
When not in use, you can store the fragrance flacon in its original packaging.
Fragrance flacons are available to order from Miele or online at www.miele-shop.com.
– If you are keeping the fragrance
flacon in its original packaging, do not store the packaging upright on its edge or upside down. Otherwise, the fragrance will leak out.
– Always store in a cool, dry place
away from direct sunlight.
– When purchasing new fragrance
flacons, only remove the protective seal just before use.
49
Page 50

Cleaning and care

Fluff filters

This tumble dryer has 2 fluff filters in the door opening: the upper and lower fluff filters trap fluff produced during the drying process.
Clean the fluff filters after each drying programme. This prevents an extension of the programme duration.
Also clean the fluff filters when Clean
the plinth filter. See  lights up.
To delete the message:
Confirm with OK.

Removing the fragrance flacon

The intensity of the fragrance will be diminished if the fluff filters and the plinth filter are not cleaned.
Remove the fragrance flacon. See
“Fragrance flacon - Removing/ replacing the fragrance flacon”.

Removing visible fluff

Useful tip: You can use a vacuum
cleaner so that you can remove the fluff without touching it.
Open the door.
Pull the upper fluff filter forwards to
remove it.
50
Remove the fluff (see arrows).
Page 51
Cleaning and care
Remove the fluff from the filter
surface of all the fluff filters and the perforated laundry deflector (see arrows).
Push the upper fluff filter back until it
clicks into position.
Close the door.

Cleaning the fluff filters and air flow openings thoroughly

If the drying duration has become longer or the surface of the filters is visibly compacted with fluff, you should clean them thoroughly.
Remove the fragrance flacon. See
“Fragrance flacon-Removing/ replacing the fragrance flacon”.
Pull the upper fluff filter forwards to
remove it.
Turn the yellow dial on the lower fluff
filter in the direction of the arrow (until you hear it click).
Hold the dial and pull the fluff filter
forwards to remove it.
51
Page 52
Cleaning and care
Use a vacuum cleaner with a long
crevice nozzle attached to remove any visible fluff from the upper air flow openings.
Finally, clean the fluff filters with water.
Cleaning the fluff filters with water
Wipe the smooth plastic surfaces of
the fluff filters with a damp cloth to clean them.
Rinse the filters with warm running
water.
Shake the fluff filters thoroughly and
then dry them carefully.
Ensure the filters are dry before replacing them. Wet filters could cause operational faults.
Push the lower fluff filter in
completely and lock it with the yellow dial.
Push the upper fluff filter in
completely.
Close the door.
52
Page 53

Cleaning the plinth filter

Clean the plinth filter when Clean the
plinth filter. See  lights up or when
the programme duration has been extended.
To delete the message:
Confirm with OK.

Removing the plinth filter

Cleaning and care
Pull the plinth filter out by the handle.
When the plinth filter is pulled out, the right guide pin will slide out. The guide pin prevents the flap from being closed without the plinth filter in place.
Press the round, indented area on the
heat exchanger access panel to open it.
The panel will spring open.
53
Page 54
Cleaning and care

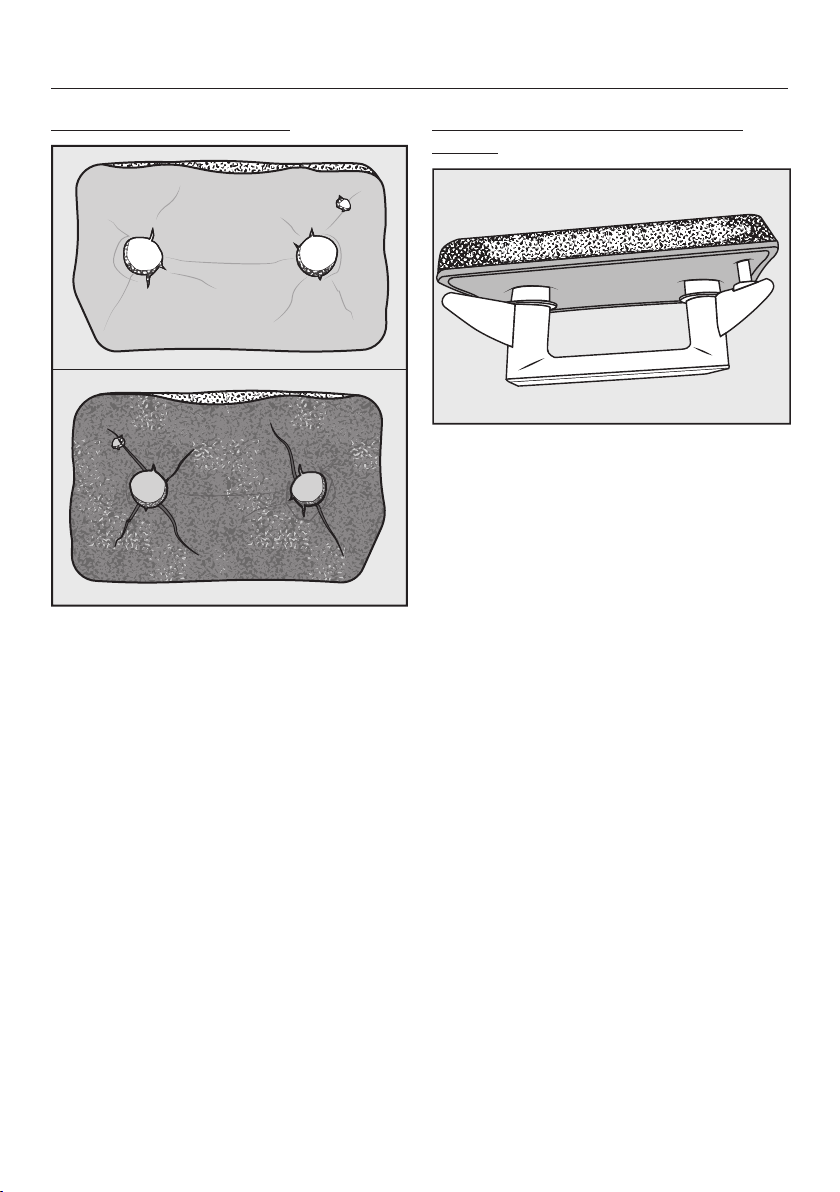

Cleaning the plinth filter

Pull the handle out of the plinth filter.Clean the filter thoroughly under
running water.
Squeeze the plinth filter very carefully
several times as you rinse it.
Rinse the plinth filter until all visible
residues have been removed.
Use a damp cloth to remove any fluff
from the handle.
Fit the plinth filter back on the handle
the right way round.
Damage caused by a damaged
or worn filter. If the plinth filter is not functioning
properly, the heat exchanger will be obstructed. A fault may occur.
Check the plinth filter in accordance with the descriptions in "Problem solving guide - Replacing the plinth filter". If necessary, replace the plinth filter with a new one.
54
Push the plinth filter in completely.
Insert the right guide pin at the same time.
Page 55
Cleaning and care

Cleaning the plinth filter flap

Use a damp cloth to remove any fluff.
Make sure that you do not damage the rubber seal when doing this.
Close the heat exchanger access
panel.
Damage or ineffective drying
when drying without a plinth filter or with the heat exchanger flap open.
An excessive accumulation of fluff can damage the dryer in the long term. If the system is not leak-proof, this can lead to ineffective drying.
Only operate the dryer with the plinth filter fitted correctly and the heat exchanger access panel closed.

Cleaning the dryer

Disconnect the dryer from the electricity supply.
Damage due to the use of
unsuitable care products. Unsuitable care products could
damage plastic surfaces and other parts.
Do not use solvents, abrasive cleaners, glass cleaners or all­purpose cleaners.
Clean the dryer and the seal on the
inside of the door only with a slightly damp, soft cloth and mild detergent or soapy water.
Dry all parts with a soft cloth.
55
Page 56

Problem solving guide

With the help of the following guide, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be remedied without contacting Miele. This will save you time and money because you won't need a service call.
Please note that a call-out charge will be applied to unnecessary service visits where the problem could have been rectified as described in these operating instructions.
Some of the messages in the display are more than one line long. Touch the or sensor to read them in full.

The display indicates the following messages or faults

Message Possible cause and remedy
000 lights up after
switching on.
Finish/Cooling down The laundry is cooled down at the end of the
Clean the plinth filter.
See  lights up
at the end of a programme.
Access via a code has been activated.
Enter the code and confirm the entry. Deactivate
the code if you do not wish this message to appear in the display the next time the machine is switched on (see “Settings - Code”).
programme.
Either remove the laundry and spread it out to cool
down or leave it in the tumble dryer to cool down during the cooling phase.
The tumble dryer is not working correctly or economically. Possible causes could be clogging caused by fluff or detergent residues.
Please see "Cleaning and care" for notes on
cleaning.
Clean the fluff filters.Also check the plinth filter and clean it if
necessary.
To switch off the message: press OK. You can influence when the Clean the plinth filter. See
message lights up.
Follow the instructions in "Settings - Airways
indicator".
56
Page 57
Problem solving guide
Message Possible cause and remedy
Clean the plinth filter.
See lights up
after a programme has been cancelled.
Clean the plinth filter.
See  still lights
up after a programme cancellation despite thorough cleaning.
Empty container.
See  lights up
after a programme is cancelled.
The system is clogged by fluff or detergent residues.
To switch off the message: press OK.Clean the fluff filters and the plinth filter.
Please see "Cleaning and care" for notes on cleaning.
Check that the fluff filters and the plinth filter are
not damaged or worn.
If all fluff filters are damaged, deformed or cannot be cleaned anymore, they must be replaced. For information on when to replace a plinth filter that is not functioning properly, refer to "Problem solving guide - Replacing the plinth filter".
The plinth filter looks clean after thorough cleaning. However, the programme is terminated again and the error message appears again. There are probably still deeper residues which could not be removed.
To switch off the message: press OK.Check all of the possible causes described below.
The heat exchanger is clogged.
Check the heat exchanger. Follow the instructions
in "Problem solving guide - Checking the heat exchanger".
The plinth filter is clogged on a deeper level.
Check the plinth filter. Follow the instructions in
"Problem solving guide - Replacing the plinth filter".
If the plinth filter is not deformed or defective, you
can regenerate it in the washing machine. Follow the instructions in "Problem solving guide ­Regenerating the plinth filter".
The condensed water container is full or there is a kink in the drain hose.
Empty the condensed water container.Check the drain hose.
To switch off the fault message:
Open and close the door with the dryer switched
on or switch the dryer off and then back on.
57
Page 58
Problem solving guide
Message Possible cause and remedy
Blockage detected.
See  lights up
after a programme is cancelled.
 Service Fault F
XXX lights up
after a programme is cancelled.
The laundry is unevenly distributed or has rolled up.
Open the door and loosen the laundry. Remove a
few items, if necessary.
Switch the dryer off and then on again.Start a programme.
There is no obvious cause.
Switch the dryer off and then on again.Start a programme.
If the programme terminates again with the same error message, then there is a fault. Contact Miele.
58
Page 59
Problem solving guide

Unsatisfactory drying results

Problem Possible cause and remedy
The laundry is not sufficiently dry.
Laundry or feather filled pillows smell after drying.
Items made of synthetic fibres are charged with static electricity after drying.
There is a build-up of fluff.
The load consisted of different types of fabric.
Finish drying using the Warm air programme.Select a more suitable programme next time.
Tip: You can alter the residual moisture level for some programmes. See “Settings - Drying levels”.
The laundry was washed with insufficient detergent. Feathers are a natural product and this is quite normal.
Laundry: use sufficient detergent next time.Pillows: take out of the tumble dryer and aerate.Use a fragrance flacon (available as an optional
accessory).
Synthetic fibres tend to attract static charge.
Static charge can be reduced by adding a fabric
softener to the final rinse in the washing programme.
Fluff is principally the result of friction when garments are being worn and to some extent when they are being washed. Machine drying hardly causes any fluff to form. Fluff is collected by the fluff filters and the plinth filter and can be removed easily.
See “Cleaning and care”.
59
Page 60
Problem solving guide

The drying process takes a long time.

Problem Possible cause and remedy
The drying process goes on for too long or even switches off.*
The room in which the tumble dryer is located is too warm.
Ventilate the room thoroughly.
Detergent residues, hair and fine fluff can clog the filters.
Clean the fluff filters and the plinth filter.Remove visible fluff from the heat exchanger.
The laundry is unevenly distributed or has rolled up. The tumble dryer has been overloaded.
Untangle the laundry and remove a few items, if
necessary.
Start a programme.
The cool air intake (bottom right grille) is blocked.
Move any objects, such as a laundry basket, away
from the dryer.
The laundry is too damp.
Spin the laundry using a higher spin speed in the
washing machine.
Metallic components, e.g. zippers, have prevented the dryer from registering the correct moisture level.
Open the zippers next time.If the problem recurs, dry these items using the
Warm air timed drying programme.
* Switch the tumble dryer off and on again before starting a new programme.
60
Page 61
Problem solving guide

General problems with the tumble dryer

Problem Possible cause and remedy
There are operating noises (whirring/ humming).
A programme cannot be started.
The display is dark and the Start/Add laundry sensor is flashing slowly.
The dryer is switched off at the end of the programme.
The display is in a different language.
The interior drum lighting does not come on.
This is not a fault. The compressor (heat pump) is operating.
No action is required. These noises are normal and
caused by the operation of the compressor.
There is no obvious cause.
Connect the tumble dryer to the mains electricity
supply
Turn on the tumble dryer.Close the door.Check whether the mains fuse has tripped.
Has there been a power cut? When power is restored, any previously running programme will restart automatically.
The display has switched off automatically to save energy (Standby mode). The drum will turn at intervals in the Anti-crease phase.
Touch any sensor. This switches Standby off.
The tumble dryer switches off automatically. This is not a fault, but a normal function.
A different language has been selected in “Settings ­Language ”.
Set the language you want. The flag symbol serves
as a guide.
This is not a fault. The drum lighting switches off automatically in the following cases: If the door is closed. If the door remains open for an extended period of time.
61
Page 62
Problem solving guide

Replacing the plinth filter

The heat exchanger can clog up. Replace the plinth filter immediately
(replacement filters are available as an optional accessory) if you see the following signs of wear before or after cleaning.
Poor fit
The edges of the plinth filter do not sit properly and the filter is deformed. Fluff will blow into the heat exchanger unfiltered through edges that do not sit properly. This will eventually cause obstruction in the heat exchanger.
Deformations
Deformations indicate that the filter has become worn.
62
Page 63
Problem solving guide
Cracks, tears, indentations
Fluff will blow into the heat exchanger unfiltered through cracks and tears and will cause obstruction. This will eventually cause obstruction in the heat exchanger.
White residues or residues of other colours
Residues arise from laundry fibres and residual detergent components. They can be found on the front and side edges of the plinth filter. In extreme cases, they can form stubborn crusts. Residues are a sign that the filter no longer has a snug fit at the sides, even if it appears to be perfect. Fluff is getting in unfiltered at the edges.
Regenerate the plinth filter. If the plinth filter shows these residues again soon, the plinth filter must be replaced.
63
Page 64
Problem solving guide

Regenerating the plinth filter

You can regenerate one or more dirty plinth filters in the washing machine. The plinth filter will be ready for use again.
Before regenerating it, check whether the plinth filter is still in good condition. Check the plinth filter in accordance with the descriptions in "Problem solving guide - Replacing the plinth filter". If the plinth filter is worn, replace it.
Wash one or more plinth filters
separately without garments. Do not add laundry detergent.
Select a short wash programme with
a maximum temperature of 40°C and a maximum spin speed of 600 rpm.
After washing and spinning, you can refit the plinth filter.

Checking the heat exchanger

Risk of injury from sharp cooling
fins. You could cut yourself. Do not touch the cooling fins.
Look to see if fluff has accumulated.
If fluff is present, it must be removed.
Damage due to incorrect
cleaning of the heat exchanger. The tumble dryer will not dry if the
cooling fins are damaged or bent. Clean using a vacuum cleaner with a
dusting brush attached. Only pass the vacuum cleaner dusting brush over the fins lightly, without applying any pressure.
64
Vacuum up any fluff and residues.
Page 65

Service

Contact in case of fault

In the event of any faults which you cannot remedy yourself, please contact Miele.
You can book a Miele customer service call-out online at www.miele.com/service.
Contact information for Miele can be found at the end of this booklet.
Please quote the model and serial number of your appliance (SN) when contacting the Miele. This information can be found on the data plate.
The data plate is visible when the door is open.

Optional accessories

Optional accessories for this tumble dryer are available from Miele (see contact details at the back of these instructions).
You also can order these and other useful products from the Miele online shop.

Drying basket

The drying basket is suspended in the drum and does not rotate with the drum. This enables items which must not be subjected to mechanical action to be dried or aired.

Fragrance flacon

Fragrance flacons can be used in your tumble dryer to add a pleasant fragrance to your laundry.

Warranty

The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
65
Page 66
*INSTALLATION*

Installation

Front view

a
Mains connection cable
b
Control panel
c
Condensed water container – empty after every drying cycle
d
Door – do not open during drying
66
e
Heat exchanger access panel – do not open during drying
f
Four height adjustable screw feet
g
Cool air intake grille – do not obstruct with a laundry
basket or other objects
h
Hose for external drainage of condensed water
Page 67
*INSTALLATION*

Rear view

a
Protruding lid for holding when moving the tumble dryer (see arrows)
b
Drain hose for condensed water
c
Hook for winding the mains cable around during transport
d
Mains connection cable
Installation
If the tumble dryer is being
transported horizontally, it must only be tipped onto its left or right side.
If the tumble dryer is being
transported upright and you are using a handcart or trolley, you must only transport it with its left or right side resting on the handcart or trolley.

Transporting the tumble dryer to its installation site

Transporting the tumble dryer

Danger of injury to people and
damage to property caused by moving the appliance incorrectly.
If the tumble dryer tips over, there is a danger of injury to people and damage to property.
Ensure that the tumble dryer is stable during transportation.
Make sure the fixings at the back
of the lid are secure. Otherwise there is a danger of the lid
being pulled off when carrying the appliance.
Before carrying the appliance, check that the lid is secure where it protrudes at the back of the appliance.
Carry the tumble dryer by the front
feet and by the lid where it protrudes at the back of the appliance.
67
Page 68
*INSTALLATION*

Installation

Installation

Levelling the dryer

The appliance must not be
installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
Make sure the dryer door can be opened without hindrance after installation.
The appliance must stand perfectly level to ensure safe and proper operation.
The screw feet can be adjusted to compensate for any unevenness in the floor.

Downtime after installation

Damage to the tumble dryer by
switching it on too soon. This can damage the heat pump. After setting up the tumble dryer,
wait for at least one hour before switching it on.
68
Page 69
*INSTALLATION*
Installation

Ventilation

The cool air intake at the front of the tumble dryer must not be blocked or covered. This would hinder a sufficient intake of cool air for the heat exchanger.
Do not block the gap between the bottom of the tumble dryer and the floor with plinth facings, deep pile carpet etc. This would hinder a sufficient flow of air to the tumble dryer.
Adequate ventilation has to be provided to avoid the backflow of gases into the room from appliances burning other fuels, including open fires.
Air which is taken in to cool the heat exchanger is then blown back out of the dryer and warms up the air in the room. Ensure sufficient ventilation of the room, e.g. by opening a window. The drying time will otherwise take longer (higher energy requirement).

Before moving the tumble dryer again (e.g. when moving house)

After each use a small quantity of condensed water will collect in the area of the pump. This water can run out if the tumble dryer is tipped up when it is being moved. Recommendation: Run the Warm air programme for approximately 1minute without a load before moving the tumble dryer. Any remaining condensed water will then be fed into the condensed water container, which can then be emptied, or can drain out through the drain hose.

Additional installation requirements

Suitable for pushing under a worktop

This tumble dryer is suitable for pushing under a worktop.
Appliance defect due to a build-up of heat.
Make sure there is adequate room for warm air from the dryer to be directed away.
– The appliance lid cannot be removed.
– The electrical socket must be located
in an accessible position near the appliance.
– Drying durations may increase
slightly.

Optional accessories

– Washer-dryer stack

The tumble dryer can also be combined with a Miele washing machine in a washer-dryer stack. The appropriate Miele washer-dryer stacking kit is required.
69
Page 70
*INSTALLATION*
Installation

Externally draining condensed water

Notes

When drying is in progress, condensed water is pumped into the condensed water container through the drain hose which is located at the back of the dryer.
The condensed water can also be drained away via the drain hose. The condensed water container will then not need to be emptied.
Hose length: 1.49m Maximum delivery head: 1.00m Maximum drain hose length: 4.00m

Drainage accessories

Installation conditions requiring a non-return valve

Danger of condensed water
backflow. Water could flow back into the
tumble dryer or be drawn into it. Backflow water could damage the tumble dryer and also the room in which it is located.
The non-return valve should be used if the end of the hose is immersed in water, or if other water connections are installed.
Maximum delivery head with non-return valve fitted: 1.00m
Installation conditions requiring the fitting of a non-return valve:
– Drainage into a laundry tub or floor
gully where the end of the hose is immersed in water.
– Connection to a sink drain outlet.
– Supplied: adapter (b), hose clip (c),
hose holder (e);
– Available to purchase: “Non-return
valve” kit for connection to an external water connection. Non­return valve (d), hose extension (a) and hose clips (c) are supplied with the kit.
70
– Connection to a drainage system
already in use by another appliance, e.g. a dishwasher or washing machine.
If the non-return valve is incorrectly fitted the appliance will not drain.
The non-return valve has to be fitted with the arrow on it pointing in the direction of flow.
Page 71
*INSTALLATION*
Installation

Arranging the drain hose

Damage to the drain hose
through incorrect handling. The drain hose can suffer damage
and leak. Do not pull on the drain hose and do
not stretch it or allow it to become kinked.
There will be a small amount of residual water left in the drain hose. Have a container ready to collect this.

Examples

Drainage into a laundry tub or floor gully
Use the hose holder to secure the drain hose.
Risk of water damage.
Should the end of the hose come loose, overflowing water can cause damage.
Secure the drain hose carefully (e.g., by tying it) to make sure it cannot slip.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrows) and unwind it.
Allow any residual water to run into a
container.
The non-return valve can be fitted in the end of the hose.
71
Page 72
*INSTALLATION*
Installation
Direct connection to a sink drain outlet
Use the hose holder, the hose clips and the non-return valve (available to purchase).
1. Adapter
2. Nut
3. Hose clip
Fit the adapter 1 to the sink drain
outlet using the nut 2. The nut is usually fitted with a washer which must be removed.
Attach the end of the hose 4 to the
adapter 1.
Use the hose holder.Use a screwdriver to tighten the hose
clip 3 up close to the nut.
Fit the non-return valve 5 to the
tumble dryer drain hose 6.
The non-return valve 5 has to be fitted so that the arrow points in the direction of flow (i.e. towards the sink).
Secure the non-return valve using
hose clips.
4. End of the hose (secured with the hose holder)
5. Non-return valve
6. Tumble dryer drain hose
72
Page 73
*INSTALLATION*
Installation

Changing the door hinging

You can change the door hinging on this tumble dryer yourself.
For safety reasons, the tumble dryer must be disconnected from the electricity supply before changing the door hinging.
You will need:
– a T20 and T30 Torx screwdriver
– a flat head screwdriver or pointed
pliers
– the lock catch cover supplied
– the door hinge cover supplied
– a soft surface (e.g. a tablecloth)

Changing the hinging over

1. Remove the door from the dryer

Open the door.
Hold the door securely and pull it
forwards: to remove the door you will need to pull the base plate of the hinge with its two pins out of the dryer.
To avoid scratching the door, place it outer side downwards on a soft surface (e.g. a tablecloth).

2. Change over the door lock on the dryer

Use a T30 Torx screwdriver to
unscrew the two screws on the door
lock .
Use a T30 Torx screwdriver to
unscrew the two screws on the base
plate of the door hinge .
The door cannot fall off as it is held in place by two pins.
Use the screwdriver to press the door
lock upwards.
The door lock will spring out of its position and can then be removed.
73
Page 74
*INSTALLATION*
Installation
Turn the door lock through 180°.
Press the door lock into the openings
on the opposite side of the door
opening.
Adjust the position of the door lock
so that the screw holes line up with those in the front panel of the dryer
.
Secure the door lock with the two
Torx screws.

3. Remove the lock catch from the door

First take the rubber seal off the door
and place this to one side.
74
Use a T20 Torx screwdriver to remove
the screw on the lock catch.
Pull off the lock catch together with
the lock catch cover .
Page 75
*INSTALLATION*
Remove the lock catch from the
cover.
This lock catch cover is no longer needed. However, please keep it in a safe place.
Installation

4. Dismantle the door hinge from the door

The door hinge cover must be
unclipped from position and then
removed.
Use a screwdriver to press down
gently on position on the door
hinge cover.
Insert the lock catch into the new
cover supplied with the dryer.
Place this new cover to one side for
now.
Using a little force, pull out the door
hinge cover .
This door hinge cover is no longer needed. However, please keep it in a safe place.
75
Page 76
*INSTALLATION*
Installation

5. Change the door hinge on the door

The door hinge is secured to the door with 2 angled rods. These rods need to be removed with a screwdriver or pointed pliers.
Insert the end of the screwdriver
blade under the rod and rotate it
so it is in an upright position. Do the same to the other rod.
Useful tip: In some circumstances, the rods can be difficult to dislodge. Moving the screwdriver with a levering action while pulling at the same time may help to work the rods free.
Remove the door hinge and rotate it
180°.
Refit the door hinge on the opposite
side of the door.
Secure the door hinge with the two
rods .
Use the screwdriver or pointed pliers
to guide first one then the other
rod to the middle until each can be
removed.
76
Position the tip of the screwdriver
under the end of the rod and then
push it into its resting position.
Page 77
*INSTALLATION*
Installation
You now need the new door hinge cover supplied with the tumble dryer.
Fit the new door hinge cover and
clip it into position.

6. Change the lock catch on the door

You now need the new lock catch cover supplied with the dryer which you have already fitted with the lock catch.
Push lock catch cover with its lock
catch into position.
Tighten the screw with a T20 Torx
screwdriver.
77
Page 78
*INSTALLATION*
Installation

Refitting

7. Refit the door

Press the rubber seal back into the
groove on the door.
Position the door in front of the dryer.Fit the base of the door hinge with its
two pins into the openings on the dryer.
The base of the door hinge must be flush with the front panel of the dryer. The door cannot fall off in this position.
Now that you have changed the
door hinging the door will open from the opposite side.
Push the orange marker round to the
other side so that you will see at which side to pull the door open.

Note

Please keep the lock catch and
door hinge covers which were no longer needed in a safe place. These will be required if, for example, you move house and need to change the door hinging back to its original position.
Screw the door securely to the dryer
at the base of door hinge with a
T30 Torx screwdriver.
78
Page 79
*INSTALLATION*
Installation

Electrical connection

The tumble dryer is supplied with a mains cable with moulded plug ready for connection to a socket.
The socket must be easily accessible after the tumble dryer has been installed. If the switch is not accessible after installation an additional means of disconnection must be provided for all poles.
Risk of fire from overheating.
Connecting the tumble dryer to a multi-socket plug adapter or to an extension lead can overload the cable.
Do not use an extension lead or multi-socket plug adapter.
All electrical work must be carried out by a suitably qualified and competent person, in strict accordance with national and local safety regulations. For extra safety, it is advisable to install a residual current device (RCD) with a trip current of 30mA. Ensure power is not supplied to the appliance until after the installation has been completed. Connection should be made via a suitable switched socket.
solar power. When the tumble dryer is switched on, power surges could result in a safety switch-off. This could damage the electronics.
The data plate indicates the nominal power consumption and the appropriate fuse rating. Compare the specifications on the data plate with those of the mains electricity supply.
If in any doubt, consult a qualified electrician.
If the connection cable is damaged, it must only be replaced with a specific connection cable of the same type (available from Miele) in order to avoid a hazard. For safety reasons, such replacement may only be carried out by a suitably qualified and competent technician or Miele.
Do not connect the tumble dryer to a stand-alone inverter such as those used with an autonomous energy source, e.g.
79
Page 80

Technical data

Height 850mm
Width 596mm
Depth 643mm
Depth with door open 1077mm
Suitable for pushing under a worktop Yes
Height for pushing under a worktop 850mm (+8/-2mm)
Width for pushing under a worktop 600 mm
Depth for pushing under a worktop 600 mm
Suitable for stacking Yes
Weight Approx. 62 kg
Drum volume 120l
Maximum capacity 9.0 kg (weight of dry laundry)
Capacity of condensed water container 4.8l
Drain hose length 1.49m
Maximum delivery head 1.00m
Maximum drain hose length 4.00m
Length of connection cable 2.00m
Voltage See data plate
Rated load See data plate
Fuse rating See data plate
Test certificates awarded See data plate
Energy consumption See “Consumption data”
LEDs Class 1
Frequency band 2.4000GHz–2.4835GHz
Maximum transmission power <100mW
80
Page 81

Consumption data

1
Load
Cottons 9.0
Cottons Normal 9.0
Cottons Normal incl. Gentle tumble
Cottons Hand iron 9.0
Minimum iron Normal 4.0 1,200 40 0.50 70
Minimum iron Normal incl. Gentle tumble
Delicates Normal 2.5 800 50 0.55 75
Woollens handcare 2.0 1,000 50 0.02 5
Shirts Normal 2.0 600 60 0.45 65
Express Normal 4.0 1,000 60 0.85 110
Denim Normal 3.0 900 60 1.00 125
Proofing Normal 2.5 800 50 0.90 120
1
Weight of dry laundry
All data was calculated using EN 61121 unless otherwise stated.
Consumption data can vary from the nominal values given above depending on the size of the load, types of textiles, residual moisture levels after spinning and fluctuations in the electricity supply, or when water hardness levels differ from specified values.
Using the Cottons Extra dry programme is recommended for a mixed cotton load and is the programme used in energy consumption tests according to AS/NZS 2442 (Refer to http://www.energyrating.gov.au website for consumption data).
The consumption data shown in the EcoFeedback display can vary from the consumption data quoted here. The variations arise from the way the data is measured in the dryer. For example, the programme duration may vary depending on the residual moisture present in the laundry and the type of fabric which will affect the energy requirement.
Final spin speed in a
domestic washing
machine
kg rpm % kWh min.
1,000
4.5
9.0
9.0
9.0 1,000 60 1.70 200
9.0
9.0
9.0
4.0 1,200 40 0.50 72
1,000
1,200
1,400
1,600
1,000
1,200
1,400
1,600
Residual moisture
60
60
53
50
44
60
53
50
44
Energy Duration
1.63
0.86
1.45
1.40
1.25
1.25
1.10
1.00
0.85
208
124
189
179
160
147
129
120
102
81
Page 82

Settings

OK
Warm air
OK
Settings 
OK
Language 

Calling up settings

Settings can be altered to adapt the electronics of the dryer to different requirements. Settings can be altered at any time.
Turn the programme selector to
Further programmes/.
Touch the sensor once.
The following appears in the display:
Confirm with the OK sensor.
You are now in the Settings submenu.

Selecting settings

Touch the or sensor until the
setting you want appears in the display.
– The sensor scrolls down the list. – The sensor scrolls up the list. Touch the OK sensor to select the
setting displayed.

Changing a setting

Touching the or sensor will call
up the different options for the setting.
For example, you can
– select a value. If the option is marked
with a it is active
– change a bar chart
– change numbers.
When the option you want appears in
the display, touch the OK sensor to activate it.
82

Closing the Settings menu

Turn the programme selector.
Page 83
Settings

Language

The display can be set to appear in one of several different languages.
The flag after the word Language (Sprache in German) acts as a guide in case a language which is not understood has been set.
The language selected is saved.

Drying levels

You can alter the drying levels for the Cottons, Minimum iron and Automatic programmes. The Cottons programme will remain unchanged.
Options –        (damper)
The programme duration is shorter
–        (factory setting) –        (drier)
The programme duration is longer

Cooling down temperature

The laundry will be cooled down automatically before the end of the programme. The automatic cooling phase at the end of a programme can be set to a cooler level for all drying programmes. This extends the cooling phase.
Options
The level is set in increments of 1°C.
– 55°C (factory setting)
– ...
– 40 °C

Welcome tone

The volume for the welcome tone can be set to one of 7 different settings.
Options – Off –        (quiet) –        (factory setting) –        (loud)
83
Page 84
Settings

Keypad tone

Each touch of a sensor is confirmed with an audible tone.
Options – Off (factory setting) –        (quiet) –        (loud)
In the case of a selection that is not allowed, a negative signal tone sounds.

Buzzer volume

The buzzer sounds to let you know the programme has finished. The buzzer can be set louder or quieter.
Options –        (quiet) –        (factory setting) –        (loud)

Airways indicator

Fluff must be removed after every drying programme. In addition, this indicator will remind you to clean the filters when a certain amount of fluff has collected in them: Clean the plinth filter. See  You can decide at what level of fluff this reminder should be given.
Options
You will have an idea of how often this should be done after a few drying programmes.
– Off
The reminder does not appear. However, regardless of this option, the programme will be cancelled and the error message Clean the plinth
filter. See  will appear in the display
if there is a severe blockage in the ducting.
– Heavy
appears when there is a heavy build­up of fluff.
84
– Normal (factory setting) – Light
appears whenever there is a small build-up of fluff.
Page 85
Settings

Conductivity

This setting is only relevant for regions with very soft water.
Very soft water can result in unsatisfactory drying results.
You should only select this setting if the water used for washing the laundry is extremely soft with a conductivity reading (electrical conductivity) of less than 150μS/cm. Contact your local water authority for the conductivity level of your mains water supply.
Options – Normal (factory setting) – Low <150mS (only for regions with
very soft water)

Consumption

You can display the total consumption.
Options – Previous programme
Displays the energy consumption in the last programme run
– Total consumption
Displays the total consumption to date
– Reset function
Deletes the total consumption to date
85
Page 86
Settings

Code

The code prevents your machine being used without your knowledge.
Options – Activate
The code is 250 and can be activated. When the code has been activated, you have to enter the code after switching the dryer on. Otherwise the dryer cannot be operated.
– Deactivate
For using the dryer without entering the code. This only appears if the code has been activated previously.
– Change
You can enter a code of your own.
Important! Make a note of your
new code. If you forget the code, the dryer will need to be unlocked by a Miele service technician.

Brightness

You can set the brightness of the display, the sensor controls, and the dimmed sensor controls.
Options

Display

Controls the brightness of the display. –        (dark) –        (factory setting) –        (bright)

Sensors active

Controls the brightness of the activated sensor controls.
–        (dark) –        (bright)

Sensors inactive

Controls the brightness of the sensor controls that can be activated.
86
–        (dark) –        (bright)
Useful tip: Ensure that there is a discernible difference in brightness between the activated and dimmed sensor controls. This makes it easier to operate the appliance.
Page 87
Settings

Display switch-off status

To save energy, the display and sensors will go out after 10minutes. The Start/Add laundry sensor flashes slowly. You can change this automatic switch-off function.
Options – On (factory setting)
The display will go out (after 10 minutes):
– if no programme selection is made
after switching the dryer on
– during the current programme
– after the end of a programme.
– On (not current pr.)
The display will go out (as described above) but not while the current programme is running.
– Off
The display will remain on (i.e. it will never go out).
You can switch the display back on by touching any sensor.

Memory

The dryer saves the settings that were last selected for a drying programme (drying level and/or Extras, or the duration for some programmes).
The next time the programme is chosen the saved settings will appear in the display.
Options – Off (factory setting) – On
The activation of Delay start, the buzzer, or ECO feedback data are not saved.

Anti-crease

The duration of the Anti-crease phase can be altered.
Options – 1 h – 2 h (factory setting)
87
Page 88
Settings

Programme info

Programme names and load quantities that light up in the display when the programme is selected with the programme selector can be switched off.
Options – Off (Programme name and load size
are not displayed)
– Programme name (The load size is not
displayed)
– Prog. & max load (Both are displayed,
factory setting)

Miele@home

Control the networking of your dryer with your home Wi-Fi network.
The following points may appear in the submenu:
– Set up
This message only appears if the dryer has not yet been connected to a Wi-Fi network.
Please refer to “Before using for the first time” for instructions on how to set up the connection.
- Connection status (visible if Miele@home is activated)
The following values are displayed:
– The quality of the Wi-Fi reception
– The network name
– The IP address
- Set up again (visible if set up)
Resets the Wi-Fi login (network) to immediately re-establish a new connection.
- Reset (visible if set up)
– The Wi-Fi is switched off.
– The Wi-Fi connection will be reset to
the factory setting.
The network configuration should be reset whenever the dryer is being disposed of or sold, or if a used dryer is being put into operation. This is the only way to ensure that all personal data has been removed and the previous owner will no longer be able to access the appliance.
A new connection setup has to be carried out in order to use the Miele@home setting again.
- Deactivate (visible if Miele@home is
activated)
Miele@home remains set up, the Wi-Fi function is switched off.
- Activate (visible if Miele@home is
deactivated)
The Wi-Fi function is reactivated.
88
Page 89
Settings

Remote control

The Remote control setting (available depending on country) is only visible if the Miele@home setting is set up and activated.
Once the Miele@mobile App has been installed on your mobile device, you can check the status of your tumble dryer from anywhere and start it remotely. You can also control it remotely via the MobileStart function.
You can switch off the Remote control setting if you do not want to operate the dryer with your mobile device.
If Remote control is not switched on the App can cause the programme to be cancelled.
Use the Delay start sensor to set a time by when you want to start the tumble dryer (see “Delay start/SmartStart”). The tumble dryer will then start within the specified timeframe when it receives your signal. If it has not received a start signal by the latest start time set, the tumble dryer will start automatically.

SmartGrid

The SmartGrid setting (available depending on country) is only visible if the Miele@home setting is set up and activated.
This function can be used for starting your dryer automatically at a time when energy rates are more economical.
Activating SmartGrid gives the Delay start sensor a new function. You can set the SmartGrid via the Delay start sensor. The dryer will then start within the timeframe specified when it receives a signal from the energy supplier. If it has not received a signal from the energy supplier by the latest start time set, the dryer will start automatically (see “Delay start/SmartStart”).
SmartGrid is deactivated as standard.
Remote control is activated as standard.
89
Page 90
Settings

RemoteUpdate

The RemoteUpdate function is used for updating the software in your tumble dryer.
RemoteUpdate is activated at the factory.
If you do not install a RemoteUpdate, you can continue to use your tumble dryer in the usual way. However, Miele recommends installing RemoteUpdates.

Activation

The RemoteUpdate menu option is only displayed and can only be selected if you have added your dryer to your Wi-Fi network (see “Settings ­Miele@home”).
Miele’s RemoteUpdate function can only be used if the tumble dryer is connected to a Wi-Fi network and you have an account in the Miele@mobile App. The dryer must be registered in the App.
See the Miele@mobile App for terms and conditions of use.

Running a RemoteUpdate

If a RemoteUpdate is available for your dryer, it will be displayed automatically for you.
You can choose to start the RemoteUpdate immediately or wait until later. If you select “Start later”, the prompt to run the RemoteUpdate will be displayed again the next time you switch on the dryer.
The RemoteUpdate can take several minutes.
Please note the following information about the RemoteUpdate function:
– You will only receive a message when
a RemoteUpdate is available.
– Once a RemoteUpdate has been
installed, it cannot be undone.
– Do not switch off the dryer during a
RemoteUpdate. Otherwise, the RemoteUpdate will be aborted and will not be installed.
Some software updates can only be carried out by Miele Service.
90
Page 91
Page 92
TWJ 660 WP
M.-Nr. 11 420 951 / 00en-AU, NZ
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
