en Operating Instructions Vacuum Cleaner

fr Instructions d'utilisation Aspirateur

SGNE0, SGPE0

HS15

M.-Nr. 10 080 920

Only Miele FilterBags, filters and accessories with the "Original Miele" logo can be used with this vacuum. Only then can the suction power of the

vacuum cleaner reach its optimum potential creating the best possible cleaning results.

USE OF NON-MIELE COMPONENTS MAY VOID THE WARRANTY.

The use of FilterBags made of paper or a similar material, or FilterBags with a cardboard retaining plate can lead to serious damage to the vacuum cleaner and may void the warranty, just as with the use of FilterBags without the "Original Miele" logo.

The "Original Miele" Logo will appear on the packaging or directly on the FilterBag.

Purchasing new FilterBags and filters

Original Miele FilterBags and filters can be purchased from an authorized Miele vacuum dealer or by visiting the Miele store at www.mieleusa.com.

en - Contents

IMPORTANT SAFETY INSTRUCTIONS Guide to the vacuum cleaner Before using the vacuum cleaner Included accessories Use

Power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turn the vacuum cleaner on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

First use .........................................................13

Selecting the suction power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

While vacuuming ..................................................14

Turning the Powerbrush ON and OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Pausing during operation ............................................14

Parking, transport and storage

Park-System......................................................14

Park-System for storage ............................................14

Maintenance and care

Purchasing new filter bags and filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Which filter bags and filters are the right ones? . . . . . . . . . . . . . . . . . . . . . . . . . . 15

When to change the filter bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

How to change the filter bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

When should I change the dust compartment filter?. . . . . . . . . . . . . . . . . . . . . . . 17

Replacing the dust compartment filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

When to change the exhaust filter? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How to replace the AirClean exhaust filter?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How do I change the Active AirClean 50 or the HEPA AirClean 50 exhaust filter? 18

Exchanging exhaust filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Service indicator with reset button ....................................18

When to change the thread catcher of the floor brush AllTeQ

(depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Replacing the thread catchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cleaning and care Frequently asked questions Technical service Optional accessories Caring for the environment LIMITED WARRANTY - VACUUM CLEANERS USA

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Keep these operating instructions in a safe place and pass them on to any future user.

WARNING-

To reduce the risk of fire, electric shock or injury:

Before using

Check the voltage rating of the

vacuum cleaner before connecting the power cord to an electrical outlet. Your power source should correspond with the voltage rating plate located on the underside of the vacuum. Use only household AC outlets. Never use DC power sources. If you are not sure of your home’s voltage supply, consult a qualified electrician. Connecting the vacuum cleaner to a higher voltage than indicated in these instructions may result in damage to the vacuum cleaner or injury.

To reduce the risk of electric shock,

this appliance has a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not alter the plug in any way.

A damaged vacuum cleaner can be

dangerous. Check the packaging, vacuum cleaner and accessories for any signs of damage. Do not use a damaged appliance.

Do not use with a damaged cord or

plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors or submerged in water, bring it to a service center.

The electrical outlet must be fitted

with a 15 A fuse.

IMPORTANT SAFETY INSTRUCTIONS

Use

Do not use on people or animals.

Do not use outdoors or on wet

surfaces. Only dry surfaces should be vacuumed.

Use only as described in this

manual. Use only Miele recommended accessories.

Do not alter or modify the vacuum

cleaner.

This appliance is intended for

household use only.

Do not allow the vacuum cleaner to

be used as a toy. Close attention is necessary when used near children.

Never use the vacuum cleaner

without the filter bag or filters in place. Otherwise it could be damaged.

If a filter bag is not inserted, the dust

compartment lid will not close. Do not force it shut.

Do not leave the vacuum plugged

in. Unplug it from the outlet when not in use and before servicing.

On the underside of the vacuum

handpiece is a metal insert designed to absorb static electricity. Please make certain that your hand remains around this metal insert when vacuuming.

Persons which lack physical,

sensory or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person.

Unwind the cord completely to aid

the vacuum cleaner in dissipating heat.

This vacuum should not be used to

entrap or retain any hazardous materials.

Do not use the vacuum cleaner to

pick up liquids or damp dirt. This could impair the electrical safety of the vacuum cleaner. Wait for freshly shampooed carpets to dry.

Do not vacuum anything that is

burning or smoking such as cigarettes, matches or hot ashes. The vacuum cleaner could catch fire.

Do not vacuum toner dust. Toner,

such as that used in printers and photocopiers can conduct electricity.

Do not use to pick up any flammable

or combustible liquids, such as gasoline, or use in areas where they may be present. The vacuum cleaner could explode.

Do not vacuum up items which are

heavy, hard or have sharp edges. They could cause a blockage and damage the appliance.

Do not pull or carry by the cord, use

the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.

IMPORTANT SAFETY INSTRUCTIONS

Do not unplug by pulling on the

cord. To unplug, grasp the plug, not the cord.

Do not handle the plug or vacuum

with wet hands.

Keep the power cord, hair, loose

clothing, fingers and all parts of the body away from openings and moving parts.

Do not place anything into the

openings of the vacuum cleaner. Do not use if any openings are blocked; keep them free of dust, lint, hair, or anything that may reduce air flow.

This appliance is equipped with a

power cord reel. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Turn off all controls before

unplugging.

Use extra care when cleaning on

stairs.

Floor attachments, accessories and

wands must not be used at head level to avoid injury to eyes and ears.

Monitor the filter bag change

indicator and inspect all filters regularly. For best performance, the filter bag and filters should be replaced when necessary. A full bag or blocked filter will reduce the vacuum cleaner’s suction power. A temperature limiter automatically switches the vacuum cleaner off if it gets too hot, see "Frequently asked questions".

Using accessories

The hose and the telescopic wand

contain electrical wires. Do not use the vacuum cleaner if these parts are damaged, cut or punctured. Avoid picking up sharp objects. Danger of electric shock!

Unplug the vacuum when changing

accessories, especially the Hose, Telescopic wand, Turbobrush and Powerbrush.

To avoid the risk of injury when

vacuuming with a Miele Power or Turbobrush do not touch the rotating roller brush. Danger of injury.

The socket on the vacuum cleaner

(depending on model) must only be used for the Miele Powerbrush specified for use with this appliance.

Danger of injury. The Miele

Powerbrush is a motor driven accessory for use only with Miele vacuum cleaners. The vacuum cleaner must not be used with another manufacturer’s powerbrush.

Do not use the vacuum cleaner

without an accessory attached. The rim could be damaged and injuries could result from sharp edges.

Miele filter bags are disposable and

intended to be used only once. Do not attempt to reuse. An over stuffed filter bag will reduce the efficiency of the vacuum cleaner.

Only use genuine Miele filter bags

with the Miele quality signet and original Miele filters and accessories. Only then will the manufacturer guarantee its safety.

IMPORTANT SAFETY INSTRUCTIONS

Cleaning, maintenance and repairs

Turn the vacuum cleaner off after

each use and before every cleaning / maintenance. Pull the plug from the outlet.

Never submerge the vacuum

cleaner in water. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply. If moisture gets into the appliance there is a risk of electric shock.

The electro-suction hose and the

telescopic wand contain electrical wires. The plug connectors must not come in contact with water. These items may only be cleaned with a dry cloth, no moisture can touch them. Danger of electric shock.

Repairs must only be performed by

an authorized service agent in accordance with national and local safety regulations. Unauthorized repairs could cause injury or machine damage.

Disposing of an old appliance

Before discarding an old vacuum

cleaner, please cut off the power cord and render the plug useless. Ensure the appliance presents no danger to children while being stored for disposal.

SAVE THESE INSTRUCTIONS

If the power cord is damaged it

should be replaced along with a new cable reel by Miele Technical Service.

en - Guide to the vacuum cleaner

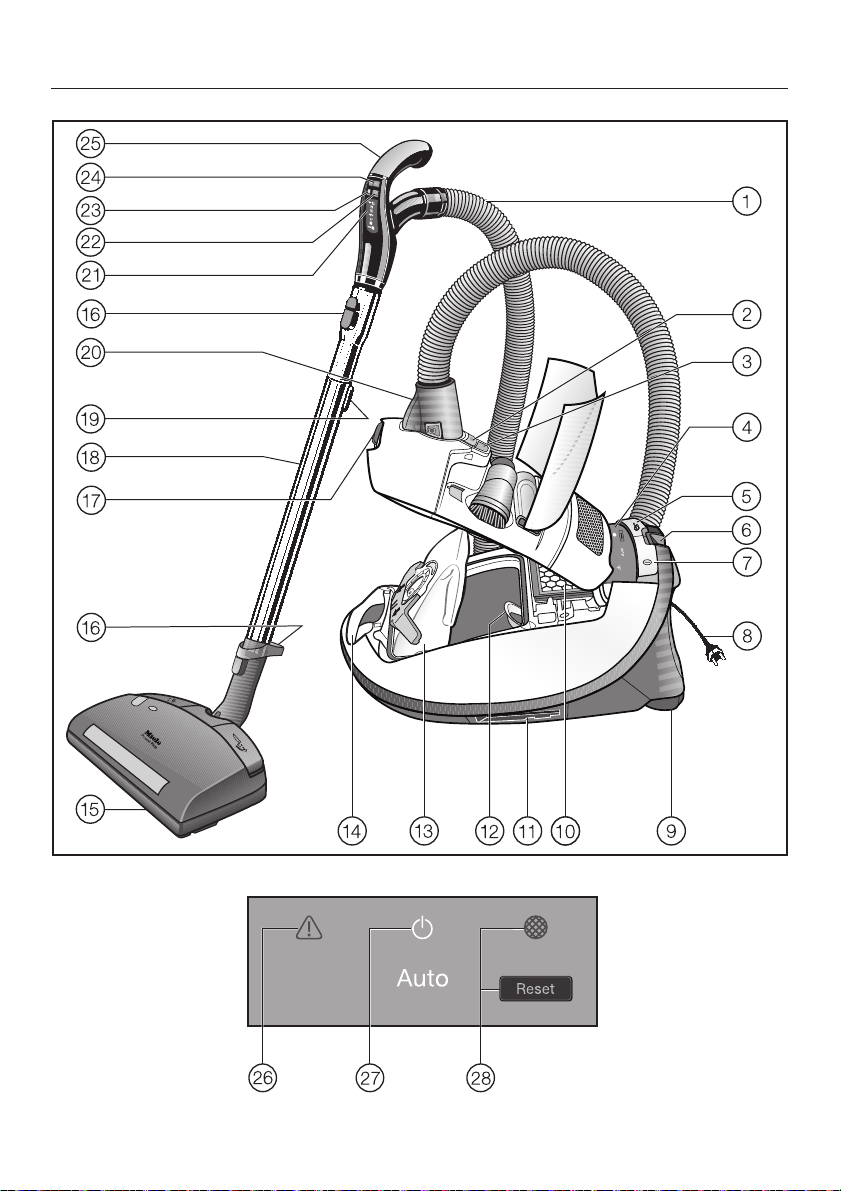

a Electro hose SES 131 b Release button for accessory compartment c Airflow indicator d Display panel e Foot switch for automatic cord rewind f Park-System for breaks in vacuuming g Foot switch On/Off s h Power cord * i Swivel casters * j Exhaust filter * k Park-System for storage (on both sides of the vacuum cleaner, illuminated

depending on the model)

l Dust compartment filter m Original Miele filter bag n Carrying handle o Powerbrush (SEB 217 / EB02, SEB 228 / EB03 or SEB 236 / EB01 depending

on the model)

p Release buttons q Release button for dust compartment lid r Electro telescopic wand SET 220 s Adjustment button for electro telescopic wand t Elbow u Suction power indicator v Standby button - for brief breaks in vacuuming, with LED w ON/OFF switch j for the Powerbrush, with LED x Suction power buttons + / - y Comfort handpiece z Thermo protection indicator light § { Standby indicator light - | Service indicator with reset button

The features marked * may vary or may not be available on your model.

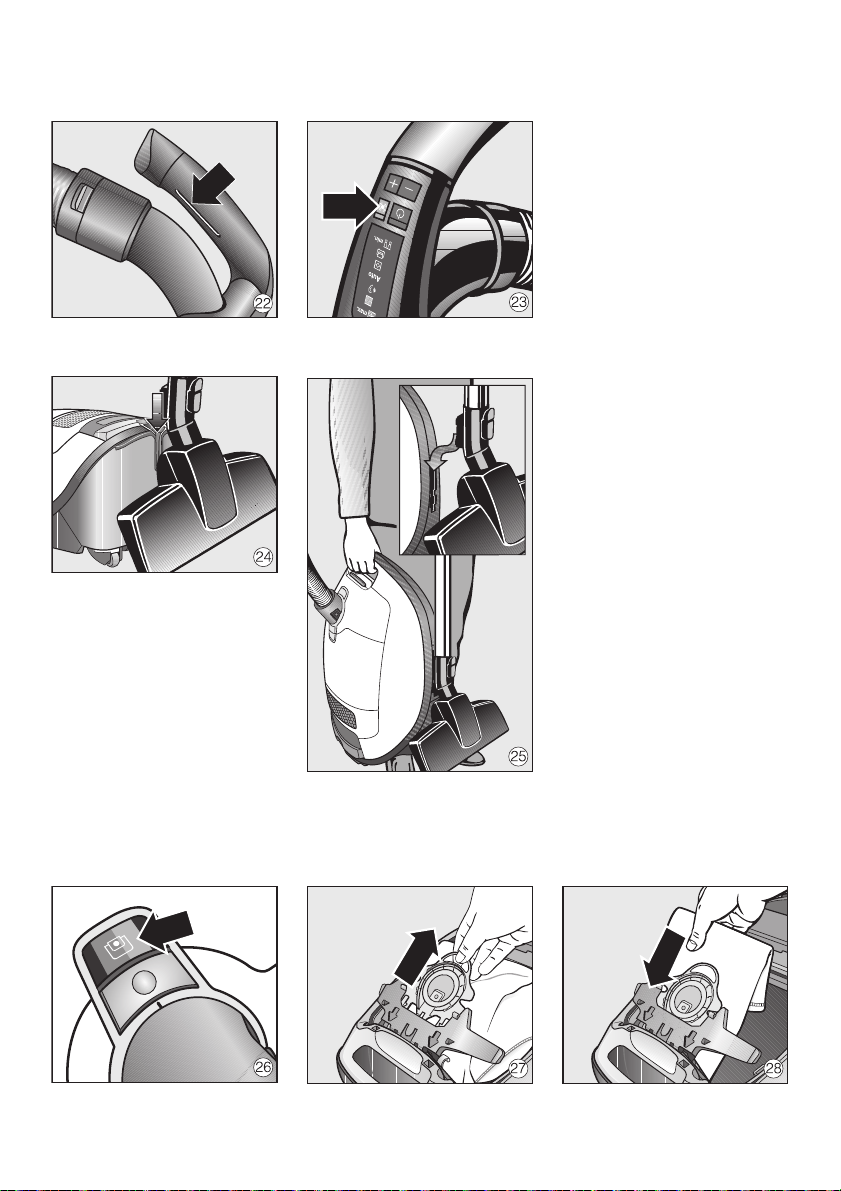

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.

Before using the vacuum cleaner

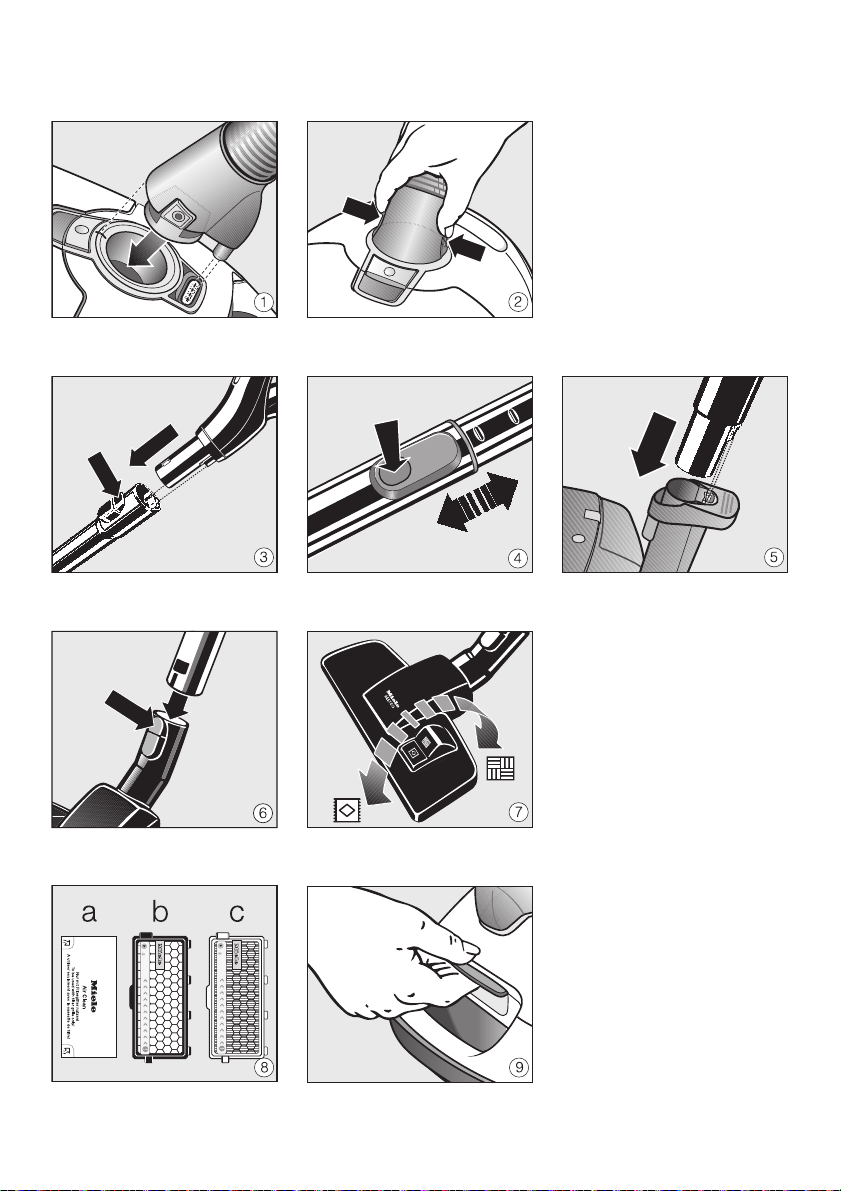

Attaching the Electro suction hose (see fig. 1)

Insert the elbow into the suction

socket until it clicks into place.

Disconnecting the hose (see fig. 2)

^ Press the release buttons at the sides

of the elbow and lift the hose from the socket.

Using the Powerbrush

Always follow the flooring manufacturer's cleaning and care instructions.

Depending on the model, your vacuum cleaner will include one of the following Powerbrushes.

Powerbrush SEB 217 (EB02)

–

Powerbrush SEB 228 (EB03)

–

Powerbrush SEB 236 (EB01)

– The Powerbrush is specially designed

for intensive cleaning of heavy-duty textile floorings. It removes ground-in dirt and helps prevent matting in high-traffic areas.

Connecting the Comfort handpiece to the Electro telescopic wand (see fig. 3)

^ Position the Comfort handpiece and

insert into the telescopic wand until it clicks into place.

To separate the handpiece from the telescopic wand, press the locking button.

Adjusting the Electro telescopic wand (see fig. 4)

The telescoping wand is composed of two interlocking tubes that can be adjusted to the desired length.

Press the release button and slide the tubes to the desired length.

,Do NOT use the Powerbrush to

vacuum delicate, hand-knotted items, such as Berber rugs or Persian rugs, or for unusually deep pile (shag carpets). The threads may be pulled out.

Do NOT use the Powerbrush SEB 217 (EB02) to clean highly textured or uneven flooring. The base plate of the Powerbrush can come into contact with these surfaces and cause damage.

Connecting the Powerbrush to the Electro Telescopic wand (see fig. 5)

Position the telescopic wand and

insert into the Powerbrush until it clicks into place.

For more information on the Use and Care of the Powerbrush, see the separate operating instructions.

Using the floor brush AllTeQ (depen ding on model)

Always follow the flooring manufacturer's cleaning and care instructions.

Connecting the floor brush AllTeQ to the Electro Telescopic wand (see fig. 6)

^ Fit the Electro Telescopic wand firmly

into the floor brush. Turn the wand in opposite directions until it locks with a click.

^ To release the Electro Telescopic

wand from the floor brush press the locking button (see arrow).

Adjusting the floor brush AllTeQ (see fig. 7)

To clean carpets and rugs, lower the bristles by

pressing the foot switch marked with a %.

To clean hard flooring, raise the tool by

pressing the foot switch marked with a ).

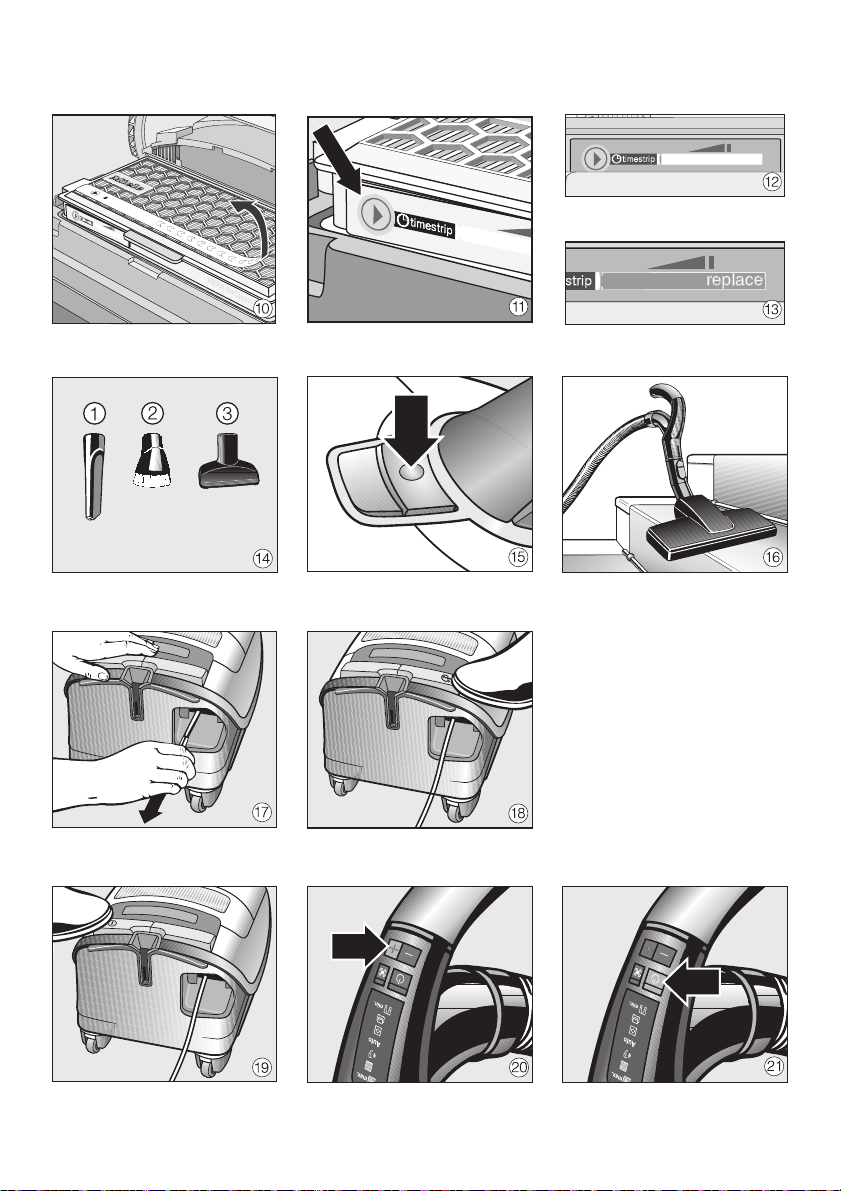

Activating the exhaust filter change indicator

Depending on the model, one of the following standard exhaust filters is installed (see fig. 8).

a AirClean Filter b Active AirClean 50 Filter (black) c HEPA AirClean 50 Filter (white)

Open the dust compartment lid and

raise until it clicks into place (see fig. 9).

Remove the marker strip (see fig. 10).

^ ^ Press the exhaust filter change

indicator ~ (see fig. 11).

^ After about 10-15 seconds, a small

red marker will appear in the left-hand side of the display (see fig. 12).

^ Close the dust compartment lid until

it clicks into place. Take care not to catch the dustbag in the lid.

How the exhaust filter change indicator works

The exhaust filter change indicator displays the useful life of the exhaust filter. The indicator will turn fully red after approx. 50 hours of operation, which is equivalent to one year of average use (see fig. 13).

Always use the floor brush with the bristles raised to clean floors with very deep joints or gaps.

Included accessories (see fig.

14)

The following accessories are included:

a Crevice nozzle

For cleaning in folds, crevices and corners.

b Dust brush with natural bristles

For cleaning moldings, ornate, carved or especially sensitive articles, etc. The head of the brush swivels and can be turned to the best cleaning position.

c Upholstery tool

For cleaning upholstery, mattresses, cushions, curtains, covers etc.

Removing the accessories (see fig. 15)

^ Press the release button. The accessory compartment opens.

Floor brush AllTeQ (see fig. 16) (depending on model)

Also suitable for vacuuming stairs.

For your own safety, always

vacuum stairs from bottom to top.

Use

Power cord

Unwind the cord completely to

aid the vacuum in dissipating heat.

Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.

Do not unplug by pulling the cord. To unplug grasp the plug, not the cord.

Take out the accessory needed.

Close the accessory compartment by pressing on the lid.

Floor brush - Parquet Twister with swiveling head (SBB 300-3) (depending on model)

For cleaning all hard flooring and small hard to reach areas.

Floor brush - Parquet Twister XL with swiveling head (SBB 400-3) (depending on model)

For cleaning large areas of hard flooring and small hard to reach areas.

This appliance is equipped with a power cord reel. Hold the plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Unwinding (see fig. 17)

Pull the cord out to the desired length (max. approx. 24.6 ft / 7.5 m).

Plug the power plug into the electrical outlet.

Depending on the model, the lighting of the Park-System on both sides of the vacuum cleaner switches on. The first time the vacuum cleaner is used, the lighting turns on after approx. two minutes.

If you intend to use the vacuum

cleaner for more than 30 minutes, you will need to pull the cord all the way out. This is to help prevent overheating and damage to the appliance.

Rewinding (see fig. 18)

Unplug the power plug from the

electrical outlet.

Selecting the suction power

You can adjust the suction power to suit the situation. When you reduce the suction power, the floor brush can be moved with less effort.

On the Comfort handpiece you will see various symbols that show examples of which power level is recommended for which purpose.

The selected power level lights yellow.

If your vacuum cleaner is equipped with an illuminated Park-System, the lighting switches off again automatically approx. 30 seconds after disconnecting the power.

^ Tap the rewind foot switch and the

power cord will rewind automatically.

Turn the vacuum cleaner on and off (see fig. 19)

^ Press the On/Off foot switch s. The Standby indicator - on the display

panel of the vacuum cleaner and the LED - on the Comfort handpiece light yellow.

First use (see fig. 20)

Press – to select a lower power level.

Press + to select a higher power level.

By pressing the Standby button on the Comfort handpiece (see fig. 21) the next time the vacuum is used it will turn on to the last selected power level.

# - curtains, lightweight fabrics $ - upholstery, pillows % - thick pile carpets, rugs and

runners

Auto - Automatic adjustment of the

suction power to the floor covering

Do NOT use the "Auto" power level to vacuum curtains or other lightweight fabrics. Excessive suction may cause damage to such items.

* - Energy-efficient everyday

vacuuming, low noise

( - Low pile carpets ) - Hard flooring and intensive

cleaning of carpets

To select a higher power setting, press the + button on the Comfort handpiece (see fig. 20).

To select a lower power setting, press the - button on the Comfort handpiece.

While vacuuming (see fig. 22)

The vacuum cleaner can also stand on its end for vacuuming stairs, drapes etc.

To prevent static electricity your

hand must touch the metal inlay on the underside of the vacuum handpiece. Be certain to continuously touch this inlay when vacuuming fine dust, flour or sawdust as these materials are more likely to create a static electricity. To further prevent static discharge while vacuuming, pull the vacuum along by the hose with one hand while continuing to hold the handpiece in the other hand.

Turning the Powerbrush ON and OFF (see fig. 23)

The Powerbrush is turned on and off separately from the vacuum cleaner

^ by pressing the On/Off button j on

the Comfort handpiece.

The LED on the Comfort handpiece lights.

The button allows you to turn off the Powerbrush, e.g. when moving from wall-to-wall carpeting to a persian rug.

Pausing during operation (see fig. 21)

You can interrupt operation for short pauses during vacuuming

by pressing the Standby button - on the Comfort handpiece.

The LED on the Comfort handpiece lights.

Do not leave the vacuum

cleaner in Standby mode, only use it for short pauses during vacuuming. This is to help prevent overheating and damage to the appliance.

Parking, transport and storage

Park-System (see fig. 24)

(not for use with the Powerbrushes SEB 228 / EB03 or SEB 236 / EB01)

The Park-System allows you to park the telescopic wand and the suction unit on the vacuum cleaner during brief pauses.

^ Insert the parking clip attachment on

the suction unit into the parking slot from above.

If the vacuum cleaner is on an incline, e.g. a ramp, slide the tube into the telescopic wand all the way.

Turning on and off with the Park-System

The vacuum cleaner is automatically turned off if you insert the suction unit with the parking slot into the Park-System.

Park-System for storage (see fig. 25)

Turn the vacuum cleaner off after use. Remove the plug from the electrical outlet.

After approx. 30 seconds the parking system lighting turns off if your vacuum cleaner is equipped with an illuminated Park-System.

Stand the vacuum cleaner vertically.

It is helpful to completely insert the tubes into the telescopic wand.

Insert the parking clip attachment on

the suction unit into either side of the Park-System from above (cannot be used with Powerbrush SEB 228 / EB03 or SEB 236 / EB01).

This makes the vacuum cleaner easier to carry and store.

Maintenance and care

Turn off and unplug the vacuum

cleaner before performing any maintenance work.

The Miele filter system consists of the following three components.

– Filter bag – Exhaust filter – Dust compartment filter

The use of filter bags made of

paper or a similar material, or filter bags with a cardboard retaining plate can lead to serious damage to the vacuum cleaner and possibly voiding the warranty, just as with the use of filter bags without the "Original Miele" logo.

Purchasing new filter bags and filters

Original Miele filter bags and filters can be purchased from an authorized Miele vacuum dealer or by visiting the Miele online store.

Which filter bags and filters are the right ones?

This vacuum cleaner uses Original Miele filter bags Type G/N and an Original Miele filters, the "Original Miele" Logo will appear on the packaging or directly on the filter bag.

Each of these components must be changed periodically to maintain the vacuum cleaner’s efficiency.

Only use Miele filter bags, filters and accessories with the "Original Miele" logo. Only then can the suction power of the vacuum cleaner reach its optimum potential creating the best possible cleaning results.

An "AirClean" exhaust filter and a dust compartment filter are supplied with every box of Miele filter bags.

If you would like to purchase additional Miele filters separately, contact your vacuum dealer or Miele, please quote the model number of your Miele vacuum cleaner to ensure correct parts are ordered. These parts are also available to order from the online Miele store.

The exhaust filter supplied with the vacuum cleaner can be exchanged with another type of Original Miele filter (see "Exchanging exhaust filters").

When to change the filter bag (see fig. 26)

Change the filter bag when the colored marker in the airflow indicator completely fills the display in red.

Filter bags are disposable articles and made to be used only once. Dispose of full filter bags. Do not attempt to reuse. Clogged pores reduce the suction power of the vacuum cleaner.

Check the airflow indicator

^ Attach the floor brush AllTeQ

(depending on model) to the vacuum cleaner. All other suction tools can affect the function of the airflow indicator.

Use the On/ Off foot switch s to switch the vacuum cleaner on, then select the highest suction setting.

Slightly lift the floor brush AllTeQ from the floor. If the color marker completely fills the indicator window, the filter bag needs to be changed.

How the airflow indicator works

However, if fine dust, such as drill dust, sand, plaster or flour is vacuumed, the pores of the filter bag may become blocked. The marker will indicate that the bag is "full" even when it is not. The filter bag should be changed as the suction power is greatly reduced.

If the bag is bulging with pet fur, hair, carpet fluff, etc. the indicator may not register "full". This is because the air flow of the filter bag may still be high enough not to activate the marker to show maximum. The filter bag should still be changed.

How to change the filter bag (see fig. 27 + 28)

^ Lift the release button and open the

dust compartment lid upwards until it clicks into place (see fig. 9).

The filter bag has a flap that automatically closes to prevent dust from escaping when the bag is removed.

Grasp the finger grip and pull the filter bag out of the holder.

Insert the new filter bag into the blue holder as far as it will go. Note: Do

NOT unfold the filter bag when you first remove it from the box.

Wait until you have inserted the filter bag into the compartment before unfolding it.

The airflow indicator is designed to show when the bag is full of common household dust and measures the amount of air flow through the filter bag. Normal household dust is a mixture of dust, hair, carpet fluff, threads, sand, etc.

Now close the dust compartment lid until it clicks into place, taking care not to catch the filter bag in the lid.

If you do not insert a replacement

filter bag, the dust compartment lid is designed not to close. Do not use force!

a AirClean Filter

Change the exhaust filter each time you open a new box of Miele filter bags. A new AirClean exhaust filter is included in every box of Miele filter bags.

When should I change the dust compartment filter?

Whenever you start a new box of Miele filter bag filters, you should change the dust compartment filter. A new dust compartment filter is included in every box of Miele filter bags.

Replacing the dust compartment filter (see fig. 29)

^ Open the dust compartment lid. ^ Grasp the finger grip and pull the

filter bag out of the holder.

^ Open the blue filter frame until it

clicks into place, use the clean corner to remove the dust compartment filter.

Insert a new dust compartment filter.

Close the filter frame.

Insert the new filter bag as far as it will go into the blue holder.

Close the dust compartment lid until it clicks into place.

b Active AirClean 50 (black) c HEPA AirClean 50 (white)

If the display of the exhaust filter change indicator has turned fully red (see fig. 13). The indicator light will come on after approx. 50 hours of operation, which is equivalent to one year of average use. The vacuum cleaner can still be used however, the filter performance and suction power will be reduced.

Instead of the Active AirClean 50 b or HEPA AirClean 50 c exhaust filter installed as standard, an AirClean a exhaust filter can also be used (see section "Maintenance and care - Exchanging exhaust filters").

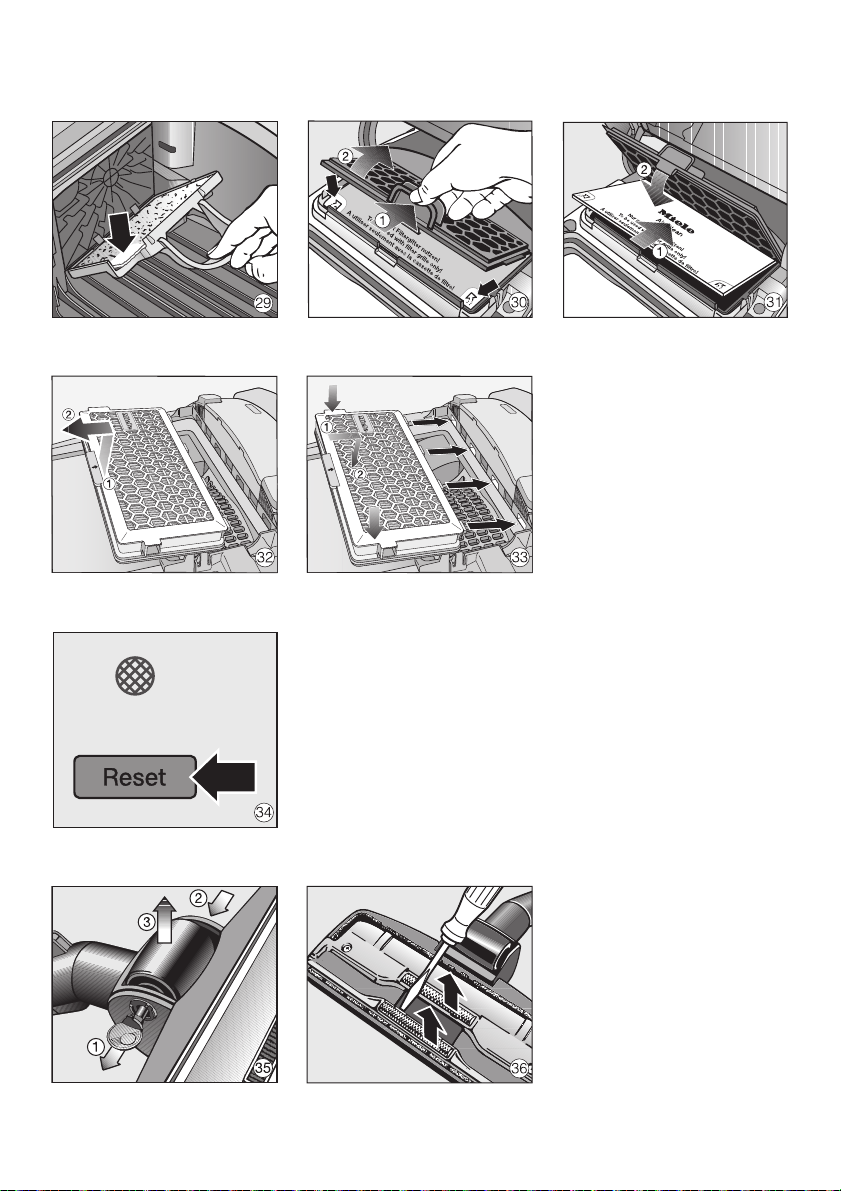

How to replace the AirClean exhaust filter? (see fig. 30 + 31)

Make sure that only one exhaust filter is inserted in the frame.

Open the dust compartment lid.

Squeeze the release for the filter frame and open until it clicks.

When to change the exhaust filter?

Depending on the model, your vacuum cleaner will use one of the following standard exhaust filters (see fig. 8):

Grasp one of the two clean corners (see arrow) to remove the used Air Clean exhaust filter.

Insert a new AirClean exhaust filter.

+ 39 hidden pages
