IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

The manufacturer cannot be held responsible for any damage caused by non-compliance of these Important Safety Instructions.

WARNING-

To reduce the risk of fire, electric shock or injury:

Before using

Check the voltage rating of the

vacuum cleaner before connecting the power cord to an electrical outlet. Your power source should correspond with the voltage rating plate located on the underside of the vacuum. Use only household AC outlets. Never use DC power sources. If you are not sure of your home’s voltage supply, consult a qualified electrician. Connecting the vacuum cleaner to a higher voltage than indicated in these instructions may result in damage to the vacuum cleaner or injury.

To reduce the risk of electric shock,

this appliance has a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not alter the plug in any way.

A damaged vacuum cleaner can be

dangerous. Check the packaging, vacuum cleaner and accessories for any signs of damage. Do not use a damaged appliance.

Do not use with a damaged cord or

plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors or submerged in water, bring it to a service center.

The electrical outlet must be fitted

with a 15 A fuse.

IMPORTANT SAFETY INSTRUCTIONS

Use

Do not use on people or animals.

Do not use outdoors or on wet

surfaces. Only dry surfaces should be vacuumed.

Use only as described in this

manual. Use only Miele recommended accessories.

The manufacturer cannot be held

responsible for damage caused by non-compliance with these Important Safety Instructions. This appliance is intended strictly for household use only.

Do not allow the vacuum cleaner to

be used as a toy. Close attention is necessary when used near children.

Never use the vacuum cleaner

without the dustbag or filters in place. Otherwise it could be damaged.

If a dustbag is not inserted, the dust

compartment lid will not close. Do not force it shut.

Do not leave the vacuum plugged

in. Unplug it from the outlet when not in use and before servicing.

On the underside of the vacuum

handpiece is a metal insert designed to absorb static electricity. Please make certain that your hand remains around this metal insert when vacuuming.

Unwind the cord completely to aid

the vacuum in dissipating heat.

This vacuum should not be used to

entrap or retain any hazardous materials.

Do not use the vacuum cleaner to

pick up liquids or damp dirt. This could impair the electrical safety of the vacuum cleaner. Wait for freshly shampooed carpets to dry.

Do not vacuum anything that is

burning or smoking such as cigarettes, matches or hot ashes. The vacuum could catch fire.

Do not vacuum toner dust. Toner,

such as that used in printers and photocopiers can conduct electricity.

Do not use to pick up any flammable

or combustible liquids, such as gasoline, or use in areas where they may be present.

Do not vacuum up items which are

heavy, hard or have sharp edges. They could cause a blockage and damage the appliance.

Do not pull or carry by the cord, use

the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.

Persons which lack physical,

sensory or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person.

IMPORTANT SAFETY INSTRUCTIONS

Do not unplug by pulling on the

cord. To unplug, grasp the plug, not the cord.

Do not handle the plug or vacuum

with wet hands.

Keep the power cord, hair, loose

clothing, fingers and all parts of the body away from openings and moving parts.

Do not place anything into the

openings of the vacuum. Do not use if any openings are blocked; keep them free of dust, lint, hair, or anything that may reduce air flow.

This appliance is equipped with a

power cord reel. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Turn off all controls before

unplugging.

Use extra care when cleaning on

stairs.

Floor attachments, accessories and

wands must not be used at head level to avoid injury to eyes and ears.

Monitor the dustbag change

indicator and inspect all filters regularly. For best performance, the dustbag and filters should be replaced when necessary. A full bag or blocked filter will reduce the vacuum cleaner’s suction power. A temperature limiter automatically switches the vacuum cleaner off if it gets too hot, see "Frequently asked questions".

Using accessories

The hose and the telescopic wand

contain electrical wires. Do not use the vacuum cleaner if these parts are damaged, cut or punctured. Avoid picking up sharp objects. Danger of electric shock!

Unplug the vacuum when changing

accessories.

To avoid the risk of injury when

vacuuming with a Miele Powerbrush Turbobrush do not touch the rotating roller brush. Danger of injury.

IMPORTANT SAFETY INSTRUCTIONS

The socket on the vacuum cleaner

(depending on model) must only be used for the Miele Powerbrush specified for use with this appliance.

Danger of injury. The Miele

Powerbrush is a motor driven accessory for use only with Miele vacuum cleaners. The vacuum must not be used with another manufacturer’s powerbrush.

Do not use the vacuum without an

accessory attached. The rim could be damaged and injuries could result from sharp edges.

Miele dust bags are disposable and

intended to be used only once. Do not attempt to reuse them. An over stuffed dustbag will reduce the efficiency of the vacuum cleaner.

Only use genuine Miele dustbags

with the Miele quality signet and original Miele filters and accessories. Only then will the manufacturer guarantee its safety.

Cleaning, maintenance and repairs

The electro-suction hose and the

telescopic wand contain electrical wires (depending on model). The plug connectors must not come in contact with water. These items may only be cleaned with a dry cloth, no moisture can touch them. Danger of electric shock.

Repairs may only be performed by

an authorized service agent in accordance with national and local safety regulations. Unauthorized repairs could cause injury or machine damage. The manufacturer cannot be held responsible for unauthorized work.

If the power cord is damaged it

should be replaced along with a new cable reel by Miele Technical Service.

Disposing of an old appliance

Before discarding an old vacuum

cleaner, please cut off the power cord and render the plug useless. Ensure the appliance presents no danger to children while being stored for disposal.

Turn the vacuum cleaner off after

each use and before every cleaning / maintenance. Pull the plug from the outlet.

Never submerge the vacuum

cleaner in water. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply. If moisture gets into the appliance there is a risk of electric shock.

SAVE THESE

INSTRUCTIONS

Guide to the machine

1 Power cord

2 Park-System

3 Foot switch for cord rewind

4 Suction power selector *

5 Thermo indicator *

6 On / Off switch

7 Exhaust filter *

8 Dustbag change indicator

9 Accessory compartment lid release

10 Handpiece

11 Air inlet valve

12 Locking button

13 Two-Piece Suction Wand (Telescopic wand available on select models*)

14 Elbow

15 Dust compartment lid release

16 Telescopic wand release button *

17 Dust compartment filter (motor protection)

18 Dust bag

19 Powerbrush socket *

20 Floor brush *

21 Carrying handle

22 Wand bracket

Features marked * depend on the model and may vary or not be available on your model.

Some models are supplied with a Miele Powerbrush or Turbobrush as standard (not illustrated). See the Operating Instructions supplied with these brushes for more information.

Before using the vacuum cleaner

Attaching the hose

Slide open the dust compartment

shutter (depending on model).

The dust compartment shutter is designed to prevent dust and odors from escaping. If you remove the hose from the vacuum cleaner for storage close the dust compartment shutter before putting it away.

Insert the elbow into the suction

socket.

Removing the hose

Press the release buttons on the side of the elbow and lift the hose from the socket.

Before using the vacuum cleaner

Connecting the hose and the telescopic wand

Fit the handpiece of the hose firmly

into the wand. Turn the handpiece and wand in opposite directions until they lock with a click.

To release the handpiece from the

telescopic wand press the locking button (see arrow) and pull apart.

Connecting the 2-piece suction wand sections

(depending on model)

Both sections of the telescopic wand have locating arrows. When connecting the tubes, ensure that the two arrows point to each other.

Adjusting the telescopic wand

(depending on model)

Once one section of the telescopic wand is inside the other the height can be adjusted for comfortable vacuum cleaning.

Press the telescopic wand release button (see arrow) to release the tubes and adjust the height.

Note: When a resistance is felt it has reached its maximum length. Do not force it beyond this length.

Before using the vacuum cleaner

Attaching the floor brush

(depending on model)

Insert the telescopic wand into the

floor brush and turn in either direction until it locks with a click.

To release the floor brush from the

telescopic wand, press the locking button (see arrow) and pull the wand out of the floor brush.

The floor brush is suitable for cleaning carpets, rugs, and hard surfaces. For flooring susceptible to scratches, use one of the special Miele floor brushes (see "Optional accessories").

Observe the cleaning instructions of the floor manufacturer.

Adjusting the floor brush

For vacuuming carpets and rugs: ^ Press the foot switch marked ö.

For vacuuming smooth floors:

Press the foot switch marked ä.

Powerbrush / Turbobrush

Some models may be supplied with an Powerbrush or a Turbobrush as a standard accessory (see "Optional accessories"). Please refer to the separate operating instructions supplied with these brushes for instructions on use and maintenance.

Accessory tools for various types of cleaning are supplied with the vacuum cleaner.

a Crevice nozzle *

b Crevice nozzle extension *,

supplied separately

c Dusting brush

d Upholstery nozzle

* depending on model

The tools are located in the accessory compartment, where they can be rearranged after use.

Taking the accessories out

^ Press the release button to open the

accessory compartment lid.

Included accessories

Take out the accessory needed.

Close the lid securely.

Using the included accessories

The different tools can either be fitted to the handpiece or to the suction wand.

Crevice nozzle

(depending on model)

For cleaning in folds, crevices and corners.

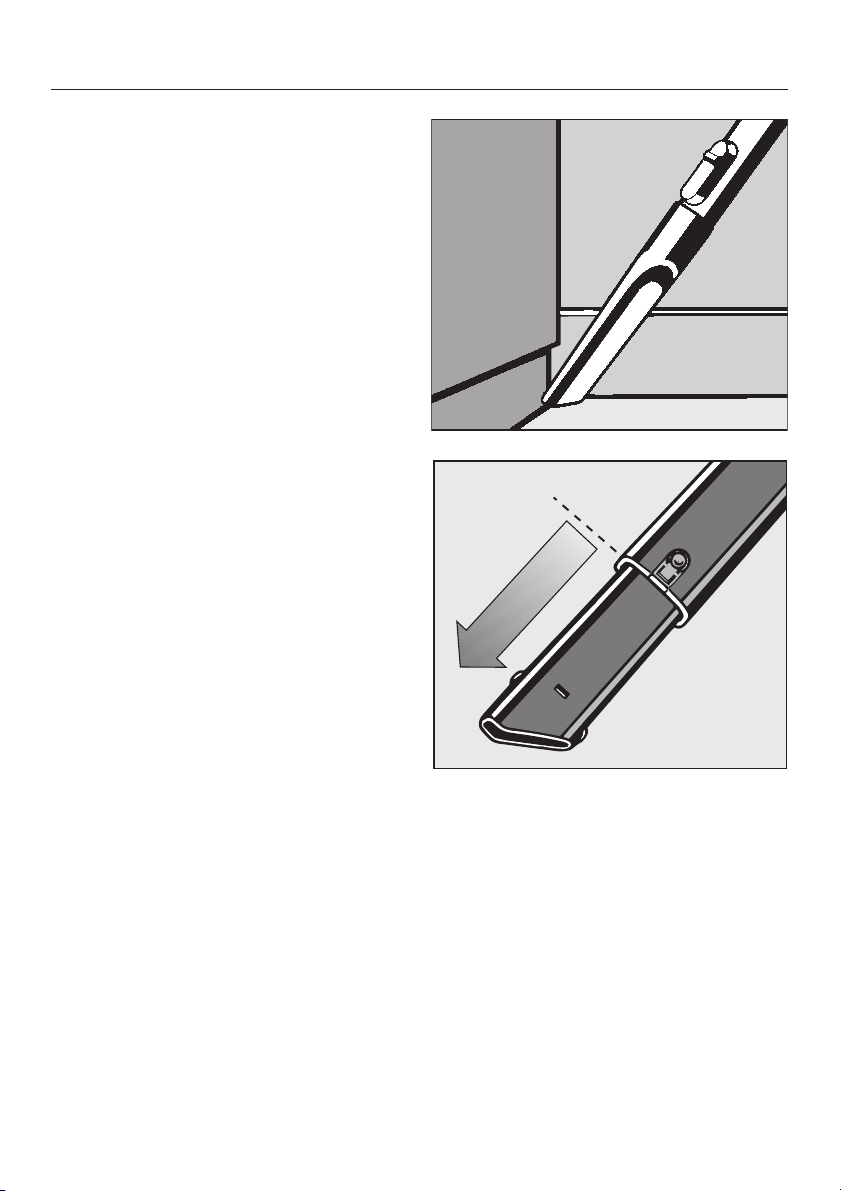

Crevice nozzle extension

(depending on model)

For cleaning in folds, crevices and corners.

This accessory can be used to extend the length of the crevice nozzle by pulling out the inner section.

^ Press the locking button to pull the

extension piece out or to push it in.

Using the included accessories

Dusting brush

For cleaning moldings, ornate or carved articles, etc.

The head of the dusting brush can be turned to attain the best cleaning position.

Upholstery nozzle

For cleaning upholstery, mattresses, cushions, curtains, covers etc.

Use

Power cord

Unwind the cord completely to

aid the vacuum in dissipating heat.

Unwinding

Hold the plug and pull out the power

cord.

To reduce the risk of electric

shock, the vacuum has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not alter the plug in any way. Danger of overheating and damage.

Rewinding

^ Unplug the vacuum from the outlet. ^

Press the rewind switch - the power cord will rewind automatically. Hold the plug so that it does not whip around when rewinding.

Turning the vacuum on and off

Press the On/Off switch.

While vacuuming

The vacuum cleaner can also stand on its end for vacuuming stairs, drapes etc.

To prevent static discharge your

hand must touch the metal inlay on the underside of the vacuum handpiece. Be certain to continuously touch this inlay when vacuuming fine dust, flour or saw dust as these materials are most likely to create static discharge. To further prevent static discharge while vacuuming pull the vacuum along by the hose with one hand while continuing to hold the handpiece in the other hand.

Use

Adjusting the suction

(models with rotary selector)

The suction power can be regulated to suit the type of flooring. Select the middle suction setting (symbol d) for carpets and a higher setting for smooth and hard floors.

Rotary selector

^ Turn the suction power selector to the

desired setting.

Opening the air inlet valve

The air inlet valve can be opened to quickly reduce the suction power of the tool being used, e.g. when moving from a carpet to an area rug.

Open the air inlet valve far enough to reduce the suction power.

Opening the air inlet valve reduces the power to the tool being used.

Park-System

A Park-System has been designed for convenient parking of the telescopic wand at the vacuum cleaner during pauses.

Attach the floor tool in the park

bracket of the vacuum cleaner.

Transport and storage

^ Stand the vacuum cleaner vertically. ^ Fit both clips of the floor brush into

the two point holder on the side of the vacuum.

This makes the vacuum easier to carry and store.

Use

Maintenance and care

Turn off the vacuum and unplug

it from the outlet before performing any maintenance work.

The Miele filter system consists of the following three components - dustbag, exhaust filter, dust compartment filter all of which must be replaced.

Use only Miele dustbags with the Miele quality signet and original Miele filter. This ensures optimum performance of the suction power and also ensures that the bag is used to capacity. The use of non-Miele dustbags could cause damage to the vacuum cleaner and may void the warranty.

Purchasing new dustbags and filters

Replacement dustbags and filters can be purchased from your local Miele Dealer or by visiting the Miele Store at: http://store.miele.com

If you wish to purchase exhaust filters or dust compartment filters separately, please quote the model number of your appliance when ordering.

Maintenance and care

When to replace the dustbag and filters

Dustbag

Change the dustbag as needed. Only use genuine Miele F/J/M dustbags.

Exhaust filters

Depending on the model, the vacuum cleaner will be equipped with one of the following exhaust filters:

a "SUPER air clean" filter

b "ACTIVE air clean" filter

c "ACTIVE HEPA" filter

SUPER air clean filter and Dust compartment filter

Change the "SUPER air clean filter" and the Dust compartment filter when opening a new box of Miele dustbags. One of each filter is supplied with every box of Miele dustbags and should be changed when starting a new box of dustbags.

ACTIVE air clean filter

The "ACTIVE air clean filter" is a charcoal filter which absorbs odors from the dust in the dustbag. It should be replaced yearly or when odors are noticeable. Write the replacement date on the filter label.

ACTIVE HEPA Filter

The "ACTIVE HEPA filter" is an odor absorbing charcoal filter which should be replaced yearly. Write the replacement date on the filter label.

This filter traps respirable particles and allergens from being exhausted into the room air. It is particularly suitable for allergy sufferers and those concerned with a high level of hygiene.

Maintenance and care

When to change the dustbag

Change the dustbag as needed.

The dust bags are disposable and intended to be used only once. Do not attempt to reuse.

Checking the dustbag change indicator

Attach the floor brush to the vacuum

cleaner. Only test with the floor brush, other accessories can affect the function of the dustbag change indicator.

^ Set the suction power selector (if

present) to the highest setting and make sure the air inlet valve is closed.

How the dustbag change indicator works

The indicator shows a decrease in the vacuum performance, independent of the actual fullness of the bag.

^ Hold the wand off the floor and turn

on the vacuum cleaner. If the marker completely fills the indicator window, change the dust bag even if it is not completely full.

If fine dust, such as drill dust, sand, plaster or flour is vacuumed, the pores of the dustbag become blocked. The marker will indicate that the bag is "full" even when it is not. The dustbag should be changed as the suction power is greatly reduced.

If the bag is bulging with pet fur, hair, carpet fluff etc. the indicator may not register "full". This is because the air flow of the dustbag may still be high enough not to activate the marker to show maximum. The dustbag should still be changed.

Changing the dustbag

Open the dust compartment lid.

Press the release button for the dust

compartment lid and raise the lid until it clicks into place.

^ Grasp the collar by the two finger

holes and pull it out from the dustbag holder.

The dustbag has a flap which closes automatically to prevent dust from escaping when the dustbag is removed.

Maintenance and care

^ Dispose the dustbag with the normal

household waste.

Do not unfold the dustbag when taking it out of the box. Keeping it folded will prevent it from getting caught when the dust compartment lid is closed.

To insert a new dustbag push the card collar securely into the frame as far as it will go.

Close the dust compartment lid firmly until it clicks into place.

Maintenance and care

Changing the filters

SUPER air clean

Open the dust compartment lid.

Open the filter frame and remove the

used "SUPER air clean" filter (see arrow).

Insert the new filter either way up.

Close the filter frame.

Changing the dust compartment filter

^ Open the dust compartment lid. ^ Open the filter frame, remove the old

filter and replace with a new one.

^ Close the filter frame.

ACTIVE air clean

Open the dust compartment lid.

Unlock and remove the used

"ACTIVE air clean filter".

Insert the new filter into the filter

frame, press it backwards until it clicks into place and lock it.

ACTIVE HEPA

^ Open the dust compartment lid. ^ Unlock and remove the used

"ACTIVE HEPA filter".

^ Insert the new filter into the filter

frame, press it backwards until it clicks into place.

Maintenance and care

Changing the thread catcher

The thread catcher pads on the bottom of the floor tool and the upholstery tool should be checked occasionally. Replace the pads if they appear worn.

Use a knife or similar object to

remove the thread catchers from the slots.

Press the new thread catchers into

the slots.

Servicing the floor roller

1. Unlock the axle lever.

2. Pull out the roller axle.

3. Take out the roller.

^ Remove all threads or hair and

reassemble the parts in the reverse order.

Spare parts are available from your Miele vacuum dealer or the Miele Technical Service Department.

Turn off the vacuum and unplug

it from the outlet before performing maintenance or a repair.

Vacuum cleaner and accessories

External surfaces of the vacuum cleaner and accessories can be cleaned with a slightly damp cloth or with a cleaner suitable for plastics.

Do not use abrasive, glass or all

purpose cleaners! They will damage the surface.

Dust compartment

The dust compartment can, if necessary, be cleaned using a dry cloth, dusting brush or a second vacuum to suck out any dust.

Cleaning and care

Monitor the change dustbag indicator and inspect all filters regularly. Clean or replace them when necessary according to these Operating Instructions.

Do not submerge the vacuum cleaner into water! If moisture gets into the appliance there is the risk of an electric shock.

Frequently asked questions

What if the vacuum cleaner turns off while vacuuming? On several models the thermo indicator , lights.

The vacuum has overheated. The temperature limiter switched off the vacuum automatically. On select models the , thermo indicator lights.

Check the telescopic wand and the hose for blockages. Replace the dustbag or filters if necessary. A heavily soiled exhaust or dust compartment filter can also be the cause of overheating. Turn off the vacuum cleaner using the On/Off switch.

Unwind the full length of the power cord. Allow the vacuum to cool down for 30 minutes.

In the event of a fault which you cannot fix yourself please contact the Miele Service Department at the phone number listed on the back of this booklet.

Please quote the model type of your

appliance.

This can be found on the data plate on the bottom of the vacuum.

Technical Service

Optional accessories

Some models come equipped with one or more of the following accessories.

Turbobrush

The Turbobrush is intended for cleaning short to medium pile carpeting. It is mechanically driven by the suction power of the vacuum. In addition to dust particles it removes stubbornly adhered threads, hairs and fluff.

Observe the cleaning instructions of the floor manufacturer.

Hand Turbobrush

The Hand Turbobrush is intended for vacuuming upholstery, mattresses, car seats, carpeted stairs and other areas inaccessible with the standard Turbobrush.

Powerbrush

The Powerbrush is intended for intensive cleaning and restoration of robust carpeting.

Observe the cleaning instructions of the floor manufacturer.

Hard floor brush

To vacuum sturdy hard floors, e.g. tiles and stone floors.

Parquet floor brush

Special brush with natural bristles intended for cleaning parquet and laminate floors, especially those susceptible to scratching.

The parquet floor brush can be cleaned with the vacuum cleaner using the crevice nozzle if necessary.

Optional accessories

Crevice nozzle

For cleaning in folds, crevices and corners.

Radiator brush

For cleaning radiators, narrow shelves or crevices.

^ Attach the radiator brush onto the

crevice nozzle.

Mattress tool

For cleaning deep crevices, mattresses and upholstery.

Universal brush

For dusting books, shelves etc.

Dust brush with natural bristles

For dusting particularly delicate objects.

Optional accessories

Crevice nozzle 12" (300 mm)

For cleaning in folds, crevices and corners.

Optional accessories

CarClean Set Plus

Specially designed for cleaning car interiors.

Accessory set consists of:

Hand Turbobrush

–

Microhose with combi nozzle

–

Crevice tool 12" (300 mm)

–

Accessory carrying case, 10 ft (3 m)

–

long hose and holder.

MicroSet

This set is specially designed for cleaning small objects and difficult to reach areas (such as PC keyboards, stereo equipment, carved furniture, ornaments, models etc).

Accessory set consists of:

– Micro hose with combi nozzle

(crevice nozzle and dust brush)

–

Micro dust brush

–

Micro crevice nozzle and

–

Extension

–

Carrying case

ACTIVE air clean filter

A special active charcoal filter which absorbs odors from the dust collected in the dustbag, helping to prevent odors. The "ACTIVE air clean filter" can be used in place of the existing exhaust filter. There is no difference in the fine dust performance of the "Active Air Clean" and the "Super Air Clean" filter.

ACTIVE HEPA Filter

The "Active HEPA" filter combines activated charcoal and HEPA filtration in one. The active charcoal layer absorbs odors from the dust collected in the dustbag. Vacuum cleaners equipped with this exhaust filter are particularly suitable for allergy sufferers and those concerned with a high level of hygiene because of its ability to trap respirable particles and allergens.

Optional accessories

The "ACTIVE air clean filter" can be used in place of the existing exhaust filter. Before doing so take out the filter frame.

Caring for the environment

Disposal of the packing materials

The cardboard box and packing materials protect the appliance during shipping. They have been designed to be biodegradable and recyclable.

Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. These items pose a danger of suffocation.

Disposing of the dustbag and filters

Genuine Miele dustbags and filters are made of environmentally friendly materials. They can be thrown out with the household trash provided the vacuum cleaner has been used only for normal household dust.

363738

Alteration rights reserved / 4507

For the most updated manual see the Miele web site.

M.-Nr. 07 226 680 / 00

Miele S 300i, S 318i Operating instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
