Page 1
36” All Gas Range
HR 1134-1 G/LP, HR 1135-1 G,
HR 1136-1 G/LP
36” Dual Fuel Range
HR 1934-2 DF G/LP, HR 1935-2 DF G,
HR 1936-2 DF G/LP
Shown: HR 1936-2 DF under DAR 1230
Please note: This information is subject to change
Specication Sheet TRS 03192018
8mieleusa.com
Page 2
36” All Gas and Dual Fuel Range
SPECIFICATIONS
Overall Unit Dimensions 3515/16” (915 mm) W x 351/2” — 37” (902 — 940 mm) H x 261/2” (678 mm) D [Depth to control panel]
Oven Door Clearance 25” (635 mm)
Niche
Minimum Cabinet Niche Opening 36” (915 mm) W x 351/2” (901 mm) H
Gas
Gas Line Connection 1/2” NPT
Operational Altitudes
Miele Natural Gas and LP Ranges will function up to 9,800 ft. in altitude without adjustment; the following excep-
High Altitude
Electrical
Electrical Requirements
Power Cord
Plumbing
Plumbing Requirements
Plumbed Hose Connection
Shipping HR 113x-1 HR 193x-2 DF
Shipping Weight 448.6 lbs (203.5 kg)
Shipping Dimensions 435/16” (1100 mm) W x 52” (1,294 mm) H x 311/2” (800 mm) D
Installation Accessories HR 113x-1 HR 193x-2 DF
12” Backguard RBGAG1236 RBGDF1236
20” Backguard RBGAG2036 RBGDF2036
40” Backsplash RBS36 RBS36
Support
Call Miele (800) 999-1360
Miele Website
20/20 Link
tion will function up to 6,500 ft. in altitude without adjustment:
• Griddle in LP: HR 1136-1 LP, HR 1936-2 LP, HR 1956-2 LP
• Grill in G: HR 1135-1 G, HR 1935-1 G, HR 1955-1 G
If an installation exceeds these elevations, please contact rangejetkit@mieleusa.com.
HR 113x-1 HR 193x-2 DF
120V, 60Hz, 15A 120/208-240V, 60Hz, 30A
NEMA 5-15p, 5’ 11” (1.8m) NEMA 14-30p, 5’ 11” (1.8m)
HR 113x-1 HR 193x-2 DF
An Inline water lter, like activated carbon, is required to reduce mineral deposits.
-
-
Do not connect to a Reverse Osmosis (RO) water system. Connect to a cold water
supply only. Must be connected to a shut-off valve. The water shut-off valve must be
accessible after installation. The water pressure must be between 14.5 and 145 psi
(1 and 10 bars). If the pressure is higher, install a pressure reducing valve.
Supplied hose: flexible braided 4’11” (1.5 m) with 3/8” O.D. compression fitting for
connection to a shut off valve. The total hose length must not exceed 24.5 ft. (7.5 m).
8www.mieleusa.com
82020technologies.com
Duel Fuel:
Only Burners: With Grill: With Griddle:All Gas:
HR 1134-1
Item 25113461USA
HR 1134-1 LP
Item 25113462USA
HR 1934-2 DF
Item 25193471USA
HR 1934-2 DF LP
Item 25193472USA
HR 1135-1
Item 25113561USA
HR 1935-2 DF
Item 25193571USA
HR 1136-1
Item 25113661USA
HR 1136-1 LP
Item 25113662USA
HR 1936-2 DF
Item 25193671USA
HR 1936-2 DF LP
Item 25193672USA
Page 2 of 5
Page 3

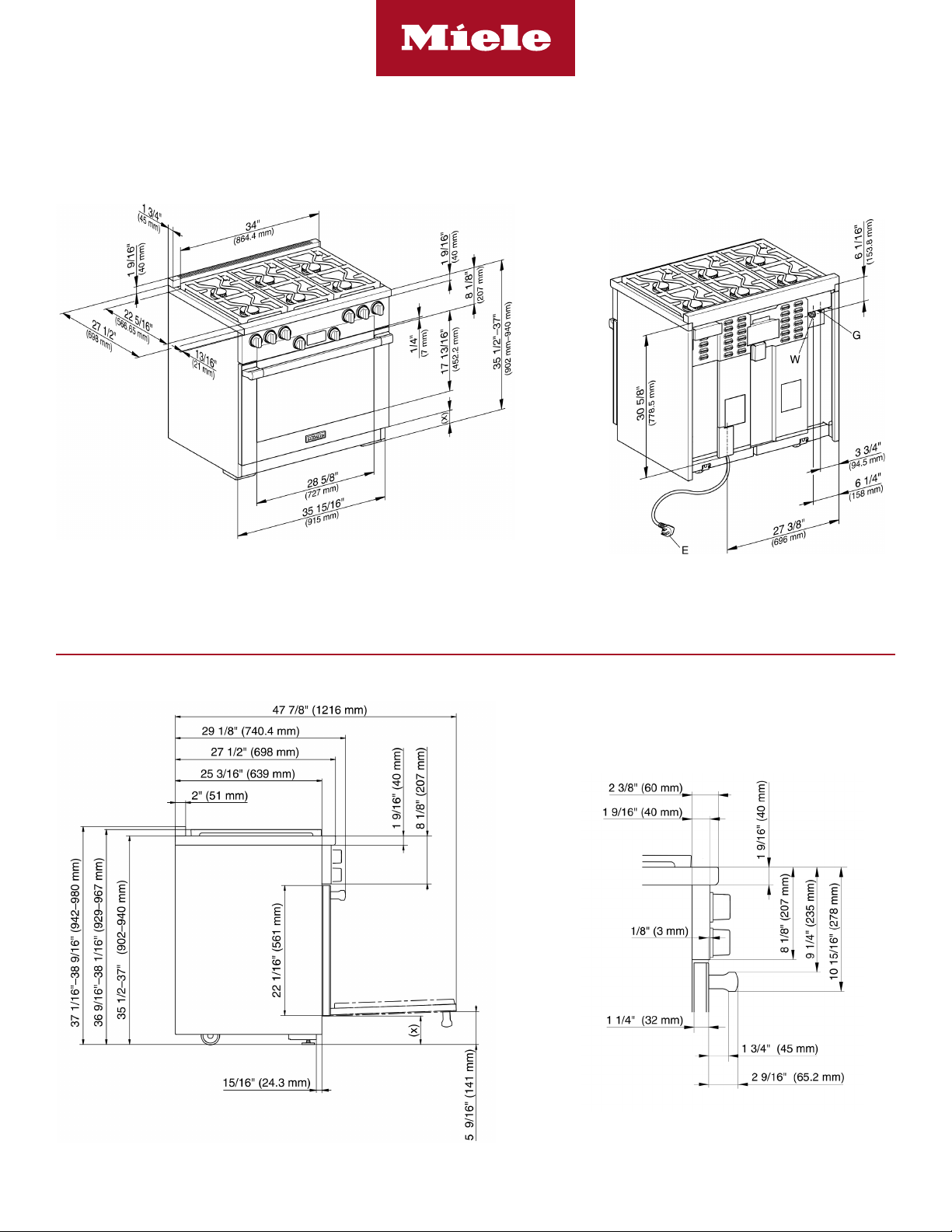

PRODUCT DIMENSIONS
36” All Gas and Dual Fuel Range
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm)
E = Electrical connection
G = Gas connection
W = Water connection (HR 193x -2 Only)
SIDE VIEW BULLNOSE DETAILS
(x) = Toe-kick height adjustment 5” - 6 1/2” (127 mm - 165.1 mm)
Page 3 of 5
Page 4
Dual Fuel 36” Range BTU Output
HR1934-2 Burners
(1) 12,500 BTU (G/LP);
Gas Burners:
Total BTU Output
(2) 13,600 BTU (G)
13,000 BTU (LP);
(3) 19,500 BTU (G/LP)
98,200 BTU (G)
97,000 BTU (LP)
36” HR 1934-2 DF Range
W = Water connetion (HR 193x-2 DF only), G = Gas Connectoin

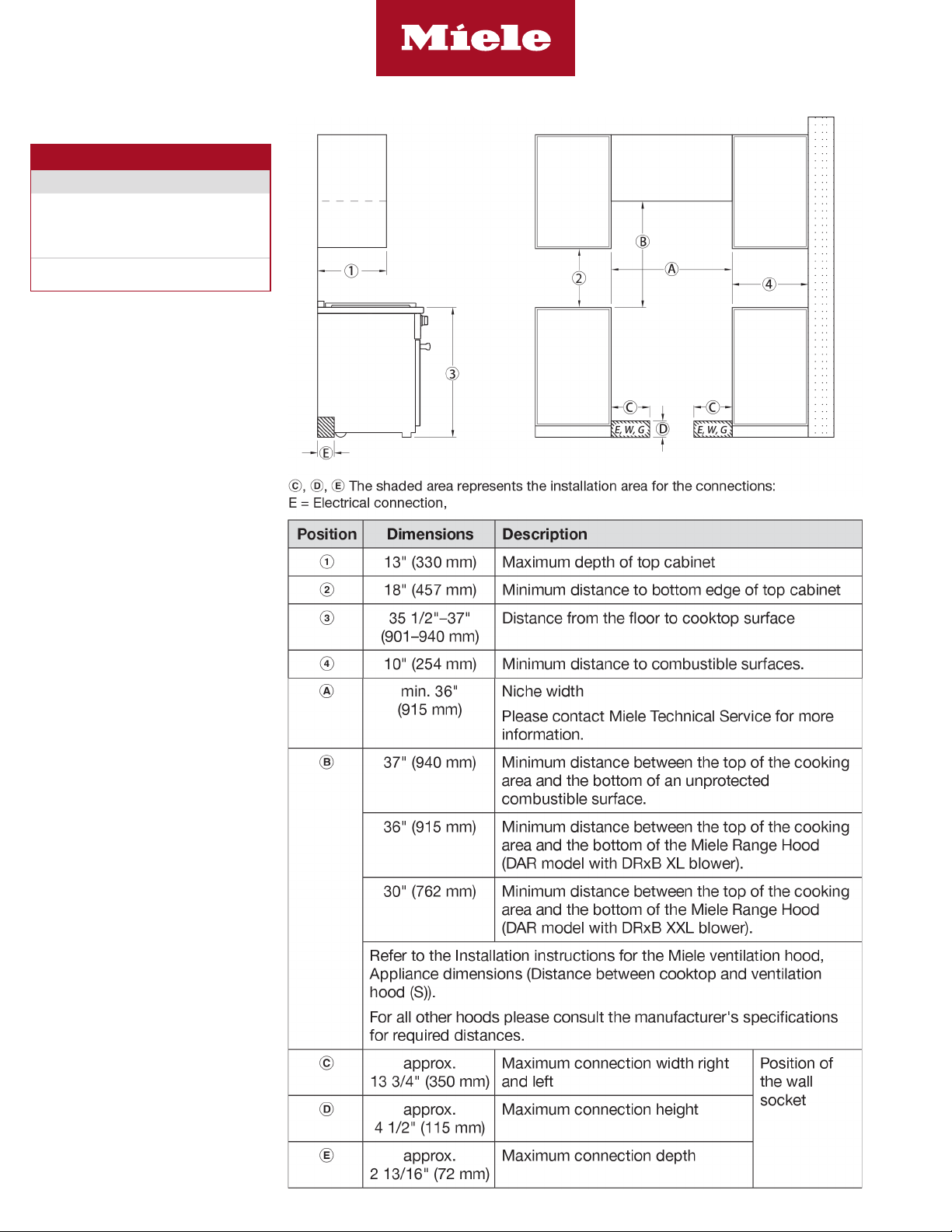

Note:
Please observe safe distances to rear
combustible surfaces of 12” (305 mm)
clearances. For zero clearance
installation, Miele Backguards will
satisfy the required distance to
combustible surfaces. The Miele
Backguard is available in 12” (305 mm)
or 20” (508 mm) heights.
Page 4 of 5
Page 5
All Gas 36” Range BTU Output
HR1134-1 Burners
Gas Burners:
Total BTU Output 84,500 BTU (G/LP)
HR1135-1 Burners
Gas Burners:
Grill Burner: 19,000 BTU (G)
Total BTU Output 75,000 BTU (G)
HR1136-1 Burners
Gas Burners:
Griddle Burner:
Total BTU Output
Oven Burners (HR113x-1 Only)
Oven Top
Burners
Oven Bottom
Burner
Dual Fuel 36” Range BTU Output
HR1935-2 Burners
Gas Burners:
Grill Burner: 19,000 BTU (G)
Total BTU Output 84,100 BTU (G)
HR1936-2 Burners
Gas Burners:
Griddle Burner:
Total BTU Output
(1) 8,000 BTU (G/LP);
(2) 9,000 BTU (G/LP);
(3) 19,500 BTU (G/LP)
(1) 9,000 BTU (G);
(1) 8,000 BTU (G);
(2) 19,500 BTU (G)
(1) 9,000 BTU (G/LP);
(1) 8,000 BTU (G/LP);
(2) 19,500 BTU (G/LP)
13,000 BTU (G)
14,300 BTU (LP)
69,000 BTU (G)
70,300 BTU (LP)
22,000 BTU (G);
20,150 BTU (LP)
25,500 BTU (G);
27,500 BTU (LP)
(1) 12,500 BTU (G);
(1) 13,600 BTU (G);
(2) 19,500 BTU (G)
(1) 12,500 BTU (G/LP);
(1) 13,600 BTU (G)
13,000 BTU (LP);
(2) 19,500 BTU (G/LP)
13,000 BTU (G)
14,300 BTU (LP)
78,100 BTU (G)
78,800 BTU (LP)
36” All Gas and Dual Fuel Range
W = Water connetion (HR 193x-2 DF only), G = Gas Connectoin

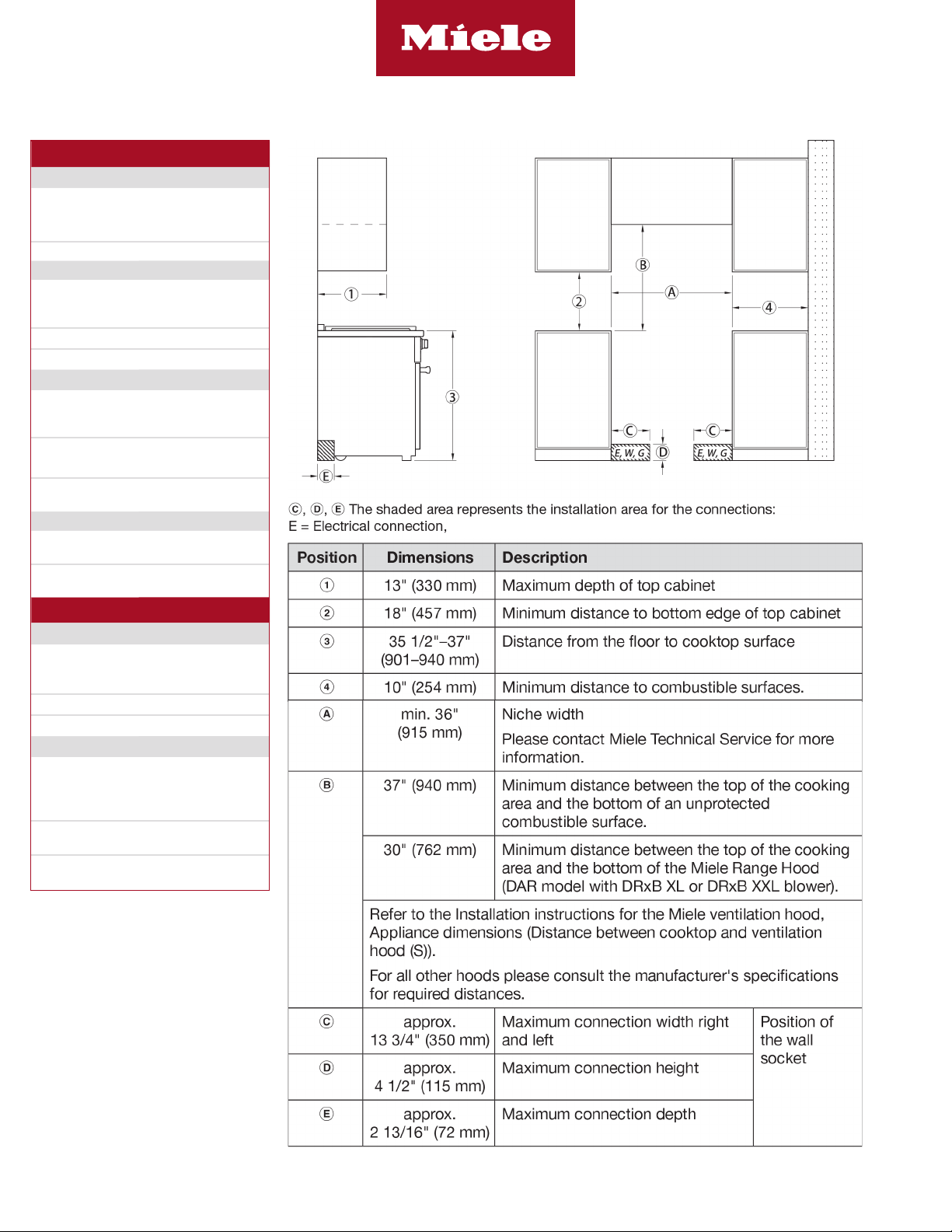

Note:
Please observe safe distances to rear
combustible surfaces of 12” (305 mm)
clearances. For zero clearance
installation, Miele Backguards will
satisfy the required distance to
combustible surfaces. The Miele
Backguard is available in 12” (305 mm)
or 20” (508 mm) heights.
Specication Sheet TRS 08142018
Page 5 of 5
