Miele K 622 i-1, K 641 i-1, K 642 i-1 Operating instructions

Operating and installation instructions

Refrigerator
K 621 i-1, K 622 i-1
K 641 i-1, K 642 i-1

It is essential to read these
operating instructions before
installing or using the machine,
to avoid the risk of accident
or damage to the machine.

G

M.-Nr. 05 739 100

Contents

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching off for longer periods of time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

. . . in the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

. . . in the freezer compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Temperature selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the refrigerator efficiently. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Different storage zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Coldest area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Warmest area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Food which should not be stored in a refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . 14

Storing food correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Fruit and vegetables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjusting the interior fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Moving the shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Split shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the door shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Moving the bottle divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Freezing and storing food. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Storing frozen food. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Home freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Hints on home freezing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Packing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Placing food in the freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Ice cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cooling drinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Freezer compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cleaning the interior and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Ventilation gaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Service Department . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Climate range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Before installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Building in dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Changing the door hinging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Appliance door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Freezer compartment door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Building in the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Building into a peninsular run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Description of the appliance

a Freezer compartment *
b Adjustable shelves
c Condensate channel and

drain hole

d Fruit and vegetable containers
e Butter and cheese compartment

4

f Egg trays
g Adjustable door shelves

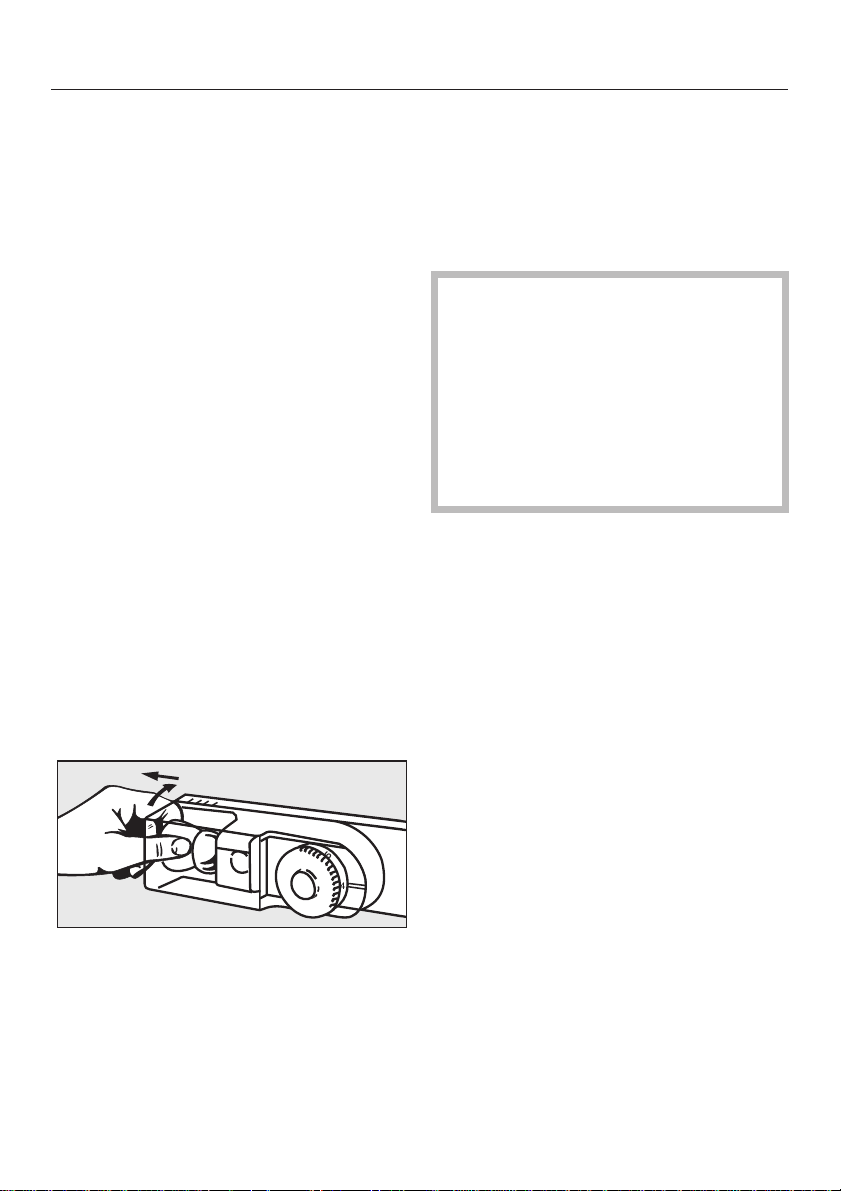

h Temperature selector and

interior light with
contact switch

i Bottle shelf
j Divider

* depending on model

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.

Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!

Rather than just throwing these
materials away, please ensure that they
are recycled.

Disposal of your old appliance

Please ensure that the appliance
presents no danger to children while
being stored for disposal.

It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind the
appliance to prevent misuse. See the
"Warning and Safety" section of this
booklet for further details.

Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.

Please dispose of your old appliance at
your local community waste collection /
recycling centre and not with your
household waste.

Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.

5

Warning and Safety instructions

Technical safety

This appliance complies with all
relevant legal safety requirements.
Improper use can, however, present
a risk of both personal injury and
material damage.

To avoid the risk of accidents and
damage to the appliance, read the
operating instructions carefully
before installation and before using
for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.

Keep these operating instructions in
a safe place and pass them on to
any future user.

Correct use

This appliance is intended for

domestic use only for the cool
storage of food and drinks as well as
for storing deep frozen food, freezing
fresh food and for preparing ice.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage caused by
incorrect or improper use of the
appliance.

This appliance is not a toy! To

avoid the risk of injury do not allow
children to play on or near it, or to play
with the controls. Supervise its use by
the elderly or infirm.

which is very environmentally friendly.
Although it is flammable, it does not
damage the ozone layer and does not
increase the greenhouse effect. The
use of this environmentally friendly
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and installation of the
appliance that no parts of the coolant
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:

- avoid open fires
and anything which creates a spark,

- disconnect from the mains,

- air the room in which the appliance is

located for several minutes and

- contact the Service Department
for advice.

should be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every 8 g of coolant at least 1 m
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.

This appliance contains the coolant
Isobutane (R600a), a natural gas

The more coolant there is in an
appliance, the larger the room it

3

of

6

Warning and Safety instructions

Before connecting the appliance to

the mains supply, make sure that
the rating on the data plate
corresponds to the voltage and
frequency of the household supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.

The electrical safety of this

appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
regularly. Where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).

Safe operation of the appliance is

only assured if it has been installed
and connected in accordance with
these operating and installation
instructions.

Installation work, maintenance and

repairs may only be carried out by
suitably qualified and competent
persons to ensure safety.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
Ensure current is not supplied to the
appliance while maintenance or repair
work is being carried out.

The appliance is only completely

isolated from the electricity supply
when:

it has been switched off at the socket

–

and the plug has been withdrawn.

– the mains fuse has been withdrawn,

or

– the screw-out fuse is removed (in

countries where this is applicable).

Do not connect the appliance to

the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

This equipment is not designed for

maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk
assessment of the installation being
carried out by a suitably qualified
engineer.

Use

Never handle frozen food with wet
hands. Your hands may freeze to

the frozen food. Danger of frost burn.

Do not take ice cubes out with your

bare hands and never place ice
cubes or ice lollies in your mouth
straight from the freezer. The very low
temperature of the frozen ice or lollies
can cause frost burn to the lips and
tongue.

7

Warning and Safety instructions

Do not refreeze thawed or partially

thawed food.
Defrosted food should be used up as
quickly as possible, as food soon loses
it nutritional value and goes off.
Defrosted food may only be re-frozen
after it has been cooked.

Never store explosive materials in

the appliance. Thermostats
switching on may produce sparks
which could present a fire hazard.
Flammable compounds could explode.

Do not use any electrical

equipment in this appliance, e.g.
ice cream makers. Danger of sparking
and explosion!

If storing alcohol with a high

percentage proof, make sure it is
tightly closed and stored upright.
Danger of explosion.

Do not store cans or bottles

containing carbonated drinks or
liquids which could freeze in the
freezer. The cans or bottles could
explode.
Danger of injury and damage to the
appliance.

When cooling drinks quickly in the

freezer, make sure bottles are not
left in for more than one hour.

Observe the "use by" dates given

on food to avoid the risk of food
poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer’s packaging on storage
conditions required, as well as the "use
by" date.

Do not use sharp edged objects to

remove frost and ice,

–
– separate frozen foods or remove ice

trays.

They will damage the evaporator,
causing irreversible damage to the
appliance.

Never place electric heaters or

candles in the appliance to defrost
it. These can damage the plastic parts.

Do not use defrosting sprays or

de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.

Do not use any oils or grease on

the door seals, as these will cause
the seals to deteriorate and become
porous with time.

Do not block the ventilation gaps in

the plinth or the top of the
appliance housing unit as this would
impair the efficiency of the appliance,
increase the electricity consumption
and could cause damage to the
appliance.

8

Warning and Safety instructions

The appliance is designed for use

within certain climate ranges
(ambient temperatures), and should not
be used outside this range. The climate
range for your appliance is stated on
the data plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
will lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.

Never use a steam-cleaning

appliance to defrost or clean this
appliance. Pressurised steam could
reach the electrical components and
cause a short circuit.

In countries where there are areas

which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.

Disposal of your old appliance

Before disposing of an old

appliance, first make the door latch
or lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.

Disconnect it from the mains, cut

off the cable and render any plug
unusable.

Be careful not to damage any part

of the pipework whilst awaiting
disposal, e.g. by

– puncturing the refrigerant channels

in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the

eyes.

The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.

9

How to save energy

Normal energy consumption Increased energy

consumption

Installation site In a ventilated room. In an enclosed, unventilated room.

Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source

(radiator, oven).
Where the ambient room

temperature is ideal at approx.
20°C.

Temperature setting with
a thermostat which is
approximate (set in
stages).

Temperature setting with
a thermostat which is
exact to the degree
(digital display).

Use Only open the door when

With a medium setting of 2 to 3. With a high setting: The lower the

Cellar section 8 to 12°C On appliances with winter setting,

Refrigerator section 4 to 5 °C
StayFresh zone just above 0 °C
Freezer section -18°C

necessary and for as short a time
as possible.

Store food in an organised way. If food is not stored in an

Allow hot food and drinks to cool
down before placing them in the
appliance.

Store food covered or packaged. The evaporation or condensation

Place frozen food in the
refrigerator to defrost.

Do not over-fill the appliance to
allow air to circulate.

Situated near to a heat source
(radiator, oven.

Where there is a high ambient
room temperature.

temperature in the freezer, the
higher the energy consumption.

please make sure that the winter
setting is switched off when the
ambient temperature is warmer
than 16 °C.

Frequent opening of the door for
long periods will cause a loss of
coldness.

organised way, searching for an
item will mean the door is open for
longer.

Placing hot food in the appliance
will cause the compressor to run
for a long time, as the appliance
will have to work harder to lower
the temperature.

of liquids will cause a loss of
coldness in the refrigerator.

10

How to save energy

Normal energy
consumption

Defrosting Defrost the freezer when a layer of

ice one centimetre thick has built
up.

Increased energy
consumption

A layer of ice hinders the cold
from reaching the frozen food, and
causes an increase in energy
consumption.

11
