Miele G863-3 Plus Operating instructions

Operating instructions

for dishwashers

It is essential to read the operating and
installation instructions before
installing, commissioning or using the
machine, to avoid the risk of accidents
or damage to the machine.

WO

M.-Nr. 06 022 890

Contents

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using the appliance for the first time you require. . . . . . . . . . . . . . . . . . . . 11

To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

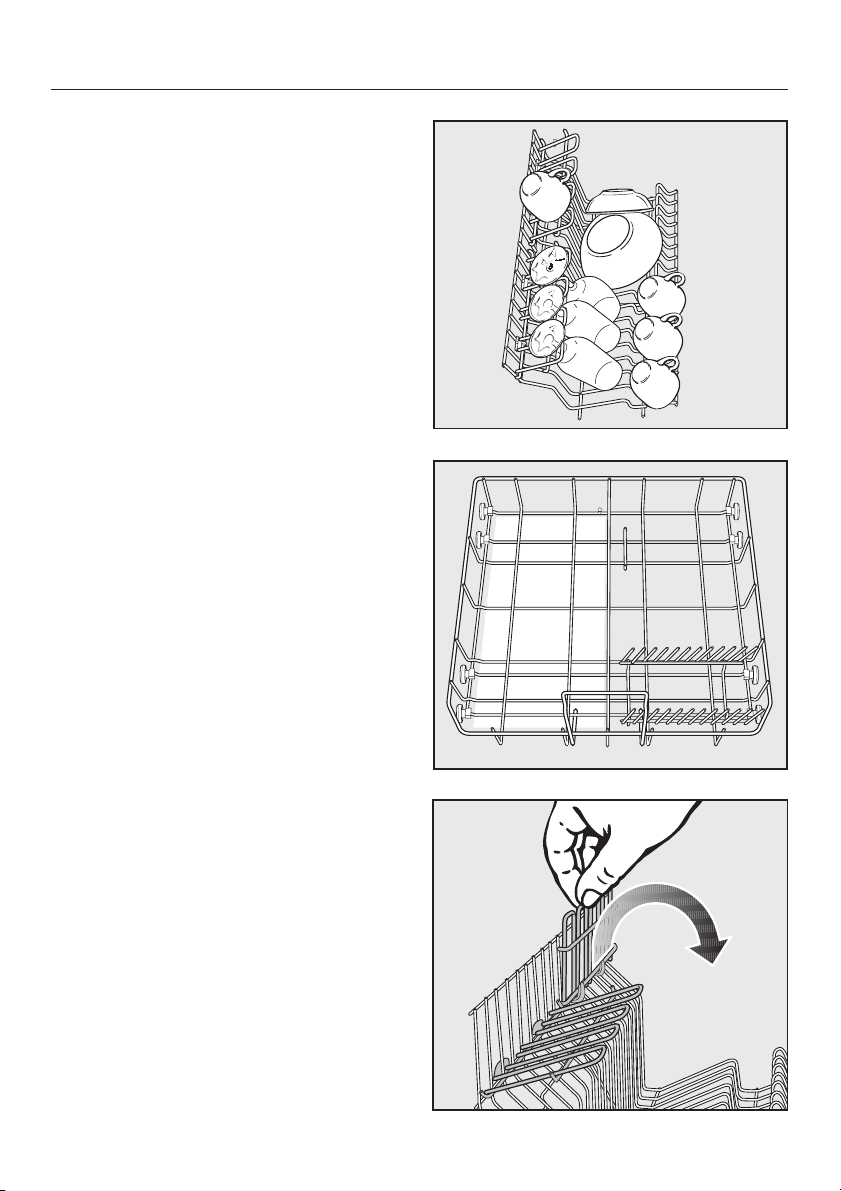

Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

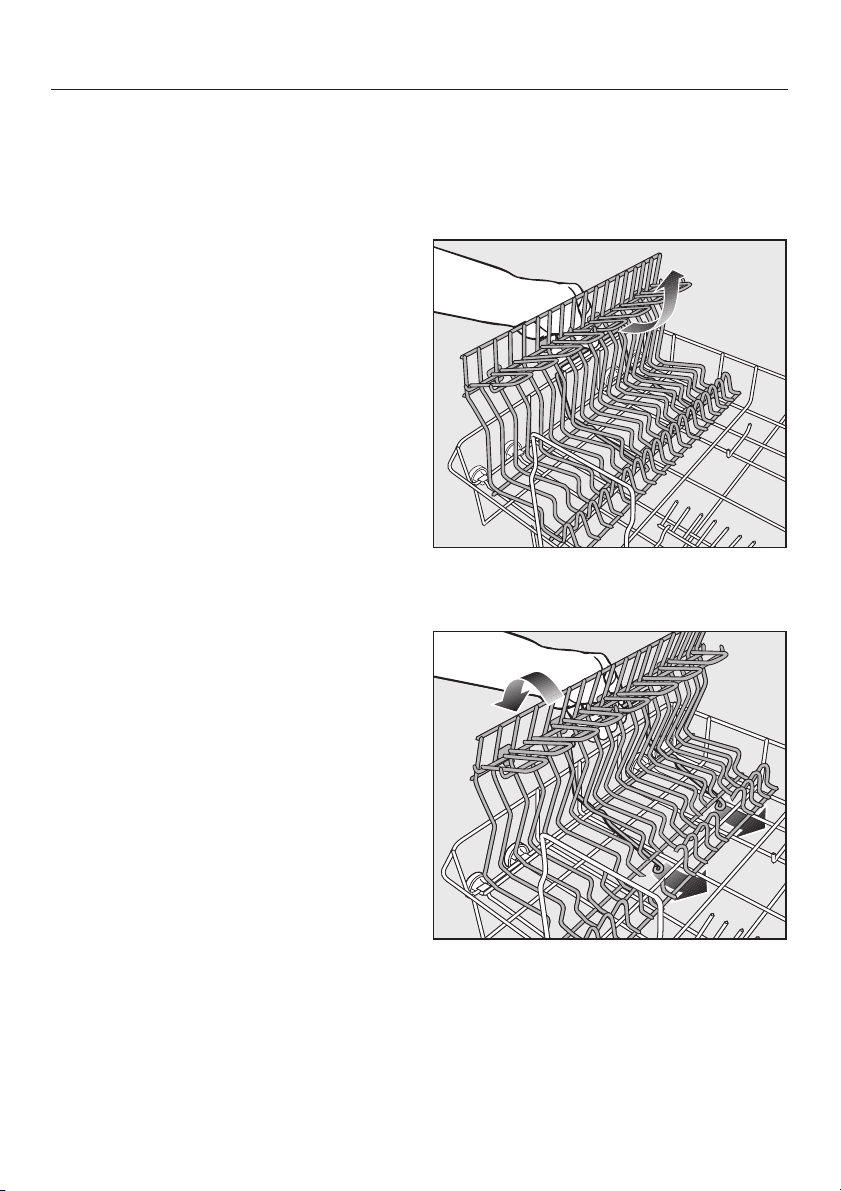

Flap up rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Positioning rail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

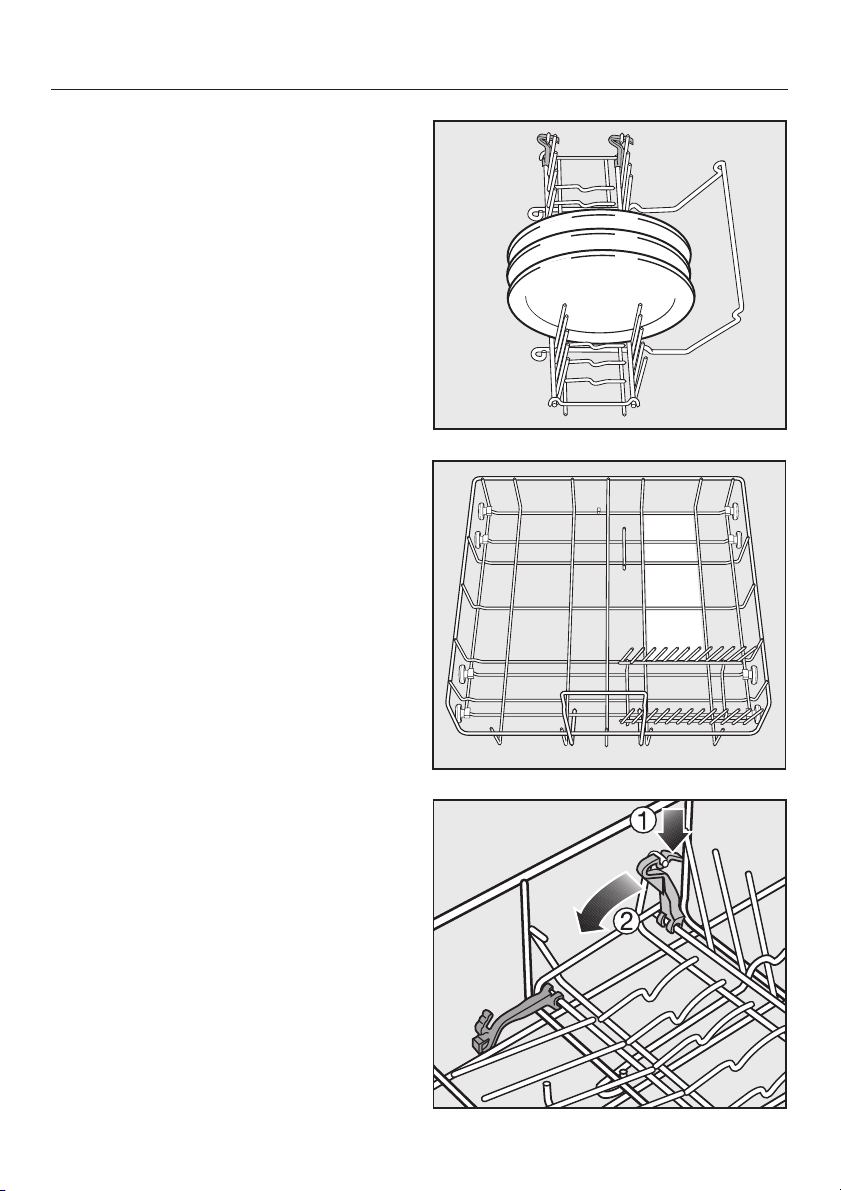

Variable inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

To remove an insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

To fit an insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hinged spike insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Vario insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Glassware insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Items not suitable for dishwashers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2

Contents

Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

"Top Solo" (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Delay start (d) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning the reflector panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Solving problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 53

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see Installation Instructions

3

Guide to the appliance

Appliance overview

1 Upper spray arm (not visible)

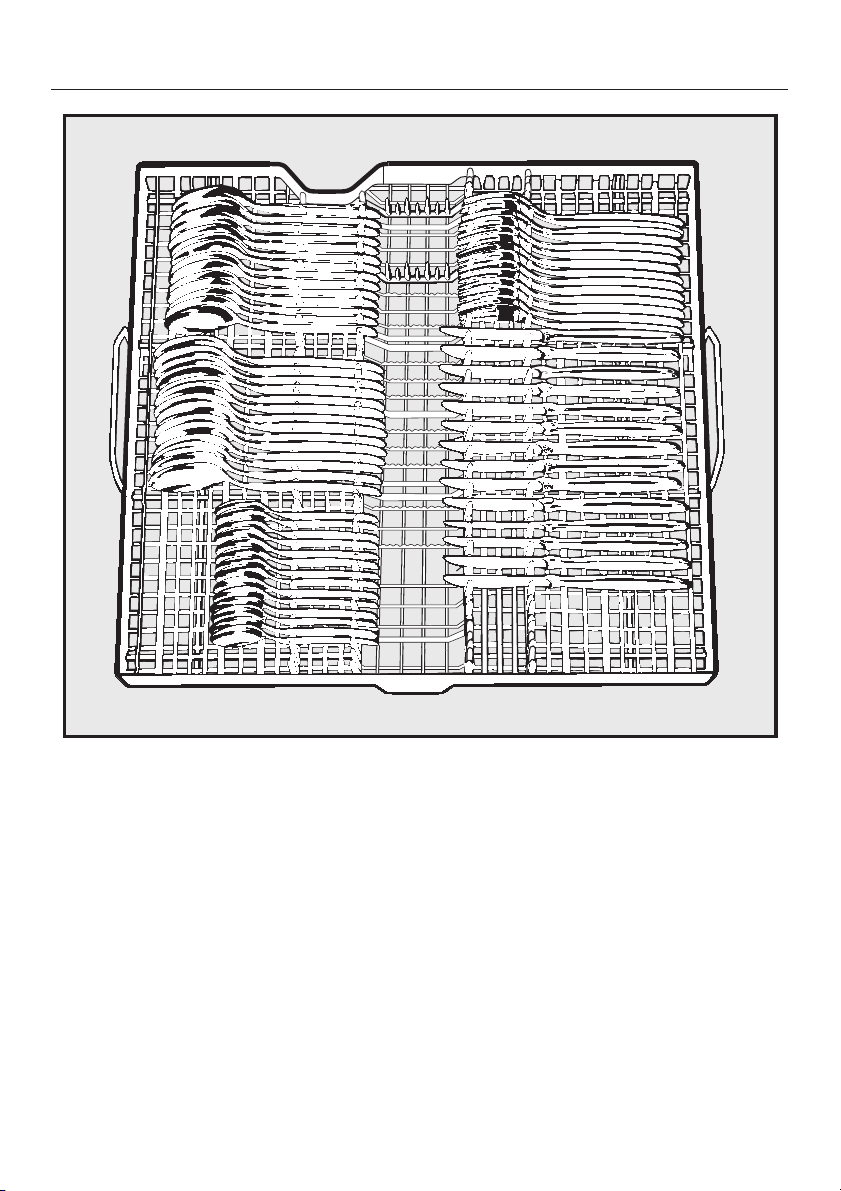

2 Cutlery tray

(depending on model)
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
7 Rinse aid reservoir

(with dosage selector)

4

8 Dual compartment detergent

dispenser

9 Data Plate
10 Control panel
11 In-operation control light
12 Salt reservoir
13 Filter combination
14 Four height adjustable screw feet

Control panel (10)

15 "On" button / indicator light
16 "Off" button
17 Time display for delay start
18 Delay start button
19 "Top Solo" button / indicator light
20 Check/Refill indicators
21 Programme names
22 Programme buttons / indicator

lights

Please note:

The programme list is covered by a
protective foil on delivery.

Guide to the appliance

^ Carefully remove the protective foil

before using the appliance for the
first time.

5

Warning and Safety instructions

Installation

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
Read the operating instructions
carefully before starting to use this
appliance. This way you will avoid
the risk of accidents and damage to
the appliance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.

the installation instructions.

dishwasher has been installed.

Danger of overheating and fire risk if
the dishwasher were to be pushed up
against a plug.

The dishwasher must be installed
and connected in compliance with

The electrical socket must be
easily accessible after the

There must be no electrical
sockets behind the dishwasher.

Correct usage

This dishwasher is intended

exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the machine would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.

Delivery

Before setting up the machine

check it for any externally visible
damage. Under no circumstances
should you use a damaged machine. A
damaged machine is dangerous.

Please ensure that the packaging

material is offered for recycling.

In order to ensure stability,

built-under and integrated
dishwashers must only be installed
under a continuous worktop which is
secured to adjacent cabinetry.

The dishwasher must not be

installed under a hob. The high
radiant temperatures which are
sometimes generated by a hob could
damage the dishwasher. For the same
reason it should not be installed next to
open fires or other appliances which
give off heat, such as heaters etc.

Do not connect the dishwasher to

the mains supply until it has been
installed.

Check that the voltage, frequency

and fuse rating shown on the data
plate match the household mains
supply.

6

Warning and Safety instructions

The electrical safety of this

appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system. It is most important that this
basic safety requirement is tested and
where there is any doubt, the electrical
system in the house should be checked
by a qualified electrician. The
manufacturer cannot be held liable for
the consequences of an inadequate
earthing system (e.g. electric shock).

This equipment is not designed for

maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk
assessment of the installation being
carried out by a suitably qualified
engineer.

A damaged machine is dangerous.

Switch off at the mains and call
your Miele supplier or the Miele Service
Department.

The plastic housing of the water

connection contains an electrical
component. The housing must therefore
not be dipped in water.

Daily use

Do not use solvents in the
dishwasher. Danger of explosion.

Water in the dishwasher must not
be used as drinking water. This wa

ter is not drinking water.

Avoid inhalation of powder

detergents. Do not ingest
dishwasher detergent! Dishwasher
detergents contain irritant or corrosive
ingredients. They can cause burning in
the nose, mouth and throat if
swallowed, or inhibit breathing. Consult
a doctor immediately if detergent has
been swallowed or inhaled.

Do not sit or lean on the opened

door. This could cause the
dishwasher to tip and be damaged and
you could get injured.

In an appliance with a cutlery

basket (depending on model)
cutlery is cleaned and dried more
efficiently if placed in the basket with
the handles downwards. However, to
avoid the risk of injury place cutlery
with sharp points with the handles
upwards.

-

There are live wires in the water
inlet hose. Never cut the water inlet

hose, even if it is too long.

For safety reasons do not operate
this appliance on an extension

cable. (Danger of overheating).

Only use detergents formulated for

domestic dishwashers. Do not use
washing-up liquid.

Only use rinse aid formulated for

domestic dishwashers.

Only use special coarse grained

dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting salt.
These may contain insoluble additives
which can impair the functioning of the
water softener.

7

Warning and Safety instructions

Plastic items which cannot with

stand being washed in hot water,
such as disposable plastic containers,
or plastic cutlery and crockery should
not be cleaned in the dishwasher. The
high temperatures in the dishwasher
may cause them to melt or lose shape.

Take care on dishwashers with a
visible heater element

(depending on model)

Do not touch the heating element

during or directly after the end of a
programme. It will be hot. Danger of
burning!

Some plastic items could melt or

catch fire if they were to come into
contact with the heating element.
Therefore always place plastic items or
any other items which may not be
completely heat resistant in the upper
basket and ensure they cannot drop
down onto the heater element.
Any items which are too small to be
lodged securely in the upper basket
should not be cleaned in the dishwasher.

-

Safety with children

Do not allow children to play in or

around the dishwasher, or to
operate it. There is a danger that
children playing might shut themselves
in the dishwasher.

Keep children away from dete

rgents. Dishwasher detergents
contain irritant or corrosive ingredients.
They can cause burning in the mouth,
nose and throat if swallowed, or inhibit
breathing. Consult a doctor immediate
ly if your child has swallowed or inhaled
detergent.

8

-

To avoid the danger of children

coming into contact with the
dishwasher detergent: only add
detergent just before starting the
programme and close the door,
activating the child safety lock
(depending on model).
Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet.

To ensure children do not come

into contact with detergent on
models with the "Delay start" function
make sure the dispenser is dry before
adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispersed. If the door is
open at the end of a programme,
children may come into contact with
this residue.

To avoid machine and material
damage

Do not fill the rinse aid reservoir

with powder or liquid detergent.
This will cause serious damage to the
reservoir.

Inadvertently filling the salt

reservoir with powder or liquid
dishwasher detergent always leads to
serious damage to the water softener.
Make sure you have picked up the
correct packet of dishwasher salt
before filling the salt reservoir!

Do not use commercial or industrial

-

detergents as these may damage
material and there is a risk of severe
chemical reaction.

Warning and Safety instructions

The Miele Waterproof System offers

protection from water damage,
provided the following conditions are
met:

The dishwasher is correctly installed

–

and plumbed in.
The dishwasher is properly

–

maintained and parts are replaced
where it can be seen that this is
necessary.

The stopcock has been turned off

–

when the appliance is not used for a
longer period of time (e.g. during
holidays).

In countries where there are areas

which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.

Disposal of your old appliance

When disposing of an old

dishwasher first make it unusable.
Disconnect, cut off the cable and the
plug from the cable. Make the door lock
inoperative by unscrewing 2
cross-slotted screws, so that children
cannot accidentally shut themselves in.
Make appropriate arrangements for the
disposal of the appliance.

The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.

Repairs and maintenance

Repairs may only be carried out by

suitably qualified and competent
engineers in accordance with local and
national safety requirements. Repairs
and other work by unqualified persons
could be dangerous.

Always disconnect the appliance

from the electrical supply for
maintenance work (switch off at wall
socket and remove the plug, or remove
the screw out fuse in countries where
this is applicable).

9

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.

Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!

Rather than just throwing these
materials away, please ensure that they
are recycled.

Disposal of your old appliance

Old appliances contain materials which
can be recycled. Please contact your
dealer, your local waste collection
centre or scrap merchant about
potential recycling schemes.

Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate
section in the Warning and Safety
instructions.

Energy saving washing

This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:

If your household water system is

^

suitable, this dishwasher can be
connected to a hot water supply, for
further economies.
Although all stages of the wash then
take place with hot water, savings are
made in:

- the use of primary energy,

- costs,

- programme running times.
If, however, your water is heated by
electricity we would still recommend
connection to cold water.

^ For most economical dishwashing

make full use of the baskets without
overloading the dishwasher.

^ Choose the programme to suit the

type of crockery being washed and
the degree of soiling.

^

The "Top Solo" function should only
be selected for washing very small
loads of crockery (see "Additional
functions").

10

^

Select the Economy programme for
energy-saving dishwashing.

^

Use the correct amounts of
detergent.

^

Use only 2/3 of the given dosage if
baskets are only half full.

Before using the appliance for
the first time you require:

approx. 2 litres of water,

–

approx. 2 kg dishwasher reactivation

–

salt,
domestic dishwasher detergent,

–

rinse aid formulated for domestic

–

dishwashers.

The dishwasher is fitted with a water
softener sensor. This automatically
sets the water softener unit for the
local water hardness level.

Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been previously
used.

Before using for the first time

11

Before using for the first time

To open the door

^ Pull on the handle.
If the door is opened during operation

all functions are automatically
interrupted.

Instructions for opening the door
before the machine door front has
been fitted are given in the
Installation instruction booklet.

To close the door

Push the baskets right in.

^

Lift the door upwards, and push until

^

it clicks into position.

12

Filling the salt reservoir

In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4° d – German
scale) needs to be softened. This takes
place automatically in the built-in
softener unit.
The softener unit needs reactivation
salt.

^ Your local water authority will be able

to advise you of the water hardness
level in your area.

If the water in your area is very soft
and constantly lower than 0.7 mmol/l
(4 °d) you do not need to add
dishwasher salt.

Before using for the first time

Only use special coarse grained

,

dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the
functioning of the water softener.

Remove the lower basket and

^

unscrew the salt reservoir cap.
Fill the reservoir with approx. 2 litres

^

of water (first use).

Important: Before filling the salt
reservoir with dishwasher salt for the
first time
2 litres of water to enable the salt to
dissolve. Once the dishwasher has
been used, there is always sufficient
water in the reservoir.

,

reservoir with powder or liquid
dishwasher detergent always leads
to serious damage to the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!

, you must fill it with approx.

Inadvertently filling the salt

^

Place the funnel provided over the
salt reservoir and carefully fill with salt
until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt
depending on the brand used.

13

Before using for the first time

As the salt reservoir is filled, displaced
water will overflow.

Clean any excess salt from around

^

the reservoir opening and then screw
the cap on again firmly.

Run the "Pre-wash" programme im

^

mediately to remove any traces of
salt water from the cabinet.

-

Salt indicator

The salt indicator light in the control
panel comes on to notify you that the
reservoir is empty.

Note

If the water in your area is very soft and
constantly lower than 0.7 mmol (4 °d)
you do not need to add salt to the
reservoir. The salt indicator light,
however, will still come on, but should
be ignored.

(See "After sales service" for definition
of "PC").

^

The reservoir should then be refilled
with dishwasher salt for reactivation.
(See: Filling the salt reservoir).

After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.

14

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.

Inadvertently filling the rinse aid

,

reservoir with powder or liquid
detergent always causes serious
damage to the reservoir. Only pour
rinse aid formulated for domestic
dishwashers into the reservoir.

Alternatively, it is possible to use
– Household vinegar with a max. 5%

acid content
or
– Liquid citric acid up to 50% acid

content.

Adding rinse aid

^ Press the button in the direction of

the arrow until the flap springs open.

The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.

,

Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This must not be used as
its use would damage the
dishwasher.

15

Before using for the first time

Add rinse aid only until it is visible on

^

the surface of the filter in the
opening.

The rinse aid reservoir holds approx.
130 ml.

^ Close the flap firmly so that it clicks

into place. Otherwise water would
enter the rinse aid reservoir during a
programme.

Rinse aid indicator

The Rinse aid indicator light on the
control panel comes on when the rinse
aid reservoir needs to be replenished.

When the light comes on the reservoir
still contains sufficient rinse aid for 2 - 3
programmes.

^ Add rinse aid in plenty of time.

^

Wipe up any spilled rinse aid. This
prevents over-foaming occurring
during the next programme.

16

Setting the rinse aid dosage

The dosage selector has settings from
1-6. It is set to "3" (3 ml) at the factory.
Approx. 3 ml of rinse aid are then used
per programme. This is a
recommended setting.

If spots appear on crockery and
glassware:

Before using for the first time

^ Use a higher setting.
If clouding or smearing appears on

crockery and glassware:

^

Use a lower setting.

17

Loading the dishwasher

Note

Remove coarse food residues from

^

crockery.

There is no need to rinse items under
running water.

Do not wash items soiled with

,

ash, sand, wax, lubricating grease
or paint in the dishwasher. Ash does
not dissolve and is distributed in the
wash cabinet. Wax, sand, lubricating
grease and paint cause damage to
the dishwasher.

Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:

^ Do not place crockery and cutlery

inside other pieces where they may
be concealed.

^ Load the crockery so that water can

access all surfaces. This ensures that
it is properly cleaned.

Deep based items should be placed

^

at an angle so that water can run off
them freely.

The spray arms must not be blocked

^

by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.

Make sure that small items do not fall

^

through the holders in the baskets.
Small items, e.g. lids, should
therefore be placed in the cutlery tray
or cutlery basket.

Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
ketchup. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the appliance on the
crockery. The stability of plastic
items is not affected by this
discolouration.

^

Make sure that all items are securely
positioned.

^

Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.

^

Tall, narrow, hollow items, e.g.
champagne glasses, should be
placed in the centre of the basket to
ensure better water coverage.

18

When the dishwasher is being
loaded food and drink residue may
drip onto the sides of the
dishwasher door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms.
Food residue should therefore be
wiped away before the dishwasher
door is closed.

Loading the dishwasher

Upper basket

For small, lightweight, delicate items
such as cups, saucers, glasses,
dessert bowls, etc.
Shallow saucepans or casserole dishes
can also be placed in the upper basket.

Note for "Top Solo"

If a wash programme has been
selected with the additional function
"Top Solo", all crockery must be loaded
in the upper basket and cutlery tray.

If your dishwasher has a cutlery basket
then cutlery should be placed in the
cutlery basket with plenty of space
between items.

As the middle spray arms also directs
water downwards, it is possible to wash
lightly soiled plates (with a large
diameter) and serving platters in the
lower basket, however plenty of space
must be left in between items. Do not
wash dishes, bowls or other hollow
containers when using this function.

Long items such as soup ladles, mixing
spoons and long knives should be
placed lying down across the front of
the upper basket.

19

Loading the dishwasher

Flap up rack

To make room for tall items raise the
rack upwards.

Positioning rail (depending on model)

The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.

20

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller
pieces of crockery in the bottom or
upper basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.

The upper basket can also be set at an
angle with one side high and the other
side low. Ensure however, that the
basket can be inserted smoothly into
the cabinet.

It is best to adjust the basket before
loading it.

^ Pull out the upper basket.

Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.

Upper

basket level

To p 2 0 3 0
Middle 22 28
Bottom 24 26

Plate Ø in cm

Upper
basket

Lower

basket

^

Pull upwards on the levers at either
side of the upper basket.

^

Adjust the basket to the desired
height.

^

Then push the levers securely back
down into position.

21

Loading the dishwasher

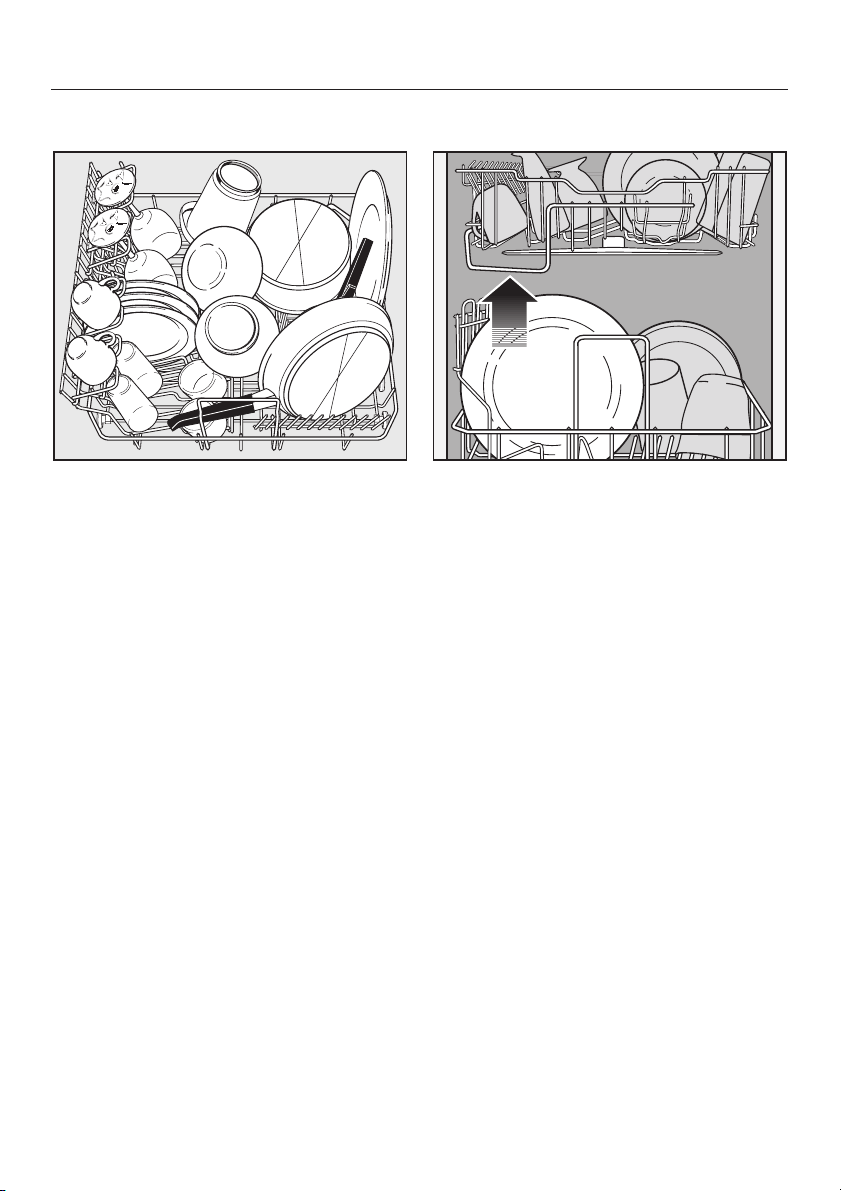

Lower basket

For larger and heavier items such as
plates, serving platters, saucepans,
bowls, etc.
Glasses and small items such as
saucers can also be placed in the lower
basket.

Height limitation

The stay at the front of the upper basket
determines the max. height permissible
for items placed in the lower basket to
ensure they do not impede the
movement of the middle spray arm.

22

Loading the dishwasher

Variable inserts

A variety of inserts are available for washing crockery in the lower basket.

To remove an insert

Pull upwards by the handle to

^

remove.

To fit an insert

^ Fit the insert into the lower basket

with the hooks going under the long
cross piece as illustrated.

^

Press down on the handle until the
insert is securely held in position.

23

Loading the dishwasher

Hinged spike insert

The spike insert is used for washing
plates and saucers.

^ The hinged spike insert fits in the

area marked white at the back right
hand side of the bottom basket.

Both sides of the rear section of the
spiked insert can be lowered to make
more room for large items, e.g. pots,
pans and dishes.

^

Press the yellow lever downwards
and then fold the spikes towards the
middle of the basket.

24

Vario insert

The vario insert is used for washing
cups, glasses, plates, bowls and pots.

The cup rack can be raised to make

^

more room for tall items.
Stem glassware e.g. wine glasses,

^

champagne flutes and Cognac
glasses can be leaned against the
cup rack or suspended from it.

^ The vario insert fits in the area

marked white in the left hand side of
the bottom basket.

Loading the dishwasher

^

To lower the cup rack first raise it
slightly upwards.

25

Loading the dishwasher

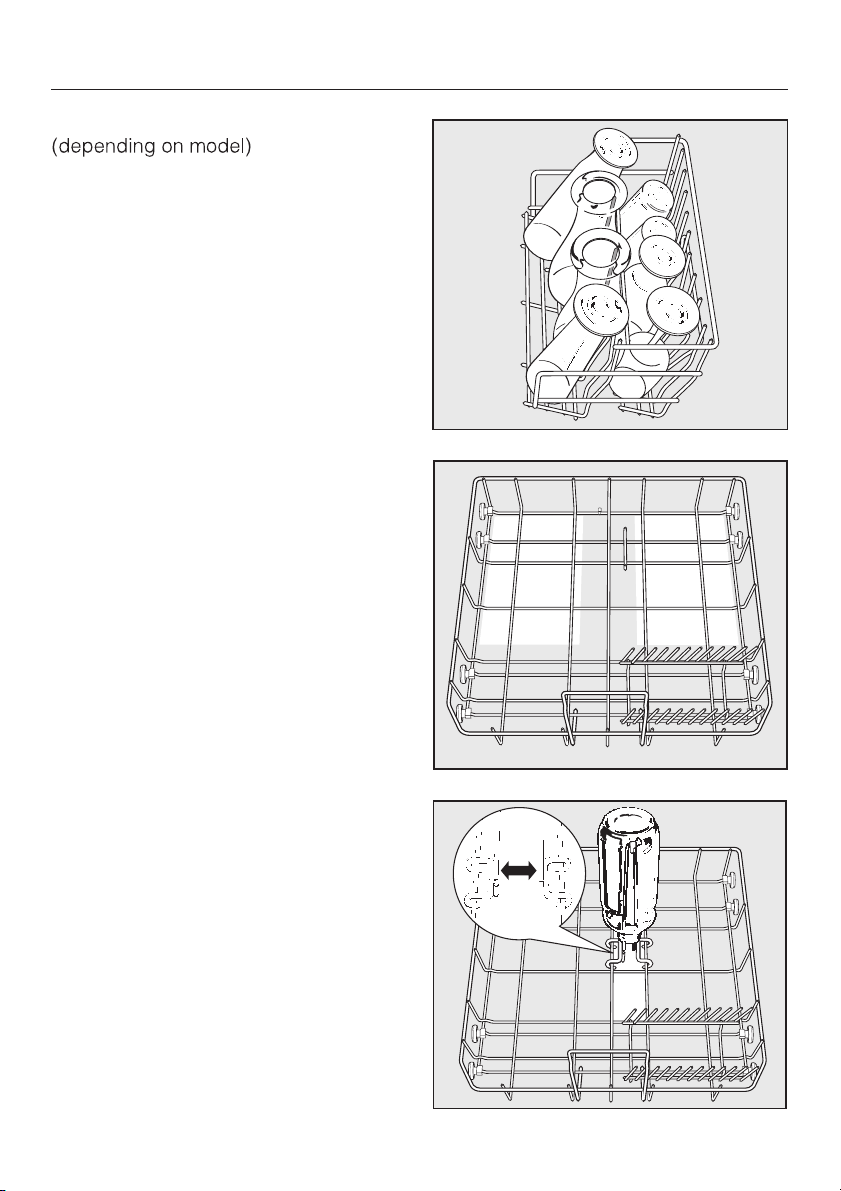

Glassware insert

The glassware insert is designed for
cleaning tall and long stemmed
glassware.

Very tall glasses, e. g. tall beer

^

glasses, can be held more securely
by the vertical supports.

The insert for glasses can be fitted in

^

the left or right of the bottom basket
in the areas marked white in the
illustration.

Bottle holder

The bottle holder, e.g. for milk and baby
bottles, can be fitted in the lower basket
in the area marked white in the
illustration. However, do not place a
bottle holder in the corners. Water will
not be able to access the bottles
properly and they will not get clean.

26

Cutlery

For best results cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.This
makes unloading much easier.

Place the blades of knives and the
prongs of forks between the holders.
Spoons, on the other hand, should be
placed with the handles between the
holders.

Loading the dishwasher

Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them freely.

Longer items such as soup ladles, cake
slices, mixing spoons and long knives
should be placed lengthwise in the
indentation in the middle of the cutlery
tray.

The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).

The cutlery tray insert is removable.

If spoon handles do not fit between the
holders then lay them the other way
round making sure that the head of the
spoon is in contact with the support on
the bottom of the tray.

27

Loading the dishwasher

Items not suitable for
dishwashers:

Wooden cutlery and crockery or

–

items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.

Craft items, antiques, valuable vases

–

and decorative glassware are also
not suitable for dishwashers.

Plastic items which are not heat

–

resistant. The high temperatures in
the dishwasher may cause them to
melt or lose shape.

– Copper, brass, tin and aluminium

items may discolour or become matt.

– Colours painted over a glaze may

fade after a number of washes.

– Clouding may occur on glasses after

frequent washing. Do not wash
glassware containing lead crystal in
a dishwasher.

Please note

Silverware
silver polish
spotted at the end of a programme,
where water has not run off smoothly. It
may need rubbing dry with a soft cloth.
Silver treated in a silver immersion dip
is usually dry at the end of a
programme but may discolour.

Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.

,

grease filter) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage material, or in extreme
cases, cause severe chemical
reaction. See section "Adding
detergent" for information on suitable
detergents.

previously cleaned with a

may still be damp or

Aluminium components (e.g. a

We recommend:
–

When purchasing new crockery and
cutlery, make sure they are
dishwasher-proof.

–

There are no standard guidelines for
washing glassware. When in doubt,
wash glassware by hand.

–

If delicate glassware is washed in the
dishwasher ensure that only very low
temperatures are used (see
programme chart). This will reduce
the risk of clouding.

28

Operating the dishwasher

Detergent

Only use detergents formulated

,

for domestic dishwashers. Do not
use washing up liquid.

You can use conventional powder

^

detergent, tablets or liquid
dishwasher detergent.
Refer to the dosing instructions given
by the manufacturer on the
packaging.

Put powder or liquid detergent into

^

the dispenser compartment.

^ Detergent tablets should only be put

into compartment II if this is
recommended by the manufacturer.
If the manufacturer recommends
inserting tablets in the cutlery basket
do not do so. Instead place them on
the inside of the door or directly into
the wash cabinet to help them
dissolve properly.

Detergent manufacturers give the
required amount of detergent for a
particular programme on their
packaging.

Use at least 30 ml of detergent for a

^

full load in the following programmes:

- Sensor wash,

- Sensor wash o,

- Light wash

- Economy.
If the manufacturer recommends a
larger amount of detergent, use the
amount recommended.

Failure to dispense the
recommended amount of detergent
may impair cleaning results.

If you are using 2 in 1 or 3 in 1
combination tablets, please continue
to replenish the salt and rinse aid
reservoirs as described in this
booklet. Otherwise the cleaning and
drying performance of the machine
may deteriorate over time.

29

Operating the dishwasher

Adding detergent

Avoid inhalation of powder

,

detergents and do not ingest
dishwasher detergent! Dishwasher
detergents contain irritant or
corrosive ingredients. They can
cause burning in the nose, mouth
and throat if swallowed, or inhibit
breathing. Consult a doctor immedi
ately if detergent has been
swallowed or inhaled. Keep children
away from detergents and from the
dishwasher when the door is open.
There could still be detergent
residues in the cabinet. To avoid the
danger of children coming into
contact with dishwasher detergent
only add detergent just before
starting the programme and close
the door.

-

Press the opening catch on the

^

detergent dispenser. The flap will
spring open.

The flap is always open at the end of a
programme.

It is essential to follow the
instructions given in the programme
chart at the end of the operating
instructions.

For information

Compartment I holds max. 20 ml,
Compartment II holds max. 70 ml.

There are markings in compartment II
to assist with dispensing. The marks
indicate a level of approx. 20, 25, 30 ml
when the door is open in a horizontal
position.

30

^

Add the required amount of
detergent and close the flap.

^

Ensure that the detergent package is
properly sealed after use. Otherwise
the detergent can lose its
effectiveness.

Programme selection

Choose your programme according to
the type of load and how dirty it is.

In most cases this will be the Sensor
wash or the Sensor wash gentle o
programme.

The Sensor wash programme is ideally
suited to everyday mixed loads with
varying degrees of soiling.
The Sensor wash gentle o programme
should be used for lightly soiled
heat-sensitive crockery and for
glassware.

In these programmes sensors monitor
the soiling levels from the crockery and
adjust the programme sequence
accordingly. Water and energy
consumption, temperatures and
programme durations can therefore
vary.

Operating the dishwasher

Additional programmes are also
available.

They are all described in the
programme chart at the end of this
booklet, together with information on
when to use them and their
consumption data.

The additional function "Top Solo” can
be selected with each programme. See
"Additional functions/Top Solo" for more
details.

31

Operating the dishwasher

Switching on

Open the stopcock, if it is closed.

^

Open the door.

^

Make sure the spray arms are not

^

obstructed.
Press the "On" (15) button.

^

The "On" indicator light (15) comes on.

Starting a programme

^ When selecting a programme, refer

to the programme chart at the end of
the operating instructions.

^ Press button (22) for the programme

you want.

The indicator light next to the selected
programme will come on.

The additonal functions "Delay start" or
"Top Solo" can now be selected if
wished (see "Additional functions").

Close the door.

^

The in operation control light will come
on.

The programme cycle begins.

Do not finish a programme
prematurely. Important programme
stages (e. g. reactivating the water
softener) could be omitted.

32

Operating the dishwasher

At the end of a programme

At the end of a programme the in
operation control light will be visible
flashing with the door shut.

It will go out one hour after the end of
the programme.

The in operation light will go out if the
door is opened.

Switching off

At the end of a programme:

Open the door.

^

The in operation and programme button
indicator lights go out.

^ Press the "Off" button (16).
The "On" indicator light (15) goes out.

The dishwasher continues to use
electricity until switched off using the
"Off" button.

The dishwasher can now be unloaded
(see "Unloading the dishwasher").

To prevent the risk of steam

,

damage to the worktop edging
above the dishwasher it is advisable
to leave the door closed until you are
ready to unload the crockery.
Alternatively you can open the door
fully until the crockery is cool
enough to unload. Do not leave the
door only partially open.

If the dishwasher is not to be used for a
longer period of time, e. g. whilst on
holiday, the stopcock should be turned
off.

33

Operating the dishwasher

Changing a programme

Important:
If the detergent dispenser flap has
already opened, do not change the
programme.

A change can be made to the
programme selected before the door is
closed as follows:

Press the button for the programme

^

you wish to run.
Close the door.

^

The programme cycle begins.
If a programme has already begun,

change the programme as follows:

^ Open the door.
^ Press the "Off" button (16).
^ Press the "On" (15) button.
^ Press the button for the programme

you wish to run.

Interrupting a programme

A programme is interrupted as soon as
the door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.

Water in the dishwasher may be

,

hot. Danger of scalding! If you have
to open the door do so very
carefully.
Before closing the door again, leave
it ajar for approx. 20 secs. This will
enable the temperature in the wash
cabinet to settle. Close the door
firmly making sure that it clicks into
place.

^

Close the door.

The in operation control light will come
on.

The programme cycle begins.

34

Additional functions

Operating the dishwasher

"Top Solo" (2)

The "Top Solo" additional function is
recommended when there is only a
small amount of crockery and cutlery to
clean. With this function the majority of
the water is directed to the top and
middle spray arms in the dishwasher.
This means that the water jets are
aimed at items in the upper basket and
the cutlery tray if the dishwasher has
one.

As the middle spray arm also directs
water downwards, lightly soiled plates
or platters can be placed in the bottom
basket, and cutlery may be placed in
the cutlery basket if there are large
spaces between items. Do not place
dishes, bowls or other hollow
containers in the bottom basket.

Because smaller amounts of crockery
are being washed the amount of
detergent recommended by the
manufacturer can be reduced to
approx. 2/3 of the total amount for the
full load. Make sure, however, when
reducing the amount dispensed that
the cleaning result is not affected.

Using "Top Solo" will also save water
and energy.
For example, if using this function with
the "Economy" programme only
11 litres of water and approx. 0.75 kWh
of electricity are used.

The "Top Solo" function can be selected
with all programmes.

^ Press the "On" (15) button.
The "On" indicator light (15) comes on.
^ Press the button for the programme

you wish to run.

The indicator light next to the selected
programme will come on.

^

Press the "Top Solo" 2 (19) button.

The "Top Solo" 2 (19) indicator light
comes on.

The "Delay Start" function can now be
selected (see next page).

^

Close the door.

The in operation control light will come
on.

The programme cycle begins.
The additional function is automatically

deleted from memory at the end of the
programme cycle.

35

Operating the dishwasher

Delay start (d)

The starting time of a programme can
be delayed, e.g. to benefit from
economy rates of electricity. A delay
start time of between 1 and 9 hours can
be selected.

The delay start time is set in one hour
stages.

^ Press the "On" (15) button.
The "On" indicator light (15) comes on.
^ Press the button for the programme

you wish to run.

The indicator light next to the selected
programme button comes on.

^ Press the d (18) button.
A 1 appears in the delay start display

(17). A delay of one hour has been set.

^

Press button d (18) repeatedly until
the required delay start period shows
up in the display (17).

The "Top Solo" function can now be
selected (see previous page).

Close the door.

^

At the end of the delay period the
selected programme begins
automatically.

When using the "Delay Start"

,

function, make sure that the
compartment is dry before adding
detergent. Wipe dry with a cloth if
necessary. Do not use liquid
detergent when selecting "Delay
Start". It may run out of the
dispenser before the programme
starts.

The delay start time counts up to 9 in
one hour stages. Pressing the "Delay
start" button d (18) again switches the
option off.
If the "Delay start" button is held in the
display counts up automatically.

36

Starting a programme before the
delay start period has elapsed:

A programme can be started before the
delay start period has elapsed.
Proceed as follows:

Open the door.

^

Press the "Off" button (16).

^

Press the "On" (15) button.

^

Press the button for the programme

^

you wish to run.

If the "Top Solo" function had been
selected, then you will need to select it
again.

^ Close the door.
The in operation control light will come

on.
The programme cycle begins.

Operating the dishwasher

37

Operating the dishwasher

Unloading the dishwasher

Dishes tend to break and chip more

^

easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.

If you open the door fully after

^

switching off, the dishes will cool
much faster.

First unload the lower basket, then

^

the upper basket and cutlery tray.
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.

38

Check your dishwasher regularly
(approx. every 4 - 6 months). This
way faults and problems can be
avoided.

Cleaning the filters in the wash
cabinet

The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.

The dishwasher must not be

,

used without all the filters in place.

Collection of coarse soil may cause the
filters to clog.
Check the filter combination regularly
(every 4 - 6 months) and clean if
necessary.

Cleaning and care

Turn the handle anti-clockwise to

^

release the filter combination.

^ Switch the dishwasher off

beforehand.

^

Lift the filter combination out of the
dishwasher. Remove any coarse
particles and rinse the filter under
running water. Use a nylon brush if
necessary.

39

Cleaning and care

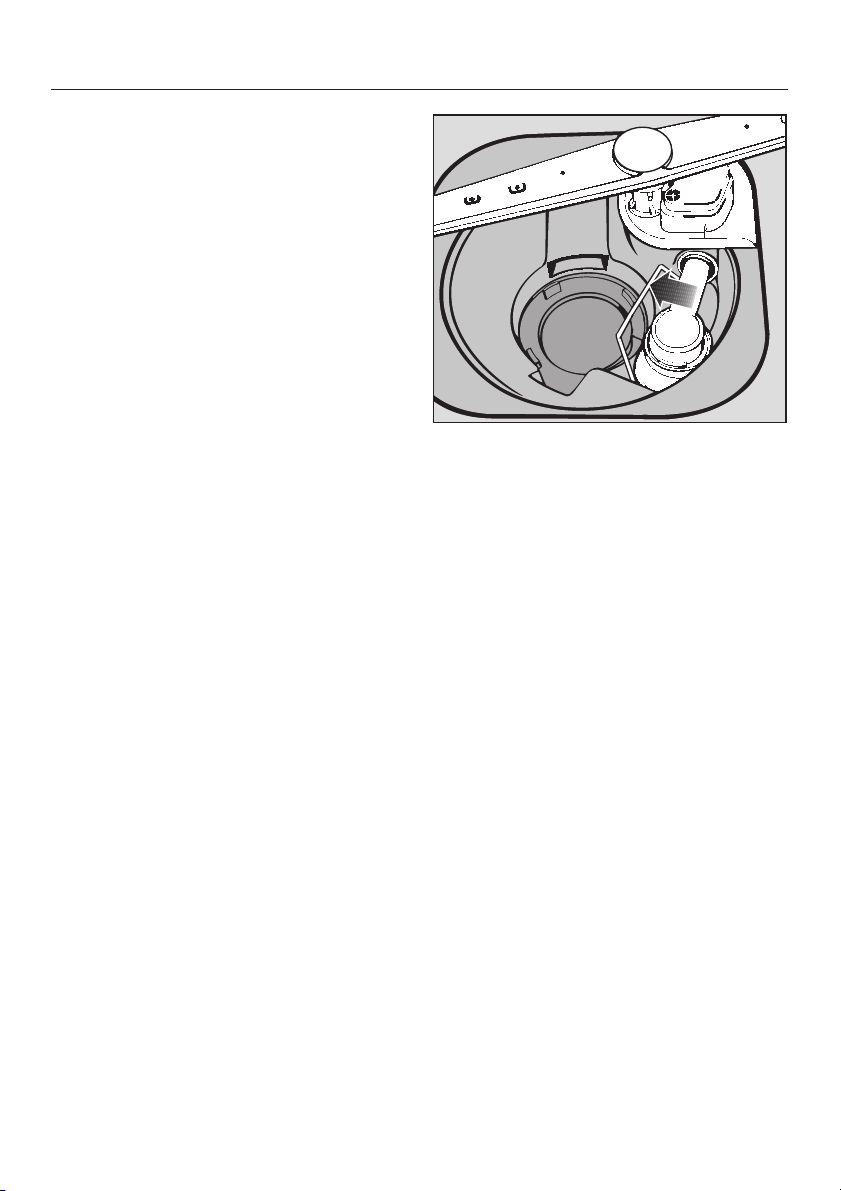

To clean the underside of the filter, the
flap must be opened:

^ Pull back the yellow clip to do this.
^ Rinse all parts under running water,

using a nylon brush if necessary.

^ Then close the flap so that the clip

engages. Important: After cleaning
make sure that the clip has properly
engaged.

Replace the filter combination so that

^

it lies flat in the base of the wash
cabinet.

^ Secure the filter by turning the handle

in a clockwise direction.

,

Take care when you are fitting
the filter combination that it is
secured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.

40

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).

Switch the dishwasher off

^

beforehand.

Remove the spray arms as follows:

Take out the cutlery tray.

^

Press the top

^

engage the inner ratchet. Then
unscrew the spray arm.

spray arm upwards to

Remove the lower basket.

^

^ Pull the lower

upwards to remove it.

spray arm firmly

^

Lift up the middle
engage the ratchet. Then unscrew
the spray arm b.

spray arm a to

^

Use a pointed object to push food
particles into the spray arm jets.

^

Rinse thoroughly under running wa
ter.

^

Replace the spray arms and check
that they rotate freely.

-

41

Cleaning and care

Cleaning the wash cabinet

The wash cabinet is largely
self-cleaning, provided that the correct
amount of detergent is always used.

If however there are limescale or
grease deposits in the cabinet these
can be removed with a proprietary
dishwasher cleaner.

Cleaning the door and the door
seal

Wipe the door seals regularly with a

^

damp cloth to remove food deposits.

^ When the dishwasher is being loaded

food and drink residue may drip onto
the sides of the dishwasher door.
These surfaces are outside the wash
cabinet and are not accessed by wa­ter from the spray arms. Any soiling
should be wiped off these surfaces
before the door is closed.

Cleaning the reflector panel

The reflector panel for the in operation
control light is situated in the coverplate
underneath the worktop.

It can be taken out of its plastic holder
to be cleaned.

Open the door and carefully remove

^

the reflector panel from the holder.
The reflector panel and its plastic

^

holder should only be wiped with a
damp cloth or suitable cleaning
agent designed for use on plastic.

Do not use abrasive cleaning

,

agents, glass cleaning agents or
all-purpose cleaners. Because of
their chemical composition they
could cause serious damage to
plastic surfaces.

42

Cleaning and care

Cleaning the control panel

This should only

^

damp cloth.

Do not use abrasive cleaning

,

agents, glass cleaning agents or
all-purpose cleaners. Because of
their chemical composition they
could cause serious damage the
surface material.

be wiped with a

Cleaning the door panel

Clean using a suitable cleaning

^

agent for the type of material the front
is made of.

Door fronts made from wood should

^

only be cleaned using a damp
chamois leather and then dried with a
soft cloth.

Clean stainless steel panels with a

^

proprietary non-abrasive cleaning
agent designed specifically for use
on stainless steel. To help prevent
re-soiling, proprietary conditioning
agents for stainless steel can also be
used. Apply sparingly with an even
pressure.

Do not use any cleaning agents

,

containing ammonia or thinners.
These would damage the surface
structure.

43

Problem solving guide

With the aid of the following guide, minor problems can be easily corrected
without calling in a Miele service technician, saving you both time and money.

You should, however, note the following:

Repairs should only be carried out by a suitably qualified and trained

,

person in accordance with local and national safety regulations. Unauthorised
or incorrect repairs could cause personal injury or damage the appliance.

Problem Possible cause Remedy

The machine does not
start.

The dishwasher stops
during a programme.

The door is not properly
closed.

The appliance is not
plugged in.

The fuse is defective or
has tripped.

The machine is not
switched on.

A programme has not
been selected.

The fuse is defective or
has tripped.

Close the door firmly.

Insert the plug.

Replace the fuse
(see data plate for
minimum fuse rating).

Press the "On" button,
and select a programme.

Press the button for the
programme you want to
select.

Replace the fuse
(see data plate for
minimum fuse rating).

44

Problem solving guide

Problem Possible cause Remedy

The dishwasher stops
running shortly after
starting a programme,
the in operation control
light is flashing rapidly.

The in operation control
light does not come on
after starting a
programme.

Water inlet fault.
The indicator light
"Inlet/Drain", seen when
the door is open, lights up
and flashes alternately.

The reflector panel was
not correctly fitted.

Before rectifying the
problem you must:
Switch the dishwasher off.

Open the stopcock

–

fully.
Check the water inlet

–

filter and clean if
necessary, see
“Cleaning the water
inlet filter”.

The Waterproof system
has reacted.

– Call the Miele Service

Department.

Re-fit the reflector panel.
See relevant section in the
Installation Booklet.

45

Problem solving guide

Problem Possible cause Remedy

The dishwasher stops
running, the in operation
control light is flashing
rapidly.

Water inlet fault.
The indicator light
"Inlet/Drain", seen when
the door is open, is
flashing.

Before rectifying the
problem you must:
Switch the dishwasher off.

Open the stopcock

–

fully.
Check the water inlet

–

filter and clean if
necessary, see
“Cleaning the water
inlet filter”.

The water pressure at

–

the intake is lower than

0.3 bar. Seek
professional advice.

There is a fault with the
drainage system.
Water remains in the wash
cabinet at the end of a
programme.
The indicator light
"Inlet/Drain", seen when
the door is open, is
flashing.

– Clean the filter

combination, see
“Cleaning and Care”.

– Clean the drain pump,

see “Cleaning the drain
pump and non-return
valve”.

– Clean the non-return

valve, see “Cleaning
the drain pump and
non-return valve”.

–

Remove any kink in the
drain hose.

46

Problem solving guide

Problem Possible cause Remedy

At the end of a
programme the in
operation control light is
flashing rapidly;
the indicator lights next
to programme buttons 1
to 5 are flashing when
the door is open.

Knocking noise in the
wash cabinet.

Rattling noise. Items of crockery are

Knocking noise in the
water pipes.

There may be a technical
fault.

The spray arm is knocking
against an item in the
basket.

insecure in the wash
cabinet.

This may be caused by
the on-site installation or
the cross-section of the
piping.

Switch the machine off.

–

Run another programme.
If the indicator lights flash
again at the end of this
programme, there is a
technical fault.

Call the Miele Service

–

Department.

Interrupt the programme,
rearrange items which are
obstructing the spray arm.

Interrupt the programme,
rearrange the items of
crockery.

This has no influence on
dishwasher function. If in
doubt contact a suitably
qualified plumber.

47

Problem solving guide

Problem Possible cause Remedy

The dishes are not
clean.

The dishes were not
loaded correctly. Dishes
were placed inside other
pieces, water could not
access all surfaces.

The outlet of the water
intake pipe for the middle
spray arm was covered.
An insufficient amount of
water flowed into the
middle spray arm.

The programme was not
powerful enough.

Not enough detergent
was dispensed.

Tall items are blocking the
path of the spray arms.

The spray arm jets are
blocked.

The filter combination in
the base of the wash
cabinet is not clean or is
not correctly fitted.
This may cause the spray
arm jets to get blocked.

The non-return valve is
open and blocked. Dirty
water has flowed back
into the wash cabinet.

See notes in "Loading the
dishwasher".

Make sure that dishes
placed in the rear section
of the upper basket do not
cover the opening.

Select a more intensive
programme, see
"Programme chart" at the
end of these operating
instructions.

Use more detergent, see
“Operating the
dishwasher”.

Rearrange the items so
that the spray arms can
rotate freely.

Clean the spray arm jets,
see “Cleaning and Care”.

Clean and/or replace the
filter combination
correctly. Clean the spray
arm jets, see “Cleaning
and Care”.

Clean the drain pump and
the non-return valve, see
“Cleaning the drain pump
and non-return valve”.

48

Problem solving guide

Problem Possible cause Remedy

Dishes, cutlery and
glasses are not dry or
are flecked.

White residue is visible
on cutlery and crockery,
clouding occurs on
glassware; film can be
wiped off.

Smearing appears on
glassware and cutlery,
there is a bluish sheen
on the surface of
glassware; film can be
wiped off.

The rinse aid amount may
be insufficient or the rinse
aid reservoir empty.

Crockery was taken out of
the cabinet too soon.

Not enough rinse aid was
used.

There is no salt in the salt
reservoir.

The salt reservoir cap has
not been screwed on
correctly.

Combination dishwasher
detergent tablets
containing rinse aid
and/or salt may have
been used. Long term use
of these can impair the
softener unit if you do not
replenish salt and rinse
aid as described in these
instructions.

The rinse aid dosage is
set too high.

Increase the dosage or
replenish the reservoir,
see "Before using for the
first time".

Leave it in for longer, see
“Operating the
dishwasher”.

Increase the dosage, see
"Before using for the first
time".

Add dishwasher
reactivation salt, see
"Before using for the first
time".

Replace it making sure it
screws back on correctly.

Use a standard liquid,
tablet or powder
detergent and refill the
salt and rinse aid
reservoirs in the
dishwasher!

Reduce the dosage, see
"Before using for the first
time".

49

Problem solving guide

Problem Possible cause Remedy

Glassware is dull and
discoloured; film cannot
be wiped off.

Tea or lipstick stains
have not been
completely removed.

Plastic items are
discoloured.

There are rust stains on
cutlery.

Glassware is not
dishwasherproof. The
surfaces are affected.

The wash temperature of
the selected programme
was too low.

The bleaching effect of
the detergent used is too
low.

Natural dyes e.g. from
carrots, tomatoes or
ketchup may be the
cause. The amount of
detergent used or its
bleaching effect was not
sufficient to deal with
natural dyes.

The salt reservoir cap has
not been screwed on
correctly.

The affected items are not
corrosion resistant.

The "Pre-wash"
programme was not run
after dishwasher salt was
added. Traces of salt
have got into the wash
cycle.

There is no remedy.
Purchase glassware
which is dishwasher­proof.

Select a programme with
a higher wash
temperature.

Use a different type of
detergent.

Use more detergent, see
"Operating the
dishwasher".
Discolouration is irreversi­ble.

Replace it making sure it
screws back on correctly.

There is no remedy.
Purchase cutlery which is
dishwasher-proof.

Always run the "Pre-wash"
programme after adding
dishwasher salt.

50

Problem solving guide

Problem Possible cause Remedy

The detergent lid cannot
be closed properly.

Detergent residue is left
in the dispenser at the
end of a programme.

Water remains in the
wash cabinet at the end
of a programme.

Clogged detergent
residue is blocking the
catch.

The dispenser was still
damp when detergent
was added.

The filter combination in
the wash cabinet is
clogged.

The drain pump or
non-return valve may be
blocked.

The drain hose is kinked. Remove any kink in the

Remove the residue.

Make sure the dispenser
is dry before adding
detergent.

Before rectifying the
problem you must: Switch
the dishwasher off.

Clean the filter
combination, see
“Cleaning and Care”.

Clean the drain pump and
the non-return valve, see
“Cleaning the drain pump
and non-return valve”.

drain hose.

51

Solving problems

Cleaning the water inlet filter

A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.

The plastic housing of the water

,

connection contains an electrical
component. It must not be dipped in
water.

Recommendation

If the mains water contains a large
number of insoluble substances, we
recommend fitting a large-area filter in
the connection between the stopcock
and the water inlet hose threaded
union. This filter is available from the
Miele Spares Dept.

Cleaning the filter:

^ Disconnect the dishwasher from the

mains supply (switch off at the mains
socket, pull out the plug , switch off
the appropriate circuit at the fuse box
or withdraw the mains fuse).

^

Turn off the stopcock.

^

Unscrew the inlet hose.

Carefully remove the rubber seal.

^
^ Withdraw the filter using pointed

pliers and rinse clean under running
water.

^ Replace the filter and seal, making

sure they are sitting correctly.

^ Reconnect the inlet hose to the

stopcock, making sure it goes on
correctly and is not cross-threaded.

^

Turn on the stopcock gradually to test
for leaks. If there is a leak, the inlet
hose might not be on securely, or it
may have been screwed on at an
angle. Unscrew and reconnect the
water inlet valve correctly.

52

Cleaning the drain pump and
non-return valve

If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean. Watch out for glass or bone
splinters which could cause injury.

Take the filter combination out of the

^

wash cabinet (see "Cleaning and
care", "Cleaning the filters in the wash
cabinet").

Scoop the water out of the cabinet

^

using a suitable container.

Solving problems

Raise the locking clamp for the

^

non-return valve.

53

Solving problems

Lift up the non-return valve and rinse

^

well under running water.

^ Remove all foreign objects from the

non-return valve.

The drain pump is situated under the
non-return valve (see arrow).

^ Remove all foreign objects from the

drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause
injury). Turn the drain pump impeller
by hand to check that there are no
more obstructions.

^ Carefully replace the non-return valve

and secure it with the locking clamp.

54

After sales service

Should you still have any difficulties,
please contact:

Your Miele Dealer

–
or

The Miele Service Department (see

–

back cover for address).

Please quote the model type and

^

number of your appliance.

This information is given on the data
plate at the side of the door.

Please note that telephone calls may
be monitored and recorded to
improve our service.

Programme update function - PC

The programme update function (PC =
Programme correction) is designed to
enable a service technician to update
your machine’s electronics in keeping
with advances in technology.

The indicator or check light marked
"Salt PC" is used as the interface for this
programming.

Information regarding programme
updates will be made known by the
Miele Company as and when such
developments become available.

55

Optional accessories

To make the most of your
dishwasher

If you would like … you will need to order …

... to wash bottles,
e. g. milk or baby bottles

... to wash long-stemmed glassware ... a glassware insert for the upper

... to wash large plates ... an insert for plates up to 32 cm

... to wash additional items of cutlery ... a small cutlery basket for the lower

... a bottle holder

basket

diameter

basket

56

Comparison tests

Test standard: AS/NZS 2007.1 : 2003

AS/NZS 2007.2 : 2003

Programme tested: Universal
Amount washed: 14 place settings
Amount of detergent: 5 g in compartment I + 25 g in compartment II
Rinse aid dispensing: Setting 3 (approx. 3 ml, set at factory)
Drying measurements: Door ajar using a block of approximately 50 mm

upon completion of dry test

Upper basket

Lower basket

57

Comparison tests

Cutlery tray

58

Should you ever need to move the
dishwasher, e.g. when moving house,
note the following:

Empty the dishwasher,

–

Secure any loose parts, e. g. hoses,

–

mains cable, cutlery basket, lower
basket

Transport the dishwasher in the

–

upright position.
If unavoidable, it may be transported
on its back.
Do not transport it on its side or on
the door as residual water still in the
appliance will leak out of it.
This residual water could get into the
electronic unit and cause a fault.

Transport

59

Programme chart

Programme When to use Detergent

Compartment

II

(Wash cycle)

Sensor wash

Sensor wash
gentle o

Universal

Economy

Light wash for normal everyday loads with a shorter wash time 100 %

Pre-wash for rinsing crockery to avoid smells, if a

1) Standard programme for comparison tests (see section "Comparison tests").

2) The consumption data and programme duration figures quoted may vary during the Sensor wash
programmes depending on the soiling level of the load being washed.

3) Programme with much longer, but quieter drying phase.

2)

Sensor controlled programme
for normally soiled crockery

2)

1)

3)

Sensor controlled gentle programme for lightly soiled and
temperature sensitive crockery and glassware

for normal everyday loads with a longer wash time 100 %

for normal everyday loads; energy saving programme 100 %

complete cycle is not yet needed.

100 %

50 %

60

Programme chart

Programme cycle Consumption Duration

Energy kWh Water h:min

-

Hot

water

connec

tion

(60 °C)

Litres Cold

connec

-

Hot

water

tion

(60 °C)

water

-

connec

tion

(20 °C)

Pre-

wash

12

if

requiredX50 °-60 °ifrequiredX65 °

if

requiredX42 °-52 °ifrequiredX55 °

When washing a full load in the Sensor wash Programme, the Economy Programme, the Light wash
Programme and the Universal Programme at least 30 ml of detergent are required. If the detergent
manufacturer recommends using more than this you should dispense the amount they suggest.
For the Intensive Programme add an additional 5-7 ml to compartment I.

Main

wash

XX

40 °

40 °

50 °

X 0.06 0.06 5 0:11 0:11

Interim

rinse

XX

X

X

XX

XX

Final
rinse

45 °

60 °

65 °

Drying Cold

water

connec

tion

(20 °C)

X 1.3-1.5 0.6-0.8 14-24 1:39-2:03 1:18-1:25

X 1.0-1.1 0.5-0.6 14-24 1:28-1:38 1:10-1:20

X 0.90 0.30 19 2:01 1:41

X 1.08 0.70 15 2:14 1:55

X 1.30 0.70 15 1:27 1:11

-

N.B. Data obtained from a machine tested in Germany.

616263

Alteration rights reserved (G863-3 Plus) / 3803

M.-Nr. 06 022 890 / 00

This paper consists of cellulose which has been bleached without the use of chlorine.
