EcoFlex Series
Fully Integrated Dishwasher
CRYSTAL |
G 6665 SCVi, G 6665 |
SCVi SF |
DIMENSION |
G 6785 SCVi, G 6785 |
SCVi SF |
LUMEN |
G 6875 SCVi, G 6875 |
SCVi SF, G 6885 SCVi K2o |
DIAMOND |
G 6987 SCVi K2o |
|
8mieleusa.com
Specification Sheets TRS 02282017
EcoFlex Series
Fully Integrated Dishwasher
SPECIFICATIONS |
|
|
|
Overall Unit Width |
239/16” (598mm) |
|
|
Overall Unit Height |
3311/16” - 361/4” (855 - 920mm) |
|
|
Overall Unit Depth |
227/16” (570mm) |
|
|

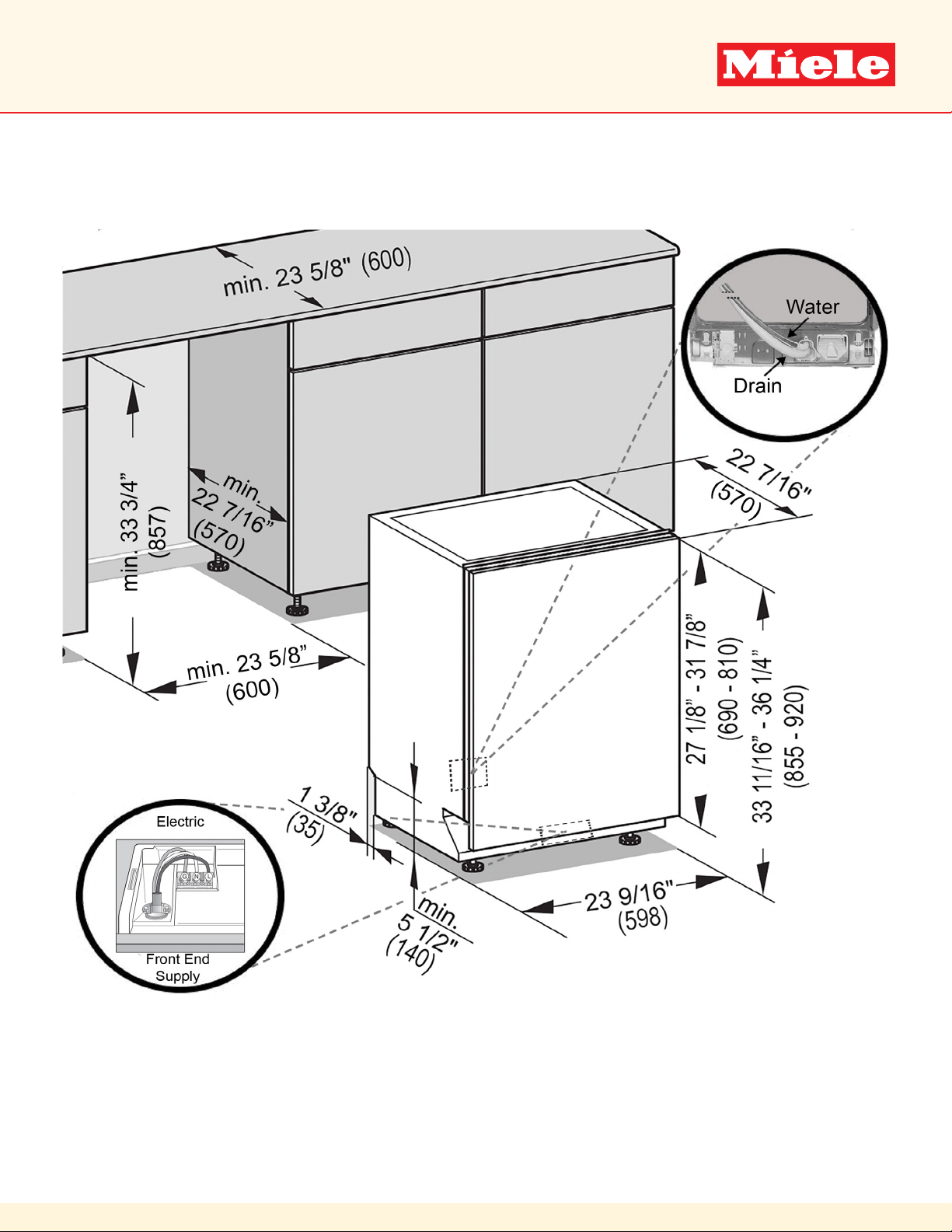

Niche |
|
|
|
|
|
|
|
Minimum Cabinet Opening Width |
235/8 ” (600mm) |
|
|
Minimum Cabinet Opening Height |
333/4” (857mm) |
|
|
Minimum Cabinet Opening Depth |
227/16” (570mm) |
|
|
Plumbing |
|
|
|
|
May be connected to a cold or hot water |
|
|
|
supply up to a maximum of 140°F/60°C. |
|
|
|
Must be connected to a shut-off valve with |
|
|
|
a male 3/8” compression. The water shut-off |
|
|
Water Supply Requirements |
valve must be accessible after installation. |
|
|
The water pressure must be between 4.35 |
|
||
|
|
||
|
psi (0.3 bar) and may not exceed 145 psi (10 |
|
|
|
bar). If the pressure is higher than 145 psi |
|
|
|
(10 bar), a pressure reducing valve must be |
|
|
|
installed. |
|
|
|
|
|
|
Water Connection Line |
4’ 11” (1.5m) flexible water intake hose is |
|
|
supplied with a 3/8 compression connection. |
|
||
|
|
||
|
|
|
|
Drain Hose |
4’ 11” (1.5m) flexible drain hose is supplied. |
|
|
|
|
|
|
Electrical |
|
|
|
Electrical Requirements - Volts/Amps |
110V / 120V, 60Hz, 15 Amps |
|
|
|
|
|
|
|
NEMA 5-15 plug, 3’ 11” (1.2m) |
|
|
Power Cord - Plug and length |
(Measured from back of unit, Convertible to |
|
|
|
Hardwire) |
|
|
Shipping |
|
|
|
Shipping Weight |
118 lbs (53.5kg) |
|
|
|
|
|
|
Support |
|
|
|
Call Miele |
800.843.7231 |
|
|
|
|
|
|
Miele Website |
8www.mieleusa.com |
|
|
|
|
|
|
20/20 Link |
82020technologies.com |
|
|
|
|
|
|
EcoFlex Series
Fully Integrated Dishwasher
Page 2 of 5
Specification Sheets TRS 02282017
