Page 1
Operating instructions
for dishwashers
It is essential to read the operating and
installation instructions before
installing, commissioning or using the
machine, to avoid the risk of accidents
or damage to the machine.
M.-Nr.
G
05 714 440
Page 2
Contents
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 11
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming the water hardness level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking the programmed water hardness level. . . . . . . . . . . . . . . . . . . . . . . 15
Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

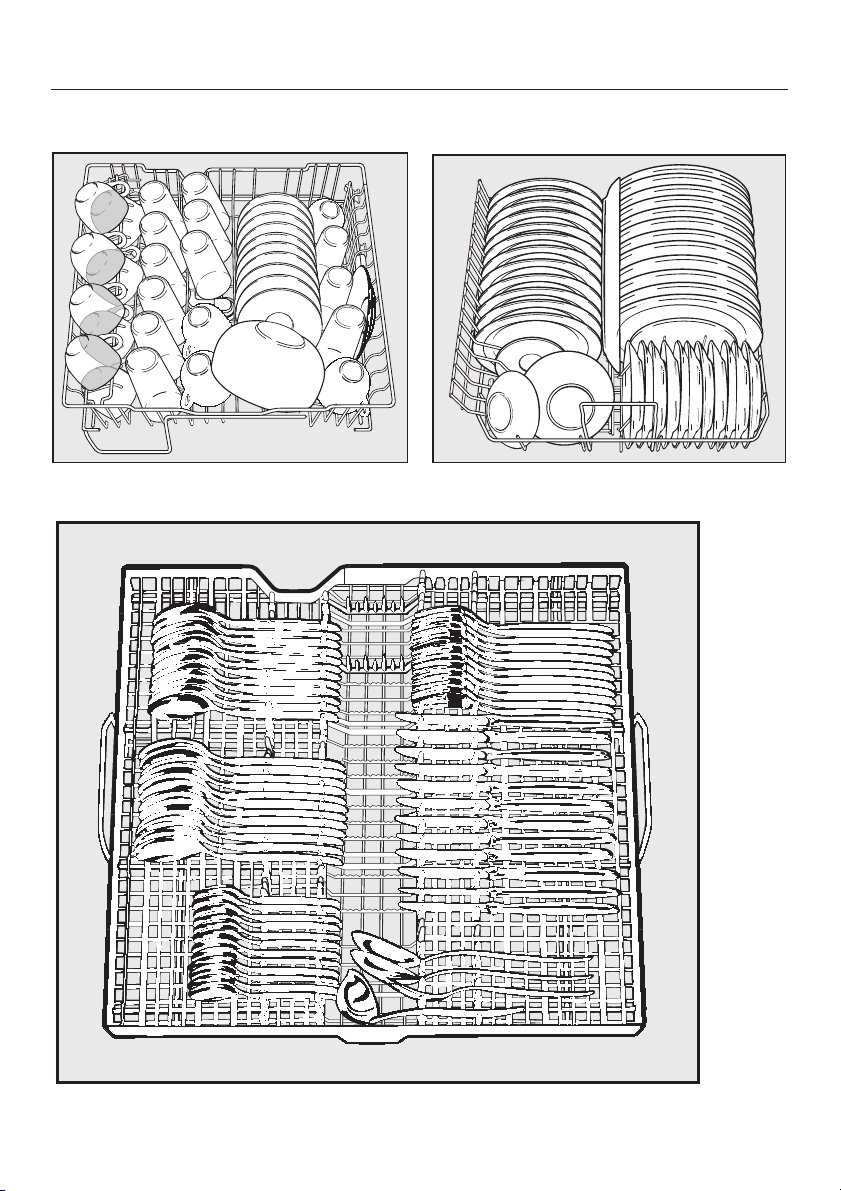

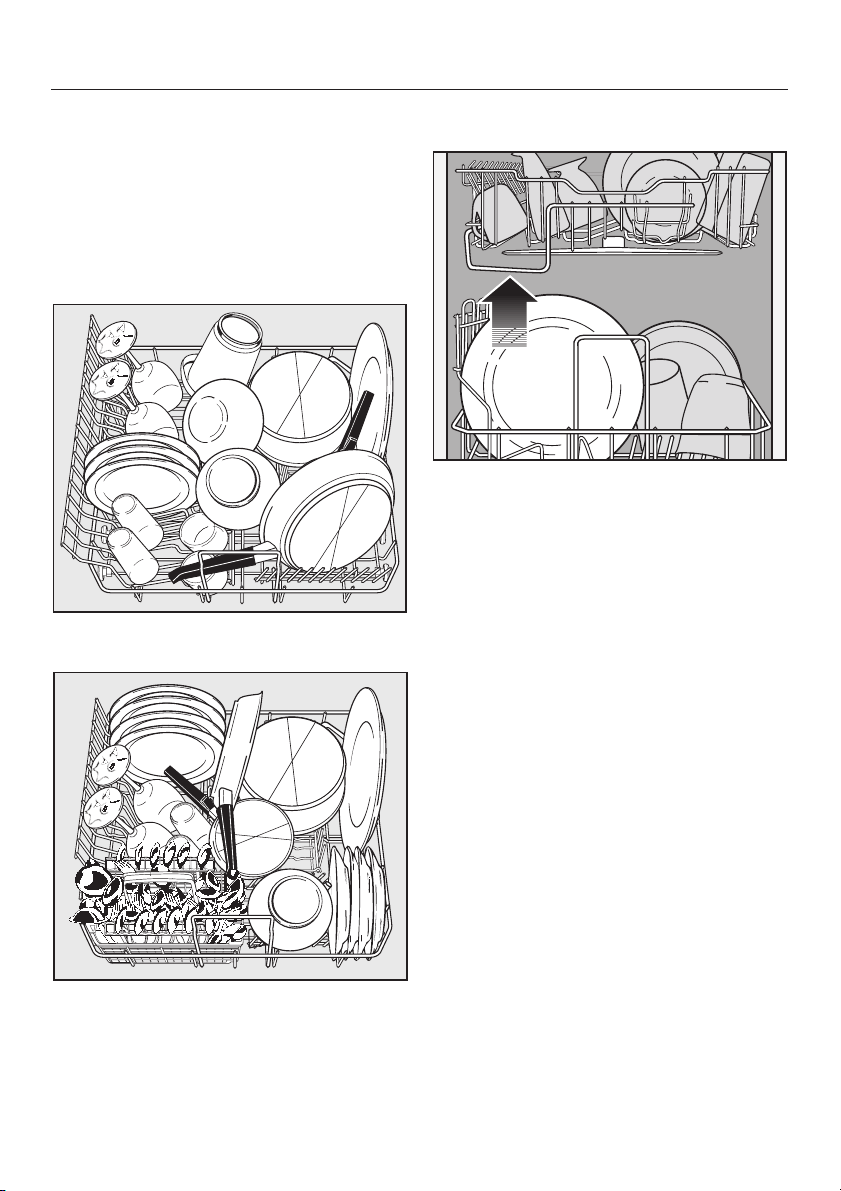

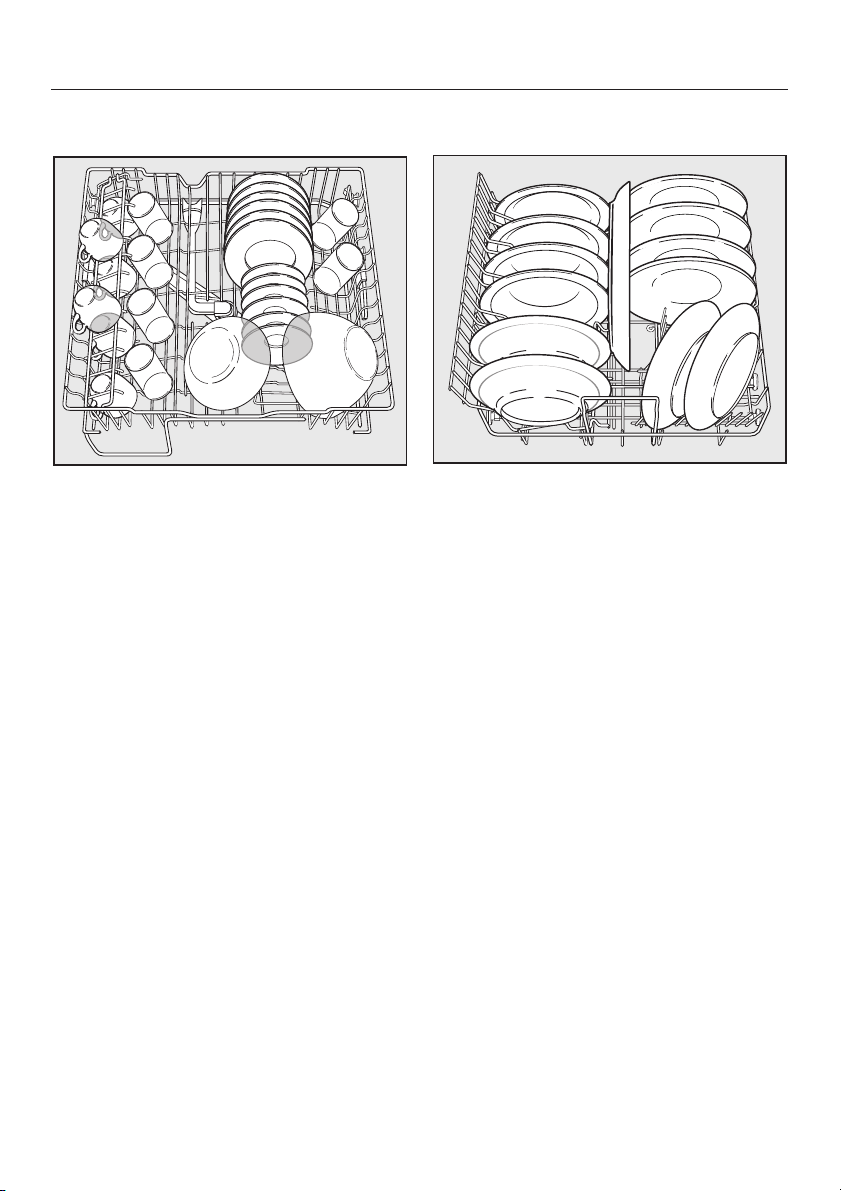

Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Flap up rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Positioning rail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Variable inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To remove an insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To fit an insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Hinged spike insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Vario insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Dishwashers with a cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Dishwashers with a cutlery tray (SC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2
Page 3
Contents
Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Programme sequence indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
"Top Solo" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Drying fan running time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning the control panel and door front panel. . . . . . . . . . . . . . . . . . . . . . . . . . 48
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Solving problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 60
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3
Page 4
Guide to the appliance
Appliance overview
1 Upper spray arm (not visible)
2 Cutlery tray
(depending on model)
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
4
7 Four height adjustable screw feet
8 Filter combination
9 Salt reservoir
10 Dual compartment detergent
dispenser
11 Rinse aid reservoir
(with dosage selector)
12 Data Plate
Page 5
Control panel
Guide to the appliance
13 "On/Off" button
14 Programme sequence display
15 "Top Solo" button
16 Delay start time display
17 Programme selector
18 Delay start button
19 "Start" button
20 Check/Refill indicators
21 Child safety lock
22 Door release
23 Ventilation outlet for drying fan
5
Page 6
Warning and Safety instructions
Installation
This appliance conforms to current
safety requirements. Inappropriate
use can however lead to personal
injury and damage to property.
Read the operating instructions
carefully before starting to use this
appliance. This way you will prevent
the risk of accidents and damage to
the appliance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.
the installation instructions.
has been installed.
must only be installed under a continu
ous worktop which is secured to adja
cent cabinetry.
The dishwasher must be installed
and connected in compliance with
The electrical socket must be eas
ily accessible after the dishwasher
In order to ensure stability, built-un
der and integrated dishwashers
-
-
-
-
Correct usage
This dishwasher is intended exclu-
sively for cleaning domestic crockery and cutlery in a domestic household. Using it for purposes other than
those for which it was designed, as well
as any alterations or conversions to the
machine would be unauthorised and
could cause harm. The manufacturer
cannot be held liable for damage resulting from improper or incorrect use
of the appliance.
Delivery
Before setting up the machine
check it for any externally visible
damage. Under no circumstances
should you use a damaged machine. A
damaged machine is dangerous.
Please ensure that the packaging
material is offered for recycling.
The dishwasher must not be in
stalled under a hob. The high radiant temperatures which are sometimes
generated by a hob could damage the
dishwasher.
Do not connect the dishwasher to
the mains supply until it has been
installed.
Check that the voltage, frequency
and fuse rating shown on the data
plate match the household mains sup
ply.
The electrical safety of this appli
ance can only be guaranteed when
continuity is complete between the ap
pliance and an effective earthing sys
tem. It is most important that this basic
safety requirement is tested and where
there is any doubt, the electrical system
in the house is checked by a qualified
electrician.
The manufacturer cannot be held re
sponsible for the consequences of an
inadequate earthing system (e.g. elec
tric shock).
-
-
-
-
-
-
-
6
Page 7
Warning and Safety instructions
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk assess
ment of the installation being carried
out by a suitably qualified engineer.
A damaged machine is dangerous.
Switch off at the mains and call
your Miele supplier or the Miele Service
Department.
The plastic housing of the water
connection contains an electrical
component. The housing must therefore
not be dipped in water.
There are live wires in the water in-
let hose. Never cut the water inlet
hose, even if it is too long.
For safety reasons do not operate
this appliance on an extension cable. (Danger of overheating).
-
Daily use
Do not use solvents in the dish
washer. Danger of explosion.
Water in the dishwasher must not
be used as drinking water. This wa
ter is not drinking water.
Avoid inhalation of powder deter
gents. Do not ingest dishwasher
detergent! Dishwasher detergents con
tain irritant or corrosive ingredients.
They can cause burning in the nose,
mouth and throat if swallowed, or inhibit
breathing. Consult a doctor immediate
ly if detergent has been swallowed or
inhaled.
-
-
Do not sit or lean on the opened
door. This could cause the dish
washer to tip and be damaged and you
could get injured.
In an appliance with a cutlery bas
ket (depending on model) cutlery
is cleaned and dried more efficiently if
placed in the basket with the handles
downwards. However, to avoid the risk
of injury place cutlery with sharp points
with the handles upwards.
Only use detergents formulated for
domestic dishwashers. Do not use
washing-up liquid.
Only use rinse aid formulated for
domestic dishwashers.
Only use special coarse grained
dishwasher salt for reactivation.
Do not use other salts such as cooking
salt, agricultural grade or gritting salt.
These may contain insoluble additives
which can impair the functioning of the
water softener.
Plastic items which cannot with
stand being washed in hot water,
such as disposable plastic containers,
or plastic cutlery and crockery should
-
not be cleaned in the dishwasher. The
high temperatures in the dishwasher
may cause them to melt or lose shape.
-
-
-
-
-
7
Page 8
Warning and Safety instructions
Take care on dishwashers with a
visible heater element
(depending on model)
Do not touch the heating element
during or directly after the end of a
programme. It will be hot. Danger of
burning!
Some plastic items could melt or
catch fire if they were to come into
contact with the heating element.
Therefore always place plastic items or
any other items which may not be com
pletely heat resistant in the upper bas
ket and ensure they cannot drop down
onto the heater element.
Any items which are too small to be
lodged securely in the upper basket
should not be cleaned in the dishwasher.
-
Safety with children
Do not allow children to play in or
around the dishwasher, or to operate it. There is a danger that children
playing might shut themselves in the
dishwasher.
Keep children away from deter
gents. Dishwasher detergents con
tain irritant or corrosive ingredients.
They can cause burning in the mouth,
nose and throat if swallowed, or inhibit
breathing. Consult a doctor immediate
ly if your child has swallowed or inhaled
detergent.
-
To avoid the danger of children
coming into contact with the dish
washer detergent: only add detergent
just before
close the door, activating the child
safety lock (depending on model).
Keep children away from the dish
washer when the door is open. There
could still be detergent residues in the
cabinet.
models with the "Delay start" option
make sure the dispenser is dry before
adding detergent. Wipe dry if necessary. Detergent will clog if poured into a
damp dispenser and may not be thoroughly dispersed. If the door is open at
the end of a programme, children may
come into contact with this residue.
starting the programme and
To ensure children do not come
into contact with detergent on
To avoid machine and material
damage
Do not fill the rinse aid reservoir
with powder or liquid detergent.
This will cause serious damage to the
reservoir.
-
-
Inadvertently filling the salt reser
voir with powder or liquid dish
washer detergent always leads to seri
ous damage to the water softener.
Make sure you have picked up the cor
rect packet of dishwasher salt before
filling the salt reservoir!
Do not use commercial or industrial
detergents as these may damage
material and there is a risk of severe
chemical reaction.
-
-
-
-
-
-
8
Page 9
Warning and Safety instructions
The Miele Waterproof System offers
protection from water damage, pro
vided the following conditions are met:
The dishwasher is correctly installed
–
and plumbed in.
The dishwasher is properly main
–
tained and parts are replaced where
it can be seen that this is necessary.
The stopcock has been turned off
–
when the appliance is not used for a
longer period of time (e.g. during hol
idays).
In countries where there are ar-
,
eas which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping
the appliance and its surroundings
in a clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not
be covered by the appliance guarantee.
-
Disposal of your old appliance
-
-
When disposing of an old dish
washer first make it unusable. Dis
connect, cut off the cable and the plug
from the cable. Make the door lock in
operative by unscrewing 2 cross-slotted
screws, so that children cannot acci
dentally shut themselves in. Make ap
propriate arrangements for the disposal
of the appliance.
The manufacturer cannot be held lia
ble for damage caused by non-com
pliance with these Warning and
Safety instructions.
-
-
-
-
-
-
-
Repairs and maintenance
Repairs may only be carried out by
suitably qualified and competent
engineers in accordance with local and
national safety requirements. Repairs
and other work by unqualified persons
could be dangerous.
Always disconnect the appliance
from the electrical supply for main
tenance work (switch off at wall socket
and remove the plug, or remove the
screw out fuse in countries where this is
applicable).
-
9
Page 10
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these materi
als away, please ensure that they are
recycled.
-
Disposal of your old appliance
Old appliances contain materials which
can be recycled. Please contact your
dealer, your local waste collection centre or scrap merchant about potential
recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate sec
tion in the Warning and Safety instruc
tions.
-
-
Energy saving washing
This dishwasher is exceptionally eco
nomical in its use of water and electric
ity. You can make the most of your ap
pliance by following these tips:
If your household water system is
^
suitable, this dishwasher can be con
nected to a hot water supply, for fur
ther economies.
Although all stages of the wash then
take place with hot water, savings are
made in:
- the use of primary energy,
- costs,
- programme running times.
If, however, your water is heated by
electricity we would still recommend
connection to cold water.
^ For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^ Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^
The "Top Solo" function should only
be selected for washing very small
loads of crockery (see "Additional op
tions").
-
-
-
-
-
-
10
^
Select the Economy programme for
energy-saving dishwashing.
^
Use the correct amounts of deter
gent.
^
Use only 2/3 of the given dosage if
baskets are only half full.
-
Page 11
Before using the appliance for
the first time you require:
approx. 2 litres of water,
–
approx. 2 kg dishwasher reactivation
–
salt,
domestic dishwasher detergent,
–
rinse aid formulated for domestic
–
dishwashers.
Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been previously
used.
Before using for the first time
11
Page 12
Before using for the first time
To open the door
^ Press the release catch inside the
door grip and pull forward.
If the door is opened during operation
all functions are automatically interrupted.
To close the door
^ Push the baskets right in, lift the door
and push until it clicks into position.
Child safety lock
The yellow key for the child safety
lock is on one of the spikes at the
front of the upper basket.
Remove the key before switching on
the dishwasher and keep it in a safe
place away from the dishwasher.
To prevent children opening the dishwasher door during operation, use the
key to lock the door:
12
Horizontal setting:
The door is locked.
Vertical setting:
The door can be opened.
Page 13
Before using for the first time
Water softener
In order to achieve good cleaning re
sults, the dishwasher needs to operate
with soft water. Hard water results in the
build-up of calcium deposits on crock
ery and in the dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4° d - German
scale) needs to be softened. This takes
place automatically in the integrated
water softener.
The water softener must be filled with
–
dishwasher salt for reactivation.
– The dishwasher must be pro-
grammed to correspond to the water
hardness in your area.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
-
-
Where the water hardness fluctuates
e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d
German scale) always programme the
dishwasher to the higher value
(3.1 mmol/l in this example).
In the event of a fault, it will help the
service technician if you know the hard
ness of your local water supply.
Enter the water hardness below:
^
mmol/l or °d
-
13
Page 14
Before using for the first time
Programming the water hardness
level
Switch the dishwasher off.
^
Turn the programme selector to the
^
"Stop" position.
Press the "Top Solo" button in and
^
whilst holding it in
washer on using the "On/Off" button.
Release the "Top Solo" button within
two seconds.
The "Salt" indicator light will flash.
switch the dish
-
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
Turn the programme selector to the
^
position that corresponds to your water hardness level (see chart below).
°d
German
scale
1 - 4 0.2 - 0.7 "1 o’clock" position
5 - 7 0.9 - 1.3 "2 o’clock" position
8 - 10 1.4 - 1.8 "3 o’clock" position
11 - 13 2.0 - 2.3 "4 o’clock" position
14 - 16 2.5 - 2.9 "5 o’clock" position
17 - 22 3.1 - 4.0 "6 o’clock" position
23 - 35 4.1 - 6.3 "7 o’clock" position
36 - 70 6.5 - 12.6 "8 o’clock" position
mmol/l Programme selector
setting
The dishwasher is set at the factory
for a hardness level of 2.5 -2.9 mmol/l
(14 -16 °d ).
Example:
For a water hardnesss of 3.5 mmol/l,
turn the programme selector to the "6
o’clock" position.
14
Page 15
Before using for the first time
Press the "Top Solo" button.
^
The "Top Solo" indicator light will come
on.
Turn the programme selector to the
^
"Stop" position.
Switch the dishwasher off using the
^
"On/Off" button.
The water hardness level is now stored
in memory.
Checking the programmed water
hardness level
Switch the dishwasher off.
^
Turn the programme selector to the
^
"Stop" position.
Press the "Top Solo" button in and
^
whilst holding it in
washer on using the "On/Off" button.
Release the "Top Solo" button within
two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
^ Click the progamme selector from the
"1 o’clock" position as far as the
"8 o’clock" position.
switch the dish
-
When the programme selector is at the
position which corresponds to the water
hardness setting already programmed,
the "Top Solo" indicator light will come
on (see chart "Programming and setting
the water hardness level").
^
Turn the programme selector to the
"Stop" position.
^
Switch the dishwasher off using the
"On/Off" button.
15
Page 16
Before using for the first time
Filling the salt reservoir
If the water in your area is very soft
and constantly lower than 0.7 mmol/l
(4 °d) you do not need to add dish
washer salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area. (The salt indicator light will still
come on, but should be ignored).
Important: Before filling the salt res
ervoir with dishwasher salt for the
first time
2 litres of water to enable the salt to
dissolve. Once the dishwasher has
been used, there is always sufficient
water in the reservoir.
,
voir with powder or liquid dishwasher detergent always leads to
serious damage to the water soft
ener. Make sure you have picked up
the correct packet of dishwasher salt
before filling the salt reservoir!
, you must fill it with approx.
Inadvertently filling the salt reser-
Remove the lower basket and un
^
screw the salt reservoir cap.
Fill the reservoir with approx. 2 litres
^
-
-
-
of water (first use).
^ Place the funnel provided over the
salt reservoir and carefully fill with salt
until the reservoir is full. The salt reservoir holds approx. 2 kg of salt depending on the brand used.
As the salt reservoir is filled, displaced
water will overflow.
^
Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.
-
,
Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the func
tioning of the water softener.
16
^
Run the "Pre-wash" programme im
mediately to remove any traces of
salt water from the cabinet.
-
-
Page 17
Before using for the first time
Salt indicator
The salt indicator light comes on to no
tify you that the reservoir is empty.
^ The reservoir should then be refilled
with dishwasher salt for reactivation.
(See: Filling the salt reservoir).
After the reservoir has been filled, the
water softener is automatically reactivated the next time the dishwasher is
run. The salt indicator light may still be
illuminated during this process. It will
go out once the salt concentration has
reached the correct level.
Note
If the water in your area is very soft and
constantly lower than 0.7 mmol (4 °d)
you do not need to add salt to the res
ervoir. The salt indicator light, however,
will still come on, but should be ig
nored.
(See "After sales service" for definition
of "PC").
-
-
17
Page 18
Before using for the first time
Rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase.
Rinse aid is poured into the storage res
ervoir and the amount set is dispensed
automatically.
Inadvertently filling the rinse aid
,
reservoir with powder or liquid dish
washer detergent always causes se
rious damage to the reservoir. Only
pour rinse aid formulated for domes
tic dishwashers into the reservoir.
Alternatively, it is possible to use
– Household vinegar with a max. 5%
acid content
or
– Liquid citric acid up to 50% acid
content.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
-
Adding rinse aid
-
-
-
^ Press the button in the direction of
the arrow until the flap springs open.
,
Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This must not be used as
its use would damage the dish
washer.
18
-
Page 19
Before using for the first time
Rinse aid indicator
Add rinse aid only until it is visible on
^
the surface of the filter in the
opening.
The rinse aid reservoir holds approx.
130 ml.
^ Close the flap firmly so that it clicks
into place. Otherwise water would enter the rinse aid reservoir during a
programme.
^
Wipe up any spilled rinse aid. This
prevents over-foaming occuring dur
ing the next programme.
The Rinse aid indicator light on the fas
cia comes on when the rinse aid reser
voir needs to be replenished.
When the light comes on the reservoir
still contains sufficient rinse aid for 2 - 3
programmes.
^ Add rinse aid in plenty of time.
-
-
-
19
Page 20
Before using for the first time
Setting the rinse aid dosage
The dosage selector has settings from
1-6. It is set to "3" (3 ml) at the factory.
Approx. 3 ml of rinse aid are then used
per programme. This is a recommended setting.
If spots appear on crockery and glassware:
^ Use a higher setting.
If clouding or smearing appears on
crockery and glassware:
^
Use a lower setting.
20
Page 21
Loading the dishwasher
Note
Remove coarse food residues from
^
crockery.
There is no need to rinse items under
running water.
Do not wash items soiled with
,
ash, sand, wax, lubricating grease
or paint in the dishwasher. Ash does
not dissolve and is distributed in the
wash cabinet. Wax, sand, lubricating
grease and paint cause damage to
the dishwasher.
Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:
^ Do not place crockery and cutlery in-
side other pieces where they may be
concealed.
^ Load the crockery so that water can
access all surfaces. This ensures that
it is properly cleaned.
^
Make sure that all items are securely
positioned.
^
Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.
^
Tall, narrow, hollow items, e.g. cham
pagne glasses, should be placed in
the centre of the basket to ensure
better water coverage.
Deep based items should be placed
^
at an angle so that water can run off
them freely.
The spray arms must not be blocked
^
by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.
Make sure that small items do not fall
^
through the holders in the baskets.
Small items, e.g. lids, should there
fore be placed in the cutlery tray or
cutlery basket.
Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
ketchup. Plastic items in the dishwasher may discolour if large quantities of these foodstuffs find their
way into the appliance on the crockery. The stability of plastic items is
not affected by this discolouration.
When the dishwasher is being
loaded food and drink residue may
drip onto the sides of the dish
washer door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms.
Food residue should therefore be
wiped away before the dishwasher
door is closed.
-
-
21
Page 22
Loading the dishwasher
Upper basket
For small, lightweight, delicate items
such as cups, saucers, glasses, dessert bowls, etc.
Shallow saucepans or casserole dishes
can also be placed in the upper basket.
Note for "Top Solo"
If a wash programme has been se
lected with the additional function "Top
Solo", all crockery must be loaded in
the upper basket and cutlery tray.
If your dishwasher has a cutlery basket
then cutlery should be placed in the
cutlery basket with plenty of space be
tween items.
As the middle spray arms also directs
water downwards, it is possible to wash
lightly soiled plates (with a large diame
ter) and serving platters in the lower
basket, however plenty of space must
be left in between items. Do not wash
dishes, bowls or other hollow containers when using this function.
-
-
-
Long items such as soup ladles, mixing
spoons and long knives should be
placed lying down across the front of
the upper basket.
22
Page 23
Loading the dishwasher
Flap up rack
To make room for tall items raise the
rack upwards.
Positioning rail (depending on model)
The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.
23
Page 24
Loading the dishwasher
Adjusting the upper basket
In order to gain more space for taller
pieces of crockery in the bottom or up
per basket, the upper basket can be
adjusted on three levels with 2 cm be
tween each level.
The upper basket can also be set at an
angle with one side high and the other
side low. Ensure however, that the bas
ket can be inserted smoothly into the
cabinet.
It is best to adjust the basket before
loading it.
^ Pull out the upper basket.
-
Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.
-
Dishwashers with cutlery tray
Upper
basket
level
-
To p 1 5 3 0
Middle 17 28
Bottom 19 26
Dishwashers with cutlery basket
without adjustment to upper basket
Plate Ø in upper basket: 23 cm
Plate Ø in lower basket: 28 cm
Plate Ø in cm
Upper
basket
Lower
basket
^
Pull upwards on the levers at either
side of the upper basket.
^
Adjust the basket to the desired
height.
^
Then push the levers securely back
down into position.
24
Page 25
Loading the dishwasher
Lower basket
For larger and heavier items such as
plates, serving platters, saucepans,
bowls, etc.
Small items such as saucers and dura
ble glassware can also be placed in the
lower basket.
Dishwashers with cutlery tray
-
Height limitation
The stay at the front of the upper basket
determines the max. height permissible
for items placed in the lower basket to
ensure they do not impede the movement of the middle spray arm.
Dishwashers with cutlery basket
25
Page 26
Loading the dishwasher
Variable inserts
A variety of inserts are available for washing crockery in the lower basket.
To remove an insert
Pull upwards by the handle to re
^
move.
To fit an insert
-
^ Fit the insert into the lower basket
with the hooks going under the long
cross piece as illustrated.
^
Press down on the handle until the in
sert is securely held in position.
26
-
Page 27

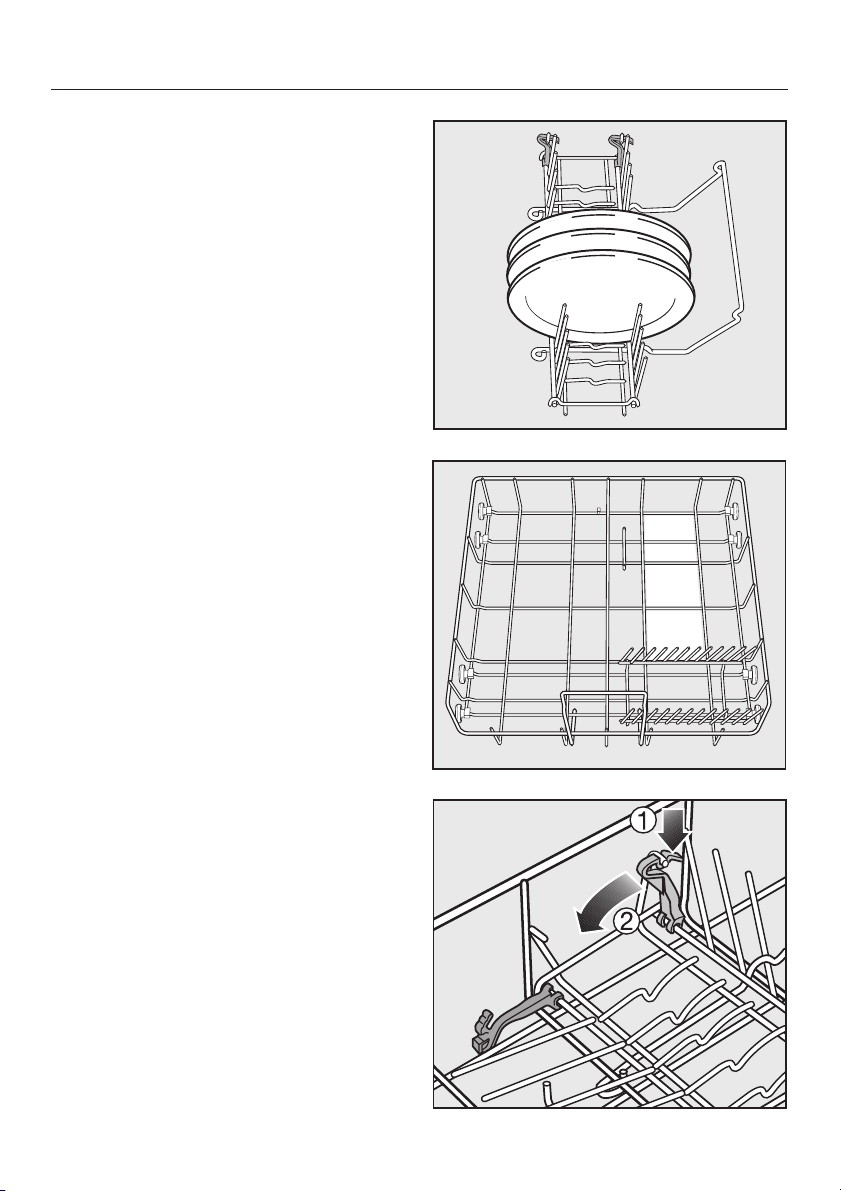

Hinged spike insert
The spike insert is used for washing
plates and saucers.
^ The hinged spike insert fits in the
area marked white at the back right
hand side of the bottom basket.
Loading the dishwasher
Both sides of the rear section of the
spiked insert can be lowered to make
more room for large items, e.g. pots,
pans and dishes.
^
Press the yellow lever downwards
and then fold the spikes towards the
middle of the basket.
27
Page 28
Loading the dishwasher
Vario insert
The vario insert is used for washing
cups, glasses, plates, bowls and pots.
The vario insert fits in the area marked
white in the left hand side of the bottom
basket.
Bottle holder
The bottle holder, e.g. for milk and baby
bottles, can be fitted in the lower basket
in the area marked white in the illustra
tion. However, do not place a bottle
holder in the corners. Water will not be
able to access the bottles properly and
they will not get clean.
28
-
Page 29
Cutlery
Dishwashers with a cutlery basket
^ Unsorted cutlery should be placed in
the cutlery basket with the handles
facing downwards to ensure optimum
spray water access.
Loading the dishwasher
However, to avoid the risk of in
,
jury cutlery with sharp points should
be placed with the handles up
wards.
Place small spoons in the individual
slots to either side of the cutlery basket.
-
-
29
Page 30
Loading the dishwasher
Spoon inserts for the cutlery basket
Use the inserts supplied when washing
heavily soiled spoons, e.g. tablespoons
and serving spoons.
The inserts separate the spoons to al
low a space between them so that they
can be more easily accessed by water.
^ If required, place an insert onto the
front and rear of the cutlery basket.
To remove the inserts:
^
Press the engaged hooks inwards
(use a spoon handle if necessary)
and remove the insert by pulling it
upwards.
-
Insert the spoons with the handles
^
facing downwards, using only every
other slot.
30
Page 31
Dishwashers with a cutlery tray (SC)
Loading the dishwasher
For best results cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.This
makes unloading much easier.
Place the blades of knives and the
prongs of forks between the holders.
Spoons, on the other hand, should be
placed with the handles between the
holders.
Longer items such as soup ladles, cake
slices, mixing spoons and long knives
should be placed lengthwise in the in
dentation in the middle of the cutlery
tray.
The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).
The cutlery tray insert is removable.
-
Spoon heads should be placed in con
tact with at least one of the serrated retainers on the base of the cutlery tray to
ensure that water runs off them freely.
If spoon handles do not fit between the
holders then lay them the other way
round making sure that the head of the
spoon is in contact with the support on
the bottom of the tray.
-
31
Page 32
Loading the dishwasher
Items not suitable for
dishwashers:
Wooden cutlery and crockery or
–
items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a dish
washer.
Craft items, antiques, valuable vases
–
and decorative glassware are also
not suitable for dishwashers.
Plastic items which are not heat re
–
sistant. The high temperatures in the
dishwasher may cause them to melt
or lose shape.
– Copper, brass, tin and aluminium
items may discolour or become matt.
– Colours painted over a glaze may
fade after a number of washes.
– Clouding may occur on glasses after
frequent washing. Do not wash
glassware containing lead crystal in
a dishwasher.
-
-
Please note
Silverware
silver polish
ted at the end of a programme, where
water has not run off smoothly. It may
need rubbing dry with a soft cloth. Sil
ver treated in a silver immersion dip is
usually dry at the end of a programme
but may discolour.
Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions, mayon
naise, mustard, pulses, fish, fish brine
and marinades.
,
grease filter) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage material, or in extreme
cases, cause severe chemical reaction. See section "Adding detergent"
for information on suitable detergents.
previously cleaned with a
may still be damp or spot
-
Aluminium components (e.g. a
-
-
We recommend:
–
When purchasing new crockery and
cutlery, make sure they are dish
washer-proof.
–
There are no standard guidelines for
washing glassware. When in doubt,
wash glassware by hand.
–
If delicate glassware is washed in the
dishwasher ensure that only very low
temperatures are used (see
programme chart). This will reduce
the risk of clouding.
32
-
Page 33
Operating the dishwasher
Detergent
Only use detergents formulated
,
for domestic dishwashers. Do not
use washing up liquid.
You can use conventional powder de
^
tergent, tablets or liquid dishwasher
detergent.
Refer to the dosing instructions given
by the manufacturer on the packag
ing.
Put powder or liquid detergent into
^
the dispenser compartment.
^ Detergent tablets should only be put
into compartment II if this is recommended by the manufacturer.
If the manufacturer recommends inserting tablets in the cutlery basket
do not do so. Instead place them on
the inside of the door or directly into
the wash cabinet to help them dissolve properly.
Detergent manufacturers give the re
quired amount of detergent for a partic
ular programme on their packaging.
Use at least 30 ml of detergent for a
^
full load in the following programmes:
- Intensive,
-
- Universal plus,
- Universal,
- Normal,
-
- Economy.
If the manufacturer recommends a
larger amount of detergent, use the
amount recommended.
Failure to dispense the recommended amount of detergent may
impair cleaning results.
If you are using 2 in 1 or 3 in 1 combination tablets, please continue to
replenish the salt and rinse aid reservoirs as described in this booklet.
Otherwise the cleaning and drying
performance of the machine may
deteriorate over time.
-
-
33
Page 34
Operating the dishwasher
Adding detergent
Avoid inhalation of powder de
,
tergents and do not ingest dish
washer detergent! Dishwasher de
tergents contain irritant or corrosive
ingredients. They can cause burning
in the nose, mouth and throat if swal
lowed, or inhibit breathing. Consult a
doctor immediately if detergent has
been swallowed or inhaled. Keep
children away from detergents and
from the dishwasher when the door
is open. There could still be deter
gent residues in the cabinet. To
avoid the danger of children coming
into contact with the dishwasher detergent only add detergent just before starting the programme and
close the door, activating the child
safety lock.
It is essential to follow the instructions given in the programme chart
at the end of the operating instruc
tions.
-
-
-
-
-
-
Press the opening catch on the de
^
tergent dispenser. The flap will spring
open.
The flap is always open at the end of a
programme.
-
For information
Compartment I holds max. 20 ml,
Compartment II holds max. 70 ml.
There are markings in compartment II
to assist with dispensing. The marks in
dicate a level of approx. 20, 25, 30 ml
when the door is open in a horizontal
position.
34
^
Add the required amount of deter
gent and close the flap.
-
^
Ensure that the detergent package is
properly sealed after use. Otherwise
the detergent can lose its effective
ness.
-
-
Page 35
Operating the dishwasher
Programme selection
Choose your programme according to
the type of load and how dirty it is.
In most cases this will be a Universal
programme or a Universal plus
programme.
These programmes are ideally suited to
everyday mixed loads with varying de
grees of soiling.
The different programmes and their
uses are described in the programme
chart at the end of this booklet.
The additional function "Top Solo" can
be selected with each programme. See
"Additional functions/Top Solo" for more
details.
"Energy Save" programme
A hot water intake (temperature of the
incoming water) of at least 45 °C and
max. 60 °C is necessary for this
programme.
Use this programme for lightly
^
mally soiled dishes.
Water is not heated up for the wash
programme.
Only approx. 0.10 kWh of electricity is
used during this cycle.
As water is not heated, the drying re
sults may not match those of other
programmes.
The higher the temperature of the intake water, the better the cleaning and
drying results.
Open the door of the dishwasher at the
end of the programme to speed up the
drying process.
to nor
-
-
35
Page 36
Operating the dishwasher
Switching on
^ Make sure the spray arms are not ob-
structed.
^ Close the door.
^ Open the stopcock, if it is closed.
^ Press the "On/Off" button (13).
The "Start" indicator light (19) will flash.
Starting a programme
^ When selecting a programme, refer
to the programme chart at the end of
the operating instructions.
^ Turn the programme selector (17)
clockwise or anti-clockwise to the required programme.
^ The additonal options "Delay start" or
"Top Solo" can be selected if wished
(see "Additional options").
^
Press the "Start" button (19).
The programme cycle begins. The
"Start" (19) and "Wash/Rinse" (14) indi
cator lights come on.
Do not finish a programme prema
turely. Important programme stages
(e. g. reactivating the water softener)
could be omitted.
-
-
36
Page 37
Operating the dishwasher
Programme sequence
indicator lights (14)
The "Wash/Rinse" indicator light comes
on in the pre-wash, main wash, interim
rinse and final rinse stages of a
programme.
The "Drying" indicator light
during the drying stage of a
programme.
The "End" indicator light
when the programme has finished.
comes on
comes on
At the end of a programme
A programme has finished when the
"End" indicator light comes on in the
programme sequence display (14).
"0" is shown in the "Delay start" time display.
The dishwasher can now be opened
and unloaded (see "Unloading the dishwasher").
Switching off
At the end of a programme:
Turn the programme selector (17) to
^
the "Stop" position.
The "End" indicator light (14) goes out
and the "Start" indicator light (19)
flashes.
Press the "On/Off" button (13).
^
The "Start" indicator light (19) goes out.
The dishwasher continues to use
electricity until switched off using the
"On/Off" button.
If the dishwasher is not to be used for a
longer period of time, e. g. whilst on
holiday, the stopcock should be turned
off.
For safety’s sake it is advisable to always switch the dishwasher off if you
do not wish to start another programme
immediately.
37
Page 38
Operating the dishwasher
Interrupting a programme
A programme is interrupted as soon as
the door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.
Water in the dishwasher may be
,
hot. Danger of scalding!
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before clos
ing the door again, leave it ajar for
approx. 20 secs. This will enable the
temperature in the wash cabinet to
settle. Close the door firmly making
sure that it clicks into place.
-
Changing a programme
Important:
If the detergent dispenser flap has
already opened, do not change the
programme.
If a programme has already started and
you wish to change it proceed as fol
lows:
Turn the programme selector (17) to
^
the "Stop" position.
Leave the programme selector (17) in
^
this position for at least one second.
^ Then turn the programme selector
(17) to the programme you wish to
use.
^ Select additional function "Delay
Start" or "Top Solo" again if wished
(see "Additional functions").
^ Press the "Start" button (19).
The programme cycle begins.
-
38
Page 39
Additional options
"Top Solo" (15)
Operating the dishwasher
The "Top Solo" additional function is recommended when there is only a small
amount of crockery and cutlery to clean.
With this function the majority of the water
is directed only to the top and middle
spray arms in the dishwasher. This
means that the water jets are aimed at
items in the upper basket and the cutlery
tray if the dishwasher has one.
As the middle spray arm also directs
water downwards, lightly soiled plates
or platters can be placed in the bottom
basket, and cutlery may be placed in
the cutlery basket if there are large
spaces between items. Do not place
dishes, bowls or other hollow contain
ers in the bottom basket.
-
Because smaller amounts of crockery
are being washed the amount of detergent recommended by the manufacturer can be reduced to approx. 2/3 of
the total amount for the full load. Make
sure, however, when reducing the
amount dispensed that the cleaning result is not affected.
Using "Top Solo" will also save water
and energy.
For example, using this function with
the "Economy" programme uses only
11 l litres of water and approx. 0.75 kWh
of electricity.
The "Top Solo" function can be selected
with all programmes.
39
Page 40
Operating the dishwasher
Switch the dishwasher on using the
^
"On/Off" button (13).
The "Start" indicator light (19) will flash.
Turn the programme selector (17)
^
clockwise or anti-clockwise to the re
quired programme.
Press the "Top Solo" button (15).
^
The "Top Solo" indicator light (15) will
come on.
The "Delay Start" function can now be
^
selected (see next page).
Press the "Start" button (19).
^
The programme cycle begins. The
"Start", "Wash/Rinse" and "Top Solo" indicator lights come on.
The additional function is deleted from
memory at the end of the programme
cycle.
-
40
Page 41
Delay start (18)
Operating the dishwasher
The starting time of a programme can
be delayed, e.g. to benefit from economy rates of electricity. A delay start
time of between 1 and 9 hours can be
selected.
The delay start time is set in one hour
stages.
^ Switch the dishwasher on using the
"On/Off" button (13).
The "Start" indicator light (19) will flash.
^
Turn the programme selector (17)
clockwise or anti-clockwise to the re
quired programme.
^
Press the "Delay start" button (18).
A "1" appears in the delay start display
(16) . A delay start period of one hour
has been set.
^
Press the "Delay start" button (18) re
peatedly until the required delay start
period shows up in the display (16).
^ The delay start time counts up to 9 in
one hour stages. Pressing the "Delay
start" button (18) again switches the
option off.
If the "Delay start" button is held in
the display counts up automatically.
^ The "Top Solo" function can now be
selected (see previous page).
^ Press the "Start" button (19).
The "Start" indicator light (19) comes
on.
The delay start time then counts down
to the start time selected in one hour
stages.
The selected programme then begins
automatically.
The "Delay Start" indicator light (16)
goes out. The "Wash/Rinse" indicator
light will come on.
41
Page 42
Operating the dishwasher
To avoid the danger of children
,
coming into contact with the dish
washer detergent: only add deter
gent just before starting the
programme and close the door, acti
vating the child safety lock (depend
ing on model).
Keep children away from the dish
washer when the door is open.
When using "Delay start" make sure
the deteregent dispenser is dry be
fore adding detergent. Do not use
liquid detergent with the option as it
may run out of the dispenser before
the programme starts.
-
-
-
Starting a programme before the de
lay start period has elapsed:
A programme can be started before the
delay start period has elapsed. Pro
ceed as follows:
-
-
-
Turn the programme selector (17) to
^
the "Stop" position.
Leave the selector in this position for
^
at least one second.
The "Delay Start" indicator light (16)
goes out.
Then turn the programme selector
^
(17) to the programme you wish to
use.
If the "Top Solo" function had been selected, then you will need to select it
again.
^ Press the "Start" button (19).
The programme cycle begins. The
"Start" and "Wash/Rinse" indicator lights
will come on.
-
-
42
Page 43
Operating the dishwasher
Drying fan running time
During the drying phase, as long as the
door of the dishwasher remains closed,
moist air is expelled through the ventila
tion outlet for the drying fan. The drying
fan running time can be increased to
avoid the risk of damage to a worktop
fitted above the dishwasher. If this op
tion is selected, the fan will continue to
run for approx. 14 minutes after the end
of a programme.
Activating and deactivating in
creased drying fan running time:
^ Switch the dishwasher off using the
"On/Off" button.
^ Turn the programme selector to the
"Stop" position.
^ Press the "Top Solo" button in and
whilst holding it in
washer on using the "On/Off" button.
Release the "Top Solo" button within
two seconds.
switch the dish-
-
-
Turn the programme selector to the
^
"9 o’clock" position.
If the "Top Solo" indicator light does
–
not come on:
the fan running time is not increased,
If the "Top Solo" indicator light does
–
come on:
the fan running time is increased.
Press the "Top Solo" button to change
^
the setting.
Depending on the previous setting the
"Top Solo" indicator light will either
come on or go out.
^ Turn the programme selector to the
"Stop" position.
^ Switch the dishwasher off using the
"On/Off" button.
The change is now stored in memory.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
43
Page 44
Operating the dishwasher
Unloading the dishwasher
Dishes tend to break and chip more
^
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.
If you open the door fully after switch
^
ing off, the dishes will cool much
faster.
First unload the lower basket, then
^
the upper basket and finally the cut
lery tray (depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.
-
-
44
Page 45
Check your dishwasher regularly
(approx. every 4 - 6 months). This
way faults and problems can be
avoided.
Cleaning the filters in the wash
cabinet
The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it access
ing the circulation system and re-enter
ing the cabinet through the spray arms.
The dishwasher must not be
,
used without all the filters in place.
Collection of coarse soil may cause the
filters to clog.
Check the filter combination regularly
(every 4 - 6 months) and clean if necessary.
Cleaning and care
-
-
Turn the handle anti-clockwise to re
^
lease the filter combination.
-
^ Switch the dishwasher off before-
hand.
^
Lift the filter combination out of the
dishwasher. Remove any coarse par
ticles and rinse the filter under run
ning water. Use a nylon brush if nec
essary.
-
-
-
45
Page 46
Cleaning and care
To clean the underside of the filter, the
flap must be opened:
^ Pull back the yellow clip to do this.
^ Rinse all parts under running water,
using a nylon brush if necessary.
^ Then close the flap so that the clip
engages. Important: After cleaning
make sure that the clip has properly
engaged.
Replace the filter combination so that
^
it lies flat in the base of the wash cabinet.
^ Secure the filter by turning the handle
in a clockwise direction.
,
Take care when you are fitting
the filter combination that it is secured in position correctly. Otherwise coarse soil could get into the
circulation system and cause a
blockage.
46
Page 47
Cleaning and care
Cleaning the spray arms
Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).
Switch the dishwasher off before
^
hand.
Remove the spray arms as follows:
Take out the cutlery tray (if your dish
^
washer is fitted with one).
Press the top
^
engage the inner ratchet. Then unscrew the spray arm.
spray arm upwards to
-
Remove the lower basket.
^
-
^ Pull the lower
wards to remove it.
spray arm firmly up-
^
Lift up the middle
gage the ratchet. Then unscrew the
spray arm b.
spray arm b to en
-
^
Use a pointed object to push food
particles into the spray arm jets.
^
Rinse thoroughly under running wa
ter.
^
Replace the spray arms and check
that they rotate freely.
-
47
Page 48
Cleaning and care
Cleaning the wash cabinet
The wash cabinet is largely self-clean
ing, provided that the correct amount of
detergent is always used.
If, however, there are limescale or
grease deposits in the cabinet these
can be removed with a proprietary
dishwasher cleaner.
-
Cleaning the door and the door
seal
Wipe the door seals regularly with a
^
damp cloth to remove food deposits.
^ When the dishwasher is being loaded
food and drink residue may drip onto
the sides of the dishwasher door.
These surfaces are outside the wash
cabinet and are not accessed by water from the spray arms. Any soiling
should be wiped off these surfaces
before the door is closed.
Cleaning the control panel and
door front panel
Plastic panels:
This type of panel should only be
^
wiped with a damp cloth or suitable
cleaning agent designed for use on
plastic.
Do not use abrasive cleaning
,
agents, glass cleaning agents or
all-purpose cleaners. Because of
their chemical composition they
could cause serious damage to
plastic surfaces.
Stainless steel panels:
^ Clean using a proprietary non-abra-
sive cleaning agent designed specifically for use on stainless steel.To help
prevent re-soiling, proprietary conditioning agents for stainless steel can
also be used. Apply sparingly with an
even pressure in the direction of the
grain.
48
Aluminium panels:
Aluminium is affected by the way that
light falls on it, by the surrounding envi
ronment and by the angle you observe
it from.
Aluminium is susceptible to scratching
and abrasion and must be treated with
due care.
^
Soiling should be removed as soon
as possible using a damp cloth and a
little washing up liquid.
,
Aluminium surfaces and controls
may suffer discolouration or damage
if soiling is left on them for too long.
-
Page 49
Wood door front panels:
Door fronts made from wood should
^
only be cleaned using a damp cham
ois leather and then dried with a soft
cloth.
Do not use any cleaning agents
,
containing ammonia or thinners.
These would damage the surface
structure.
E-Cloth:
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part number 98013530, which is suit
able for cleaning surfaces such as
stainless steel, glass, plastic and
chrome without the use of chemicals.
-
Cleaning and care
-
49
Page 50
Problem solving guide
With the aid of the following guide, minor problems can be easily corrected with
out calling in a Miele service technician, saving you both time and money.
You should, however, note the following:
Repairs should only be carried out by a suitably qualified and trained per
,
son in accordance with local and national safety regulations. Unauthorised or
incorrect repairs could cause personal injury or damage the appliance.
Problem Possible cause Remedy
The "Start" indicator
light does not flash after
the appliance has been
switched on with the
"On/Off" button.
The dishwasher does
not start after the "Start"
button has been
pressed; the "Start" indicator light is flashing.
The dishwasher stops
during a programme.
The indicator light "In
let/Drain" lights up dur
ing the "Energy save"
programme.
The door is not properly
closed.
The appliance is not
plugged in.
The fuse is defective or
has tripped.
The programme selector
is at the "Stop" position.
The fuse is defective or
has tripped.
-
The intake water has not
-
reached the required tem
perature of 45 °C, the hot
water system may be
overloaded (see
"Programme selection").
Close the door firmly.
Insert the plug.
Replace the fuse
(see data plate for
minimum fuse rating).
– Turn the programme
selector to the required
programme.
– Press the "Start" button.
Replace the fuse
(see data plate for
minimum fuse rating).
–
Start the programme
-
again.
–
If the indicator light co
mes on again select a
different programme.
-
-
-
50
Page 51
Problem solving guide
Problem Possible cause Remedy
The indicator light "In
let/Drain" lights up and
flashes alternately
The stopcock is closed. Open the stopcock fully.
-
The water inlet filter is
blocked.
The Waterproof system
has reacted.
Before rectifying the prob
lem you must:
Turn the programme
–
selector to the "Stop"
position.
Switch the dishwasher
–
off using the "On/Off"
button.
then:
Clean the water inlet fil
–
ter, see "Solving prob
lems".
Call the Miele Service Department.
-
-
-
51
Page 52
Problem solving guide
Problem Possible cause Remedy
The indicator light "In
let/Drain" is flashing and
the programme does not
continue.
-
Water intake is restricted.
Water outlet is restricted,
water remains in the wash
cabinet at the end of a
programme.
Before rectifying the prob
lem you must:
Turn the programme
–
selector to the "Stop"
position.
Switch the dishwasher
–
off using the "On/Off"
button.
Open the stopcock
–
fully.
Check the water inlet
–
filter and clean if nec
essary, see "Cleaning
the water inlet filter".
– The water pressure at
the intake is lower than
0.3 bar. Seek professional advice.
– Clean the filter combi-
nation, see "Cleaning
and Care".
– Clean the drain pump,
see "Cleaning the drain
pump and non-return
valve".
–
Clean the non-return
valve, see "Cleaning
the drain pump and
non-return valve".
–
Remove any kink in the
drain hose.
-
-
52
Page 53
Problem solving guide
Problem Possible cause Remedy
The "End", "Start" and
"Top Solo" indicator
lights flash simulta
neously
-
There may be a technical
fault.
Turn the programme
–
selector to the "Stop"
position.
Switch the dishwasher
–
off using the "On/Off"
button.
After a few seconds:
Switch the dishwasher
–
on using the "On/Off"
button.
Turn the programme
–
selector to the required
programme.
– Press the "Start" button.
If the indicator lights flash
again, there is a technical
fault.
– Call the Miele Service
Department.
53
Page 54
Problem solving guide
Problem Possible cause Remedy
Knocking noise in the
wash cabinet
Rattling noise Items of crockery are in
Knocking noise in the
water pipes
The spray arm is knocking
against an item in the bas
ket.
secure in the wash cabi
net.
This may be caused by
the on-site installation or
the cross-section of the
piping.
-
Interrupt the programme,
rearrange items which are
obstructing the spray arm.
Interrupt the programme,
rearrange the items of
crockery.
This has no influence on
dishwasher function. If in
doubt contact a suitably
qualified plumber.
54
Page 55
Problem solving guide
Problem Possible cause Remedy
The dishes are not clean The dishes were not
loaded correctly. Dishes
were placed inside other
pieces, water could not
access all surfaces.
The outlet of the water in
take pipe for the middle
spray arm was covered.
An insufficient amount of
water flowed into the mid
dle spray arm.
The programme was not
powerful enough.
Not enough detergent
was dispensed.
Tall items are blocking the
path of the spray arms.
The spray arm jets are
blocked.
The filter combination in
the base of the wash cabi
net is not clean or is not
correctly fitted.
This may cause the spray
arm jets to get blocked.
See notes in "Loading the
dishwasher".
Make sure that dishes
placed in the rear section
of the upper basket do not
cover the opening.
-
Select a more intensive
programme, see
"Programme chart" at the
end of these operating instructions.
Use more detergent, see
"Operating the dishwasher".
Rearrange the items so
that the spray arms can
rotate freely. Rearrange
the crockery.
Clean the spray arm jets,
see "Cleaning and Care".
Clean and/or replace the
-
filter combination cor
rectly. Clean the spray
arm jets, see "Cleaning
and Care".
-
55
Page 56
Problem solving guide
Problem Possible cause Remedy
Dishes and glasses are
not dry or are flecked
White residue is visible
on cutlery and crockery,
clouding occurs on
glassware; film can be
wiped off
Smearing appears on
glassware and cutlery,
there is a bluish sheen
on the surface of glass
ware; film can be wiped
off
The rinse aid amount may
be insufficient or the rinse
aid reservoir empty.
Crockery was taken out of
the cabinet too soon.
Not enough rinse aid was
used.
There is no salt in the salt
reservoir.
The salt reservoir cap has
not been screwed on correctly.
The water softener is programmed to a setting
which is too low.
Combination dishwasher
detergent tablets containing rinse aid and/or salt
may have been used.
These are unsuitable as
long term use can impair
the softener unit.
The rinse aid dosage is
set too high.
-
Increase the dosage or
replenish the reservoir,
see "Before using for the
first time".
Leave it in for longer, see
"Operating the dish
washer".
Increase the dosage, see
"Before using for the first
time".
Add dishwasher reactiva
tion salt, see "Before using
for the first time".
Replace it making sure it
screws back on correctly.
Programme a higher setting, see "Before using for
the first time".
Use a standard liquid,
tablet or powder detergent.
Reduce the dosage, see
"Before using for the first
time".
-
-
56
Page 57
Problem solving guide
Problem Possible cause Remedy
Glassware is dull and
discoloured; film can
not be wiped off
Tea or lipstick stains
have not been com
pletely removed
Plastic items are discol
oured
There are rust stains on
cutlery.
Glassware is not
dishwasherproof. The sur
-
faces are affected.
The wash temperature of
the selected programme
-
was too low.
The bleaching effect of the
detergent used is too low.
Natural dyes e.g. from car
-
rots, tomatoes or ketchup
may be the cause. The
amount of detergent used
or its bleaching effect was
not sufficient to deal with
natural dyes.
The salt reservoir cap has
not been screwed on correctly.
The affected items are not
corrosion resistant.
The "Pre-wash"
programme was not run
after dishwasher salt was
added. Traces of salt
have got into the wash cy
cle.
There is no remedy.
Purchase glassware which
-
is dishwasher-proof.
Select a programme with a
higher wash temperature.
Use a different type of de
tergent.
Use more detergent, see
"Operating the dish
washer". Discolouration is
irreversible.
Replace it making sure it
screws back on correctly.
There is no remedy.
Purchase cutlery which is
dishwasher-proof.
Always run the "Pre-wash"
programme after adding
dishwasher salt.
-
-
-
57
Page 58
Problem solving guide
Problem Possible cause Remedy
The detergent lid cannot
be closed properly.
Detergent residue is left
in the dispenser at the
end of a programme
Water remains in the
wash cabinet at the end
of a programme
Clogged detergent resi
due is blocking the catch.
The dispenser was still
damp when detergent
was added.
The filter combination in
the wash cabinet is
clogged.
The drain pump or non-return valve may be
blocked.
The drain hose is kinked. Remove any kink in the
Remove the residue.
-
Make sure the dispenser
is dry before adding de
tergent.
Before rectifying the prob
lem you must:
Turn the programme
–
selector to the "Stop"
position.
Switch the dishwasher
–
off using the "On/Off"
button.
Clean the filter combination, see "Cleaning and
Care".
Clean the drain pump and
the non-return valve, see
"Cleaning the drain pump
and non-return valve".
drain hose.
-
-
58
Page 59
Cleaning the water inlet filter
Solving problems
A filter is incorporated in the screw con
nection of the valve on the water inlet
hose. The filter must be cleaned when
dirty, otherwise insufficient water flows
into the wash cabinet.
The plastic housing of the water
,
connection contains an electrical
component. It must not be dipped in
water.
Recommendation
If the mains water contains a large
number of insoluble substances, we
recommend fitting a large-area filter in
the connection between the stopcock
and the water inlet hose threaded union. This filter is available from the Miele
Spares Dept.
Cleaning the filter:
^ Disconnect the dishwasher from the
mains supply (switch off at the mains
socket, pull out the plug , switch off
the appropriate circuit at the fuse box
or withdraw the mains fuse).
^
Turn off the stopcock.
^
Unscrew the inlet hose.
-
Carefully remove the rubber seal.
^
^ Withdraw the filter using pointed pli-
ers and rinse clean under running
water.
^ Replace the filter and seal, making
sure they are sitting correctly.
^ Reconnect the inlet hose to the stop-
cock, making sure it goes on correctly and is not cross-threaded.
^
Turn on the stopcock gradually to test
for leaks. If there is a leak, the inlet
hose might not be on securely, or it
may have been screwed on at an an
gle. Unscrew and reconnect the wa
ter inlet valve correctly.
-
-
59
Page 60
Solving problems
Cleaning the drain pump and
non-return valve
If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean. Watch out for glass or bone
splinters which could cause injury.
Take the filter combination out of the
^
wash cabinet (see "Cleaning and
care", "Cleaning the filters in the wash
cabinet").
Scoop the water out of the cabinet
^
using a suitable container.
Raise the locking clamp for the
^
non-return valve.
60
Page 61
Solving problems
Lift up the non-return valve and rinse
^
well under running water.
^ Remove all foreign objects from the
non-return valve.
The drain pump is situated under the
non-return valve (see arrow).
^ Remove all foreign objects from the
drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause injury). Turn the drain pump impeller by
hand to check that there are no more
obstructions.
^ Carefully replace the non-return valve
and secure it with the locking clamp.
61
Page 62
After sales service
Should you still have any difficulties,
please contact:
Your Miele Dealer
–
or
The Miele Service Department (see
–
back cover for address).
Please quote the model type and
^
number of your appliance.
This information is given on the data
plate at the top of the door.
Please note that telephone calls may
be monitored and recorded to improve our service.
Programme update function - PC
The programme update function (PC =
Programme correction) is designed to
enable a service technician to update
your machine’s electronics in keeping
with advances in technology.
The indicator or check light marked
"Salt PC" is used as the interface for this
programming.
62
Information regarding programme updates will be made known by the Miele
Company as and when such develop
ments become available.
-
Page 63
Optional accessories
To make the most of your dishwasher
If you would like ... you will need to order ...
... to wash bottles,
e. g. milk or baby bottles
... to wash a lot of glasses ... a glassware insert for the bottom
... to wash long-stemmed glassware ... a glassware insert for the upper
... to wash large plates ... an insert for plates up to 32 cm
... wash additional cups and
stemmed glassware in the bottom
basket
... to wash additional items of cutlery ... a small cutlery basket for the lower
... a bottle holder
basket
basket
diameter
... a glassware insert for the vario
insert in the bottom basket
basket
63
Page 64
Comparison tests
Test standard: EN 50242 / IEC 704
Standard programme Economy
for comparison tests
(energy label):
Note: The Universal Plus 55 ° programme for normal
soiling has increased wash and drying
results with shorter running times and
increased energy requirements.
Amount washed: 12 place settings
Amount of detergent: 30 g only
Rinse aid dispensing: Setting 3 (approx. 3 ml)
Noise measurements: Before starting a programme to measure noise,
the dishwasher door must first be opened completely,
and then closed.
Doing this will automatically close the ventilation outlet
for the Turbothermic process.
in compartment II.
Dishwashers with cutlery basket
Spoon inserts: Fit the two inserts on top of the cutlery basket
(see section on loading the dishwasher, spoon inserts)
Place six spoons at intervals in each insert
Upper basket
64
Lower basket
Page 65
Dishwashers with cutlery tray
Comparison tests
Upper basket
Lower basket
Cutlery tray
65
Page 66
Comparison tests
Test standard: EN 50242 / IEC 704
Standard programme Economy with additional function "Top Solo"
for comparison tests
(energy label):
Note: The Universal Plus 55 ° programme for normal
soiling has increased wash and drying
results with shorter running times and
increased energy requirements.
Part load: 6 place settings
Amount of detergent: 20 g only
Rinse aid dispensing: Setting 3 (approx. 3 ml)
Noise measurements: Before starting a programme to measure noise,
the dishwasher door must first be opened completely,
and then closed.
Doing this will automatically close the ventilation outlet
for the Turbothermic process.
in compartment II.
Dishwashers with cutlery basket
Spoon inserts: Fit the two inserts on top of the cutlery basket
(see section on loading the dishwasher, spoon inserts)
Place three spoons at intervals in each insert
Upper basket
66
Lower basket
Page 67
Dishwashers with cutlery tray
Comparison tests
Upper basket
Cutlery tray
Insert cutlery at double spacing in the
cutlery tray.
Lower basket
67
Page 68
Transport
Should you ever need to move the dish
washer, e.g. when moving house, note
the following:
Empty the dishwasher,
–
Secure any loose parts, e. g. hoses,
–
mains cable, cutlery baskets, lower
basket
Transport the dishwasher in the up
–
right position.
If unavoidable, it may be transported
on its back.
Do not transport it on its side or on
the door as residual water still in the
appliance will leak out of it.
This residual water could get into the
electronic unit and cause a fault.
-
-
68
Page 69
Technical data
Height freestanding 84,7 cm (adjustable +4.0 cm)
Height built-in 81.7 cm (adjustable +5.0 cm)
Height of building in recess 82 cm (+ 5.0 cm)
Width 59.8 cm
Width of building in recess 60 cm
Depth: 60 cm (Freestanding)
57 cm (Built-in)
Depth with door open 118.5 cm (Freestanding)
115.5 cm (Built-in)
Weight:
Freestanding
Freestanding SC
#
Integrated
Integrated SC
#
Voltage
Rated load see data plate at the top of the door
Fuse rating
approx. 61.5 kg
approx. 63 kg
approx. 53.5 kg
approx. 55.5 kg
Test marks VDE, radio and television suppressed
Water pressure (flow rate): 0.3 - 10 bar pressure
Hot water connection up to max. 60 °C
Delivery head: max. 1 m
Drainage length: max. 4 m
Connection cable approx. 1.7 m
Capacity 12 place settings
#
Dishwashers with a cutlery tray (SC)
69
Page 70
Programme chart
Programme When to use Detergent
Compartment
II
(Wash cycle)
Intensive 75 ° for normally soiled pots, pans, dishes etc with dried on soiling;
Universal
Plus 55 °
Universal 55 ° for normal everyday loads 100 %
Normal 50 ° with a shorter wash time for lightly to normally soiled crockery
Economy
Gentle o 45 ° Gentle programme for lightly soiled and temperature sensitive
Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet
Energy save for lightly to normally soiled crockery.
1) Standard programme for energy labelling.
1)
for very heavy soiling, add 20% more detergent to compartment I
with a longer wash time for normally soiled crockery
with dried on soiling
where soiling has not dried on
for normal everyday loads,
energy saving programme
crockery and glassware
needed.
This programme should only be selected if the dishwasher is
connected to a hot water supply (minimum 45 °C) see "Programme selection"
100 %
100 %
100 %
100 %
50 %
100 %
70
Page 71
Programme chart
Programme sequence Consumption Duration
Energy kWh Water h:min
Litres Cold
-
Hot
water
con
nection
(55 °C)
water
nection
(15 °C)
Pre-
wash
12
Main
wash
X
75 °
XX
55 °
X
55 °
X
50 °
X
45 °
X
45 °
X 0.06 0.06 5 0:11 0:11
Interim
rinse
12
XX
XX
XX
XX
XX
XX X
Final
rinse
75 °
65 °
65 °
65 °
55 °
55 °
Drying Cold
water
con
nection
(15 °C)
X 1.7 1.2 13 2:15 1:57
X 1.25 0.7 17 1:50 1:32
X 1.2 0.6 13 1:22 1:04
X 1.2 0.6 13 1:00 0:50
X 1.05 0.6 13 2:45 2:34
X 1.1 0.5 17 1:08 0:50
con
-
Hot
water
con
nection
(55 °C)
-
X X X X X X - 0.1 22 - 1:05
When washing a full load in the Intensive Programme, the Universal Plus Programme, the Universal
Programme, the Normal Programme and the Economy Programme at least 30 ml of detergent are re
quired. If the detergent manufacturer recommends using more than this you should dispense the
amount they suggest.
For the Intensive Programme add an additional 5-7 ml to compartment I.
For the additional function "Top Solo" add detergent according to the soiling level of the crockery to
compartment II only (approx. 2/3 of the total amount required for a full load).
Values quoted are in accordance with EN 50242. Results in the home may differ.
-
71
Page 72
Alteration rights reserved/ (G656 Plus) / 2902
This paper consists of cellulose which has been bleached without the use of chlorine.
M.-Nr. 05 714 440 / V
01
Loading...
