Miele G4481, G4486 Operating instructions

Operating instructions

for dishwashers

To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the
first time.

en - AU, NZ

M.-Nr. 09 585 880

Contents

Description of the appliance.........................................5

Appliance overview .................................................5

Control panel ......................................................6

Warning and Safety instructions .....................................7

Caring for the environment.........................................17

Disposal of the packing material ......................................17

Disposing of your old appliance ......................................17

Energy saving dishwashing..........................................18

Before using for the first time.......................................19

To open the door ..................................................19

To close the door ..................................................19

Water softener ....................................................20

Programming the water hardness level ..............................21

Before using the appliance for the first time, you require:...................22

Filling the salt reservoir .............................................22

Salt indicator .....................................................23

Switching off the refill indicators ....................................24

Rinse aid ........................................................25

Adding rinse aid ..................................................25

Rinse aid indicator .................................................26

Setting the rinse aid dosage .........................................27

Loading the dishwasher ...........................................28

Items not suitable for dishwashers: ....................................29

Upper basket .....................................................30

Cup rack (depending on model) ...................................30

Adjusting the upper basket .......................................31

Lower basket .....................................................32

Cutlery ..........................................................33

Cutlery tray (depending on model)..................................33

Cutlery basket (depending on model) ...............................34

2

Contents

Operation .......................................................35

Detergent ........................................................35

Adding detergent..................................................37

Switching on .....................................................38

Selecting a programme .............................................38

Starting the programme.............................................38

Time display......................................................39

Standby .........................................................39

At the end of a programme ..........................................40

Switching off .....................................................40

Unloading the dishwasher ...........................................40

Interrupting a programme ...........................................41

Changing a programme ............................................41

Additional options ................................................42

Turbo ...........................................................42

Delay start .......................................................42

Buzzer ..........................................................44

Adjusting Sensor wash .............................................45

Optimise standby..................................................46

Factory default ....................................................47

Cleaning and care ................................................48

Cleaning the wash cabinet ..........................................48

Cleaning the door and the door seal ...................................48

Cleaning the control panel and door front...............................49

Cleaning the filters in the wash cabinet.................................50

Cleaning the spray arms ............................................52

Problem solving guide ............................................53

Technical problems ................................................53

The dishwasher does not fill/drain. ....................................55

General problems .................................................56

Noises ..........................................................57

Unsatisfactory washing result ........................................58

Maintenance .....................................................61

Cleaning the water inlet filter .........................................61

Cleaning the drain pump and non-return valve...........................62

3

Contents

After sales service ................................................63

Repairs .......................................................63

Future updates .................................................63

Comparison tests.................................................64

Programme chart .................................................66

Optional accessories..............................................70

Electrical connection..............................................71

Water connection.................................................72

The Miele Waterproof system ........................................72

Connection to the water supply .......................................72

Connection to the drainage system....................................74

Technical data ...................................................75

4

Appliance overview

Description of the appliance

a Upper spray arm (not visible)

b Cutlery tray (depending on model)

c Upper basket

d Middle spray arm

e Air inlet for drying

(depending on model)

f Lower spray arm

g Filter combination

h Data plate

i Rinse aid reservoir

j Dual compartment detergent

dispenser

k Salt reservoir

5

Description of the appliance

Control panel

a Check/Refill indicators

b Time display

c Delay start button ,

with indicator light

d Turbo button with indicator light

e Programme selection

f Programme button

g On/Off button K with indicator light

These Operating instructions apply to several different dishwasher models with
different heights.
The specific dishwasher models below are referred to as follows:
Standard = 80.5 cm high dishwashers (integrated)

and 84.5 cm high dishwashers (freestanding)

XXL = 84.5 cm high dishwashers

6

Warning and Safety instructions

This appliance complies with all relevant statutory safety
requirements. Improper use of the appliance can, however,
present a risk of both personal injury and material damage.

To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installing and
using it for the first time. They contain important information on its
safety, use and maintenance.

Keep these instructions in a safe place and pass them on to any
future owner.

Correct application

This appliance is designed for domestic use and for use in similar

~

environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.

The appliance is not suitable for outdoor use.

~

The dishwasher is designed exclusively for cleaning domestic

~

crockery and cutlery.
Any other usage is at the owner's risk. Miele cannot be held liable
for damage resulting from incorrect or improper use or operation.

This appliance is not intended for use by persons (including

~

children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.

7

Warning and Safety instructions

Safety with children

Young children must not be allowed to use this appliance.

~

Older children may only use the appliance when its operation has

~

been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.

Cleaning may only be carried out by older children under the

~

supervision of an adult.

Children should be supervised to ensure that they do not play

~

with the appliance. Keep small children away from the appliance at
all times to avoid the risk of injury. There is the risk that children may
lock themselves in the dishwasher.

Keep detergent and other household agents out of the reach of

~

children at all times. Dishwasher detergents contain irritants and
corrosive ingredients which can cause burning in the mouth, nose
and throat if swallowed, or inhibit breathing. Keep children away
from the dishwasher when the door is open. There could still be
detergent residues in the cabinet.
Consult a doctor immediately if your child has swallowed or inhaled
detergent.

8

Warning and Safety instructions

Technical safety

Before installation, check the dishwasher for visible signs of

~

damage. Under no circumstances should you use a damaged
dishwasher. A damaged dishwasher could be dangerous.

The dishwasher must only be plugged into the electricity supply

~

via a suitable switched socket. The electrical socket must be easily
accessible after the dishwasher has been installed so that it can be
disconnected from the electricity supply at any time (See "Electrical
connection").

There must be no electrical sockets behind the dishwasher.

~

Danger of overheating and fire risk if the dishwasher were to be
pushed up against a plug.

The dishwasher must not be installed under a cooktop. The high

~

radiant temperatures which are sometimes generated by a cooktop
could damage the dishwasher. For the same reason, it should not
be installed next to open fires or other appliances which give off
heat, such as heaters etc.

Do not connect the dishwasher to the mains supply until it has

~

been fully installed, including the adjustment of the door springs.

9

Warning and Safety instructions

Before connecting the appliance, check that the connection data

~

on the data plate (voltage and rated load) match the mains
electricity supply. If in any doubt, consult a qualified electrician.

The electrical safety of this appliance can only be guaranteed

~

when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and regularly tested and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
The manufacturer cannot be held liable for the consequences of an
inadequate earthing system (e.g. electric shock).

Do not connect the appliance to the mains electricity supply via a

~

multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).

This appliance must not be installed and operated in mobile

~

installations (e.g. on a ship).

Do not install the dishwasher in a room where there is a risk of

~

frost occuring. Frozen hoses may burst or split, and the reliability of
the electronic unit may be impaired at temperatures below freezing
point.

10

Warning and Safety instructions

The plastic housing of the water connection contains an electrical

~

valve. The housing must not be dipped in water.

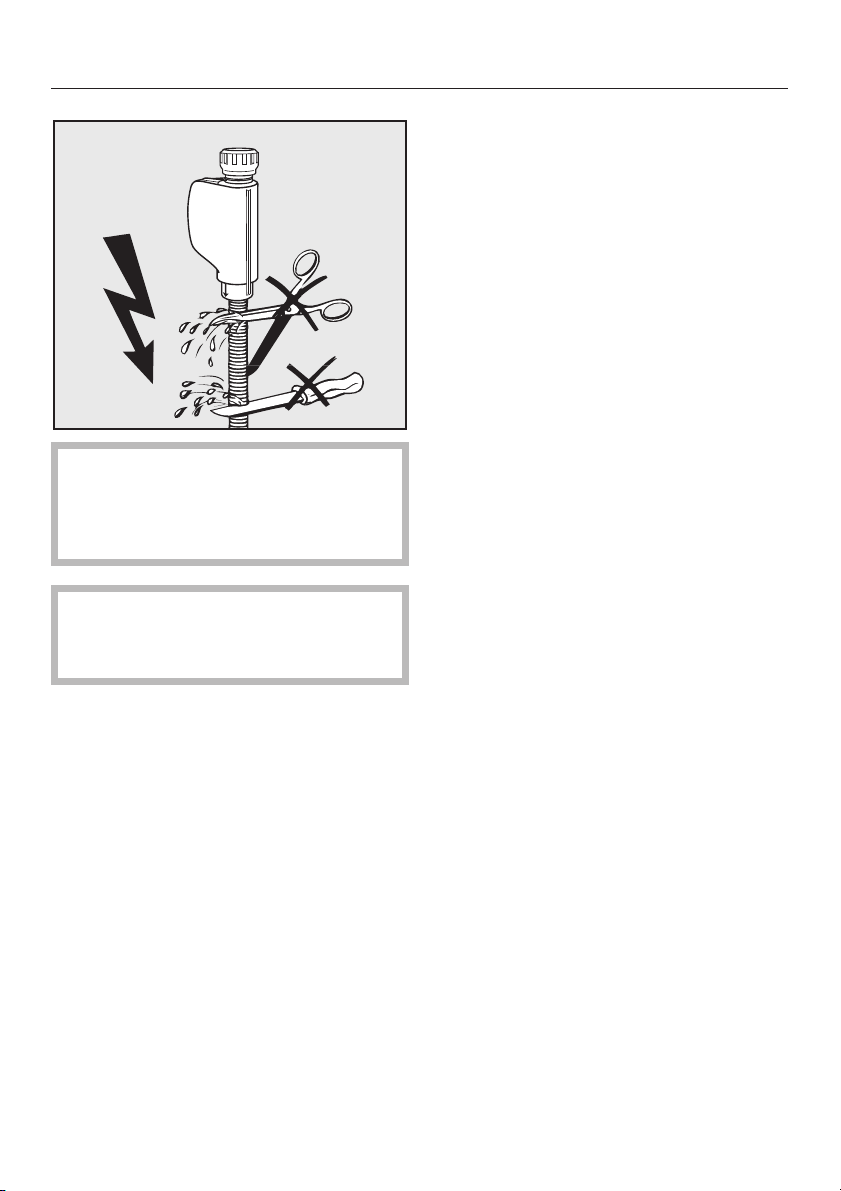

There are live wires in the water inlet hose. Never cut the water

~

inlet hose, even if it is too long.

The integrated Waterproof System offers protection from water

~

damage, provided the following conditions are met:

The dishwasher is correctly installed and plumbed in.

–

The appliance is properly maintained and parts are replaced

–

where it can be seen that this is necessary.

– The tap has been turned off when the appliance is not used for a

longer period of time (e.g. during holidays).

The Waterproof system will work even if the appliance is switched
off. However, the appliance must remain connected to the electricity
supply.

A damaged dishwasher could be dangerous. If the dishwasher

~

gets damaged, switch it off at the mains immediately and call Miele.

11

Warning and Safety instructions

Unauthorised repairs could result in unforeseen dangers for the

~

user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician.

Faulty components must only be replaced by genuine Miele

~

original spare parts. The manufacturer can only guarantee the safety
of the appliance when Miele replacement parts are used.

Always disconnect the dishwasher from the electrical supply for

~

maintenance work (switch off at the wall socket and remove the
plug).

If the connection cable is damaged, it must be replaced by a

~

Miele approved service technician only in order to protect the user
from danger.

In areas which may be subject to infestation by cockroaches or

~

other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the warranty.

12

Warning and Safety instructions

Correct installation

The dishwasher must be installed and connected in compliance

~

with the installation instructions.

Be careful when installing the dishwasher. Wear

~

protective gloves to avoid injury on any sharp metal
components.

The dishwasher must be correctly aligned to ensure problem-free

~

operation.

In order to ensure stability, built-under and integrated

~

dishwashers must only be installed under a continuous worktop
which is secured to adjacent cabinetry.

If you want to convert your freestanding dishwasher to a

~

built-under ("U") model, you will need to order the appropriate
conversion kit. If you remove the existing plinth, you must replace it
with a U-model plinth. This is necessary to avoid the risk of injury
caused by protruding metal parts.

The door springs on either side need to be evenly adjusted. They

~

are correctly adjusted if the half-opened door (approx. 45° door
opening angle) remains in this position when it is released. The door
must not fall down under its own weight.

13

Warning and Safety instructions

Correct use

Do not use solvents in the dishwasher. Danger of explosion!

~

Avoid inhalation of powder detergents. Dishwasher detergents

~

contain irritant or corrosive ingredients which can cause burning in
the nose, mouth and throat if swallowed, or inhibit breathing. Consult
a doctor immediately if detergent has been swallowed or inhaled.

Avoid leaving the door open unnecessarily as you could trip over

~

it.

Dishes can be very hot at the end of a programme.

~

Allow the dishes to cool until they are comfortable enough to handle
before unloading them.

Do not sit or lean on the opened door. This could cause the

~

dishwasher to tip and be damaged, and you could get injured.

Only use detergent and rinse aid formulated for domestic

~

dishwashers. Do not use washing-up liquid.

Do not use commercial or industrial detergents as these may

~

cause damage, and there is a risk of severe chemical reaction.

14

Warning and Safety instructions

Do not fill the rinse aid reservoir with powder or liquid detergent.

~

This will cause serious damage to the reservoir.

Inadvertently filling the salt reservoir with powder or liquid

~

dishwasher detergent will damage the water softener.

Miele recommends using specially designed dishwasher salt to

~

maximize the performance of your dishwasher and to prevent a
build-up of calcium and limescale in the dishwasher cabinet,
especially if you live in a hard water area. Dishwasher salt can be
purchased online at www.miele-shop.com (depending on country)
or directly from Miele.
Do not use other salts such as cooking salt, agricultural grade or
gritting salt. These may contain insoluble additives which can impair
the functioning of the water softener.

In an appliance with a cutlery basket (depending on model)

~

cutlery is cleaned and dried more efficiently if placed in the basket
with the handles downwards. However, to avoid the risk of injury,
place knives, forks and other utensils with sharp points with the
handles upwards.

Plastic items which cannot withstand being washed in hot water,

~

such as disposable plastic containers, or plastic cutlery and
crockery, should not be cleaned in the dishwasher. The high
temperatures in the dishwasher may cause them to melt or lose
shape.

On models with "Delay start", make sure that the dispenser is dry

~

before adding detergent. Wipe dry if necessary. Detergent will clog
if poured into a damp dispenser and may not be thoroughly
dispensed.

15

Warning and Safety instructions

Accessories

Only use genuine Miele spare parts and accessories with this

~

dishwasher. If spare parts or accessories from other manufacturers
are used, this will invalidate the warranty, and Miele cannot accept
liability.

Disposal of your old dishwasher

Make the door lock inoperative so that children cannot

~

accidentally shut themselves in. Remove or destroy the locking
bracket of the door lock.

The manufacturer cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.

16

Caring for the environment

Disposal of the packing
material

The packing material protects the dryer
from transport damage. The transport
and protective packing has been
selected from materials which are
environmentally friendly for disposal
and can normally be recycled.

The packaging consists of the following
materials:

Outer packaging:

Corrugated cardboard made from up

–

to 100% recyclable material:
or: Polyethylene (PE) protective wrap

– Polyproplylene (PP) strapping

Inner packaging:

– Chlorine and fluorine free expanded

polystyrene (EPS)

– Base, lid frame and support battens

made from untreated natural wood
from renewable forests

–

Polyethylene (PE) protective wrap

Rather than just throwing these
materials away, please ensure they are
recycled.

Disposing of your old
appliance

Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not dispose of your old
appliance with your household waste.

Please dispose of it at your local
community waste collection / recycling
centre. You can also contact your
Chartered Agent for advice.

Ensure that your old appliance presents
no danger to children while being
stored for disposal.

To enable sorting by type of plastic for
recycling, all plastic parts of the
appliance are labelled with international
standard symbols.

17

Caring for the environment

Energy saving dishwashing

This dishwasher is exceptionally
economical in its use of water and
electricity.
You can make the most of your
appliance by following these tips:

If your household water system is

^

suitable, this dishwasher can be
connected to a hot water supply for
further economies. If the water is
heated by for example, solar panels,
this would be energy efficient.
However, if your water is heated by
electricity, we would recommend
connection to cold water.

^ For most economical dishwashing,

make full use of the baskets without
overloading the dishwasher.

^ Choose the programme to suit the

type of crockery being washed and
the degree of soiling.

^ Select the "Energy save" programme

for energy-saving dishwashing.
This programme is the most efficient
in terms of energy and water
consumption for cleaning normally
soiled crockery.

^

Follow the detergent manufacturer's
recommendations on detergent
dosage.

^

When using powder or liquid
detergent you can use
detergent if baskets are only half full.

18

1

/3less

Before using for the first time

To open the door

^ Pull the handle.

If the door is opened during operation,
all functions are automatically
interrupted.

To close the door

Push the baskets right in.

^

Then lift the door upwards and push

^

until it clicks into position.

19

Before using for the first time

Water softener

In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d – German
scale) needs to be softened. This takes
place automatically in the integrated
softener unit. The softener unit is
suitable for a water hardness level of up
to 12.6 mmol/l (70 °d).

– The water softener requires

reactivation salt.
Depending on the water hardness
level (ß 21 °d), dishwasher salt is not
required if combination tablets are
being used (see "Detergent").

– The dishwasher must be

programmed for the water hardness
in your area.

The dishwasher is set at the factory
for a hardness level of 0.2 mmol/l
(1 °d).

If this setting corresponds to the
hardness of your water, you do not
need to do anything more.

If your water is harder, you will need to
programme the water hardness level.
See following section.

–

Your local water authority will be able
to advise you of the water hardness
level in your area.

Where the water hardness fluctuates
e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d
German scale), always programme the
dishwasher to the higher value
(3.1 mmol/l in this example).

In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.

^

Enter the water hardness:

mmol/l or °d

20

Programming the water hardness
level

Switch the dishwasher off with the

^

On/Off button K, if it is switched on.

Press and hold the Programme

^

selector button in.

Switch the dishwasher on using the

^

On/Off button K, and hold the
Programme selector button in for at
least another 4 seconds until the
lower right-hand programme
indicator lights up.

If this does not happen, start the
procedure from the beginning again.

^ Press the Turbo button twice.

The "Inlet/Drain" indicator light will flash
briefly 2 times at intervals.

The characters "p1" will flash one after
the other in the display.
This means that the water hardness
level has been set at 1 °d (0.2 mmol/l)
(factory setting).

^

Use the Programme selector button
to select the value which
corresponds to your water hardness
level.

Each press on the button moves you up
a level. When the highest water
hardness level is reached, the setting
starts from the beginning again.

^

Switch the dishwasher off with the
On/Off button K.

Before using for the first time

°d

(German

scale)

1

2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

37-50
51-60
61-70

mmol/l °f

0.2

0.4

0.5

0.7

0.9

1.1

1.3

1.4

1.6

1.8

2.0

2.2

2.3

2.5

2.7

2.9

3.1

3.2

3.4

3.6

3.8

4.0

4.1

4.3

4.5

4.7

4.9

5.0

5.2

5.4

5.6

5.8

5.9

6.1

6.3

6.5

6.7-9.0

9.2-10.8

11.0-12.6

110-126

2

4
5
7

9
11
13
14
16
18
20
22
23
25
27
29
31
32
34
36
38
40
41
43
45
47
49
50
52
54
56
58
59
61
63
65

67-89

91-108

Value

displayed

1

2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
50
60
70

21

Before using for the first time

Before using the appliance for
the first time, you require:

approx. 2 litres of water,

–

approx. 2 kg of dishwasher salt,

–

domestic dishwasher detergent,

–

rinse aid formulated for domestic

–

dishwashers.

Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been used
previously.

Filling the salt reservoir

If the water in your area is very soft
and constantly lower than

0.7 mmol/l (4 °d), you do not need
to add salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area. Salt should only be
replenished when the salt indicator
light comes on. In areas with very
soft water this could be after a long
period of time.

Inadvertently filling the salt

,

reservoir with powder or liquid
dishwasher detergent will damage
the water softener.

Miele recommends using

,

specially designed dishwasher salt
to maximize the performance of your
dishwasher and to prevent a
build-up of calcium and limescale in
the dishwasher cabinet, especially if
you live in a hard water area.
Dishwasher salt can be purchased
online at www.miele-shop.com or
directly from Miele. Do not use other
salts such as cooking salt,
agricultural grade or gritting salt.
These may contain insoluble
additives which can impair the
functioning of the water softener.

Important! Before filling the salt
reservoir with dishwasher salt for the
first time, you must fill it with
approx. 2 litres of water to enable
the salt to dissolve. Once the
dishwasher has been used, there is
always sufficient water in the
reservoir.

22

Before using for the first time

Remove the lower basket and

^

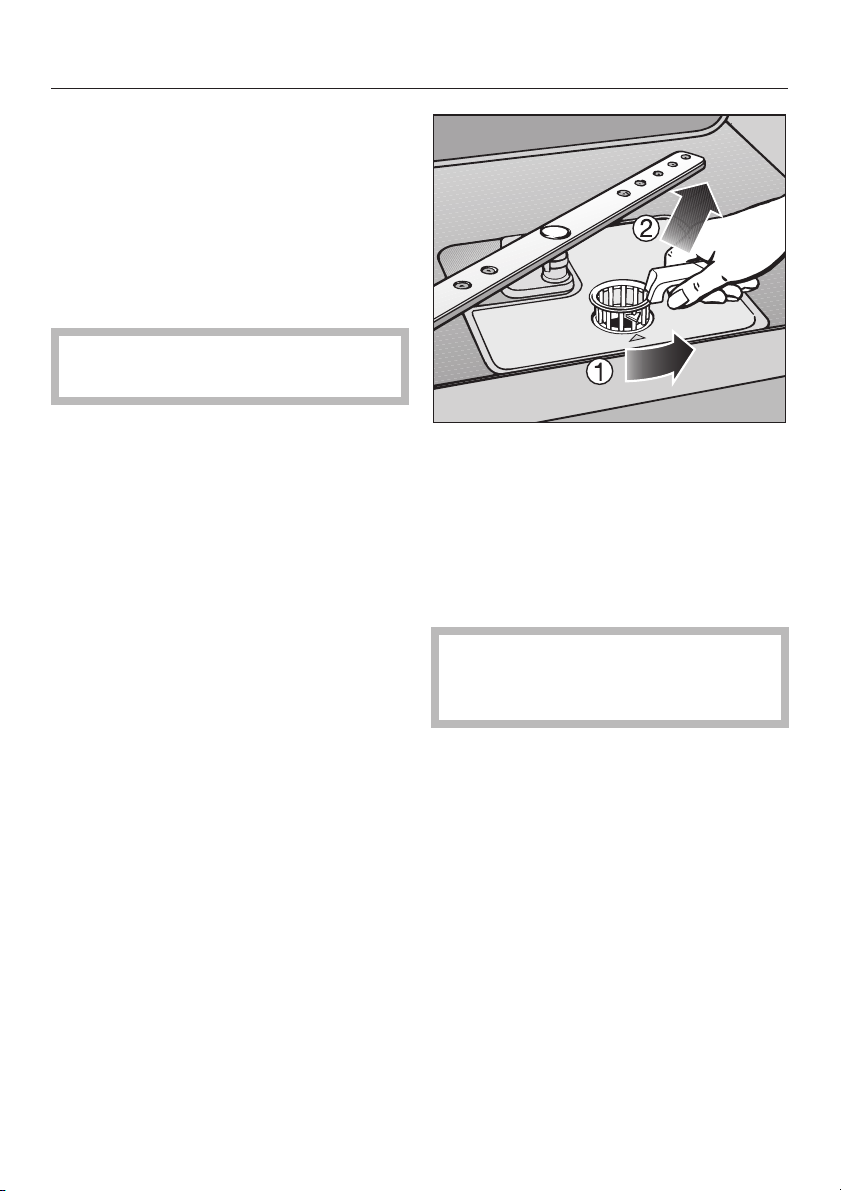

unscrew the salt reservoir cap.

Water or saline solution will run out
of the reservoir when the cap is
removed. It should therefore only be
removed in order to refill the salt
reservoir.

Fill the reservoir with approx. 2 litres

^

of water (first use only).

^

Place the funnel provided over the
salt reservoir and carefully fill with
salt until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt.

Salt indicator

Fill the salt reservoir with dishwasher

^

salt when the salt indicator light
comes on. (If it comes on during a
programme, wait until the end of the
programme).

After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.

The salt indicator is deactivated when
the dishwasher has been programmed
to a water hardness level below

0.7 mmol/l (4 °d).

,

Run the "Gentle 45 °C"
programme with the "Turbo" function
immediately (without any crockery in
the dishwasher) to remove any
traces of salt from the cabinet.

^

Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.

^

Run the "Gentle 45 °C" programme
with the "Turbo" function immediately
(without any crockery in the
dishwasher) to remove any traces of
salt from the cabinet.

23

Before using for the first time

Switching off the refill indicators

If you use combination products and do
not want the refill indicators for salt and
detergent to be displayed, you can
switch off both indicators together.

Switch the dishwasher off with the

^

On/Off button K.

Press the programme selector button

^

in and, whilst holding it in, switch
the dishwasher on using the On/Off
button K.
Keep the programme selector button
pressed in for at least four seconds
until the lower right-hand programme
indicator comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Turbo button nine times.

The Delay start indicator will flash
briefly 9 times at intervals.

The characters flashing in the display
will show whether the refill indicators
are switched on or off.

"p1": The refill indicators are

–

switched on.

"p0": The refill indicators are

–

switched off.

To change the setting, press the

^

Programme selector button.

The setting is now stored in memory.

Switch the dishwasher off with the

^

On/Off button K.

If you switch to using detergent that
does not contain salt or rinse aid, it
is important to remember to
replenish the salt and rinse aid and
to switch the refill indicators back
on.

24

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.

Inadvertently filling the rinse aid

,

reservoir with powder or liquid
detergent will damage the reservoir.
Only pour rinse aid formulated for
domestic dishwashers into the
reservoir.

Alternatively, it is possible to use

– household vinegar with a max. 5%

acid content

or

– liquid citric acid up to 10% acid

content.

Adding rinse aid

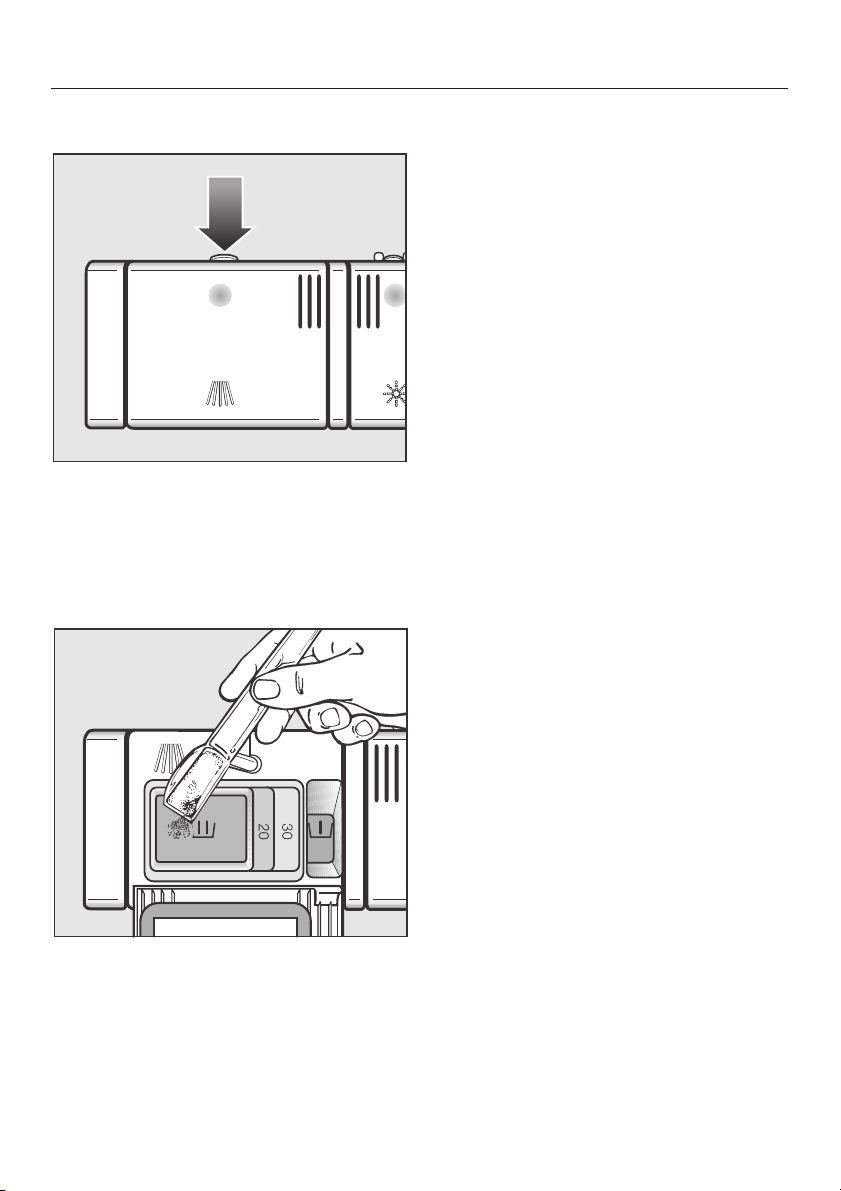

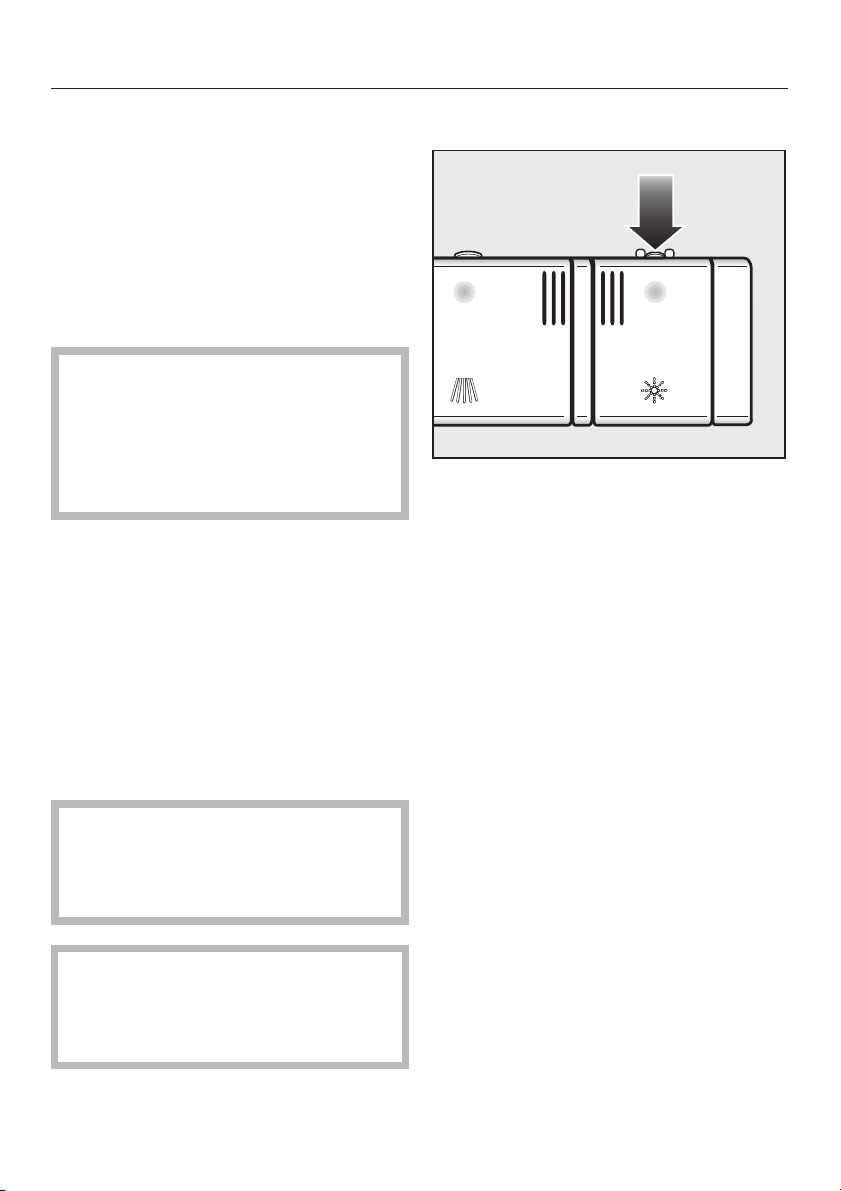

^ Press the button on the lid of the

rinse aid reservoir in the direction of
the arrow until the flap springs open.

The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.

,

Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.

If you only ever use combination
products containing rinse aid in your
dishwasher, you do not need to add
rinse aid.

25

Before using for the first time

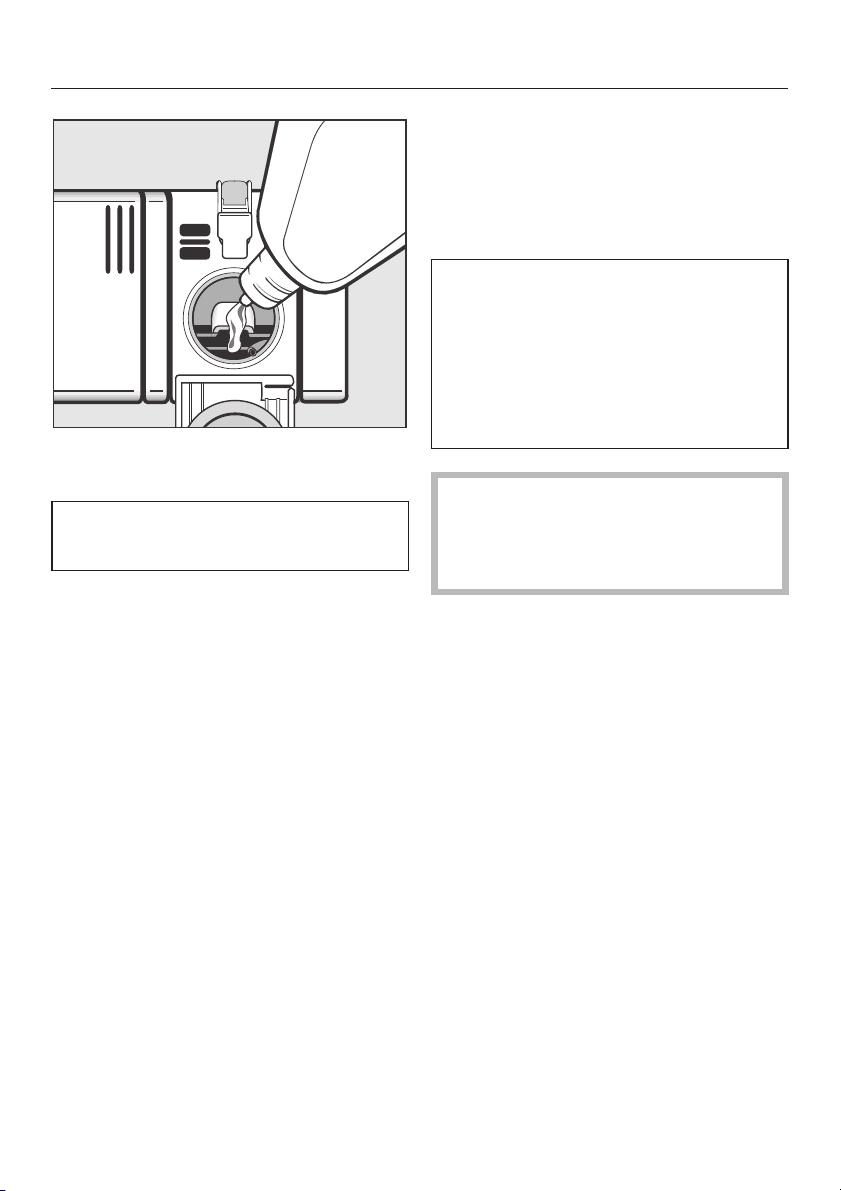

Add rinse aid only until it is visible in

^

the opening.

The rinse aid reservoir holds approx.
110 ml.

^ Close the flap firmly so that it clicks

into place. Otherwise water can enter
the rinse aid reservoir during a
programme.

Rinse aid indicator

When the light comes on, the reservoir
contains sufficient rinse aid for2-3
programmes only.

Add rinse aid in plenty of time.

^

If you use combination products and
do not want the refill indicators for
salt and detergent to be displayed,
you can switch off both indicators
together (see "Before using for the
first time - Switching off the refill
indicators").

Ensure that you refill salt and rinse
aid and switch on the refill indicators
again if you are not using
combination products.

^ Wipe up any spilled rinse aid. This

prevents over-foaming occurring
during the next programme.

26

Before using for the first time

Setting the rinse aid dosage

The rinse aid dosage can be set from
approx. 0-6 ml. It is set to a
recommended setting of approx. 3 ml
at the factory.

The dosage can turn out to be higher
than the set value due to the automatic
adjustment of the "Sensor wash"
programme.

If spots appear on crockery and
glassware:

Increase the rinse aid dosage.

^

If clouding or smearing appears on
crockery and glassware:

^ Decrease the rinse aid dosage.

Switch the dishwasher off with the

^

On/Off button K.

Press the programme selector button

^

in and, whilst holding it in, switch
the dishwasher on using the On/Off
button K.
Keep the programme selector button
pressed in for at least four seconds
until the lower right-hand programme
indicator comes on.

If this does not happen, start the
procedure from the beginning again.

Press the Turbo button three times.

^

The Delay start indicator will flash
briefly 3 times at intervals.

p3will flash in the display.
This means that the rinse aid dosage
has been set to 3 ml at the factory.

The dosage set will appear in the
display after the p.

^ Use the programme selector button

to select the rinse aid dosage you
want.
The dosage amount alters each time
you press the button.

The programmed rinse aid dosage is
now stored in memory.

^

Switch the dishwasher off with the
On/Off button K.

27

Loading the dishwasher

Note

Remove coarse food residues from
crockery.

There is no need to rinse items under
running water.

Do not wash items soiled with

,

ash, sand, wax, lubricating grease
or paint in the dishwasher.
These materials will cause damage
to the dishwasher.

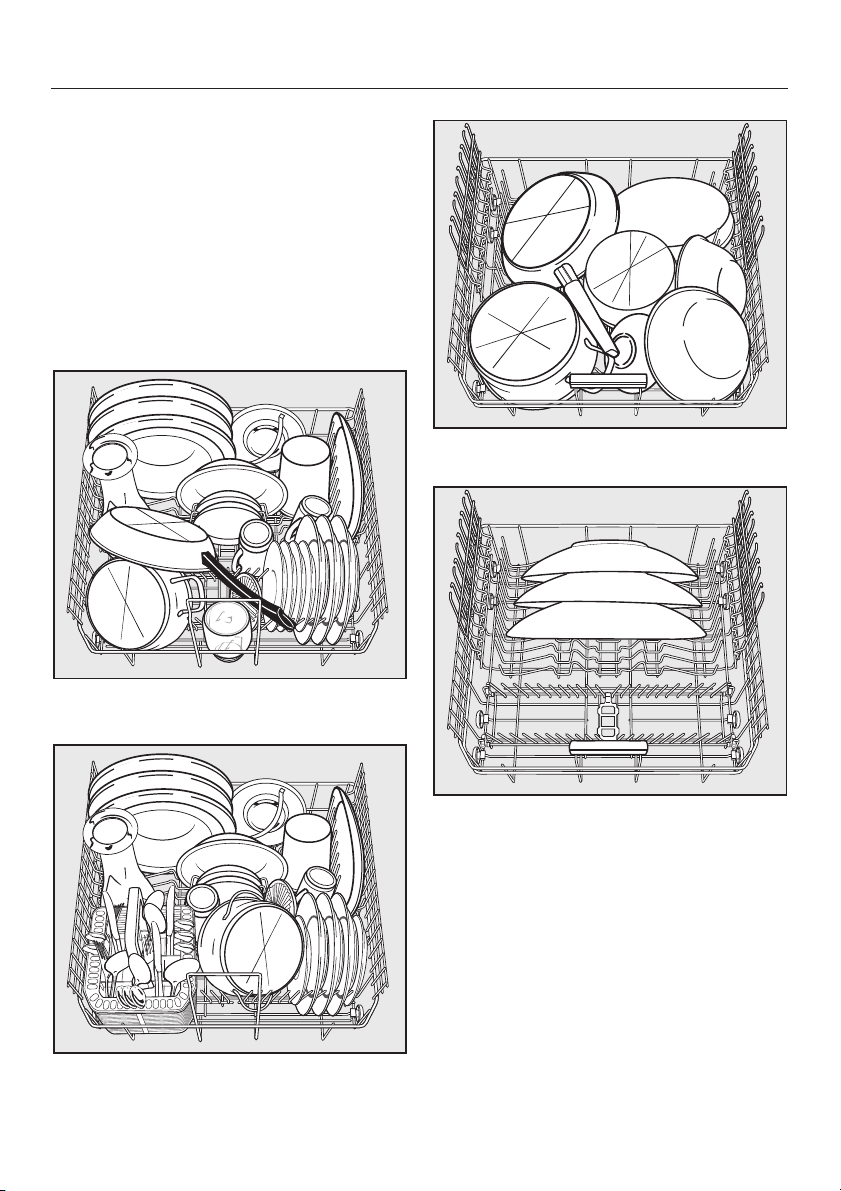

Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:

– Do not place crockery and cutlery

inside other pieces where they may
be concealed.

– Load the crockery so that water can

access all surfaces. This ensures
that they get properly cleaned.

– Make sure that all items are securely

positioned.

–

Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.

Wide based items should be placed

–

at an angle so that water can run off
them freely.

The spray arms must not be blocked

–

by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.

Make sure that small items cannot

–

fall through the holders in the
baskets.
Small items, e.g. lids, should
therefore be placed in the cutlery
tray or cutlery basket (depending on
model).

Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
tomato sauce. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the appliance on the
crockery. The stability of plastic
items is not affected by this
discolouration.

–

Tall, narrow, hollow items, e.g.
champagne glasses, should be
placed in the centre of the basket to
ensure better water coverage.

28

Loading the dishwasher

Items not suitable for
dishwashers:

Wooden cutlery and crockery or

–

items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.

Craft items, antiques, valuable vases

–

and decorative glassware are also
not suitable for dishwashers.

Plastic items which are not heat

–

resistant can melt or lose shape.

– Copper, brass, tin and aluminium

items may discolour or become matt.

– Colours painted over a glaze

may fade after a number of washes.

– Clouding may occur on glasses after

frequent washing. Do not wash
delicate glassware, or glassware
containing lead crystal in a
dishwasher.

We recommend:

When purchasing new crockery and

–

cutlery, make sure they are
dishwasher-proof.

If delicate glassware is washed in the

–

dishwasher, ensure that only very low
temperatures are used (see
Programme chart), or a special
glass-care programme is used
(depending on model). This will
reduce the risk of clouding.

Wash particularly delicate glassware

–

by hand.

Please note

Silverware previously cleaned with a
silver polish may still be damp or

spotted at the end of a programme,
where water has not run off smoothly. It
may need to be rubbed dry with a soft
cloth.

Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.

,

Aluminium components (e.g.
grease filters) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage the material, or in
extreme cases, cause a severe
chemical reaction. See section
"Adding detergent" for information
on suitable detergents.

29

Loading the dishwasher

Upper basket

For safety reasons, do not

,

operate the dishwasher without the
upper and lower baskets in place.

^ Use the upper basket for small,

lightweight and delicate items such
as cups, saucers, glasses, dessert
bowls, etc. Shallow pans or casserole
dishes can also be placed in the
upper basket.

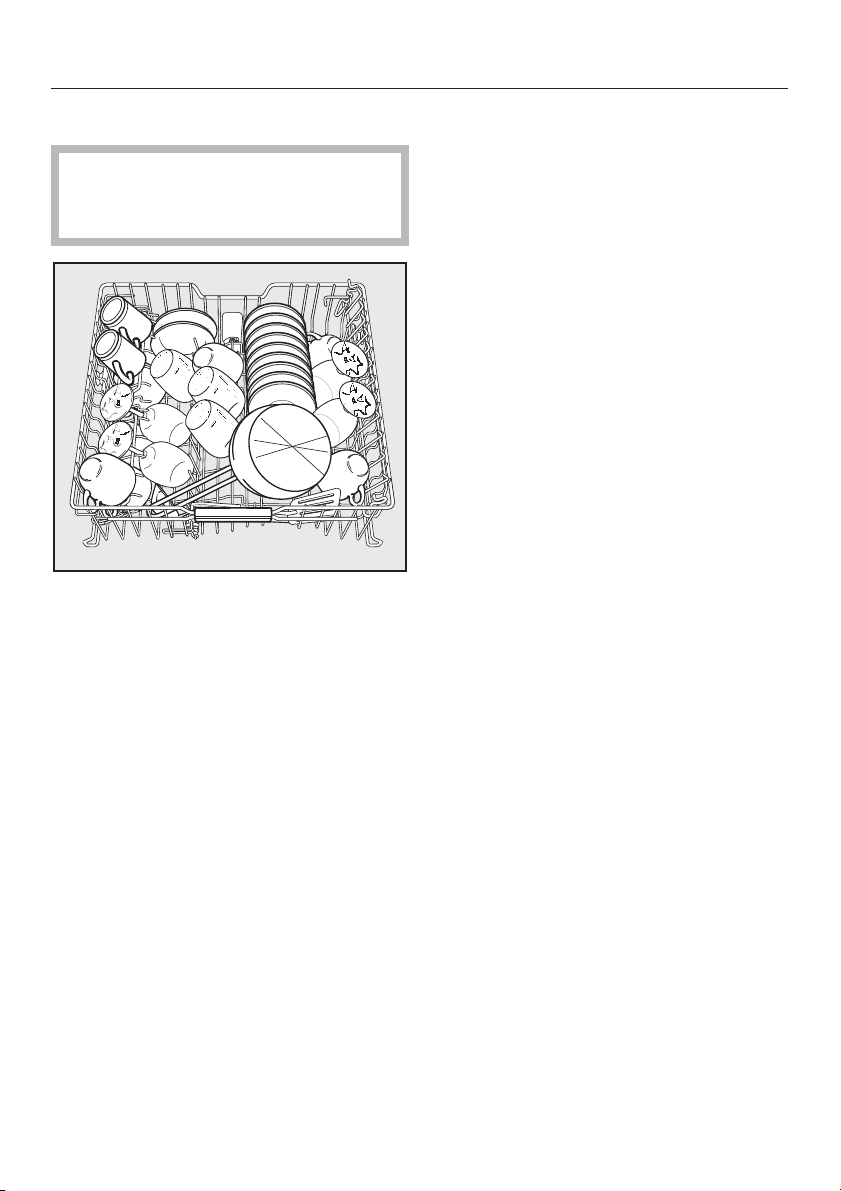

Cup rack (depending on model)

To make room for tall items, raise the

^

rack upwards.

Glasses can be arranged along the
positioning rail of the cup rack to give
them some support during the
programme.

Lower the cup rack and lean the

^

glasses against it.

^

Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across

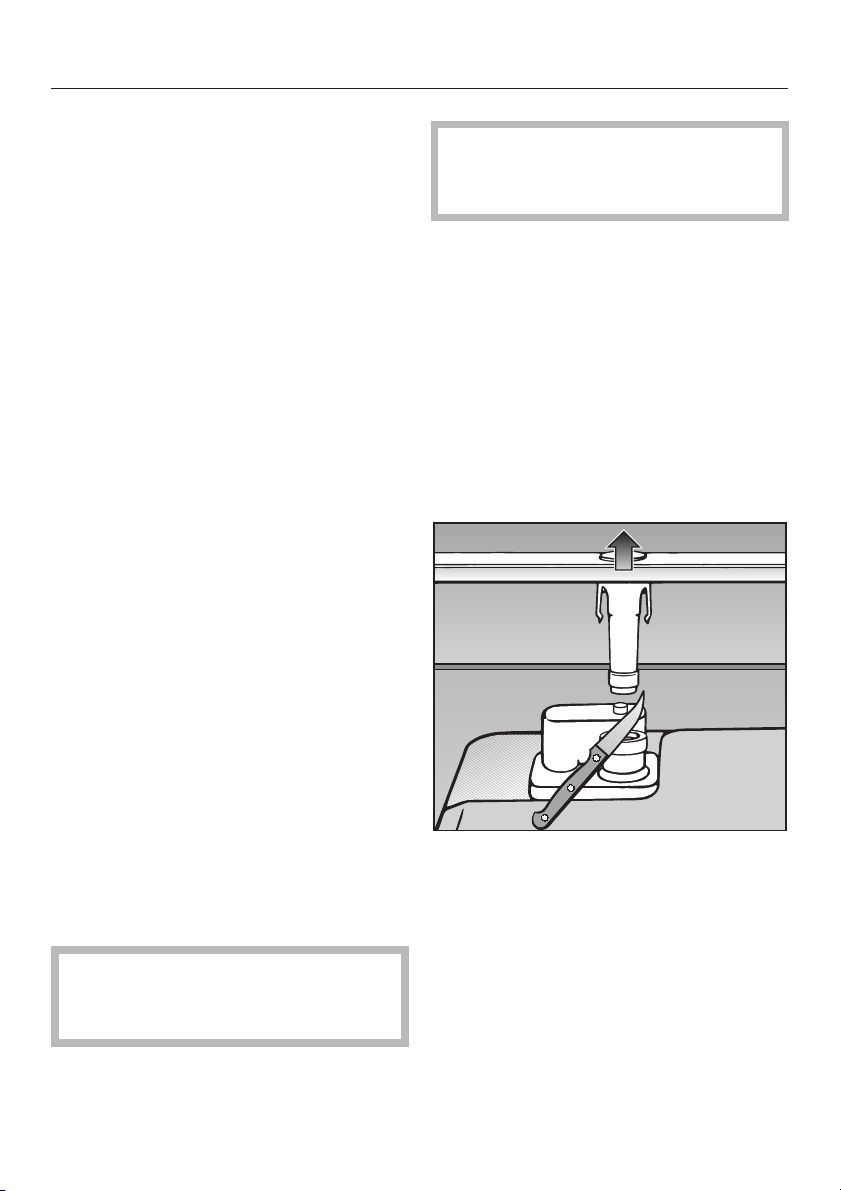

the front of the upper basket.

30

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller
pieces of crockery in the bottom or
upper basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.

The upper basket can also be set at an
angle with one side high and the other
side low. This can be useful to help
prevent water being left in deep dishes
etc. Ensure, however, that the basket
can be inserted smoothly into the
cabinet. It is better to adjust the basket
before loading it.

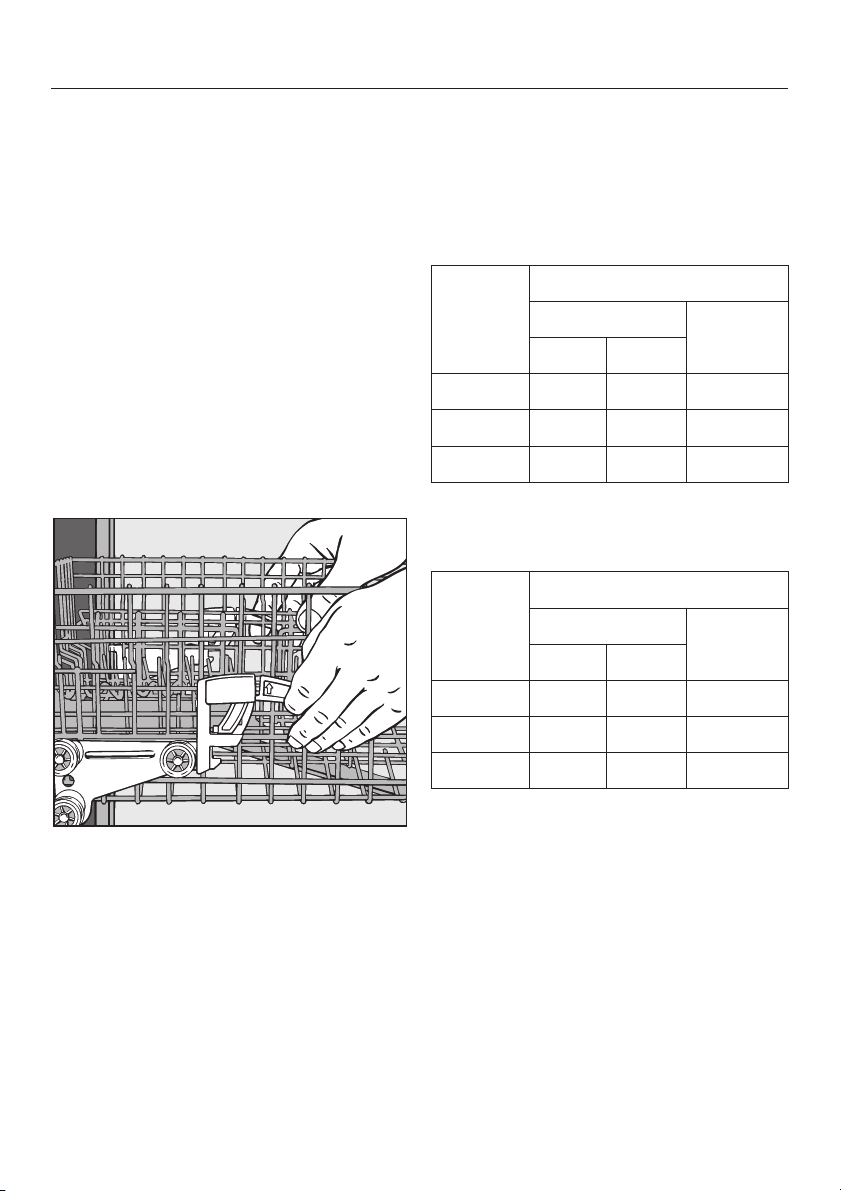

^ Pull out the upper basket.

Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.

Dishwasher with cutlery tray

(see data plate for model number)

Upper
basket

level

Normal XXL

Top 15 19 31

Middle 17 21 29

Bottom 19 23 27

Dishwasher with cutlery basket

(see data plate for model number)

Upper
basket

level

Normal XXL

Top 20 24 31

Plate C in cm

Upper basket Lower

basket

Plate C in cm

Upper basket Lower

basket

To raise the upper basket:

^

Pull the basket up until it clicks into
place.

To lower the upper basket:

^

Pull upwards on the levers at either
side of the upper basket.

^

Adjust the basket to the desired
height and then push the levers
securely back down into position.

Middle 22 26 29

Bottom 24 28 27

31

Loading the dishwasher

Lower basket

For larger and heavier items such as

^

plates, serving platters, saucepans,
bowls, etc.
You can also place glasses, cups,
small plates and saucers in the lower
basket.
Do not place thin, delicate glassware
in the lower basket.

Heavily soiled items

Dishwashers with cutlery tray

Dishwashers with cutlery basket

32

^

Place large platters and dishes in the
centre of the lower basket.

When tilted, plates up to 35 cm in
diameter can be accommodated.

Cutlery

Cutlery tray (depending on model)

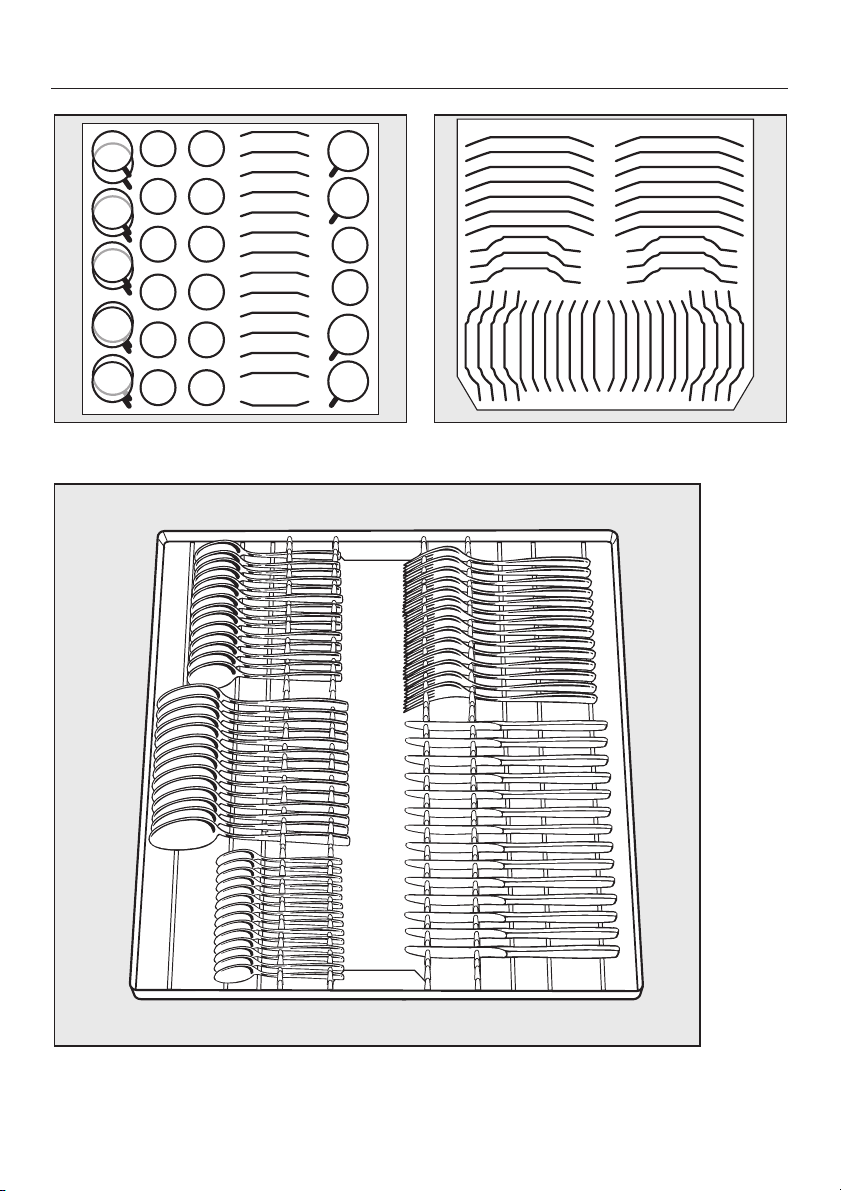

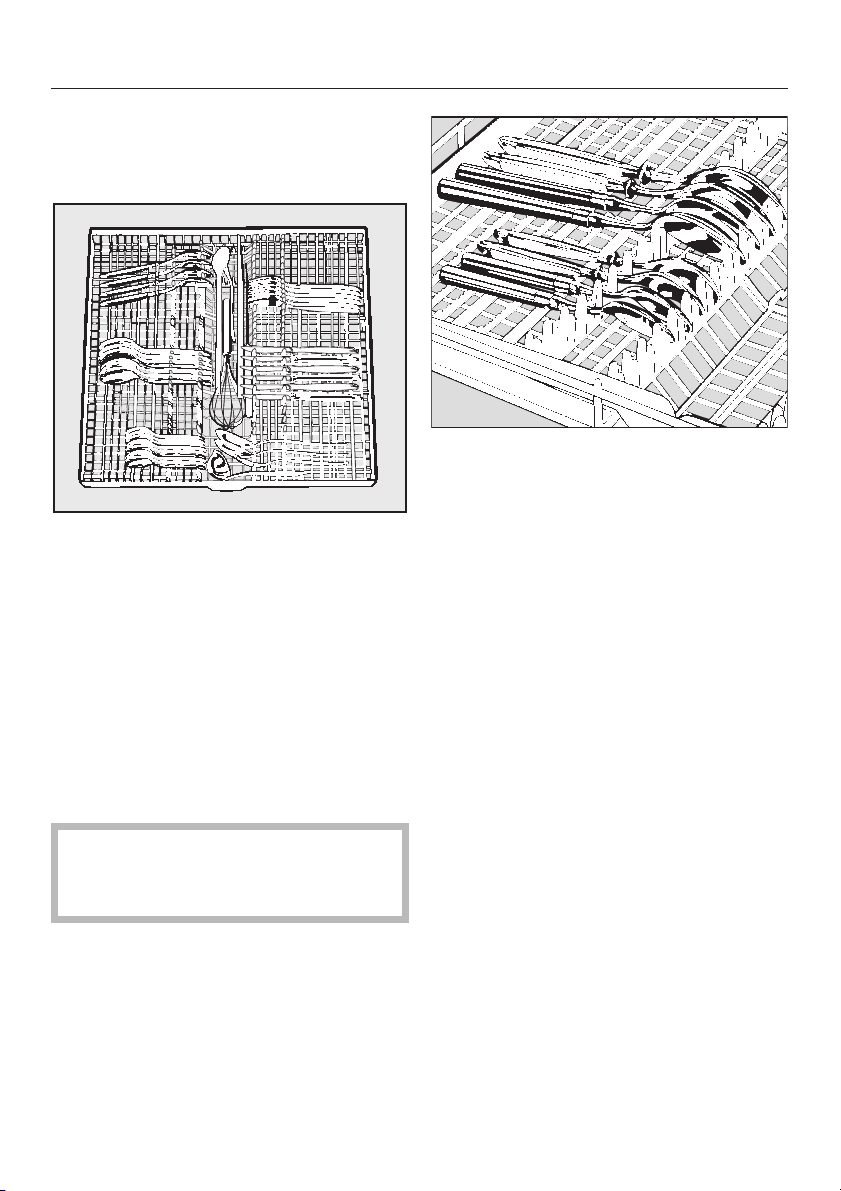

^ Arrange the cutlery in the tray as

shown.

To make unloading much easier,
cutlery should be grouped in zones,
one for knives, one for forks, one for
spoons, etc.

Loading the dishwasher

If spoon handles do not fit between the
holders, lay them the other way round.

Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them
freely.

The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).

33

Loading the dishwasher

Cutlery basket (depending on model)

The cutlery basket can be placed
anywhere on the front rows of spikes in
the lower basket.

^ In an appliance with a cutlery basket

(depending on model) cutlery is
cleaned and dried more efficiently if
placed in the basket with the handles
downwards.
However, to avoid the risk of injury,
knives, forks and other utensils with
sharp points must be placed with the
handles upwards.

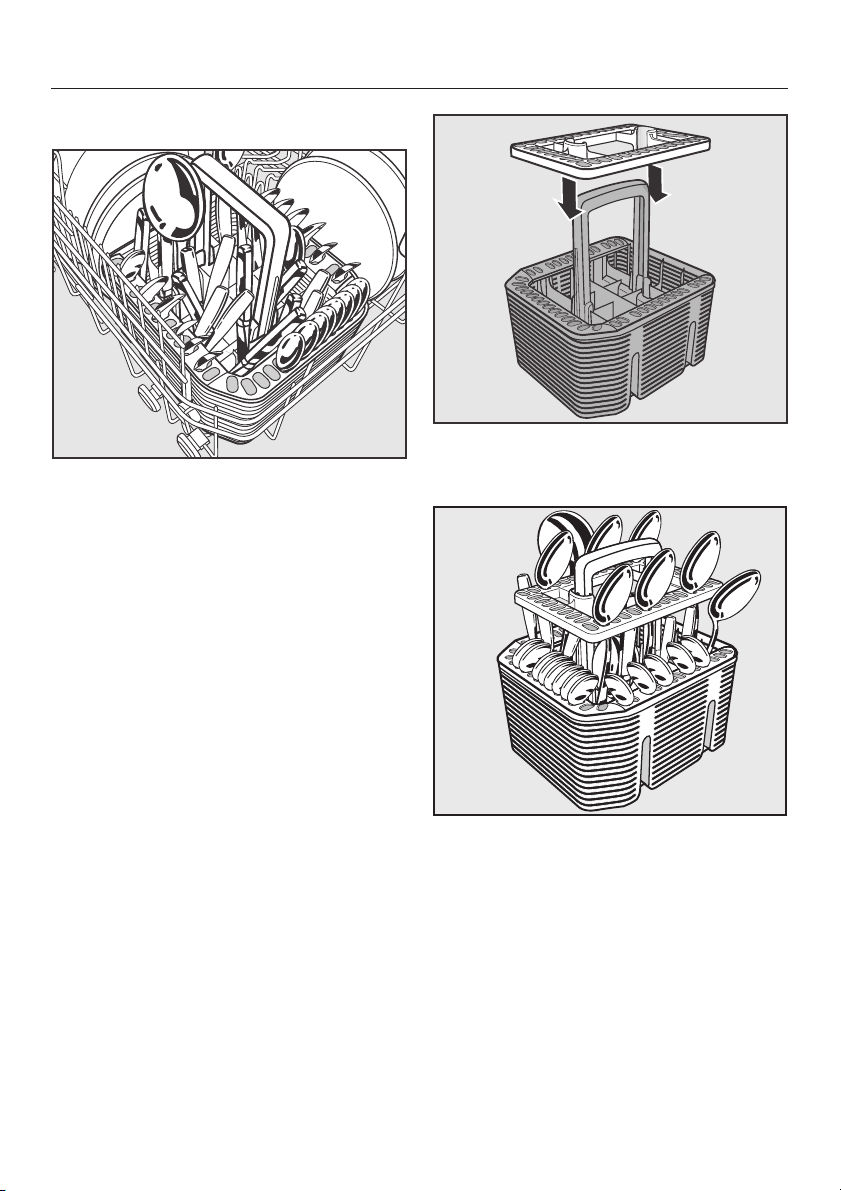

Fit it onto the cutlery basket if

^

required.

^

Place small items of cultlery in the
individual slots on three sides of the
cutlery basket.

Cutlery insert for the cutlery basket

Use the insert supplied for heavily
soiled spoons.
The insert separates the items so that
they can be more easily accessed by
water.

34

^

Insert cutlery with the handles facing
downwards, and distribute them
evenly along the insert.

Operation

Detergent

Only use detergents formulated

,

for domestic dishwashers. Do not
use washing-up liquid.

Active ingredients

Modern detergents contain various
active ingredients, the most important
of which are:

Phosphates to prevent calcification.

–

Alkalis to aid removal of dried on

–

soiling.

– Enzymes to break down starch and

loosen protein.

– Oxygen based bleaching agents to

remove coloured stains (e.g. tea,
coffee, tomato sauce).

Most dishwasher detergents contain
phosphate and are mildly alkaline with
enzymes and oxygen based bleaching
agents. Phosphate free products are
rare.

Types of detergent:

–

Powder and liquid gel detergents.
These detergents allow you to adjust
the amount dispensed according to
the amount of load and level of
soiling.

–

Tab detergents. These are suitable
for most levels of soiling.

You can also buy combination
products.
In addition to detergent, these products
contain rinse aid and salt substitutes.
They are available as "3 in 1" or, when
they also contain other components
such as glass and stainless steel
protective additives and enhanced
cleaning power, as "5 in 1", "7 in 1",
"All in 1", etc.
Refer to the manufacturer's packaging
as to whether combination products are
suitable for the water hardness level in
your area.
Please note that the cleaning and
drying results of combination
detergents can vary greatly.

For optimum cleaning and drying
results, use Miele dishwasher
detergent and add Miele salt and
Miele rinse aid separately.

Under certain circumstances
unsatisfactory washing and drying
results might be noticed when using
combination dishwasher detergents.
These products contain a combination
of detergent and rinse aid or detergent
and salt (2 in 1) or detergent, rinse aid
and salt (3 in 1). Drying results might
not be as good as expected or
residues or flecks might be left on
crockery. If results are still
unsatisfactory, even after seeking
advice from the detergent
manufacturer, we suggest that you
change to a different product or use a
traditional dishwasher detergent.

35

Operation

Dispensing

Follow the dosage recommended by

^

the manufacturer on the packaging.

Unless directed otherwise, use one

^

detergent tab or add 20 to 30 ml to
compartment II, depending on the
level of soiling.
With very heavy soiling you can also
add a small amount of detergent to
compartment l (see "Programme
chart").

Tabs may not dissolve completely

^

when the Quick wash 40 °C
programme (depending on model) is
used.

Failure to dispense the
recommended amount of detergent
may impair cleaning results.

Avoid inhalation of powder

,

detergents. Dishwasher detergents
contain irritant or corrosive
ingredients which can cause
burning in the nose, mouth and
throat if swallowed, or inhibit
breathing. Consult a doctor immedi
ately if detergent has been
swallowed or inhaled.
Keep detergent and other
household agents out of the reach
of children at all times. Keep
children away from the dishwasher
when the door is open. There could
still be detergent residues in the
cabinet. To avoid the danger of
children coming into contact with
the dishwasher detergent, only add
detergent just before starting the
programme and close the door,
activating the child safety lock (if
your dishwasher is fitted with one).

-

36

Operation

Adding detergent

^ Press the opening catch on the

detergent dispenser. The flap will
spring open.

The flap is always open at the end of a
programme.

For information

Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml.

There are markings in compartment II
to assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a
horizontal position.

^

Add the required amount of
detergent and close the flap.

^

Make sure that the detergent
packaging is properly closed after
use to avoid it getting damp and
becoming lumpy.

37

Operation

Switching on

Turn on the tap if it is turned off.

^

Open the door.

^

Make sure the spray arms are not

^

obstructed.

Switch the dishwasher on with the

^

On/Off button K.

The On/Off indicator K and the
indicator for the last used programme
will light up.

Selecting a programme

Choose your programme according to
the type of load and how dirty it is.

The different programmes and their
uses are described in the Programme
chart later on in this booklet.

^ Select the programme required with

the Programme selector button.

The indicator light for the programme
selected comes on.
The programme duration will appear in
hours and minutes in the time display.

Starting the programme

Start the programme by closing the

^

door.

A programme can only be cancelled
in the first few minutes. Otherwise
the programme must continue to the
end so that important programme
stages (e.g. reactivating the water
softener) are not omitted.

You can now select additional
functions (see "Additional functions").

If any additional functions have been
selected, the relevant indicator light(s)
will also come on.

38

Operation

Time display

The duration of the programme
selected appears in hours and minutes
in the display before the programme
begins. During the programme, the
time left until the end of the programme
is displayed.

The time displayed may vary with the
same programme. This is partly
because of the water temperature at
each intake, the reactivation cycle, the
type of detergent and partly because of
the amount of crockery and how dirty it
is.

When a programme is selected for the
first time, the display shows an average
time for a cold water intake.

The times shown in the Programme
chart refer to standard test loads and
temperatures.

Each time a programme is run, the
electronic unit takes the new conditions
into account, and calculates the time
required.

Standby

To save energy, the dishwasher will
switch to Standby mode a few minutes
after the last time a button has been
pressed or at the end of the
programme. The indicator lights and
the time display will go out, and only
the K indicator will flash slowly.

To switch the lights and display back

^

on, press the K button.

If the dishwasher is not switched off at
the end of the programme, it will switch
off completely after a few minutes in
Standby mode (see "Additional
functions - Optimise standby").

The dishwasher will not switch to
Standby mode whilst a programme
is running, if salt or rinse aid needs
to be refilled, or if there is a fault.

The refill indicators can be switched
off if you use combination products
and the dishwasher is supposed to
go into Standby mode (see "Before
using for the first time").
However, a fault message cannot be
switched off.

39

Operation

At the end of a programme

Open the door slightly to check that

^

the programme has finished.

0 appears in the time display.

If the programme indicator light is
still on, the programme has not yet
finished. Close the door again to
allow the programme to finish.

You can now unload the dishwasher
(see "Unloading the dishwasher").

To prevent the risk of steam

,

damage to the worktop edging
above the dishwasher, it is
advisable to leave the door closed
until you are ready to unload the
crockery. Alternatively, you can
open the door fully until the crockery
is cool enough to unload. Do not
leave the door only partially open.

Switching off

At the end of a programme:

Open the door.

^

Switch the dishwasher off with the

^

On/Off button K.

The dishwasher will continue to use
electricity until it is switched off with
the K button.

If the dishwasher is not going to be
used for a longer period of time, e. g.
whilst on holiday, the tap should be
turned off.

Unloading the dishwasher

Dishes tend to break and chip more
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.

If you open the door fully after switching
off, the dishes will cool much faster.

40

First unload the lower basket, then the
upper basket and finally the cutlery tray
(depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.

Operation

Interrupting a programme

Operation is interrupted as soon as the
door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.

Water in the dishwasher may be

,

hot. Danger of scalding!
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before
closing the door again, leave it ajar
for approx. 20 seconds. This will
enable the temperature in the wash
cabinet to settle. Then raise the
door upwards until the catch
engages.

Changing a programme

If the detergent dispenser flap has
already opened, do not change the
programme.

If a programme has already started and
you wish to change it, proceed as
follows:

Open the door.

^

Switch the dishwasher off with the

^

On/Off button K.

Switch the dishwasher on again with

^

the On/Off sensor K.

^ Select the programme required with

the Programme selector button.

^ Start the programme by closing the

door.

41

Additional options

Turbo

The "Turbo" function is used to reduce
the duration of programmes in which
this function is available.

In order to achieve optimum cleaning
results, consumption rates are
increased with this option.

Open the door.

^

Switch the dishwasher on with the

^

On/Off button K.

The K indicator light comes on.

Select a programme.

^

^ Press the Turbo button.

The Turbo indicator light will come on.

^ The programme can now be started.

The option selected is active on all
programmes until the setting is
changed.

Delay start

The start time of a programme can be
delayed, e.g. to benefit from economy
rates of electricity. A Delay start time of
between 30 minutes and 24 hours can
be selected.

With a Delay start time of between 30
minutes and 9 hours 30 minutes, the
delay is set in 30-minute stages. For 10
hours or more, it is set in one-hour
increments.

When using the Delay start function,
make sure that the detergent
compartment is dry before adding
detergent. Wipe dry with a cloth if
necessary. If the compartment is
wet, powder detergent can become
lumpy and stick to the dispenser,
with the result that it is not fully
dispensed. Do not use liquid
detergent when selecting Delay
start, as it can run into the
dishwasher before it is required.

42

Additional options

Open the door.

^

Switch the dishwasher on using the

^

K button.

The K indicator light comes on.

Select the programme required with

^

the Programme selector button.

Press the , button.

^

The last Delay start time used will
appear in the time display. The ,
indicator light comes on.

Set the required Delay start time

^

using the , button.

If the , button is kept pressed in, the
time will increase automatically up to
24^. To start again with 30 minutes,
press the , button twice.

^ Close the door.

The time starts counting down until the
programme start time: in one-hour
steps for Delay start periods of over 10
hours, and in minutes for Delay start
periods of under 10 hours.

When the set time is reached, the
programme selected will begin
automatically. The time left for a
programme to run then appears in the
display, the , indicator light goes out
and the indicator light for the selected
programme comes on.

How the Delay start time appears in
the display:

up to 59 minutes:
e.g. 30 minutes = 30

1 hour up to 9 hours 30 minutes:
e.g. 5 hours = 5.00

10 hours or more:
e.g. 15 hours = 15^

Starting a programme before the
Delay start period has elapsed

A programme can be started before the
Delay start period has elapsed.
Proceed as follows:

^ Open the door.

^ Switch the dishwasher off with the K

button.

^ Switch the dishwasher on again with

the On/Off button K.

^ Select the programme required with

the Programme selector button.

^

Start the programme by closing the
door.

43

Additional options

Buzzer

Press the Turbo button four times.

^

A buzzer sounds at the end of the
programme or if there is a fault.

It will sound four times at intervals at the
end of a programme with a short pause
in between.

In the event of a fault, the buzzer will
sound four times in one interval without
a pause.

The buzzer is activated as standard at
the factory.
You can deactivate the buzzer at the
end of a programme if you wish. The
buzzer will still sound if there is a fault,
even if it has been deactivated.

^ Open the door.

^ Switch the dishwasher off with the K

button.

^ Press the Programme selector button

in and, whilst holding it in, switch
the dishwasher on using the On/Off
button K.
Keep the Programme selector button
pressed in for at least four seconds
until the lower right-hand indicator
light comes on.

The Turbo indicator light will flash
briefly 4 times at intervals.

The flashing sequence in the time
display shows whether the buzzer at
the end of the programme is activated
or deactivated:

"p1": The buzzer is activated

–

"p0": The buzzer is deactivated

–

To change the setting, press the

^

Programme selector button.

The setting is now stored in memory.

^ Switch the dishwasher off with the K

button.

If this does not happen, start the
procedure from the beginning again.

44

Additional options

Adjusting Sensor wash

You can adjust the Sensor wash
programme so that it will remove
stubborn soiling in a lightly soiled load.

Open the door.

^

Switch the dishwasher off with the K

^

button.

Press the Programme selector button

^

in and, whilst holding it in, switch
the dishwasher on using the On/Off
button K.
Keep the Programme selector button
pressed in for at least four seconds
until the lower right-hand indicator
light comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Turbo button five times.

The Turbo indicator light will flash
briefly 5 times at intervals.

The flashing sequence in the time
display shows whether the "Adjust
Sensor wash" function is activated or
deactivated.

"p1": The "Adjust Sensor wash"

–

function is activated.

"p0": The "Adjust Sensor wash"

–

function is deactivated.

To change the setting, press the

^

Programme selector button.

The setting is now stored in memory.

Switch the dishwasher off with the K

^

button.

45

Additional options

Optimise standby

To save energy, the dishwasher will
switch to Standby mode a few minutes
after the last time a button has been
pressed or at the end of the
programme. The indicator lights and
the time display will go out, and only
the K indicator light will flash slowly.

If the dishwasher is not switched off at
the end of the programme or the door is
not opened, it will switch off completely
after a few minutes in Standby mode.

The Optimise standby function can be
deactivated if wished. The display and
the indicator lights will not go out, and
the time lapse before the dishwasher
switches off will increase to approx. 6
hours, resulting in higher energy
consumption.

The dishwasher will not switch to
Standby mode whilst a programme
is running, if salt or rinse aid needs
to be refilled, or if there is a fault.

Open the door.

^

Switch the dishwasher off with the K

^

button.

Press the Programme selector button

^

in and, whilst holding it in, switch
the dishwasher on using the On/Off
button K.
Keep the Programme selector button
pressed in for at least four seconds
until the lower right-hand indicator
light comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Turbo button eight times.

The Turbo indicator light will flash
briefly 8 times at intervals.

The flashing sequence in the time
display shows whether the "Optimise
standby" function is activated or
deactivated.

–"p1": "Optimise standby" is activated.

–

"p0": "Optimise standby" is
deactivated.

46

^

To change the setting, press the
Programme selector button.

The setting is now stored in memory.

^

Switch the dishwasher off with the K
button.

Additional options

Factory default

If you have altered any settings from
the factory default, you can reset them
back to the factory default settings as
follows:

Open the door.

^

Switch the dishwasher off with the K

^

button.

Press the Programme selector button

^

in and, whilst holding it in, switch
the dishwasher on using the On/Off
button K.
Keep the Programme selector button
pressed in for at least four seconds
until the lower right-hand indicator
light comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Turbo button 12 times.

The Turbo indicator light will give one
long flash and two brief flashes at
intervals.

The flashing sequence in the time
display shows whether a setting other
than the factory default setting has
been set.

"p1": All settings are set to factory

–

default settings.

"p0": At least one setting has been

–

changed.

To reset to the factory default

^

settings, press the Programme
selector button.

The setting is now stored in memory.

^ Switch the dishwasher off with the K

button.

47

Cleaning and care

Check the condition of your
dishwasher regularly (approx. every
4 - 6 months). This way faults and
problems can be avoided.

The outer surfaces of the

,

dishwasher are susceptible to
scratching.
Contact with unsuitable cleaning
agents can alter or discolour the
outer surfaces.

Cleaning the wash cabinet

The wash cabinet is largely
self-cleaning, provided that the correct
amount of detergent is always used.

If, however, there are limescale or
grease deposits in the cabinet, these
can be removed with the Original Miele
dishwasher conditioning agent
(available from Miele or at
www.miele-shop.com, depending on
country). Follow the dosage
recommended by the manufacturer on
the packaging.

Cleaning the door and the door
seal

Wipe the door seal regularly with a

^

damp cloth to remove food deposits.

When the dishwasher is being

^

loaded, food and drink residues may
drip onto the sides of the dishwasher
door.

These surfaces are outside the wash
cabinet and are not accessed by water
from the spray arms. Any soiling should
be wiped off these surfaces before the
door is closed to avoid the formation of
mould inside the wash cabinet.

If you only wash at low temperatures (<
50 °C) over a long period of time,
organic deposits and unpleasant
odours can form in the machine. To
clean the wash cabinet and prevent the
formation of unpleasant odours, the
"Pots & pans 75 °C" programme should
be run at least once a month.
You should also clean the filters in the
wash cabinet on a regular basis.

48

Cleaning and care

Cleaning the control panel and
door front

Remove any soiling immediately.

,

If not, it might become impossible to
remove and could cause the outer
surface to alter or discolour.

The control panel should only be

^

wiped with a damp cloth.

Clean the front using a sponge, a

^

solution of warm water and a little
washing-up liquid. Wipe dry using a
soft cloth.
For cleaning, you can also use a
clean, damp microfibre cloth without
any cleaning agent.

To avoid damaging the outer surface,
do not use:

cleaning agents containing soda,

–

ammonia, acids or chlorides,

cleaning agents containing

–

descaling agents,

abrasive cleaning agents, e.g.

–

powder cleaners and cream
cleaners,

solvent-based cleaning agents,

–

stainless steel cleaners,

–

dishwasher cleaner,

–

– oven sprays,

– glass cleaning agents,

– hard, abrasive sponges and

brushes, e.g. pot scourers,

– dirt erasers,

– sharp metal scrapers,

– steam cleaners.

49

Cleaning and care

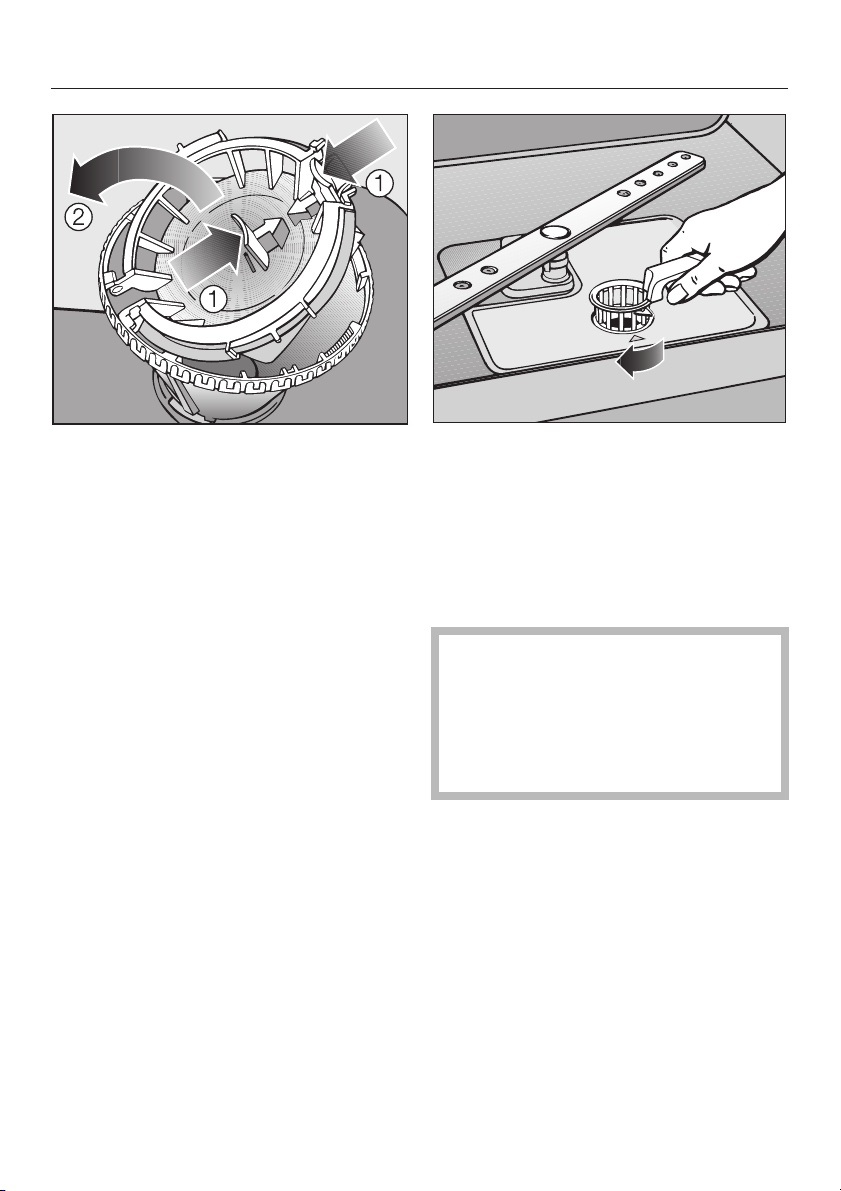

Cleaning the filters in the wash
cabinet

The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.

This dishwasher must not be

,

used without all the filters in place.

Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.

Check the condition of the filters
regularly and clean them if necessary.

^ Switch the dishwasher off.

Turn the handle anti-clockwise to

^

release the filter combination a.

^ Take the filter combination out b,

remove any coarse particles and
rinse the filter well under running
water. Use a nylon brush if
necessary.

50

,

Ensure that coarse soil doesn't
get into the circulation system and
cause a blockage.

Cleaning and care

To clean the inside of the filter, the flap
must be opened:

^ Press catches a together in the

direction of the arrows as shown, and
open the filter b.

^ Rinse all the filters under running

water.

^ Then close the flap so that the catch

engages.

Replace the filter combination so that

^

it lies flat in the base of the wash
cabinet.

^ Then turn the handle clockwise until

both arrows point towards each
other. The filter combination is locked
in place.

,

Take care when you are fitting
the filter combination that it is
secured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.

51

Cleaning and care

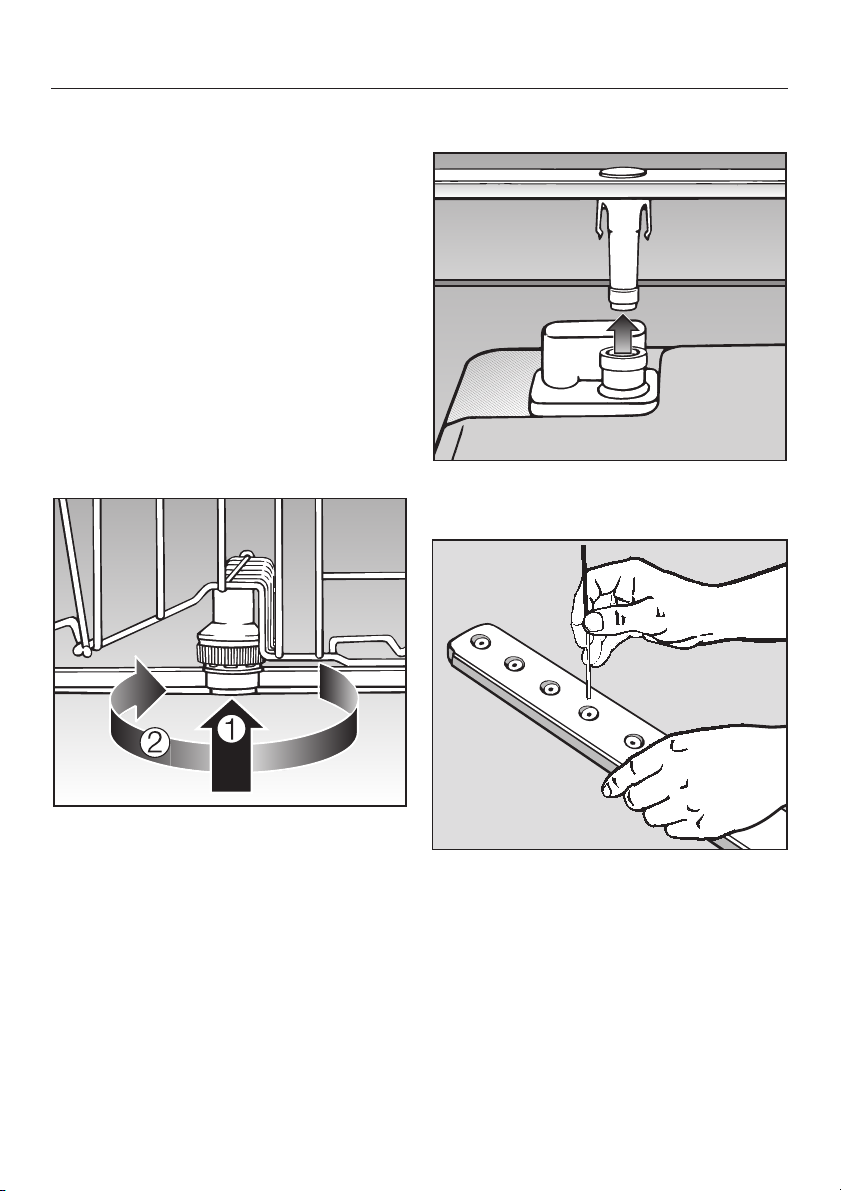

Cleaning the spray arms

Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every 4

- 6 months).

Switch the dishwasher off.

^

Remove the spray arms as follows:

Take out the cutlery tray (if your

^

dishwasher is fitted with one).

Push the top spray arm upwards to

^

engage the inner ratchet. Then
unscrew the spray arm.

Remove the lower basket.

^

^ Pull the lower spray arm firmly

upwards to remove it.

^

Push the middle spray arms upwards
a to engage the ratchet. Then
unscrew the spray arm b.

52

^

Use a pointed object to push food
particles into the spray arm jets.

^

Rinse thoroughly under running
water.

^

Replace the spray arms and check
that they rotate freely.

Problem solving guide

With the aid of the following guide, minor problems can be easily corrected
without contacting Miele. This will save time and money.

Please note that a call-out fee will be applied for unnecessary service visits where
the problem could have been rectified as described in these Operating
instructions.

Installation work and repairs to electrical appliances must only be carried

,

out by a suitably qualified and competent person in strict accordance with
current local and national safety regulations. The manufacturer cannot be held
liable for unauthorised work.

Technical problems

Problem Possible cause Remedy

The dishwasher does
not start.

The dishwasher
stops during a
programme.

The door is not properly
closed.

The appliance is not
plugged in.

The fuse is defective or
has tripped.

The appliance is not
switched on.

The fuse is defective or
has tripped.

Push the door firmly shut.

Insert the plug and switch on
at the socket.

Reset or replace the fuse.
(Minimum fuse rating - see
data plate).

Press the On/Off button K
and select a programme.

–

Reset or replace the fuse
(Minimum fuse rating - see
data plate).

–

If the same mains fuse
trips again, call Miele.

53

Problem solving guide

Problem Possible cause Remedy

The buzzer is sounding.
All the Programme
indicators flash when
the door is open.
Fault code FXX appears
in the display.

The drain pump works
even when the door is
open.

There may be a
technical fault.

Fault F70:
The Waterproof system
has reacted.

Switch the dishwasher off
with the On/Off button K.

After a few seconds:

Switch the dishwasher on.

–

Select the programme

–

required with the
Programme selector
button.

Close the door.

–
If the indicator lights flash

again, there is a technical
fault.

– Call Miele.

– Turn off the tap.
– Call Miele.

54

Problem solving guide

The dishwasher does not fill/drain.

Problem Possible cause Remedy

The dishwasher
stops working
shortly after the
start of the
programme.
The buzzer sounds.
The Inlet/Drain
indicator flashes
when the door is
opened.

The dishwasher
stops during a
programme.
The buzzer sounds.
The Inlet/Drain
indicator flashes
when the door is
opened.
Fault code FXX
appears in the
display.

The tap is turned
off.

Fault F12/F13:
Water intake is
restricted.

Fault F11:
Water outlet is
restricted, water
remains in the
wash cabinet at
the end of a
programme.

Turn on the tap fully.

–

Before rectifying the problem, you
must:

– Switch the dishwasher off with the

On/Off button K.

– Turn on the tap fully.
– Clean the water inlet filter (see

"Maintenance").

– The water pressure at the intake is

lower than 30 kPa (0.3 bar).
Seek professional advice.

–

Clean the filter combination. See
"Cleaning and care".

–

Clean the drain pump. See
"Maintenance".

–

Clean the non-return valve. See
"Maintenance".

–

Remove any kink in the drain hose.

–

After this, switch the dishwasher
back on with the On/Off button K.

55

Problem solving guide

General problems

Problem Possible cause Remedy

The indicator lights
and the time display
are dark. Only the K
indicator is flashing
slowly.

Detergent residue is
left in the dispenser at
the end of a
programme.

The detergent
dispenser lid cannot
be closed properly.

At the end of a
programme there is a
film of moisture on
the inside of the door
and the interior walls.

Water remains in the
wash cabinet at the
end of a programme.

The indicator lights and
the time display have
switched off automatically
to save energy (Standby
mode).

The dispenser was still
damp when detergent was
added.

Clogged detergent residue
is blocking the catch.

This is caused by the
drying system and does
not indicate a fault.

The filter combination in
the wash cabinet is
clogged.

The drain pump or
non-return valve may be
blocked.

The drain hose is kinked. Remove any kink from the

Press the On/Off button K.
Standby will be cancelled.

Make sure the dispenser is
dry before adding
detergent.

Clean the detergent from
the catch.

The moisture will dissipate
after a short while.

Before rectifying the
problem, you must:

– Switch the dishwasher off

with the On/Off button K.

Clean the filter combination.
See "Cleaning and care".

Clean the drain pump or the
non-return valve. See
"Maintenance".

drain hose.

56

Problem solving guide

Noises

Problem Possible cause Remedy

Knocking noise in the
wash cabinet.

Rattling noise in the
wash cabinet.

Knocking noise in the
water pipes.

A spray arm is knocking
against an item in a
basket.

Items of crockery are
insecure in the wash
cabinet.

A foreign object (e.g. a
cherry stone) has
becomed lodged in the
drain pump.

This may be caused by
the on-site installation or
the cross-section of the
piping.

Interrupt the programme,
and rearrange the items
which are obstructing the
spray arm.

Interrupt the programme,
and rearrange the items of
crockery.

Remove the foreign object
from the drain pump (see
"Maintenance - Cleaning
the drain pump and
non-return valve").

This has no influence on
dishwasher function. If in
doubt, contact a suitably
qualified plumber.

57

Problem solving guide

Unsatisfactory washing result

Problem Possible cause Remedy

The dishes are not
clean.

Smearing appears
on glassware and
cutlery, there is a
bluish sheen on
the surface of
glassware; film
can be wiped off.

The dishes were not loaded
correctly.

The programme was not
powerful enough.

There is some stubborn
soiling although most of the
crockery is only lightly soiled
(e.g. with tea stains).

Not enough detergent was
used.

Items are blocking the path
of the spray arms.

The filter combination in the
base of the wash cabinet is
not clean or is not correctly
fitted.
This may cause the spray
arm jets to become blocked.

The non-return valve is
blocked in the open position.
Dirty water has flowed back
into the wash cabinet.

The rinse aid dosage is set
too high.

See notes in "Loading the
dishwasher".

Select a more intensive
programme (see
"Programme chart").

Use the "Adjust Sensor
wash" function (see
"Additional functions").

Use more detergent, or
change your detergent.

Rearrange the items so that
the spray arms can rotate
freely.

Clean and/or fit the filter
combination correctly.
Clean the spray arm jets
(see "Cleaning and care").

Clean the drain pump and
the non-return valve (see
"Maintenance").

Reduce the dosage (see
"Before using for the first
time - Rinse aid").

58

Problem solving guide

Problem Possible cause Remedy

Dishes, cutlery and
glasses are not dry
or are flecked.

White residue is
visible on cutlery
and crockery,
clouding occurs
on glassware; film
can be wiped off.

The amount of rinse aid may
be insufficient, or the rinse
aid reservoir is empty.

Items were taken out of the
cabinet too soon.

Combination products have
been used which have
impaired drying
performance.

Not enough rinse aid was
used.

There is no salt in the salt
reservoir.

The salt reservoir cap has
not been screwed on
correctly.

An unsuitable combination
detergent has been used.

The water softener is
programmed to a setting
which is too low.

Replenish the reservoir,
increase the dosage or
change the brand of rinse
aid (see "Before using for the
first time - Rinse aid").

Leave them in for longer (see
"Operation").

Change your detergent, or
replenish the rinse aid (see
"Rinse aid").

Increase the dosage (see
"Before using for the first
time - Setting the rinse aid
dosage").

Fill the salt reservoir (see
"Before using for the first
time - Filling the salt
reservoir").

Replace it, making sure that
it screws back on correctly.

Change your detergent. Use
standard tablets or powder
detergent.

Select a higher water
softener setting (see "Water
softener").

59

Problem solving guide

Problem Possible cause Remedy

Glassware has a
brown or blue tinge,
and film cannot be
wiped off.

Glassware is dull
and discoloured;
film cannot be wiped
off.

Tea or lipstick stains
have not been
completely removed.

Plastic items are
discoloured.

There are rust stains
on cutlery.

This may be caused by the
detergent.

The glassware is not
dishwasher-proof. The
surfaces are affected.

The wash temperature of
the selected programme
was too low.

The bleaching effect of the
detergent used is too low.

Natural dyes e.g. from
carrots, tomatoes or
ketchup may be the cause.
The amount of detergent
used or its bleaching effect
was not sufficient to deal
with natural dyes.

The affected items are not
corrosion resistant.

A programme was not run
after dishwasher salt was
added. Traces of salt have
got into the wash cycle.

The salt reservoir cap has
not been screwed on
correctly.

Change your detergent.

There is no remedy.
Purchase glassware which
is dishwasher-proof.

Select a programme with a
higher wash temperature.

Change your detergent.

Use more detergent (see
"Operation - Detergent").
Discolouration is irreversi­ble.

There is no remedy.
Purchase cutlery which is
dishwasher safe.

Always run the "Gentle 45
°C" programme with the
"Turbo" function, without any
crockery in the dishwasher,
after adding dishwasher
salt.

Replace it, making sure that
it screws back on correctly.

60

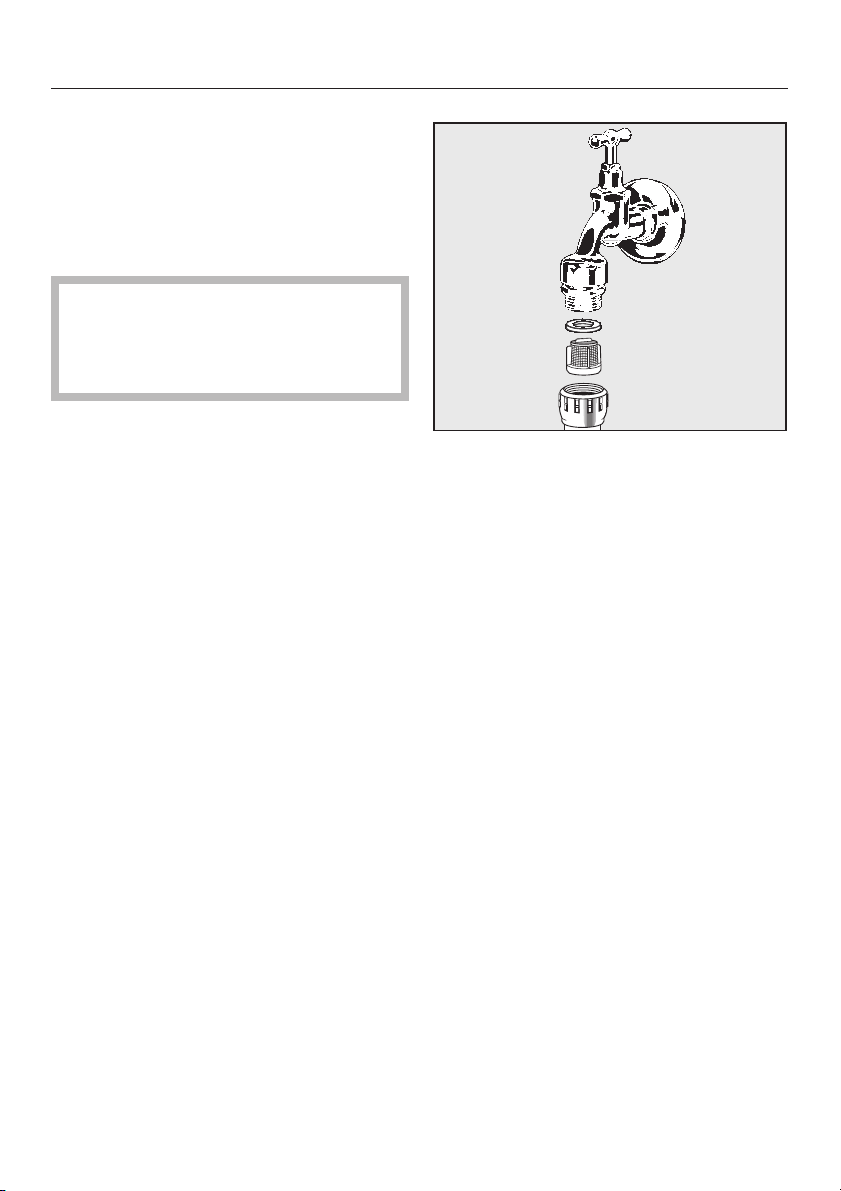

Cleaning the water inlet filter

A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
will flow into the wash cabinet.

The plastic housing of the water

,

connection contains an electrical
component. It must not be dipped in
water.

Recommendation

If the mains water contains a large
amount of insoluble substances, we
recommend fitting a large-area filter in
the connection between the tap and the
water inlet hose threaded union. This
filter is available from Miele.

Cleaning the filter:

^ Disconnect the dishwasher from the

mains supply. Switch off at the mains
socket and withdraw the plug.

^

Close the tap.

^

Unscrew the inlet hose.

Maintenance

Carefully remove the seal.

^

^ Withdraw the filter using pointed

pliers and rinse clean under running
water.

^ Replace the filter and seal, making

sure they are sitting correctly.

^ Reconnect the inlet hose to the tap,

making sure it goes on correctly and
is not cross-threaded.

^

Turn on the tap gradually to test for
leaks. If there is a leak, the inlet hose
might not be on securely, or it may
have been screwed on at an angle.
Unscrew and reconnect the water
inlet valve correctly.

61

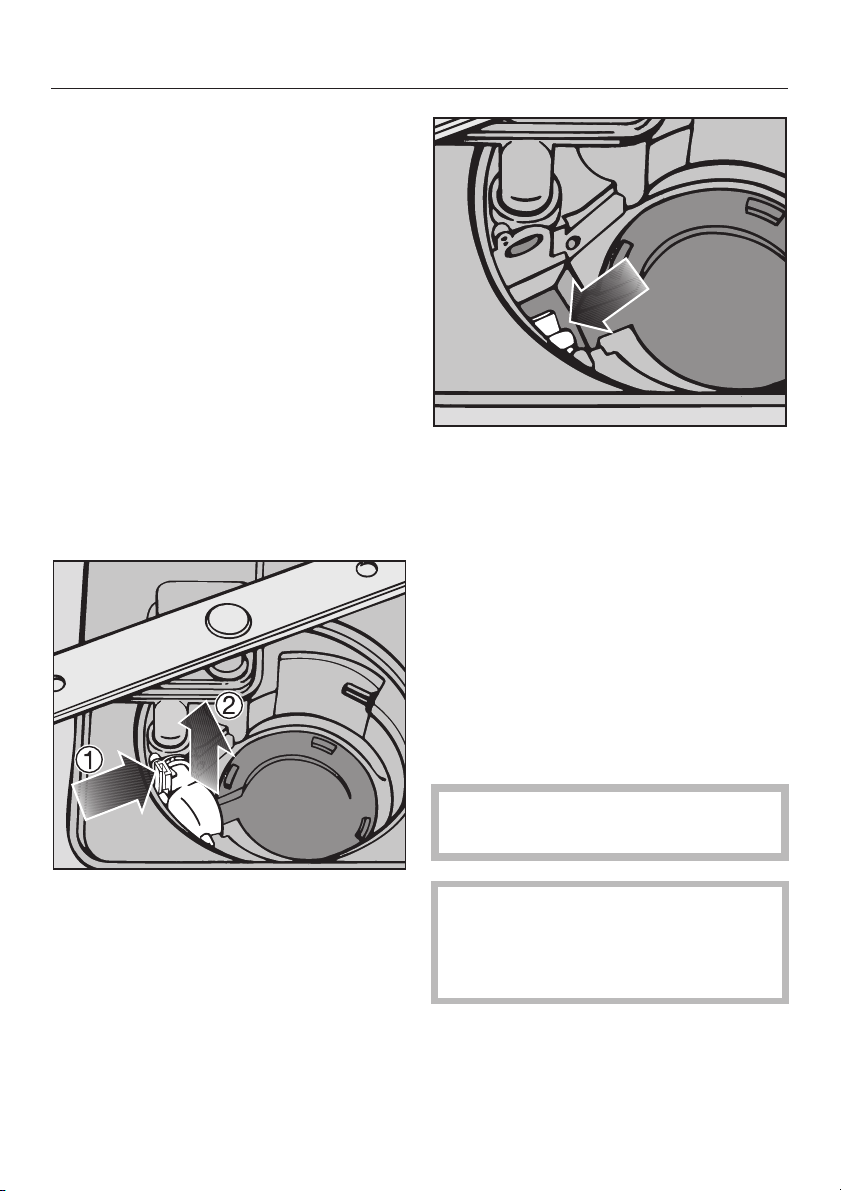

Maintenance

Cleaning the drain pump and
non-return valve

If the water has not been pumped away
at the end of a programme, the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean.

Disconnect the dishwasher from the

^

mains supply. Switch off at the mains
socket and withdraw the plug.

Take the filter combination out of the

^

wash cabinet (see "Cleaning and
care - Cleaning the filters in the wash
cabinet").

^ Scoop the water out of the cabinet

using a suitable container or utensil.

The drain pump is situated under the
non-return valve (see arrow).

^ Remove all foreign objects from the

drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause
injury). Turn the drain pump impeller
by hand to check that there are no
more obstructions. You will feel a little
resistance when you turn the
impeller.

^

Press the catch for the non-return
valve inwards a.

^

Lift out the non-return valve b, and
rinse well under running water.

^

Remove all foreign objects from the
non-return valve.

62

^

Carefully replace the non-return valve
and secure it with the catch.

,

Ensure that the catch engages
correctly.

Be careful not to damage any
delicate components when cleaning
the drain pump and the non-return
valve.

After sales service

Repairs

In the event of any faults that you
cannot remedy yourself, please
contact:

Miele

–

You will find the telephone number
and address of Miele on the back
cover of the manual.

When contacting Miele, please quote

^

the model type and serial number of
your appliance, both of which are
shown on the data plate on the
right-hand side of the door.

Future updates

The programme update function is
designed to enable a service
technician to update your appliance's
electronics in keeping with advances in
technology.

Information regarding programme
updates will be made known by Miele
as and when such developments
become available.

63

Comparison tests

Test standard: AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;

AS/NZS 6400:2005

Standard programme for
energy label comparison tests: Energy Save

Capacity: 14 place settings

Amount of detergent: 5.0 g in compartment I,

27.5 g in compartment II

Rinse aid dispensing: Setting 5 (approx. 5 ml)

Drying measurements: Door ajar using a block of approximately

50 mm upon completion of dry test.

Upper basket level:

Position: Bottom

Loading examples

Pictures illustrating how to load the dishwasher are shown on the following pages.

Do not collapse or remove inserts.

Press the bottle holder inwards and remove it from the bottom basket.

64

Upper basket Lower basket

Comparison tests

Cutlery tray

65

Programme chart

Crockery Soiling Programme

Mixed,

everyday crockery,

including pots and pans

Glasses and plastic

containers, sensitive to

high temperatures

Mixed crockery

Pots

pans,

everyday

porecelain and

cutlery

Fresh to dried-on soiling

Fresh,

easily removed

food deposits

Normal,

lightly dried-on

soiling

Stubborn,

dried-on food

deposits containing starch

or protein

1)

Variable,

sensor controlled wash

Shortened cycle

Low temperature for a

gentle wash

Standard programme

values

Shortened cycle

Water and

energy-saving cycle

Maximum wash power

Shortened cycle

1)

Food such as potatoes, rice, pasta, stews or bakes can leave starchy deposits on crockery.

Deposits containing protein can be left by food such as meat, fish, eggs or casseroles.

66

Programme chart

Programme Detergent

2)

Compartment I

Compartment II

2)

Sensor wash

+ Turbo

Gentle 45 °C

Light soiling 50 °C

+ Turbo

Energy save

Pot & pans 75 °C

+ Turbo

–

–

–

–

10 ml

25 ml

or

1 Tab

20 ml

or

1 Tab

25 ml

or

1 Tab

25 ml

or

1 Tab

25 ml

or

1 Tab

3)

2)

see "Detergent"

3)

In some cases, tabs may not dissolve completely.

67

Programme chart

Programme Programme sequence

Pre-wash Main wash

°C

Interim rinse Final rinse°CDrying

12

Sensor wash Variable programme sequence,

Gentle 45 °C ! X 45 X 55 X

Energy save

Light soiling 50 °C 50 X 68 X

Pots & pans 75 °C X 75 X 68 X

1) Standard programme for energy labelling.

1)

sensor controlled adjustment to amount of crockery and soiling

If required 45-65 If required 68 X

X45 45X

68

Programme chart

Consumption Duration

Energy Water

Cold water

connection

15 °C

2)

kWh

0.95-1.35 0.70-1.00 10.0-17.0 1:36-2:38 1:23-2:21

0.85 0.45 13.0 1:40 1:30

0.72 0.32 12.7 2:35 2:25

1.20 0.90 10.0 1:42 1:33

1.55 1.15 13.0 2:40 2:29

2) The electrical energy used by the appliance.
Note: The electrical energy stated does not take into consideration the hot water supply energy from

an external source.
The durations given can vary depending on individual circumstances.

Selecting the "Turbo" function (depending on model) can reduce the programme duration by up to 50
minutes with an increase in electricity consumption of up to 0.2 kWh.

Hot water

connection

55 °C

2)

kWh

Litres Cold water connection

15 °C
h:min

Hot water connection

55 °C
h:min

69

Optional accessories

To make the most of your dishwasher

Optional accessories for particular purposes are available from your Miele
Chartered Agent or from Miele (some may be supplied as standard, depending on
model).

If you would like to … you will need to order …

... wash a Miele Cappuccinatore … a Cappuccinatore insert for the

upper basket

... wash additional items of cutlery … a cutlery basket for the lower

basket

... wash long-stemmed glassware … a glass rack for the lower basket

70

This dishwasher is supplied with a
mains cable and moulded plug ready
for connection to an AC single phase
supply, (230 V 50 Hz for NZ and
Australia) via a fused plug and suitable
switched socket.

The electrical socket must be

,

easily accessible after the
dishwasher has been installed.
Do not connect the washing
machine to the mains electricity
supply by an extension lead.
Extension leads do not guarantee
the required safety of the appliance
(e.g. danger of overheating).

If the connection cable is damaged, it
must be replaced by a Miele approved
service technician only in order to
protect the user from danger.

Connection should be made via a
suitable switched socket which is easily
accessible. For extra safety, it is
advisable to install a suitable residual
current device (RCD).
The appliance must not be connected
to an isolated inverter which is
connected to a self-sufficient power
supply, e.g. solar power supply.
Voltage peaks when the appliance is
switched on can cause a safety
switch-off and the electronics may also
be damaged. The appliance must not
be operated in conjunction with
energy-saving plugs either as the
energy intake of the appliance is
reduced and it will overheat.

Electrical connection

Before connecting the

,

dishwasher, check that the
connection data on the data plate
(voltage and rated load) matches
the mains electricity supply. If in any
doubt, consult a qualified
electrician.

Technical data can be found on the
data plate on the right-hand side of the
door.

71

Water connection

The Miele Waterproof system

Provided that your dishwasher has
been installed correctly, the Miele
waterproof anti-leak system will protect
you from water damage throughout its
lifetime.

Connection to the water
supply

Water in the dishwasher must

,

not be used as drinking water.

IMPORTANT Australia and New

,

Zealand
This appliance must be installed
according to AS/NZS 3500.1. Back
flow prevention is already integrated
in the appliance.

– The dishwasher may be connected

to a cold or hot water supply, max.
60 °C.
We would only recommend
connection to a hot water supply if it
is economical. When connected to a
hot water supply, all programme
stages which would otherwise be
carried out with cold water will be
carried out with hot water, thus
increasing time and energy costs.

Connection to the mains water

–

supply should only be carried out by
a qualified and competent person in
strict accordance with national and
local safety regulations.
The tap should be easily accessible
once the appliance has been built in.

The water pressure (flow pressure at

–

the take-off point) must be between
30 and 1000 kPa (0.3 and 10 bar). If
the water pressure is too high, a
pressure reducing valve must be
fitted.

After commissioning the appliance,
ensure that the water inlet does not
leak.

,To avoid any damage to the

appliance, the dishwasher must only
be connected to a fully vented
plumbing system.

–

The inlet hose is approx. 1.5 m long.

3

/4" male thread must be provided

–

A
on site.

72

! The inlet hose must not be

shortened or damaged in any way
as it contains electrical components
(see illustration).

New hose sets supplied with the
appliance are to be used. Old hose
sets should not be reused.

Water connection

73

Water connection

Connection to the drainage
system

The appliance drainage system is

–

fitted with a non-return valve, which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.

The dishwasher is supplied with

–

approx. 1.5 m of flexible drain hose
with an internal diameter of 22 mm.

The drain hose can be extended

–

using a connection piece to attach a
further length of hose.
The drainage length must not be
longer than 4 m, and the delivery
head must not exceed 1 m.

– If the hose is to be directly fitted to

the drainage outlet on site, use the
hose clip supplied (see installation
diagram).

After commissioning the appliance,
ensure that the water outlet does not
leak.

Venting the drainage system

If the on-site drain connection is
situated lower than the guide path for
the bottom basket rollers in the open
door, the drainage system must be
vented. Otherwise a siphoning effect
during a programme can cause the
appliance to empty itself of water.

To vent it:

^ Open the dishwasher door fully.

– The hose can be directed to the left

or the right of the appliance.

–

The on-site connector for the drain
hose can be adapted to different
widths of hose. If the connector
protrudes too far into the drain hose,
it will need to be shortened.
Otherwise the drain hose may
become blocked.

–

The drain hose must not be
shortened.

,

Make sure that there are no
kinks in the hose, and that it is not
squashed or stretched.

74

^

Pull the lower spray arm firmly
upwards to remove it.

^

Cut off the top of the vent valve in the
wash cabinet.

Technical data

Dishwasher model Standard XXL

Height 80.5 cm

(adjustable + 6.5 cm)

Height of building-in recess Min. 80.5 cm (+ 6.5 cm) Min. 84.5 cm (+ 6.5 cm)

Width 59.8 cm 59.8 cm

Width of building-in recess 60 cm 60 cm

Depth 57 cm 57 cm

Weight Max. 56 kg Max. 62 kg

Voltage 230 V 230 V

Rated load 2200 W 2200 W

Fuse rating 10 A 10 A

Test certificates awarded Electrical Safety,

WaterMark, RCM Mark

Water pressure (flow rate) 30 - 1000 kPa

(0.3 - 10 bar)

Hot water connection Up to max. 60 °C Up to max. 60 °C

Delivery head Max. 1 m Max. 1 m

Drainage length Max. 4 m Max. 4 m

Mains cable approx. 1.7 m approx. 1.7 m

Capacity 14 place settings 15 place settings

84.5 cm
(adjustable + 6.5 cm)

Electrical Safety,
WaterMark, RCM Mark

30 - 1000 kPa
(0.3 - 10 bar)

75

0LHOH$XVWUDOLD3W\/WG

!".

A]Y`Y7YbhYfUbX<YUXCZZ]WYAY`VcifbY.

'ILBERT0ARK$RIVE
+NOXFIELD6)#

A]Y`Y7YbhYfUbXCZZ]WYAY`VcifbY.

#OVENTRY3TREET
3OUTH-ELBOURNE6)#

A]Y`Y7YbhYfUbXCZZ]WYGmXbYm.

3KYLINE0LACE
&RENCHS&OREST.37

A]Y`Y7YbhYfUbXCZZ]WY6f]gVUbY.

(ARVEY3TREET.ORTH
%AGLE&ARM1,$

A]Y`Y7YbhYfUbXCZZ]WY5XY`U]XY.

3IR$ONALD"RADMAN$RIVE
(ILTON3!

A]Y`Y7YbhYfUbXCZZ]WYDYfh\.

3TIRLING(IGHWAY
#LAREMONT7!

0LHOH1HZ=HDODQG/LPLWHG

<YUXCZZ]WY.

5NIT,3YLVIA0ARK2OAD

-T7ELLINGTON!UCKLAND

A]Y`Y7YbhYf5iW_`UbX.

#OLLEGE(ILL
&REEMANS"AY!UCKLAND

4ELEPHONE
-)%,%

ZZZPLHOHFRPDX

Alteration rights reserved/
G4481/G4486 / 3514

WWWMIELECONZ

0LHOH*OREDO+HDGTXDUWHUV
*HUPDQ\
0LHOH&LH.*

#ARL-IELE3TRAE
'àTERSLOH
&EDERAL2EPUBLICOF'ERMANY

M.-Nr. 09 585 880 / 01
