Miele G1574, G2574 Operating instructions

Operating instructions

for dishwashers

To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the
first time.

en - AUS, NZ

M.-Nr. 07 600 660

Contents

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Appliance overview .................................................5

Control panel ......................................................6

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Disposal of the packing material ......................................12

Disposal of your old appliance .......................................12

Energy saving washing .............................................13

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

To open the door ..................................................14

To close the door ..................................................14

Water softener ....................................................15

To programme the water hardness level .............................16

To call up the water hardness level in the display.........................17

Before using the appliance for the first time, you require:...................18

Filling the salt reservoir .............................................18

Insufficient salt indication ...........................................19

Rinse aid ........................................................20

Adding rinse aid ..................................................20

Rinse aid indicator .................................................21

Setting the rinse aid dosage .........................................22

Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Items not suitable for dishwashers: ....................................24

Upper basket .....................................................25

Hinged cup rack ................................................25

Positioning rail (depending on model) ...............................25

Support rail (depending on model) ..................................26

Adjusting the upper basket .......................................27

Lower basket .....................................................28

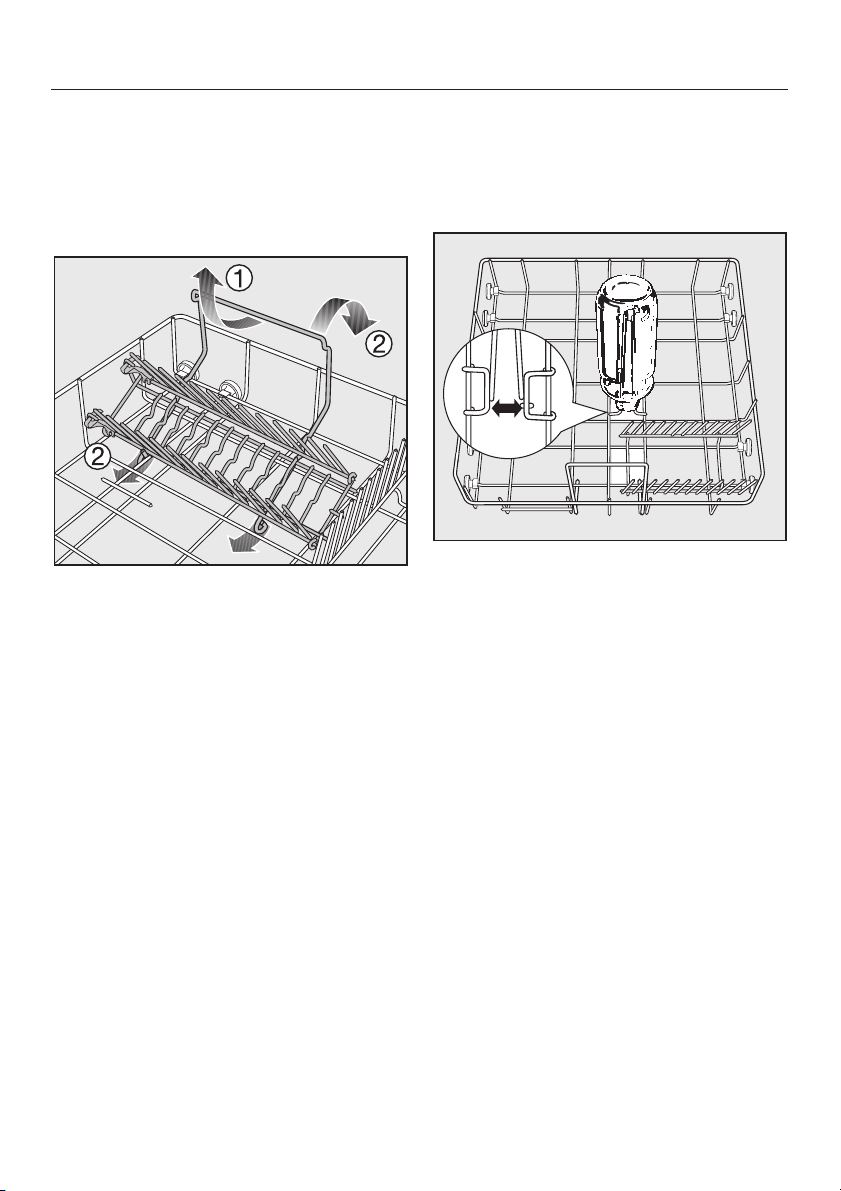

Hinged spikes..................................................28

Removable spiked insert .........................................29

Bottle holder (depending on model).................................29

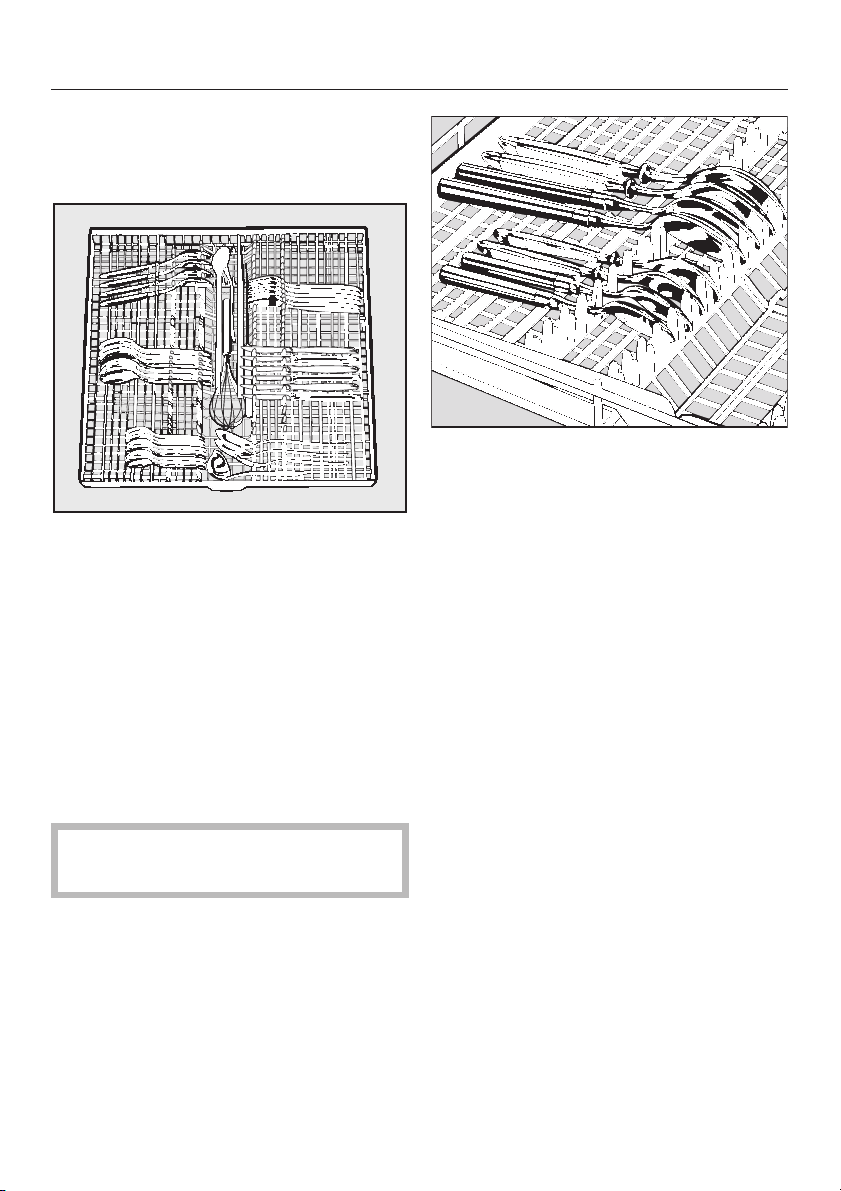

Cutlery ..........................................................30

Cutlery tray (depending on model)..................................30

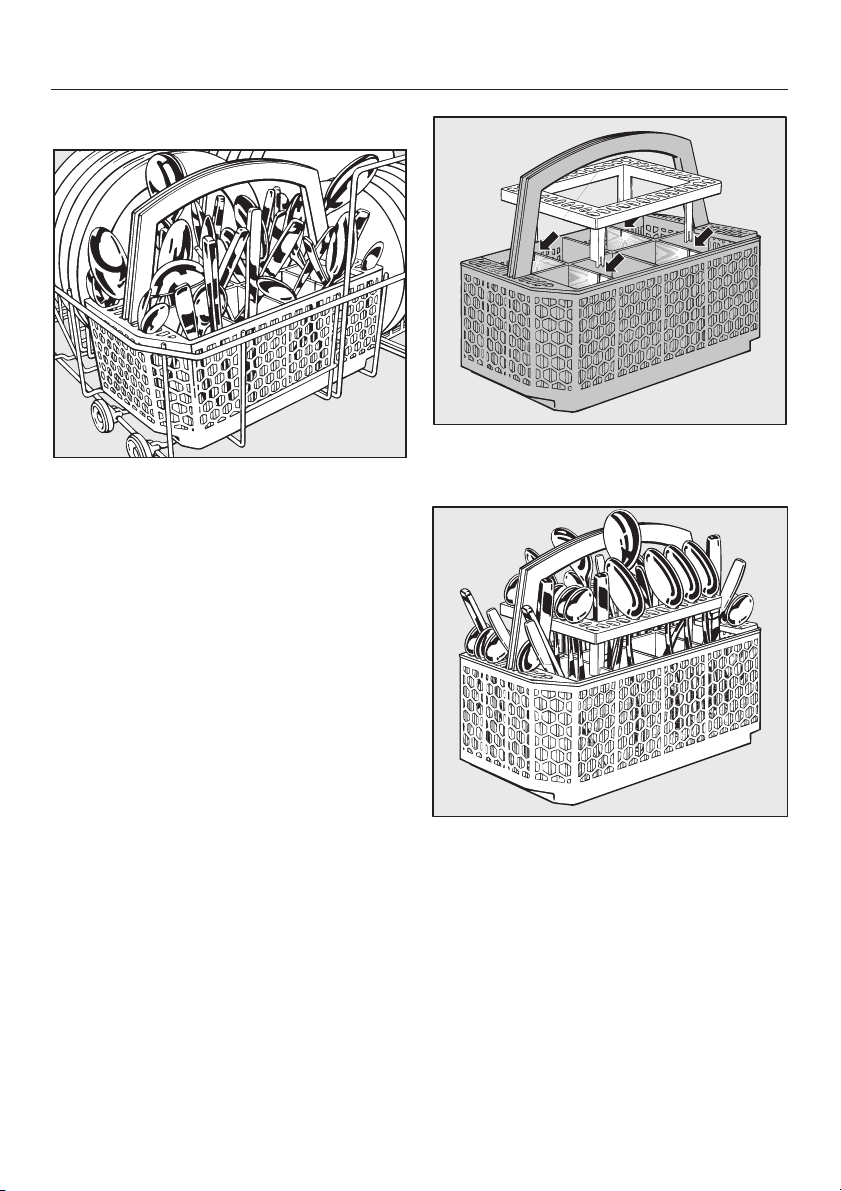

Cutlery basket (depending on model) ...............................31

2

Contents

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Detergent ........................................................32

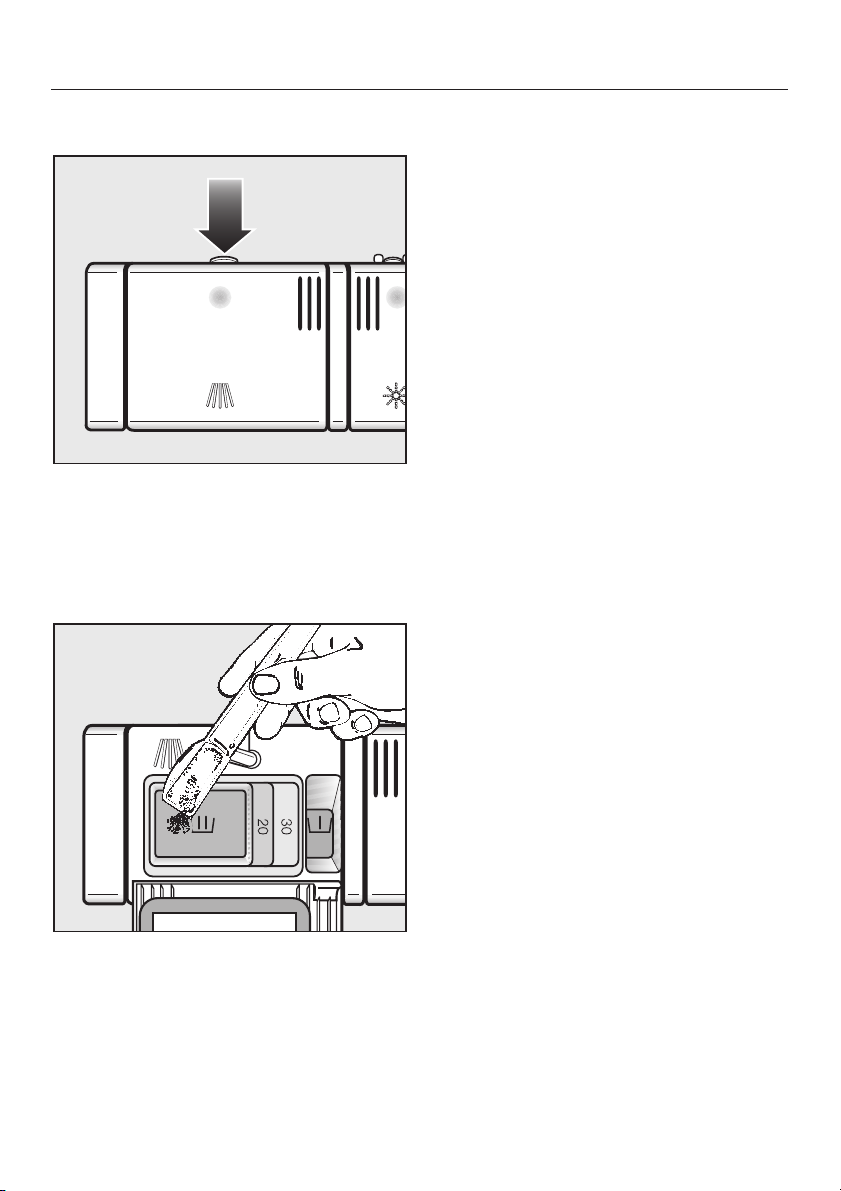

Adding detergent..................................................34

Switching on .....................................................35

Selecting a programme .............................................35

Starting a programme ..............................................35

Time display......................................................36

Glass care indicator................................................36

At the end of a programme ..........................................36

Switching off .....................................................37

Unloading the dishwasher ...........................................37

Interrupting a programme ...........................................38

Changing a programme ............................................38

Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Turbo/Tab .......................................................39

Delay start .......................................................40

Buzzer ..........................................................42

Factory default setting ..............................................43

Adjust Sensor wash ................................................44

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Cleaning the wash cabinet ..........................................45

Cleaning the door and the door seal ...................................45

Cleaning the reflector panel .........................................45

Cleaning the control panel and door front...............................46

Checking the filters in the wash cabinet ................................47

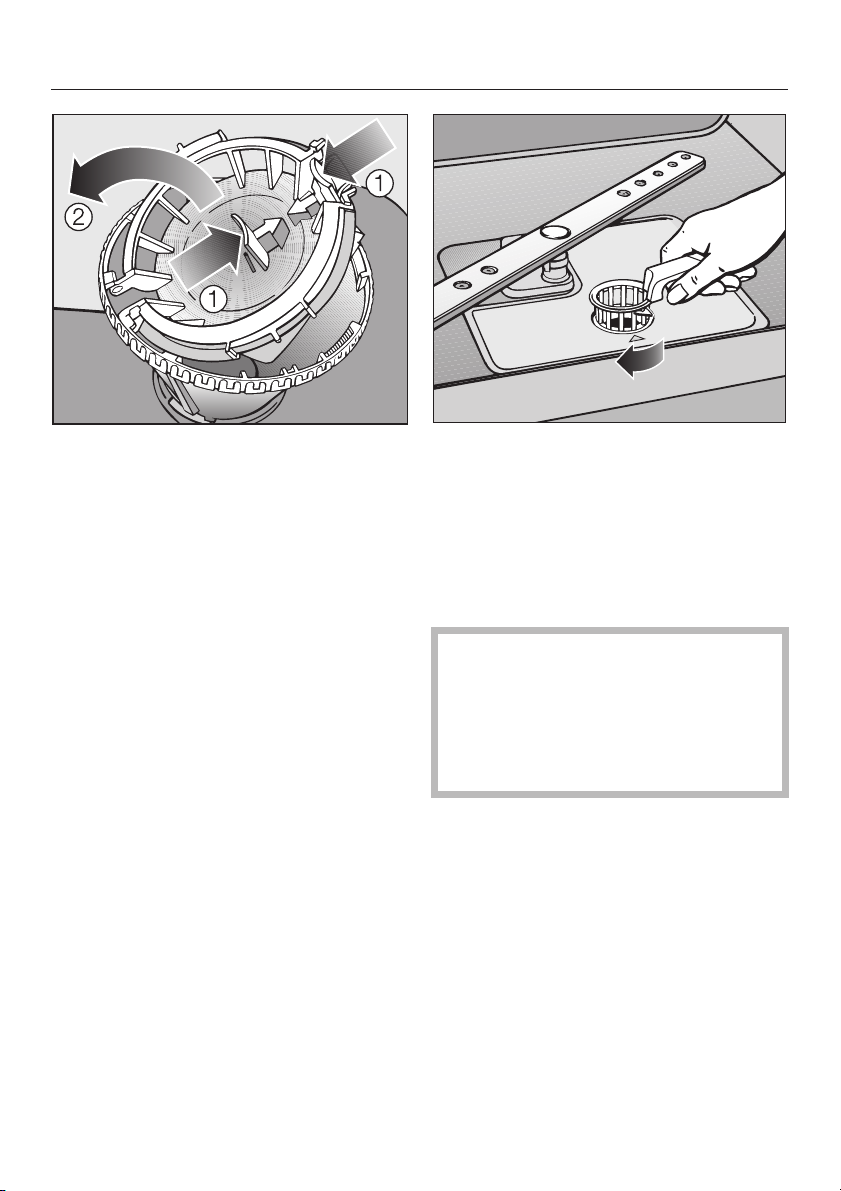

Cleaning the filters .................................................47

Cleaning the spray arms ............................................49

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Technical problems ................................................50

The dishwasher does not fill/drain .....................................52

General problems .................................................53

Noises ..........................................................55

Unsatisfactory washing result ........................................56

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

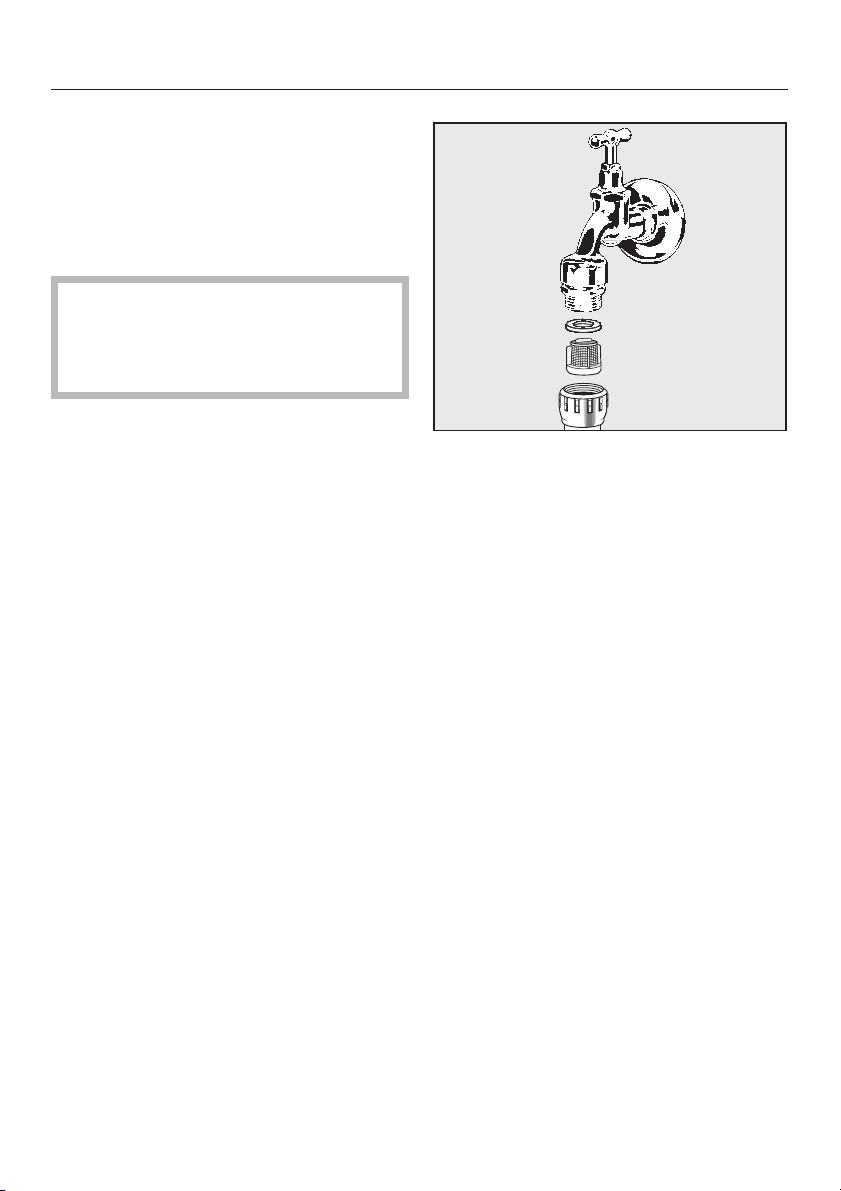

Cleaning the water inlet filter .........................................59

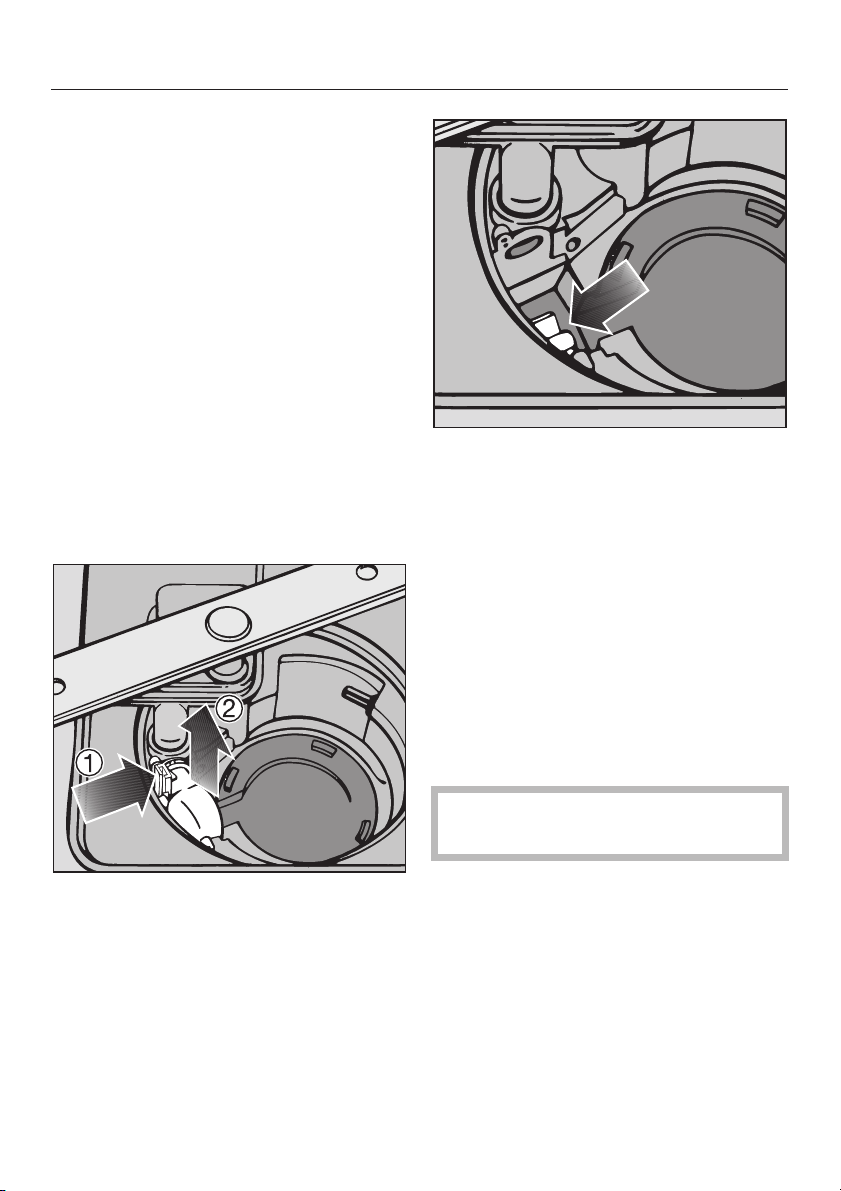

Cleaning the drain pump and non-return valve...........................60

3

Contents

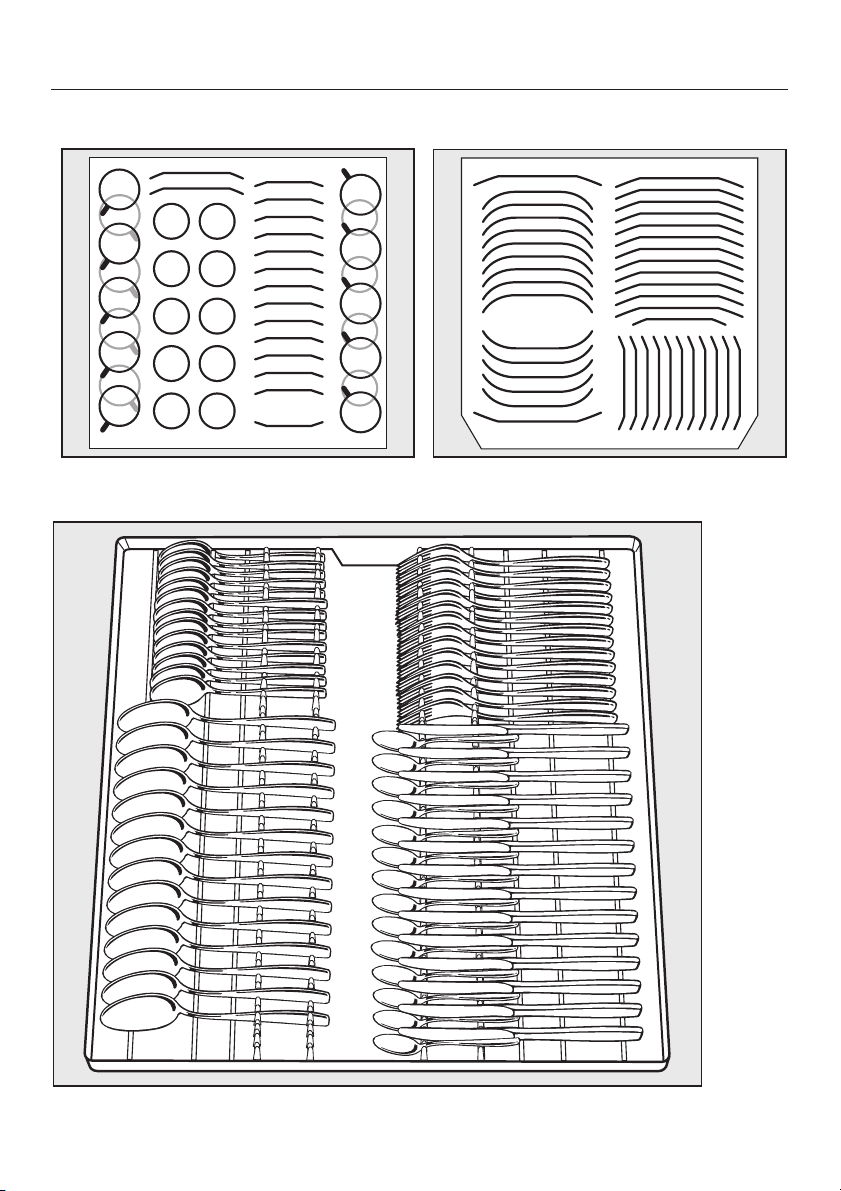

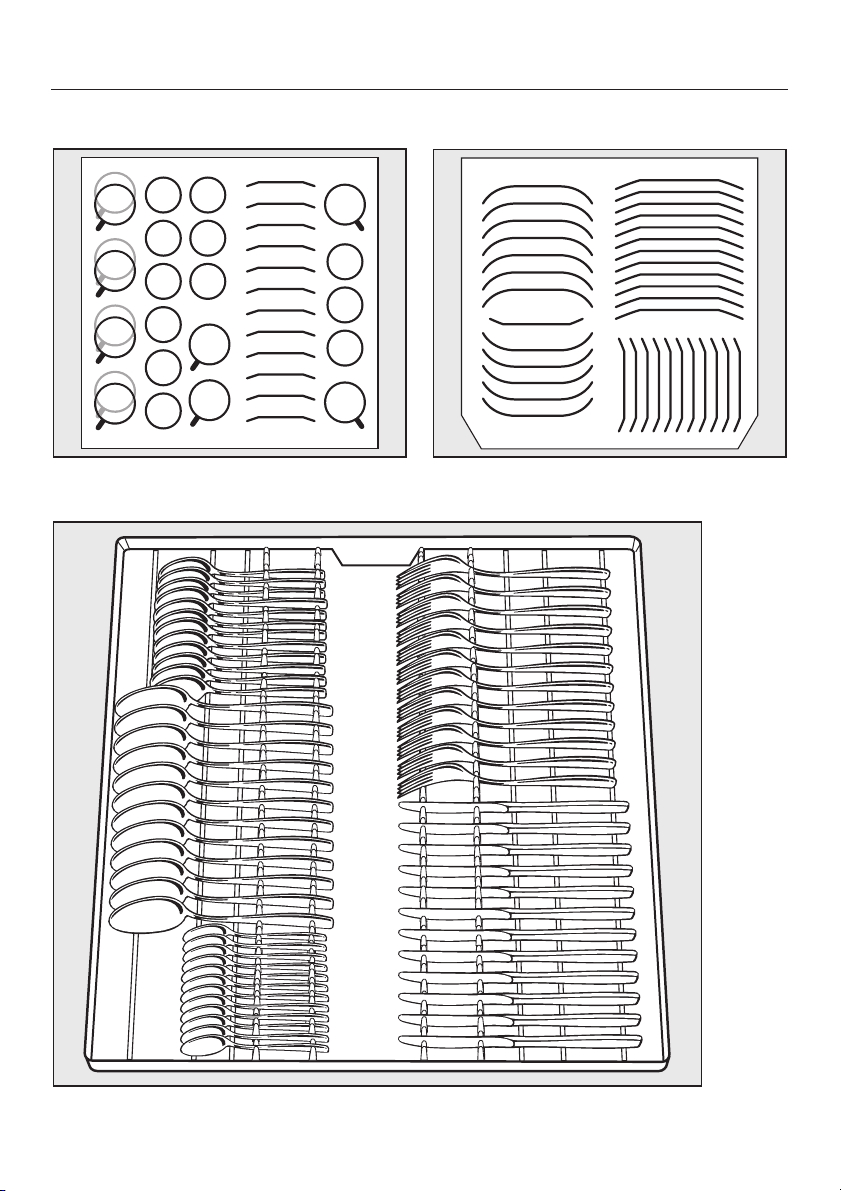

Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

G 1XXX..........................................................66

G 2XXX..........................................................68

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Repairs .......................................................70

Future updates .................................................70

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

The Miele waterproof anti-leak system .................................73

Connection to the water supply .......................................73

Drainage ........................................................74

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

4

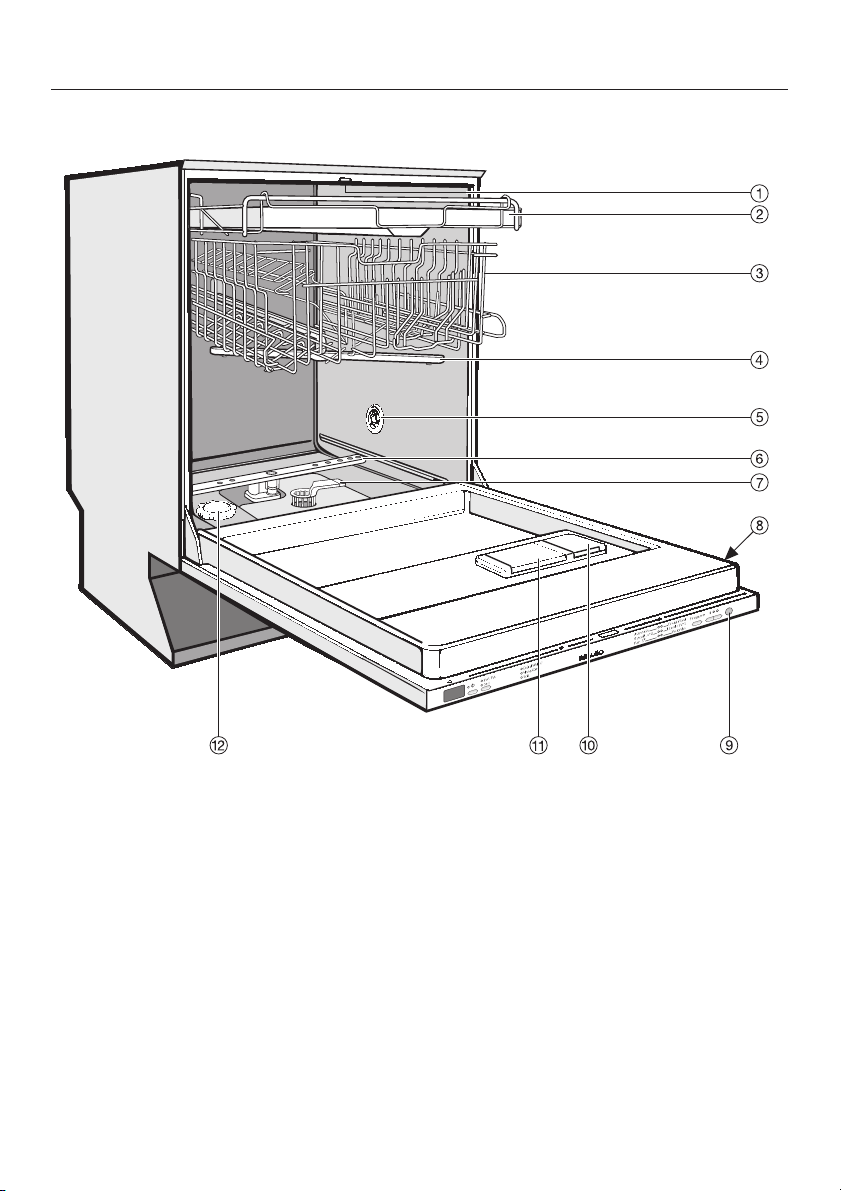

Appliance overview

Guide to the appliance

a Upper spray arm (not visible)

b Cutlery tray (depending on model)

c Upper basket

d Middle spray arm

e Air inlet for drying

(depending on model)

f Lower spray arm

g Filter combination

h Data plate

i In-operation indicator light

j Rinse aid reservoir

k Dual compartment detergent

dispenser

l Salt reservoir

5

Guide to the appliance

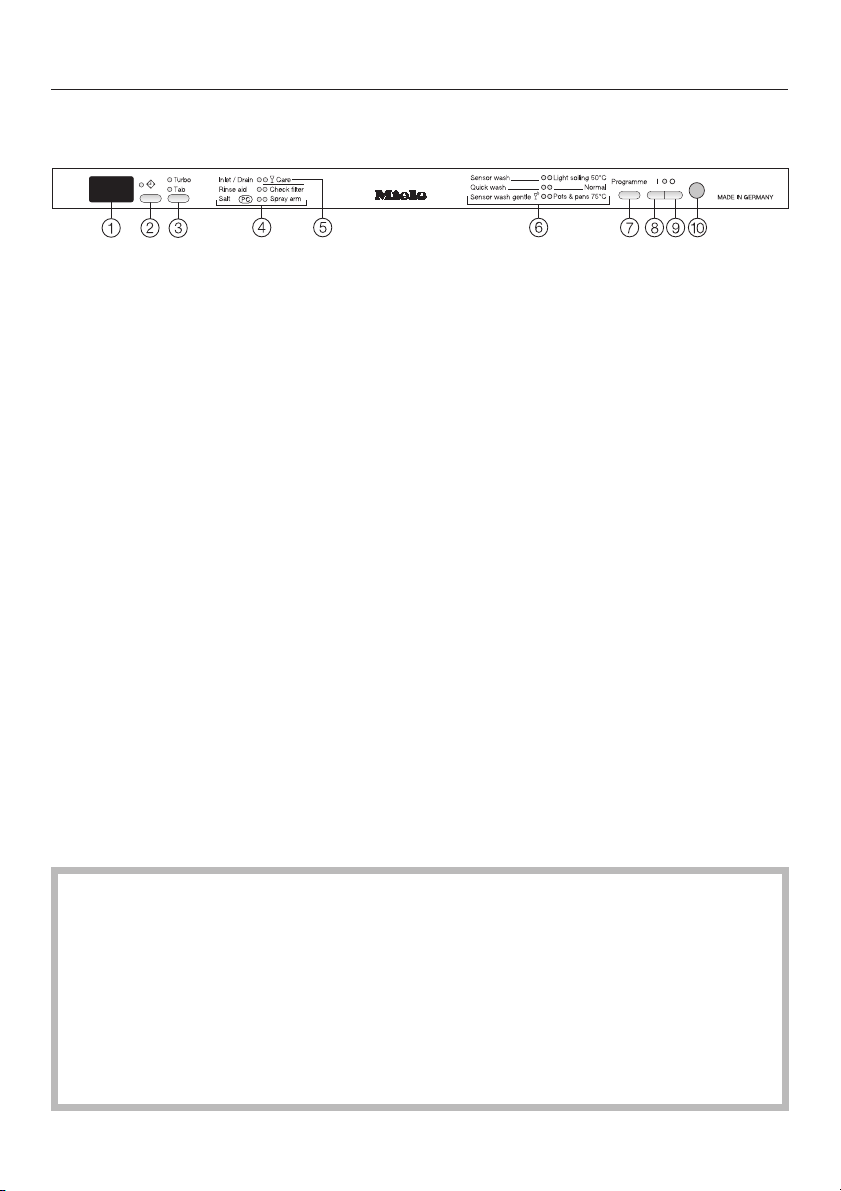

Control panel

a Time display

b Delay start button ,

with indicator light

c "Turbo/Combi tabs" button

d Check/Refill indicators

e Glass care indicator

f Programmes

g Programme selector button

h On button U with indicator light

i Off button V

j In-operation indicator light

This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 1574, G 1584 etc. = G 1XXX
G 2574, G 2584 etc. = G 2XXX

The model numbers G 1XXX and G 2XXX used in this book refer to the model
designation specified on the data plate of the appliance (and not the
description on the control panel).
The data plate is located at the top right hand side of the door.

6

Warning and Safety instructions

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place and pass them on to any
future owner.

Correct application

This dishwasher is intended

~

exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the appliance, would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.

This dishwasher is not intended for

~

use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it or they
have been given instruction concerning
its use by a person responsible for their
safety.

Safety with children

This appliance is not a toy! To avoid

~

the risk of injury, keep children well
away and do not allow them to play in
or around the dishwasher, or to use the
controls. They will not understand the
potential dangers posed by it. They
should be supervised whenever you
are working in the kitchen. There is a
danger that children playing might shut
themselves in the dishwasher.

Older children may only use the

~

dishwasher when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.

Keep children away from

~

detergents. Dishwasher detergents
contain irritant and corrosive
ingredients which can cause burning in
the mouth, nose and throat if
swallowed, or inhibit breathing. Keep
children away from the dishwasher
when the door is open. There could still
be detergent residues in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.

7

Warning and Safety instructions

Technical safety

Before setting up the appliance,

~

check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.

The dishwasher must only be

~

plugged into the electricity supply via a
suitable switched socket. The electrical
socket must be easily accessible after
the dishwasher has been installed so
that it can be disconnected from the
electricity supply at any time. (See
"Electrical connection").

There must be no electrical sockets

~

behind the dishwasher. Danger of
overheating and fire risk if the
dishwasher were to be pushed up
against a plug.

The dishwasher must not be

~

installed under a cooktop. The high
radiant temperatures which are
sometimes generated by a cooktop
could damage the dishwasher. For the
same reason it should not be installed
next to open fires or other appliances
which give off heat, such as heaters
etc.

Do not connect the dishwasher to

~

the mains supply until it has been fully
installed.

Before connecting the appliance,

~

check that the connection data on the
data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.

The electrical safety of this

~

appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and regularly
tested and where there is any doubt the
electrical system in the house should
be checked by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).

Do not connect the appliance to the

~

mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).

8

Warning and Safety instructions

This equipment may only be

~

installed in mobile installations such as
ships if a risk assessment of the
installation has been carried out by a
suitably qualified engineer.

The plastic housing of the water

~

connection contains an electrical
component. The housing must not be
dipped in water.

There are live wires in the water inlet

~

hose. Never cut the water inlet hose,
even if it is too long.

The integrated Waterproof System

~

offers protection from water damage,
provided the following conditions are
met:

– The dishwasher is correctly installed

and plumbed in.

– The dishwasher is properly

maintained and parts are replaced
where it can be seen that this is
necessary.

–

The tap has been turned off when
the appliance is not used for a longer
period of time (e.g. during holidays).

The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.

A damaged appliance could be

~

dangerous. If the dishwasher gets
damaged, switch it off at the mains and
call your Miele Chartered Agent or the
Miele Customer Contact Centre.

Unauthorised repairs could result in

~

unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.

Faulty components must only be

~

replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.

Always disconnect the dishwasher

~

from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).

If the connection cable is damaged

~

it must be replaced with a Miele cable
by a Miele approved service technician
only.

In areas which may be subject to

~

infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the guarantee.

9

Warning and Safety instructions

Installation

The dishwasher must be installed

~

and connected in compliance with the
installation instructions.

The dishwasher must be correctly

~

aligned to ensure problem-free
operation.

In order to ensure stability,

~

built-under and integrated dishwashers
must only be installed under a
continuous worktop which is secured to
adjacent cabinetry.

If you want to convert your

~

freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.

Correct use

Do not use solvents in the

~

dishwasher. Danger of explosion.

Do not inhale or ingest dishwasher

~

detergent. Dishwasher detergents
contain irritant or corrosive ingredients
which can cause burning in the nose,
mouth and throat if swallowed, or inhibit
breathing. Consult a doctor immediate
ly if detergent has been swallowed or
inhaled.

Avoid leaving the door open

~

unnecessarily, as you could trip over it.

Do not sit or lean on the opened

~

door. This could cause the dishwasher
to tip and be damaged, and you could
get injured.

Only use detergent and rinse aid

~

formulated for domestic dishwashers.
Do not use washing-up liquid.

Do not use commercial or industrial

~

detergents as these may cause
damage, and there is a risk of severe
chemical reaction.

-

10

Do not fill the rinse aid reservoir with

~

powder or liquid detergent. This will
cause serious damage to the reservoir.

Warning and Safety instructions

Inadvertently filling the salt reservoir

~

with powder or liquid dishwasher
detergent will damage the water
softener. Make sure you have bought
the correct packet of dishwasher salt
before filling the salt reservoir!

Please only use special coarse

~

grained dishwasher salt for reactivation,
as other salts may contain insoluble
additives which can impair the
functioning of the softener (see "Filling
the salt reservoir").

In an appliance with a cutlery basket

~

(depending on model) cutlery is
cleaned and dried more efficiently if
placed in the basket with the handles
downwards. However, to avoid the risk
of injury, place knives and forks etc.
with the handles upwards.

Plastic items which cannot withstand

~

being washed in hot water, such as
disposable plastic containers, or plastic
cutlery and crockery should not be
cleaned in the dishwasher. The high
temperatures in the dishwasher may
cause them to melt or lose shape.

Accessories

Only use genuine Miele spare parts

~

and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.

Disposal of your old
dishwasher

Make the door lock inoperative so

~

that children cannot accidentally shut
themselves in. Make appropriate
arrangements for the disposal of the
appliance.

The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.

On models with "Delay start", make

~

sure that the dispenser is dry before
adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispersed.

11

Caring for the environment

Disposal of the packing
material

The packing material protects the dryer
from transport damages. The transport
and protective packing has been
selected from materials which are
environmentally friendly for disposal
and can normally be recycled.

The packaging consists of the following
materials:

Outer packaging:

Corrugated cardboard made from up

–

to 100% recyclable material:
or: Polyethylene (PE) protective wrap

– Polyproplylene (PP) strapping

Inner packaging:

– Chlorine and fluorine free expanded

polystyrene (EPS)

– Base, lid frame and support battens

made from untreated natural wood
from renewable forests

–

Polyethylene (PE) protective wrap

Rather than just throwing these
materials away, please ensure they are
offered for recycling.

Disposal of your old appliance

Electrical and electronic machines
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Therefore, please do not dispose of it
with your household waste.

Please dispose of it at your local
community waste collection/recycling
centre or contact you dealer for advice.
Ensure that it presents no danger to
children while being stored for
disposal. You can also contact your
Chartered Agent for advice.

It should be unplugged or
disconnected from the mains electricity
supply by a competent person.

To enable sorting by type of plastic for
recycling, all plastic parts of the
appliance are labelled with international
standard symbols.

12

Energy saving washing

This dishwasher is exceptionally
economical in its use of water and
electricity.
You can make the most of your
appliance by following these tips:

If your household water system is

^

suitable, this dishwasher can be
connected to a hot water supply for
further economies. If the water is
heated by for example, solar panels,
this would be energy efficient.
However, if your water is heated by
electricity we would recommend
connection to cold water.

^ For most economical dishwashing,

make full use of the baskets without
overloading the dishwasher.

^ Choose the programme to suit the

type of crockery being washed and
the degree of soiling.

Caring for the environment

^ Select the Normal programme for

energy-saving dishwashing.

^

Follow the detergent manufacturer's
recommendations on detergent
dosage.

^

When using powder or liquid
detergent you can use
detergent if baskets are only half full.

1

/3less

13

Before using for the first time

To open the door

^ Pull the handle.

If the door is opened during operation
all functions are automatically
interrupted.

To close the door

Push the baskets right in.

^

Then lift the door upwards and push

^

until it clicks into position.

14

Before using for the first time

Water softener

In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level

higher than 0.7 mmol/l (4° d –
German scale) needs to be softened.

This takes place automatically in the
integrated water softener.

The water softener requires

–

dishwasher salt.
If you use combination products
which have salt in them, such as
"3 in 1" or "4 in 1" products in your
dishwasher, you should still add salt
in order to achieve optimum results.

– The dishwasher must be

programmed for the water hardness
in your area.

– Your local water authority will be able

to advise you of the water hardness
level in your area.

The dishwasher is programmed at
the factory for a water hardness level
of 0.2 mmol/l (1 °d).

If this setting corresponds to the
hardness of your water you do not need
to do anything more.

If your water is harder or softer, you will
need to programme the water hardness
level. See following section.

Where the water hardness fluctuates
e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d
German scale) always programme the
dishwasher to the higher value
(3.1 mmol/l in this example).

In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.

^

Enter the water hardness below:

mmol/l or °d

15

Before using for the first time

To programme the water hardness
level

Each time a button is pressed, one of
the indicator lights will flash and light
up in the control panel. However, only
the indicator lights mentioned in the
following programming process stages
are significant.

The programming procedure can be
cancelled at any time by pressing the
Off button V. The procedure can
then be re-started from the beginning
again.

^ Switch the dishwasher off using the

Off button V.

^ Press the programme selector button

in, and whilst holding it in switch
the dishwasher on using the On
button U.
Keep the programme selector button
pressed in for at least four seconds
until the lower right hand programme
indicator comes on.

The characters "p1" will flash one after
the other in the display.
This means that the water hardness
level has been set at 1 °d (0.2 mmol/l)
(factory setting).

The value which has been set for the
water hardness is shown as a figure
after the "p" in the display (see the
following chart).

Use the programme selector button to
select the value which corresponds to
your water hardness level.
Each press on the button moves you up
a level. When the highest water
hardness level is reached, the setting
starts from the beginning again.

^ Switch the dishwasher off with the Off

button V.

If this does not happen, start the
procedure from the beginning again.

^

Press the Turbo/Tab button twice.

The Tab indicator light will flash briefly
twice at intervals.

16

°d

German

scale

1

2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

37-45
46-60
61-70

mmol/l °f Value

0.2

0.4

0.5

0.7

0.9

1.1

1.3

1.4

1.6

1.8

2.0

2.2

2.3

2.5

2.7

2.9

3.1

3.2

3.4

3.6

3.8

4.0

4.1

4.3

4.5

4.7

4.9

5.0

5.2

5.4

5.6

5.8

5.9

6.1

6.3

6.5

6.7-8.1

8.3-10.8

11.0-12.6

2

4
5
7

9
11
13
14
16
18
20
22
23
25
27
29
31
32
34
36
38
40
41
43
45
47
49
50
52
54
56
58
59
61
63
65

67-81

83-108

110-126

displayed

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
45
60
70

Before using for the first time

To call up the water hardness
level in the display

Switch the dishwasher off with the Off

^

1

2
3
4
5
6
7
8
9

button V.

Press the programme selector button

^

in, and whilst holding it in switch
the dishwasher on using the On
button U.
Keep the programme selector button
pressed in for at least four seconds
until the lower right hand programme
indicator comes on.

Press the Turbo/Tab button twice.

^

The Tab indicator light will flash briefly
twice at intervals.

Characters will flash in sequence in the
display.
The figure(s) after the "p" is the value for
the water hardness level which has
been set (see chart).

^ Switch the dishwasher off with the Off

button V.

17

Before using for the first time

Before using the appliance for
the first time, you require:

Approx. 2 litres of water,

–

Approx. 2 kg dishwasher salt,

–

Domestic dishwasher detergent,

–

Rinse aid formulated for domestic

–

dishwashers.

Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been used
previously.

Filling the salt reservoir

If you use combination products
which have salt in them in your
dishwasher, such as "3 in 1" or
"4 in 1" products, you should still
add salt in order to achieve optimum
results and to ensure that the water
softener continues to function
correctly. Selecting the Combi tabs
option reduces salt consumption to
between
amount.

1

/3and1/4of the normal

If the water in your area is very soft
and constantly lower than

0.7 mmol/l (4 °d) you do not need
to add salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area.

Inadvertently filling the salt

,

reservoir with powder or liquid
dishwasher detergent will damage
the water softener.

Miele recommends using

,

specially designed dishwasher salt
to maximize the performance of your
dishwasher and to prevent build-up
of calcium and limescale in the
dishwasher cabinet, especially if you
live in hard water area.
Dishwasher salt can be purchased
online at www.miele-shop.com
(depending on country) or via the
Miele Spare Parts Department.

Important: Before filling the salt
reservoir with dishwasher salt for the
first time, you must fill it with
approx. 1 litre of water to enable the
salt to dissolve. Once the
dishwasher has been used, there is
always sufficient water in the
reservoir.

18

Before using for the first time

Remove the lower basket and

^

unscrew the salt reservoir cap.

Water or saline solution will run out
of the reservoir when the cap is
removed. It should therefore only be
removed in order to refill the salt
reservoir.

Fill the reservoir with approx. 2 litres

^

of water (first use only).

^

Place the funnel provided over the
salt reservoir and carefully fill with
salt until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt.

Insufficient salt indication

Fill the salt reservoir with dishwasher

^

salt when the salt indicator light
comes on. (If it comes on during a
programme, wait until the end of the
programme).

After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.

The salt indicator is deactivated when
the dishwasher has been programmed
to a water hardness level below

0.7 mmol/l (4 °d).

,

Run the Quick wash programme
immediately (without any crockery in
the dishwasher, and without
selecting the "Turbo" extra option) to
remove any traces of salt from the
cabinet.

^

Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.

^

Run the Quick wash programme im
mediately (without any crockery in
the dishwasher, and without selecting
the "Turbo" extra option) to remove
any traces of salt from the cabinet.

-

19

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.

Inadvertently filling the rinse aid

,

reservoir with powder or liquid
detergent will damage the reservoir.
Only pour rinse aid formulated for
domestic dishwashers into the
reservoir. Otherwise you will cause
serious damage to the reservoir.

Alternatively, it is possible to use

– household vinegar with a max. 5%

acid content

or

– liquid citric acid up to 10% acid

content.

Adding rinse aid

^ Press the button on the lid of the salt

reservoir in the direction of the arrow
until the flap springs open.

The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.

,

Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.

If you only ever use combination
products containing rinse aid in your
dishwasher, you do not need to add
rinse aid.

20

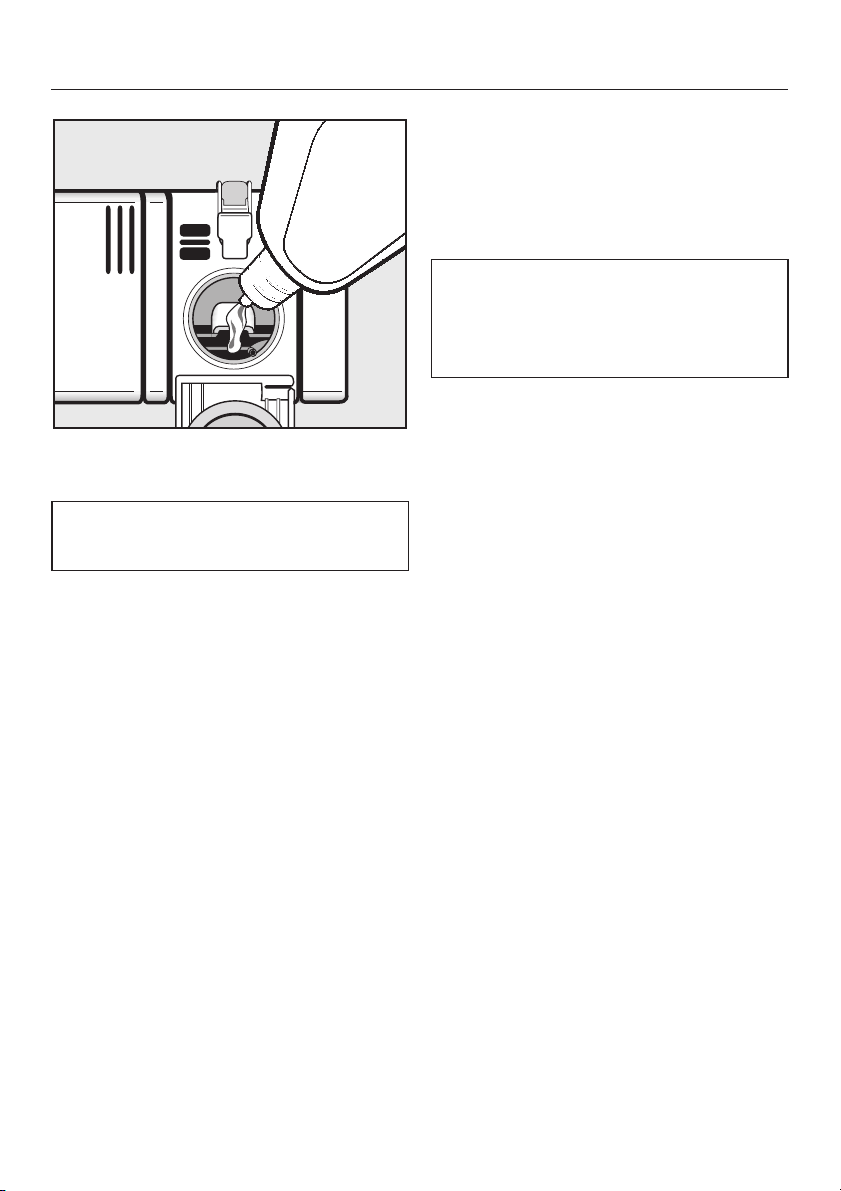

Add rinse aid only until it is visible in

^

the opening.

The rinse aid reservoir holds approx.
110 ml.

^ Close the flap firmly so that it clicks

into place. Otherwise water can enter
the rinse aid reservoir during a
programme.

Before using for the first time

Rinse aid indicator

When the light comes on the reservoir
contains sufficient rinse aid for2-3
programmes only.

Add rinse aid in plenty of time.

^

If the Tab function has been
selected, the rinse aid indicator light
will not come on (see "Additional
functions, Turbo/Tab").

^ Wipe up any spilled rinse aid. This

prevents over-foaming occurring
during the next programme.

21

Before using for the first time

Setting the rinse aid dosage

The rinse aid dosage can be set from
approx. 0-6 ml. It is set to a
recommended setting of approx. 3 ml
at the factory.

If spots appear on crockery and
glassware:

Increase the rinse aid dosage.

^

If clouding or smearing appears on
crockery and glassware:

Decrease the rinse aid dosage.

^

^ Switch the dishwasher off with the Off

button V.

^ Press the programme selector button

in, and whilst holding it in switch
the dishwasher on using the On
button U.
Keep the programme selector button
pressed in for at least four seconds
until the lower right hand programme
indicator comes on.

p3will flash in the Time display.
This means that the rinse aid dosage
has been set to 3 ml at the factory.

The dosage set will show in the Time
display after the p.

Use the programme selector button

^

to select the rinse aid dosage you
want.
The dosage amount alters each time
you press the button.

The programmed rinse aid dosage is
now stored in memory.

Switch the dishwasher off with the Off

^

button V.

If this does not happen, start the
procedure from the beginning again.

^

Press the Turbo/Tab button three
times.

The Tab indicator light will flash briefly
three times at intervals.

22

Loading the dishwasher

Note

Remove coarse food residues from
crockery.

There is no need to rinse items under
running water.

Do not wash items soiled with

,

ash, sand, wax, lubricating grease
or paint in the dishwasher.
These materials will cause damage
to the dishwasher.

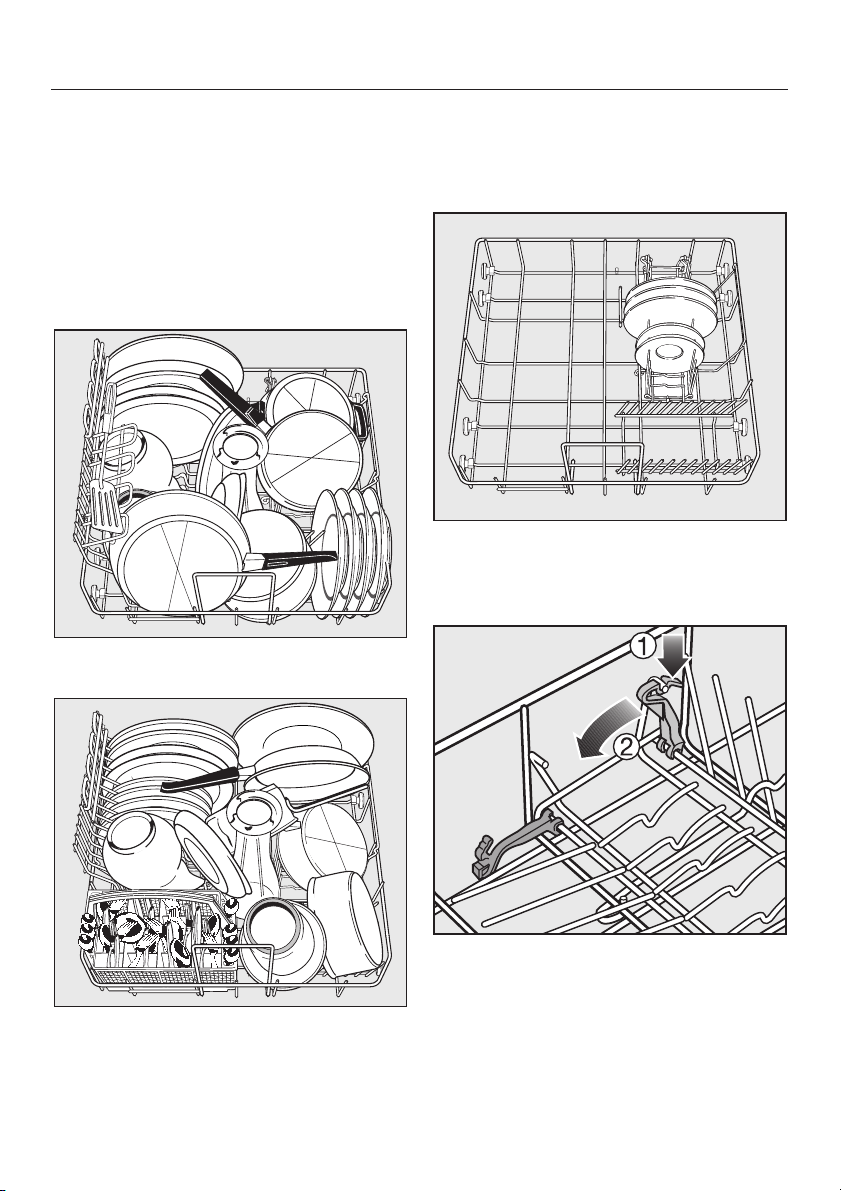

Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:

– Do not place crockery and cutlery

inside other pieces where they may
be concealed.

– Load the crockery so that water can

access all surfaces. This ensures
that they get properly cleaned.

– Make sure that all items are securely

positioned.

–

Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.

Wide based items should be placed

–

at an angle so that water can run off
them freely.

The spray arms must not be blocked

–

by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.

Make sure that small items cannot

–

fall through the holders in the
baskets.
Small items, e.g. lids, should
therefore be placed in the cutlery
tray or cutlery basket (depending on
model).

Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
tomato sauce. Plastic items in the
dishwasher may discolour if large
quantities of these foodstuffs find
their way into the appliance on the
crockery. The stability of plastic
items is not affected by this
discolouration.

–

Tall, narrow, hollow items, e.g.
champagne glasses, should be
placed in the centre of the basket to
ensure better water coverage.

23

Loading the dishwasher

Items not suitable for
dishwashers:

Wooden cutlery and crockery or

–

items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a
dishwasher.

Craft items, antiques, valuable vases

–

and decorative glassware are also
not suitable for dishwashers.

Plastic items which are not heat

–

resistant can melt or lose shape.

– Copper, brass, tin and aluminium

items may discolour or become matt.

– Colours painted over a glaze

may fade after a number of washes.

– Clouding may occur on glasses after

frequent washing. Do not wash
delicate glassware, or glassware
containing lead crystal in a
dishwasher.

We recommend:

When purchasing new crockery and

–

cutlery, make sure they are
dishwasher-proof.

If delicate glassware is washed in the

–

dishwasher ensure that only very low
temperatures are used (see
programme chart), or a special
glass-care programme is used
(depending on model). This will
reduce the risk of clouding.

Wash particularly delicate glassware

–

by hand

Please note

Silverware previously cleaned with a
silver polish may still be damp or

spotted at the end of a programme,
where water has not run off smoothly. It
may need to be rubbed dry with a soft
cloth. It may need to be rubbed dry
with a soft cloth.

Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions,
mayonnaise, mustard, pulses, fish, fish
brine and marinades.

24

,

Aluminium components (e.g.
grease filters) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage the material, or in
extreme cases, cause a severe
chemical reaction. See section
"Adding detergent" for information
on suitable detergents.

Loading the dishwasher

Upper basket

For safety reasons, do not

,

operate the dishwasher without the
upper and lower baskets in place.

^ Use the upper basket for small,

lightweight and delicate items such
as cups, saucers, glasses, dessert
bowls, etc. Shallow pans or casserole
dishes can also be placed in the
upper basket.

^

Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.

Hinged cup rack

To make room for tall items, raise the

^

rack upwards.

Positioning rail (depending on model)

Glasses can be arranged along the
positioning rail to give them some
support during the programme.

^ Raise the rail, and lean the glasses

against it.

The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.

25

Loading the dishwasher

Support rail (depending on model)

This support is designed to hold tall
glasses and glasses with stems
securely.

^ Lower the support and lean tall

glasses against it.

^ You can also remove a section of the

cutlery tray to make more room for
tall glasses.

26

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller
pieces of crockery in the bottom or
upper basket, the upper basket can be
adjusted on three levels with 2 cm
between each level.

The upper basket can also be set at an
angle with one side high and the other
side low. This can be useful to help
prevent water collecting in deep dishes
etc. Ensure, however, that the basket
can be inserted smoothly into the
cabinet. It is better to adjust the basket
before loading it.

^ Pull out the upper basket.

Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.

Dishwasher with cutlery tray

(see data plate for model number)

Upper
basket

level

G1XXX G2XXX

Top 15 19 31

Middle 17 21 29

Bottom 19 23 27

Dishwasher with cutlery basket

(see data plate for model number)

Upper
basket

level

G1XXX G2XXX

Top 20 24 31

Plate C in cm

Upper basket Lower

basket

Plate C in cm

Upper basket Lower

basket

To raise the upper basket:

^

Pull the basket up until it clicks into
place.

To lower the upper basket:

^

Pull upwards on the levers at either
side of the upper basket.

^

Adjust the basket to the desired
height and then push the levers
securely back down into position.

Middle 22 26 29

Bottom 24 28 27

27

Loading the dishwasher

Lower basket

For larger and heavier items such as

^

plates, serving platters, saucepans,
bowls, etc.
Small items such as saucers can also
be placed in the lower basket.
Do not place thin, delicate glassware
in the lower basket.

Dishwashers with cutlery tray

Hinged spikes

The spikes are used for washing plates
and saucers.

Both rows of spikes at the back can be
lowered to make more room for large
items, e.g. pots, pans and dishes.

Dishwashers with cutlery basket

28

^

Press the yellow lever downwards a,
and then lower the spikes b.

Loading the dishwasher

Removable spiked insert

You can remove the spiked insert to
make more room for larger items of
crockery, e.g. a large, flat pot, or
another type of insert.

To remove the insert a

^ Pull it upwards by the handle as

shown.

Bottle holder (depending on model)

The bottle holder can be used to wash
narrow items, e.g. milk and baby
bottles.

^ Place the bottle holder in the position

shown in the bottom basket. If
placed anywhere else, water will not
be able to access the bottle properly,
and cleaning results will be impaired.

To replace the insert b

^

Fit the insert into the lower basket
with the hooks going under the long
cross-piece as illustrated.

^

Press down on the handle until the
insert is held securely in position.

29

Loading the dishwasher

Cutlery

Cutlery tray (depending on model)

^ Arrange the cutlery in the tray as

shown.

To make unloading much easier,
cutlery should be grouped in zones,
one for knives, one for forks, one for
spoons, etc.

If spoon handles do not fit between the
holders, then lay them the other way
round.

Spoon heads should be placed in
contact with at least one of the serrated
retainers on the base of the cutlery tray
to ensure that water runs off them
freely.

The upper spray arm must not be
blocked by items which are too big.

The cutlery tray inserts are removable.
For example, you can remove one
insert to make room for larger items of
crockery in the upper basket.

30

Cutlery basket (depending on model)

^ To avoid the risk of injury, knives and

forks should be placed with the
handles upwards in the basket.
However, cutlery placed handle
down in the basket will come out
cleaner and drier.

^ Place small spoons in the individual

slots to either side of the cutlery
basket.

Loading the dishwasher

Fit it into the cutlery basket if

^

required.

Cutlery insert for the cutlery basket

Use the insert supplied for heavily
soiled spoons.
The insert separates the items so that
they can be more easily accessed by
water.

^

Insert cutlery with the handles facing
downwards, and distribute them
evenly along the insert.

31

Operation

Detergent

Only use detergents formulated

,

for domestic dishwashers. Do not
use washing-up liquid.

Active ingredients

Modern detergents contain various
active ingredients, the most important
of which are:

Phosphates to prevent calcification.

–

Alkalis to aid removal of dried on

–

soiling.

– Enzymes to break down starch and

loosen protein.

– Oxygen based bleaching agents to

remove coloured stains (e.g. tea,
coffee, tomato sauce).

Most dishwasher detergents contain
phosphates and are mildly alkaline with
enzymes and oxygen based bleaching
agents. Phosphate free products are
rare.

Types of detergent:

–

Powder and liquid gel detergents.
These detergents allow you to adjust
the amount dispensed according to
the size of load and level of soiling.

–

Tab detergents. These are suitable
for most levels of soiling.

Miele branded dishwasher powder
and tabs are available from the Miele
Spare Parts Department or via the
Internet, depending on country.

A variety of combination products is also
available (see section "Additional
functions, Combi-tab", depending on
model).
In addition to detergent, combi tabs
contain rinse aid and salt substitutes.
Combi tabs are available as "3 in 1" or,
when they also contain other components
such as glass and stainless steel
protective additives and enhanced
cleaning power, as "4 in 1", "5 in 1" etc.
Refer to the manufacturer's packaging as
to whether the combi tabs are suitable for
the water hardness level in your area.
Please note that the cleaning and drying
results of tab detergents can vary greatly.

For optimum cleaning and drying
results use Miele dishwasher
detergent and add Miele salt and
Miele rinse aid separately.

Under certain circumstances
unsatisfactory washing and drying
results might be noticed when using
combination dishwasher detergents.
These products contain a combination
of detergent and rinse aid or detergent
and salt (2 in 1) or detergent, rinse aid
and salt (3 in 1). Drying results might
not be as good as expected or
residues or flecks might be left on
crockery. If results are still
unsatisfactory, even after seeking
advice from the detergent
manufacturer, we suggest that you
change to a different product or use a
traditional dishwasher detergent.

32

Dispensing

Follow the dosage recommended by

^

the manufacturer on the packaging.

Unless directed otherwise, use one

^

detergent tab or add 20 to 30 ml
detergent in compartment II,
depending on the level of soiling.
With very heavy soiling you can also
add a small amount of detergent to
compartment l (see "Programme
chart").

Do not use tabs with the "Quick"

^

programme, as they will not dissolve
properly.

Failure to dispense the
recommended amount of detergent
may impair cleaning results.

Operation

Avoid inhalation of powder

,

detergents and do not ingest
dishwasher detergent. Dishwasher
detergents contain irritant or corrosive
ingredients which can cause burning
in the nose, mouth and throat if
swallowed, or inhibit breathing.
Consult a doctor immediately if
detergent has been swallowed or
inhaled.
Keep detergent and other household
agents out of the reach of children at
all times. Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet. To avoid the danger of
children coming into contact with the
dishwasher detergent, only add
detergent just before starting the
programme and close the door,
activating the child safety lock (if your
dishwasher is fitted with one).

33

Operation

Adding detergent

^ Press the opening catch on the

detergent dispenser. The flap will
spring open.

The flap is always open at the end of a
programme.

Make sure that the detergent

^

packaging is properly closed after
use to avoid it getting damp and
becoming lumpy.

For information

Compartment I holds max. 10 ml,
Compartment II holds max. 50 ml.

There are markings in compartment II
to assist with dispensing: 20, 30. The
marks indicate a level of approx. 20 or
30 ml when the door is open in a
horizontal position.

^

Add the required amount of
detergent and close the flap.

34

Operation

Switching on

Open the tap, if it is closed.

^

Open the door.

^

Make sure the spray arms are not

^

obstructed.

Switch the dishwasher on with the On

^

button U.

The On indicator light U and the indicator
for the last used programme light up.

Selecting a programme

Choose your programme according to
the type of load and how dirty it is.

The different programmes and their
uses are described in the Programme
chart later on in this booklet.

Starting a programme

Select the programme required with

^

the programme selector button.

The indicator light for the programme
selected lights up.
The programme duration will appear in
hours and minutes in the display.
If the Turbo and/or Combi tabs
functions have been selected, the
corresponding indicator(s) will also light
up.

You can now select an additional
function (see Additional functions).

^ Start the programme by closing the

door.

The In-operation indicator light comes
on to show that a programme has been
started.

A programme can only be cancelled
in the first few minutes. Otherwise
the programme must continue to the
end so that important programme
stages (e.g. reactivating the water
softener) are not omitted.

35

Operation

Time display

The duration of the programme
selected appears in hours and minutes
in the Time display before the
programme begins. During the
programme, the time left until the end of
the programme is displayed.

The time displayed may vary with the
same programme. This could be due to
the water temperature at each intake,
the reactivation cycle and the amount
of crockery and how dirty it is.

When a programme is selected for the
first time, the display shows an average
time for a cold water intake.

The times shown in the Programme
chart refer to standard test loads and
temperatures.

Each time a programme is run, the
electronic unit adjusts the programme
duration according to the amount of
crockery and the temperature of the
incoming water.

At the end of a programme

At the end of a programme, the
In-operation indicator light will be
visible flashing slowly with the door
shut.

When the door is opened a "0" will
appear in the Time display.

You can now empty the dishwasher.

The In-operation indicator light will go
out one hour after the end of the
programme.

To prevent the risk of steam

,

damage to the worktop edging
above the dishwasher, it is
advisable to leave the door closed
until you are ready to unload the
crockery. Alternatively you can open
the door fully until the crockery is
cool enough to unload. Do not leave
the door only partially open.

To save energy, the time display
goes out after a few minutes if you do
not press any buttons during this
time. Press any button (apart from the
Off button V) to switch the time
display back on again.

Glass care indicator

The green Glass care indicator light will
come on when you select a programme
that is suitable for glassware.

36

Operation

Switching off

At the end of a programme:

Open the door.

^

Switch the dishwasher off with the Off

^

button V.

The dishwasher will continue to use
electricity until it is switched off with
the Off button V.

If the dishwasher is not going to be
used for a longer period of time, e. g.
whilst on holiday, the tap should be
turned off.

Unloading the dishwasher

Dishes tend to break and chip more
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.

If you open the door fully after switching
off, the dishes will cool much faster.

First unload the lower basket, then the
upper basket and finally the cutlery tray
(depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.

37

Operation

Interrupting a programme

A programme is interrupted as soon as
the door is opened.
When the door is closed again, the
programme will continue from the point
it was at before the door was opened.

Water in the dishwasher may be

,

hot. Danger of scalding.
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before
closing the door again, leave it ajar
for approx. 20 seconds. This will
enable the temperature in the wash
cabinet to settle. Then close the
door firmly, making sure that it clicks
into place.

Changing a programme

If the detergent dispenser flap has
already opened, do not change the
programme.

If a programme has already started and
you wish to change it, proceed as
follows:

Open the door.

^

Press the Off button V.

^

Press the On button U.

^

Select the programme required with

^

the programme selector button.

^ Start the programme by closing the

door.

The In-operation indicator light comes
on to show that a programme has been
started.

38

Additional functions

Turbo/Tab

The Turbo/Tab button is used for
selecting the Turbo and Tab options.

Open the door.

^

Switch the dishwasher on with the On

^

button U.

The On indicator light U comes on.

Press the Turbo/Tab button

^

repeatedly until the indicator light for
the option you want comes on.

The option selected is active on all
programmes until the setting is
changed.

^ You can now start a programme or

switch the dishwasher off using the
Off button V.

Turbo

The "Turbo" function is used to reduce
the duration of programmes in which
this function is available.

In order to achieve optimum cleaning
results consumption rates are
increased with this option.

If a full programme is not yet required,
the Turbo function can be used in
conjunction with the Quick wash
programme to rinse off dirty crockery.

Combi tab

To ensure excellent results you can
programme your dishwasher for the
type of detergent you are using.
The Turbo/Tab button is used for
selecting the Turbo and Tab options.

The programme sequence and duration
will be adjusted for the type of
detergent selected. Depending on the
programme, the duration can be
considerably longer.

If the Tab indicator does not light up,
the dishwasher is set for standard
detergent.

If the Tab indicator lights up, the
programme sequence will be adapted
to suit detergents that contain rinse aid
and salt as well as other components
where applicable.
The rinse aid dispenser and the rinse
aid indicator light are deactivated.
Salt consumption for reactivating the
water softener is reduced to
the normal amount.

Do not select the Tab option if your
water hardness level is above

3.8 mmol/l or 21°d.
Follow the detergent manufacturer's
instructions.

The cleaning and drying
performance of these types of
detergent can vary enormously.

1

/3to1/4of

39

Additional functions

Delay start

The start time of a programme can be
delayed, e.g. to benefit from economy
rates of electricity. A delay start time of
between half an hour and 24 hours can
be selected.

With a delay start time of between 30
minutes and 9 hours 30 minutes, the
delay is set in 30 minute stages. For 10
hours or more, it is set in one hour
stages.

When using the Delay start function,
make sure that the detergent
compartment is dry before adding
detergent. Wipe dry with a cloth if
necessary. If the compartment is
wet, powder detergent can become
lumpy and stick to the dispenser,
with the result that it is not fully
dispensed. Do not use liquid
detergent when selecting Delay
start, as it can run into the
dishwasher before it is required.

Open the door.

^

Switch the dishwasher on with the On

^

button U.

The On indicator light U comes on.

Select the programme required with

^

the programme selector button.

Press the , button.

^

The last Delay start time used will
appear in the Delay start display. The
On indicator light , comes on.

Set the required time using the ,

^

button.

If the button , is kept pressed in, the
time will increase automatically up to
24^. To start again with 30 minutes,
press the , button twice.

^ Close the door.

40

Additional functions

The time starts counting down until the
programme start time: in 1 hour steps
for delay start periods of over 10 hours,
and in minutes for delay start periods of
under 10 hours.

When the set time is reached, the
programme selected will begin
automatically. The time left for a
programme to run then shows in the
display, the indicator light , goes out
and the ndicator light for the selected
programme comes on.

How the Delay start time is shown in
the display:

up to 59 minutes:
e.g. 30 minutes = 30

1 hour up to 9 hours 30 minutes
e.g. 5 hours = 5.00

more than 10 hours:
e.g. 15 hours = 15^

Starting a programme before the
Delay start period has elapsed:

Proceed as follows:

Open the door.

^

Press the V button.

^

Press the U button.

^

Select the programme required with

^

the programme selector button.

Close the door.

^

The In-operation indicator lights up. The
programme will begin.

41

Additional functions

Buzzer

An audible tone sounds at the end of
the programme or if there is a fault.

You will hear the buzzer at the end of a
programme in bursts of five with a short
pause in between. The buzzer will
continue to sound for up to an hour if
you do not switch the dishwasher off.

In the event of a fault, the buzzer will
sound continuously for up to two
minutes if you do not switch the
dishwasher off or correct the fault.

The buzzer is activated as standard at
the factory.
You can deactivate the buzzer at the
end of a programme if you wish. The
buzzer will still sound if there is a fault,
even if it has been deactivated.

^ Open the door.

Press the Turbo/Tab button four

^

times.

The Tab indicator light will flash briefly
four times at intervals.

The message flashing in the Time left
display shows whether the buzzer at
the end of the programme is activated
or deactivated.

"p 1": The buzzer is activated.

–

"p0": The buzzer is deactivated.

–

To change the setting, press the

^

programme selector button.

The setting is now stored in memory.

^ Switch the dishwasher off with the Off

button V.

^ Switch the dishwasher off with the Off

button V.

^ Press the programme selector button

in, and whilst holding it in switch
the dishwasher on using the On
button U.
Keep the programme selector button
pressed in until the lower right hand
programme indicator comes on.

If this does not happen, start the
procedure from the beginning again.

42

Additional functions

Factory default setting

If you have altered any settings from
the factory default, you can re-set them
back to the factory default settings as
follows:

Open the door.

^

Switch the dishwasher off with the Off

^

button V.

Press the programme selector button

^

in, and whilst holding it in switch
the dishwasher on using the On
button U.
Keep the programme selector button
pressed in until the lower right hand
programme indicator comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Turbo/Tab button twelve

times.

The Tab indicator light will give one
long flash and two brief flashes at
intervals.

The flashing sequence in the Time
display shows whether a setting other
than the factory default setting has
been set.

"p1": All settings are set to factory

–

default settings.

"p0": At least one setting has been

–

changed.

To reset to the factory default

^

settings, press the programme
selector button.

The setting is now stored in memory.

^ Switch the dishwasher off with the Off

button V.

43

Additional functions

Adjust Sensor wash

You can adjust the Sensor wash
programme so that it will remove
stubborn soiling in a lightly soiled load.

Open the door.

^

Switch the dishwasher off with the Off

^

button V.

Press the programme selector button

^

in, and whilst holding it in switch
the dishwasher on using the On
button U.
Keep the programme selector button
pressed in for at least four seconds
until the lower right hand programme
indicator comes on.

If this does not happen, start the
procedure from the beginning again.

^ Press the Turbo/Tab button five

times.

The Tab indicator light will flash briefly
five times at intervals.

The message flashing in the Time
display shows whether the Adjust
Sensor wash function is activated or
deactivated.

"p1": The Adjust Sensor wash

–

function is activated.

"p0": The Adjust Sensor wash

–

function is deactivated.

To change the setting, press the

^

programme selector button.

Switch the dishwasher off with the Off
button V.

44

Check the condition of your
dishwasher regularly (approx. every
4 - 6 months). This way faults and
problems can be avoided.

The outer surfaces of the

,

dishwasher are susceptible to
scratching.
Contact with unsuitable cleaning
agents can alter or discolour the
outer surfaces.

Cleaning the wash cabinet

The wash cabinet is largely
self-cleaning, provided that the correct
amount of detergent is always used.

If, however, there are limescale or
grease deposits in the cabinet, these
can be removed with a proprietary
dishwasher cleaner or conditioner.

Cleaning and care

Cleaning the door and the door
seal

Wipe the door seals regularly with a

^

damp cloth to remove food deposits.

When the dishwasher is being

^

loaded, food and drink residues may
drip onto the sides of the dishwasher
door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms. Any
soiling should be wiped off these
surfaces before the door is closed.

Cleaning the reflector panel

The reflector panel for the In-operation
indicator light is situated in the
coverplate underneath the worktop.

^ The reflector panel should only be

wiped with a damp cloth or a suitable
cleaning agent designed for use on
plastic.

45

Cleaning and care

Cleaning the control panel and
door front

Remove any soiling immediately.

,

If not, it might become impossible to
remove and could cause the outer
surface to alter or discolour.

The control panel should only be

^

wiped with a damp cloth.

Clean stainless steel surfaces using a

^

microfibre cloth or with a solution of
warm water and a little washing-up
liquid applied with a soft sponge.
Wipe the surfaces dry using a soft
cloth.

To avoid damaging the outer surface,
do not use:

cleaning agents containing soda,

–

ammonia, acids or chlorides

cleaning agents containing

–

descaling agents,

abrasive cleaning agents, e.g.

–

powder cleaners and cream
cleaners,

solvent-based cleaning agents,

–

stainless steel cleaners

–

dishwasher cleaner,

–

– oven sprays

– glass cleaning agents,

– hard, abrasive sponges and

brushes, e.g. pot scourers

– sharp metal scrapers

46

Checking the filters in the
wash cabinet

The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it
accessing the circulation system and
re-entering the cabinet through the
spray arms.

This dishwasher must not be

,

used without all the filters in place.

Collection of coarse soil may cause the
filters to clog. The level of soiling and
time it takes before the filters need
cleaning will vary depending on use.

You should check the filters regularly.
This dishwasher has a "Check filter"
indicator light which comes on after
every 40 programme cycles as a
reminder to check the filters in the wash
cabinet.

^ Check the filter combination

whenever the "Check filter" indicator
light comes on.

Cleaning and care

Cleaning the filters

^ Switch the dishwasher off.

^ Turn the handle anti-clockwise to

release the filter combination a.

^ Lift the filter combination out of the

dishwasher b. Remove any coarse
particles and rinse the filter well
under running water. Use a nylon
brush if necessary.

^

Clean it, if necessary.

The "Check filter" indicator light will go
out when the dishwasher is switched
off.

47

Cleaning and care

To clean the inside of the filter, the flap
must be opened:

^ Press catches a together in the

direction of the arrows as shown,
and open the filter b.

^ Rinse all the filters under running

water.

^ Then close the flap so that the catch

engages.

Replace the filter combination so that

^

it lies flat in the base of the wash
cabinet.

^ Then turn the handle clockwise until

both arrows point towards each
other. This will lock the filter
combination in place.

,

Take care when you are fitting
the filter combination that it is
secured in position correctly.
Otherwise coarse soil could get into
the circulation system and cause a
blockage.

48

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).

Switch the dishwasher off.

^

Remove the spray arms as follows:

Take out the cutlery tray (if your

^

dishwasher is fitted with one).

Push the top spray arm upwards to

^

engage the inner ratchet. Then
unscrew the spray arm.

Remove the lower basket.

^

^ Pull the lower spray arm firmly

upwards to remove it.

^

Push the middle spray arms upwards
a to engage the ratchet. Then
unscrew the spray arm b.

^

Use a pointed object to push food
particles into the spray arm jets.

^

Rinse thoroughly under running
water.

^

Replace the spray arms and check
that they rotate freely.

49

Problem solving guide

With the aid of the following guide, minor problems can be easily corrected
without contacting Miele.

The following information may help you to find the reason for a fault, and to correct
it. Please note:

Installation work and repairs to electrical appliances must only be carried

,

out by a suitably qualified and competent person in strict accordance with
current local and national safety regulations. The manufacturer cannot be held
liable for unauthorised work.

Technical problems

Problem Possible cause Remedy

The dishwasher does
not start.

The dishwasher
stops during a
programme.

After the programme
has started, the
In-operation indicator
light is not visible.

The door is not properly
closed.

The appliance is not
plugged in.

The fuse is defective or
has tripped.

The appliance is not
switched on.

The fuse is defective or
has tripped.

The reflector panel was
not correctly fitted.

Push the door firmly shut.

Insert the plug and switch on
at the socket.

Reset or replace the fuse.
(Minimum fuse rating - see
data plate).

Press the On button U and
select a programme.

Reset or replace the fuse.

Re-fit the reflector panel
correctly (see Installation
diagram).

50

Problem solving guide

Problem Possible cause Remedy

The In-operation
indicator is flashing
quickly.
The buzzer is sounding.
All the programme
indicators flash when
the door is open.
Fault code FXX shows in
the display.

The drain pump works
even when the door is
open.

There may be a
technical fault.

Fault F70:
The Waterproof System
has reacted.

Switch the dishwasher off
with the Off button V.

After a few seconds:

Switch the dishwasher on.

–

Select the programme

–

required with the
programme selector
button.

Close the door.

–
If the indicator lights flash

again, there is a technical
fault.

– Call the Miele Customer

Contact Centre.

– Close the tap.
– Call the Miele Customer

Contact Centre.

51

Problem solving guide

The dishwasher does not fill/drain

Problem Possible cause Remedy

The In-operation
indicator is flashing
quickly.
The buzzer is
sounding.
The Inlet/Drain
indicator flashes when
the door is open.

The dishwasher stops
during a programme.
The In-operation
indicator is flashing
quickly.
The buzzer sounds.
The Inlet/Drain
indicator flashes when
the door is open.
Fault code FXX shows
in the display.

The tap is
closed.

Fault F12/F13:
Water intake is
restricted.

Fault F11:
Water outlet is
restricted, water
remains in the
wash cabinet at
the end of a
programme.

Open the tap fully.

–

Before rectifying the problem you
must:

– Switch the dishwasher off with

the Off button V.

– Open the tap fully.
– Clean the water inlet filter (see

Maintenance).

– The water pressure at the intake

is lower than 30 kPa (0.3 bar).

Seek professional advice.

– Clean the filter combination. See

Cleaning and care.

–

Clean the drain pump. See

Maintenance.

–

Clean the non-return valve. See

Maintenance.

–

Remove any kink in the drain

hose.

52

Problem solving guide

General problems

Problem Possible cause Remedy

The display is dark. The display has

switched off
automatically to save
energy (Stand-by
mode).

The In-operation
indicator is flashing
quickly.
The Spray arm
indicator light flashes
when the door is
open.

Items are blocking
the path of the middle
or the bottom spray
arm.

The middle or bottom
spray arm jets are
blocked.

Press any button.
Standby comes to an end.

Open the dishwasher door and
rearrange the items which are
obstructing the spray arm.

Switch the dishwasher off with

–

the Off button V.

Then:
– Clean the spray arm. See

Cleaning and care.

53

Problem solving guide

Problem Possible cause Remedy

Detergent residue is
left in the dispenser
at the end of a
programme.

The detergent
dispenser lid cannot
be closed properly.

At the end of a
programme there is a
film of moisture on
the inside of the door
and the interior walls.

Water remains in the
wash cabinet at the
end of a programme.

The dispenser was
still damp when
detergent was added.

Clogged detergent
residue is blocking
the catch.

This is caused by the
drying system and
does not indicate a
fault.

The filter combination
in the wash cabinet is
clogged.

The drain pump or
non-return valve may
be blocked.

The drain hose is
kinked.

Make sure the dispenser is dry
before adding detergent.

Clean the detergent from the
catch.

The moisture will dissipate after a
short while.

Before rectifying the problem you
must:

– Switch the dishwasher off with

the Off button V.

Clean the filter combination. See
Cleaning and care.

Clean the drain pump or the
non-return valve. See
Maintenance.

Remove any kink from the drain
hose.

54

Problem solving guide

Noises

Problem Possible cause Remedy

Knocking noise in the
wash cabinet.

Rattling noise in the
wash cabinet.

Knocking noise in the
water pipes.

A spray arm is knocking
against an item in a
basket.

Items of crockery are
insecure in the wash
cabinet.

This may be caused by
the on-site installation or
the cross-section of the
piping.

Interrupt the programme,
and rearrange the items
which are obstructing the
spray arm.

Interrupt the programme,
and rearrange the items of
crockery.

This has no influence on
dishwasher function. If in
doubt, contact a suitably
qualified plumber.

55

Problem solving guide

Unsatisfactory washing result

Problem Possible cause Remedy

The dishes are not
clean.

Smearing appears
on glassware and
cutlery, there is a
bluish sheen on
the surface of
glassware; film can
be wiped off.

The dishes were not loaded
correctly.

The programme was not
powerful enough.

There is some stubborn
soiling although most of the
crockery is only lightly soiled
(e.g. with tea stains).

Not enough detergent was
dispensed.

Items are blocking the path
of the spray arms.

The filter combination in the
base of the wash cabinet is
not clean or is not correctly
fitted. This may cause the
spray arm jets to get
blocked.

The non-return valve is open
and blocked. Dirty water has
flowed back into the wash
cabinet.

The rinse aid dosage is set
too high.

See notes in "Loading the
dishwasher"

Select a more intensive
programme. See
"Programme chart".

Use the "Adjust Sensor
wash" function (see
"Additional functions").

Use more detergent, or
change your detergent.

Rearrange the items so that
the spray arms can rotate
freely.

Clean and/or fit the filter
combination correctly. Clean
the spray arm jets. See
"Cleaning and care".

Clean the drain pump and
the non-return valve. See
"Cleaning the drain pump
and non-return valve".

Reduce the dosage. See
"Before using for the first
time - Rinse aid".

56

Problem solving guide

Problem Possible cause Remedy

Dishes, cutlery
and glasses are
not dry or are
flecked.

White residue is
visible on cutlery
and crockery,
clouding occurs
on glassware; film
can be wiped off.

The amount of rinse aid
may be insufficient, or the
rinse aid reservoir empty.

Crockery was taken out of
the cabinet too soon.

Combination tabs have
been used which have
impaired drying
performance.

The "Tab" function has been
selected, but the wrong
type of detergent was used.

Not enough rinse aid was
used.

There is no salt in the salt
reservoir.

The salt reservoir cap has
not been screwed on
correctly.

An unsuitable combination
detergent has been used.

The water softener is
programmed to a setting
which is too low.

Replenish the reservoir,
increase the dosage or
change the brand of rinse aid.
See "Before using for the first
time".

Leave it in for longer. See
"Operation".

Set the Tab function to
"Normal", and fill the rinse aid
reservoir with rinse aid. See
"Additional functions".

Set the Tab function to the
detergent product being used
(see "Additional functions").

Increase the dosage. See
"Before using for the first time

- Rinse aid".

Fill the salt reservoir. See
"Before using for the first time

- Filling the salt reservoir".

Replace it, making sure that it
screws back on correctly.

Change your detergent. Use a
standard liquid, tablet or
powder detergent.

Select a higher water softener
setting. See "Before using for
the first time".

57

Problem solving guide

Problem Possible cause Remedy

Glassware has a
brown or blue tinge,
and film cannot be
wiped off.

Glassware is dull and
discoloured; film
cannot be wiped off.

Tea or lipstick stains
have not been
completely removed.

Plastic items are
discoloured.

There are rust stains
on cutlery.

This may be caused by the
detergent.

The glassware is not
dishwasher-proof. The
surfaces are affected.

The wash temperature of
the selected programme
was too low.

The bleaching effect of the
detergent used is too low.

Natural dyes e.g. from
carrots, tomatoes or
ketchup may be the cause.
The amount of detergent
used or its bleaching effect
was not sufficient to deal
with natural dyes.

The affected items are not
corrosion resistant.

A programme was not run
after dishwasher salt was
added. Traces of salt have
got into the wash cycle.

The salt reservoir cap has
not been screwed on
correctly.

Change your detergent.

There is no remedy.
Purchase glassware which
is dishwasher-proof.

Select a programme with a
higher wash temperature.

Change your detergent.

Use more detergent. See
"Operation".
Discolouration is irreversi­ble.

There is no remedy.
Purchase cutlery which is
dishwasher-proof.

Always run the "Quick
wash" programme, without
any crockery in the
dishwasher and without
selecting the "Turbo"
function, after adding
dishwasher salt.

Replace it, making sure
that it screws back on
correctly.

58

Cleaning the water inlet filter

A filter is incorporated in the screw
connection of the valve on the water
inlet hose. The filter must be cleaned
when dirty, otherwise insufficient water
flows into the wash cabinet.

The plastic housing of the water

,

connection contains an electrical
component. It must not be dipped in
water.

Recommendation

Maintenance

If the mains water contains a large
amount of insoluble substances, we
recommend fitting a large-area filter in
the connection between the tap and the
water inlet hose threaded union. This
filter is available from the Miele Spares
Parts Department.

Cleaning the filter:

^ Disconnect the dishwasher from the

mains supply. Switch off at the mains
socket and withdraw the plug.

^

Close the tap.

^

Unscrew the inlet hose.

Carefully remove the seal.

^

^ Withdraw the filter using pointed

pliers and rinse clean under running
water.

^ Replace the filter and seal, making

sure they are sitting correctly.

^ Reconnect the inlet hose to the tap,

making sure it goes on correctly and
is not cross-threaded.

^

Turn on the tap gradually to test for
leaks. If there is a leak, the inlet hose
might not be on securely, or it may
have been screwed on at an angle.
Unscrew and reconnect the water
inlet valve correctly.

59

Maintenance

Cleaning the drain pump and
non-return valve

If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean.

Disconnect the dishwasher from the

^

mains supply. Switch off at the mains
socket and withdraw the plug.

Take the filter combination out of the

^

wash cabinet (see "Cleaning and
care - Cleaning the filters in the wash
cabinet").

^ Scoop the water out of the cabinet

using a suitable container or utensil.

The drain pump is situated under the
non-return valve (see arrow).

^ Remove all foreign objects from the

drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause
injury). Turn the drain pump impeller
by hand to check that there are no
more obstructions. You will feel a little
resistance when you turn the
impeller.

^

Press the catch for the non-return
valve inwards a.

^

Lift out the non-return valve b, and
rinse well under running water.

^

Remove all foreign objects from the
non-return valve.

60

^

Carefully replace the non-return valve
and secure it with the catch.

,

Ensure that the catch engages
correctly.

Comparison tests

Test standard: AS/NZS 2007.1:2005, AS/NZS 2007.2:2005;

AS/NZS 6400:2005

Standard programme for
energy label comparison tests: Normal

Capacity: 12/14 place settings

(depending on model)

Amount of detergent: 12 place settings: 5 g in compartment I,

25 g in compartment II

14 place settings: 5 g in compartment I,

27,5 g in compartment II

Rinse aid dispensing: Setting 3 (approx. 3 ml)

Drying measurements: Door ajar using a block of approximately

50 mm upon completion of dry test.

Loading examples

Pictures illustrating how to load the dishwasher are shown on the following pages.

61

Comparison tests

Model types G 1xxx with a cutlery tray (12 place settings):

Upper basket

Lower basket

Cutlery tray

62

Comparison tests

Model types G 2xxx with a cutlery tray (14 place settings):

Upper basket

Lower basket

Cutlery tray

63

Programme chart

Crockery type Soiling Programme

mixed,

non-sensitive crockery

glasses and plastic

containers, sensitive to

high temperatures

mixed crockery

pots, pans,

non-sensitive crockery

and cutlery

normal soiling

light soiling

normal,

lightly dried soiling

heavyly soiled,

dried on soiling,

starchy or albuminous

food residues

variable,

sensor controlled wash

shortened cycle

short cycle

variable,

sensor controlled wash

with glass care

average

programme values

shortened cycle

water- and

energy-saving cycle

1)

maximum wash power

shortened cycle

all types of crockery

1)

Potatoes, rice, noodles or stews can leave starchy soiling on crockery. Meat, fish, eggs or
casseroles can leave albuminous soiling on crockery.

which give off a strong smell

crockery

cold rinse–

Pre-wash

64

Programme chart

Programme Detergent

2)

Compartment I

Compartment II

2)

Sensor wash

+ Turbo

Quick wash 40°C

Sensor wash gentle #

Light soiling 50 °C

+ Turbo

Normal

Pots & pans 75 °C

+ Turbo

–

–

–

–

–

10 ml

25 ml

or

1 Tab

20 ml

or

1 Tab

20 ml

or

1 Tab

25 ml

or

1 Tab

25 ml

or

1 Tab

25 ml

or

1 Tab

3)

Quick wash 40°C

+ Turbo

2)

see "Detergent"

3)

Sometimes tabs don't fully dissolve.

––

65

Programme chart

G 1XXX

Programme Programme sequence

Pre-wash Main wash

°C

Interim rinse Final rinse°CDrying

12

Sensor wash Variable programme sequence,

Quick wash 40 X 45 X

Sensor wash
gentle #

Light Wash 50°C 50 X 65 X

1)

Normal

Pots & pans 75°C X 75 X 65 X

1) Standard programme for energy labelling

2) The drying phase continues for a further 20 minutes as long as the door is kept closed at the end
of the programme cycle.

sensor controlled adjustment to amount of crockery and soiling

if required 45-65 if required 65 X

Variable programme sequence with glass care,

sensor controlled adjustment to amount of crockery and soiling

if required 40-48 if required 55 X

X50 50X

2)

66

Programme chart

Consumption Duration

Energy Water

Cold water

20 °C

kWh

0,95-1,30 0,65-0,95 8-17 1:36-2:38 1:23-2:21

0,50 0,15 10 0:38 0:27

0,65-0,90 0,35-0,45 10-17 1:26-2:02 1:17-1:43

1,00 0,70 10 1:36 1:23

0,74 0,38 11 2:44 2:35

1,45 1,05 13 2:38 2:27

The durations given can vary depending on individual circumstances.

Hot water

60 °C

kWh

Litres Cold water

20 °C
h:min

Hot water

60 °C
h:min

67

Programme chart

G 2XXX

Programme Programme sequence

Pre-wash Main wash

°C

Interim rinse Final rinse°CDrying

12

Sensor wash Variable programme sequence,

Quick wash 40 X 45 X

Sensor wash
gentle #

Light Wash 50°C 50 X 65 X

1)

Normal

Pots & pans 75°C X 75 X 65 X

1) Standard programme for energy labelling

2) The drying phase continues for a further 20 minutes as long as the door is kept closed at the end
of the programme cycle.

sensor controlled adjustment to amount of crockery and soiling

if required 45-65 if required 65 X

Variable programme sequence with glass care,

sensor controlled adjustment to amount of crockery and soiling

if required 40-48 if required 55 X

X50 50X

2)

68

Programme chart

Consumption Duration

Energy Water

Cold water

20 °C

kWh

0,95-1,35 0,70-1,00 8-17 1:36-2:38 1:23-2:21

0,55 0,20 10 0:38 0:27

0,70-0,95 0,40-0,50 10-17 1:26-2:02 1:17-1:43

1,05 0,75 10 1:36 1:23

0,84 0,41 12,7 2:32 2:18

1,50 1,10 13 2:38 2:27

The durations given can vary depending on individual circumstances.

Hot water

60 °C

kWh

Litres Cold water

20 °C
h:min

Hot water

60 °C
h:min

69

After sales service

Repairs

In the event of any faults that you
cannot remedy yourself, please
contact:

Your Miele Chartered Agent, or

–

the Miele Customer Contact Centre

–

You find the telephone number of
the Miele Customer Contact Centre
on the back cover of the manual.

When contacting your Chartered

^

Agent or the Miele Customer Contact
Centre, please quote the model type
and number of your appliance, both
of which are shown on the data plate
on the right hand side of the door.

Future updates

The programme update function is
designed to enable a service
technician to update your appliance's
electronics in keeping with advances in
technology.

Information regarding programme
updates will be made known by the
Miele Company as and when such
developments become available.

70

Optional accessories

To make the most of your dishwasher

Optional accessories for particular purposes are available from your Miele
Chartered Agent or the Spare Parts Department (some may be supplied as stan
dard, depending on model).

If you would like to … you will need to order …

… wash long-stemmed glassware … a glassware insert for the upper

basket

-

... wash bottles,
e. g. milk or baby bottles

… wash additional items of cutlery … a small cutlery basket for the lower

... wash a lot of glasses … a glassware insert for the lower

... wash large plates ... an insert for plates up to:

… a bottle holder

basket

basket

- 33 cm diameter

- 35 cm diameter

71

Electrical connection

Please follow the installation

,

instructions carefully.
All electrical work should be carried
out only by a suitably qualified and
competent person, in strict
accordance with national and local
safety regulations.
Ensure power is not supplied to the
appliance while installation work is
being carried out.

This dishwasher is supplied with a
mains cable and moulded plug ready
for connection to an a.c. single phase
supply, (230 -240 V 50 Hz for NZ and
Australia) via a fused plug and suitable
switched socket which is easily
accessible after installation.

^ The voltage, rated load and fuse

rating are given on the data plate
located above the door. Please
ensure that these match the
household mains supply.

For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA.

^

Do not connect via an extension lead.

The wires in the mains lead are
coloured in accordance with the
following code:

Green/yellow = earth

Blue = neutral

Brown = live

If the colours of the wires in the mains
lead of this appliance do not
correspond with the coloured markings
identifying the terminals of your plug,
proceed as follows:

^ The wire which is coloured green and

yellow must be connected to the
terminal in the plug which is marked
with the letter E or by the earth
symbol z or coloured green, or
green and yellow.

^ The wire which is coloured blue must

be connected to the terminal in the
plug which is marked with the letter N
or coloured black.

^

The wire which is coloured brown
must be connected to the terminal in
the plug which is marked with the
letter A (AUSTRALIA).

,

If the connection cable is
damaged it must be replaced with a
complete connection box and cable
by a Miele approved service
technician only.

72

WARNING:
THIS APPLIANCE
MUST BE EARTHED

Plumbing

The Miele waterproof anti-leak
system

Providing your dishwasher has been
installed correctly, the Miele waterproof
anti-leak system will protect you from
water damage throughout its lifetime.

Connection to the water supply

Water in the dishwasher must

,

not be used as drinking water.

The dishwasher may be connected

–

to a cold or hot water supply, max.
60 °C. We would only recommend
connection to a hot water supply if it
is economical, e.g. a solar powered
supply. When connected to a hot
water supply all programme stages
which would otherwise be carried out
with cold water will be carried out
with hot water.

,

A hot water connection with
temperatures exceeding 60 °C may
cause damage to the unit, impair
wash results and affect the product
guarantee.

–

The inlet hose is approx. 1.5 m long. A

1.5 metre long flexible metal extension
hose, pressure tested to 14,000 kPa/
140 bar, is available as an optional
accessory if required.

–

A tap with a
provided on site.

–

The dishwasher is constructed to
comply with Australian regulations,
and may be connected to a suitable
supply without an extra non-return
valve if national regulations allow this.

3

/4" male thread must be

The water pressure (flow pressure at

–

the take-off point) must be between
30 and 1000 kPa (0.3 and 10 bar).
If the water pressure is too high, a
pressure reducer valve must be
fitted.

To avoid any damage to the

,

appliance, the dishwasher must only
be connected to a fully vented
plumbing system.

! The inlet hose must not be

shortened or damaged in any way
as it contains electrical components
(see illustration).

This appliance incorporates back
flow protection complying with
AS/NZS 3500.1.2. No further
backflow protection required for
connection to the water supply.

-

73

Plumbing

Drainage

The appliance drainage system is

–

fitted with a non-return valve, which
prevents dirty water from flowing
back into the dishwasher via the
drain hose.

The dishwasher is supplied with

–

approx. 1.5 m of flexible drain hose
with an internal diameter of 22 mm.

The drain hose can be extended

–

using a connection piece to attach a
further length of hose.
The drainage length must not be
longer than 4 m, and the delivery
head must not exceed 1 m.

– If the hose is to be directly fitted to

the drainage outlet on site, use the
hose clip supplied (see installation
diagram).

– The hose can be directed to the left

or the right of the appliance.

– The on-site connector for the drain

hose can be adapted to different
widths of hose. If the connector
protrudes too far into the drain hose,
it will need to be shortened.
Otherwise the drain hose may
become blocked.

Venting the drainage system

If the on-site drain connection is
situated lower than the guide path for
the bottom basket rollers in the open
door, the drainage system must be
vented. Otherwise a siphoning effect
during a programme can cause the
appliance to empty itself of water.

To vent it:

Open the dishwasher door fully.

^

^

Pull the lower spray arm firmly
upwards to remove it.

^

Cut off the top of the vent valve in the
wash cabinet.

–

The drain hose must not be
shortened.

,

Make sure that there are no
kinks in the hose, and that it is not
squashed or stretched.

74

Technical data

Dishwasher model G 1XXX G 2XXX

Height 80.5 cm

(adjustable + 6.5 cm)

Height of building-in
recess

Width 59.8 cm 59.8 cm

Width of building-in recess 60 cm 60 cm

Depth 57 cm 57 cm

Weight Max. 55 kg Max. 61 kg

Voltage 230 V 230 V

Connected load 2300 W 2300 W

Fuse rating 10 A 10 A

Test certificates awarded Electrical safety, Typetest

Water pressure (flow rate) 30 - 1000 kPa

Hot water connection Up to max. 60 °C Up to max. 60 °C

Delivery head Max. 1 m Max. 1 m

Drainage length Max. 4 m Max. 4 m

Mains cable approx. 1.7 m approx. 1.7 m

Capacity 12/14 place settings* 12/14 place settings*

Min. 80.5 cm (+ 6.5 cm) Min. 84.5 cm (+ 6.5 cm)

Mark, C-Tick Mark

(0.3 - 10 bar)

84.5 cm
(adjustable + 6.5 cm)

Electrical safety, Typetest
Mark, C-Tick Mark

30 - 1000 kPa
(0.3 - 10 bar)

* depending on model

75

Alteration rights reserved/
G1574/G2574 / 3709

M.-Nr. 07 600 660 / 01
