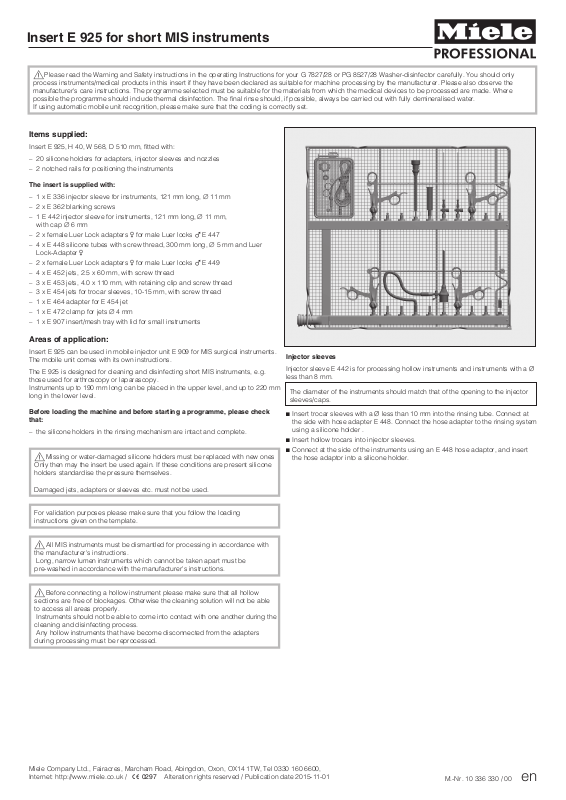

Miele E 925 Operating instructions

Insert E 925 for short MIS instruments

Please read the Warning and Safety instructions in the operating Instructions for your G 7827/28 or PG 8527/28 Washer-disinfector carefully. You should only

,

process instruments/medical products in this insert if they have been declared as suitable for machine processing by the manufacturer. Please also observe the
manufacturer's care instructions. The programme selected must be suitable for the materials from which the medical devices to be processed are made. Where
possible the programme should include thermal disinfection. The final rinse should, if possible, always be carried out with fully demineralised water.
If using automatic mobile unit recognition, please make sure that the coding is correctly set.

Items supplied:

Insert E 925, H 40, W 568, D 510 mm, fitted with:

20 silicone holders for adapters, injector sleeves and nozzles

–

2 notched rails for positioning the instruments

–

The insert is supplied with:

1 x E 336 injector sleeve for instruments, 121 mm long, C 11 mm

–

2 x E 362 blanking screws

–

1 E 442 injector sleeve for instruments, 121 mm long, C 11 mm,

–

with cap C 6mm
2 x female Luer Lock adapters ] for male Luer locks \ E 447

–

4 x E 448 silicone tubes with screw thread, 300 mm long, C 5 mm and Luer

–

Lock-Adapter ]
2 x female Luer Lock adapters ] for male Luer locks \ E 449

–

4 x E 452 jets, 2.5 x 60 mm, with screw thread

–

3 x E 453 jets, 4.0 x 110 mm, with retaining clip and screw thread

–

3 x E 454 jets for trocar sleeves, 10-15 mm, with screw thread

–

1 x E 464 adapter for E 454 jet

–

1 x E 472 clamp for jets C 4mm

–

1 x E 907 insert/mesh tray with lid for small instruments

–

Areas of application:

Insert E 925 can be used in mobile injector unit E 909 for MIS surgical instruments.
The mobile unit comes with its own instructions.

The E 925 is designed for cleaning and disinfecting short MIS instruments, e.g.
those used for arthroscopy or laparascopy.
Instruments up to 190 mm long can be placed in the upper level, and up to 220 mm
long in the lower level.

Before loading the machine and before starting a programme, please check
that:

– the silicone holders in the rinsing mechanism are intact and complete.

,

Missing or water-damaged silicone holders must be replaced with new ones
Only then may the insert be used again. If these conditions are present silicone
holders standardise the pressure themselves.

Damaged jets, adapters or sleeves etc. must not be used.

For validation purposes please make sure that you follow the loading
instructions given on the template.

Injector sleeves

Injector sleeve E 442 is for processing hollow instruments and instruments with a Ø
less than 8 mm.

The diameter of the instruments should match that of the opening to the injector
sleeves/caps.

^ Insert trocar sleeves with a Ø less than 10 mm into the rinsing tube. Connect at

the side with hose adapter E 448. Connect the hose adapter to the rinsing system
using a silicone holder .

^

Insert hollow trocars into injector sleeves.

^

Connect at the side of the instruments using an E 448 hose adaptor, and insert
the hose adaptor into a silicone holder.

,

All MIS instruments must be dismantled for processing in accordance with
the manufacturer's instructions.

Long, narrow lumen instruments which cannot be taken apart must be

pre-washed in accordance with the manufacturer's instructions.

,

Before connecting a hollow instrument please make sure that all hollow
sections are free of blockages. Otherwise the cleaning solution will not be able
to access all areas properly.

Instruments should not be able to come into contact with one another during the

cleaning and disinfecting process.

Any hollow instruments that have become disconnected from the adapters

during processing must be reprocessed.

Miele Company Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW, Tel [phone],
Internet: http://www.miele.co.uk / ! 0297 Alteration rights reserved / Publication date 2015-11-01

M.-Nr. 10 336 330 / 00 en

Insert E 925 for short MIS instruments

Connect the trocar tube at the side with hose

Trocar sleeves Ø 10 - 20 mm

Take the trocar sleeves apart.

^

Process small instruments in a mesh tray with a lid.

Attach trocar sleeves with Ø 10 - 15 mm to an

^

E 454 jet.
For trocar sleeves with Ø 15 - 20 mm, use jets

^

E 464 and E 454 together.
Position the trocar sleeve with the spring clamp so

^

that the water reaches critical areas through the
openings in the side of the jet.

^

adapter E 448.
Insert the hose adaptor in a silicone adaptor.

^

Secure the self-closing valve to an E 454 jet for

^

trocar sleeves or an E 453 jet with a retaining clip.
Position the self-closing valve with the spring clamp

^

or retaining clip so that the water reaches critical
areas through the openings in the side of the jet.

Handles

^

Place contaminated handles on a jet, e.g. E 452.

Veress cannulae

^

Take the Veress cannula apart.

^

Place the outer part of the Veress cannula on jet
E 453 with spring clamp E 472.

The outer part of the Veress cannula can alternatively
be processed in the E 499 insert (optional
accessory). The insert comes with its own
instructions.

^

Screw the inner part of the Veress cannula to a
Luer-Lock adapter \, keeping the tap open.

Small instruments

^

Place small instruments such as seals and taps in
lidded mesh tray E 907/1.

^

Close the lid, and hang the mesh tray in the
mobile unit.
