PureLine
24” Combi-Steam Oven
DGC 6800-1 XL
Specification Sheets TRS 03212017
8mieleusa.com
Page 2
PureLine Combi-Steam Oven
DGC 6800-1 XL
SPECIFICATIONS
DGC 6800-1 XL — Item 23680074USA
Overall Fascia Dimensions
Overall Unit Width - Excluding Fascia Dimension 21
Overall Unit Height - Excluding Fascia Dimension 17
Overall Unit Depth - Excluding Fascia Dimension 21
Oven Door Clearance 12
Built-In
Minimum Opening Width 22
Minimum Opening Height 17
DGC 6800-1 XL
Features:
• M Touch innovative and revolutionary
controls are both easy-to-operate
and navigate. An intuitive swipe of the
screen will quickly lead you to your
desired selection
• MultiSteam technology delivers
powerful external steam generation
and optimum steam distribution via
6 inlet ports
• Wired roast probe for perfect roasting
• 3-in-1 appliance
1. True European convection oven
2. Steam oven
3. Combination of steam and
convection oven
Minimum Opening Depth 21
Minimum Base Support 60 lbs
Additional Cut-Outs Required
Electrical
Electrical Requirements 208V/240V, 60Hz, 20A
Power Rating
Power Cord
Shipping
Shipping Weight 65 lbs
Shipping Dimensions
Support
Call Miele 800.843.7231
Miele Website
20/20 Link
7
23
/16” (595 mm) W x 18” (455.5 mm) H
7
/8” (23 mm) D
x
9
/16” (548 mm)
11
/16” (449 mm)
5
/8” (550 mm)
9
/16” (319 mm)
1
/16” (560 mm)
11
/16” (450 mm)
7
/8” (555 mm)
Venting cut-out required
11
19
/16” x 19/16” (500 x 40 mm)
240V - 3.7 kw
208V - 3.2 kw
Molded plug - NEMA 6-20, power cord
5 ft (1.5 m)
7
/32” (666 mm) W x 215/8” (549 mm) H x
26
231/16” (535 mm) L
8www.mieleusa.com
82020technologies.com
• MasterChef and MasterChef Gourmet
menus offer over 150 food types to
cook to perfection
• XL stainless steel cavity
• Lift up control panel conceals water
and condensate container (both
containers are dishwasher-safe)
• The simple yet sleek Silhouette
handle seems to oat, enhancing its
modern design lines
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 2 of 10
Page 3
PureLine Combi-Steam Oven
DGC 6800-1 XL
PRODUCT VIEWS
Isometric View
Front View
22
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 3 of 10
Page 4
PureLine Combi-Steam Oven
DGC 6800-1 XL
INSTALLATION SPECIFICATIONS

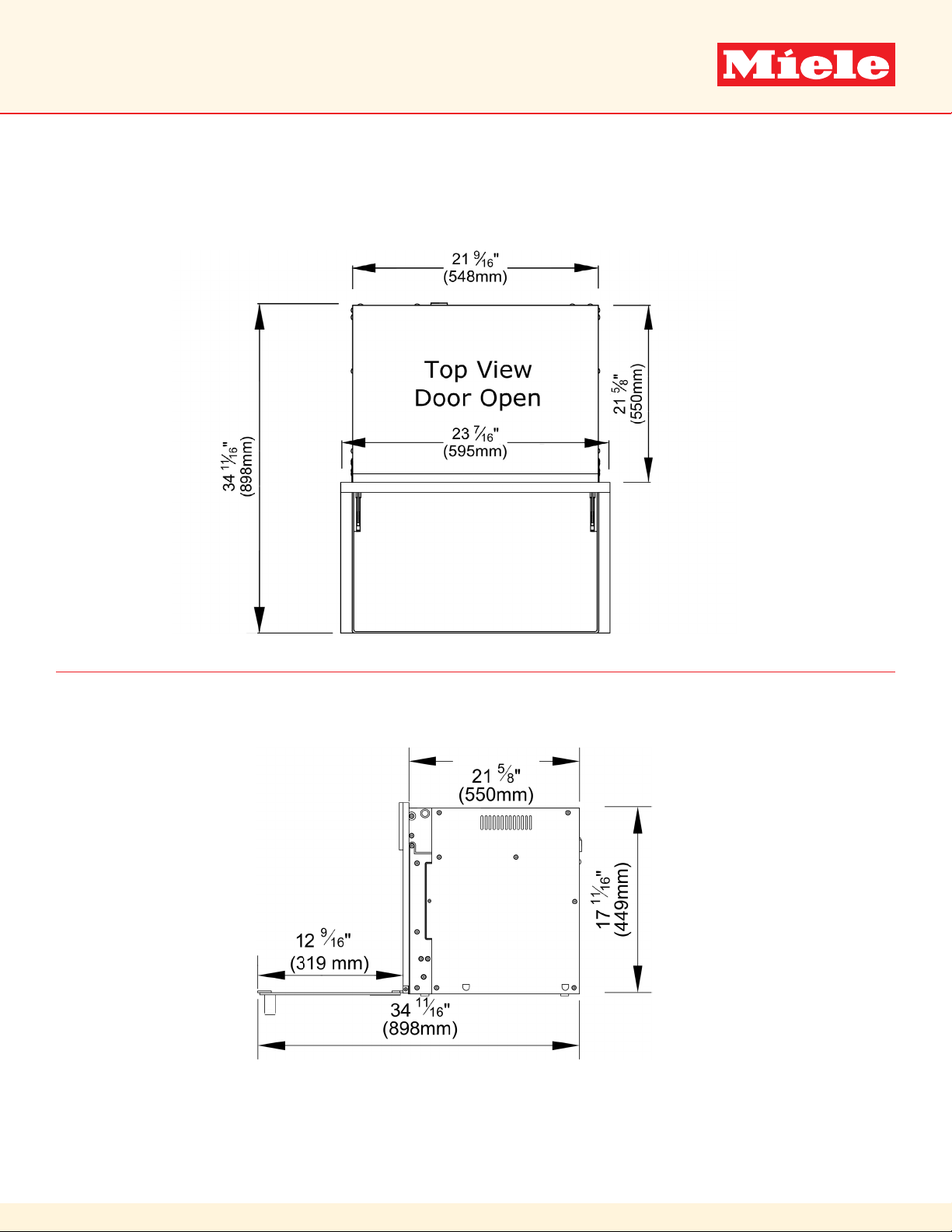

Top View, Door Open
Side View, Door Open
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 4 of 10
Page 5
PureLine Combi-Steam Oven
DGC 6800-1 XL
INSTALLATION SPECIFICATIONS

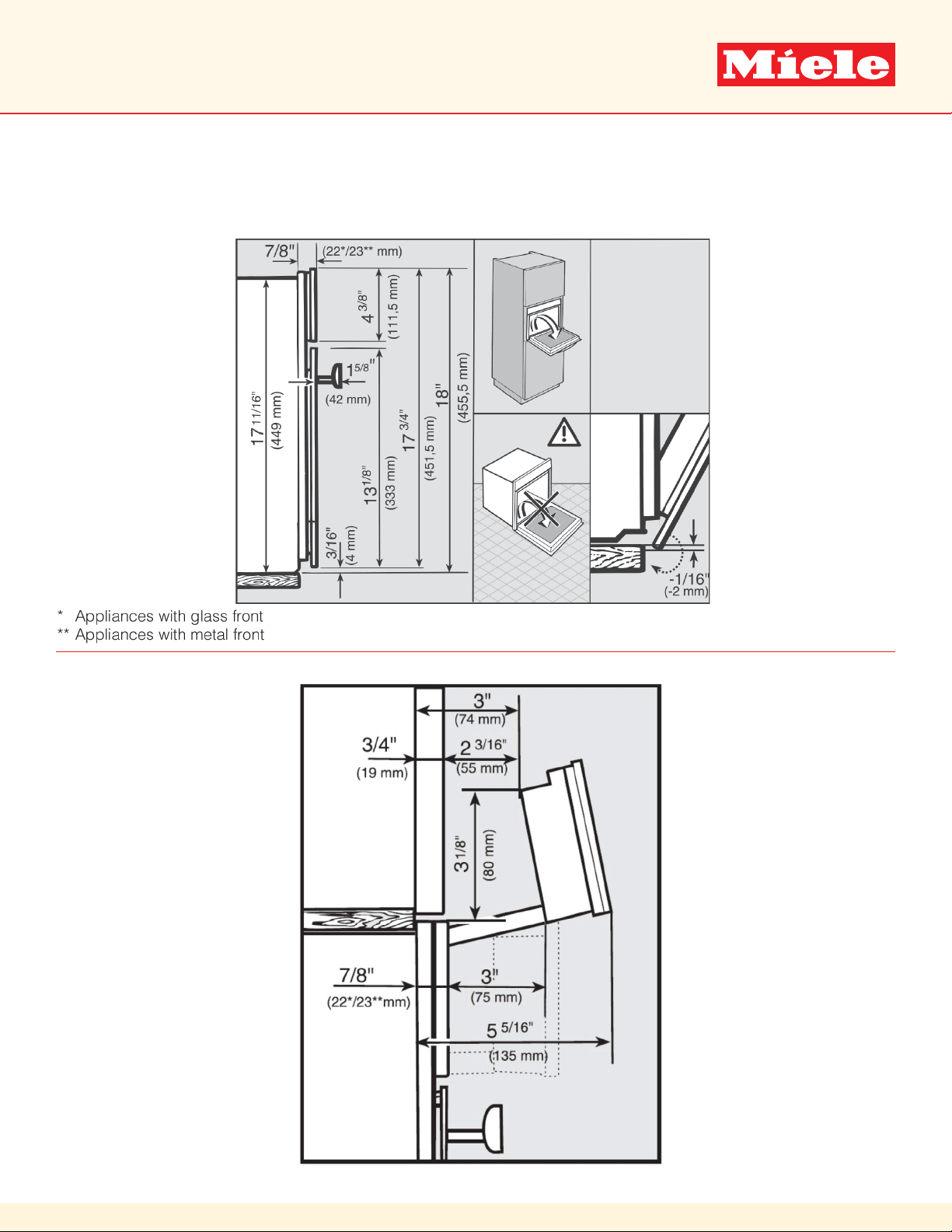

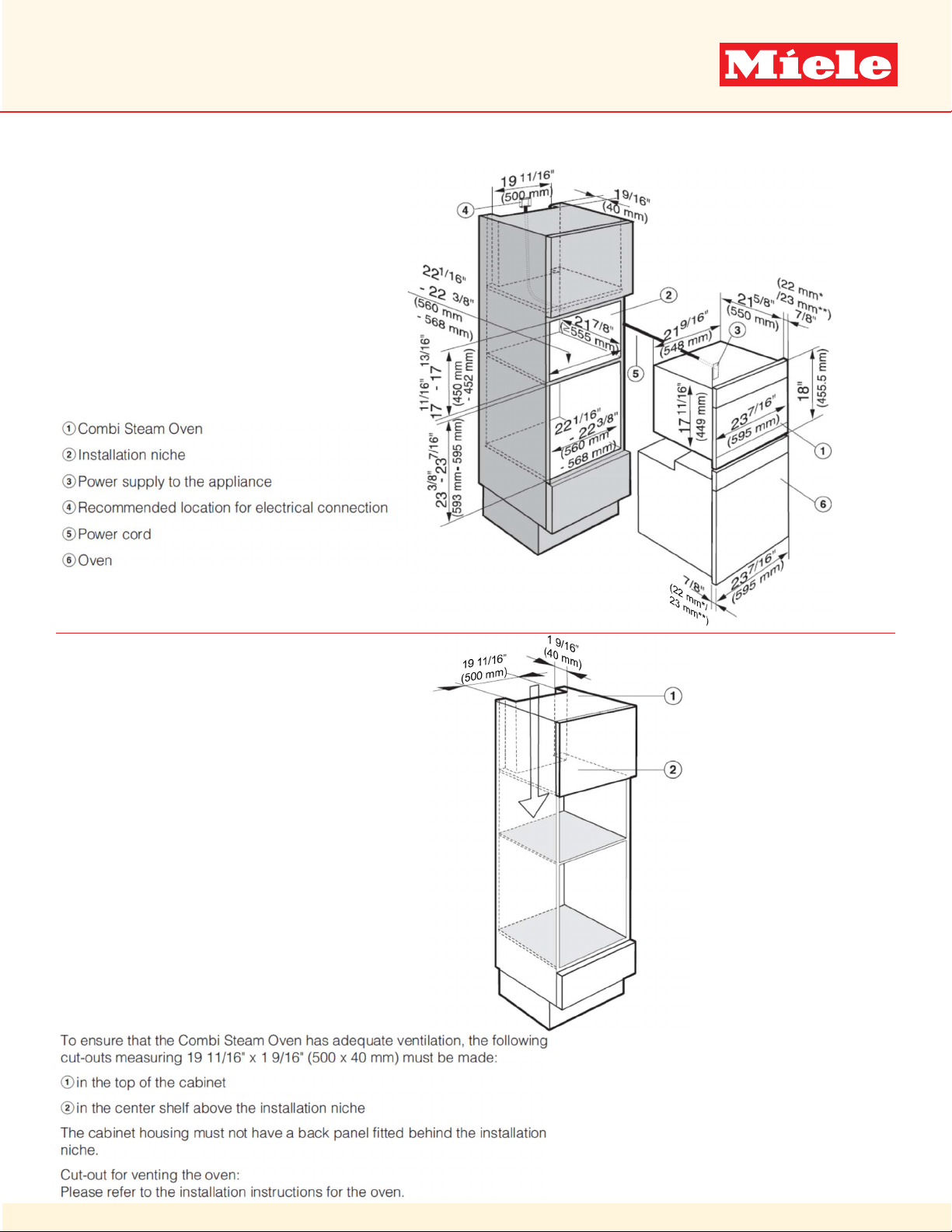

Door Swing and Face Detail
Control Panel Swivel View
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 5 of 10
Page 6
PureLine Combi-Steam Oven
DGC 6800-1 XL
INSTALLATION SPECIFICATIONS
Tall Cabinet Installation
Tall Cabinet Installation —
Venting Requirements
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 6 of 10
Page 7
PureLine Combi-Steam Oven
DGC 6800-1 XL
INSTALLATION SPECIFICATIONS

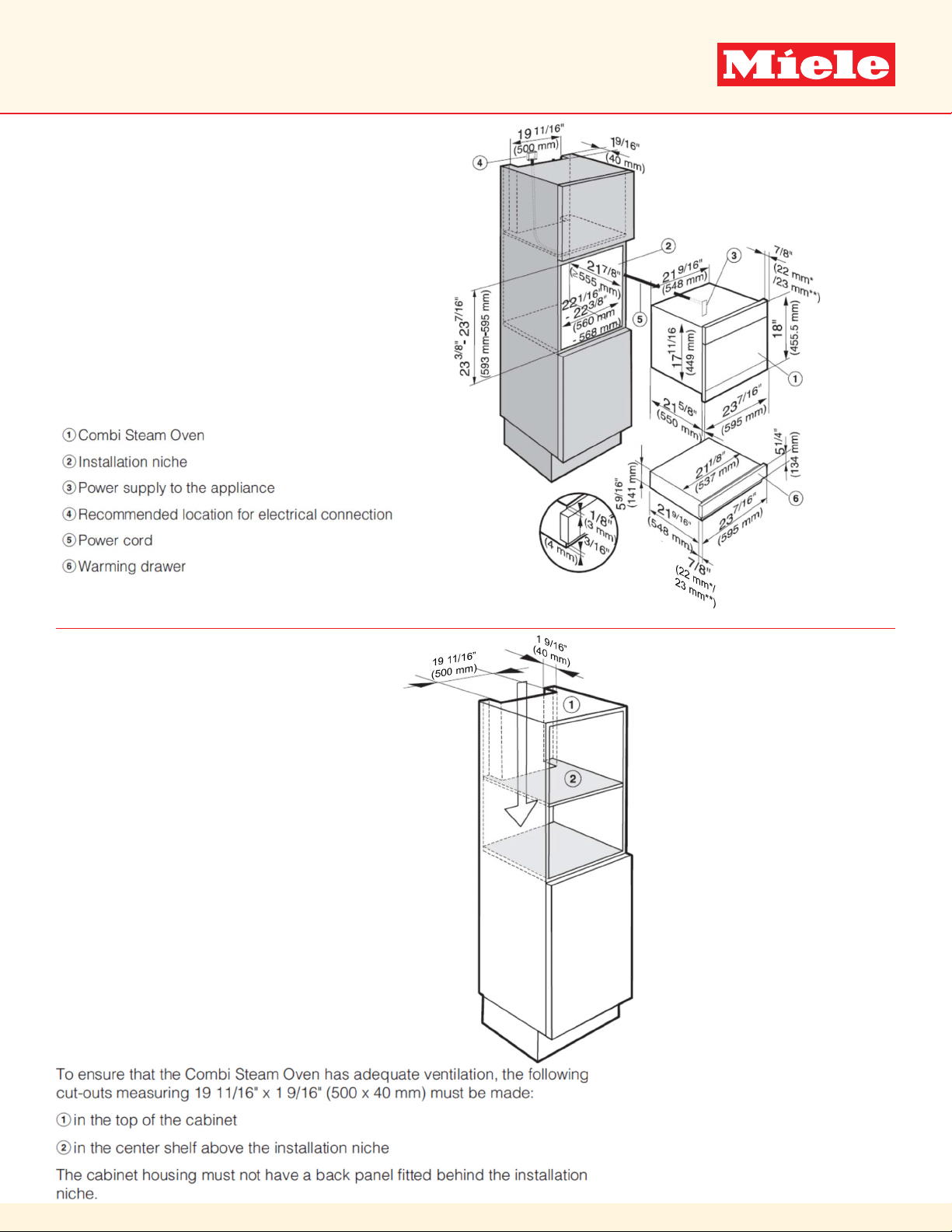

Installation Above 24” Oven
Installation Above 24” Oven —
Venting Requirements
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 7 of 10
Page 8
PureLine Combi-Steam Oven
DGC 6800-1 XL
INSTALLATION SPECIFICATIONS

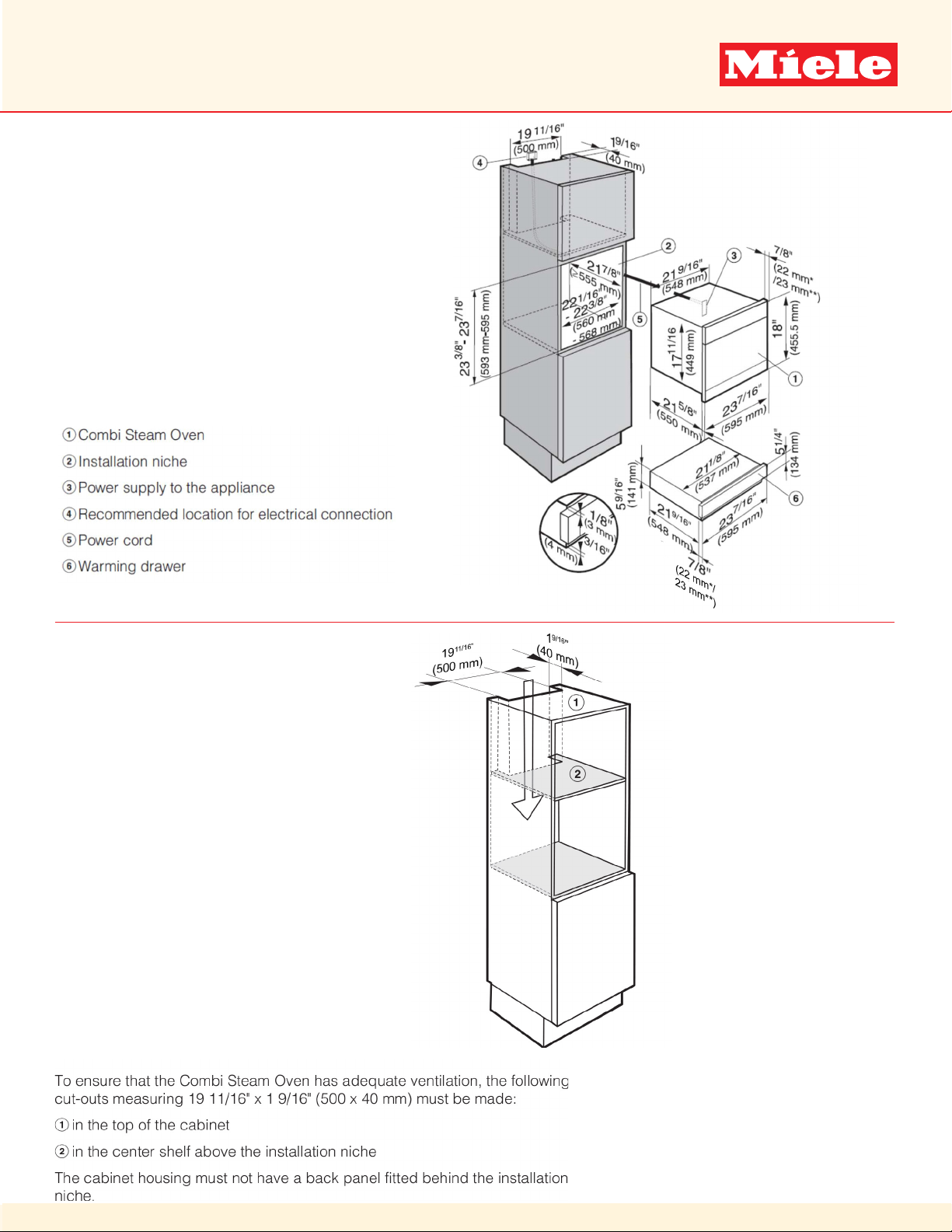

Installation Above Warming Drawer
Installation Above Warming Drawer —
Venting Requirements
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 8 of 10
Page 9
PureLine Combi-Steam Oven
DGC 6800-1 XL
INSTALLATION SPECIFICATIONS

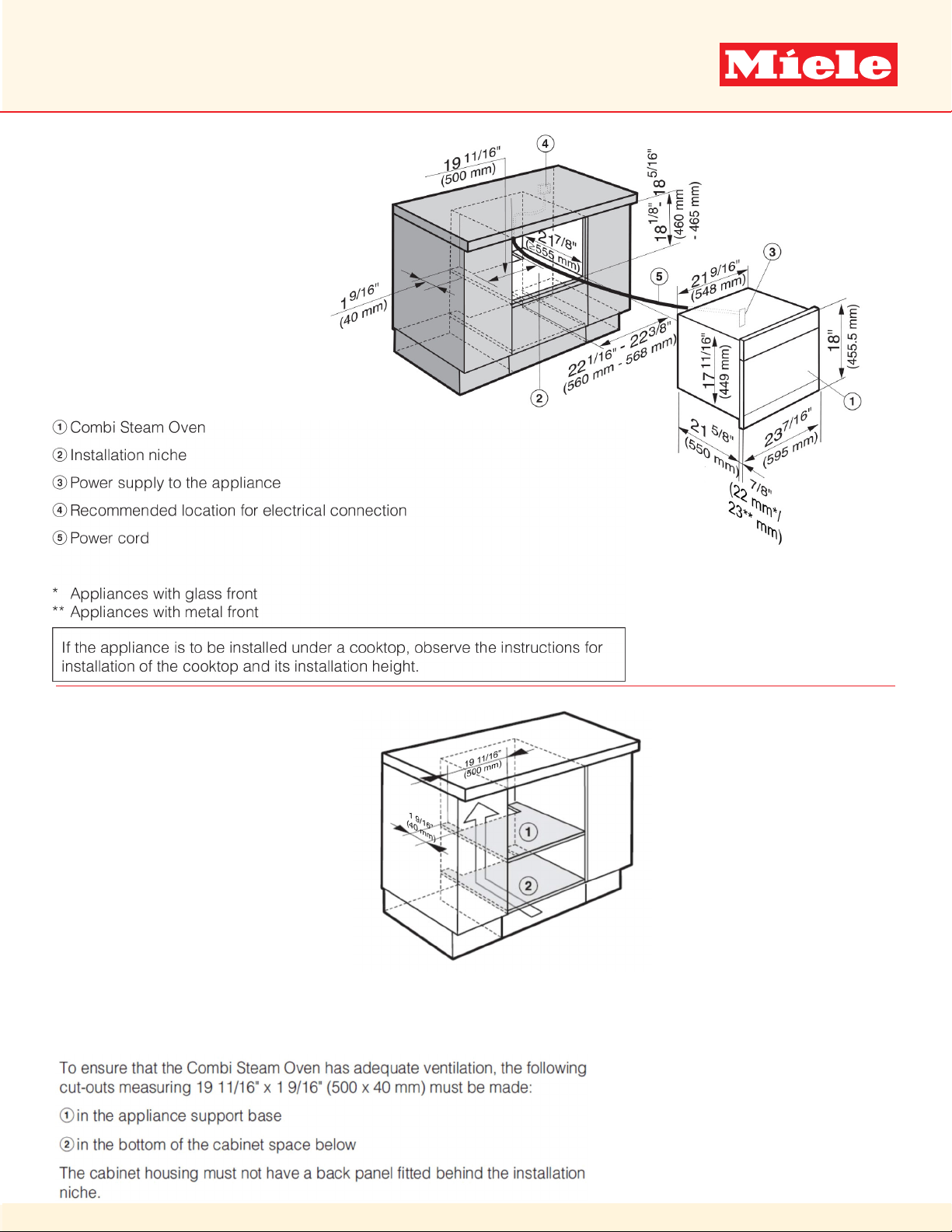

Installation Undercounter
Installation Undercounter —
Venting Requirements
DGC 6800-1 XL
Specification Sheets TRS 03212017
Page 9 of 10
Page 10
PureLine Combi-Steam Oven
DGC 6800-1 XL

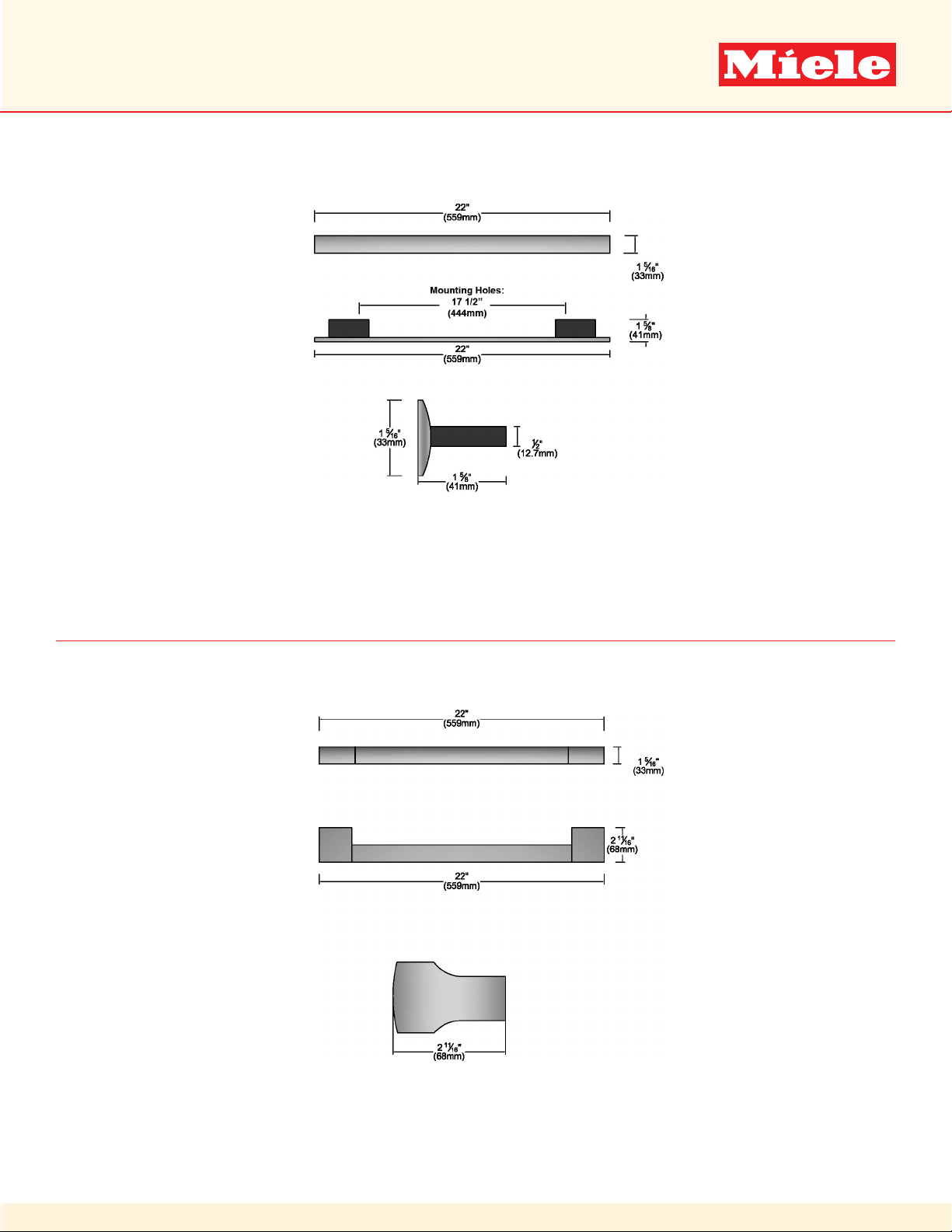

HANDLE DETAILS
All Miele Signature And PureLine
Handle Dimensions
Please note hinges may require adjusting or replacing when changing from a ContourLine Handle to
All ContourLine Handle
Dimensions
a PureLine or Miele Signature Handle.
Please note hinges may require adjusting or replacing when changing from a PureLine or Miele
Signature Handle to a ContourLine Handle.
Specification Sheets TRS 03212017
DGC 6800-1 XL
Page 10 of 10
