Page 1
Operating and installation instructions
Cooker hood
DA 5294 W
DA 5294 W EXT
To avoid the risk of accidents
or damage to this appliance
it is essential to read these
instructions before it is installed
and used for the first time.
GiWOZ
M.-Nr. 06 832 260
Page 2
Contents
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Modes of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

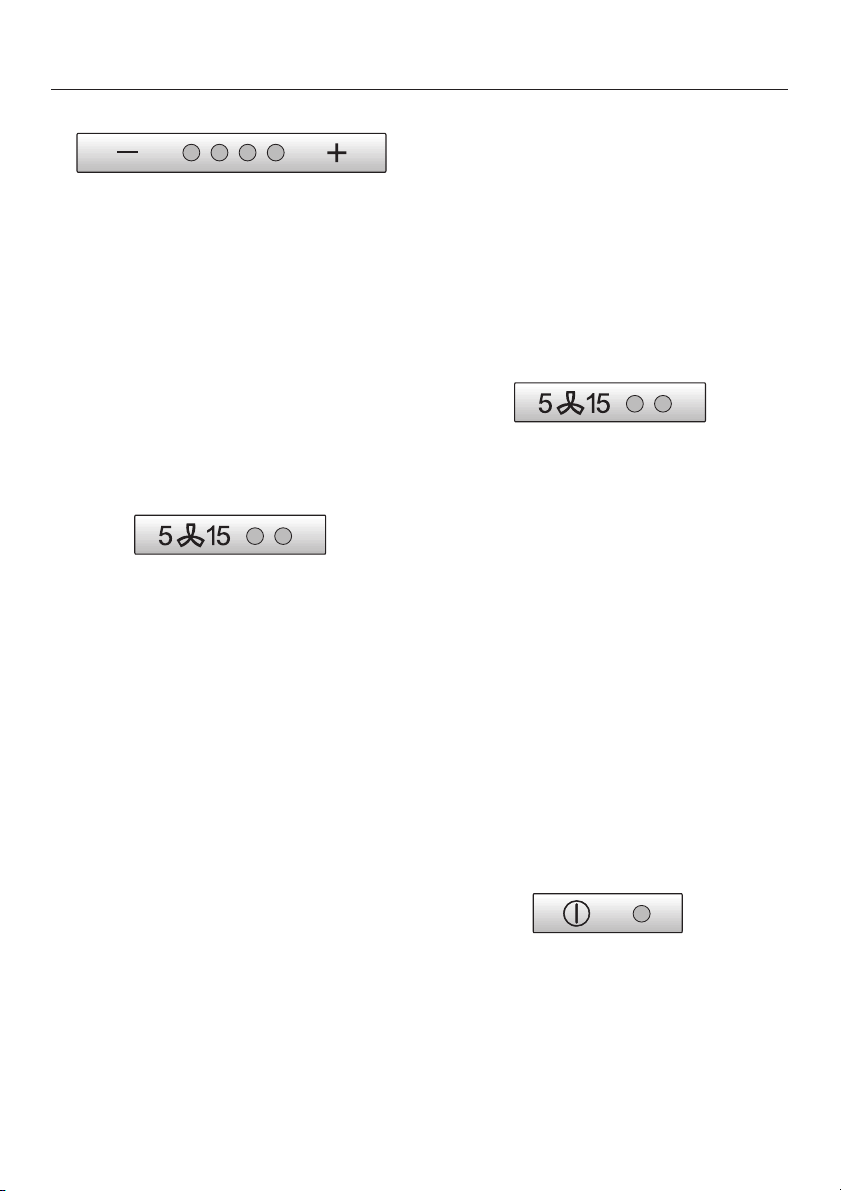

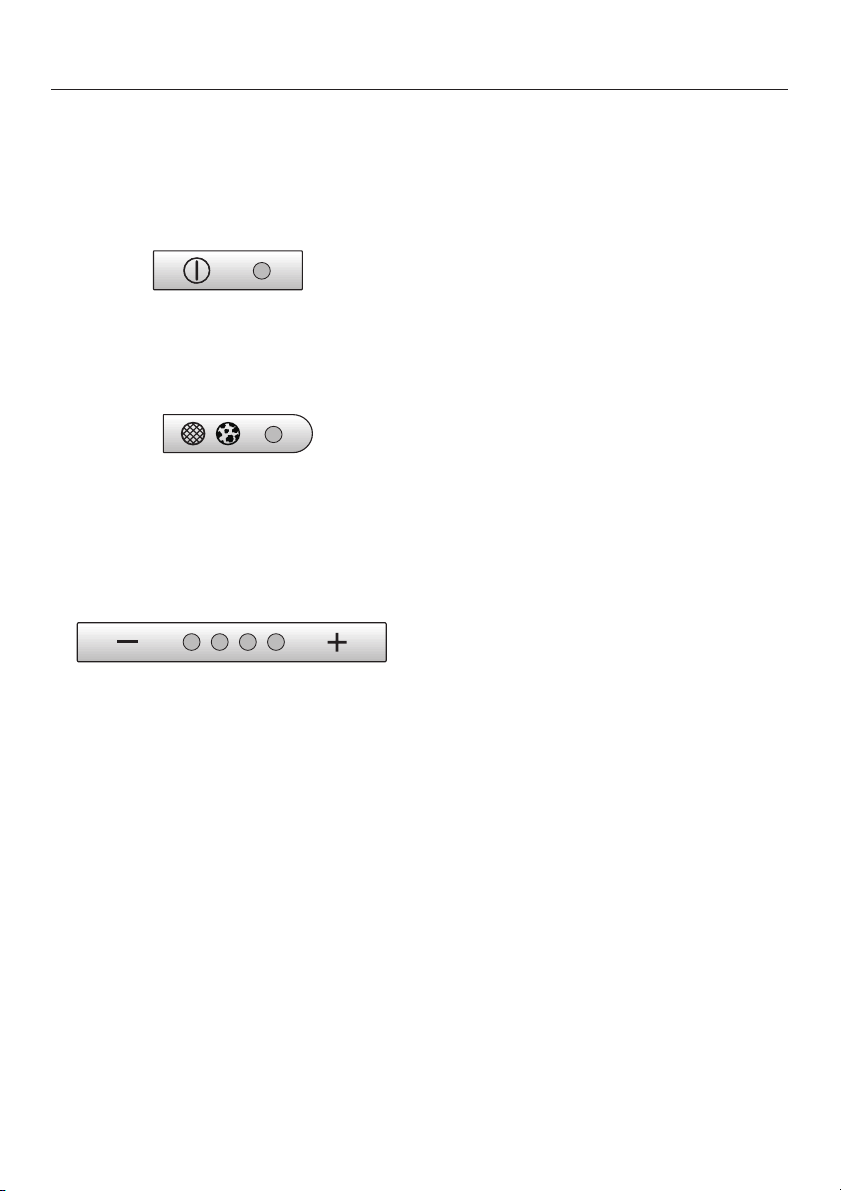

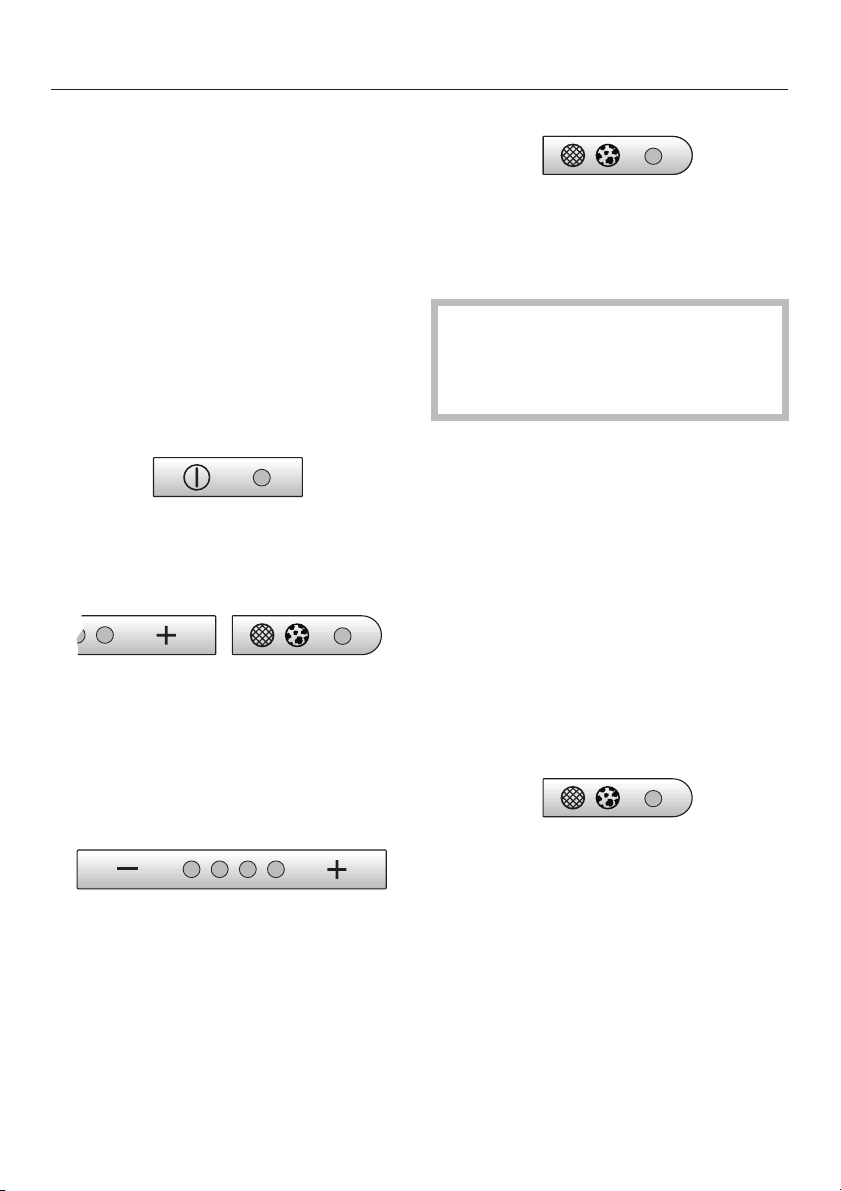

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To switch the fan on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To select a power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

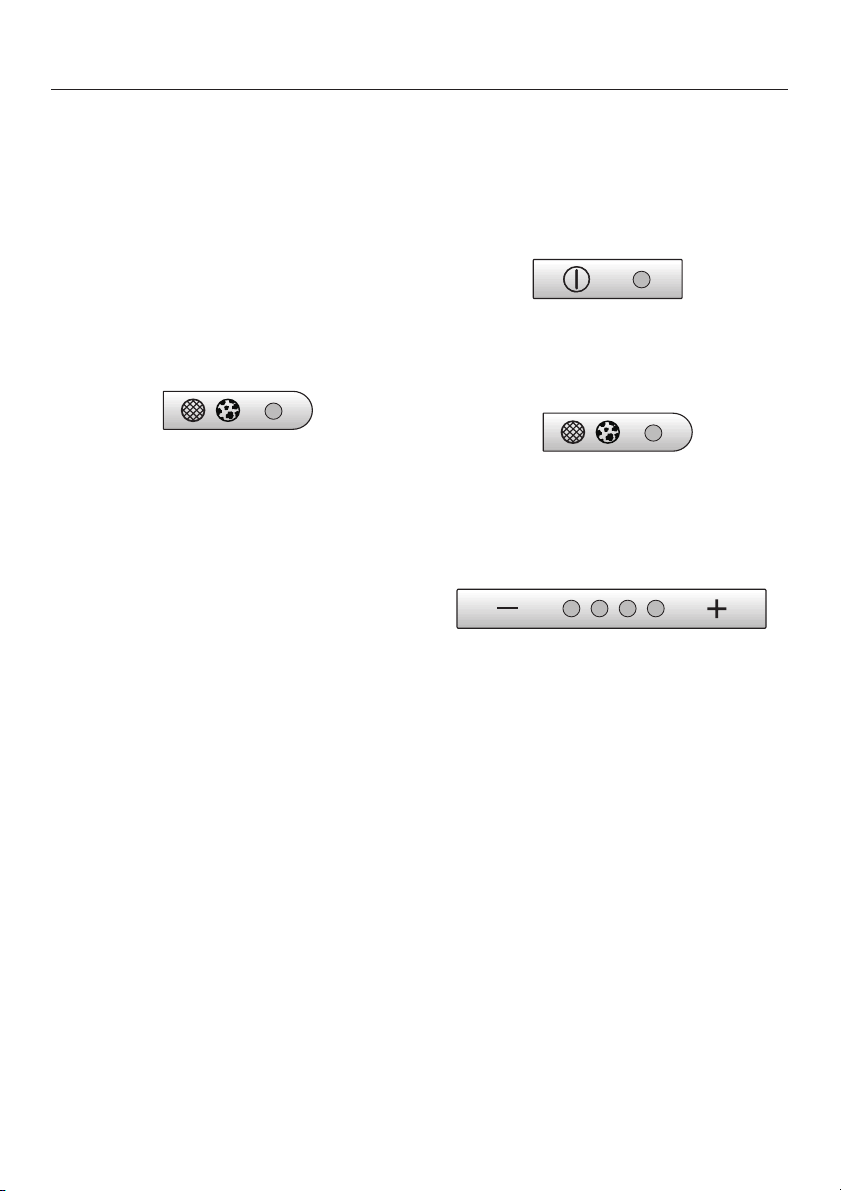

Intensive setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Run-on option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To switch the fan off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

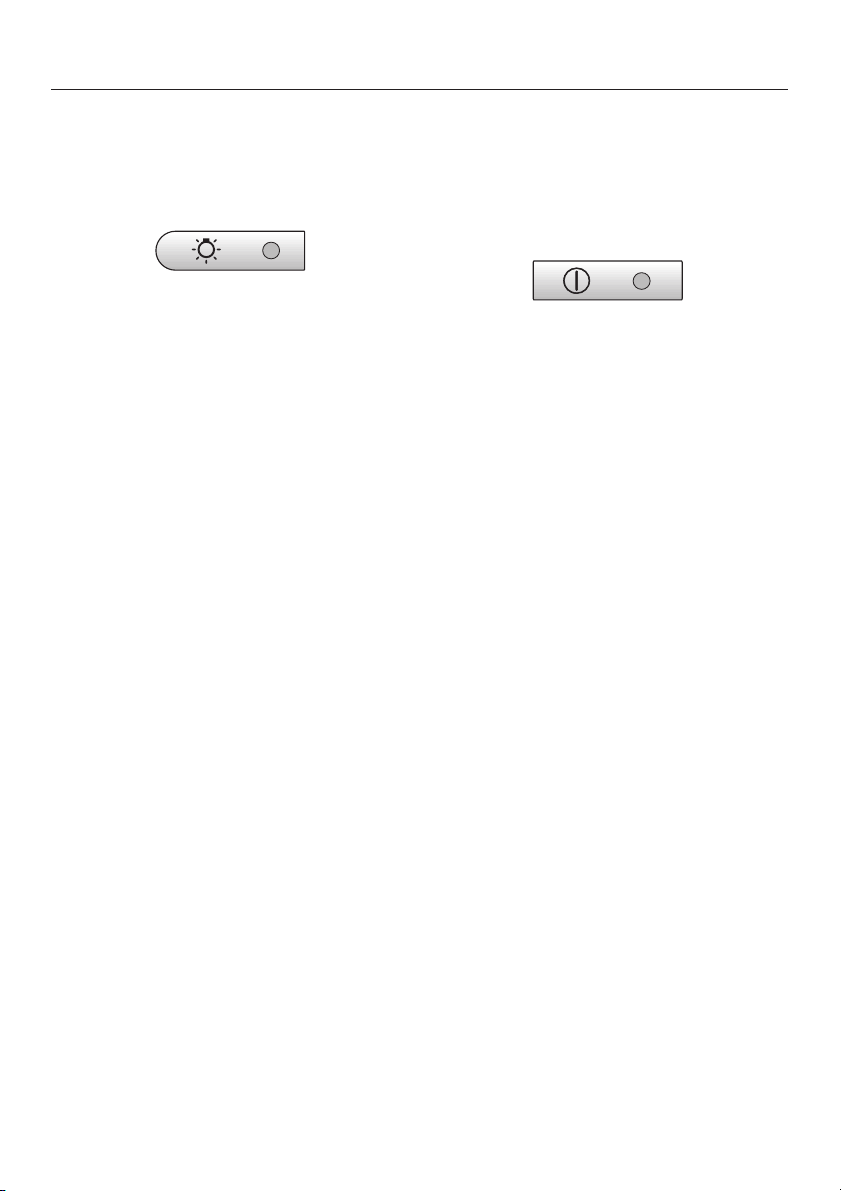

To switch the hob lighting on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To dim the hob lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To switch the hob lighting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

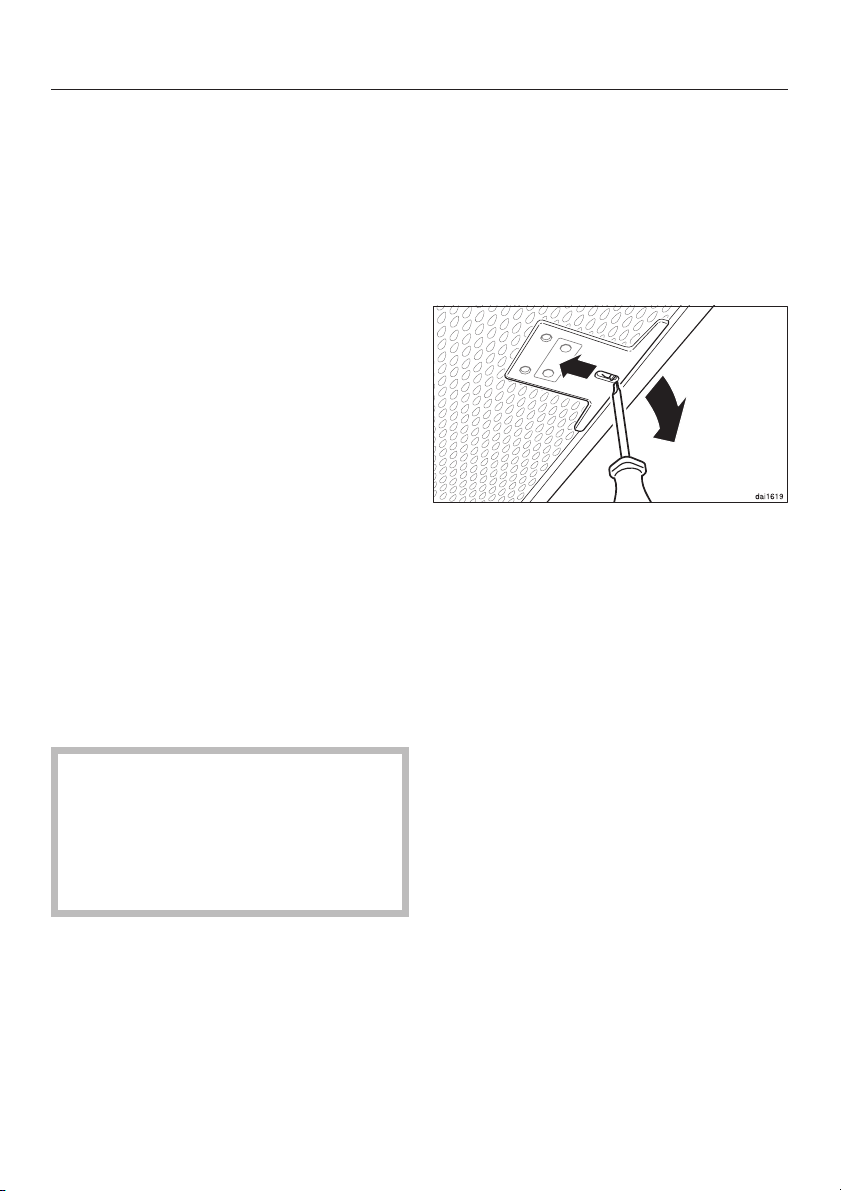

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fitting and replacing the charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

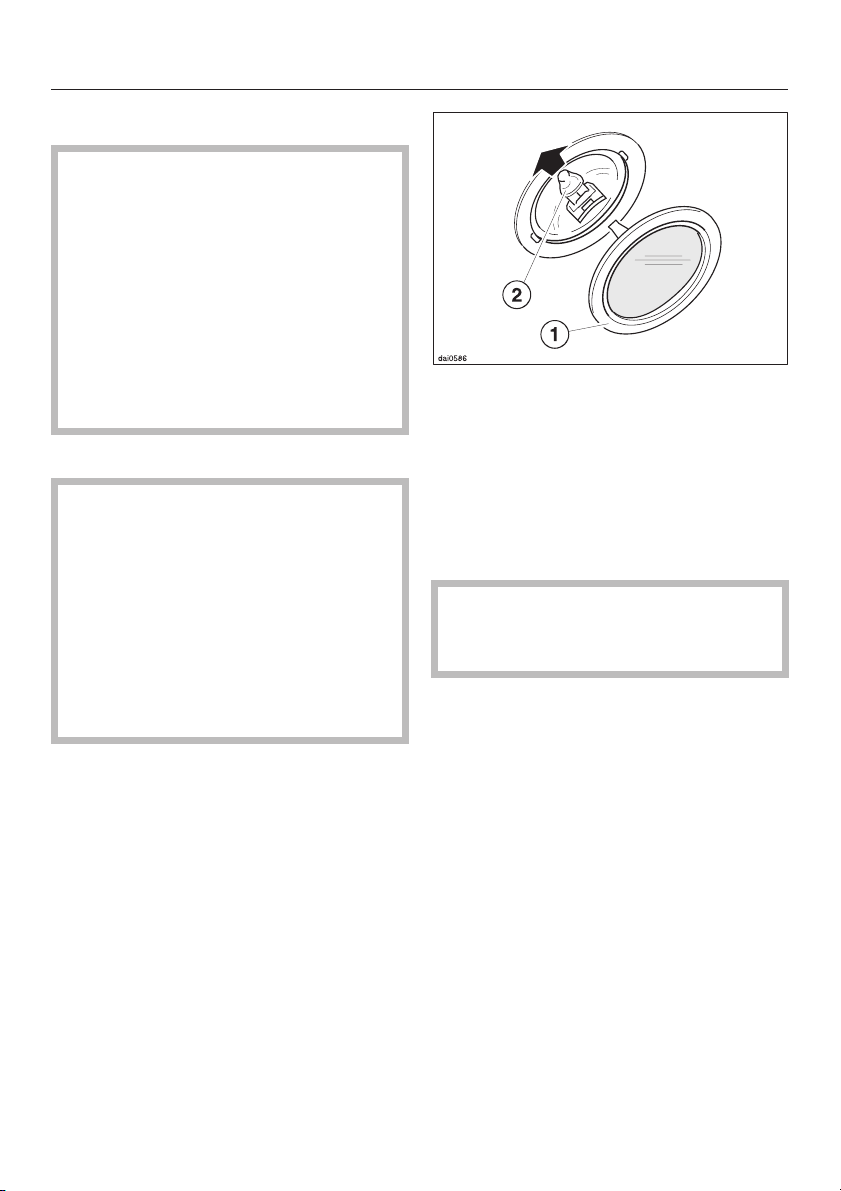

Changing a halogen lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

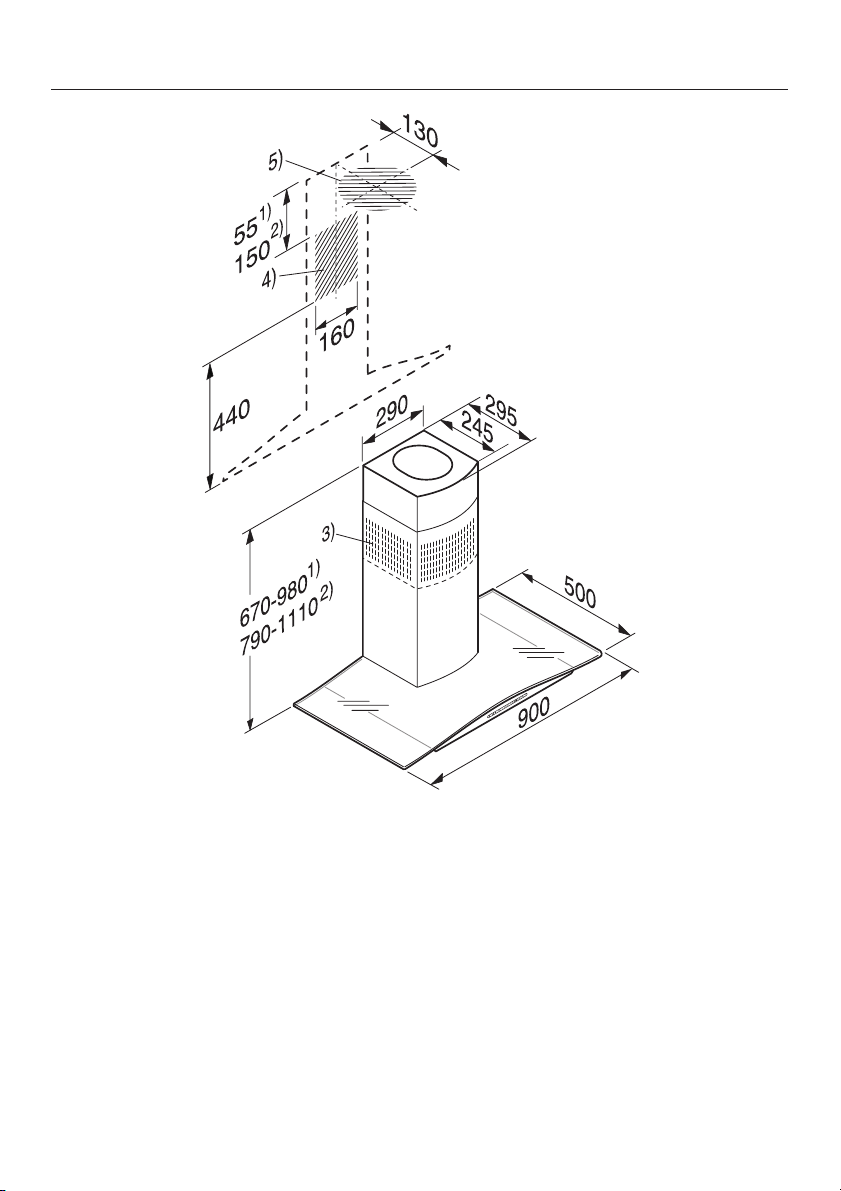

Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Safety distance between hob and cooker hood (S) . . . . . . . . . . . . . . . . . . . . . 25
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

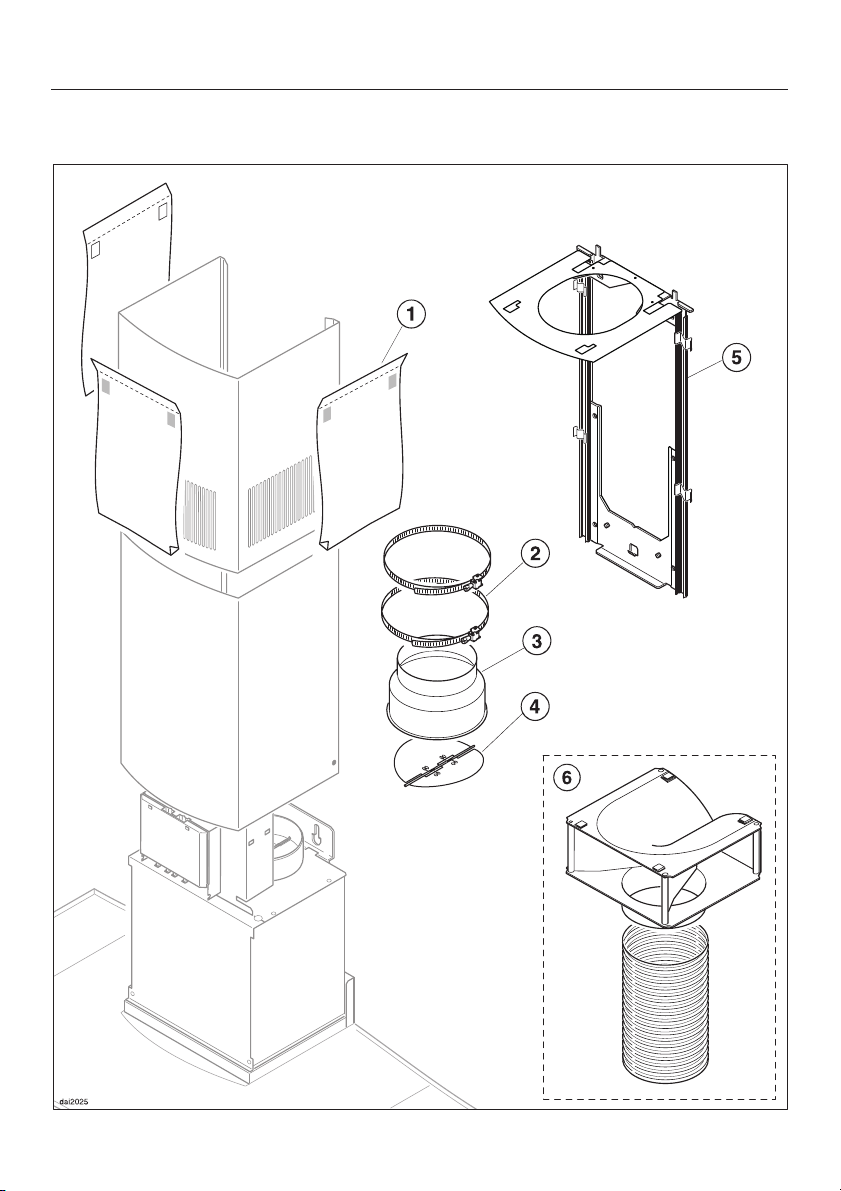

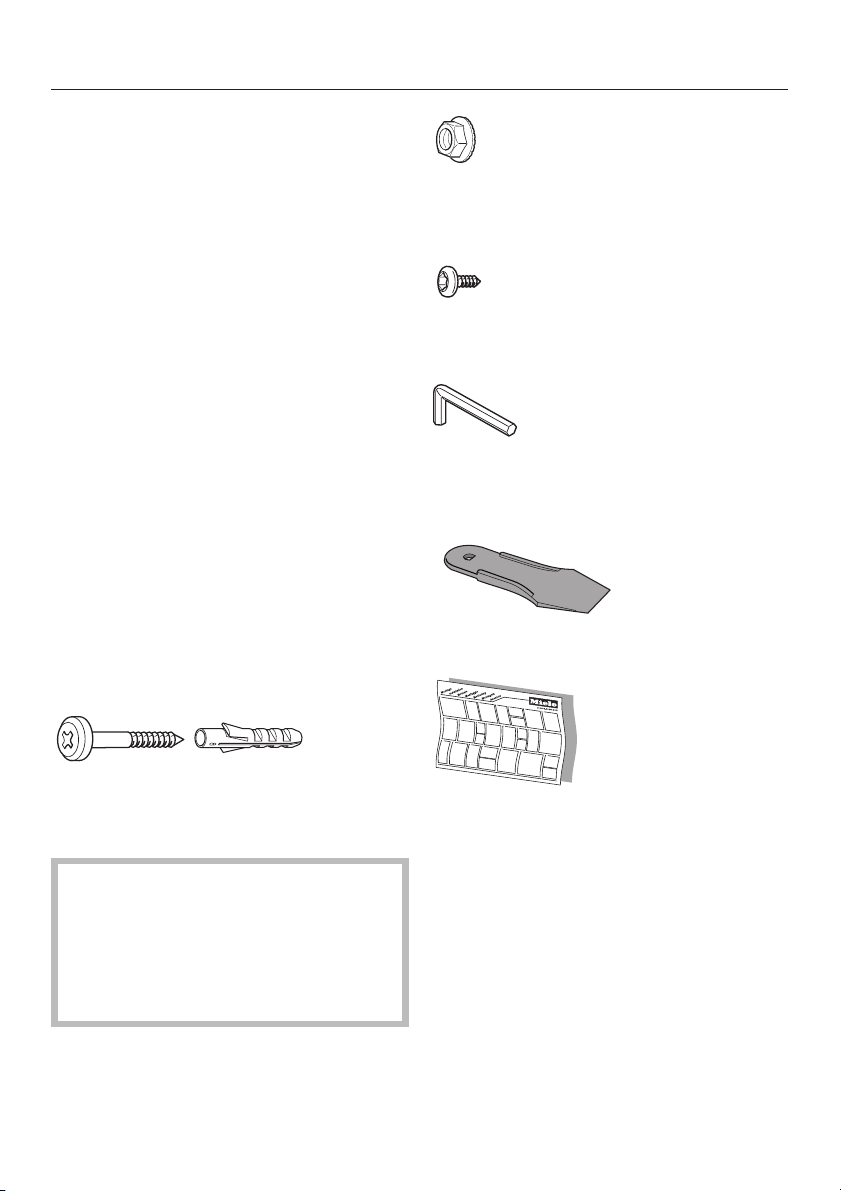

Assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

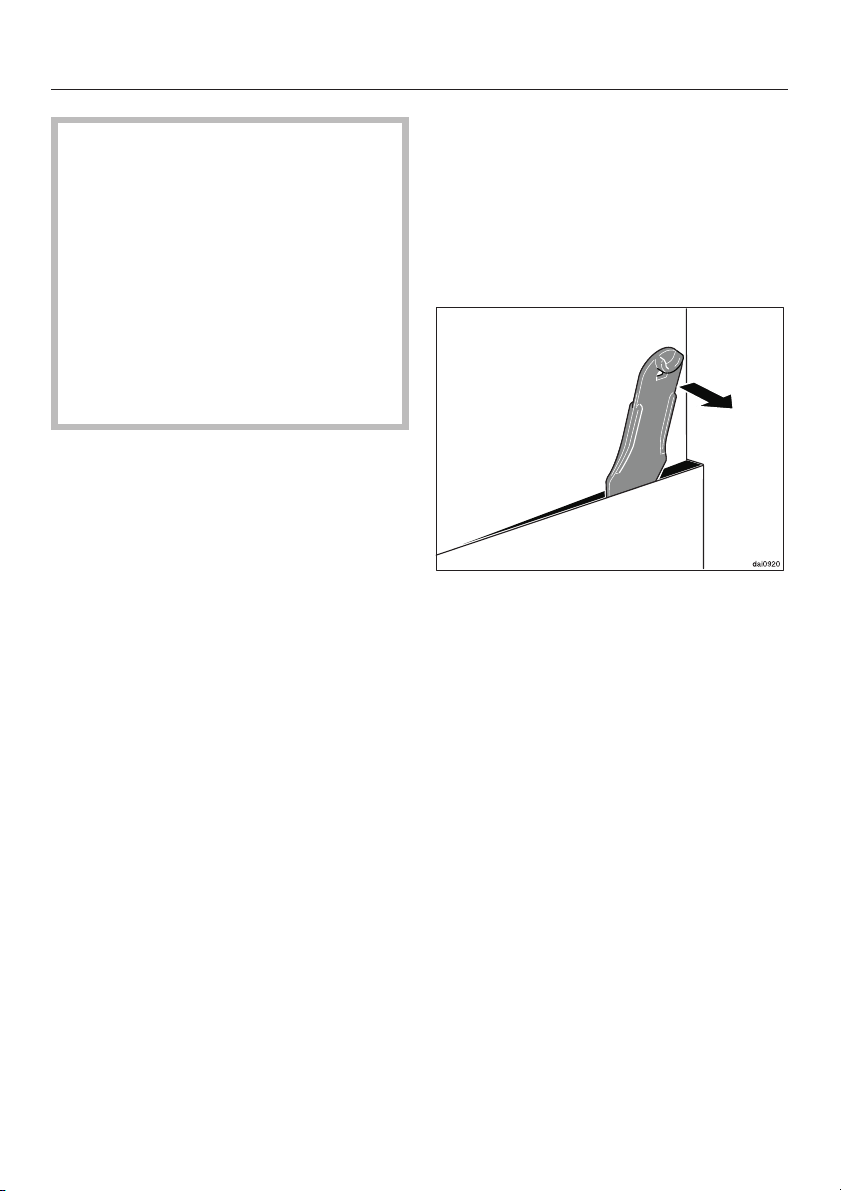

Protective foil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Silencer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operation with Control module DSM 400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Connection to a window contact switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Potential free connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Connection to a light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2
Page 3
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. If connected by a
plug, the plug must be rendered
useless and the cable cut off directly
behind the appliance to prevent
misuse. See the "Warning and Safety"
section of this booklet for further details.
3
Page 4
Warning and Safety instructions
Technical safety
This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on the
safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct usage
This appliance is intended for
domestic use only.
The manufacturer cannot be held liable
for damage caused by improper or
incorrect use of the appliance.
the voltage and frequency details given
on the data plate correspond with the
on-site electricity supply; otherwise the
appliance could get damaged. If in any
doubt, consult a qualified electrician.
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested, and where there is in any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
by a suitably qualified and competent
person in accordance with national and
local safety regulations. Repairs and
other work by unqualified persons
could be dangerous. The manufacturer
cannot be held liable for unauthorised
work.
Before connecting the appliance to
the mains supply, make sure that
The electrical safety of this
appliance can only be guaranteed
Installation, maintenance and
repair work may only be carried out
Ensure that current is not supplied to
the appliance until after maintenance or
repair work has been carried out.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
4
Page 5
Warning and Safety instructions
The appliance is only completely
isolated from the electricity supply
when:
it is switched off at the isolator, or
–
it is switched off at the wall socket
–
and the plug withdrawn, or
the fuse from the fused spur
–
connection unit is withdrawn, or
the mains fuse is withdrawn, or
–
the screw-out fuse is removed (in
–
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
For appliances with an external fan
motor fitted (EXT models) the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
before taking a pan off the hob, even
for brief periods.
Regulate the flames so that they do not
extend beyond the base of the pan.
If flames are not covered by a pan
excessive heat can build up in the
cooker hood with the risk of damage.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood without
the grease filters in place. This way
you will avoid the risk of grease and dirt
getting into the appliance and
hindering its smooth operation.
The filters should be regularly
cleaned or changed as
appropriate. Saturated filters are a fire
hazard. See "Cleaning and care".
Use
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire, do not flambé or grill
over an open flame under the cooker
hood. When switched on, the cooker
hood could draw flames into the filter.
Fat particles drawn into the cooker
hood present a fire hazard.
When using the cooker hood over
a gas hob please ensure that any
burners in use are covered by a pan.
The burner should be switched off
Do not use a steam-cleaner to
clean this appliance. Pressurised
steam could reach the electrical
components and cause a short circuit.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
5
Page 6
Warning and Safety instructions
Safety with children
The appliance is only intended for
use by adults who have read these
instructions.
This appliance is not a toy! To
avoid the risk of injury, keep
children well away, and do not allow
them to play with it or use the controls.
They will not understand the potential
dangers posed by it. They should be
supervised whenever you are working
in the kitchen.
Older children may use the
appliance only when its operation
has been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
Please be aware that on
appliances with halogen lighting,
the lamps will get very hot during use
and remain hot for some time after
switching off. To safeguard against
burning, keep children well away from
the lamps at all times.
Packaging e.g. cling film,
polystyrene and plastic wrappings
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Installation
The minimum safety distances
between the top of a cooker or hob
and the bottom of the cooker hood are
as follows, unless a greater distance is
specified by the manufacturer of your
cooking appliance:
450 mm above electric hobs
–
and cookers,
650 mm above gas hobs and
–
cookers,
650 mm above an open grill or deep
–
fat fryer.
If more than one appliance is fitted
beneath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the greater
distance.
Safety regulations prohibit the
fitting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
The appliance must not be
connected to a chimney or vent
flue which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, seek
professional advice.
6
Page 7
Warning and Safety instructions
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
Great care should be taken when
using the cooker hood at the same
time and in the same room or area of
the house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood or
coal-fired boilers and heaters, continuous
flow or other water heaters, gas hobs,
cookers or ovens which draw air in from
the room and duct exhaust gases out
through a chimney or extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the extractor can only
be switched on when the heating
appliance is switched off or vice-versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
The overall ventilation condition of
the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
"Corgi" installer, must be sought.
Harmful gases such as carbon
monoxide could be drawn out of the
chimney or extraction ducting back
into the room, with potentially fatal
consequences.
7
Page 8
Warning and Safety instructions
One of the following technical
measures may be necessary to ensure
safe operation.
If the only way of ensuring adequate
–
ventilation is via an open window, a
window contact switch should be
fitted to ensure that the cooker hood
can only operate when the window is
opened sufficiently. A window
contact switch kit is available from
good builders' merchants.
Take care when ventilating the room
through an open window that
ventilation is not impaired by a
closed blind or curtain.
– The cooker hood can be set up to
automatically switch on an air intake
fan or open a motorised inlet flap
when it is switched on.
– The cooker hood can be set up to
automatically switch off a heating
appliance which also depends on
the air from the room when it is
switched on.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
The Miele DSM 400 control module
offers the possibility of combining other
components with the cooker hood (see
"Operation with Control module
DSM 400").
It is available to purchase as an
optional extra.
If in any doubt, the advice of a
competent builder or, for gas, a
"Corgi" installer, must be sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
8
Page 9
Modes of operation
The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
If the on-site ventilation system does
not have a non-return flap, the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted to
the outside, cannot get back into the
room again.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
. . . air recirculation:
(available as an optional extra with a
conversion kit and charcoal filter: see
"Technical Data")
The air is drawn in and cleaned first by
the grease filters and then by a
charcoal filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the cooker
hood extension piece.
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filter is in place. See
"Cleaning and care".
. . . an external motor:
(...EXT models only)
The ...EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to the
cooker hood by means of a control
cable, and is operated by the controls
on the cooker hood.
9
Page 10
Description of the appliance
10
Page 11
Description of the appliance
a Telescopic extension piece
b Tower
c Canopy
d Grease filters
e Charcoal filter
(special accessory for recirculation
mode)
f Recirculation grilles
(only for recirculation mode)
g Hob lighting
h Hob lighting control
This control switches the lighting on
and off, and is also a dimmer switch.
i On/Off control for the fan
j Controls to select the fan power
level
k Control for the run-on option
The fan can be set to switch off
automatically after either 5 or 15
minutes.
l Operating hours control
The indicator lamp for the operating
hours control lights up red when the
grease filters need to be cleaned.
The indicator lamp lights up blue when
the charcoal filter used in recirculation
mode needs to be replaced. For this to
happen, the operating hours counter
needs to be activated before the
appliance is used for the first time.
The control is used to reset the
appropriate operating hours counter
each time the grease filters are cleaned
or the charcoal filter is replaced (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For further details about the functions
of the appliance, see "Operation".
11
Page 12

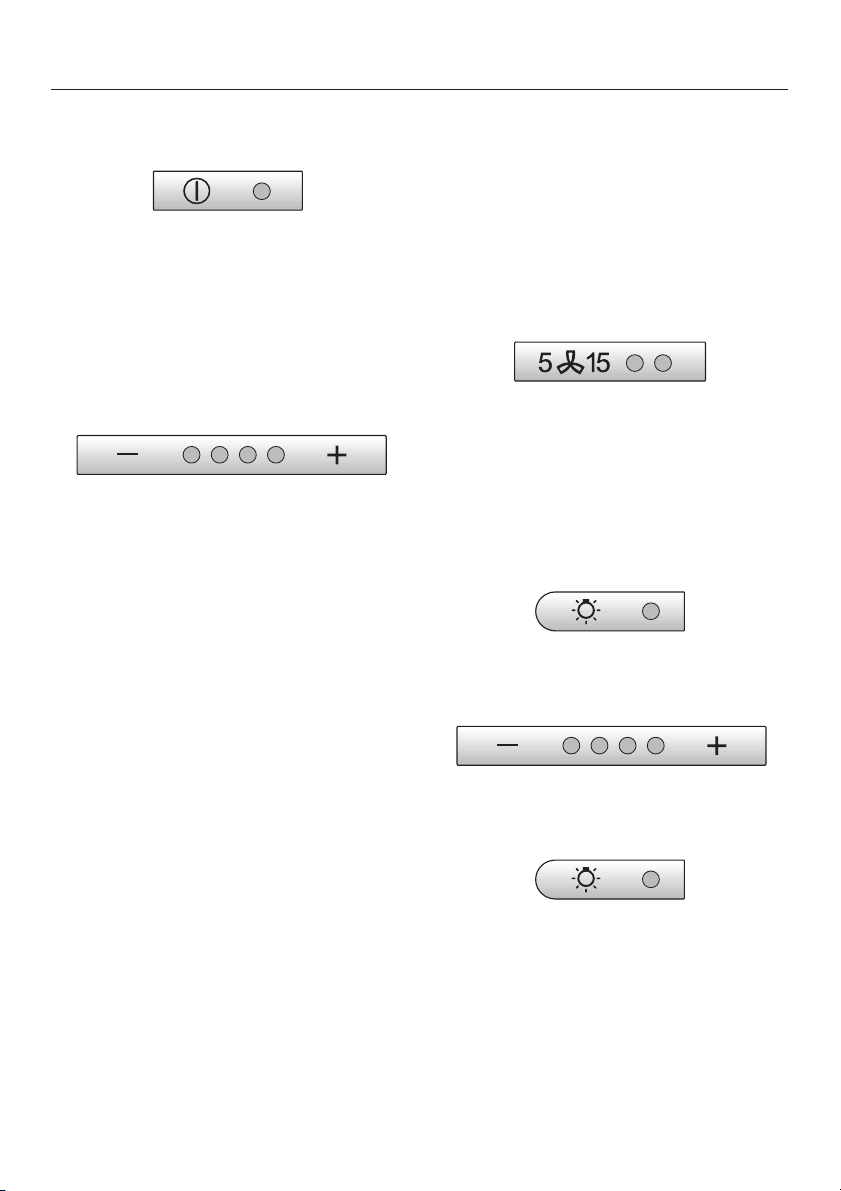

Operation
To switch the fan on
Press the On/Off control.
^
The fan will come on at power level "II".
The indicator lamp will come on.
To select a power level
^ Use the – / + controls to select the
power level required.
+ control = higher setting
– control = lower setting
Depending on the intensity of the
cooking vapours, levels I to III (green
indicator lamps) are usually sufficient
for normal cooking.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
To set this option, both the fan and
^
the hob lighting must be switched off.
Press the run-on option control for
^
approx. 10 seconds. The first fan
setting indicator will light up in the
display.
^ Then press in turn,
– the hob lighting control,
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting, level IV (yellow
indicator lamp) for a short period.
12
–
the – control, and
–
the hob lighting control again.
Page 13
The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
Press the + control to activate auto
^
matic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the – control to deactivate the
automatic switch-off function.
^ Press the run-on option control to
confirm.
If you do not confirm your selection
within 4 minutes, the cooker hood will
automatically revert to the "old" setting.
-
Operation
Run-on option
It is advisable to run the fan for a few
minutes after cooking is finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after either 5 or 15
minutes:
^ After cooking is finished, press the
run-on option control whilst the fan is
still running.
– Press once = The fan will switch off
after 5 minutes (left-hand indicator
lamp).
– Press twice = The fan will switch off
after 15 minutes (right-hand indicator
lamp).
To switch off the run-on option, press
the run-on option control again. The
appliance will then not switch off
automatically.
To switch the fan off
^
Press the On/Off control to switch the
fan off.
The indicator lamp will go out.
13
Page 14
Operation
To switch the hob lighting on
The hob lighting can be switched on
and off independently of the fan.
Briefly press the lighting control to
^
switch on the hob lighting.
The indicator lamp will come on.
The lighting will switch on at maximum
brightness.
To dim the hob lighting
The brightness of the lighting can be
adjusted.
^ With the lighting switched on, press
and hold the hob lighting control in.
The brightness will gradually dim until
you release the control.
^ Press the control in again to increase
the brightness to the level required,
and then release it.
Safety cut-out
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
Pressing the On/Off control will switch
^
the fan back on again.
If you keep the control pressed in, the
light will continually change between
bright and dim.
To switch the hob lighting off
^
Press the hob lighting control briefly
to switch the lighting off.
The indicator lamp will go out.
14
Page 15
Operation

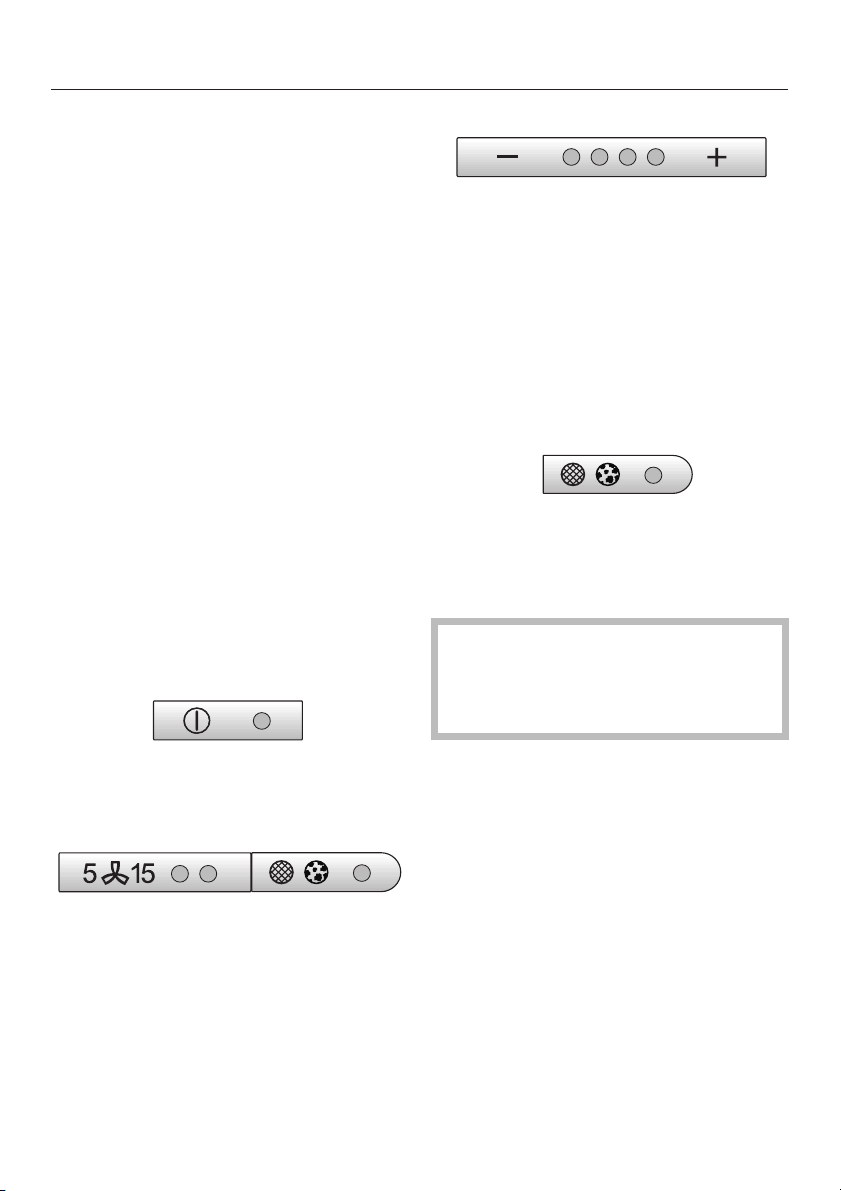

Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counter tells you
when the grease filters or charcoal filter
need to be cleaned or replaced.
Resetting the operating hours
counter for the grease filters
After 30 hours of operation (or another
time if the operating hours counter has
been altered), the operating hours
indicator lamp will light up red. The
grease filters must then be cleaned.
Afterwards, the filter operating hours
counter must be reset.
^ To do this, press and hold the
operating hours control for about 3
seconds while the fan is switched on.
The indicator lamp for the control will
go out.
Reading the operating hours counter
for the grease filters
To check the percentage of time set
already used:
Press the On/Off control to switch the
^
fan on.
^ Press and hold the operating hours
control in.
The indicator lamp will light up red.
One or more of the indicator lamps for
the – / + controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
15
Page 16
Operation
Altering the operating hours counter
for the grease filters
You can set the operating hours
counter for the grease filters to suit the
type of cooking you do.
Select a short time if you roast or fry
–
a lot.
If you use very little fat for cooking,
–
select a longer time.
If you only cook occasionally we
–
recommend that you still select a
short time, because grease which
has built up gradually over a long
period of time will harden on the
grease filter and make cleaning more
difficult.
The operating hours counter for the
grease filters is set at the factory for 30
hours. The time set can be lengthened
or shortened: you can choose 20, 30,
40 or 50 hours.
The – / + indicator lamps show the time
which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
Use the – / + controls to select the
^
desired time.
^ Confirm the selection by pressing the
operating hours control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood
will automatically revert to the "old"
data.
^
Press the On/Off control to switch the
fan off.
^
Press the run-on option control and
the operating hours control at the
same time.
The red indicator lamp for the operating
hours control and one of the – / +
control lamps will flash.
16
Page 17
Activating and altering the operating
hours counter for the charcoal filter
(only for recirculation mode)
Operation
The charcoal filter is needed for
recirculation mode.
On delivery, the operating hours
counter for the charcoal filter is
switched off, and is set at unlimited.
For recirculation mode, the operating
hours counter needs to be set to the
required time.
^ Press the On/Off control to switch the
fan off.
^ Press the + control and the operating
hours control at the same time.
The blue indicator lamp for the
operating hours control and one of the
– / + control lamps will flash.
Confirm the selection by pressing the
^
operating hours control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood
will automatically revert to the "old"
data.
Resetting the operating hours
counter for the charcoal filter
The indicator lamp for the operating
hours control will light up blue after the
cooker hood has operated for the
number of hours set. The charcoal
filter must then be replaced with a new
one.
Afterwards, the filter operating hours
counter must be reset.
The – /+ control lamps show the time
which has been set:
1st lamp from the left = 120 hours
2nd lamp from the left = 180 hours
3rd lamp from the left = 240 hours
4th lamp from the left = unlimited
^
Use the – / + controls to select the
desired time.
^
To do this, press and hold the
operating hours control for about 3
seconds while the fan is switched on.
The indicator lamp for the control will
go out.
17
Page 18
Operation
Reading the operating hours counter
for the charcoal filter
To check the percentage of time set
already used:
Press the On/Off control to switch the
^
fan on.
^ Press the operating hours control
twice in succession, and hold it
pressed in.
The indicator lamp will light up blue.
One or more of the indicator lamps for
the – / + controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
18
Page 19
Before any cleaning or maintenance
work is carried out, disconnect the
cooker hood from the mains supply.
Ensure that:
– it is switched off at the isolator, or
– it is switched off at the wall
socket and the plug removed, or
– the fuse is withdrawn from the
fused spur connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals. It can be washed 300 times.
Cleaning and care
Wipe the surfaces dry using a soft
^
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Do not use:
cleaning agents containing soda,
–
acids, chlorides or solvents,
abrasive cleaning agents, e.g.
–
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
These will damage the surface
material.
Important for appliances with
stainless steel housing
Housing
General notes
The surfaces and controls are
susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^
All external surfaces and controls can
be cleaned using a Miele E-Cloth, or
with warm water and a little
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
using the Miele E-Cloth, or with a
proprietary non-abrasive cleaning
agent designed specifically for use on
stainless steel.
To help prevent re-soiling, a
conditioning agent for stainless steel
such as Neoblank (available from the
Miele UK Spare Parts Department) can
also be used. Follow the manufacturer's
instructions, and apply sparingly with
an even pressure in the direction of the
"grain".
19
Page 20
Cleaning and care
Important for appliances with
lacquered housing
(special order finish)
It is very difficult to clean this type of
surface without causing minor marks to
the surface material. This can become
particularly noticeable with darker
colours and if there is halogen lighting
in the kitchen.
Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long. Remove
soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Glass surfaces
Grease filters
The re-usable metal grease filters in the
appliance remove solid partilces from
the kitchen vapours (grease, dust etc),
preventing soiling of the cooker hood.
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a built-up of grease, but always
clean immediately if the operating hours
control indicator lamp lights up red.
An oversaturated filter is a fire
hazard.
^
Glass surfaces can be cleaned using
a proprietary non-abrasive cleaning
agent designed specifically for use
on glass.
Do not use:
–
abrasive cleaning agents, e.g.
powder cleaners and cream
cleaners,
–
abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents,
–
oven sprays.
20
^

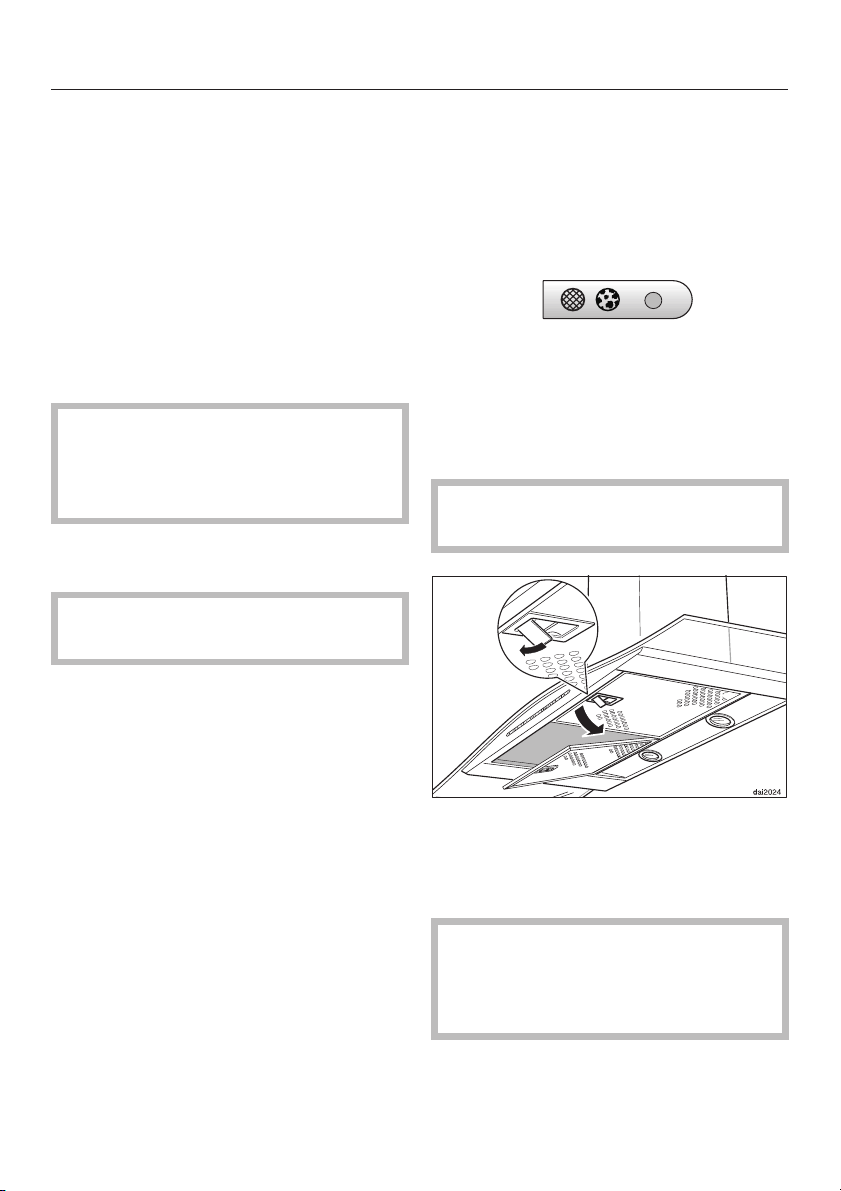

To take out the grease filters, release
the locking clip on the filter, lower the
filter 45°, unhook it at the back and
remove it.
To avoid damaging the filters or the
hob below, make sure you hold the
filters securely at all times when
handling them.
Page 21
Cleaning and care
Cleaning the grease filters by hand
Clean the filters with a soft nylon
^
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use "neat" washing up liquid.
Do not use:
cleaning agents containing
–
descaling agents,
alkaline cleaning agents (with a pH
–
value higher than 7), such as powder
cleaners, cream cleaners or abrasive
all-purpose cleaning agents,
– oven sprays.
Cleaning the grease filters in the
dishwasher
^ Place the filters with the short side
upright in the lower basket, and wash
on a 65° programme using a mild
dishwasher detergent, ensuring the
spray arm is not obstructed.
Avoid alkaline dishwasher detergents
(with a pH value higher than 7).
When removing the filters for cleaning,
also clean off any residues of oil or fat
from the now accessible housing to
prevent the risk of these catching fire.
When putting the grease filters back in
position, ensure that the locking clips
are facing down towards the hob.
If a grease filter is inadvertently
replaced upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
^ After replacing the grease filters,
press the operating hours control for
approx. 3 seconds to reset the
operating hours counter.
The indicator lamp will go out.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
^
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
If the grease filters are cleaned before
the operating hours counter has
reached its maximum, the operating
hours control should be pressed for
approx. 6 seconds to reset the counter.
21
Page 22
Cleaning and care
Fitting and replacing the
charcoal filter
If the cooker hood is connected for
recirculation, a charcoal filter must be
inserted in addition to the grease filters.
This is designed to absorb cooking
odours.
It is fitted in the canopy above the
grease filters.
New filters can be purchased from
your Miele dealer or from the Miele
Spare Parts Department.
See back cover for contact details,
and "Technical data" for the model
number of the filter.
^ Before fitting or replacing a charcoal
filter, the grease filters must first be
taken out (see previous section for
instructions on how to do this).
^ Take the charcoal filter out of its
packaging.
Always replace the charcoal filter imme
diately if
the indicator lamp for the operating
–
hours control lights up blue,
or
if it is no longer effective in absorbing
–
kitchen odours.
It should, however, be replaced at least
every 6 months.
Used charcoal filters can be disposed
of with the normal household waste.
^ After fitting a new charcoal filter,
press the operating hours control
twice and hold it pressed in for
approx. 3 seconds to reset the
operating hours counter.
The operating hours indicator lamp
will go out.
-
^

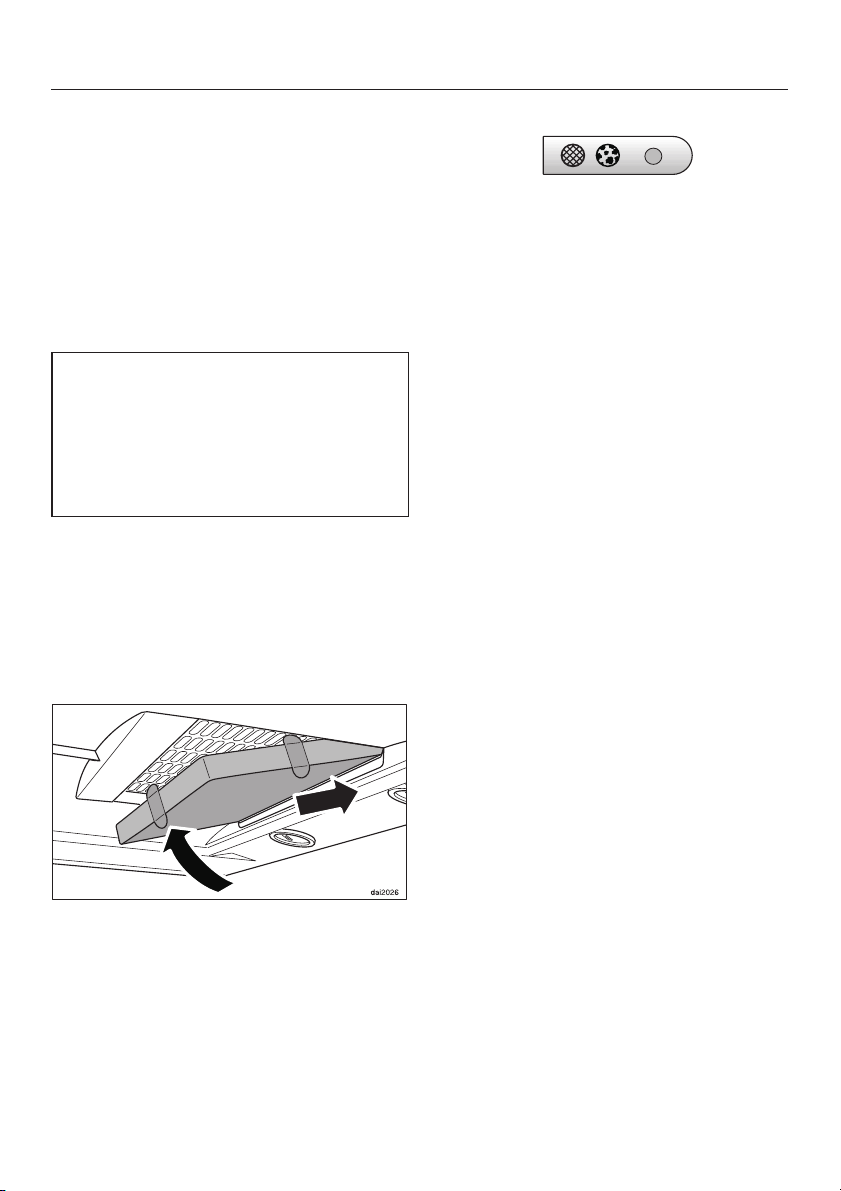

Insert the charcoal filter into the
canopy.
^
Replace the grease filters.
When fitting for the first time:
^
Activate the operating hours counter
(see "Operation").
22
If a charcoal filter is replaced before
the operating hours counter has
reached its maximum, the operating
hours control should be pressed twice
and held pressed in for approx. 6
seconds to reset the counter.
Page 23
Changing a halogen lamp
Before any cleaning or maintenance
work, disconnect the cooker hood
from the mains supply. Ensure that:
– it is switched off at the isolator, or
– it is switched off at the wall socket
and the plug removed, or
– the fuse is withdrawn from the
fused spur connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Exercise caution when changing
halogen lamps. They get very hot
during use and remain hot for some
time after being switched off.
Do not touch the surface directly
when changing a lamp, as grease
particles from your fingers will
adhere to the surface and damage
it. Please follow the manufacturer’s
instructions.
Cleaning and care
To access the halogen lamp, first
^
remove the lamp cover a.
Pull the old halogen lamp b out of its
^
socket and replace it with a new one.
^ Replace the lamp cover a carefully,
making sure it engages securely in
position.
Never use the lighting without the
lamp cover a in place; it has a filter
designed to cut out harmful rays.
23
Page 24
Appliance dimensions
1) Extraction
2) Recirculation
3) Ventilation grille positioned at the top
for recirculation
4) and 5) (4 is for recirculation mode
only):
The shaded areas represent the wall or
ceiling area for the vent cut-out and for
fitting the connection socket.
For recirculation mode, only a
connection socket needs to be fitted.
24
Connection for air extraction
ø 150 mm, or ø 125 mm with reducing
collar.
Page 25
Safety distance between hob and
cooker hood (S)
When planning the installation height
of your cooker hood, the minimum
safety distance between the top of a
cooker or hob and the bottom of the
cooker hood are as follows, unless a
greater distance is specified by the
manufacturer of your cooking
appliance:
450 mm above electric hobs and
cookers
650 mm above gas hobs and
cookers
650 mm above an open grill or deep
fat fryer.
See "Warning and Safety" instructions
for further information.
– When deciding on the safety
distance between the hob and
cooker hood, please note that a
distance of 650 mm above electric
cookers/hobs may be preferable to
give more working space under the
hood.
Appliance dimensions
–
Account should also be taken of the
height of the person who will be
using the hood most often. The
person should have sufficient space
to work comfortably at the hob, and
also be able to reach the hood
controls with ease.
–
If positioned too high, extraction will
be inefficient.
–
The height of the cooking appliance
must be taken into account when
planning the installation height of the
cooker hood.
25
Page 26
Installation
Assembly parts
26
Page 27
a 3 protective sheets
for use when fitting the tower.
Installation
b 2 hose clips
for securing the exhaust ducting.
c 1 reducing collar
for exhaust ducting C 125 mm (not
on ...EXT models).
d 1 non-return flap
for fitting into the exhaust connection
on the motor unit (only for air
extraction mode, not on ...EXT
models).
e Telescopic wall bracket
for securing the cooker hood to the
wall.
f Conversion kit for recirculation
mode
including directional unit and flexible
aluminium hose (the conversion kit is
not supplied with the cooker hood
but is available as an optional extra,
see "Technical data").
2 x M 6 self-tapping nuts
for securing the appliance.
2 screws 3.9 x 7.5 mm
for securing the tower.
1 hexagonal (Allen) key
for adjusting the height of the
appliance.
1 lever for dismantling the tower.
6 screws 5 x 40 mm and
6 x S 8 plugs
for securing the wall bracket.
The screws and plugs are designed
for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure that the wall is able to
take the weight of the cooker hood.
Installation instructions
27
Page 28
Installation
Before installation, it is important to
read the information given on the
following pages as well as the
"Appliance dimensions" and the
"Warning and Safety instructions" at
the beginning of this booklet.
This is particularly crucial when
using the cooker hood at the same
time as a heating appliance that
relies on oxygen from the same
room, which could result in the
build-up of toxic fumes.
Installation instructions
See enclosed Installation sheet for
instructions on how to install this
appliance.
Dismantling
Should the appliance ever need to be
dismantled, follow the installation
instructions in reverse order as
described on the installation sheet.
A lever is supplied to assist with the
removal of the tower.
Protective foil
(on stainless steel appliances)
The housing components have
protective foil around them to prevent
them from transport damage.
Please remove this foil before fitting the
housing components. It can be peeled
off easily.
28
^ After loosening the fixing screws on
the tower, push the lever between the
tower and the extension piece to
lever the tower out of its fixings.
Page 29
Important: To avoid the danger of
toxic fumes please observe the
Warning and Safety instructions.
This is especially crucial when using
the cooker hood at the same time as
another heating appliance which
relies on air from the same room.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
– All ducting, pipework and fittings
must be of non-flammable materials.
– The exhaust ducting should be as
short and straight as possible.
– To ensure efficient air extraction, the
diameter of the exhaust ducting
should not be less than 150 mm.
Connection for air extraction
Where ducting is horizontal, it must
–
be laid to slope away at at least 1 cm
per metre.
This is to ensure that condensate
cannot drain back into the cooker
hood.
If the exhaust air is to be ducted into
–
the open air, the installation of a
telescopic wall vent is recommended.
If exhaust ducting with a diameter of
less than 150 mm, or if flat ducting is
used, the noise level of the cooker
hood will increase and extraction will
be less efficient.
Only reduce the diameter of the
ducting if absolutely necessary, e.g.
where narrower ducting has already
been installed.
–
Only use wide radius bends. Tight
bends reduce the air throughput of
the cooker hood.
–
Only use smooth pipes or flexible
hoses made from non-flammable
materials for extraction connection.
–

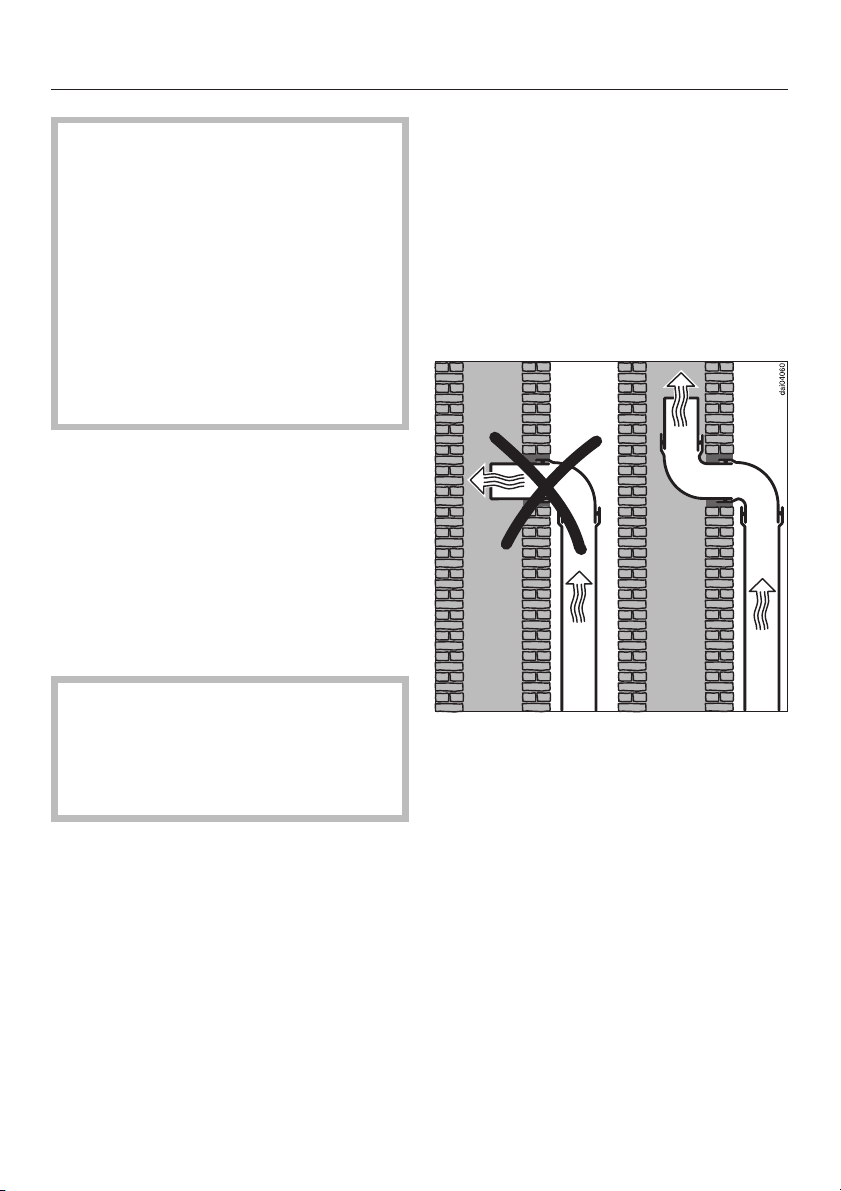

If the exhaust air is to be ducted into
a vent flue, the ducting must be
directed in the flow direction of the
flue.
29
Page 30
Connection for air extraction
Important:
If the exhaust ducting is to run through
rooms, ceiling space etc. where there
may be great variations in temperature
between the different areas, the
problem of condensation will need to
be addressed. The exhaust ducting will
need to be suitably insulated.

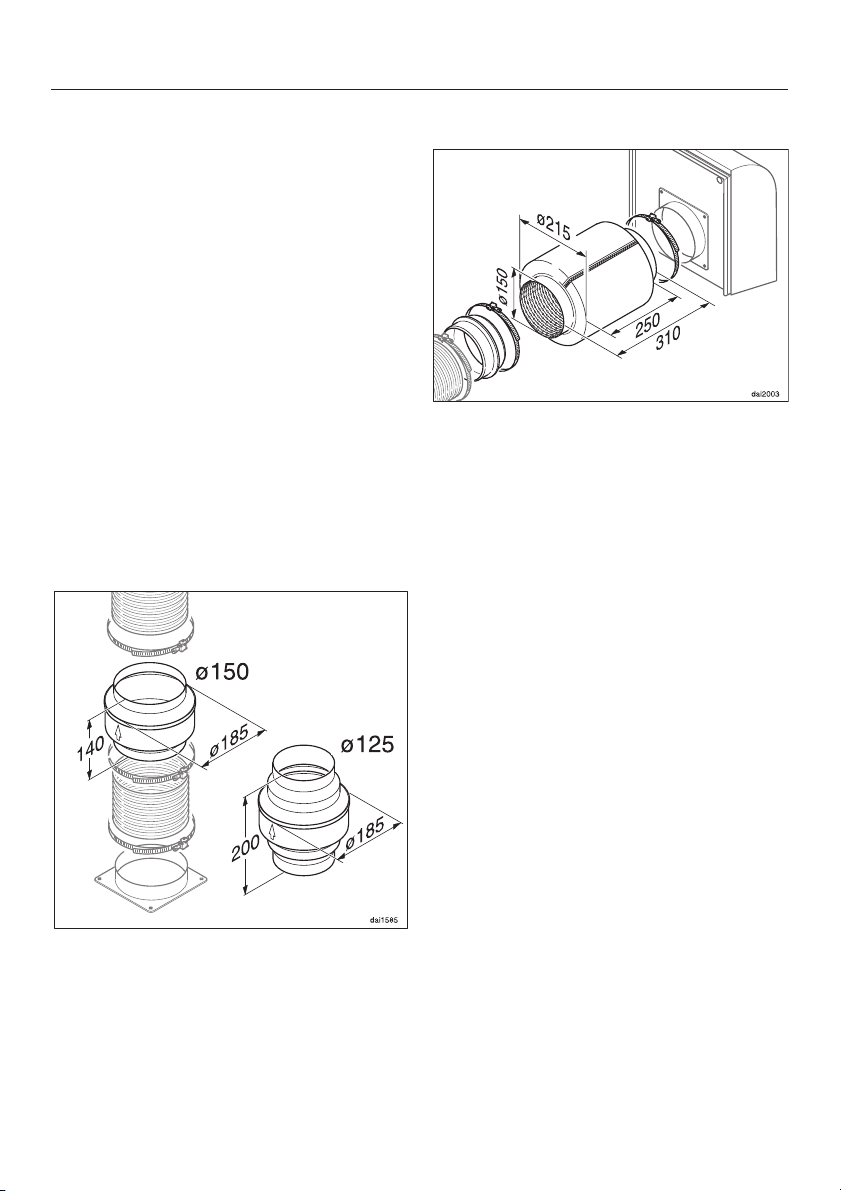

Condensate trap
(optional accessory)
In addition to insulating the exhaust
ducting, we recommend that a suitable
condensate trap is installed to collect
and evaporate any condensate which
may occur. Condensate traps are
available for C 125 mm or C 150 mm
ducting.
Silencer
To achieve even further reductions in
noise levels, a special silencer can be
fitted in the ducting system.
It can be sited at any suitable position
in the ducting system between the
cooker hood and the external motor on
EXT model cooker hoods.
On extraction models, it can be fitted
nearest the ducting outlet to the outside
to reduce neighbourhood noise.
When installing a condensate trap,
ensure that it is positioned vertically
and if possible directly above the
exhaust connection. The arrow on the
housing indicates the direction of
air-flow.
30
On recirculation models, it can be fitted
in between the fan and the deflector.
Page 31
All electrical work should be
undertaken by a suitably qualified
and competent person in strict
accordance with current national
and local safety regulations
(BS 7671 in the UK).
Installation, repairs and other work
by unqualified persons could be
dangerous, for which the
manufacturer cannot be held liable.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
Electrical connection
be provided for all poles.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
Important
U.K., IRL, NZ, ZA: This appliance is
supplied for connection to an a.c.
230 V single phase 50 Hz supply.
AUS: This appliance is supplied for
connection to an a.c. single phase
240 V, 50 Hz supply.
The wires in the mains lead are
coloured in accordance with the
following code:
Green/yellow = earth
Blue = neutral
Brown = live
The connection data is given on the
data plate. This is visible when the
grease filters have been removed.
Ensure that this data matches the
household mains supply.
Connection of this appliance should be
made via a suitable isolator or a double
pole fused spur connection unit which
complies with national and local safety
regulations and the On-Off switch
should be easily accessible after the
appliance has been built in.
When switched off there must be an
all-pole contact gap of 3 mm in the
switch (including switch, fuses and
relays according to EN 60335).
If the switch is not accessible after
installation (depending on country), an
additional means of disconnection must
WARNING:
THIS APPLIANCE MUST BE
EARTHED
31
Page 32

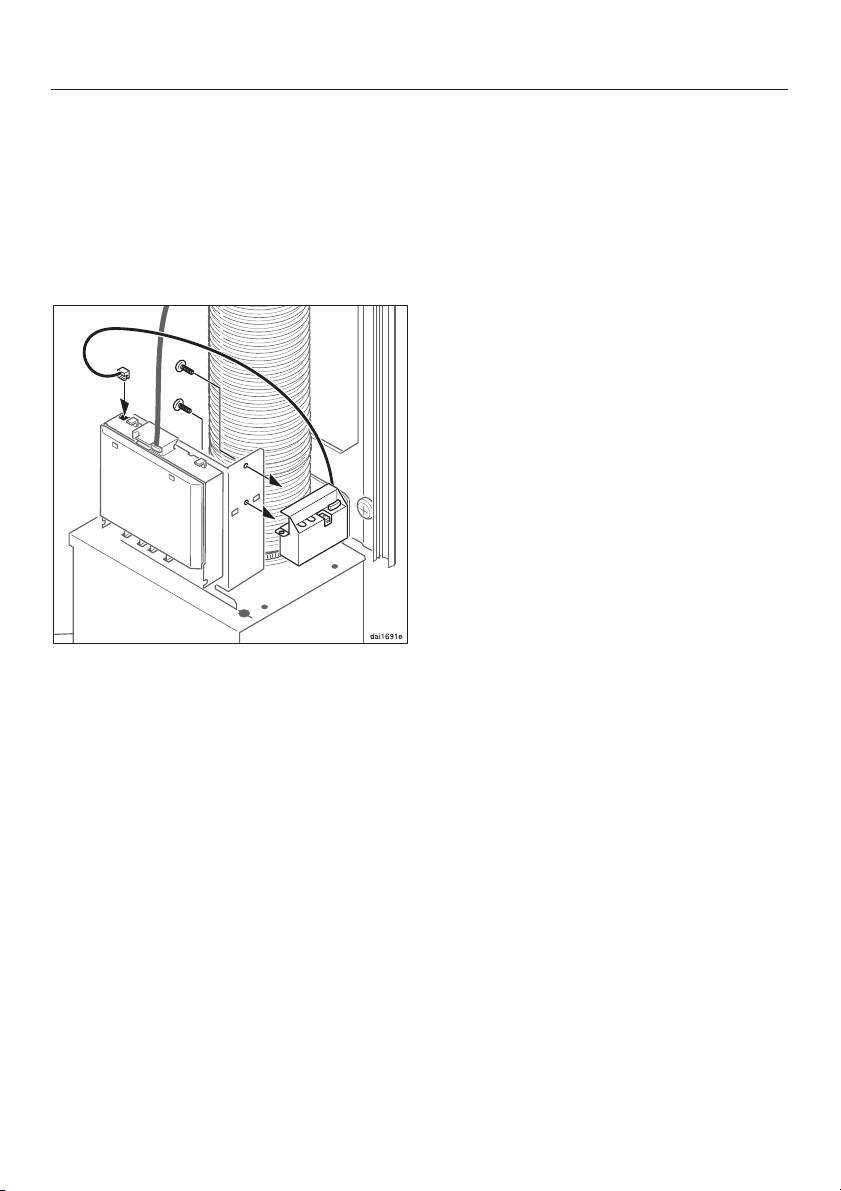

Operation with Control module DSM 400
The Miele DSM 400 Control module can
be used to combine the cooker hood
with other components.
It enables the following:
Connection to a window contact
switch
If adequate ventilation to the room can
only be ensured by having a window
open when the cooker hood is in use at
the same time as a heating appliance
which depends on the air from the
same room, then the control module
can be used to connect a window
contact switch (not supplied) to the
appliance.
Once connnected, the cooker hood can
only be operated when the window is
sufficiently open (see also "Warning
and Safety instructions").
When the window is closed the cooker
hood fan cannot be switched on. The
indicator lamp for the On/Off touch
control on the cooker hood will flash.
The same applies to operation with an
external motor (depending on model).
The cooker hood lighting is not affected
by this.
Take care when ventilating the room
through an open window that ventilation
is not impaired by a closed blind or
curtain.
If the control module is disconnected
in order to operate the cooker hood
without the window contact switch
(e.g. after moving house) the cooker
hood electronics must be reset by a
Miele service technician.
Potential free connection
This enables an external appliance to
be controlled according to the switch
setting on the cooker hood fan.
– For instance it can be used to ensure
a sufficient supply of fresh air when
the cooker hood and a heating
appliance which also depends on
the air in the room are being used
together, by switching on an air
intake fan, or opening a motorised
inlet flap as soon as the cooker hood
fan is switched on. It is important to
ensure that the fan power is sufficient
and that the air intake has a suitable
cross-sectional diameter.
–
If a sufficient air intake cannot be
guaranteed, then the potential free
contact will enable a heating
appliance, which depends on air in
the same room as a cooker hood, to
be switched off when the cooker
hood is in operation.
See also "Warning and Safety"
instructions.
32
Page 33
Operation with Control module DSM 400
Connection to a light switch
The control module can be used to
switch on the cooker hood lighting and
also to dim it, depending on model, via
a light switch in the house.
Installation
The tower needs to be removed before
the control module can be fitted to the
fan unit.
The control module is supplied with its
own detailed operating and installation
instructions.
33
Page 34
After Sales Service
In the event of a fault which you cannot
correct yourself, or if the appliance is
under guarantee, please contact:
Your Miele Dealer
–
or
The Miele Service Department (see
–
back cover for address).
When contacting your Dealer or the
Service Department, please quote the
model and serial number of your
appliance. These are shown on the
data plate which is visible when the
grease filter is removed.
Please note that telephone calls may
be monitored and recorded for
training purposes.
34
Page 35
Technical data
Total connected load* . . . . . . . . . 240 W
– Fan motor* . . . . . . . . . . . . . . . . 200 W
– Hob lighting . . . . . . . . . . . . . 2 x 20 W
Voltage
UK, NZ, ZA . . . . . . . . . . . . . . . AC 230 V
AUS . . . . . . . . . . . . . . . . . . . . AC 240 V
Frequency . . . . . . . . . . . . . . . . . . 50 Hz
Fuse rating (UK). . . . . . . . . . . . . . . . 3 A
AUS, NZ:
Plug rating . . . . . . . . . . . . . . . . . . . 10 A
Test marks . . . . . . . . . . Electrical safety
. . . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to AS/NZS 1044
Electrical cable length . . . . . . . . . 1.5 m
Weight
DA 5294 W . . . . . . . . . . . . . . . . . . 26 kg
DA 5294 W EXT . . . . . . . . . . . . . . 23 kg
Fan performance*
Extraction power according to
EN 61591
Extraction system C 150 mm:
Level I . . . . . . . . . . . . . . . . . . . 200 m
Level II. . . . . . . . . . . . . . . . . . . 300 m
Level III . . . . . . . . . . . . . . . . . . 400 m
Level IV Intensive Setting . . . . 640 m
Extraction system C 125 mm:
Level I . . . . . . . . . . . . . . . . . . . 180 m
Level II. . . . . . . . . . . . . . . . . . . 280 m
Level III . . . . . . . . . . . . . . . . . . 380 m
Level IV Intensive Setting . . . . 580 m
Unrestricted. . . . . . . . . . . . . . . 690 m
Recirculation with charcoal filter:
Level I . . . . . . . . . . . . . . . . . . . 150 m
Level II. . . . . . . . . . . . . . . . . . . 210 m
Level III . . . . . . . . . . . . . . . . . . 330 m
Level IV Intensive Setting . . . . 490 m
Special accessory for recirculation
mode:
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
–
Conversion kit DUW 20
–
Miele charcoal filter DKF 12
* For EXT models, the connected load
and extraction power will depend on
the type of external motor fitted.
EXT models:
Length of connection cable to external
motor. . . . . . . . . . . . . . . . . . . . . . . 1.9 m
35
Page 36
Alteration rights reserved / 1006
M.-Nr. 06 832 260 / 01
en-GB
Loading...
