Page 1
Operating and Installation Instructions
for cooker hoods
DA 337 i, DA 337 i EXT
It is essential to read these
operating and installation instructions
before installing or using the machine,
to avoid the risk of accident
or damage to the machine. M.-Nr. 05 473 670
Q\@ä}
Page 2
Contents
Contents
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Primary filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Secondary filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fitting / replacing the active charcoal filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing a halogen lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation
Fitting accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1. Non-return flap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2. Reducing collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3. Runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4. Fit the furniture door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5. Position the appliance in the wall unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6. Align the height of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7. Align the depth of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8 a. Fit side spacers at the sides of the appliance . . . . . . . . . . . . . . . . . . . . . . . . 30
8 b. Spacer strip for the rear of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9 a. Set up for vented extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9 b. Set up for recirculation connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
10. Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Special fitting instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fitting into wall unit with 19 mm thick carcase sides . . . . . . . . . . . . . . . . . . . . 33
Installing in a 70 cm wide wall unit: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2
Page 3
Caring for the environment
Disposal of packing material
The transport and protective packaging has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Caring for the environment
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your waste collection centre or scrap merchant about
potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
Rather than just throwing these materials away, please ensure they are offered for recycling.
See the appropriate section in the
Warning and Safety instructions.
3
Page 4
Warning and Safety instructions
Warning and Safety instructions
This appliance conforms to current
safety requirements. Inappropriate
use could, however lead to risk of
accidents to the user and damage
to the appliance.
Before using this appliance for the
first time read the operating instructions carefully. They contain important information on safety, use and
maintenance of the appliance. This
way you will avoid the risk of accidents and damage to the appliance.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner.
Appropriate use
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held responsible for any damage caused by
improper use or by non-observance of
these instructions.
Technical safety
sure that the voltage and frequency details given on the data plate correspond with the on-site electricity supply, otherwise the appliance could be
damaged. If in doubt consult a qualified electrician.
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most important that this basic safety requirement is
tested by a qualified electrician.
The manufacturer cannot be held responsible for the consequences of an
inadequate earthing system (e.g. electric shock).
qualified and competent persons to ensure safety. Repairs and other work by
unqualified persons could be dangerous and the manufacturer will not
be held responsible.
Before connecting the cooker
hood to the mains supply make
The electrical safety of this appliance can only be guaranteed
Installation work and repairs may
only be carried out by suitably
4
Page 5
Warning and Safety instructions
The appliance is only completely
isolated from the mains supply
when:
– it is switched off at the fused spur
connection, or
– it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on the
plug), or
– the mains fuse is withdrawn.
Ensure current is not supplied to the ap-
pliance while maintenance or repair
work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Use of the appliance
Do not let small children play with
the appliance or its controls. Supervise its use by the elderly or infirm.
When fitted above an open grill the
cooker hood must not be used in
recirculation mode.
by the suction of the cooker hood,
parts of which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling. Overheated oil and fat can ignite and could set the cooker hood on
fire.
Do not use the cooker hood with-
out the grease filter in place.
This way you will avoid the risk of
grease and dirt getting into the appliance and hindering its smooth operation.
Clean or change the filter regularly.
An over-greasy filter is a fire hazard.
Under no circumstances use a
steam cleaner to clean this appliance. Pressurised steam could
reach the electrical components and
cause a short circuit.
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire do not flambé or grill over
an open flame. When switched on the
cooker hood could draw flames into the
filters. Fat particles drawn into the
cooker hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan.
Otherwise flames could be drawn up
5
Page 6
Warning and Safety instructions
Installation
– The distance between the top of the
cooker/hob and the bottom of the
cooker hood must measure at least:
– 45 cm above electric cookers/hobs,
– 65 cm above gas cookers/hobs,
– 65 cm above a Miele or Imperial
electric open grill.
For other manufacturer’s cooking appliances maintain the safety distance
as recommended in their Installation
and Operating instructions.
If more than one appliance is fitted beneath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the higher distance.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material. These can be obtained from the
Miele Spare Parts department or from
builders’ merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, take
professional advice.
6
Page 7
Warning and Safety instructions
When using the cooker hood at the
same time as another heating appliance which depends on the air in the
room, (e.g. gas, oil or coal fired
heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room, which these types of
heater need for combustion.
In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simultaneously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air inlets which cannot be blocked, in windows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating appliance is switched off or vice-versa.
N.B.: The overall ventilation condition of
the dwelling must be taken into account.
If in any doubt, the advice of a competent builder or, for gas, a “Corgi” installer (gas installer) must be sought.
If the cooker hood is used in recirculation mode (with active charcoal filters) ,
there are no restrictions.
In countries where there are areas
which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any damage which might be caused by cockroaches or other vermin will not be
covered by the appliance guarantee.
Appliances with external fans
For appliances with an external fan
motor fitted (EX models) the connection
of the two units must be made using
the connection cable and the plug connectors. Make sure the correct combination of the two appliances has been
selected.
Separate instructions are supplied with
the external fan.
Disposal of your old appliance
Before discarding an old ap-
pliance switch off and disconnect
it from the power supply. Cut off and
render any plug useless. Cut off the
cable directly behind the appliance to
prevent misuse. This should be done
by a competent person.
The manufacturer cannot be held responsible for any damage caused
by non-observance of these instructions.
7
Page 8
Guide to the appliance
Guide to the appliance
8
Page 9
Guide to the appliance
b Exhaust stub ø 150
Active charcoal filter slot
c
d Control panel
e Pull-out
deflector plate
f Secondary grease filter
g Hob illumination
h Primary grease filter
Lighting touch control
i
On/Off touch control for
j
the fan
Power level
k
touch controls
You can select one of three power levels or an intensive level, depending on
how much the air needs to be filtered.
Touch control for the
l
run-on option
This control activates the run-on option.
The fan is switched off automatically
after either 5 or 15 minutes.
Touch control for the
m
grease filter
The indicator lamp for the grease filter
touch control lights up when the grease
filter needs to be cleaned.
The touch control is used
– to show how long the grease filter
has been in use (see section on
"Operation / Filter operating hours
counter").
– to alter the number of hours counted
by the filter operating hours counter
(see section "Operation / Altering the
filter operating hours counter").
Touch control for the
n
active charcoal filter
The indicator lamp for the active charcoal filter touch control comes on when
the active charcoal filter used in recirculation mode needs to be replaced.
The touch control is used
– to show how long the active charcoal
filter has been in use (see section on
"Operation / Filter operating hours
counter").
– to alter the number of hours counted
by the filter operating hours counter
(see section "Operation / Altering the
filter operating hours counter").
9
Page 10
Description of the functions
Description of the functions
The cooker hood works
. . . by air extraction:
The air is drawn in, cleaned by a primary filter and then passed through a
secondary filter before being directed
outside.
The cooker hood is fitted with a non-
return flap .
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on the non-return flap opens
for the cooking smells to be blown directly outside.
. . . by air recirculation:
The air is drawn in and cleaned first by
the primary filter, then the secondary filter before passing through an active
charcoal filter. The cleaned air is then
recirculated back into the kitchen
through a vent in the top of the cooker
hood.
. . . with an external fan
The EX models are designed to be connected to an external fan located outside the room.
The external fan is connected to the
cooker hood by a control cable and is
operated by the control panel on the
cooker hood.
Before using the cooker hood for
the first time in recirculation mode,
ensure that the active charcoal filter
is in place. See Section on "Cleaning and care".
10
Page 11
Operation
Switching on
Pull the deflector plate out approx. 5
cm.
The cooker hood will then begin to
operate at power level “II”.
Selecting the power level
Depending on how much the air needs
to be filtered, there are four power levels available. For normal cooking a
low to medium level is usually sufficient. For frying or cooking food with a
strong aroma the highest level is recommended.
Lower level Higher level
Use the – /+ controls to select the
power level required.
Operation
Run-on option
If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.
The fan motor will then switch off automatically after a further 5 or 15 minutes.
While the fan is running, press the
run-on option touch control
Press once = The fan switches off
after 5 minutes.
(left indicator lamp)
Press twice = The fan switches off
after 15 minutes.
(right indicator lamp)
To switch the run-on option off, press
the run-on option touch control again.
The indicator lamps show which power
level has been chosen.
11
Page 12
Operation
Switching off
Press the On/Off touch control to
switch the fan off.
Or
Push the deflector plate back in.
The next time the deflector plate is
pulled out the cooker hood will operate
at power level “II”.
Switching the lighting on or off
The lighting for illuminating the hob can
be switched on or off independently of
the fan.
Pull the deflector plate out approx. 3
cm.
Press the lighting touch control.
When the lighting is switched on the
indicator light for the lighting touch
control glows.
To switch it off
Press the lighting touch control
again.
or
Push the deflector plate back in.
The next time the deflector plate is
pulled out the light will come back on.
12
Safety switch-off feature
Should the cooker hood have been left
switched on, the fan will switch off automatically after 10 hours. The lighting remains on.
Pressing the On/Off touch control will
switch the fan back on again.
Page 13
Operation
Filter operating hours counter
The number of hours the cooker hood
has been operating for is stored in the
memory.
The operating hours counter is set at
the factory for 30 hours. This period of
time can be changed if wished (see “Al-
tering the filter operating hours counter”).

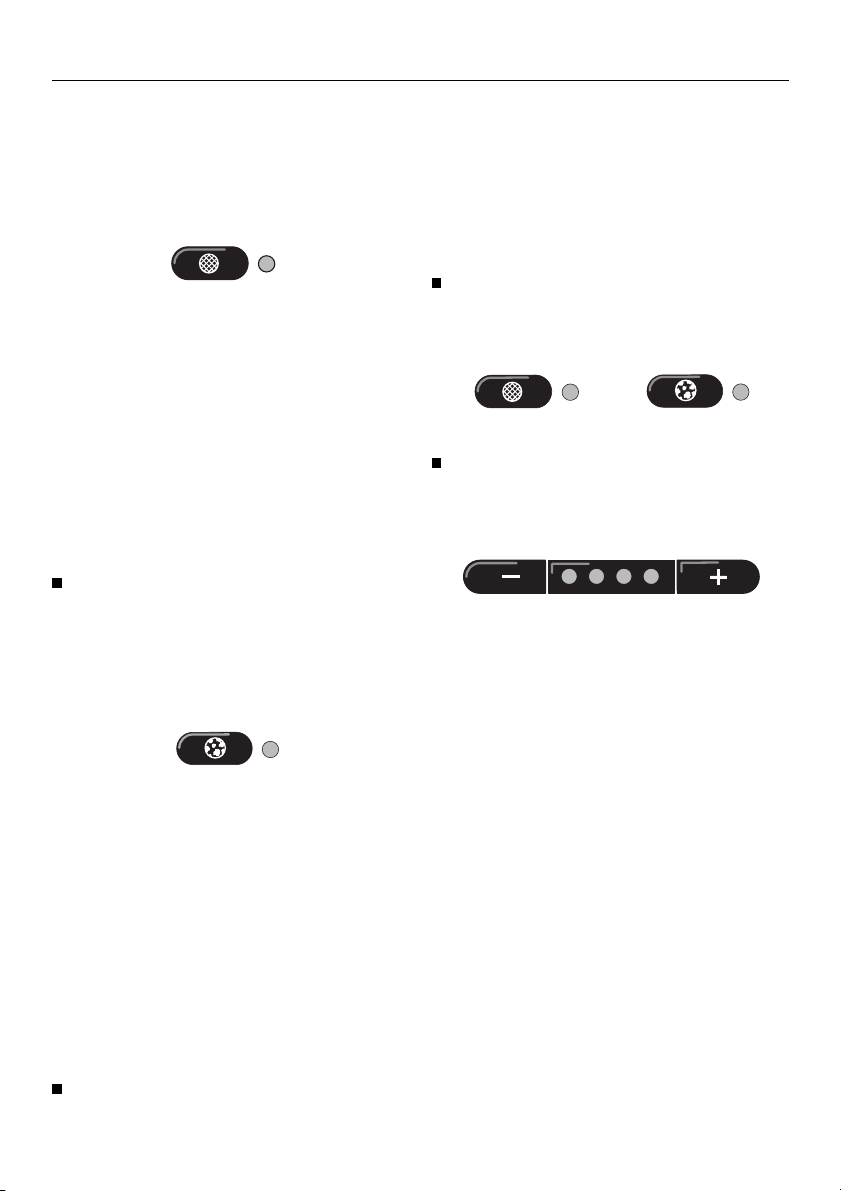

The indicator lamp for the grease filter
touch control lights up after 30 hours to
show that the grease filters need to be
taken out and cleaned.
The filter operating hours counter must
then be re-set.
Press the grease filter touch control
for about 4 seconds.
The indicator lamp will go out.
With recirculation mode:
Reading the filter operating
hours counter
Before reaching the end of the period
set you can check the percentage of
the time set which has already been
used up.
Pull the deflector plate out approx. 5
cm. The fan switches on.
Press the grease filter / active charcoal filter touch control.
One or several of the indicator lamps
between the – /+ will flash.
The number of flashing lamps indicates
the percentage of operating time set already used up.
You can set the filter operating hours
counter for the active charcoal filter to
suit the type of cooking you do. At the
end of the period of time you have set,
the indicator lamp for the active charcoal filter touch control will light up to
show that the active charcoal filter
must be replaced with a new one.
The filter operating hours counter for
the active charcoal filter must then be
reset.
Press the active charcoal filter touch
control for about 4 seconds.
1 lamp = 25%
2 lamps = 50%
3 lamps = 75%
4 lamps = 100%
The number of operating hours used remains in memory, even when the appliance is switched off or there is a
power cut.
13
Page 14
Operation
Altering the filter operating
hours counter
You can set the operating hours
counter to suit the type of cooking you
do.
– Select a short time if you roast or fry
a lot.
– If you use very little fat for cooking,
select a longer time.
– If, however, you only cook occasion-
ally we recommend that you select a
short time because grease which
has built up gradually over a long
period of time will harden on the
grease filters and make cleaning
more difficult.
Grease filters
The operating hours counter for the
grease filters is set to 30 hours. This
time can be lengthened or shortened.
You can choose from 20, 30, 40 or 50
hours.
Use the On/Off touch control to
switch the fan off.
or
The indicator lamp for the grease filter
touch control and one of the lamps between the – /+ touch controls will flash.
The lamps between the – /+ touch controls show the time which has been set:
1st lamp from left = 20 hours
2nd lamp from left = 30 hours
3rd lamp from left = 40 hours
4th lamp from left = 50 hours
Use the – /+ touch controls to select
the desired time.
Confirm the procedure by pressing
the grease filter touch control.
If the procedure is not confirmed
within 4 minutes of programming
the steps, the cooker hood will automatically revert to the “old” data.
Push the deflector plate in.
Press the run-on option touch control
and the grease filter touch control at
the same time.
14
Page 15
Operation
Active charcoal filter
(with recirculation mode)
The active charcoal filter is needed for
recirculation mode. It is not used for
vented extraction.
As the cooker hood is set up ex-works
for vented extraction, the operating
hours counter for the active charcoal filter is set to ”unlimited”.
To set the active charcoal filter operating hours counter for a time which
suits your needs, proceed as follows:
Use the On/Off touch control to
switch the fan off.
or
Push the deflector plate in.
Press the run-on option touch control
and the active charcoal filter touch
control at the same time.
The indicator lamp for the active charcoal filter touch control and one of the
lamps between the – /+ touch controls
will flash.
The lamps between the – /+ touch controls show the time which has been set:
1st lamp from left = 120 hours
2nd lamp from left = 180 hours
3rd lamp from left = 240 hours
4th lamp from left = unlimited
Use the – /+ touch controls to select
the desired time.
Confirm the procedure by pressing
the active charcoal filter touch control.
If the procedure is not confirmed
within 4 minutes of programming
the steps, the cooker hood will automatically revert to the “old” data.
15
Page 16
Cleaning and care
Cleaning and care
Before any cleaning or maintenance
work the cooker hood must be disconnected from the mains supply.
Ensure that:
- it is switched off at the fused spur
connection or
- it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on
the plug), or
- the mains fuse is withdrawn.
Grease filters
Re-usable metal filters are fitted which
remove solid particles (oil, dust, etc.)
from the kitchen vapours, preventing
soiling of the cooker hood.
The cooker hood has a primary filter,
which is visible on the underside of the
appliance. A secondary filter is situated above it in the appliance.
Ensure current is not supplied to the
appliance while maintenance or repair work is being carried out.
Housing
Lacquered surfaces can be cleaned
using hot water to which a little mild
washing-up liquid has been added.
Dry with a soft cloth.
For stainless steel surfaces a mild nonabrasive proprietary stainless steel
cleaner is suitable.
Never use cleaners which scour or
contain chlorine, acids or soda.
These would damage the surface of
the cooker hood.
The filters should be cleaned regularly
(at least every 3-4 weeks) to avoid a
build-up of fat. Always clean the filters
immediately if indicator lamp for the
grease filter touch control comes on.
Important! Always clean both filters.
An over saturated filter is a fire
hazard.
16
Page 17
Cleaning and care

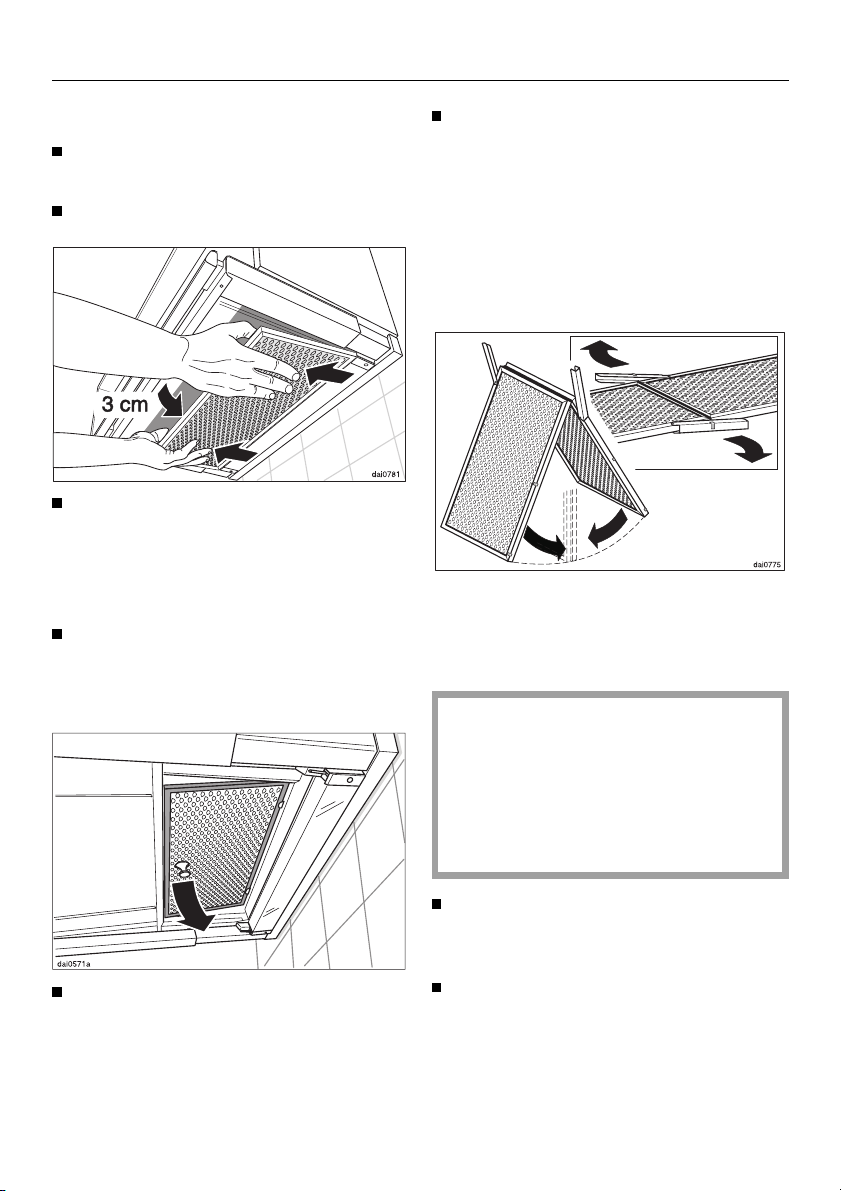

Primary filter

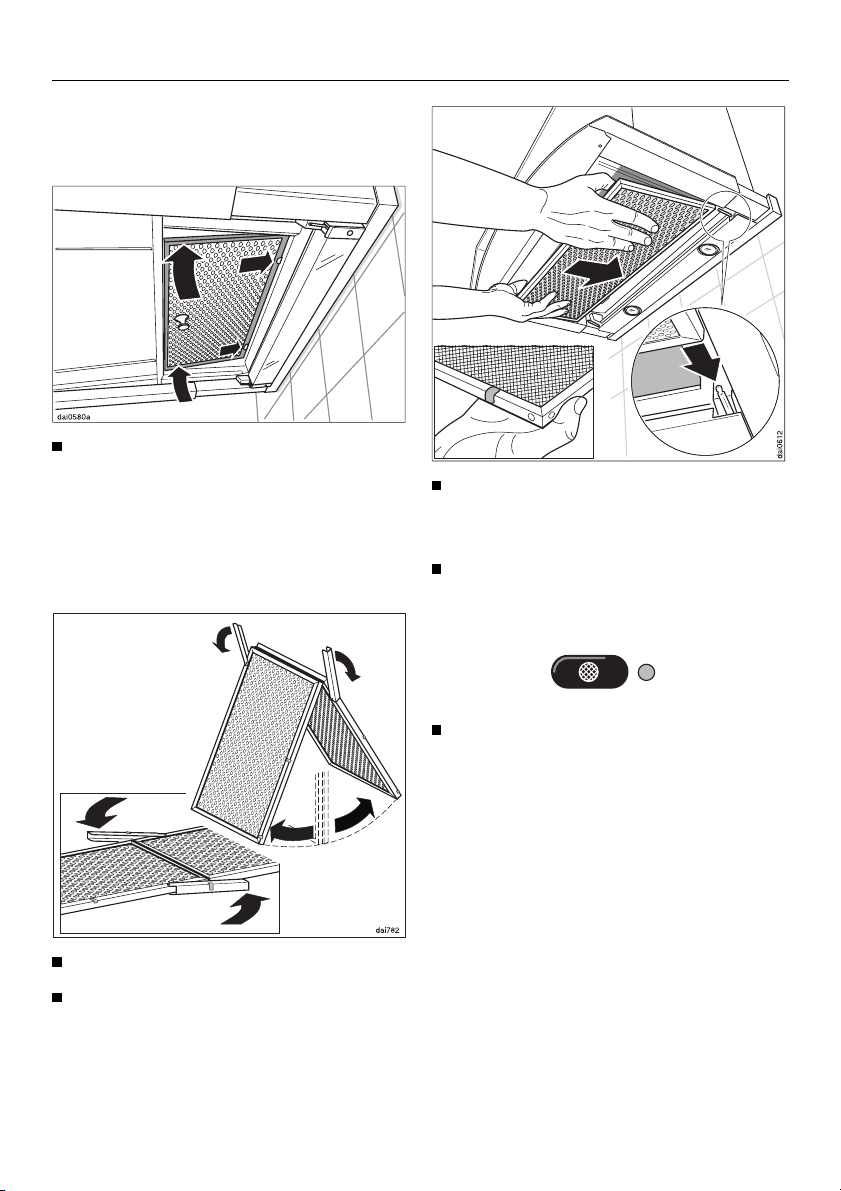

To remove the primary filter pull the
deflector plate out slightly.
Switch the fan off.
Holding the primary filter at the front
tilt it approx. 3 cm downwards and
then pull it towards you to remove it.
Secondary filter
Pull the deflector plate out to its full
extension.
The secondary filter will now be visible.
Clean the filters –
– by hand: with a nylon brush in a
mild solution of warm water and
washing up liquid.
– in a dishwasher: place the filters
with the short side upright in the
lower basket, ensuring the spray arm
is not obstructed.
The primary filter can be folded up if
necessary to get it in the dishwasher.
To do this open the catches in the
middle of the filter.
Depending on the cleaning agent
used, cleaning the grease filters in
a dishwasher can cause permanent
discolouration to the surface of the
filters. However, this will not affect
the functioning of the grease filters
in any way.
Holding it by the handle pull it down-
wards to remove it.
After cleaning, leave the filters to dry
on an absorbent surface before putting them back in place.
When removing the filters for cleaning also clean off any residues of oil
or fat from the now accessible housing to prevent the risk of these catching fire.
17
Page 18
Cleaning and care
Replacing the filters
Secondary filter:

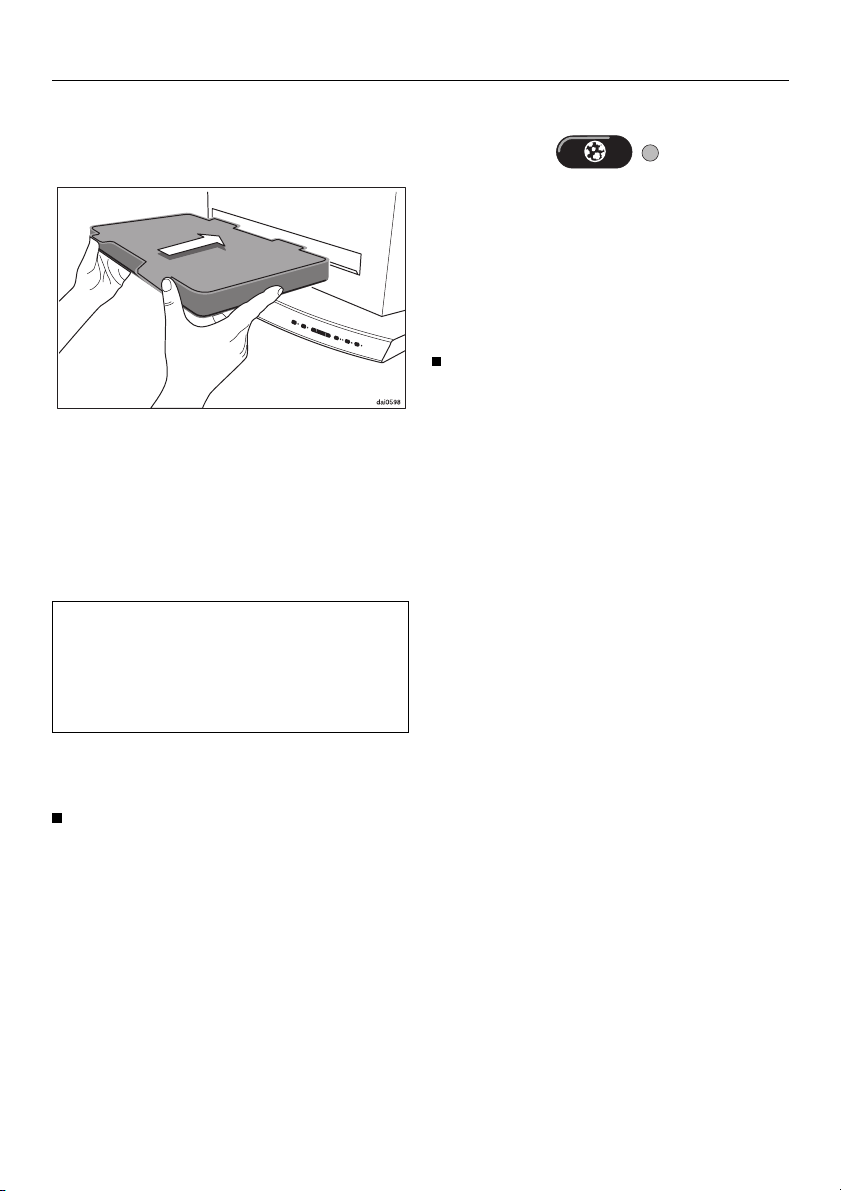

Fit the filter into the appliance so that
it hooks into position at the back,
then push it upwards at the front and
make sure it engages in position on
the left and right hand sides.
Primary filter:
Turn the filter so that the red plastic
guides are at the front and facing upwards.
Fit it over the locating pins at the rear
and push it in until a resistance is felt.
Open the catches.
Open out the filter and secure the
catches.
18

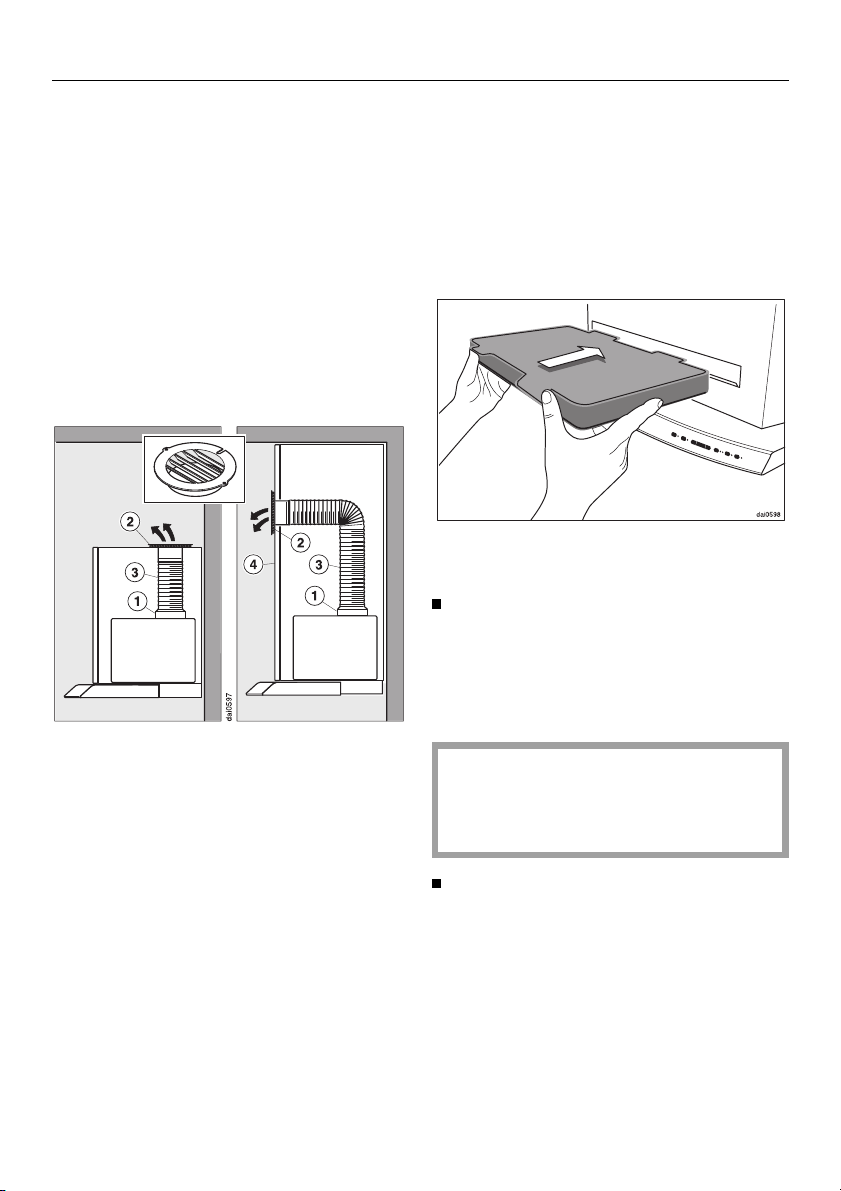

After replacing the grease filters,
press the grease filter touch control
for approx. 4 seconds to re-set the
operating hours counter.
Page 19
Fitting / replacing the active
charcoal filters
For recirculation mode an active charcoal filter has to be used in addition to
the grease filters. It is designed to absorb cooking odours.
The active charcoal filter is fitted into a
slot on the front of the appliance housing.
Active charcoal filters can be obtained from your dealer or the Miele
Spare Parts Department. Refer to the
section “Technical data” for type and
reference number.
Cleaning and care
Always replace the filter immediately if
the indicator lamp for the active charcoal filter touch control comes on, or if
it is no longer effective in absorbing kitchen odours. It should, however, be replaced at least every 6 months.
After fitting the new filter, press the
active charcoal filter touch control for
approx. 4 seconds to re-set the operating hours counter.
Follow the instructions supplied with
the active charcoal filter when fitting it.
When fitting for the first time:
Set the operating hours counter to suit
your requirements, (see “Operation Altering the filter operating hours
counter”).
19
Page 20
Cleaning and care
Changing a halogen lamp
Before any cleaning or maintenance
work the cooker hood must be disconnected from the mains supply.
Ensure that:
- it is switched off at the fused spur
connection or
- it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on
the plug), or
- the mains fuse is withdrawn.
Ensure current is not supplied to the
appliance while maintenance or repair work is being carried out.
When in use the halogen lamps
become very hot. Do not touch immediately as they remain hot for
some time after being switched off.
Take the primary filter out of the appliance, (see “Cleaning and Care”).
Slightly loosen the halogen lamp fixing screw and push it downwards as
illustrated.
Tighten the fixing screw up.
You must not touch the surface of a
halogen lamp when changing it as
this will damage it. Please follow the
manufacturer’s instructions.
20
Turn the halogen lamp by a half turn
to the left and pull it downwards to
remove it.
Only use the following specification
halogen lamp in this appliance:
PHILIPS Halotone GZ 10, 230V 50°,
Typ-Nr. 14560.
Fit the new halogen lamp by reversing the above procedure.
Page 21
After sales service
After sales service
In the event of any faults which you cannot easily remedy yourself, please contact:
– Your Miele Dealer
or
– The Miele Service Department,
(see address on the back page)
When contacting the Service Department, please quote the model and serial number of the appliance, both of
which are shown on the data plate,
visible when the grease filter is
removed.
Please note that telephone calls
may be monitored and recorded to
improve our service.
21
Page 22

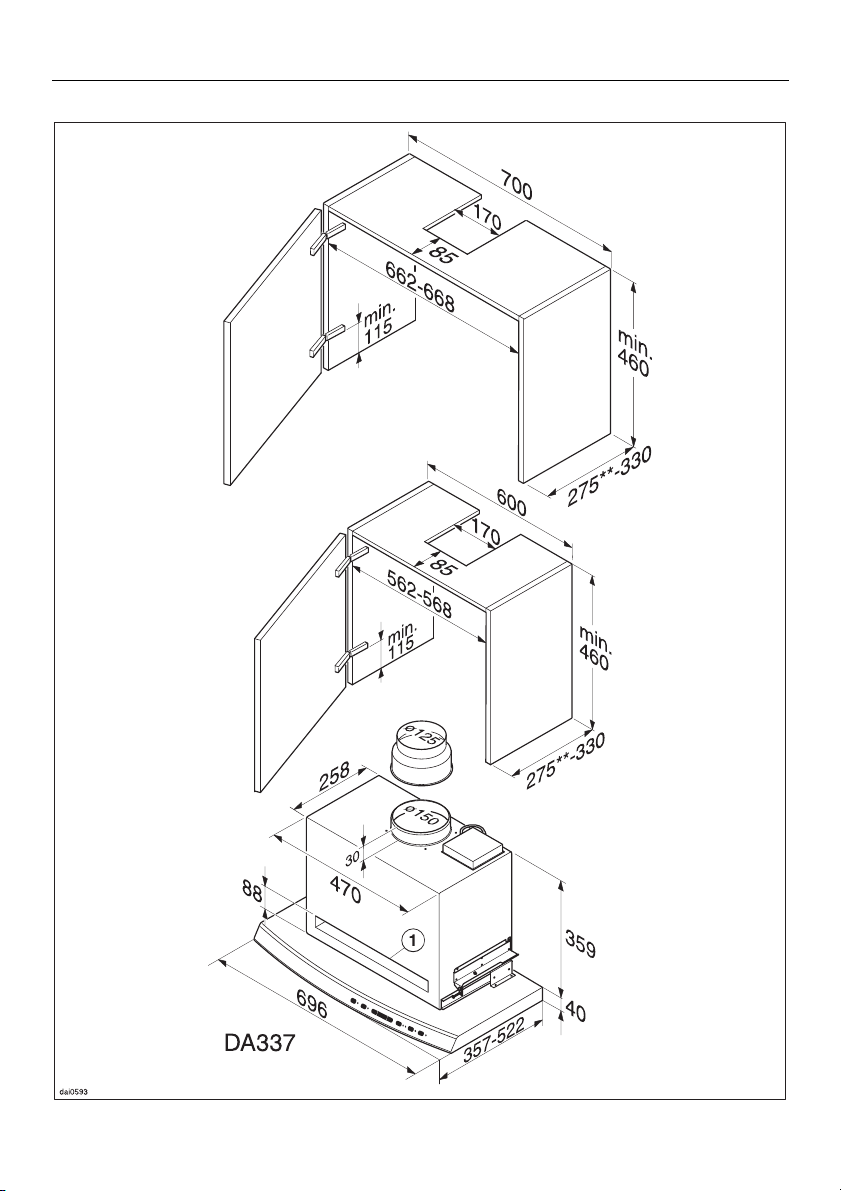

Appliance dimensions
Appliance dimensions
22
Page 23
Appliance dimensions
Safety regulations prohibit the fitting
of this cooker hood over a solid fuel
stove.
The minimum safe distance between the top of the cooker/hob and
the bottom of the cooker hood
should be at least:
– 45 cm above electric cookers /
hobs
– 65 cm above gas cookers/hobs
– 65 cm above a Miele or Imperial
electric open grill.
See “Warning and Safety instructions” for futher notes on safe installation.
**With this minimum depth, the back
panel of the wall unit housing needs to
be removed (see next page).
– The minimum wall unit height re-
quired is 460 mm to ensure that the
exhaust ducting can be fitted to the
exhaust stub without difficulty.
– The appliance is suitable for fitting in
either a 60 cm or a 70 cm wide wall
housing unit.
If it is fitted in a 60 cm wide wall unit,
please note that the deflector plate
protrudes to the sides. The building
in height of adjacent units must take
this into account.
– The slot for the active charcoal filter
must remain accessible if the ap-
b
pliance is being used in recirculation
mode.

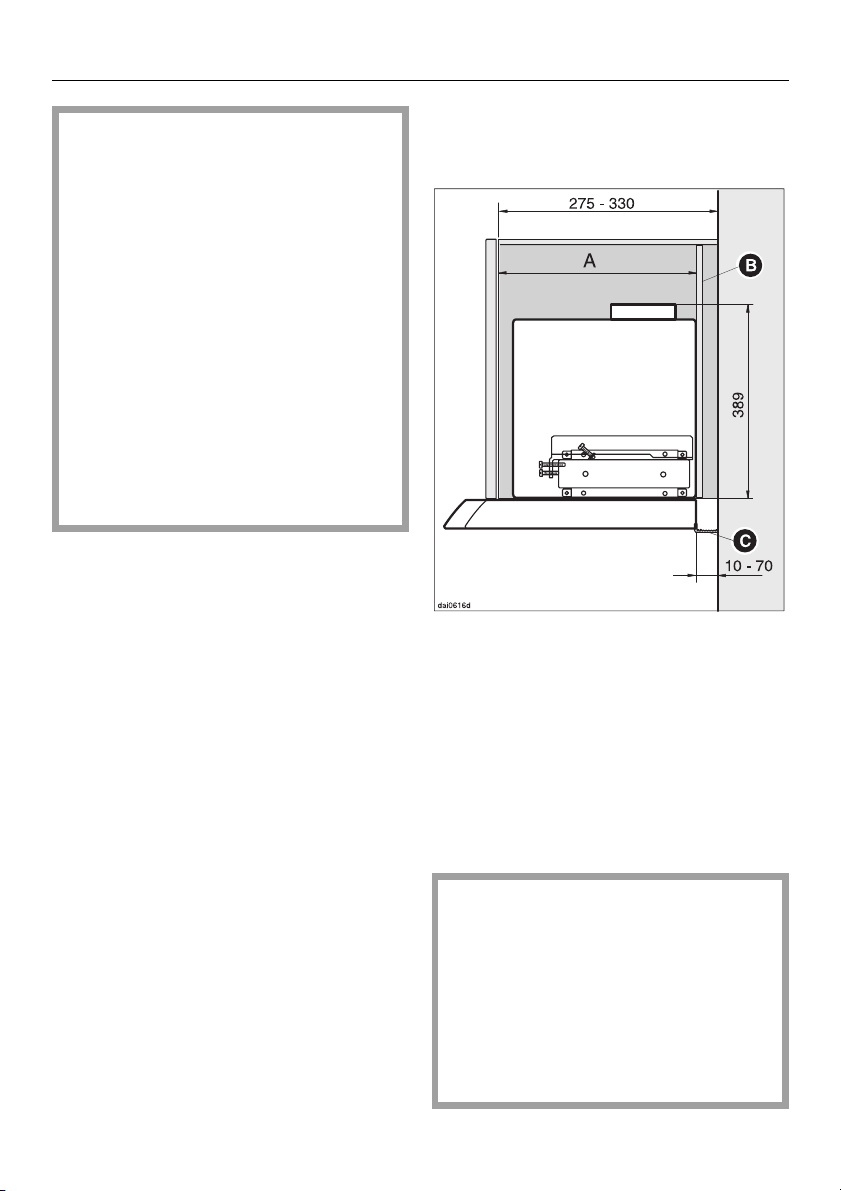

Building in depth of the wall
unit
A minimum building in depth “A” of 275
mm is required to the back panel
back wall.
More building in space can be created
in the wall unit by removing its back
panel.
The plastic trim
ceal gaps of 10 to 70 mm between the
rear of the appliance and the wall.
If the wall unit does not have a back
panel and there are no units to the
side of it then a traverse must be
used to provide the unit with extra
stability.
A traverse is available from the
Miele Spare Parts Department in the
appropriate width to suit the wall
unit (Miele DT 60, DT 70).
is designed to con-
C
B
or
23
Page 24
Installation
Installation

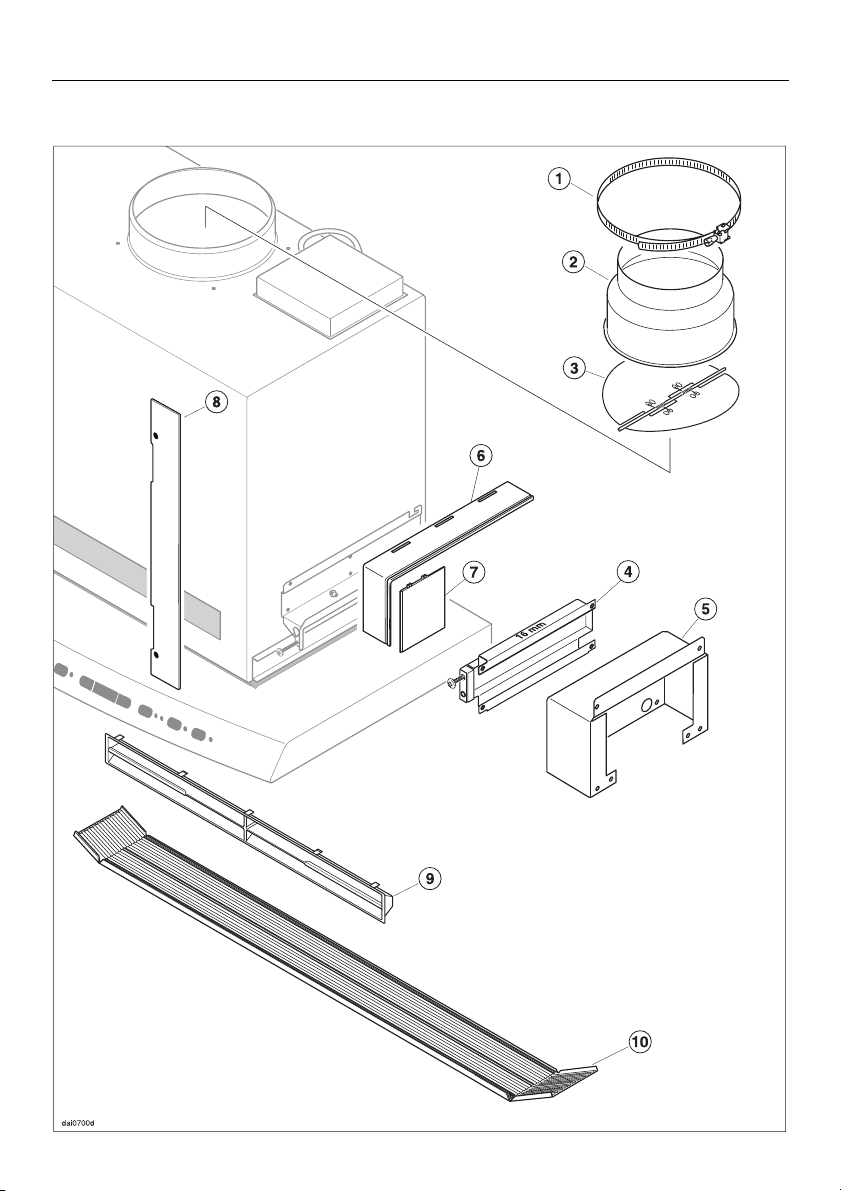

Fitting accessories
24
Page 25
Installation
1 hose clip for securing the vent
b
ducting to the exhaust stub.
1 reducing collar
c
for exhaust ducting ø 125 mm.
1 non-return flap
d
for fitting into the exhaust stub.
2 runners
e
(1 x right, 1x left) to support the appliance in the wall unit.
2 spacer blocks
f
for fitting the appliance in a 70 cm wide
wall unit.
2 cover caps
g
(1 x right, 1x left) and two inserts
covering the suppport rails when fitting
in a 70 cm wide wall unit.
2 side spacers
i
to cover the spaces at the side when fitting in a 60 cm wide wall unit.
Facia slot
j
for inserting the active charcoal filter.
h
for
8 screws 4.0x16 mm
For securing the runners
in a 60 cm wide wall unit.
or for securing the spacer blocks
a 70 cm wall unit.
12 self-tapping screws
3.5x9.5 mm
8 for securing the runners
spacer block
cm wide wall unit).
4 for securing the side spacers
Screwdriver for aligning the furniture
door after the appliance has been built
in.
(when fitting in a 70
f
to the
e
i
f
.
e
in
1 spacer strip
k
to cover the gap between the rear of
the appliance and the wall.
25
Page 26
Installation
Fitting procedure
1. Non-return flap (if required)
2. Reducing collar (if required)
3. Fit the runners in the wall unit
4. Fit and align the furniture door
5. Position the appliance in the wall unit
6. Align the height of the appliance
7. Align the depth of the appliance
8. Fit the side spacers, the spacer
strip, and the light cover
9. Set up for air extraction or recirculation
10. Connect to the electricity supply
Prepare the exhaust stub/ vent socket
for air extraction or recirculation before
installation.

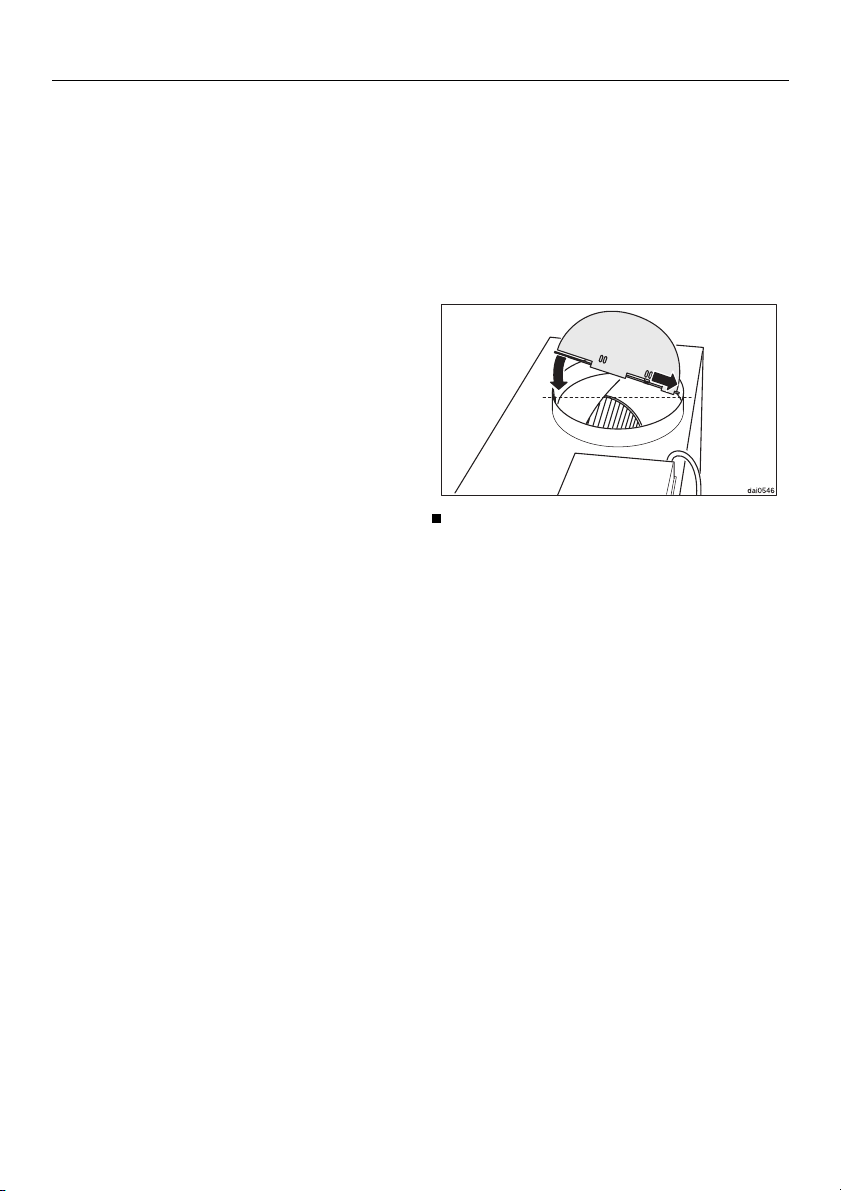

1. Non-return flap
Air extraction with integrated fan
Fit the non-return flap into the vent
socket so that the flaps can open upwards.
(This is not necessary if the ducting
system is already fitted with a non return flap, e.g. wall vent).
Air extraction with external fan
The non-return flap is integrated into
the vent socket.
26
Recirculation mode
When used in recirculation mode it is
not necessary to fit a non-return flap.
Page 27
Installation
2. Reducing collar
Air extraction
The appliance is designed for vent
ducting ø 150 mm.
If ø 125 mm is required:
Place the reducing collar supplied
on the vent socket and turn it to secure it in position (see “Connection
for air extraction”).
Recirculation
Place the reducing collar for ø 125
mm on the vent socket as described
previously.

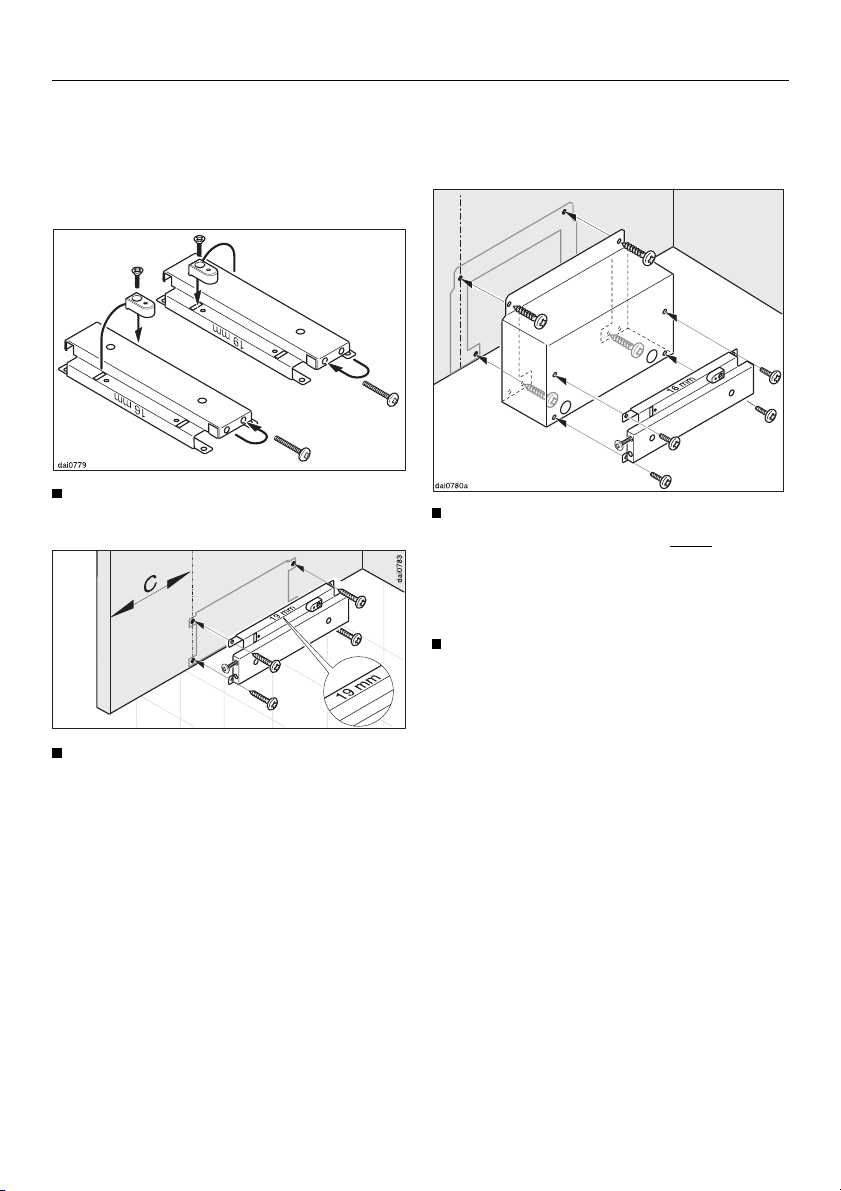

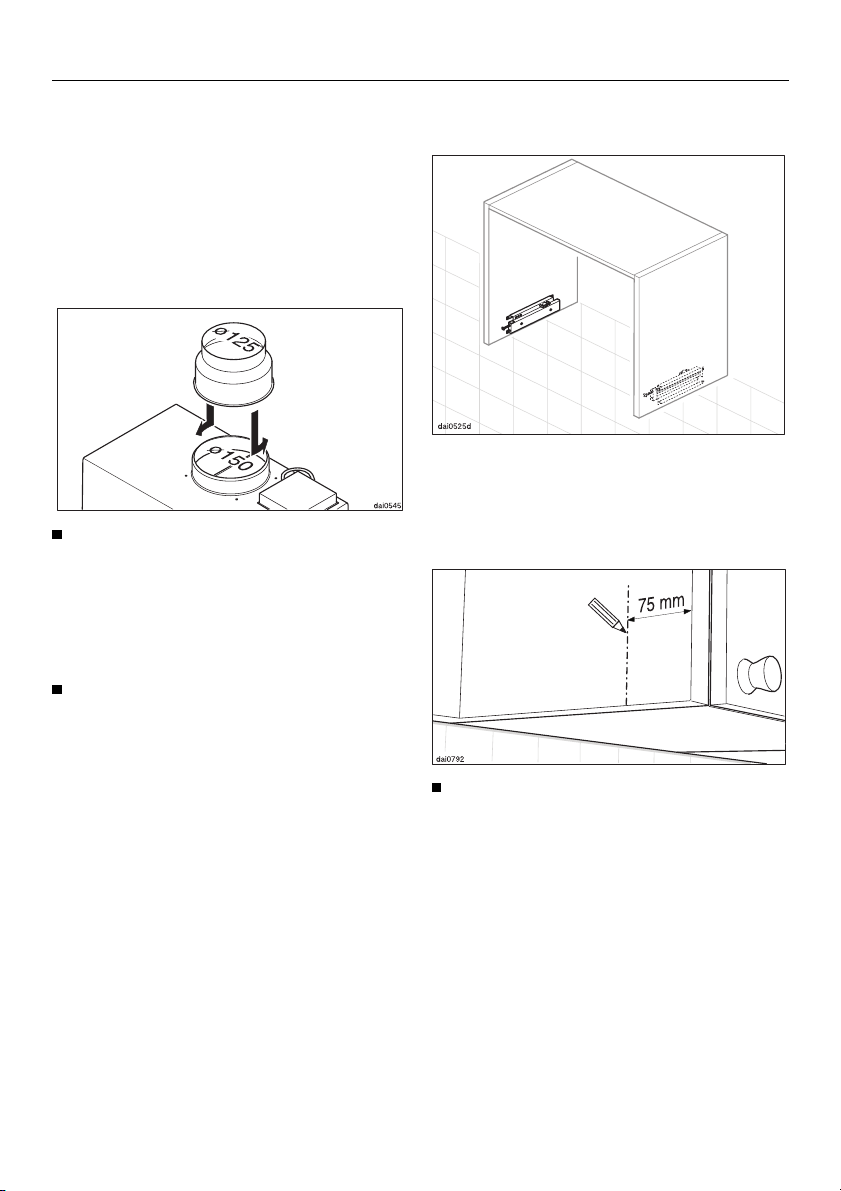

3. Runners
Now fit the two runners into the wall unit.
If the appliance is being installed in a
70 cm wide wall unit the runners are
fitted with the spacer blocks.
Draw a vertical line approx. 20 cm
long 75 mm in from the front edge of
the wall unit.
If the appliance is fitted into a Miele kitchen furniture wall unit the necessary
drill holes will already be provided in
the wall unit.
27
Page 28
Installation

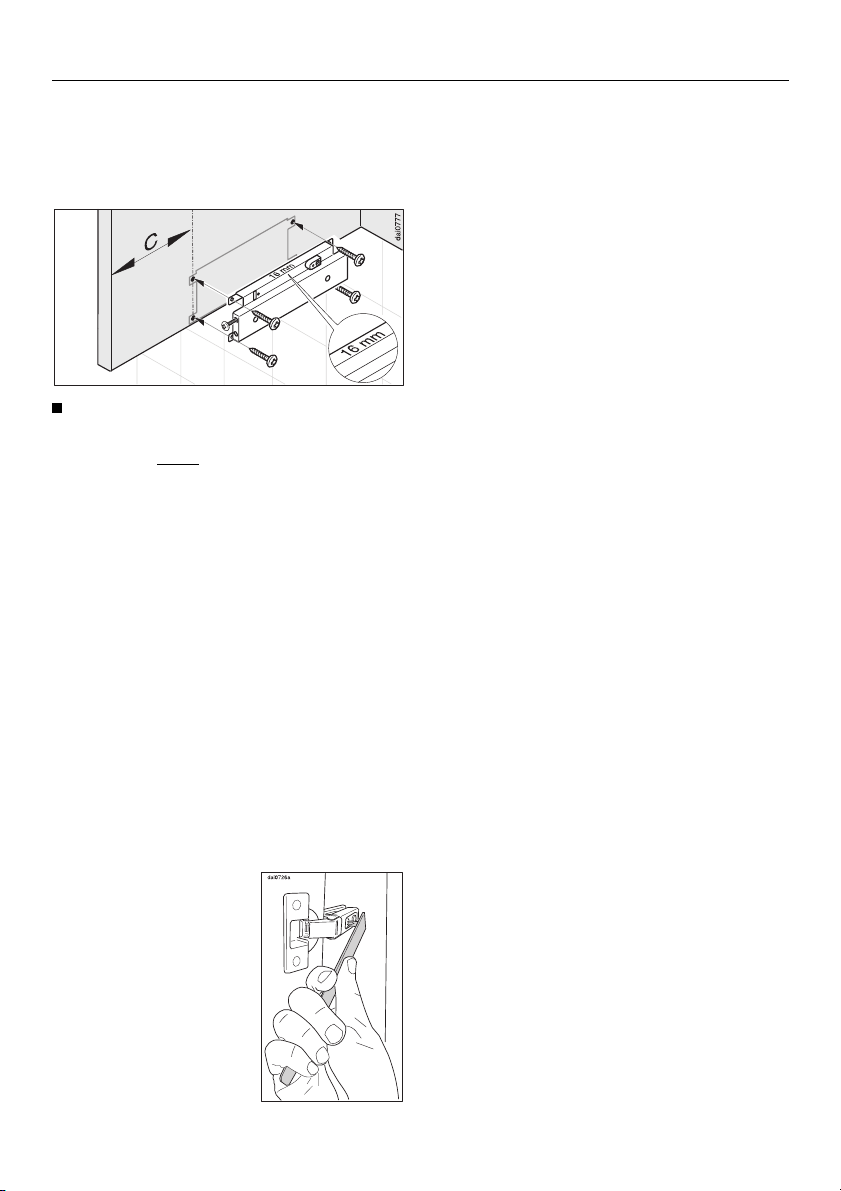

Fit the runners
(Standard wall unit: 60 cm wide, 16 mm
thick carcase sides)
Hold the runner against the wall unit
ensuring that the lower edge of the
runner is
first row of screws must be aligned
against the marked line.
The “16 mm" marking should face upwards.
Secure each runner with four 40 x 16
mm screws.
Exception: Please refer to the notes
under “Special fitting instructions” at
the end of the “Installation” section for
instructions on fitting the appliance into
a wall unit with 19 mm thick carcase
sides or into a 70 cm wide wall unit.
flush with the wall unit. The
4. Fit the furniture door
Before building in the appliance, fit and
align the wall unit furniture door.
Use the special tool
supplied, if you need
to re-align the furniture door after the appliance has been
built in and the
hinges are no longer
accessible.
28
Page 29
Installation

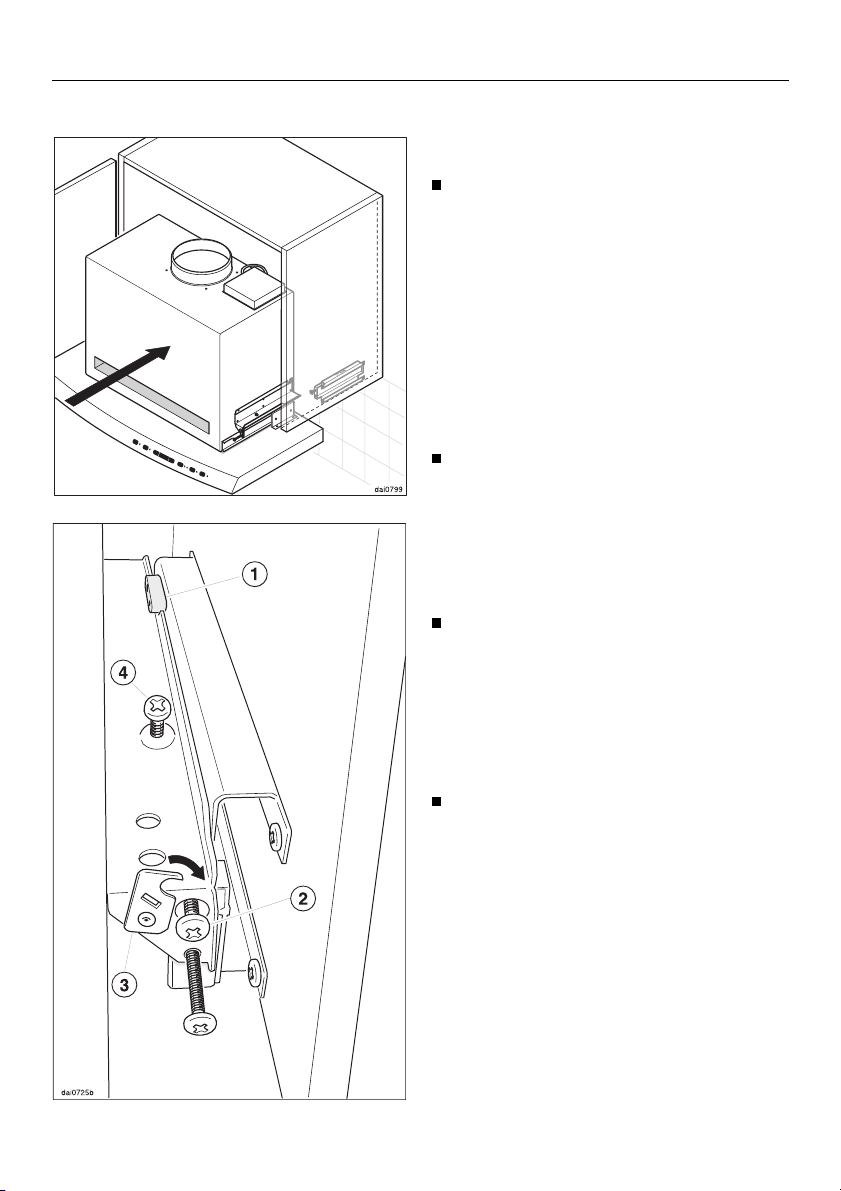

5. Position the appliance in
the wall unit
Lift the cooker hood into the wall
unit, making sure that the supports
on the cooker hood are sitting on the
runners in the wall unit. Push it into
the wall unit as far as it will go.
The supports will slide under the antitip device
b
.
Insert the adjusting screws
runners through the holes in the supports.
Use a small screwdriver to push retainer
c
down over adjusting screw
d
.
on the
c
6. Align the height of the
appliance
Use screw e to align the height.
Now align the appliance so that it is
horizontal.
Turning screw
appliance upwards, turning it anticlockwise lowers it.
Close the unit door and check that
the deflector plate goes in and out
smoothly. If necessary make more
adjustments as above.
clockwise, raises the
e
29
Page 30
Installation
7. Align the depth of the
appliance
To move the appliance further out of
the wall unit:
Loosen screws
screws
Tighten screws
into position.
f
.
and tighten
c
again to secure it
c

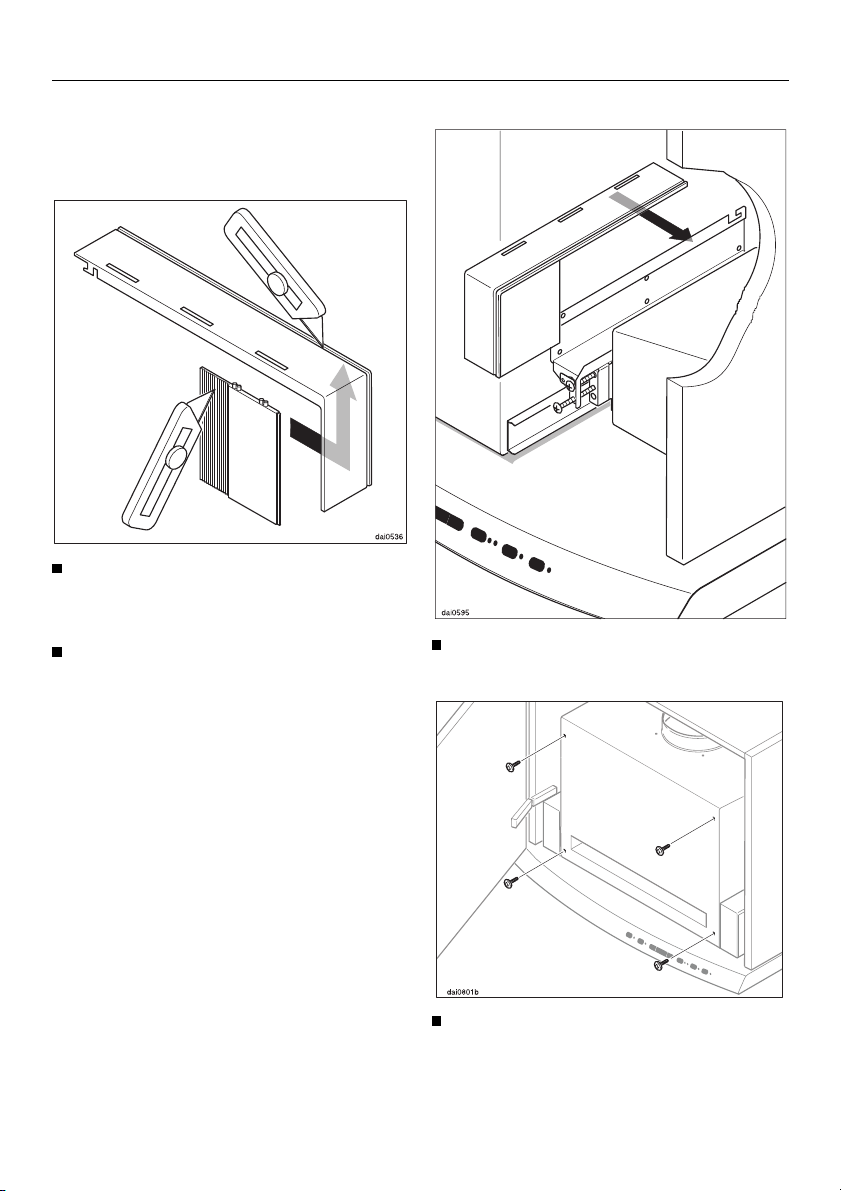

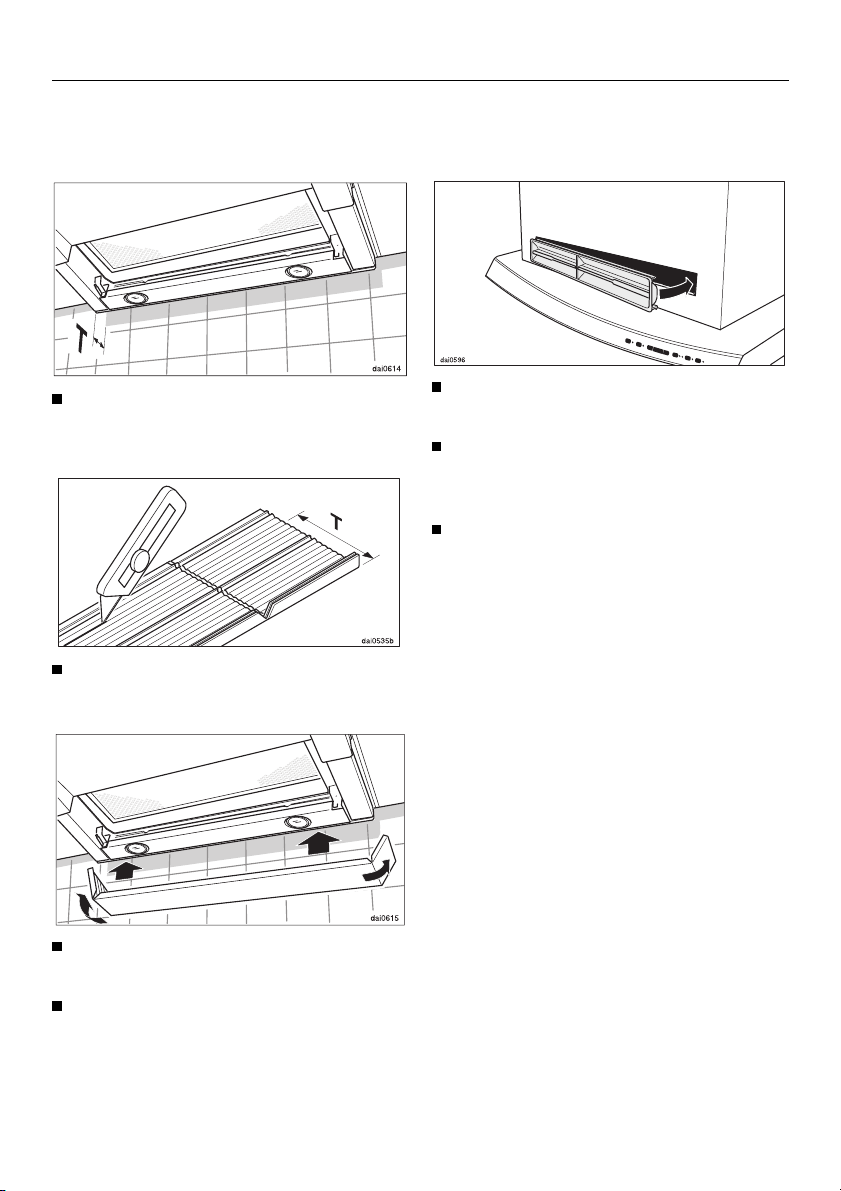

8 a. Fit side spacers at the
sides of the appliance
(Standard wall unit 60 cm wide)
The side spacers cover the gaps between the sides of the appliance and
the wall unit.
Before fitting the side spacers, use a
knife to make a cut-out in the side
spacer for the appropriate side of
the wall unit to accommodate the
wall unit hingeing.
Screw the side spacers to the housing with 3.5 x 9.5 mm screws and
press them in at the sides.
To move the appliance further into
the wall unit:
Loosen screws
screws
Tighten screws
in position.
Check the alignment again by pulling the deflector plate out and pushing it back in again.
30
c
.
and tighten
f
again to secure it
f
Exception: Please refer to the notes
under “Special fitting instructions” at
the end of the “Installation” section for
instructions on fitting the appliance into
a 70 cm wide wall unit.
Page 31
Installation
8 b. Spacer strip for
the rear of the appliance
Measure the gap “T” to be covered
between the rear of the appliance
and the wall.
Use a knife to trim the spacer strip
supplied to measurement “T”.
9 a. Set up for vented
extraction
Fit the panel supplied into the slot for
the active charcoal filter.
Secure the ventilation ducting over
the vent socket on the cooker hood
using a hose clip.
Complete venting installation. (See
“Connection for air extraction”).
Stick the spacer strip to the underside of the appliance.
Turn the side cover caps upwards
and press into position.
31
Page 32
Installation
9 b. Set up for recirculation
connection
If site conditions are not suitable for the
cooker hood to be used for air extraction the appliance must be connected
for recirculation.
The following parts, available through
your Miele Dealer or from the Miele
Spare Parts Department are required
for operating the appliance in recirculation mode:
If the front of the unit is ceiling height
then an appropriate cut-out must be
made in the front panel
When fitting the ventilation grille make
sure that the slats in the grille point towards the centre of the room and not towards a wall or the ceiling.
The slot for the active charcoal filter is
located on the front of the appliance.
Install the active charcoal filter (see
“Cleaning and care”).
e
.
– Conversion kit for recirculation mode
(ø125 mm): exhaust grille, hose,
hose clip
– Active charcoal filter (see “Technical
data”)
Connection
When fitting the cooker hood in a wall
unit the exhaust grille
in the top of the unit. The exhaust stub
(vent socket)
are joined together with a pipe or
c
flexible duct cut to size
32
and the exhaust grille
b
has to be fitted
c
.
d
10. Electrical connection
Refer to the notes in “Electrical connection” and “Warning and Safety
instructions” before connecting to
the electricity supply.
EXT model cooker hoods are designed for use with an external fan,
i.e. the fan is fitted outside the room
in a position of your choice.
Electrical connection is made via a connecting lead with plug and coupling.
Separate fitting instructions are supplied with the external fan.
Page 33
Installation
Special fitting instructions

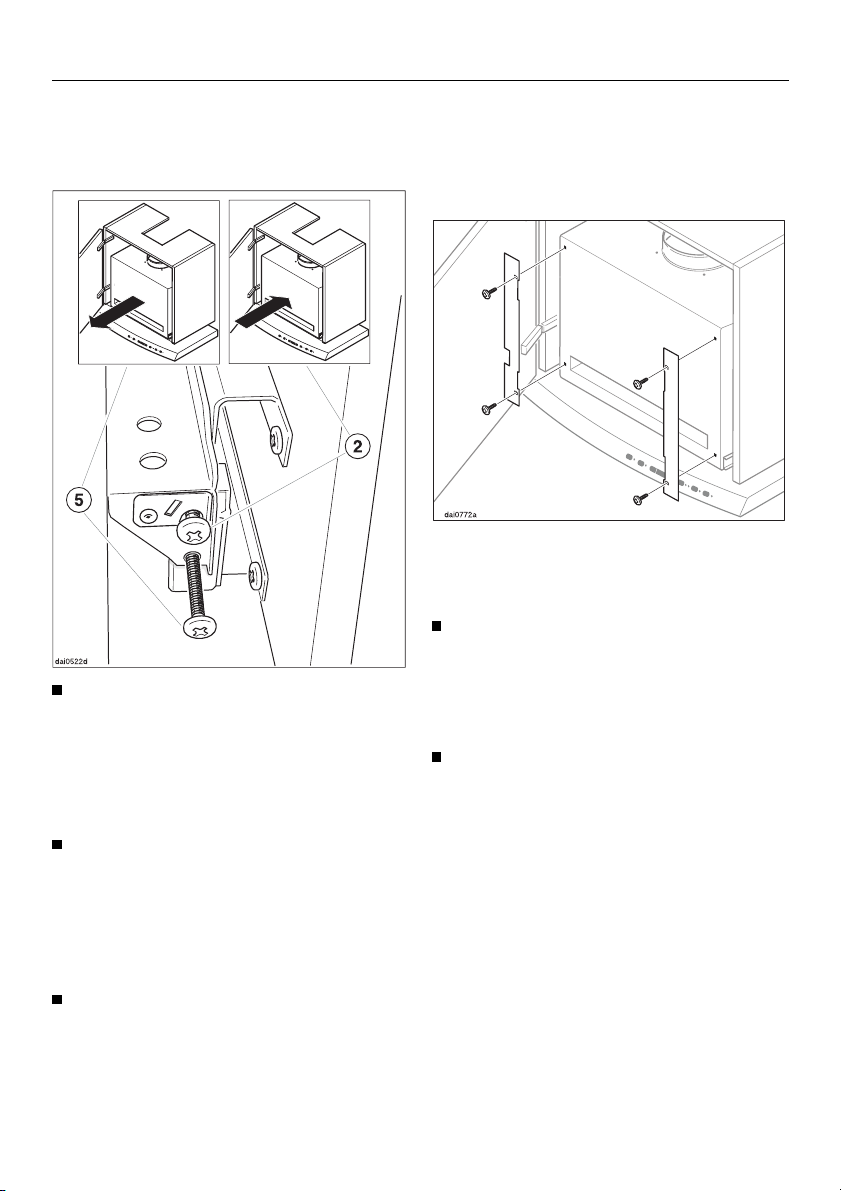

Fitting into wall unit with 19 mm
thick carcase sides
The runners have to be adapted as
shown above.
Installing in a 70 cm wide wall unit:
The runners are fitted to spacer blocks.
Screw the spacer block to the wall
unit with the lower edge
the wall unit using 4.0 x 16 mm. The
first row of screws must be aligned
against the marked line.
Screw the runners to the spacer
block using the 3.5 x 9.5 mm self tapping screws.
flush with
Screw the runners to the wall unit
with the "19 mm" marking facing upwards as shown above.
33
Page 34
Installation

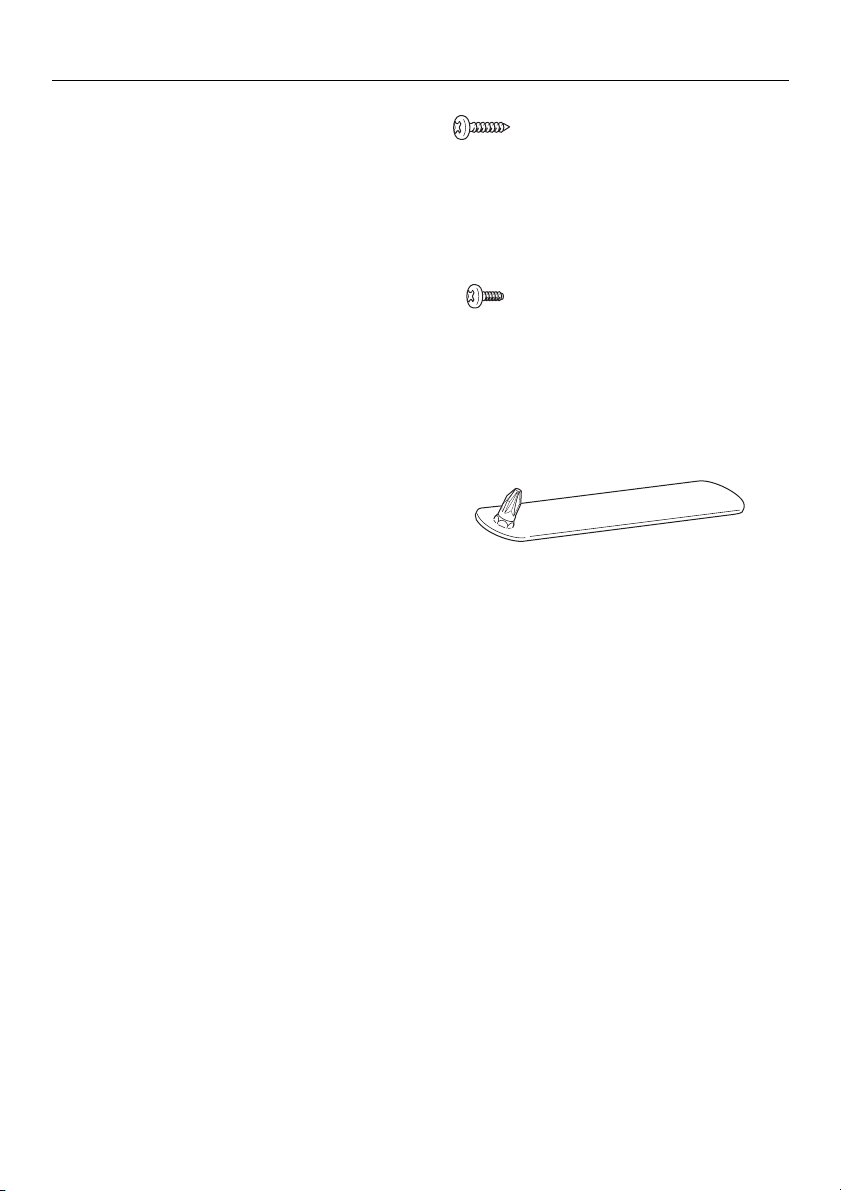

When fitted in a 70 cm wide wall unit the runners are fitted with the cover caps su-plied.
When fitted in a 70 cm wide wall unit,
the runners are fitted with the cover
caps supplied.
Cut the inserts to the required depth
and fit into the sides of the cover
caps.
On units with 19 mm thick sides the
cover caps for the runners must be
trimmed using a knife along the
groove.
Fit the cover caps to the runners on
both sides of the unit.
34
Conceal the 4 drill holes in the housing with the 3.9 x 9. 5 mm screws.
Page 35

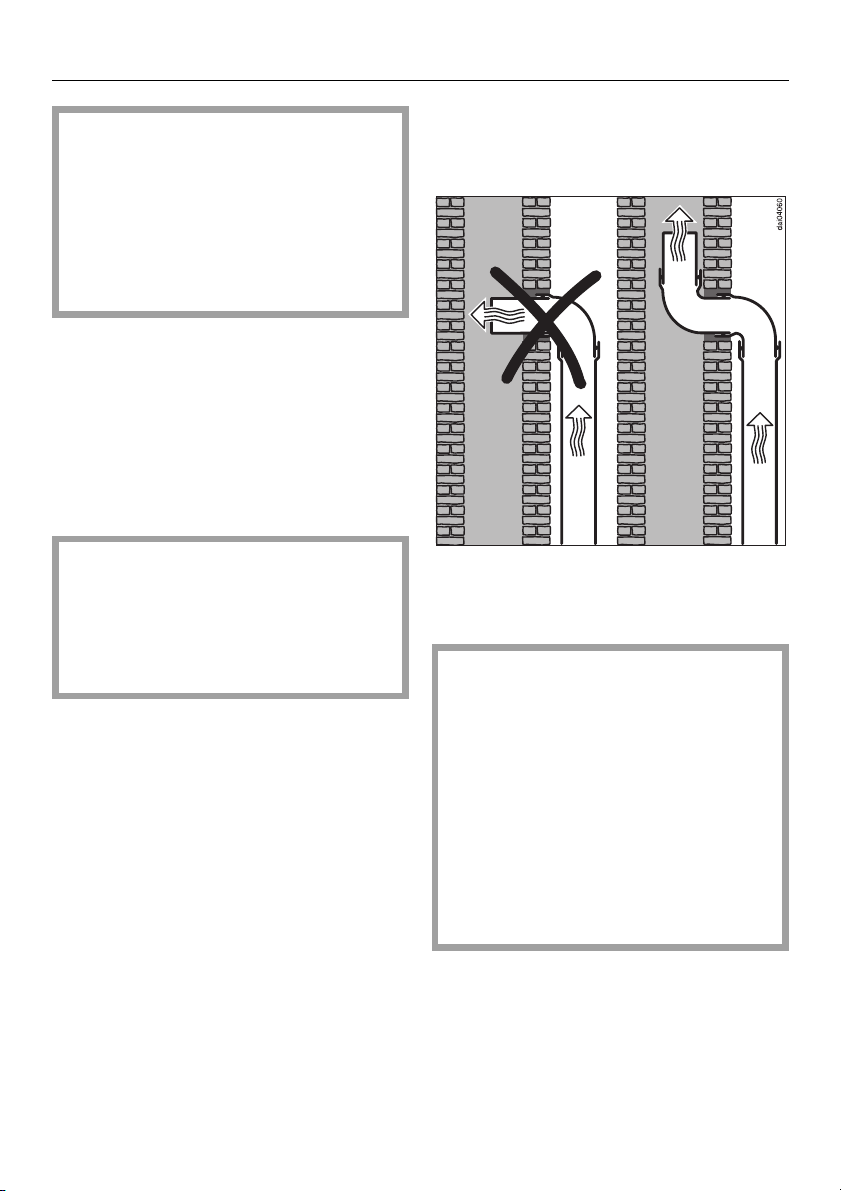

Connection for air extraction
Connection for air extraction
Danger of toxic fumes.
Please heed the “Warning and
safety instructions” to avoid the
danger of toxic fumes.
The cooker hood should be installed according to local building
regulations. Seek approval from the
building inspector where necessary.
– All ducting, pipework and fittings
must be of non-flammable material.
– The extraction ducting should be as
short and straight as possible.
– To ensure efficient air extraction the
diameter of the exhaust ducting
should not be less than 150 mm.
If extraction ducting with a diameter
of less than 150 mm or flat ducting
were to be used the noise level of
the cooker hood would increase
and extraction would be less efficient.
– If the exhaust air is to be ducted into
the open air the installation of a telescopic wall vent is recommended.
– If the exhaust air is to be ducted into
a vent flue the ducting must be directed in the flow direction of the flue.
Important
Only reduce the diameter of the ducting if absolutely necessary, e.g.
where narrower ducting has already
been installed.
– Only use wide radius bends. Tight
bends reduce the air throughput of
the cooker hood.
– Only use smooth pipes or flexible
hoses made from non-flammable materials for extraction connection.
– When ducting is horizontal it must be
laid to slope away at at least 1 cm
per metre to ensure no condensate
drains into the appliance.
If the exhaust ducting is to run
through rooms, ceiling space etc.
where there may be great variations
in temperature between the different areas the problem of sweating
or condensation will need to be addressed.
The exhaust ducting will need to be
suitably insulated.
35
Page 36
Electrical connection
Electrical connection
Electrical connection
All electrical work should only be carried out by a suitably qualified and competent person in accordance with national and local safety regulations.
UK, IRL, NZ, ZA: The cooker hood is
supplied for connection to an a.c. 230
V single phase 50 Hz supply.
AUS: The cooker hood is supplied for
connection to an a.c. single phase 240
V, 50 Hz supply.
The data plate gives the necessary
data for connection. This is visible
when the grease filter has been
removed.
For U.K.: Connection should be made
either by a double pole fused spur connection unit, or a fused plug and a suitable switched socket. The On-Off
switch should be easily accessible
after the appliance has been built in.
When switched off there must be an allpole contact gap of 3 mm in the switch
(including switch, fuses and relays according to EN 60 335).
If the socket is not accessible after installation (depending on country) an additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA (in accordance
with DIN VDE 0664).
Important
The wires in the mains lead are coloured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live.
If the appliance is to be connected via
a plug and socket, please note the following:
As the colours of the wires in the mains
lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug,
proceed as follows:
The wire which is coloured green and
yellow must be connected to the terminal in the plug which is marked with the
letter E or by the earth symbol z or coloured green or green and yellow.
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
For U.K., ZA:The wire which is coloured
brown must be connected to the terminal which is marked with the letter L or
coloured red.
For Australia / New Zealand: The wire
which is coloured brown must be connected to the terminal which is marked
with the letter A or coloured red.
WARNING:
THIS APPLIANCE MUST BE
EARTHED
36
Page 37
Non-rewireable plugs BS 1363 (UK)
If this machine or appliance is fitted
with a non-rewireable plug, the following information applies:
If the socket outlets are not suitable for
the plug supplied with this product, it
must be cut off and an appropriate
plug fitted. The fuse carrier and the
fuse should be removed from the old
plug and disposed of. The plug cut
from the flexible cord should then be
disposed of, and on no account be inserted into any socket elsewhere in the
house (electric shock hazard).
The fuse cover must be re-fitted when
changing the fuse and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained.
The colour of the correct replacement
cover is that of the coloured insert in
the base of the plug (as applicable to
the design of plug fitted).
Electrical connection
The correct fuse rating of the replacement fuses that are ASTA approved to
BS 1362 should be fitted. Replacement
fuse covers may be purchased from
your local electrical suppliers or Service agent.
37
Page 38
Technical data
Technical data
Rated load DA 337 i . . . . . . . . 300 W
Lighting
– DA 337 i, DA 337 i EXT . . . 2 x 50 W
Fan performance
Extraction power according to EN
61591
Voltage
UK, IRL, NZ, ZA . . . . . . . . . . . . . 230 V
AUS . . . . . . . . . . . . . . . . . . . . . . 240 V
Frequency . . . . . . . . . . . . . . . ~ 50 Hz
Fuse rating (UK). . . . . . . . . . . . . 13 A
Fuse rating (IRL) . . . . . . . . . . . . 10 A
AUS, NZ:
Plug rating . . . . . . . . . . . . . . . . . . 10 A
Test marks . . . . . . . . . Electrical safety
. . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to AS/NZS 1044
Extraction system ø 150 mm:
Level I . . . . . . . . . . . . . . . . . . . 200 m
Level II. . . . . . . . . . . . . . . . . . . 310 m
Level III . . . . . . . . . . . . . . . . . . 440 m
Intensive level . . . . . . . . . . . . . 640 m
Extraction system ø 125 mm:
Level I . . . . . . . . . . . . . . . . . . . 190 m
Level II. . . . . . . . . . . . . . . . . . . 300 m
Level III . . . . . . . . . . . . . . . . . . 400 m
Intensive level . . . . . . . . . . . . . 590 m
Unrestricted. . . . . . . . . . . . . . . 690 m
Recirculation mode with active charcoal filter:
Level I . . . . . . . . . . . . . . . . . . . 190 m
Level II. . . . . . . . . . . . . . . . . . . 300 m
Level III . . . . . . . . . . . . . . . . . . 410 m
Intensive level . . . . . . . . . . . . . 550 m
Active charcoal filter:
Miele DKF 8 – Art. Nr. 28.9961.34
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
3
/h
38
For EXT models the rated load and extraction power will depend on the type
of external fan fitted.
Page 39
Page 40
Alteration rights reserved / 44 / 002 GB - 2700
This paper consists of cellulose which has been bleached without the use of chlorine.
Loading...
