Operating and installation instructions

Ventilation System DA 289-3

To prevent accidents and machine damage, read these instructions before installation or use.

M.-Nr.

05 853 730

Page 2

IMPORTANT SAFETY INSTRUCTIONS Functional description Guide to the hood Operation

Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Grease filter timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Checking the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Reprogramming the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning and care

Grease filter and air intake panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Changing the light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

After Sales Service Installation instructions

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Read these Operating Instructions carefully before installing or using the Ventilation System.

This appliance is designed to vent This appliance is intended for residential use only. Use the appliance only for its intended purpose. The manufacturer cannot be held responsible for damages caused by improper use of the hood.

This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.

READ AND SAVE THESE INSTRUCTIONS

cooking smoke and odors only.

Be certain your appliance is prop

erly installed and grounded by a

qualified technician. To guarantee the electrical safety of this appliance, continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician. The manufacturer can not be held responsible for damages caused by the lack, or inadequacy of, an effective grounding system.

CAUTION For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors.

Before connecting the appliance to

the power supply make sure that

the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent machine damage. Consult a qualified electrician if in doubt.

Installation work and repairs should

only be performed by a qualified

technician in accordance with all applicable codes and standards. Repairs and other work by unqualified persons could be dangerous and the manufacturer will not be held responsible.

Page 4

IMPORTANT SAFETY INSTRUCTIONS

This equipment is not designed for

maritime use or for use in mobile installations such as caravans or air craft. However, under certain conditions it may be possible for an installation in these applications. Please contact the nearest Miele dealer or the Miele Tech nical Service Department with specific requirements.

Before servicing or cleaning the

unit, switch power off at the service panel and lock the service disconnect ing means to prevent power from being switched on accidentally. When the service disconnecting means can not be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

Before discarding an old

appliance, unplug it from the power supply and remove the power cord and any doors to prevent hazards.

Use

Do not allow children to play with

or operate the appliance or its controls. Supervise its use by the elderly or infirm.

Be careful when preparing a

flambé beneath the hood. Flames may be drawn up into the hood by the suction or grease filters may catch fire.

Never operate gas burners without

pots.

Do not leave cooking surfaces

unattended while in use. Overheated food, oil and grease can catch fire.

Do not use the hood without the

grease filters in place.

Clean the grease filters regularly.

Dirty filters are a fire hazard.

Do not use a steam cleaner to

clean the hood. Steam could penetrate electrical components and cause a short circuit.

In areas subject to infestation by

cockroaches or other pest, keep the appliance and its surroundings clean at all times. Any damage caused by cockroaches or other pest will not be covered under warranty.

Page 5

IMPORTANT SAFETY INSTRUCTIONS

, WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

Never leave surface units unat

tended at high settings. Boilovers cause smoking and greasy spillovers may ignite. Heat oils slowly on low or medium settings.

Always turn hood "ON" when cook

ing at high heat or when cooking flaming foods.

Clean ventilating fans frequently.

Grease should not be allowed to accumulate on fan or filter.

Use proper pan size. Always use

cookware appropriate for the size of the surface element.

, WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

SMOTHER FLAMES with a close

fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.

If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE DEPARTMENT.

NEVER PICK UP A FLAMING

PAN - You may be burned.

DO NOT USE WATER, including

wet dishcloths or towels - a violent steam explosion will result.

Use an extinguisher

ONLY IF: – You know you have a Class ABC

extinguisher, and you already know how to operate it.

–

The fire is small and contained in the area where it started.

–

The fire department is being called.

–

You can fight the fire with your back to an exit.

Page 6

IMPORTANT SAFETY INSTRUCTIONS

Installation

, WARNING To reduce the risk of fire, use

only metal ductwork.

When installing the hood, make

sure that a minimum safety dis tances of 14 a Miele cooktop and the bottom of the hood.

If local building codes require a greater safety distance, follow their require ment.

For non-Miele cooking appliances maintain the safety distances recommended by the cooktop manufacturer in their installation and operating instructions. If there is more than one appliance beneath the hood and they have different minimum safety distances always select the greater distance.

Be careful not to damage hidden

electrical wiring or plumbing when cutting or drilling into the wall or ceiling.

/8" is maintained between

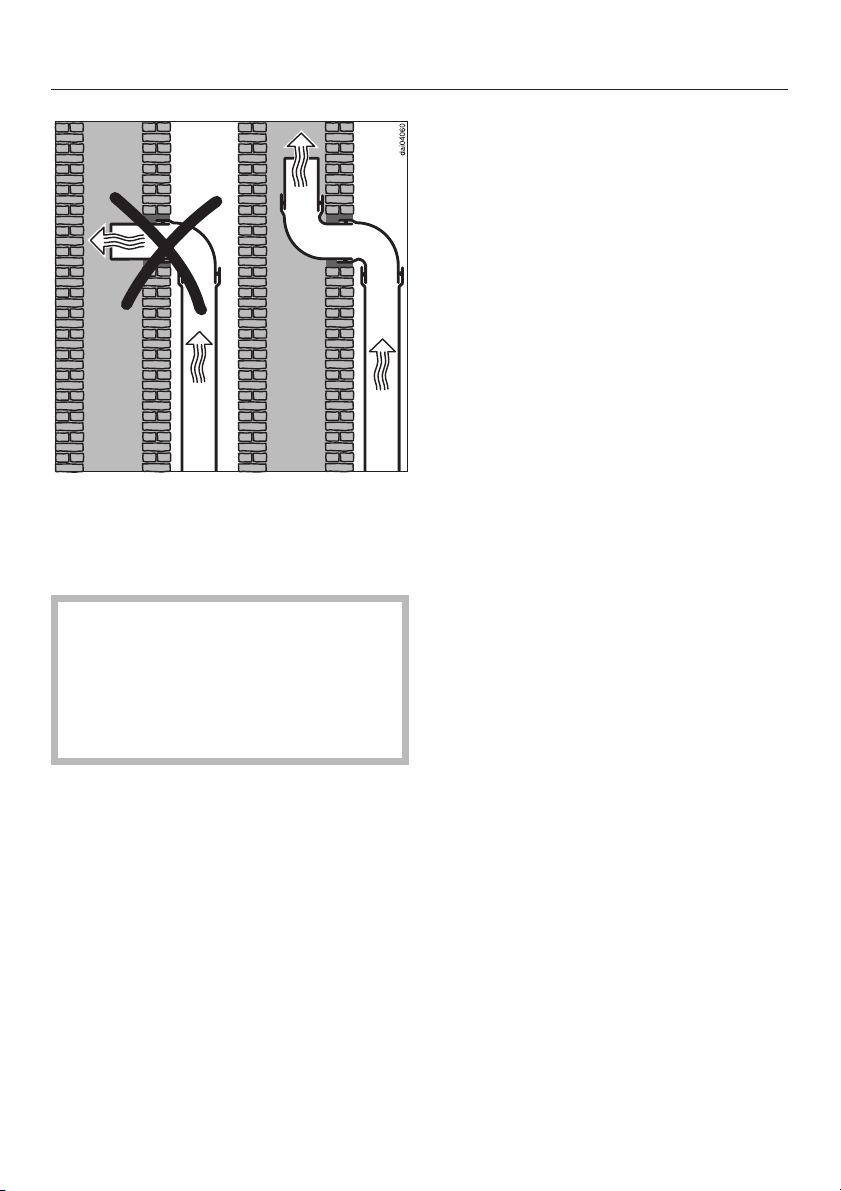

Never connect an exhaust hood to

an active chimney, dryer vent, vent flue, or room ventilating ductwork. Seek professional advice before connecting an exhaust hood vent to an existing, inactive chimney or vent flue.

Ducted fans must always be

vented outdoors.

Make sure that the airflow in the

room is sufficient for combustion and exhausting of all non-electric heat ing appliances (water heaters, gas cooktops, gas ovens, etc.), otherwise backdrafts may occur. Follow the heat ing manufacturer’s guidelines and safety standards or those published by the National Fire Protection Association (NFPA), or the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE). If in doubt, consult an experienced professional.

Do not use an extension cord to

connect the appliance to electricity. Extension cords do not guarantee the required safety of the appliance, (e.g. danger of overheating).

Do not install this hood over

cooktops burning solid fuel.

Any fittings, sealant, or materials

used to install the ductwork must be made of approved non-flammable materials.

Page 7

Functional description

The ventilation hood works by air ex traction. The air is drawn in through the air intake panel, cleaned by the grease filter and directed outside. The hood comes equipped with a non-return flap. This flap automatically closes when the hood is turned off so that no exchange of outside air and room air can occur. When the hood is turned on, the air pressure of the ex haust fan automatically opens the flap blowing the inside air and cooking odors outside.

Page 8

Guide to the hood

Page 9

Guide to the hood

a Chimney extension

b Chimney

c Canopy

d Control panel

e Overhead lighting

f Main power switch

g Grease filter

h Air intake panel

i Light button

This button turns the light on and off and also dims the light.

The lighting can be used independently of the fan.

j On/Off button

k Fan power selection

Four fan speed selection

l Delayed shut down

This button activates the Delayed Shut Down feature. The fan can be set to turn off automatically after either 5 or 15 minutes.

m Grease filter button

The indicator above the grease filter button lights when the grease filter and air intake panel need to be cleaned. This button is also used:

–

to reset the grease filter timer after cleaning the grease filter and air intake panel (see "Cleaning and Care").

–

to show how long the grease filter has been in use (see "Operation / Filter timers").

–

to change the number of hours counted by the grease filter timer (see "Operation / Reprogramming the filter timers").

Page 10

Operation

Main power switch

Remove the air intake panel to ac

cess the main power switch (see "Cleaning and Care").

Press the main power switch to "I".

The fan and lighting are ready to use.

If the appliance is not going to be used for a long period of time (e.g. while va cationing) it should be turned off at the main power switch to "0".

The next time it is turned on, the hood will operate at the level previously used.

Turning on the fan

Press the On/Off button.

Selecting the power level

Use the _ controls to select the

desired power level.

& =increases the fan speed $ =decreases the fan speed

Level "1" to "3" (green indicators) are usually sufficient for normal cooking.

Intensive setting

Level "4" (yellow indicator) should be used for a short period when frying or cooking food with a strong aroma.

Fan performance

The maximum air flow capacity is 625 cfm. Factors such as narrow duct diameter and bends will affect this value.

Level 1 operates at 40% capacity Level 2 operates at 60% capacity Level 3 operates at 80% capacity Level 4 operates at 100% capacity

Page 11

Operation

Delayed Shut Down

If odors or smoke remain in the kitchen after cooking has been completed, the Delayed Shut Down feature can be se lected to allow the hood to continue running for either 5 or 15 minutes.

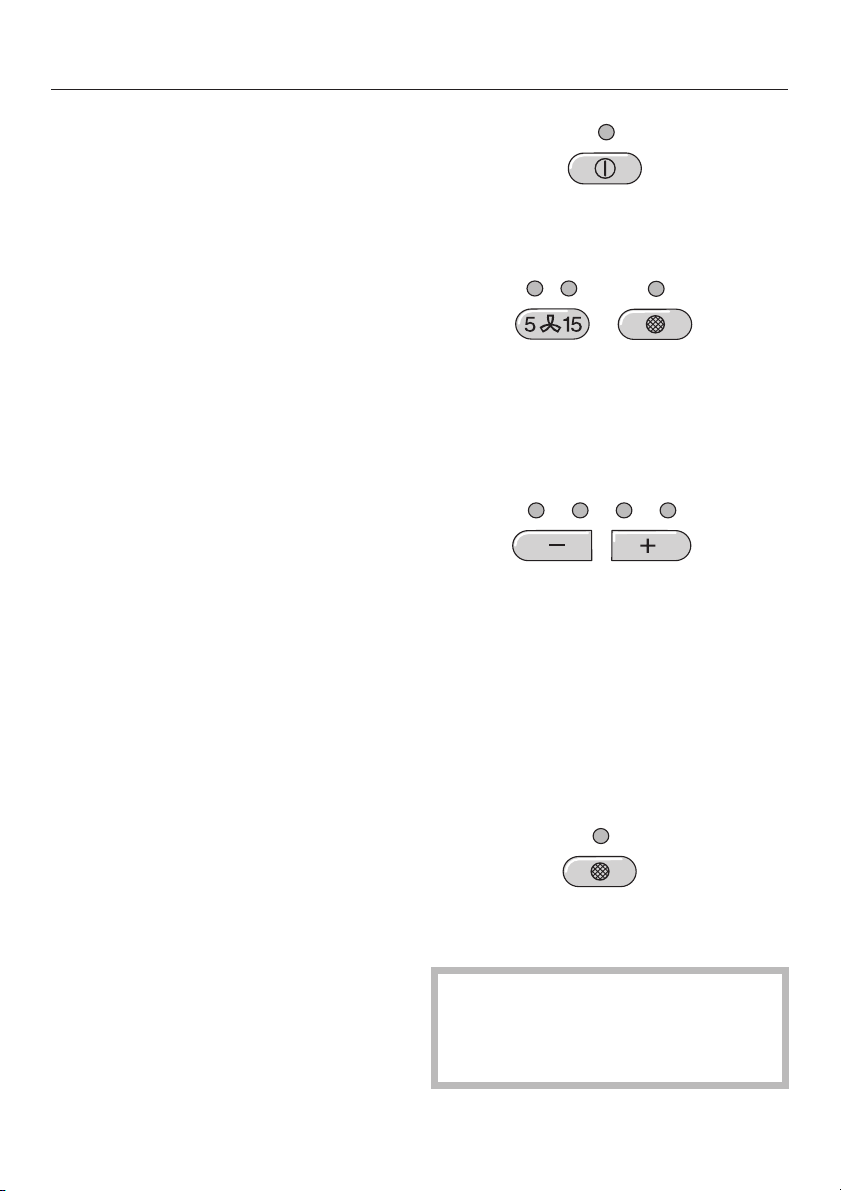

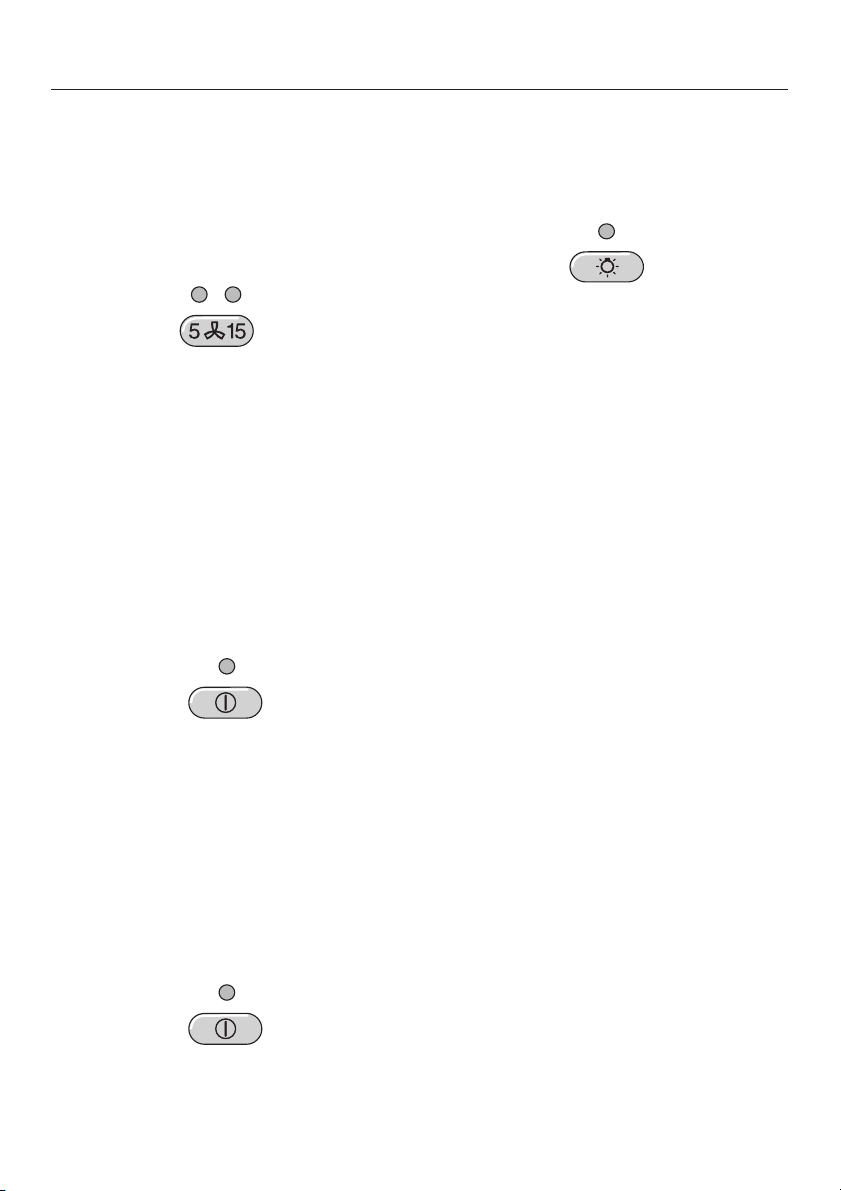

Press the Delayed Shut Down button

while the fan is still running.

Press once = 5 minute delay

(left indicator lights)

Press twice = 15 minute delay

(right indicator lights)

To cancel the Delayed Shut Down feature press the button again.

Turning off the fan

Turning the lighting on/off

The overhead lighting can be turned on and off independently of the fan.

Press the light button briefly to turn

on the lighting.

The light button indicator illuminates.

Press the light button briefly again to

turn off the lighting.

The light button indicator will go out.

Dimming the lighting

The brightness of the lighting can be adjusted.

^ While the lighting is turned on, press

the light button. The lighting will dim until the button is released.

Press the On/Off button to turn the fan off.

The indicator goes out.

Automatic Safety Shut Off

The fan will turn off automatically 10 hours after the last button was activated. The lighting however will remain on.

Press the On/Off button to turn the fan back on again.

If the button is pressed again, the lighting will brighten until the button is released.

If the button is pressed continuously, the light will cycle between bright and dark.

Press the light button again to turn off the lighting.

Page 12

Operation

Grease filter timer

A timer monitors the hours of fan opera tion. The indicator for the grease filter will light after 30 hours of operation. The grease filter and air intake panel must then be cleaned.

After the grease filter has been cleaned and put in place, the grease filter timer must be reset.

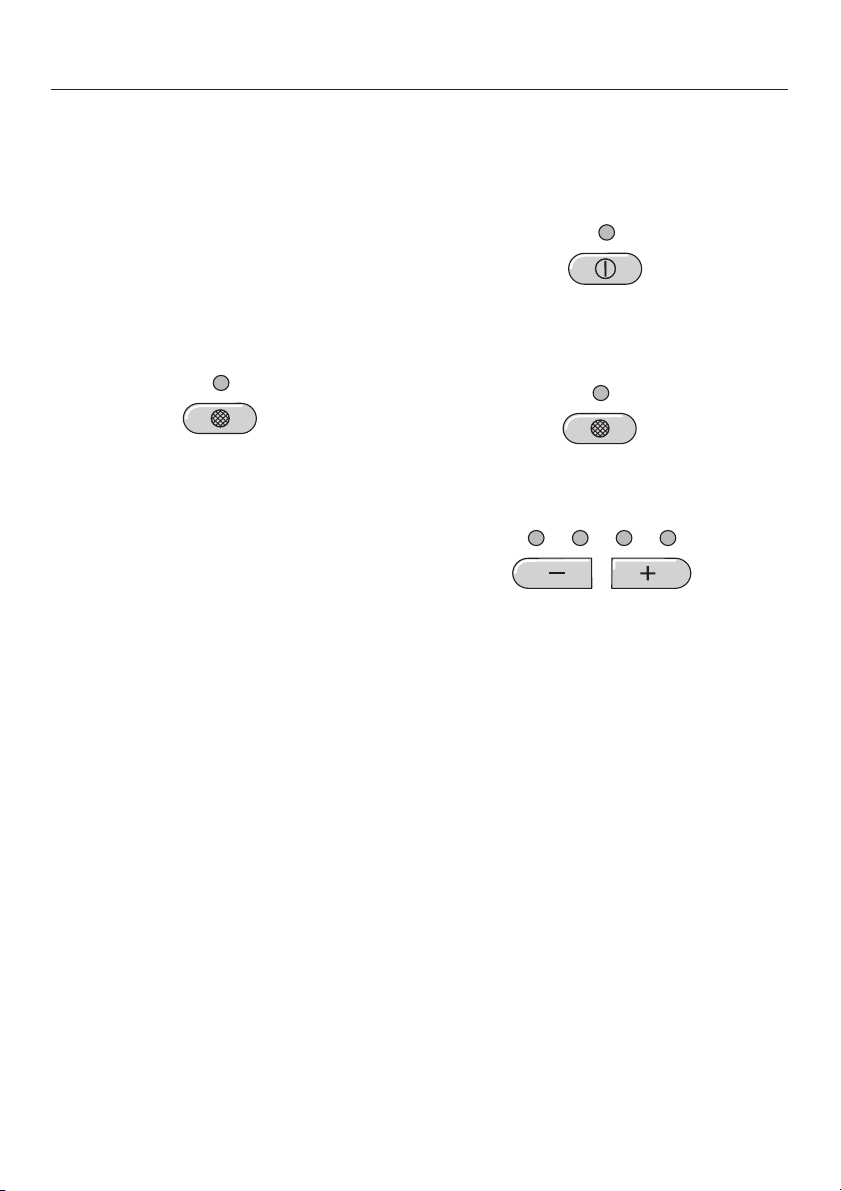

^ To do this, press the grease filter but-

ton for about 3 seconds.

The indicator will go out.

Checking the grease filter timer

To check the percentage of time al

ready used:

Press the On/Off button to turn the

fan on.

^ Press the grease filter button.

The number of flashing _ indicators show the percentage of programmed hours that have been used.

1 indicator = less than 25 % 2 indicators = less than 50 % 3 indicators = less than 75 % 4 indicators = less than 100 %

This information will remain stored in memory in the event of a power failure.

Page 13

Reprogramming the grease filter timer

The grease filter timer is preset to 30 hours. This time can be lengthened or shortened to 20, 30, 40 or 50 hours.

A time of 20 hours should be pro

–

grammed in kitchens with frequent pan or deep frying.

A time of 20 hours should also be

–

programmed if the kitchen is only used occasionally to prevent grease which has accumulated over a long period of time from hardening on the filters making cleaning more difficult.

Operation

Press the On/Off button to turn off the

fan.

Press the Delayed Shut Down and

grease filter buttons at the same time.

The indicator for the grease filter and one of the _ indicators will flash.

The lit _ indicator shows the programmed time:

1st indicator from the left = 20 hours 2nd indicator from the left = 30 hours 3rd indicator from the left = 40 hours 4th indicator from the left = 50 hours.

Use the $ or & button to select the desired time.

Store the selection by pressing the grease filter button.

If the procedure is not stored within 4 minutes of programming, the hood will automatically default to the "old" data.

Page 14

Cleaning and care

Grease filter and air intake panel

The reusable metal grease filter re moves solid particles from the vented kitchen air (grease, dust, etc).

The grease filter and the air intake panel should be cleaned every 3 - 4 weeks or whenever the grease filter in dicator lights.

Keep the grease filter clean to prevent a fire hazard.

Removing the air intake panel

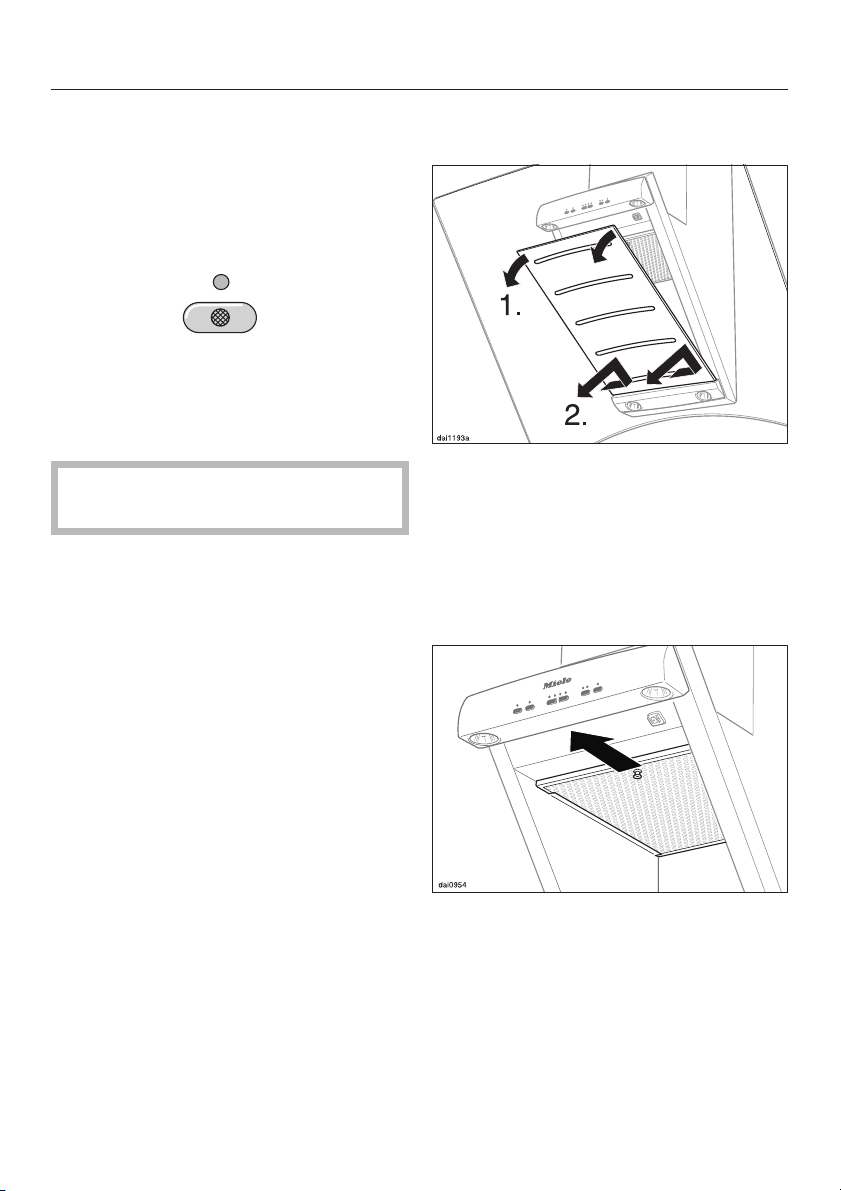

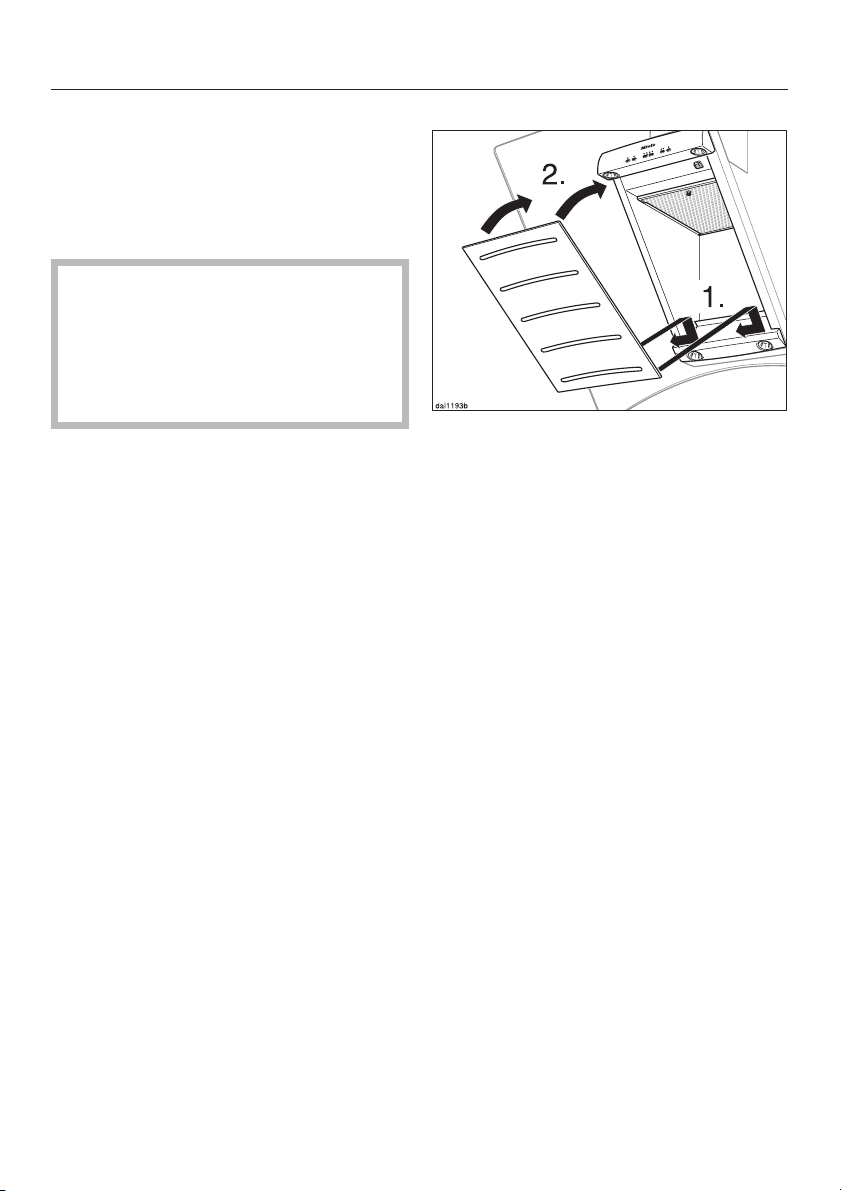

^ To remove the air intake panel gently

pull out and downward, shifting the lower part a bit to the right. Lift it out of the latches.

Removing the grease filter

To remove the grease filter, pull on the lever.

Page 15

Clean the filter

- by hand: use a scrub brush in warm water with a mild detergent.

- in a dishwasher: place the filters in the lower basket, making sure that the spray arm is not blocked.

Cleaning and care

Depending on the detergent, clean ing the grease filter in a dishwasher may cause permanent discoloration of the filter surface. Performance of the filter will not be affected by this discoloration.

After cleaning, the filter can be

placed on a towel to air dry.

^ Clean the air intake panel according

to "Cleaning the casing".

^ While the filter and the air intake

panel are removed, clean any dirt or grease from the interior casing to prevent the risk of fire.

Push the grease filter back in place.

^ ^ Hook the air intake panel on the

latches and push a little to the left. Push it toward the unit so that it clicks in place.

^ After returning the grease filter, press

the grease filter button for 3 seconds to reset the timer. The indicator light will go out.

^ If the grease filter and air intake

panel are cleaned before the grease filter timer has reached its maximum, the grease filter button should be pressed for 6 seconds to reset the counter to zero.

Page 16

Cleaning and care

Before cleaning or servicing the hood, disconnect it from the power supply by either removing the fuse, unplugging it from the outlet or man ually "tripping" the circuit breaker.

Cleaning the casing

Never use abrasive cleaners,

scouring pads, steel wool or caustic (oven) cleaners on the hood. They will

damage the surface.

The air intake panel, exterior surfaces

and controls can be cleaned with warm water and liquid dish soap applied with a soft sponge.

^ Wipe dry using a soft cloth.

Only use a slightly damp sponge when cleaning the controls. Water could penetrate into the electronics and cause damage.

Stainless steel

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel

cleaner. To help prevent resoiling, a conditioner

for stainless steel can also be used. Apply sparingly with even pressure.

Stainless steel colored controls

These controls may become discol

ored or damaged if not cleaned regu larly. Do not use a stainless steel cleaner on these controls.

Glass surfaces can be cleaned using glass cleaner.

Page 17

Changing the light bulbs

Cleaning and care

Before changing the light bulbs, dis connect the hood from the power supply by either removing the fuse, unplugging it, or manually "tripping" the circuit breaker.

When in use halogen bulbs become extremely hot, and they can burn your hands. Do not attempt to change the bulbs until they have had sufficient time to cool down.

Do not touch the bulb surface. Fingerprints or body oils deposited on the bulb will decrease the life of the bulb. Please follow the bulb manufacturer’s instructions.

Pull the old bulb out of its socket us

ing the enclosed lever. Replace it with a new one. Be careful not to drop the bulb on the cooktop.

Replacement bulbs may be ordered from Miele’s Technical Service Department. USA 1-800-999-1360 CDN 1-800-565-6435

Page 18

After Sales Service

In the event of a fault which you cannot correct yourself please contact:

Your Miele Dealer

– or

The Miele Technical Service

–

Department

USA 1-800-999-1360

[email protected]

CDN 1-800-565-6435

[email protected]

When contacting the Technical Service Department, please quote the model and serial number of your appliance. These are shown on the data plate which is visible when the grease filter is removed.

Page 19

Installation instructions

Page 20

Table of contents

Caring for the environment Installation accessories Plywood backing Electrical data Appliance dimensions Installation

Installation instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Air extraction

Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Page 21

Caring for the environment

Disposal of packing material

The cardboard box and packing materials protect the appliance during shipping. They have been designed to be biodegradable and recyclable. Please recycle.

Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of children. Danger of suffocation!

Disposal of an old appliance

Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Before discarding an old hood, un plug it from the outlet and cut off its power cord to prevent hazards.

Page 22

Installation accessories

Page 23

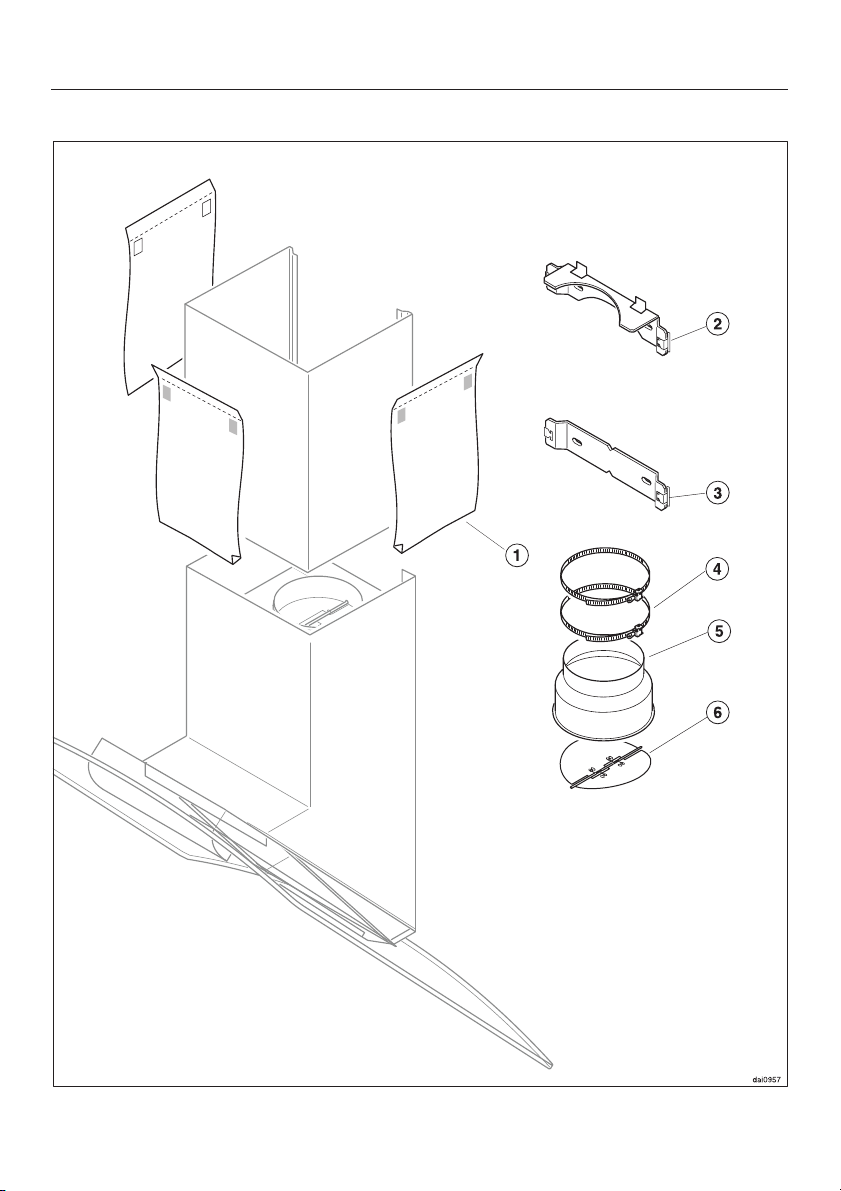

a 3 protective shields

prevent scratches to the chimney dur ing installation.

b Upper retaining plate secures the chimney extension.

c Middle retaining plate for addi tional stability of the chimney.

d 2 hose clips for securing the ducting.

e 1 reducing collar

for use with 5" (125 mm) exhaust ducting.

f 1 non-return flap for vented air extraction only.

Installation accessories

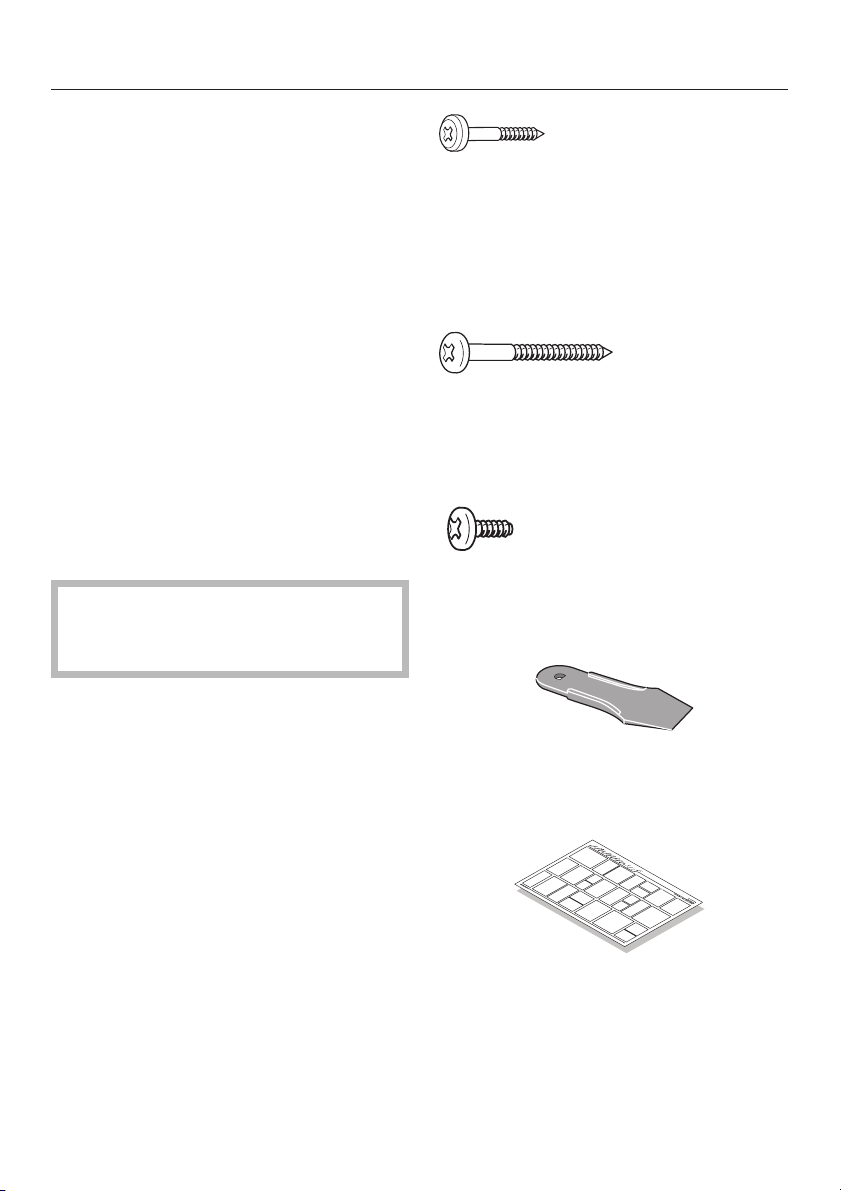

5 large headed screws 5 x 40 mm

for securing the retaining plates and the canopy.

(S8 wall anchors included in the pack aging are not for use in USA / CDN.)

2 screws 5 x 60 mm for securing the chimney.

Caution: During the installation process, please be careful of sharp edges that can cause harm.

6 screws 3.5 x 9.5 mm for securing the canopy and filter housing

1 lever for dismantling the chimney and changing the light bulbs

Installation instruction sheet

Page 24

Plywood backing

The majority of the weight of the in stalled ventilation system will be supported by the lower retaining plate. It must be firmly attached to the stud framing behind

the drywall. If studs are not available in the re quired locations, a plywood backing

(min.

/2" (13 mm) thick) spanning at

least two studs must

be installed. Failure to adequately support the weight as stated may result in the ventilation system falling off the wall, causing personal injury and property damage.

(If plywood backing is not needed, proceed to the included installation sheet.)

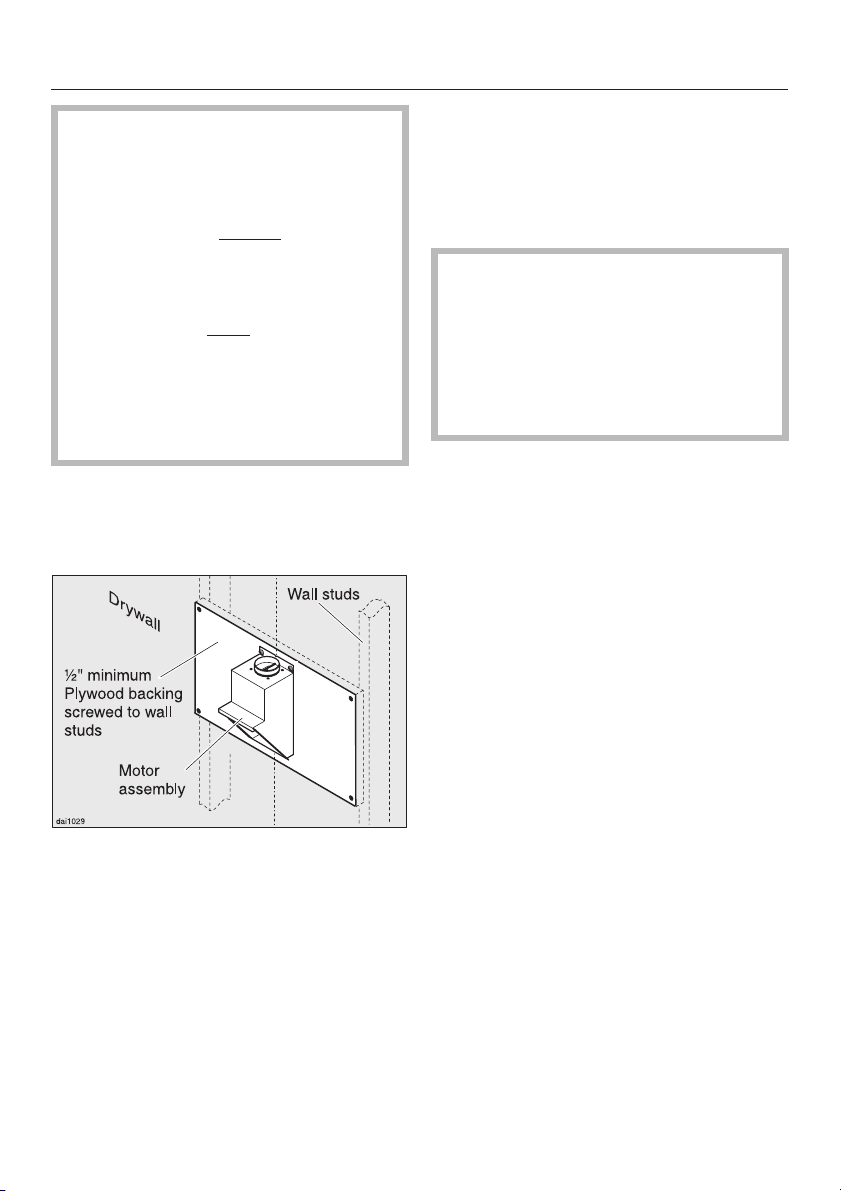

To install a plywood backing

Find the studs to the left and right of

the mounting location by tapping the wall or using a stud finder.

Mark a vertical cutting line along the

center of each stud.

Be careful not to damage any wiring or plumbing that may be located be hind the wall. Make sure that the power supply to the area where this installation is being performed has been turned off at the breaker panel before cutting into the wall.

^ Remove the drywall between the cut-

ting lines and replace it with plywood

of a matching thickness (min.

/2" (13 mm) thick). Tape the joints and refinish the wall.

^ Proceed to the included installation

sheet to complete the installation.

Determine and mark the location of the retaining plate for the canopy as outlined on the installation sheet.

Make a cutting line 3" (76 mm) above and 3" (76 mm) below the outline of the retaining plate.

Page 25

Electrical data

All electrical work should be per formed by a qualified electrician in strict accordance with national and local safety regulations. Installation, repairs and other work by unqualified persons could be dangerous. The manufacturer can not be held responsible for unautho rized work. Ensure that power to the appliance is OFF while installation or repair work is performed.

Verify that the voltage, load and circuit rating information found on the data plate (located behind the grease filter), match the household electrical supply before installing the hood.

If there is any question concerning the electrical connection of this appliance to your power supply, please consult a licensed electrician or call Miele’s Tech- nical Service Department. USA 1-800-999-1360 CDN 1-800-565-6435

Important

The hood comes equippped with a 5 ft (1.5 m) power cord with a NEMA 5-15 molded plug for connection to a 120 VAC, 60 Hz, 15 A power outlet.

Maximum load . . . . . . . . . . . . . . 390W

Light. . . . . . . . . . . . . . . . . . . . . 4 x 10 W

Voltage . . . . . . . . . . . . . . . . . . . . . 120 V

Frequency . . . . . . . . . . . . . . . . . . 60 Hz

Circuit rating. . . . . . . . . . . . . . . . . . 15 A

WARNING: THIS APPLIANCE MUST BE GROUNDED

Page 26

Appliance dimensions

Page 27

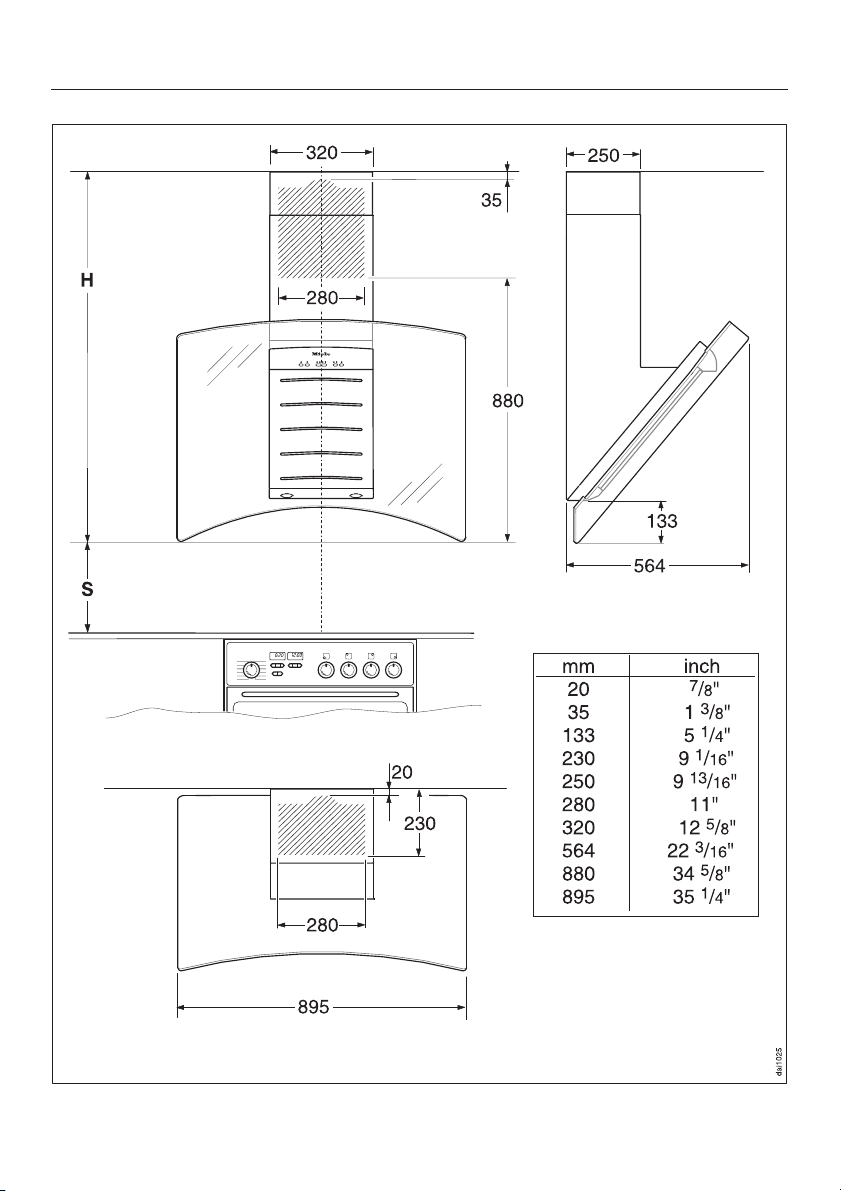

Appliance dimensions

Cut out area in wall or ceiling for entrance of 6" (150 mm) ductwork or 5" (125 mm)

ductwork with a reducing collar.

Standard unit height H =

/16" - 5115/16"

(960 – 1320 mm)

Distance S above the cooktop

Do not install this exhaust hood over cooktops burning solid fuel.

When installing the hood, make sure that the minimum safety distance (S) between the top of a Miele cooktop and the bottom of the hood is at least

" (365 mm).

For non-Miele cooking appliances maintain the safety distances recommended by the cooktop manufacturer in their installation and operating instructions.

Read the entire installation procedure and determine height (S) before begin ning the installation. Installations differ depending on the model and venting method. If the hood is fitted flush to the ceiling, the sum of S + H + Workspace should not exceed the room height.

If there is more than one appliance beneath the hood and they have dif ferent minimum safety distances al ways select the greater distance.

See "IMPORTANT SAFETY IN STRUCTIONS" for further informa

tion.

Page 28

Installation

Installation instruction

See the enclosed installation instruction sheet.

Please read the "Important Safety In structions" and Installation instructions before installing this hood.

Protective film

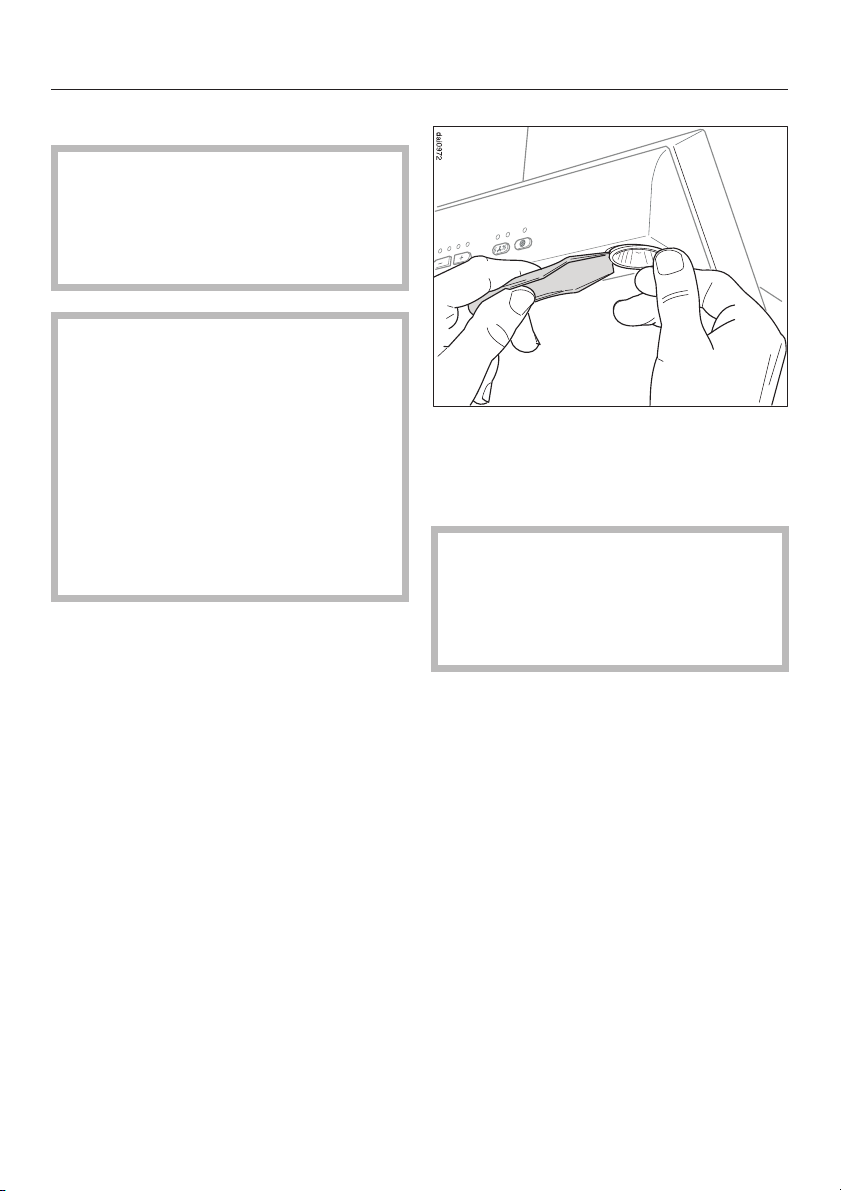

The casing is covered by a protective film to prevent scratches during trans port.

Peel off the film before installing the casing parts.

Dismantling

If the hood needs to be disassembled, follow the instructions on the installation sheet in reverse order.

A lever is enclosed for easier removal of the chimney extension.

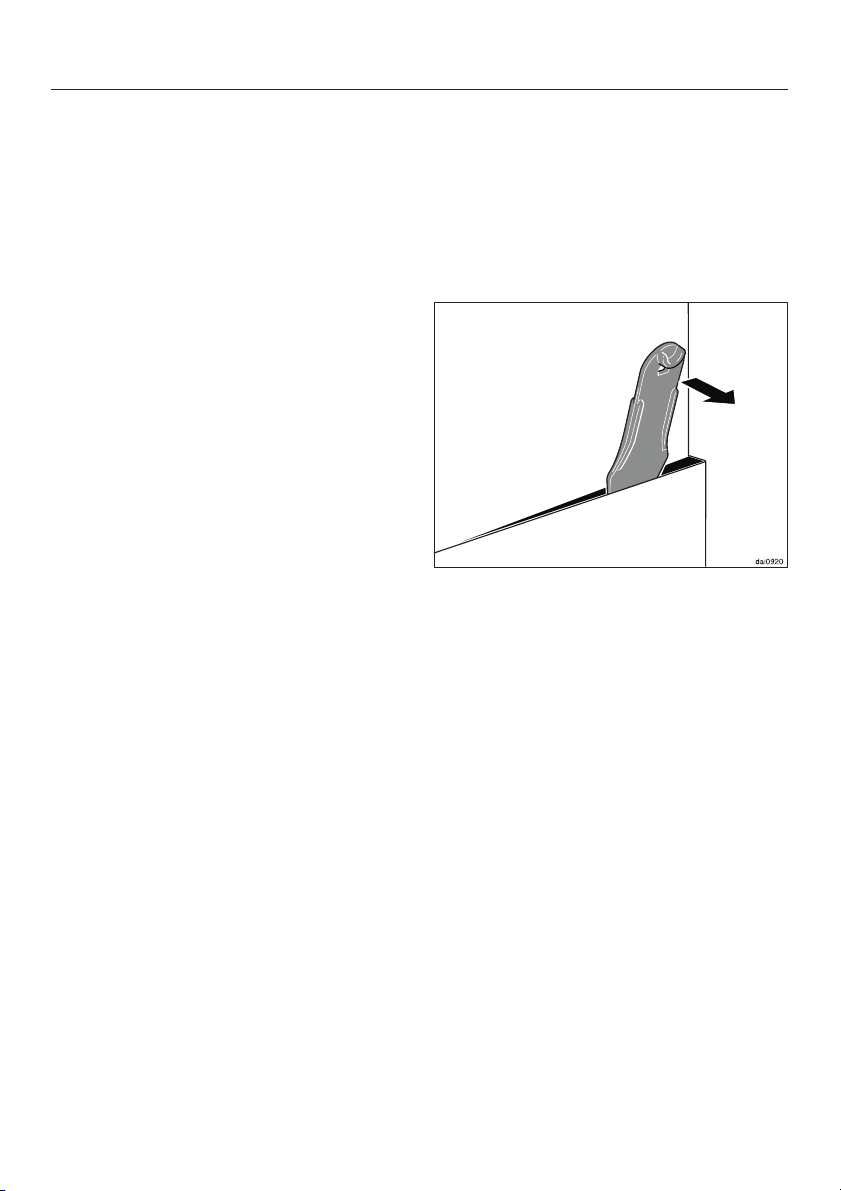

^ After removing the screws from the

chimney, slide the lever between chimney and chimney extension and gently apply pressure to ease the chimney from its hooks.

Page 29

WARNING

Danger of toxic fumes.

Air extraction

Exhaust ducting and connections

The ducting should be as short and

–

straight as possible, and the number of sharp bends should be minimized.

Gas cooking appliances release carbon monoxide that can be harmful or fatal if inhaled.

The exhaust gases extracted by the hood should be vented out side of the building only

Do not terminate the exhaust ducts in attics, garages, crawlspaces, etc.

To reduce the risk of fire, only use metal ductwork.

Please read and follow the

"IMPORTANT SAFETY INSTRUCTIONS" to reduce the risk of

personal injury. Follow all local building codes when installing the hood.

For most efficient air extraction, the

–

diameter of the ductwork should not be less than 6" (150 mm). Use of flat ducts also reduces the air extraction efficiency.

Noise levels of the hood will increase

–

if flat ducts or round ducts of less than 6" (150 mm) in diameter are used.

– Use smooth or flexible pipes made

from approved non-flammable materials for exhaust ducting.

– Where the ductwork is horizontal, it

must slope away from the hood at

least

/8" per foot (1cm per meter) to prevent condensation dripping into the appliance.

– If the exhaust is ducted through an

outside wall, a Miele Telescopic Wall Vent can be used.

Page 30

Air extraction

– If the exhaust is ducted into an inac-

tive flue, the air must be expelled parallel to the flow direction of the flue.

Never connect an exhaust hood to an active chimney, dryer vent, vent flue, or room venting ductwork. Seek professional advice before connecting an exhaust hood vent to an exist ing, inactive chimney or vent flue.

Condensate trap

Important: If the ductwork runs through rooms, ceilings, garages, etc. where tempera ture variations exist, it may need to be insulated to reduce condensation. In some cases, a condensate trap may also be required to collect and evapo rate any condensate which may occur.

When installing a condensate trap, ensure that it is positioned vertically and if possible directly above the exhaust outlet.

Page 31

Page 32

Alteration rights reserved /5002

This bio-friendly paper was bleached without the use of chlorine.

M.-Nr. 05 853 730 / V
