Operating and installation instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 10 898 950
Contents
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 13
Guide to the appliance........................................................................................ 14
Modes of operation ............................................................................................. 16
Before using for the first time ............................................................................ 17
Select Extraction mode or Recirculation mode..................................................... 17
Setting up Miele@home ........................................................................................ 17
Connecting via the app .................................................................................... 18
Connecting via WPS ........................................................................................19
Sign out of WiFi (reset to factory settings) ....................................................... 20
Setting up Con@ctivity .......................................................................................... 21
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................... 22
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0) .............................22
Con@ctivity with direct wireless connection (Con@ctivity 2.0) ........................ 23
Operation (Automatic mode) .............................................................................. 27
Cooking with Con@ctivity (Automatic mode) ........................................................ 27
Leaving automatic mode temporarily.................................................................... 29
Returning to automatic mode........................................................................... 29
Operation (Manual mode) ................................................................................... 30
Cooking without Con@ctivity (Manual mode) ....................................................... 30
Switching the fan on.............................................................................................. 30
Selecting the power level ...................................................................................... 30
Selecting the run-on time...................................................................................... 30
Switching the fan off ............................................................................................. 30
Dimming/switching the hob lighting on/off ........................................................... 31
Power management .............................................................................................. 31
Safety switch-off ................................................................................................... 32
Operation (Automatic and Manual modes) ....................................................... 33
Operating hours counter ....................................................................................... 33
Altering the operating hours counter for the grease filter(s) ............................. 33
Altering or deactivating the charcoal filter operating hours counter ................34
Reading the filter operating hours counter....................................................... 34
Energy saving tips ............................................................................................... 35
Cleaning and care ............................................................................................... 36
Housing ................................................................................................................. 36
Grease filters and panel for edge extraction ......................................................... 37
2
Contents
Charcoal filters ...................................................................................................... 41
Resetting the charcoal filter operating hours counter...................................... 41
Disposing of charcoal filters............................................................................. 41
After Sales / Warranty......................................................................................... 42
Position of the data plate ...................................................................................... 42
Installation............................................................................................................ 43
Before installation.................................................................................................. 43
Installation instructions.......................................................................................... 43
Assembly parts...................................................................................................... 44
Appliance dimensions ........................................................................................... 46
Safety distance between hob and cooker hood (S) .............................................. 48
Installation recommendations ............................................................................... 49
Uneven installation surfaces ................................................................................. 50
Connection for air extraction ............................................................................. 51
Silencer.................................................................................................................. 52
Electrical connection ..........................................................................................53
Technical data...................................................................................................... 54
Special accessories for recirculation mode .......................................................... 55
Conformity declaration.......................................................................................... 55
3
Warning and Safety instructions
This appliance complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please
read these instructions carefully before using it for the first time.
They contain important notes on the safety, installation, use and
maintenance of the appliance. Miele cannot be held liable for noncompliance with these instructions.
Keep these instructions in a safe place and ensure that all users
are familiar with the contents. Pass them on to any future owner of
the appliance.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Where a recirculation cooker hood is fitted above a gas hob,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified gas
fitter (e.g. GasSafe in the UK) if necessary.
4
Warning and Safety instructions
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children 8 years and older may only use the cooker hood
unsupervised if they have been shown how to use it safely and
recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the cooker
hood unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
5
Warning and Safety instructions
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Reliable and safe operation of this cooker hood can only be
assured if it has been connected to the mains electricity supply.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
EXT model cooker hoods are connected to their external motor
using a special connection cable and plug connectors.
These appliances may only be combined with a Miele external
motor.
6
Warning and Safety instructions
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
7
Warning and Safety instructions
Using at the same time as another heating appliance that depends on the air from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out to the open air through a chimney or extraction
ducting. They include gas, oil, wood and coal-fired boilers and
heaters, continuous flow or other water heaters, gas hobs and
ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
- extraction mode,
- extraction mode with an external motor,
- recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
8
Warning and Safety instructions
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room, when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
diameter of the inlet openings must enable sufficient ventilation. A
ventilation brick alone is not generally sufficient to ensure safe
ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas, a qualified gas fitter should be sought.
If the cooker hood is being operated in recirculation mode,
whereby the air is redirected into the room in which it is installed,
the above restrictions do not apply.
9
Warning and Safety instructions
Correct use
Never use a naked flame beneath the cooker hood. To avoid the
danger of fire, do not flambé or grill over a naked flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The cooker hood can become damaged when exposed to
excessive heat.
– When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
– Select a pan which is suitable for the size of the burner.
– Regulate the flame so that it does not burn up the sides of the
pan.
– Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
10
Warning and Safety instructions
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Correct installation
Refer to the cooker or hob manufacturer's instructions as to
whether a cooker hood may be operated above the cooker/hob.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the cooker or hob
and the bottom of the cooker hood given in the “Installation” section
of this booklet must be maintained, unless the hob manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
The distances given in “Installation” must be observed when
fitting the cooker hood.
Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
11
Warning and Safety instructions
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as
described in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
12
Caring for the environment
Disposal of the packing material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances, or contact your dealer or
Miele for advice. You are also
responsible (by law, depending on
country) for deleting any personal data
that may be stored on the appliance
being disposed of. Please ensure that
your old appliance poses no risk to
children while being stored prior to
disposal.
13
Guide to the appliance
14
Guide to the appliance
a
Extraction ducting connection
Extraction ducting can be directed through the back of the cooker hood or
upwards to the ceiling.
b
Hob lighting
c
Charcoal filters (x 2)
Special accessories for recirculation mode
(only for DA 2668, DA 2698)
d
Grease filters
(DA 2668, DA 2698: x 2; DA 2628: x 4)
e
Edge extraction panel
(DA 2668, DA 2698: x 1; DA 2628: x 2)
f
Controls
g
Control for switching the lighting on and off and for dimming the lighting
h
Control for switching the fan on and off
i
Controls for setting the fan power level
j
Control for the run-on function
k
Control for the operating hours counter
This control is used for displaying operating hours used and for altering the
counter setting. See “Before using for the first time” for details on how to set
the counter for Extraction mode or for Recirculation mode.
15
Modes of operation
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The cooking vapours are drawn in by
the cooker hood. The air is then passed
via the edge extraction panel through
the grease filters, cleaned and then
directed outside.
Recirculation mode
The air is drawn in and passed via the
edge extraction panel through the
grease filters and then through 2
charcoal filters. The cleaned air is then
recirculated back into the kitchen.
DA 2628 cannot be used as a
recirculation mode cooker hood.
Operation with an external motor
(...EXT model cooker hoods)
16
Cooker hoods designed for use with an
external motor have to be connected to
a Miele external motor located in a
position of your choice outside the
room. The external motor is connected
to the cooker hood by means of a
control cable and is operated via
Con@ctivty or by the controls on the
cooker hood.
Before using for the first time
Select Extraction mode or Recirculation mode
The cooker hood is suitable for both
extraction mode and recirculation
mode. The power of the fan is
adapted to suit the selected mode of
operation. The cooker hood is set up
ex-works for recirculation mode. It has
to be re-set for extraction mode.
To re-set it for extraction mode the
operating hours counter for the
charcoal filter(s) has to be deactivated.
Switch off the fan and the lighting.
Press the control and the operating
hours control at the same time.
The Charcoal filter symbol and one
of the fan power levels will flash.
Press and hold the control until the
B indicator lights up.
Confirm your choice with the
operating hours control .
All the indicator lights will go out.
Setting up Miele@home
Prerequisite:
– Home WiFi network
Your cooker hood is equipped with an
integrated WiFi module. The cooker
hood can be connected to the
household WiFi network.
You will then be able to operate the
cooker hood via the Miele@mobile app.
If your Miele hob is connected to a
home WiFi network, you can control the
cooker hood automatically via the
Con@ctivity function.
Before installing the cooker hood in
its final location, ensure that the
signal of your WiFi network is strong
enough.
Please note that you cannot set up a
WiFi connection at the same time as a
wireless connection (Con@activity 2.0,
remote control).
Extraction mode has now been set.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
17
Before using for the first time
Miele@mobile App
The Miele@mobile App is available to
download free of charge from the Apple
App Store® or from the Google Play
Store™.
Connecting via the app
The Miele@mobile app can be used to
connect to your network.
Install the Miele@mobile app on your
mobile device.
To log in you will need:
1. Your WiFi network password
2. Your cooker hood password
The password for your cooker hood
consists of the last nine digits of the
serial number. This can be found on the
appliance's data plate.
The data plate is visible after removing
the grease filter(s).
18
Start signing the appliance on in the
app. Follow the signing in
instructions.
If requested to activate WiFi on the
cooker hood, proceed as follows:
Before using for the first time
Switch the cooker hood off.

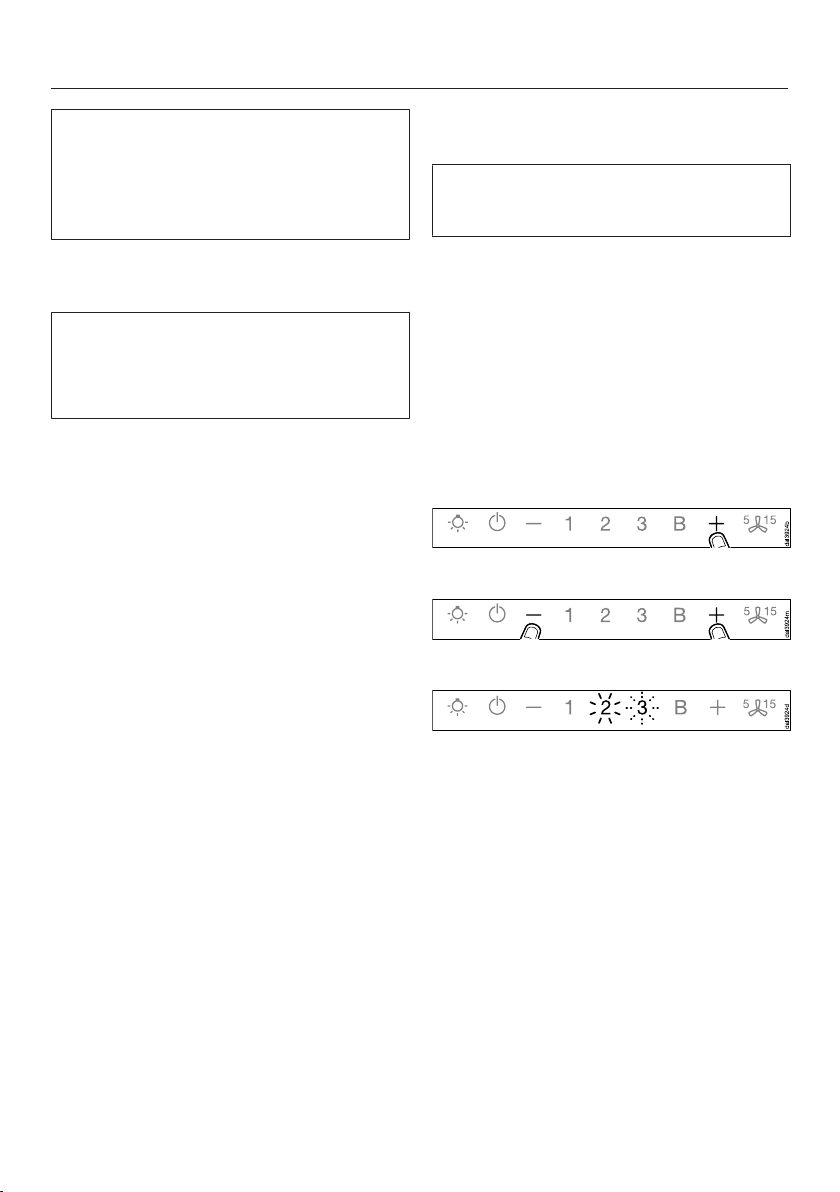

Press and hold the control.
Press the lighting control at the same
time.
2 will light up constantly, 3 will flash on
and off.
The cooker hood is ready for
connection in the next two minutes.
Follow the instructions in the app.
When successfully connected the 2 and
3 will light up constantly.
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Switch the cooker hood off.
Press and hold the control.
Press the lighting control at the same
time.
2 will light up constantly, 3 will flash on
and off.
The WiFi connection must be started on
the cooker hood at the same time as on
the WiFi router.
Press the control on the cooker
hood after a few seconds.
Quit connection mode on the cooker
hood by pressing the Run-on
control.
The cooker hood can now be operated
via the app.
After a short while the 2 will light up
constantly, and the 3 and the B will
flash on and off.
The cooker hood is ready for
connection in the next two minutes.
19
Before using for the first time

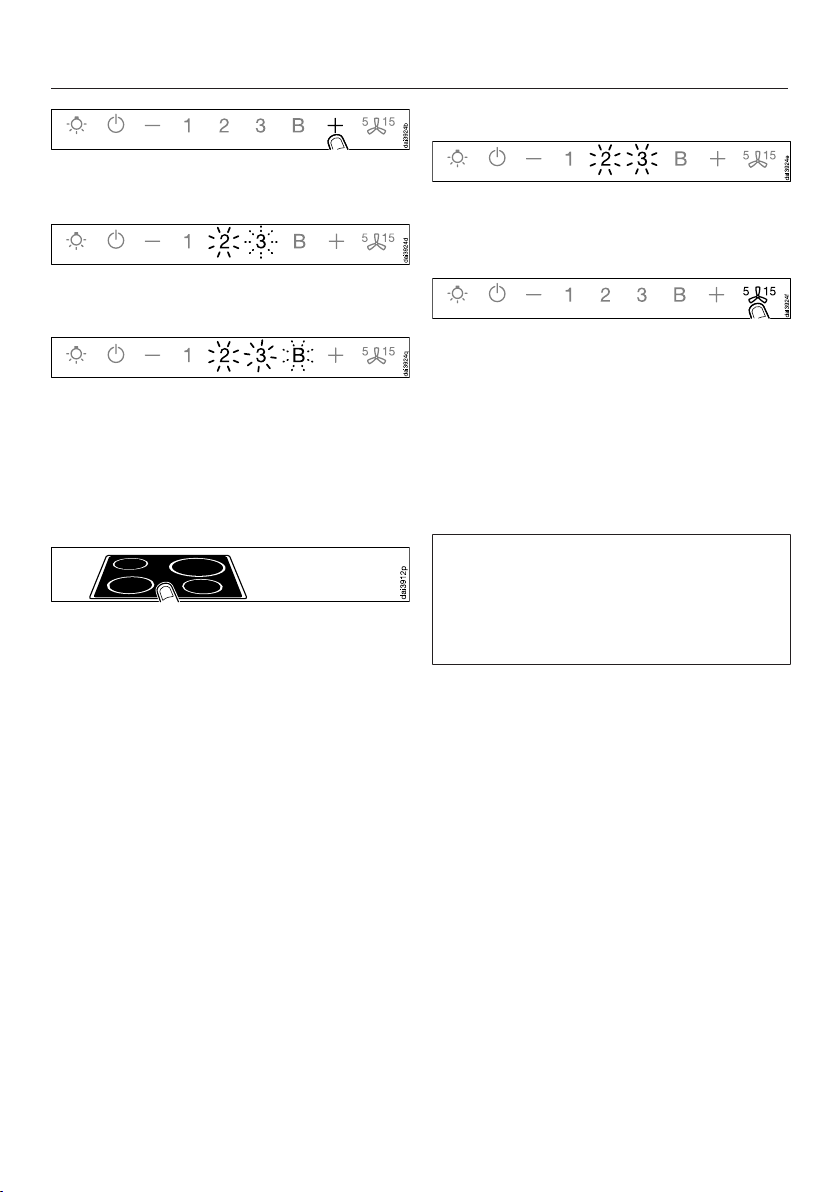

Start the WiFi connection on your
WiFi router.
When successfully connected the 2 and
3 will light up constantly.

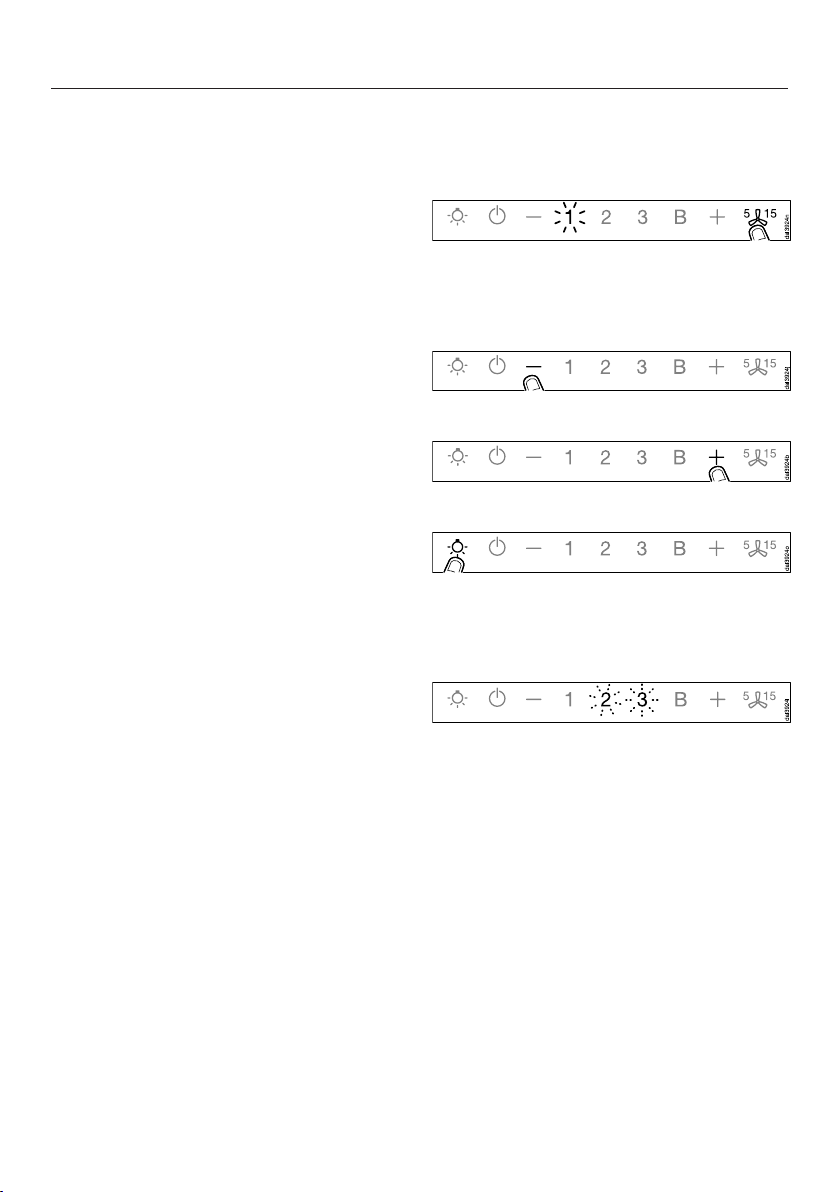

Sign out of WiFi (reset to factory settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Switch the cooker hood off.
Press and hold the control.
Quit connection mode on the cooker
hood by pressing the Run-on
control.
The cooker hood can now be operated
via the app.
If the connection fails, you have
probably not connected WPS on your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the
Miele@mobile app.
Touch the lighting control at the same
time.
With an existing WiFi connection the 2
and the 3 will light up constantly.
The cooker hood is ready for
disconnection in the next two minutes.
20
Touch the control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds the 2 and the 3 will
flash on and off. The connection has
now been disconnected.
Quit disconnection mode on the
cooker hood by pressing the Run-on
control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Before using for the first time

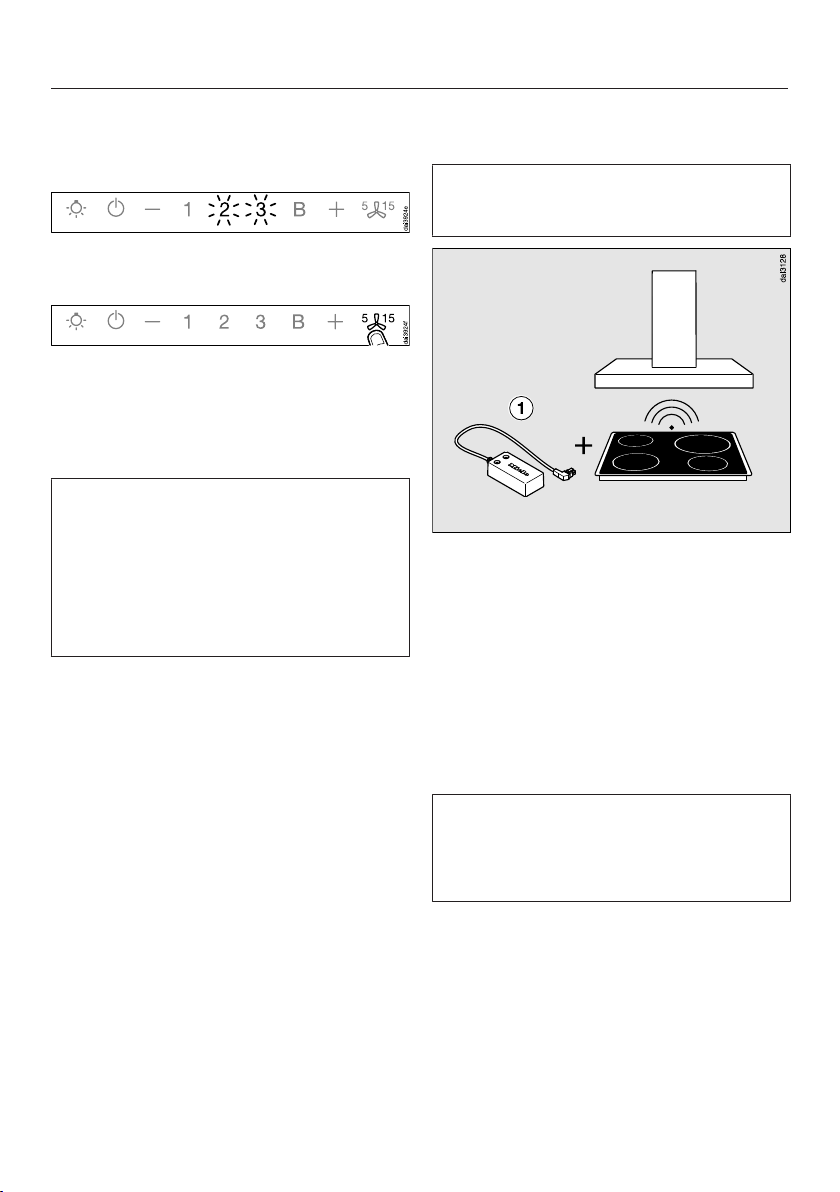

Setting up Con@ctivity
Con@ctivity is the direct communication
system between an electric Miele hob
and a Miele cooker hood. It enables the
cooker hood to operate automatically
depending on the operational state of a
Miele hob with onset controls.
– When the hob is switched on, the
cooker hood lighting comes on
automatically and then after a short
time the fan also comes on.
– The cooker hood selects the power
level automatically during cooking.
The power level selected by the
cooker hood depends on the number
of cooking zones being used and
their power levels.
– After switching the hob off the fan
and the hob lighting will switch off
automatically after a specified period
of time.
See “Operation” for detailed information
about this function.
21
Before using for the first time
This cooker hood can be operated
with the Con@ctivity function via a
WiFi connection (Con@ctivity 3.0) or
via a wireless connection (Con@ctivity
2.0).
Con@ctivity via the home WiFi network (Con@ctivity 3.0)
Prerequisite:
– Home WiFi network
– WiFi enabled Miele hob
Connect the cooker hood and hob to
your home WiFi network (see “Setting
up Miele@home”).
The Con@ctivity function will be
activated automatically.
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0)
Prerequisite:
– WiFi enabled Miele hob
If you do not have a home network, you
can establish a direct connection
between the hob and the cooker hood.
See the Hob instruction manual for
details on how to connect them.
Instructions on how to connect the
cooker hood are repeated in detail
below.
Switch the cooker hood off.
Press and hold the control.
Press the control at the same time.
22
2 will light up constantly, 3 will flash on
and off.
The cooker hood is ready for
connection in the next two minutes.
Before using for the first time
Start WiFi connection on the hob. For
further details, see the hob operating
instructions.
When successfully connected the 2 and
3 will light up constantly.
Quit connection mode on the cooker
hood by pressing the Run-on
control.
Con@ctivity has now been activated.
With a direct WiFi connection, it is not
possible to connect the hob and the
cooker hood to a home network.
Should this be required at a later date,
the WiFi connection between the hob
and the cooker hood must be
disconnected (see “Sign out of WiFi”).
Con@ctivity with direct wireless connection (Con@ctivity 2.0)
Prerequisite:
– Con@ctivity 2.0 enabled Miele hob
This cooker hood is supplied with a
Con@ctivity 2.0 wireless stick .
The wireless stick can only be used
with hobs that are fitted with a slot for
the wireless stick to operate the
Con@activity function.
Check the installation instructions for
the Con@ctivity 2.0 stick to ensure
that it is compatible with your hob.
Please note that you cannot set up a
WiFi connection at the same time as a
wireless connection (Con@activity 2.0,
remote control).
23
Before using for the first time
Installing the Con@ctivity 2.0 stick
See the relevant installation
instructions provided with the
Con@ctivity 2.0 stick.
Activating the wireless connection
The cooker hood and the hob must
installed and operational.
Wireless connection must be activated
on the cooker hood and the hob at the
same time. Activation on the cooker
hood is described below.
Activation on the hob is described in
the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the cooker hood first, then the
hob.
Activating the cooker hood
The hob and cooker hood must be
switched off.
Press the run-on control for
approx. 10 seconds until 1 lights up.
Then press in turn:
– the control,
– then the control,
– then the lighting control.
The cooker hood is now in signing on/
off mode.
24
If a wireless connection has not yet
been established, 2 and 3 will flash at
the same time.
If a wireless connection has already
been established, 2 and 3 will light up
constantly (Con@ctivity 2.0 is already
activated or a remote control is signed
on).
To activate Con@ctivity 2.0 press the
control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds 2 and 3 will light up
constantly, B will flash on and off.
The search for a wireless connection
will start.
Activating the hob
While the cooker hood is searching
for a signal, start activating the hob.
For further details, see the hob
operating instructions.
Before using for the first time
Finish activation on the cooker hood
When successfully connected the B will
go out, and the 2 and 3 will light up
constantly.
Confirm activation with the run-on
control. All the indicator lights will
go out.
The Con@ctivity 2.0 function is now
ready for use.
If confirmation is not carried out within
4minutes, activation will not take place.
Activation only takes place once. If
appliances are disconnected from the
mains, for example during a power
cut, the activation process does not
need to be repeated.
When the hob registers that a link has
been established, exit activation on
the hob.
25
Before using for the first time
Activation failed
If the wireless connection cannot be
established despite activating the
cooker hood and the hob, both
appliances must first be deactivated
and then re-activated.
Press the control to deactivate
Con@ctivity 2.0.
Deactivating wireless connection
The hob and cooker hood must be
switched off.
Press the run-on control for
approx. 10 seconds until 1 lights up.
Then press in turn:
– the control,
– then the control,
– then the lighting control.
The cooker hood is now in signing on/
off mode.
2 will light up constantly, 3 will flash on
and off.
After a few seconds 2 and 3 will start
flashing on and off.
The wireless connection has now been
deactivated.
To deactivate the hob, see the hob
operating instructions.
Note that disabling the wireless
connection will also deactivate any
remote control function and this will
have to be activated again.
If a wireless connection has already
been established, 2 and 3 will light up
constantly.
26
When Con@ctivity is active, the
cooker hood always operates in
Automatic mode (see “Setting up
Con@ctivity”).
If you wish to manually operate the
cooker hood, see "Cooking without
Con@ctivity.
Cooking with Con@ctivity (Automatic mode)
Switch a cooking zone on at the
power level you want.
The hob lighting will come on.
After a few seconds the fan will come
on, first at power level 2, then it will
switch immediately to power level 1.
The cooker hood selects the power
level automatically during cooking.
This is determined by the total output of
the hob, i.e, the number of cooking
zones in operation and the power levels
selected.
Operation (Automatic mode)
Examples for power levels 1 to B
Reaction time
The cooker hood reacts with a slight
delay because altering the power level
on the hob does not immediately result
in a reduction or increase in cooking
vapours.
Because the hob transmits the
information to the cooker hood at
intervals, this can also cause delays.
The reaction can vary from a few
seconds to a couple of minutes.
If you select a higher power level or
are using several cooking zones, the
cooker hood will switch to a higher
power level.
When you reduce the power level or
the number of cooking zones on the
hob, the cooker hood power level is
also reduced.
27
Operation (Automatic mode)
Cooking process
If for example you switch on a
cooking zone at the highest power
level to heat a pan for frying and
reduce the power level after approx.
10 seconds to 4minutes *, a cooking
process is recognised. (*60 seconds
to 5minutes for a HiLight hob.)
The cooker hood switches itself on and
when the hob power level has been
reduced, the hood switches to power
level 3 and remains at that level for
approx. 5minutes.
After that the cooker hood power level
is determined automatically by the
Con@ctivity function.
You can select another power level
manually before then.
Switching off
Switch off all cooking zones.
The cooker hood fan will reduce its
power level in stages over the next few
minutes and will then switch itself off.
This helps to neutralise any lingering
vapours and odours in the air.
– From the Booster setting, the fan
switches immediately to Level 3.
– From Level 3, it will switch to Level 2
after approx. 1minute.
– From Level 2, it will switch to Level 1
after 2minutes.
– After 2minutes at Level 1 the fan
switches itself off.
– After another 30 seconds, the hob
lighting switches off.
The cooking process is then finished.
28
Operation (Automatic mode)
Leaving automatic mode temporarily
To leave automatic mode temporarily
during cooking:
manually select a different power
level, or
manually switch the cooker hood off,
or
activate the run-on function on
the cooker hood. The fan will switch
itself off after the selected run-on
time, and the lighting will remain on.
The cooker hood functions can now be
operated manually (see “Cooking
without Con@ctivity”).
Returning to automatic mode
The cooker hood will resume automatic
mode:
if the cooker hood has not been used
for approx. 5minutes after selecting a
power level manually, or
seconds after cooking, automatic
mode will resume next time the hob is
switched on.
if the manually selected fan power
level corresponds to the automatic
one again, or
the cooker hood fan and the hob
have been switched off for at least
30seconds.
Automatic mode will resume next
time the hob is switched on.
You can also operate the cooker hood
manually for a complete cooking
process.
To do so switch the cooker hood fan
on before the hob.
If the cooker hood fan and the hob
have been switched off for at least 30
29
Operation (Manual mode)
Cooking without Con@ctivity (Manual mode)
The cooker hood can be operated
manually if:
– the Con@ctivity function is not
activated.
– you have temporarily deactivated the
Con@ctivity function (see
“Temporarily exiting Automatic
mode”).
Switching the fan on
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Press the On/Off control .
The fan will switch on at setting 2 and
the symbol and 2 will light up in the
power setting display.
Selecting the power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Select the power level you want by
pressing the or control.
Selecting the run-on time
It is advisable to run the fan for a few
minutes after cooking has finished. This
helps to remove any lingering vapours
and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
The run-on function enables the fan to
continue running for a pre-determined
time before switching itself off
automatically.
After you have finished cooking,
press the run-on control while the
fan is still running:
– Once: the fan will switch itself off
after 5minutes (5 lights up).
– Twice: The fan will switch itself off
after 15minutes (15 lights up).
– If you touch the run-on option
control again, the fan will remain
on ( will go out).
Switching the fan off
Press the On/Off control to switch
the fan off.
The symbol will go out.
Reducing power down from the Booster setting
If power management is activated
(default setting), the fan automatically
switches back to level 3 after 5minutes.
30
Operation (Manual mode)
Dimming/switching the hob lighting on/off
The hob lighting can be switched on
and off and dimmed independently of
the fan.
Press the lighting sensor briefly to
switch it on or off.
The lighting will switch on at maximum
brightness.
With the lighting switched on, press
and hold the hob lighting control.
The brightness will gradually dim until
you release the control.
Press and hold the lighting control
again to increase the brightness to
the level required and then release it.
Power management
The cooker hood features a power
management system to help save
energy. The fan power level is reduced
and the lighting is switched off
automatically.
– If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
– From levels 3, 2 or 1 the power will
be reduced by one level after 2 hours
and then in 30minutes stages until
the fan finally switches off.
– The hob lighting will switch off
automatically after 12 hours.
You can deactivate Power
management.
This can however result in increased
electricity consumption.
31
Operation (Manual mode)
Switching Power management on/off
Switch off the fan and the lighting.
Press the fan run-on button for
approx. 10 seconds until the indicator
for power level 1 lights up.
Then press in turn:
– the lighting control.
– followed by thecontrol and then
– the lighting control.
If Power management is switched on,
the 1 and B indicators light up
constantly.
When it is switched off, the 1 and B
indicators flash.
Press the control to turn power
management off.
The 1 and B indicators will flash.
Press the control to switch it on.
The 1 and B indicators will light up
constantly.
Safety switch-off
If Power management has been
deactivated, the cooker hood will
switch itself off automatically after
12hours if it has been left on (fan and
hob lighting).
To switch it on again press the On/
Off control or the lighting
control.
Confirm the setting with the run-on
option control
All the indicator lights will go out.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
32
Operation (Automatic and Manual modes)
Operating hours counter
The cooker hood registers the length of
time it has been operated.
When the grease filter symbol or the
charcoal filter symbol lights up, the
operating hours counters are signalling
that the filters need to be cleaned or
changed. Further information about
cleaning and replacing the filters and
resetting the operating hours counter
can be found under “Cleaning and
care”.
Altering the operating hours counter for the grease filter(s)
You can set the operating hours counter
to suit the type of cooking you do.
It is set at the factory for 30 hours.
– Select a shorter time of 20 hours if
you fry a lot.
– If you only cook occasionally, we
recommend that you still select a
short time. This is to prevent grease
hardening on the filter(s) and making
cleaning more difficult
Switch off the fan and the lighting.
Press the run-on control and the
operating hours control at the
same time.
The Grease filter symbol and one of
the fan power level indicators will flash.
Fan power level indicators 1 to B show
the time set:
1............................................... 20 hours
2............................................... 30 hours
3............................................... 40 hours
B .............................................. 50 hours
Press the control for a shorter
duration, or for a longer duration.
Confirm your choice with the
operating hours control .
All the indicator lights will go out.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
– Select a longer time of 40 or 50 hours
if you use very little fat for cooking.
33
Operation (Automatic and Manual modes)
Altering or deactivating the charcoal filter operating hours counter
Charcoal filters are needed for
recirculation mode.
You can set the operating hours counter
to suit the type of cooking you do.
It has to be deactivated for extraction
mode.
It is set at the factory for 180 hours of
use before they need to be replaced.
Switch off the fan and the lighting.
Press the control and the operating
hours control at the same time.
The Charcoal filter symbol and one
of the fan power levels will flash.
Fan power level indicators 1 to B show
the time set:
1............................................. 120 hours
2............................................. 180 hours
3............................................. 240 hours
B ......................................... deactivated
Select the duration you want with the
or control.
Confirm your choice with the
operating hours control .
All the indicator lights will go out.
If you don't confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Reading the filter operating hours counter
You can check the percentage of time
set already used before the filter needs
replacing.
Switch the fan on with the On/Off
control.
Press and hold the operating hours
control :
– Once, to read the grease filter
operating hours. The grease filter
symbol lights up.
– Twice, to read the charcoal filter
operating hours. The Charcoal filter
symbol lights up.
One or more of the power level
indicators will flash.
The number of fan power level
indicators flashing shows the
percentage of the operating time which
has already been used up.
1 ................................................... 25%
1 and 2 ........................................ 50%
1 to 3 ........................................... 75%
1 toB ......................................... 100%
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
34
Energy saving tips
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker
hood cannot operate efficiently and
this causes increased operating noise
levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced
energy consumption.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
– Use the Con@ctivity function. The
cooker hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy
consumption.
– If you are operating the cooker hood
manually, please note the following:
– Check the power level selected on
the cooker hood. A low power
level is usually sufficient. Only use
the Booster setting when
necessary.
– When a large volume of cooking
vapours are being produced,
switch to a high power level in
good time. This is more efficient
than operating the cooker hood for
longer to try to capture cooking
vapours which have already been
distributed throughout the kitchen.
– Make sure that you switch the
cooker hood off after use.
If cooking vapours and odours still
need to be removed from the
kitchen air after cooking, use the
run-on function. The fan will switch
off automatically after the selected
run-on time.
35
Cleaning and care
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply, see “Warning
and safety instructions”.
Housing
General information
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following
cleaning instructions.
All external surfaces and controls can
be cleaned using hot water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
Make sure that water does not
get into the cooker hood.
Only clean the area of the controls
with a damp cloth.
Important for appliances with stainless steel surfaces
(This information does not apply to the
controls).
Stainless steel surfaces can be
cleaned with a proprietary nonabrasive cleaning agent designed
specifically for use on stainless steel.
To help prevent re-soiling, a
proprietary conditioning agent for
stainless steel (available from Miele)
can also be used.
Apply sparingly with a soft cloth.
Then wipe the surfaces dry using a
soft cloth.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
36
Cleaning and care
Important for the controls
Do not leave soiling on the controls
for any length of time.
Otherwise they may suffer
discolouration or damage.
Remove soiling straight away.
Please observe the general notes on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Grease filters and panel for edge extraction
Fire hazard!
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The edge extraction panel and the reusable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters and the panel must be
cleaned at regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood
and in the kitchen.
Cleaning interval
The edge extraction panel should be
cleaned regularly (at least every 3 - 4
weeks) to avoid a build-up of grease.
The operating hours counter will remind
you to clean the edge extraction panels
and the grease filters regularly via the
grease filter symbol which will light
up.
You can set the operating hours
counter to suit the type of cooking
you do (see “Operation”).
37
Cleaning and care

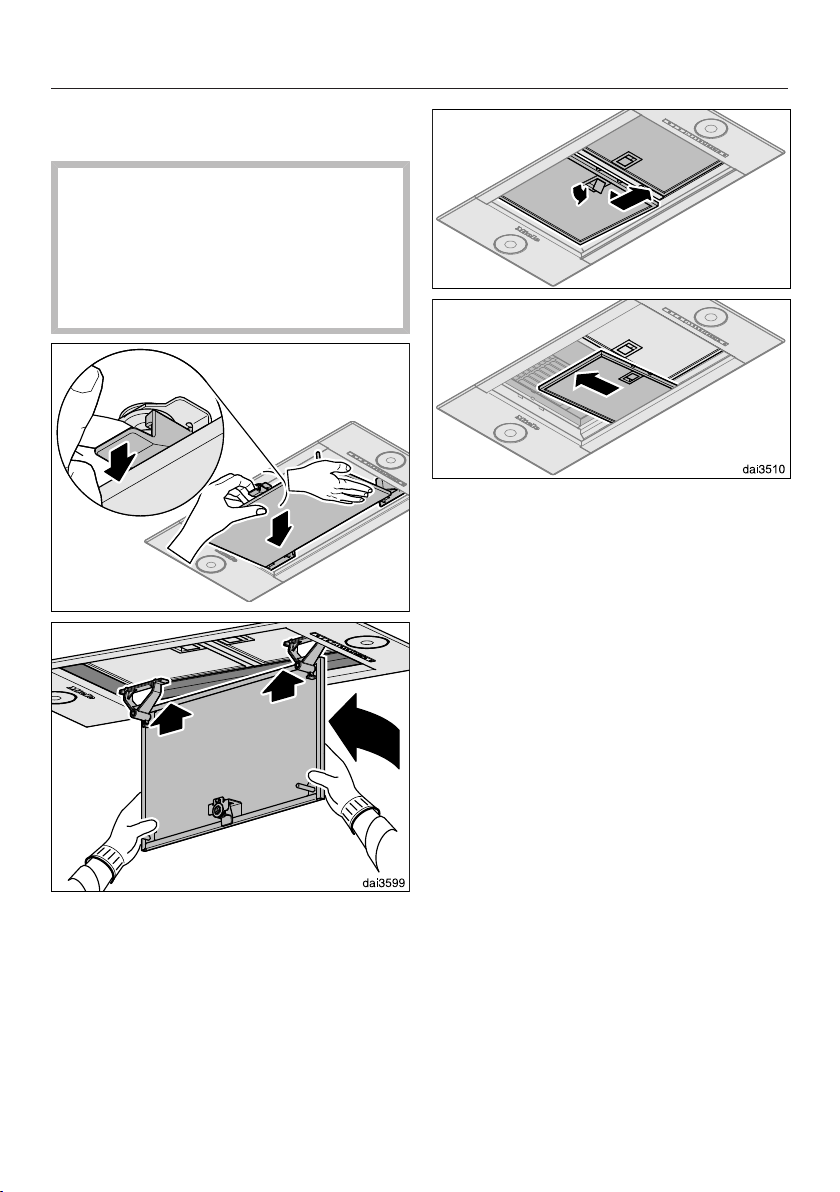

Removing the panel and grease filters
The panel and grease filter can
fall out when you are handling them.
This can result in damage.
Make sure you hold the panel and
the grease filter securely at all times
when handling them.
Open the grease filter retainer catch
and remove it.
Cleaning the panel by hand
Follow the instructions under
“Housing”.
Hold the panel with one hand and
release the catch with the other hand.
Lower the panel.
Lift the panel slightly upwards, and
then lift it forwards to remove it.
38
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Cleaning and care
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
– cleaning agents containing descaling
agents
– powder cleaners, cream cleaners
– aggressive multi-purpose cleaning
agents or spray cleaners for grease
– oven sprays
Cleaning the panel and the grease filters in the dishwasher
Place the panel and the grease filters
upright or slightly inclined in the lower
basket. Ensure the spray arm is not
obstructed.
Use a commercially available
household dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discoloured. This will not
affect the functioning of the grease
filters in any way.
After cleaning
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
When removing the panel and filters
for cleaning, also clean off any
residues of oil or fat from the now
accessible parts of the casing to
prevent the risk of these catching fire.
Replace the grease filters, making
sure that the locking clips are facing
down towards the hob.
If a grease filter is inadvertently
replaced upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
39
Cleaning and care
Resetting the grease filter operating hours counter
After cleaning, the operating hours
counter needs to be re-set.
Whilst the fan is switched on, press
the operating hours control for
approx. 3 seconds, until only the 1 is
flashing.
The Grease filter symbol goes out.
If you want to clean the grease filters
before the operating hours counter has
reached its maximum:
Press the operating hours control
for approx. 6 seconds, until only
the 1 is flashing.

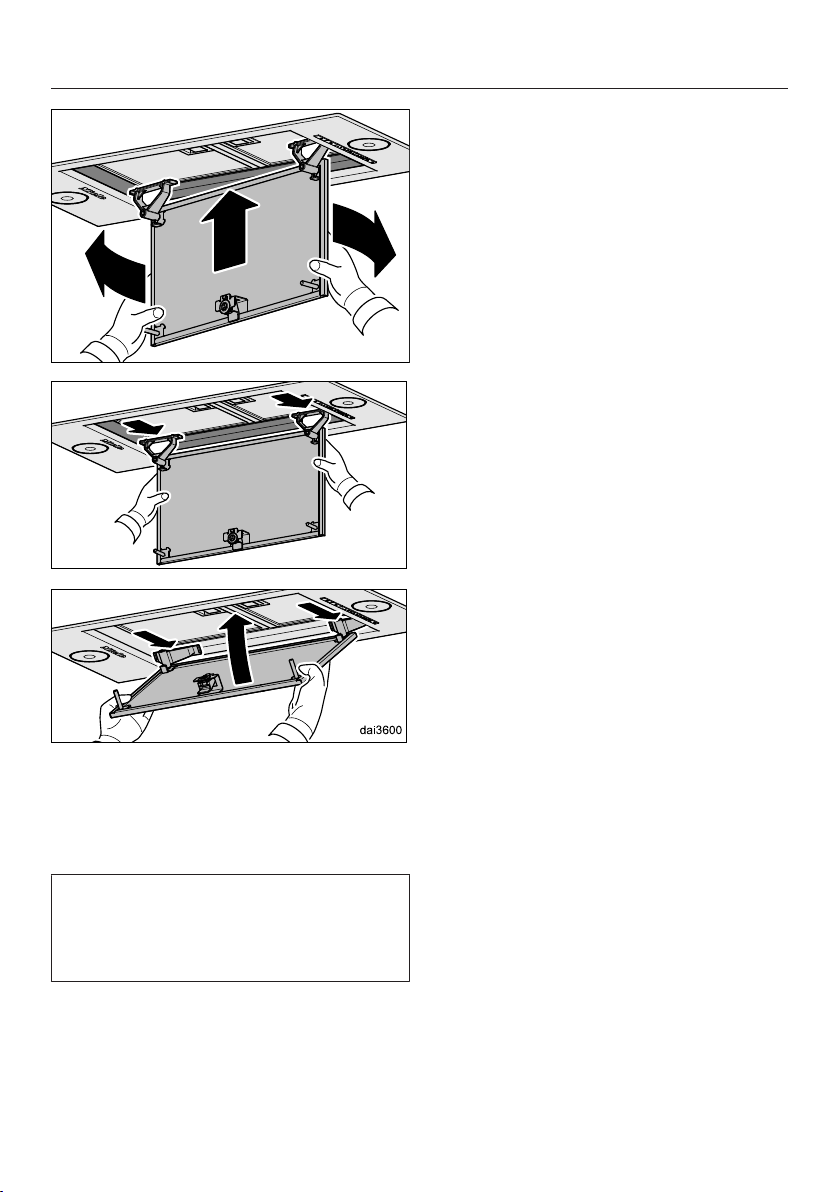

Lift the panel into the deflector plate
and hook it in at the back.
Lift the panel upwards at the front
and press it into the locking clip.
The panel can also be turned 180° and
fitted. Depending on where the cooker
hood is installed, this can make it
easier to remove and refit the panel.
40
Cleaning and care
Charcoal filters
With recirculation mode, two charcoal
filters must be fitted in addition to the
grease filters. These are designed to
absorb cooking odours.
The charcoal filters are fitted in the
canopy above the grease filters.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare
Parts Department (see end of this
booklet for contact details) or from your
Miele dealer. The type of charcoal filter
required is listed under “Technical data”
at the back of this booklet.
Fitting/replacing charcoal filters
Before fitting or replacing a charcoal
filter, the panel and the grease filters
must first be taken out (see previous
section for instructions on how to do
this).
Take the charcoal filters out of their
packaging.
When to change the charcoal filters
Replace the charcoal filters when
they no longer absorb kitchen odours
effectively.
They should, however, be replaced at
least every 6 months.
The operating hours counter will remind
you to replace the charcoal filters by
lighting up the charcoal filter symbol .
Resetting the charcoal filter operating hours counter
After changing the charcoal filters, the
operating hours counter needs to be reset.
To do this, with the fan switched on,
press the operating hours control
twice, then hold it for approx. 3
seconds until only the 1 is flashing.
The Charcoal filter symbol will go
out.
If you want to replace the charcoal
filters before the operating hours
counter has reached its maximum:
Press the charcoal filters into the
frame.
Replace the grease filters.
Press the operating hours control
twice and hold it for approx. 6
seconds until only the 1 is flashing.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with the normal household waste.
41
After Sales / Warranty
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or the Miele Service
Department.
Contact details for Miele are given at
the end of this booklet. N.B. A call-out
fee will be charged for service visits
where the problem could have been
resolved as described in these
instructions.
When contacting your dealer or Miele,
please quote the model and serial
number of your appliance.
These are shown on the data plate.
Position of the data plate
The data plate is visible after removing
the grease filters.
Warranty: U.K.
In the U.K., the appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Please note that telephone calls may
be monitored and recorded for training
purposes.
Warranty: Other countries
For information on the appliance
warranty specific to your country please
contact Miele. See end of this booklet
for contact details.
42
Installation
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Installation instructions
See enclosed Installation sheet for
instructions on how to install this
appliance.
The cooker hood is intended for
installation in a wall unit, chimney unit
or above breakfast bars or island areas.
Check prior to installation that the top
of the appliance will be accessible
after installation.
If this is not the case, install the exhaust
ducting and prepare the mains
connection before installation.
43
Installation

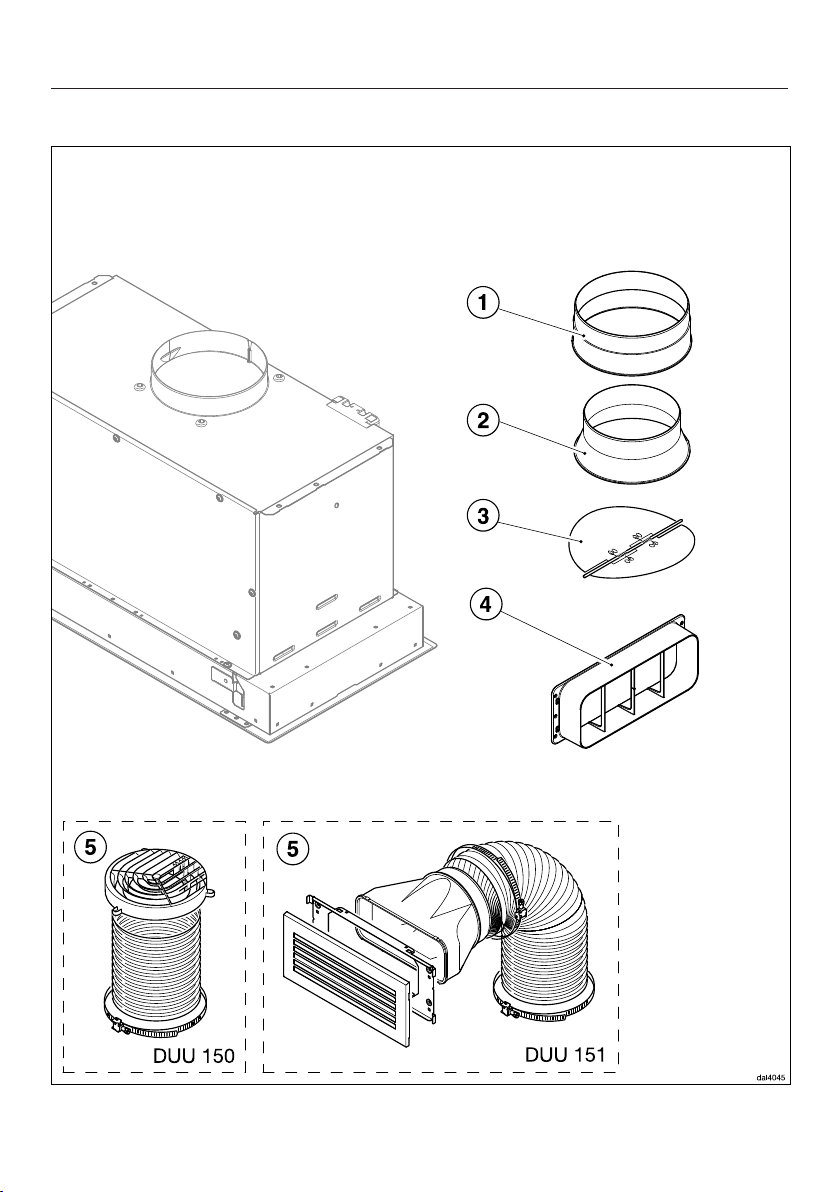

Assembly parts
44
Installation
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
a
1 collar for exhaust ducting
150mm.
b
1 reducing collar for exhaust
ducting 125mm.
c
1 non-return flap for fitting into the
exhaust socket on the motor unit
(not needed for recirculation mode)
d
1 Connector for flat ducting to the
rear or the side (only for EXT
models).
e
Conversion kit for recirculation
mode (the conversion kit is not
supplied and must be ordered
separately; see “Technical data”).
The kit contains an exhaust grille
and aluminium hose with hose clips.
Keep the following in a safe place:
Installation plan
4M5x40mm screws, 4washers,
4M5 nuts for securing the cooker
hood to an interim shelf.
10M4x8mm screws for securing the
cooker hood and with EXT models for
securing flat ducting and the cover to
the casing.
45
Installation
Appliance dimensions
The drawings are not to scale.
46
Installation
The drawings are not to scale.
47
Installation
a
The ducting can also be connected at the back.
b
222 x 89mm flat exhaust ducting can be used as an alternative for ducting to
the rear or to the side.
c
The cooker hood is secured in the cut-out by clamps. This requires a solid
installation surface, such as wood. Make sure that the material is strong
enough to bear the weight of the cooker hood. There must be a minimum
distance of 25mm between the areas around the clamps and any structures or
components, such as struts or cables.
d
Alternatively, the cooker hood can be secured to four fixing points on an interim
shelf.
e
Additional fixing points on the installation surface.
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker hood
is as follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See “Warning and Safety” instructions for further information.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, deep fat fryer (electric) 650mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Single burner gas hob, output ≤ 6 kW. 650mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760mm
Single burner gas hob, output > 8.1 kW Not possible
48
650mm
760mm
Not possible
Installation recommendations
– When deciding on the safety distance
between the hob and cooker hood,
please note that a distance of
650mm above electric cookers/hobs
may be preferable to give more
working space under the hood.
– Account should also be taken of the
height of the person who will be
using the hood most often. They
should have sufficient space to work
comfortably at the hob, and be able
to reach the cooker hood controls
with ease.
– Please be aware that if positioned too
high, extraction will be inefficient.
– To achieve optimum vapour
extraction, the cooker hood must be
centred over the hob, not to the side
or behind it.
Installation
– The hob should be no wider than the
cooker hood, and if possible, it
should be narrower.
– The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.
49
Installation
Uneven installation surfaces
If the installation surface is uneven
making flush installation difficult, the
frame can be realigned.
Fit the cooker hood as described on
the installation sheet.
Disconnect the cooker hood from the
mains electrical supply before
replacing the lamps (see “Warning
and Safety instructions”).
Fit one of the screws supplied into
each lamp opening.
Tighten the screws with a screwdriver
until the frame sits flush with the
installation surface.
Do not overtighten the screws.
Replace the lamps.
Using the suction cup supplied, pull
the lamp out of its holder.
Remove all other lamps in the same
way.
50
Connection for air extraction
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Use smooth pipes or flexible ducting
made from approved non-flammable
materials for exhaust ducting.
When using an external motor, make
sure that the exhaust ducting is
sufficiently rigid. The external motor
can cause an underpressure which
can result in the exhaust ducting
distorting.
To achieve the most efficient air
extraction with the lowest noise levels,
please note the following:
– The diameter of the exhaust ducting
should not be less than 150mm.
– If flat ducting is being used, the cross
section must not be smaller than the
cross sectional area of the exhaust
connection.
– The exhaust ducting should be as
short and straight as possible.
– Ensure that all connections are
strong and airtight.
Remember that any constriction of
the air flow will reduce extraction
performance and increase operating
noise.
If the exhaust is ducted through an
outside wall, a telescopic wall vent or
a roof vent (available as an optional
accessory) is recommended.

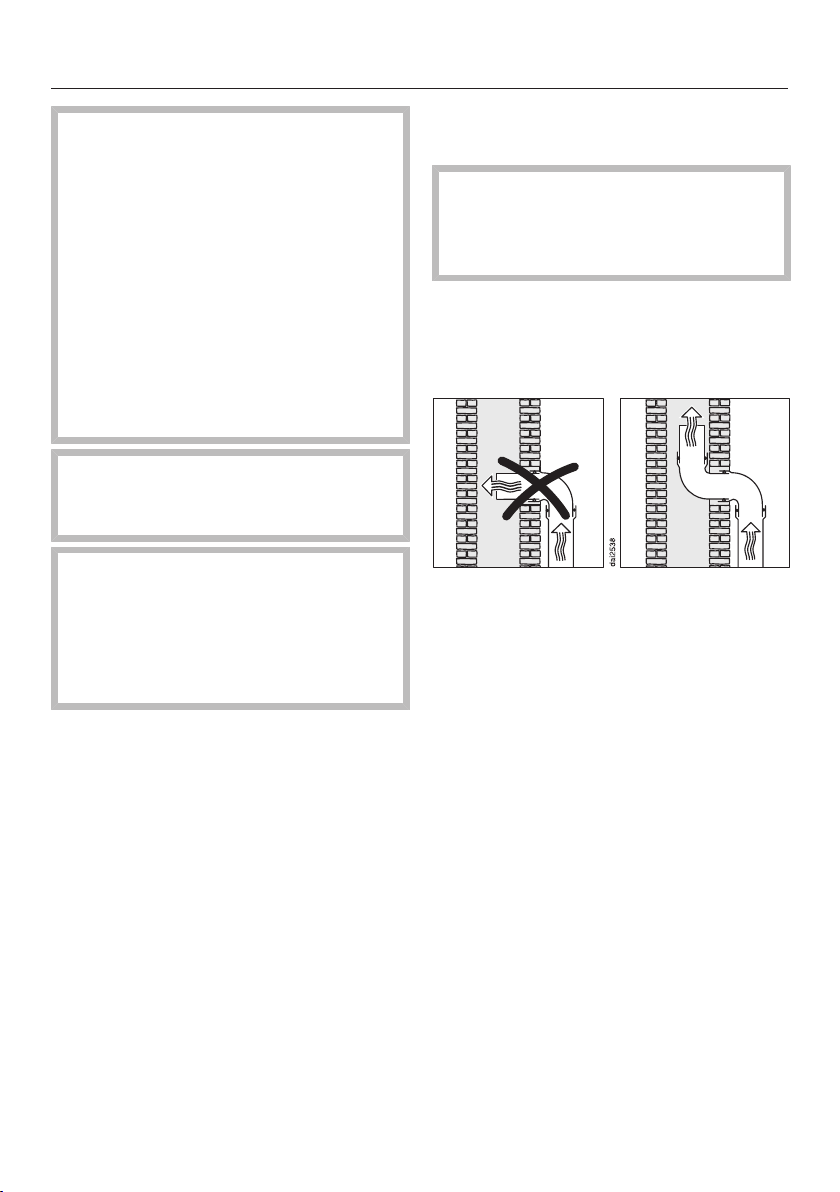

If the exhaust air is to be ducted into
a flue, the ducting must be directed in
the flow direction of the flue.
Where ducting is horizontal, it must
be laid to slope away at at least 1 cm
per metre. This is to ensure that
condensate cannot drain back into
the cooker hood.
If the exhaust ducting is to run
through rooms, ceiling space etc.
there may be great variations in
temperature between the different
areas. The problem of condensation
will need to be addressed. The
exhaust ducting will need to be
suitably insulated.
– Only use wide radius bends.
– The exhaust ducting must not be
kinked or compressed.
51
Connection for air extraction

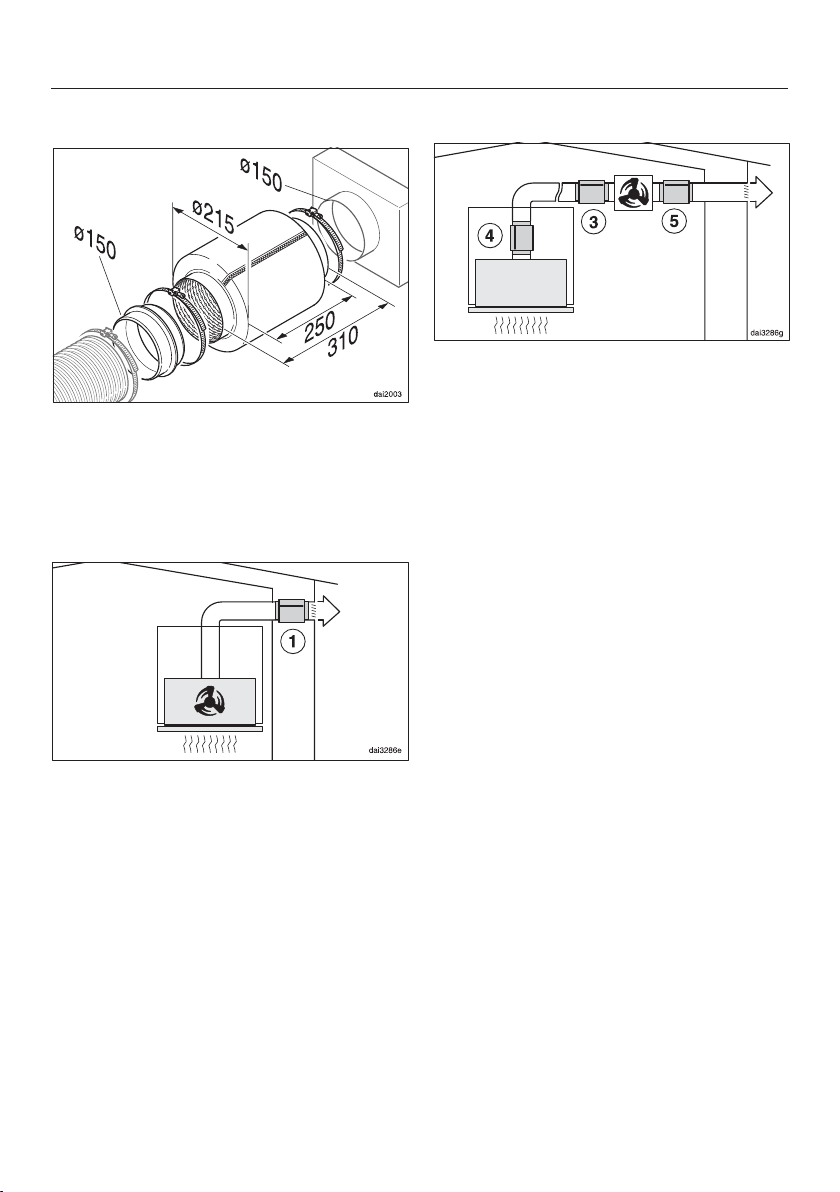

Silencer
To achieve even further reductions in
noise levels, a special silencer (optional
accessory) can be fitted in the ducting
system.
Extraction mode
Extraction mode with external motor
To minimise noise from the motor in the
kitchen, the silencer should be
positioned in front of the external motor
if possible, or, if the ducting is long,
above the exhaust socket on the cooker
hood . In the case of an external
motor located inside the house, fitting a
silencer behind the external motor
reduces the noise of the motor outside
the house.
The silencer not only reduces noise
from the motor outside the house, but
also sounds from outside (e.g. traffic
noise). For this reason the silencer must
be positioned as close as possible to
the ducting exit.
52
Electrical connection
All electrical work should be
undertaken by a suitably qualified
and competent person in strict
accordance with current national and
local safety regulations (BS 7671 in
the UK).
Installation, repairs and other work
by unqualified persons could be
dangerous, for which the
manufacturer cannot be held liable.
Ensure power is not supplied to the
appliance until after installation or
repair work has been carried out.
Do not connect the appliance to the
mains electricity supply by an
extension lead. These do not
guarantee the required safety of the
appliance.
The connection data is given on the
data plate. This is visible when the
grease filters have been removed.
Ensure that this data matches the
household mains supply.
If the switch is not accessible after
installation (depending on country), an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD). Contact a
qualified electrician for advice.
Important
This appliance is supplied for
connection to an a.c. 230 V single
phase 50 Hz supply. The wires in the
mains lead are coloured in accordance
with the following code:
Green/yellow .................................earth
Blue .............................................neutral
Brown ................................................live
WARNING:
THIS APPLIANCE MUST BE
EARTHED
Connection of this appliance should be
made via a suitable isolator or a double
pole fused spur connection unit which
complies with national and local safety
regulations and the On-Off switch
should be easily accessible after the
appliance has been built in. When
switched off there must be an all-pole
contact gap of 3 mm in the switch
(including switch, fuses and relays
according to EN 60335).
53
Technical data
Fan motor* 80W
Hob lighting
DA 2668 2x4.5W
DA 2698 4 x 3W
DA 2628 3x4.5W
Total connected load*
DA 2668 89W
DA 2698 92W
DA 2628 93.5W
Voltage, frequency AC 230V, 50Hz
Fuse rating 5A
Mains connection cable length 1.5m
Weight
DA 2668 12kg
DA 2698 14kg
DA 2628 15kg
DA 2668 EXT 9kg
DA 2698 EXT 11kg
DA 2628 EXT 12kg
* For EXT models, the connected load and extraction power will depend on the type of
external motor fitted.
Length of connection cable to external motor: 1.9m
WiFi module
Frequency band 2.412 - 2.462GHz
Maximum transmitting power < 100mW
Wireless module (ZigBee)
Frequency band 2.405 - 2.48GHz
Maximum transmitting power < 10mW
54
Technical data
Special accessories for recirculation mode
DUU150 or DUU151 conversion kit and DKF19-1 charcoal filter set. The set
contains two active charcoal filters.
Conformity declaration
Miele hereby declares that this cooker hood complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
– Products, Download from www.miele.co.uk
– For service, information, operating instructions etc: go to www.miele.co.uk/
domestic/customer-information-385.htm and enter the name of the product or
the serial number
Note for test institutes
Energy efficiency must be calculated using extraction mode. The cooker hood is
set up ex-works for recirculation mode. To re-set it for extraction mode the
operating hours counter for the charcoal filter(s) has to be deactivated (see “Before
using for the first time”).
55
Technical data
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier DA 2668
Annual Energy Consumption (AEC
Energy efficiency class A+
Energy efficiency index (EEI
hood
Fluid Dynamic Efficiency (FDE
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
) 77,8lx/W
hood
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 95,8%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point
Air flow (min. speed)
Air flow (max. speed)
Air flow (intensive or boost setting)
Max. air flow (Q
max
)
Air pressure at best efficiency point 355 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 35 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 51 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
Electrical power input at best efficiency point 85,0W
Power consumption in off mode (Po) W
Power consumption in standby mode (Ps) 0,35W
Nominal power of lighting system 9,0W
Average illumination of the lighting system on the cooking surface 700 Ix
Time increase factor 0,7
) 28,4kWh/year
hood
) 42,3
) 36,0
hood
310,9m3/h
175m3/h
365m3/h
585m3/h
585m3/h
64 dB
56
Technical data
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier DA 2698
Annual Energy Consumption (AEC
Energy efficiency class A+
Energy efficiency index (EEI
hood
Fluid Dynamic Efficiency (FDE
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
) 54,2lx/W
hood
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 95,3%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point
Air flow (min. speed)
Air flow (max. speed)
Air flow (intensive or boost setting)
Max. air flow (Q
max
)
Air pressure at best efficiency point 367 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 36 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 51 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
Electrical power input at best efficiency point 98,0W
Power consumption in off mode (Po) W
Power consumption in standby mode (Ps) 0,35W
Nominal power of lighting system 12,0W
Average illumination of the lighting system on the cooking surface 650 Ix
Time increase factor 0,6
) 28,6kWh/year
hood
) 37,7
) 40,1
hood
386,2m3/h
200m3/h
400m3/h
640m3/h
640m3/h
62 dB
57
Technical data
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier DA 2628
Annual Energy Consumption (AEC
Energy efficiency class A+
Energy efficiency index (EEI
hood
Fluid Dynamic Efficiency (FDE
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
) 51,9lx/W
hood
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 95,2%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point
Air flow (min. speed)
Air flow (max. speed)
Air flow (intensive or boost setting)
Max. air flow (Q
max
)
Air pressure at best efficiency point 380 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 36 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 51 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
Electrical power input at best efficiency point 88,0W
Power consumption in off mode (Po) W
Power consumption in standby mode (Ps) 0,35W
Nominal power of lighting system 13,5W
Average illumination of the lighting system on the cooking surface 700 Ix
Time increase factor 0,5
) 26,8kWh/year
hood
) 37,7
) 40,9
hood
340,4m3/h
200m3/h
400m3/h
640m3/h
640m3/h
62 dB
58
Technical data
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier DA 2668 EXT
Annual Energy Consumption (AEC
Energy efficiency class A++
Energy efficiency index (EEI
hood
Fluid Dynamic Efficiency (FDE
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) -
Lighting Efficiency (LE
) 77,8lx/W
hood
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency %
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) -
Airflow at best efficiency point
Air flow (min. speed)
Air flow (max. speed)
Air flow (intensive or boost setting)
Max. air flow (Q
max
)
Air pressure at best efficiency point Pa
Airborne acoustical A-weighted sound power emissions (min. speed) dB
Airborne acoustical A-weighted sound power emissions (max. speed) 0 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
Electrical power input at best efficiency point W
Power consumption in off mode (Po) W
Power consumption in standby mode (Ps) 0,35W
Nominal power of lighting system 9,0W
Average illumination of the lighting system on the cooking surface 700 Ix
Time increase factor
) 6,6kWh/year
hood
) 32,4
)
hood
m3/h
m3/h
m3/h
m3/h
m3/h
dB
59
Technical data
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier DA 2698 EXT
Annual Energy Consumption (AEC
Energy efficiency class A+
Energy efficiency index (EEI
hood
Fluid Dynamic Efficiency (FDE
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) -
Lighting Efficiency (LE
) 54,2lx/W
hood
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency %
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) -
Airflow at best efficiency point
Air flow (min. speed)
Air flow (max. speed)
Air flow (intensive or boost setting)
Max. air flow (Q
max
)
Air pressure at best efficiency point Pa
Airborne acoustical A-weighted sound power emissions (min. speed) dB
Airborne acoustical A-weighted sound power emissions (max. speed) 0 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
Electrical power input at best efficiency point W
Power consumption in off mode (Po) W
Power consumption in standby mode (Ps) 0,35W
Nominal power of lighting system 12,0W
Average illumination of the lighting system on the cooking surface 650 Ix
Time increase factor
) 8,8kWh/year
hood
) 40,0
)
hood
m3/h
m3/h
m3/h
m3/h
m3/h
dB
60
Technical data
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name / identifier DA 2628 EXT
Annual Energy Consumption (AEC
Energy efficiency class A+
Energy efficiency index (EEI
hood
Fluid Dynamic Efficiency (FDE
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) -
Lighting Efficiency (LE
) 51,9lx/W
hood
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency %
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) -
Airflow at best efficiency point
Air flow (min. speed)
Air flow (max. speed)
Air flow (intensive or boost setting)
Max. air flow (Q
max
)
Air pressure at best efficiency point Pa
Airborne acoustical A-weighted sound power emissions (min. speed) dB
Airborne acoustical A-weighted sound power emissions (max. speed) 0 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
Electrical power input at best efficiency point W
Power consumption in off mode (Po) W
Power consumption in standby mode (Ps) 0,35W
Nominal power of lighting system 13,5W
Average illumination of the lighting system on the cooking surface 700 Ix
Time increase factor
) 9,9kWh/year
hood
) 43,4
)
hood
m3/h
m3/h
m3/h
m3/h
m3/h
dB
61
United Kingdom
Miele Co. Ltd.
Fairacres, Marcham Road
Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600
Internet: www.miele.com
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
1 Gilbert Park Drive
Knoxfield, VIC 3180
Tel: 1300 464 353
Internet: www.miele.com.au
Miele (Shanghai) Trading Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: info@miele.cn,
Internet: www.miele.cn
China
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
customerservices@miele.com.hk
Website: www.miele.hk
Miele (Hong Kong) Limited
Miele India Pvt. Ltd.
Ground Floor
Copia Corporate Suites
Plot No. 9, Jasola
New Delhi - 110025
Tel: 011-46 900 000
Fax: 011-46 900 001
E-mail: customercare@miele.in
Internet: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: info@miele.ie
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
163 Penang Road
# 04 - 03 Winsland House II
Singapore 238463
Tel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: info@miele.com.sg
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd
63 Peter Place, Bryanston 2194
P.O. Box 69434, Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: info@miele.co.za
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Gold & Diamond Park
Office No. 6-217
Sheikh Zayed Road
P.O. Box 11 47 82 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: info@miele.ae
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
K.E. & Kingstone Co., Ltd.
6th Fl., No. 120, Sec. 2
Jianguo N. Rd.
Taipei, Taiwan
TEL: +886 2 2502-7256
FAX: +886 2 2502-3077
E-mail: kenk@kenk.com.tw
Website:
www.kenk.com.tw/ke/miele
Taiwan
Thailand
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
DA 2668
DA 2698
DA 2628
DA 2668 EXT
DA 2698 EXT
DA 2628 EXT
M.-Nr. 10 898 950 / 02en-GB
Loading...
