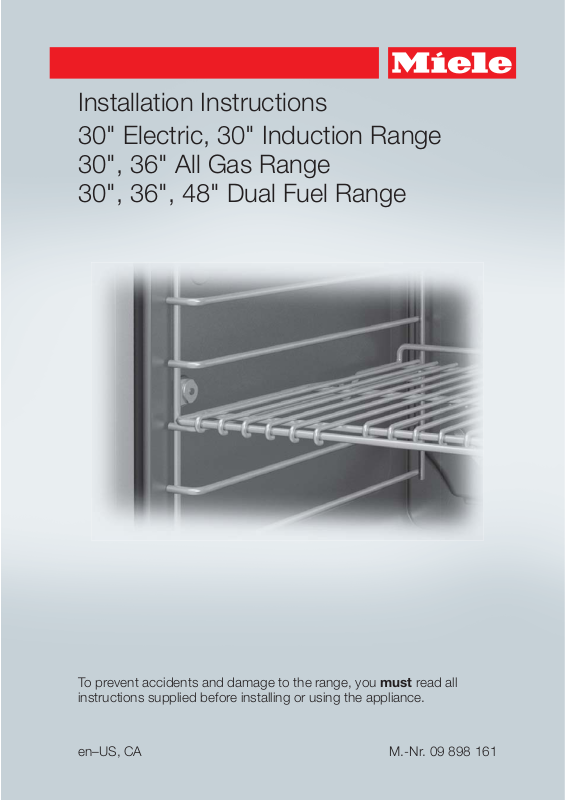

Miele 09 898 161 User Manual
Installation Instructions
30" Electric, 30" Induction Range
30", 36" All Gas Range
30", 36", 48" Dual Fuel Range
To prevent accidents and damage to the range, you must read all
instructions supplied before installing or using the appliance.
en–US, CA M.-Nr. 09 898 161
IMPORTANT SAFETY INSTRUCTIONS
ɘ WARNING
Children and adults can tip over the range if has not been
secured. This may lead to fatal injuries.
ʊThis range must be secured and connected using the anti-tip
device according to the installation instructions.
ʊIf you have moved the range, slide the locking latch onto the anti-
tip device until you feel it lock into place.
ʊDo not use the range if the anti-tip device has not been properly
installed and engaged.
ʊFailure to observe the information contained in the installation
instructions can lead to serious or fatal injuries for children and
adults.
WARNING
All ranges can tip
Injury to persons
could result
Install anti-tip devices
packed with range
See installation
instructions
2
IMPORTANT SAFETY INSTRUCTIONS
ɘ WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or death.
– Do not use or store gasoline or other combustible liquids or vapors in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electric switches.
– Do not use any phones inside your building.
– Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
– If you are unable to reach your gas provider, call the fire department.
– Installation and service must be performed by a qualified installer, qualified
service agency or your gas provider.
(In Massachusetts, installation must be performed by a licensed installer / gas
fitter.)
– Note to the installer:
Please give these installation instructions to the consumer for the local
electrical/gas inspector.
®
®
3
Contents
IMPORTANT SAFETY INSTRUCTIONS................................................................. 2
IMPORTANT SAFETY INSTRUCTIONS................................................................. 6
Notes on installation............................................................................................ 13
Model numbers ..................................................................................................... 13
Data plate .............................................................................................................. 13
Distance to the range hood.................................................................................... 13
Items included with this range ............................................................................... 13
Toe-kick and drop guard................................................................................... 14
Installation of the toe-kick................................................................................. 14
Installation of the drop guard............................................................................ 14
Assembling the grill........................................................................................... 15
Optional accessories ............................................................................................. 16
RBGAG All Gas Backguard/RBGDF Dual Fuel Backguard............................... 16
RBS Backsplash ............................................................................................... 19
XKM 3000 W Remote Vision............................................................................. 19
Required connections............................................................................................ 21
Electric Range dimensions ................................................................................. 22
HR 1421; HR 1622 ................................................................................................. 22
Detailed views of HR 1421..................................................................................... 24
Detailed views of HR 1622..................................................................................... 27
All Gas Range dimensions .................................................................................. 30
HR 1124, HR 1134, HR 1135, HR 1136................................................................. 30
Detailed views of HR 1124..................................................................................... 34
Detailed views of HR 1134..................................................................................... 37
Detailed views of HR 1135..................................................................................... 40
Detailed views of HR 1136..................................................................................... 43
Dual Fuel Range dimensions .............................................................................. 46
HR 1924, HR 1934, HR 1935, HR 1936, HR 1954, HR 1955, HR 1956................. 46
Detailed views of HR 1924..................................................................................... 51
Detailed views of HR 1934..................................................................................... 54
Detailed views of HR 1935..................................................................................... 57
Detailed views of HR 1936..................................................................................... 60
Detailed views of HR 1954..................................................................................... 63
Detailed views of HR 1955..................................................................................... 66
Detailed views of HR 1956..................................................................................... 69
Anti-tip device ...................................................................................................... 72
Before installation .................................................................................................. 72
Checking the installation space ............................................................................. 73
4
Contents
Included accessories ............................................................................................. 73
Installation dimensions of locking bolt................................................................... 74
Installing the range with the anti-tip device ........................................................... 74
Disconnecting the range from the anti-tip device.................................................. 77
Electrical connection........................................................................................... 78
Data plate.......................................................................................................... 79
Plumbing ............................................................................................................... 81
Notes on connecting to the water supply.............................................................. 81
Attach the stainless steel hose to the range.......................................................... 82
Connecting to the water supply............................................................................. 82
Gas connection .................................................................................................... 83
Converting to another gas type .......................................................................... 85
Burner ratings....................................................................................................... 86
Burner rating of HR 1124 ....................................................................................... 86
Burner rating of HR 1134 ....................................................................................... 87
Burner rating of HR 1135 ....................................................................................... 88
Burner rating of HR 1136 ....................................................................................... 89
Burner rating of HR 1924 ....................................................................................... 89
Burner rating of HR 1934 ....................................................................................... 90
Burner rating of HR 1935 ....................................................................................... 90
Burner rating of HR 1936 ....................................................................................... 91
Burner rating of HR 1954 ....................................................................................... 91
Burner rating of HR 1955 ....................................................................................... 92
Burner rating of HR 1956 ....................................................................................... 92
Caring for the environment ................................................................................. 93
5
IMPORTANT SAFETY INSTRUCTIONS
When using the appliance, follow basic safety precautions, including the
following:
Read all instructions before installation and use of the range to prevent
accidents and machine damage.
This range complies with current safety requirements. However,
improper use of the appliance can result in personal injury or
damage to property.
Please read the installation instructions carefully before installing
and connecting the appliance.
Read the operating instructions before using the range for the first
time. To prevent accidents and damage to the appliance, always
observe both the installation instructions and operating
instructions. Both documents contain important information about
installation, safety, use and maintenance.
Miele cannot be held liable for damage occurring as a result of
non-compliance with the instructions.
Keep these installation instructions and operating instructions in a
safe place and pass them on to any future owner.
6
IMPORTANT SAFETY INSTRUCTIONS
Use
ʊThis range is intended for domestic use and use in other similar
environments.
ʊThis appliance is not intended for outdoor use.
ʊUse the range exclusively under normal domestic conditions:
– Use the oven for baking, roasting, broiling, defrosting, canning
and drying food.
– Use the stovetop to prepare food and keep it warm.
Any other use is not permitted.
ʊRisk of Fire! Do not use this oven to store or dry combustible
materials.
ʊPersons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
7
IMPORTANT SAFETY INSTRUCTIONS
Children
ʊChildren must be kept away from the range unless constantly
supervised.
ʊPlease supervise any children in the vicinity of the range and do
not let them play with the appliance.
ʊBurn hazard from improper use! Do not allow children to operate
the oven.
ʊDanger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
ʊBurn hazard!
Keep the spaces above and behind the range clear of any items that
could draw the attention of children. Otherwise, they can be tempted
into climbing onto the appliance.
ʊDanger of injury. Never allow children to hang or lean on any part
of the appliance.
8
IMPORTANT SAFETY INSTRUCTIONS
Technical safety
ʊInstallation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
ʊDo not carry or lift the range by the oven door handle or the
control panel!
ʊCheck whether the anti-tip device is properly installed and locked
into place (see "Anti-tip device"):
– The anti-tip device must be fastened to the floor or wall with
suitable screws.
– You must be able to feel that the locking latch is engaged in the
bolt of the anti-tip device.
ʊSlide the range's locking latch into place on the anti-tip device.
The locking latch must be noticeably engaged with the bolt of the
anti-tip bracket.
ʊA damaged range can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
ʊReliable and safe operation of the range can only be guaranteed if
it is connected to the public power supply.
ʊThe electrical safety of the range can only be guaranteed when it
is properly grounded. Compliance with this essential safety
requirement is absolutely mandatory. If in any doubt, please have
the building's wiring system inspected by a qualified electrician.
ʊTo avoid damaging the range, make sure that the connection data
(voltage and frequency) on the data plate correspond to the
building's power supply before connecting the appliance.
When in doubt, consult a qualified electrician.
9
IMPORTANT SAFETY INSTRUCTIONS
ʊDuring installation, maintenance and repair work, e.g. if the oven
lighting is broken (see "Frequently asked questions"), the range must
be completely disconnected from the household electricity supply.
The gas supply must be shut off. Ensure that this is the case by:
– removing the fuse,
– "tripping" the circuit breaker, or
– unplugging the unit. Pull the plug not the cord.
– Shut off the gas supply and, if necessary, disconnect the range
from the gas line. Installation and maintenance of the gas
connection must be performed by qualified installers, service
agencies or gas providers.
ʊDo not use a power strip or extension cord to connect the range
to electricity. These are a fire hazard and do not guarantee the
required level of appliance safety.
ʊAny contact with live connections or tampering with the electrical
or mechanical components of the range will endanger your safety
and may lead to appliance malfunctions.
Do not open the appliance housing under any circumstances.
ʊThis appliance must not be installed and operated in mobile
installations (e.g. on a ship).
ʊAny repairs not performed by a Miele authorized service
technician will void the warranty.
ʊDefective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
ʊRisk of electric shock! If the ceramic surface of the stovetop is
defective or chipped, cracked or broken in any way, immediately
switch the stovetop off and do not continue to use it. Disconnect the
range from the power supply and contact Miele Technical Service.
10
IMPORTANT SAFETY INSTRUCTIONS
ʊIn order for the range to function properly, it requires an adequate
supply of cool air. Ensure that the air flow is not impaired. Also be
sure that the cool air supply is not excessively heated by other heat
sources (e.g. solid fuel stoves).
ʊIf the range is installed behind a cabinet door, do not close the
door while the appliance is in operation. Heat and moisture can build
up behind the closed door and cause damage to the range and to
the surrounding cabinets and flooring. Do not close the door until
the appliance has completely cooled down.
ʊDo not install kitchen cabinets above the range, since reaching
over a hot stovetop to access the cabinets can result in burns. If it is
necessary to install cabinets, you can reduce the risk of burns by
installing a range hood that extends at least 4 3/4" (12 cm) past the
bottom of the cabinets.
ʊThe water shutoff valve must be accessible after the range has
been installed.
ʊThe integrated Waterproof System offers protection against water
damage if the following conditions are met:
– The range is properly installed (connected to electric and water
supply).
– The range is repaired immediately whenever damage is detected.
– The water supply is shut off during extended periods of non-use
(e.g. vacation).
ʊHard water, water containing minerals and water from reverse
osmosis filtering systems can damage the range. Only use filtered,
softened and demineralized water from the building's plumbing to
supply the range.
11
IMPORTANT SAFETY INSTRUCTIONS
Preparing your appliance for an extended vacation
ʊIf you elect to turn off the water to your home for an extended
period of time, please note that this may not be enough to reduce
the risk of a leak. To be completely safe, you must turn off the water
supply to each individual appliance.
Cleaning and care
ʊDo not use a steam cleaner to clean the range.
The steam may reach electrical components and cause a short
circuit.
ʊOnly clean parts listed in these Operating and Installation
Instructions.
ʊScratches on the door glass can cause the glass to break.
Do not use abrasive cleaners, hard sponges, brushes or sharp metal
tools to clean the door glass.
ʊThe shelf runners can be removed for cleaning purposes (see
"Cleaning and care"). Ensure they are correctly fitted after cleaning
and never operate the oven without the shelf runners inserted.
ʊThere is a seal around the oven interior which seals the inside of
the door. Take care not to rub, damage or move the gasket.
ʊDo not use oven cleaners. Commercial oven cleaners or oven
liners of any kind should not be used in or around any part of the
oven.
ʊDebris should be removed before running the Self Clean program.
If not removed this debris can smoke causing the self-cleaning
program to turn itself off.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
12
Notes on installation
Model numbers
A list of the ovens described in these
operating instructions can be found on
the back page.
Data plate
The data plate is behind the toe-kick.
The toe-kick cover is attached to the
base of the range by magnets so it can
be removed and put back again easily.
There you can find the model number,
the serial number and the connection
data (voltage/frequency/maximum rated
load) for your range.
Have this information available when
contacting Miele Technical Service.
Distance to the range hood
The minimum clearance between the
appliance and a range hood above will
be listed by the hood manufacturer.
Items included with this range
The range is supplied with:
– Installation Instructions,
– Multiple operating instructions
(depending on model) for:
– Electric Range
– Induction Range
– Convection Oven
– Gas Cooktop
– Gas Convection Oven
– Speed Oven
– Warming Drawer
– an anti-tip device including screws
for fastening the range,
– various accessories.
If there is more than one appliance
installed below the range hood, each
with a different safety clearance, the
largest clearance must be used.
13
Notes on installation
Toe-kick and drop guard
30" and 36" range
The components are located in the
packaging of the range.
48" range
The components are already
mounted.
Installation of the toe-kick
The toe-kick has sheet metal lugs and
magnets by means of which it can be
positioned and attached to the base
of the range.
ĺ Position the toe-kick in such a way
that the sheet metal lugs are facing
the provided holes in the base.
ĺ Push the toe-kick onto the base of
the range until it audibly locks into
place.
Installation of the drop guard
The drop guard covers the gap
between the oven cavity and the door.
ĺ Open the oven door.
ĺ Lay the drop guard over the gap
between the oven cavity and the
door.
ĺ Close the oven door.
14
Assembling the grill
ɘ Burn hazard!
The burners must be turned off and
allowed to cool completely.
Notes on installation
ɘ Risk of injury!
The cast-iron grill is heavy.
Carry the grill carefully and place it
securely on a soft base so that it lies
flat.
&
Grill
'
Grease tray
(
Frame
ĺ Using a soft sponge, clean grease
tray ȧ with a solution of warm water
and a small amount of liquid dish
soap. Dry the parts thoroughly after
cleaning.
ĺ Place the grill Ȧ into position.
Cleaning and care
Tip: All parts can be disassembled in
the reverse order. You can also remove
the frame for cleaning.
1
2
3
ĺ Remove the grill Ȧ from the gas
cooktop.
ĺ Place the grease tray ȧ on top of the
frame Ȩ.
15
Notes on installation
Optional accessories
All accessories and cleaning products
listed in these instructions are designed
to be used with the Miele range.
These can be ordered from the Miele
website (see end of this booklet for
contact details).
When ordering, please have your model
number available.
RBGAG All Gas Backguard/RBGDF
Dual Fuel Backguard
Depending on the model, you can
exchange the existing island trim of
your appliance for a larger range
backguard. The backguard is available
in the following heights: 12" (305 mm)
and 20" (508 mm).
Mounting the RBGDF Dual Fuel
Backguard
Mounting the RBGAG All Gas
Backguard
The rear of the range must be
accessible.
Mount the backguard before installing
the anti-tip device and connecting the
range.
ĺ Loosen the screws of the island trim.
ĺ Pull back the island trim slightly until
it can be removed.
1
22
The rear of the range must be
accessible.
Mount the backguard before installing
the anti-tip device and connecting of
the range.
ĺ Loosen the screws of the island trim.
ĺ Pull back the island trim slightly until
it can be removed.
The backguard can be installed in
reverse order.
16
&
Extender
'
Air ducts
ĺ Insert one extender Ȧ onto each of
the left and right air ducts ȧ.
ĺ Screw the extenders Ȧ into place
with 2 screws each.
1 23
&
Backguard
'
Rear panel backguard
(
Inside panel
ĺ Place the backguard Ȧ face down on
a soft surface to avoid scratching.
The lower edge should line up with
the edge of the table, so that the
backguard lies flat.
ĺ Loosen the screws on the back of
backguard.
Notes on installation
1
ĺ Remove the rear panel ȧ and the
inner panel Ȩ.
&
Backguard
'
Range
ĺ Slide the backguard Ȧ from above
on the air duct extenders.
2
17
Notes on installation
ĺ Once the backguard is placed on the
range push the backguard
backwards.
ĺ Mount the inner panel and the rear
panel on the backguard using the
screws provided.
20" Backguard
ĺ Mount the backguard on the range
using the screws provided.
12" Backguard
18
RBS Backsplash
The backsplash is intended for
mounting to a Miele range hood.
Observe the installation instructions of
the Miele range hood.
XKM 3000 W Remote Vision
Depending on the model, the range
maybe compatible with
RemoteVision
TM
.
Notes on installation
In order to use the RemoteVision
TM
monitoring service, you will require a
XKM 3000 W Communication Module.
Refer to the Operating and Installation
Instructions of the Miele XKM 3000 W
Communication Module.
19
Notes on installation
Do not carry or lift the range by the oven door handle or the control panel!
The range is heavy.
Due to the size and weight of the appliance, installation should be performed
by two people.
The net weight of the range with accessories is as follows:
Model Width Net weight incl.
accessories:
HR 1421
HR 1622
HR 112x
HR 192x
HR 113x
HR 193x
HR 195x 47 15/16"
29 15/16"
(760 mm)
35 15/16"
(913 mm)
(1218 mm)
approx. 307 lbs (140 kg)
approx. 405 lbs (180 kg)
approx. 573 lbs (260 kg)
20
Notes on installation
Installation location
This appliance is not intended for outdoor use.
Ranges with a connection to the water supply should not be installed in rooms
where there is a risk of freezing temperatures.
The floor of the space where the appliance is to be installed must be flat, level and
made of a strong, rigid material.
Because the range is heavy and requires attachment of the anti-tip device
supplied, the surface must be able to fully bear the load of the appliance. If
necessary, seek the advice of an architect or construction expert.
Ventilation
The air intake and outlet openings must not be covered or blocked in any way.
They should be dusted on a regular basis.
Required connections
Model Electrical
connection
HR 1421 X – –
HR 1622 X – X
HR 112x
HR 113x
HR 192x
HR 193x
HR 195x
X Connection required
– Connection not provided
X X –
X X X
Gas connection Plumbing
21
Electric Range dimensions
HR 1421; HR 1622
1
2
3
E
B
A
C
C
D
22
HR 1421; HR 1622
Position Dimension Description
Electric Range dimensions
Ȧ
ȧ
Ȩ
Ǟ
ǟ
Ǡ
ǡ
13" (330 mm) Maximum depth of top cabinet
18" (547 mm) Minimum distance to bottom edge of top cabinet
35 1/2"–37"
(901 - 940 mm)
min. 30"
(762 mm)
30" (762 mm) Minimum distance between the top of the cooking
or 24" (609 mm) Minimum distance to a protected combustible
For all other Hoods, please consult with manufacturer's instructions
for required distances.
approx.
10 13/16"
(274 mm)
approx. 4 1/2"
(115 mm)
Distance from floor to cooktop surface
Width of cabinet opening
area and the bottom of an unprotected
combustible surface.
surface or if a Miele Ventilation Hood is used.
Maximum connection width right
and left
Maximum connection height
Location of
wall
receptacle
Ǣ
The hatched areas represent the installation areas for the connections.
12" (305 mm) minimum distance is necessary from back of range to combustible rear wall
above countertop.
approx. 2 13/16"
(72 mm)
Maximum connection depth
23
Electric Range dimensions
Detailed views of HR 1421
Side view of HR 1421
47 5/8" (1210mm)
28 15/16" (734.4mm)
27 1/4" (692mm)
24 15/16" (633mm)
1 9/16" (40mm)
8 1/8" (207mm)
22 1/16" (561mm)
35 1/2 - 37" (901.7 - 939.8mm)
(x)
(x) = Depending on the appliance height adjustment: 4" - 5 1/2 " (101.6 mm -
139.7 mm)
24
5 9/16" (141mm)
Detailed front side view of HR 1421
2 3/8" (60mm)
1 9/16" (40mm)
1/8" (3mm)
Electric Range dimensions
1 9/16" (40mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
10 15/16" (278mm)
25
Electric Range dimensions
Rear view of HR 1421
30 5/8"
(778.5mm)
E
E = Electrical connection
26
24 3/8"
(619.9mm)
Detailed views of HR 1622
Side view of HR 1622
28 15/16" (734.4mm)
27 1/4" (692mm)
24 15/16" (633mm)
Electric Range dimensions
47 5/8" (1210mm)
1 9/16" (40mm)
8 1/8" (207mm)
22 1/16" (561mm)
35 1/2 - 37" (901.7 - 939.8mm)
(x)
(x) = Depending on the appliance height adjustment: 4" - 5 1/2 " (101.6 mm -
139.7 mm)
5 9/16" (141mm)
27
Electric Range dimensions
Detailed front side view of HR 1622
2 3/8" (60mm)
1 9/16" (40mm)
1/8" (3mm)
1 9/16" (40mm)
1 1/4" (32mm)
8 1/8" (207mm)
9 1/4" (235mm)
1 3/4" (45mm)
2 9/16" (65.2mm)
10 15/16" (278mm)
28
Rear view of HR 1622
Electric Range dimensions
5 7/8"
(149mm)
W
30 5/8"
(778.5mm)
E
E = Electrical connection
W = Water connection
24 3/8"
(619.9mm)
3 1/4"
(81.8mm)
29
Loading...
