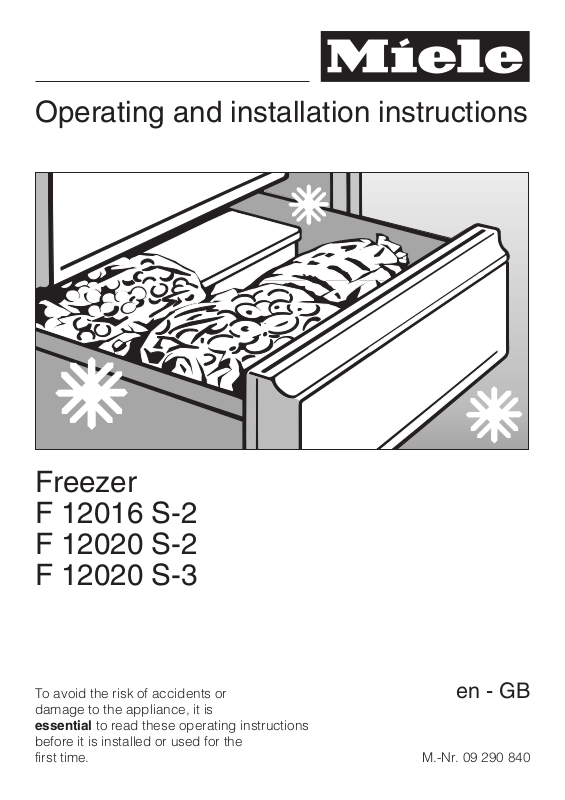

Miele 09 290 840 User Manual

Operating and installation instructions

Freezer
F 12016 S-2
F 12020 S-2
F 12020 S-3

To avoid the risk of accidents or
damage to the appliance, it is
essential to read these operating instructions
before it is installed or used for the
first time.

en-GB

M.-Nr. 09 290 840

Contents

Guide to the appliance .............................................4

Caring for the environment..........................................6

Warning and Safety instructions .....................................7

How to save energy ...............................................12

Switching on and off ..............................................14

Switching on .....................................................14

Switching off .....................................................14

Switching off for longer periods of time .................................14

Customising settings .............................................15

Settings mode X .................................................15

Altering the brightness of the display ................................15

Activating or deactivating the lock ..................................16

The correct temperature ...........................................18

Setting the temperature .............................................18

Temperature range ..............................................19

Temperature display ...............................................19

Alarm...........................................................20

Temperature alarm ................................................20

Activating the alarm system..........................................20

Switching the alarm off early .........................................20

Super freeze .....................................................21

Freezing and storing food..........................................22

Maximum freezing capacity..........................................22

Freezing fresh food ................................................22

Storing frozen food ................................................22

Home freezing ....................................................23

Hints on home freezing...........................................23

Packaging ....................................................23

Before placing food in the freezer ..................................24

Placing food in the freezer ........................................24

Defrosting .......................................................25

Ice cubes ........................................................25

Cooling drinks ....................................................25

Defrosting .......................................................26

Cleaning and care ................................................28

Cleaning the interior and accessories ..................................28

Appliance door, side panels .........................................29

2

Contents

Ventilation gaps ...................................................29

Door seal ........................................................29

Problem solving guide ............................................30

Noises .........................................................35

After Sales / Guarantee ............................................36

Information for dealers ............................................37

Demo mode r.....................................................37

Electrical connection..............................................38

Installation ......................................................39

Location .........................................................39

Climate range ..................................................39

Ventilation .......................................................40

Appliances with wall spacers supplied .................................40

Installation .......................................................40

Aligning the appliance..............................................40

Appliance dimensions ..............................................41

Changing the door hinging .........................................42

Changing over the door handle.......................................43

Building in the appliance ..........................................44

3

Guide to the appliance

a On/Off button

b Super freeze button

c Display

If the appliance is not operated for
some time, the display will revert
automatically to the brightness level
which has been set.
As soon as a button is pressed the
display will light up at the brightest
setting.

d Alarm symbol

e Super freeze symbol

f Lock symbol

g Temperature display

h Temperature selector button

i Alarm off button

j Power failure symbol

k Menu symbol

Setting mode for:
– the brightness level of the display
– switching the lock on/off

4

Guide to the appliance

a Freezer drawers

5

Caring for the environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.

Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!

Disposal of your old appliance

Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.

Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.

6

Warning and Safety instructions

This appliance complies with all
relevant safety requirements.
Improper use can, however, present
a risk of both personal injury and
material damage.

To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on installation,
safety, operation and maintenance.

Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.

The appliance can only be used by

~

people with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, if they are
supervised whilst using it, or have been
shown how to use it in a safe way and
understand the hazards involved.

Keep these instructions in a safe
place and pass them on to any
future user.

Correct application

The appliance is not designed for

~

commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:

–

Shops

–

Offices and showrooms

and by residents in establishments
such as:

–

Hostels and guest houses.

The appliance is not intended for
outdoor use.

It must only be used as a domestic
appliance to store deep frozen food, to
freeze fresh food and to prepare ice.

Safety with children

Children 8 years and older may use

~

the appliance only if they have been
shown how to use it in a safe way and
understand the hazards involved.

Children under 8 years of age must

~

be kept away from the appliance unless
they are constantly supervised.

This appliance is not a toy! To

~

prevent the risk of injury, do not allow
children to play with it or near it, or to
play with the controls, or to swing on
the door.

Do not allow children to play with the

~

packaging material, e.g. plastic bags
and wrappings. Danger of suffocation.

7

Warning and Safety instructions

Technical safety

Before setting up the appliance,

~

check it for any externally visible
damage. Do not install and use a
damaged appliance.
It could be dangerous.

If the connection cable is faulty it

~

must only be replaced by a service
technician authorised by the
manufacturer to protect the user from
danger.

This appliance contains the coolant

~

Isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect. The use of this
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and installation of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:

- avoid open flames and anything which
creates a spark,

- disconnect from the mains,

- air the room in which the appliance is
located for several minutes and

- contact the Service Department for
advice.

The more coolant there is in an

~

appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.

Safe operation of the appliance is

~

only assured if it has been installed and
connected in accordance with these
operating and installation instructions.

Before connecting the appliance,

~

make sure that the connection data on
the data plate (voltage and frequency)
matches the mains electricity supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.

Do not connect the appliance to the

~

mains electricity supply by a
multi-socket adapter or an extension
lead. These do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

3

of

8

Warning and Safety instructions

The electrical safety of this

~

appliance can only be guaranteed
when it is correctly earthed. It is most
important that this basic safety
requirement is observed and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).

Installation, maintenance and

~

repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.

While the appliance is under

~

guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.

The appliance must be isolated from

~

the electricity supply during installation,
maintenance and repair work.

Faulty components must only be

~

replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.

The appliance must not be used in a

~

non-stationary location (e.g. on a ship).

In areas which may be subject to

~

infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
suroundings clean at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.

9

Warning and Safety instructions

Correct use

The appliance is designed for use

~

within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.

Do not block the ventilation gaps in

~

the appliance as this would impair the
efficiency of the appliance, increase the
electricity consumption and could
cause damage to the appliance.

The lid on the appliance has a

~

plastic edge. Keep oil and fat spills
away from this as they could cause the
plastic to crack and split.

Do not handle frozen food with wet

~

hands. Your hands may freeze to the
frozen food. Danger of frost burn.

Do not take ice cubes out with your

~

bare hands and never place ice cubes
or ice lollies in your mouth straight from
the freezer.
The very low temperature of the frozen
ice or lollies can cause frost burn to the
lips and tongue.

Do not refreeze partially or fully

~

defrosted food.
Consume defrosted food as soon as
possible, as it will lose its nutritional
value and spoil if left for too long.
Defrosted food may only be re-frozen
after it has been cooked.

Do not store cans or bottles

~

containing carbonated drinks or liquids
which could freeze in the freezer. The
cans or bottles could explode.
Danger of injury and damage to the
appliance.

When cooling drinks quickly in the

~

freezer, make sure bottles are not left in
for more than one hour, otherwise they
could burst. Danger of injury and
damage to the appliance.

Observe the "use by" dates given on

~

food to avoid the risk of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer's packaging regarding
storage conditions and "use by" dates.

Do not store explosive materials in

~

the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard. Flammable compounds
could explode.

10

Warning and Safety instructions

Do not operate any electrical

~

equipment (e.g. an electric ice-cream
maker) inside the appliance. Danger of
sparking and explosion.

Do not use sharp edged objects to

~

remove frost and ice,

–

separate frozen foods or remove ice

–

trays.

They will damage the evaporator,
causing irreversible damage to the
appliance.

Do not place electric heaters or

~

candles in the appliance to defrost it.
These can damage the plastic parts.

Do not use defrosting sprays or

~

de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.

Do not use a steam-cleaning

~

appliance to defrost or clean this
appliance. Steam could reach electrical
components and cause a short circuit.

Disposal of your old appliance

Before disposing of an old

~

appliance, first make the door latch or
lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.

Be careful not to damage any part of

~

the pipework whilst awaiting disposal,
e.g. by

puncturing the refrigerant channels

–

in the evaporator.

bending any pipework.

–

– scratching the surface coating.

Splashes of refrigerant can damage the
eyes.

The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.

Do not use any oils or grease on the

~

door seal, as these will cause the seal
to deteriorate and become porous with
time.

11

How to save energy

Normal energy
consumption

Installation site In a ventilated room. In an enclosed, unventilated

Protected from direct
sunlight.

Not near to a heat source
(radiator, oven).

Where the ideal ambient room
temperature is approx. 20°C.

Ventilation gaps uncovered
and dusted regularly.

Compressor and metal grille
(heat exchanger) dusted at
least once a year.

Temperature
setting with
a thermostat which
is approximate
(set in stages).

Temperature
setting with
a thermostat which
is exact to the
degree
(digital display).

With a medium setting of 2
to 3.

Cellar section 8 to 12 °C

Refrigerator section 4 to 5 °C

PerfectFresh zone just
above 0 °C

Freezer section -18 °C

Wine storage section 10 to
12 °C

Increased energy
consumption

room.

In direct sunlight.

Near to a heat source
(radiator, oven).

Where there is a high
ambient temperature.

Ventilation gaps covered or
dusty.

Dust build-up on the
compressor and metal grille
(heat exchanger).

With a higher setting: the
lower the temperature in the
compartment, the higher the
energy consumption.

On appliances with winter
setting, please make sure
that the winter setting is
switched off when the
ambient temperature is
warmer than 18°C.

12

Normal energy consumption Increased energy

Use Drawers, shelves and racks

arranged as they were when
the appliance was delivered.

How to save energy

consumption

Only open the doors when
necessary and for as short a
time as possible.

Store food in an organised
way.

Take a cool bag with you
when shopping and on return
place food into the appliance
immediately.

Replace any food removed
rapidly, before it begins to
thaw.

Allow hot food and drinks to
cool down before placing
them in the appliance.

Store food covered or
packaged.

Place frozen food in the
refrigerator to defrost.

Opening doors frequently and
for long periods results in loss
of coolness and influx of
warmer ambient air. The
appliance works harder to
cool down and the
compressor runs for longer
periods.

Hot food or food at room
temperature raises the
temperature inside the
appliance. The appliance
works harder to cool down
and the compressor runs for
longer periods.

The evaporation or
condensation of liquids will
cause a loss of coldness in the
refrigerator.

Do not over-fill the appliance
to allow air to circulate.

Defrosting Defrost the freezer section

when a layer of ice 0.5 cm
(max.) thick has built up.

A build-up of ice slows down
the cooling process.

13

Switching on and off

Before using for the first time

Clean the inside of the appliance and

^

the accessories with lukewarm water
and a little washing-up liquid, and
then dry with a soft cloth.

Switching on

Press the On/Off button.

^

The appliance will start to cool.
The temperature display and the alarm
symbol ; will flash until the
temperature in the freezer is cold
enough.

To enable the temperature to get
sufficiently cold inside the
appliance, allow it to run for a few
hours before placing food in it.
Do not place food in the appliance
until the temperature is at least

-18°C.

Switching off

Press the On/Off button until the

^

display goes out.

The cooling system is switched off.

Switching off for longer
periods of time

If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:

^ switch the appliance off,

^ disconnect it from the mains,

^ clean the appliance out and

^ leave the door ajar to air it.

If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.

14

Customising settings

Settings mode X

Certain settings on the appliance can
be changed using Settings mode.

The brightness of the display
can be altered

The lock can be activated or
deactivated

Settings mode is represented in the
display by the Menu symbol X. The
following section describes how to
access Settings mode and alter
settings.

Altering the brightness of the display

The display brightness can be adjusted
to suit the lighting conditions of the
room.

^

You can select one of the five display
brightness settings from ^1 to ^5. The
factory default setting is ^1 or ^3

c

(depending on model).

Press the Super freeze button for

^

approx. five seconds.

The Menu symbol X will light up and
c will start flashing in the display.
Settings mode is now activated.

^ Press the temperature selector button

to call up the Brightness function.

The Menu symbol X will light up and
^ will flash in the display.

^

Press the Super freeze button briefly
to confirm this.

The display brightness setting last
selected will appear in the display.

15

Customising settings

Press the temperature selector button

^

repeatedly until the brightness level
required is reached:

^1: dimmest setting
^5: brightest setting.

Press the Super freeze button briefly

^

to confirm your selection.

The newly selected setting has been
saved.

To come out of Settings mode:

^ Press the On/Off button.

Activating or deactivating the lock

The lock can be activated to prevent
the appliance being switched off by
mistake.

To activate the Lock

–

Press the Super freeze button for

^

approx. five seconds.

The Menu symbol X will light up and
c will start flashing.
Settings mode is now activated.

^ Press the Super freeze button briefly

to call up the Lock function.

16

c1 will appear in the display.

^

Press the Super freeze button briefly
to activate the lock.

The Lock symbol 0 will light up.

To come out of Settings mode:

^

Press the On/Off button.

To deactivate the Lock

–

Press the Super freeze button for

^

approx. five seconds.

The Menu symbol X will light up and
c will start flashing in the display.
Settings mode is now activated.

^ Press the Super freeze button briefly

to call up the Lock function.

c0 will appear in the display.

Customising settings

^ Press the Super freeze button briefly

to deactivate the lock.

The Lock symbol 0 will go out.

To come out of Settings mode:

^

Press the On/Off button.

17

The correct temperature

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.

To freeze fresh food and to store frozen
food for a long time, a temperature of

-18 °C is required. At this temperature
the growth of micro-organisms is
generally halted. As soon as the
temperature rises above -10 °C, the
micro-organisms become active in the
food again so that it cannot be kept as
long. For this reason, partially defrosted
or defrosted food must not be re-frozen.
Food may be re-frozen once it has
been cooked, as the high temperatures
achieved when cooking destroy most
micro-organisms.

The temperature in the appliance will
rise:

–

the more often the door is opened
and the longer it is kept open,

–

if too much food is stored in it at
once,

–

if too much fresh food is being frozen
at once,

Setting the temperature

Press the temperature selector button

^

repeatedly until the temperature you
want lights up in the display.

The first time you press the button the
indicator light for the last temperature
you set will flash in the display.

The temperature value will change up
until the setting for -28 °C is reached. It
will then drop back to the -14 °C
setting.

Approx. 5 seconds after the last press
on the button, the current actual
temperature of the freezer is
automatically shown.

If you have adjusted the temperature,

wait for approx. 6 hours if the
appliance is not very full and for
approx. 24 hours if the appliance is
full before checking the temperature

display as it will take this long for the
display to give an accurate reading. If,
after this time, the temperature is still
too high or too low, you will need to
adjust it again.

–

the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.

18

The correct temperature

Temperature range

The temperature can be adjusted from:

-14 °C to -28 °C

The ambient temperature in the room
and the installation location can affect
the time it takes for the appliance to
reach the lowest temperature. If the
ambient temperature is too high, the
appliance may not reach the lowest
temperature.

Temperature display

The temperature display on the
control panel shows the temperature
in the warmest part of the appliance.

The temperature display will flash if

the temperature in the appliance is

–

not within the possible temperature
range, e.g. immediately after the
appliance has been switched on.

a different temperature is being set,

–

the temperature in the appliance has

–

risen by several degrees, indicating
that the appliance is warming up too
much.

This loss of coldness is no cause for
concern in the following circumstances:

– when the door has been left open for

a while, e.g. for removing or storing a
large amount of food,

– when fresh food is being frozen.

As soon as the temperature has fallen
to approx. -10 °C, the temperature
display ceases to flash and lights up
constantly.

However, if the temperature remains
above -18 °C for a long time, check
that the frozen food has not started
to defrost. If it has, make sure that
the food is safe to use and, if it is,
then use it as soon as possible.

19

Alarm

Your appliance has been fitted with a
warning system which ensures that the
temperature in the freezer cannot rise
unnoticed.

Temperature alarm

If the temperature in the freezer
becomes too warm, an alarm will
sound. At the same time the
temperature display and the Alarm
symbol ; will flash.

The temperature the appliance is set at
determines the temperature the
appliance recognises as being too
warm.

For example, the alarm may sound and
the temperature display and the Alarm
symbol ; may flash,

– when freezing large amounts of food

at once,

– when freezing fresh food which is still

warm,

–

if a lot of room air enters the freezer
when food is being loaded,
re-arranged or taken out,

Activating the alarm system

The alarm system works automatically
once the temperature in the freezer is
cold enough.

Switching the alarm off early

As soon as the temperature in the
freezer has dropped sufficiently, the
alarm switches off and the temperature
display stops flashing and lights up
constantly. However, if the noise
disturbs you, you can switch the alarm
off before this if you wish.

^ Press the alarm off button.

The alarm will stop. The temperature
display will continue to flash until the
set temperature has been reached.
The display then stops flashing and
lights up constantly. The alarm
system is then ready should it be
needed again.

–

in the event of a power cut,

–

if the appliance is faulty.

The alarm will stop and the indicators
will go out as soon as the temperature
has dropped down to the correct level
again.

20

Switch on Super freeze before putting
fresh food into the freezer.

This helps food to freeze quickly and
retain its nutrients, vitamins, flavours
and appearance.

Super freeze

The compressor can switch on up to
8 minutes later. This is due to an
built-in delay switch, which helps
prolong the life of the appliance.

Super freeze is not necessary:

when placing food in the freezer that

–

is already frozen.

when freezing up to 1 kg fresh food

–

daily.

Switching on Super freeze

When freezing small quantities of food
in the freezer, the Super freeze function
should be switched on 6 hours

beforehand. When freezing the
maximum load of food the Super

freeze function should be switched on
24 hours beforehand.

^

Press the Super freeze button briefly.

The Super freeze symbol ª will light
up.

The appliance will work at full power to
lower the temperature in the appliance.

Switching off Super freeze

The Super freeze function will switch off
automatically after approx. 30 - 65
hours. The Super freeze symbol ª will
go out and the appliance will run at
normal power again.

To save energy the Super freeze
function can be switched off once a
constant temperature of -18°C or
colder has been reached in the freezer.
Check the temperature inside the
appliance.

^ Press the Super freeze button.

The Super freeze symbol ª will go
out.

The appliance will continue running at
normal power.

21

Freezing and storing food

Maximum freezing capacity

To ensure that fresh food placed in the
freezer freezes through to the core as
quickly as possible, the maximum
freezing capacity must not be
exceeded. The maximum freezing
capacity for freezing within a 24-hour
period is given on the data plate:

"Freezing capacity ....kg/24 hrs".

The maximum freezing capacity given
on the data plate has been calculated
according to DIN EN ISO 15502 Stan
dard.

-

Freezing fresh food

Fresh food should be frozen as quickly
as possible. This way the nutritional
value of the food, its vitamin content,
appearance and taste are not impaired.

Food which takes a long time to freeze
will lose more water from its cells, which
then shrink.
During the defrosting process, only
some of this water is reabsorbed by the
cells; the rest collects around the food.

Storing frozen food

When buying frozen food to store in
your freezer, check

that the packaging is not damaged,

–

the use-by date,

–

the temperature at which the frozen

–

food is being stored in the shop. The
length of time it can be kept is
reduced if it has been stored at a
temperature warmer than -18 °C.

Buy frozen food once you have

^

finished the rest of your shopping,
and wrap it in newspaper or use a
cool bag or cool box to transport it.

^ Store it in the freezer as soon as

possible.

Never re-freeze partially or fully
defrosted food. Consume defrosted
food as soon as possible as it will
lose its nutritional value and spoil if
left for too long. Defrosted food may
only be re-frozen after it has been
cooked.

If food is frozen quickly, the cells have
less time to lose moisture, so they
shrink less. As there is not so much
moisture loss, it is easier for the food to
reabsorb it during the defrosting
process, and very little water collects
around the defrosted food.

22

Freezing and storing food

Home freezing

Only freeze fresh food which is in a
good condition.

Hints on home freezing

The following types of food are

–

suitable for freezing:
Fresh meat, poultry, game, fish,
vegetables, herbs, fresh fruit, dairy
products, pastry, leftovers, egg
yolks, egg whites and a range of
pre-cooked meals.

The following types of food are not

–

suitable for freezing:
Grapes, lettuce, radishes, sour cream,
mayonnaise, eggs in their shells,
onions, whole raw apples and pears.

– To retain colour, taste and vitamin C,

vegetables should be blanched after
they have been trimmed and washed.
To blanch: bring a large saucepan of
water to the boil, immerse the
vegetables in the fast boiling water
for 2-3 minutes, depending on
variety. Remove, and plunge into
ice-cold water to cool quickly. Drain
and pack ready for freezing.

–

Lean meat freezes better than fatty
meat, and can be stored for
considerably longer.

–

To prevent chops, steaks, cutlets or
rolled meat from freezing together in
solid blocks when packed, separate
with a sheet of plastic freezer film.

–

Do not season fresh food or
blanched vegetables before
freezing. Only season cooked food
lightly before freezing, but care

should be taken as the taste of some
spices alters when frozen.

Do not place hot food or drinks in the

–

freezer. This causes already frozen
food to thaw, and increases the
energy consumption considerably.
Allow hot food and drinks to cool
down before placing them in the
freezer.

Packaging

Freeze food in portions.

^

Unsuitable packaging material

- wrapping paper

- grease-proof paper

- cellophane

- bin bags

- plastic carrier bags

Suitable packaging material

- plastic freezer film

- freezer bags

- aluminium foil

- freezer containers

^

Expel as much air as possible from
bags etc. before sealing them, to
prevent freezer-burn on food.

^

Close the packaging tightly with

- rubber bands

- plastic clips

- string or bag ties

- freezer tape.

Freezer bags may also be sealed
using home heat sealing kits.

^

Make a note of the contents and the
date of freezing on the packaging.

23

Freezing and storing food

Before placing food in the freezer

When freezing more than 1 kg of

^

fresh food, switch on the Super
freeze function for some time before
placing the food in the freezer (see
"Super freeze").

This helps food that is already in the
freezer to stay frozen.

Placing food in the freezer

The following maximum capacities
must be observed:
– freezer drawer = 25 kg
– glass cold plate = 35 kg

Food to be frozen must on no
account touch food which is already
frozen to avoid partial thawing.

^ Make sure that the packaging and

containers are dry to prevent them
sticking together when frozen.

Freezing the maximum amount

–

(see data plate)

Remove the lowest freezer drawer.

^

Place the food flat on the bottom of

^

the appliance or in contact with the
interior side walls, so that it freezes
through to the core as quickly as
possible.

Once frozen:

Place the frozen food in the freezer

^

drawer and push it back in.

Large items

–

If you wish to freeze large items such
as a turkey or game, the glass cold
plates between the drawers can be
removed.

^ Remove the freezer drawers and

carefully lift and slide out the glass
cold plates.

– Freezing small portions

Place the food in the lower freezer
drawers.

^

Place the food flat in the bottom of
the drawers so that it freezes through
to the core as quickly as possible.

24

Defrosting

Frozen food can be defrosted in
different ways:

in a microwave oven,

–

in an oven using the "Fan" or

–

"Defrost" setting,

at room temperature,

–

in the refrigerator (the cold given off

–

by the frozen food helps to keep the
other food cold),

in a steam oven.

–

Poultry It is particularly important to
observe food hygiene rules when
defrosting poultry. Do not use the liquid
from defrosted poultry. Pour it away
and wash the container it was in, the
sink and your hands. Danger of
salmonella poisoning.

Ensure that meat and fish (e.g mince,
chicken, fish fillets) do not come into
contact with other foods while defrosting.
Catch the liquid and dispose of it carefully.

Fruit should be defrosted at room
temperature in its packaging, or in a
covered bowl.

Most vegetables can be cooked while
still frozen. Just put straight into boiling
water or hot fat. The cooking time is
slightly less than that of fresh
vegetables due to changes in the cell
structure.

Freezing and storing food

Never re-freeze partially or fully
defrosted food. Consume defrosted
food as soon as possible as it will
lose its nutritional value and spoil if
left for too long. Defrosted food may
only be re-frozen after it has been
cooked.

Ice cubes

(depending on model)

^ Fill the ice tray three quarters full with

water, and place it in the bottom of
one of the drawers.

^ Once frozen, use a blunt instrument,

for example a spoon handle, to
remove the ice tray from the freezer.

^

Ice cubes can be removed easily
from the tray by twisting the tray
gently or by holding it under cold
running water for a short while.

Cooling drinks

Do not store cans or bottles containing
carbonated drinks or liquids which
could freeze in the freezer. The cans or
bottles could explode.

When cooling non-carbonated drinks
quickly in the freezer, make sure bottles
are not left in for more than one hour,
otherwise they could burst.

25

Defrosting

In normal use, ice and frost will form in
the freezer, e.g. on the internal walls.
How much ice and frost accumulates in
the appliance will depend on the
following:

whether the appliance door has

–

been opened frequently or left open
for a while.

whether a large quantity of fresh food

–

has been placed in the freezer at
once.

whether there has been an increase

–

in the humidity in the room.

Too thick a layer of ice will make it hard
to remove freezer drawers, and in
certain circumstances can prevent the
door from closing properly. Too thick a
layer of ice also reduces efficiency and
increases energy consumption.

^ The freezer should be defrosted from

time to time. It must be defrosted if a
layer of ice approx. 0.5 cm thick has
accumulated.

Do not scrape off ice and frost and
do not not use any sharp edged or
pointed instruments to aid the
defrosting process.
This would damage the evaporator,
causing irreversible damage to the
appliance.

Before defrosting

Switch on the Super freeze function

^

at least 4 hours before defrosting to
ensure frozen food retains its cold
reserve for longer when taken out of
the freezer.

^ Remove the frozen food from the

freezer and place it in a cool box, or
wrap it in several layers of
newspaper or cloths and store in a
cool place until the freezer is ready
for use again.

^ Remove all the freezer drawers and

glass cold plates from the freezer.

The best time to defrost the freezer is
when:

–

there is very little food or no food left
in the freezer,

–

the humidity level in the room is low
and the ambient temperature in the
room is also low.

26

Defrosting

To defrost

Carry out the defrosting procedure
as quickly as possible. The longer
the food is left out at room
temperature, the faster it defrosts.

Do not use a steam-cleaning
appliance to aid the defrosting
process. Steam could reach
electrical components and cause a
short circuit.

Never place electric heaters or
candles etc. inside the appliance to
defrost it. They will damage plastic
parts.

Do not use defrosting sprays or
de-icers as they might contain
substances which could damage
the plastic parts or which could
cause a build-up of gases and pose
a danger to health.

^

Switch the appliance off.

If the temperature display does not
go out, then the lock is still activated.

Remove any loose pieces of ice.

^

Use a sponge or towel to soak up the

^

defrosted water, as often as
necessary.

After defrosting

Clean the appliance and then dry it

^

thoroughly.

Close the appliance door.

^

Reconnect to the mains and switch

^

the appliance back on.

Switch on the Super freeze function

^

so that the appliance can cool down
quickly.

^ Once the temperature in the freezer

is sufficiently low, slide the glass cold
plates back into the freezer, then
replace the food in the freezer
drawers and put them back in the
freezer.

^ When the temperature in the freezer

is a constant -18 °C or colder press
the Super freeze button to switch the
Super freeze function off.

^

Disconnect the appliance from the
mains.

^

Leave the freezer door open.

To speed up defrosting, two bowls of
hot water (not boiling), with plates
underneath them, can be placed in the
appliance. Closing the door in this
instance will help retain the warmth and
speed up the defrosting process.

27

Cleaning and care

Make sure that no water can
penetrate into electronic unit or into
the ventilation gaps.

Do not use steam cleaning
apparatus to clean the appliance.
Steam could reach electrical
components and cause a short
circuit.

The data plate located inside the
appliance must not be removed. It
contains information which is required
in the event of a service call.

To avoid damaging the surface of
your appliance, do not use:

– cleaning agents containing soda,

ammonia, acids or chlorides,

– cleaning agents containing

descaling agents,

– abrasive cleaning agents, e.g.

powder cleaners and cream
cleaners,

–

solvent-based cleaning agents,

Before cleaning

Switch the appliance off.

^

Disconnect the appliance from the

^

mains.

Take any frozen food out of the

^

appliance and store it in a cool place.

Take out any removable parts for

^

cleaning.

Defrost the freezer.

^

Cleaning the interior and
accessories

^ Use lukewarm water with a little

washing-up liquid.

The ice cube tray (depending on mo­del) is dishwasher safe.

The temperature of the dishwasher
programme must not exceed 55 °C.
Contact with some foodstuffs, such
as carrots, tomatoes or ketchup can
cause plastic items to discolour.
However, this discolouration will not
affect the stability of plastic items.

–

stainless steel cleaning agents,

–

dishwasher cleaner,

–

oven sprays,

–

glass cleaning agents,

–

hard, abrasive sponges and
brushes, e.g. pot scourers,

–

melamine eraser blocks,

–

sharp metal scrapers.

28

^

Clean the drawers and glass cold
plates by hand. They are not suitable
for cleaning in a dishwasher.

^

After cleaning, wipe the interior and
accessories with a damp cloth and
dry with a soft cloth.
Leave the door open to air the
appliance for a short while.

Cleaning and care

Appliance door, side panels

Remove any soiling from the
appliance door and side panels im
mediately.
If this is not done, it might become
impossible to remove and could
cause the surface to alter or
discolour.

All surfaces are susceptible to
scratching.
Contact with unsuitable cleaning
agents can alter or discolour the
surfaces.

^ The surfaces should be cleaned

using a solution of hot water and a
little washing-up liquid applied with a
soft sponge. They can also be
cleaned with a damp microfibre cloth
(without using any cleaning agent).

^ After cleaning, wipe with clean water

and dry with a soft cloth.

-

Ventilation gaps

^

The ventilation gaps should be
cleaned regularly with a brush or
vacuum cleaner. A build-up of dust
will increase the energy consumption
of the appliance.

Door seal

Do not use any oils or grease on the
door seal as these will cause the
seal to deteriorate and become
porous over time.

The door seal should be cleaned
regularly with clean water and then
wiped dry with a soft cloth.

Back of appliance ­compressor and metal grille

The compressor and the metal grille at
the back of the appliance (heat
exchanger) must be dusted at least
once a year. A build-up of dust will
increase the energy consumption of the
appliance.

Make sure that the cable and other
components do not get broken off,
bent or damaged in any way during
cleaning.

After cleaning

^ Close the appliance door.

^ Reconnect to the mains and switch

the appliance back on.

^ Switch on the Super freeze function

so that the appliance can cool down
quickly.

^

Once the temperature in the freezer
is sufficiently low, replace the glass
cold plates and drawers in the
freezer. Store the food in the drawers.

^

When the temperature in the freezer
is a constant -18 °C or colder press
the Super freeze button to switch the
Super freeze function off.

29

Problem solving guide

Some minor problems can be corrected without contacting Miele. If having
followed the suggestions below, you still cannot resolve the problem, please
contact Miele.

To prevent unnecessary loss of temperature it is advisable not to open the door
while waiting for the appliance to be serviced.

Installation, maintenance and repairs may only be carried out by a suitable
qualified and competent person in strict accordance with current national and
local safety regulations.
Repairs and other work by unqualified persons could be dangerous. The
manufacturer cannot be held liable for unauthorised work.

Problem Possible cause Remedy

Press the On/Off

The appliance does
not get cold.

The appliance has not been
switched on. The temperature
display is not lit up.

^

button.

The door cannot be
opened several
times in
succession.

The plug is not inserted in the
socket correctly.

Check whether the mains fuse
has tripped. There could be a
fault with the appliance, the
household electrical wiring or
another electrical appliance.

The suction caused by opening
and closing the door several
times in succession is
preventing it from opening. Wait
a few minutes and then try
again. It should now open
without force.

^ Insert the plug in the

socket correctly.

^ Contact a qualified

electrician or Miele.

30

Problem solving guide

Problem Possible cause Remedy

Set a warmer

The temperature
inside the appliance
is too low.

The compressor is
switching in too
frequently or for too
long.

The Super freeze function is
still switched on. The Super
freeze function switches
itself off automatically after
approx. 30 - 65 hours.

The ventilation gaps have
been covered over or
become dusty.

Check whether the
compressor, the metal grille
(heat exchanger) at the rear
of the appliance have
become dusty.

^

temperature.

You can switch off the Super
freeze function earlier to
save energy:

Press the Super freeze

^

button.

Do not cover or block the

^

ventilation gaps.

Dust the compressor and

^

the ventilation gaps and
the heat exchanger
regularly.

The door has been opened
too frequently, or a large
amount of fresh food has
been put in at once for
freezing.

The door cannot be closed
correctly.

The ambient temperature is
too high.
The higher the ambient
temperature, the longer the
compressor will run for.

Only open the door when
necessary and for as short
a time as possible.
The required temperature
will re-establish itself after a
while.

^

See "The correct
temperature" for more
information.

^

See "Installation ­Location" for more
information.

31

Problem solving guide

Problem Possible cause Remedy

The compressor runs
continuously.

Two bars appear in
the display.

To save energy, the
compressor runs at a lower
speed, but for longer, when
less cooling is required.

Super freeze is switched
on. Food is frozen rapidly,
preserving nutrients,
vitamins and flavour.

The temperature will only
show in the display once
the temperature inside the
appliance falls below 0 °C.

The temperature has risen
above 0 °C at some point
during the last couple of
days because of a power
cut.

The Super freeze function
switches itself off
automatically after approx.
30 - 65 hours. You can
switch off the Super freeze
function earlier to save
energy:

Press the Super freeze

^

button.

^ Check the temperature

display about 6 hours
after switching on the
appliance.

The r symbol lights
up.

32

Demo mode has been
activated. This allows the
appliance to be displayed
in the showroom without the
cooling system being
switched on. Do not
activate this setting for
domestic use!

^

Deactivate Demo mode
(see "Information for
dealers - Demo mode").

Problem solving guide

Problem Possible cause Remedy

The Alarm symbol
; flashes.

The alarm sounds
and the Power
failure symbol t
flashes in the
display.

The temperature
display will show
the warmest
temperature
recorded in the
freezer during the
power cut.

The temperature inside the
appliance is too low.

The door has been

–

opened too frequently.

A large amount of fresh

–

frood has been put in at
once for freezing without
switching on the Super
freeze function.

There has been a lengthy

–

interruption to the power
supply.

The temperature has risen
too high at some point
during the last couple of
hours or days because of a
power cut.

The alarm will stop and the
Alarm symbol ; will go out
when the temperature
reaches the correct level
again.

Depending on the
temperature in the freezer,
you should check the
condition of the food. If food
has defrosted or started to
defrost, check that it is still
safe to use, and if so, use it
as quickly as possible.
Defrosted food may only be
re-frozen after it has been
cooked.

Depending on the
temperature in the freezer,
you should check the
condition of the food. If food
has defrosted or started to
defrost, check that it is still
safe to use, and if so, use it
as quickly as possible.
Defrosted food may only be
re-frozen after it has been
cooked.

^

Press the alarm off button.

F0 to F5 appears in
the display.

There is a fault.

The warmest recorded
temperature will go out in
the display. The display will
then revert to showing the
current temperature in the
freezer.

^

Call Miele Service.

33

Problem solving guide

Problem Possible cause Remedy

The external side
panels of the
appliance feel
warm.

Food has frozen
together.

There is a thick
layer of ice in the
freezer.

You cannot switch
the appliance off.

The warmth created by the
evaporator is used to
prevent condensation.

The door is not properly
closed.

The lock has been
activated.

Use a blunt instrument,

^

e.g. a spoon handle or
plastic scraper, to prise it
apart carefully.

Defrost and then clean the

^

freezer.

Too thick a layer of ice
reduces efficiency and
increases energy
consumption.

^ Deactivate the lock (see

"Customising settings - To
deactivate the lock").

34

Noises

Normal noises What causes them

Brrrrr... Humming noise made by the motor (compressor). This noise

can get louder for brief periods when the motor is switching on.

Blubb, blubb.... A gurgling noise can be heard when coolant is circulating

through the pipes.

Click.... Clicking sounds are made when the thermostat switches the

motor on and off.

Sssrrrrr.... On multi-zone and frost-free appliances you can sometimes just

hear the movement of air circulating inside the appliance.

Creak ... Creaking sounds can be heard when material inside the

appliance expands.

Remember that the noise of the compressor and the coolant circulating in the
system is unavoidable.

Noises that you
can easily
rectify

Rattling,
vibrating

Possible cause Remedy

The appliance is uneven. Realign the appliance using

a spirit level, by raising or
lowering the screw feet
underneath the appliance.

The appliance is touching
another appliance or piece of
furniture.

Drawers, baskets or shelves
are unstable or sticking.

Are any bottles or containers
unstable or knocking against
each other?

The transport cable clips are
hanging loose at the back of
the appliance.

Move it away.

Check all removable items
and refit them correctly.

Separate them.

Remove the clips.

35

After Sales / Guarantee

In the event of a fault which you cannot
correct yourself, or if the appliance is
under guarantee, please contact:

your Miele Dealer

–

or

Miele

–

(see back cover for contact details).

When contacting your Dealer or Miele,
please quote the model and serial
number of your appliance. This
information is given on the data plate
inside your appliance.

Please note that telephone calls may
be monitored and recorded for
training purposes.

N.B. A call-out charge will be applied
for service visits where the problem
could have been resolved as described
in these instructions.

Guarantee

For information on the appliance
guarantee specific to your country
please contact Miele. See back cover
for contact details.

In the U.K. your appliance is
guaranteed for 2 years from the date of
purchase. However, you must activate
your cover by calling 0845 365 6640 or
registering online at www.miele.co.uk.

36

Information for dealers

Demo mode r

The appliance can be demonstrated in
the showroom or at exhibitions in
"Demo mode". In this mode the display
and the controls are functioning but the
compressor remains switched off.

Demo mode is represented in the
display by the r symbol.

To activate Demo mode

Press the On/Off button.

^

Press the On/Off button and the

^

Temperature selector button at the
same time for approx. 5 seconds.

The Menu symbol X and the d symbol
will flash.

^ Press the Super freeze button.

The Menu symbol X will flash and d1
will appear in the display.

^ Press the Super freeze button.

To deactivate Demo mode

Press the On/Off button and the

^

Temperature selector button at the
same time for approx. 5 seconds.

The Menu symbol X and the d symbol
will flash. The r symbol will light up.

Press the Super freeze button.

^

The r symbol will light up and d0 will
appear in the display. The Menu
symbol X will flash.

Press the Super freeze button.

^

The r symbol will go out.
Demo mode has now been
deactivated.

The r symbol and the last temperature
selected will light up.
Demo mode is active.

37

Electrical connection

Electrical connection U.K.

All electrical work should be carried out
by a suitably qualified and competent
person in strict accordance with current
local and national safety regulations
(BS 7671 in the UK).

The appliance is supplied with a mains
cable and moulded plug ready for
connection to an a.c. single phase
220-240 V 50 Hz supply.

Please ensure that the connection data
quoted on the data plate match the
household mains supply.

Connection should be made via a
suitable switched socket which is easily
accessible. For extra safety it is
advisable to protect the appliance with
a suitable residual current device
(RCD).

Do not connect the appliance to the
mains electricity supply by an extension
lead. Extension leads do not guarantee
the required safety of the appliance
(e.g. danger of overheating).

Non-rewireable plugs (BS 1363)

The fuse cover must be re-fitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words in the base of the
plug (as applicable to the design of the
plug fitted).

Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.

WARNING
THIS APPLIANCE MUST BE
EARTHED

This appliance must not be connected
to the inverter of an autonomous power
supply, e.g. a solar power system.
When switching the appliance on, a
surge in power could trigger the safety
cut-out mechanism. This could damage
the electronic unit.

The appliance must not be used with
so-called energy saving devices. These
reduce the energy supply to the
appliance which could then become
too warm. Using such devices could
alter the specification of the product.

38

Installation

Do not place any appliance which
gives off heat, such as a toaster or
microwave oven, on top of this
appliance, as this would increase
the appliance's energy
consumption.

This appliance must not be installed
directly next to another refrigerator
or freezer.
It does not have side-wall heating,
so installation next to another
refrigerator or freezer could cause a
build-up of condensation between
them.
Further information is available from
your dealer.

Location

This appliance should not be installed
where it is exposed to direct sunlight or
directly adjacent to a heat-producing
appliance such as an oven or a
radiator. The higher the ambient
temperature of the room, the more
energy the appliance requires to
operate.

The appliance should be installed in a
dry well ventilated room.

Important: tropical / humid
environments

During periods of high humidity,
some condensation may appear on
outside surfaces of cooling
appliances. This condensation will
disappear when humidity levels
drop. For prevention, it is advisable
to install the appliance with sufficient
ventilation in a dry and/or an
air-conditioned room.
Please ensure that doors are closing
and sealing properly.
Please ensure that the appliance is
installed in accordance with these
installation instructions and that the
handle is fitted correctly. Should you
require further assistance please
contact your Miele customer service
centre.

Climate range

The appliance is designed for use
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range of
the appliance is stated on the data
plate.

Climate range Ambient room

SN

N

ST

T

temperature

+10 °C to +32 °C
+16 °C to +32 °C
+16 °C to +38 °C
+16 °C to +43 °C

Operating in a room which is too cold
will cause the cooling system to switch
off for too long, causing the internal
temperature in the appliance to rise
with the risk of food deteriorating and
going off.

39

Installation

Ventilation

Air at the back of the appliance gets
warm. To ensure sufficient ventilation,
the ventilation gaps must not be
covered or blocked in any way. They
should be dusted on a regular basis.

Appliances with wall spacers
supplied

Fitting the wall spacers supplied
onto the back of the appliance
assists in attaining lower energy
consumption. Appliance depth
without the wall spacers fitted is
reduced by 35 mm. If the wall
spacers are not used, this does not
influence the functionality of the
appliance. Energy consumption is
only minimally increased if there is
little distance between the appliance
and the wall.

Installation

Two people are required to install
the appliance. Only move the
appliance when it is empty.

Do not remove the following from the

^

back of the appliance:

Depending on model, the bags

–

located between the back of the
appliance and the metal grille (heat
exchanger). They are important for
the correct functioning of the
appliance. The contents are
harmless and do not contain toxic
gases.

^ Remove the cable clip from the back

of the appliance.

^ Check that all parts at the back of the

appliance are unhindered. Carefully
remove any hindrance.

^ Carefully push the appliance into

position.

^

Fit the wall spacers onto the back of
the appliance on the top left and
right.

40

^

Position the appliance with the wall
spacers (if used) or the back close to
the wall.

Aligning the appliance

^

To align the appliance, adjust the feet
using a suitable spanner.

Installation

Appliance dimensions

ABCD E F

F 12016 S-2 850 mm 555 mm 611 mm 624 mm 1174 mm 595 mm

F 12020 S-2 850 mm 600 mm 611 mm 624 mm 1174 mm 640 mm

F 12020 S-3 850 mm 600 mm 646 mm* 665 mm* 1209 mm* 640 mm

* Measurement with wall spacers fitted. If the wall spacers are not fitted, the

measurement is reduced by 35 mm.

41

Changing the door hinging

The appliance is supplied right hand
hinged. If left hand door hinging is
required, follow the instructions below.

Close the door.

^

Unscrew upper hinge pin d and refit

^

it on the other side.

Take care not to lose the washer.

^

Remove the cover at the top left of

^

the door and refit it on the opposite
side.

^

Unscrew lower hinge bracket a, and
remove.

^

Then lift the door down and off.

^

Take hinge pin b out of hinge
bracket a, then refit in the other hole
of the hinge bracket.

^

Remove cover c and use it to cover
the now empty holes on the opposite
side.

42

^

Fit the appliance door from below
onto upper hinge pin d and then
close the appliance door.

^

Screw hinge bracket a into the lower
door bearing.

^

Use the long slots in the hinge
bracket to align the door. Make sure
you have tightened all screws
properly.

Changing over the door handle

Carefully remove cover a and

^

stoppers b from the sides using a
flatheaded screwdriver.

Slide cover c over to the left and

^

then insert a suitable plastic or
wooden tool d into the gap on the
right hand side.

^ Carefully lever cover c out.

Be careful not to let the tool slip,
causing damage to the appliance.

Changing the door hinging

Turn the handle 180° and fit to the

^

opposite side.

First screw it at the side and then in

^

the middle g.

In the same way, replace cover a

^

and stoppers b on the opposite
side.

^ Replace middle cover c by pushing

it in, first on the left hand side, and
then on the right.

^

Loosen screws e on the handle side
and in the middle, and remove
handle f.

43

Building in the appliance

* For appliances supplied without wall

spacers or without the wall spacers
fitted, this measurement is reduced by
35 mm.

a Top box

b Appliance

c Housing unit

d Wall

The appliance can be installed in a
kitchen run. To match the height of the
rest of the kitchen, the appliance can
be fitted with a suitable top box a.

The ventilation cross-section of the

–

air outlet below the ceiling must be at
least 300 cm

2

to ensure that air can

circulate without hinderance.

The compressor will operate more
economically, the larger the ventilation
cross-section. Otherwise the appliance
has to work longer and harder, resulting
in an increase in electricity
consumption and also an increase in
the operating temperature of the
compressor, which can result in
damage to the compressor.

The ventilation gaps must not be
covered or blocked in any way.
They should be dusted on a regular
basis.

When built into a kitchen run (max.
depth 580 mm) the appliance can be
installed directly next to a kitchen
furniture housing unit. The appliance
door will protrude in front of furniture
fronts at the sides by 69 mm* and by
90 mm* in the middle of the door. This
enables the door to be opened and
shut without being obstructed.

When installed next to a wall d a
distance of approx. 50 mm must be
maintained on the hinge side between
the wall d and the appliance b,so
that the door and the handle have
sufficient space for opening.

–

A ventilation gap of at least 50 mm
depth must be allowed for behind the
appliance for air to circulate.

444546

47

Alteration rights reserved / 1212

F 12016 S-2, F 12020 S-2, F 12020 S-3

M.-Nr. 09 290 840 / 01
