Miele 07 171 230 User Manual

Operating instructions
for Washing machine
W 3844 WPS allerwash

To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.

en-GB

M.-Nr. 07 171 230

Caring for our environment

Disposal of the packing
material

The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.

Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!

Rather than just throwing these
materials away, please ensure they are
offered for recycling.

Disposal of your old appliance
or machine

Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.

Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.

It should be unplugged or disconnected
from the mains electricity supply by a
competent person.

2

Contents

Caring for our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating the washing machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control panel .....................................................10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Energy and water consumption ....................................13

Detergent .....................................................13

Tips for allergy sufferers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Final spin speed ..................................................20

Rinse and interim spin ...........................................20

To omit the final spin (Rinse hold) ..................................20

To omit rinse and interim spin and the final spin (No u).................20

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cancelling a programme ............................................28

Interrupting a programme ...........................................28

Changing a programme ............................................28

Adding or removing laundry after a programme has started ................29

Safety lock .......................................................29

3

Contents

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

The correct detergent ..............................................30

Water softener ....................................................31

Washing with several components ....................................31

Fabric conditioners and liquid starch ..................................32

Automatic dispensing of fabric conditioner or liquid starch at the end of a

programme ....................................................32

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

External casing and fascia panel .....................................33

Extra cleaning ..................................................33

Cleaning the detergent dispenser drawer...............................33

Descaling the machine .............................................34

Cleaning the filter in the water inlet ....................................35

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

The programme does not start .......................................36

Fault messages in the display ........................................37

General problems .................................................38

An unsatisfactory wash result ........................................39

The drum door does not open when you press the Door button..............40

Opening the drum door in the event of a blocked drain outlet and/or power failure . 41

Blocked drain outlet .............................................41

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Future updates (PC) .............................................43

Appliance guarantee ............................................43

Optional accessories ............................................43

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Front view........................................................44

Rear view ........................................................45

Installation surface.................................................46

Installing the washing machine ....................................46

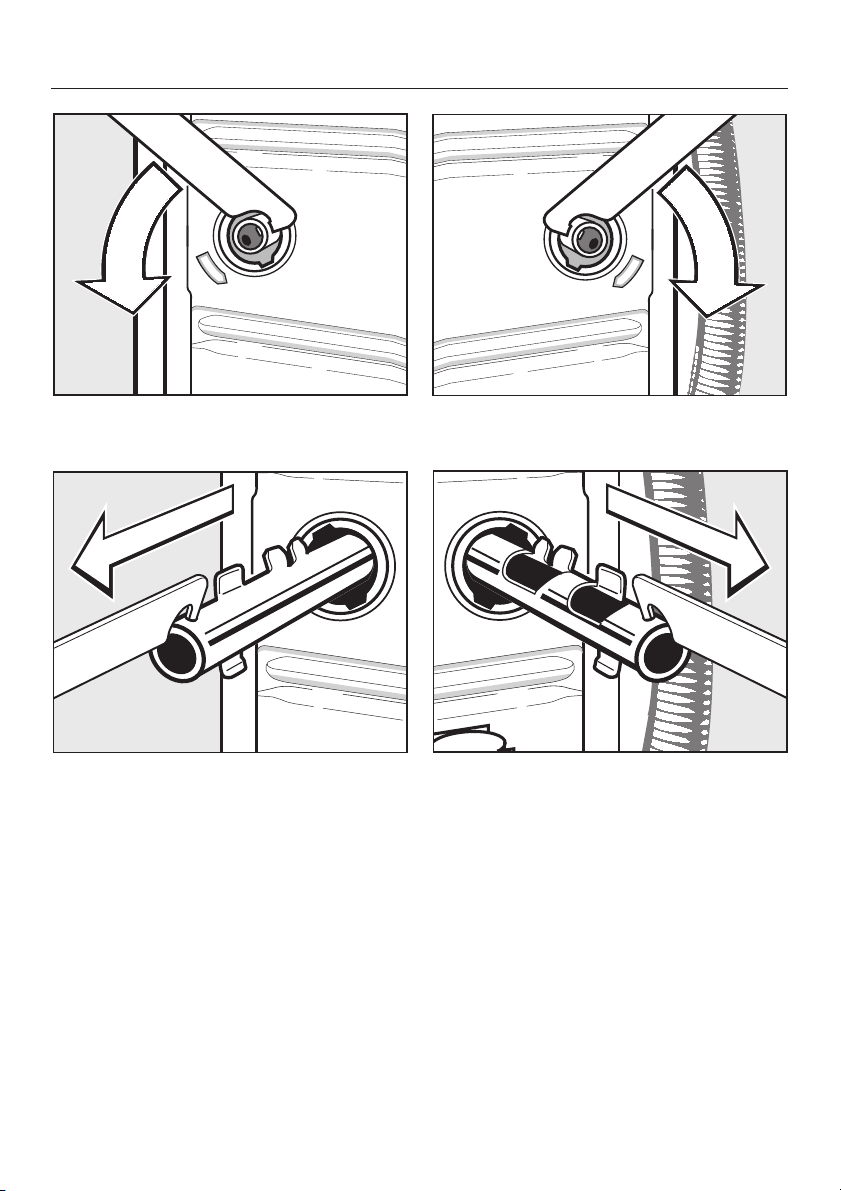

Removing the transit bars ...........................................46

Re-fitting the transit bars ............................................48

4

Contents

Levelling the machine ..............................................49

Screwing out and adjusting the feet .................................49

Building under a continuous worktop/in a kitchen run ...................50

Washer and Dryer stack ..........................................50

The Miele Waterproof system ........................................51

Connection to the water supply .......................................52

Connection to the drainage system....................................54

Electrical connection U.K. ...........................................55

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Notes for test institutes: ..........................................56

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

To access programmable functions .................................59

To select a programmable function .................................59

To alter a programmable function ..................................59

To come out of programmable functions .............................59

Language F......................................................59

Water plus .......................................................60

Gentle action .....................................................60

Suds cooling .....................................................60

Code ...........................................................61

Temperature unit ..................................................62

Buzzer ..........................................................62

Keypad tone .....................................................62

Brightness .......................................................62

Contrast .........................................................62

Standby display ...................................................63

Memory .........................................................63

Anti-crease.......................................................63

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

CareCollection ....................................................64

5

Warning and Safety instructions

This washing machine is not
This washing machine conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.

To avoid the risk of accidents and
damage to the washing machine,
please read these instructions
carefully before using it for the first
time. They contain important
information on its installation, safety,
use and maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.

Correct application

This washing machine is for

~

domestic use only and can only be
used to wash items which are specified
by the manufacturer to be
machine-washable on the wash care
label, and textiles composed of
hand-washable wool or wool blend
fabrics as well as satin, lace, silk and
other hand-washable garments.
Any other applications may be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation.

~

intended for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they are supervised whilst using it or
have been shown how to use it by a
person responsible for their safety.

Safety with children

Keep children away from the

~

washing machine at all times. It is not a
toy! To avoid the risk of injury do not
allow children to play on or near it or to
play with its controls. Supervise
children whilst you are using it.

Older children may only use the

~

washing machine if its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.

For machines with a 'porthole' door,

~

remember that the porthole glass will
be hot when washing at very high
temperatures.
Do not let children touch it.

6

Warning and Safety instructions

Technical safety

Before setting up the washing

~

machine, check it for any externally
visible damage.
Do not install or use a damaged
washing machine.

Before connecting the washing

~

machine, ensure that the connection
data on the data plate (voltage and
connected load) match the mains
electricity supply. If in any doubt,
consult a qualified electrician.

The electrical safety of this washing

~

machine can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).

Do not connect the washing

~

machine to the mains electricity supply
by an extension lead. Extension leads
do not guarantee the required safety of
the appliance (e.g. danger of
overheating).

Faulty components must only be

~

replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.

Unauthorised repairs could result in

~

unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.

If the connection cable is faulty it

~

must only be replaced by a Miele
approved service technician to protect
the user from danger.

In the event of a fault or for cleaning

~

purposes, the washing machine is only
completely isolated from the electricity
supply when:
– it is switched off at the wall socket

and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is withdrawn, or the

screw-out fuse is removed (in

countries where this is applicable).

The Miele "Water protection system"

~

protects from water damage provided
the following conditions have been met:
–

the machine is correctly plumbed in

and connected to the electricity

supply.
–

if a fault has been identified, the

machine must be examined by a

competent person before further use,

and repaired if necessary.

In countries where there are areas

~

which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.

7

Warning and Safety instructions

This washing machine may only be

~

used in mobile installations such as
ships if a risk assessment of the
installation has been carried out by a
suitably qualified engineer.

Do not make any alterations to the

~

washing machine, unless authorised to
do so by Miele.

Correct use

Do not install your washing machine

~

in rooms where temperatures below
freezing may occur. Frozen hoses may
burst or split. The reliability of the
electronic control unit may be impaired
at temperatures below freezing point.

Before using the washing machine

~

for the first time, check that the transit
bars at the rear of the machine have
been removed (see section on
"Installation"). During spinning, a transit
bar which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.

Turn off the stopcock if the machine

~

is to be left for any length of time (e.g.
holiday), especially if there is no floor
drain (gully) in the immediate vicinity.

Flooding danger.

~

If hooking the drain hose into a wash
basin, check that the water can drain
off quickly enough to prevent the sink
from overflowing. Make sure the drain
hose is secure, so that the force of the
water flowing out of the hose does not
dislodge it.

Take care to ensure that foreign

~

objects (e.g. nails, pins, coins, paper
clips) do not find their way into the
machine with the laundry. These may
damage components of the machine
(e.g. suds container, drum), which in
turn can result in damage to the
laundry.

If the correct amount of detergent is

~

dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging. A
special descaling agent is available to
order from the Miele Spare Parts
Department or via the internet on
www.miele-shop.com.

8

Warning and Safety instructions

Textiles which have been

~

pre-treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
in this machine, as this may result in
damage to component parts and create
toxic fumes. Such agents also pose a
fire and explosion hazard.

Never use solvent based cleaning

~

agents, e.g. those containing benzene,
to clean the outside surfaces of this
machine. They can cause damage to
plastic surfaces.

Only use dyes specified by the

~

manufacturer as being suitable for use
in a domestic washing machine. Always
observe the manufacturer's instructions
carefully.

Colour run and dye removers

~

contain sulphur compounds which can
cause damage such as corrosion. Do
not use these products in this machine.

Only remove laundry from the

~

washing machine once the drum has
stopped turning. Reaching into a
moving drum is extremely dangerous
and could result in injury.

Accessories

Accessory parts may only be fitted

~

when expressly approved by Miele. If
other parts are used, guarantee,
performance and product liability
claims will be invalidated.

Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.

If liquid detergent comes into

~

contact with the eyes, rinse them
thoroughly with lukewarm water imme
diately. If swallowed, seek medical
assistance immediately and retain the
packaging or label for reference. Those
with skin problems or sensitive skin
should avoid their skin coming into
contact with liquid detergent.

-

9

Operating the washing machine

Control panel

a Extra option buttons

Various extra options can be added
to the washing programmes.

b Display

See the following page for more
information.

c Delay start button

For delaying the start time of a
programme.

d Temperature button

For selecting a temperature.

e Spin speed button

For selecting the final spin speed or
e (Rinse hold) or No u (Without
spin).

f PC / Optical interface

This is used by service technicians

to run diagnostic checks on your

machine and can also be used to

update programming data in the

future.

g Start/Stop button

For starting the programme selected

and cancelling a programme once it

has started.

h Programme selector

For selecting a programme. The

indicator light next to the selected

programme will come on. The

programme selector can be turned

clockwise or anti-clockwise.

i I-On/0-Off button

For switching the machine on or off.

j Door button

Opens the machine door.

10

The following are selected via the
display:

– wash temperature

– spin speed

– delay start

– cancellation of a programme

– safety lock

– programmable functions

The display also shows:

–

the programme duration

–

the programme sequence

Operating the washing machine

Programme duration

After the start of a programme, the
estimated programme duration will
appear in the display in hours and
minutes.

When delay start is being used, the
programme duration will appear after
the delay start time has elapsed.

During the first 8 minutes the washing
machine measures how much water is
being absorbed by the laundry and
uses this to calculate the load. The
programme duration may be longer or
shorter depending on this absorbency
rate.

Delay start

The delay start time selected will
appear in the display.

After the Start/Stop button has been
pressed, the delay start time will start
counting down. If the delay start time is
more than 10 hours, it will count down
by the hour. If it is less than 9 hours and
59 minutes it will count down minute by
minute.

Once the delay start time has elapsed,
the programme begins and the
estimated programme duration shows
in the display.

Programmable functions

The programmable functions can be
used to tailor washing programmes to
suit your individual requirements. In
programming mode, the display will
show the function selected.

11

Before using for the first time

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of water
leaks during use.

This washing machine has
undergone a thorough functional test
in the factory and there will be some
residual water in the drum from this
process.

For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.

Setting the language

You will be asked to select the
language you require for the display. It
is possible to change the language at
any time via the programmable
functions.

! deutsch

If the language shown is not the one

^

you want, select the language you do
want by turning the programme
selector. Confirm your selection by
pressing the Start/Stop button.

Reminder to remove transit bars

To avoid the risk of damage, the
transit bars must be removed before
the machine is used for the first time.
See "Installation and connection" for
instructions on how to do this.

Using detergent could result in an
excessive build-up of foam.

This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.

^

Press the I-On/0-Off button in.

If the washing machine is being
switched on for the first time, the
welcome screen will appear.

The welcome screen will appear in
the display every time the washing
machine is switched on until a
programme lasting longer than
1 hour has been completed.

12

^ After removing the transit bars (if this

has not already been done by your
fitter), press the Start/Stop button.

Running your first programme

Run a Cottons 60°C programme without
any laundry and without detergent.

^

Open the stopcock.

^

Turn the programme selector
clockwise until the Cottons
programme indicator light comes on.

^

Press the Start/Stop button.

^

At the end of the programme switch
the machine off.

The machine is now ready for use.

Washing environmentally and economically

Energy and water consumption

Water consumption and energy

–

usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.

Use the Automatic and Express

–

programmes for small loads.

When smaller amounts of laundry are

–

washed using the Cottons hygiene
and Cottons programmes, the auto
matic load recognition system will
reduce the amount of water, time
and energy used. This may mean
that the time left shown in the display
is adjusted during the course of the
wash programme.

– Using the Cottons 60°C programme

instead of the Cottons 95°C
programme will give energy savings
of between 35% and 45%. This is
sufficient for most levels of soiling.

Detergent

Do not exceed the amounts of

–

detergent recommended by the

manufacturer on the packaging.

Adjust the dosage to the degree of

–

soiling of the laundry.

Reduce the amount of detergent with

–

smaller loads (approx.

1

/3less than
the amount recommended can be
used when washing a half load).

-

Choosing the correct extra option
(Short and Pre-wash)

Select:

– A wash programme together with the

Short extra option for light to normal
soiling where there are no obvious
marks.

– A wash programme without any extra

options for normal to heavy soiling
with visible staining.

– The Pre-wash extra option for laundry

with large amounts of dirt (e.g. dust,
sand).

When drying with a tumble dryer

Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.

13

Tips for allergy sufferers

Fabrics

Wash fabrics which will be worn

–

directly against the skin, e.g.
underwear, baby clothes, socks etc.,
at a temperature of at least 60°C or
the maximum temperature indicated
on the garment care label.

A temperature of 60°C is required to
deactivate germs and household
dustmites.

The Cottons hygiene or Minimum iron
hygiene programmes effectively
deactivate germs and household
dustmites as these programmes
have a temperature holding time of
one hour in the main wash. During
the temperature holding time
Hygiene and Main wash will alternate
in the display.

– When buying garments, check that

they can be washed at a
temperature of 60°C.

– Wash new garments before wearing

them for the first time.

The First wash programme will
remove any chemical residues from
new garments.

Textiles which tend to run should be
washed separately. You may wish to
wash them several times before
wearing them for the first time.

Pillows

Use the Pillows hygiene programme
to remove household dust mites from
pillows. The temperature is held for
one hour in the main wash in this
programme. During the temperature
holding time Hygiene and Main wash
will alternate in the display.

Pillow and mattress covers should be

–

washed regularly, at least every 3
months.

Detergent

– Use detergents without added

fragrance.

– We recommend using detergents

which have been specially designed
for those with sensitive skins or
allergies.

– Detergent components will vary

depending on the manufacturer so it
may be a good idea to try out several
makes of detergent to find the one
which suits you best.

Number of rinses

–

The Hygiene programmes are
designed to rinse garments very
effectively.

–

Pressing the Rinse plus button
introduces an extra rinse.

14

–

The Cottons hygiene programme has
one more rinse than the Cottons
programme. This extra rinse is
carried out automatically.

Brief instructions

The headings numbered A, B, C,...
show the operating sequence and can
be used as brief instructions.

A Sort the laundry

^ Empty all pockets.

,

Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.

^

Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.

How to wash correctly

If you use a solvent-based clean

,

ing agent (e.g. one containing ben
zene) to pre-treat a stain, make sure
that any plastic parts (e.g. buttons)
are protected, and that the cleaning
agent is rinsed off before washing the
garment in the machine.

Do not use solvent-based

,

cleaning agents in this machine.

Sort the laundry by colour and by

^

care label. Most garments have a
textile care label in the collar or side
seam.

Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–

Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.

–

Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.

–

Close any zips, fasten hooks and
eyes etc before washing.

–

Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.

Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (h symbol)

-

-

15

How to wash correctly

B Switch on the washing machine

C Load the drum

Press the Door button to open the

^

drum door.

Unfold the laundry and load loosely

^

in the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.

The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.

Make sure that no garments are
caught between the drum door and
seal.

D Select a programme

^ Turn the programme selector

clockwise or anti-clockwise to the
required programme. The
programme indicator light for the
programme selected will come on.

E Select a temperature / spin speed

The suggested temperature and/or spin
speed can be changed.

1:49 60° 1600

^

Shut the door with a gentle swing.

16

^

Press the Temperature button to alter
the temperature and press the Spin
speed button to alter the spin speed.

How to wash correctly

F Select an extra option(s)

^ Select any extra options by pressing

the appropriate button. The relevant
indicator light will come on to show
which extra option has been
selected.

Not all the extra options are suitable for
use with every programme.

You can only select extra options which
are compatible with the basic
programme being used.

Short

For light to nomal soiling with no visible
staining.

The duration of the main wash is
reduced.

Rinse plus

This extra option introduces an extra
rinse.

You can also select other settings for
Rinse plus button. These are described
in "Programmable functions - Water
plus".

Pre-wash

For laundry with large amounts of dirt
e.g. dust, sand.

Buzzer

An audible tone sounds at the end of a
programme and when Rinse hold is
reached. The buzzer will sound
repeatedly until the machine is
switched off. The volume of the buzzer
can be changed, see "Programmable
functions".

G Select Delay start (if required)

The start of a programme can be
delayed from 30 minutes up to 24
hours, allowing you to make use of
night-time economy electricity rates, for
example.

See "Delay start" for more information.

17

How to wash correctly

H Add detergent

It is important to dispense the correct
amount, because...

. . . too little detergent results in:

Laundry not getting properly clean

–

and with time it may become grey
and hard to the touch.

Greasy particles clinging to the

–

laundry.

Limescale deposits on the heater

–

elements.

. . . too much detergent results in:

– Excessive foam which causes a low

level of agitation and poor wash,
rinse and spin results.

– Higher water consumption (an

additional rinse cycle will
automatically switch in).

– A burden to the environment.

Pull out the detergent drawer and

^

place detergent in the compartments
as follows:

i

Detergent for the pre-wash (divide
the total recommended amount as
follows: add

2

and

/3to compartment j)

1

/3to compartment i

j

Detergent for the main wash

18

§

Fabric conditioner or liquid starch

^

Close the detergent drawer.

See "Detergent" for further information.

I Start the programme

Press the flashing Start/Stop button.

^

If a delay start time has been selected,
then this will count down in the display.
At the end of the delay start time or im
mediately after the programme has
started (if no delay start time has been
selected) the estimated programme
duration will appear in the display.
During the first 8 minutes the machine
measures how much water is being
absorbed by the laundry. The
programme duration may be longer or
shorter depending on this absorbency
rate.

The programme sequence is also
shown in the display. The washing
machine shows you when each section
of the programme is reached.

J Remove the laundry when the

programme has finished

In the anti-crease phase after the
programme has finished, the following
will appear alternately in the display:

0:00 Anti-crease

and

0:00 Finish

^

Press the Door button to open the
drum door.

How to wash correctly

Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become
discoloured themselves.

-

^ Check the folds in the door seal for

any small articles, e.g. buttons, which
might be lodged there.

^ Switch the machine off with the

I-On/0-Off button.

^

Close the drum door. Otherwise there
is the danger of objects being placed
inadvertently in the drum. If these
remained unnoticed and were
washed in the next load, they could
damage the laundry.

^

Remove the laundry.

19

Spinning

Final spin speed

Programme rpm

Cottons hygiene 1600

Minimum iron hygiene 1200

Pillows hygiene 1200

First wash 1200

Express 1600

Spin 1600

Automatic 1200

Cottons 1600

Minimum iron 1200

Delicates 600

Shirts 600

Woollens 1200

You can reduce the final spin speed.
However, you cannot select a final spin
speed higher than that shown in the
chart above.

Rinse and interim spin

There is a spin after the main wash and
between the rinses. A reduction in the
final spin speed will also reduce the
interim spin speed. If a spin speed of
less than 700 rpm is selected for a
Cottons programme, an additional rinse
is introduced.

To omit the final spin (Rinse hold)

Select the e (Rinse hold) setting

^

using the Spin speed button. The
laundry will not be spun and will
remain suspended in the final rinse
water. This reduces creasing if the
laundry is not going to be removed
from the drum immediately after the
end of the programme.

To start the final spin

–

:

The washing machine will display the
maximum spin speed possible. You
can select a spin speed lower than
this. Start the final spin by pressing
the Start/Stop button.

– To end the programme

:

Press the Door button. The water will
drain away. Press the Door button
again to open the door.

To omit rinse and interim spin and
the final spin (No u)

^

Select the No u setting using the
Spin speed button. The laundry is not

spun after the final rinse. The water
will drain away and the machine will
go straight into the anti-crease stage.
An additional rinse is introduced if
this setting is selected with the

Cottons, Minimum iron, Express and
Automatic programmes.

20

Delay start

Delay start allows you to choose when
you want the programme to start. The
start of a programme can be delayed
from 30 minutes up to a maximum of 24
hours, allowing you to make use of
night-time economy electricity rates, for
example.

Selecting delay start

Press the Delay start button. The

^

following will appear in the display:

0:30 , 60° 1600

Each press on the Delay start button

^

increases the delay start time:

– in 30 minute steps up to 10 hours,

– in 1 hour steps from 10 hours

upwards.

If you keep the Delay start button
pressed in, the time will continue to
count up to 24 hours.

Activating delay start

Altering delay start

You can change the delay start time at
any time by pressing the Delay start
button.

Cancelling delay start before delay
start has been activated

Press the Delay start button until

^

24 h appears in the display. Then

press the Delay start button again
briefly to cancel delay start.

If you cancel delay start after the delay
start time has started counting down,
the washing programme will start imme­diately.

^

Press the Start/Stop button to activate
delay start. The following will appear
in the display:

4:30 , until start

After the delay start time has elapsed,
the washing programme will start and
the estimated programme duration and
the programme sequence will show in
the display.

21

Programme chart

Cottons hygiene
9ö8E76*

Fabric Cotton and linen fabrics which will be in direct contact with the

skin, e.g. underwear, nappies, towelling, bed linen, pillow and
mattress covers or where high standards of hygiene are required.

Extra options Rinse plus, Pre-wash

Minimum iron hygiene
43218E76*

Fabric Synthetics, mixed fibre or easy care cottons which will be in direct

contact with the skin or where high standards of hygiene are
required.

Note Reduce the spin speed for fabrics which crease easily.

Extra options Rinse plus, Pre-wash

Pillows hygiene 60°C to 95°C 2 pillows (40 x 80cm) or

Item

Note

Extra option Rinse plus

First wash 7621* 30°C to 40°C Max. load 3.0 kg

Item Use this programme to wash any chemical residues out of new

Extra option Rinse plus

Washable pillows with feather, down or synthetic fillings.

Please observe the instructions on the wash care label.

garments made from cotton or synthetic fibres.

30°C to 95°C Max. load 6.0 kg

30°C to 95°C Max. load 3.0 kg

1 pillow (80 x 80 cm)

22

Programme chart

Express 76* cold to 40°C Max. load 3.0 kg

Fabric Small loads of items which require freshening up and which can

be washed in a Cottons programme.

Note This programme can be used for rinsing individual items. Select

the cold setting, and do not add any detergent.

Extra option Rinse plus

Spin Max. load 6.0 kg

Note

Automatic 7621* cold to 40°C Max. load 3.5 kg

Fabric Mixed loads of garments suitable for the Cottons and Minimum

Note The wash parameters (e.g. water level, wash rhythm and spin

Cottons 9ö8E76* 30°C to 95°C Max. load 6.0 kg

Fabric Cottons, linens or cotton mix fabrics, e.g. table linen, towelling,

Extra options

Drain only: Select No u.

–

Make sure you select the appropriate spin speed.

–

iron programmes. Sort according to colour.

speed) are adjusted automatically in this programme to ensure
the best possible care and wash result for each item.

underwear, T-shirts etc.

Short, Rinse plus, Pre-wash

Note for test institutes:

Short programme: 3.0 kg load and Short extra option

Minimum iron
43218E76*

Fabric Synthetics, mixed fibres and easy care cottons. If fabrics have a

high proportion of man-made fibres it is advisable to programme
the machine for "Gentle action". See "Programmable functions".

Note

Extra options Short, Rinse plus, Pre-wash

Reduce the spin speed for fabrics which crease easily.

30°C to 60°C Max. load 3.0 kg

23

Programme chart

Delicates 4321ac* cold to 60°C Max. load 2.0 kg

Fabric For delicate garments made of synthetic fibres, mixed fibres,

rayon and easy care cottons. Also suitable for machine-washable
silks.

Curtains, including net curtains, specified as machine-washable
by the manufacturer.

Notes

Extra options Short, Pre-wash

Shirts cold to 60°C Max. load 2.0 kg

Notes – Pre-treat collars and cuffs if necessary.

Extra options Short, Rinse plus

Woollens /ac* cold to 40°C Max. load 2.0 kg

Fabric Machine-washable or hand-washable wool or wool blend fabrics.

* Please note that the "buckets" represent garment care label symbols. See

"Garment care label symbols".

Dust in curtains usually makes using a programme with

–

pre-wash advisable.
For curtains which crease easily, reduce the spin speed or

–

deselect the spin.

– Use the Delicates programme for machine-washable silk

garments and the Woollens programme for hand-washable silk
garments

If the care label does not specifiy a temperature, wash using the
cold setting. Also suitable for hand-washable silks. Reduce the
spin speed.

24

Programme sequence

Main wash Rinses Spinning

Water

level

Cottons hygiene ( b ( 3-4
Minimum iron hygiene ( b e 3-4

Pillows hygiene

4)

( d e 3 – L
First wash d b ( 2-3
Express d b d 2-3
Spin –––– –L
Automatic ( abc e 2-3
Cottons d a ( 2-4
Minimum iron ( c e 2-3
Delicates e d e 3 – L
Shirts e c e 2 – L
Woollens e e e 2 LL

Wash

rhythm

Water

level

Rinses Interim

spin

1)

2)

2)

2)

2)

1)3)

2)

LL
LL

LL
LL

LL
LL
LL

Final

spin

d = Low water level
( = Medium water level
e = High water level

a= Intensive rhythm
b= Normal rhythm
c= Gentle rhythm
d= Sensitive rhythm
e= Handwash rhythm

See the following page for more information about the programme sequences.

25

Programme sequence

This machine has fully electronic
controls with automatic load
recognition. It takes in the right amount
of water required for the programme
depending on the amount of laundry
and its absorbency rate. This means
that programme cycles and durations
can vary.

The programme sequences outlined in
the chart are based on the basic
programme with a full load. Extra
options which can be selected have not
been taken into account.

The display shows the stage the
programme has reached.

Special features in the programme
sequences:

Anti-crease:

At the end of every programme, with
the exception of the Woollens
programme, the drum continues to turn
at intervals for up to 30 minutes to help
prevent creasing.
The door can be opened and laundry
removed at any time during the
anti-crease phase.

1)

An additional rinse is carried out if:

there is too much foam in the drum

–

– a spin speed lower than 700 rpm has

been selected

– No u has been selected

2)

An additional rinse is carried out if:

No u has been selected

3)

A second rinse is carried out when a
temperature of 60°C to 95°C has
been selected. A third rinse is
carried out when a temperature
below 60°C is selected.

4)

Run-up to spin: A run-up to spin is
carried out before the wash process
begins to deflate the pillows.
Subsequent water intake for the main
wash is through compartment j.

26

Garment care label symbols

Washing

The figure quoted in the bucket is the
maximum temperature the garment
can be washed at. The number of
bars under the symbol indicates the
level of agitation permitted.

9 No bar under the symbol: =

normal agitation

4 One bar under the symbol: =

reduced agitation

c Two bars under the symbol: =

much reduced agitation

/ Hand wash (if no temperature

is specified use the lowest
temperature or cold)

h Do not wash

Drying

The number of dots indicates the
drying temperature

q Normal temperature
r Low temperature
s Do not tumble dry

Ironing

The number of dots indicates the
ironing temperature

I Hot iron (max sole plate temp.

approx. 200°C)

H Medium hot iron (max sole

plate temp. approx. 150°C)

G Cool iron (max sole plate

temp. approx. 110°C). Do not
steam iron garments carrying
this symbol.

J Do not iron

Professional cleaning

f Dry clean only. The letters

indicate the type of cleaning

p

agent required.

w Professional Wet Clean only
D Do not dry clean

Bleaching

x Any oxidising bleaching

agent can be used

{ Only use an oxygen based

bleach or a non-chlorine
bleach

z Do not bleach

27

Changing the programme sequence

Cancelling a programme

You can cancel a programme at any
time after it has started.

Press the Start/Stop button.

^

Cancel programme

Press the flashing Start/Stop button

^

again.

The suds will be pumped away.

If you want to remove the laundry:

Press the Door button.

^

If you want to select a different
programme:

^ Switch the machine off with the

I-On/0-Off button.

^ Switch the washing machine back on

again.

^ Check that there is still detergent in

the detergent drawer. Add detergent,
if necessary.

^

Select and start a new programme.

Interrupting a programme

Changing a programme

After the start of a programme it is no
longer possible to select a different
programme.

Temperature

It is possible to select a different
temperature up to 5 minutes after the
programme has started.

Press the Temperature button.

^

Spin speed

It is possible to change the spin speed
up until the final spin begins.

^ Press the Spin speed button.

Extra options

It is possible to select or deselect the
Short and Water plus extra options up
to five minutes after the programme has
started.

A programme cannot be cancelled
or changed if the safety lock has
been activated.

^

Switch the machine off with the
I-On/0-Off button.

To continue with the same programme:

^

Switch the machine back on with the
I-On/0-Off button.

28

Changing the programme sequence

Adding or removing laundry
after a programme has started

Press the Door button to open the

^

drum door.

Add or remove items.

^

Close the drum door.

^

The programme will continue
automatically.

Please note:

Once a programme has started the
machine cannot recognise any
adjustment to the load.

For this reason, if laundry is added or
removed after the start of a programme,
the machine will always complete the
programme cycle assuming a full load
which can lead to an increase in the
programme duration shown in the
display.

The door cannot be opened, if:

–

the suds temperature is above 55°C.

–

the water is above a certain level.

–

the programme has reached the
Final spin stage.

If you press the Door button when the
above conditions are present, the
following will appear in the display:

: Door locked

Safety lock

The safety lock prevents the machine
from being opened and programmes
from being cancelled during a wash
programme.

To activate the safety lock

Press and hold in the Start/Stop

^

button after the programme has
started.

Stop or in 3 secs 0

Keep the Start/Stop button pressed in

^

until the time has elapsed and the
following appears in the display:

Locked 0

The safety lock is now activated. It is
deactivated automatically at the end of
the programme.

To deactivate the safety lock

^ Press and hold in the Start/Stop

button after the programme has
started.

Unlock in 3 secs 0

^

Keep the Start/Stop button pressed in
until the time has elapsed and the
following appears in the display:

Unlocked 1

29

Detergent

The correct detergent

All modern detergents produced for automatic washing machines are suitable.
Use dispensing aids, e.g. balls, if these are supplied with the detergent. Tablets
are suitable for full loads, but note that it may be impractical to reduce tablets for
smaller loads. Some tablets do not dissolve as rapidly as others, and may not be
suitable for programmes with short durations. Do not use biological detergents on
silk, as the enzymes may damage the silk. Instructions for use and recommended
dosage amounts are given on the detergent packaging.

Liquid detergent should be dispensed using a ball provided by the manufacturer
for programmes without a pre-wash.

For programmes with a pre-wash you will need to purchase a special container
from the Miele Spare Parts department which sits in the main wash compartment
j of the detergent dispenser drawer. Add liquid detergent to this container for
the main wash and to compartment i for the pre-wash.

All purpose

detergent for

Detergent for

coloured fabrics*

Detergent for

delicates

whites*

Cottons hygiene X X

Minimum iron

XX

hygiene

Pillows hygiene X

1)

1)

X

First wash X X

Express X X

Automatic X X

Cottons X X

Minimum iron X X

Delicates X

Shirts X X

Woollens Liquid detergent for machine-washable woollens

1) Only use liquid detergent

* Powder detergent, tablet detergent, liquid detergent and liquid tab detergent.

30

Detergent

The right amount to dispense will
depend on the following:

The quantity of laundry

–

The soiling level of the laundry

–

Lightly soiled
No visible dirt or stains. Possibly
slight body odour.

Normally soiled
Visibly dirty and/or just a few slight
stains.

Heavily soiled
Visible dirt and stains and/or dried on
soiling.

– The water hardness level.

Check with your local water supplier
if you do not know the hardness level
in your area.

Water softener

A water softener can be used to cut
down on the use of detergents in hard
water areas. Dispense according to the
amount specified on the packaging.
First add detergent and then the water
softener.

Miele branded water softening tablets
are available from the Miele Spare Parts
Department or via the internet on
www.miele-shop.com.

Use a quantity of detergent as for soft
water.

Miele do not recommend connecting
the machine to a household water
softener.

Washing with several
components

If you wash using several components
(e.g. special application detergents),
we recommend always dispensing the
agents into compartment j in the
following order:

1. Detergent

2. Water softeners

3. Stain remover

This way the agents are distributed
more evenly.

31

Detergent

Fabric conditioners and liquid
starch

Fabric conditioners make garments soft
to handle and help prevent static cling
when tumble drying.

Liquid starch stiffens and gives body to
items of laundry, e.g. shirts, tablecloths
and bed linen. N.B. Do not use liquid

starch for allergy sufferers.

Dispense according to the amount

^

specified on the packaging.

Automatic dispensing of fabric
conditioner or liquid starch at the
end of a programme

If liquid starch is used, it is extremely
important to ensure that any liquid
starch residues are removed from the
machine before it is used to wash items
for allergy sufferers.

After using liquid starch:

1. Clean the dispenser compartment,
siphon tube and conditioning
channel. See "Cleaning the detergent
dispenser drawer".

2. Run a Cottons hygiene 60°C
programme with powder detergent
but without a load to flush out the
machine.

^

Add the fabric conditioner or liquid
starch to compartment §. Do not

exceed the maximum level mark.

It will be automatically dispensed in the
last rinse. At the end of the programme
a small amount of water remains in the
fabric conditioner compartment §.

32

Disconnect the machine from the

,

mains electricity supply and
withdraw the plug from the socket
before cleaning the machine.

The washing machine must not

,

be hosed down.

A range of Miele branded cleaning and
conditioning agents are available to
order from your Miele dealer, the Miele
Spare Parts Department, or via the
internet on www.miele-shop.com

External casing and fascia
panel

Clean the casing using a Miele E-Cloth,
or with a mild non-abrasive cleaning
agent or soap and water using a well
wrung-out cloth. Wipe dry with a soft
cloth.

Cleaning and care

Extra cleaning

Carry out a hot wash (70°C or above)
with powder detergent approx. every 6
weeks to help prevent deposits building
up in the machine. These can occur
when washing is mainly done at low
temperatures, and also lead to
unpleasant smells. If you have no
reason to wash occasionally at this high
temperature, then run a Cottons 95°C
programme with detergent but no
laundry at regular intervals.

Cleaning the detergent
dispenser drawer

Remove detergent residues regularly.

^ The drum and any stainless steel

outer panels can be cleaned using a
suitable proprietary stainless-steel
cleaning agent following the
manufacturer's instructions on the
packaging.

,

Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaning agents.
These might damage plastic
surfaces and other components
because of the chemicals they
contain.

^

Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release catch and at the
same time pull the drawer right out of
the machine.

^

Clean the detergent drawer with
warm water.

33

Cleaning and care

Clean the siphon.

^

1. Remove the siphon from

compartment § and rinse under
warm running water. Clean the
siphon tube in the same way.

2. Replace the siphon.

Cleaning the detergent dispenser
drawer housing

^ Use a bottle brush to remove

detergent residues and limescale
from the jets inside the detergent
dispenser drawer housing.

If starching frequently, thoroughly
clean the siphon and siphon tube
regularly. A build-up of starch will
cause them to get clogged.

34

Descaling the machine

If the correct amount of detergent is
dispensed, the machine should not
need to be descaled. If, however, you
do wish to descale the machine only
use proprietary non-corrosive descaling
agents and strictly observe the
instructions on the packaging.

Cleaning and care

Cleaning the filter in the water
inlet

The washing machine has a filter to
protect the water inlet valve.

The accessible filter in the union in the
open end of the inlet hose should be
checked every six months, or more
often if there are frequent interruptions
to the external water supply.

First turn off the stopcock.

^

Unscrew the threaded union

^

connecting the free end of the inlet
hose to the stopcock.

^ Remove the rubber seal 1 from the

recess.

^ Using pointed pliers, take hold of the

plastic filter bar 2 and remove.

^ Clean the plastic filter.

^ Put the filter and seal back in the

reverse order and reconnect the
hose.

Turn on the stopcock and check the
connection is watertight. If water drips
out, tighten the connection.

Never forget to put the filter back in
place after cleaning.

35

Problem solving guide

With the help of the following notes, minor faults in the performance of the
machine, some of which may result from incorrect operation, can be put right
without contacting the Service Department.

Repair work to electrical appliances should only be carried out by a

,

suitably qualified person in strict accordance with current local and national
safety regulations. Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The display remains
dark, and the
Start/Stop button
indicator light does not
come on.

You are asked to enter
a code.

The display is dark. The display has

There is no power to
the machine.

Access via a code has
been activated.

switched off
automatically to save
energy (Standby
mode).

Check whether
– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

Enter the code and confirm
the entry. Deactivate the code
if you do not wish this
message to appear in the
display the next time the
machine is switched on.

Press a button. Standby
comes to an end.

36

Fault messages in the display

Problem Possible cause Remedy A

Problem solving guide

; lights up in the

display and

Drain fault

flashes.

; lights up in the

display and

Water inlet
fault

flashes.

; lights up in the

display and

Waterproof
fault

flashes.

; lights up in the

display and

Technical
fault

flashes.

Anti-crease
Chk detergent

flashes in the display.

The water outlet is

–

blocked or
restricted.

The drain hose has

–

Clean the drain filter and

–

the drain pump.
The maximum delivery

–

head is 1 m.

been fixed too high.

The water inlet is

–

blocked or
restricted.

Check whether

the stopcock is opened

–

properly.
the inlet hose is kinked.

–
– the water pressure is too

low.

The water protection

Call the Service Department.

system has reacted.

There is a fault. Start the programme again.

If the fault message appears
again, contact the Service
Department.

Excessive foam has
built up during
washing.

Use less detergent next time
and follow the manufacturer's
instructions on dosage given
on the packaging.

A To switch off the fault message: Switch the machine off with I-On/0-Off button.

37

Problem solving guide

General problems

Problem Possible cause Remedy

The machine shakes
during the spin cycle.

The laundry has not been
spun properly and is still
wet.

The laundry has not spun
satisfactorily.

The pump makes strange
noises.

There is a lot of
detergent residue in the
detergent drawer.

Fabric conditioner is not
completely dispensed or
too much water remains
in the § compartment.

The display is in a
different language.

When laundry is dry, it
feels hard to the touch.

The machine feet are not
level.

The machine detected an
imbalance during the final
spin and reduced the
spin speed automatically.

The spin speed selected
was too low.

This is not a fault! These noises occur at the end of a
pump sequence as a normal part of the operation.

The water pressure is too
low.

Powder detergent used
with water softeners can
be sticky.

The siphon tube is not
correctly positioned or is
clogged up.

A different language has
been selected in the
Programmable functions

- Language J menu.

Too vigorous wash action. Programme in gentle

Not enough detergent
used.

No fabric conditioner
used

Level the machine (see
"Installation").

Include both large and
small items in the load as
this will give better
distribution.

Select a higher spin
speed next time.

– Clean the water inlet

filter.

– Select Water plus.

Add washing powder
and then add the water
softener.

Clean the siphon, (see
"Cleaning and care ­Cleaning the detergent
dispenser drawer").

Set the language you
want. The flag symbol
will guide you.

action and more water.

Increase detergent dose
to prevent limescale
build-up in laundry.

Use fabric conditioner in
last rinse.

38

Problem solving guide

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent
does not give the
required result.

Grey, greasy
particles cling to
washed laundry.

A stale smell is in
the drum and on
laundry.

White residues
which look like
powder detergent
are seen on dark
textiles after
washing.

Clothes are coming
out creased.

Liquid detergents
usually contain no
bleaching agents.
They do not remove
fruit, coffee and tea
stains.

Insufficient amounts of
detergent were used
to break down the
particles of grease in
heavily soiled laundry.

Low temperature
washing.

The detergent
contained compounds
(zeolites) to aid water
softening which are
not soluble in water.
They have ended up
on the laundry.

Programme was
overloaded.

The wrong
programme was used.

Use a general purpose

–

detergent containing a
bleaching agent.

Pour stain removers into

–

compartment j of the
dispenser drawer and liquid
detergent into a dispenser ball.

Never put stain removers and

–

liquid detergent together in the
dispenser drawer.

– Use more detergent.
– Before washing the next load

run a Cottons 95°C programme
with powder detergent but
without a load.

– Before washing the next load

run a Cottons 95°C programme
with powder detergent but
without a load.

–

Try and brush off the residues
with a soft brush once the
laundry is dry.

–

Wash dark textiles using a
detergent which contains no
zeolites. Liquid detergents
usually contain no zeolites.

–

Use the Dark garments
programme.

–

Reduce quantity of clothes in
drum.

–

Check care labels and the
programme chart.

–

Use easy iron conditioners.

39

Problem solving guide

The drum door does not open when you press the Door button

Possible cause Remedy

The machine is not
connected to the
electricity supply and/or is
not switched on.

The safety lock has been
activated.

Access via a code has
been activated.

Power cut. Open the drum door as described in the next

The door was not correctly
engaged.

There is still water in the
drum and the machine is
unable to drain.

For safety reasons the drum door cannot be opened if the suds temperature is
higher than 55°C.

Insert the plug in the socket and switch on and/or
switch the machine on with the I-On/0-Off button.

Deactivate the safety lock as described in
"Changing the programme sequence - Safety
lock".

Deactivate the code as described in
"Programmable functions - Code".

section.

Press hard against the lock side of the drum door
and then press the Door button.

Clean the drain filter and drain pump as described
in the next section.

40

Problem solving guide

Opening the drum door in the
event of a blocked drain outlet
and/or power failure

Switch the washing machine off.

^

There is a lever behind the detergent
drawer fascia panel.

^ Remove the lever.

Blocked drain outlet

If the drain outlet is blocked, up to
25 litres of water will be retained in the
machine.

Caution: if laundry has been

,

washed at a high temperature, water
draining out of the machine will still
be hot. Danger of scalding!

Procedure for draining the machine

Place a suitable container under the

^

access flap.

When draining water from the
machine, do not unscrew the drain
filter completely or take it right out.

^

Use it to open the access flap.

^

Unscrew the drain filter lid until water
runs out.

To interrupt the flow of water:

^

Tighten the drain filter back up again.

41

Problem solving guide

Once the flow of water ceases:

Remove the drain filter completely.

^

^ Clean it thoroughly.

Make sure the drain filter is

,

securely tightened. Otherwise there
is a risk of water leakage during use.

Opening the drum door

Always make sure that the drum

,

is stationary before reaching into the
machine to remove laundry.
Reaching into a moving drum is
extremely dangerous.

^

Remove any foreign objects (e.g.
buttons, coins, etc.) and fluff from the
filter housing. Turn the impeller by
hand to check that it rotates freely.
Any foreign object causing an
obstruction should be removed.

^

Put the drain filter back in place and
secure.

42

^

Pull the emergency release
downwards (see illustration). The
drum door will open.

After sales service

In the event of any faults which you
cannot remedy yourself, please
contact:

your Miele Dealer or

–

the Miele Customer Contact Centre

–

(see back cover for contact details).

When contacting your Dealer or Miele,
please quote the model and serial
number of your machine, both of which
are shown on the data plate visible
above the porthole glass when the door
is open.

Future updates (PC)

The indicator light marked PC is the
interface used by Miele service
technicians during servicing work for
testing purposes and for updating the
machine's programme data.

Appliance guarantee

Please see the guarantee card
supplied with your machine.

Optional accessories

Optional accessories for this washing
machine are available from your Miele
Dealer, the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.

Please note that telephone calls may
be monitored and recorded for
training purposes.

43

Installation and connection

Front view

a Inlet hose with "Waterproof" system

b Electricity supply cable

c - f Flexible drain hose (with

detachable swivel elbow)

g Control panel

44

h Detergent dispenser drawer

i Drum door

j Access to drain filter, drain pump

and emergency release

k Handle recesses for moving the

machine

l Four height adjustable feet

Rear view

Installation and connection

a Protruding lid for holding when

moving the machine

b Electricity supply cable

c Inlet hose with "Waterproof" system

d Drain hose

e Transit bar covers

f Restraining clip for inlet hose and

drain hose

g Restraining clips for transit bars

when removed

45

Installation and connection

Installation surface

A concrete floor is the most suitable
installation surface for a washing
machine, being far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted
surface.

Please note the following points:

The machine must be level and

^

securely positioned.

To avoid vibrations during spinning,

^

the machine should not be installed
on soft floor coverings.

If installing on a wooden joist floor:

^ We recommend a plywood base

(at least 59x52x3 cm). The base
should span several joists and be
bolted to the joists and not only to the
floorboards. Check for the presence
of pipes and cables.

If possible, install the machine in a
corner, as this is usually the most stable
part of the floor.

Installing the washing machine

To manoeuvre the machine out of its
packing case to its installation site hold
it by the edge of the lid where it
protrudes to the rear of the washing
machine as well as by the handle
recesses at the front.

Ensure that the machine feet and

,

the floor are dry to prevent the
machine from slipping during the
spin cycle.

Removing the transit bars

,

If the machine is installed on a
raised plinth, it has to be secured
against slippage during spinning
using retaining clips (available from
the Miele Spare Parts Dept).

46

^

To remove the left and right covers

1. Use a screwdriver to prise out the

cover as illustrated.

2. Pull the cover forwards to remove.

Installation and connection

Using the spanner supplied turn the

^

left-hand transit bar 90°, then

^

withdraw the transit bar.

Turn the right-hand transit bar 90°,

^

then

^

withdraw the transit bar.

47

Installation and connection

To avoid the risk of injury the

,

holes for the transit bars must be
covered after the transit bars have
been removed.

^ Fit the covers on to the two holes.

Then plug the holes as shown with
the caps.

Secure the transit bars to the back of

^

the washing machine. Make sure that
holes b are fitted over retainers a.

The washing machine must not

,

be moved without the transit bars in
place.
Store the transit bars as shown or
keep them in a safe place for future
use. They must be re-fitted if the
machine is to be moved again
(e.g.when moving house).

48

Re-fitting the transit bars

Re-fitting is carried out by reversing the
procedure.

Levelling the machine

The machine must stand perfectly level
on all four feet to ensure safe and
proper operation.

Incorrect installation may increase
electricity and water consumption and
may cause the machine to move about.

Screwing out and adjusting the feet

The four adjustable screw feet are used
to level the machine. All four feet are
screwed in when the machine is
delivered.

Installation and connection

Use a spirit level to check the

^

machine is standing level.

^ Hold foot 1 securely with a pipe

wrench. Turn counter nut 2 again
using the spanner supplied until it
sits firmly up against the housing.

,

All four counternuts must be
firmly up against the housing. Please
also check this for the feet which did
not need adjustment. Otherwise
there is the danger of the machine
moving about.

^

Using the spanner supplied turn
counter nut 2 in a clockwise
direction. Then turn counter nut 2
together with foot 1 to unscrew.

49

Installation and connection

The fitting of building under kits and
stacking kits must only be
undertaken by qualified and
competent persons, in accordance
with the instructions supplied with
the kit.

Washer and Dryer stack

A Miele tumble dryer can be stacked
with the washing machine. A "WTV"
stacking kit* is necessary and can be
purchased from the Miele Spare Parts
Department or via the internet at
www.miele-shop.com.

Building under a continuous
worktop/in a kitchen run

If you wish to push your machine under
a worktop and there is space to do this
without removing the lid, the
conversion kit is not necessary.
Otherwise the conversion kit is
essential.

– A special building under conversion

kit* is required.
To ensure electrical safety, the
washing machine lid must be
replaced by the cover plate supplied
with the conversion kit.

– For installation under a work surface

900/910 mm from the floor, a raising
kit* is required.

–

Connections for electricity, water and
drainage should be installed in such
a way that they remain accessible
when the machine is in place.

Fitting instructions are supplied with the
conversion kit.

All parts marked* are available from
your Dealer or the Miele Spare Parts
Department.

Please note

a Safety distance to wall:

at least 2 cm

b Height:

Stacking kit with pull-out shelf:
approx. 169 cm
Stacking kit without pull-out shelf:
approx. 170 cm

Replacing the lid

50

If the lid has been removed in order to
fit a stacking kit or cover plate, ensure
that, if the lid is replaced, it fits securely
into the rear holders. Otherwise, it is not
properly secure for transport.

Installation and connection

The Miele Waterproof system

The Miele Waterproof system protects
the washing machine from water
damage.

The system consists of three main
components:

1) the inlet hose

2) the electronic unit and the washing
machine housing

3) the drain hose

1) Inlet hose

– The inlet hose is fitted with an

additional electrical safety valve
which works like an automatic
stopcock and is housed in the inlet
hose connection box.

– It is pressure tested to between

7,000 and 10,000 kPa.

– The inlet hose has a protective

sleeve.

2) Electronic unit and washing
machine housing

Sump

–

Any leaking water is collected in a
sump in the base of the machine. A
float switches off the safety valves,
preventing any more water from
flowing into the machine and water in
the suds container is pumped away.

Overflow protection

–

This prevents the washing machine
taking in too much water. If the water
level exceeds a certain level, the
drain pump switches in and pumps
the excess water away.

3) Drain hose

The drain hose is protected by a
ventilation system which prevents the
washing machine from being
emptied completely.

Any leaking water from the inlet hose
is fed into the sump through this
protective sleeve. A float switches off
the safety valve, preventing any
more water from flowing into the
machine and water in the suds
container is pumped away.

51

Installation and connection

Connection to the water supply

The plastic casing of the safety

,

valve contains electrical
components. The Waterproof system
must only be connected to its own
stopcock. It must not be connected
to mixer taps or similar and must not
be fitted in areas where there is the
risk of water or other liquids
reaching it.

Do not get wet.

The machine should be connected to
the mains water supply in accordance
with local and national safety
regulations. The German authorities do
not require it to have a non-return valve
as the washing machine has been
designed to comply with DIN
regulations.

The machine is designed to operate
with a flow pressure of between 100
and 1,000 kPa (1-10 bar). If it is higher
than 1,000 kPa it is essential to fit a
pressure reducing valve.

Connection to the mains water supply
should incorporate a mains stopcock

3

with

/4" thread. The stopcock should

be fitted by a qualified plumber.

,The connection point is subject

to mains water pressure. Turn on the
stopcock slowly and check for leaks.
Correct the position of the washer
and union if appropriate.

The protective sleeve of the hose
must not be damaged or kinked.

52

The washing machine is not suitable
for connection to a hot water supply
and connection to a household
water softener is not recommended.

Maintenance and care

If you intend to unscrew the Miele
Waterproof system hose from the
stopcock it is essential to disconnect
the machine from the electricity supply
first.

Only use a Miele Waterproof system
hose should you need a replacement.

In order to protect the water inlet
valve, the dirt filter in the water inlet
valve connection must not be
removed.

Extension hose

A 1.5 metre long (metal) extension hose
is available from your Miele dealer or
the Miele Spare Parts Department as an
optional extra.

This hose is tested to withstand
pressures of up to 14,000 kPa and can
be used as a flexible extension to the
water supply.

Installation and connection

N.B. Using this hose renders the
Waterproof system safety valve on the
inlet hose ineffective.

53

Installation and connection

Connection to the drainage
system

The machine drains via a drain pump
with a delivery head of 1 metre*. The
drain hose must not be kinked as this
restricts drainage. The swivel elbow at
the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull.

If required, the drain hose can be
extended to a length of 5 m. The
necessary parts can purchased from
the Miele Spare Parts Department or
your Miele dealer.

* For a delivery head of more than 1 m
(up to a max. of 1.8 m) a replacement
drain pump will need to be fitted.
Please contact the Miele Spare Parts
Department or your Miele Dealer.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following:

–

Hook the hose over the edge and
secure.

Please note:

a Adapter

b Nut

c Hose clip

d End of the hose

^ Fit adapter a to the sink drain outlet

using nut b.

^ Attach the end of the hose d to

adapter a.

^

Use a screwdriver to tighten hose
clip c up close to the nut.

–

Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the drained
water being sucked back into the
machine.

2. Connected securely to a plastic

drain pipe with a rubber nipple.
There is no need to use a non-return
valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

54

Installation and connection

Electrical connection U.K.

All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
current national and local safety
regulations (BS 7671 in the UK).

Ensure power is not supplied to the
appliance until after installation work
has been carried out.

The appliance is supplied with a mains
cable with moulded plug ready for
connection to a 230-240V mains
supply.

Please ensure the connection data
quoted on the data plate match the
household mains supply.

Connection should be made via a
suitable switched socket which is easily
accessible after installation.

For extra safety it is advisable to install
a suitable residual current device
(RCD). Contact a qualified electrician
for advice.

Non-rewireable plugs BS 1363

The fuse cover must be refitted when
changing the fuse, and if the fuse cover
is lost, the plug must not be used until a
suitable replacement is obtained. The
colour of the correct replacement cover
is that of the coloured insert in the base
of the plug, or the colour that is
embossed in words on the base of the
plug (as applicable to the design of
plug fitted).

Replacement fuses should be ASTA
approved to BS 1362 and have the
correct rating. Replacement fuses and
fuse covers may be purchased from
your local electrical supplier.

WARNING: THIS APPLIANCE
MUST BE EARTHED

Do not connect via an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).

55

Consumption data

Load Consumption data

Energy Water Duration

in kWh in litres Short Normal

Cottons hygiene 60°C 6.0 kg 1.50 69 – 2 h 25 min

Minimum iron hygiene 60°C 3.0 kg 1.10 72 – 2 h 10 min

Pillows hygiene 60°C 1 pillow 1.40 44 – 1 h 59 min

First wash 30°C 3.0 kg 0.45 35 – 1 h 01 min

Express 40°C 3.0 kg 0.30 34 – 30 min

Automatic 40°C 3.5 kg 0.35 - 0.50 40 - 55 – 1 h 18 min

Cottons 95°C 6.0 kg 1.99 47 2 h 09 min

Minimum iron 40°C

Delicates 30°C 2.0 kg 0.35 69 49 min 59 min

Shirts 60°C 2.0 kg 1.00 59 1 h 02 min 1 h 12 min
Woollens / 30°C 2.0 kg 0.23 39 – 39 min

Notes for test institutes:

1)

EN 60456 test programme

2)

Short programme for test institutes; the Short extra option must be selected.

1)

60°C

60°C 3.0 kg 0.73 39 1 h 02 min

40°C

40°C

6.0 kg 1.02 47 1 h 49 min

1)

6.0 kg 0.65 59 2 h 04 min

2)

3.0 kg 0.36 39 59 min.

1)

3.0 kg 0.50 55 59 min 1 h 19 min

Consumption data can vary from the nominal values given depending on water
pressure, water hardness, water inlet temperature, room temperature, type and
volume of load, fluctuations in the electricity supply and any extra options
selected.

56

Technical data

Height 850 mm

Width 595 mm

Depth 580 mm

Depth with door open 975 mm

Height for building under 820 mm

Width for building under 600 mm

Depth for building under 600 mm

Weight 94 kg

Maximum floor load 1600 Newton (approx. 160 kg)

Capacity 6 kg dry laundry

Voltage see data plate

Connected load see data plate

Fuse rating see data plate / plug

Consumption data see "Consumption data"

Water flow pressure minimum 100 kPa (1 bar)

Water flow pressure maximum 1000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Mains connection cable length 1.60 m

Delivery head max. 1.00 m

Maximum drainage length 5.00 m

Test certificates awarded see data plate

57

Programmable functions
for changing default settings

The programmable functions are used to alter the machine's electronics to suit
changing requirements.
Programmable functions can be altered at any time.

Programmable functions

To access programmable functions

The programmable functions are
accessed via the Start/Stop button
and the programme selector.

Before you begin, first ensure that:

The washing machine is switched off.

–

The machine is properly closed.

–

A Press the Start/Stop button and keep

it pressed in whilst carrying out steps

B-C.

B Press the I-On/0-Off button in.

C As soon as...

Language !...

. . . appears in the display, release
the Start/Stop button.

To select a programmable function

D Turn the programme selector until

the programmable function you
require appears in the display.

E Press the Start/Stop button to confirm

your selection.

To alter a programmable function

You can see the different options
available for a programmable function
by turning the programme selector.

The option which is currently set will
have a tick L beside it.

F Turn the programme selector until

the option you want appears in the
display.

G Press the Start/Stop button to

activate this option.

To come out of programmable
functions

H Turn the programme selector until

Back

A appears in the display.

I Press the Start/Stop button.

Language F

The display can be set to appear in
one of several different languages.

The flag J after the word Language
acts as a guide to prevent a language
which will not be understood from
being set.

The language selected is saved to
memory.

59

Programmable functions

Water plus

This programmable function is used
to select the water intake setting for
the Rinse plus extra option.

There are three different options:

Water +

The water level is increased in the wash
and rinse stages.

Extra rinse

(the machine is delivered with this
option selected)

An extra rinse is introduced.

Water+ & Extra rinse

The water intake is increased in the
wash and rinse stages and an extra
rinse is carried out.

Gentle action

Activating gentle action reduces the
drum action and is suitable for
washing slightly soiled items more
gently. It should be activated for
garments with a single bar under the
care label and for articles which feel
too hard after they have been dried.

Gentle action can be activated for the
Cottons and the Minimum iron
programmes.

The washing machine is delivered with
the Gentle action setting deactivated.

Suds cooling

When this is activated, additional
water flows into the drum at the end
of the main wash to cool the suds
down. Hot suds can damage plastic
drainage pipes.

Suds cooling takes place when
temperatures of 95°C and 75°C are
selected.

60

Suds cooling should be activated:

–

to prevent the danger of scalding if
the drain hose is hooked over the
edge of a sink or basin.

–

where the drainage pipes do not
comply with DIN 1986.

The machine is delivered with Suds
cooling deactivated.

Code

A code can be used to lock the
electronics on the washing machine
to prevent it being used without your
knowledge.

When the code has been activated, you
have to enter a code after switching the
washing machine on. Otherwise the
washing machine cannot be operated.

Programmable functions

125

Press the Start/Stop button.

^

The following will appear in the display:

Code activated

Once the machine is switched off, it
can only be used again if the code is
entered.

Code ...

Press the Start/Stop button.

^

To activate the code

Activate

^ Press the Start/Stop button.

The display will now request that a
code is entered.

To enter the code

The code is 125 and cannot be altered.

O __ __

^

Turn the programme selector until the
first number appears in the display.

^

Confirm your selection of the number
by pressing the Start/Stop button.

^

Repeat the process until all three
numbers have been entered.

To use the washing machine when
the code is activated

When the machine is switched on
again, the display will request the code.

^ Enter code 125 as described above

and confirm the entry.

The washing machine is now unlocked
and ready for use.

To deactivate the code

Make sure the washing machine is
switched off and the door is properly
closed. Press the Start/Stop button and
keep it pressed in whilst you press the
l-On/0-Off button in.

As soon as...

O __ __

. . . appears in the display, release

the Start/Stop button.

^

Now enter the code and press the
Start/Stop button.

^

Select Code and confirm Deactivate.

61

Programmable functions

Temperature unit

You can chose for the temperature to
be displayed as °C/Celsius or
°F/Fahrenheit.

The machine is delivered with
°C/Celsius as the default setting.

Buzzer

When the buzzer function has been
activated, an audible tone sounds at
the end of a programme or when
Rinse hold is reached.

There are two volumes:

Normal

(the machine is delivered with this
option as the default setting.)

The buzzer sounds at the end of a
programme or when Rinse hold is
reached.

Loud

The buzzer sounds at maximum volume
Loud at the end of a programme or
when Rinse hold is reached.

Keypad tone

An audible tone sounds each time a
button is pressed.

The machine is delivered with the
keypad tone deactivated.

Brightness

There are ten different display
brightness settings.

The bar chart shows you the setting.

The machine is delivered with the
display brightness on setting 5.

This will change as soon as a different
setting is chosen.

Contrast

There are ten different display
contrast settings.

The bar chart shows you the setting.

The machine is delivered with the
display contrast on setting 5.

This will change as soon as a different
setting is chosen.

62

Programmable functions

Standby display

To save energy, the display goes out
and the indicator light for the
Start/Stop button will start flashing
slowly.

The display will always go out,

if a programme is not selected within

–

10 minutes of the machine being
switched on.

10 minutes after the end of a

–

programme.

Pressing one of the buttons switches
the display back on again.

You can also choose whether you want
the display to go out 10 minutes after a
programme has started or to remain
visible throughout the programme.

On

The standby function is switched on.
When this option is selected, the
display will go out 10 minutes after a
programme has started.

Not in current prog.

Memory

The washing machine will store the
most recently selected settings
(programme, temperature, spin
speed and any extra options) in
memory once the programme has
started.

These settings will appear in the
display the next time the machine is
switched on.

The machine is delivered with the
memory function deactivated.

Anti-crease

Anti-crease helps prevent creasing if
laundry is not normally removed
immediately after the end of a
programme.

The drum will turn at intervals for up to
30 minutes after the programme has
finished.

The door can be opened and laundry
removed at any time during the
anti-crease phase.

(the machine is delivered with this
option selected)

The standby function is switched off.
The display will remain visible during a
programme.

On

(the machine is delivered with this
option selected)

Anti-crease is activated.

Off

Anti-crease is deactivated.

63

Optional accessories

Miele washing machines offer perfect
care for your laundry and feature a
wide range of special programmes
designed to suit the fabric being
washed. And now Miele have
developed a range of specialist
CareCollection detergents and
conditioning products to offer you a
complete package for cleaning and
caring for your laundry.

The Miele CareCollection detergents
and conditioning products are listed
below. You can order these and many
other useful products via the internet at:

All the products can also be ordered
via the Miele Customer Contact Centre
(see back cover for contact details).

CareCollection

Miele specialist detergents

"Outdoor wear"

This specialist detergent will clean your
water-repellent outerwear with care.

"Sportswear"

The Miele Sportswear detergent is
designed to clean sportswear whilst
taking care of the special microfibres
used in these garments. It will help to
neutralise and remove odours whilst
protecting the colour of the fabric and
preventing static build-up.

"Down Items"

This special-purpose detergent
contains a mild tenside and has been
specially formulated to keep down-filled
items supple and to give them bounce.

64

Miele proofing agent

This special finishing agent reproofs
garments against wind and water and
provides a dirt-repellent finish whilst
retaining elasticity and breathability.

Optional accessories

"UltraWhite" detergent

This multi-purpose powder detergent
has excellent stain removal properties
and is suitable for white and light
coloured laundry as well as heavily
soiled coloured items.

"UltraColor" detergent for coloured
garments

This liquid detergent is particularly
suitable for cleaning coloured and dark
garments. The special formulation
offers effective stain removal, even at
low temperatures, while helping to
prevent colours fading.

Liquid detergent "For Delicates"

This liquid detergent is ideal for the
gentle treatment of delicate fabrics,
such as wool and silk. Its special
formulation cleans effectively at
temperatures as low as 20°C, while
protecting the colour of your delicate
garments.

Fabric conditioner

The Miele fabric conditioner will give
your laundry a fresh, natural fragrance.
It makes garments soft to handle and
prevents static build-up during tumble
drying.
