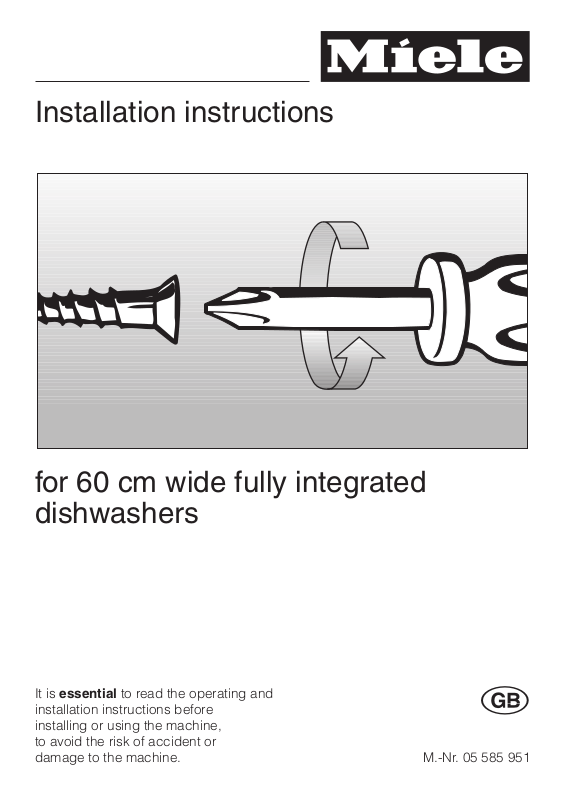

Installation instructions
for 60 cm wide fully integrated
dishwashers
It is essential to read the operating and
installation instructions before
installing or using the machine,
to avoid the risk of accident or
damage to the machine.
G
M.-Nr. 05 585 951
These installation instructions apply to several different dishwasher models.
Model numbers in this booklet refer to the model designation specified on the
data plate on the machine (and not the description on the control panel).
The data plate is located on the right hand side of the door when open.
The model numbers quoted refer only to the basic model number, e.g. the
G 643SC-Vi is described as the G 643.
It is essential to read the "Warning and Safety Instructions" in the Operating
Instruction booklet before installing the dishwasher.
2
Contents
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Opening the door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Opening the door when the fixing bracket has been taken off: . . . . . . . . . . . . . 4
Building in dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1. Fitting protective cover plate to worktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Building the dishwasher into a niche. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Dishwasher height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Securing pieces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Fitting the matching door front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. Adjusting the door front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5. Securing the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6. Adjusting the door springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7. Matching the plinth facia of a kitchen run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connection to the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Venting the drainage system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Special accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3
Installation
This dishwasher is specially designed
for integration under a worktop run in a
fitted kitchen.
The front of the dishwasher is de
–
signed to take a front panel. It can be
fitted with a base unit door front to
match the rest of the kitchen.
The dishwasher does not have a
–
plinth facia. The plinth area of the
dishwasher needs to be covered ei
ther with a plinth facing to match the
kitchen furniture or with one which
can be ordered as a special acces
sory. The separate plinth facia can
be height adjusted to suit the
kitchen. The plinth return is freely adjustable.
Instructions for installing the dishwasher are described in the following
sections.
,
To ensure stability, these dishwashers must only be installed under a continuous worktop which
must be securely screwed to neigh
bouring units.
-
-
Opening the door
-
-
^ Hold one corner of the upper fixing
bracket and pull towards you (small
arrow).
Opening the door when the fixing
bracket has been taken off:
,
The dishwasher must not be in
stalled under a hob. The high radi
ant temperatures which are some
times generated by a hob could
damage the dishwasher.
4
-
-
-
^
Insert your finger into the T-shaped
opening in the door opener and pull
the door open.
Installation
Building in dimensions
Dishwasher models G 643 - G 663
1) Machine height 870 mm
2) Machine height 820 mm
Adjustment range approx. 5 cm
(82 -87 cm total height).
Extended machine feet are available at
extra cost, (special accessory) where a
machine height of 87 to 92 cm is required.
Dishwasher models G 843 - G 863
1) Machine height 890 mm
2) Machine height 840 mm
Adjustment range approx. 5 cm
(84 - 89 cm total height).
Extended machine feet are available at
extra cost, (special accessory) where a
machine height of 89 to 94 cm is required.
5
Installation
1.Fitting protective cover plate
to worktop
The plexiglass relfector panel and all
other installation items required are
included in the accessories pack
supplied with the dishwasher.
When the dishwasher is built-in, the
left hand side of the reflector panel
must be sited above the in-operation
light in the dishwasher control panel.
Wood or laminate worktops:
The underside of the worktop is pro
tected against steam rising from the
machine by a special cover plate.
A plastic holder is located on the left
hand side of the cover plate for the
dishwasher’s control light reflector
panel.
If two different materials meet up
,
at the front edge of the worktop, then
the join must be concealed by the
cover plate.
^ Remove the protective backing from
the cover plate.
-
The procedure for fitting the reflector
panel will depend on the type of
worktop.
On wood and laminate worktops the
reflector panel is fitted together with the
protective cover plate.
The reflector panel is fitted without the
protective cover plate on granite and
marble worktops.
6
^
Squeeze sealant from the tube sup
plied all the way along the hollow
moulding in the cover plate.
-
Align the cover plate to the front
^
edge of the worktop in the middle of
the niche.
If the worktop has a very rounded
edge, pull the cover plate further forward so that the reflector panel is still
visible later on.
^ Use the tacks supplied to nail the
cover plate to the underside of the
worktop.
Worktops with wood or laminate edging:
Nail the tacks through the holes fur
ther back from the edge.
Installation
Press the reflector panel into the
^
plastic holder in the cover plate.
-
^
Use soapy water to wipe off any ex
cess sealant.
-
7
Installation
Granite or marble worktops:
Worktops made from hard materials
such as granite or marble do not need
the cover plate for protection. The
cover plate is only used as a guide for
marking the position for the reflector
panel plastic holder.
Keep the cover plate in case the dish
washer is ever fitted under another type
of worktop.
First, remove the protective foil cover
^
ing the plastic holder for the reflector
panel and then take the holder out of
the cover plate.
-
Stick the doublesided adhesive strip
^
supplied onto the back of the plastic
holder.
-
^ Remove the protective foil from the
adhesive strip and stick the holder to
the underside of the worktop at the
marked position.
^
Align the cover plate to the front
edge of the worktop in the middle of
the niche. Draw around the cut-out
for the plastic holder.
If the worktop has a very rounded
edge, pull the cover plate further for
ward so that the reflector panel is vis
ible later.
8
-
^
Press the reflector panel into the
-
plastic holder.
Installation
2.Building the dishwasher
into a niche
Connection to water and drainage
should be sited beside and not behind
the dishwasher for accessibility.
Connections are usually made in the
area under the sink. Many kitchen unit
manufacturers provide a cut-out in the
base of the sink base unit for the hoses
to be fed through.
If the base unit has no opening and if
there is not an opening through the
plinth area for connections, one must
be cut.
Dishwasher height
Adjust the height manually before in
^
stalling the dishwasher.
Leave a space of approx. 5 mm be
low the worktop to allow the dish
washer to be pushed back easily into
the recess. Make sure that the dish
washer stands level.
It is easier to adjust the screw feet if the
weight of the dishwasher is not bearing
down on them.
If possible tip the machine slightly.
Slides
You will find the slides in the upper basket of the dishwasher.
They make installation of the dishwasher easier and protect the floor from
possible damage when moving the appliance into and out of the recess. They
are also used for adjusting the height of
the rear screw feet.
-
-
-
-
Suggested dimensions: 60 x 110 mm.
,
There must be no electrical
sockets behind the dishwasher.
Danger of overheating and fire risk if
the dishwasher were to be pushed
up against a plug.
^
Fit the slides - with the ratchet at the
rear - under the screw feet.
9
