Page 1

Attenuators

Fixed • Variable • Stepped • Digital

Table of Contents

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Definition of Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Attenuators, Fixed Coaxial Miniature SMA Type. . . . . . . . . . . . . .8

Subminiature SMA Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Ultraminiature SMA Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3.5mm 26 GHz Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

QPL - MIL-3933 Qualified and High Reliability . . . . . . . . . . . . . .18

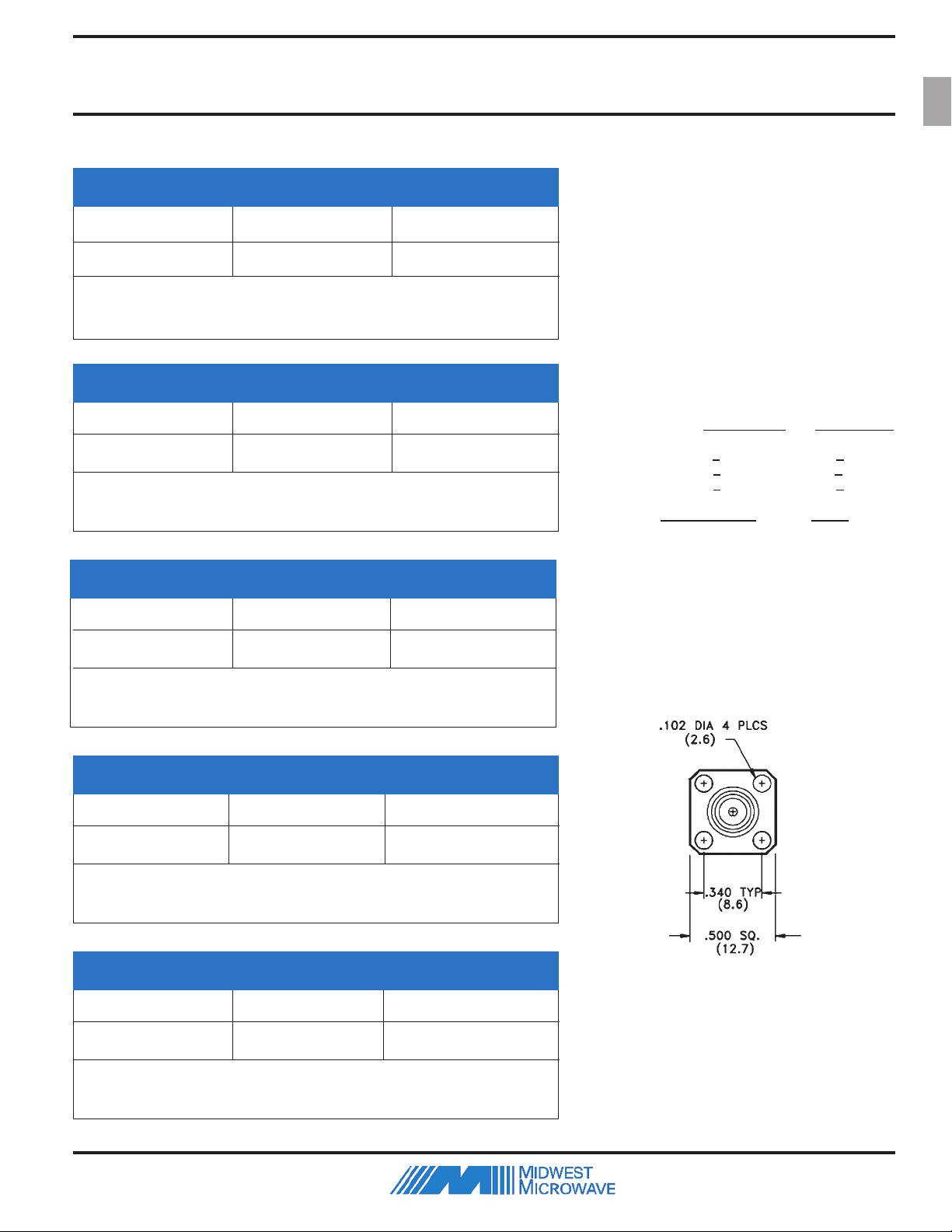

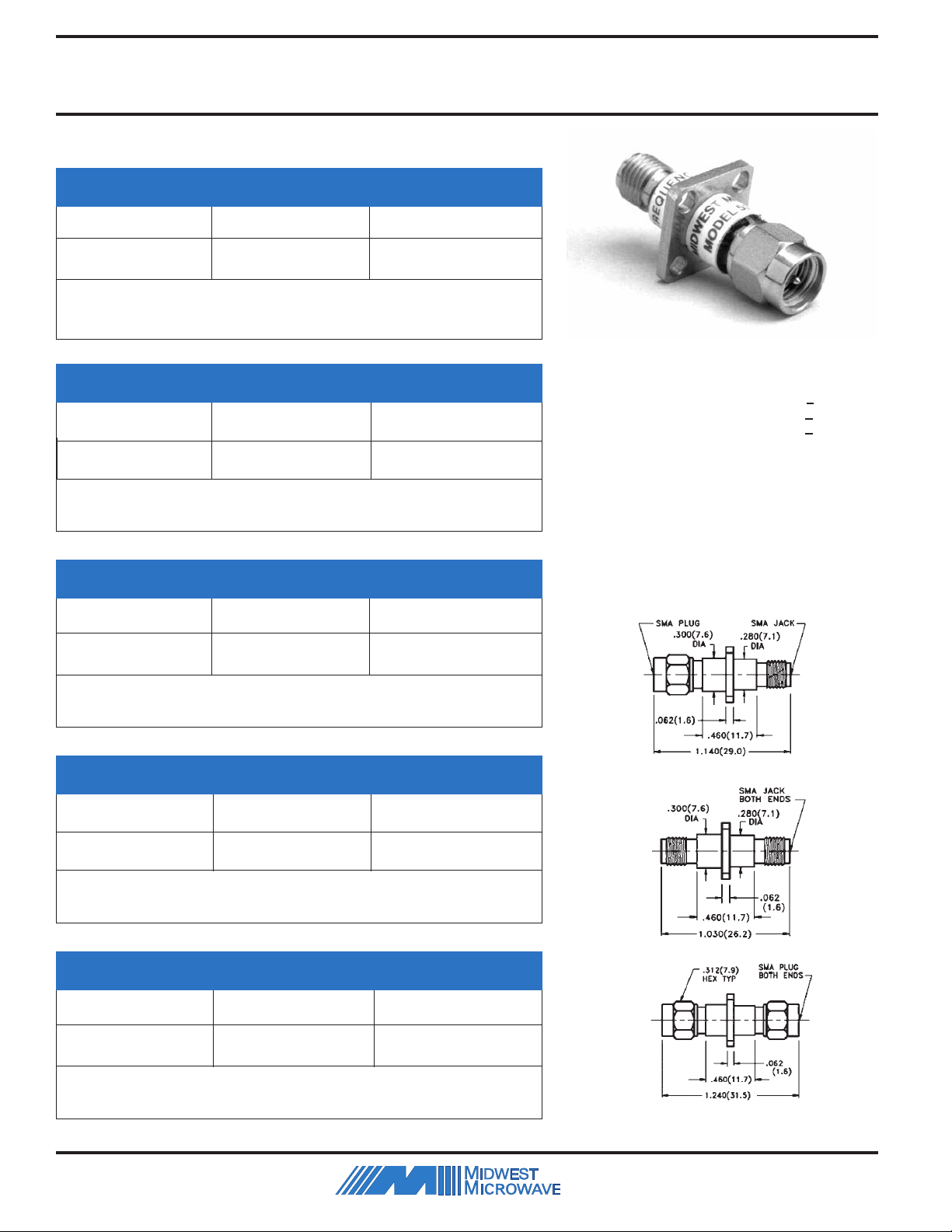

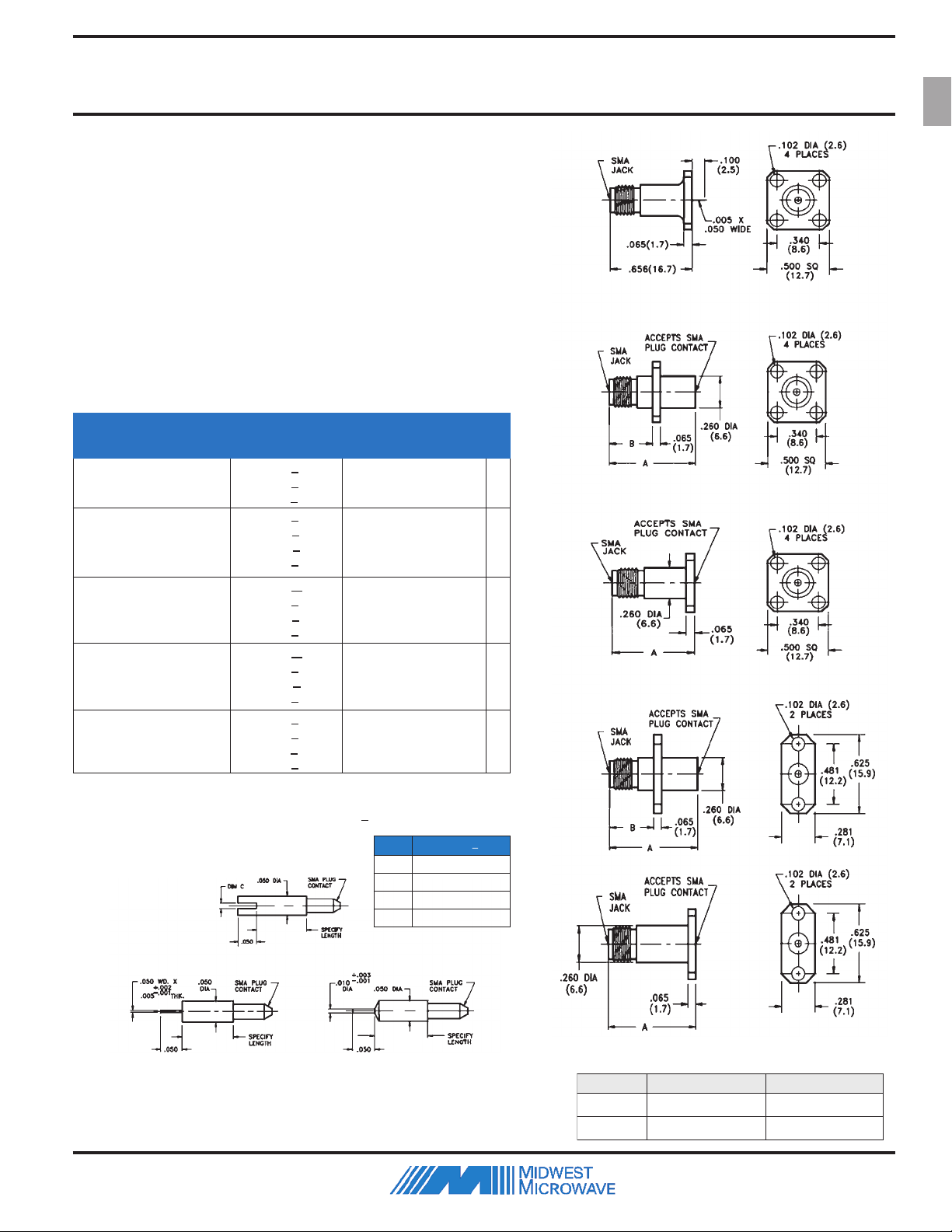

SMA Connector - Attenuators - Flanged Mounted . . . . . . . . . . .19

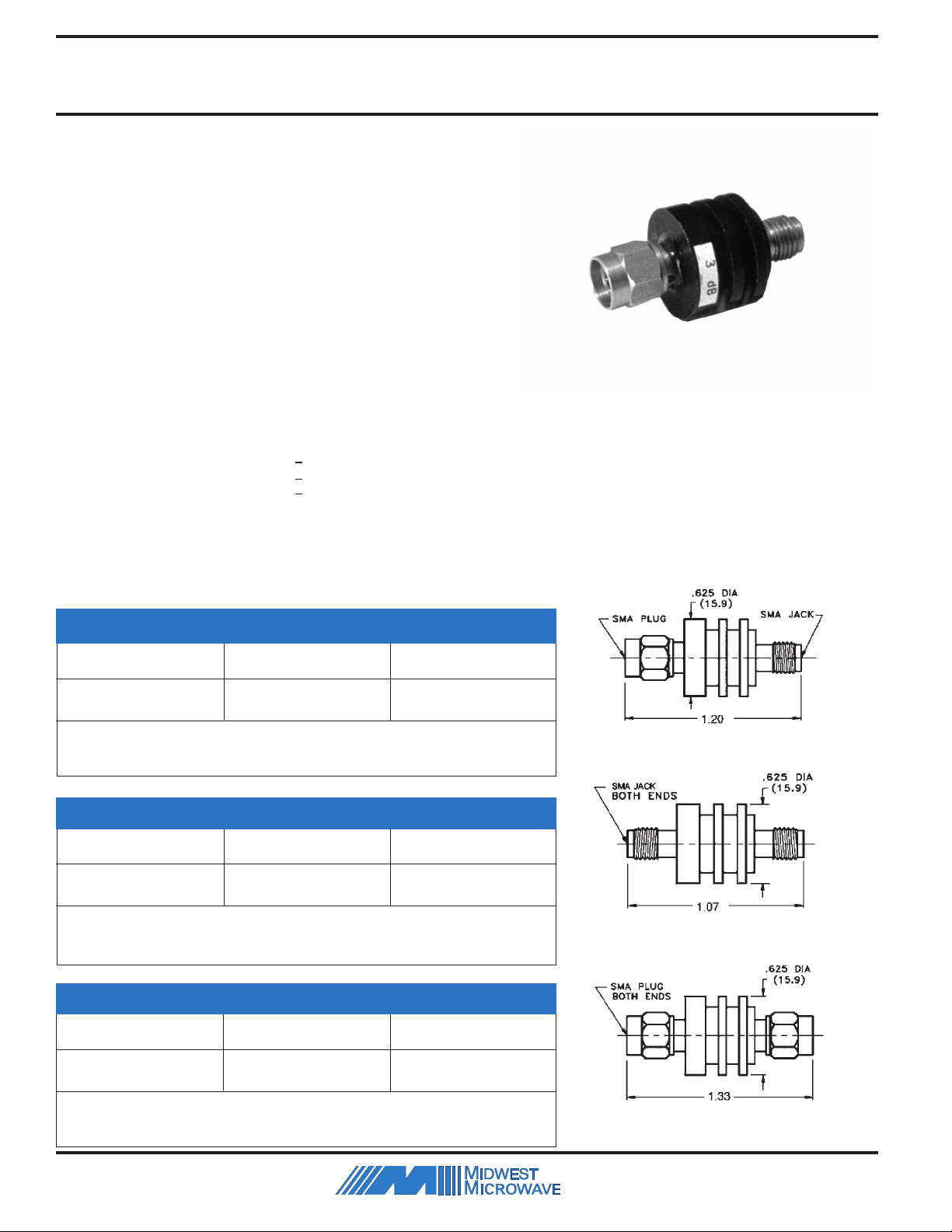

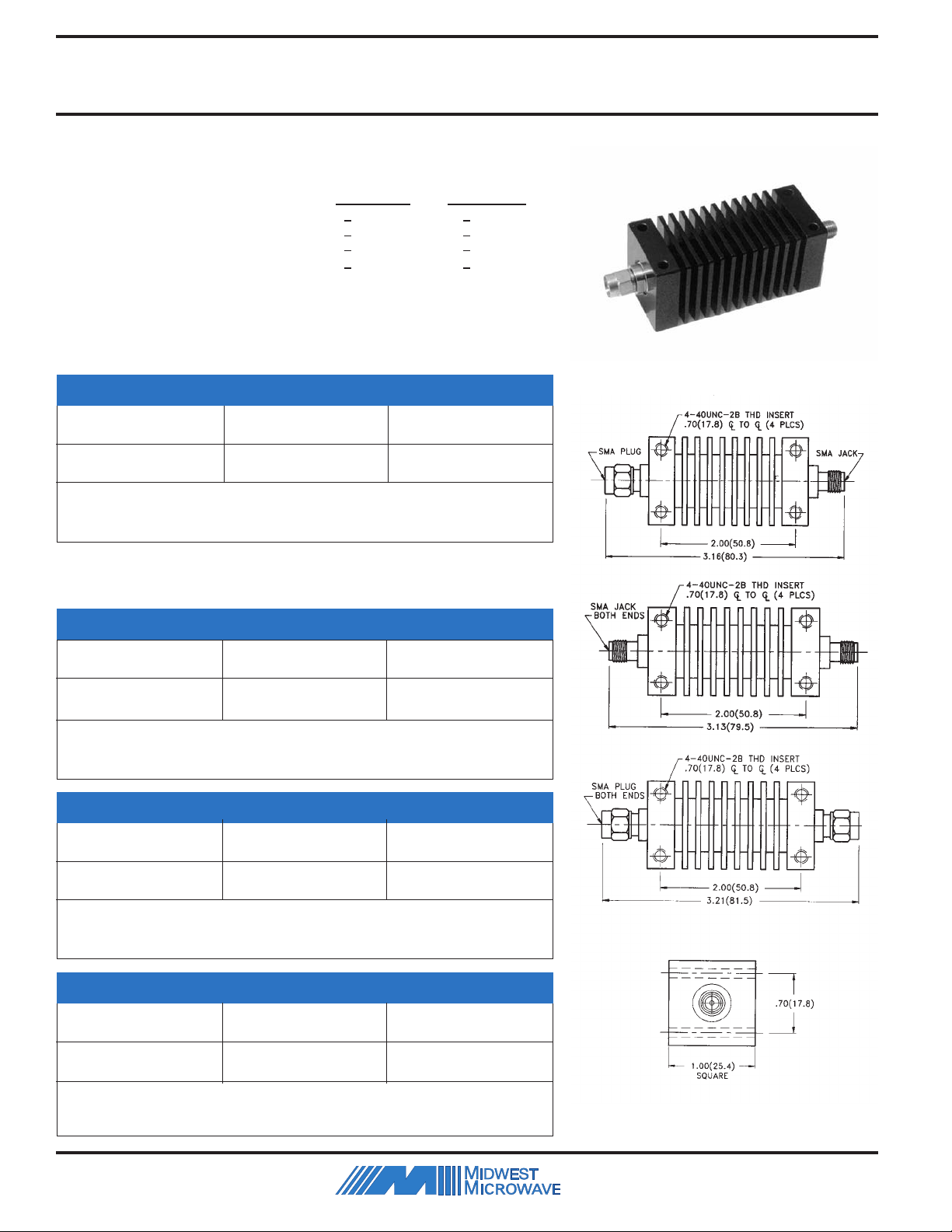

Medium Power SMA Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

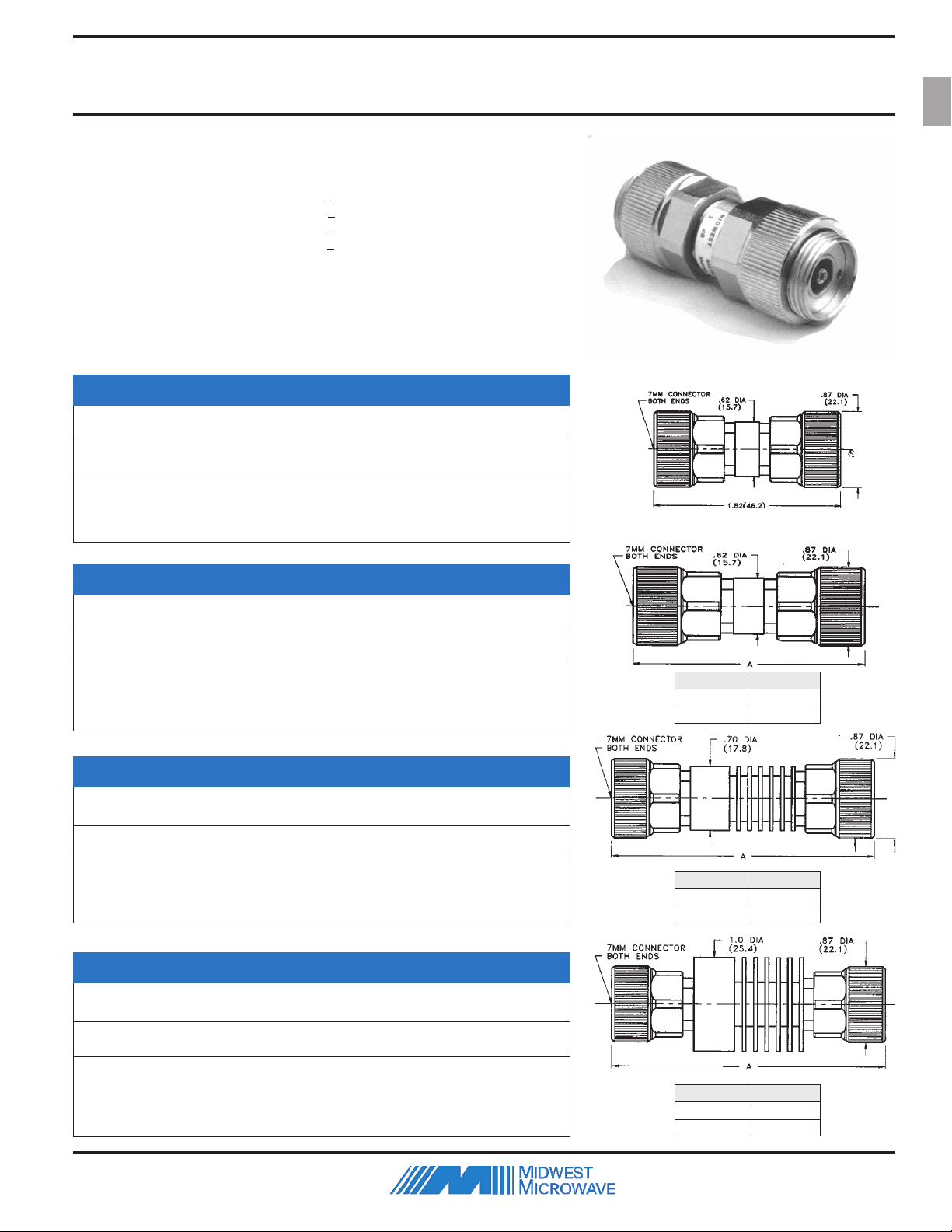

7mm Precision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

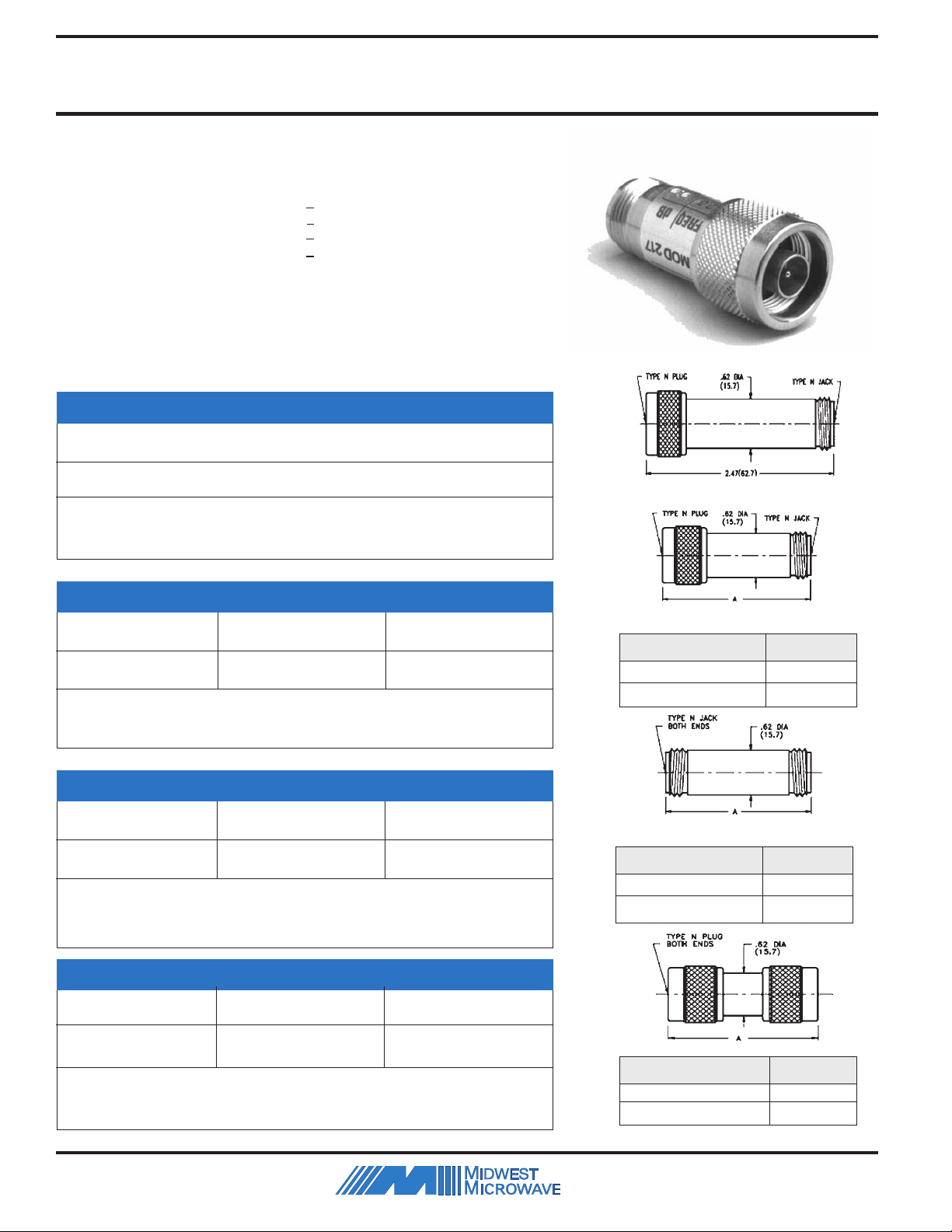

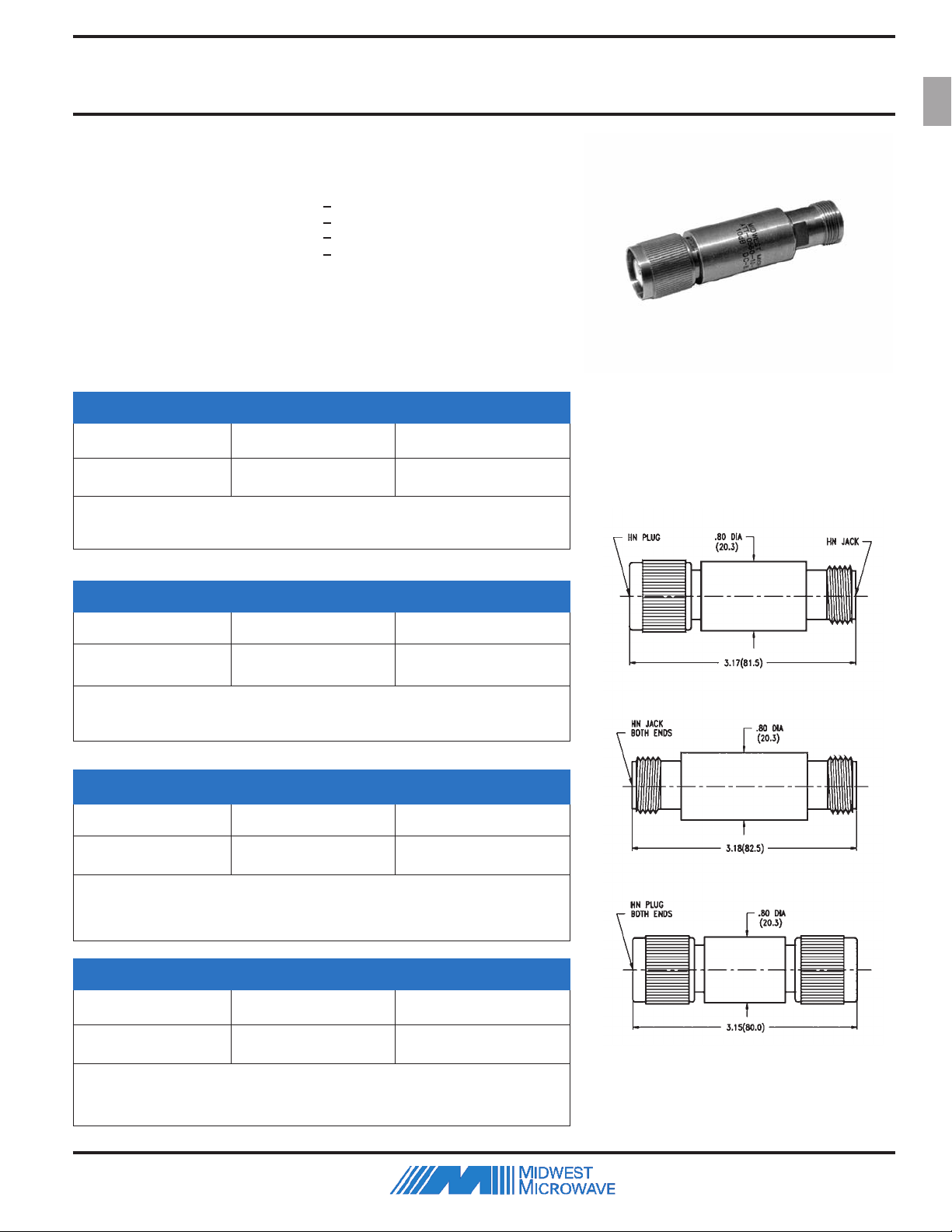

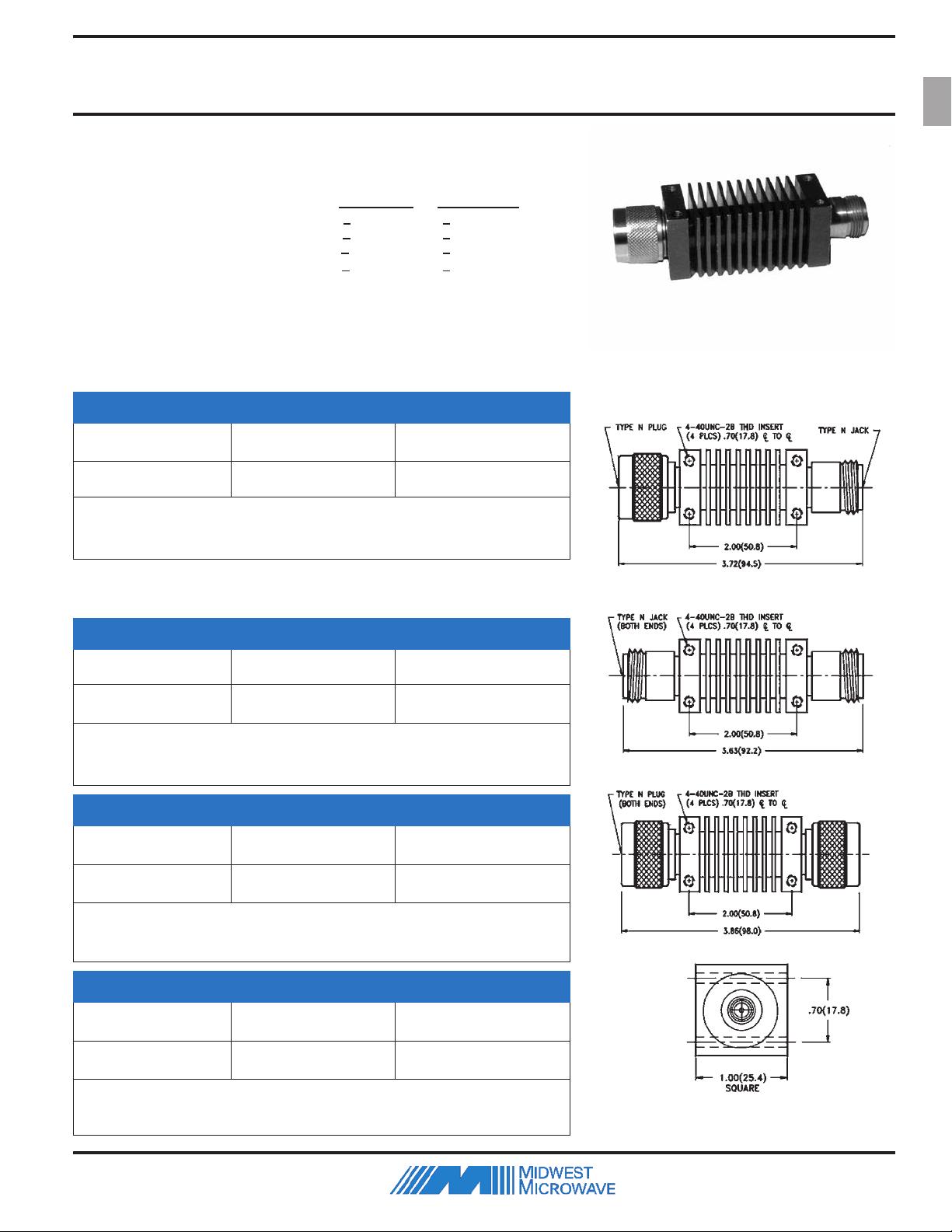

N Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

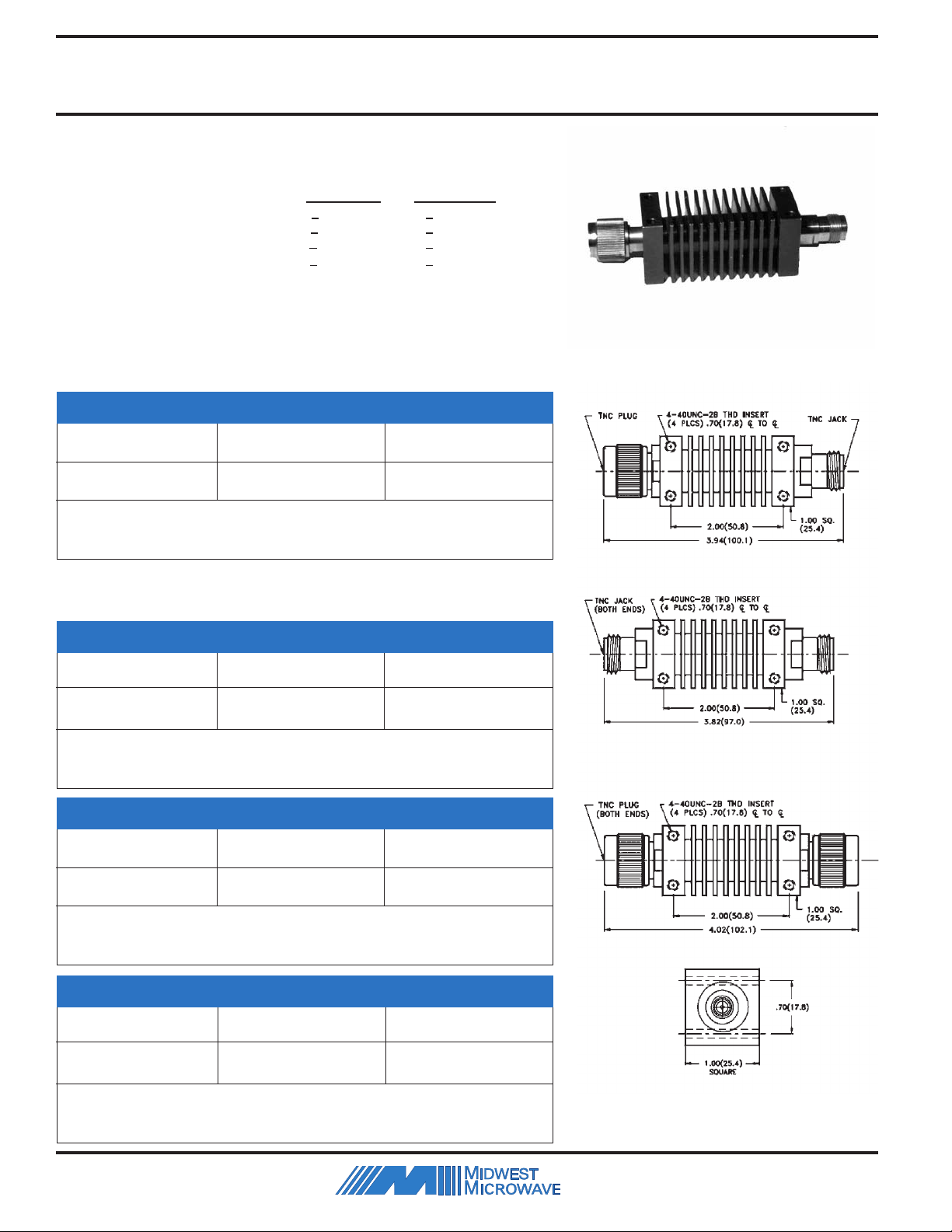

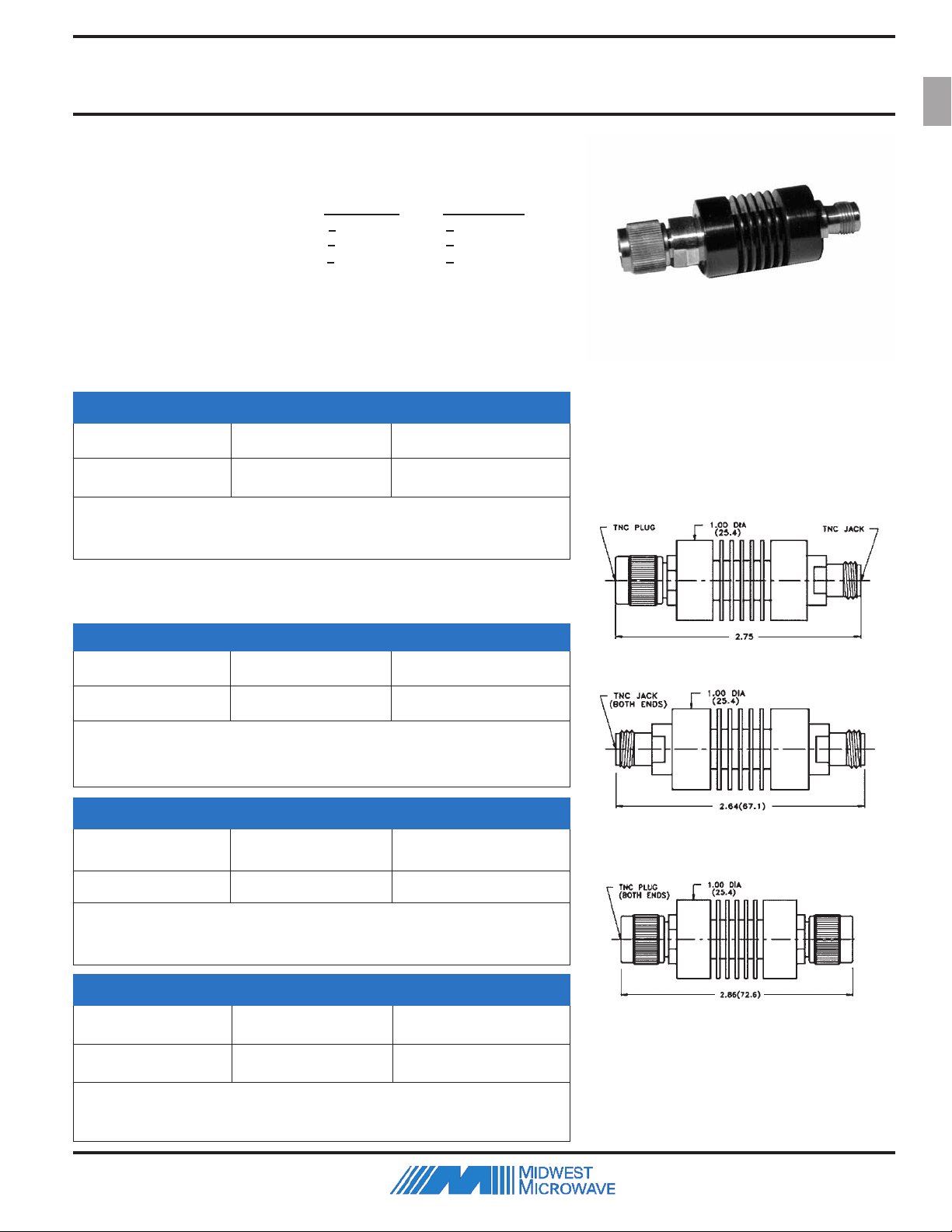

TNC Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

BNC Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

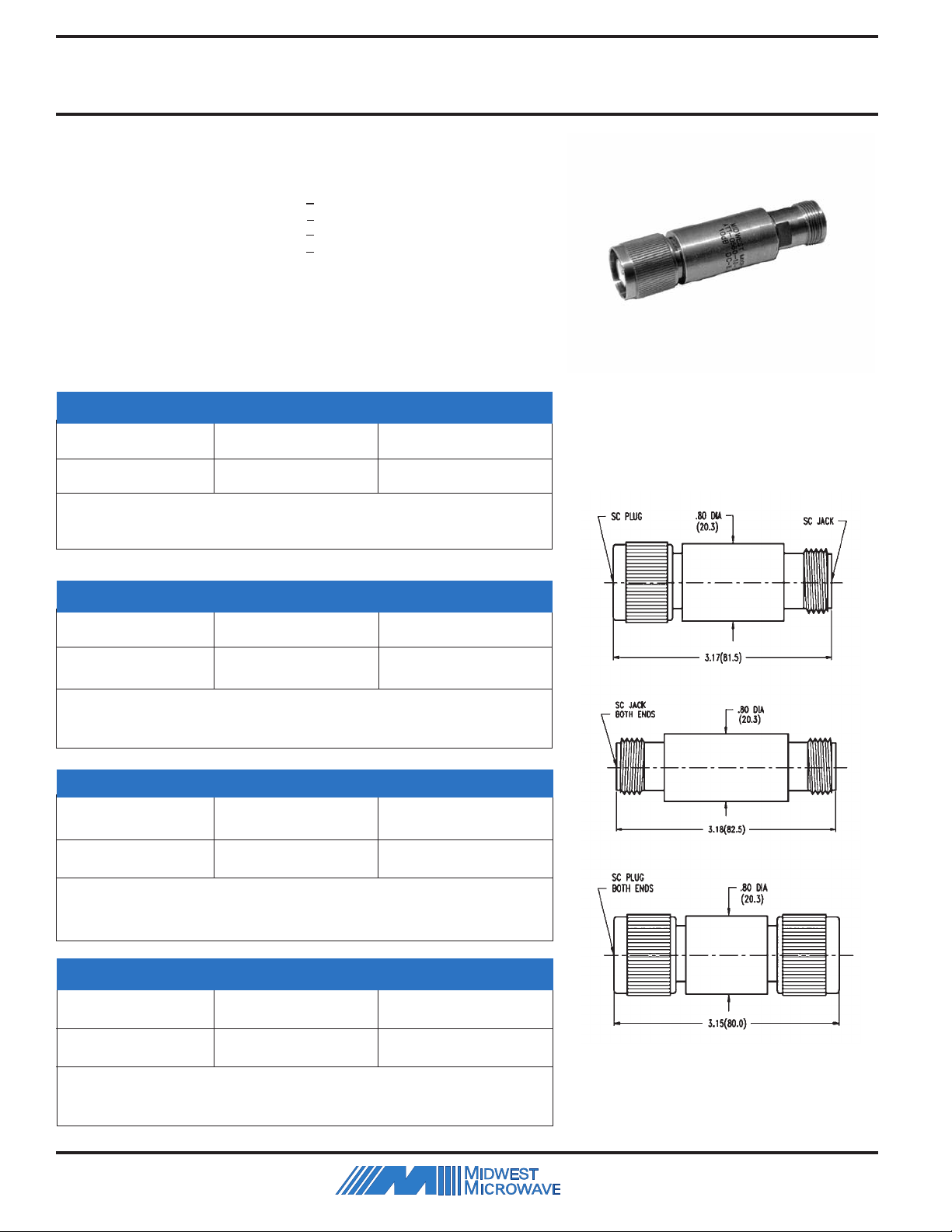

SC Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

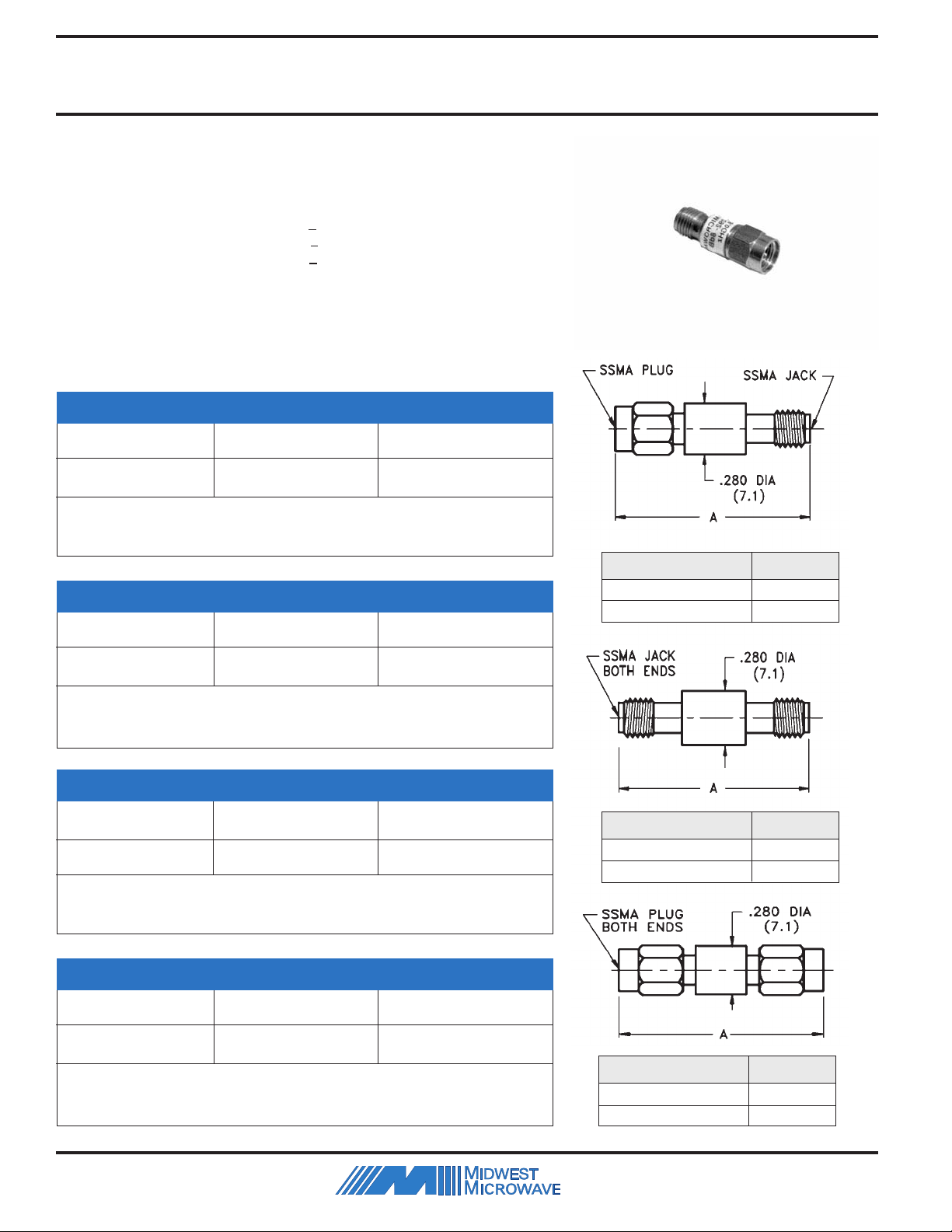

SSMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

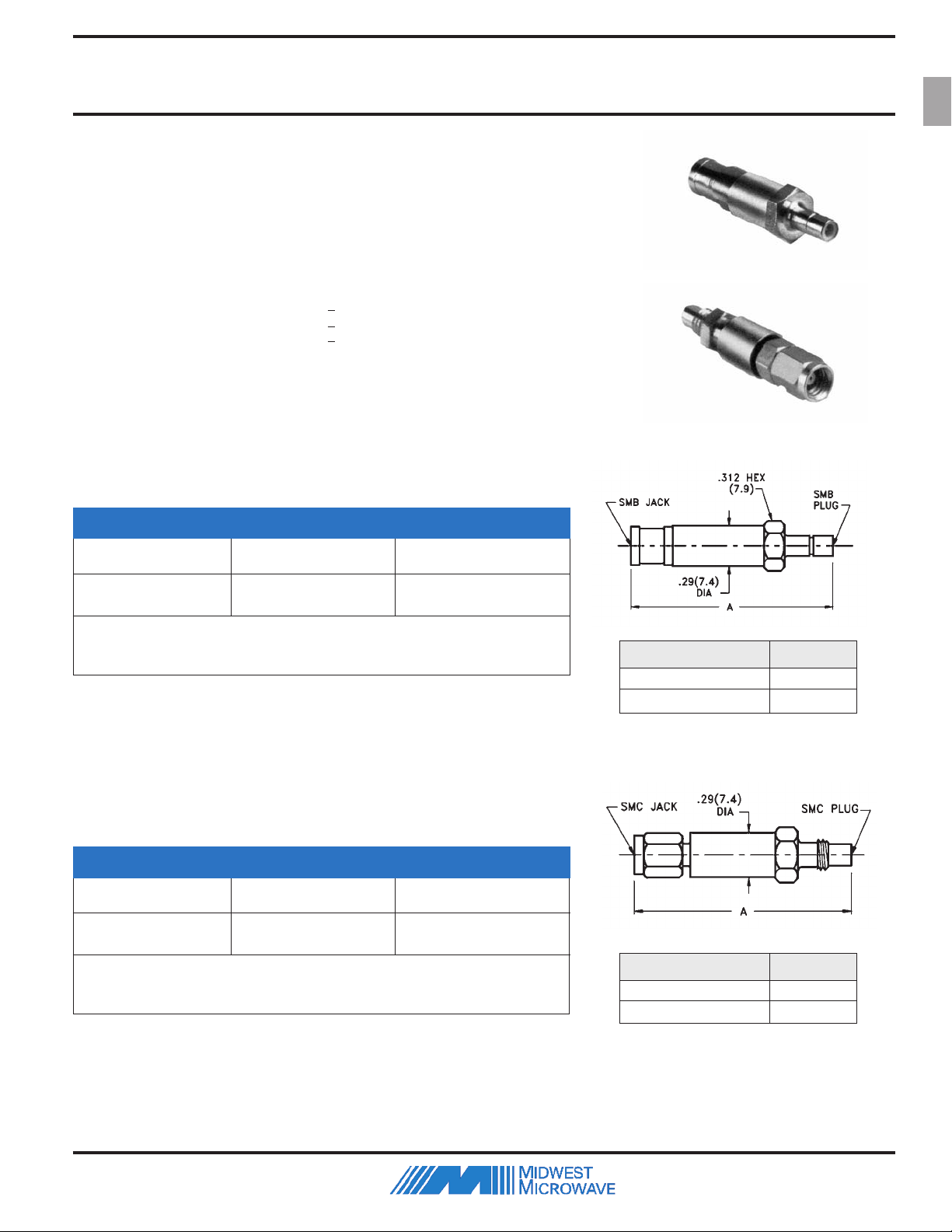

SMB & SMC Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

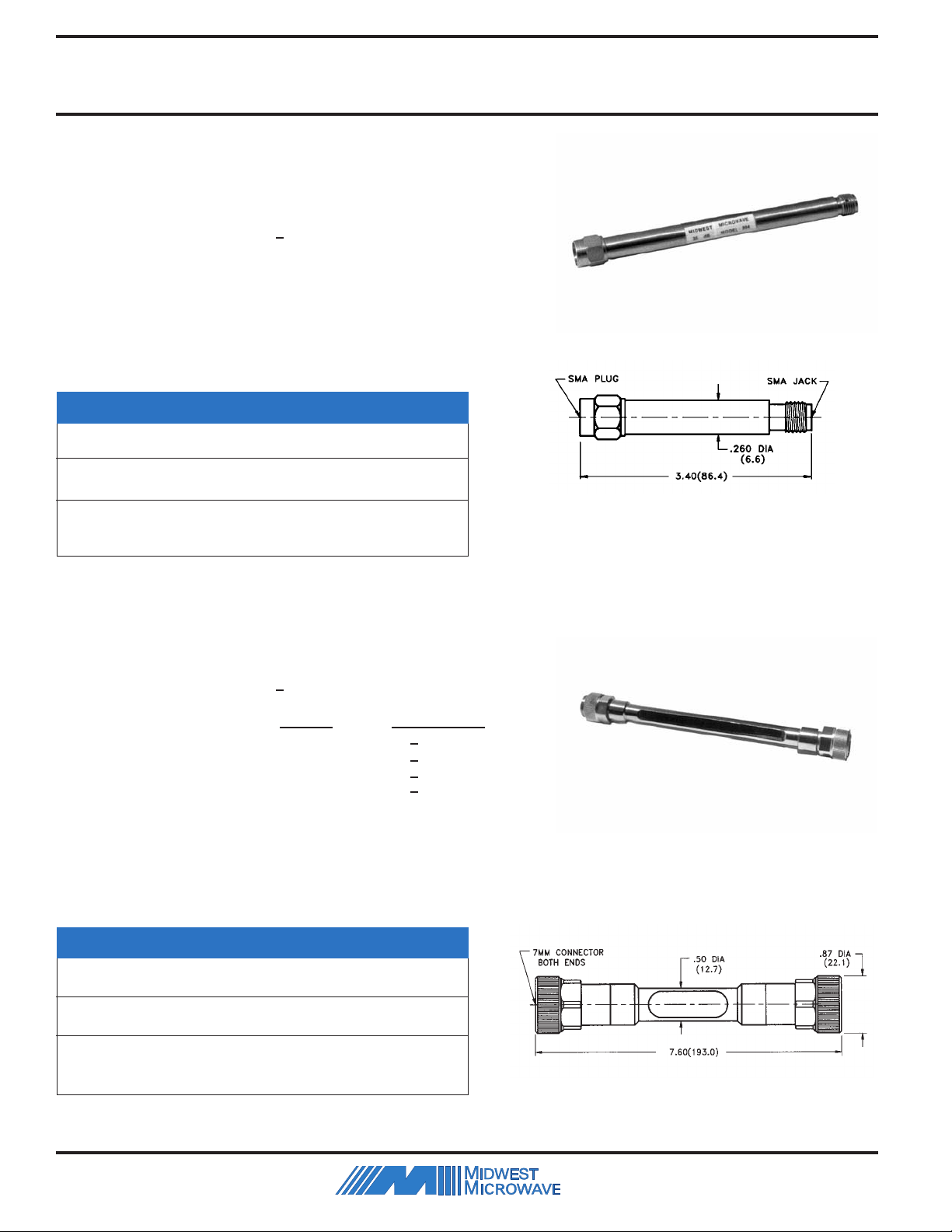

Lossy Line Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

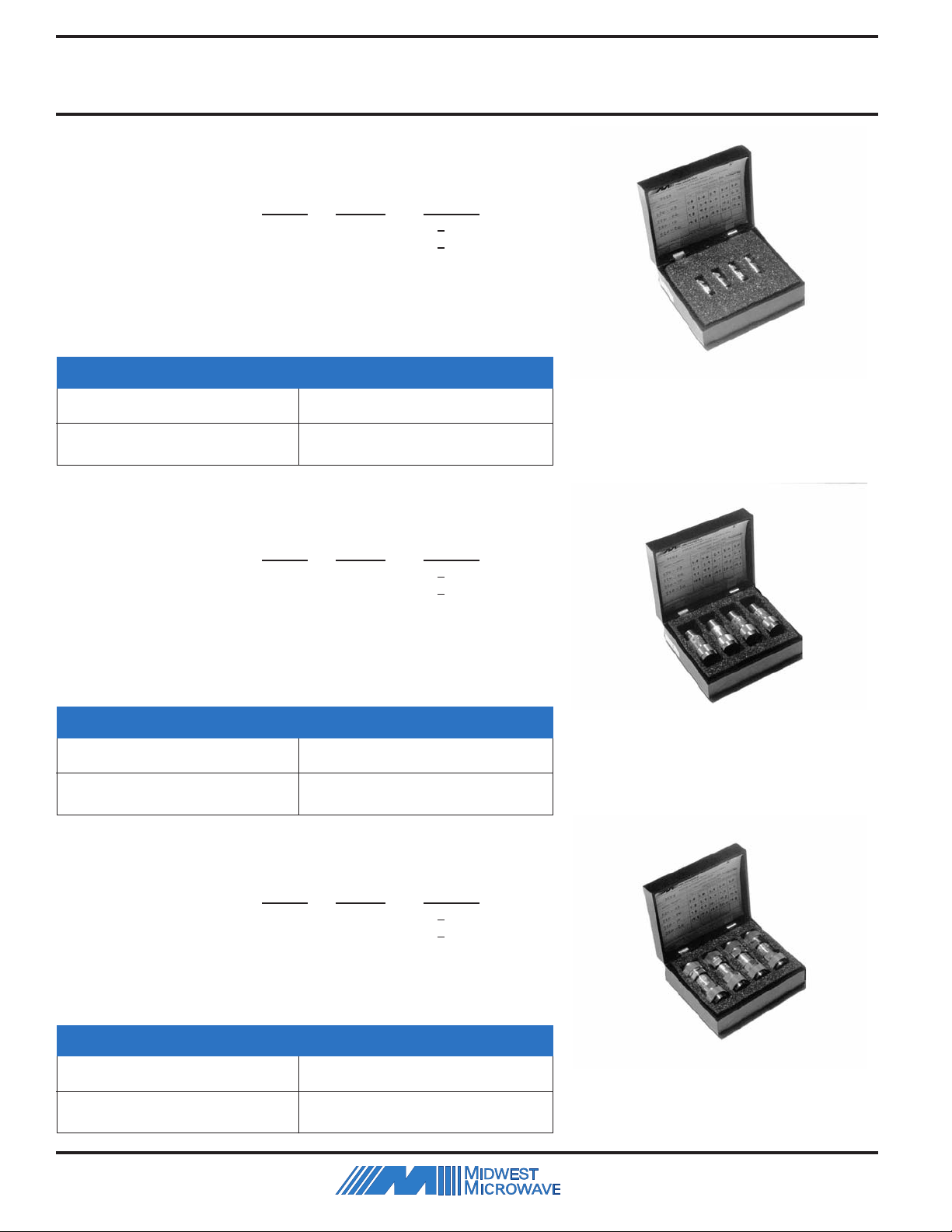

Attenuator Calibrated Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

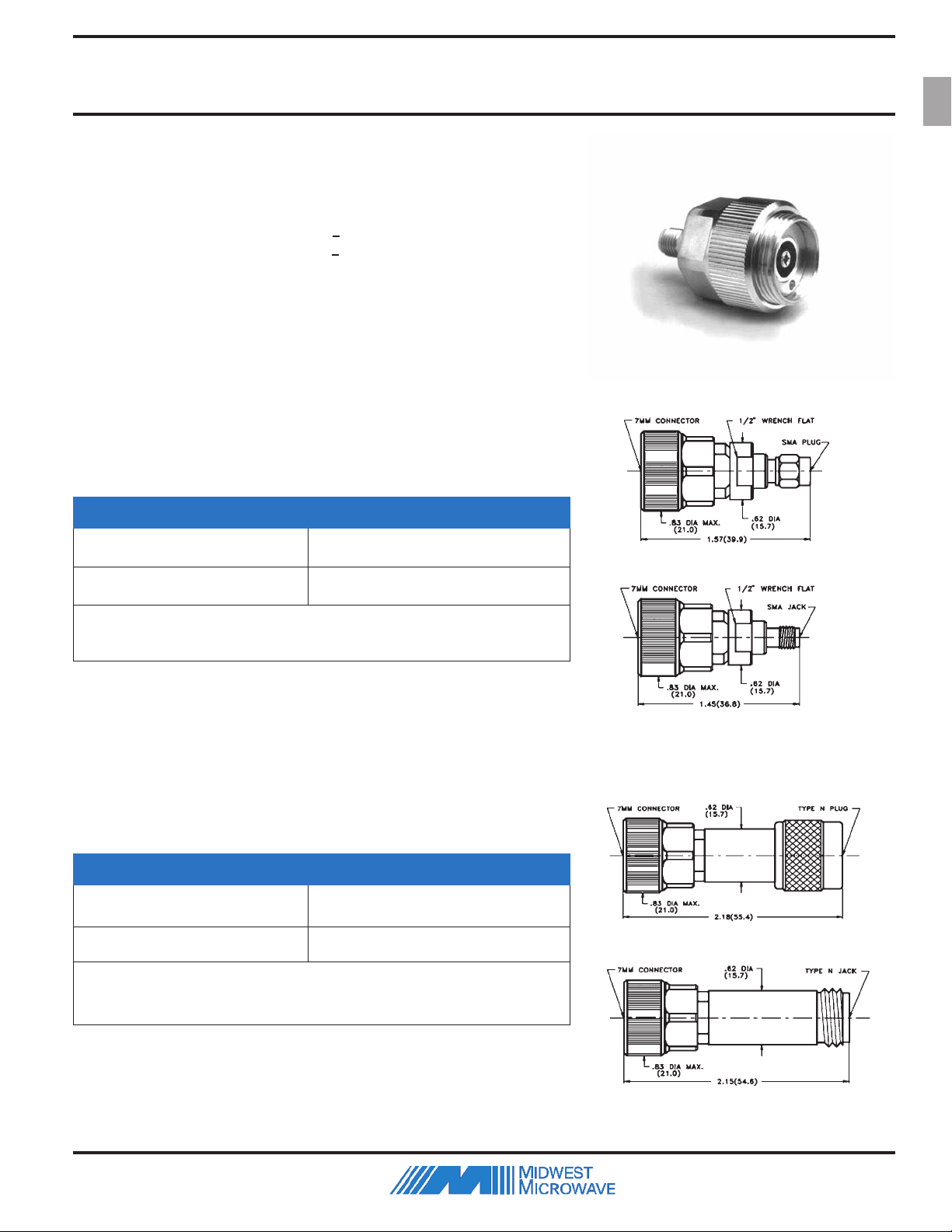

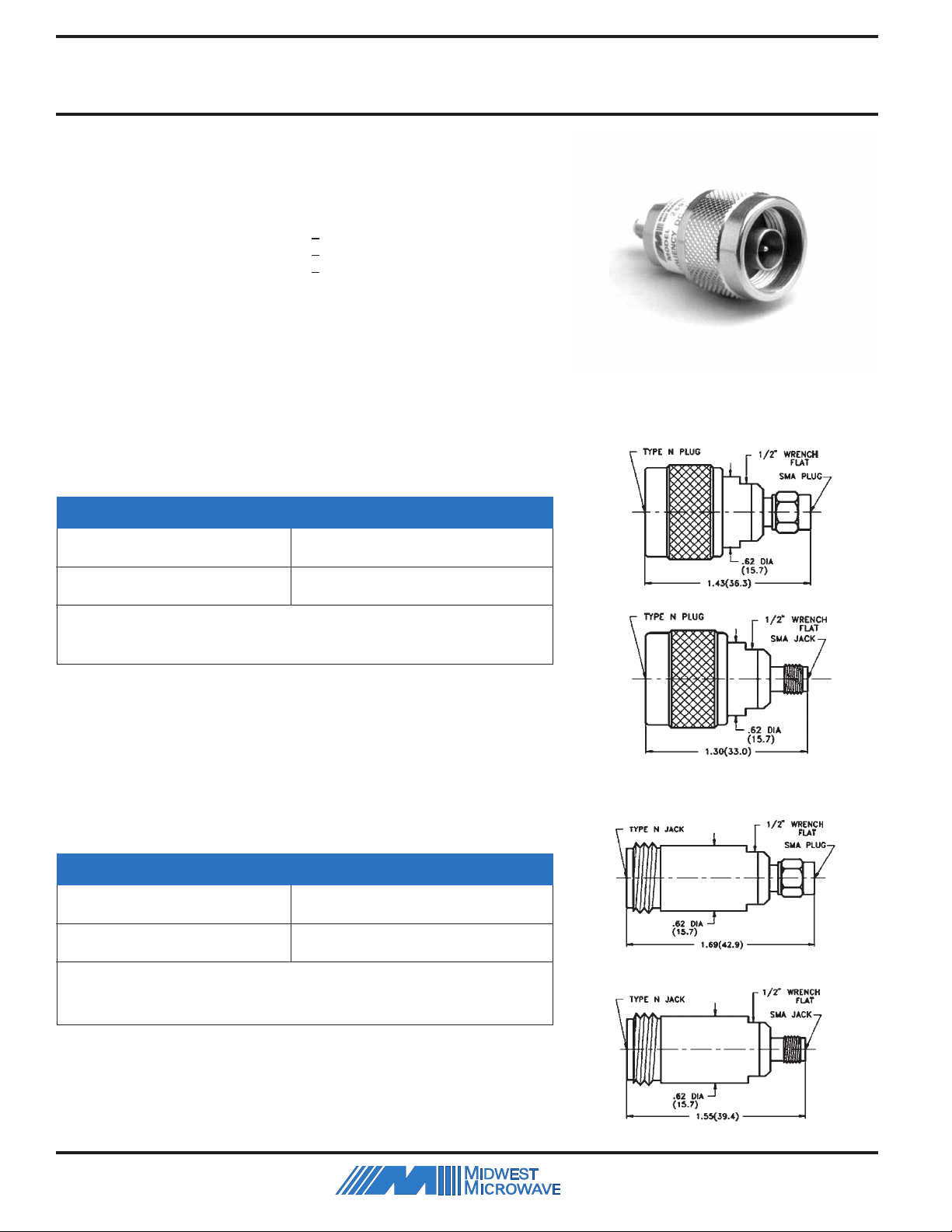

Attenuator Adapter-Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Step Attenuators - Manua . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Calibrated Variable Attenuators . . . . . . . . . . . . . . . . . . . . . . . . . .48

Continuosly Variable Attenuators . . . . . . . . . . . . . . . . . . . . . . . . .50

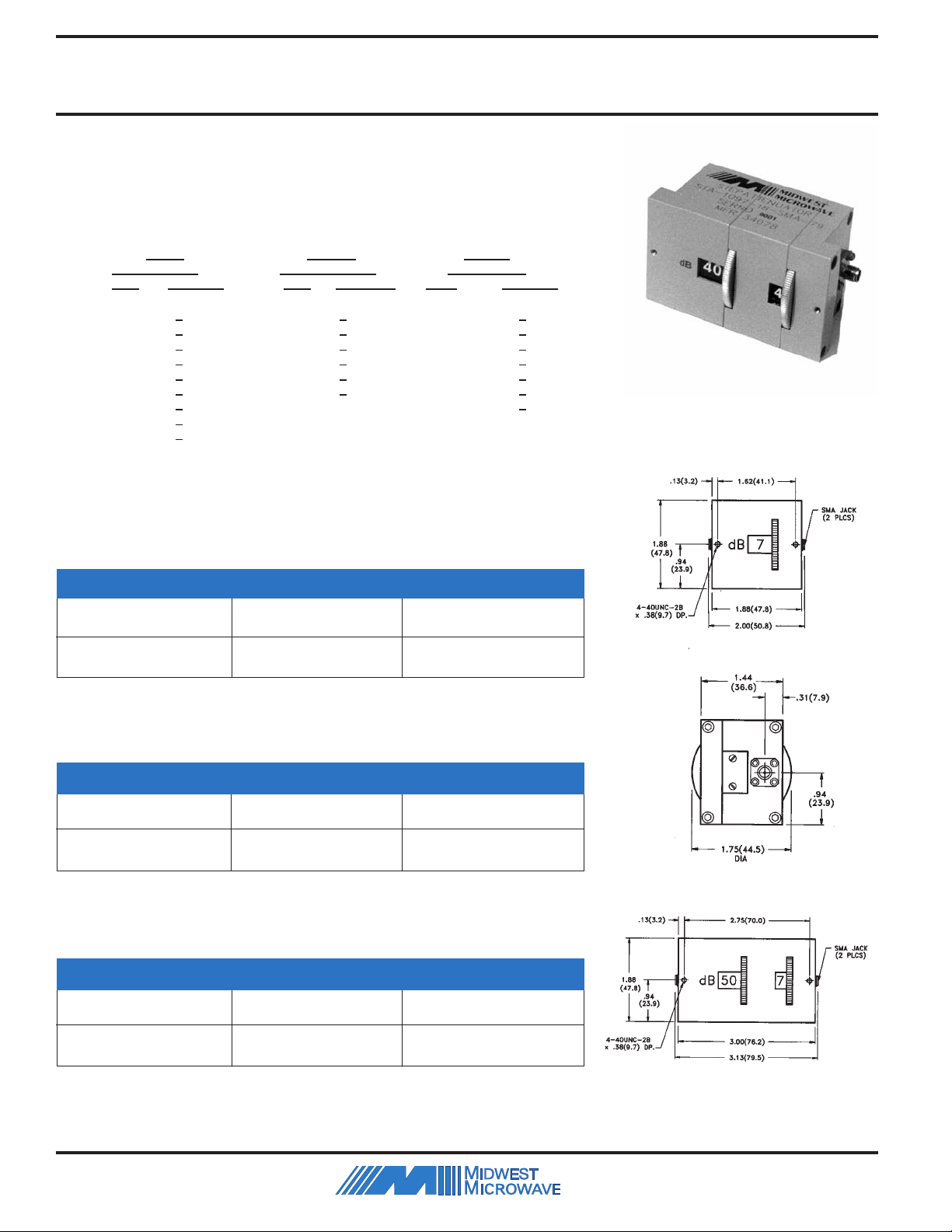

Step Attenuators - Thumbwheel Type . . . . . . . . . . . . . . . . . . . . .54

Page 2

Attenuators

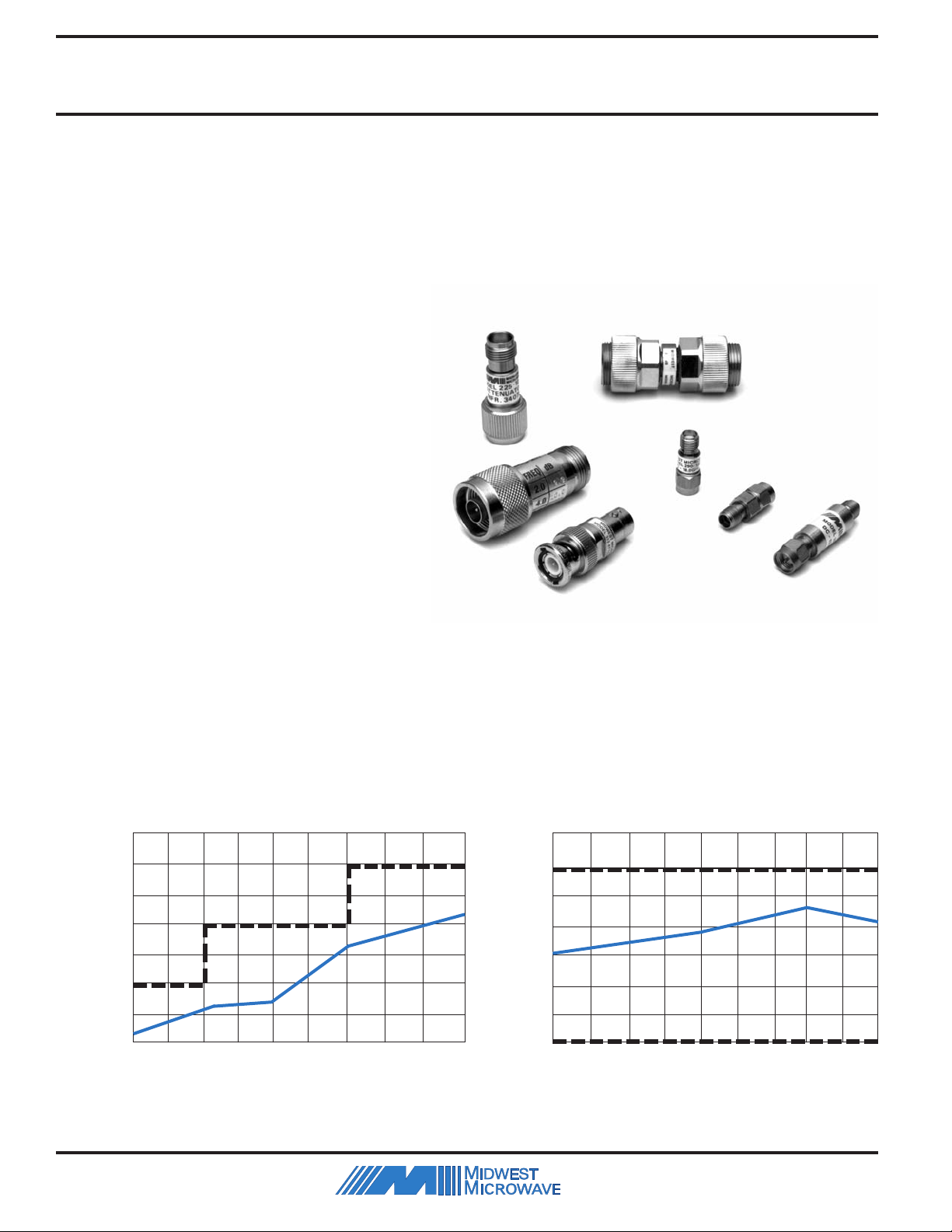

General Information

• MIL-A-3933 Qualified (QPL)

• dc - 4, dc - 8, dc - 12.4, dc - 18 and dc - 26 GHz Performance

• Small Size, Light Weight, Rugged Construction

• Average Power available up to 20 Watts

• Meets MIL-E-5400 and MIL-16400 Environmental Requirements

• SMA, BMA, N, TNC, BNC, SC, 3.5mm, and 7mm Connector Configurations

Attenuators are passive components designed for the purpose of reducing the input power in a matched transmission line system by a predictable amount on a linear basis. Midwest Microwave offers this complete product line of fixed coaxial attenuators, ruggedly designed for system or laboratory test use. These units exhibit low VSWR and high accuracy attenuation performance over the temperature range of -54C to +125C and meet the environmental requirements of MIL-E-5400 and MIL-E-16400. Medium power attenuators with average power levels of up to 20 Watts are available in up to 30 dB levels in .5 dB increments providing broadband performance and low frequency sensitivity while exhibiting very stable operation over temperature extremes. Standard cataloge units are available off the shelf for immediate delivery and special units can be custom designed by Midwest's engineering staff to accomodate unique system needs.

All Midwest Attenuators are completely manufactured in house and are 100% tested to insure only the highest quality performance whether for military or space use or for commercial applications.

Typical Fixed Attenuator Performance Characteristics

VSWR ATTENUATION

1.40 6.4

1.35 6.3

1.30 6.2

1.25 6.1

1.20 6.0

VSWR

1.15 5.9

1.10 5.8

1.05 5.7

dc 2 4 6 8 10 12 14 16 18 dc 2 4 6 8 10 12 14 16 18

FREQUENCY (GHz) FREQUENCY (GHz)

ATTENUATION

Page 3

Attenuators

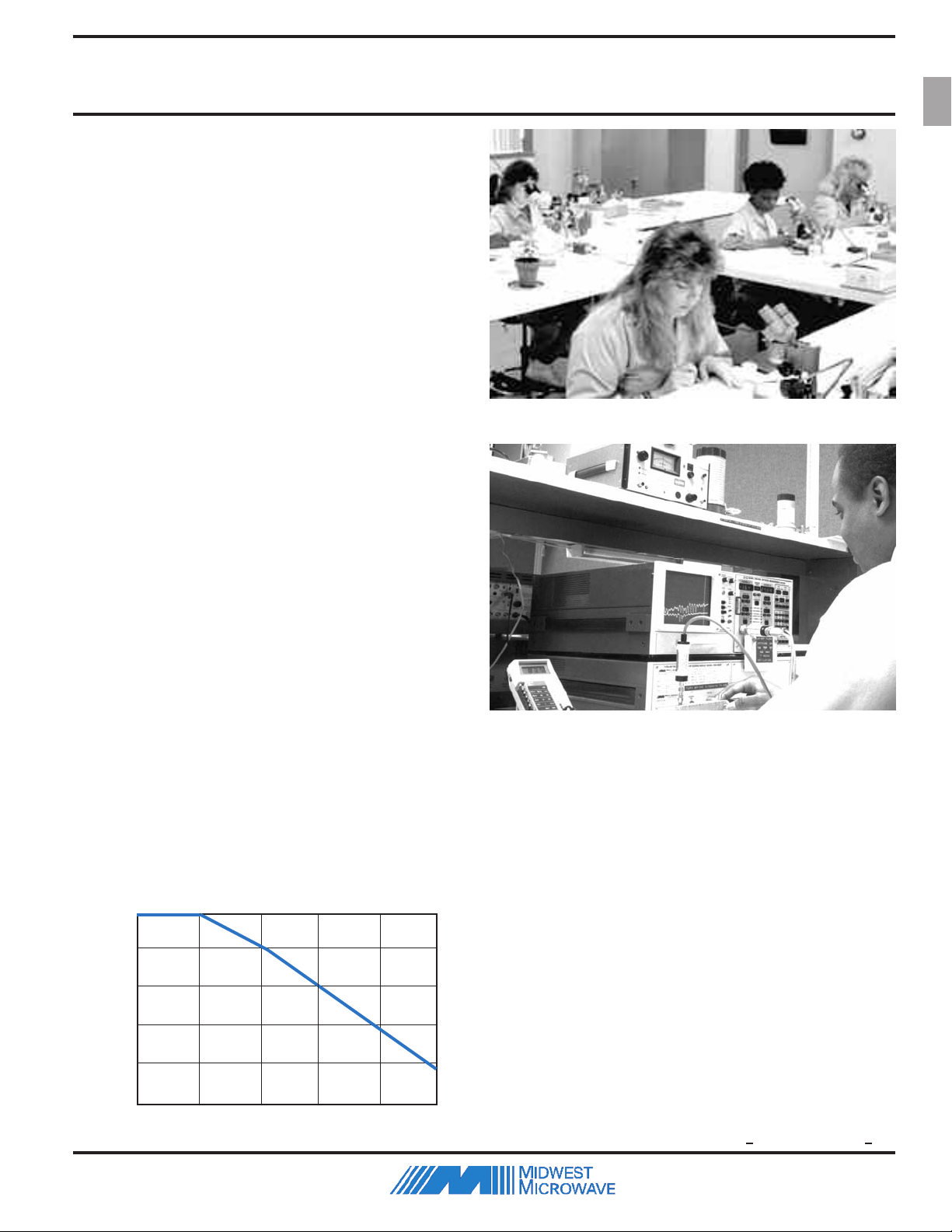

Attenuation - The technical term is most often used in

connection with loss or insertion loss in a transmission line. Insertion loss is a combination of two types of losses; impedance mismatch loss (reflective) and attenuation loss (dissipative). Mismatchloss is the ratio of power that would be absorbed by a unit or device under test , if it were perfectly impedance matched, to the actual power absorbed by thedevice. Attenuation is the ratio of power into a component to the power out under impedance matched conditions, and represents the actual power dissipated within the component. Thereby,Insertionlossistheratioofthepower delivered to a matched load by a matched generator before and after the insertion of a component into the transmission line. When a component is perfectly matched to the transmission line and to the load, the mismatch loss is zero and the insertion loss is the same as the attenuation.

Average Power - The maximum average (cw) power is

the maximum input power specified and applied for one hour minimum at the specified temperature of 25 degrees C with the output terminated in a matched impedance such that the specified properties of the attenuator will not be altered or changed after the unit is returned to ambient temperature at a power level that is 20 dB below the maximum specified input power. If the attenuator is operated at higher temperatures then it is necessary to derate the power rating accordingly. The derating curve and specifications shown below describes this specifically.

Definition of Parameters

Precise Attenuator Assembly assures high performance

Peak Power - The maximum peak power at a pulse width

or duty cycle of 5 microseconds together with the average power when applied for a minimum period of one hour with the output terminated with a matched load will not damage or permanantly alter the specified properties of the attenuator.

Temperature Coefficient - The maximum change of

insertion loss in dB per degree C from 20 C over the maximum operating temperature range. To obtain the change in insertion loss, multiply the temperature coefficient by the temperature change and then by the value in dB of the attenuator.

100

80 60 40

POWER (%)

100% testing of performance parameters guarantees quality

Custom Design Availability - In addition to the wide

variety of standard model attenuators available on an off the shelf basis, Midwest Microwave retains an extensive engineering staff to accomodate your special requirements. A complete in-house design and manufacturing facility is provided including all testing and documentation for high reliability aerospace applications.

• Frequency applications that are extended

• Attenuation values in .5 dB increments

• Higher Power requrements

• High Performance, narrow bandwidth applications

• Connector interfaces and mounting requirements that ar

extraordinary.

Temperature Specifications

Operating Temperature Range: -54C to +125C Temperature Coefficient: 1/10,000 dB /dB/Degree C

0 25 50 75 100 125

TEMPERATURE (Degrees C)

Note: All mechanical dimensions are in inches with milimeters shown in parenthesis. tolerances are as follows: 0.XX = + .020 and 0.XXX = + .005

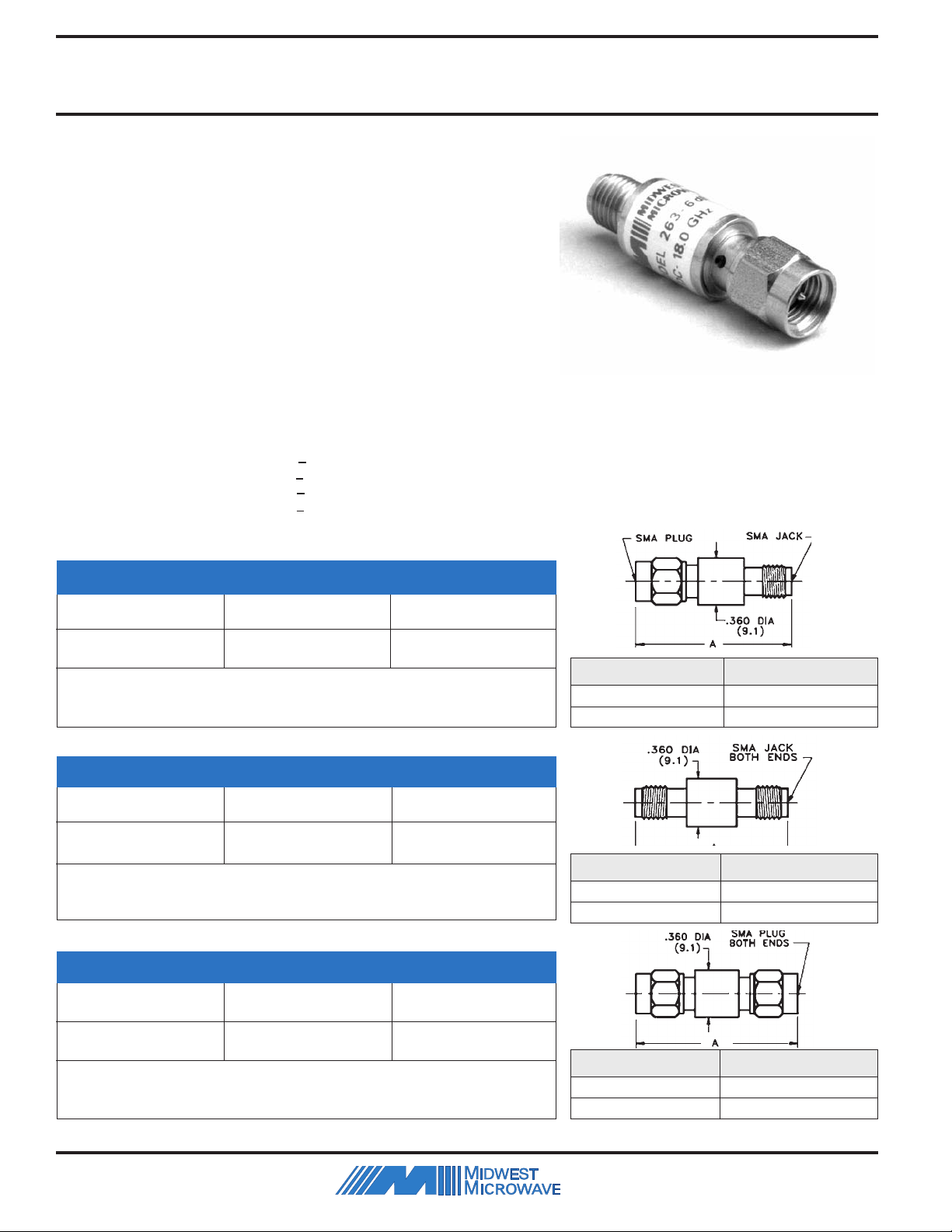

Page 4

Attenuators

DC - 18 GHz High Performance

• DC-2, DC-4, DC-8, and DC-12.4 units available

• 0 - 60 dB Attenuation Values

• Rugged Stainless Steel Construction

• Any Male/Female combination available

• Low cost alternatives available

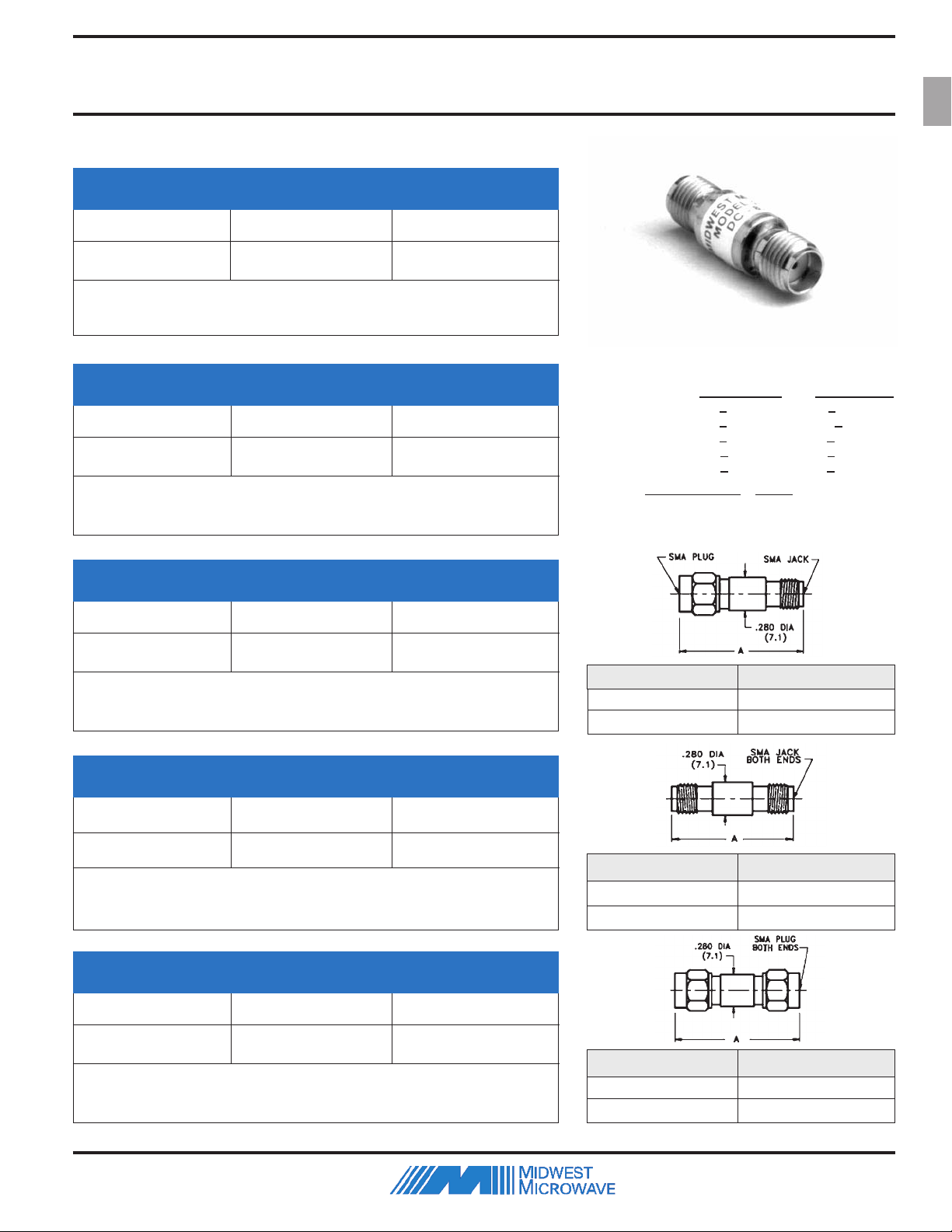

Midwest Microwave's SMA miniature series of fixed coaxial attenuators provide temperature stable, ruggedly built, precision performance in a small light weight package size. Attenuation values up through 60 dB in 1 dB increments are available with any of the units described and with any combination of female or male SMA connectors.

SPECIFICATIONS - HIGH PERFORMANCE

Frequency: DC - 18.0, DC - 12.4, DC - 8.0 GHz

DC - 4.0, DC - 2.0 GHz

Attenuation Accuracy: 1-10 dB + 0.3 dB

11-20 dB + 21-40 dB +1.0 dB

41-60 dB +1.5 dB

0.5 dB

VSWR: 1.07+.015 (f GHz) max. Power: 2 Watts Average @ 25C derated linearly to .5 Watts @ 125C Peak Power: 200 Watts Operating Temperature Range: - 65 to + 125C Finish: Passivated Stainless Steel

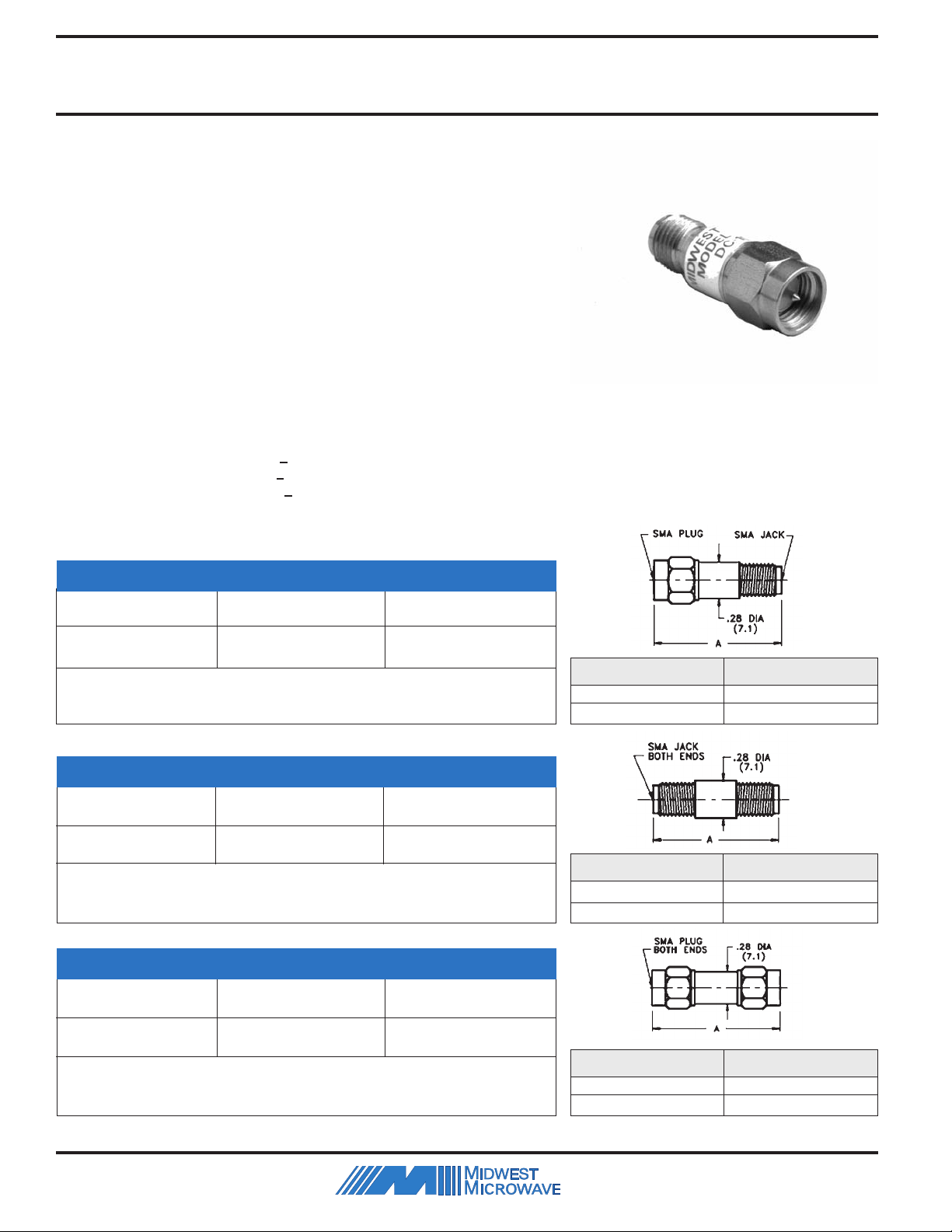

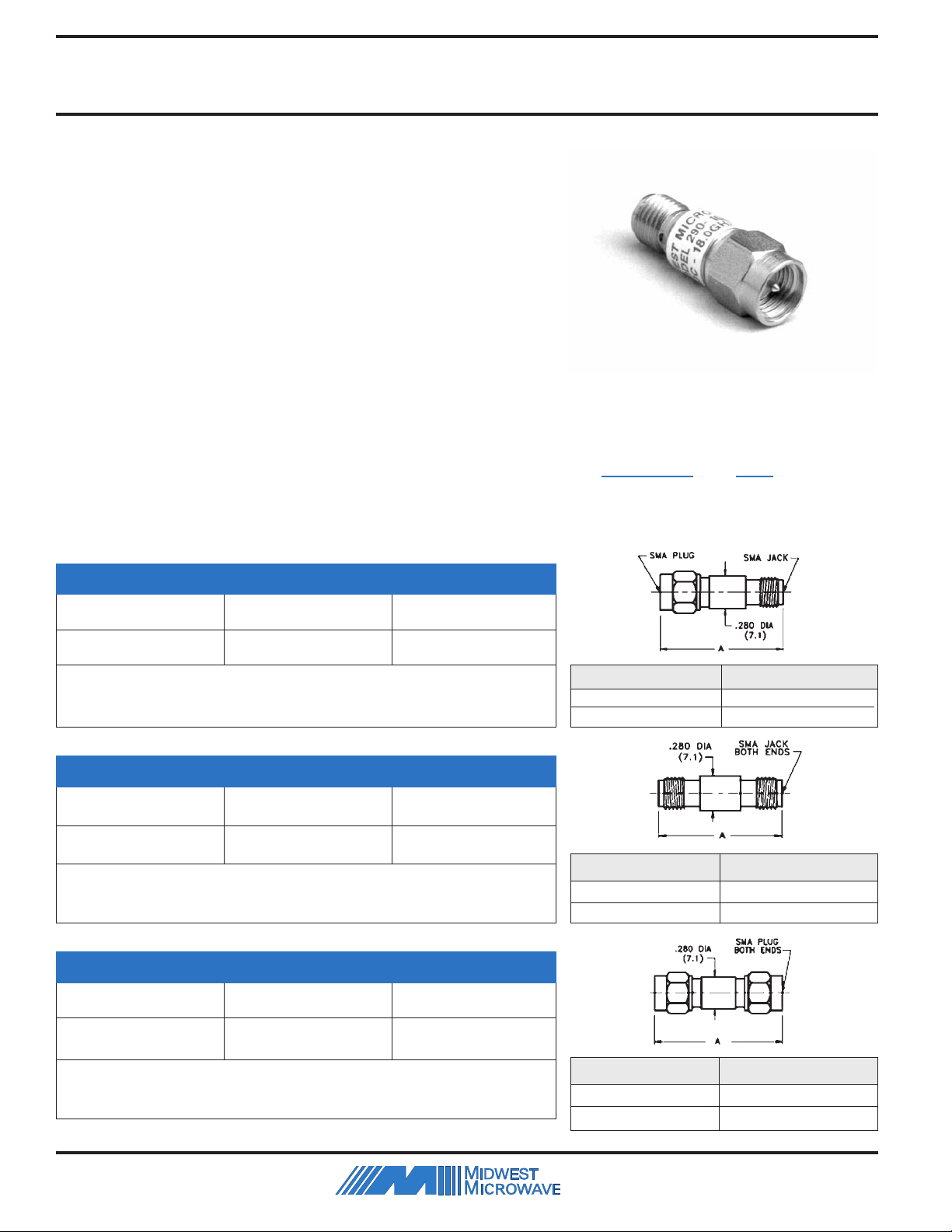

SMA Miniature Type

DC - 18 GHz 263 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0263-XX-SMA-02 ATT-263F-XX-SMA-02 ATT-263M-XX-SMA-02

XX = Attenuation Value: Select 01-60dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 12.4 GHz 205 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0205-XX-SMA-02 ATT-205F-XX-SMA-02 ATT-205M-XX-SMA-02

XX = Attenuation Value: Select 01-60dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 8.0 GHz 206 Series Model Numbers

Male/Female Female/Female Male/Male

Attenuation Value Length A

1-20 dB 1.20

21-60 dB 1.49

Attenuation Value Length A

1-20 dB 1.07 21-60 dB 1.36

ATT-0206-XX-SMA-02 ATT-206F-XX-SMA-02 ATT-206M-XX-SMA-02

XX = Attenuation Value: Select 01-60dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

Note: * U.S. Patent No. 3,824,506 applies to all " Fixed Attenuators.

Attenuation Value Length A

1-20 dB 1.33 21-60 dB 1.62

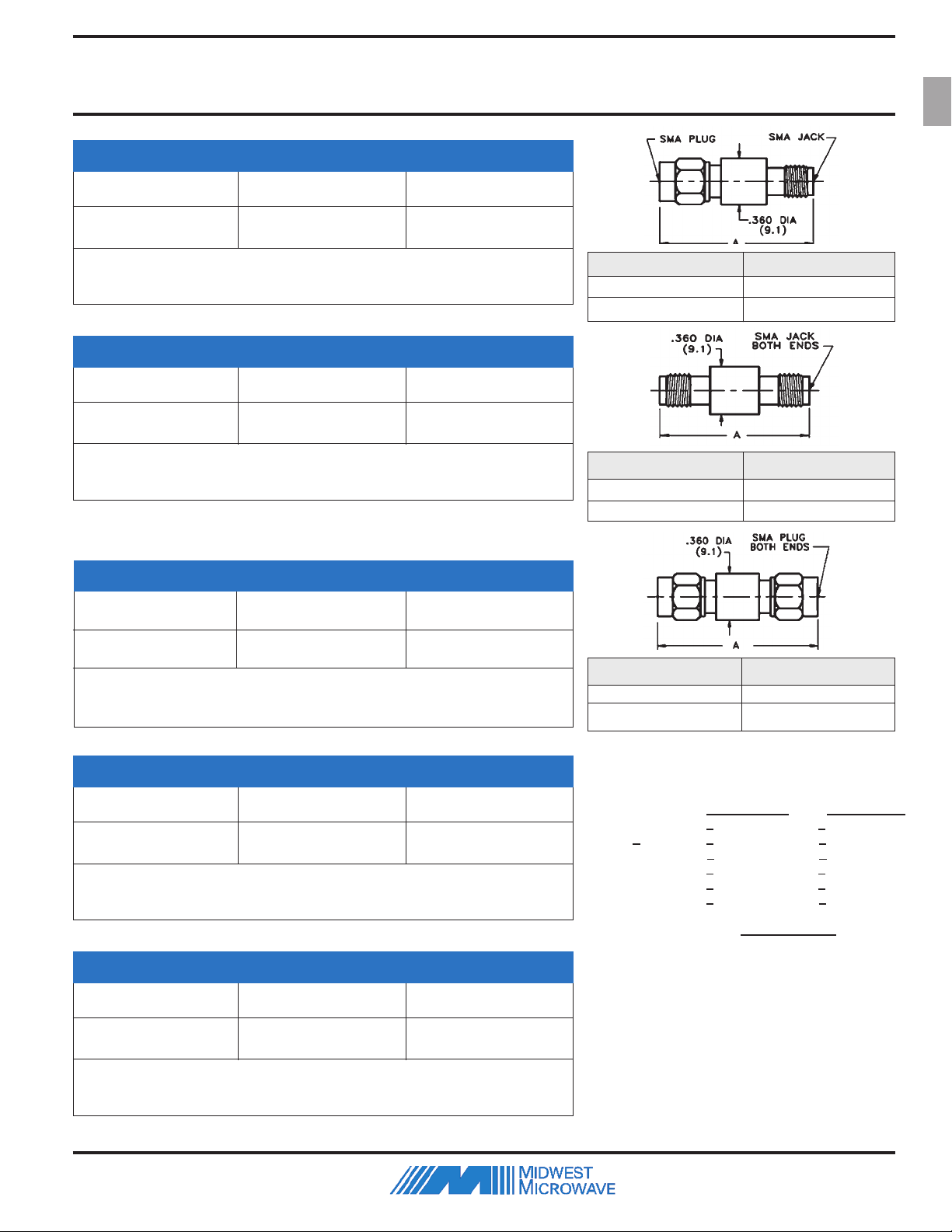

Page 5

Attenuators

DC - 4.0 GHz 238 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0238-XX-SMA-02 ATT-238F-XX-SMA-02 ATT-238M-XX-SMA-02

SMA Miniature Type

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 2.0 GHz 208 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0208-XX-SMA-02 ATT-208F-XX-SMA-02 ATT-208M-XX-SMA-02

XX = Attenuation Value: Select 01-60dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

Low Cost - Inexpensive Types

DC - 18.0 GHz 333 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0333-XX-SMA-02 ATT-333F-XX-SMA-02 ATT-333M-XX-SMA-02

XX = Attenuation Value: Select 01-60dB in 1dB increments

LOW COST

Attenuation Value Length A

1-20 dB 1.20

21-60 dB 1.49

Attenuation Value Length A

1-20 dB 1.07

21-60 dB 1.36

Attenuation Value Length A

1-20 dB 1.33

21-60 dB 1.62

DC - 8.0 GHz 334 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0334-XX-SMA-02 ATT-334F-XX-SMA-02 ATT-334M-XX-SMA-02

XX = Attenuation Value: Select 01-60dB in 1dB increments

LOW COST

DC - 2.0 GHz 335 SerieS Model Numbers

Male/Female Female/Female Male/Male

ATT-0335-XX-SMA-02 ATT-335F-XX-SMA-02 ATT-335M-XX-SMA-02

XX = Attenuation Value: Select 01-60dB in 1dB increments

LOW COST

Note: * U.S. Patent No. 3,824,506 applies to all " Fixed Attenuators.

SPECIFICATIONS - LOW COST

Attenuation Accuracy:

1-4 dB + 0.75 dB + 0.75 dB 5-8 dB + 0.75 dB + 1.00 dB 9-12 dB + 1.00 dB + 1.25 dB 13-20 dB + 1.50 dB + 1.50 dB 21-40 dB + 41-60 dB + 2.50 dB + 2.50 dB

VSWR: Frequency (GHz)

1.25 max DC - 4.0

1.45 max 4.0 - 12.4

1.65 max 12.4 - 18.0

Power: 2 Watts Average @ 25C derated linearly

to .5 watts @ 125C

Peak Power: 200 Watts Operating Temperature Range: -65 to +125C Finish: Passivated Stainless Steel Dimensions: Same as 263 Series

DC - 12.4 GHz

2.00 dB + 2.00 dB

12.4 - 18 GHz

Page 6

Attenuators

SMA Subminiature "MINIPAD"®

DC - 26.5 GHz High Performance

• DC-2, DC-8, DC-12.4, and DC-18 GHzunits available

• Rugged Stainless Steel Construction

• Any Male/Female combination available

• Low cost alternatives available

Midwest Microwave's SMA subminiature series of fixed coaxial attenuators (MINIPAD performance in a compact light weight package size. Attenuation values up through 30 dB in 1 dB increments are available with any of the units described and with any combination of female or male SMA connectors.

SPECIFICATIONS - HIGH PERFORMANCE

Frequency: DC - 18.0, DC - 12.4, DC - 8.0 GHz Attenuation Accuracy: 1-6 dB ± 0.3dB

VSWR: 1.07+.015 (f GHz) max. Power: 2 Watts Average @ +25

Peak Power: 200 Watts

Operating Temperature Range: -65 to +125C Finish: Passivated Stainless Steel

®) provide temperature stable, ruggedly built, precision

DC - 4.0, and DC - 2.0 GHz

7-20 dB ± 0.5 dB

21-30 dB ± 1.0 dB

C derated linearly to .5 watts @ +125oC

TYPE II LOW VSWR - HIGH PERFORMANCE

IMPROVED SPECIFICATIONS

Frequency GHz VSWR

DC - 4.0 GHz 1.12 max

4.0 - 8.0 GHz 1.15 max

8.0 - 18 GHz 1.20 max

DC - 26.5 GHz 298 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0298-XX-SMA-02 ATT-298F-XX-SMA-02 ATT-298M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 18 GHz 290 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0290-XX-SMA-02 ATT-290F-XX-SMA-02 ATT-290M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 12.4 GHz 291 Series Model Numbers

Male/Female Female/Female Male/Male

Attenuation Value Length A

1-12 dB 0.86

13-30 dB 1.02

Attenuation Value Length A

1-12 dB 0.90 13-30 dB 1.03

ATT-0291-XX-SMA-02 ATT-291F-XX-SMA-02 ATT-291M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

Note: * U.S. Patent No. 3,824,506 applies to all "MINIPAD" ® Fixed Attenuators

Attenuation Value Length A

1-12 dB 0.98 13-30 dB 1.12

Page 7

Attenuators

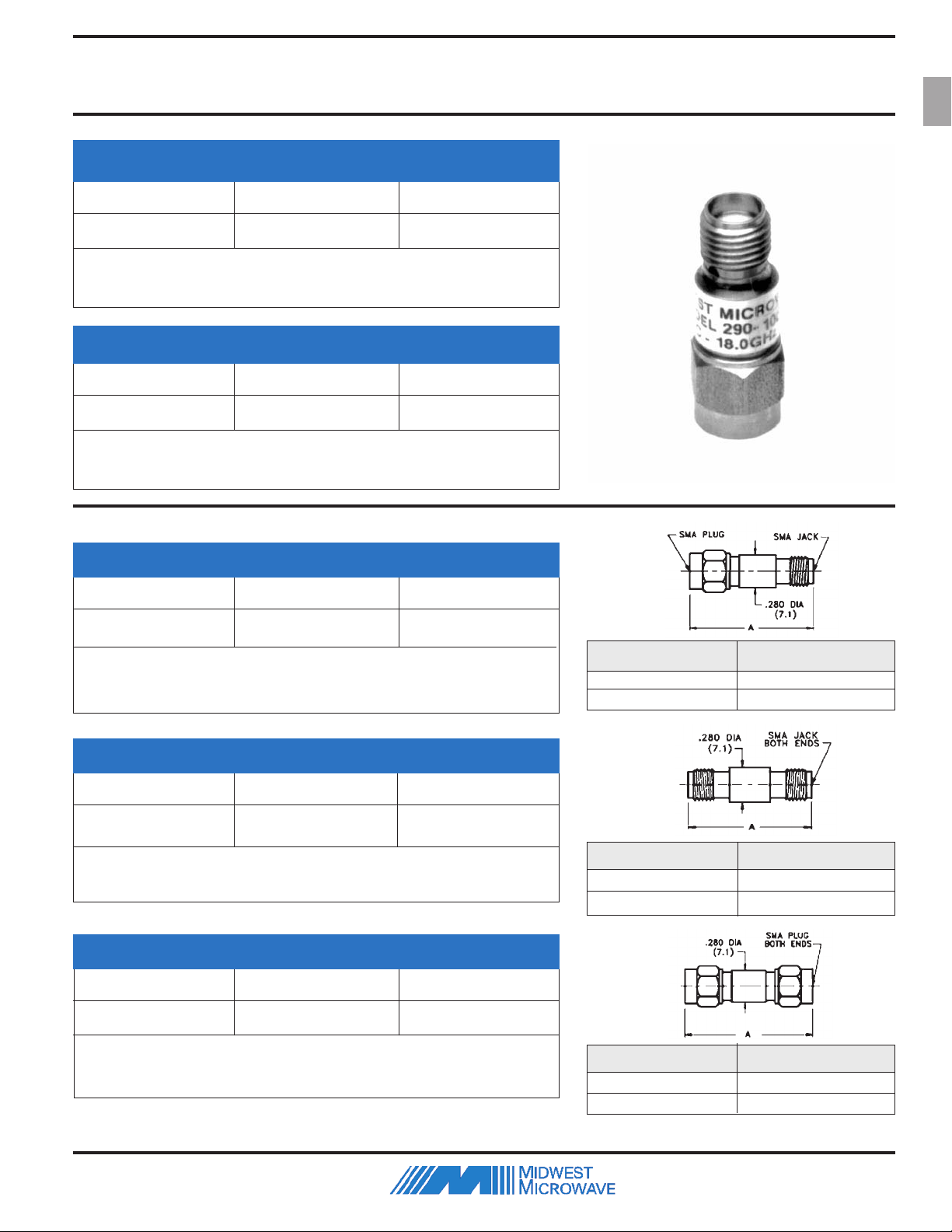

SMA Subminiature "MINIPAD"®

DC - 8.0 GHz 292 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0292-XX-SMA-02 ATT-292F-XX-SMA-02 ATT-292M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 2.0 GHz 294 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0294-XX-SMA-02 ATT-294F-XX-SMA-02 ATT-294M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

LOW VSWR - Type II High Performance Attenuators

DC - 18.0 GHz 451 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0451-XX-SMA-02 ATT-451F-XX-SMA-02 ATT-451M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW VSWR - see improved performance specifications on page 10.

Attenuation Value Length A

1-12 dB 0.86 13-30 dB 1.02

DC - 12.4 GHz 452 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0452-XX-SMA-02 ATT-452F-XX-SMA-02 ATT-452M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW VSWR - see improved performance specifications on page 10.

DC - 4.0 GHz 454 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0454-XX-SMA-02 ATT-454F-XX-SMA-02 ATT-454M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW VSWR -see improved performance specifications on page 10.

Notes: 1. Low VSWR Models are available in Hex Body - Designate by subsituting "HEX" for "SMA" in Model No.

2. U.S. Patent No. 3,824,506 applies to all "MINIPAD"

Fixed Attenuators

Attenuation Value Length A

1-12 dB 0.90 13-30 dB 1.03

Attenuation Value Length A

1-12 dB 0.98 13-30 dB 1.12

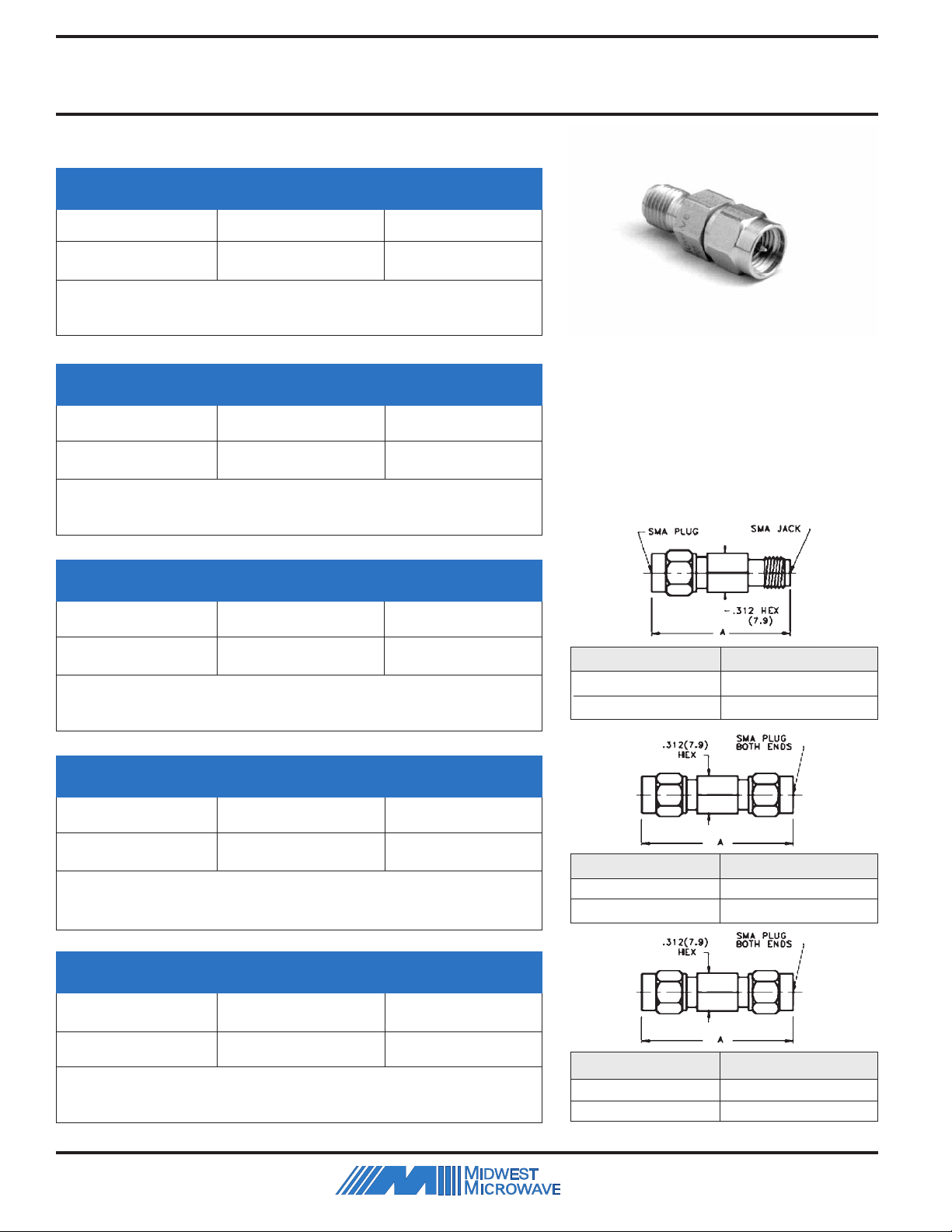

Page 8

Attenuators

SMA Subminiature "MINIPAD"®

Hex Body Types - High Performance

DC - 26.5 GHz Hex Body 298HEX Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0298-XX-HEX-02 ATT-298F-XX-HEX-02 ATT-298M-XX-HEX-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 18.0 GHz Hex Body 290HEX Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0290-XX-HEX-02 ATT-290F-XX-HEX-02 ATT-290M-XX-HEX-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 12.4 GHz Hex Body 291HEX Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0291-XX-HEX-02 ATT-291F-XX-HEX-02 ATT-291M-XX-HEX-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

SPECIFICATIONS - HIGH PERFORMANCE

Attenuation Accuracy: 1-6 dB ± 0.3 dB

7-20 dB ± 0.5 dB

VSWR: 1.07+.015(f GHz) max Power: 2 Watts Average @ +25

to .5 watts @ +125

Operating Temperature Range: -65 Finish: Passivated Stainless Steel

Attenuation Value Length A

1-12 dB 0.86 13-30 dB 1.02

21-30 dB ± 1.0 dB

C derated linearly

C and 200 Watts peak

C to +125oC

DC - 8.0 GHz Hex Body 292HEX Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0292-XX-HEX-02 ATT-292F-XX-HEX-02 ATT-292M-XX-HEX-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 2.0 GHz Hex Body 294HEX Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0294-XX-HEX-02 ATT-294F-XX-HEX-02 ATT-294M-XX-HEX-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

Note: * U.S. Patent No. 3,824,506 applies to all " Fixed Attenuators.

Attenuation Value Length A

1-12 dB 0.90 13-30 dB 1.03

Attenuation Value Length A

1-12 dB 0.98 13-30 dB 1.12

Page 9

Attenuators

SMA Subminiature "MINIPAD"®

Round Body - Low Cost - Inexpensive Types

DC - 18.0 GHz 444 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0444-XX-SMA-02 ATT-444F-XX-SMA-02 ATT-444M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

DC - 12.4 GHz 445 Series Model Numbers

Male/Female Female /Female Male/Male

ATT-0445-XX-SMA-02 ATT-445F-XX-SMA-02 ATT-445M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

SPECIFICATIONS - LOW COST

Attenuation Accuracy:

1-4 dB + 0.75 dB + 0.75 dB 5-8 dB + 0.75 dB + 1.00 dB 9-12 dB + 1.00 dB + 1.25 dB 13-20 dB + 1.50 dB + 1.50 dB 21-30 dB +

VSWR: Frequency (GHz) VSWR

DC - 4.0 1.25 max

4.0 - 12.4 1.45 max

12.4 - 18.0 1.65 max

DC - 12.4 GHz 12.4 - 18 GHz

2.00 dB + 2.00 dB

DC - 8.0 GHz 446 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0446-XX-SMA-02 ATT-446F-XX-SMA-02 ATT-446M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

DC - 4.0 GHz 447 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0447-XX-SMA-02 ATT-447F-XX-SMA-02 ATT-447M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

DC - 2.0 GHz 448 Series Model Numbers

Male/Female Female/Female Male/Male

Attenuation Value Length A

1-12 dB 0.86 13-30 dB 1.02

Attenuation Value Length A

1-12 dB 0.90 13-30 dB 1.03

ATT-0448-XX-SMA-02 ATT-448F-XX-SMA-02 ATT-448M-XX-SMA-02

Attenuation Value Length A

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

Note: Low Cost Models are available in Hex Body - Designate by subsituting "HEX" for "000" in Model No.

1-12 dB 0.98 13-30 dB 1.12

Page 10

Attenuators

SMA Subminiature "MINIPAD"®

Flange Mount Types - High Performance

DC - 18 GHz Flange Mount 523 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0523-XX-SMA-02 ATT-523F-XX-SMA-02 ATT-523M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 12.4 GHz Flange Mount 524 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0524-XX-SMA-02 ATT-524F-XX-SMA-02 ATT-524M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 8.0 GHz Flange Mount 531 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0531-XX-SMA-02 ATT-531F-XX-SMA-02 ATT-531M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

SPECIFICATIONS - HIGH PERFORMANCE

Attenuation Accuracy: 1-6 dB + 0.3 dB

7-20 dB + 0.5 dB 21-30 dB + 1.0 dB

VSWR: 1.07+.015(f GHz) max Power: 2 Watts Average @ +25

to .5 watts @ +125

Operating Temperature Range: -65 to +125 Finish: Passivated Stainless Steel

C derated linearly

C and 200 Watts peak

DC - 4.0 GHz Flange Mount 525 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0525-XX-SMA-02 ATT-525F-XX-SMA-02 ATT-525M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

HIGH PERFORMANCE

(.5 dB increments available)

DC - 2.0 GHz Flange Mount 526 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0526-XX-SMA-02 ATT-526F-XX-SMA-02 ATT-526M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

HIGH PERFORMANCE

Note: * U.S. Patent No. 3,824,506 applies to all " Fixed Attenuators.

(.5 dB increments available)

Page 11

Attenuators

SMA Subminiature "MINIPAD"®

Flange Mount Types - Low Cost - Inexpensive

DC - 18 GHz Flange Mount 532 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0532-XX-SMA-02 ATT-532F-XX-SMA-02 ATT-532M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

DC - 12.4 GHz Flange Mount 533 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0533-XX-SMA-02 ATT-533F-XX-SMA-02 ATT-533M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

DC - 8.0 GHz Flange Mount 534 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0534-XX-SMA-02 ATT-534F-XX-SMA-02 ATT-534M-XX-SMA-02

Flange Mount type Attenuators are useful in many system or test instrument requirements where it is necessary to pass a signal through a panel and also take advantage of the opportunity to insert an attenuator while saving valuable space and weight. These units possess the same high performance characteristics as the standard 290 series.

The units are manufactured using rugged stainless steel construction and are designed to operate under very hostile environmental conditions.

SPECIFICATIONS - LOW COST

Attenuation Accuracy:

DC - 12.4 GHz 12.4 - 18 GHz

1-10 dB + 0.75 dB + 0.75 dB 11-20 dB + 0.75 dB + 1.00 dB 21-30 dB + 1.00 dB + 1.25 dB

VSWR: Frequency (GHz) VSWR

DC - 4.0 1.25 max

4.0 - 12.4 1.45 max

12.4 - 18.0 1.65 max

Power: 2 Watts Average @ +25

to .5 watts @ 125C and 200 Watts peak

Operating Temperature Range: -65 to +125 Finish: Passivated Stainless Steel

C derated linearly

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST - Improved VSWR

DC - 4.0 GHz Flange Mount 535 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0535-XX-SMA-02 ATT-535F-XX-SMA-02 ATT-535M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST - Improved VSWR

DC - 2.0 GHz Flange Mount 536 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0536-XX-SMA-02 ATT-536F-XX-SMA-02 ATT-536M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW COST

Typical End View - All Models

Page 12

Attenuators

SMA Ultraminiature Type

DC - 18 GHz High Performance

• DC-2, DC-4, DC-8, and DC-12.4 units also available

• 0 - 30 dB Attenuation Values

• Rugged Stainless Steel Construction

• Any Male/Female combination available

• Small Size - Lightweight

Midwest Microwave's SMA Ultraminiature series of fixed coaxial attenuators provide temperature stable, ruggedly built, precision performance in a very small light weight package size. Attenuation values up through 30 dB in 1 dB increments are available with any of the units described and with any combination of female or male SMA connectors.

SPECIFICATIONS - HIGH PERFORMANCE

Frequency: DC - 18.0, DC - 12.4, DC - 8.0 GHz

DC - 4.0, DC - 2.0 GHz

Attenuation Accuracy: 1-6 dB +0.3dB

7-20 dB +

21-30 dB +

0.5 dB

1.0 dB

VSWR: 1.07+.015 (f GHz) max.

Power: 2 Watts average @ +25 Peak Power: 200 Watts Operating Temperature Range: - 65 to + 125 Finish: Passivated Stainless Steel

C derated linearly to .5 watts @ +125oC

DC - 18 GHz 275 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0275-XX-SMA-02 ATT-275F-XX-SMA-02 ATT-275M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 12.4 GHz 276 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0276-XX-SMA-02 ATT-276F-XX-SMA-02 ATT-276M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 8.0 GHz 277 Series Model Numbers

Male/Female Female/Female Male/Male

Attenuation Value Length A

1-12 dB 0.750

13-30 dB 0.875

Attenuation Value Length A

1-12 dB 0.700 13-30 dB 0.825

ATT-0277-XX-SMA-02 ATT-277F-XX-SMA-02 ATT-277M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

Note: * U.S. Patent No. 3,824,506 applies to all " Fixed Attenuators.

Attenuation Value Length A

1-12 dB 0.875 13-30 dB 1.00

Page 13

Attenuators

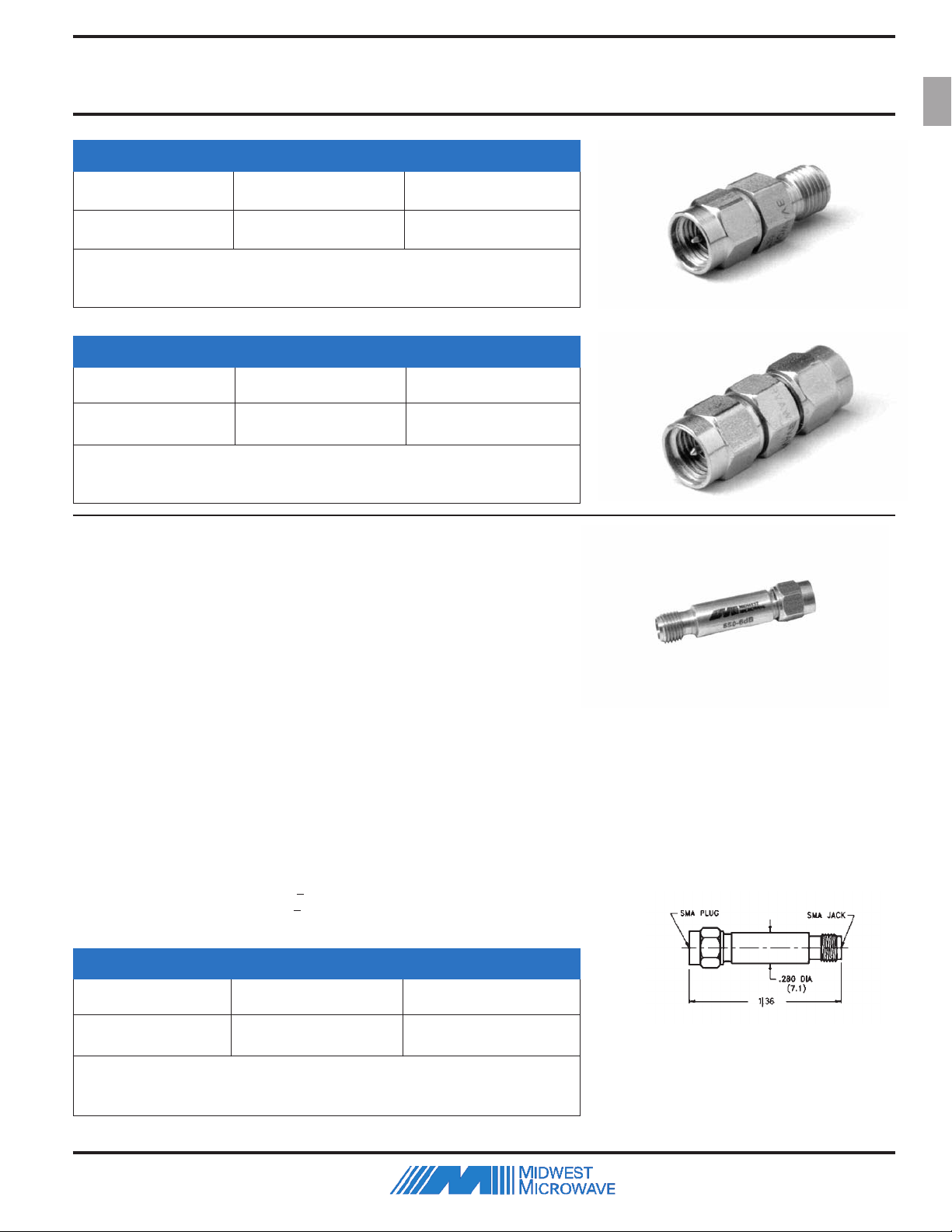

DC - 4.0 GHz 278 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0278-XX-SMA-02 ATT-278F-XX-SMA-02 ATT-278M-XX-SMA-02

SMA Ultraminiature Type

XX = Attenuation Value: Select 01-30dB in 1dB increments

DC - 2.0 GHz 279 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0279-XX-SMA-02 ATT-279F-XX-SMA-02 ATT-279M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

DC - 26.5 GHz 3.5mm High Performance

• Extended Frequency Performance

• 0 - 20 dB Attenuation Values

• 3.5 mm Precision Connectors (mates with SMA)

• Small Size - Light Weight

• Any Male/Female Connector Configuration

• Rugged Stainless Steel Construction

Midwest Microwave's 3.5 mm subminiature series of precision fixed coaxial attenuators provide extended frequency operation of up to 26.5 GHz when mated with connector interfaces of the same family. These temperature stable, ruggedly built, precision attenuators allow high performance in a very small light weight package size Attenuation values up through 20 dB in 1 dB increments are available with any combination of female or male 3.5mm connectors.

SPECIFICATIONS - HIGH PERFORMANCE

Frequency: DC - 18.0, DC - 26.5 GHz Attenuation Accuracy: 1-6 dB + 0.5 dB

7-20 dB +

Operating Temp Range: - 65 to + 125C

DC - 26.5 GHz 550 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0550-XX-35M-02 ATT-550F-XX-35M-02 ATT-550M-XX-35M-02

XX = Attenuation Value: Select 01-20dB in 1dB increments

(.5 dB increments available)

26.5 GHz Extended Frequency Performance

Note: For DC - 18.0 GHz Model, subsitute "551" for "550" in Model No.

0.7 dB

VSWR: 1.07 + 0.015 f (GHz) Power: 2 Watts Average @ +25

derated linearly to .5 watts @ +125

Peak Power: 200 Watts Finish: Passivated Stainless Steel

Note: dimensions shown above are for the Male/Female version. The length for the Female/Female version is

1.33 and for the Male/Male version is 1.39.

Page 14

Attenuators

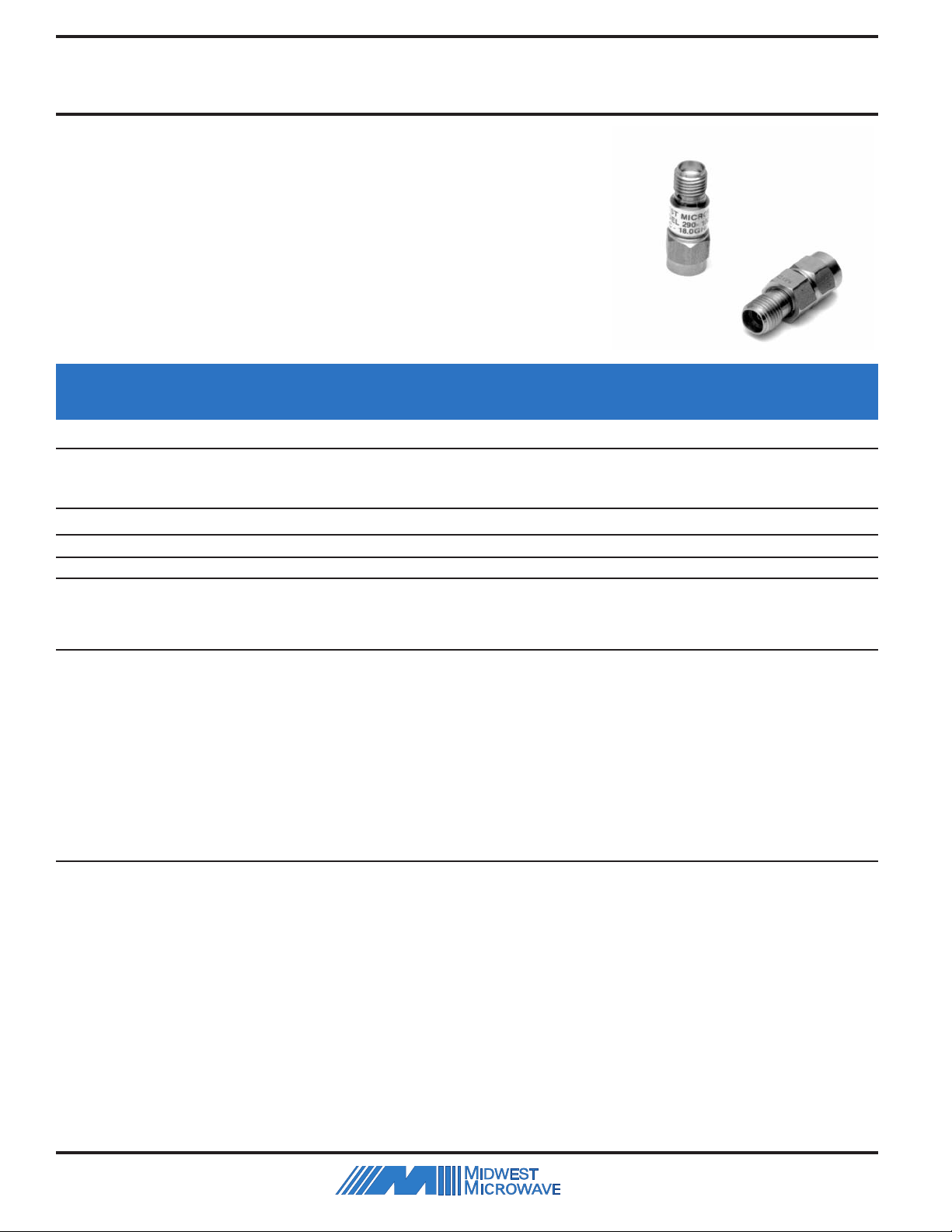

QPL • High Reliability

MIL-A-3933 Qualified (QPL)

• Non-Screened and Screened Units Available

• 100% Tested

• Military Applications

Midwest Microwave's QPLAttenuator productswere designed, tested and have been qualified to the stringent requirements of the latest effective issue of the applicable military specifications. By selecting a part that appears on a QPL list, a user is assured that the part will meet or exceed the performance specifications set forth in the MIL Specification as a minimum standard of performance.

MIL Part Slash No. Group Description Frequency Attenuation

(GHz) (dB)

MIL-A-3933/25 SMA Subminiature - Male/Female DC - 4.0, DC - 12.4, DC - 18.0 0 - 40 MIL-A-3933/14 SMA Miniature - Male/Female DC - 12.4 1 - 40

MIL-A-3933/16 SMA Miniature - Male/Female DC - 18.0 0 - 40 MIL-A-3933/24 SMA Panel Mtd - Female/Female 2.0 - 12.4 10, 15, ,20, 40

MIL-A-3933/17 TNC - Male/Female DC - 4.5, DC - 18.0 1-8, 10, 12, 15, 20, 25, 30, & 40 MIL-A-3933/19 BNC - Male/Female DC - 4.5 1-6, 8, 10-13, 15, 20, & 40 MIL-A-3933/18 Type N - Male/Female DC - 18.0 3, 6, , 10, 20, & 40

0.4 - 18.0, 0.5-18.0 1 & 2

MIL-A-3933/16 Type N Lossy Line Type - Male/Female 0.6 - 18.0 3

1.0 - 18.0 4 - 10

2.0 - 18.0 20

Note: Please refer to the QPL parts section on page 238 for complete listing of QPL part numbers.

Screened Attenuators per Table IV of MIL-A-3933

Screening Tests:

Thermal Shock Conditioning Visual & Mechanical Inspection Pre-Burn-In Electrical: DC Resistance VSWR Attenuation

Burn-In 240 Hours Post Burn-In Electrical: DC Resistance VSWR Attenuation Radiographic Inspection

Non-Screened Attenuators per Table V of MIL-A-3933

Group A Inspection Tests

Visual & Mechanical Examination VSWR Attenuation

Stability of Attenuation: After Peak Power

Note: All Screened Attenuators are tested 100% per Table IV and V of MIL-A-3933.

All Non-Screened Attenuators are tested 100% per Table V of MIL-A-3933.

Space Qualified Attenuators

Midwest Microwave manufactures High Reliability (Hi-Rel) Attenuators suitable for use under space flight conditions. These units are manufactured using a system that provides complete tracability of all of the piece parts that make up their assembly. All non-metal materials used meet or exceed the outgassing requirements of NASA specifications JSC SP-R-0022 for a TML of 1% max and a CVCM of .1% max.. All Hi-Rel components are manufactured in a clean room environment exceeding the requirements of FED-STD-201 Class 100,000. Hi-Rel attenuators are manufactured to individual customer specifications and undergo extensive testing similar to the testing outlined below.

In-Process Inspections Sample Size

Visual & Mechanical Dimensions 100% Plating Thickness 5 pcs. Solderability 5 pcs. Plating Adhesion 5 pcs. Contact Captivation 100% Rotational Contact Retention 6 pcs. Axial Contact Retention 6 pcs. Proof Torque 100% Contact Engaging Force 100% Contact Separating Force 100%

Group A Inspections - 100%

Visual & Mechanical Inspection Thermal Shock Sinusoidal Vibration

Electrical Characterisitics Peak Power Connector Engaging/Separating Force Radiographic Inspections

PIND Test

Visual & Mechanical Inspection

Group B Inspections - 100%

Electrical Characteristics @ Operating

Temperature Extremes

Contact Engaging/Separating Forces Coupling Mechanism Proof Torque Connector Mounting Proof Torque

Group C Inspections - 100%

Vibration Shock Moisture Resistance

Electrical Characteristics Resistance to Solvents

Page 15

Attenuators

"CC" "C"MID + 200.

10- 210.0

20- 810.0

30- 820.0

40- 630.0

Bd AMID BMID

21-1

)6.51(516. )5.9(573.

03-31

)4.91(567. )3.31(525.

SMA Connector - Attenuators

Flange Mounted - Integrated Design

• DC - 18 GHz Performance

• Tab, Slot, or Rod Contact for Microstrip use

• Interchangeable Transition Contact Pins

• Reduces Package Size and Weight

This series of SMA flange mounted Connector-Attenuators are ideally suited for use on microstrip packages where size and weight are a consideration.By combining the Attenuator and the launching Connector, space and weight as well as cost savings is accomplished.The resistive film circuit is designed to improve reliability and lower mismatch losses by eliminating the need for separate coaxial components.The units exhibit low VSWR and are ruggedly constructed of stainless steel and are temperature stabilized for use in hostile environments.

Model No. Attenuation VSWR Fig.

Figure 1 - non- removeable tab contact

ATT-0300--XX-SMA-02 07 - 10 +

ATT-0310--XX-SMA-02 11 - 20 + 0.75

ATT-0311-XX-SMA-02 11 - 20 + 0.75

ATT-0312-XX-SMA-02 11 - 20 + 0.75

ATT-0314-XX-SMA-02 11 - 20 + 0.75

Note: When ordering, replace "XX" in Model No. with desired Attenuation Value. Interchangeable center pin must be ordered separately, see Part No's below.

* From 12.4 to 18 GHz, Attenuation accuracy is + 0.40 dB

01 - 06 + 0.30

11 - 20 + 0.75 01 - 06 + 0.30 *

07 - 10 +

21 - 30 + 01 - 06 + 0.30 *

07 - 10 +

21 - 30 + 01 - 06 + 0.30 *

07 - 10 +

21 - 30 + 01 - 06 + 0.30 *

07 - 10 +

21 - 30 +

0.50

1.00

1.20 @ DC - 4 GHz

1.35 @ 4 - 12.4GHz

0.50 1

[email protected]

1.15 @ DC - 4 GHz

0.50

1.25 @ 4-12.4 GHz

1.50 @12.4-18GHz

1.00

1.15 @ DC - 4 GHz

0.50

1.25 @ 4-12.4 GHz

1.50 @12.4-18GHz

1.00

1.15 @ DC - 4 GHz

0.50

1.25 @ 4-12.4 GHz

1.50 @ 12.4 -18GHz

1.00

1.15 @ DC - 4 GHz

1.25 @ 4-12.4 GHz

1.50 @12.4-18GHz

Interchangeable Pin Configurations

Figure 2

Figure 3

Figure 4

Notes:

1. Select desired length of interchangeable center pins in accordance with package requirements and substitue the three digit decimal length for "YYY" in the Part No.

2. All Attenuator Models are rated at 2 Watts Average and 200 Watts Peak.

3. Finish : Housings are Passivated Stainless Steel, Center Pins are gold plated.

Part No. PPM-0020-CC-YYY-01

Part No. PPM-0040-06-YYY-01Part No. PPM-0030-05-YYY-01

Figure 5

Page 16

Attenuators

SMA Medium Power Types

DC - 18 GHz High Performance

• DC-18 GHz Performance

• 5, 10, and 20 Watt Model selection

• Rugged Stainless Steel Interface Construction

• Any Male/Female combination available

• Low VSWR - High Performance.

Midwest Microwave's SMA series of medium power fixed coaxial attenuators provide temperature stable, ruggedly built, precision performance in light weight reasonably sized packages. Attenuation values range through 40 dB in 1 dB increments and are available with any combination of female or male SMA connectors

5 Watts - DC - 18 GHz

Frequency: DC - 18.0, DC-12.4, and DC-6.0 GHz units available Attenuation Values: 1 thru 20 dB in 1 dB Increments Attenuation Accuracy: 1- 6 dB + 0.3dB

7-10 dB + 11-20 dB + 0.7 dB

VSWR: 1.25 max. @ DC - 6.0 GHz, 1.30 max. @ 6 - 12.4 GHz, and 1.40 max. @ 12.4 - 18.0 GHz Power: 5 Watts Average @ +40C derated linearly to 0.5 Watts @ +125C Peak Power: 200 Watts Operating Temperature Range: -54C to +125C Finish: Black Anodized Aluminum and Stainless Steel Connectors

0.5 dB

DC - 18.0 GHz 473 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0473-XX-SMA-07 ATT-473F-XX-SMA-07 ATT-473M-XX-SMA-07

XX = Attenuation Value: Select 01-20dB in 1dB increments

5 WATTS

DC - 12.4 GHz 474 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0474-XX-SMA-07 ATT-474F-XX-SMA-07 ATT-474M-XX-SMA-07

XX = Attenuation Value: Select 01-20dB in 1dB increments

5 WATTS

DC - 6.0 GHz 475 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0475-XX-SMA-07 ATT-475F-XX-SMA-07 ATT-475M-XX-SMA-07

XX = Attenuation Value: Select 01-20dB in 1dB increments

5 WATTS

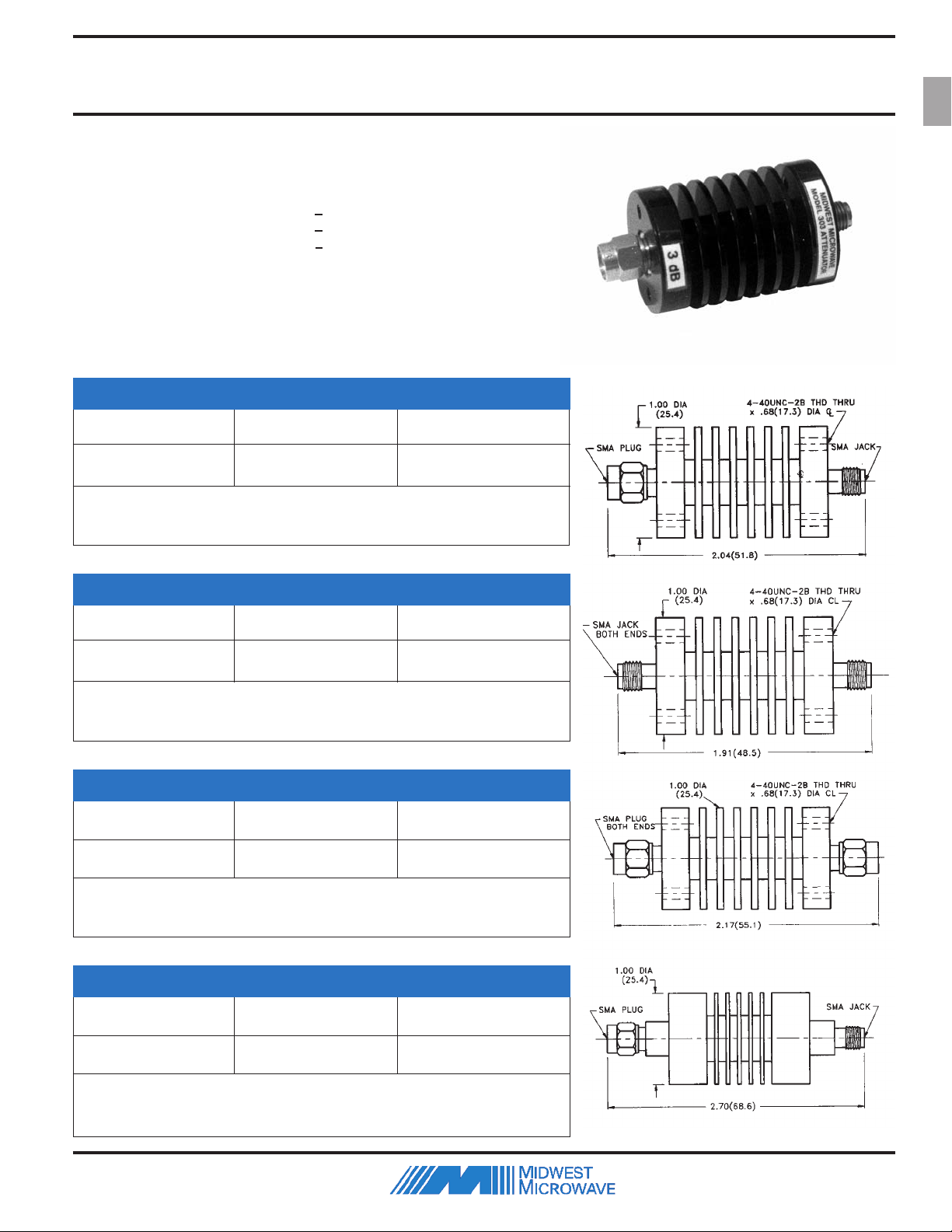

Page 17

Attenuators

SMA Medium Power Types

10 Watts - DC - 18 GHz Performance

Frequency: DC - 18.0, DC-12.4, DC-6.0, and DC-2.0 GHz units available Attenuation Values: 1 thru 40 dB in 1 dB Increments Attenuation Accuracy: 1- 10 dB + 0.5dB

11-20 dB + 21-40 dB +

VSWR: 1.25 max. @ DC - 2.0 GHz, 1.40 max. @ 2 - 12.4 GHz, and

1.50 max. @ 12.4 - 18.0 GHz

Power: 10 Watts Average @ +40C derated linearly to 0.5 Watts @ +125C Peak Power: 100 Watts except 488 Series which is 5 Kilowatts Operating Temperature Range: -54C to +125C Finish: Black Anodized Aluminum and Stainless Steel Connectors

DC - 18.0 GHz 303 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0303-XX-SMA-07 ATT-303F-XX-SMA-07 ATT-303M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS

0.7 dB

1.0dB

DC - 12.4 GHz 471 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0471-XX-SMA-07 ATT-471F-XX-SMA-07 ATT-471M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS

DC - 6.0 GHz 472 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0472-XX-SMA-07 ATT-472F-XX-SMA-07 ATT-472M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS

DC - 2.0 GHz 488 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0488-XX-SMA-07 ATT-488F-XX-SMA-07 ATT-488M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

10 WATTS Average - 5 Kilowatts Peak

Page 18

Attenuators

SMA Medium Power Types

20 Watts - DC - 18 GHz Performance

Frequency: Attenuation Values: 1 thru 40 dB in 1 dB Increments Attenuation Accuracy: DC-12.4 GHz 12.4 - 18 GHz

VSWR: 1.25 max. @ DC - 12.4 GHz, and 1.50 max. @ 12.4 - 18.0 GHz Power: 20 Watts Average @ +40C derated linearly to 5 Watts @ +125C Peak Power: 500 Watts Operating Temperature Range: -54C to +125C Finish: Black Anodized Aluminum and Stainless Steel Connectors

DC - 18.0 GHz 553 Series Model Numbers

* ATT-0553-XX-SMA-07 *ATT-553F-XX-SMA-07 * ATT-553M-XX-SMA-07

* Midwest has currently limited the test frequency on the above devices from the catalog listing of DC

to 18 GHz, to an upper frequency of 15 GHz. Sorting for 18 GHz performance may be available upon request. Please consult the factory for additional information. Please be advised that sorting to 18 GHz may require an alternate performance specification than currently listed in the catalog.

DC - 18.0 , DC-12.4, DC-6.0, and DC-2.0 GHz units available

1- 6 dB + 0.3 dB + 0.5 dB 7-10 dB + 0.5 dB + 0.75 dB 11-20 dB + 0.75 dB + 1.0 dB

21-40 dB + 1.0 dB + 1.5 dB

Male/Female Female/Female Male/Male

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS

DC - 12.4 GHz 527 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0527-XX-SMA-07 ATT-527F-XX-SMA-07 ATT-527M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS

DC - 6.0 GHz 554 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0554-XX-SMA-07 ATT-554F-XX-SMA-07 ATT-554M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS

DC - 2.0 GHz 555 Series Model Numbers

Male/Female Female/Female Male/Male

ATT-0555-XX-SMA-07 ATT-555F-XX-SMA-07 ATT-555M-XX-SMA-07

XX = Attenuation Value: Select 01-40dB in 1dB increments

20 WATTS

Page 19

Attenuators

noitaunettA A

Bd02-1 91.2

Bd06-12 74.2

noitaunettA A

Bd6-1 86.2

Bd04-7 21.3

noitaunettA A

Bd6-1 86.2

Bd04-7 21.3

7mm Precision Types

DC - 18 GHz Precision Performance

Frequency: DC - 18.0 GHz Attenuation Values: 1 - 40 dB as noted Attenuation Accuracy: 1 - 6 dB + 0.3 dB

7 - 20 dB + 21 - 40 dB + 0.7 dB

41 - 60 dB + 1.5 dB

Impedance: 50 Ohms VSWR: as noted Power: as noted Peak Power: 200 Watts on 2 Watt units and 100 Watts on medium power units Operating Temperature Range: -54C to +125C Finish: Black Anodized Aluminum and Stainless Steel Connectors

DC - 18.0 GHz 431 Series Model Number

7mm Precision - Low VSWR

ATT-0431-XX-7MM-02

Attenuation Value = XX, Select 3, 6, 10, or 20 dB VSWR: 1.12 @ DC-4.0, 1.15 @ 4.0-8.0, and 1.20 @ 8.0-18.0 (GHz) max.

Power: 2 Watts average @ +25

0.5 dB

C derated linearly to 0.5 Watts @ +125oC

DC - 18.0 GHz 220 Series Model Number

7mm Precision - Broadband Performance

ATT-0220-XX-7MM-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments VSWR: 1.07 + 0.015 f (GHz)

Power: 2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125oC

DC - 12.4 GHz 395 Series Model Number

7mm Precision - 5 Watts

ATT-0395-XX-7MM-02

Attenuation Value = XX, Select 01 thru 40 dB in 1 dB increments VSWR: 1.06 + 0.02f (GHz)

Power: 5 Watts average @ +25

C derated linearly to 1 Watt @ +125oC

DC - 12.4 GHz 396 Series Model Number

7mm Precision - 10 Watts

ATT-0396-XX-7MM-02

Attenuation Value = XX, Select 01 thru 40 dB in 1 dB increments VSWR: 1.06 + 0.02 f (GHz) max

Power: 10 Watts average @ +25

C derated linearly to 1 Watt @ +125oC

Page 20

Attenuators

DC - 18 GHz Precision Performance

Frequency: DC - 18.0 GHz, DC - 12.4, and DC - 8.0 units available Attenuation Values: 1 - 60 dB as noted Attenuation Accuracy: 1 - 6 dB + 0.3 dB

7 - 20 dB +

21 - 40 dB + 0.7 dB 41 - 60 dB + 1.5 dB

Impedance: 50 Ohms VSWR: 1.07 + 0.015 f (GHz) max Power: 2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125oC

Peak Power: 200 Watts Operating Temperature Range: -54 Finish: Stainless Steel

DC - 18.0 GHz 389 Series Model Number

Type N Precision - Low VSWR

ATT-0389-XX-NNN-02

0.5 dB

C to +125oC

Type N

Attenuation Value = XX, Select 3, 6, 10, or 20 dB VSWR: 1.12 @ DC-4 GHz

1.15 @ 4 - 8 GHz

Calibration Data Supplied 1.20 @ 8 - 18 GHz

DC - 18.0 GHz 219 Series Model Number

Male/Female Female / Female Male / Male

ATT-0219-XX-NNN-02 ATT-219F-XX-NNN-02 ATT-219M-XX-NNN-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

DC - 12.4 GHz 218 Series Model Number

Male/Female Female / Female Male / Male

ATT-0218-XX-NNN-02 ATT-218F-XX-NNN-02 ATT-218M-XX-NNN-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

Attenuation Value Length A

1 - 20 dB 1.77 (45.0) 21 - 60 dB 2.05 (52.1)

Attenuation Value Length A

1 - 20 dB 1.74 (44.2)

21 - 60 dB 2.02 (51.3)

DC - 8.0 GHz 217 Series Model Number

Male/Female Female / Female Male / Male

ATT-0217-XX-NNN-02 ATT-217F-XX-NNN-02 ATT-217M-XX-NNN-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

Note: U.S. Patent No. 3,824,506 and 4,011,531 applies to 217, 218, and 219 series Attenuators.

Attenuation Value Length A

1 - 20 dB 1.56 (39.6)

21 - 60 dB 1.84 (47.0)

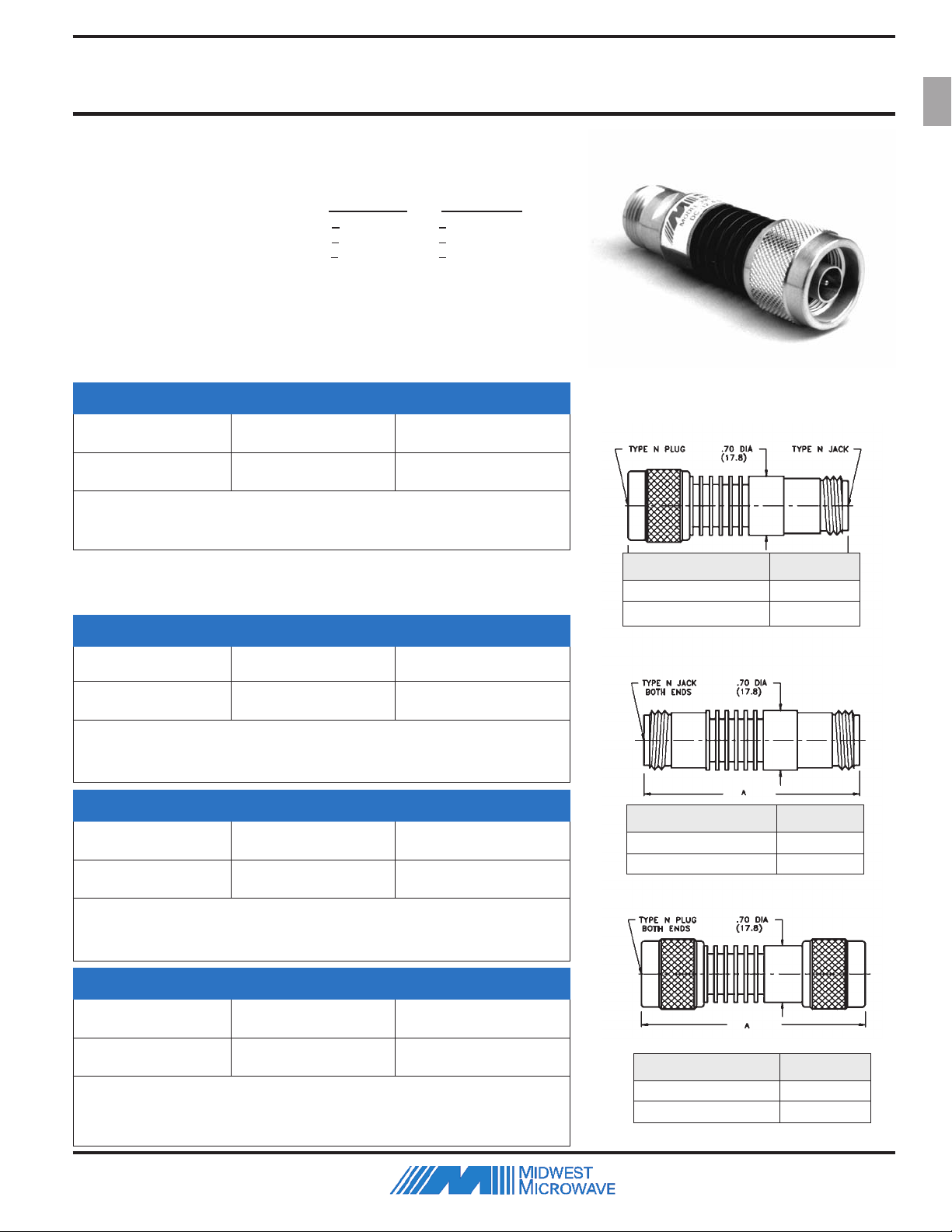

Page 21

Attenuators

Type N - Medium Power

5 Watts - DC - 18 GHz Precision Performance

Frequency: DC - 18.0 GHz, DC - 12.4, DC - 8, and DC - 2.0 units available Attenuation Values: 1 - 40 dB as noted Attenuation Accuracy: DC-12.4 GHz 12.4-18.0 GHz

1 - 6 dB + 0.3 dB + 0.5 dB 7 - 20 dB + 0.5 dB + 0.75 dB

21 - 40 dB + 0.7 dB + 1.0 dB

Impedance: 50 Ohms VSWR: 1.06 + 0.02 f (GHz) max Power: 5 Watts average @ +40 Peak Power: 100 Watts Operating Temperature Range: -54 Finish: Black Anodized Aluminum with Stainless Steel Connectors

DC - 18.0 GHz 390 Series Model Number

Male / Female Female / Female Male / Male

*ATT-0390-XX-NNN-07 *ATT-390F-XX-NNN-07 *ATT-390M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

5 Watts

* Midwest has currently limited the test frequency on the above devices from the catalog listing of DC

to 18 GHz, to an upper frequency of 15 GHz. Sorting for 18 GHz performance may be available upon request. Please consult the Factory for additional information. Please be advised that sorting to 18 GHz may require an alternate performance specification than currently listed in the catalog.

DC - 12.4 GHz 391 Series Model Number

C derated linearly to 1 Watt @ +125oC

C to +125oC

Attenuation Value Length A

1 - 6 dB 2.38 (60.5)

7 - 40 dB 2.82 (71.6)

Male / Female Female / Female Male / Male

ATT-0391-XX-NNN-07 ATT-391F-XX-NNN-07 ATT-391M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

5 Watts

DC - 8.0 GHz 393 Series Model Number

Male / Female Female / Female Male / Male

ATT-0393-XX-NNN-07 ATT-393F-XX-NNN-07 ATT-393M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

5 Watts

DC - 2.0 GHz 394 Series Model Number

Male / Female Female / Female Male / Male

ATT-0394-XX-NNN-07 ATT-394F-XX-NNN-07 ATT-394M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

5 Watts

Attenuation Value Length A

1 - 6 dB 2.32 (59.0

7 - 40 dB 2.75 (69.9)

Attenuation Value Length A

1 - 6 dB 2.48 (63.0)

7 - 40 dB 2.91 (74.0)

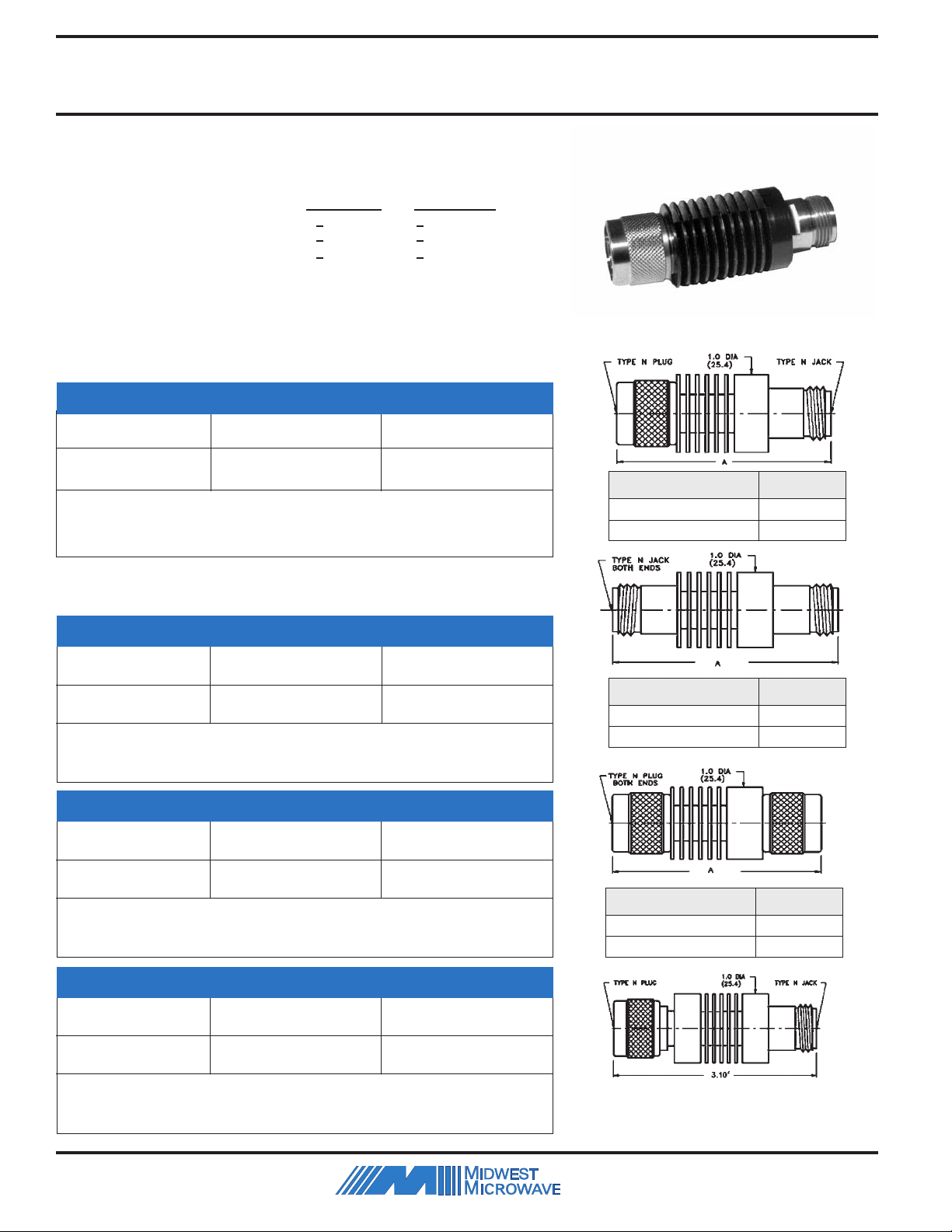

Page 22

Attenuators

Type N - Medium Power

10 Watts - DC - 18 GHz Precision Performance

Frequency: DC - 18.0 GHz, DC - 12.4, DC - 8.0 and DC - 2.0 units available Attenuation Values: 1 - 40 dB as noted Attenuation Accuracy: DC-12.4 GHz 12.4-18.0 GHz

1 - 6 dB + 0.3 dB + 0.5 dB 7 - 20 dB + 0.5 dB + 0.75 dB

21 - 40 dB + 0.7 dB + 1.0 dB

Impedance: 50 Ohms VSWR: 1.06 + 0.02 f (GHz) max Power: 10 Watts average @ 40C derated linearly to 1 Watt @ 125C Peak Power: 100 Watts except Model 477 series is 5Kilowatts Operating Temperature Range: -54 Finish: Black Anodized Aluminum with Stainless Steel Connectors

DC - 18.0 GHz 397 Series Model Number

Male/Female Female/Female Male/Male

*ATT-0397-XX-NNN-07 *ATT-397F-XX-NNN-07 *ATT-397M-XX-NNN-07

Attenuation Value = XX, Select 01 thru 40 dB in 1 dB increments

10 Watts

C to +125oC

Attenuation Value Length A

1 - 6 dB 2.38 (60.5)

7 - 40 dB 2.82 (71.6)

** Midwest has currently limited the test frequency on the above devices from the catalog listing of

DC to 18 GHz, to an upper frequency of 15 GHz. Sorting for 18 GHz performance may be available upon request. Please consult the Factory for additional information. Please be advised that sorting to 18 GHz may require an alternate performance specification than currently listed in the catalog.

DC - 12.4 GHz 392 Series Model Number

Male/Female Female / Female Male / Male

ATT-0392-XX-NNN-07 ATT-392F-XX-NNN-07 ATT-392M-XX-NNN-07

Attenuation Value= XX, Select 01 thru 40 dB in 1 dB Increments

10 Watts

DC - 8.0 GHz 398 Series Model Number

Male/Female Female / Female Male / Male

ATT-0398-XX-NNN-07 ATT-398F-XX-NNN-07 ATT-398M-XX-NNN-07

Attenuation Value= XX, Select 01 thru 40 dB in 1 dB Increments

10 Watts

DC - 2.0 GHz 477 Series Model Number

Male/Female Female / Female Male / Male

Attenuation Value Length A

1 - 6 dB 2.32 (58.9) 7 - 40 dB 2.75 (69.9)

Attenuation Value Length A

1 - 6 dB 2.48 (63.0)

7 - 40 dB 2.91 (73.9)

ATT-0477-XX-NNN-07 ATT-477F-XX-NNN-07 ATT-477M-XX-NNN-07

Attenuation Value= XX, Select 03 thru 40 dB in 1 dB Increments

10 Watts - 5 Kilowatts Peak VSWR: 1.25 Max.

Note: U.S. Patent No. 4,011,531 applies.

Note: Female to Female Model is 3.02 (76.7) long

Male to Male Model is 3.18 (80.8) long

Page 23

Attenuators

Type N - Medium Power

20 Watts - DC - 18 GHz Precision Performance

Frequency: Attenuation Values: 1 - 40 dB as noted Attenuation Accuracy: DC-12.4 GHz 12.4-18.0 GHz

Impedance: 50 Ohms VSWR: 1.25 max @ DC - 12.4 GHz, 1.50 max @ 12.4 - 18.0 GHz Power: 20 Watts average @ +40 Peak Power: 500 Watts Operating Temperature Range: -54C to +125C Finish: Black Anodized Aluminum with Stainless Steel Connectors

DC - 18.0 GHz 547 Series Model Number

Male / Female Female / Female Male / Male

* ATT-0547-XX-NNN-07 *ATT-547F-XX-NNN-07 *ATT-547M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

20Watts

* Midwest has currently limited the test frequency on the above devices from the catalog listing of DC

DC - 18.0 GHz, DC - 12.4, DC - 8, and DC - 2.0 units available

1 - 6 dB + 0.3 dB + 0.5 dB 7 - 10 dB + 0.5 dB + 0.75 dB

11 - 20 dB + 0.75 dB + 1.0 dB 21 - 40 dB + 1.0 dB + 1.5 dB

C derated linearly to 5 Watts @ +125oC

DC - 12.4 GHz 528 Series Model Number

Male/Female Female/Female Male/Male

ATT-0528-XX-NNN-07 ATT-528F-XX-NNN-07 ATT-528M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

20 Watts

DC - 8.0 GHz 559 Series Model Number

Male/Female Female/Female Male/Male

ATT-0559-XX-NNN-07 ATT-559F-XX-NNN-07 ATT-559M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

20 Watts

DC - 2.0 GHz 549 Series Model Number

Male/Female Female/Female Male/Male

ATT-0549-XX-NNN-07 ATT-549F-XX-NNN-07 ATT-549M-XX-NNN-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

20 Watts

Page 24

Attenuators

DC - 18 GHz Precision Performance

Frequency: DC - 18.0 GHz, DC - 12.4, DC - 8.0 and DC - 2.0 units available Attenuation Values: 1 - 60 dB in 1 dB increments Attenuation Accuracy: 1 - 6 dB + 0.3 dB

7 - 20 dB +

21 - 40 dB + 1.0 dB 41 - 60 dB + 1.5 dB

Impedance: 50 Ohms VSWR: 1.07 + 0.015 f (GHz) max Power: 2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125oC

Peak Power: 200 Watts Operating Temperature Range: -54C to +125C Finish: Stainless Steel

DC - 18.0 GHz 225 Series Model Number

Male/Female Female/Female Male/Male

ATT-0225-XX-TNC-02 ATT-225F-XX-TNC-02 ATT-225M-XX-TNC-02

Attenuation Value = XX, Select 01 thru 60 dB in 1 dB increments

Broadband Performance

DC - 12.4 GHz 224 Series Model Number

Male/Female Female / Female Male / Male

0.5 dB

TNC Type

Attenuation Value Length A

1 - 20 dB 1.57 (39.9)

21 - 60 dB 1.84 (46.7)

ATT-0224-XX-TNC-02 ATT-224F-XX-TNC-02 ATT-224M-XX-TNC-02

Attenuation Value= XX, Select 01 thru 60 dB in 1 dB Increments

DC - 8.0 GHz 223 Series Model Number

Male/Female Female / Female Male / Male

ATT-0223-XX-TNC-02 ATT-223F-XX-TNC-02 ATT-223M-XX-TNC-02

Attenuation Value= XX, Select 01 thru 60 dB in 1 dB Increments

DC - 2.0 GHz 222 Series Model Number

Male/Female Female / Female Male / Male

ATT-0222-XX-TNC-02 ATT-222F-XX-TNC-02 ATT-222M-XX-TNC-02

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

Attenuation Value Length A

1 - 20 dB 1.66 (42.2)

21 - 60 dB 1.93 (49.0)

Attenuation Value Length A

1 - 20 dB 1.71 (43.4)

21 - 60 dB 1.98 (50.3)

Note: U.S. Patent No. 3,824,506 and 4,011,531 applies.

Page 25

Attenuators

TNC Type - Medium Power

10 Watts - DC - 18 GHz Precision Performance

Frequency: DC - 18.0 GHz, DC - 12.4, DC - 8, and DC - 2.0 units available Attenuation Values: 1 - 40 dB as noted Attenuation Accuracy: DC-12.4 GHz 12.4-18.0 GHz

1 - 6 dB + 0.3 dB + 0.5 dB 7 - 20 dB + 0.5 dB + 0.75 dB

21 - 40 dB + 1.0 dB + 1.5 dB

Impedance: 50 Ohms VSWR: 1.25 max @ DC - 12.4 GHz, 1.50 @ 12.4 - 18.0 GHz Power: 10 Watts average @ 40 C derated linearly to 1 Watt @ 125 C Peak Power: 100 watts and 5 Kilowatts on 476 Series Operating Temperature Range: -54C to +125C Finish: Black Anodized Aluminum with Stainless Steel Connectors

DC - 18.0 GHz 480 Series Model Number

Male / Female Female / Female Male / Male

*ATT-0480-XX-TNC-07 *ATT-480F-XX-TNC-07 *ATT-480M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

10 Watts

* Midwest has currently limited the test frequency on the above devices from the catalog listing of DC

DC - 12.4 GHz 479 Series Model Number

Male/Female Female/Female Male/Male

ATT-0479-XX-TNC-07 ATT-479F-XX-TNC-07 ATT-479M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

10 Watts

DC - 8.0 GHz 478 Series Model Number

Male/Female Female/Female Male/Male

ATT-0478-XX-TNC-07 ATT-478F-XX-TNC-07 ATT-478M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

10 Watts

DC - 2.0 GHz 476 Series Model Number

Male/Female Female/Female Male/Male

ATT-0476-XX-TNC-07 ATT-476F-XX-TNC-07 ATT-476M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

10 Watts - 5 Kilowatts Peak

Page 26

Attenuators

TNC Type - Medium Power

20 Watts - DC - 18 GHz Precision Performance

Frequency: DC - 18.0 GHz, DC - 12.4, DC - 8, and DC - 2.0 units available Attenuation Values: 1 - 40 dB in 1 dB increments Attenuation Accuracy: DC-12.4 GHz 12.4-18.0 GHz

1 - 6 dB + 0.3 dB + 0.5 dB 7 - 10 dB + 0.5 dB + 0.75 dB

11 - 20 dB + 21 - 40 dB +

Impedance: 50 Ohms VSWR: 1.25 max @ DC - 12.4 GHz, 1.50 @ 12.4 - 18.0 GHz Power: 20 Watts average @ 40 C derated linearly to 1 Watt @ 125 C Peak Power: 500 Watts Operating Temperature Range: -54C to +125C Finish: Black Anodized Aluminum with Stainless Steel Connectors

DC - 18.0 GHz 580 Series Model Number

Male / Female Female / Female Male / Male

ATT-0580-XX-TNC-07 *ATT-580F-XX-TNC-07 *ATT-580M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

0.75 dB + 1.0 dB

1.0 dB + 1.5 dB

20 Watts

* Midwest has currently limited the test frequency on the above devices from the catalog listing of DC

DC - 12.4 GHz 529 Series Model Number

Male/Female Female/Female Male/Male

ATT-0529-XX-TNC-07 ATT-529F-XX-TNC-07 ATT-529M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

20 Watts

DC - 8.0 GHz 579 Series Model Number

Male/Female Female/Female Male/Male

ATT-0579-XX-TNC-07 ATT-579F-XX-TNC-07 ATT-579M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

20 Watts

DC - 2.0 GHz 578 Series Model Number

Male/Female Female/Female Male/Male

ATT-0578-XX-TNC-07 ATT-578F-XX-TNC-07 ATT-578M-XX-TNC-07

Attenuation Value = XX, Select 1 - 40 dB in 1 dB increments

20 Watts

Page 27

Attenuators

DC - 4 GHz Performance

Frequency: DC - 4.0 GHz and DC - 2.0 units available Attenuation Values: 1 - 40 dB as noted Attenuation Accuracy: 1 - 6 dB + 0.3 dB

7 - 10 dB + 11 - 20 dB + 0.75 dB 21- 40 dB +

41 - 60 dB ± 1.5 dB

Impedance: 50 Ohms VSWR: 1.25 max Power: 2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125oC U.O.S.

Peak Power: 200 Watts for 2Watt units and 100 Watts Peak for 5 & 10 Watt Operating Temperature Range: -54C to +125C Finish: Nickel Plated Brass and Black Anodized Aluminum

DC - 4.0 GHz 313 Series Model Number

Male / Female Female / Female Male / Male

0.5 dB

1.0 dB

BNC Type

ATT-0313-XX-BNC-10 ATT-313F-XX-BNC-10 ATT-313M-XX-BNC-10

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 2.0 GHz 314 Series Model Number

Male/Female Female/Female Male/Male

ATT-0314-XX-BNC-10 ATT-314F-XX-BNC-10 ATT-314M-XX-BNC-10

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 4.0 GHz 581 Series Model Number

Male/Female Female/Female Male/Male

ATT-0581-XX-BNC-07 ATT-581F-XX-BNC-07 ATT-581M-XX-BNC-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

Attenuation Value Length A

1 - 20 dB 1.36

21 - 60 dB 1.65

Attenuation Value Length A

1 - 20 dB 1.43

21 - 60 dB 1.72

Attenuation Value Length A

1 - 20 dB 1.55

21 - 60 dB 1.84

5 Watts

DC - 4.0 GHz 582 Series Model Number

Male/Female Female/Female Male/Male

ATT-0582-XX-BNC-07 ATT-582F-XX-BNC-07 ATT-582M-XX-BNC-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts

Page 28

Attenuators

DC - 11GHz Performance

Frequency: DC - 11.0 GHz and DC - 2.0 units available Attenuation Values: 1 - 60 dB in 1 dB increments Attenuation Accuracy: 1 - 6 dB + 0. 3 dB

7 - 20 dB +

21 - 40 dB + 0.75 dB 41 - 60 dB + 1.0 dB

Impedance: 50 Ohms VSWR: 1.25 max Power: 2Watts average @ 25 C derated linearly to 0.5 Watts @ 125 C

10 Watts average @ 40C derated linearly to 0.5 watts @ 125 C

Peak Power: 0.2 Kilowatts Operating Temperature Range: -54C to +125C Finish: Stainless Steel

DC - 11.0 GHz 560 Series Model Number

Male / Female Female / Female Male / Male

ATT-0560-XX-SCO-02 ATT-560F-XX-SCO-02 ATT-560M-XX-SCO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

0.5 dB

SC Type

DC - 2.0 GHz 561Series Model Number

Male/Female Female/Female Male/Male

ATT-0561-SCO-02 ATT-561F-XX-SCO-02 ATT-561M-XX-SCO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 11.0 GHz 562 Series Model Number

Male/Female Female/Female Male/Male

ATT-0562-XX-SCO-07 ATT-562F-XX-SCO-07 ATT-562M-XX-SCO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts

DC - 2.0 GHz 563 Series Model Number

Male/Female Female/Female Male/Male

ATT-0563-XX-SCO-07 ATT-563F-XX-SCO-07 ATT-563M-XX-SCO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts - 5 Kilowatts Peak

Page 29

Attenuators

DC - 8 GHz Performance

Frequency: DC - 8.0 GHz and DC - 2.0 units available Attenuation Values: 1 - 60 dB in 1 dB increments Attenuation Accuracy: 1 - 6 dB + 0. 3 dB

7 - 20 dB +

21 - 40 dB + 0.75 dB 41 - 60 dB + 1.0 dB

Impedance: 50 Ohms VSWR: 1.25 max Power: 2Watts average @ 25 C derated linearly to 0.5 Watts @ 125 C

10 Watts average @ 40C derated linearly to 0.5 watts @ 125 C

Peak Power: 0.2 Kilowatts Operating Temperature Range: -54C to +125C Finish: Stainless Steel

DC - 8.0 GHz 584 Series Model Number

Male / Female Female / Female Male / Male

ATT-0584-XX-HNO-02 ATT-584F-XX-HNO-02 ATT-584M-XX-HNO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

0.5 dB

HN Type

DC - 2.0 GHz 583Series Model Number

Male/Female Female/Female Male/Male

ATT-0583-XX-HNO-02 ATT-583F-XX-HNO-02 ATT-583M-XX-HNO-02

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

DC - 8.0 GHz 586 Series Model Number

Male/Female Female/Female Male/Male

ATT-0586-XX-HNO-07 ATT-586F-XX-HNO-07 ATT-586M-XX-HNO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts

DC - 2.0 GHz 585 Series Model Number

Male/Female Female/Female Male/Male

ATT-0585-XX-HNO-07 ATT-585F-XX-HNO-07 ATT-585M-XX-HNO-07

Attenuation Value = XX, Select 1 - 60 dB in 1 dB increments

10 Watts - 5 Kilowatts Peak

Page 30

Attenuators

DC - 18 GHz Performance - Subminiature Size

Frequency: DC - 18.0 GHz, DC - 12.4, DC - 8, and DC - 2.0 units available Attenuation Values: 1 - 20 dB as noted Attenuation Accuracy: 1 - 6 dB + 0.3 dB

7 - 10 dB +

11 - 20 dB + 0.75 dB

Impedance: 50 Ohms VSWR: 1.25 max Power: 2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125oC

Peak Power: 200 Watts Operating Temperature Range: -54 Finish: Stainless Steel

DC - 18.0 GHz 590 Series Model Number

Male / Female Female / Female Male / Male

ATT-0590-XX-SSM-02 ATT-590F-XX-SSM-02 ATT-590M-XX-SSM-02

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

0.5 dB

C to +125oC

SSMA Type

DC - 12.4 GHz 589 Series Model Number

Male/Female Female/Female Male/Male

ATT-0589-XX-SSM-02 ATT-589F-XX-SSM-02 ATT-589M-XX-SSM-02

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

DC - 8.0 GHz 588 Series Model Number

Male/Female Female/Female Male/Male

ATT-0588-XX-SSM-02 ATT-588F-XX-SSM-02 ATT-588M-XX-SSM-02

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

DC - 2.0 GHz 587 Series Model Number

Male/Female Female/Female Male/Male

Attenuation Value Length A

1 - 12 dB 1.10 (27.9)

13 - 20 dB 1.14 (29.0)

Attenuation Value Length A

1 - 12 dB 0.98 (24.9)

13 - 20 dB 1.11(28.2)

ATT-0587-XX-SSM-02 ATT-587F-XX-SSM-02 ATT-587M-XX-SSM-02

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

Attenuation Value Length A

1 - 12 dB 1.04 (26.4)

13 - 20 dB 1.17 (29.7)

Page 31

Attenuators

SMB and SMC Type

SMB and SMC - DC - 4 GHz Performance

This new series of SMB and SMC Attenuators are especially suitable for use in commercial and low frequency military systems. They have been designed to withstand the same hostile environmental conditions as all of the other Midwest Microwave series of Attenuators.

Frequency: DC - 4 GHz Attenuation Values: 1 - 20 dB as noted Attenuation Accuracy: 1 - 6 dB + 0.3 dB

7 - 10 dB +

11 - 20 dB + 0.75 dB

Impedance: 50 Ohms VSWR: 1.25 max Power: 2 Watts average @ +25 Peak Power: 200 Watts Operating Temperature Range: -54 Finish: Nickel Plated Brass

C derated linearly to 0.5 Watts @ +125oC

SMB Type

DC - 12.4 GHz 591 SMB Series Model Number

0.5 dB

C to +125oC

Male/Female Female/Female Male/Male

ATT-0591-XX-SMB-10 ATT-591F-XX-SMB-10 ATT-591M-XX-SMB-10

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

SMC Type

DC - 8.0 GHz 592 SMC Series Model Number

Male/Female Female/Female Male/Male

ATT-0592-XX-SMC-10 ATT-592F-XX-SMC-10 ATT-592M-XX-SMC-10

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

Attenuation Value Length A

1 - 12 dB 1.42 (36.0)

13 - 20 dB 1.54 (39.1)

Attenuation Value Length A

1 - 12 dB 1.42 (36.0)

13 - 20 dB 1.54(39.1)

Page 32

Attenuators

SMA - 18GHz Performance

Specifications

Frequency Range: 1-18GHz 3-18 GHz 5-18 GHz 6-18 GHz Attenuation Values: 1-4 dB 5-9dB 10-15dB 16-20 dB Max Deviation from Nominal: + 0.5 dB or 5% whichever is greater Impedance: 50 Ohms VSWR: 1.25 max Power: 2 Watts average @ +25 Peak Power: 5 Kilowatts Operating Temperature Range: -54C to +125C Finish: Passivated Stainless Steel Calibration: Supplied at 4, 8, 12, and 18 GHz

DC - 18.0 GHz 204 Series Model Number

Male / Female

ATT-0204-XX-SMA-02

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

SMA

C derated linearly to 0.5 Watts @ +125oC

Lossy Line Type

7mm Precision - 1 - 18GHz Performance

Frequency Range: 1-18GHz 3-18 GHz 5-18 GHz Attenuation Values: 3 & 6 dB 10 dB 20 dB Max Deviation from Nominal: + 0.3 dB @ 8 GHz Frequency Sensitivity (from value @ 8 GHz):

dB Value freq Sensitivity

3 dB + 0.5 dB

6 dB + 0.6 dB 10 dB + 20 dB + 1.2 dB

VSWR: 1.08 + 0.03 / f (GHz) Power: 2 Watts average @ +40 Peak Power: 5 Kilowatts Operating Temperature Range: -54C to +125C Finish: Passivated Stainless Steel Calibration: Supplied at 4, 8, 12, and 18 GHz

DC - 18.0 GHz 340A Series Model Number

7mm Precision

ATT-340A-XX-7MM-02

Attenuation Value = XX, Select 3, 6, 10, and 20 dB

C derated linearly to 0.5 Watts average @ +125oC

1.0 dB

7mm Precision

Page 33

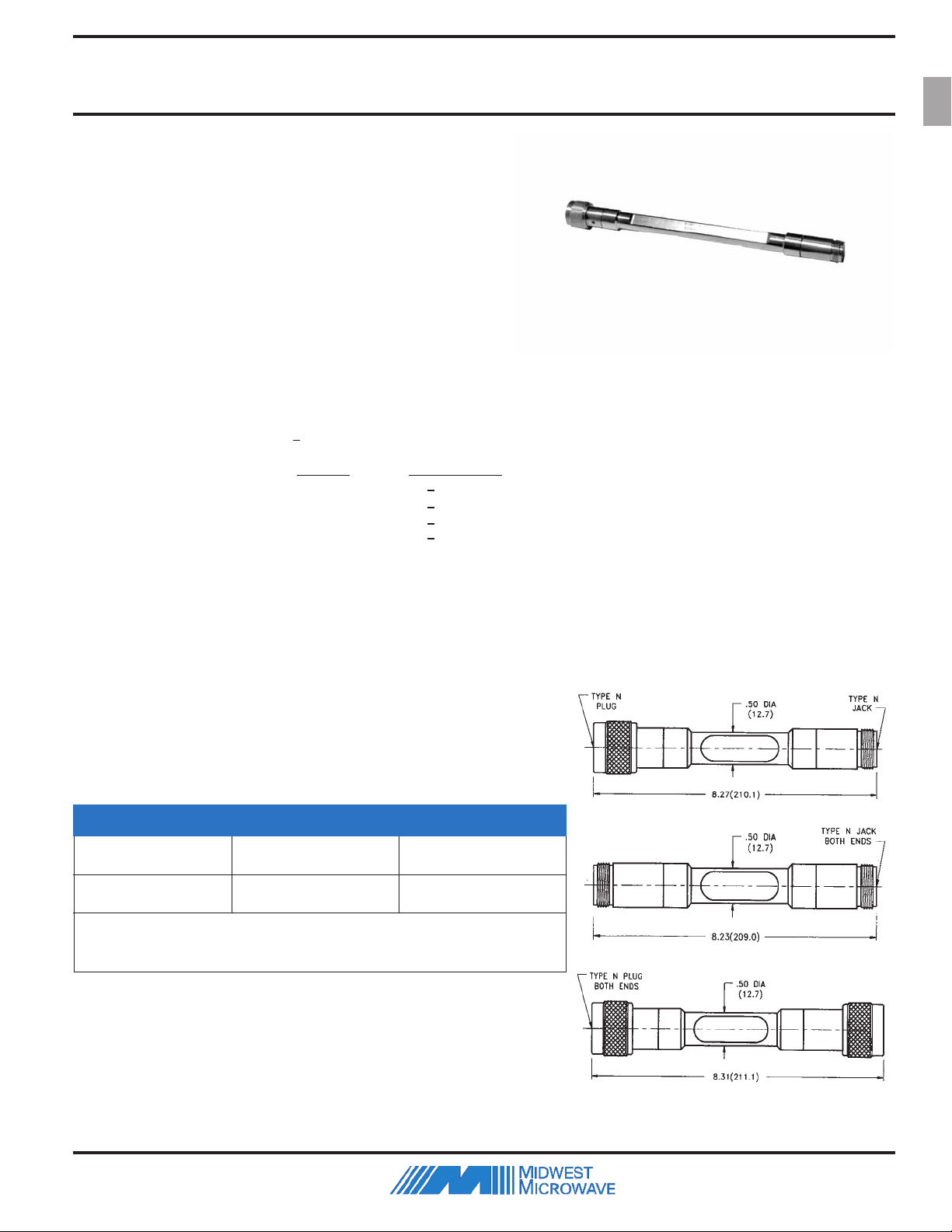

Attenuators

Type N Precision 1-18 GHz Performance

This series of Lossy Line Attenuators are very useful for a variety of test bench requirements. The lossy line is the simplest, most basic type of coaxial attenuator. The lossy line in these attenuators is actually the center conductor of a simple coaxial structure. The lossy line possesses some basic advantages over conventional attenuators in that they exhibit low VSWR characteristics that improve as frequency increases and are also very useful where phase tracking is important.

Specifications

Frequency Range: 1-18 GHz 3-18 GHz 5-18 GHz Attenuation Values: 3 & 6 dB 10 dB 20 dB Max Deviation from Nominal: + 0.3 dB @ 8 GHz Frequency Sensitivity (from Value @ 8 GHz):

dB Value freq Sensitivity

3 dB + 0.5 dB 6 dB + 0.6 dB

1.0 dB

Power: 2 Watts average @ +40 Peak Power: 5 Kilowatts

10 dB + 20 dB + 1.2 dB

C derated linearly to 0.5 Watts @ +125oC

Lossy Line Type

Impedance: 50 Ohms VSWR: 1.08 + 0.03/ f (GHz) Operating Temperature Range: -54C to +125C Finish: Passivated Stainless Steel Calibration: Supplied at 4, 8, 12.4, and 18 GHz

DC - 18.0 GHz 340N Series Model Number

Male/Female Female/Female Male/Male

ATT-0340-XX-NNN-02 ATT-340F-XX-NNN-02 ATT-340M-XX-NNN-02

Attenuation Value = XX, Select 3, 6, 10, & 20 dB

Precision N

Page 34

Attenuators

SMA - DC - 18 GHz Precision Performance

Frequency: DC-18.0 and DC - 12 .4 GHz sets Attenuation Values: 3, 6, 10, and 20 dB one each per set Attenuation Accuracy: DC-18.0 DC-12..4 Accuracy

3 & 6 dB 3, 6, & 10 dB + 0.3 dB

10 & 20 dB 20 dB +

Impedance: 50 Ohms VSWR: 1.07 + 0.015 f (GHz) max Power: 2 Watts average, 200 Watts peak Finish: Passivated Stainless Steel Calibration: Data Supplied at 4, 8, 12.4, and 18 GHz

DC - 18.0 GHz Model Number DC - 12.4 GHz

Male / Female Male / Female

ATS-3554-18-SMA-02 ATS-3553-12-SMA-02

7mm - DC - 18 GHz Precision Performance

Frequency: DC - 18 .0 and DC-12.4 GHz sets Attenuation Values: 3, 6, 10, and 20 dB one each per set Attenuation Accuracy: DC-18.0 DC-12..4 Accuracy

3 & 6 dB 3, 6, & 10 dB + 0.3 dB

10 & 20 dB 20 dB +

Impedance: 50 Ohms VSWR: 1.07 + 0.015 f (GHz) max Power: 2 Watts average, 200 watts peak Finish: Passivated Stainless Steel Calibration: Data Supplied at 4, 8, 12.4, and 18.0 GHz

0.5 dB

Calibrated Sets

Midwest Microwave's Calibrated Attenuator Sets consist of a set of four precision, broadband, fixed attenuators with values of 3, 6, 10, and 20 dB. These sets are available with a choice of SMA, N, or 7mm passivated stainless steel precision connectors.

DC - 18.0 GHz Model Number DC - 12.4 GHz

7mm 7mm

ATS-3552-18-7MM-02 ATS-3555-12-7MM-02

Type N - DC - 18 GHz Precision Performance

Frequency: DC - 18 .0 and DC-12.4 GHz sets Attenuation Values: 3, 6, 10, and 20 dB one each per set Attenuation Accuracy: DC-18.0 DC-12..4 Accuracy

3 & 6 dB 3, 6, & 10 dB + 0.3 dB

Impedance: 50 Ohms 10 & 20 dB 20 dB + 0.5 dB VSWR: 1.07 + 0.015 f (GHz) max Power: 2 Watts average, 200 Watts peak Finish: Passivated Stainless Steel Calibration: Data Supplied at 4, 8, 12.4, and 18.0 GHz

DC - 18.0 GHz Model Number DC - 12.4 GHz

Male / Female Male / Female

ATS-3551-18-NNN-02 ATS-3550-12-NNN-02

Calibrated Attenuator Sets are intended for laboratory or field use. The precision, broadband, fixed attenuators are supplied in a shock resistant storage case. the inside cover of the storage case holds the calibration data.

The calibration data includes test results at DC, 4.0, 8.0,

12.4, and 18.0 GHz. All measurement standards used have calibration traceability to the National Bureau of Standards.

Page 35

Attenuators

DC - 18 GHz 7 mm Precision Performance

Specifications

Frequency: DC - 18.0 GHz Attenuation Values: 1 - 10 dB in 1 dB increments and 20 dB Attenuation Accuracy: 1 - 10 dB + 0.3 dB

20 dB + 0.5 dB

Impedance: 50 Ohms VSWR: 1.12 @ DC-4, 1.15 @ 4-8, and 1.20 @ 8-18 GHz max Power: 2 Watts average @ +25 Peak Power: 200 Watts Operating Temperature Range: -54 Finish: Passivated Stainless Steel Calibration: Supplied at 4, 8, 12, and 18 GHz

7mm to SMA

DC - 18.0 GHz 7mm / SMA Model Numbers

C derated linearly to 0.5 Watts @ +125oC

C to +125oC

Adapter - Pads

7mm / SMA Male 7mm / SMA Female

ADP-0105-XX-000-02 ADP-0106-XX-000-02

Attenuation Value = XX, Select 01 -10 dB in 1 dB increments, and 20 dB

7mm Precision

7mm to Type N

DC - 18.0 GHz 7mm / Type N Model Numbers

7mm / N Male 7mm / N Female

ADP-0107-XX-000-02 ADP-0108-XX-000-02

Attenuation Value = XX, Select 01 -10 dB in 1 dB increments, 20 and 30 dB

7mm Precision

Page 36

Attenuators

Type N to SMA DC - 18 GHz Performance

Specifications

Frequency: DC - 18.0 GHz Attenuation Values: 1 - 30 dB in 1 dB increments Attenuation Accuracy: 1 - 6 dB + 0.3 dB

7 - 20 dB +

21 - 30 dB +

Impedance: 50 Ohms VSWR: 1.10@ DC-4, 1.20 @ 4-10, and 1.30 @ 10-18 GHz max Power: 2 Watts average @ +25 Peak Power: 0.2 Killowatts Operating Temperature Range: -54 Finish: Passivated Stainless Steel

C derated linearly to 0.5 Watts @ +125oC

Type N Male to SMA

DC - 18.0 GHz Type N / SMA Model Numbers

0.5 dB

1.0 dB

C to +125oC

Adapter - Pads

N Male / SMA Male N Male / SMA Female

ADP-0101-XX-000-02 ADP-0102-XX-000-02

Attenuation Value = XX, Select 01 -30 dB in 1 dB increments

Precision N / SMA

Type N Female to SMA

DC - 18.0 GHz Type N / SMA Model Numbers

N Female / SMA Male N Female / SMA Female

ADP-0103-XX-000-02 ADP-0104-XX-000-02

Attenuation Value = XX, Select 01 -30 dB in 1 dB increments

Precision N / SMA

Page 37

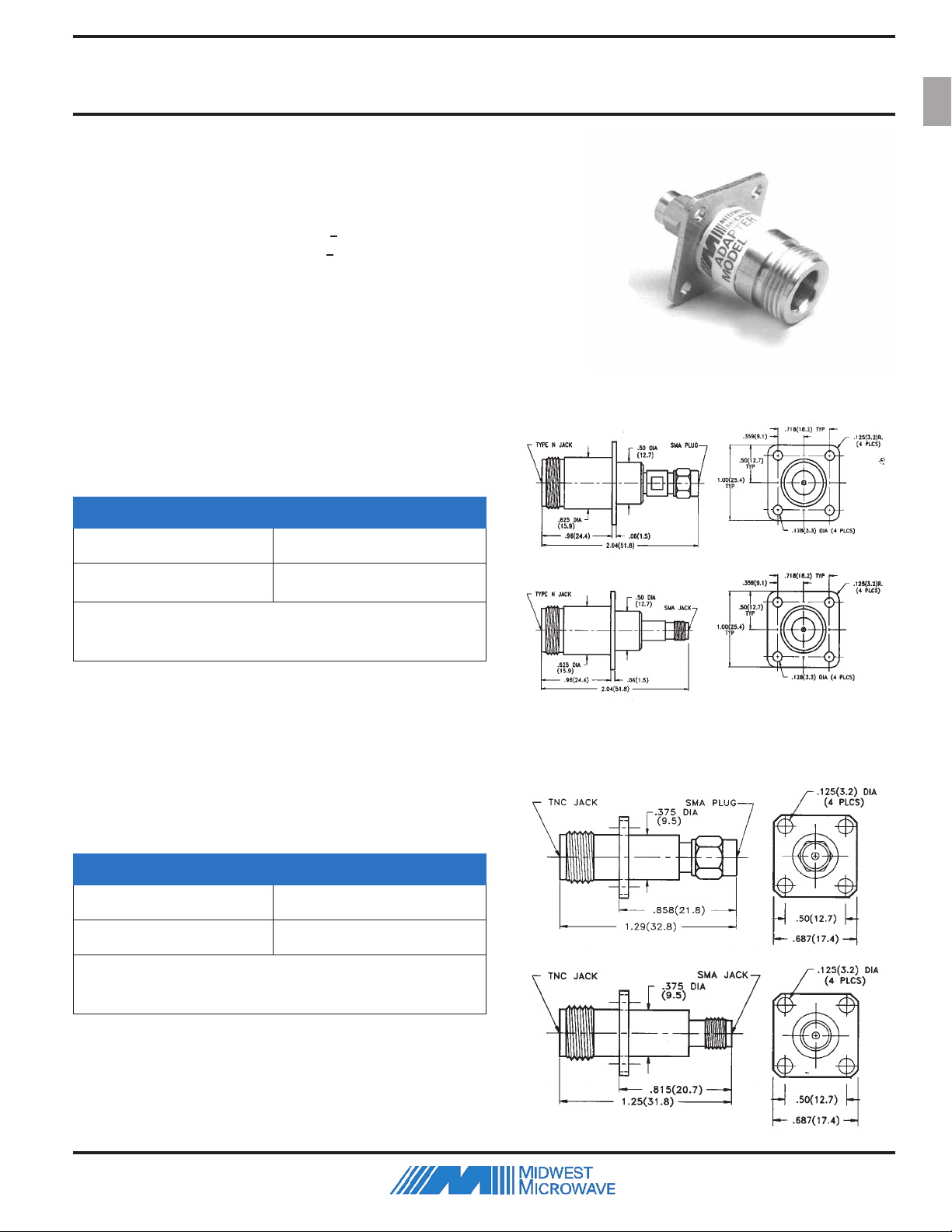

Attenuators

Type N and TNC F lange Mount to SMA

Specifications

Frequency: DC - 18.0 GHz Attenuation Values: 1 - 20 dB in 1 dB increments Attenuation Accuracy: 1 - 10 dB + 0.5 dB

11- 20 dB + 0.75 dB

Impedance: 50 Ohms VSWR: 1.12 @ DC-4, 1.20 @ 4-10, and 1.30 @ 10-18 GHz max Power: 2 Watts average @ +25 Peak Power: 0.2 Kilowatts Operating Temperature Range: -54 Finish: Passivated Stainless Steel

N Flanged Female to SMA

DC - 18.0 GHz N Flange / SMA Model Numbers

C derated linearly to 0.5 Watts @ +125oC

C to +125oC

Adapter - Pads

N Flange / SMA Male N Flange / SMA Female

ADP-304M-XX-000-02 ADP-304F-XX-000-02

Attenuation Value = XX, Select 01 -20 dB in 1 dB increments

Precision N

TNC Flanged Female to SMA

DC - 18.0 GHz TNC Flange / SMA Model Numbers

TNC Flange Female/ SMA Male TNC Flange Female / SMA Female

ADP-533M-XX-000-02 ADP-533F-XX-000-02

Attenuation Value = XX, Select 01 -20 dB in 1 dB increments

Precision TNC

Page 38

Attenuators

Step Attenuators - Thumbwheel Type

Thumbwheel - Panel Mount - 0 to 69 dB in 1 dB Steps

Specifications

Frequency: DC-18.0 GHz Attenuation Values: 0 -9 dB, 0-60 dB, and 0-69 dB Models available Attenuation Accuracy:

0-9 dB 0-60 dB 0-69 dB

in 1 dB steps in 10 dB steps in 1 dB steps

Step Deviation Step Deviation Step Deviation

0 1.0 0 1.0 0 1.0 1+ 2+0.5 20 + 0.7 10-19 + 1.0 3+ 4+0.5 40 + 1.0 30-39 + 1.4 5+0.5 50 + 1.4 40-49 + 1.5 6+0.5 60 + 1.5 50-59 + 1.9 7+ 8+0.5 9+0.5

Switching Repeatability: <0.05 dB Switching Life: 1,000,000 cycles VSWR: 1.65 max Impedance: 50 Ohms Power: 2 Watts average Connectors: SMA, 7mm, or N Female* with Passivated Stainless Steel Finish

0.5 10 + 0.5 1-9 + 0.5

0.5 30 + 0.9 20-29 + 1.2

0.5 60-69 + 2.0

0 - 9 dB in 1 dB Steps DC - 18.0 GHz

SMA N 7mm Precision

STA-1095-18-SMA-79 STA-1095-18-NNN-79 STA-1095-18-7MM-79

0 - 60 dB in 10 dB Steps DC - 18.0 GHz

SMA N 7mm Precision

STA-1096-18-SMA-79 STA-1096-18-NNN-79 STA-1096-18-7MM-79

0 - 69 dB in 1 dB Steps DC - 18.0 GHz

SMA N 7mm Precision

STA-1097-18-SMA-79 STA-1097-18-NNN-79 STA-1097-18-7MM-79

*Note: TNC Connectors and or Male or Male/Female Connector combinations are available upon special request.
