GENERAL DESCRIPTION

The MTC-6000 is a Micro-Processor based Master Time Clock. The unit will provide
synchronization for a wide variety of industry standard secondary wall clocks, payroll recorders,
time & date stamps, and other time keeping devices.

The output circuits may be individually programmed for control of bells, lights, heating and
air conditioning, and other devices which can be scheduled for operation based on the time and
day. Programing for these circuits may be TIME ON - TIME OFF or TIME ON ­DURATION. Programing can be by individual day, 5 day (Mon.-Fri.), or 7 day.

The clock time base, in normal operation, is synchronized with the 60 Hz AC power line. During
power failures, the time base is accurately maintained by a back up battery powered oscillator.
The back up battery system uses a lithium energy cell with a design life of ten years. The battery
maintains timing and circuit programing during a loss of primary power.

Holidays may be programmed 12 months in advance. The Holiday feature will inhibit the
automatic operation of the Output Circuits during a programmed holiday.

Automatic daylight savings time changes. (May be turned off)
Automatic updating of Impulse secondary clocks after a power failure. The MTC-6000 records the

time of power failure and the current time. When power is restored, correction pulses are sent to
the clocks.

All operator programing functions are easily performed from the front panel. A security access
code prevents unauthorized programing changes.

INSTALLATION

115 VAC

POWER INPUT

1. As you unpack the clock, check for

LINE CORD

shipping damage to the carton or clock.
Report any damage to the carrier.

FUSES

2. The MTC-6000 is designed for mounting
in a standard 19 inch rack.

3. The clock must be installed in
accordance with all local wiring codes.
The chassis ground connection must be
connected to a good earth ground circuit.
The terminal strip provided for external
wiring connections is a pressure plate
type, the terminals are rated for clamping
two 12 ga. wires.

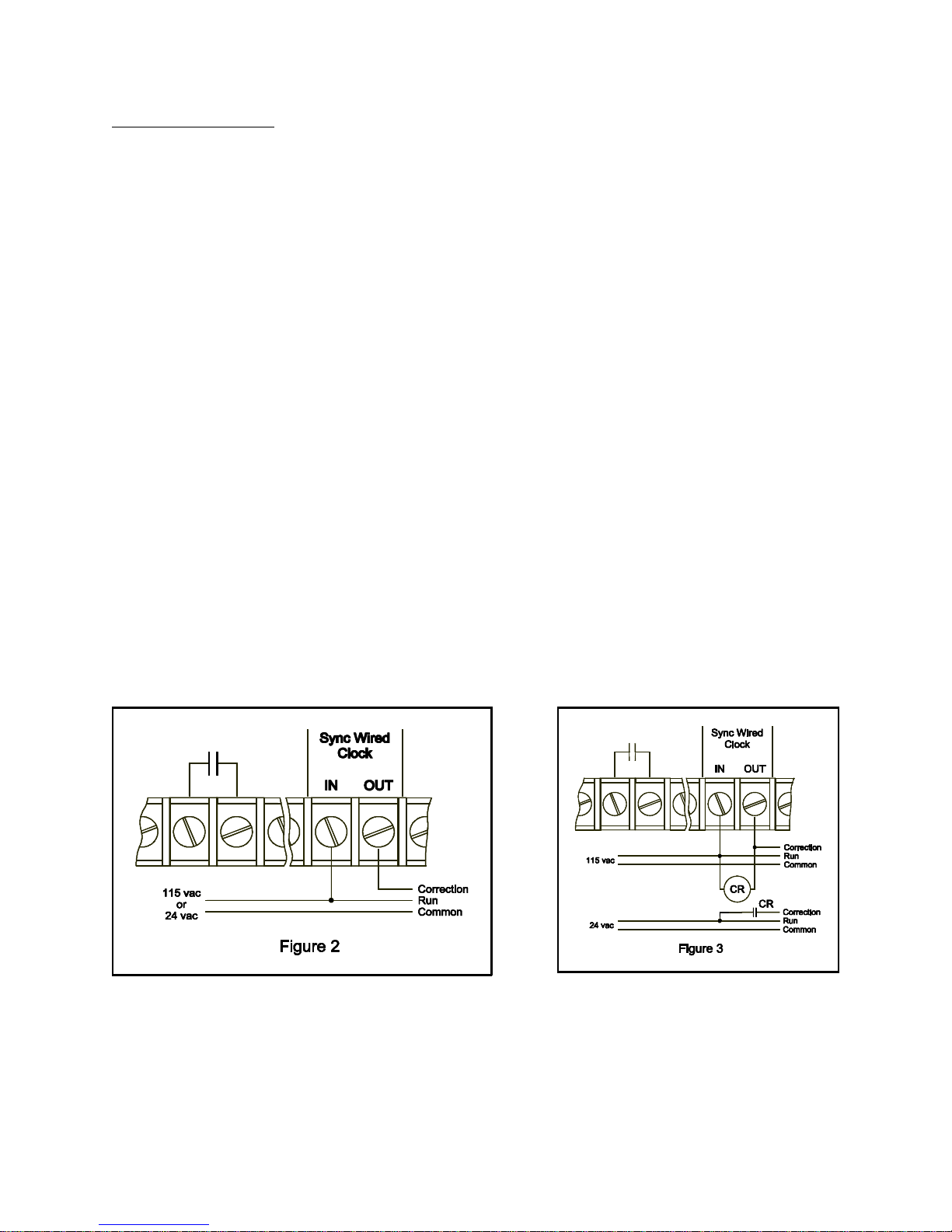

4. Synchronous Wired Secondary Clocks: A
typical connection for 120 VAC or 24
VAC synchronous wired clocks is shown
at Figure 2.

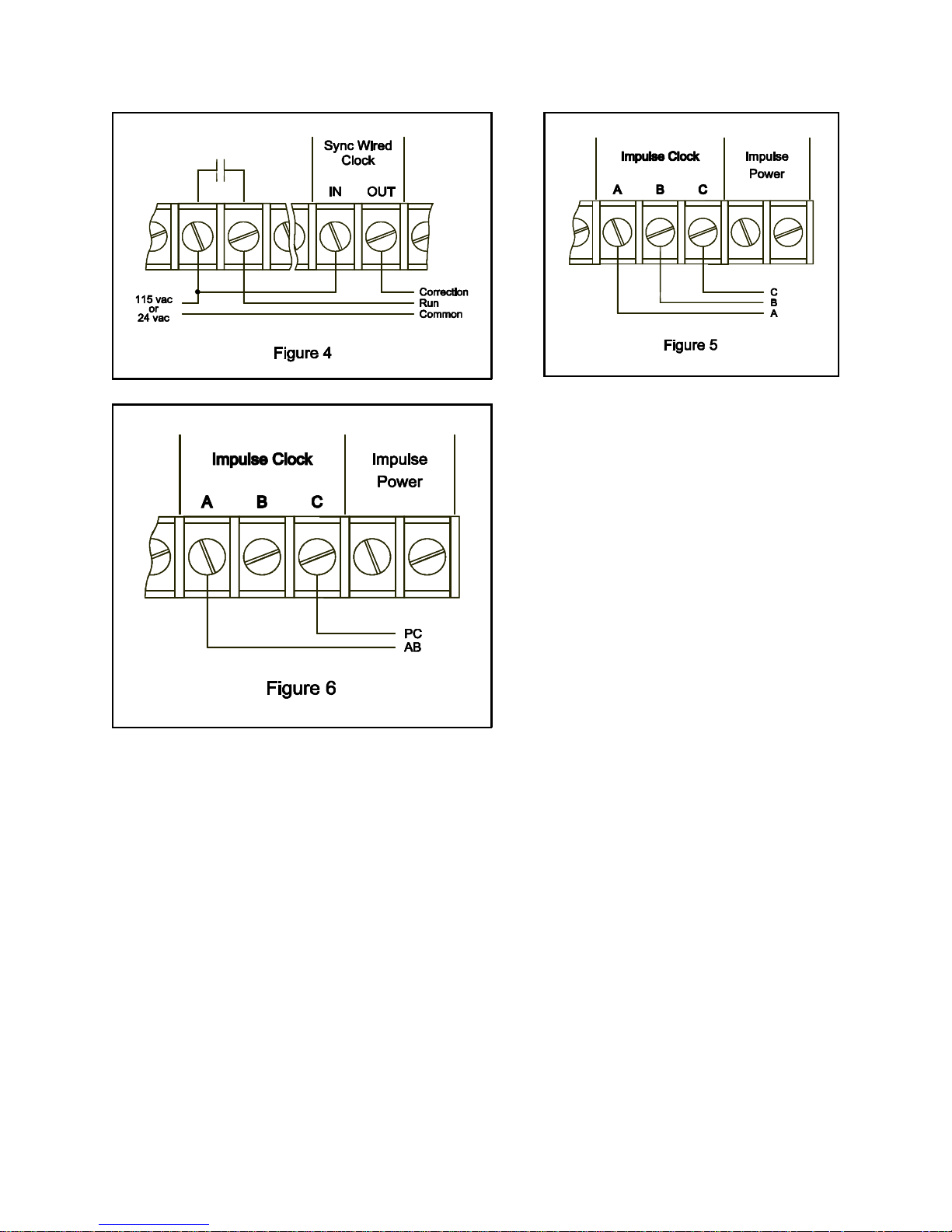

5. Impulse Secondary Clocks: Figures 5 & 6 show typical connections.

6. Before applying power to the Master Clock, assure that all wire runs to and from the output
circuits and clock correction circuits are not shorted or grounded.

RS232RS232 RS485INPUT/OUTPUT TERMINAL STRIP

11

FRONT PANEL CONTROLS

1. The ENTER button is used to enter selected data into the memory. This button is active in

the program mode.

2. The CANCEL button is used in the review mode to cancel programmed times and dates
that are no longer needed. It is also used to exit the program mode and return the clock to
normal operation.

3. The AHEAD and BACK buttons are used to increment the display to the time or date to be
programmed. They are also used in the Review mode to observe multiple programmed
times for the output circuits and multiple holidays. These buttons are active in the program
mode.

4. The MODE button is used to select the functions to be programmed or reviewed.
An illuminated indicator will show the selected mode. Each time the MODE button is pressed,
the next indicator in sequence will be illuminated. The Time Set function allows the
setting of current time, day, month, date and year. The Holiday function allows setting of
holiday dates. The Duration, On and Off modes are used to program the output circuits.
The Erase mode is used to bulk erase all programmed memory times and dates except
the current time and date. The MODE button is active in the program mode.

5. The REVIEW button is used in conjunction with the MODE button to check the
programmed times and dates. The review button is a push ON push OFF control, it must
be turned OFF to advance the MODE function. It is active in the program mode.

6. The SELECT button is used with the mode function to program the month, date and year in
the Time Set mode, and the beginning and ending month and date in the Holiday mode. The
SELECT button is also used in the review mode to observe the beginning and ending dates
of holidays. This button is active in the program mode.

7. The CIRCUIT button is used in the Duration, On and Off modes to select the output circuit to
be programmed. It is active in the Duration, On and Off modes.

8. The DAY button is used in the On and Off modes to select the appropriate day or days for
programing the output circuits. It is used in the Time Set mode to set the current day of the
week.

9. The IMPULSE SECONDARY CORRECTION switch is used as an aid for initial
synchronization of secondary impulse clocks. Placing the switch in the RAPID position
causes the clocks to advance to the 58th or 59th minute at a rate of 30 steps per minute.
Returning the switch to the OFF position returns control of the secondary clock to the Master.
Placing the switch in the HR/MIN position causes the clocks to advance at the rate of 30 steps
per minute until the switch is returned to the OFF position. This switch is active in the
program Time Set mode. This switch must be in the OFF (center) position except while
advancing the Impulse Secondary Clocks.

10. The WIRED SYNC SECONDARY CORRECTION switch is used as an aid for initial
synchronization of secondary wired synchronous clocks. Placing the switch in the HOUR
position sends one hourly correction signal to the secondary clocks. Placing the switch to the
12 HOUR position sends one 12 hour correction signal to the secondary clocks. Move the
switch to OFF to return secondary clock control to the master. This switch is active in the
program Time Set mode. This switch must be in the OFF (center) position except while
advancing the Wired Synchronous secondary clocks.

11. The CIRCUIT CONTROL switches are provided for manual control of the output circuits. The
OFF position turns the output circuit OFF regardless of the programing. The AUTO position

22

places that output circuit under control of the program. The ON position places that output
circuit ON regardless of the programing.

PROGRAMING

1. SET UP

After the initial installation, the clock must be tailored for the desired operation. All setup is done
from the front panel using access codes and the display. The following options are
programmable:

Daylight Savings Time ON or OFF (Default is ON)
12/24 Display (Default is 12 Hour format)
Synch-Wired Clock Type (Default is Midwest Time Control Clocks)
Impulse Clock Type (Default is 59 minute, no 12 hour correction)
BAUD Rate (Default is 9600 BAUD)

2. SECURITY ACCESS CODE

A Security Access Code must be entered before a time set, a program change, addition or review.
The code is a simple and easily remembered front panel button sequence (ENTER, BACK,
CANCEL and AHEAD). When these buttons are pressed in the correct sequence, the Time Set
indicator will illuminate. Program changes can be made any time the program indicators are
illuminated. To leave the Program mode, press the CANCEL button. This restores the unit to
normal operation. The Program Control mode will time out automatically 90 seconds after the last
button is pressed. This prevents leaving the clock unattended in the program mode. A Program
Indicator must be illuminated during all programing operations.

For units equipped with the RS232-COM Options, the program mode may not be accessed while
the unit is communicating with a remote device.

3. SET CURRENT TIME & DATE

Note: The AHEAD/BACK buttons reset the seconds counter to zero as the button is released.

This feature can be used to accurately synchronize the Master Clock with other timekeeping
devices.

STEP PRESS INDICATION COMMENT

1 TIME SET Enter Security Access Code
2 MODE TIME SET
3 AHEAD/BACK Set Current Time (Note PM Ind)
4 SELECT MONTH
5 AHEAD/BACK Set Current Month (1=Jan. 12=Dec.)
6 SELECT DATE
7 AHEAD/BACK Set Cur. Date
8 SELECT YEAR

9 AHEAD/BACK Set Cur. Year, 01=2001
10 DAY Set Cur. Day of the week
11 CANCEL Return to normal operation

33

4. SET HOLIDAY SCHEDULE
Note: Each Holiday must be programmed with a beginning and ending month and date.

Beginning and ending dates can not be the same.
STEP PRESS INDICATION COMMENT

1 TIME SET Enter Security Access Code

2 MODE HOLIDAY, BEGIN,

MONTH

3 AHEAD/BACK Set month of holiday

(1=Jan. 12 = Dec.)
4 SELECT BEGIN, DATE
5 AHEAD/BACK Set date for first day of holiday
6 SELECT END, MONTH
7 AHEAD/BACK Set month of holiday ending
8 SELECT END, DATE
9 AHEAD/BACK Set date for first day of normal operation

10 ENTER The display will blank momentarily
11 CANCEL Return to normal operation

A total of ten holidays may be programmed by repeating steps 3 thru 10. All holiday starting
and ending dates must be within the next twelve calendar months. Operation of the output
circuits is inhibited During holidays.

5. OUTPUT CIRCUIT PROGRAMING

All output circuit programs entered will remain in the memory until cancelled.
All output circuits with a programmed ON time must have a programmed OFF time or DURATION.

Assume circuit 1 is to ring a bell for 10 seconds Monday thru Friday at 8:00 AM, 12:00 Noon, and
4:00 PM.

STEP PRESS INDICATION COMMENT

1 TIME SET Enter security access code
2 MODE DURATION
3 CIRCUIT CIRCUIT 1
4 AHEAD/BACK Set display to 10 (Range = 1-59 Sec.)
5 ENTER Display will blank momentarily
6 MODE ON
7 DAY MO,TU,WE,TH,FR
8 AHEAD/BACK Set time to 8:00 AM
9 ENTER Display will blank momentarily

10 AHEAD/BACK Set time to 12:00 Noon (PM Ind. ON)
11 ENTER Display will blank momentarily
12 AHEAD/BACK Set time to 4:00 PM
13 ENTER Display will blank momentarily
14 CANCEL Return to normal operation

44

Circuit 2 is to turn on a light at 7:45 AM Monday and off at 5:15 PM Monday.

1 TIME SET Enter security access code
2 MODE ON
3 CIRCUIT CIRCUIT 2
4 DAY MO MO = Monday
5 AHEAD/BACK Set time to 7:45 AM
6 ENTER Display will blank momentarily
7 MODE OFF
8 CIRCUIT CIRCUIT 2
9 DAY MO

10 AHEAD/BACK Set time to 5:15 PM
11 ENTER Display will blank momentarily
12 CANCEL Return to normal operation

Circuit 3 is to turn on the outside lights at 6:00 PM and off at 10:30 PM
every day.

1 TIME SET Enter security access code
2 MODE ON
3 CIRCUIT CIRCUIT 3
4 DAY SU,MO,TU,WE,TH,FR,SA
5 AHEAD/BACK Set time to 6:00 PM
6 ENTER Display will blank momentarily
7 MODE OFF
8 CIRCUIT CIRCUIT 3
9 DAY SU,MO,TU,WE,TH,FR,SA

10 AHEAD/BACK Set time to 10:30 PM
11 ENTER Display will blank momentarily
12 CANCEL Return to normal operation

When programming multiple functions, step 1 is only necessary at the beginning of the first
program and step 12 at the end of the last program.

6. REVIEW AND CANCEL
Note: programmed holiday dates and output circuit days and time may be cancelled while

in REVIEW by pressing the CANCEL button while the date, day or time to be cancelled is
displayed. Do not attempt to leave the program mode while the REVIEW Indicator is ON, the
CANCEL button is used in the REVIEW mode to cancel programmed dates and times. To leave
the program mode when in REVIEW, press the REVIEW button to extinguish the REVIEW
Indicator, then press the CANCEL button.

55

REVIEW OUTPUT CIRCUIT PROGRAMING

1 TIME SET Enter security access code
2 MODE DURATION
3 REVIEW REVIEW
4 CIRCUIT CIRCUIT 1, 2, 3, 4,

5, or 6

5 REVIEW

Any programmed duration will

be displayed.

Review off
6 MODE ON
7 REVIEW REVIEW
8 CIRCUIT CIRCUIT 1, 2, 3, 4,

5, or 6

9 DAY SU, MO, TU, WE,

TH, FR, or SA

Programmed ON times will be displayed

for each day. Multiple ON times may be

checked by using the AHEAD or BACK

button at each day.

10 REVIEW

Review off

11 MODE OFF
12 REVIEW REVIEW
13 CIRCUIT CIRCUIT 1, 2, 3, 4,

5, or 6

14 DAY SU, MO, TU, WE,

TH, FR, or SA

Programmed OFF times will be

displayed for each day. Multiple OFF

times may be checked by using the

AHEAD or BACK buttons at each day.

15 REVIEW
16 CANCEL

Review off

Return to normal operation

When reviewing the output circuit program, the scheduled event times are displayed in
chronological order, not in the order programmed.

REVIEW HOLIDAYS
STEP PRESS INDICATION COMMENT

1 TIME SET Enter Security access code
2 MODE HOLIDAY
3 REVIEW REVIEW, BEGIN, Holiday Starting month and

MONTH, DATE date is displayed

4 SELECT END, MONTH, DATE Holiday Ending month and date is

displayed
5 AHEAD BEGIN, MONTH, DATE Next Holiday Starting month and date is

displayed
6 SELECT END, MONTH, DATE Holiday Ending month an date is

displayed
7 REVIEW Review off
8 CANCEL Return to normal operation

Repeating steps 5 and 6 will display all programmed holiday beginning and ending dates.

66

7. BULK MEMORY ERASE

STEP PRESS INDICATION COMMENT

1 TIME SET Enter security access code
2 MODE ERASE
3 ENTER

The display will show :88 for approx. 5

seconds. The mode will revert to Time

Set with the current time and day

displayed. All user programmed

events will be erased except the

current time, day and date.

4 CANCEL

Return to normal operation.

8. MEMORY FULL

An attempt to program times and dates in excess of the memory capacity will be indicated on the
Display by a :99. This indication appears with the first program attempt in excess of the memory
capacity.

9. LAMP TEST

The lamp test is a method of turning on all of the front panel indicators except Circuit Status. This
test provides a simple test to indicate proper circuit operation. Press the following front panel
buttons in sequence; (ENTER, BACK, CANCEL & REVIEW). All front panel indicators except
circuit status will illuminate. Press CANCEL, indicators will return to normal condition.

10. DAYLIGHT SAVINGS TIME SELECTION AND 12/24 DISPLAY SELECTION

A special access code is required to set the Baud Rate. The code is a four button sequence
which must be entered in the correct order (ENTER, BACK, CANCEL, DAY).

When the access code is entered, the display will indicate the current status of the daylight
savings time and the 12/24 display. To change the Daylight Savings Time selection use the
AHEAD button.

0: enables Daylight Savings time to the current legislated dates.
1: disables the Daylight Savings Time correction.

To change the 12/24 Display Selection use the BACK button.

:0 12 hour display format
:1 24 hour display format

When the desired selections are indicated, press the ENTER button.

11. BAUD RATE SELECTION

For units equipped with a communications port (RS232 or RS485 Options) the baud rate must be
set. The available baud rate settings are 1200, 2400, 4800 and 9600. The rate set at the Master
Clock must match that of the communicating device.

77

A special security access code is required to set the Baud Rate. The code is a four button
sequence which must be entered in the correct order (ENTER, BACK, CANCEL, BACK).

When the access code is entered, the display will indicate the current Baud Rate. To change the
Baud Rate, use the AHEAD button. When the desired rate is indicated, press the ENTER button.

EQUIPMENT WARNING

Remote equipment controlled by this clock should have a warning sign to indicate that the
equipment is remotely controlled. Primary power should be removed from that equipment prior
to any maintenance or repair operations.

SECONDARY CLOCK CONTROL

The MTC-6000 Master Time Clock controls and synchronizes a wide range of secondary clocks.
It will control one variety of Minute Impulse Clocks and one variety of Synchronous Clocks
simultaneously. The Time display is used to select the clock types. The Minutes side of the
display is used to select the Synchronous-wired clock type and the Hours side of the display is
used to select the Impulse clock type.

1. Synchronous Wired Secondary Clocks
The MTC-6000 Master Clock will synchronize a variety of industry standard Synchronous Wired

secondary clocks. The unit may be programmed by the user for the following clocks:
Note: The clock selection code is set to 0: 0, at the factory.
Synchronous Clock Codes
CODE CORRECTION

: 0
: 1 Standard Hourly-35 seconds @ XX:59:25,
: 2 Standard Hourly-35 seconds @ XX:59:25,

: 3 National Hourly Hourly-35 seconds @ XX:00:00
: 4 National 12 Hourly-25 seconds @ XX:00:00,

Simplex wired synchronous, Cincinnati D10 and Cincinnati D12 wall clocks use Code :00.

Code :01 Does not correct the second hand for these clocks.
Code :02 Requires the use of the highest numbered output circuit. Place the Circuit Control

Code :03 The second hand on these clocks is not correctable.
Code :04 The second hand on these clocks is not correctable.

CLOCK TYPE

Midwest Time Hourly-8 Seconds @ XX:57:54,

Twelve Hour-14 seconds 5:57:54
Twelve Hour-12 minutes @ 5:12:00

W/Aux Twelve Hour-12 minutes @ 5:12:00, Run Motor power is

removed from XX:59:00 to XX:00:00

Twelve Hour-25 minutes @ 6:00:00

switch for this circuit to the AUTO position.

Refer to figure 2 & 3 for Code :00, :01, :03 & :04 connecting diagram. Refer to figure 4 for Code
:02 connecting diagram.

88

Impulse Clock Codes
CODE CLOCK TYPE CORRECTION

0: 59th Minute 2 Wire reverse polarity ASC-3 or ASC-4

Midwest Time or 3 wire

1: 59th Minute 2 Wire reverse polarityASC-6

Midwest Time 12-hour correction @ 5:00
2: 58th Minute
3: Special No Rapid correction Pulses or Polarity Reversal
4: Lathem 59th Minute 2 Wire reverse polarity

12-hour correction @ 6:00

5, Bi-Polar Each minute pulse is the opposite

polarity of the previous pulse

Refer to figure 6 for connection of 2 Wire Reverse Polarity Minute Impulse Clocks; (58th Min.),
(59th Min.) or (59th Min. with 12 Hour Update).

Refer to figure 5 for connection of 3 Wire Minute Impulse Clocks: (58th Min.) or (59th Min.).

To select the code, enter the special four button access code (AHEAD, CANCEL, BACK &
ENTER) in that sequence. The Digital Display will indicate the code numbers. The BACK button
will select the desired synchronous-wired correction code. The AHEAD button will select the
desired impulse clock correction code. Press ENTER and the unit will be restored to normal
operation. The unit will automatically return to normal operation 90 seconds after the last button
is pressed with the last code displayed on the digital indicator being the selected code.

99

MAINTENANCE

There are a limited number of field maintenance items in the MTC-6000.
Fuses - Located on the PCB under the insulating cover. The ratings are listed on the back cover.
Impulse Relays Midwest Time Control Part No. 530001-02
Note: The life of the Impulse Relays will be determined by the number of Impulse Clocks

connected. At the rated contact load (10 Amp.), the relay contacts should last more than 1 year.
The relays are socket mounted and may be easily replaced. The relays should be set up for
scheduled replacement approximately once per year to avoid failure at an inopportune time.

Back Up Battery: The battery is a Lithium Energy Cell with a design life of 10 years. The
symptoms of battery failure will be a loss of time or programing during a power failure. If this
occurs, contact your dealer for replacement instructions.

1010

SPECIFICATIONS

Power requirements 115 VAC, 60 HZ, 15 Watts Max.
Program Capacity 2691 Events
Holidays 10 Holidays (Holidays may be multiple days)
Operating Temp. 0 to 60 Deg. C
Storage Temp. -30 to 75 Deg. C
Humidity 95% non-condensing
Weight 12 Lbs.

Serial Communications*

This factory installed option provides two RS232 ports and one RS485 port.

RS232

Port 1 is used to communicate with a computer, whose time is synchronized with the Master Clock.
With our software, the output circuits may also be programmed from the computer terminal.
Port 2 can be used to communicate with a NIST Telephone Modem Clock.

RS485

This

output port is designed to communicate with our digital clocks and

time in multiple computer installations.

used to synchronize the

Purchasing one of our software packages is required to control some of these features.

*

1111

NOTES:

1212

WARRANTY

Midwest Time Control warrants the MTC-6000 Master Clock to be free of defects
in materials and workmanship for a period of one year from the date of delivery to
the purchaser. This period may be extended to one year from the date of
delivery to a distributors vendee, however in no event will the warranty be
extended for more than one year from the date of installation or two years from the
date of shipment from the factory whichever is sooner.

We also warrant that if operated properly, the unit will operate within the advertised
specifications for the stated warranty period. Excluded from this warranty are fuses
and socket mounted relays. These are considered normal maintenance items.

The liability of Midwest Time Control under this warranty shall be limited to
repairing or replacing a unit proved to be defective and returned to us with
transportation charges prepaid within the stated warranty period.

This warranty is in lieu of all other warranties, express or implied and constitutes
all of our liabilities to the purchaser or user. We assume no liability for
consequential damages, for anticipated or lost profits, incidental damages or loss
of time or other losses incurred by the purchaser, user or any third party in
connection with the product covered by this warranty.

This warranty will be void for any product with defects which have been caused by
abuse, neglect, improper installation, unauthorized repair or modification.

For return authorization under this warranty, contact:

Toll Free: 888-713-0373
Phone: [phone]
Fax: [phone]

www.midwes

EMAIL:

[e-mail]

t-time.com
