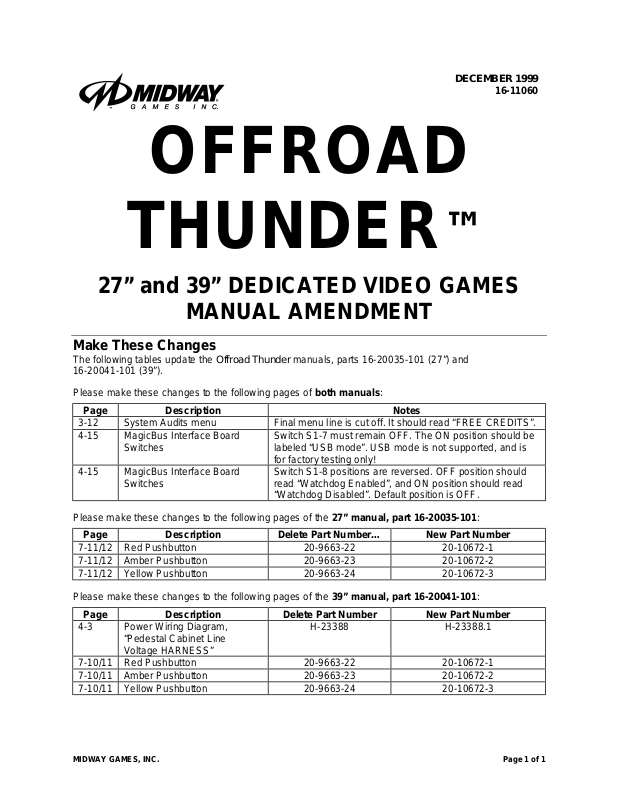

MIDWAY THUNDER MANUAL AMENDMENT

DECEMBER 1999

OFFROAD

16-11060

THUNDER

™

27” and 39” DEDICATED VIDEO GAMES

MANUAL AMENDMENT

Make These Changes

The following tables update the Offroad Thunder manuals, parts 16-20035-101 (27”) and
16-20041-101 (39”).

Please make these changes to the following pages of

Page Description Notes

3-12 System Audits menu Final menu line is cut off. It should read “FREE CREDITS”.
4-15 MagicBus Interface Board

Switches

4-15 MagicBus Interface Board

Switches

Please make these changes to the following pages of the

Page Description Delete Part Number… New Part Number

7-11/12 Red Pushbutton 20-9663-22 20-10672-1
7-11/12 Amber Pushbutton 20-9663-23 20-10672-2
7-11/12 Yellow Pushbutton 20-9663-24 20-10672-3

Switch S1-7 must remain OFF. The ON position should be
labeled “USB mode”. USB mode is not supported, and is
for factory testing only!
Switch S1-8 positions are reversed. OFF position should
read “Watchdog Enabled”, and ON position should read
“Watchdog Disabled”. Default position is OFF.

both manuals

27” manual, part 16-20035-101

:

:

Please make these changes to the following pages of the

Page Description Delete Part Number New Part Number

4-3 Power Wiring Diagram,

“Pedestal Cabinet Line

Voltage HARNESS”
7-10/11 Red Pushbutton 20-9663-22 20-10672-1
7-10/11 Amber Pushbutton 20-9663-23 20-10672-2
7-10/11 Yellow Pushbutton 20-9663-24 20-10672-3

MIDWAY GAMES, INC. Page 1 of 1

39” manual, part 16-20041-101

H-23388 H-23388.1

:
