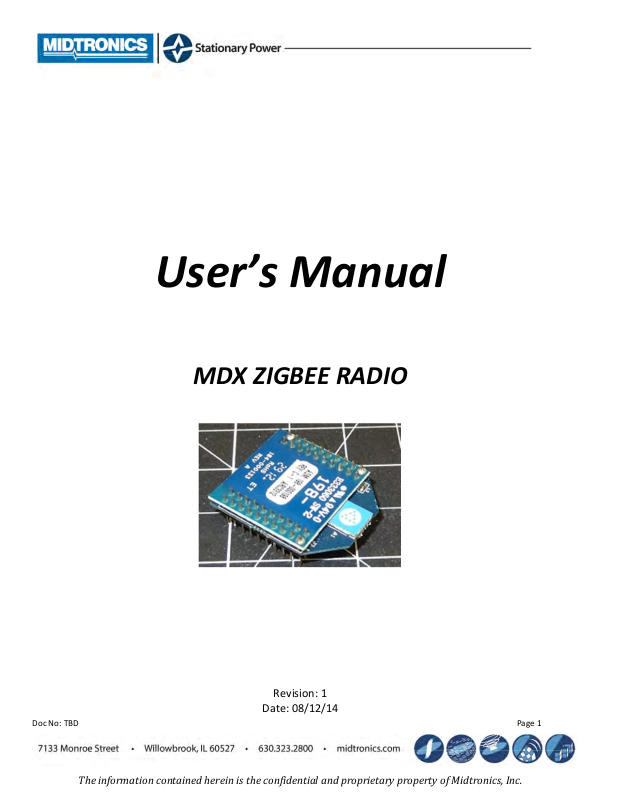

User’s Manual
MDX ZIGBEE RADIO
Revision: 1
Date: 08/12/14
Doc No: TBD Page 1
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
Table of Contents
Table of Contents ........................................................................................................................................................... 2
1. Summary ................................................................................................................................................................ 3
2. MDX ZIGBEE RADIO Installation ................................................................................................................... 4
3. Technical Specifications of MDX ZIGBEE RADIO Module .................................................................... 4
3.1 Description of MDX ZIGBEE RADIO module ...................................................................................... 4
3.2 MDX ZIGBEE RADIO Module Specifications Table .......................................................................... 6
3.3 Table of Allowable Channels .................................................................................................................... 6
3.4 MDX ZIGBEE RADIO Module Antenna Specifications Table ........................................................ 6
4. Agency Certifications for MDX ZIGBEE RADIO ........................................................................................ 7
5. Battery Sensor Installation .............................................................................................................................. 7
6. Intended Use ......................................................................................................................................................... 8
7. Safety ........................................................................................................................................................................ 9
8. Patents .................................................................................................................................................................. 10
9. Limited Warranty ............................................................................................................................................. 10
10. Service .................................................................................................................................................................. 10
Reference Documents
Document Title Revision Document Maintenance Contact Document Location
CGFS-W-201 Rev4
Gen 2 Dual Sensor Wiring
Instructions
4
Brad Walker
Global Field Service Manager
office.630.321.8006
bwalker@midtronics.com
Midtronics internal
document for training
approved installers. Available
upon Request
Doc No: TBD Page 2
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
1. Summary
Sensor
• The MDX ZIGBEE RADIO is installed onto the CELLGUARD Battery Sensor during manufacturing of
the sensor by Midtronics Inc. The MDX ZIGBEE RADIO module is inside the product enclosure, and is
not accessible by the end user.
• The configuration and settings of the MDX ZIGBEE RADIO module are preprogrammed during
manufacturing by Midtronics Inc and are not accessible to the end user
• CELLGUARD Battery Sensor containing the internal MDX ZIGBEE RADIO module is not installed by
the end user. The CELLGUARD Battery Sensor shall only be installed by installers trained and
certified by Midtronics Inc with explicit approval by Midtronics Inc.
• The MDX ZIGBEE RADIO module is only installed only in the products listed in the table below.
MDX ZIGBEE RADIO module is installed only in the CELLGUARD Battery Sensors in this Table
Part
Description
Number
CGDS-02V PCBA, CELLGUARD DUAL 2V SENSOR GEN II + 198-000315
CGDS-04V PCBA, CELLGUARD DUAL 04V SENSOR GEN II + 198-000316
CGDS-12V PCBA, CELLGUARD DUAL 12V SENSOR GEN II + 198-000314
CGDS-16V PCBA, CELLGUARD DUAL 16V SENSOR GEN II + TBD
CGSS-02V PCBA, CELLGUARD SINGLE 2V SENSOR GEN II + TBD
CGSS-12V PCBA, CELLGUARD SINGLE 12V SENSOR GEN II + TBD
CGDH-02V PCBA, CELLGUARD DUAL HYBRID 2V SENSOR GEN II + 198-000336
CGDH-04V PCBA, CELLGUARD DUAL HYBRID 4V SENSOR GEN II + 198-000335
CGDH-06V PCBA, CELLGUARD DUAL HYBRID 6V SENSOR GEN II + 198-000334
CGDH-08V
CGDH-12V
CGDH-16V
PCBA, CELLGUARD DUAL HYBRID 8V SENSOR GEN II +
PCBA, CELLGUARD DUAL HYBRID 12V SENSOR GEN II +
PCBA, CELLGUARD DUAL HYBRID 16V SENSOR GEN II +
PCBA
Part Number
198-000333
198-000332
198-000331
GEN II CELLGUARD Battery Sensor, Model: CGDS-12V
Doc No: TBD Page 3
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
2. MDX ZIGBEE RADIO Installation
The MDX ZIGBEE RADIO module inside the CELLGUARD Battery Sensor shall not be accessed by
the end user. The radio module shall not be removed or installed. The radio module requires no
setup, configuring, or maintenance by the end user. The radio module inside the CELLGUARD
Battery Sensor should be invisible to the end user.
3. Technical Specifications of MDX ZIGBEE RADIO Module
3.1 Description of MDX ZIGBEE RADIO module
The MDX ZIGBEE RADIO module is located on the PCB assembly of the Dual Sensor, and
enclosed in the CELLGUARD Battery Sensor case. The radio module is not accessible by the user.
MDX ZIGBEE RADIO Module
Doc No: TBD Page 4
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
MDX ZIGBEE RADIO Module
MDX ZIGBEE RADIO Installed on PCBA
CELLGUARD Battery Sensor PCBA Inside Enclosure
Doc No: TBD Page 5
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
3.2 MDX ZIGBEE RADIO Module Specifications Table
Radio Specifications
Data Rate 250kbps
Supply Voltage
(Supplied by Dual Sensor)
Operating Frequency ISM 2.4GHz
Operating Temperature 0⁰C to +65⁰C
Addressing Option PAN ID
Channels 12
Channel Separation 5MHz
Mode
Phase Shift Keying O-QPSK
3.3V
Direct Sequence
Spread Spectrum
3.3 Table of Allowable Channels
Channels Corresponding Frequency
3.4 MDX ZIGBEE RADIO Module Antenna Specifications Table
Antenna Specifications
Type Chip
Configuration Permanent
Frequency Range
Minimum Frequency
Frequency Range
Maximum Frequency
Polarization Linear
Peak Gain 2dBi
Dimensions 6.7 x 6.7 x 1 mm
VSWR (~:1) 2:1
Doc No: TBD Page 6
2400MHz
2500MHz
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
4. Agency Certifications for MDX ZIGBEE RADIO
This product complies with FCC OET Bulletin 65 & Industry Canada’s RSS-102 radiation exposure
limits set forth for an uncontrolled environment
This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) This device may not
cause harmful interference. and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Cet appareil est conforme à des règlements d'Industrie Canada exempts de licence standard
RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) Ce dispositif ne
doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter toute interférence
reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable.
Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by Midtronics Inc.,
might cause harmful interference and void the FCC authorization to operate this product.
5. Battery Sensor Installation
The end user does not install the CELLGUARD Battery Sensor containing the MDX ZIGBEE RADIO
module. CELLGUARD Battery Sensor installation shall only be performed by installers are trained and
explicitly certified by Midtronics. All installations shall be explicitly approved by Midtronics. If you are
a certified installer and require information about CELLGUARD Battery Sensor Installation, refer to
document CGFS-W-201 Gen 2 Dual Sensor Wiring Instructions r4 in its entirety.
Doc No: TBD Page 7
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
CELLGUARD Battery Sensors Monitoring 12V UPS Batteries
6. Intended Use
The CELLGUARD Battery Sensors are installed via a wire harness on large batteries used for
Uninterruptable Power Supply Systems. The sensor measures various battery parameters and
communicates the data wirelessly to a Base Coordinator Unit. The data is then sent to
CELLTRAQ, Midtronics’ enterprise battery monitoring software, for interpretation and analysis.
CELLGUARD System Summary
Doc No: TBD Page 8
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
7. Safety
Doc No: TBD Page 9
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
8. Patents
9. Limited Warranty
10. Service
Doc No: TBD Page 10
The information contained herein is the confidential and proprietary property of Midtronics, Inc.
