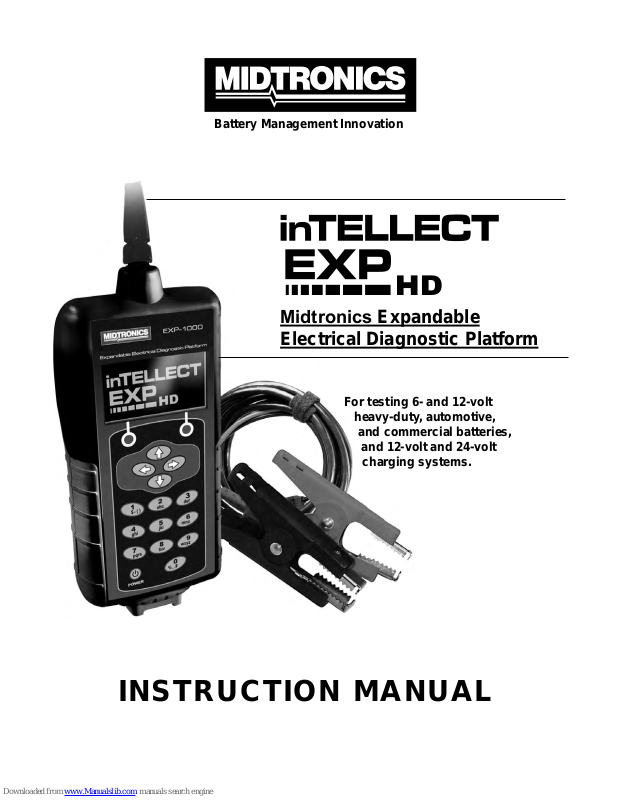

Battery Management Innovation

Midtronics Expandable Electrical Diagnostic Platform

For testing 6- and 12-volt

heavy-duty, automotive,

and commercial batteries,

and 12-volt and 24-volt

charging systems.

INSTRUCTION MaNUal

Chapter 1: Before You Begin

For safe, efcient, and accurate testing, review the safety and operating instructions in this manual before

using the analyzer. We also recommend that you register the analyzer to activate your warranty.

Safety Precautions

Inspect the battery for damages and check the electrolyte level. If the electrolyte level is too low, replenish it and fully charge the battery. Always use the necessary safety precautions when working with batteries to prevent severe injury or death. Follow all manufacturers’ instructions and BCI (Battery Council International) safety recommendations, which include the following precautions:

DANGER—RISK OF EXPLOSIVE GASES: Batteries can produce a highly explosive mix of

•

hydrogen gas and oxygen, even when the battery is not in operation. Always work in a wellventilated area. Never smoke or allow a spark or flame in the vicinity of a battery.

WARNING—REQUIRED BY CALIFORNIA PROP. 65: Battery posts, terminals, and related

•

accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Battery acid is highly corrosive. If acid enters your eyes, immediately flush them thoroughly

•

with running cold water for at least 15 minutes and seek medical attention. If battery acid gets on your skin or clothing, wash immediately with water and baking soda.

Always wear proper safety glasses or face shield when working with or around batteries.

•

Keep hair, hands, and clothing as well as the analyzer cords and cables away from moving

•

engine parts.

Remove any jewelry or watches before you start servicing the battery.

•

Use caution when working with metallic tools to prevent sparks or short circuits.

•

Never lean over a battery when testing, charging, or jump starting it.

•

Chapter 2: Overview

The inTELLECT EXP-1000 HD tests 6- and 12-volt heavy-duty automotive and commercial batteries, and 12-volt and 24-volt charging systems. In addition to a standard single-battery test, the EXP has a test routine designed for multiple-battery vehicles and a specialized heavy-duty battery algorithm for larger batteries. Other tools in the EXP include a digital multimeter with a scope, and a conductance cable drop test.

The large backlit graphical screen and icon-based user interface make diagnostics simple for the novice and experienced electrical technician. An alphanumeric keypad with selection scrolling and soft (multifuncti

on) keys make the EXP as easy to use as a remote control or cell phone. A memory card system allows

for upgrades, quick storage, and transfer of test data.

Case Layout

The EXP-1000 HD kit includes a hard-sided, molded carrying case. The room for future options.

Cable storage

de-post

stud adapters

Amp clamp

case holds all accessories, with

Printer batteries Printer paper

nter charger

Pri

Group 31 stud adapters

IR pri

nter

Battery

test cable

inTELLECT EXP

Chapter 2 : Overview

Test Leads, Connections, and Data Ports

The top of the EXP has two connectors for test cables:

RJ45 connector (Accessories Port) with a release lever for accessory test cable.

6-pin connector, with a locking ring, for the battery test leads.

In addi

tion, the top-left corner of the EXP has two IR data

ports:

Temperature measurement sensor. Data transmitter, which transmits test results to

an IR printer

Standard and optional test cables include:

Heavy duty battery test cable (15-foot)

Amp clamp

DMM (Digital Multimeter)

cable

RJ456-pin

Banana Jack adapter and probes

The bottom and right side of the EXP have two data ports:

DB-9 connector for future expandability.

Spring-loaded SD card slot for test data storage and software upgrades.

Chapter 2 : Overview

Connecting the Battery Test Cable

Connect the battery test cable to the EXP by rst aligning the cable connector’s 6 holes with the 6 pins on top of the EXP. Firmly insert the connector and nger-tighten the locking ring.

Connecting an Accessory Cable

If you are using an accessory cable, plug it into the accessories port on top of the EXP as you would a phone jack. To remove it, press the lever and pull out the cable connector.

Inserting an SD Card

The SD card slot contains a plastic ller card for protection. The EXP can store test results on an SD card. To remove the ller card, push briey on its edge to release it and pull it from the slot.

When inserting an card, push it into the slot until it locks. The card is correctly inserted when it is not protruding from the slot.

Chapter 2: Overview

Display and Keypad

The analyzer keypad and display work together to help you quickly nd and use the right tools at the right

time. The display also keeps you on track with on-screen navigation aids, directions, and messages. The illustration below shows how the elements on the screen relate to the keypad.

Soft Keys

Press the two Soft Keys li tom of the screen to perform the functions displayed above them. The functions change depending on the menu or test process. So it may be helpful to think of the words appearing above of the more common soft-key functions are

SELECT, BACK, and EXIT.

POWER Button

Press the POWER button to turn the analyzer on and off. The analyzer also turns on automatically battery.

Title Bar

The Title Bar shows you the name of the current menu, test tool, util

Selection Area

them as part of the keys. Some

when you connect its test leads to a

nked to the bot-

ity, or function.

Status Indicator: EXP Internal Batteries

This indicator appears in the screen’s top left corner. It lets you know the status and charge level of the analyzer’s six 1.5 volt batteries. The X in the indicator shows that the EXP is powered by the battery you are testing, a feature which conserves the

internal batteries.

Voltmeter

When you rst connect the analyzer to a battery it funct reading appears above the left soft key until you move to other menus or functions.

ions as a voltmeter. The voltage

The Selection Area below the Title Bar con-

tems you select or into which you enter

tains i information. The area also displays instructions and warnings.

Directional Arrows

When displayed in menu screens, the Directional on the keypad to press to display other icons or screens. The Up and Down Directional Arrows, for example, let you know when to press the UP and DOWN ARROW keys to display the screens above and below the current screen.

The Left and Right Directional Arrows tell you when to use the LEFT or RIGHT ARROW keys to select an icon.

Arrows show you which ARROW key

Chapter 2: Overview

When displayed under a list of options, the Directional Arrows show you which keypad arrow to press to highlight a character or an item in a list.

Scroll Bar

Another navigational aid is the Scroll Bar on the right side of the screen. The position of its scroll box shows you whether the screen is the top (or only screen), middle, or last in a series.

Scroll

Box

You also use the Alphanumeric Keys to create and edit customer coupons and your shop contact information on printed test results, and manage technician IDs.

To add a space, press the RIGHT ARROW key. To erase a space and insert a character, press the LEFT ARROW key.

Refer to the table below for the characters associated with each alphanumeric key.

Keypad Character Assignment

Key Character

1 $ - ( ) 1 2 a b c 3 d e f 4 g h i

2 3 4

Top or only screen

Keypad Arrows

While the Directional Arrows serve as road signs, the Keypad Arrows are the vehicle to its functions and features. You use the keypad to log on, navigate to menus and options, customize sett

Alphanumeric Keypad

In some cases, you can use the Alphanumeric Keypad to enter numerical test parameters instead of scrolling to them with the ARROW keys.

ings, and perform tests.

Middle screen

Last

screen

5 j k l

6 m n o 6 7 p q r 8 t u v 9 w x y 0 % , .

s 7

z 9

# 0 Backspace Space

Chapter 2: Overview

Data Entry Methods

To perform a particular test or function, the EXP will ask for different types of information. This means that the methods you use to enter information will change depending on the type of information requested. The four types of entry methods are described below.

Typically, the soft key below the left half of the screen cancels your choice or returns you to the previous screen, although the command above it may vary. (Examples: BACK and PRINT.) In a similar fashion, the

soft

key below the right half of the screen conrms your choice, although the word above it may also vary

(examples: SELECT and NEXT).

Menu icons

A menu icon is a graphical representation of a function you can select, such as the Diode Icon in the DMM Menu. To select an icon, use the LEFT or RIGHT ARROW key to highlight it. Highlighting

changes the icon to a white picture on a black background. To conrm your selection, press the

appropriate soft key.

Option Buttons

Some lists have option buttons before each item. To select an item, use the UP/DOWN ARROW keys to move the dot to the button next to the item. You can also use the alphanumeric keypad to enter the

number preceding the option button. To conrm your selection, press the appropriate soft key.

Scrolling lists

Scrolling lists contain items that extend above and below the screen or the selection box that contains them. To indicate that there are more items, the symbols

ghlighted item on the list.

hi To select from the list, use the UP/DOWN ARROW

enter your choice, and press the appropriate soft key. Scrolling increases and decreases the units by ve. To increase your scrolling speed, hold the UP or DOWN ARROW key.

keys to scroll to the item, or use the keypad to

appear to the right of the rst visible or

Chapter 2: Overview

alphanumeric Entry

Some selections require you to use the alphanumeric keypad. These “user-dened” selections have

a blinking horizontal line (cursor) to the right of the last character. Use the UP/DOWN ARROW keys

to highlight a line for editing. Display the character, symbol, or number you want by rapidly pressing its key as many times as needed. If you pause, the cursor moves to the right. To backspace, press the LEFT ARROW key. Use the RIGHT ARROW key to add a space. Use the UP/DOWN ARROW keys to highlight a line for editing. When nished, press the appropriate soft key to save your settings.

Chapter 2: Overview

Menu Maps

This section will help you get to your destination while letting you know what test leads you may need when you arrive. The test leads are represented by symbols for their connectors.

Main Menu

The Main Menu is the starting point for all tools and utilities, which are depicted as icons. Some icons lead directly to the function they represent, while others are menu icons that lead to two or more functions. Menu icons are marked here with an asterisk (*) and are mapped on the following pages.

Main Menu (Screen 1)

Optional

Tests one battery using the battery information you select in a series of screens.

Clamps

only

Tests both sides of a circuit simultaneously for voltage drop. Three preset tests and one user-

dened.

Tests the battery pack or individual batteries (and the starting and charging systems.

Main Menu (Screen 2)

Digital multimeter with eight

test meters, a temperature sensor, and options for clamps and probes.

Main Menu (Screen 3)

Allows you to view your stored test results and

them to an optional

print IR printer.

Includes a test counter, dat

a transfer utility, the EXP software version and serial number.

Nine utilities, many of which customize your user interface.

Required test leads

Battery

test

Amp

clamp

Cable

drop

Chapter 2: Overview

DMM Menu

The DMM Menu has icons for a temperature sensor and 8 test meters, some of which require different test leads. The available leads depend on the EXP model purchased.

Required test leads

Measures voltage within a range of 0 to 60 Vdc.

METERS (Screen 1)

Measures voltage within a range of 0 to 24 Vac.

METERS (Screen 2)

Battery

test

tage trace with time

Vol

Amp

clamp

DMM

clamps or

probes

and frequency measurements.

Tests the strength of the

direct current flow

through a circuit.

Tests a circuit for continuity

and resistance

measured in ohms ( ).

Tests the strength of the

alternating current ow

through a circu

it.

METERS (Screen 3)

Probes

only

Tests a diode for forward voltage drop.

Sensor that displays temper

ature in degrees F or C (units you can select in the Utilities Menu.)

Measures two signals simultaneously: DC voltage and amperage.

Chapter 2: Overview

Info Menu

The Info Menu has three utilities to help you manage your test data, and track the analyzer’s usage and history.

REPORTS

Displays the total number of test in three categories: Lifetime of the analyzer, by User ID, and by decision.

An optional IR software and hardware package allows you to transfer test data to a PC.

Displays the software version, total tests from

rst use, and the serial

number.

Print/View Menu

The EXP stores the last battery, system, and cable test results in its memory until you perform another test. To review or print results before you retest, select a test type in the Print/View Menu.

REPORTS

Displays the last Battery and System Test results. Sends the results to an optional IR printer.

Displays the last Cable Drop Test result. Sends the result to an optional IR printer.

Chapter 2: Overview

Utility Menu

The Utilities Menu allows you customize your analyzer. Before testing, check the default values to see which options you may want to change.

SETUP (Screen 1)

Settings to adjust date and time.

Settings to adjust the screen contrast and backlight t

ime.

Add, edit, or delete User IDs using up to seven alphanumeric characters.

SETUP (Screen 2)

If you created a coupon with the Edit Coupon utility, use Coupon to enable or disable the inclusion of a coupon on printed test results.

SETUP (Screen 3)

Allows you to add

a custom header to

printed test results.

Allows you to create and store up to three separate coupons to be printed on test results.

Allows grees in C perature measurements.

Updates the analyzer

software via les on an

SD card.

you to select de-

or F for tem-

Sets the language of the display and printouts.

SETUP (Screen 4)

Formats the SD card to receive data. Also erases all data on the card.

Chapter 3: Utility Menu

The Utility Menu has several utilities that customize the EXP—from the language of the user interface to the contrast of the text on the display. The utilities have default settings that you can change, depending on your requirements.

Setup Function Default Settings

CLOCK

TIME The current Central Standard Time MODE AM

TE Current

DA FORMAT MM/DD/YYYY (month/day/year)

SHOP Gener

characters per line

USERS USER01 through USER24 are placeholder IDs used to create user

names.

DISPLAY

CONTRAST LEVEL BACKLIGHT TIME

COUPON Disabled (NO COUPON PRINTED)

COUPON Eight l

EDIT

TEMPERATURE DEGREES F (Fahrenheit) LANGUAGE English i

1. In the Main Menu, select the Utility icon.

Range: 0 (l Range: 0 to 60 seconds. The default is set at 15 seconds.

Default: USER COUPON LINE 1 through USER COUPON LINE 8

available.

header for printouts with 12 lines of text and a maximum of 17

ightest) to 10 (darkest).

ines of text with 17 characters per line.

s the default language. French-Canadian and Spanish are also

The default is set at 9.

2. Select the icon of the utility you want to adjust.

Chapter 3: Utility Menu

The Utility Menu has nine utilities to customize your analyzer. Each utility described in this section is listed in order by its icon title.

If you use the alphanumeric keypad to enter the number preceding the option button, no additional keypress is needed to save or continue to the next step.

Clock

The CLOCK ADJUST utility has four settings. Use the UP/DOWN ARROW keys to highlight the setting you want to change.

MODE : AM/PM

TIME : 9:07 PM FORMAT : MMM/DD/YYYY DATE : 6/17/6/17/2005

Mode

Use the UP/DOWN ARROW keys or press the corresponding numerical key to move the dot to the option button of your choice or enter its number.

1. Select the 24-hour or AM/PM mode

1 24 HOUR 2 AM/PM

2. If you used the ARROW keys, press the SAVE soft key to save your setting or the BACK soft key to return to the CLOCK ADJUST screen without saving the changes.

Time

1. Use the LEFT/RIGHT ARROWS to highlight the hour, minutes, or AM or PM. To rapidly scroll, hold down an ARROW key.

9 : 19 PM

2. Press the SAVE soft key to save your setting screen.

or BACK to return to the CLOCK ADJUST

Format

Use the UP/DOWN ARROW keys or press the corresponding numerical key to move the dot to the option button of your choice or enter its number.

1. Select the 24-hour or AM/PM mode 1

MM/DD/YYYY (month/day/year)

DD/MM/YYYY (day/month/year)

Chapter 3: Utility Menu

2. If you used the ARROW keys, press the SAVE soft key to save your setting or the BACK soft key to return to the CLOCK ADJUST screen without saving the changes.

Date

1. Use the LEFT/RIGHT ARROWS to highlight the month, day, or year. To rapidly scroll, hold down an ARROW key.

4 / 01 / 2006

2. Press the SAVE soft key to save your setting CLOCK ADJUST screen without saving the changes.

or the BACK soft key to return to the

Users

The USERS utility allows you to create and edit a USER ID with one to seven alphanumeric characters and link it to a test counter. It also allows you to delete a USER ID and its associated test total.

Entering a New User ID

1. To create a USER ID, select: 1 ENTER NEW

DELETE

EDIT

Press the NEXT soft key to disp

Use the UP or DOWN ARROW keys to scroll to the ID placeholder you want to use. Scrolling past the first line will go to the previous page. Scrolling past the fourth line will go to the next page. To display more placeholders, continue scrolling or use the LEFT or RIGHT ARROW key to jump up or down through the list four lines at a time.

lay the list of available IDs.

1 USER01

2 USER02 3 USER03 4 USER04

Press the NEXT

3. To clear the default characters, press the LEFT ARROW key. To add a space, move the cur

sor forward by pressing the RIGHT ARROW key.

ENTER USER ID

USER01

soft key to continu

—

Blinking cursor shows the starting location for editing

Chapter 3: Utility Menu

4. Insert a character by pressing the alphanumeric key associated with the character as many times as needed. Press the SAVE soft key to store the new user ID in memory.

ENTER USER ID

BOB R

Deleting a User ID

1. To delete a USER ID, select: 1 ENTER NEW

DELETE

EDIT

Press the NEXT soft key to disp

lay the list of IDs.

2. Use the ARROW keys to select a USER ID as describe User ID. (You cannot delete placeholder USER IDs, i.e., USER03).

1 BOB R

2 JIM F 3 PETER 4 USER04

Press the DELETE soft key.

Edit (Editing a User ID)

1. To edit a USER ID, select: 1 ENTER NEW

DELETE

EDIT

Press the NEXT soft key to display the list of IDs.

d in step 2 in Entering a New

2. Follow steps 2, 3 , and 4 in “Entering a New User ID” above.

Chapter 3: Utility Menu

Shop

The SHOP INFO utility allows you to create a header for your printed test results showing your business location information. The utility’s two information screens contain eight lines of text with a maximum of 17 characters per line.

Screen 1 Screen 2

1–YOUR SHOP NAME

2–1000 ANY STREET 3–YOUR TOWN, STATE

4–YOUR POSTAL CODE

—

To help you edit and center your header, use a pencil to write the information in the template below before entering it into the analyzer.

Header and Coupon Template

Line 1

5–YOUR COUNTRY

6–YOUR PHONE NUMBER

—

Line 2 Line 3 Line 4 Line 5 Line 6 Line 7 Line 8

To create or overwrite a header:

1. Press the

UP or DOWN ARROW to

highlight the line you want to change. The cursor will be

blinking to the right of the last character in the line.

2. Press the LEFT ARROW key to move the cursor backward to erase a character. To move the cursor forward, press the RIGHT ARROW key.

Insert a character by pressing the key associated with the character as many times as

3. needed.

You can center text by selecting blank spaces before and after lines of text or insert spaces

4. between words.

Press the SAVE soft key to save your setting

5. INFO screen without saving the changes.

or the BACK soft key to return to the SHOP

Chapter 3: Utility Menu

Display

The LCD OPTIONS utility allows you to adjust the contrast of the text on the display and the backlight time.

Contrast level

The contrast level is 0 (lightest) to 10 (darkest). To change it:

1. Press the UP or DOWN ARROW ke

CONTRAST LEVEL 10

BACKLIGHT TIME 60

Press the ADJUST soft key to disp

3. Press the UP or DOWN ARROW key or the corresponding numerical key to select your preference.

4. Press the SAVE soft key to save your setting CONTRAST LEVEL screen without saving the changes.

(1-10)

y to highlight the option.

lay the option’s numerical scroll box.

or the BACK soft key to return to the

Backlight Time

Backlight time is from 0 to 60 seconds. To change it:

1. Press the UP or DOWN ARROW ke

y to highlight the option.

CONTRAST LEVEL 10

BACKLIGHT TIME 60

Press the EDIT soft key to display the option’s numerical scroll box.

3. Press the UP or DOWN ARROW key or the corresponding numerical key to select your preference. To erase a character, press the LEFT ARROW key.

4. Press the SAVE soft key to save your setting BACKLIGHT screen without saving the changes.

SEC

or the BACK soft key to return to the

Chapter 3: Utility Menu

Coupon

The COUPON SELECT utility allows you to print one of the three custom coupons or messages created in the EDIT COUPON utility.

1. Use the UP or DOWN ARROW ke the dot to the option button of your choice.

NO COUPON PRINTED

1 2

USER COUPON

2. Press the SAVE soft key to save your setting Menu without saving the changes.

y, or press the corresponding numerical key (1, 2) to move

or the BACK soft key to return to the Utility

Edit Coupon

The EDIT COUPON utility allows you to create a promotional coupon or message for your customers that prints at the bottom of every test result. Its two information screens contain eight lines of text with a maximum of 17 characters per line.

To create and edit a coupon, see the procedure under Shop in this chapter for using the keypad to enter and backspace over characters. Use the template to plan and center your text.

Temp

The TEMP. UNITS utility enables you to set the units of measure to either Celsius or Fahrenheit. To set your preference:

Use the UP/DOWN ARROWS or the option button of your choice.

DEGREES F

DEGREES C

2. Press the SAVE soft key to save your setting

press the corresponding numerical key to move the dot to

Chapter 3: Utility Menu

Language

The LANGUAGE utility enables you to select a language for the display and printouts. To set your preference:

1. Use the UP/DOWN ARROWS or the option button of your choice.

ENGLISH

1 2

ESPAÑOL FRANÇAIS

2. Press the SAVE soft key to save your setting.

press the corresponding numerical key to move the dot to

Format

Select this utility to format an SD card to receive data or erase all data on the card. The EXP will warn you before formatting the disk, and ask if you want to continue.

Update

When software updates are released, this utility enables you to update the analyzer’s software using les

on an SD card.

Chapter 4: Test Preparation

Inspecting the Battery

Before starting the test visually inspect the battery for:

Cracked, buckled, or leaking case. If you see any of these defects, replace the battery.

•

Corroded, loose, or damaged cables and connections. Repair or replace them as needed.

•

Corrosion on the battery terminals, and dirt or acid on the case top. Clean the case and

•

terminals using a wire brush and a mixture of water and baking soda.

Low electrolyte level. If the electrolyte level is too low, add distilled water to the level specified

•

by the battery manufacturer, and fully charge the battery. Do not overfill.

Corroded or loose battery tray and hold-down fixture. Tighten or replace as needed.

•

The preferred battery test location is in the vehicle. However, if you plan to test out of the vehicle:

Always disconnect the negative cable from the battery first and reconnect it last.

•

Always use a carry tool or strap to lift and transport the battery.

•

CAUTION: To ensure accurate test results for Group 31 batteries, the clamps are designed to connect to lead stud adapters or to the lead bases of threaded studs. Never connect the clamps directly onto the threaded studs. When testing at side posts, always use lead terminal adapters. Do not use steel bolts. To avoid damage, never use a wrench to tighten the adapters more than 1/4 turn. Failure to properly install lead terminal adapters, or using adapters that are dirty or worn, may cause false test results.

At the start of the test, make sure all vehicle accessory loads are off, the key is not in the ignition, and the doors are closed.

Logging In

Scroll to your User ID and press the NEXT soft key.

DAN

RICK J

JOHN G

4 USER04

To create a new User ID, scroll to a placeholder (USER01, USER02, etc.), press NEXT and select the Users function

in the Utility Menu. See “Users” on page 16 for instructions.

TO STARTER

TO GROUND

Chapter 4: Test Preparation

Connecting to a battery

CAUTION: Do not connect the EXP to a voltage source greater than 60 Vdc.

Testing Individual Batteries

1. If the batteries have threaded studs, screw the negative (–) stud adapter onto the negative terminal, and the positive (+) adapter onto the positive terminal.

2. Connect the red clamp to the positive (+) terminal or adapter.

3. Connect the black clamp to the negative (–) terminal or adapter.

4. For a proper connection, rock the clamps back and forth. Both sides of the clamp must be firmly connected before testing. If the message CHECK CONNECTION appears, clean the terminals and/or reconnect the clamps

Clamp connection to stud adapter Clamp connection to stud pad

Testing the Battery Pack

1. At the start of the test, make sure all vehicle accessory loads are off, the key is not in the ignition, and the doors are closed.

2. Connect the clamps to the positive (+) and negative (–) cables that lead to the starter and chassis ground as shown. If there are multiple cables, re-test for each cable connection.

3. For a proper connection, rock the clamps back and forth. Both sides of each clamp must be firmly connected before testing. If the message CHECK CONNECTION appears, clean the terminals and/or reconnect the clamps.

Chapter 5: Battery Test

The Battery Test function tests one battery in or out of the vehicle. To test the battery pack the analyzer will guide you through the steps of selecting your battery test parameters and interpreting the results. Before you start the test, review the instructions in “Test Preparation.”

If you use the ARROW keys to select option buttons, press the NEXT If you use the alphanumeric keypad to enter the number preceding the option button, no additional keypress is needed to save your selection. test and to the previous screen as you progress.

1. In the Main Menu, select the Battery Test icon.

2. Select the POST TYPE. 1

TOP

SIDE

REMOTE (appears only for the Automotive System Test)

Press the NEXT soft key to continue.

The BACK soft key returns you to the Main Menu at the start of the

soft key to continue to the next step.

. Select the BATTERY TYPE.

GROUP 31 (BCI heavy-duty battery size)

1 2

4D, 8D (heavy-duty commercial batteries)

AUTOMOTIVE (car, van, light truck, etc.)

Press the NEXT soft key to continu

4. Select the BATTERY CHEMISTRY.

REGULAR/AUTO (ooded lead-acid)

1 2

AGM-SPIRAL (Absorbed Glass Mat: non-spillable, shaped like a six-pack)

AGM-OTHER (non-spillable, standard shape)

GEL (VRLA with gelied electrolyte)

Press the NEXT soft key to continu

Chapter 5: Battery Test

5. Select the battery’s RATING UNITS. The units and the rating required in step 6 are printed on the battery label. If the information is unreadable, contact the battery manufacturer.

CCA (Cold Cranking Amps)

CA (Cranking Amps)

MCA (Marine Cranking Amps)

JIS (Japanese Industrial Standard)

DIN (Deutsch Industry Norm)

SAE (Society of Automotive Engineers)

IEC (International Electrotechnical Commission) EN (European Norm)

8 Press the NEXT soft key to continue.

. Press the UP or DOWN ARROW ke

y or use the numeric keys to select the BATTERY

RATING.

If CCA, scroll to the rating and press SELECT. The entry range is 1

00 to 3000, except for

DIN and IEC, which have a range of 100 to 1000.

500 CCA

b) If JIS, scroll to the JIS number.

26A17

26A19 26B17 28A19

Press the NEXT soft key to continue.

7. Aim the IR temperature sensor at the battery as instructed for an accurate temperature measurement.

Battery Case

(Top)

Sensor

Whe

n the temperature stabilizes, press the NEXT soft key to start the test. The analyzer takes

a f

ew seconds to evaluate the battery before displaying the results.

Chapter 5: Battery Test

In some cases the EXP may ask for additional information before it makes a decision on the battery. See “Additional Test Requirements” on page 28 for more information.

8. If the battery decision is REPLACE or BAD CELL, the EXP-1000 HD BMP asks you to enter the battery serial number. The number, which is located on the battery case, is needed to generate a test code for warranty purposes. To backspace, use the LEFT ARROW key. When finishe

d, press the NEXT soft key to continue.

Battery Test Results

The EXP displays the complete results on multiple screens. The EXP-1000 HD BMP generates a test code for REPLACE decisions.

To send the results to the IR printer, align the analyzer’s IR transmitter with the printer’s receiver, and press the PRINT soft key. T

Battery decision

Measured voltage

END becomes NEXT in the Automotive System Test

To view the code, press the UP or DOWN ARROW key

o return to the Main Menu, press the END soft key.

Measured CCA Selected rating Battery temperature

Battery serial number Test code generated for REPLACE

decisions for warranty purposes

(BMP version only. )

Battery state-of-health

Estimated charge time if charging needed

Battery state-of-charge

Battery Decision Recommended Action

GOOD BATTERY Return the battery to service.

Chapter 5: Battery Test

GOOD–RECHARGE Fully charge the battery and return it to serv CHARGE & RETEST Fully charge the

battery using a Midtronics Diagnostic Charger and retest.

Failure to fully charge the battery before retesting may cause false readings. If CHARGE &

RETEST appears again after you fully charge the

battery, replace the battery.

REPLACE BATTERY

A REPLACE BATTERY result may also mean a poor connection between the battery and the vehicle. If you tested the battery using the SYSTEM Test, disconnect the battery cables and retest using the BATTERY Test before replacing it.

BAD CELL–REPLACE Replace the battery.

WARNING: Do not charge the battery. Charging a battery with one or more bad cells could cause an explosion and serious harm to the user.

NOTES:

If the EXP in-vehi

displays 24 VOLT BATTERY after the Automotive System Test, you are attempting to test

cle both batteries in a 24-volt system. Disconnect the batteries and test them individually.

ice.

When testing at REMOTE POSTS, the EXP may need to verify a possible REPLACE result. It will give you the option of retesting at the battery posts.

When testing at SIDE POSTS, the EXP may nd that the data is inconclusive and ask you to test with side

post adapters.

Chapter 5: Battery Test

Additional Test Requirements

For a more decisive result the analyzer may ask for additional information or further explore the battery’s condition. The following messages and instructions may appear before the analyzer displays the results of your test.

System Noise Detected

The analyzer has detected computer, ignition noise, or parasitic drain, and will attempt to retest. Make sure all vehicle loads are off, doors are closed, and the ignition is in the off position. The analyzer will automatically retest when it no longer detects system noise. If the message reappears:

You may be testing too close to a noise source, such as a charger or other high-current

•

device. If so, move away and retest. If you are unable to find the source of the noise, fully charge the battery and retest. If the

•

message appears after recharging, test the battery out of the vehicle. Disconnect the battery cables and retest.

•

Unstable Battery Detected

A battery that is weak, or that has just been charged, may retain enough electrical activity to be detected by the analyzer and will adversely affect the test results. A fully charged battery should stabilize quickly, after which the analyzer will automatically retest. Weak batteries should be charged and retested. If the battery is fully charged, check the clamp connections.

Deep Scan Test

In some cases the analyzer may need to further analyze a deeply discharged battery to determine

whether the battery should be replaced or if it has a chance to be recovered. It then briey conducts

a Deep Scan Test of the battery. The EXP may also ask you to enter the battery’s six-digit serial number, which is located on the

battery case. After the Deep

5-Minute Discharged Battery Test. Although this test takes ve minutes, it gives a more precise result for difcult-to-diagnose batteries.

Scan Test the EXP either displays the results or gives you the option to perform the

Chapter 5: Battery Test

5-Minute Discharged Battery Test

During this test a deeply discharged battery is diagnosed in minutes, eliminating the need to charge the battery for hours in advance. The EXP displays this test option after the Deep Scan Test and before it arrives at the battery decision.

The test requires an external high-current charger. The use of an amp clamp is preferred but not required.

1. If you are using an amp clamp, connect it to the analyzer’s accessories port and select AMP CLAMP AVAILABLE.

AVAILABLE

1 2

NOT AVAILABLE

Press the NEXT soft key to continue.

. Select charge current rate of the battery charger you will use for this test.

15 (10–60)

Press the NEXT soft key.

3. Disconnect the analyzer’s clamps from the battery posts.

4. Make sure the charger’s power cord is disconnected and the power switch in the OFF position.

5. Connect the charger’s clamps to the battery posts: red lead to the positive (+) terminal, black lead to the negative (–) terminal.

6. Reconnect the analyzer’s clamps to the battery posts. Rock them back and forth so they make good contact.

Connect the amp clamp to the EXP, and remove the clamp from any cables or wires.

8. Press the NEXT soft key to zero out the clamp.

Place the amp clamp around the negative (–) battery cable of the charger.

10. Plug in the charger’s power cord and turn on the charger.

The EXP begins testing while the charger applies the charge current to the battery. After the initial boost charge, the EXP will count down the test time in minutes and seconds.

CAUTION: Do not leave the battery unattended while the charger is in operation.

11. When the test is finished, the EXP will ask you to turn off the charger and disconnect the charger and analyzer clamps.

12. Reconnect the EXP clamps to the battery posts and press the NEXT soft key to disp the battery results.

lay

Chapter 6: Battery and Starter System Test—auto/Van

Chapter 6: Battery and Starter System Test—Auto/Van

The System test evaluates the battery, starting and charging systems. Before the test, inspect the alternator drive belt. A belt that is glazed or worn, or lacks the proper tension, will prevent the engine from achieving the rpm levels needed for the test.

1. In the Main Menu, select the System Test icon.

2. Select AUTO/VAN. 1

AUTO/VAN

TRUCK

Battery Test

The System Test includes a test of the battery to eliminate it as the cause of starting or charging problems. See Chapter 5 on page 24 for the Battery Test procedure and an example of the test results.

If you are using the amp clamp (AMP CLAMP AVAILABLE), keep it clamped around the negative (–) battery cable.

Starter System Test

1. Start the engine at the prompt.

2. The EXP displays a decision on the starter system with the complete results in a series of screens. Use the UP/DOWN ARROW keys to scroll to each screen.

send the results to the IR printer, press the PRINT soft key. To continu

NEXT soft key.

For an example of the test results see the next page.

e testing, press the

Chapter 6: Battery and Starter System Test—auto/Van

auto/Van Starter System Test Results

To send the results to the IR printer, align the analyzer’s IR transmitter with the printer’s receiver, and press the PRINT soft key. To continue testing, press the NEXT soft key.

NOTE: In some cases, the EXP may not detect the vehicle’s starting prole and display the soft key

options ST Test. If you select NO START, the test process ends.

ARTED and NO START. If you select STARTED, the EXP skips to the Charging System

Starter dec

L o o p o h m s ( s t a r t e r loop resistance) displayed

if amp clamp used

ision

X axis = Time

Average cranking voltage Average cranking amps

if amp clamp i Cranking time in seconds

Y axis = system performance: cranking voltage

Y axis = system performance: Cranking current is displayed if amp clamp is used

s used

Starter System Decision Recommended Action

CRANKING NORMAL The starter voltage is normal and the battery is fully charged. LOW VOLTAGE The starter voltage is low and the battery

CHARGE BATTERY The starter voltage i

s low and the battery is discharged. Fully charge the

is fully charged.

battery and repeat the starter system test.

REPLACE BATTERY The battery must be replaced before testing the starter

LOW CRANKING AMPS The cranking voltage NO START The engine d

id not start and the test was aborted.

is high, but the cranking amps are low.

CRANKING SKIPPED The EXP did not detect the vehicle’s starting prole and skipped the Starter

Test.

Refer to page 36 for the Charging System

Test.

Chapter 7: Battery and Starter System Test—Truck

Before starting the test, inspect the alternator drive belt. A belt that is glazed or worn, or lacks the proper tension, will prevent the engine from achieving the rpm levels needed for the test.

The System Test rst evaluates the battery pack (with up to 6 batteries), then the starter and charging

systems. The Charging System Test has the option of using the amp clamp to measure charging current.

Battery Pack Test

The test is designed to give you a quick approximation of the pack’s state of health and its capability to deliver current. If the analyzer determines that the pack has a low state of charge, it will provide the option of testing the batteries individually or skipping to the System Test.

1. In the Main Menu, select the System Test icon.

2. Select AUTO/VAN. 1

AUTO/VAN

TRUCK

3. Enter the number of batteries in the pack (up to six).

Press the NEXT soft key to continue. The BACK soft key returns you to the Main Menu at the start of the test and to the previous screen

as you progress.

4. Follow steps 3 to 8 in the Battery Test section starting on page 24.

5. When prompted, enter the vehicle VIN. The EXP evaluates the battery and displays the results (page 34). If the decision is CHECK BATTERY PACK or you selected more than one battery to test,

the EXP provides the option of testing each battery in the pack (BREAK PACK DOWN) or continuing with the Starter Test.

Chapter 7: Battery and Starter System Test—Truck

Break Pack Down

If you choose to test individual batteries, the EXP uses the parameters from the pack test and prompts you through the steps of disconnecting the pack, testing each battery, and reconnecting.

To test individual batteries after a CHECK BATTERY PACK decision:

1. Select BREAK PACK DOWN and press the

2. Disconnect the EXP from the battery posts.

3. Disconnect the battery pack, and press the

When prompted, connect to the first battery and press the NEXT soft key.

The EXP takes a few seconds to evaluate the battery. If any messages appear before the EXP displays the results, refer to “Battery Test: Additional Test Requirements.

6. If the battery decision is REPLACE or BAD CELL, the EXP asks you to use the alphanumeric keypad to enter the battery’s serial number. The number, which is located on the battery case. To backspace, use the LEFT ARROW ke continue.

7. When you test the last battery, the EXP displays the results. Press the DOWN ARROW key to

view the individual battery results. See an example of the results on the next page.

NEXT soft key to continu

NEXT soft key.

y. When finished, press the NEXT soft key to

Chapter 7: Battery and Starter System Test—Truck

Battery Pack Test Results

If the result is GOOD PACK, the EXP continues to the Starter System Test. The EXP generates a Pack Code for all decisions.

If you tested individual batteries, the EXP displays the results for each battery with a test code for REPLACE decisions.

To view the complete results, press the UP or DOWN ARROW key

To send the results to the IR printer, align the analyzer’s IR transmitter with the printer’s receiver, and press the PRINT soft key.

To continue to the Stater System Test, press the NEXT soft key.

Pack decision

Selected number of

batteries in the pack

Selected rating Battery temperature

Pack Code for REPLACE decisions

Results for a test of two batteries, with serial numbers and test codes for REPLACE decisions

Chapter 7: Battery and Starter System Test—Truck

Truck Starter System Test

The performance of the starting and charging systems depends on the battery’s condition. It is important that the battery or pack is good and fully charged before any further system testing.

1. Start the engine at the prompt.

2. The EXP will display one of six decisions and the results in a series of screens. Use the UP/ DOWN ARROW keys to scroll to each screen.

Starter System Test Results

To send the results to the IR printer, align the analyzer’s IR transmitter with the printer’s receiver, and press the PRINT soft key. To continue testing, press the NEXT soft key.

NOTE: In some cases, the EXP may not detect the vehicl

e’s starting profile and display the soft key options STARTED and NO START. If you select STARTED, the EXP skips to the Charging System Test. If you select NO START, the test process ends.

Starter decision

Y axis = system performance: cranking voltage

X axis = Time

Average cranking voltage

Cranking time in seconds

Starting System Decision Recommended Action

CRANKING NORMAL The starter voltage is normal and the battery is fully charged. LOW VOLTAGE The starter voltage is low and the battery

CHARGE BATTERY The starter voltage i

the battery and repeat the starter system test.

REPLACE BATTERY (If the battery test result was (REPLACE or BAD CELL.) The battery

must be replaced before testing the starter

NO START The engine d CRANKING SKIPPED The EXP did not detect the vehicle’s starting prole and skipped the

Starter Test.

is fully charged.

s low and the battery is discharged. Fully charge

id not start and the test was aborted.

Chapter 8: Charging System Test—auto/Van and Truck

Chapter 8: Charging System Test—Auto/Van and Truck

If you are using the amp clamp (AMP CLAMP AVAILABLE) in the AUTO/VAN Charging System Test, keep it clamped around the negative (–) battery cable.

If you are using the amp clamp (AMP CLAMP AVAILABLE) in the TRUCK Charging System Test, keep it clamped around the positive (+) alternator cable.

1. CHECKING FOR ALTERNATOR OUTPUT: The EXP will immediately begin testing for alternator voltage.

TURN ALL VEHICLE LOADS OFF, IDLE ENGINE: Turn off vehicle loads (blowers, interior light, radio, etc.) and idle the engine. Press the NEXT soft key to continu

NOTE: If necessary the analyzer will testing after you make your selection.

REV ENGINE WITH LOADS OFF FOR 5 SECONDS: Rev the engine with the loads off. Gradually increase the rpm until the analyzer tells you to HOLD the rev level as the bar on the display moves to the right.

NOTE: Some 8-cylinder and older vehicles idle at a high level after starting, allowing the analyzer to detect the rev automatically.

5. ACQUIRING DATA....HOLD ENGINE RPM: Continue to hold the rpm while the EXP takes

system measurements.

ENGINE REV DETECTED, IDLE ENGINE: The EXP has detected the rev. Press the NEXT soft key.

TESTING ALTERNATOR AT IDLE, LOADS OFF: The analyzer will next test the engine at idle for comparison to other readings, and then test the diode ripple. Excessive ripple usually means one or more diodes have failed in the alternator or there is stator damage.

TURN HIGH BEAMS AND BLOWER MOTOR ON, IDLE ENGINE: After a few seconds, the EXP will ask you to turn on the accessory loads. It will determine if the charging system is able to provide enough current for the demands of the electrical system.

ask if you are testing a diesel engine. It will resume

IMPORTANT: Turn on the high-beam headlights and the blower to high. Don’t use cyclical loads such as air conditioning or windshield wipers.

TESTING ALTERNATOR AT IDLE, LOADS ON: The analyzer will determine if the charging system is able to provide sufficient current for the demands of the vehicle’s electrical system.

10. REV ENGINE WITH LOADS ON FOR 5 SECONDS: The EXP will test the charging system with the loads on and prompt you to rev the engine. Gradually increase the rev until the

Chapter 8: Charging System Test—auto/Van and Truck

analyzer tells you to HOLD the rev level as the bar on the display moves to the right.

11. ACQUIRING DATA....HOLD ENGINE RPM: Continue to hold the rpm while the EXP takes

system measurements.

12.

ENGINE REV DETECTED, IDLE ENGINE: The EXP has detected the rev. Press the NEXT soft key.

13.

ANALYZING CHARGING SYSTEM DATA: The EXP is completing its final analysis of the charging system data.

14. TURN OFF LOADS AND ENGINE: Press the

NEXT soft key to disp

Charging System Test Results—auto/Van and Truck

Loads-off DC

voltage at rev

Charge Code generated

for BMP version only

Normal DC

voltage range

lay the results.

Alternator decision

Loads-on DC voltage at rev Loads-on current at rev

if amp clamp i

Bar graph showing DC voltage within normal range with loads on and off

s used

Peak-to-peak

AC voltage

Diode waveform

Chapter 8: Charging System Test—auto/Van and Truck

Charging System Decision Action

NO PROBLEMS The system is show

ing normal output from the alternator. No problem detected.

NO VOLTAGE The alternator is not prov

√

Check the belts to ensure the alternator is rotating with the engine running. Replace broken or slipping belts and retest.

√

Check all connections to and from the alternator, especially the connection to the battery. If the connection is loose or heavily corroded, clean or replace the cable and retest.

√

If the belts and connections are in good working condition, replace the alternator. (Older vehicles use external voltage regulators, which may require only replacement of the voltage regulator.)

LOW VOLTAGE The alternator is

not providing enough current to power the system’s electrical loads

and charge the battery.

√

Check the belts to ensure the alternator is rotating with the engine running. Replace broken or slipping belts and retest.

√

Check the connections from the alternator to the battery. If the connection is loose or heavily corroded, clean or replace the cable and retest.

HIGH VOLTAGE The

voltage output from the alternator to the battery exceeds the normal limits

of a functioning regulator.

iding charging current to the battery.

√

Check to ensure there are no loose connections and that the ground connection is normal. If there are no connection problems, replace the regulator. (Most alternators have a built-in regulator requiring you to replace the alternator. In older vehicles that use external voltage regulators, you may need to replace only the voltage regulator.)

The regulator controls voltage output based on the battery voltage, underhoo

d temperature, and vehicle loads used. In other words, it controls the maximum voltage the system can produce based on the current needs and amount of current that can be produced by the spinning of the rotor in the alternator. The normal high limit of a typical automotive regulator is 14.5 volts +/–0.5. Refer to the manufacturer specifications for the correct limit, which may vary by vehicle type.

A high charging rate will overcharge the battery and may decrease its life and cause it to fail. If the battery test decision is REPLACE and the charging system test shows a HIGH OUTPUT, check the battery’s electrolyte levels. A symptom

of overcharging is battery uid spewing through the vent caps, which causes low

electrolyte levels and will harm the battery

Diode Decision Action

EXCESSIVE RIPPLE One or more

damage, which is shown by an excessive amount of AC ripple current supplied to the battery.

√

Make sure the alternator mounting is sturdy and that the belts are in good shape and functioning properly. If the mounting and belts are good, replace the alternator.

Chapter 8: Charging System Test—auto/Van and Truck

diodes in the alternator are not functioning or there is stator

OPEN PHASE The analyzer has

alternator.

DIODE OPEN The analyzer has

alternator.

DIODE SHORT The analyzer has

the alternator.

detected an open phase within the alternator. Replace the

detected a open diode within the alternator. Replace the

detected an shorted diode within the alternator. Replace

Battery

Battery Test Lead

DMM Test Lead

Component

Under

Test

–

Red Red

Black Black

Chapter 9: Cable Drop Test

If the test results for the starter or charging systems indicate that there may be a problem, you may want to perform the Cable Drop Test to determine if it is due to worn cables or bad connections between the battery and the alternator or starter. Worn cables or bad connections create higher resistance, which causes a drop across the circuit. The voltage drop reduces current carrying capability that displays the same symptoms as a weak alternator or starter and causes premature battery failure.

There is no need to run the engine. The Cable Drop Test uses Midtronics’ conductance technology to send a signal through the circuit to the component under test. The EXP then simultaneously calculates voltage drop on the positive (+) and negative (–) sides of the circuit as well as the total voltage drop. The amperage range for each of the four tests is 0 to 1000 A. When you change the setting from the factory defaults, the EXP will store your setting in memory for your next test.

There are four preset tests for components up to 1000 amps:

Component

Battery Ground 80 A — Starter Circu Alternator Circu Chassis Ground — 135 Other Circu

it 150 A 500 A

it 80 A 135 A

it (a circuit of your choice) 10 A 10 A

Default Settings

Auto Van Truck

The test requires two test lead connections, as shown in the illustration below.

Connect the battery test leads at the component’s output lead (the B+ or output screw on the alternator) and the component’s housing as ground.

2. Connect the DMM test leads at the battery terminals. NOTE: The test requires a complete circuit. If you are testing a system with a remote solenoid, you

can test from the battery to the solenoi

d, but not from the battery to the starter.

IMPORTANT: For accurate results the battery should be good and fully charged before you test.

1. To start a test, select the Cable Drop icon in the Main Menu.

2. Select AUTO/VAN. 1

AUTO/VAN

TRUCK

Chapter 9: Cable Drop Test

3. Use the UP/DOWN ARROWS or 1

STARTER CIRCUIT

ALT CIRCUIT

CHASSIS GROUND

OTHER

the numerical keypad to select a circuit.

Press the NEXT soft key to continue.

. Use the UP/DOWN ARROWS or the keypad to select the rated amperage or output of the

circuit

500 A

Press the NEXT soft key.

5. Follow the instructions on the display for connecting the test cables.

6. The EXP tests the circuit and displays the results. The format for the Starter Circuit results are typical for the Cable Drop Test.

Total circuit voltage drop

7. To print the results, align the analyzer’s IR transmitter with the printer’s receiver, and select the PRINT soft key. To return to the Main

Voltage drop across posit

ive side of circuit

Voltage drop across negative side of circuit

Menu, press the END soft key.

Chapter 10: DMM (Digital Multimeter)

The DMM’s infrared temperature sensor also allows you to determine the surface temperature of

components before you service them or as a diagnostic aid. Specications for each tool are listed at the

table at the end of this chapter. A measurement that is out of the limit displays as OL. Refer to the manufacturer specications for the

correct lim

1. In the Main Menu, select the DMM icon.

2. Select the icon of the meter you want to use.

its, which may vary by component or vehicle type.

DC Voltmeter AC Voltmeter

The DC and AC voltmeters measures voltage between two points in a circuit. The voltmeter is connected in parallel with the circuit.

Connect the DMM test lead to the analyzer’s accessories port.

2. Select the DC Volts or AC Volts icon.

3. Connect the clamps or probes in the correct polarity: red clamp or probe to positive (+); black to negative (–).

4. The meter autoranges and displays the measurement.

5. To return to the METERS menu, press the END soft key.

Scope

The scope is a voltmeter that provides a graph of voltage difference as it varies over time. After you select the scope icon, note the instructions in the next screen before proceeding. You will need them after you press the SELECT soft key to continue:

• Press 1 on the keypad to autoscale the scope.

• Press 3 on the keypad for the time display.

• Press 4 on the keypad for the FFT (frequency) display.

Press the SELECT soft key.

Chapter 10: DMM (Digital Multimeter)

In the time display the horizontal axis is in seconds and the vertical axis is in volts. In the frequency display the horizontal axis is in hertz and the vertical axis is in volts. Press the right soft key to alternate between the options to

HOLD (freeze the s The scope allows you to print the voltage trace to the optional IR printer when you freeze the signal. Align

the analyzer’s IR transmitter with the printer’s receiver, and select the PRINT soft key. To return to the METERS menu, press END.

ignal).

RUN (measure and display the signal) and

DC Ammeter AC Ammeter Volts/Ammeter

The DC ammeter measures DC magnitude and ow of the DC current in a circuit. The volts/amp meter simultaneously

1. Connect the amp clamp lead to the analyzer’s accessories port.

2. Select the DC Volts, AC Volts, or Volts/Amps icon.

3. Select the amp clamp range. 1 2

measures charging voltage and charging current.

70 AMP MAX. 700 AMP MAX.

Press the NEXT soft key to continue.

. The meter zeros itself.

5. Place the clamp’s jaws around the negative (–) cable.

6. The EXP displays the measurement.

7. To return to the METERS menu, press the END soft key.

Temp

The IR temperature sensor measures surface temperature within a range of –20 to 200 °F. The tool can be used for checking the transmission for overheating, and the temperature levels of the heater and air conditioner.

Chapter 10: DMM (Digital Multimeter)

Ohmmeter

The meter is connected in parallel with the circuit under test and uses the power supplied by the analyzer’s internal batteries to detect open or excessive resistance.

CAUTION: Always remove analyzer.

Connect the DMM test lead to the analyzer’s accessories port.

2. Select the Ohm Meter icon.

3. Connect the clamps or probes in the correct polarity: red probe to positive (+); black to negative (–).

4. The meter will autorange and display the measurement.

5. When finished, press the END soft key.

To return to the Meters menu, press the END soft key.

power from the circuit before connecting the ohmmeter to avoid damaging the

Diode

This test measures the voltage drop across components, such as diodes.

1. Connect the probes test lead to the EXP’s accessories port.

2. Select the meter’s icon.

3. Connect the probes in the correct polarity: red probe to positive (+); black to negative (–).

4. The meter will autorange and display the measurement.

5. When finished, press the

END soft key.

Chapter 10: DMM (Digital Multimeter)

The accuracy specication is dened as ± (n% reading + [count

resolution]) at 77 °F.

Vdc
