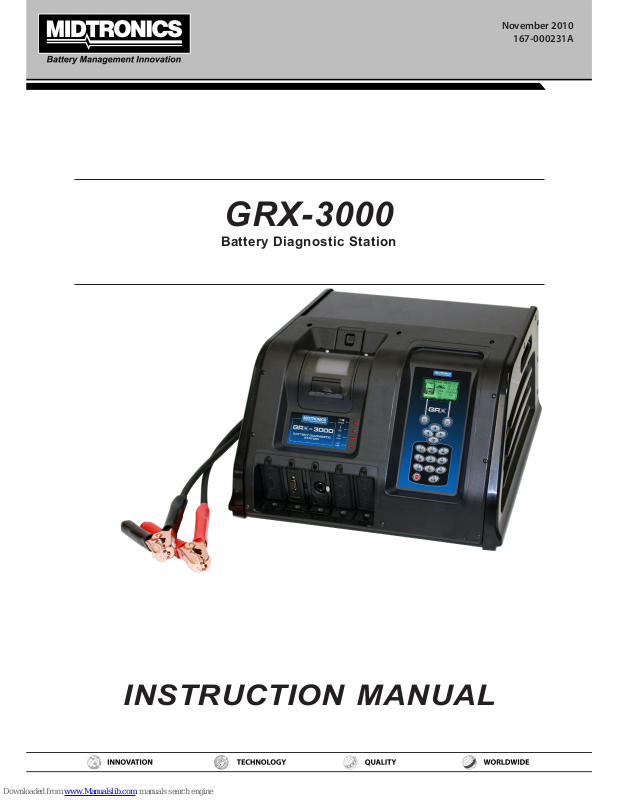

INSTRUCTION MANUAL
GRX-3000
Battery Diagnostic Station
November 2010
167-000231A
This page intentionally left blank.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
3
Safety Guidelines 5
General Safety Precautions 5
Personal Precautions 5
Preparing To Charge The Battery 6
Grounding & Power Cord Connections 6
Charger Location 7
DC Connection Precautions 7
Installing The Battery 7
Removing the Battery 8
Safety Reminder 8
Safety Precautions 8
Chapter 1: Before You Begin 9
Assembly of the GRX-3000 10
Assemble the cart 10
Attaching the Charger Cables 10
Attaching the Power Cord 10
Connecting to AC Power 10
Chapter 2: Overview 11
GRX Battery Diagnostic Station: Front View 11
GRX Battery Diagnostic Station: Side View 12
GRX Battery Diagnostic Station: Rear View 12
Display and Keypad 13
Data Entry Methods 14
Menu Icons 14
Option Buttons 14
Scrolling Lists 14
Alphanumeric Entry 14
Main Menu 15
Utility Menu 15
Chapter 3: Getting Started 16
Starting up for the rst time 16
Language 16
Date Format 16
Date 16
Time Format 16
Time 16
Set User preferences 16
Chapter 4: Preparing to Charge 17
Inspecting the Battery 17
Connecting the Clamps 17
Chapter 5: Diagnostic Charging 18
Charging Modes 19
Initial Analysis 19
Hard To Charge Mode (HTC Mode) 19
Bulk Charge Mode / Fill Mode 19
Extended Charge Mode 19
Top-Off Mode 19
Aborting a charge session 19
Completing a charge session 19
State-of-Health (SOH) 20
Chapter 6: Manual Charging 21
Chapter 7: Power Supply 22
Settings in UTILITY menu for Power Supply 22
Chapter 8: Printing / View Menu 23
View test 23
Totals 23
Totals by decision 23
Clear counters 23
Version Info 23
Problems with the Internal Printer 23
The internal printer will not print 23
Changing the Paper in the Internal Printer 23
Chapter 9: Utility Menu 24
Cong Charger 24
Date and Time Menu 24
Mode 24
Time 24
Format 24
Date 25
Write fail 25
Temp. units 25
Power Supply Voltage 25
Display 26
Contrast Level 26
CONTENTS
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
4
Problems with the Display 26
The display does not turn on 26
The display is dim 26
Update 26
Format Card 26
Language 26
Coupon 26
Shop info 27
Chapter 10: Errors and warnings 28
Reverse Connection 28
Check Clamp connection 28
Frozen Battery 28
Battery Temperature above limit 28
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
5
Safety Guidelines
General Safety Precautions
1. IMPORTANT SAFETY INSTRUCTIONS. IT IS OF UTMOST
IMPORTANCE THAT BEFORE USING YOUR CHARGER,
YOU READ THIS MANUAL AND FOLLOW THE SAFETY AND OPERATING INSTRUCTIONS EXACTLY. SAVE
THESE INSTRUCTIONS.
Risk of explosive gases
Batteries generate explosive gases during normal
operation, and when discharged or charged.
1.1 To reduce risk of battery explosion, follow these safety
instructions and those published by the battery manufacturer and the manufacturer of any equipment you
intend to use in the vicinity of a battery. Review cautionary marking on these products and on the engine, and
on the vehicle or equipment containing the battery.
Charging a non-rechargeable battery may
cause the battery to burst.
To reduce the risk of injury, only charge rechargeable
lead-acid type batteries including maintenance-free,
low-maintenance, or deep-cycle batteries.
If you are uncertain as to the type of battery you are
attempting to charge, or the correct procedure for
checking the battery’s state of charge, contact the seller
or battery manufacturer.
1.2 Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of re,
electric shock, or injury to persons.
1.3 To reduce risk of damage to the electric plug and cord,
pull by the plug rather than by the cord when disconnecting the charger.
1.4 Position the AC and DC leads to avoid tripping over
them and to prevent damage by hood, doors, or moving
engine parts; protect from heat, oil, and sharp edges.
1.5 Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any way;
take it to a qualied service center.
1.6 Do not disassemble charger; take it to a qualied service
center when repair is required. Incorrect reassembly
may result in a risk of electric shock or re.
1.7 To reduce risk of electric shock, unplug the charger from
the AC outlet before attempting any maintenance or
cleaning. Turning o the controls will not reduce this
risk.
Remove marine “boat” batteries and charge
them on shore.
Charging marine batteries on-board requires specially designed equipment for marine use.
1.8
Connect and disconnect the battery leads only when
the AC supply cord is disconnected.
1.9
Do not overcharge the battery.
1.10
Charge the battery in a dry, well-ventilated area.
1.11
Never place articles on or around the charger, or locate
the charger in a way that will restrict the ow of cooling
air through the cabinet.
1.12
An extension cord should not be used unless absolutely
necessary. (See paragraph 4.3.)
1.13 Have a damaged cord or plug replaced immediately.
1.14
Do not expose the charger to rain or snow.
Personal Precautions
2.1 Always have someone within range of your voice, or
close enough to come to your aid, when working around
lead acid batteries.
2.2 Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.
2.3 Wear complete eye protection, clothing protection, and
wear rubber soled shoes. Place damp cloth over battery
to protect against acid spray. When ground is very wet
or covered with snow, wear rubber boots. Avoid touching eyes while working near battery.
2.4 If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters the eye, immediately ush with cold running water for at least 10
minutes, and seek medical attention.
2.5 NEVER smoke or allow a spark or ame in vicinity of a
battery or engine.
2.6 Be extra cautious to reduce risk of dropping a metal tool
onto the battery. It might spark or short circuit the battery or other electrical part that may cause an explosion.
2.7 Before working with a lead-acid battery, remove personal metal items such as rings, bracelets, necklaces,
watches, etc. A lead-acid battery can produce a short
circuit current high enough to weld such items causing
a severe burn.
Safety Guidelines
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
6
Safety Guidelines
Non-rechargeable batteries may burst when
charging causing personal injury and damage.
To avoid electrical shock or burn, never alter the charger’s original AC cord and plug. Disconnect plug from
outlet when charger is idle.
The charger is not intended to supply power to a
low-voltage electrical system other than applications
using rechargeable, lead-acid type batteries. Do not
use the battery charger for charging dry-cell batteries
commonly used with home appliances. These batteries
may burst and cause personal injury and property
damage.
2.8 NEVER charge a frozen battery; thaw it out rst.
Preparing To Charge The Battery
3.1
If it is necessary to remove the battery from vehicle to
charge it, always remove the grounded terminal from the
battery rst. Make sure all accessories in the vehicle are
o, so as not to cause an arc.
3.2
Be sure the area around the battery is well ventilated
while the battery is being charged. Gas can be forcefully
blown away by using a piece of cardboard or other nonmetallic material as a fan.
3.3
Clean the battery terminals. Be careful to keep corrosion
from coming into contact with your eyes.
3.4 Add distilled water in each cell until the battery acid
reaches the level specied by the manufacturer. This
helps purge excessive gas from the cells. Do not overll.
For a battery without caps, carefully follow the manufacturer’s recharging instructions
3.5 Study all battery manufacturer’s specic precautions
such as removing or not removing cell caps while charging and recommended rates of charge.
3.6 Determine the voltage of the battery by referring to the
car owner’s manual and make sure that the output voltage selector switch is set at the correct voltage. If the
charger has an adjustable charge rate, charge the battery initially at lowest rate. If the charger has only one
voltage, verify that the battery voltage matches the voltage of charger.
For a charger not having an output voltage selector
switch, determine the voltage of the battery by referring
to car owner’s manual and make sure it matches the
output rating of the battery charger.
Grounding & Power Cord Connections
4.1 The charger must be grounded to reduce risk of
electric shock. The charger is equipped with an electric
cord having an equipment grounding conductor and
a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Hazardous voltage.
An improper connection can result in
electric shock
To avoid electrical shock or burn, never alter
the charger’s original AC cord and plug. Disconnect plug from outlet when charger is idle.
IF THE PLUG DOES NOT FIT THE OUTLET, HAVE
A PROPER OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
4.2
This battery charger is for use on a nominal 220-volt circuit.
Hazardous voltage.
An improper connection can result in
electric shock
Before using an adapter be certain the center
screw of the outlet plate is grounded. The rigid
ear or lug extending from the adapter must be
connected to a properly grounded outlet. Make
certain it is grounded. If necessary, replace the
original screw that secures the adapter ear or
lug to the cover plate and make the ground
connection to the grounded outlet.
4.3 An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result in a risk of re and electric shock. If an extension
cord must be used, make sure:
a. that the pins on plugs of the extension cord are the
same number, size, and shape as those of the plug
on the charger;
b. that the extension cord is properly wired and in
good electrical condition;
c. that the wire size is large enough for the AC
ampere rating of charger.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
7
Safety Guidelines
Charger Location
5.1 Locate the charger as far away from the battery as the
charger cables permit.
5.2 Never place the charger directly above the battery being charged; gases from the battery will corrode and
damage the charger.
5.3 Never allow battery acid to drip on the charger when
taking gravity readings or lling a battery.
5.4 Operate the charger only in a well-ventilated area that is
free of dangerous vapors.
5.5 Store the charger in safe, dry location and maintain it in
perfect condition.
5.6 Do not set the battery on top of the charger or where its
acid might drip onto the charger.
DC Connection Precautions
6.1
All switches should be set in the OFF position and AC cord
should be DISCONNECTED from electrical outlet before
you connect and disconnect the charger clamps. Never allow the clamps to touch each other.
6.2 When attaching the charger clamps, be certain to make
the best possible mechanical as well as electrical connection. This will tend to prevent the clamps from slipping o the connections, avoid dangerous sparking, and
assure safer and more ecient charging. The clamps
should be kept clean.
Hazardous voltage.
Can cause death or serious
personal injury.
Setting the switches to “OFF” does not always
disconnect the charger electrical circuit from
the AC power cord or the DC charger clamps.
Installing The Battery
Risk of explosive gases.
A spark near the battery may cause a battery explosion.
Follow these steps when the battery is installed in the
vehicle to reduce the risk of explosion.
7.1 Before working on the vehicle, rmly apply the emergency brake and place the gear shift to NEUTRAL—shift
an automatic transmission to PARK.
7.2 Locate the charger as far away from the battery as the
charger cords permit and position the AC and DC cords
to avoid stepping on or tripping over them and to prevent damage by hood, doors, or moving engine parts.
7.3 Stay clear of fan blades, belts, pulleys, and any other
parts that can cause physical injury.
7.4 Turn OFF all vehicle loads, including door lights, and
correct any defects in the vehicle’s electrical system that
may have caused low battery.
7.5 Check the polarity of the battery posts. The POSITIVE
(POS., P, +) post usually has a larger diameter than the
NEGATIVE (NEG., N,–) post.
7.6 Determine which post of the battery is grounded (connected) to the chassis. If the negative post is grounded (as
in most vehicles), see paragraph 7.7. If the positive post is
grounded, see paragraph 7.8.
7.7 For a negative-grounded vehicle, rst connect the
POSITIVE (RED) clamp from the charger to the POSITIVE (POS., P, +) ungrounded post of the battery. Then
connect the NEGATIVE (BLACK) clamp to the NEGA-
TIVE (NEG., N,–) post of the battery. Do not connect the
clamp to the carburetor, fuel lines, or sheet-metal body
parts. When disconnecting the charger, turn all switches
to OFF, disconnect the AC cord, remove the clamp from
the NEGATIVE battery terminal, and then remove the
clamp from the POSITIVE battery terminal.
Recommended minimum AWG* size for extension cords for battery chargers
AC input rating amperes AWG* size of cord
Equal or greater than: But less than:
Length of cord, feet (m)
25
(7.6)
50
(15.2)
100
(30.5)
150
(45.6)
8 10 18 14 12 10
10 12 16 14 10 8
12 14 16 12 10 8
14 16 16 12 10 8
16 18 14 12 8 8
*American Wire Gauge
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
8
Safety Guidelines
7.8 For positive-grounded vehicle, connect the NEGATIVE
(BLACK) clamp from the charger to the NEGATIVE
(NEG., N, –) ungrounded post of battery. Then connect
the POSITIVE (RED) clamp to the POSITIVE (POS., P, +)
post of the battery. Do not connect clamp to carburetor,
fuel lines, or sheet-metal body parts.
When disconnecting the charger, turn the switches to
OFF, disconnect the AC cord, remove the clamp from
the POSITIVE battery terminal, and then remove the
clamp from the NEGATIVE battery terminal.
CAUTION: WHEN POSITIVE (+) POST OF VEHICLE
BATTERY IS GROUNDED, DOUBLE CHECK POLARITY.
Removing the Battery
8. If it is necessary to remove the battery from the vehicle
or equipment, always remove the grounded terminal
from the battery rst.
Risk of explosive gases.
A spark near the battery may cause a battery explosion.
Follow these steps when the battery is installed in the
vehicle to reduce the risk of explosion.
Risk of explosive gases.
Make sure all vehicle loads are OFF to prevent a
possible arc..
8.1
Check the polarity of battery posts. POSITIVE (POS.,
P, +) post usually has larger diameter than NEGATIVE
(NEG., N, –) post.
8.2 Attach at least a 60 cm (24-inch), 6-gauge insulated battery cable to the negative (–) battery terminal.
8.3 Connect the POSITIVE (RED) charger clamp to the POS-
ITIVE (POS., P, +) post of battery.
8.4 Position yourself and the free end of cable as far away
from the battery as possible—do not face the battery
when making the nal connection—then connect the
NEGATIVE (BLACK) charger clamp to the free end of
the cable.
8.5 When disconnecting the charger, always do so in the reverse sequence of the connecting procedure; break the
rst connection while staying as far away from the battery as practical.
Safety Reminder
For safe, ecient, and accurate charging and testing, review
the safety and operating instructions in this manual before
using the analyzer. In addition, follow all manufacturers’
instructions and BCI (Battery Council International) safety
recommendations.
Safety Precautions
Inspect the battery for damages and check the electrolyte
level. If the electrolyte level is too low, replenish it and
fully charge the battery. Always use the necessary safety
precautions when working with batteries to prevent severe
injury or death. Follow all manufacturers’ instructions and
BCI (Battery Council International) safety recommendations.
Battery acid is highly corrosive. If acid enters your eyes,
immediately ush them thoroughly with cold running
water for at least 15 minutes and seek medical attention. If battery acid gets on your skin or clothing, wash
immediately with a mixture of water and baking soda.
Always wear proper safety glasses or face shield when
working with or around batteries.
Keep hair, hands, and clothing as well as the analyzer
cords and cables away from moving engine parts.
Remove any jewelry or watches before you start servic-
ing the battery.
Use caution when working with metallic tools to pre-
vent sparks or short circuits.
Never lean over a battery when testing, charging, or
jump starting.
Never charge a frozen battery. Gases may form, cracking
the case, and spray out battery acid.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
9
Chapter 1: Before You Begin
Disposal
Do not dispose of this device with normal domestic waste!
To comply with the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment and its implementation
as national law, electrical equipment that has reached the end of its life must be collected separately and returned to an
approved recycling facility Any device that you no longer require must be returned to our agent, or nd out about the
approved collection and recycling facilities in your area. Ignoring this European Directive may have potentially adverse
aects on the environment and your health!
Conventions used in this manual
To help you learn how to use your charger the manual uses these symbols and typographical conventions:
Convention Description
!
The safety symbol indicates instructions for avoiding hazardous conditions and personal injury.
The safety symbol with the words CAUTION, WARNING, or DANGER indicates instructions for
avoiding hazardous conditions and personal injury.
CAUTION
The word CAUTION indicates instructions for avoiding equipment damage.
The wrench symbol indicates procedural notes and helpful information.
UP ARROW
The text for keypad buttons are in Bold capital letters.
CAPITAL LETTERS The text for screen options are in regular capital letters.
BACK ARROW
The text for soft keys are in Bold capital letters.
Chapter 1: Before You Begin
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
10
Chapter 1: Before You Begin
Assembly of the GRX-3000
The GRX Battery Diagnostic Station is shipped in two pieces:
The cart and the charge engine.
Assemble the cart
1. For easy shipping the cart is shipped in a partial assembled way. Please refer to the Instruction sheet that
comes with the package on how to safely assemble.
2. Mount the charge engine on the cart and x it with a
bolt at the back. Tighten the bolt securely.
Attaching the Charger Cables
The two connectors for the charger cables are located on
the back of the unit. Three screws are included to secure the
cables. To attach the cables:
1. Plug the small connector into the small socket (A) on the
back of the unit.
2.
Plug the large connector (B) into the large socket while
placing the protective cover (C) against the back of the
unit.
2. Center the three holes in mounting bracket over the
bolts, and lower the bracket onto the charger. Reinstall
the hardware in this order: the at washer rst, the lock
washer next, and the hex nut last. Tighten the nuts securely.
3. Insert the screws through the holes in the cover and and
securely tighten the screws.
The installation is now complete.
Attaching the Power Cord
Plug in the power cord on the back of the unit
.
Connecting to AC Power
Plug the charger into a dedicated, grounded nominal 16amp or higher AC outlet. Press the power switch to the ON
position.
A
B
C
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
11
Chapter 2: Overview
GRX Battery Diagnostic Station: Front View
The controls to the GRX Battery Diagnostic Station are accessible on the front panel.
Chapter 2: Overview
Optional slide-in thermal printer
Allows you to print results after the charge cycle.
Status indicator lights
Lights in conjunction with beeping alarm to indicate
transitions and warnings
.
Expansion
plug-in module bay
Room for 5 expansion modules. Available are: Amp
clamp, DMM probes, Zigbee, WIFI, Bluetooth, Serial
connection, extra USB connection.
Display
Backlit graphical display and keypad for data entry.
Alphanumeric keypad
Keypad for data entry and selections in the various
menus.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
12
Chapter 2: Overview
GRX Battery Diagnostic Station: Side View
On the right side of the unit you can nd an SD card slot and mini USB connection.
Data Card slot
Available for future software updates and data storage.
USB slot
Hardware prepared, functionality to be dened.
GRX Battery Diagnostic Station: Rear View
In addition to containing the outlet for the charger cables and power cord, the back of the unit is the location for the serial
number label and the ON/OFF switch.
Serial Number Label
The serial number of the unit.
ON/OFF switch
Switch the unit on or o.
AC Power cord
Connection for a grounded nominal 220 VAC outlet power cord. (2.4 meter in length)
Charger cable with Kelvin connection
Connection to the battery under charge.
Optional second charge channel
Optional channel for 24V Heavy Duty systems. With this second channel you can charge the 2 batteries in a 24V Heavy
Duty truck system simultaneously without disconnecting the batteries.
When this second channel is used both outputs receive 25A from the charger brick.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
13
Chapter 2: Overview
Display and Keypad
The GRX Battery Diagnostic Station can be controlled with
an integrated display and keypad or with an external tester
(special software version needed). The display also keeps
you on track with onscreen navigation aids, directions and
messages. The illustration shows how the elements on the
screen relate to the keypad.
Voltmeter
When you rst connect the GRX to a battery it functions as
a voltmeter. The voltage reading appears above the left soft
key until you move to other menus or functions.
Soft Keys
Pressing the two soft keys linked to the bottom of the
screen will perform the functions displayed above them. The
functions change depending on the menu and test process.
ARROW keys
Press the ARROW keys to scroll through numerical values
and navigate through menus and icons.
STOP Key
Press the STOP key at any time to stop the active mode.
Title Bar
The title bar shows you the name of the current menu, test
tool, utility, or function.
Selection Area
The selection area below the Title Bar contains selectable
icons or dialog boxes that display information or require a
response.
Menu Screen Arrows
When displayed in menu screens, the menu screen arrows
show you which ARROW key on the keypad to press to
display other icons or screens. The Up and Down Menu
Screen Arrows, for example, indicate when to press the
UP () or DOWN () ARROW keys to display the screens
above and below the current screen.
The left and right menu screen arrows tell you when to use
the LEFT
()
or RIGHT
()
ARROW keys to select an icon.
When displayed under a list of options, the menu screen
arrows show you which keypad arrow to press to highlight a
character or item in a list.
Scroll Bar
Another navigational aid is the scroll bar on the right side of
the screen. The position of its scroll box shows you whether
the screen is the top (or only screen), middle, or last in a
series.
Some screens also indicate the page order with a notation
such as P1/3 (page 1 of 3).
Top or
only
screen
Middle
screen
Last
screen
Scroll
Box
Alphanumeric Keypad
In some cases, you can use the alphanumeric keypad to
enter numerical test parameters instead of scrolling to them
with the ARROW keys.
You can also use the alphanumeric keys to create and edit
customer coupons and your shop contact information on
printed test results. (printer is optional)
To add a space, press the RIGHT () ARROW key. To erase a
space and insert a character, press the LEFT () ARROW key.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
14
Chapter 2: Overview
Data Entry Methods
To perform a particular test or function, the GRX Battery
Diagnostic Station requires dierent types of information.
This means that the methods you use to enter information
will change depending on the type of information that is
requested . The types of entry methods are described below.
Typically, the soft key below the right half of the screen
conrms your choice, although the command above it may
vary. (Examples: SELECT, NEXT, and SAVE.) In a similar
fashion, the soft key below the left half of the screen cancels
your choice or returns you to the previous screen, although
the word above it may also vary. (Examples: BACK and
CLEAR)
Menu Icons
A menu icon is a graphical repre
sentation of a function you can
select. To select an icon, use the
LEFT () or RIGHT () ARROW
to highlight it.
Highlighting changes the icon to a white picture on a black
background. To conrm your selection, press the SELECT
soft key.
Option Buttons
Some lists have option buttons
before each item. To select an
item, use the UP () or DOWN
() ARROW keys to move the dot
to the button next to the item.
To conrm your selection, press the appropriate soft key.
You can also use the alphanumeric keypad to enter the
number preceding the option button of your choice. No
additional key press is needed to proceed.
Scrolling Lists
A scrolling list contain items that
extend above and below the
screen. The rst number above
the right soft key indicates the position in the list of the highlighted
item. The second number above the right soft key indicates
the total number of items in the list.
To select an item, press the UP () or DOWN () ARROW
key to highlight the item, and press the appropriate soft key.
Alphanumeric Entry
Some selections require you to
use the alphanumeric keypad.
These “user-dened” selections
have a blinking horizontal line
(cursor) to the right of the last
character. Use the UP () or DOWN () ARROW keys to
highlight a line for editing.
Display the character, symbol, or number you want by
rapidly pressing its key as many times as needed. For
example: the key number 2 on the keypad represents the
digit 2 and letters A,B and C.
If you pause, the cursor moves to the right. To backspace,
press the
LEFT
()
ARROW
key. Use the RIGHT () ARROW
key to add a space. Use the UP () or DOWN () ARROW
keys to highlight a line for editing.
When nished, press the appropriate soft key to save your
settings.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
15
Chapter 2: Overview
*
*
Main Menu
The starting point for all functions in the charger. Some icons
lead directly to the function while others lead to two or more
options underneath it.
Menu Icon Description
Diagnostic Mode automatically
tests, charges, and provides battery
decision using the information you
select in a series of screens. This is
considered the main function of the
Battery Diagnostic Station.
Power Supply Mode used to
maintain the system at a xed voltage
to support the battery during vehicle
maintenance. (programming)
Manual Charging can be used with
operator entered values such as
voltage, current and time.
Print/View for all statistical info and
software version info.
Utility Menu includes functionality to
setup the charger.
*Menu icons marked with an asterisk (*) have more functions behind it.
Utility Menu
This menu allows you to set certain preferences and view
options.
Menu Icon Description
The CONFIG CHARGER menu
allows you to set the following
parameters:
DATE AND TIME, WRITE FAIL,
TEMPERATURE UNITS, and
POWER SUPPLY VOLTAGE
The DISPLAY allows you to set the
contrast of the LCD
With the LANGUAGE menu you
can select one of the 24 available
languages
Create your own address details for
printouts with the SHOP INFO icon
Create advertisement text with the
COUPON icon that can be printed at
the bottom of the printout
With FORMAT CARD you erase all
information on the data card
With UPDATE you can install new
software on the charger
More details on both the menu’s can be found in the
chapter: UTILITY
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
16
Chapter 3: Getting Started
Chapter 3: Getting Started
The instructions in this section will help you quickly put your
GRX to work.
Starting up for the rst time
When you start the GRX for the rst time you are asked to
enter a number of settings so you can already adapt the
charger to your personal settings. Among these settings are
the language and date and time. This only needs to be done
once, it can be changed afterwards in the UTILITY MENU
(CONFIG CHARGER)
Language
After the logo appears, the rst selection enables you to set
the charger language.
Use the UP or DOWN ARROW, or press the corresponding
numerical key to move the dot to the option button of your
choice to select the Language.
Press the NEXT soft key to continue.
Date Format
Use the UP ( ) or DOWN ( ) ARROW or press the
corresponding numerical keys to move the dot to the option
button of your choice.
1. Select the format of the date.
1 DD/MM/YYYY (Day/Month/Year)
2 MM/DD/YYYY (Month/Day/Year)
2. Press the NEXT soft key to save your setting or the BACK
soft key to return without saving the changes.
Date
1. Use the ARROW keys to highlight the month, day, or
year.
12 / 11 / 2010
2. Press the NEXT soft key to save your setting or the BACK
soft key to return to the previous page without saving
the changes.
Time Format
Use the UP () or DOWN () ARROW key, or press the
matching
numerical keys to move the dot to the option
button of your choice.
1. Select the 24-hour or 12-hour (AM/PM) clock.
1 24 HOUR
2 AM/PM
2. If you used the ARROW keys, press the NEXT soft key to
save your setting or the BACK soft key to return to the
previous screen without saving the changes.
Time
1. Use the LEFT () or RIGHT () ARROW keys to high-
light the hour, minutes, or AM or PM.
9 : 19 PM
2. Press the NEXT soft key to save your setting, or press the
BACK soft key to return to the previous page.
Set User preferences
Later in the process you may want to customize the use of
your GRX by setting your preferences in the UTILITY MENU.
The menu has settings for the Time, Contrast and Backlight
time and a utility to customize printouts for the optional
printer.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
17
Chapter 4: Preparing to Charge
Inspecting the Battery
Before starting the test, visually inspect the battery for:
• Cracked,buckled,orleakingcase.Ifyouseeanyofthese
defects, replace the battery. DO NOT CHARGE THE
BATTERY.
• Corroded,loose, or damaged cables and connections.
Repair or replace as needed.
• Corrosiononthe battery terminals,dirt or acid onthe
case top. Clean the case and terminals using a wire
brush and a mixture of water and baking soda.
• Lowelectrolytelevel.Iftheelectrolytelevelistoolow,
add distilled water to the level indicated by the battery
manufacturer. Do not overll.
• Corroded or loose battery terminals, tray and hold-
down xture. Tighten or replace as needed.
Connecting the Clamps
Connect the charging clamps to the battery in accordance
with all precautions and safety instructions. Do not connect
either clamp to the vehicle’s chassis.
Connect the clamps to the battery posts: negative (–) black
clamp to the negative (–) post; positive (+) red clamp to the
positive (+) post.
If the clamps are not making good contact with the battery
posts, the screen displays CHECK CLAMP CONNECTIONS.
Make sure that both jaws of each charging clamp come
in good contact with the battery posts. If you accidentally
reverse the clamp connections, the charger sounds an alarm
and displays REVERSE CLAMPS.
Chapter 4: Preparing to Charge
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
18
Chapter 5: Diagnostic Charging
The GRX Battery Diagnostic Station will determine the
internal condition of a battery before attempting to apply a
charge to it.
Before performing a diagnostic charge on a battery installed
in a vehicle, make sure all vehicle accessory loads are o, the
key is not in the ignition, and the doors are closed.
1. From the MAIN Menu, highlight the DIAGNOSTIC icon
and press the SELECT key.
2.
Use the UP () or DOWN () ARROW key
to select the
battery LOCATION, or press the corresponding numeri-
cal keys to move the dot to the option button of your
choice.
1 OUT OF VEHICLE
2 IN VEHICLE
Press the NEXT soft key to continue.
3.
Use the UP () or DOWN () ARROW key
to select the
BATTERY TYPE, or press the corresponding numerical keys to move the dot to the option button of your
choice.
1 REGULAR
2 AGM
3 SPIRAL
4 GEL
Press the NEXT soft key to continue.
4.
Use the UP () or DOWN () ARROW key
to select the
RATING UNIT (TEST STANDARD), or press the corresponding numerical keys to move the dot to the option
button of your choice.
1 EN
2 SAE
3 DIN
4 IEC
5 JIS
If you select JIS, the analyzer will ask for the JIS part
number. Scroll to the part number or type in the JIS part
number with the alphanumeric keypad.
Press the NEXT soft key to continue.
Battery Standards
Rating
System
Description Range
EN
Europa-Norm
100 to 1700
SAE
Cold Cranking Amps (specied by
SAE): The amount of current a battery
can provide at 0 ºF
(–17.8 ºC).
100 to 1700
DIN Deutsche Industrie-Norm 100 to 1000
IEC International Electrotechnical
Commission
100 to 1000
JIS Japanese Industrial Standard:
embossed on the battery as a
combination of numbers and letters
72 numbers
from 26A17
to 245H52
AH Amp Hour: A measure of reserve
capacity. This is not a battery
standard
5 to 250 Ah
5. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the BATTERY RATING in CCA.
500 A(EN)
Press NEXT.
6. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the BATTERY RATING in Ah.
? AH
Press NEXT after entering or SKIP if value is unknown.
If you don’t change the default Ah value (indicated by an ?)
the charger will use the default Ah rating that comes closest
to the entered CCA value.
There can be a dierence between the entered CCA value
and the default Ah value since there is no direct one to one
relation between the two. The default Ah value will come
close but there can be dierences found in the eld. The
advise is to always enter the true Ah value of the battery.
Chapter 5: Diagnostic Charging
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
19
Chapter 5: Diagnostic Charging
Charging Modes
The Diagnostic Charging mode knows several individual
charge cycles such as; Hard To Charge, Bulk Charge, TopO Mode and Extended Charge. All these modes will be
performed automatically with one intention; determine the
State-of-Health of the battery and bringing it to a full Stateof-Charge.
Initial Analysis
The GRX rst analyzes the battery to nd out its original
state. Based on this the charger really starts charging. This
initial test is done with both Conductance and a Load cycle
and depending of the condition we also use a Deep Scan
procedure.
Step 1:
The GRX tests the battery with conductance.
Step 2: If needed!
The GRX tests the battery with a Deep Scan.
Step 3:
The GRX applies a load and monitor the battery’s response
Step 4:
The GRX performs a nal conductance test.
Once the GRX determines that the battery is healthy, needs
charging, and is safe to charge, it proceeds.
During the charging session, the GRX provides updates
of the charging voltage, charging current, remaining time
to charge and the amount of charge replenished into the
battery in amp-hours.
The GRX continues to test the battery throughout the
charge cycle and may determine at some point that the
battery needs to be replaced even though the remaining
time to charge is not up yet.
NOTE: The actual time needed to charge the battery may
be less than the estimated time depending on the battery’s
charge acceptance and condition during the charge.
Before and during the charge cycle the battery is tested with
both Conductance and a Load bounce.
Hard To Charge Mode (HTC Mode)
The GRX uses the rst portion of the total charge cycle
to closely monitor the acceptance of charge current and
energy going in to the battery.
During this mode the charger continuously analyzes the
battery to make a decision as quickly as possible.
Bulk Charge Mode / Fill Mode
Following this HTC Mode process the GRX will continue
charging in the Bulk Mode. During this charge cycle the
clock will indicate how much more charge time is needed.
Extended Charge Mode
In some cases the battery’s acceptance of charge current is
still high even when the charge time has elapsed. In this case
the charger will automatically start the Extended Charge
cycle and will continue charging until the charge current
drops below 7 Amps. This Extended mode makes sure that
the battery is suciently charged before going in the Top
O Mode.
Top-Off Mode
When the battery is suciently charged to be returned to
the vehicle it will indicate this with an audible signal as well
as text on the display. If the STOP key is not pressed the
charger will continue to charge to ll the battery even more.
This mode occurs automatically at the end of the charge
cycle to allow the charger to ll a good battery to capacity.
Top-O Mode ends when the battery’s acceptance of the
charge current goes below 2 amps, or when you press the
STOP button.
Aborting a charge session
If you need to abort the charging session, press the STOP
key until the charge session is aborted. After aborting, the
charge data is displayed. Press END to return to the MAIN
Menu.
Completing a charge session
The charge session is complete when the proper amount
of charge is put back into the battery or the remaining
estimated time to charge counts down to zero.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
20
Chapter 5: Diagnostic Charging
IMPORTANT: When you start a new test, the last bat-
tery test in memory will be overwritten. Remember
to record or print the results if you need to retain
them.
Diagnostic charging results
Use the UP () or DOWN () ARROW keys to scroll to each
screen. To print, press the PRINT soft key.
State-of-Health (SOH)
A factor that aects a battery’s ability to crank an engine is its
actual condition or State-of-Health (SOH). It is a measure of
the battery’s condition relative to a fresh battery.
A State-of-Health problem is most often the result of normal
wear-out mechanisms, which are dependant on vehicle
needs, climate, and operating conditions. This results in
irreversible physical and chemical changes until eventually
the battery can no longer hold a charge and supply the
power necessary to start the car and provide auxiliary power
to the electrical system.
As the battery approaches end of life, its deterioration
accelerates, until it nally fails to start the vehicle. Before
failing, the battery may start the vehicle under normal
conditions but may not be able to operate in more extreme
conditions. Extreme heat or cold could expose a weak
battery and cause it to fail.
Screen 1 of 3
Charge Code
Measured CCA
Voltage
Total
charging
time
Battery
decision
Screen 2 of 3
The
entered
data for
the battery
under
charge
Screen 3 of 3
Battery Decisions: Diagnostic Charge
Battery Decision Recommended Action
GOOD BATTERY Return the battery to service.
REPLACE
BATTERY
A REPLACE BATTERY result may also
mean a poor connection between the
battery cables and the battery. After
disconnecting the battery cables, retest
the battery using the out-of-vehicle test
before replacing it.
BAD CELL–
REPLACE
Replace the battery. This decision
indicates a bad cell within the battery.
Message Explanation
Battery Too Hot The GRX may display BATTERY
TEMPERATURE ABOVE LIMIT.
Disconnect the battery and let it cool.
Do not charge the battery any further.
Frozen Battery The GRX may display FROZEN
BATTERY. Warm the battery and retest.
Never charge a frozen battery. Gases
may form, cracking the case, and
leak battery acid.
Recharged Ah
The Good -
Replace dial
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
21
Chapter 6: Manual Charging
The GRX guides you through the steps of selecting
your battery test parameters and interpreting the results.
Before performing a manual charge cycle on a battery installed in a vehicle, make sure all vehicle accessory loads are
o, the key is not in the ignition, and the doors are closed.
With the manual mode you can select your own voltage and
current settings.
1. From the MAIN Menu, highlight the MANUAL CHARG-
ING icon and press the SELECT key.
2.
Use the UP () or DOWN () ARROW key
to select the
BATTERY TYPE, or press the corresponding numerical keys to move the dot to the option button of your
choice.
1 REGULAR
2 AGM
3 SPIRAL
4 GEL
Press the NEXT soft key to continue.
3.
Use the UP () or DOWN () ARROW key
to select the
RATING UNIT (TEST STANDARD), or press the corresponding numerical keys to move the dot to the option
button of your choice.
1 EN
2 SAE
3 DIN
4 IEC
5 JIS
If you select JIS, the analyzer will ask for the JIS part
number. Scroll to the part number or type in the JIS part
number with the alphanumeric keypad.
Press the NEXT soft key to continue.
4. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the BATTERY RATING in CCA.
500 A(EN)
Press ENTER.
5. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the CHARGING VOLTAGE. You
can enter a value between 12,70 Volt and 14,50 Volt
Press the NEXT soft key to continue.
6. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the CHARGING CURRENT. You
can enter a value between 1,0 Amp and 50,0 Amp
Press the NEXT soft key to continue.
7. Press the UP () or DOWN () ARROW key, or use the
corresponding numerical keys to select the CHARGING
TIME.
Press the NEXT soft key to continue.
8. When you selected TIMED you are requested to enter
the charge time in minutes. This can be a time between
5 and 120 minutes.
Chapter 6: Manual Charging
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
22
Chapter 7: Power Supply
The Power Supply function should be used when ever the
vehicle comes in to the workshop for regular maintenance
or ECU re-ashing.
Re-ashing an ECU can take up to several hours and during
that period a lot of current can be drawn from the battery. To
support the battery during this process you use the power
supply function.
Always make sure that when you work on the vehicle the
charger is switched in to the Power Supply function so that
you ensure that when the work is done the battery’s state of
charge is maintained at a healthy level.
1. From the MAIN Menu, highlight the POWER SUPPLY
icon and press the SELECT key.
2.
Use the UP () or DOWN () ARROW key
to select the
BATTERY TYPE, or press the corresponding numerical keys to move the dot to the option button of your
choice.
1 REGULAR
2 AGM
3 SPIRAL
4 GEL
Press the NEXT soft key to continue.
3.
Use the UP () or DOWN () ARROW key
to select the
RATING UNIT (TEST STANDARD), or press the corresponding numerical keys to move the dot to the option
button of your choice.
1 EN
2 SAE
3 DIN
4 IEC
5 JIS
If you select JIS, the analyzer will ask for the JIS part
number. Scroll to the part number or type in the JIS part
number with the alphanumeric keypad.
Press the NEXT soft key to continue.
4. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the BATTERY RATING in CCA.
500 A(EN)
Press ENTER.
The GRX will test the battery with conductance.
The next step is to apply an electrical load and test the
response.
When the battery has a low state of charge the charger
will ask you if you want to charge the battery rst prior to
starting the power supply function. It is advised to do this
because ECU programming with a battery in a low state
of charge can cause damage to the ECU when the battery
voltage drops below a certain limit.
If YES is selected the battery will be charged in the
Diagnostic Charge mode until it is ready. It will automatically
jump back to the Power Supply screen and maintains the
battery with the selected voltage threshold.
If NO is selected you will jump back to the MAIN menu.
In case of a defective battery the following message will
appear.
Settings in UTILITY menu for Power Supply
Go to the UTILITY menu and select CONFIG CHARGER, use
the
UP () or DOWN () ARROW
to select PS VOLTAGE.
Set the voltage to your requirement.
Chapter 7: Power Supply
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
23
Chapter 8: Printing / View Menu
The Print/View Menu enables you to view and print the results of the charge cycles before you perform another cycle
and overwrite the results in memory.
View test
VIEW TEST gives you the option of viewing and printing the
last results. To print the results, select the PRINT soft key.
To return to the MAIN Menu, press the END key.
Totals
This gives you the option of viewing the statistical data
collected for all the charge cycles in various ways or to reset
the counters.
Use the UP () or DOWN () ARROW key
to select one of
the options.
Totals by decision
The TOTALS BY DECISION shows the total number of
completed tests by battery decision since the last time the
totals were reset to 0.
Press EXIT to return to the TOTALS menu.
Clear counters
This allows you to reset the counters completely.
Press the YES soft key to clear the counters or the NO soft
key to cancel.
Version Info
The VERSION utility displays the current software version,
the software release date and the serial number of the
charger.
The above is an example of the screen
Problems with the Internal Printer
The internal printer will not print
• MakesuretheBattery Diagnostic Station is connected
to AC power and the POWER switch is pressed to the
ON position.
• Verifythatthepaperisproperlyinstalled.
Changing the Paper in the Internal Printer
The internal printer is shipped with a roll of thermal printing
paper installed in the paper compartment. The roll size is
2¼inches wide by 17/8 inch in diameter. Replacement rolls
are available at most oce supply stores.
The Battery Diagnostic Station uses only thermal
printing paper.
To replace the paper roll:
1. Unlock the printer door by gently lifting the latch on the
printer.
2. Lift the printer door and remove the spent roll.
3. Place a new roll of paper in the compartment. The paper feeds from the bottom of the roll.
4. Pull the paper forward so that it extends past the serrated edge of the paper slot.
5. Close the door and make sure the lever locks securely.
For a clean tear, pull the paper along the serrated edge.
Do not pull the paper straight out of the printer.
Chapter 8: Printing / View Menu
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
24
Chapter 9: Utility Menu
1. From the MAIN Menu, highlight the UTILITY icon and press the SELECT key.
2. Use the RIGHT () ARROW to select one of the following icons:
CONFIG CHARGER, DISPLAY, LANGUAGE, SHOP INFO, COUPON, FORMAT CARD, UPDATE
Cong Charger
DATE AND TIME
WRITE FAIL
TEMPERATURE UNITS
POWER SUPPLY VOLTAGE
Date and Time Menu
Use the ARROW keys to select one of the following items followed by ADJUST
Mode
1. Press the UP () or DOWN () ARROW
or press the corresponding numerical key (1 or 2) to move the dot to the option
button of your choice.
Select the 24-hour or AM/PM mode.
Press the SAVE soft key to save your setting or the BACK soft key to return to the menu.
If you use the alphanumeric keypad to enter the number preceding the option button, no additional keypress is needed to
save your selection.
Time
1. Use the UP () or DOWN () ARROW to change the hour, minutes, or AM/PM.
9 : 19 PM
2. Press the SAVE soft key to save your setting or the BACK soft key to return to the menu screen without saving the
changes.
Format
1. Use the UP () or DOWN () ARROW or press the corresponding numerical key (1 or 2) to move the dot to the option
button of your choice.
1 MM/DD/YYYY (month/day/year)
2 DD/MM/YYYY (day/month/year)
Chapter 9: Utility Menu
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
25
Chapter 9: Utility Menu
2. If you used the ARROW keys, press the SAVE soft key to save your setting or the BACK soft key to return to the menu.
If you use the alphanumeric keypad to enter the number preceding the option button, no additional keypress is needed to
save your selection.
Date
1. Use the ARROW keys to highlight the month, day, or year. To rapidly scroll, hold down an UP() or DOWN () ARROW
key.
12 / 11 / 2010
2. Press the SAVE soft key to save your setting or the BACK soft key to return to the menu screen without saving the
changes.
Write fail
After each measurement the test results are stored on the data card. In case the data cannot be stored on to the card you can
select the way this is notied to the operator.
1. Press the UP () or DOWN () ARROW
or press the corresponding numerical key (1,2 or 3) to move the dot to the option
button of your choice.
1 ASK (operator is asked if it is ok to continue even when results are not stored)
2 IGNORE (measurement is not stored and operator not notied)
3 FORCE (measurements can only continue when data card is entered)
2. Press the SAVE soft key to save your setting or the BACK soft key to return to the menu screen without saving the
changes.
If you use the alphanumeric keypad to enter the number preceding the option button, no additional keypress is needed to
save your selection.
Temp. units
1. Press the UP () or DOWN () ARROW or press the corresponding numerical key (1 or 2) to move the dot to the option
button of your choice.
1 DEGREES C
2 DEGREES F
2. Press the SAVE soft key to save your setting or the BACK soft key to return to the menu screen without saving the
changes.
If you use the alphanumeric keypad to enter the number preceding the option button, no additional keypress is needed to
save your selection.
Power Supply Voltage
1. Use the UP () or DOWN () ARROW to select the required POWER SUPPLY VOLTAGE.
13.60 V
2. Press the SAVE soft key to save your setting or the BACK soft key to return to the menu screen without saving the
changes.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
26
Chapter 9: Utility Menu
Display
The DISPLAY option allows you to adjust the contrast of the text on the display.
Contrast Level
The contrast level is 0 (lightest) to 10 (darkest). To change it:
1. Press the UP () or DOWN () ARROW key to change the contrast.
9 (1-10)
2. Press the SAVE soft key to save your setting or the BACK soft key to return to the menu without saving the changes.
Problems with the Display
The display does not turn on
• MakesurethatthepowercordispluggedinandtheON/OFF switch is set to ON.
The display is dim
• ThecontrastmayneedtobeadjustedintheUTILITY Menu. Highlight the DISPLAY icon and press ENTER. Use the UP
() or DOWN () ARROW key to change the contrast.
Update
As software updates become available you’ll be able to use this utility to update the charger software using les on an SD
card. The use of a special formatted disk is required for this action.
The software needs to be placed on the SD card and the card needs to be inserted in the dedicated slot.
When nished the charger will prompt you to remove the card and reboot.
Format Card
Select this utility to format a data card to receive data or erase all data on the card. The charger will warn you before
formatting the disk and ask you if you want to continue. When a new blank data card is used you always have to use this
function before the tester can write to the card.
Language
The LANGUAGE utility enables you to select a language for the display and printouts. You can select one of the 24 available
languages.
1. Press the UP () or DOWN () ARROW key, or use the numeric keys to select your language.
2. Press SAVE to save your setting.
If you use the alphanumeric keypad to enter the number preceding the option button, no additional keypress is needed to
save your selection.
Coupon
The COUPON utility enables and disables the printing of the custom coupon you’ve created in the EDIT COUPON utility.
1. Press the UP () or DOWN () ARROW key, or use the numeric keys to select your choice
2. If you selected the USER COUPON mode you can enter your text on 8 lines.
Use the UP (), DOWN (), LEFT () or RIGHT () ARROW to navigate through the available space. Select the character
by pressing the key associated with the character as many times as needed.
Press SAVE to store the text.
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
27
Chapter 9: Utility Menu
Shop info
The SHOP INFO utility enables you to create a header for your printed test results showing your business location
information.
Screen 1
1–WORKSHOP NAME
—
2–STREET NAME
3–CITY
4–ZIP CODE
Screen 2
5–COUNTRY
—
6–PHONE NUMBER
7–FAX NUMBER
8–WEBSITE.COM
Screen 3
9–
—
10–
11–
12–
To create or overwrite a header:
Use the UP (), DOWN (), LEFT () or RIGHT () ARROW to navigate through the available space. Select the character
by pressing the key associated with the character as many times as needed.
Press SAVE to store the text.
This template might help you lling out the information for the Coupon and Workshop info. 8 Lines are available for the
COUPON mode and 12 lines are available for the WORKSHOP INFO
Header Template
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Line 7
Line 8
Line 9
Line 10
Line 11
Line 12
GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
28
Chapter 10: Errors and warnings
During a charge cycle there might be messages coming
from the charger indicating something is wrong.
Below is a summary of possible messages and explanations.
Reverse Connection
If you connect the clamps in the wrong polarity (positive
to negative or negative to positive), the charger displays
REVERSE CONNECTION!
Reconnect the clamps correctly.
Check Clamp connection
To make sure both sides of the clamps are gripping the
terminals, rock the each clamp back and forth. A poor
connection will prevent charging.
If the message reappears after you have correctly
reconnected the clamps, clean the terminals and battery
posts and reconnect.
Frozen Battery
A warning from the charger that the battery under charge
shows signs of being frozen. Thaw the battery and try to
charge it later.
Charging a frozen battery is dangerous and should
never be done.
Chapter 10: Errors and warnings
Battery Temperature above limit
The charger has two temperature sensors that monitor
the temperature in the clamps during any process. If the
temperature goes above a certain limit there will be a
warning. The process needs to be stopped to prevent any
unsafe condition.
167-231A 11/10 ©2010 Midtronics, Inc. All rights reserved.
PATENTS
The GRX-3000 Battery Diagnostic Station is made in the U.S.A. by MIDTRONICS, INC. and is protected by one or more
of the following U.S. Patents: 5757192; 5821756; 6051976; 6081098; 6091245; 6104167; 6313608; 6329793; 6424158;
6456045; 6885195. United Kingdom Patent: 240 1952; 2406656. German Patent: 0990150.
And other U.S. and Foreign patents issued and pending. This product may utilize technology exclusively licensed to
Midtronics, Inc. by Johnson Controls, Inc. and/or Motorola, Inc.
LIMITED WARRANTY
The GRX-3000 Battery Diagnostic Station is warranted to be free of defects in materials and workmanship for a period of
two years from date of purchase. The charger cables are excluded from this warranty.
Midtronics will, at our option, repair or replace the equipment with a remanufactured equipment. This limited warranty
applies only to the specied equipment, and does not cover any other equipment, static damage, water damage, overvoltage damage, dropping the units, or damage resulting from extraneous causes including owner misuse. Midtronics is
not liable for any incidental or consequential damages for breach of this warranty. The warranty is void if owner attempts
to disassemble the Battery Diagnostic Station assembly.
Loading...
