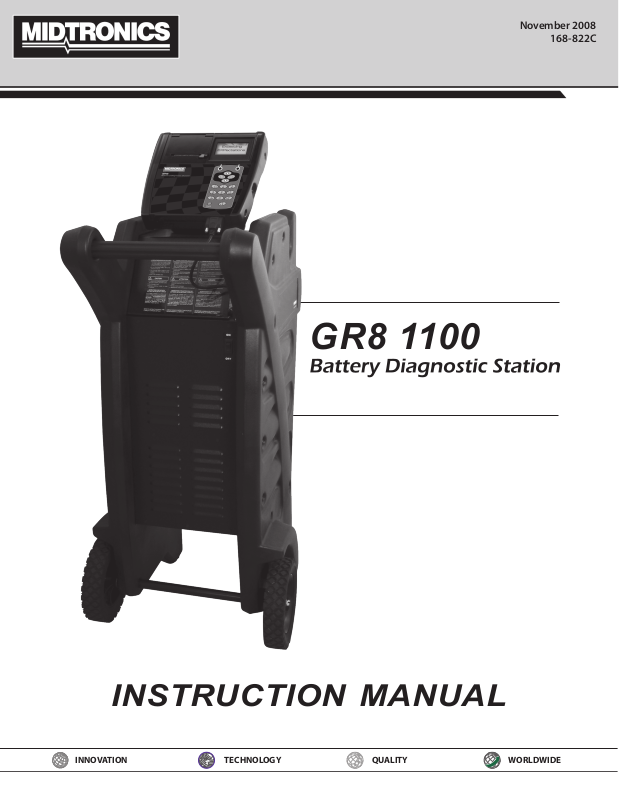

GR8 1100

INSTRUCTION MANUAL

This page intentionally left blank.

Contents

ContentsGR8 1100

Contents

Safety Guidlines 5

General Safety Precautions 5

Personal Precautions 5

Preparing To Charge The Battery 6

Grounding And AC Power Cord Connections 6

Charger Location 7

DC Connection Precautions 7

Installing The Battery 7

Chapter 1: Before You Begin 9

Safety Reminder 9

Safety Precautions 9

Registering Your GR8 10

Assembling the GR8 10

Attaching the Control Module 10

Attaching the Charger Cables 11

Chapter 2: Overview 12

Front of GR8 12

Back of GR8 13

Display and Keypad 14

Data Entry Methods 15

Menu icons 15

Option Buttons 15

Scrolling Lists 15

Alphanumeric Entry 16

Value Boxes 16

Menu Structure 16

Main Menu 16

Charging Menu 17

Info Menu 17

Setup Menu 18

Chapter 3: Getting Started 19

Logging In for the First Time 19

Bootup 19

Initial User Login 19

Chapter 4: Setup Menu 20

Clock 21

Time 21

Mode 21

Date 21

Users 21

Entering a New User ID 21

Deleting a User ID 22

Edit (Editing a User ID) 22

Shop 23

Display 23

Contrast Level 23

Coupon 24

Edit Coupon 24

Temp 24

Language 25

Format Disk 25

Update 25

Admin 25

Options 25

Change Admin PIN 25

Clear Test Totals 25

Reset Defaults 26

Buzzer 26

Chapter 5: Preparing to Charge 27

Inspecting the Battery 27

Connecting the Clamps 27

Connecting to AC Power 27

Setting User Preferences 27

Help Menu and Soft Keys 27

www.midtronics.com

• 3 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Contents GR8 1100

Chapter 6: Charging Menu 28

Diagnostic Charging Modes 28

Selecting the Charging Parameters 28

Initial Analysis 29

Deep Scan Test 29

Diagnostic Charging 29

Recovery Mode 30

Aborting a Charge Session 30

Completing a Charge Session 30

Top-Off Mode 30

Diagnostic Charge Results 31

State-of-Health (SOH) 31

Manual Charging 32

Jump Start 33

Chapter 7: Battery Test 34

Deep Scan Test 34

Battery Results 35

State-of-Health (SOH) 35

Chapter 8: Power Supply Mode 36

Chapter 9: Info Menu 37

Print/View 37

Totals 37

Transfer 37

Version 37

Chapter 10: Test Messages 38

Chapter 11: Replacement Printer Paper 39

Replacing the Paper Roll 39

Chapter 12: Test Cable Maintenance 40

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 4 •

www.midtronics.com

1 General Safety Precautions

!

Safety Guidlines

Safety InstructionsGR8 1100

1. IMPORTANT SAFETY INSTRUCTIONS. IT IS OF UTMOST

IMPORTANCE THAT BEFORE USING YOUR CHARGER,
YOU READ THIS MANUAL AND FOLLOW THE SAFETY
AND OPERATING INSTRUCTIONS EXACTLY. SAVE THESE

INSTRUCTIONS.

Risk of explosive gases

Batteries generate explosive gases during
normal operation, and when discharged or
charged.

1.1 To reduce risk of battery explosion, follow these safety
instructions and those published by the battery manu­facturer and the manufacturer of any equipment you in­tend to use in the vicinity of a battery. Review cautionary
marking on these products and on the engine, and on the
vehicle or equipment containing the battery.

Charging a non-rechargeable battery
may cause the battery to burst.

To re duce the risk of injury, only charge
rechargeable lead-acid type batteries including
maintenance-free, low-maintenance, or deep­cycle batteries.

If you are uncertain as to the type of battery you are
attempting to charge, or the correct procedure for
checking the battery’s state of charge, contact the seller
or battery manufacturer.

1.2 Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of re,
electric shock, or injury to persons.

1.3 To reduce risk of damage to the electric plug and cord,
pull by the plug rather than by the cord when disconnect­ing the charger.

1.4 Position the AC and DC leads to avoid tripping over them
and to prevent damage by hood, doors, or moving engine
parts; protect from heat, oil, and sharp edges.

1.5 Do not operate the charger if it has received a sharp blow,
been dropped or otherwise damaged in any way; take it
to a qualied service center.

1.6 Do not disassemble charger; take it to a qualied service
center when repair is required. Incorrect reassembly may
result in a risk of electric shock or re.

1.7 To reduce risk of electric shock, unplug the charger from
the AC outlet before attempting any maintenance or
cleaning. Turning o the controls will not reduce this risk.

Remove marine “boat” batteries and
charge them on shore.

Charging marine batteries on-board requires
specially designed equipment for marine use.

1.8

Connect and disconnect the battery leads only when the

AC supply cord is disconnected.

1.9

Do not overcharge the battery. (See sections 3 and 10 in

the safety instructions)

1.10

Charge the battery in a dry, well-ventilated area.

1.11

Never place articles on or around the charger, or locate

the charger in a way that will restrict the ow of cooling
air through the cabinet.

1.12

An extension cord should not be used unless absolutely
necessary. (See paragraph 4.3.)

1.13 Have a damaged cord or plug replaced immediately.

1.14

Do not expose the charger to rain or snow.

2 Personal Precautions

2.1 Always have someone within range of your voice, or close
enough to come to your aid, when working around lead
acid batteries.

2.2 Have plenty of fresh water and soap nearby in case bat­tery acid contacts skin, clothing or eyes.

2.3 Wear complete eye protection, clothing protection, and
wear rubber soled shoes. Place damp cloth over battery
to protect against acid spray. When ground is very wet or
covered with snow, wear rubber boots. Avoid touching
eyes while working near battery.

2.4 If battery acid contacts skin or clothing, wash immediately
with soap and water. If acid enters the eye, immediately
ush with cold running water for at least 10 minutes, and
seek medical attention.

2.5 NEVER smoke or allow a spark or ame in vicinity of a bat­tery or engine.

2.6 Be extra cautious to reduce risk of dropping a metal tool
onto the battery. It might spark or short circuit the battery
or other electrical part that may cause an explosion.

2.7 Before working with a lead-acid battery, remove personal
metal items such as rings, bracelets, necklaces, watches,
etc. A lead-acid battery can produce a short circuit current
high enough to weld such items causing a severe burn.

www.midtronics.com

• 5 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Safety Instructions GR8 1100

properly installed and grounded in accordance with all lo­cal codes and ordinances.

Non-rechargeable batteries may
burst when charging causing
personal injury and damage.

Only c harg e rech a rgea b l e le a d -ac i d
maintenance-free, low-maintenance or deep­cycle batteries.

The charger is not intended to supply power to a low­voltage electrical system other than applications using
rechargeable, lead-acid type batteries. Do not use the
battery charger for charging dry-cell batteries commonly
used with home appliances. These batteries may burst
and cause personal injury and property damage.

2.9 NEVER charge a frozen battery; thaw it out rst.

3 Preparing To Charge The Battery

3.1

If it is necessary to remove the battery from vehicle to
charge it, always remove the grounded terminal from the
battery rst. Make sure all accessories in the vehicle are o,
so as not to cause an arc.

3.2

Be sure the area around the battery is well ventilated while
the battery is being charged. Gas can be forcefully blown
away by using a piece of cardboard or other nonmetallic
material as a fan.

3.3

Clean the battery terminals. Be careful to keep corrosion from
coming into contact with your eyes.

3.4 Add distilled water in each cell until the battery acid
reaches the level specied by the manufacturer. This helps
purge excessive gas from the cells. Do not overll. For a
battery without caps, carefully follow the manufacturer’s
recharging instructions

3.5 Study all battery manufacturer’s specic precautions such
as removing or not removing cell caps while charging and
recommended rates of charge.

IF THE PLUG DOES NOT FIT THE OUTLET, HAVE A PROPER
OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.

4.2

This battery charger is for use on a nominal 120-volt cir­cuit and has a grounding plug that looks like the plug il­lustrated in Figure A. A temporary adapter, which looks like
the adapter illustrated in Figures B and C, may be used to
connect this plug to a two-pole receptacle as shown in
Figure B, if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet can be installed by a qualied electrician.

USE OF AN ADAPTER IS NOT ALLOWED IN CANADA. IF A
GROUNDING-TYPE RECEPTACLE IS NOT AVAILABLE, DO
NOT USE THIS APPLIANCE UNTIL THE PROPER OUTLET IS
INSTALLED BY A QUALIFIED ELECTRICIAN.

Hazardous voltage.
An improper connection can result in
electric shock

To avoid electrical shock or burn, never alter
the charger’s original AC cord and plug. Dis­connect plug from outlet when charger is idle.

Hazardous voltage.
An improper connection can result in
electric shock

Before using an adapter be certain the center
screw of the outlet plate is grounded. The rigid
ear or lug extending from the adapter must be
connected to a properly grounded outlet. Make
certain it is grounded. If necessary, replace the
original screw that secures the adapter ear or
lug to the cover plate and make the ground
connection to the grounded outlet.

3.6 Determine the voltage of the battery by referring to the
car owner’s manual and make sure that the output voltage
selector switch is set at the correct voltage. If the charger
has an adjustable charge rate, charge the battery initially
at lowest rate. If the charger has only one voltage, verify
that the battery voltage matches the voltage of charger.

For a charger not having an output voltage selector
switch, determine the voltage of the battery by referring
to car owner’s manual and make sure it matches the
output rating of the battery charger.

4. Grounding And AC Power Cord Connection
Instructions

4.1 The charger must be grounded to reduce risk of electric
shock. The charger is equipped with an electric cord hav­ing an equipment grounding conductor and a ground­ing plug. The plug must be plugged into an outlet that is

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

4.3 An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result
in a risk of re and electric shock. If an extension cord must
be used, make sure:

a. that the pins on plugs of the extension cord are the

same number, size, and shape as those of the plug on
the charger;

b. that the extension cord is properly wired and in good

electrical condition;

c. that the wire size is large enough for the AC ampere

rating of charger as specied in the following table.

• 6 •

www.midtronics.com

Recommended minimum AWG* size for extension cords for battery chargers

AC input rating amperes AWG* size of cord

Equal or greater than: But less than:

8 10 18 14 12 10

10 12 16 14 10 8

12 14 16 12 10 8
14 16 16 12 10 8
16 18 14 12 8 8

*American Wire Gauge

25

(7.6)

Length of cord, feet (m)

50

(15.2)

100

(30.5)

Safety InstructionsGR8 1100

150

(45.6)

5. Charger Location

5.1 Locate the charger as far away from the battery as the
charger cables permit.

5.2 Never place the charger directly above the battery being
charged; gases from the battery will corrode and damage
the charger.

5.3 Never allow battery acid to drip on the charger when tak­ing gravity readings or lling a battery.

5.4 Operate the charger only in a well-ventilated area that is
free of dangerous vapors.

5.5 Store the charger in safe, dry location and maintain it in
perfect condition.

5.6 Do not set the battery on top of the charger or where its
acid might drip onto the charger.

6. DC Connection Precautions

6.1

All switches should be set in the OFF position and AC cord
should be DISCONNECTED from electrical outlet before you
connect and disconnect the charger clamps. Never allow the
clamps to touch each other.

6.2 When attaching the charger clamps, be certain to make
the best possible mechanical as well as electrical connec­tion. This will tend to prevent the clamps from slipping o
the connections, avoid dangerous sparking, and assure
safer and more ecient charging. The clamps should be
kept clean.

7. Installing The Battery

Risk of explosive gases

A spark near the battery may cause a battery
explosion. Follow these steps when the battery
is installed in the vehicle to reduce the risk of
explosion.

7.1 Before working on the vehicle, rmly apply the emergen­cy brake and place the gear shift to NEUTRAL—shift an
automatic transmission to PARK.

7.2 Locate the charger as far away from the battery as the
charger cords permit and position the AC and DC cords to
avoid stepping on or tripping over them and to prevent
damage by hood, doors, or moving engine parts.

7.3 Stay clear of fan blades, belts, pulleys, and any other parts
that can cause physical injury.

7.4 Turn OFF all vehicle loads, including door lights, and cor­rect any defects in the vehicle’s electrical system that may
have caused low battery.

7.5 Check the polarity of the battery posts. The POSITIVE

(POS., P, +) post usually has a larger diameter than the
NEGATIVE (NEG., N,–) post.

7.6 Determine which post of the battery is grounded (connect­ed) to the chassis. If the negative post is grounded (as in most
vehicles), see paragraph 7.7. If the positive post is grounded,
see paragraph 7.8.

www.midtronics.com

Hazardous voltage.
Can cause death or serious
personal injury.

Setting the switches to “OFF” does
not always disconnect the charger
electrical circuit from the AC power
cord or the DC charger clamps.

7.7 For a negative-grounded vehicle, rst connect the POSI-

TIVE (RED) clamp from the charger to the POSITIVE
(POS., P, +) ungrounded post of the battery. Then connect
the NEGATIVE (BLACK) clamp to the NEGATIVE (NEG.,
N,–) post of the battery. Do not connect the clamp to the

carburetor, fuel lines, or sheet-metal body parts. When
disconnecting the charger, turn all switches to OFF, dis-
connect the AC cord, remove the clamp from the NEGA-
TIVE battery terminal, and then remove the clamp from
the POSITIVE battery terminal.

• 7 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Safety Instructions GR8 1100

7.8 For positive-grounded vehicle, connect the NEGATIVE
(BLACK) clamp from the charger to the NEGATIVE (NEG.,
N, –) ungrounded post of battery. Then connect the POSI-
TIVE (RED) clamp to the POSITIVE (POS., P, +) post of the

battery. Do not connect clamp to carburetor, fuel lines, or
sheet-metal body parts.

When disconnecting the charger, turn the switches to

OFF, disconnect the AC cord, remove the clamp from the
POSITIVE battery terminal, and then remove the clamp
from the NEGATIVE battery terminal.

CAUTION: WHEN POSITIVE (+) POST OF VEHICLE
BATTERY IS GROUNDED, DOUBLE CHECK POLARITY.

8. If it is necessary to remove the battery from the vehicle or
equipment, always remove the grounded terminal from
the battery rst.

Risk of explosive gases

A spark near the battery may cause a battery
explosion. Follow these steps when the battery
is installed in the vehicle to reduce the risk of
explosion.

8.1

Check the polarity of battery posts. POSITIVE (POS., P, +)
post usually has larger diameter than NEGATIVE (NEG.,
N, –) post.

8.2 Attach at least a 60 cm (24-inch), 6-gauge insulated battery
cable to the negative (–) battery terminal.

8.3 Connect the POSITIVE (RED) charger clamp to the POSI-
TIVE (POS., P, +) post of battery.

8.4 Position yourself and the free end of cable as far away from
the battery as possible—do not face the battery when
making the nal connection—then connect the NEGA-
TIVE (BLACK) charger clamp to the free end of the cable.

8.5 When disconnecting the charger, always do so in the re­verse sequence of the connecting procedure; break the
rst connection while staying as far away from the battery
as practical.

8.6 MARINE “BOAT” BATTERIES MUST BE REMOVED AND

CHARGED ON SHORE. TO SAFELY CHARGE THEM ON
BOARD REQUIRES EQUIPMENT ESPECIALLY DESIGNED
FOR MARINE USE.

WARNING: Make sure all vehicle loads are OFF to prevent a

possible arc.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 8 •

www.midtronics.com

Chapter 1: Before You Begin

Chapter 1: Before You BeginGR8 1100

!

Safety Reminder

For safe, ecient, and accurate charging and testing, review
the safety and operating instructions in this manual before
using the analyzer. In addition, follow all manufacturers’
instructions and BCI (Battery Council International) safety
recommendations.

We also recommend that you register the GR8 to activate your
warranty. See “Registering Your GR8” on the next page.

!

Safety Precautions

Inspect the battery for damages and check the electrolyte level.
If the electrolyte level is too low, replenish it and fully charge
the battery. Always use the necessary safety precautions when
working with batteries to prevent severe injury or death.
Follow all manufacturers’ instructions and BCI (Battery Council
International) safety recommendations, which include the
following precautions:

DANGER—RISK OF EXPLOSIVE GASES: Batteries can pro­duce a highly explosive mix of hydrogen gas and oxygen,
even when the battery is not in operation. Always work in a
well-ventilated area. Never smoke or allow a spark or ame
in the vicinity of a battery.

Battery acid is highly corrosive. If acid enters your eyes, im-

mediately ush them thoroughly with cold running water
for at least 15 minutes and seek medical attention. If bat­tery acid gets on your skin or clothing, wash immediately
with a mixture of water and baking soda.

Always wear proper safety glasses or face shield when

working with or around batteries.

Keep hair, hands, and clothing as well as the analyzer cords

and cables away from moving engine parts.

Remove any jewelry or watches before you start servicing

the battery.

Use caution when working with metallic tools to prevent

sparks or short circuits.

Never lean over a battery when testing, charging, or jump

starting.

Never charge a frozen battery. Gases may form, cracking

the case, and spray out battery acid.

WARNING—REQUIRED BY CALIFORNIA PROP. 65: Bat­tery posts, terminals, and related accessories contain lead
and lead compounds, chemicals known to the state of Cali­fornia to cause cancer and birth defects or other reproduc­tive harm. Wash hands after handling.

www.midtronics.com

• 9 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 1: Before You Begin GR8 1100

Conventions Used in This Manual

To help you learn how to use your GR8, the manual uses these symbols and typographical conventions:

Convention

The safety symbol indicates instructions for avoiding hazardous conditions and personal injury.

Description

!

CAUTION

UP ARROW

CAPITAL LETTERS The text for screen options are in regular capital letters.

BACK

Registering Your GR8

Before using the GR8, we recommend that you register it
online to activate your warranty. Registration will also make
it faster and easier for you to obtain technical support and
service. The GR8 has two serial numbers: one for the
control module and another for the charger engine. For

their locations, see the illustration on page 14.

The word CAUTION indicates instructions for avoiding equipment damage.

The wrench symbol indicates procedural notes and helpful information.

The text for keypad buttons are in bold capital letters.

The text for soft keys are in Arial Black capital letters.

To register, log on at www.midtronics.com/warranty.html
and have your serial numbers ready. If your charger needs
repair, call Midtronics Customer Service 1.800.776.1995.
Servicing the charger yourself may void your warranty.
Refer to the appendix on what is covered by the warranty.

Assembling the GR8

The GR8 is shipped with the control module, mounting
bracket, and charger cables packed separately. For easy
assembly, follow these steps:

Attaching the Control Module

1. The hardware to attach the control module’s mounting
bracket to the GR8 is installed on the top of the charger.
There are three bolts with one at washer, one lock wash­er, and one hex nut per bolt. Remove the washers and hex
nuts, and set them aside.

One of three

preinstalled

bolts for the

control module

mounting

bracket.

2. Center the three holes in mounting bracket over the bolts,
and lower the bracket onto the charger. Reinstall the hard­ware in this order: the at washer rst, the lock washer
next, and the hex nut last. Tighten the nuts securely.

One of four preinstalled bolts

on the bracket for mounting the

control module.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 10 •

www.midtronics.com

Chapter 1: Before You BeginGR8 1100

3. Center the holes on the bottom of the control module
with the bolts, and lower the module onto the top of the
barcket. Firmly pull the module down at an angle until the
bolts are inserted securely into the slots extending from
the module’s holes.

4. Connect the serial cable between the charger and tighten
the screws on each connector.

2. Slide the cover (C) down the cables until it seats against
the sheetmetal.

C

3. Insert the screws through the holes in the cover and
sheetmetal. Tighten the screws securely with a small
screwdriver. (To remove the cables, use the attachment
instructions in reverse.)

Attaching the Charger Cables

The two connectors for the charger cables are located on
the back of the GR8. Three screws are included to secure the
cables. To attach the cables:

1. Plug in the large connector (A), then plug in the small con­nector (B).

A

B

www.midtronics.com

• 11 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 2: Overview GR8 1100

Chapter 2: Overview

Front of GR8

The controls to the GR8 are accessible on the front of the
charger: the control module (user interface) and the ON/OFF
switch.

Control module

Backlit graphical display and keypad
for data entry.

ON/OFF switch

Turns power on and o to the GR8.

SD card slot

For future upgrades via an SD card.
The slot contains a plastic ller card for
protection.

STATUS light

Lights in conjunction with beeping alarm
to indicate transitions and warnings

.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 12 •

www.midtronics.com

Back of GR8

In addition to containing the outlets for the charger cables and
power cord, the back of the GR8 is the location for the serial
numbers for the charger engine and the control module. Both
numbers are necessary for warranty registration.

Chapter 2: OverviewGR8 1100

Serial number label

(for control module)

Cable wrap

For storing cables when not in
use.

Storage shelf

Charger cable connectors

Serial number label

(for charger engine)

AC power cord

Connection to grounded nomi­nal 120 V outlet.

www.midtronics.com

• 13 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 2: Overview GR8 1100

Display and Keypad

The GR8 display and keypad work together to help you
quickly nd and use the right tools at the right time. The
display also keeps you on track with onscreen navigation

aids, directions and messages. The illustration shows how the
elements on the screen relate to the keypad.

ARROW keys

Press the ARROW keys to scroll to numerical values
and move to menus and icons

STOP Key

Press the STOP to stop (abort) a charging session.

Voltmeter

When you first connect the GR8 to a battery it
functions as a voltmeter. The voltage reading appears
above the left soft key until you move to other menus
or functions.

Soft Keys

Press the two soft keys linked to the bottom of the
screen to perform the functions displayed above
them. The functions change depending on the menu
or test process. So it may be helpful to think of the
words appearing above them as part of the keys.

Title Bar

The title bar shows you the name of the current menu,
test tool, utility, or function.

Selection Area

The selection area below the Title Bar contains
selectable items or dialog boxes that display
information or require a response.

Menu Screen Arrows

When displayed in menu screens, the menu screen
arrows show you which ARROW key on the keypad
to press to display other icons or screens. The Up and
Down Menu Screen Arrows, for example, indicate

when to press the UP ( ) and DOWN ( ) ARROW
keys to display the screens above and below the
current screen.

he Left and Right Menu Screen Arrows tell you when

T
to use the LEFT
select an icon.

When displayed under a list of options, the menu
screen arrows show you which keypad arrow to press
to highlight a character or item in a list.

( )

or RIGHT

( )

ARROW keys to

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 14 •

www.midtronics.com

Chapter 2: OverviewGR8 1100

Scroll Bar

Another navigational aid is the scroll bar on the right side of
the screen. The position of its scroll box shows you whether the
screen is the top (or only screen), middle, or last in a series.

Some screens also indicate the page order with a notation
such as P1/3 (page 1 of 3).

Scroll

Box

Top or

only

screen

Alphanumeric Keypad

Middle
screen

Last

screen

In some cases, you can use the alphanumeric keypad
to enter numerical test parameters instead of scrolling to
them with the ARROW keys.

Data Entry Methods

To perform a particular test or function, the GR8 requires
dierent types of information. This means that the methods
you use to enter information will change depending on the
type of information requested. The six types of entry methods
are described below.

Typically, the soft key below the right half of the screen
conrms your choice, although the command above it may
vary. (Examples: SELECT, NEXT, and SAVE.) In a similar
fashion, the soft key below the left half of the screen cancels
your choice or returns you to the previous screen, although the
word above it may also vary. (Examples: BACK and CLEAR.)

Menu icons

A menu icon is a graphical
representation of a function
you can select, such as the
Diode Icon in the DMM
Menu. To select an icon,
use the LEFT or RIGHT
ARROW key to highlight it.
Highlighting changes the icon to a white picture on a black
background. To conrm your selection, press the appropriate
soft key.

You can also use the alphanumeric keys to create and edit
customer coupons and your shop contact information on
printed test results, and manage User IDs.

To add a space, press the RIGHT ARROW key. To erase a
space and insert a character, press the LEFT ARROW key.

Refer to the table below for the characters associated with
each alphanumeric key.

Alphanumeric Keys and Associated Characters

Key Character

1 $ - ( ) 1

2 a b c 2

3 d e f 3

4 g h i 4

5 j k l 5

6 m n o 6

7 p q r s 7

8 t u v 8

9 w x y z 9

0 % , . # 0

Option Buttons

Some lists have option
buttons before each item.
To select an item, use the

UP (p ) or DOWN (q )
ARROW keys to move the

dot to the button next to
the item. To conrm your
selection, press the appropriate soft key.

You can also use the alphanumeric keypad to enter the
number preceding the option button of your choice. No
additional keypress is needed to proceed.

Scrolling Lists

Scrol ling lists contain
items that extend above
and below the screen. The
first number above the
right soft key indicates
the position in the list of
the highlighted item. The
second number above the right soft key indicates the number
of items in the list.

To select an item, the UP (p) or DOWN (q) ARROW key to
highlight the item, and press the appropriate soft key.

To move the highlight bar up five lines at a time, press the

LEFT

(t)

a time,

ARROW.

press the

To

move the highlight bar down ve lines at

RIGHT

(u)

ARROW key.

www.midtronics.com

• 15 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 2: Overview GR8 1100

Alphanumeric Entry

S o m e s e l e c t i o n s
require you to use the
alphanumeric keypad.

These “user-defined”
selections have a blinking
horizontal line (cursor) to
the right of the last character.

Use the UP (p) or DOWN (q) ARROW keys to highlight a
line for editing. Display the character, symbol, or number you
want by rapidly pressing its key as many times as needed. If
you pause, the cursor moves to the right. To backspace, press
the

LEFT

(t)

ARROW

a space. Use the UP/DOWN ARROW keys to highlight a line
for editing. When nished, press the appropriate soft key to
save your settings.

key. Use the RIGHT ARROW key to add

Value Boxes

Value boxes contain items
that extend a bove and
below the selection box that
contain them. To indicate
that there are more values,
the symbols appear to the
right of the box.

To select, use the UP (p) or DOWN (q) ARROW key to scroll
to the value, or use the keypad to enter the value directly,
and press the appropriate soft key. In the illustration the left
directional arrow indicates that you can press the
ARROW key

to clear all or part of the entry.

LEFT

(t)

Menu Structure

This section contains a graphical representation of the menu structure with brief descriptions of the utilities in each menu.

Main Menu

The Main Menu is the starting point for all tools and utilities, which are depicted as icons. Some icons lead directly to the
function they represent, while others are menu icons that lead to two or more options. Menu icons marked with an asterisk (*)
are mapped on the following pages.

MAIN MENU (Screen 1)

Tests and charges a battery
using the battery information you
select in a series of screens.

Tests a battery using the
battery information you select
in a series of screens.

MAIN MENU (Screen 2)

Power Supply Mode: Tests and
maintains battery voltage at 13.5
volts to allow for uninterrupted

reashing of vehicle’s computers or

to retain vehicle system settings.

Includes a utility to view and
print test results, a total test
counter, a data transfer utility,
and the software version and
date, and GR8 serial number for
the control module.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Fourteen s etup u ti li ties,
many of which customize
your user interface. Includes
administrative functions.

• 16 •

Provides a list of topics and
defin itions. A lso incl udes
Midtronics Customer Service
phone numbers.

www.midtronics.com

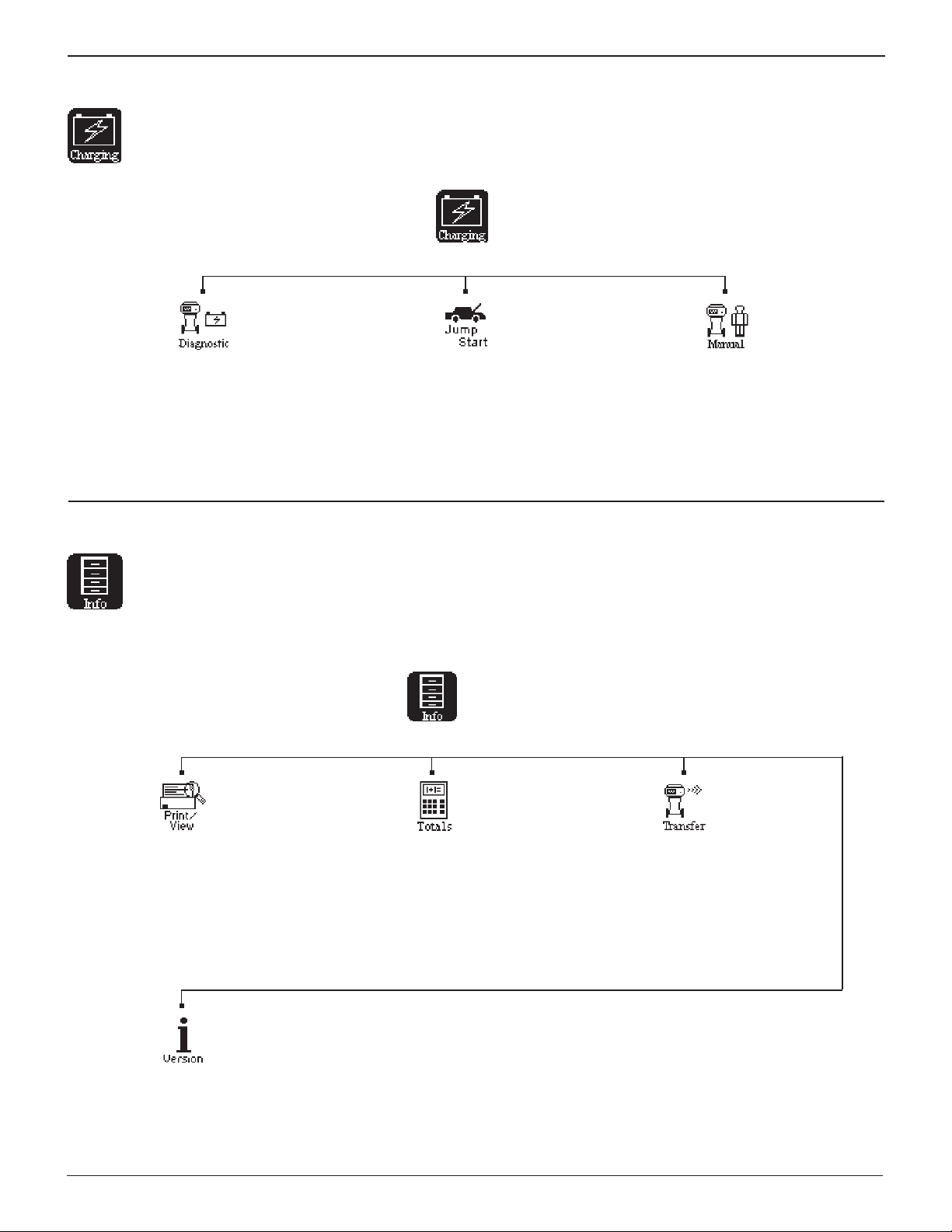

Charging Menu

The Charging Menu provides three charging op­tions: Diagnostic Charging, Jump Start, and Manual
Charging..

Chapter 2: OverviewGR8 1100

CHARGING MENU

Automatically tests, ch
and makes a decision on a
battery using the information
you select in a series of
screens. Generates a test
code for all decisions.

Info Menu

The Info Menu has utilities to help you manage

arges,

Makes h igh o utput curr ent
available to boost charge an
in-vehicle battery and assist in
starting the engine.

your test data, view and print test results, track the
usage and history of your GR8.

INFO MENU (Screen 1)

Provides a timed charge that
ranges from 5 to 120 minutes
or a continuous charge that
ends when you press the
STOP key.

(Future accessory)

Displays the last battery test
results. Sends the results to
the printer.

Displays the software version
and release date, and the serial
number of the control module.

www.midtronics.com

Reports menu that includes the
following type of test totals: LIFETIME,
USER TOTALS, LAST 100 LOG, and
TOTALS BY DECISION.

INFO MENU (Screen 2)

• 17 •

A future optional accessory.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 2: Overview GR8 1100

Setup Menu

(Admin PIN required to access the Setup Menu)

The Setup Menu lets you customize options in the

GR8 to suit your needs. Before using the GR8 for
the rst time, check the default values to see what
options you may want to change, add, or delete.

SETUP (Screen 1)

Settings to adjust
date and time.

Settings to adjust the screen
contrast and backlight time.

Allows you to select degrees in C or
F for temperature measurements.

Add, edit, or delete
User IDs.

SETUP (Screen 2)

If you created a coupon in the
EDIT COUP ON utility, use
COUPON to enable or disable.

SETUP (Screen 3)

Sets the language of the
display and printouts.

SETUP (Screen 4)

Allows you to add a custom
header to printed test results.

Allows you to create and store
up to three separate coupons
to be printed on test results.

Formats the SD card to receive data.
Also erases all data on the card.

Updates the GR8 software

via les on an SD card.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Allows you to enable or disable PIN
settings and User IDs, clear test
totals, and restore defaults.

• 18 •

Turns buzzers alert
on or off.

www.midtronics.com

Chapter 3: Getting Started

Chapter 3: Getting StartedGR8 1100

The GR8 is initially set to require a default USER ID and PIN to
access the Main Menu. In addition, it requires a default ADMIN
PIN to access the Setup Menu. The instructions in this section
will help you quickly put your GR8 to work.

Logging In for the First Time

Bootup

When you turn on the GR8, it takes approximately
eight seconds to boot up while testing the integrity of
its software.

The rst selection screen to appear enables you to set the
language for the display and printed test results.

1. Use the UP or DOWN ARROW key to move the dot to the
option button of your choice(1, 2, or 3).

1 ENGLISH

2 ESPAÑOL

3 FRANÇAIS

Initial User Login

1.

USER ID: The default User ID 0 UNREG appears. Press the
NEXT soft key to select it.

0 UNREG

3. HELLO: The “Hello” screen appears. Press the NEXT soft
key to navigate to the Main Menu.

USER ID TOTAL

UNREG 0

SINCE : 10/24/2005

Press the NEXT soft key to continue.

www.midtronics.com

• 19 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 4: Setup Menu GR8 1100

Chapter 4: Setup Menu

The Setup Menu has several functions to custom-

ize the use of your GR8—from the language of the
user interface to the contrast of the display. The
most important, however, is the ADMIN (adminis­trative) function which controls user access. Access
to the Setup Menu initially requires an ADMIN PIN
(default: 12345).

Any factory of the default settings in the table below can be customized to your specic shop.

Setup Function Default Settings

CLOCK

TIME

MODE

DATE

FORMAT

Current Central Standard Time

AM

Current

DD/MM/YYYY (day/month/year)

USERS USER01 through USER99 are placeholder IDs used to create user names and PINs.

SHOP Generic header for printouts with 12 lines of text and a maximum of 17 characters per line

DISPLAY

LCD CONTRAST

COUPON Coupon printing disabled. Storage for three coupons; COUPON 1 is the default.

EDIT COUPON

TEMPERATURE DEGREES F (Fahrenheit)

LANGUAGE English (French and Spanish available)

ADMIN

Range: 0 (lightest) to 10 (darkest). The default is set at 9.

COUPON (number) LINE 1 through COUPON (number) LINE 2 with a maximum of 17 characters per line.

OPTIONS

1-USER ID

2-PIN

3-UNREG. USER

4-ADMIN

5-PRINT HEADER

BUZZER Enable/disable audible buzzer tone and LED on control module (ON)

User login screen enabled (ON)

User PIN screen disabled (OFF)

Unregistered user accessibility enabled (ON)

Administrative PIN disabled (ADMIN RIGHTS: OFF)

Print Header enabled (ON)

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 20 •

www.midtronics.com

Chapter 4: Setup MenuGR8 1100

Clock

The CLOCK ADJUST utility has four settings. Use the

UP (p) or DOWN (q) ARROW key to highlight the
setting you want to change. Although the date and
time have been set at the factory, you may want
to make adjustments based your time zone or Day­light Saving Time.

TIME : 9:07 AM

MODE : AM/PM

DATE : M9/07/2005
FORMAT : /MM/DD/YYYY

Time

1. Use the LEFT (t) or RIGHT (u) ARROW keys to highlight
the hour, minutes, or AM or PM. To rapidly scroll, hold
down an UP (p) or DOWN (q) ARROW key.

9 : 19 PM

2. Press the SAVE soft key to save your setting, or press the
BACK soft key to return to the CLOCK ADJUST screen.

Format

Use the UP (p ) or DOWN (q ) ARROW or press the
corresponding numerical key (1 or 2) to move the dot to the
option button of your choice.

1. Select the format of the date.

1 MM/DD/YYYY (month/day/year)

2 DD/MM/YYYY (day/month/year)

2. If you used the ARROW (pq) keys, press the SAVE soft
key to save your setting or the BACK soft key to return to
the CLOCK ADJUST screen without saving the changes.

If you use the alphanumeric keypad to enter the number
preceding the option button, no additional keypress is
needed to save your selection.

Users

The USERS utility allows you to create and edit a

USER ID with 1 to 7 alphanumeric characters and
link it to a test counter. It also allows you to delete a
USER ID and its associated test total.

Mode

Use the UP (p) or DOWN (q) ARROW key, or press the
corresponding numerical key (1 or 2) to move the dot to the
option button of your choice.

1. Select the AM/PM or 24-hour mode

1 AM/PM

2 24 HOUR

2. If you used the ARROW keys, press the SAVE soft key to
save your setting or the BACK soft key to return to the
CLOCK ADJUST screen without saving the changes.

If you use the alphanumeric keypad to enter the number
preceding the option button, no additional keypress is
needed to save your selection.

Date

1. Use the LEFT (t) or RIGHT (u) ARROW key to highlight
the month, day, or year. To rapidly scroll, hold down an UP
(p) or DOWN (q) ARROW key.

6 / 17 / 2005

Entering a New User ID

1. To create a USER ID, select:

1 ENTER NEW

2 DELETE

3 EDIT

Press the NEXT soft key to display the list of available
IDs.

2. Use the UP (p) or DOWN (q) ARROW keys to scroll to
the ID placeholder you want to use. Scrolling past the rst
line displays the previous page. Scrolling past the fourth
line displays the next page. To display more placeholders,
continue scrolling or use the LEFT (t) or RIGHT (u) AR-
ROW key to jump up or down through the list ve lines at

a time.

1 USER01

2 USER02

3 USER03

4 USER04

2. Press the SAVE soft key to save your setting or the
BACK soft key to return to the CLOCK ADJUST screen

without saving the changes.

www.midtronics.com

• 21 •

Press the NEXT soft key to continue.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 4: Setup Menu GR8 1100

3. To clear the default characters, press the LEFT (t) ARROW
key. To add a space, move the cursor forward by pressing
the RIGHT (u) ARROW key.

ENTER USER ID

USER01

4. Insert a character by pressing the alphanumeric key asso­ciated with the character as many times as needed. Press
the SAVE soft key.

ENTER USER ID

RYAN B

5. Enter a four-digit PIN and press NEXT.

ENTER PIN

****

6. The GR8 asks you to re-enter the PIN correctly before it
can be saved. Re-enter your PIN and press the SAVE soft
key.

RE-ENTER PIN

****

3. The GR8 displays:

USER ID, PIN AND

USER TEST TOTAL WILL

BE DELETED.

DO YOU WANT
TO CONTINUE?

Press the YES soft key to delete the USER ID, or
press the NO soft key to return to the ID list.

Edit (Editing a User ID)

This function can also be used to change a USER PIN.

1. To edit a USER ID, select:

1 ENTER NEW

2 DELETE

3 EDIT

Press the NEXT soft key to display the list of available
IDs.

2. Use the ARROW keys to select a USER ID as described in
step 2 in “Entering a New User ID” on page 24.

Deleting a User ID

1. To delete a USER ID, select:

1 ENTER NEW

2 DELETE

3 EDIT

Press the NEXT soft key to display the list of IDs.

2. Use the ARROW keys to select a USER ID as described in
step 2 in Entering a New User ID.

1 RYAN B

2 JIM F

3 USER03

4 USER04

Press the DELETE soft key to continue.

NOTE: You cannot delete placeholder USER IDs

(i.e., USER03).

1 RYAN B

2 JIM F

3 USER03

4 USER04

Press the NEXT soft key to continue.

3. To clear the characters, press the LEFT (t) ARROW key.
To add a space, move the cursor forward by pressing the
RIGHT (u) ARROW key. To change the PIN it is not neces­sary to edit the USER ID.

ENTER USER ID

RYAN G

Press the SAVE soft key.

4. Enter the current or a new four-digit PIN and press
NEXT.

ENTER PIN

****

5. The GR8 asks you to re-enter the PIN correctly before it
can be saved. Re-enter your PIN and press the SAVE soft
key.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 22 •

RE-ENTER PIN

****

www.midtronics.com

Shop

Chapter 4: Setup MenuGR8 1100

The SHOP INFO utility allows you to create a header

for your printed test results showing your business
location information. Its three information screens
contain 8 lines of text with a maximum of 17 char­acters per line.

Screen 1

1–YOUR SHOP NAME

2–1000 ANY STREET

3–YOUR TOWN, STATE
4–YOUR POSTAL CODE

—

5–YOUR COUNTRY

6–YOUR PHONE NUMBER
7–WWW.WEBSITE.COM
8–

Screen 2

—

To help you edit and center your header, use a pencil to write the information in the template below before entering it into the GR8.

Header Template

Line 1

Line 2

Line 3

Line 4

Line 5

Line 6

Line 7

Line 8

To create or overwrite a header:

1. Press the UP (p) or DOWN (q) ARROW to highlight the

(u) ARROW key. If you pause momentarily, the cursor will
automatically move to the right.

line you want to change. The cursor will be blinking to the
right of the last character in the line. (The cursor won’t be
visible if all character spaces are lled.)

2. To erase a character, press the LEFT (t) ARROW key.

4. Press the SAVE soft key to save your setting or the

NOTE: Be sure to erase any default characters on un-

used lines by pressing the LEFT (t) ARROW key.

BACK soft key to return to the SHOP INFO screen

3. Insert a character by pressing the alphanumeric key asso-

without saving the changes.

ciated with the character as many times as needed. You
can center text by inserting blank spaces with the RIGHT

Display

The LCD OPTIONS utility allows you to adjust the

contrast of the text on the display and the back­light time.

Contrast Level

The contrast level is 0 (lightest) to 10 (darkest). To change it:

1. Press the EDIT soft key to display the option’s numerical
scroll box.

9 (1-10)

www.midtronics.com

2. Press the UP (p) or DOWN (q) ARROW key or the cor-
responding numerical keys to select your preference. To
erase a character, press the LEFT (t) ARROW key.

3. Press the SAVE soft key to save your setting or the
BACK soft key to return to the CONTRAST LEVEL screen
without saving the changes.

• 23 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 4: Setup Menu GR8 1100

Coupon

The COUPON SELECT utility allows you to print one

of the three custom coupons or messages created
in the EDIT COUPON utility. You also have the op­tion of having no coupon print.

1. Use the UP (p) or DOWN (q) ARROW key, or press the
corresponding numerical key (1, 2, 3, or 4) to move the dot
to the option button of your choice.

1 COUPON 1

2 COUPON 2

3 COUPON 3

4 NO USER COUPON PRINTED

2. If you used the ARROW keys, press the SAVE soft
key to save your setting or the BACK soft key to return
to the COUPON SELECT screen without saving the
changes.

If you use the alphanumeric keypad to enter the number
preceding the option button, no additional keypress is
needed to save your selection.

Edit Coupon

The EDIT COUPON utility allows you to create and

store up to three promotional coupons or messag­es for your customers.

Its two information screens contain eight lines of text with
a maximum of 17 characters per line. (The COUPON utility
allows you to select which coupon to print at the bottom
of your test results.)

1. Use the UP (p) or DOWN (q) ARROW key, or press the
corresponding numerical key (1, 2, 3, or 4) to move the dot
to the option button of your choice.

1 COUPON 1

2 COUPON 2

3 COUPON 3

2. If you used the ARROW keys, press the SAVE soft key to
save your setting or the BACK soft key to return to the
COUPON SELECT screen without saving the changes.

If you use the alphanumeric keypad
to enter the number preceding the
option button, no additional keypress
is needed to save your selection.

To create and edit a coupon, see the
procedure under “Shop” in this chapter for
using the keypad to enter and backspace
over characters.

To help you edit and center your coupon, use a pencil to write the information in the template below before entering it
into the GR8.

Coupon Template

Line 1

Line 2

Line 3

Line 4

Line 5

Line 6

Line 7

Line 8

Temp

The TEMP. UNITS utility allows you to set the units

of measurement to either Fahrenheit or Celsius.

To set your preference:

1. Use the UP (p) or DOWN (q) ARROW key, or press the
corresponding numerical key (1 or 2) to move the dot to
the option button of your choice.

1 DEGREES F

2 DEGREES C

2. If you used the ARROW (▲▼) keys, press the SAVE

soft key to save your setting or the BACK soft key to
return to the Setup Menu without saving the changes.

If you use the alphanumeric keypad to enter the number
preceding the option button, no additional keypress is
needed to save your selection.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 24 •

www.midtronics.com

Chapter 4: Setup MenuGR8 1100

Language

The LANGUAGE utility allows you to select a lan-

guage for the display and printouts. To set your
preference:

1. Use the UP (p) or DOWN (q) ARROW key or press the
corresponding numerical key (1, 2, or 3) to move the dot
to the option button of your choice.

1 ENGLISH

2 ESPAÑOL

3 FRANÇAIS

2. If you used the ARROW keys, press the SAVE soft
key to save your setting or the BACK soft key to return
to the Setup Menu without saving the changes.

If you use the alphanumeric keypad to enter the number
preceding the option button, no additional keypress is
needed to save your selection.

Format Disk

Select this utility to format an SD card to receive

data or erase all data on the card. The GR8 will warn
you before formatting the disk and ask if you want
to continue.

Update

This utility allows you to update the GR8 software

using an SD card.

Options

In the OPTIONS section there are four functions that allow
you to control user access to the Main Menu and Setup Menu.
Each option is easily enabled or disabled by turning it ON or
OFF. To save your settings after each selection, press the SAVE
soft key. To return to the administrative functions list without
saving, press the BACK soft key.

1 USER ID

Select this setting to enable (ON) or disable (OFF) the
USER ID login screen.

NOTE: When you turn o the USER ID, the USER

PIN option is automatically turned o.

2 PIN

Select this setting to enable (ON) or disable (OFF) the
USER PIN login screen.

3 UNREG. USER

Select this setting to enable (ON) or disable (OFF)
unregistered login access to the GR8 when option 1 –
USER ID is ON. When the option 2 – PIN is ON, the PIN for
USER ID UNREG is 0000 (4 zeros).

4 ADMIN

Select this setting to enable (ON) or disable (OFF) the
ADMIN PIN login screen that allows access to the Setup
Menu.

5 PRINT HEADER

Select this setting to enable (ON) or disable (OFF) printing
your shop information on the printout.

Admin

This section explains how to administer password

access to the GR8. It also describes functions that
clear test totals and restore settings to factory de­faults.

Select the ADMIN icon to display a list of administrative
functions:

1 OPTIONS

2 CHANGE ADMIN PIN

3 CLEAR TEST TOTALS

4 RESET DEFAULTS

www.midtronics.com

• 25 •

Change Admin PIN

This function allows you to change your ve-digit Administrator
PIN. The GR8 will ask you to re-enter it correctly before it will
save. The default PIN is 12345. If you forgot your Administrator
PIN, call Midtronics at 1.800.776.1995 for assistance.

Clear Test Totals

This function allows you to clear the test totals by User ID and
battery test decision. The GR8 will verify that you want the
counter reset to 0 before it continues.

NOTE: This will not clear the LIFETIME total and

the LAST 100 LOG.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 4: Setup Menu GR8 1100

Reset Defaults

This function allows you to reset Administrative options to
their original settings. It will clear all registered users and

restrict access to the GR8.

Option Default Settings

1 – USER ID ON

2 – PIN OFF

3 – UNREG. USER ON

4 – ADMIN OFF

5 – PRINT HEADER ON

Buzzer

The BUZZER utility allows you to enable or dis-

able the beep that alerts you that your attention is
needed, i.e., end of charge session.

1. Use the UP or DOWN ARROW key or press the corre­sponding numerical key (1 or 2) to move the dot to the
option button of your choice.

1 OFF

2 ON

2. If you used the ARROW keys, press the SAVE soft key to
save your setting or the BACK soft key to return to the Ad­min/Utility Menu without saving the changes.

If you use the alphanumeric keypad to enter the number
preceding the option button, no additional keypress is
needed to save your selection.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 26 •

www.midtronics.com

Chapter 5: Preparing to Charge

Chapter 5: Preparing to ChargeGR8 1100

Inspecting the Battery

Before starting the test, visually inspect the battery for:

• Cracked,buckled,orleakingcase. Ifyou seeanyof these

defects, replace the battery.

• Corroded,loose,ordamagedcablesandconnections.Re­pair or replace as needed.

• Corrosion on the batteryterminals, dirt, or acid on the

case top. Clean the case and terminals using a wire brush
and a mixture of water and baking soda.

• Lowelectrolytelevel.Iftheelectrolytelevelistoolow,add

distilled water to the level indicated by the battery manu­facturer, and fully charge the battery. Do not overll.

• Corrodedorloosebatteryterminals,trayandhold-down

xture. Tighten or replace as needed.

Connecting the Clamps

Connect the charging clamps to the battery in
accordance with all precautions and safety instructions.

Do not connect either clamp to the vehicle’s chassis.

Setting User Preferences

Before starting your test you may want to customize the
use of your GR8 by setting preferences in the Setup Menu
and creating a User ID. The menu has settings for the
date and time, the contrast and backlight time, a utility
to customize printouts for the optional IR printer, among
others. The setup utilities are described in Chapter 4 on

page 23.

Help Menu and Soft Keys

In addition to the HELP soft keys, the GR8 provides a

Help Menu with a glossary of test-related denitions that

you may want to review prior to testing. The menu also
provides troubleshooting information and phone numbers
for Midtronics Customer Service, in case you encounter a
problem and/or need technical assistance.

Connecting to AC Power

Plug the charger into a dedicated, grounded nominal 15­amp or higher AC outlet. Press the power switch to the ON
position.

If the clamps are not making good contact with the battery
posts, the GR8 displays CHECK CLAMP CONNECTIONS.
Make sure that both jaws of each charging clamp come in
good contact with the battery posts.

If you accidentally reverse the clamp connections, the
charger will sound an alarm and display “Charger Clamps
Reversed.”

www.midtronics.com

• 27 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 6: Charging Menu—Diagnostic Charging GR8 1100

Chapter 6: Charging Menu

Diagnostic Charging Modes

Diagnostic Charging has four modes that the GR8

may use to determine the State-of-Health of the
battery while bringing it to a full State-of-Charge.

Initial

Analysis:

Diagnostic

Mode:

The GR8 first analyzes the battery and
makes a decision: REPLACE BATTERY (or
REPLACE-BAD CELL) or GOOD BATTERY. A
test code appears for all decisions.

Once the GR8 determines that the battery
is good, needs charging, and is safe to
charge, it proceeds to Diagnostic Charge
Mode. During the charging session, the GR8
provides updates of the charging voltage,
charging current, remaining time to charge,
charging mode, and the amount of charge
replenished into the battery in amp-hours.
The GR8 continues to test the battery
throughout Diagnostic Mode and may
determine at some point that the battery
needs to be replaced.

1. In the Main Menu the CHARGING icon is highlighted. Press
the SELECT key.

2. In the Charging Menu use the LEFT (t) or RIGHT (u) AR-

ROW key to highlight the DIAGNOSTIC icon. Press the SE-
LECT soft key.

3. Use the UP (p) or DOWN (q) ARROW key to select the
battery LOCATION, or press the corresponding numerical
key (1 or 2) to move the dot to the option button of your
choice.

1 OUT OF VEHICLE

2 IN VEHICLE

Top-O

Mode:

This mode occurs automatically at the end
of the charge cycle to allow the charger to
ll a good battery to capacity. Top-O Mode
ends when the battery’s acceptance of the
charge current goes below 2 amps, or when
you press the STOP button.

Recovery

Mode:

In some cases, the GR8 automatically
switches to Recovery Mode in an attempt to
recover a hard-to-charge battery.

Selecting the Charging Parameters

Make sure all vehicle accessory loads are o, the key is not in
the ignition, and the doors are closed.

IMPORTANT: When you start a new charge ses-

sion, the last battery test results in memory will
be overwritten. Remember to record or print the
results if you need to retain them.

The BACK soft key returns you to the Main Menu at
the start of the test and to the previous screen as you
progress.

NOTE:

If you use the ARROW keys to select

option buttons, press the NEXT soft key to
continue to the next step. If you use the alpha­numeric keypad to enter the number preced­ing the option button, no additional keypress is
needed.

4. Use the UP (p) or DOWN (q) ARROW key to select
whether the vehicle odometer reading is above or be­low 250 miles.

1 BELOW 250 MILES

2 ABOVE 250 MILES

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 28 •

www.midtronics.com

Chapter 6: Charging Menu—Diagnostic ChargingGR8 1100

5. Use the UP (p) or DOWN (q) ARROW key to select the
battery type.

1 REGULAR FLOODED

2 AGM

3 AGM SPIRAL

6. Use the UP (p) or DOWN (q) ARROW key to select a
testing/charging option, or press the corresponding nu­merical key to move the dot to the option button of your
choice.

TEST USING:

1 CCA 4 SAE

2 JIS 5 IEC

3 DIN 6 EN

IMPORTANT: It is important to input the correct

charge parameters. If you use the wrong param­eters, an inaccurate result will occur.

7. If CCA, use the keypad to enter the value, or scroll

to the value with the UP/DOWN ARROW keys. Press

SELECT.

500 CCA

Initial Analysis

When you select the last charge parameter the GR8 begins the
initial battery analysis. The progress of the analysis is shown by
the left to right movement of a progress bar.

If additional testing is required, progress is shown by the
clockwise ll of a pie chart.

Deep Scan Test

In some cases the GR8 may need to further analyze a deeply
discharged battery to determine whether the battery should be
replaced, or if it can possibly be recovered. It will then conduct a
Deep Scan Test of the battery for a few seconds while displaying

a battery undergoing a scan. If any messages appear during the
test, refer to Chapter 10: Test Messages on page 45.

OR

If JIS, select the JIS number.

26A17

26A19

26B17

If the battery does not need charging, the GR8 displays the

results and its analysis, which includes the State-of-Health
(SOH). For screen illustrations and an explanation of the
results, see the next section.

28A19

Diagnostic Charging

If the GR8 determines that the battery has an i
the charge session the GR8 controls the charging voltage, current and duration based on its continual analysis of testing and

charging data, and the selected battery parameters. The illustration shows an example of the information displayed during

charging.

Activity in title bar: CHARGING
(blinking) or TESTING Charging voltage

Countdown of the estimated
time needed to charge the
battery in hours, minutes, and
seconds**

Fills left to right as charging
progresses

nsucient State-of-Charge,

it automatically begins Diagnostic Charge Mode.

Charging current

Amount of charge replaced
in amp hours

Charging mode

During

www.midtronics.com

• 29 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 6: Charging Menu—Diagnostic Charging GR8 1100

NOTE: The actual time needed to charge the battery

may be less than the estimated time depending on
the battery’s charge acceptance.

When the battery requires testing, the display alternates
between the CHARGING and TESTING screens. The TESTING
screens represent a two-step process:

Step 1: The GR8 applies an electrical load and tests the bat-

tery’s response.

Step 2: The GR8 measures the battery’s CCA.

Aborting a Charge Session

If you need to abort the charging session, press the STOP key.
You will not be able to obtain a test code for an uncompleted
charge. After aborting, select NEXT to return to the Main
Menu.

Total charging time

Amp hours replaced

Charging mode

Completing a Charge Session

The charge session is complete when the proper amount of
charge is put back into the battery or the remaining estimated
time to charge counts down to zero.

If the GR8 nds that the battery is bad before the end of the
estimated time to charge, it displays the decision REPLACE
BATTERY or REPLACE-BAD CELL and the results.

When the decision is GOOD BATTERY, the GR8 gives you
the option of topping o the battery’s charge level before it
displays the results.

Recovery Mode

In some cases the GR8 may give you the option of selecting
Recovery Mode before displaying the nal results. Recovery

Mode optimizes the charge for a hard-to-charge battery.
To continue the charge session, press the YES soft key in
response to:

The maximum charge time in Recovery Mode is three hours,
although most batteries will nish charging sooner. During
Recovery Mode the charger continuously analyzes the battery
to make a decision as quickly as possible.

If you select NO, the charge session aborts (stops) and you will
not be able to obtain a test code.

If you make no selection within two minutes, the GR8
automatically proceeds to Recovery Mode.

Top-Off Mode

Top-off charging fills a good battery to capacity after a
completed charge session. The GR8 gives you the option of
selecting YES to proceed to Top-O at any time or NO to
display the results.

If you make no selection within two minutes, the charger
automatically begins Top-O Mode.

You have the option of stopping Top-O Mode at any time by
pressing the STOP key or allowing the GR8 to complete the
charging. When Top-O Mode is complete, the alarm sounds

every 30 seconds until you press STOP.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Press the NEXT soft key to display the nal results.

• 30 •

www.midtronics.com

Chapter 6: Charging Menu—Diagnostic ChargingGR8 1100

Diagnostic Charge Results

The GR8 displays one of three battery decisions (GOOD
BATTERY, REPLACE BATTERY, REPLACE-BAD CELL) and an
analysis, which includes the battery State-of-Health (SOH).
Refer to the screen illustrations on this page.

Use the UP (p) or DOWN (q) ARROW keys to scroll to each
screen. To return to the Main Menu, press the EXIT soft key.
To print, press the PRINT soft key.

IMPORTANT: When you start a new test, the last

battery test in memory will be overwritten. Re­member to record or print the results if you need
to retain them.

State-of-Health (SOH)

Another factor aecting a battery’s ability to crank an engine
is its actual condition or State-of-Health (SOH). It is a measure
of the battery’s condition relative to a fresh battery. Based on
cranking rating, open-circuit voltage, conductance (ability to
deliver current) and battery temperature, the GR8 will not only
qualify a battery as “good” or “bad” (should be replaced), but
can also identify a “marginal” battery.

Although a State-of-Health problem can be the result of
defects in construction, it is most often the result of normal
wear-out mechanisms, which are dependant on vehicle needs,
climate, and operating conditions. This results in irreversible
physical and chemical changes until eventually the battery
can no longer hold a charge and supply the power necessary
to start the car and provide auxiliary power to the electrical
system.

As the battery approaches end of life, its deterioration
accelerates, until it nally fails to start the vehicle. Before
failing, the battery may start the vehicle under normal
conditions but may not be able to operate in more extreme
conditions. Extreme heat or cold could expose a weak battery
and cause it to fail.

BAD CELL-REPLACE Results: Diagnostic Charge Mode

Screen 1 of 3

B a t t e r y
decision

Total charging

time

R e p l a c e d
amp hours

Se le ct ed
rating

Mea sur ed
capacity

Measured
voltage

Screen 2 of 3

The line on the graph marks
the Pass/Fail threshold for the
battery.

A m eas u r eme n t t o t h e
left of t he line i nd icates
a REPLACE decision.

A measurement to the right
indicates a GOOD battery.

A measurement near the

line on the right suggests a

marginal battery.

Screen 3 of 3

T he resul t s i n c lude a
Midtronics information code
for ALL decisions.

www.midtronics.com

• 31 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 6: Charging Menu—Manual Charging GR8 1100

Battery Decisions: Diagnostic Charge

Battery Decision Recommended Action

GOOD BATTERY Return the battery to service.

REPLACE BATTERY A REPLACE BATTERY result may also mean a poor connection between the battery

cables and the battery. After disconnecting the battery cables, retest the battery using
the out-of-vehicle test before replacing it.

BAD CELL–REPLACE Replace the battery. This decision indicates a bad cell within the battery.

WARNING: Charging a battery with a bad cell is dangerous!

Manual Charging

The GR8 charges the battery based on the current limit or
voltage limit, and charge duration that you select. Because
the charger makes no battery test decisions in this mode, it
does not produce a test code.

CAUTION: You must monitor the battery’s State-of-Charge

(SOC) and temperature to avoid overcharging. Any

charging after the battery is fully charged can result in
excessive battery temperature, which will “gas” the bat­tery and boil o electrolyte, shortening battery life.

1. In the Main Menu, the BATTERY CHARGE icon is
highlighted. Press the SELECT key.

2. In the Charging Menu use the LEFT (◄ )or RIGHT (►)
ARROW key to highlight the MANUAL icon. Press the
SELECT soft key.

Press the NEXT soft key.

The BACK soft key returns
you to the Main Menu at the start of the test and to the
previous screen as you progress.

4. Use the UP (p) or DOWN (q) ARROW key to select the
LIMIT TYPE, or press the corresponding numerical key (1
or 2) to move the dot to the option button of your choice.

1 LIMIT CURRENT

2 LIMIT VOLTAGE

Press the NEXT soft key. The BACK soft key returns you to the
Main Menu at the start of the test and to the previous screen
as you progress.

NOTE:

If you use the ARROW keys to select

option buttons, press the NEXT soft key to
continue to the next step. If you use the alpha­numeric keypad to enter the number preced­ing the option button, no additional keypress is
needed.

5.

You can set limits using VOLTAGE or CURRENT.

If your limit type is CURRENT, select the maximum
amperage (1 to 60 amps). When in doubt, start with a

low charging current. Press the NEXT soft key.

3. Use the UP (p) or DOWN (q) ARROW key to select the
BATTERY TYPE, or press the corresponding numerical key
to move the dot to the option button of your choice.

1 REGULAR FLOODED

2 AGM

3 AGM SPIRAL

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 32 •

50

AMPS

If your limit-type is VOLTAGE, select the maximum
voltage. The range for Lead-Acid is 12.7 to 15.3 V;
AGM is 12.7 to 14.4 V. Press the NEXT soft key.

12.40

VOLTAGE

www.midtronics.com

GR8 1100

Chapter 6: Charging Menu—Jump Start

6. Select a charge duration from 5 to 120 minutes, or se­lect a duration greater than 120 minutes for Continuous
charging. To select a timed charge when “CONTINUOUS” is
displayed, use the key pad to enter a duration 5 and 120
minutes.

Continuous charging stops when you press the STOP key.

Timed Charge Continuous Charge
Selection Screen Selection Screen

NOTE: The GR8 tests the battery to determine if

it is safe to charge. If it detects that the battery is
defective, it displays a warning that the battery
is unsafe to charge. Press the EXIT soft key to
return to the Main Menu.

7. If the battery is safe to charge, the GR8 will begin charging
at the selected levels. The illustration shows an example

of the information displayed during timed charging

Activity in title bar:
CHARGING (blinking)
or TESTING

Charg e ti me
countdown in
hours, minutes,
and seconds.

Charging mode

Ch arging
voltage

Charging
current

Amount
of charge
replaced in
amp hours

1. In the Main Menu, the BATTERY CHARGE icon is
highlighted. Press the SELECT key.

2. In the Charging Menu use the LEFT (t)or RIGHT (u)
ARROW key to highlight the JUMP START icon. Press
the SELECT soft key.

NOTE: The GR8 tests the battery to determine if

it is safe to charge. If it detects that the battery is
defective, it displays a warning that the battery
is unsafe to charge. Press the EXIT soft key to
return to the Main Menu.

3. Use the UP (▲) or DOWN (▼) ARROW key to select

the BATTERY TYPE, or press the corresponding nu­merical key (1, 2, or 3) to move the dot to the option
button of your choice.

1 REGULAR FLOODED

2 AGM

NOTE: If Continuous charge is selected, charging

time is not displayed.

8. When Manual Mode ends, the GR8 displays the total
charging time for Continuous and Timed Charging, the
amp hours replaced, and the charging mode.

The alarm sounds every 30 seconds until you disconnect

the clamps, or press the NEXT soft key.

Jump Start

This charging mode makes high output current available
to boost charge an in-vehicle battery as well as assist in
starting the engine. If you need to abort at any time, press
the STOP key

3 AGM SPIRAL

Press the NEXT soft key.

The BACK soft key returns
you to the Main Menu at the start of the test and to the
previous screen as you progress.

NOTE:

If you use the ARROW keys to select

option buttons, press the NEXT soft key to
continue to the next step. If you use the alpha­numeric keypad to enter the number preced­ing the option button, no additional keypress is
needed.

4. If the battery is safe to charge, the GR8 will prompt you to
press the NEXT soft key to begin the boost charge

5. The GR8 begins boost-charging. Do not crank the engine
at this time.

6. When the GR8 displays “CRANK ENGINE NOW,“ beeps and
ashes the status light, you can crank the engine for up to
ve seconds.

7. When the GR8 displays “JUMP START COMPLETE,” press
the STOP key. (The alarm sounds every second until you
press STOP.)

www.midtronics.com

• 33 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 7: Battery Test GR8 1100

Chapter 7: Battery Test

This test evaluates a battery using the parameters

you select (Model, Stock #, CCA, JIS, etc.) and with
option of performing a Diagnostic Charge on a
good battery.

1. In the Main Menu use the LEFT (t)or RIGHT (u) ARROW
key to highlight the BATTERY TEST icon. Press the SE-
LECT soft key.

2. Use the UP (p) or DOWN (q) ARROW key to select the
BATTERY LOCATION, or press the corresponding numeri­cal key (1, 2, or 3) to move the dot to the option button of
your choice.

1 OUT OF VEHICLE

2 IN VEHICLE

The BACK soft key returns you to the Main Menu at the start
of the test and to the previous screen as you progress.

NOTE:

If you use the ARROW keys to select

option buttons, press the NEXT soft key to
continue to the next step. If you use the al­phanumeric keypad, no additional keypress is
needed to save your selection.

3. Use the UP (p) or DOWN (q) ARROW key to select the
odometer setting or press the corresponding numer key
to move to the option of your choice.

1 BELOW 250 MILES

2 ABOVE 250 MILES

4. Select the BATTERY TYPE:

1 REGULAR FLOODED

2 AGM

3 AGM SPIRAL

5. Select a test option and press the NEXT soft key.

TEST BY:

1 CCA 4 SAE

2 JIS 5 IEC

3 DIN 6 EN

Test Option Description

CCA Cold Cranking Amps. The most common

rating for starting batteries rated at 0 ºF.

JIS Japanese Industrial Standard. Shown on a

battery as a combination of numbers and
letters, for example: 26A17.

DIN Deutsche Industrie Norm - The German

standard for batteries

SAE Society of Automotive Engineers - Identical

to CCA

IEC International Electrotechnical Commission

EN Europa - Normal Standards

IMPORTANT: It is important to input the cor-

rect test parameters. If you use the wrong pa­rameters, an inaccurate test result will occur.

TEST BY CCA or JIS

6. If CCA, use the keypad to enter the value, or scroll

to the value with the UP/DOWN ARROW keys. Press

SELECT.

Or select the JIS number

500 CCA

26A17

26A19

26B17

28A19

Deep Scan Test

In some cases the GR8 may need to further analyze a deeply
discharged battery to determine whether the battery should
be replaced, or if it can possibly be recovered. It will then
conduct a Deep Scan Test of the battery for a few seconds while

displaying a battery undergoing a scan. If any messages appear
during the test, refer to Chapter 10: Test Messages on page 45.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 34 •

The GR8 may recommend charging before it displays
the test results. Select YES to begin Diagnostic Charge
Mode or NO to return to the results. (See “Diagnostic
Charging” on page 33.)

www.midtronics.com

Chapter 7: Battery TestGR8 1100

Battery Results

The GR8 displays one of six battery decisions (GOOD BATTERY,
GOOD-RECHARGE, CHARGE, RETEST, REPLACE BATTERY,
REPLACE BAD-CELL) and an analysis, which includes the
battery State-of-Health (SOH). Refer to the screen illustrations
and table in the next column.

Use the UP (p) or DOWN (q) ARROW keys to scroll to each
screen. To return to the Main Menu, press the EXIT soft key. To
print, press the PRINT soft key.

IMPORTANT: When you start a new test, the last

battery test in memory will be overwritten. Re­member to record or print the results if you need
to retain them.

State-of-Health (SOH)

Another factor aecting a battery’s ability to crank an engine
is its actual condition or State-of-Health. It is a measure of
the battery’s condition relative to a fresh battery. Based on
cranking rating, open-circuit voltage, conductance (ability to
deliver current) and battery temperature, the GR8 will not only
qualify a battery as “good” or “bad” (should be replaced), but
can also identify a “marginal” battery.

Although a State-of-Health problem can be the result of
defects in construction, it is most often the result of normal
wear-out mechanisms, which are dependant on vehicle needs,
climate, and operating conditions. This results in irreversible
physical and chemical changes until eventually the battery
can no longer hold a charge and supply the power necessary
to start the car and provide auxiliary power to the electrical
system.

As the battery approaches end of life, its deterioration
accelerates, until it nally fails to start the vehicle. Before
failing, the battery may start the vehicle under normal
conditions but may not be able to operate in more extreme
conditions. Extreme heat or cold could expose a weak battery
and cause it to fail.

GOOD BATTERY Results: Battery Test

Screen 1 of 3 (P1/3)

Battery
decision

Measured
battery
temperature

Screen 2 of 3 (P2/3)

The line on the graph marks
the Pass/Fail threshold for
the battery. A measurement
to the left of the line indicates
a REPLACE decision.
A measurement to the
right indicates a GOOD
or GOOD-RECHARGE
decision.

Screen 3 of 3 (P3/3)

T he resul t s i n c lude a
Midtronics infomation code for
ALL decisions.

Rating that
you selected
for the test

Measured
capacity

Measured
voltage

A measurement near the
line on the right suggests
a marginal battery.

Decision Recommended Action

GOOD BATTERY Return the battery to service.

GOOD–RECHARGE Fully charge the battery and return it to service.

CHARGE & RETEST

REPLACE BATTERY

BAD CELL–REPLACE Replace the battery. This decision indicates a bad cell within the battery.

www.midtronics.com

Fully charge the battery and retest. Failure to fully charge the battery before retesting may cause false
readings. If CHARGE & RETEST appears again after you fully charge the battery, replace the battery.

A REPLACE BATTERY result may also mean a poor connection between the battery cables and the battery.
After disconnecting the battery cables, retest the battery using the out-of-vehicle test before replacing it.

WARNING: Charging a battery with a bad cell is dangerous!

• 35 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 8: Power Supply Mode

GR8 1100

Chapter 8: Power Supply Mode

Power Supply Mode tests and maintains battery

voltage in the vehicle at 13.5 volts to allow for un­interrupted reashing of vehicle computers, retain
vehicle system settings, or simply to maintain bat­tery voltage.

1. In the Main Menu use the LEFT (t)or RIGHT (u) ARROW
key to highlight the POWER SUPPLY icon. Press the SE-
LECT soft key.

2. Use the UP (p) or DOWN (q) ARROW key to select the
BATTERY TYPE, or press the corresponding numerical key
to move the dot to the option button of your choice.

1 REGULAR FLOODED

2 AGM

3 AGM SPIRAL

Press the NEXT soft key.

3. If the battery is safe to charge, the GR8 begins maintaining
the battery voltage at 13.5 volts.

NOTE: Amperage uctuates in response to the

vehicle’s demands.

If the voltage drops below the 12.8, the GR8 displays a
warning and raises the voltage to the setpoint.

4. When nished servicing the vehicle, press the STOP but­ton or the OFF switch, unplug the power cord and discon­nect the clamps.

NOTE: The GR8 tests the battery to determine if

it is safe to charge. If it detects that the battery
is defective, it beeps, ashes the status light, and
displays a warning that the battery is unsafe to
charge. Press the EXIT soft key to return to the
Main Menu.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 36 •

www.midtronics.com

Chapter 9: Info Menu

Chapter 9: Info MenuGR8 1100

The Info Menu has six utilities to help you print and

view your test data and track the usage and history
of your GR8.

If the PRINT soft key is available, align the GR8 IR

transmitter with the printer’s receiver, and select the

PRINT soft key. To return to the Main Menu, press the
EXIT soft key.

If you have trouble printing, select the HELP soft key,

which becomes visible when the printing progress bar
appears on the display. Also refer to Chapter 11: IR Printer
Guide on page 47.

Print/View

PRINT/VIEW allows you to view and print the re-

sults of the battery test before they are overwritten
when you start a new test. The printed results share
the same format as the screen results. In addition,
information related to the test option you used ap­pears on the printed results.

Totals

3 LAST 100 LOG

Last 100 tests performed by User ID (and by UNREG
user); includes the date and the battery decision (GOOD,
REPLACE, etc.).

4 TOTALS BY DECISION

Totals by battery decision since the last time they were
cleared by ADMIN.

Transfer

TOTALS counts the number of battery tests in four

categories: the LIFETIME, USER TOTALS, LAST 100
LOG and TOTALS BY DECISION.

1 LIFETIME

Total tests since the GR8 was rst used.

2 USER TOTALS

Total tests by User ID (and by UNREG user) since the rst
time a registered user logged in and the last time they
were cleared by ADMIN.

TRANSFER is future optional accessory that con-

sists of an IR software and hardware package that
will enable you to transfer test data to a PC.

Version

VERSION displays the GR8 software version, the

date the software was released, and the serial num­ber of the control module. The utility also allows
you to print the information.

www.midtronics.com

• 37 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 10: Test Messages

GR8 1100

Chapter 10: Test Messages

The table below will help you troubleshoot test messages. If troubleshooting does not solve the problem, call Midtronics
Customer Service at 1.800.776.1995.

MESSAGE EXPLANATION

System Noise
Detected

Unstable Battery
Detected

The GR8 has detected computer, ignition noise, or parasitic drain, and will attempt to retest. Make
sure all vehicle loads are off, doors are closed, and the ignition is in the off position. The GR8 will
automatically retest when it no longer detects system noise. If the message reappears:

• You may be testing too close to a noise source, such as a charger or other high-current

device. If so, move away and retest.

• If you are unable to nd the source of the noise, fully charge the battery and retest. If the

message appears after recharging, test the battery out of the vehicle.

• Disconnect the battery cables and retest.

A battery that is weak, or that has just been charged, may retain enough electrical activity to
be detected by the GR8 and will adversely affect the test results. A fully charged battery should
stabilize quickly, after which the GR8 will automatically retest. Weak batteries should be charged
and retested. If the battery is fully charged, check the clamp connections.

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

• 38 •

www.midtronics.com

Chapter 11: IR Printer GuideGR8 1100

Chapter 11: Replacement Printer Paper

Replacing the Paper Roll

The IR printer uses thermal paper in a roll with the dimensions 2.25 in x 85 ft (57 mm x 25.9 m). You can purchase replacement
rolls at most oce supply stores.

Below are three major oce supply stores that carry the recommended paper:

Store Part Number Phone

Ofce Depot 209-653-271 800-463-3768

Ofce Max 20121146 800-283-7674

Quill 856607 800-789-1331

Staples 531236 800-378-2753

www.midtronics.com

• 39 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Chapter 12: Test Cable Maintenance GR8 1100

Chapter 12: Test Cable Maintenance

Here are a few things you can do to protect your test cables from damage and premature wear:

• Thegrease,dirt,andsulfationthatbuilduponbatteryterminalsarehighlycorrosiveandcandamagetheclampsovertime.

Before connecting the clamps, ensure accurate test readings and protect the clamps by cleaning the battery case and ter­minals using a wire brush and a mixture of water and baking soda.

• Periodicallycleantheclampsusingamixtureofbakingsodaandwater,oramildhand-soap,andasmallbristlebrush.

• Cleanthebatteryterminals.Ifstudadaptersarerequired,fastenthemwiththepropertool.Donotusethebatteryclamps

to tighten adapters.

• Neverremovetheclampsfrom abatterytoabortanactive chargingsession. Always presstheredSTOP button before
removing the clamps.

• Donotleavetheclampslayinginbatteryacid.

• HangtheclampsonthecablewraponthebackoftheGR8whennotinuse.

www.midtronics.com

• 40 •

Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

PATENTS

The GR8 Battery Diagnostic Station is made in the U.S.A. by Midtronics, Inc. and is protected by one or more of the
following U.S. Patents: 4,816,768; 4,825,170; 4,881,038; 4,912,416; 5,572, 136; 5,585,728; 5,592,093; 5,757,192;
5,821,756; 5,831,435; 5,914,605; 6,051,976; 6,091,245; 6,163,156; 6,249,124; 6,304,087; 6,310,481; 6,316,914;
6,323,650; 6,351,102; 6,359,441; 6,363,303; 6,392,414; 6,441,585; 6,445,158; 6,456,045; 6,469,511; 6,534,993;
6,544,078; 6,556,019; 6,566,883; 6,586,941; 6,707,303. Canadian Patents: 1,295,680; 1,280,164. United Kingdom Patent:
0,672,248; 0,417,173. German Patent: 693 25 388.6; 689 23 281.0-08; 93 21 638.6. And other U.S. and Foreign patents
issued and pending. This product may utilize technology exclusively licensed to Midtronics, Inc. by Johnson Controls, Inc.
and/or Motorola, Inc.

LIMITED WARRANTY

The charger and its cables are warranted to be free of defects in materials and workmanship for a period of one year
from date of purchase. The printer is warranted to be free of defects in materials and workmanship for a period of one
year from date of purchase. The rechargeable batteries in the printer are warranted to be free of defects in materials
and workmanship for a period of 90 days from date of purchase. The alkaline batteries in the GR8 are not covered under
warranty. Midtronics will, at our option, repair or replace the equipment with a remanufactured equipment. This limited
warranty applies only to the specified equipment, and does not cover any other equipment, static damage, water damage,
overvoltage damage, dropping the units, or damage resulting from extraneous causes including owner misuse. Midtronics
is not liable for any incidental or consequential damages for breach of this warranty. The warranty is void if owner attempts
to disassemble the GR8 or printer, or to modify the cable assembly.

SERVICE

To obtain service, contact Midtronics for a Return Authorization number, and return the unit to Midtronics freight prepaid,
Attention: RA# ________. Midtronics will service the GR8 and reship the next scheduled business day following receipt,
using the same type carrier and service as received. If Midtronics determines that the failure was caused by misuse,
alteration, accident, or abnormal condition of operation or handling, purchaser will be billed for the repaired product and it
will be returned freight prepaid with freight charges added to the invoice. Any GR8 beyond the warranty period is subject
to the repair charges in effect at that time. Optional remanufacturing service is available to return the tester to like-new
condition. Out-of-warranty repairs will carry a 3-month warranty. Remanufactured units purchased from Midtronics are
covered by a 6-month warranty.

www.midtronics.com

Corporate Headquarters
Willowbrook, IL USA

USA Toll Free: 1.800.776.1995
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]

Canadian Inquiries
Toll Free: 1.866.592.8053
Fax: [phone]
E-Mail: [e-mail]

Midtronics b.v.

European Headquarters
Serving Europe, Africa, the Middle
East and The Netherlands

Phone: [phone]
Fax: [phone]

E-Mail: [e-mail]

European Sales Locations
IJsselstein, The Netherlands
Paris, France

Dusseldorf, Germany

168-822C 11/08 2008 Midtronics, Inc. All rights reserved.

Midtronics China Oce
China Operations

Shenzhen, China
Phone: [phone]
Fax: [phone]

E-Mail: [e-mail]
Asia/Pacic (excluding China)

Contact Corporate Headquarters at
+1.630.323.2800 or
E-Mail: [e-mail]
