Mi Dong Electronics Urive Green HD User Manual

Download

〉Customer Service: Product Inquiry: 1644-3880

A/S: 070-7425-0610

〉Product name: Car blackbox

〉Model name: MD-6900P

〉Sales/manufacture: Mi Dong Electronics & Telecommunication Co., Ltd.

User’s manual

This is an auxiliary product for safe driving.

The Manufacturer is not held responsible for liab ility arising from an accident. Use the produ ct in accordance with the i ntended use.

0. Before using the Urive Green HD 3

1. About the product 4

2. Cautions before using 5

3. Notice 6

4. Product features 7

5. Features 8

6. Part names and functions 10

7. Product information for screen saver icons 11

8. Upgrade 12

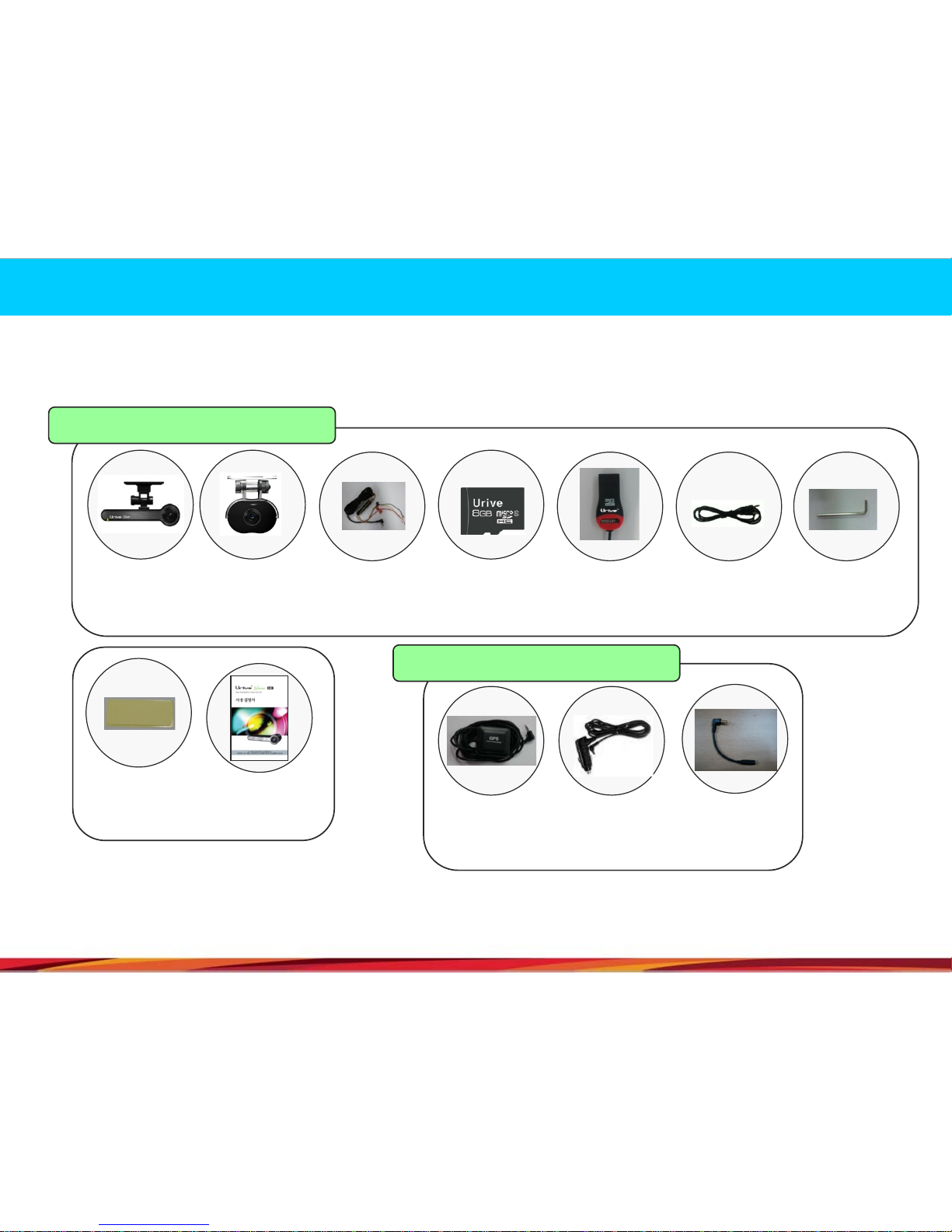

9. Components 15

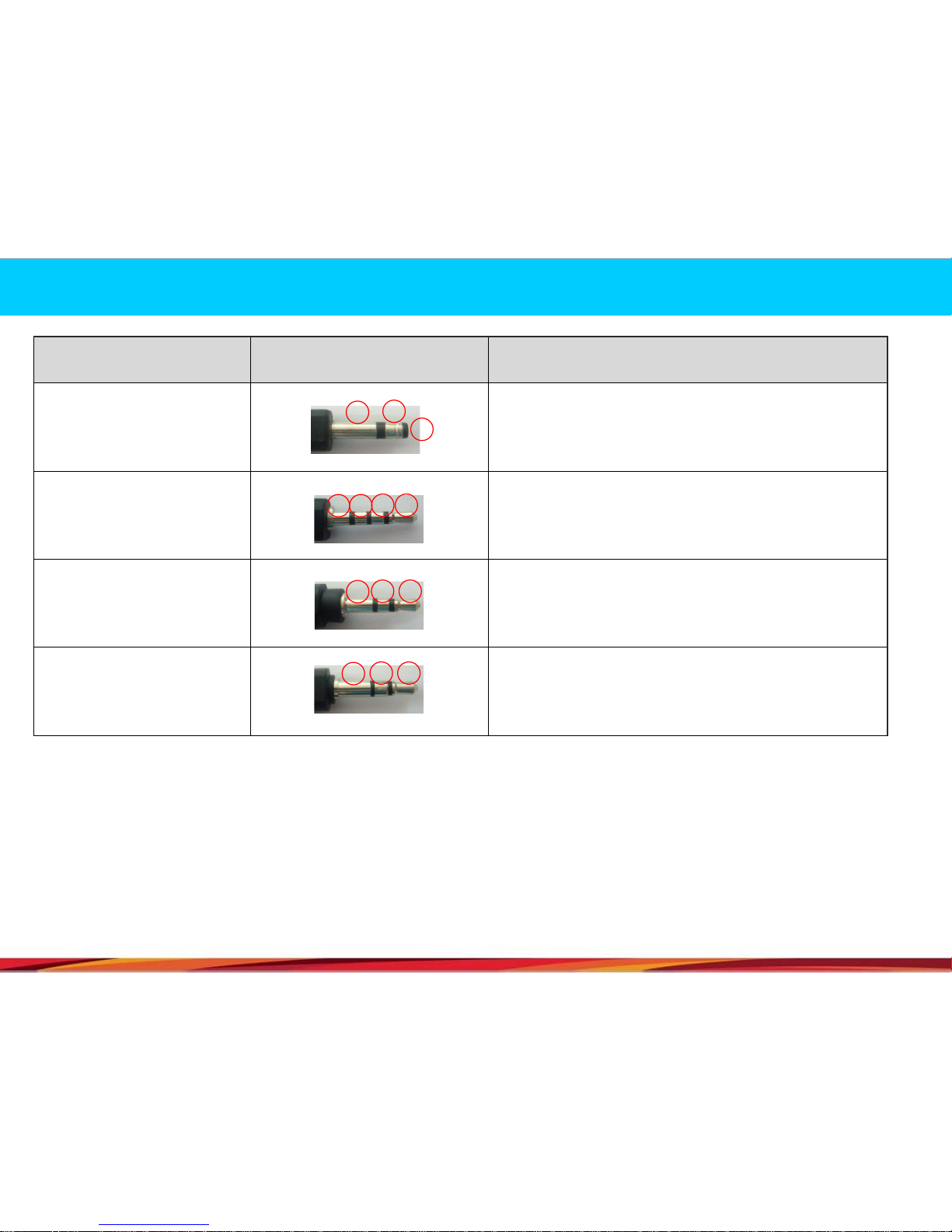

10. Pin arrangement of each terminal 16

11. Installation precautions 17

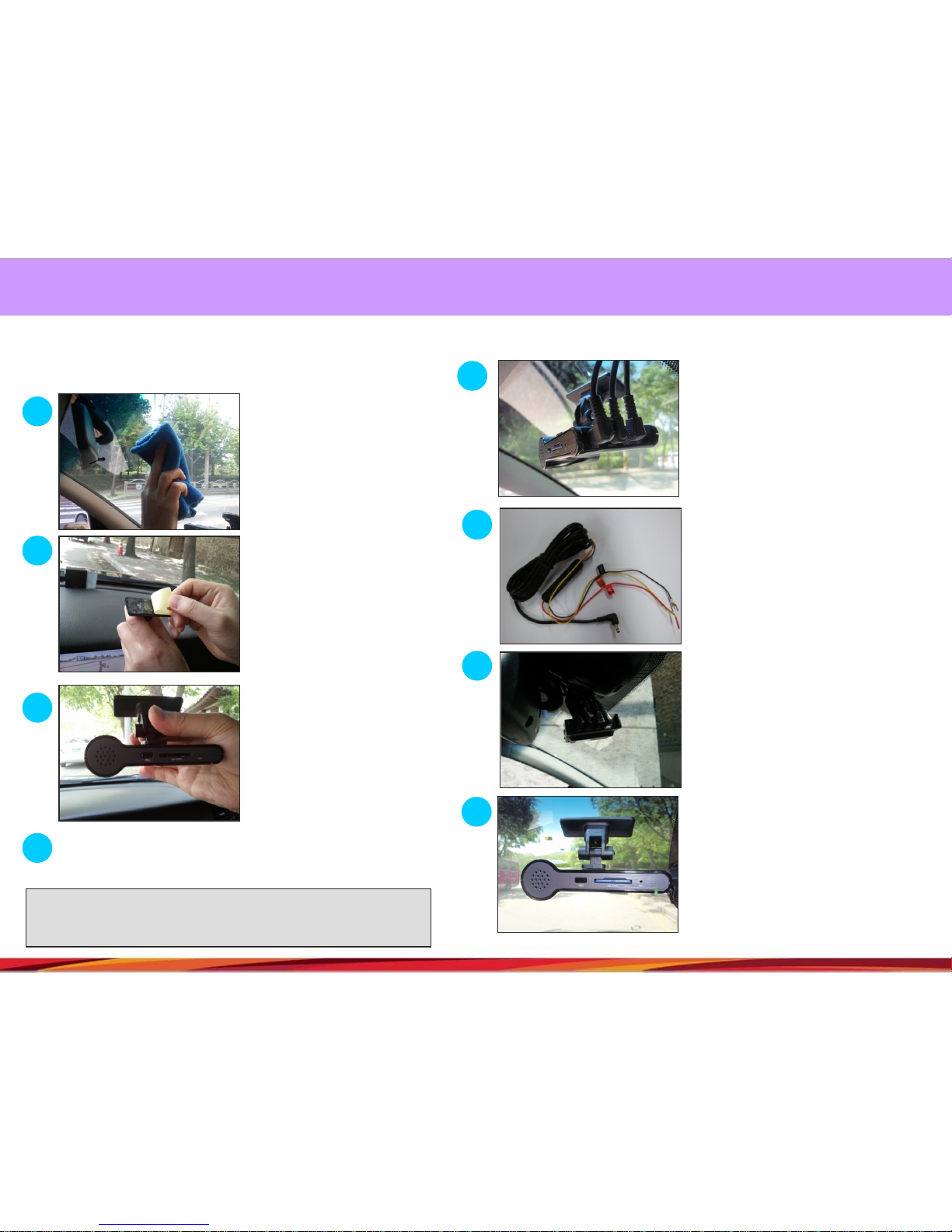

12. Installation of Urive Green HD 18

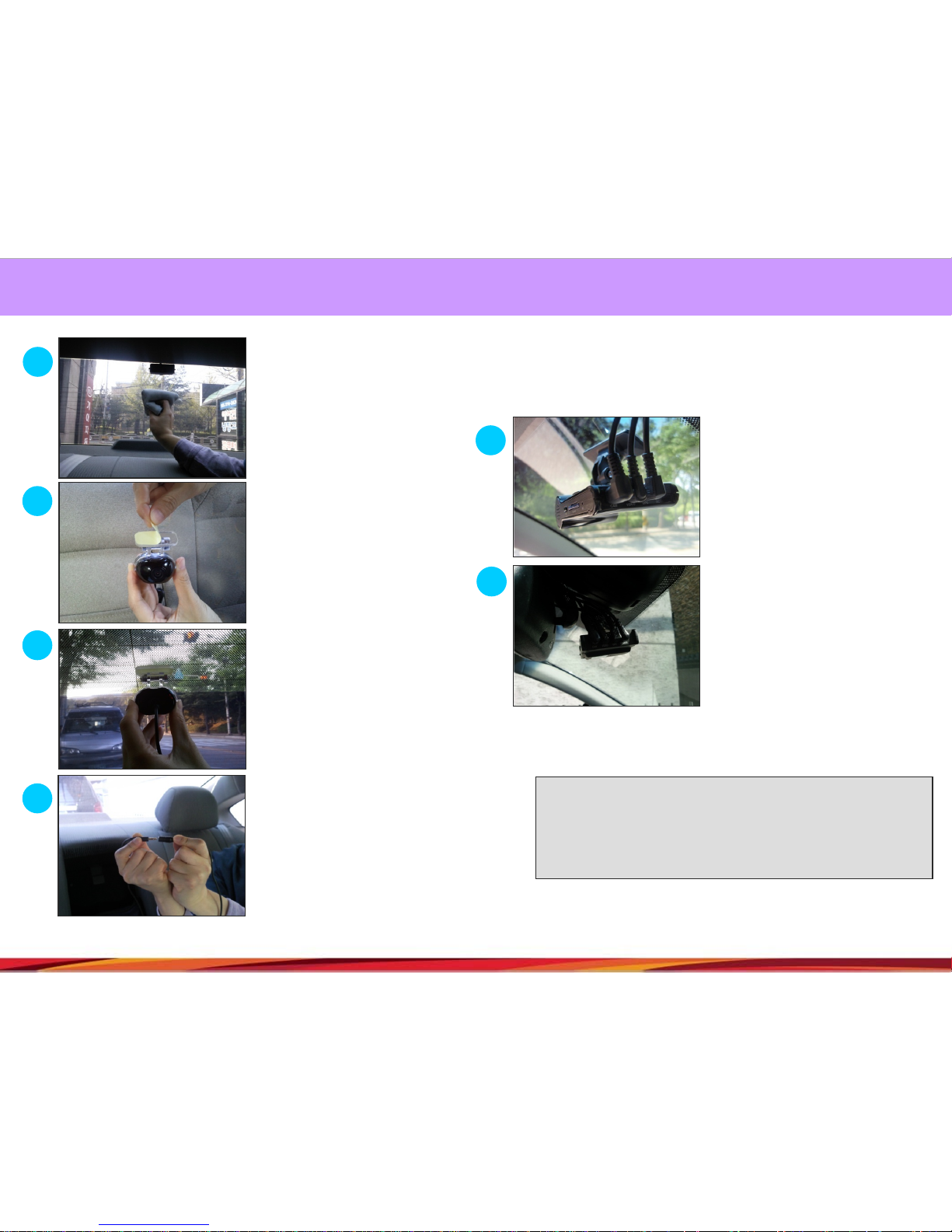

13. Installation of external camera 19

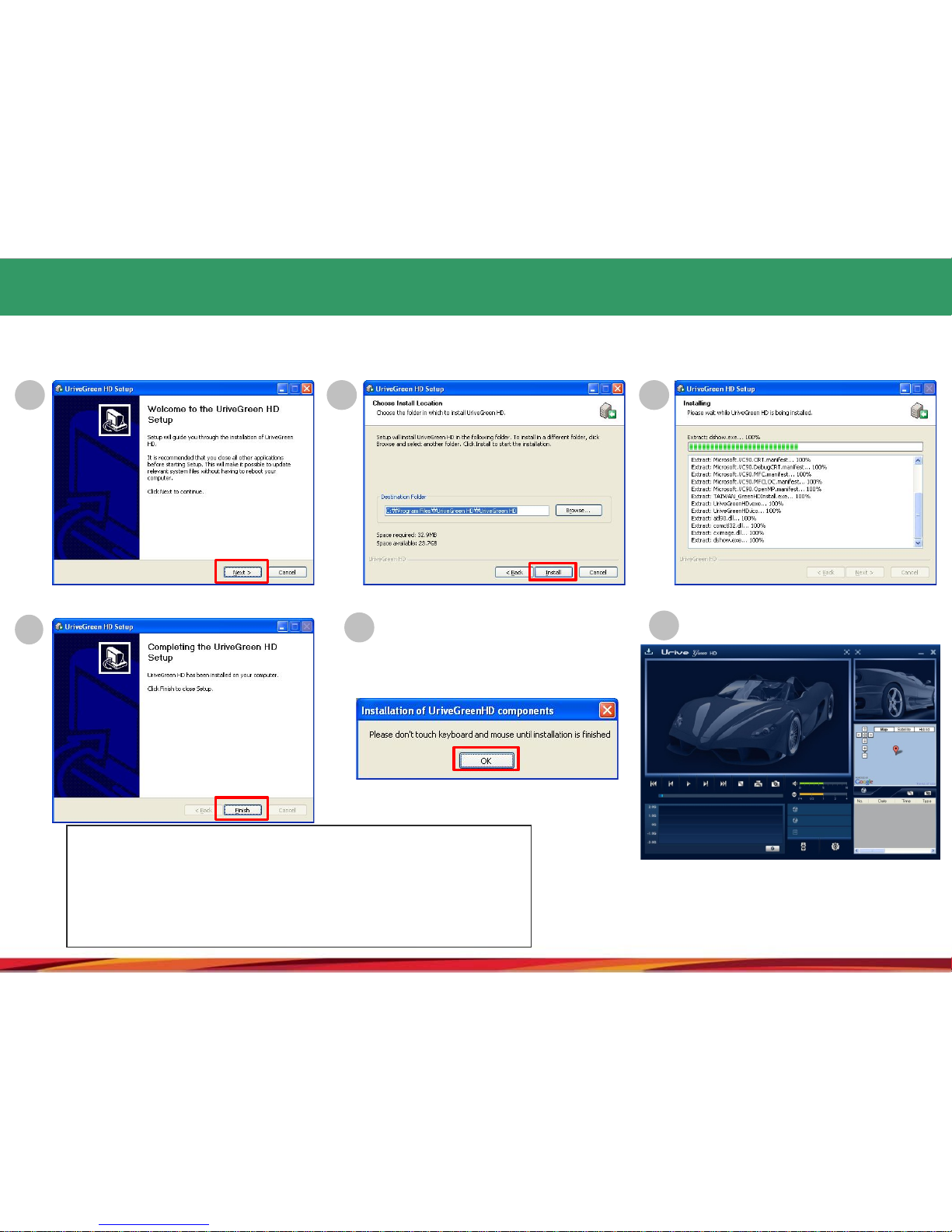

14. Installation of the viewer 29

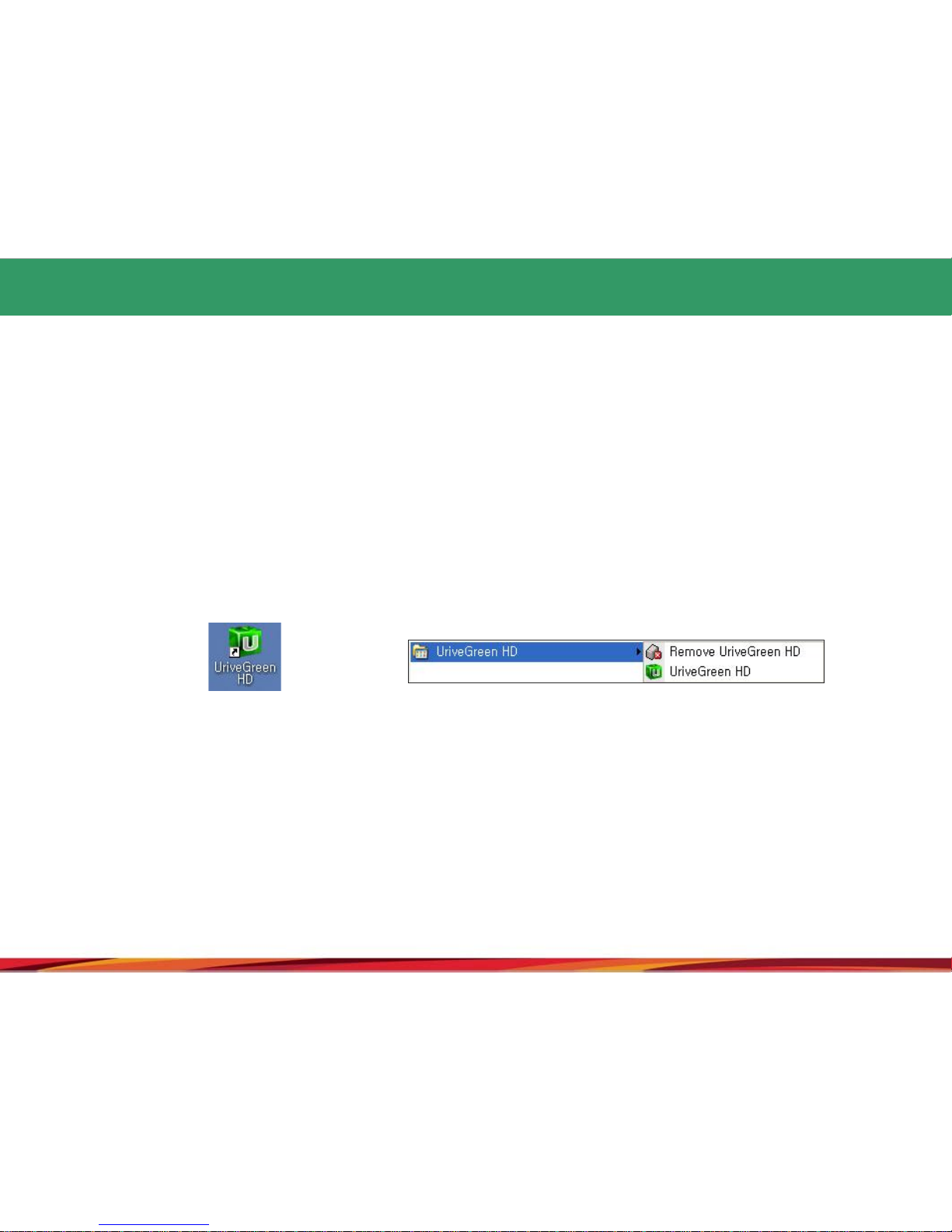

15. Execute and remove the viewer 30

16. Description of the v iewer mai n s creen 31

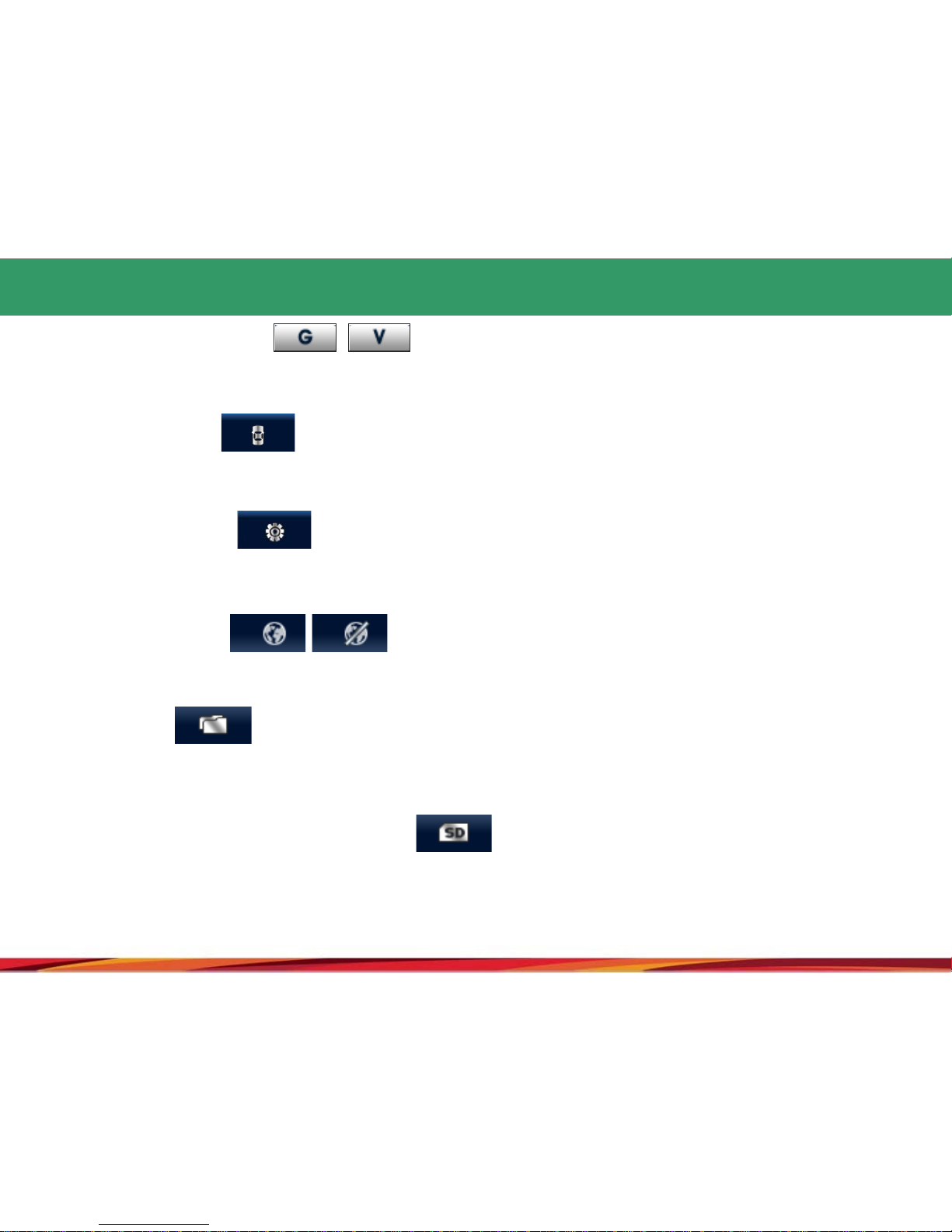

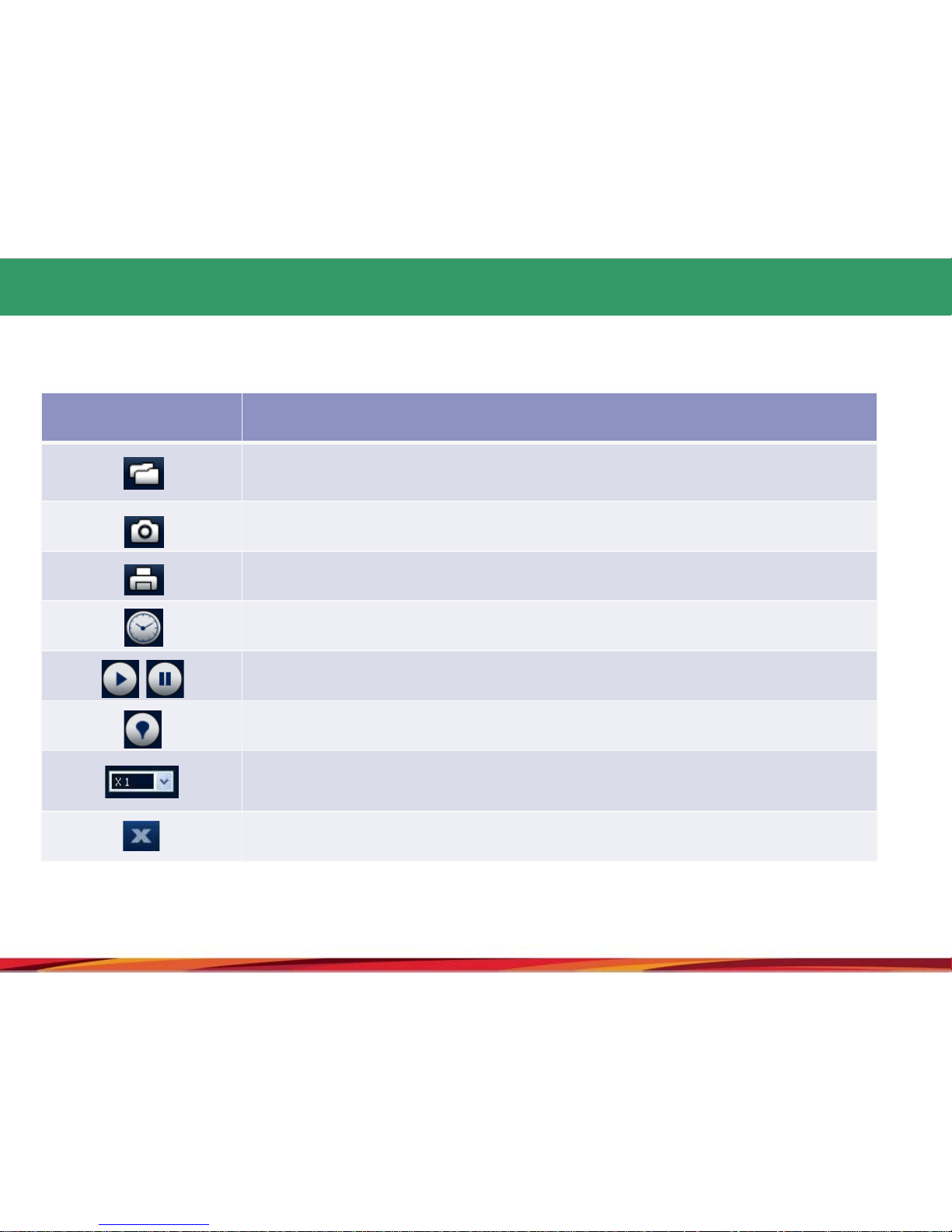

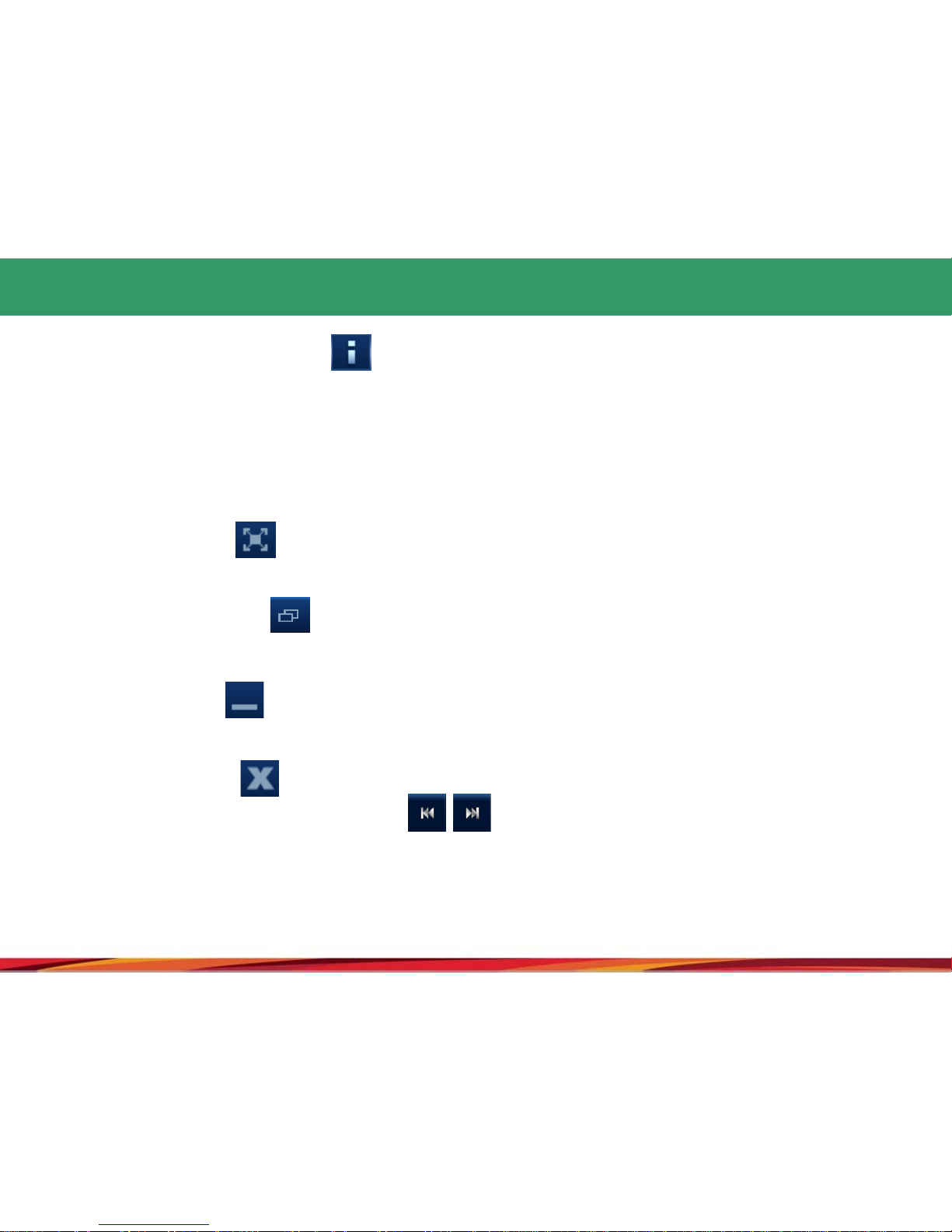

17. Viewer buttons 32

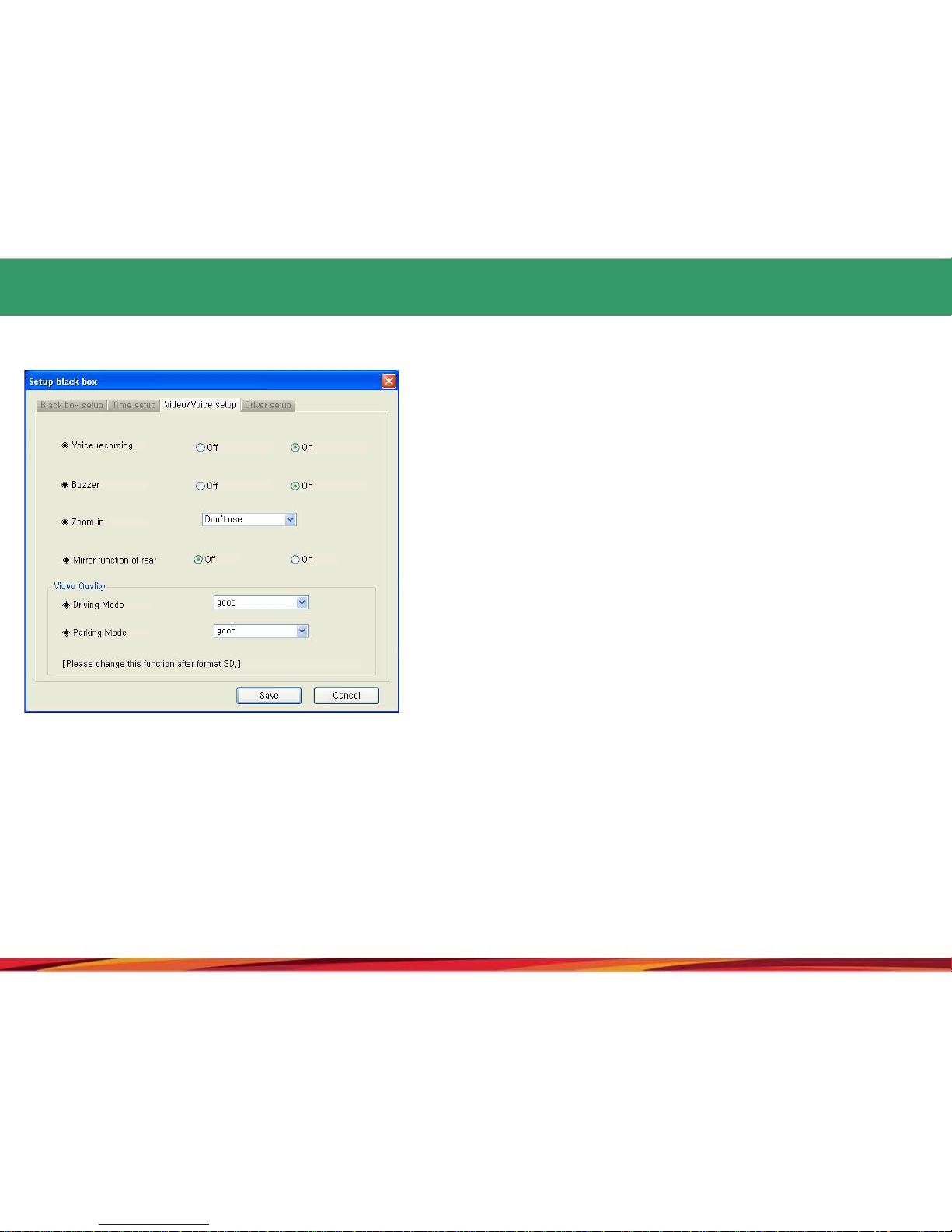

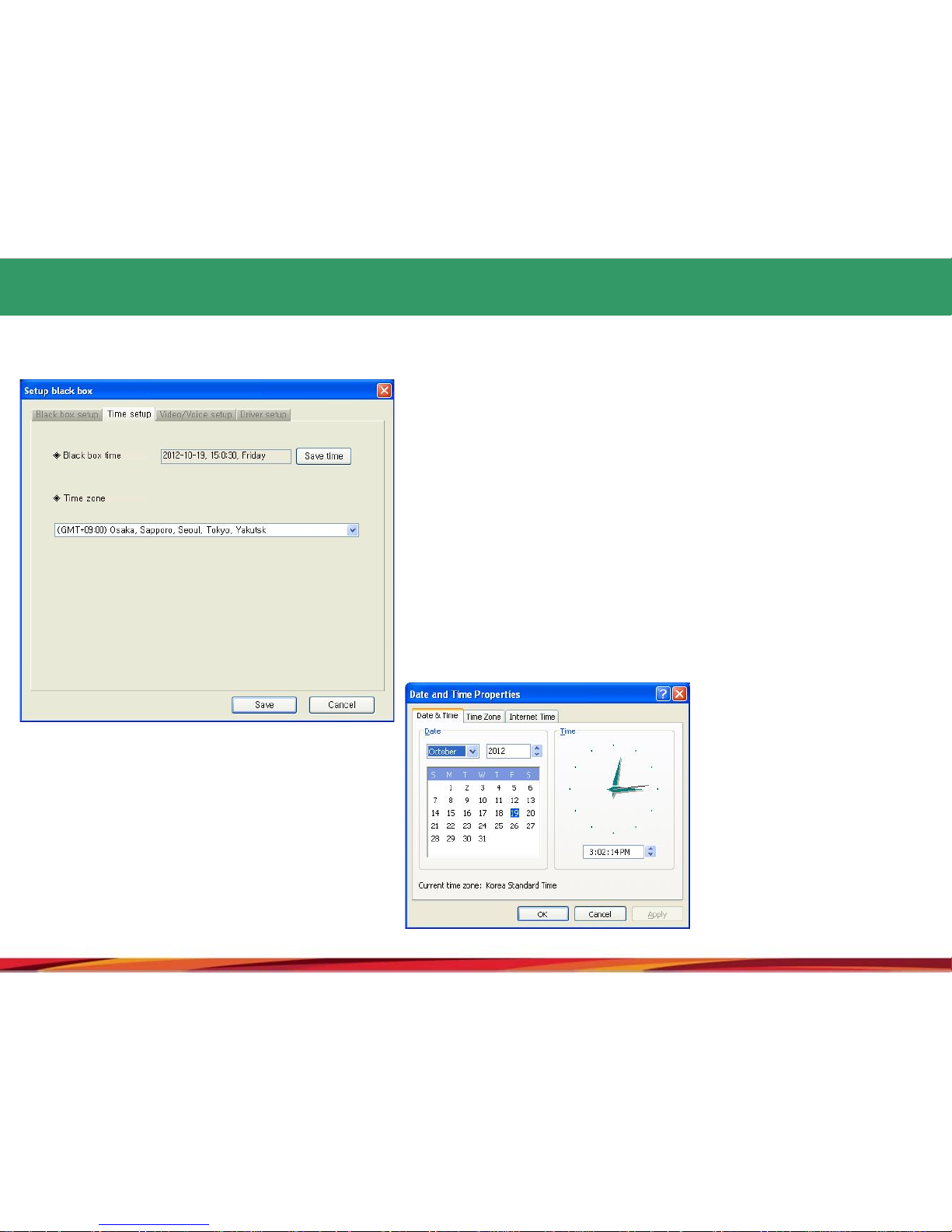

18. Black-box configuration 35

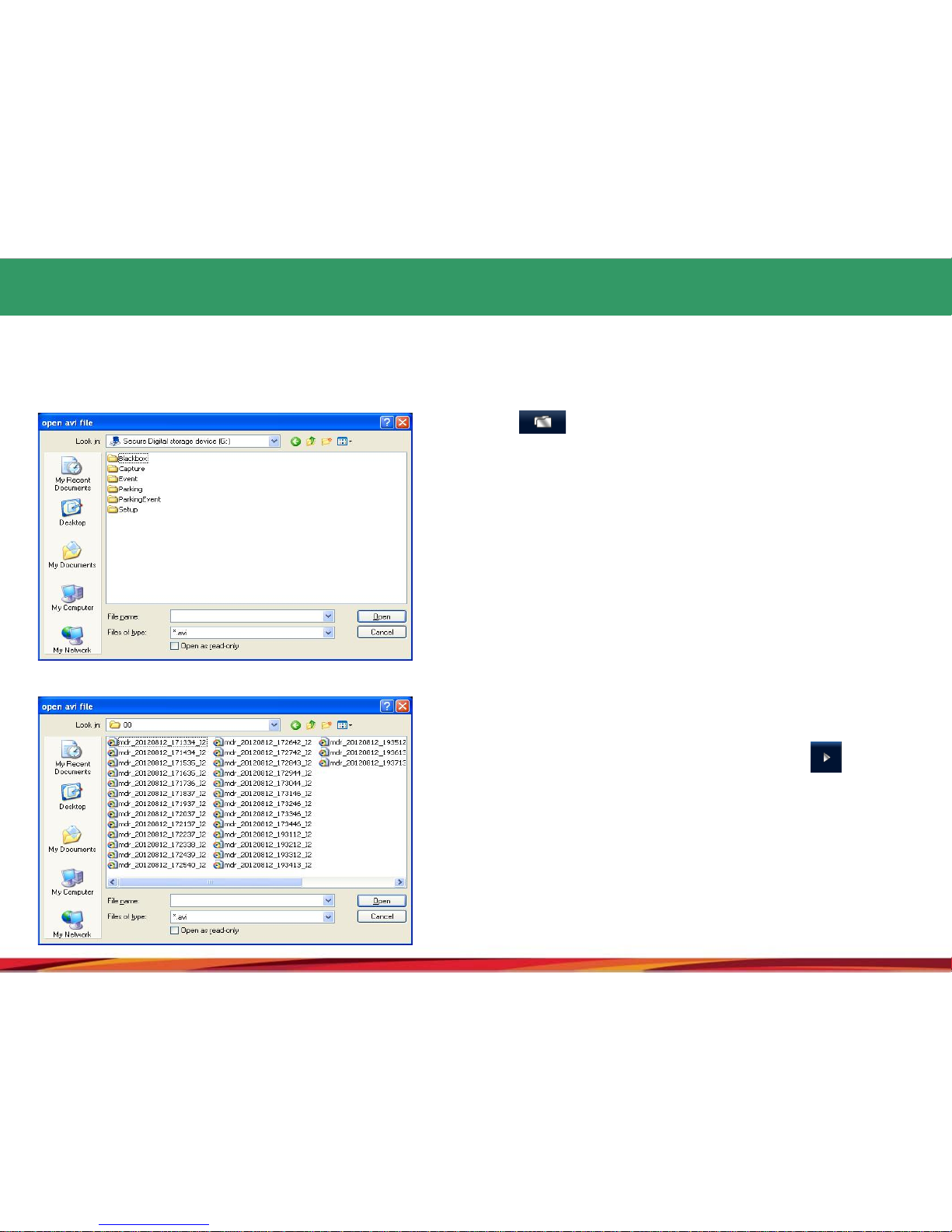

19. File open and play 39

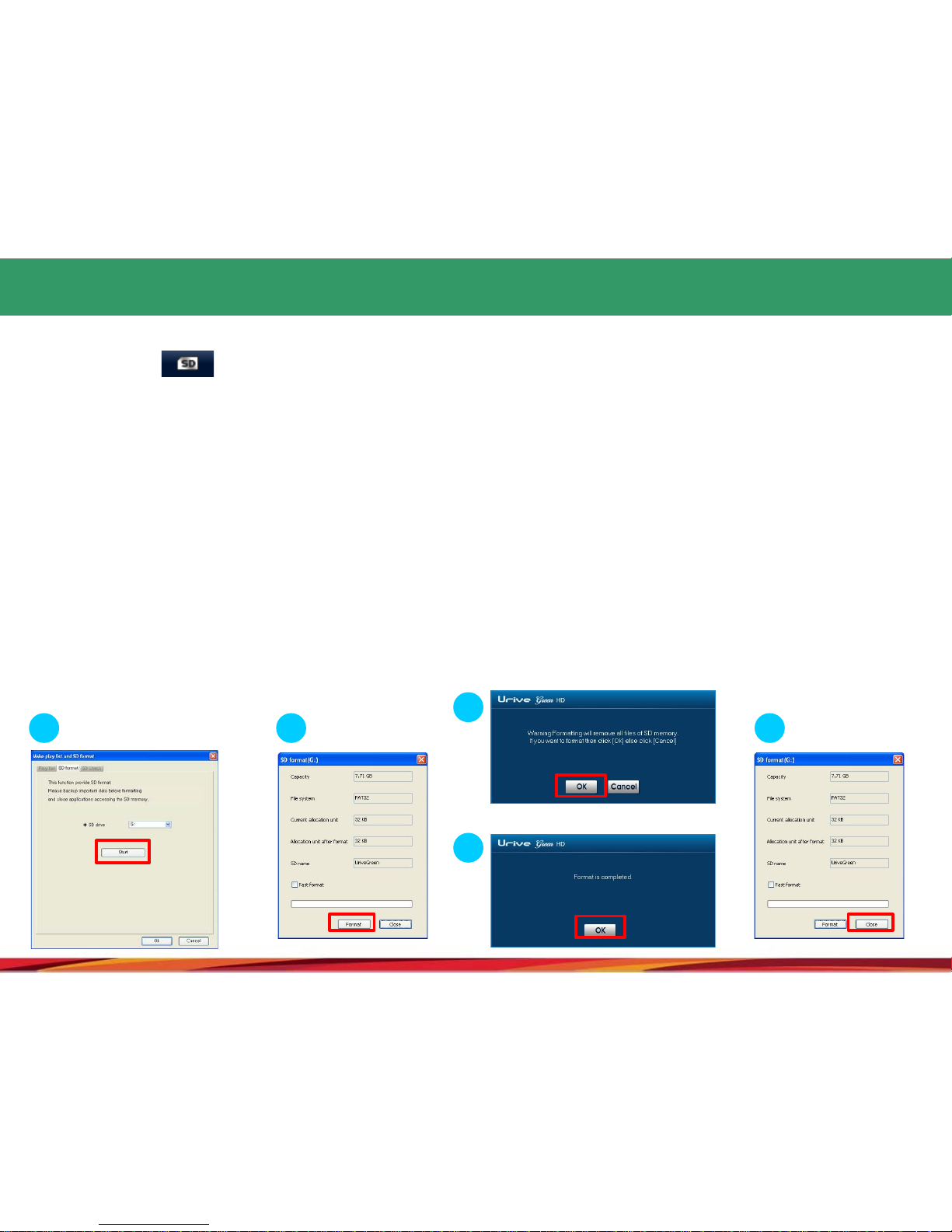

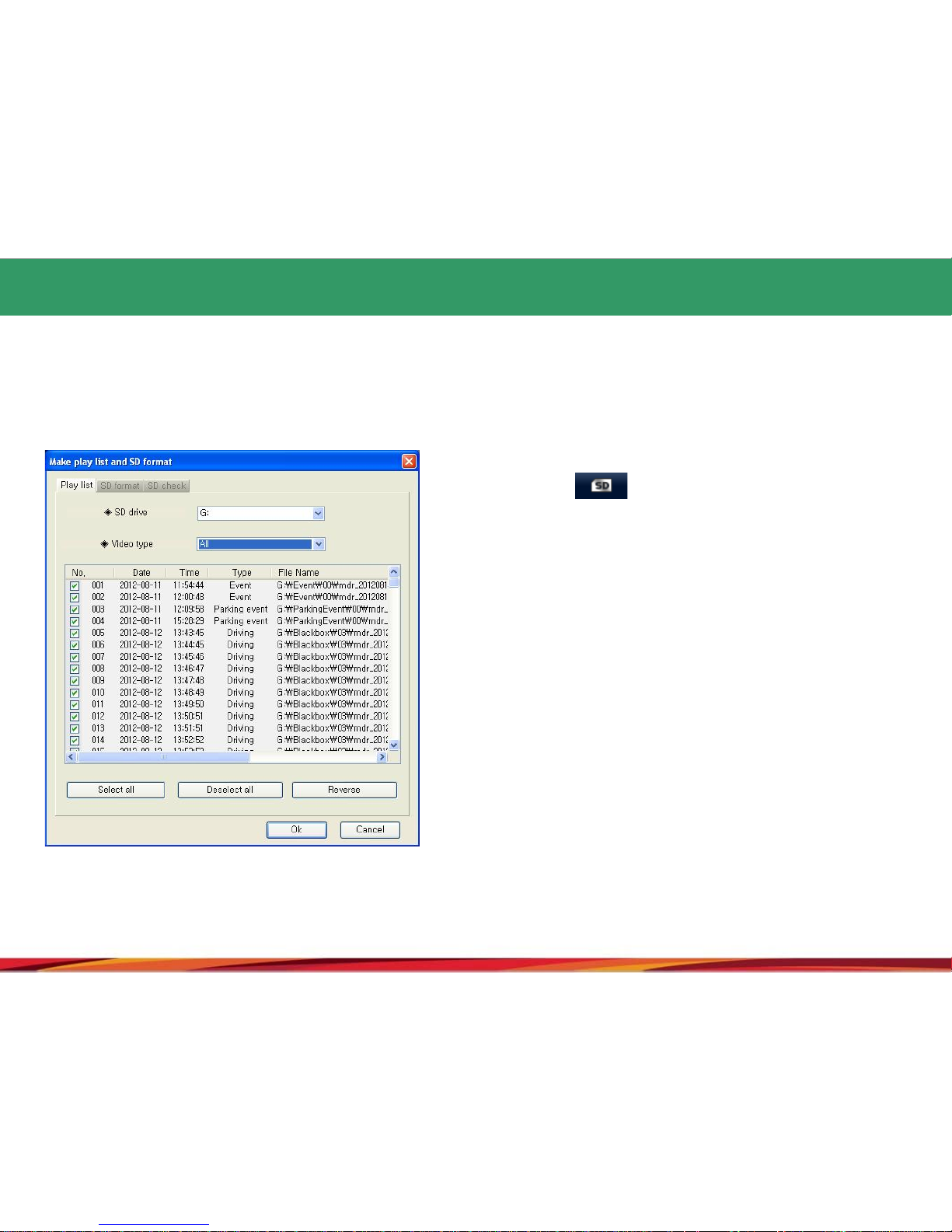

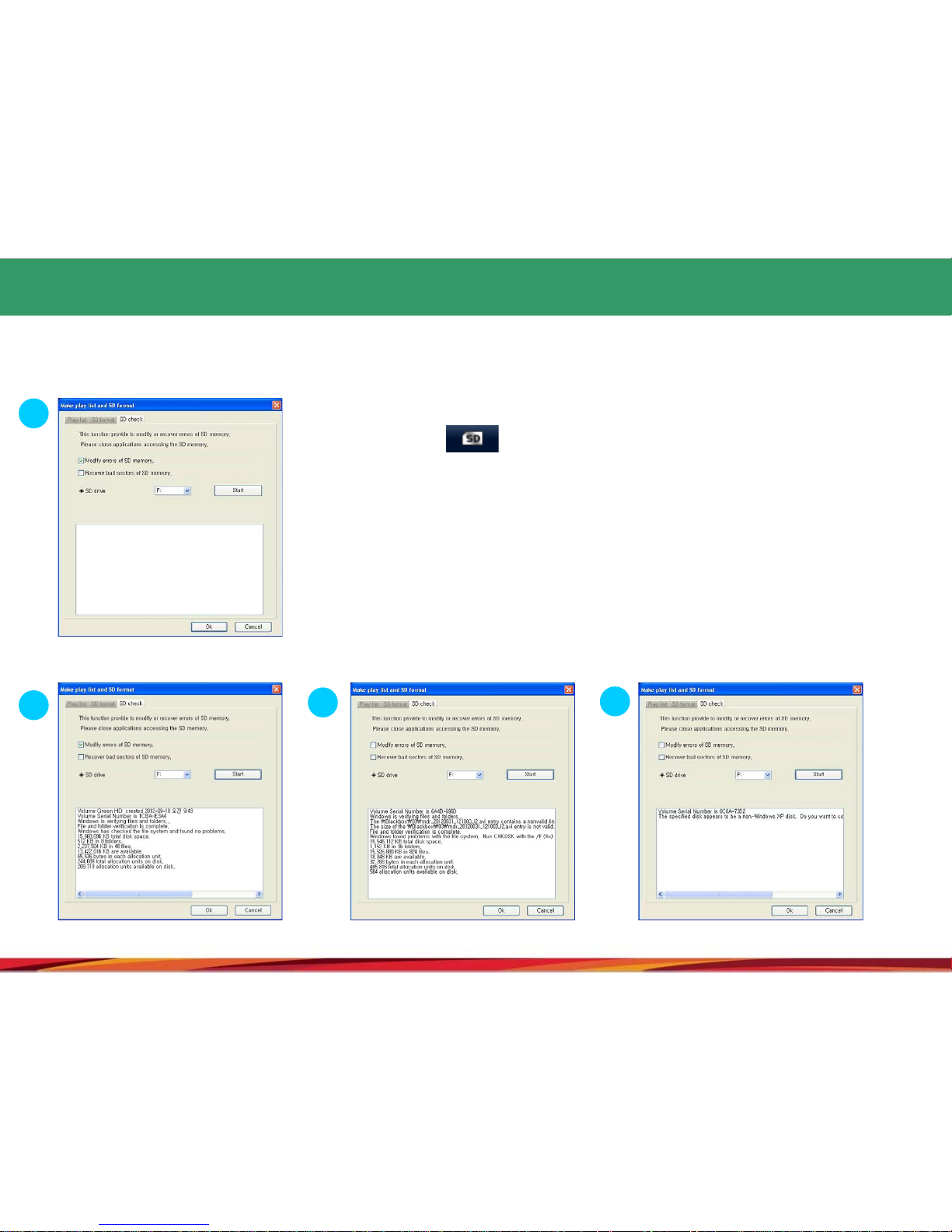

20. Playlist creation and SD format 40

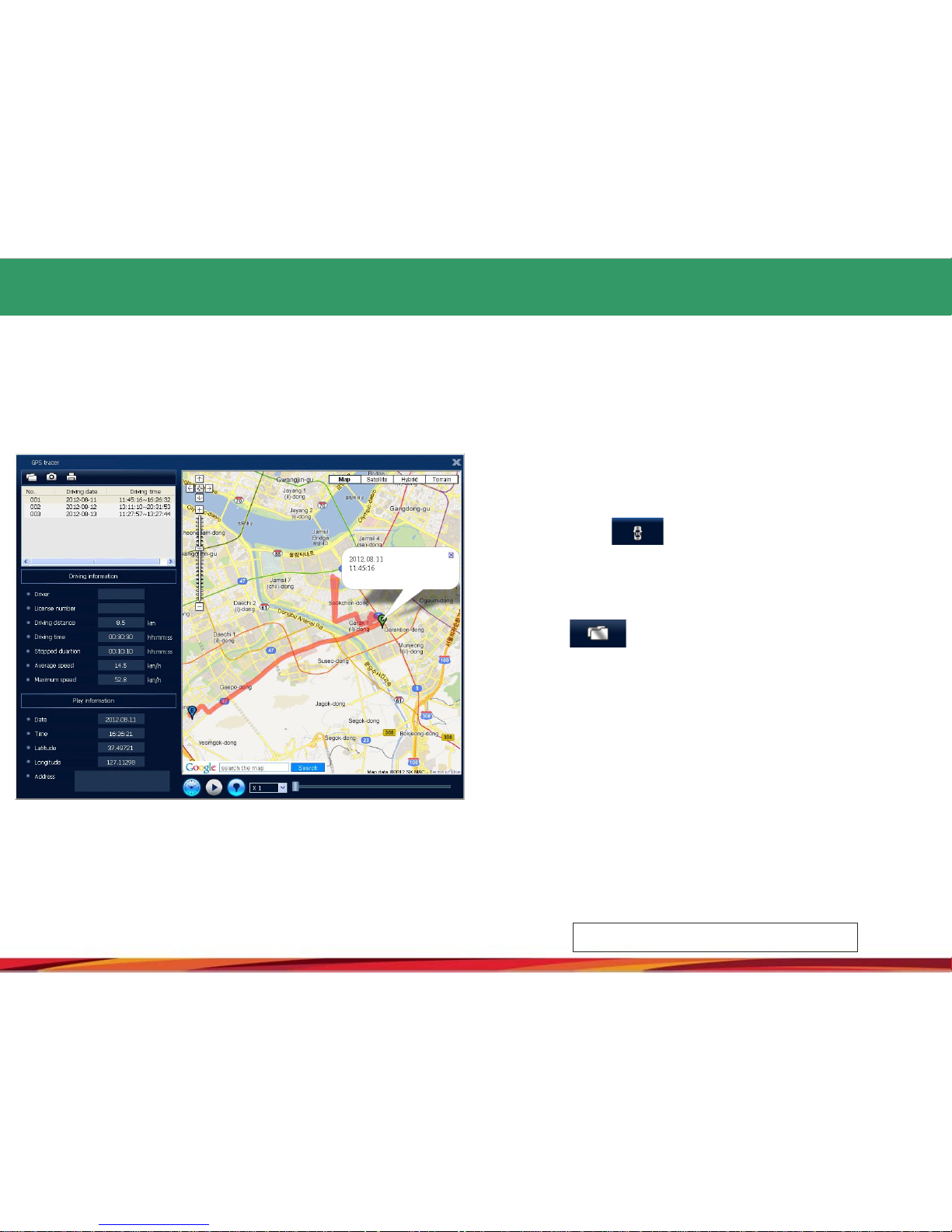

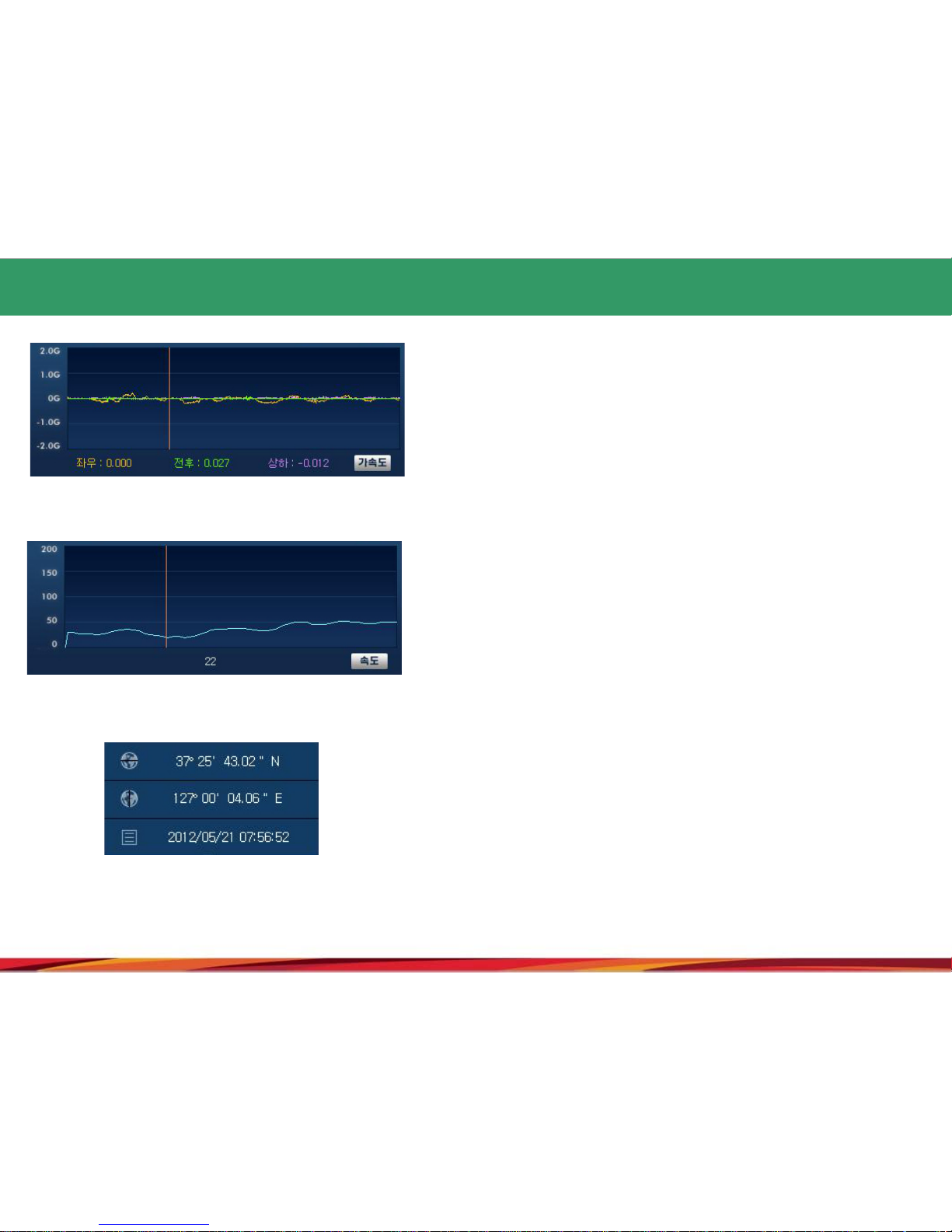

21. Tracking the driving record 43

22. Full-screen view 45

23. View recorded files information 46

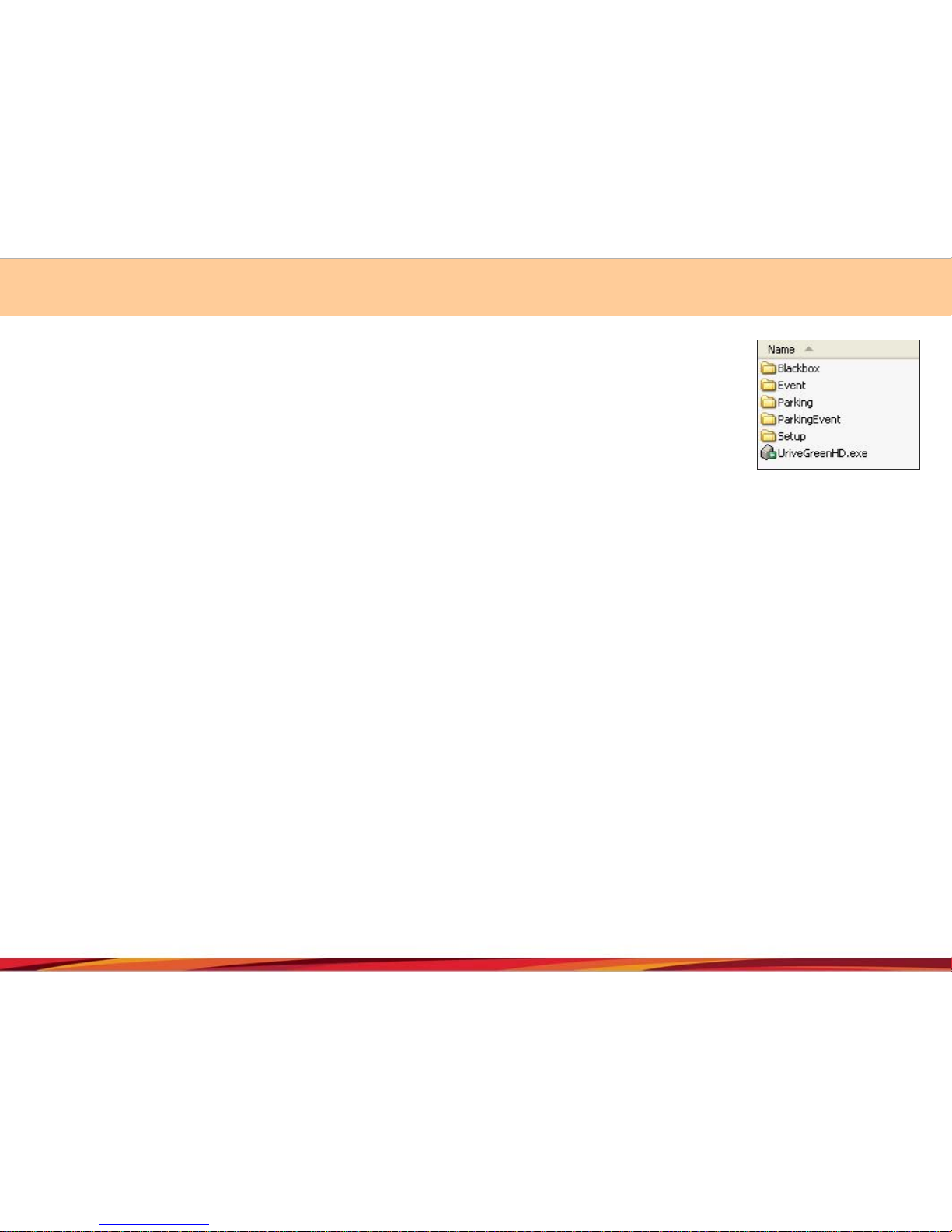

24. Recorded data 47

25. Number of Saved Files & Storage capacity 48

26. Product Specifications 49

27. Warranty 50

28. Terms of Consumer damage compensation 51

29. Before requesting for A/S 52

30. Pre-fault diagnosis 53

Content

0. Before using the Urive Green HD…

 URIVE Green HD is a trademark belonging to MI DONG ELECTRONICS & TELECOMMUNICATION CO.,

LTD.

 All contents of this Manual and publications of the manufacturer are protected by intellectual property

rights.

 All other trademarks quoted in this Manual are the properties of their respective owners.  All rights to the program are vested in the manufacturer and protected by the copyright laws. If this

program is unlawfully modified, created and distributed without prior written consent of the manufacturer, the offender shall be punished with imprisonment for a period not exceeding five years and liable on conviction to a fine not exceeding $50million in accordance with the applicable software copyright laws.

 Some changes can be made to Urive Albatross for further improvement without any notice to users.  Some images used in this manual may look different depending on the printing state and the actual

color of the screen

 Please use this product safely after reading this manual carefully.

Contents of this Manual may change without prior notice.

1. About the product

This product is a touch screen automotive black box with LCD. It is used to save the front and rear video images of the vehicle with sounds together when there is an accident or severe impact. It can help to provide evidences in the accident analy sis.

 Please follow the manual below for installing and using this product.

 The manufacturer shall not be liable for product failures or damages due to misuse, incorrect

installation or unauthorized alteration.

 The Urive Albatross PC viewer program can be run with Window XP/Vista/Windows 7.

 The product and manual can be changed for further improvement without any notice to users.

 All rights of the software and hardware related to this product are vested in the manufacturer. If they

are unlawfully reproduced, modified and distributed, a person who did the actions shall be subject to damages by civil action and criminal penalty in accordance with applicable intellectual property rights laws.

 Please do not operate this device and touch the LCD during the driving for safety.

This is an auxiliary product for safe driving. The manufacturer is not held responsible for liability arising from an accident. Use the product in

accordance with the intended use.

2. Cautions before using

 Warranty and Limited Liability

- This Product is a supplementary device for your safe driving. The manufacturer shall not be liable for any loss or damage caused by product failure, data loss or use of the Product.

- The Product is used to record and save video images outside an automobile. Some functions may not be available depending on the driving or vehicle’s environment. Performance of the Product may also vary as the firmware will be updated from time to time for further improvement. In some cases, recording may be disabled under certain user environment. Therefore the Product should only be used as reference. Recording may also be disabled under certain SD card status.

- Although this product can save and record video images of the vehicle’s accident, the manufacturer does not guarantee that all accidents are recorded by the product. Accidents caused by tiny impact can not recorded as the event video image when the motion sensor does not work.

◆ Caution in Use of SD Memory Card

- Data should be checked once a week to ensure normal operation of the Product.

- The SD Memory Card should be formatted at least twice a month to ensure reliability.

- Use of SD Cards exclusive for Urive is recommended. (contact us at the time of purchase)

- Please be careful to pop out the Micro SD card, when you install or remove it.

In general, memory cards are valid for a certain period of time (warranted for 6 months) and therefore storage of new data may be disabled if the card had been in use for a long time. If this is the case, replace with a new card as the manufacturer is not liable for data loss. The latest data may be lost if the Memory Card is removed or power is turned off during recording. The manufacturer is not liable for such data loss. Please save important data in a separate backup storage.

3. Notice

Warning. Ignoring this warning could cause serious injury or even death

This Section is for your safety and proper use of the Product to prevent safety accidents/risks. The manufacturer shall not be responsible for troubles caused by use of the Product in violation of the instructions.

If the Product is wet, do not place it in the heater or in the microwave oven to dry.

It may cause explosion, deformation or product failure which is not covered under the warr ant y.

Do not alter or impact on the Product.

Unauthorized alteration or product damage by impact shall not be covered under the warra nty..

Do not use chemicals (such as benzene, thinner, alcohol) or detergent to clean the Product.

It may cause fire..

Do not install or operate the Product while driving.

Operation of the Product while driving can cause accidents. Pull over to a safe spot to operate the Product..

Watch out for memory cards and removable.

Uncertified Micro SD card may not be recorded properly. Please remove the power cable before inserting or removing the SD Card

Please do not use sharp devices on the LCD.

The touch panel or LCD may be damaged by sharp dev i ces when the black box is set up with them on the LCD.

If the Product is directly connected to the car, do not use the product for an extensive period of t ime.

It may discharge the battery.

Make sure that the double-side adhesive tape is firmly affixed during installation.

The Product may show poor performance by over time moving or motor vibration.

Install the Product in unaffected area by the Navigation or HIPASS device.

Reflections of images of Navigation or HIPASS may cause poor recording quality.

Keep the windshield clean.

Foreign materials may prevent normal recording of images..

Take extra care during installation of the external camera.

Color of the coating on the rear windshield may impair the recording quality.

Back up files periodically.

When the SD Card is full, the oldest file in the Card will be overwritten by a new file. Please back up data periodically to prevent unwanted data loss.

Caution. Ignoring this caution could cause injury or damage to property

Key features

- Constant Recording : Rear and front images are saved onto the Black Bo x folder as long as power is connected.

- Event Recording : Upon detection of predetermined degree of impact or pr ess of the forced recordin g button, total 20 seconds long video file which are 10 seconds for t he fro nt and 10 s econd s fo r the rear of the event is saved in the Event Folder.

- Images in the Parking mode : When power stays on and upon detection of motion, a video file of 20 seconds long (10 seconds for the front and 10 seconds for the rear o f the event ) is saved in the Parking event Folder.

: A slight impact is also detected and saved. : The Parking Mode is rel e ased upon detection of low vo l tage (to prevent battery discharge).

- Back-up Save : As an internal back-up functi o n, the latest file is saved on occurrence of power interruption.

-Video Playback : Video fi l es can b e rep layed on Navigation (if fitted with the video playback function) (So me Nav igation

products may not be compatible.)

- Memory card auto format : Users can directly format SD card by a button.

- Exclusive PC Viewer: Through the exclusive Viewer, the degree of impact, speed or positioning at the time of accident

can be analyzed. (The positioning information is only available with the optional GPS module)

- Driving Info Recording : Driving date, time and mileage are record ed , and driving paths can be tracked via t he Viewer.

(The Driving recording function is only available with the optional GPS module)

Product information

- HD 2chennals LCD black box : The Product enables the 2ch saving function (t he fro nt and r ear images) when connected to the external or rear camera.

-Constant, event, force, parking recording /image storage: it has not only the base faction of black box but also images saving and parking recording.

4. Product features

 Sharp Picture and wide field of view for recording of high definition images

Green HD can record any accidents in clear images and security images with extremely high resolution (front: 1280x720/ rear: 640x480) a nd wide angle(fron t: 120°/ rear: 120°) of camera in the parking lot day and night.

 Constant Recording

All images during driving are continuously recorded in a series of one-minute video files.

 Event (Impact) Recording

On occurrence of external impact during recording in the constant mode, accurate detection using the 3- axis

acceleration sensor is made based on the set impact value saving the real-time images in the Event Folder. A 30 second long (10 seconds prior to the impact plus 20 seconds post the i mpact) v ide o fil e s aved in the Even t Folder.

 Manual recording

If users push the “image storage” button at the Screen Setting in the main menu, Urive Albatross save 30 second long (10 seconds prior to the impact plus 20 seconds post the i mpact) v ide o im ages as an event(i mpact) in the Event folder.

 CCTV for your own car protection, recording in the parking mode

Urive Albatross enables detection and recording of motions (that may be associated with damages and losses) while the

vehicle is in the parking mode.

 im ag es stor ag e

Urive albatross can store the front and rear images by only one touch at the LCD during the Constant Recording mode.

 Auto memory management

Even if the memory is full, the Product enables constant recording of images by auto-deleting of old files and overwriting

with new files in chronological order.

5. Features (1)

 2ch Black Box for simultaneous Front and Rear monitoring

- Urive GreenHD facilitates the Black Box function; the Main Body of Urive Green is used to record the front side, and at the same time the external camera fitted inside the car is used to record the rear side..

 Recording data checking with exceptional PC viewer

when the users play the stored video images with PC viewer, it can show the front and rear video

images at the same time with lots of information for their driving conditions.

 Real-time Video Monitoring during Recording

When the Black Box and the AV-in terminal on Navigation are connected by the video cable, real-time video

can be monitored on the Navigation screen. The Product enables easy and simple installation of the Black Box at the most suitable position at the desired angle.

 Power ON/OFF switch

 Built-in Battery Discharge Protection and timer setting up

Urive GreenHD is fitted with a device that prevents battery discharge during constant power use. When the voltage becomes low during recording in the parking mode to the set cut-off voltage, power on Black Box is automatically cut off so as to prevent consequential battery discharge. Users can choose the one step among 4steps of cut-off voltage and timers to set up them.

5. Features (2)

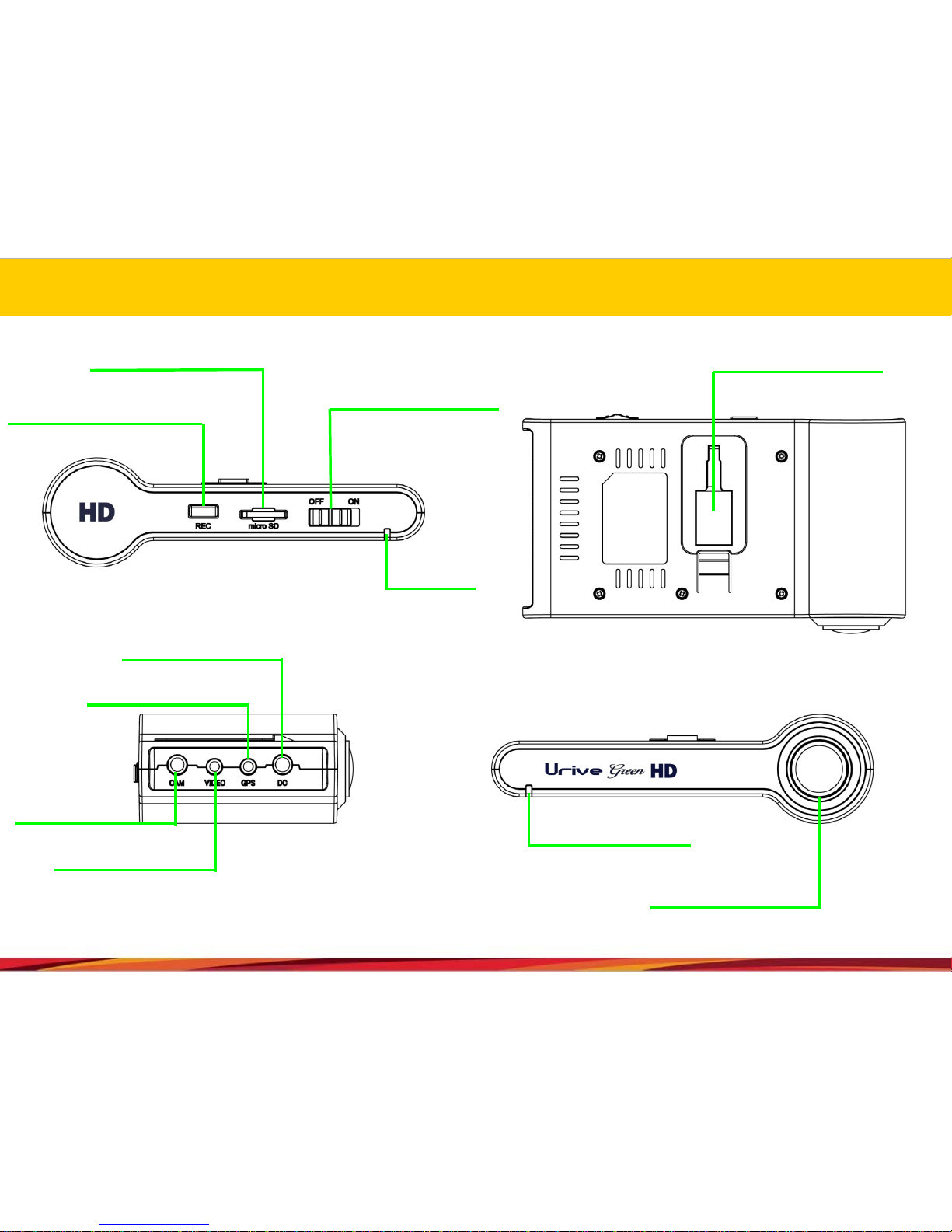

SD Card insertion part

3.0Mega Camera

Forced Recording /Rear Video Output/ Mute Button

Power ON/OFF switch

Connection of GPS Module

Connection of Power Cable

Connection of External Camera

Connection of Video Output

Hole for Mount

RED/GREEN LED (Recording/GPS)

Parking Monitoring LED (Blue)

6. Part names and functions

7. Operation and Buttons on the Product _(1)

Control Conditions LED sign Sounds

Power on After the booting

RED

LED is turned on during it’s booting

then It is turned off after booting

Beep~~~ 1 long sound

Update Update through SD Card

RED

LED is turned off duri ng update and

then

GREEN

LED turned on when the update

finished. And then rebooting by itself

2 short sound In the start

2 short sound in the end

Parking monitoring mode

20 seconds video recording by the fro nt

and rear Motion / shock Detection

- Monitoring: Flashing BLUE LED 1-second

intervals

- Video recording by Motion/shock det ection : BLUE LED blinks rapidly

Power OFF from Cigarette

connection

After saving the last video image by

using a backup battery, Power off

- -

Mode Conditions Main supply LED Siegen Sounds

Driving

mode

(Vehicle) Turn ON

Cigar cable

Fuse cable

Regular recording(during driving) : RED LED blinks with the interval of 1 second Event recording: RED LED quickly blinks

(But, GREEN LED will blinks when GPS is

connected)

Beep~~~ 1 long sound

Parking

monitoring

mode

(Vehicle) Turn OFF FUSE cable (3pole) only

Monitoring : BLUE LED blinks with the

interval of 1 second

Recording : BLUE LED quickly bl inks

Beep~~~ 1 long sound

when a mode is changed

 Operation information

Note) No voice recording (=Mute) : LED blinks with the interval of 3 second

 Functional Description

Button Operation Status LED display Alarm

Power switch

ON Supply power - -

OFF Power OFF - -

- Apply power

After booting,

The RED and BLUE LEDs blink with the interval

of 1 second

Beep~ long

GPS Operation Blink the GREEN and BLUE LEDs

REC button

Push for 1 second Start emergency (forced) recording The RED LED quickly blinks

Short 2 beep when it start a

recording

Short 1 beep when it finish a

recording

Push for 3 seconds

Voice recording on/off

(Mute Off/On)

Regular recording mode: RED LED blinks with

the interval of 3 second

(But, GREEN LED will blinks e ver y 3 se conds

when GPS is connected)

Parking mode: BLUE LED blinks with the

interval of 3 second

Short 2 beep

Press long

(Longer than 10

seconds)

Format the micro SD card

Blink the GREEN LED brinks

and operate again when the format is

completed

Start format: Beep~ long

End format: Beep~ long

- Update Update using the micro SD card

The RED and GREEN LEDs alternatively blink

and operate after rebooting when the update is

over

The beep sounds long in the beginning and shortly beeps

in the end

- GPS input GPS Operation the GREEN blinks -

Parking monitoring

mode

Recording 20sec. By Fro nt/ R ea r m ot ion and

check detection(before and after the

detection: 10sec. ea ch)

Monitoring: BLUE LED blinks with the interval

of 1 second

Recording: BLUE LED quickly blinks

Pulling off the power

terminal

Store the last video using the backup

battery

and turn off the set power.

Turn off all the LEDs -

7. Operation and Buttons on the Product_(2)

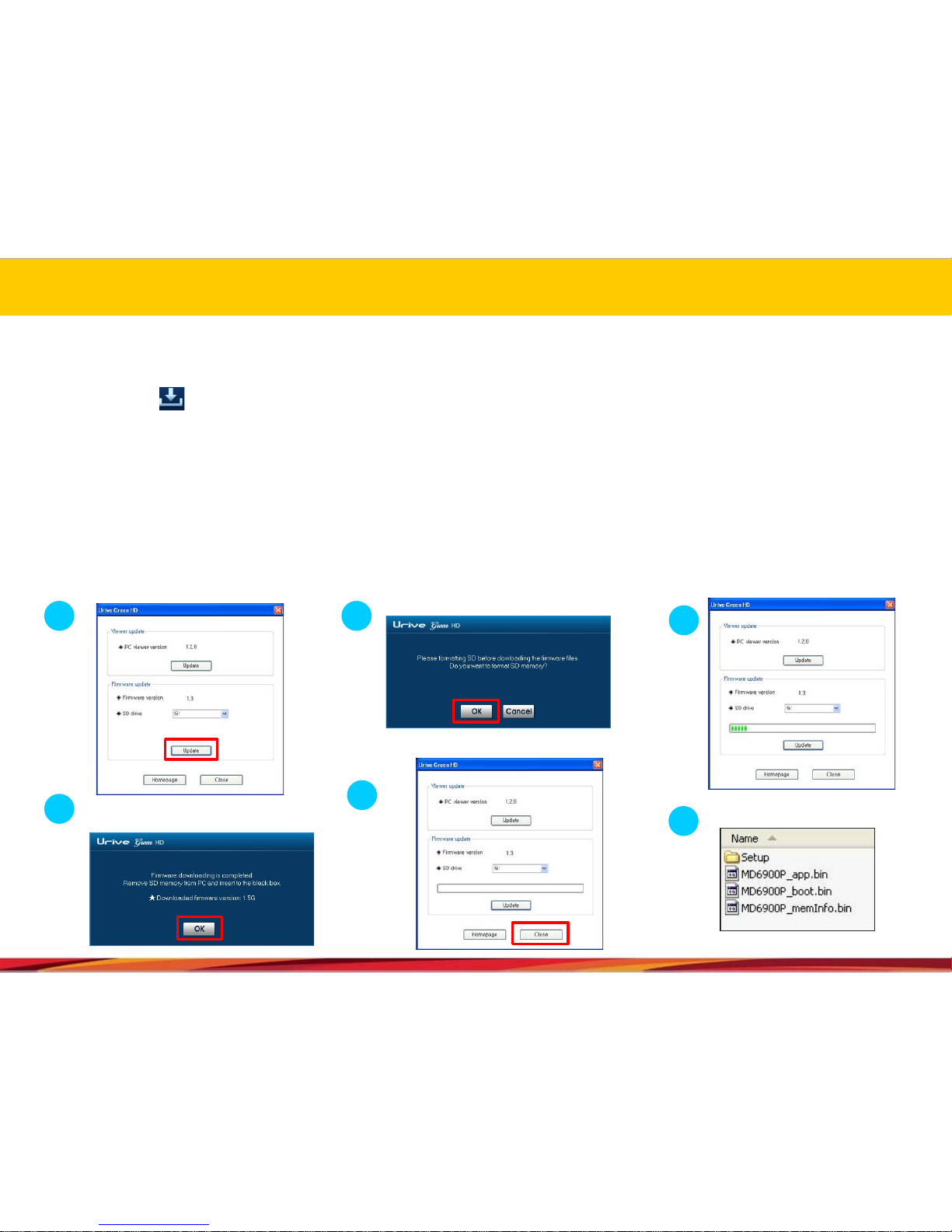

[How to auto-upgrade]

1. Users can install the upgrade files from Albatross Viewer in user’s PC to a memory card. After connecting Micro SD card with PC, Push the button at the top of the left in the Viewer

2. Check the firmware version at the Urive Albatross program information window. And then formatting the memory card in the PC or Viewer. (But after formatting, users cannot check the firmware version.)

3. Check the driver’s location which is connected with memory card at the Urive Albatross program information window.

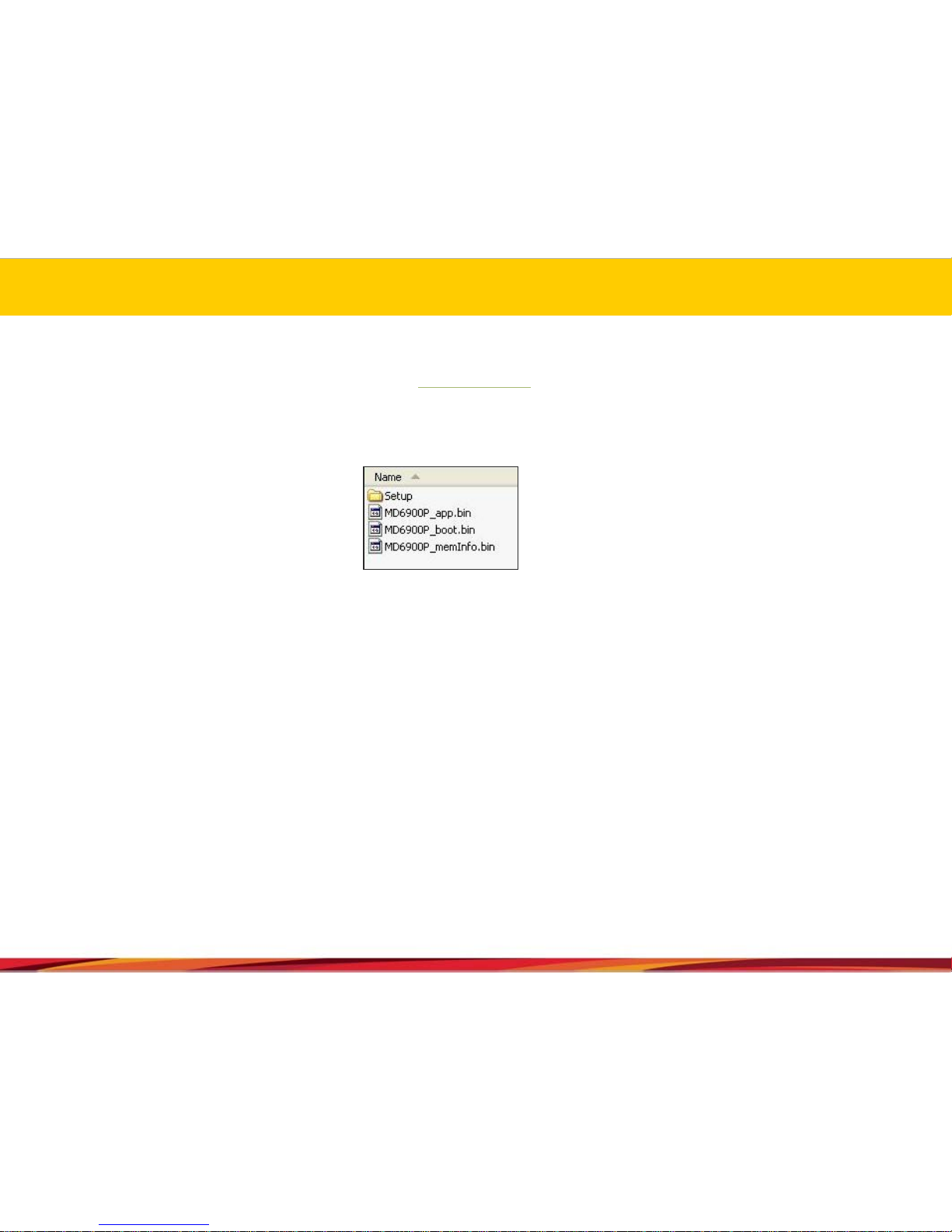

4. After pushing the update button, the upgrade files (MD6900P_app.bin, MD6900P_boot.bin, MD6900P_memInfo.bin)

5. save automatically at the memory card. (in case of showing the Windows safety warning window, Please check the NOTICE.)

8. Upgrade (1)

1 2

[How to auto-upgrade]

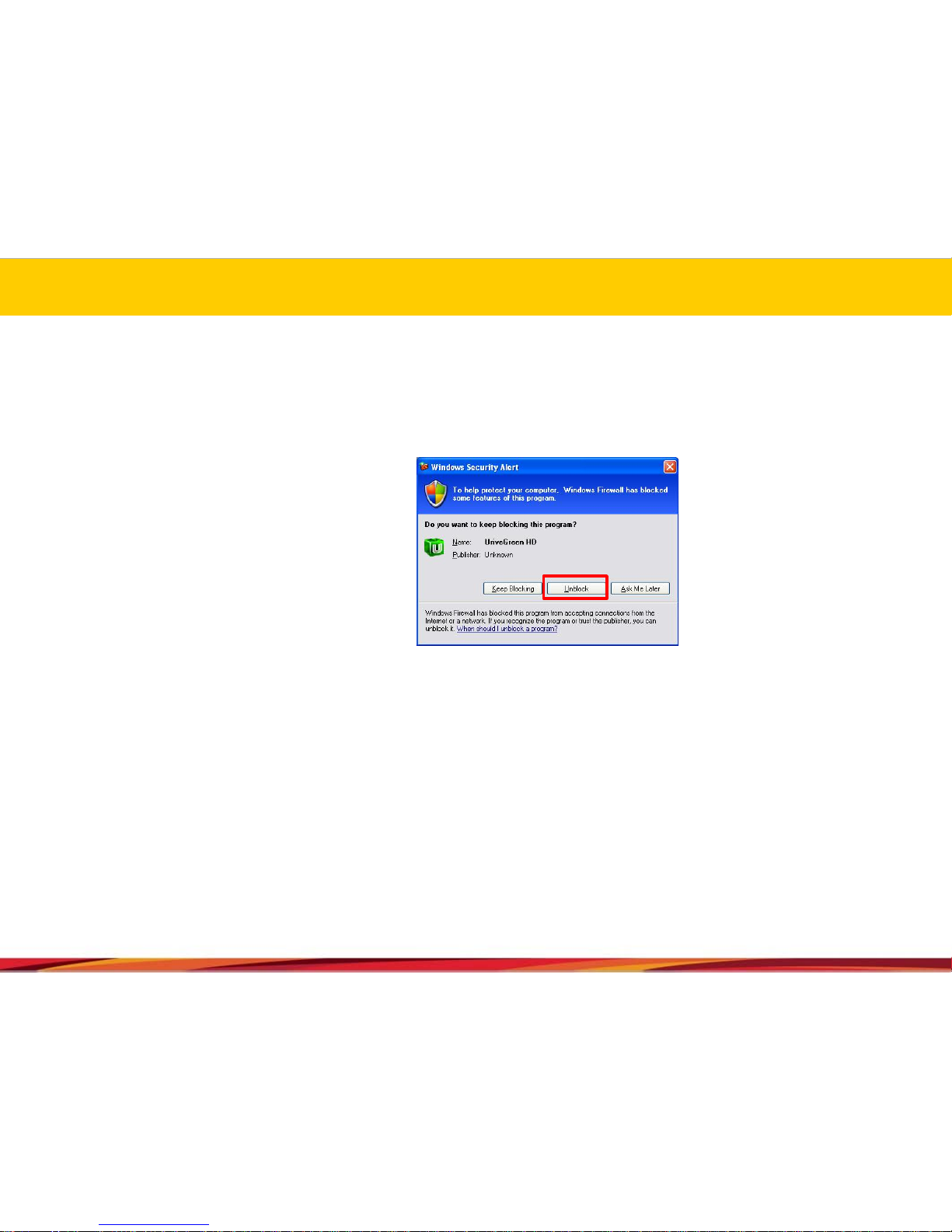

[ NOTICE ] After Pushing the update button, if users can show the windows safety warning window as below, users should

push the ‘Unblock’ button. when users push the ‘Keep Blocking’ button, auto-update would be failed cause of windows safety issue.

5. After turning off the black box , Install the Micro SD card to Albatross main body.

6. Black box power on and then the Upgrade will be progressing showed firmware upgrade image on the display with two times buzzer sound. And also the work is finished with two times buzzer sound. After a while, black box is restarted automatically.

7. Some folders in the memory card can be created by themselves.

NOTICE) After progressing the formatting at the format menu in Albatross main body, The existing configuration value is kept.

8. Upgrade (2)

[How to Manual-Upgrade]

1. Copy the upgrade firmware files to Micro SD card. ( www.urive.co.kr Urive download center ) Users should format Micro SD card in the Albatross viewer or the black box main body. And then copy the upgrade files

(MD6900P_app.bin, MD6900P_boot.bin, MD6900P_memInfo.bin) to it.

2. After turning off the Albatross, install the SD card to the main body.

3. Turn on the Black box

it shows firmware upgrade image as below and then upgrade is progressed and turning off automatically with two times buzzer sound. After a while, black box is restarted automatically.

4. After restarted it, Some folders in the memory card can be created by themselves.

NOTICE) After progressing the formatting at the format menu in Albatross main body, The existing configuration value is kept.

8. Upgrade (3)

Sixangle

wrench

3pole-

4pole

gender

VIDEO cable

(3pole)

Main body

holder

Usual

power

cable

Second

camera and

cable(6m)

Urive Micro

SD(8GB)

SD card

reader

Double-side

tape

Manual

GPS

Module

Cigarette

jack power

cable

This components can be changed based on the part supply without any notice

(The images for user’s understanding can be different from the real one)

Please check the all of the components in the box as the picture below. if the components ar e dama ged, pleas e cont ac t you r r et ai ler imm edia tely.

9. Components

Basic components

Option

10. Pin arrangement of each terminal

Section Pin imag e Pin Assignment

Power supply terminal

(DC socket)

①

GND②ACC ③BAT(B+)

GPS terminal

(2.5 Pi)

①

VCC

(3.6~6V DC)

②

③

GND④Tx

(GPS Signal Output)

Second camera terminal

(2.5 Pi)

①

Cam Output(NTSC) ②VCC (5V)

③

GND

Second camera extension

cable terminal

(3.5 Pi)

①

Cam Output(NTSC) ②VCC (5V)

③

GND

11. Installation precautions

 When it is installed, users should off the car engine and do on a flat surface.

 Users should check it can record the front and rear as video images well before exact

installation.

 Please install it without connecting external(second) camera to the main device.

 All components required for installation are provided with the Product. Check the components and

read the instructions before installation.

 Check if the SD Card is correctly inserted, and then connect power.

 The Product should be located in such away that the driver’s view is unaffected.

 Try to conceal cables for tidiness and safety.

 Keep the windshield clean always.

 Install the Product in a safe and bright area.

 Please note that heavy glass tint or thermal wire in the glass may impair the recording quality.

 Please remove the camera’s protective plastic after installation.

※ Before finishing off, please check if the

front/rear video images are properly recorded.

Clean the spot on the windshield where the Product is installed.

Remove the paper from the adhesive tape on the Mount.

Affix the Mount on the desired point.

Installation of the power cables must be conducted by the authorized workshop.

- Black : GND, (ex) Car bod y

- Yellow : ACC, (ex) Cigar j ack fuse

- Red : BAT(B+), (ex) Emergency light

Connect the cables for the external camera, GPS Module and Video Output (if applicable)

With LED and buzzer sound, check if the Product works properly. It is more convenient to install when you view the screen.

Connect the power cable to the DC port.

12. Product Installation _ Urive Green HD

Select an installation point, and clean the area.

※ Please note that glass tint or thermal wire in the glass may impair the picture quality when the external camera is installed on the back windshield.

Remove the paper from the adhesive tape on the Mount.

Affix on the desired point.

Connect the external camera to an extension cable.

Connect the extension cable to the CAM port on the Black Box.

Connect the power cable to the DC port on the Black Box.

13. Installation of External Camera

14. To Install the viewer

1. Users install the sa ved viewer (UriveAlbatross.exe) in t he Micro SD card (or downloaded from Urive homepage) and then click the following steps.

[Minimum PC spec. for PC viewer]

ㅇ Computer OS : XP (32bit), Vista (32bit), Window7 (32/64bit) ㅇ Computer H/W : PENTIUM4 2.8GHz / 1G RAM ㅇ Web browser : Microsoft Internet Explorer 7.0 ㅇ DirectX version : DirectX 9.0

1 2 3

15. To Execute and remove the viewer

1. Check the “UriveGreenHD” icon in the windows start menu or wallpaper.

2. Install “UriveGreenHD”

3. Press “Remove UriveGreenHD”, it will be removed perm an ent ly.

[shortcut icon of

windows wallpaper]

[windows start menu]

• Latitude / longitude/speed/map information can be displayed with GPS module(optional).

• It display (M) at the bottom of the right when users record and play by mute.

• it displays (G) for GPS receiver and (Z) for zoom at the bottom of the sc re e n.

Front view

Speed /

acceleration graph

Rear video

Google map link

playback control

Driving record, tracking and tracing

File list

Viewer/firmware version information and auto update

Black Box configuration

Front/rear/full screen

Viewing the map ON/OFF

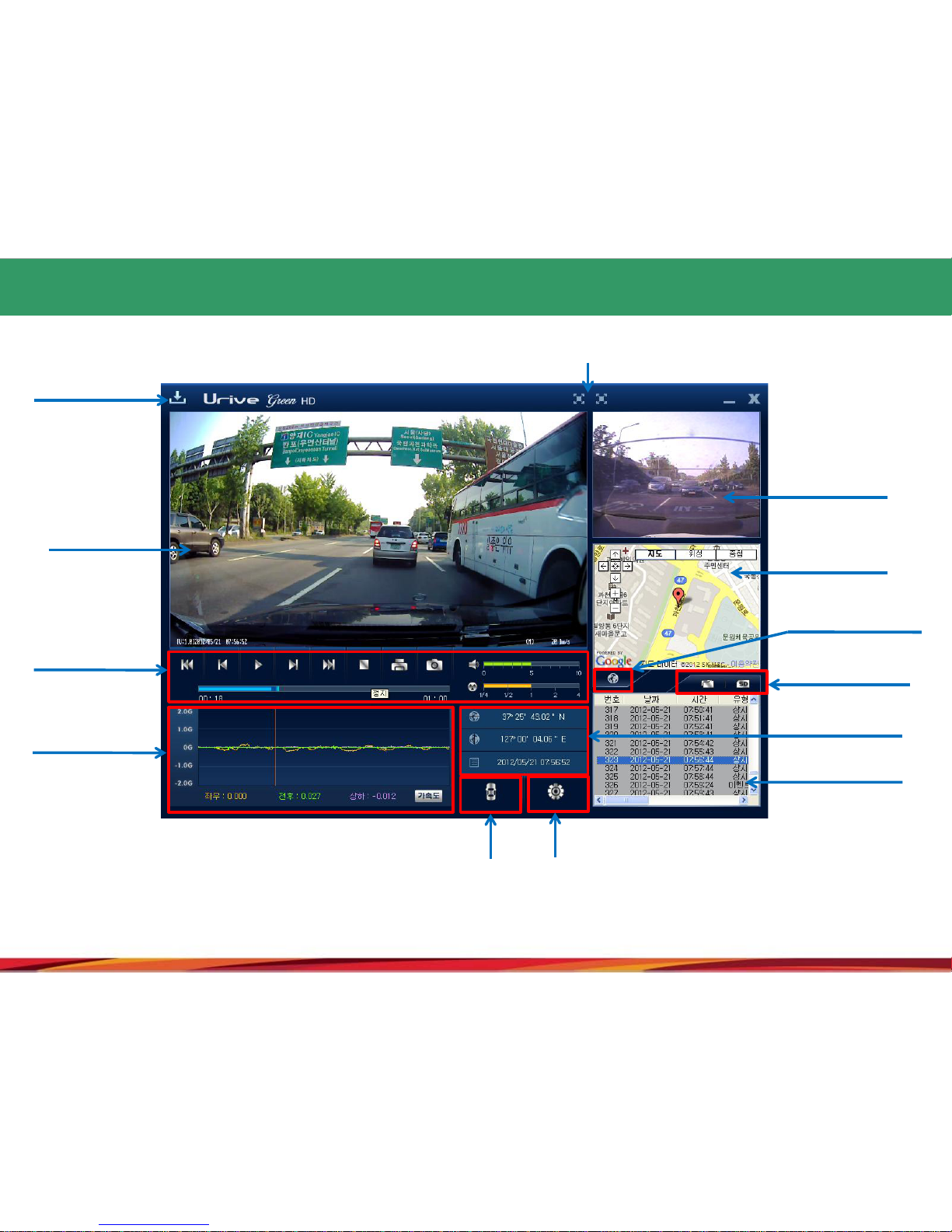

16. Description of the viewer main screen

File open, SD format

Latitude / longitude / time

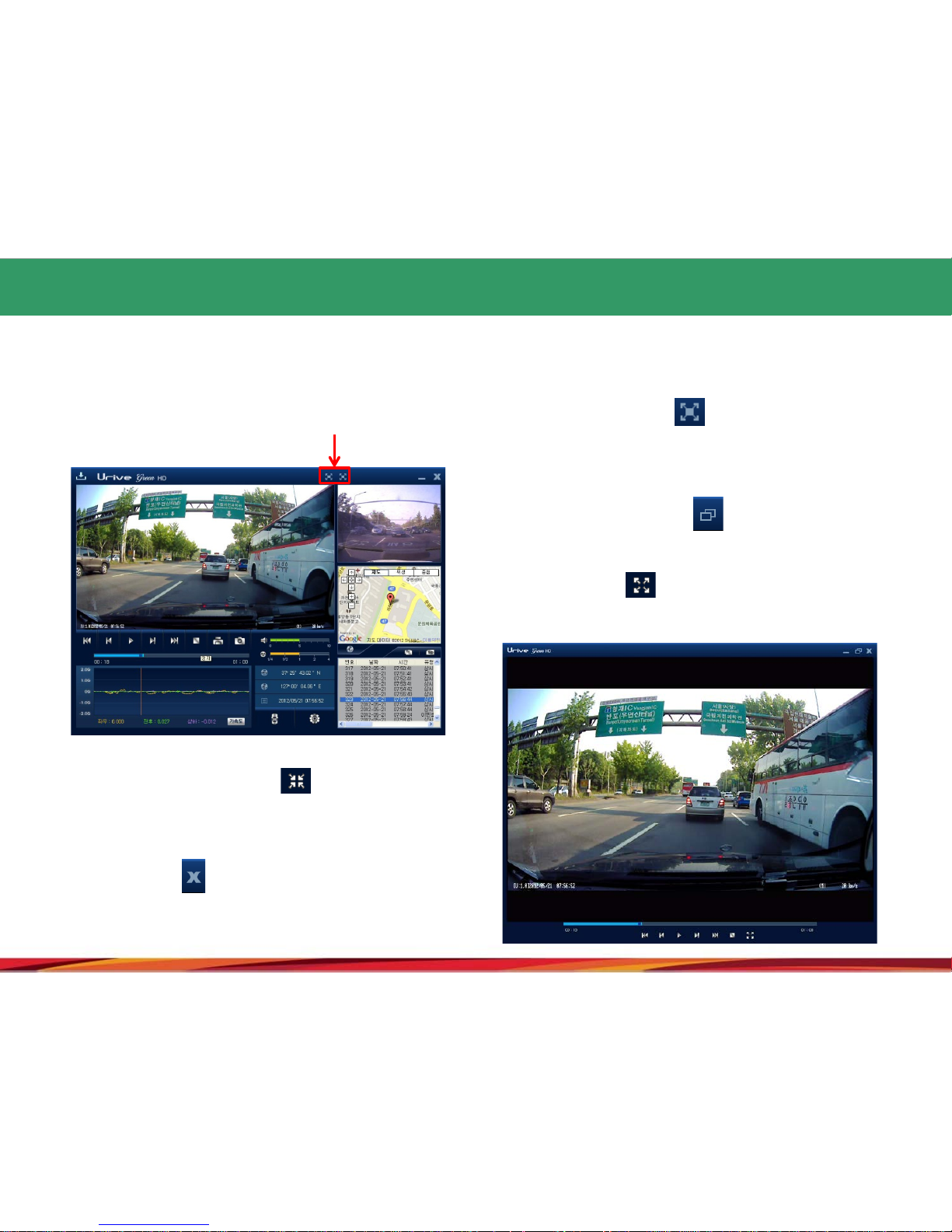

17. Viewer buttons (1)

1. Program version information

this button is for going directly to viewer, firmware version information and Urive homepage. Users can check the version information and update the viewer and firmware by connecting Micro SD to PC.

Caution) when the viewer and firmware are downloaded, Please choose “Unblock” button during “Windows

safety worming” pops up.

2. Full screen button

It switch front /back video images.

3. Return to Main screen

It switch full screen play mode to viewer main screen.

4. Minimize button

It minimize the viewer to task bar.

5. Viewer exit button

6. The previous file / next file play button

users can go to previous file and next files with them.

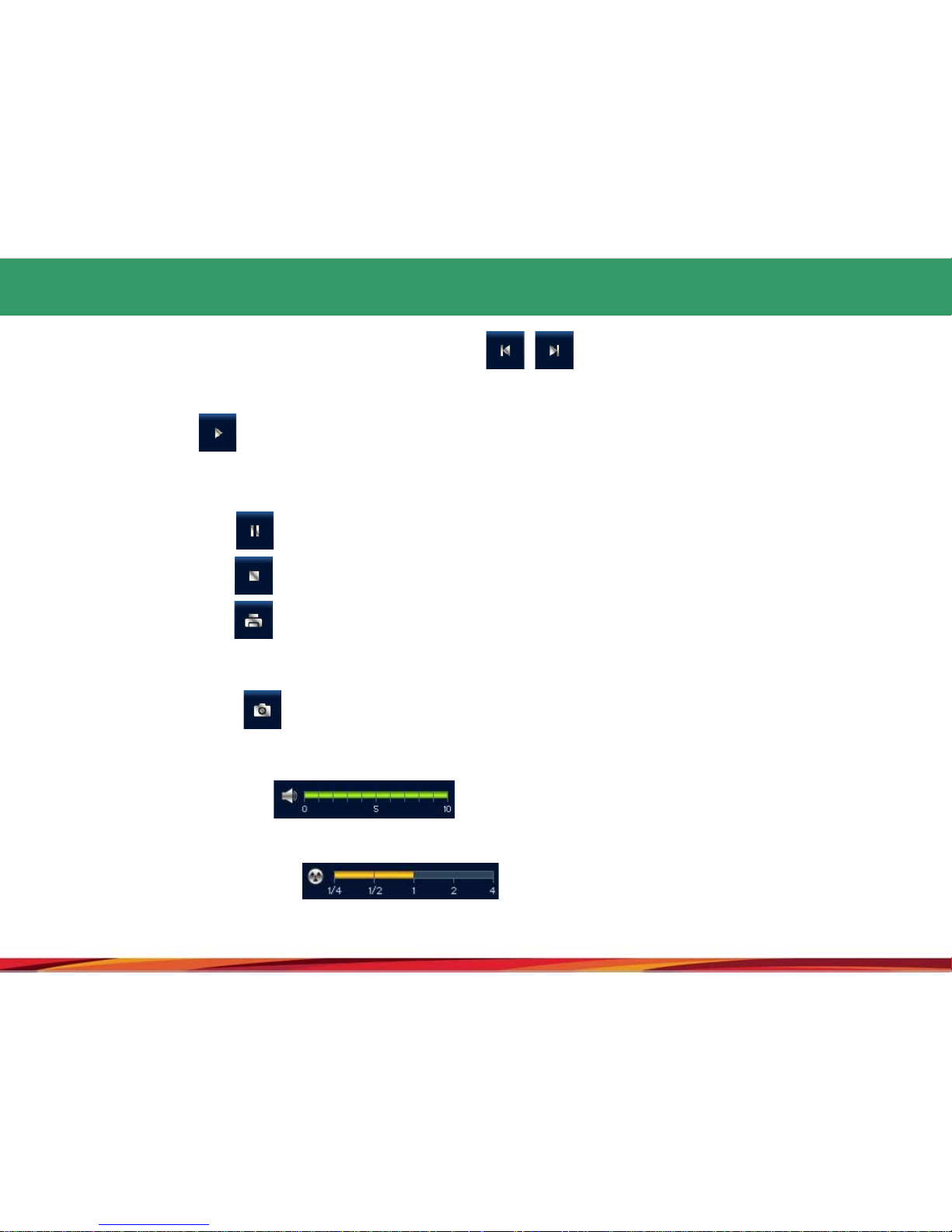

17. Viewer buttons (2)

7. Moving buttons fie previous frame/next frame

Pause of video images and moving to previous frame / next frame unit

8. Play start

Playing a file at the list and restarting the pause video.

9. Pause

10. Stop the play

11. Screen print

Printing the whole screen at the viewer.

12. Screen capture

Saving the full screen at the viewer as a BMP file.

13. Control the volume

Control the volume up to 10.

14. Control the play speed

Control the play speed as 1/4, 1/2, 1, 2, 4

15. G-force/Velocity Graph

These are toggle buttons which are used to display acceleration and velocity graphs, respectively. The velocity graph is available only when the GPS module (optional) is mounted.

16. Driving History

This button is used to display information on the driving history. The information is available only when the GPS module (optional) is mounted..

17. Black Box Setting

This button is used to store setting of the Black Box in the SD Card. This is enabled only when the SD card is

connected to your PC.

18. Display/Hide Map

This button is used to display the information on the driver’s location on the map in playback mode. This function is

available the GPS module (optional) is mounted.

19. Open File

This button is used to open a video file (multiple files can be selected simultaneously if the Shift or Ctrl key is pressed and held).

20. Create a Playlist and Format the SD Card

These buttons are used to create and display a playlist of the entire video files stored in the SD card or of the files belonging to a category, to fix errors of the SD card, or to retrieve poor sectors. Also, the SD card can be formatted. Format is available before playback of the list. If a file is being played, the SD car can be formatted only afte r the Viewer is restarted.

17. Viewer buttons (3)

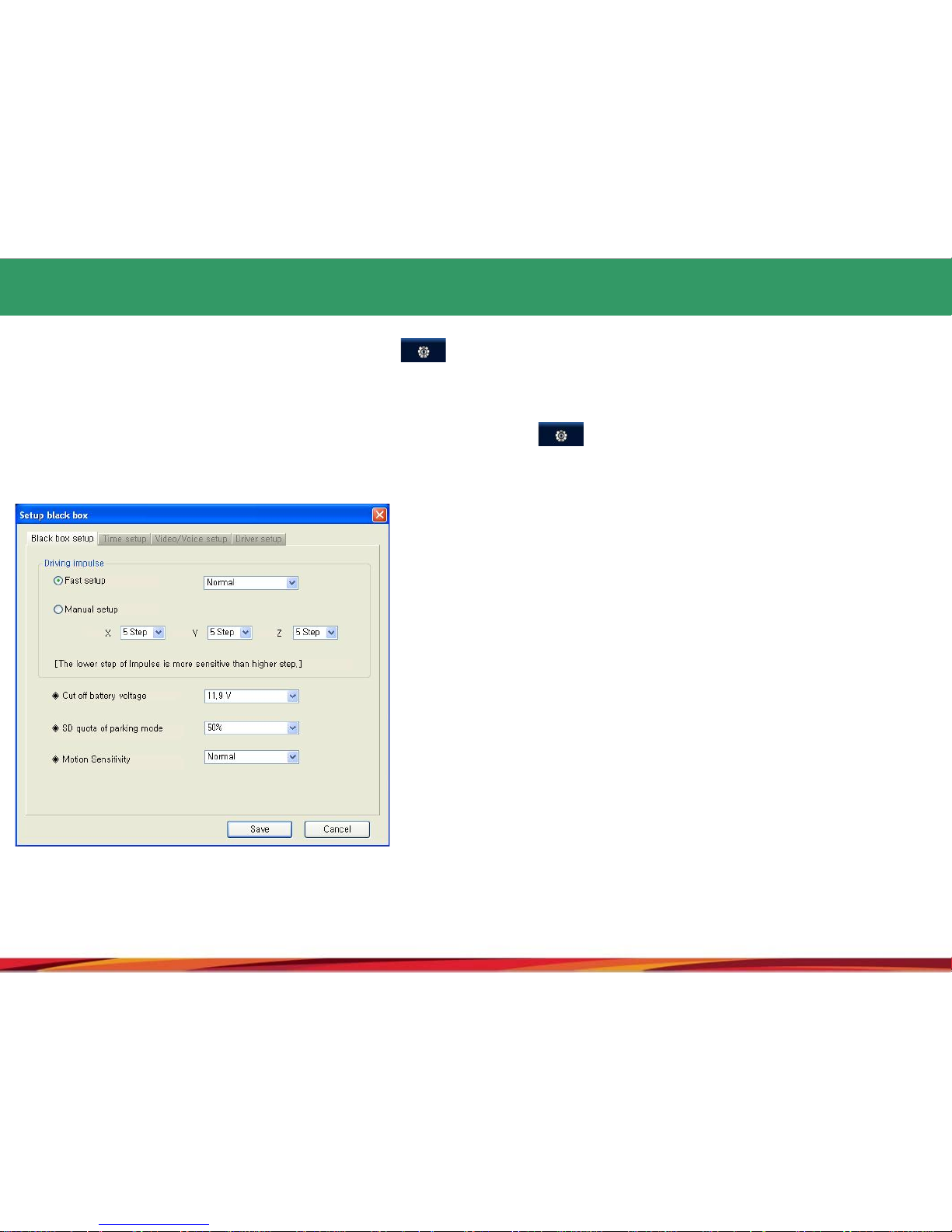

18. Black-box configuration (1)

◆ Black Box configuration: when users press button in the viewer main screen, it show configuration

window like below. It is separated with time, screen, voice/image and user setting tap.

1. Play path shows the date and time of the station.

2. Select the button on the View er Main screen. select the drive on Connected to a memory card.

3. If you select the Preferences tab, constant mode impulse, the impulse parking mode, blocking voltage, and parking mode, you can set the usage of the SD..

4. Driving impulse setup : Set up a degree of impact by which an event recording is activated. Select either ‘Fast setup’ or ‘Manual setup ’. Fast setup is sensitive, normal, in sensitive of the three stages can be selected.

Manual setup is Front and rear, left and right, up and down of the step is larger value is more insensible. The smaller value is more sensitive. (select : 1 step~10 step)

5. Set t he amount of par k i ng mo de shock. : Front and rear, left and right, up and down of the step is larger value is more insensible. The smaller value is more sensitive. (select : 1 step~10 step)

6. Blocking voltage setup : Blocking voltage setup is reference voltage setup and separated by a timer set. The reference voltage setup is [11.5V], [11.7V], [11.9V], [12.1V] to available as a choice to step 4. timer is 6 hours, 12 hours, 24 hours, 48 hours can be select ed in four steps. Total select one of eight steps are.

7. Parking mode set to SD card usage : You can set how much memor y of the SD Card is allocated for recording in the parking mode. Select between 25% and 50%.

8. When you click the Save button after you select this, the environment setting is finished.

[ Configuration ]

18. Black-box configuration (2)

1. Time Settings tab, the black-box time settings and standard time settings are available.

2. Black Box Time Setup : If the GPS (option) Module is not in use, you can set time to the Black Box. Upon time setup, insert the SD Card onto the Black Box, and connect Power immediately to minimize the time gap between the set time and the current time.

3. Standard Time Setup : The GMT can be set by country. The PC system time is loaded and recognized as the standard time.

7. When you click the Save button after you select this, the e nvironm ent set ti ng is finished.

[ Time setting]

Tip) Set time on your PC (on Date

and Time Registration Information) to the time when you will have inserted the SD Card onto the Black Box. This will avoid time difference between the Black Box and the current time.

18. Black-box configuration (3)

[Voice/image set ting]

1. By selecting audio/video setting tab, you can set the use of voice recording, buzzer sounds and video image magnification function.

2. Voice recording : This black box is designed to record image and voice at the same time. Only video image will be recorded if the voice recording is set as disabled (mute mode).

3. Buzzer Sound Setting : Buzzer sound original ly to be activat ed by the occurrence of impact during a constant recording period However, buzzer sounds to be heard after booting started and indicating error in case of the malfunction of black box will be still heard even in above setting.

4. Magnification of Video Image : Helps use a zoom function for the video image being stored in the black box. Selectable among 50%, 100% or not in use.

(Note : The quality of video image may be degraded in case this magnification function is on)

5. Reverse of image of Rear View : Functions to reverse the image of rear view and selectable the use of this function. The recorded images & AV out images can be shown with reversing left and right .

6. Video quality: It is possible to select high or low quality video in the regular recording mode and parking mode. The higher quality, the bigger file size and the shorter storage time.

(Caution: Format and configure the memory card if you want to change the video quality)

7. After completing selections of modes, press save button to save the selected settings.

18. Black-box configuration (4)

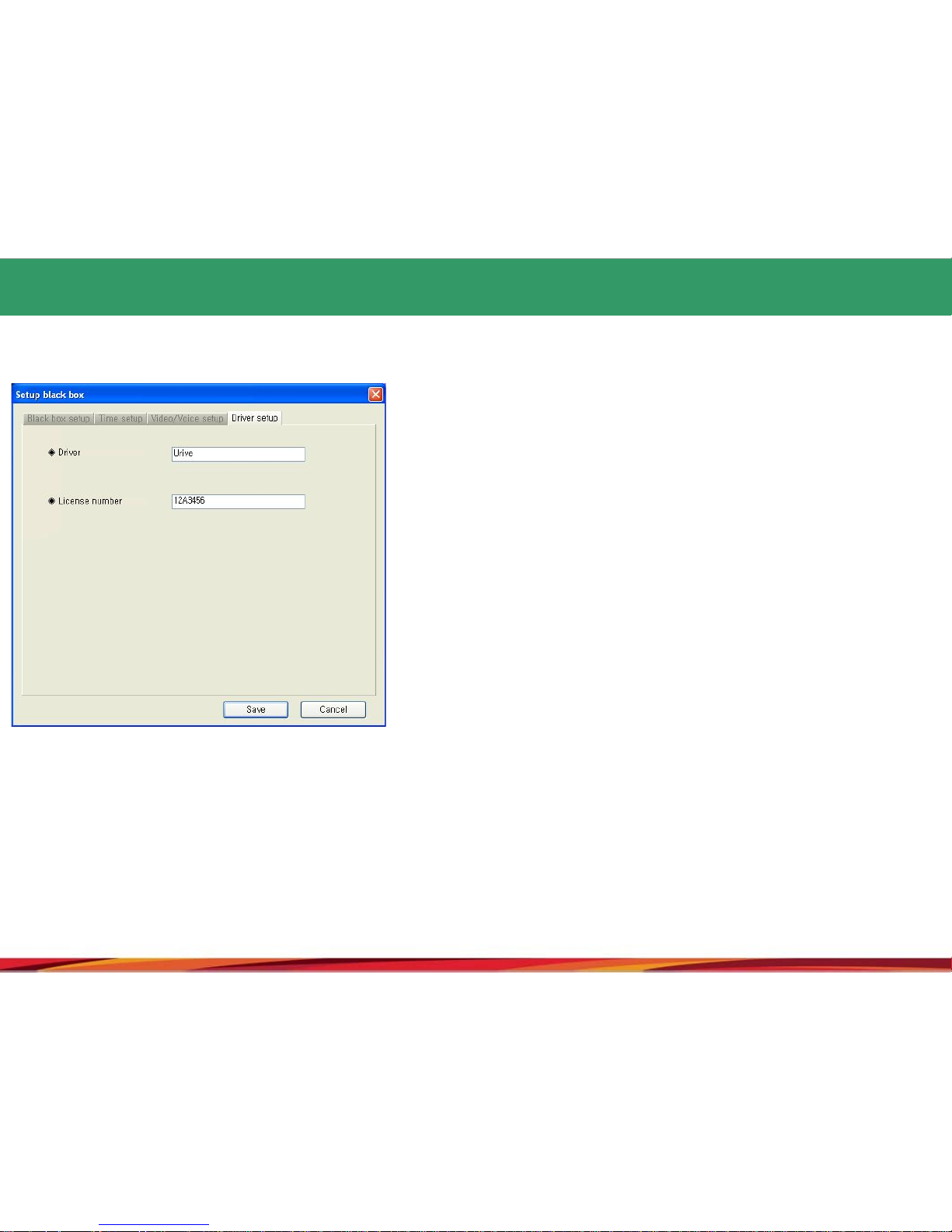

[User setting]

1. By selecting driver setting tab, you can set driver informat ion and license number of the vehicle. This is a useful functio n when a separate memory card is used for each driver.

2. After completing selections of modes, press save button to save the selected settings.

19. File open and play

◆ Replaying stored video images : By opening a black box file in a specific folder, replay starts as it enters to the file list automatically. If you want to replay a specific file, press replay button after selecting the file you wish to reply in a file list.

1. Take Micro SD card out of the black box and connect it compute .

2. Select button in a viewer main screen.

3. After selecting drive where the Micro SD card is loaded, select one out of the folders below and then select a file and “open” button as s hown in t he pi cture on the left. If you want to select multiple files, select the files by mouse while Ctrl or Shift key is pressed.

3.1 Blackbox Folder : Folder containing constant storage files while driving

3.2 Event Folder : Folder to store the event when an impact i s applied during driving

3.3 Parking Folder : Folder to store the event detected by sensing a motion while the vehicle is parked.

3.4 Parking Event Folder : Folder to store the event detected by sensing an impact while the vehicle is parked.

4. Select a specific file in the list of main screen and select button or double click the listed item.

Note) Only video image of front view can be replayed in general video players

from the video images stored in 2 channels (Front + rear). In order to replay the video image of rear view, a dedicated viewer should be installed before replaying it.

However, both video image of front and rear view can be replayed at the same time in VLC media player. (Refer to website http://www.videolan.org for more details)

20. Playlist creation and SD format(1)

◆ Video images stored in M i c ro SD card of a black box device can be replayed all together or by v id eo image type and functions to format Micro SD card and inspect and restore SD card are provided.

1. Take Micro SD card out of the black box and connect it computer.

2. If you select button in main screen of viewer, video images are appeared in play list tab by searching all black b o x data contained in Micro SD card as shown in the picture on t he left.

3. Play list : Enables to select the location and type of video images.

4. Location of video image : Uses when try to change the location in Micro SD card where video images are stored.

5. Type of video image : E n ables to select the type of video images to be replayed and to replay the captured JPG files as well.

6. Select all, Release all, Revers e s e l ection : Functions to select, release and reverse the selection and release of files in the list.

7. Confirm : Move the selected data in the list to a file list window of main screen and replay them.

8. Cancel : Closes the window for creation of replay list and SD format.

20. Playlist creation and SD format(2)

1. Take Micro SD card out of the black box and connect it computer.

2. If you select button in main screen of viewer, SD format tab where Micro SD card can be formatted will appear as shown in the picture of (1).

3. Format Drive : Confirms the location of a drive Mi cro SD card is loaded.

4. Information window asking for confirmation or cancellation of format will be poped up when format start button is pressed.

5. If you press confirm button, SD format windo w wil l be seen. Informat i o n on the volume of Micro SD card, type of file sys tem, current allocation unit and allocation unit after format will also be seen and the name of SD card will be automatically assigned as “ALBATROSS”. Format will be started upon pressing start button. “quick format” is also supported. It may take a long time for SD card to be formatted depending on the specification of PC in “ normal format”.

CAUTION) Allocation after format: When a normal format is done o n y o ur PC, select 32KB for the SD card of 8GB and 64KB for the

SD card of 16GB, 32GB as the “allocation unit size”.

6. Window indicating the completion will be seen when format is completed. Press confirm button and close button to end the procedures for formatting Micro SD card.

1 2

20. Playlist creation and SD format (3)

◆ SD inspection and restoration : functions to fix errors or restore bad sectors in SD memory. Proceed this procedures after closing all other application programs accessing (using) the memory in SD card.

1. Take Micro SD card out of the blackbox and connect it comp ute r.

2. If you select button in main screen of viewer, SD inspection and restoration tab where Micro SD card can be inspected and r es tor ed will appear as shown in the pictur e of (1).

3. Basic error detection in the memory card is possible and fixing of the errors, detection and restoration of the bad sectors are also possible through the inspection of Micro SD card..

4. (The pictures of (2), (3) and (4) is showing the results of memory card inspection, fixing the errors and error detection respectively.

5. In case that the error as shown in the picture of (4), format informat ion pop up in PC. Please format memory card and us it.

[SD Checking and repairing

screen]

[Normal SD test results]

[ Error SD modify result ]

[ SD checking – Error

detection screen ]

21. Tracking the driving record (1)

◆ Trip record is not stored in a parking mode but stored every 10 seconds only during driving. Maximum one month driving record can be stored per Dat file and the trip records are automatically listed in the driving record sorted by date in a line. GPS module which is an option item should be installed to support this feature.

1. Take Micro SD card out of the blackbox and connect it computer.

2. If you press button in main screen of viewer, window showing the trip record (picture on the left) will appear.

3. Press button in the picture on the left, the list of driving record sorted by date will appear in a line if you select files with extension of dat. in the setup folder of Micro SD card..

4. If you click the item in the list you want to review, the relevant driving route is s hown in the map on the right.

(Note : Stoppage time is not included in trip ti me and parking time is not included in stoppage time in the map on the left.)

Reference) 5 dat. Files are max. saved only

21. Tracking the driving record (2)

Button Description

To Open Setup folder Of Micro SD having Driving history files(extension .dat)

At the map screen to save the file as a bitmap.

To print the map screen.

To Show recording date and time During playback

Move the selected item from the list of paths on the map in order to play.

To marking on the route path during playback.

Route play as 1/2, 1, 2, 4 speed

To exit the tracking system.

◆ This table is explanation for icons in the “shuttle history trace” window.

1. Full screen mode : button on top of Viewer, will to change to the full screen mode.

2. Return to the screen : To return to the previous screen in full screen, button clicked will return to the main screen window.

3. Full screen : Images are played as a full screen fitting to user’s monitor resolution.

22. Full-screen view

Front/Rear Full Screen switch

4. Normal screen mode : Images are played with designated resolution (Front: 1280x 720, Rear: 640x480)

5. Clicked button In full screen do not switch to the main screen and the Viewer program will end.

◆ Click the switching button at the top of the viewer to view the full screen of front/rear images.

23. View recorded files information

[ 3-axis x, y, z G-force Acceleration graph ]

[ Speed Graph ]

[ Latitude / Longitude / Playback Time ]

◈ As shown in the left picture, 3-axis acceleration

information is available during playback.

◈ As shown in the left picture, the driving speed graph or

the speedometer can be viewed. This is only available when the GPS Module (option) is fitted.

◈ As s hown in the left picture, latitude and longitude,

playback time can be viewed. Latitude and longitude are only available when the GPS Module (option) is fitted.

24. Recorded data

- EXAMPLE of file creation: mdr_20120521_073345_E2.avi : The event is generated at the beginning of two-channel video files on May 21, 2012, AM07:33:45sec

3. Parking Folder : Motion detection in the parking mode triggers a file saving. Impact Detection previous 10 seconds to 10 seconds total 20 seconds after the image is saved.

- EXAMPLE of file creation: “mdr_20120520_231545_A2.avi”: two-channel motion detection video file at the beginning of saving on May 20, 2012, PM 23:15:45sec.

4. Parking Folder : Shock detection in the parking mode triggers a file saving. Impact Detection prev ious 10 seconds to 10 seconds total 20 seconds after the image is saved.

- EXAMPLE of file creation: “mdr_20120520_231545_A2.avi” : two-channel shock detection video file at t he beginning o f saving on May 20, 2012, PM 23:15:45sec.

5. Setup Folder : A user setup folder.

6. UriveAlbatross.exe : the installation file for the exclusive PC Viewer (downloadable from the Urive website)

1. Blackbox Folder : Always save the folder. Regular mode o f o ne minute to save images in succession.

- EXAMPLE of file creation: mdr_20120521_073025_I2.avi : It made of two channels of video files on May 21, 2012, AM07:30:25sec

2. Event Folder : Always Save to save during the shock, forced to save the event, and when the event file after the previous 10 seconds to 10 seconds total 20 seconds to save the images.

25. Number of Saved Files & Storage capacity

CAUTION ) 1. The playback of a video file created in the Parking mode may be intermittently stopped or interrupted in displaying

the images of the moment motions were detected.

2. Files (up to 500MB capacity) created and saved at the detecti o n of impact i n t he P ar king mode are separately managed as Parking_Event files.

3. The micro SD memory card dedicated to Albatross is recommended. Note that Poor quality of files caused by use of an unauthorized micro memory card is not covered by the warranty.

4. In the Parking mode, recording i s triggered only when a motion or an impact is detected. Thus, the number of recorded files and recording time vary depending on t he p arking environment. The maximum number of files that can be saved is determined by the parking mode’s SD usage (0%, 25% o r 50% ) fo r the parking mode as selected on the PC Viewer.

◆ Recording files can be stored as following its amount of quota for regular files, event files, parking files and parking event files. There might be some differences depending on the memory card characteristics.

Class

8GB 16GB 32GB

parking 25% parking 50% parking 25% parking 50% parking 25% parking 50%

Regular 75% 50% 75% 50% 75% 50%

(Event) (500MB) (500MB) (1000MB) (1000MB) (1500MB) (1500MB)

Parking 25% 50% 25% 50% 25% 50%

(parking event) (500MB) (500MB) (500MB) (500MB) (500MB) (500MB)

Note) 1. When the SD capacity is approximately 5% remaining of the full capacity, the new files are stored as delete the oldest

files automatically.

2. Size for each files

- Picture quality “high” : Regular recording file(1min., approximately 62MB), event file (20sec., approximately 21MB), parking (event)file (20sec., approximately 14MB)

- Picture quality “low” : Regular recording file (1min., approximately 40MB), event file(20sec., approximately 14MB), parking (event)file (20sec., approximately 9MB)

26. Product Specification

 Model name : UriveGreen HD  Dimension : 102 x 57 x 29 mm (Body) / 42 x 33 x 28 mm (Rear Camera)

 Capacity : 8GB Micro SDHC Card Class 10 for Urive

(supporting SD card up to 32GB / MLC Type SDHC Card Class 6 recommended)

 Recording Method : Constant, Event, Parking recording, image saving  Front camera : 3.0 mega pixel CMOS, 120

 Rear camera : 1.3 mega pixel CMOS, 120o/ Cable length : 1M (Extension cable : 6M)  Recording frame : Max 30 fps @ 1ch / Max 15 fps @ 2ch (Fr ont & Rear each)

 Recording resolution : 1280x720 (Front), 640 x 480(Rear) @ 1ch, 2ch (H.264)  Audio : internal microphone

 Video out : Navigation / Stereo jack (3 Pole)  Acceleration sensor : 3-axis acceleration sensor

 GPS : SIRF-III (option)  Operation Voltage : DC 12V / 24V

 Power consumption : Max. 4W @ 2ch  Operation temperatu re : -20℃ ~ 70℃  Storage temperatur e : -40℃ ~ 85℃  Viewer compatible OS : Windows XP and abov e

※ Product appearance and specification may change without prior notice for further improvement.

27. Warranty

 This warranty is only available based on the data filled in the warranty card.  Enter the ‘date of purchase’ as warranty starts on date of purchase.  Please refer to the “Consumer Damage Compensation Regulations” for detail.  Defective parts will be replaced with new parts or with similar parts having the similar functions.  The manufacturer shall not be responsible for repair, replacement or refund unless the defective Product is returned.  This warranty card shall not be re-issued. Keep it in the safe place.

(The product serial number will not be re-issued.)

 The manufacturer will not provide A/S services for any unauthentic product. (Watch out for similar products)

Urive Prod u ct s are covered under w a r ranty for a period of one year.

Components and consumable parts other than the main body are covered by a separate warranty.

[ Customer Center ]

Telephone : +82-70-7425-0610, Web site : http://www.urive.co.kr

Warranty Card

Product Name URIVE GREEN HD (MD-6900P)

Serial No

Warranty Period For ONE year from the date of purchase / / /

Customer

Name : Telephone : Address :

Retailer

Name : Telephone : Address :

28. Terms of Consumer damage compensation

Functional defect or poor performance in normal use

Type of Consumer Damage

A/S within warranty

A/S outside warranty

Product requiring essential repair within 10 days of purchase Replacement

Not applicable

Major part requiring repair within 1 month of purchase Replacement

Product requiring essential repair within 1 month of replacement Replacement

Replacement becoming impracticable

Refund of full

purchase price

If reparable

On occurrence of defect Free repair

Paid repair

Paid replacement

On recurrence of the sam e defec t (on the third occurr en ce)

Replacement

On recurrence of various defects (on the fifth occurrence)

If irreparable

Product returned t o sho p for r epair is lost

Paid replacement

Parts for repair are unavailable within a fixed part retention period

Parts for repair are available but repair is impracticable Paid replacement

1) Defects caused by consumer’s fault

- User’s mishandling of Product (product failure and damage by drop, impact, breakage, forced operation or

misuse)

- Product failure and damage by user’s willful act or negligence

- Product failure and damage by unauthorized repair or alteration

- Product failure and damage by use of unauthentic parts, consumables or optional items

2) Miscellaneous

- Product damage by natural disaster (fire, flood, earthquake and so on)

- Expired consumables

- Product damage by external causes

Paid repair Paid repair

* Components and consumable parts other than the main body are covered by a separate warranty

29. Before requesting for A/S

 Essential data saved in the memory must be backed up (in separate devices) periodi call y

by the user. There may be an occasion where data in the storage (memory card) must be deleted for repair. Users are reminded to back up such data in a separate storage before receiving A/S services.

 Products returned to the Customer Center for repair ar e deemed that data therein had

been backed up by the user, and therefor e the C enter d oes not pro vid e additional data backup services. The manufacturer is not liable f or such data loss.

 When returning the defective pr o duct, please ensure that it is adequately packaged to

prevent damage in transit. Sender’s detail (name, telephone number, address and brief description of defect) inside the package will expedite A/S services.

* Urive website [Support] - [Service Center] Please refer to the contents.

30. Pre-fault diagnosis

Symptoms How to respond

Black-box time is not accurate.

If you do not have GPS, select Syste m Settings from the menu mode, the time setting time setting is available through the menu.

I do not turn on

Power ON / OFF switch to check.

Please confirm that the power cable is connected correctly.

(Black : GND/ RED : B+/ Yellow : ACC Power)

Screen saver (clock display) do not work.

Select the Screen setting in the menu mode, the screen saver settings Enable / Disable can see.

Can not receives GPS

Black boxes and GPS Please check the status of the terminal bond.

I do not hear the buzzer sound

In menu mode, audio / video setting is selected, you can determine whether t o use buzzer.

I do not hav e a voice recording

In menu mode, audio / video setting is selected, you can determine whether t o use buzzer.

Mi Dong Electronics Urive Green HD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
