Midmark Elevance User Manual

© 2016 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

TP200 20-42-FO-00012 Rev A1 C2169

English
Español
Français

003-2302-99 Rev FA4 (12/17/18)

Style Q

User GuideUser Guide

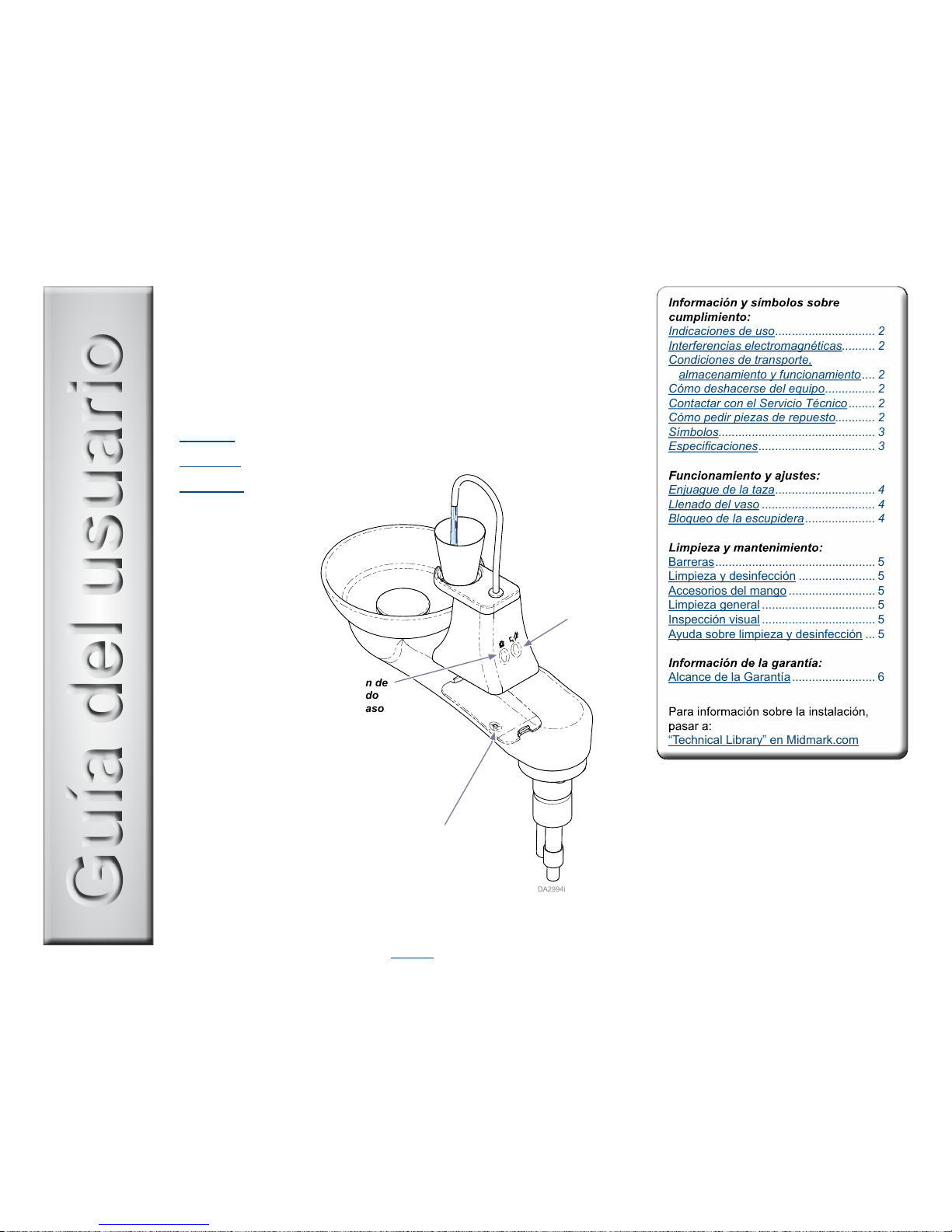

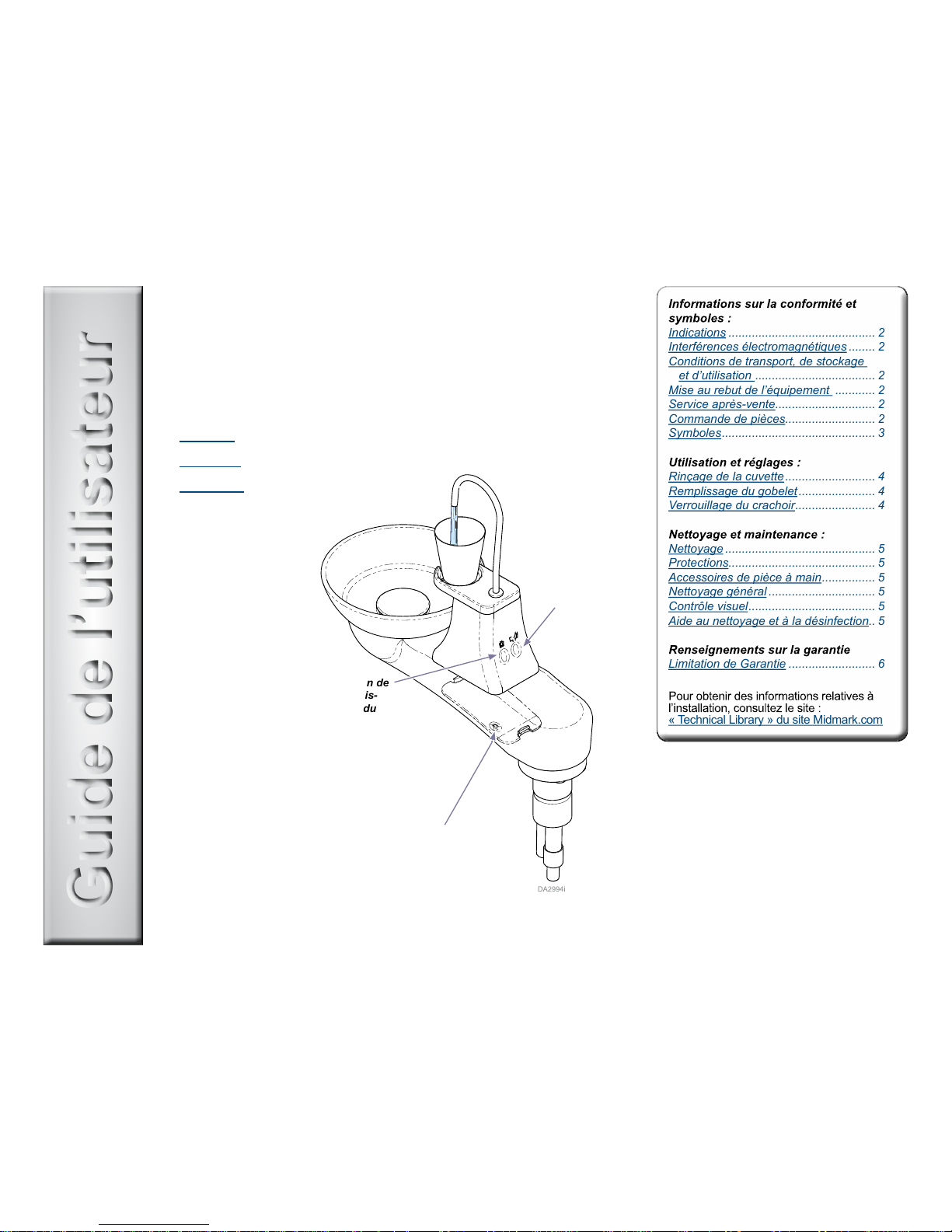

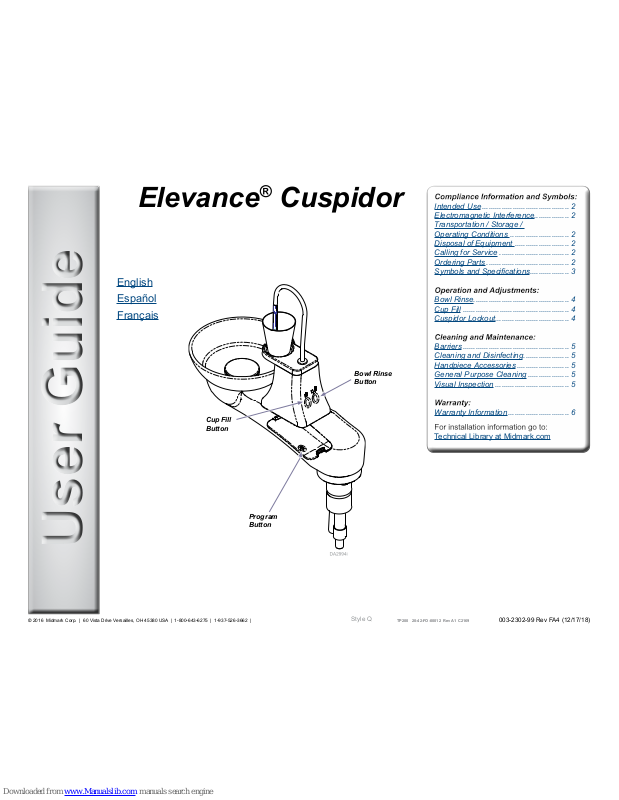

Elevance® Cuspidor

Cup Fill
Button

Bowl Rinse
Button

Program
Button

Intended Use ........................................ 2

Electromagnetic Interference................ 2

Transportation / Storage /

Operating Conditions ........................... 2

Disposal of Equipment ......................... 2

Calling for Service ................................ 2

Ordering Parts ...................................... 2

Symbols and Specications.................. 3

Bowl Rinse............................................ 4

Cup Fill ................................................. 4

Cuspidor Lockout.................................. 4

Barriers ................................................. 5

Cleaning and Disinfecting ..................... 5

Handpiece Accessories ........................ 5

General Purpose Cleaning ................... 5

Visual Inspection .................................. 5

Warranty Information ............................ 6

Technical Library at Midmark.com

Intended Use ........................................ 2

Electromagnetic Interference................ 2

Transportation / Storage /

Operating Conditions ........................... 2

Disposal of Equipment ......................... 2

Calling for Service ................................ 2

Ordering Parts ...................................... 2

Symbols and Specications.................. 3

Bowl Rinse............................................ 4

Cup Fill ................................................. 4

Cuspidor Lockout.................................. 4

Barriers ................................................. 5

Cleaning and Disinfecting ..................... 5

Handpiece Accessories ........................ 5

General Purpose Cleaning ................... 5

Visual Inspection .................................. 5

Warranty Information ............................ 6

Technical Library at Midmark.com

© Midmark Corporation 2016

003-2302-99

TP200 20-42-FO-00012 Rev A1 C2169

English - 2

Disposal of Equipment

At the end of this product’s life, the unit, accessories and other consumable
goods may be contaminated from normal use. Consult local codes and ordinanc­es for proper disposal of this equipment and other consumable goods.

Transportation / Storage / Operating Conditions

Transportation / Storage Temperature: ...........23°F to 100°F (-5°C to 38°C)

Relative Humidity:........................................ 10% to 90% (non-condensing)

Atmospheric Pressure: ................. 7.2 PSI to 15.3 PSI (50 kPa to 106 kPa)

Operating Temperature Range: ...................... 59°F to 95°F (15°C to 35°C)

Electromagnetic Interference

Midmark dental operatory components are designed and built to minimize elec­tromagnetic interference with other devices. However, if interference is noticed
between another device and this operatory, remove the interfering device from
room and / or plug product into an isolated circuit.

Compliance Information and Symbols

Ordering Parts

The following information is required when ordering parts:

Serial number & model number
Part number for desired part
(Refer to Exploded Views & Parts at midmark.com)

Non-warranty parts orders may be faxed to Midmark using the Fax Order
Form in the back of this manual.

For warranty parts orders, call Midmark’s Technical Service Department
with the required information.

Hours: 8:00 am to 5:00 p.m. EST (Monday thru Friday)
Phone: 1-800-Midmark

Calling For Service

Direct all service inquiries to your authorized Midmark dealer. When call­ing for service, you must provide the following information:

Model / serial number
Date of purchase
Symptom(s) of malfunction

Intended Use

Midmark instrument delivery systems are intended to provide dental profes­sionals with air, water, and suction along with low-voltage electricity to operate
dental handpieces, syringes, and accessoreis during dental examinations and
treatments.

Caution

Federal law restricts this device to sale by or on
the order of a licensed dental practitioner.

WARNING

Do not modify this equipment without authorization
of the manufacturer.

© Midmark Corporation 2016

003-2302-99

TP200 20-42-FO-00012 Rev A1 C2169

English - 3

Specications

Electrical Rating for Elevance
Chair:

See power supply output (153941 ...)

Complies to the applicable
requirements of:

ES/IEC/EN 60601-1, CAN/CSA C22.2 No. 60601-1
(Safety Standards), EN/IEC 60601-1-2

(EMC Standards)
Air Supply Requirements: Maximum 80-100 PSI (5.52 - 6.9 bar)
Water Supply Requirements: Maximum 30 - 50 PSI (2.1 -3.4 bar)

Classications:

Class I, Type B Applied Part, Ordinary Equipment

(IPX0), Continuous Operation

Certications: Midmark Corporation..........ISO-9001

Equipment Alert

Indicates a potentially hazardous situation which
could result in equipment damage if not avoided.

Caution

Indicates a potentially hazardous situation which may
result in minor or moderate injury if not avoided. It may
also be used to alert against unsafe practices

NOTE

Amplifies a procedure, practice, or condition.

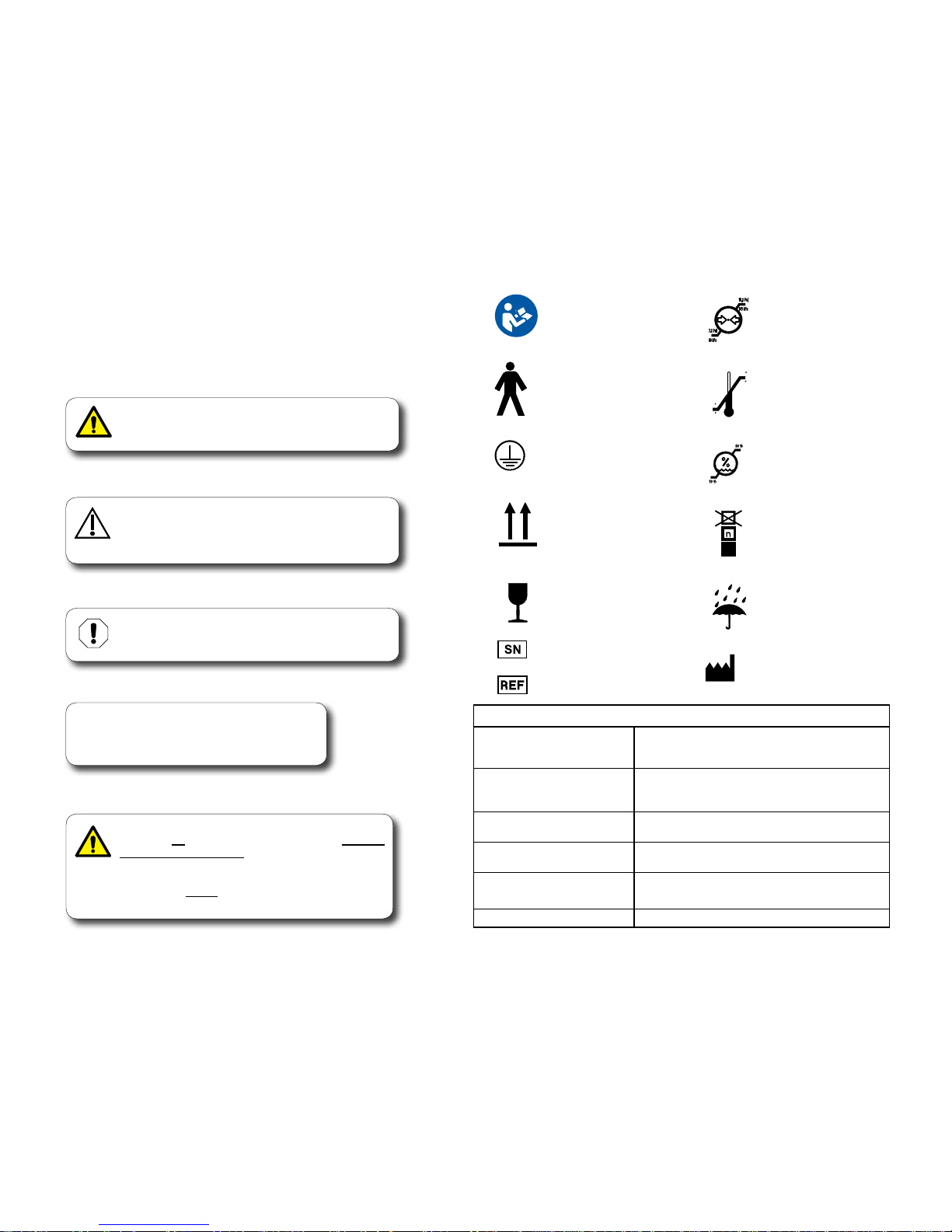

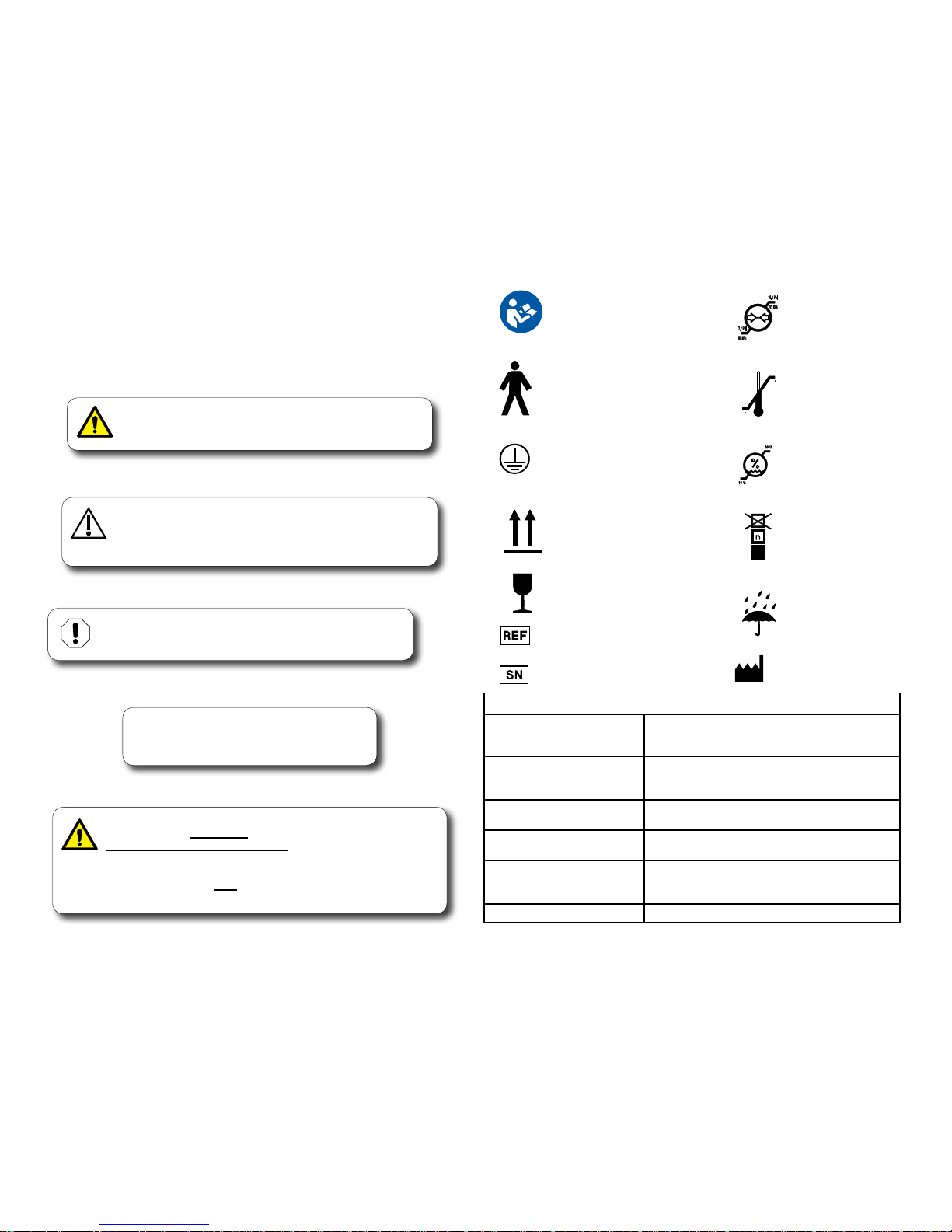

Symbols and Specications

These symbols may appear on your equipment and/or in the manuals.
Warnings and cautions are provided in the manuals where applicable.

WARNING

Indicates a potentially hazardous situation which
could result in serious injury if not avoided.

Temperature
Limit

Pressure
Limit

Humidity
Limit

Refer to instruction
manual/booklet

Keep Dry

Maximum stacking
height (Refer to “n”
number on package.)

Fragile

Proper Shipping
Orientation

Protective
Earth Ground

Type B,
Applied Part

100 F

38 C

23 F

-5 C

WARNING

Equipment is not suitable for use in the presence
of a flammable anesthetic mixture with oxygen, air,
or nitrous oxide.

Clarification: Equipment is suitable for use in the presence
of oxygen, air, or nitrous oxide.

Manufacturer

Catalogue Number

Serial Number

© Midmark Corporation 2016

003-2302-99

TP200 20-42-FO-00012 Rev A1 C2169

English - 4

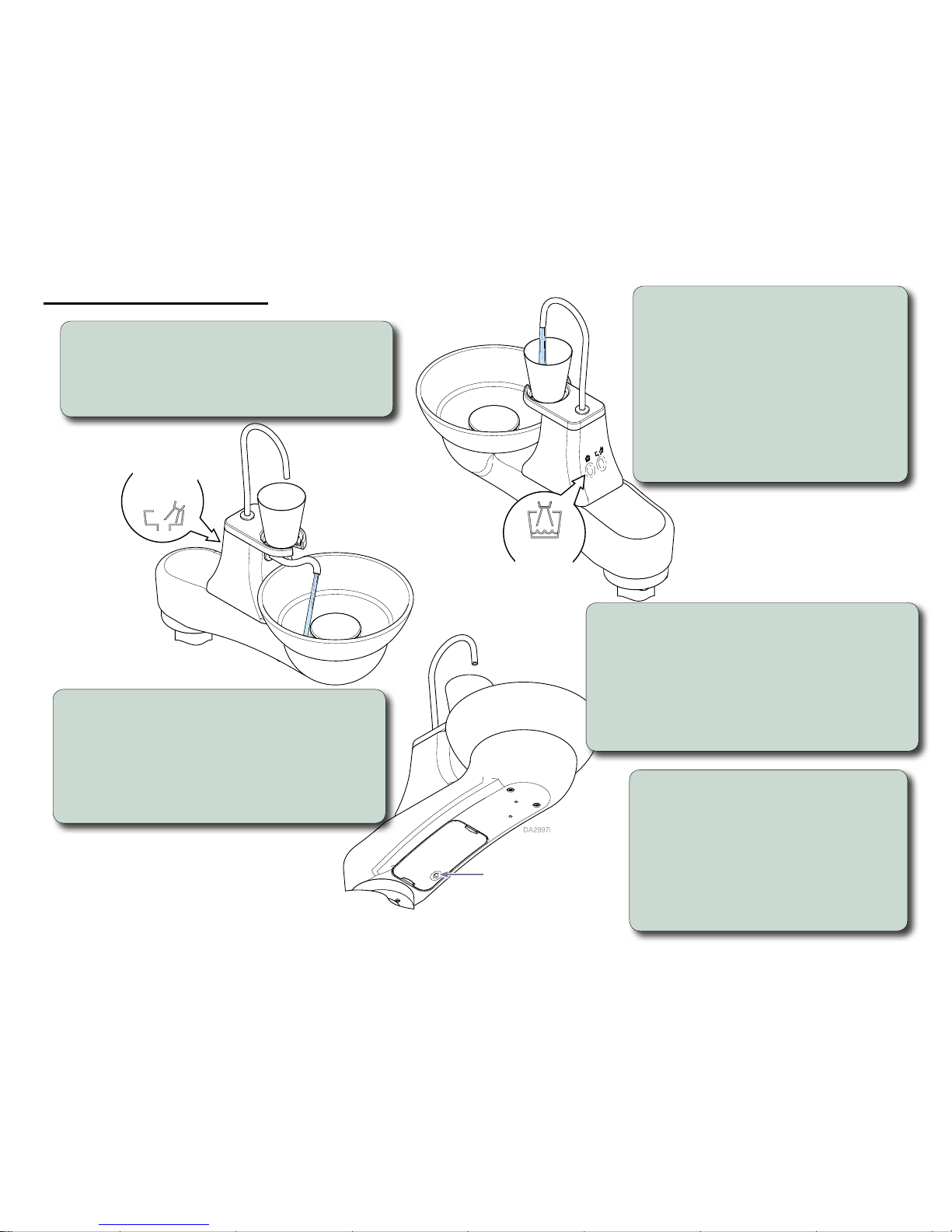

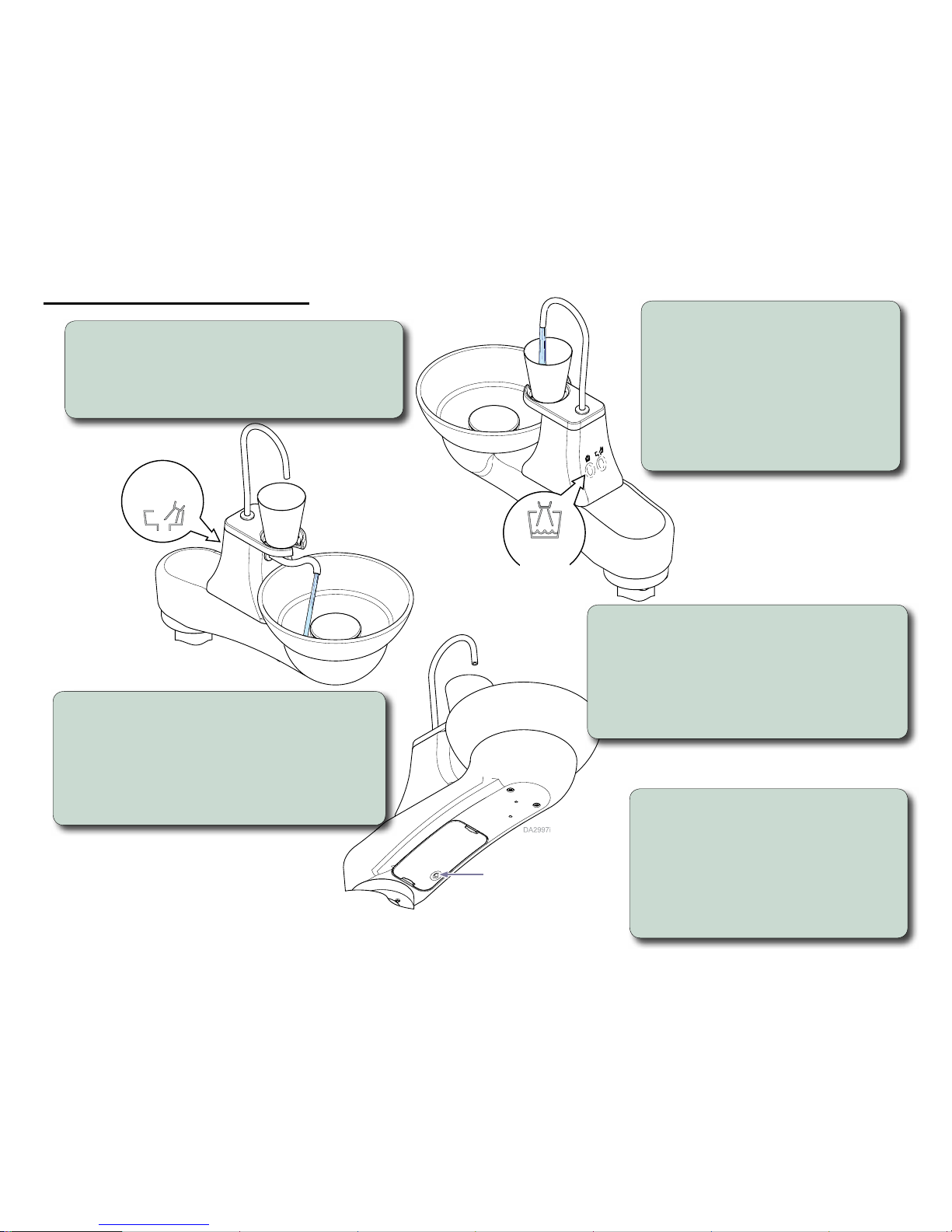

Operation and Adjustments

Cup Fill

Button

Bowl Rinse

Button

Program
Button

Program a new time for the cup fill function...

A) Press and release program button.
Wait to hear a beep to confirm it is in program mode.
B) Press and hold cup fill button for the desired amount
of cup fill time.
C) Listen for two beeps to confirm the program.

Cup fill...

Press cup fill button to activate the cup fill
function. Press and hold button after a cup
fill to “top off” cup.

Note: The default cup fill function allows water to run
for 5 seconds then stops.
Note: The “top off” function remains active for only 60
seconds after the cup fill function.

Program a new time for the bowl rinse function...

A) Press and release program button.
Wait to hear a beep to confirm it is in program mode.
B) Press and hold the bowl rinse button for the desired
amount of bowl rinse time.
C) Listen for two beeps to confirm the program.

Cuspidor Lockout...

Tap program button three times to activate
cuspidor lockout. Listen for a beep to confirm
that the lockout is active.

Tap program button three times to inactivate
cuspidor lockout. Listen for two beeps to
confirm the lockout is inactive.

Bowl rinse...

Press bowl rinse button to activate the bowl rinse function.

Note: The default bowl rinse function allows water to run for 15 seconds
then stops.

© Midmark Corporation 2016

003-2302-99

TP200 20-42-FO-00012 Rev A1 C2169

English - 5

Barriers

Midmark recommends the use of disposable barriers on all clinician controls

that may be in contact with clinician hands and ngers during dental proce­dures. The use of barriers signicantly reduces the need for chemical clean-

ers, thus prolonging the life of the equipment.

Only use barrier material that is intended for use with dental equipment.
Midmark recommends the use of an FDA market-cleared barrier such as Pin­nacle Cover-all™. Follow barrier manufacturer instructions for proper use of
these products.

Cleaning and Disinfecting

In addition to the use of barriers Midmark recommends the use of an EPA reg­istered and FDA market-cleared cleaner/disinfectant such as Cavicide™ to be
used on all clinician controls or surfaces that may come in contact with dental
instruments during dental procedures.

Follow cleaner/disinfectant manufacturer
instructions for proper use of the product.
Care should be taken to avoid excessive
application and pooling of liquids.

Handpiece Accessories

Only use dental handpiece accessories with the delivery system that are FDA
market-cleared and refer to manufacturer’s instructions for proper cleaning
and disinfecting. Either an autoclavable syringe tip or a single use disposable
syringe tip may be used.

Cleaning, Disinfecting and Maintenance

Equipment Alert

AUTOCLAVABLE SYRINGE TIP STERILIZATION
The autoclavable syringe tips supplied with the delivery system
must be sterilized prior to use with each patient, including initial use. Be sure to
thoroughly rinse and clean syringe tips prior to sterilization, any debris may reduce
the effectiveness of the sterilization. Recommended sterilization process is steam
autoclave. Recommended parameters are 125°C (250°F) and 106 kPa (15 PSI) for 40
minutes at temperature and pressure.

General Purpose Cleaning

For general purpose cleaning, use cleaners that are appropriate for the
situation, such as warm water and mild detergents, or a 10% solution of
bleach with water.

Visual Inspection

After cleaning, visually inspect the product for deterioration of covers and
touch pads. Do not use the delivery system if excessive discoloration,
cracking, or other signs of wear are noticeable (see Calling for Service
instructions).

Cleaning and Disinfecting Assistance

For assistance with cleaning and disinfecting instructions contact the
Midmark Technical Service Department at 1-800-Midmark, it is helpful to
provide the delivery system model number and serial number when asking
for assistance.

Additional information is available from the organizations listed below:

• Organization for Safety & Asepsis Procedures:

http://www.osap.org

• American Dental Association:

http://www.ada.org

• Dept. of Health & Human Resources
Centers for Disease Control & Prevention (CDC):

http://www.cdc.gov

• European Dental Association:

http://www.eda-eu.org

Read all labels

carefully!

© Midmark Corporation 2016

003-2302-99

TP200 20-42-FO-00012 Rev A1 C2169

English - 6

Warranty Information

Midmark Limited Warranty - Dental Products

SCOPE OF WARRANTY

Midmark Corpor ation (“ Midmark”) warrants to the original retail purchaser that it will at Midmark's
option repair or replace componentsof the dental productsmanufactured byMidmark (except for
componentsnot warranted under "Exclu sions" ) that are defectivein materialor workmanship under
normal use andse rvice. Midmark'sobligation under this limited warr anty is limited to the repair or
replacement of the applicable components. This limited warranty shallonly apply to defectsthat are
reported to Midmark within the applicablewarranty period and which, uponexamination byMidmark,
prove tobe defective. This warranty extendsonly to the fir st retail purchaser of a product and isnot
transferable or assignable. Replacement components or products may beused and/or refurbished
componentsor products,pr ovided they are of like qualityand specificationsas new components or
products.

APPLICABLE WARRANTY PERIOD

The applicable warranty period, measured from thedate ofdelivery to the original user, shall be as
follo ws: EffectiveM ar ch 1, 2018 these applicable warranty periods are measured from thedate of
invoice to the original user, shall be asf ollows:

1. OPERATORY PRODUCTS

a. Five (5) years for all products(except for the items in (b) through (e)).

b. Two (2) years for upholstery (chairs andst ools) .

c. “KIN K-VALVE” module carriesa ten (10) year warranty.

d. The originalligh t bulb on a new light carries a one(1) year warranty.

e. Accessor ies not manufactured byMidmark are excluded includingbut not limited to Bien Air

handpiecesystems, Dentsply Cavitron scaler, Satelecsca ler and curinglight , and Sopro
cameras.

2. ORAL SURGERY PRODUCTS are warranted for aperiod ofone (1) year.

3. STERILIZER PRODUCTSar e warranted for aper iod of one (1) year.

4. ULTRASONIC CLEANER PRODUCTSare warranted for a period of two (2) years.

5. AIR AND VACUUM PRODUCTS

a. Power Air® oil-le ss compressors – Five (5) years or 3,500 hoursof use, whichever occurs first.

b. PowerVac® andPower Vac® G dry vacuums– Five (5) years or 10,000 hoursof use,

whichever occur s first (except thatthe vacuum pump warranty term is ten (10) years or 20,000
hours ofuse, whichever occurs first).

c. Cla ssic Series®wet-r ing vacuums– Five (5) years or 10,000 hoursof use, whichever occurs

first.

d. PowerMax surgical suctio n – Two (2) years.

e. Hg5 SeriesAmalgam Separator - One (1) year.

(f) Midmark manufactured accessor ies - One

(1) year.

6. SYNTH ESIS™ DENT AL CASEWORK AND ARTIZAN® EXPRESSIONS PRODUCT

a. Five (5) years for all productsand components includingdoor and drawer fronts, casters and

slides, except for the items in (b), (c) and (d).

b. Three (3) yearsfor electrical components such as ta sk lights/LED light s, cord s, controlsand

accessories.

c. Two (2) years for slidin g tra ck monitor mount and componentsand upholstery.( d) One (1)

year for countertops andr esin, including accessorie s.

7. IMAGING PRODUCTSar e warranted for aper iod of two (2) years except for the Clear Visio n CR
reader which is warranted for aper iod ofone (1) year.

8. MIDMARK Replacement Parts and Accessor ies carrya ninety (90) day warranty

EXCLU SIONS

Th is warranty does not cover and Midmark shallnot be liable for thefollowing;

1.

defects,damage or other conditions caused, in whole or in part, by misuse, abuse,
negligence, alteration, accident, freight damage,negligentstorage, tamperingor fa ilur e to
seekand obtain repair or replacement in a tim ely manner;

2.

products wh ich are not installed, used, andpr operly cleaned andmaintained asrequired or
recommended in the Midmark"Installation" and/or "Installation/Operation Manual" for the
applicable product, including the specifiedstructural and operationalenvironment conditions
and electricalpower requirements;

3.

products considered to be of a consumableor ste rile nature;

4.

accessories or parts notmanufactured byMidmark;

5.

charges by anyone for adjustments, repairs, replacement parts,in sta llatio n or other work
performed upon or in connection with such productsw hich are not exp re ssly authorized in
wr iting in advance by Midmark

6.

costs and expenses of routinemaintenance and cleaning;

7.

representations and warranties made byany person or entity other than Midmark;

8.

matchingof color, grainor texture exceptto comm er cially acceptable standards;

9.

changesin color caused bynatur al or ar tificia l light;

10.

custom manufactured products;

11.

alterationsor modifications tothe product byany person or entityother than Midmark;and

12.

Products that wouldother wise by covered under Sections1 and 2 of this limited warranty, but
are acquired: (i) from a person or entity thatis not Midmark or one of its authorizeddealers;
or (ii) from a Midmark dealer that is not authorized tose ll the product at issue in the
geographic territorywher e the purchaser islocated,or is not authorized to sell the productat
issue with in the medical, animal

health or dental market, asthe case may be, in which

purchaser intends to use the product.

EXCLU SIVE REM EDY; CONSEQUENTIAL DAMAGES DISCLAIMER

MIDMAR K'S ONLY OBLIGAT ION UNDER TH IS LIMITED WARRANTYIS THEREPAIR OR
REPLACEMENT OF DEFEC TIVE PARTS. MIDMARK SHALL N OT BE LIABLE FOR AND HER EBY
DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL,EXEMPLARY OR
CONSEQUEN TIAL DAMAGES OR DELAYS, INCLUDING,BU T NOT LIMITED TO, DAMAGES
FOR LOSS OF PROFITSOR INCOME,LOS S OF USE, DOWNTIME,COVER AND EMPLOYEE
OR INDEPENDENT CONTRACTORWAGES, PAYMENTS AND BENEFITS.

WARRANTY DISCLAIMER

THIS LIMITED WARRANTY IS MIDMARK'S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER
WARRAN TIES, EXPRESS OR IMPLIED.MIDMARK MAKES NOI MPLIED WARRAN TIES OF ANY
KIND INCLUDINGANY IMPLIED WARRAN TIES OF MERCH ANT ABILITY OR FITNESS FOR A
PARTICULAR PUR POSE. THIS WARRANTYIS LIMITED TOTHE REPAIR OR REPLACEMENT
OF DEFECTIVE PARTS.

STATUE OF LIMIT ATIONS

No action my bebrought against Midmark for breach of th is limited warranty, or implied warranty, if
any, or for anyother claim ar ising out of or relatingto theproducts, more than ninety (90) days
follo wing expiration ofthe limited warranty period.

© Midmark Corporation 2016

003-2302-99

TP200 20-42-FO-00012 Rev A1 C2169

English - 7

© Midmark Corporation 2011

Midmark Corporation

60 Vista Drive
Versailles, OH 45380 USA
1-800-643-6275
1-937-526-3662
