Midmark 8008-003, 8008-006, 8008-004 User Manual

English-1

VA1689-1i

003-2297-00 Rev. AA1 (4/12/17)

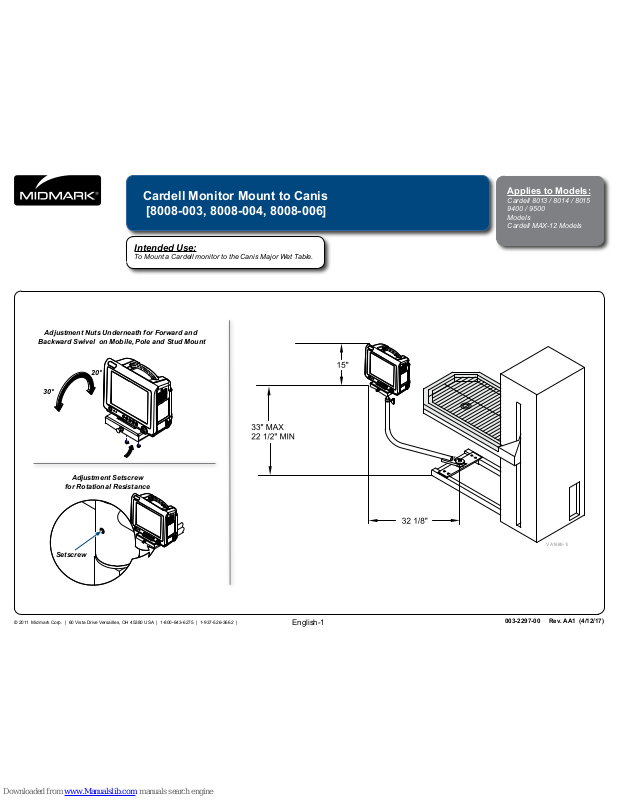

Cardell Monitor Mount to Canis
[8008-003, 8008-004, 8008-006]

Applies to Models:

Cardell 8013 / 8014 / 8015
9400 / 9500
Models
Cardell MAX-12 Models

Intended Use:

To Mount a Cardell monitor to the Canis Major Wet Table.

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

Adjustment Nuts Underneath for Forward and

Backward Swivel on Mobile, Pole and Stud Mount

30°

20°

Adjustment Setscrew

for Rotational Resistance

Setscrew

English-2

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

Step 1: Remove one Z bracket and

loosen the screws on the other side.

Z- Bracket

Step 2: Position swing arm on base of table.
Reinstall Z bracket.
Tighten screws.

Note: For 60” tabletop, position mount at end of base. For 45”
tabletop, position midway along base.

45” Tabletop

60” Tabletop

English-3

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

Step 3: Pull up retractable pin, move

arm to desired side and release.

Step 4: Adjust height of monitor plate.
Counter clockwise to loosen, clockwise to tighten.

Equipment Alert

Ensure that arm is kept in the left-hand or right-hand position (not underneath
tabletop). Anesthesia equipment must be clear of table top as it is raised or lowered.

Tighten

Loosen

Caution

When adjusting extension bar, pull up and down slowly
so mounting bar doesn’t come out of swing arm.

English-4

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

Step 5: Install mounting plate to monitor and set aside.

Note: Bolt directly into the bottom of monitor with Cardell Insight, Cardell Touch,
9500, and MAX-12 models. Washer and screws included in parts bag.

9400 Monitor Shown

Back Plate

MAX-12 Mount

9500 Mount

Back Plate Not Required for

9500, MAX-12, Cardell Insight

and Cardell Touch

Cardell Touch

Note

Prior to mounting plate, remove any screws already fastened to mounting holes.

M4 x .7 x 8mm

Screws

& 1/4” Plain Washer

M4 x .7 x 8mm

Screws

& 1/4” Plain Washer

#10-24 x 1/2”

Screws

M4 x .7 x 8mm

Screws

& 1/4” Plain Washer

M4 x .7 x 8mm

Screws

& 1/4” Plain Washer

Cardell Insight

English-5

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

Step 6: Set monitor into swivel/tilt head assembly.

Release Knob

Back Tab

Receiver Slot

To install...

A) Slide back tab into receiver slot.
B) Front plate snaps into receiver plate.

Front Plate

To Detach...

A) Pull knob to release.
B) Slide back tab out of receiver slot.

Caution

Incorrect installation
of monitor could result in
damaged equipment or injury.

English-6English-6

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

VA1811i

Serial Numbers / Dates:

all

Swing Arm Mount Assembly

Item Description Qty.

1 Knob, Stand 1

2 Swing Arm Assembly 1

3 Z -Bracket 2

4 Shoulder Screw 1

5 Cotter Pin, 7/64” x 1” 1

6 Foam AR

7 Mounting Bar 1

8 Screw, Flat Head, 1/4-20 x 1 1/4 4

9 Screw, Socket Head 4

10 Spacer, 2” Bearing, Outer 2

11 Disc Spring, 1.25 x .380 x .053 1

12 Nut NyLock Hex, 1/4-20 CD, ZN 1

13 Bushing, Anesthesia Mount 2

14 Spring, Plunger 1

20223800 3

10596600 4

10596701 5

10596900 9

62500342 8

041-0250-01 12

10596801 11

10595102 10

30194703 7

3

6

8

1 65936800

2 20221802

14 10595000

10

13

10596500 13

English-7

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

VA1671i

Serial Numbers / Dates:

V1068237 to V1366386

Upper Mount Assembly

Item Description Qty.

1 1/4-20 x 1 1/4 Hex Socket Flat Head 2

2 Receiver Plate 1

3 Plate Spacer 1

4

Tilt Block Assembly Kit: (includes item #5)

• Pivot Pin, Threaded, Tilt Block

• Pivot Pin, Tilt Block

1

5

• Tilt Block Screw Kit: (1/4-20 x 2 1/2)

• • Lock Adhesive (not shown)

1

6 Coupler, Swivel / Tilt 1

7 DU Bearing, .500 ID x .594 OD x .875 Long 1

8 Nylon 6/6 Washer, 1/2 (.530) ID x 1.25 OD x .09 1

9 Hex Nut, 5/8-18 1

10 Mounting Stud, 15” Long 1

11 Washer, Flat 1/4” 1

12 Screw, 1/4-20 x 5/8 Hex Socket 1

13 Nut NyLock Hex, 1/4-20 CD, ZN 1

14 1/4-20, Hex Socket, Flat Head 2

2 029-5390-01

3 050-8312-00

057-1226-00 10

040-0250-97 14

040-0250-79 12

65952700 11

6 052-0754-00-312

7 016-0076-07

1 040-0250-17

002-1798-00 5

041-0250-01 13

4 002-1797-00

8 045-0001-159

9 62400318

4

7.1

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

Upper Mount Assembly

Item Description Qty.

1 1/4-20 x 1 1/4 Hex Socket Flat Head 2

2 Receiver Plate 1

3 Plate Spacer 1

4

Tilt Block Assembly Kit: (includes item #5)

• Pivot Pin, Threaded, Tilt Block

• Pivot Pin, Tilt Block

1

5

• Tilt Block Screw Kit: (1/4-20 x 2 1/2)

• • Lock Adhesive (not shown)

1

6 Screw, 1/4-20 x 5/8 Hex Socket 1

7 Screw (.190-24 THD x 3/8”) 1

8 Lock Washer (.190 INT BO) 1

9 Mounting Stud 1

10 Washer (.500) 1

11 Nylon 6/6 Washer, 1/2 (.530) ID x 1.25 OD x .09 1

12 DU Bearing, .500 ID x .594 OD x .875 Long 1

13 Set Screw (0.164-32 X 0.312 HEX) 1

14 Coupler, Swivel / Tilt 1

15 Slotted Bearing 1

16 Washer, Flat 1/4” 1

17 Nut NyLock Hex, 1/4-20 CD, ZN 4

18 1/4-20, Hex Socket, Flat Head 2

2 029-5390-01

3 050-8312-00

016-0076-07 12

045-0001-159 11

045-0001-95 10

040-0250-97 18

040-0008-47 13

052-0808-00-312 14

016-1583-00 15

041-0250-01 17

1 040-0250-17

8 045-0001-35

65952700 16

5 002-1798-00

7 040-0010-47

6 040-0250-79

9 057-1357-00

Serial Numbers / Dates:

V1366387 to Present

4 002-1797-00

4

VA1671-1i

English-8

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

all

Serial Numbers / Dates:

all

040-0010-27 9

7 050-8264-00-312

041-0006-03 4

016-1435-00 5

040-0006-111 6

2 045-0001-161

3 042-0112-01

1 050-8263-00

8 050-8265-00

Serial Numbers / Dates:

042-0045-11 10

4

6

5

040-0008-78 11

2

4

6

5

3

2

12 050-11124-00

Mounting Plate Assemblies

Item Description Qty.

1 Monitor Plate (Max 12) 1

2

Washer, (1/4”), Refer to: Parts Bag 4

3

Screw (M4 x .7 x 16 mm) CD/ZN
Refer to: Parts Bag

4

4 Nut, Hex Nylock # 6-32 4

5 Rubber Foot, .75 Dia x 1 Lg 4

6 Screw (#6-32-32 x 1.0) 4

7 Adapter (back) Plate 1

8 Monitor Plate (9400 / 9500 / 8013) 1

9 Screw(10-24) 3

10 Nutsert (10-24) 3

11 Pan Head Phillips Screw, (#8-32 x 1/4”) 4

12 Monitor Plate - (9500/8013/8014/8015) 1

3

English-9

003-2297-00

© 2011 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |

VA1677i

1 9A475001

Note:

May also order Accessory Basket 9A475000 for 1 3/4” diameter pole equiment.

Basket

Item Description Qty.

1

Accessory Basket (1 1/2” Dia Pole)

Fits on all Models in this manual

1

2

Not Shown - 9A475000 (1 3/4” Dia Pole)

Does not t on model in this manual, may order

for other equipment with 1 3/4” dia pole.

1

Serial Numbers / Dates:

all
