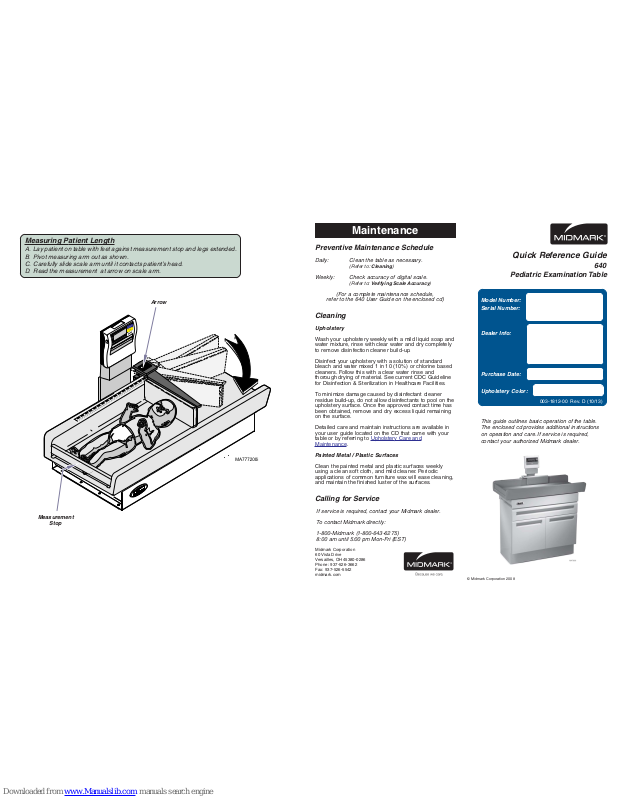

Midmark 640 Quick Reference Manual

This guide outlines basic operation of the table.
The enclosed cd provides additional instructions
on operation and care. If service is required,
contact your authorized Midmark dealer.

© Midmark Corporation 2008

Quick Reference Guide

640

Pediatric Examination Table

Model Number:
Serial Number:

Dealer Info:

Purchase Date:

Upholstery Color:

003-1812-00 Rev. D (10/13)

Maintenance

Preventive Maintenance Schedule

Daily: Clean the table as necessary.

(Refer to: Cleaning)

Weekly: Check accuracy of digital scale.

(Refer to: Verifying Scale Accuracy)

(For a complete maintenance schedule,

refer to the 640 User Guide on the enclosed cd)

Cleaning

Upholstery

Wash your upholstery weekly with a mild liquid soap and
water mixture, rinse with clear water and dry completely
to remove disinfection cleaner build-up.

Disinfect your upholstery with a solution of standard
bleach and water mixed 1 in 10 (10%) or chlorine based
cleaners. Follow this with a clear water rinse and
thorough drying of material. See current CDC Guideline
for Disinfection & Sterilization in Healthcare Facilities.

To minimize damage caused by disinfectant cleaner
residue build-up, do not allow disinfectants to pool on the
upholstery surface. Once the approved contact time has
been obtained, remove and dry excess liquid remaining
on the surface.

Detailed care and maintain instructions are available in
your user guide located on the CD that came with your
table or by referring to Upholstery Care and

Maintenance.

Painted Metal / Plastic Surfaces

Clean the painted metal and plastic surfaces weekly
using a clean soft cloth, and mild cleaner. Periodic
applications of common furniture wax will ease cleaning,
and maintain the finished luster of the surfaces.

Calling for Service

If service is required, contact your Midmark dealer.

To contact Midmark directly:

1-800-Midmark (1-800-643-6275)
8:00 am until 5:00 pm Mon-Fri (EST)

Midmark Corporation
60 Vista Drive
Versailles, OH 45380-0286
Phone: [phone]
Fax: [phone]
midmark.com

Arrow

Measurement

Stop

Measuring Patient Length

A. Lay patient on table with feet against measurement stop and legs extended.
B. Pivot measuring arm out as shown.
C. Carefully slide scale arm until it contacts patient’s head.
D. Read the measurement at arrow on scale arm.

MA777400i

MA777000i

CAUTION

The maximum patient weight rating for the table is 40 lbs (20 kg).
The maximum patient height (length) rating for the table is 36 in. (91 cm).

The patient on the table must be attended by the doctor / assistant or parent at all times.

(*) WARNING

When dispensing medication based on patient weight, the accuracy of the scale is critical.
Before using the digital scale, refer to

Verifying Scale Accuracy

. In addition, refer to the

Preventive Maintenance Schedule

for the recommended frequency of this check. If the scale is determined

to be out of calibration, contact your authorized Midmark service provider before using the scale.

Safety Instructions

MA777000i

MA777000i

Verifying Scale Accuracy

A. Press ON / ZERO button.
B. Wait until display shows “0.0” with arrow beside CENTER ZERO.
C. Place a 25 lb (11.3 kg) calibrated test weight on center of table.
D. Weight displayed should match the test weight (*).

(allowable tolerance: +2 oz (56 g)

ON / ZERO

lb • oz / kg

CENTER

ZERO

ATTENTION

Arrow appears beside selected unit of measure.
Press lb • oz / kg button to change selection.

WEIGHT

LOCK

OFF

Weighing a Patient (*)

A. Press ON / ZERO button.
B. Wait until display shows “0.0” with arrow beside CENTER ZERO.
C. Position patient on center of table.

(Limit movement until arrow appears beside WEIGHT LOCK)

To turn scale OFF...

Press OFF button.

(NOTE: Scale will automatically turn OFF
if the same reading is displayed for 20 minutes.
