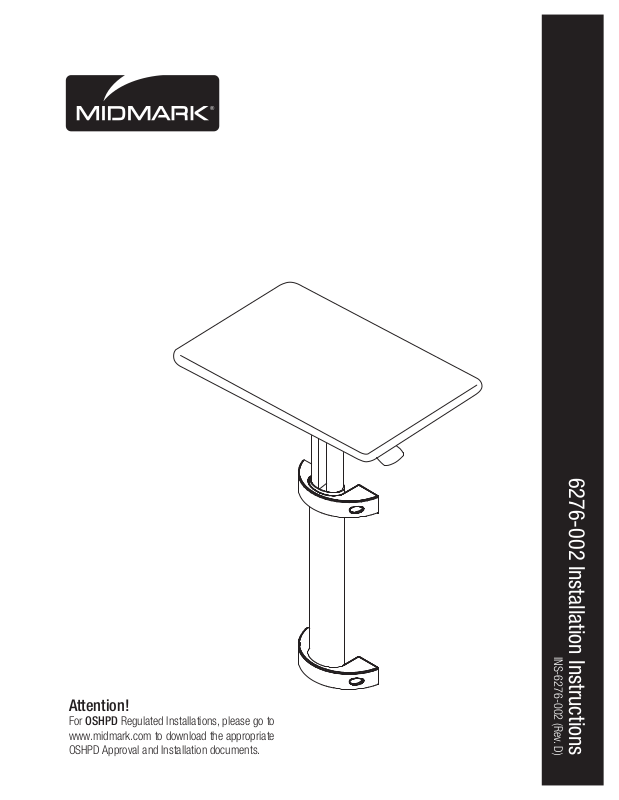

Midmark 6276-002 Installation Instructions Manual

Attention!

For OSHPD Regulated Installations, please go to
www.midmark.com to download the appropriate
OSHPD Approval and Installation documents.

6276-002 Installation Instructions

INS-6276-002 (Rev. D)

Installation Hardware

6276-002 Installation Instructions

INS-6276-002 (Rev. D)

Tools required:

Electric Drill with driver extension
Phillips head screwdriver/bit
1/2” Drill Bit
Punch
7/32 Allen Wrench

Mounting Template/Drilling Hole Preparation:

a. Place mounting template on wall. The template

1

may have to be repositioned after next step.

Note: The bottom edge of template
must be even with fl oor. This will
help position for a range of 29” - 47”
height range).

b. Depending on which wall you are placing
the template, measure 3.88” from the wall
to the fi rst holes in template.

Parts Included:

(1) Mounting Template
(1) Worksurface
(1) Height Adjustable Column Assembly
(6) Hilti Snaptoggle Heavy-Duty Toggle Bolts (2 extra)
(4) 1/4-20 x 3” Long Phillips Drive Pan Head Machine Screws
(4) 3/8-16 x 3/4” Long Button Head Socket Head Cap Screws
(4) 3/8” Lock Washers
(5) #8 x 1/2” Long Pan Head Phillips Drive Particle Board Screws

Toggler Bolt Installation Instructions:

a. Use punch to locate holes in

1A

wall (the 4 bottom holes on
template are used for
this product).

b. Make sure that drill bit
point is centered with
cross-pattern of
hole location.

c. Install Toggler Bolts

Use these
four holes

for this

installation.

c. Compare level to line printed on template
to ensure mounting template is perfectly plumb.

3.88” 3.88”

b. b.

Right-handed

Application:

Measure 3.88”

from wall

3.88” 3.88”

Left-handed
Application:
Measure 3.88”
from wall

WALLWALL

a.

Caution

Properinstallationoftoggleboltsrequired
toprovidesecurewallmounting.Minimum
drywallthicknesstobe½”.

Toggler Bolt Installation Instructions:

2

a.

(1/2” Hole)

b.

c.

Drill 1/2” size hole.
Hold metal channel
fl at alongside plastic
straps and slide
channel through
the hole. Minimum
clearance beind wall:
only 1 7/8”

Hold ends of straps
together between
thumb & forefi nger
and pull toward you
until channel rests
behind wall. Rachet
cap along straps
with other hand until
fl ange of cap is
fl ush with wall.

Place thumb between
straps at wall. Push
thumb side to side,
snapping off straps
level with fl ange
of cap.
