THIS PAGE IS INTENTIONALLY LEFT BLANK
Model T10 & T30 Series
Page 2
midlandusa.com
Welcome to the world of Midland electronics
Features
- 22 GMRS/FRS Channels
- 38 Privacy Codes (CTCSS)
- VOX
- Call Alert
- NOAA Weather Radio
- NOAA Weather Alert
- Scan Function
- Monitor Function
- Roger Beep Tone
- Silent Operation
- Key Pad Lock
- Speaker / Microphone Jacks (T31 only)
- Battery Meter / Battery Low Indicator
- USB Jack Charging (T31 only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device does not cause harmful interference, and (2) this radio must accept any interference that may cause undesired operation.
T o maint ain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
Model T10 & T30 Series
Page 3
midlandusa.com
IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION (Only Applicable for GMRS Radio Use in the United States)
The radios operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22, which comprise the GMRS channels of the radios. Serious penalties could result from unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Acts Sections 501 and 502 (amended).
You will be issued a call sign by the FCC which should be used for station identification when operating the radio on GMRS channels. You should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of your transmission time.
To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL FCC or go to the FCC's website:
http://www
.fcc.gov and request form 605.
Exposure To Radio Frequency Energy
Your Midland radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy:
- United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J
- American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992
- Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
- National Council on Radiation Protection and Measurements (NCRP) of the United States, Report 86, 1986
- International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998
To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits, transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting.
IMPORTANT: Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Y our radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must be made by qualified technicians.
Model T10 & T30 Series
Page 4
midlandusa.com
LCD DISPLAY
1. NOAA WEATHER (WX) BAND ICON–
Indicates when the radio is in Weather Band mode.
2. KEY LOCK ICON – Indicates KEY LOCK mode is on.
3. VOX ICON – Indicates when VOX mode is active.
4. CHANNEL NUMBER – Changes from 1~22 on GMRS/FRS band (1~10 on WX band).
5. PRIVACY CODE– Indicates Privacy Code selected by user (oF~38).
6. BATTERYMETER – Indicates the battery level.
7. RECEIVE (RX) ICON – Indicates radio is receiving a transmission
.
8. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal.
9. PRIVACY CODE ICON – Indicates Privacy Code is on.
1
CONTROLS
10. PTT Button – Press and hold to
transmit voice communication.
11. CALL/LOCK Button – Press to send a
CALL ALERT signal. Press and hold to turn KEY LOCK on/off.
12. MIC – Built-in microphone.
13. USB CHARGING JACK (T31 only)
14. SPEAKER – Built-in speaker.
15. ANTENNA
16. EXTERNAL SPEAKER/MIC JACK
(T31 only)
17. MENU Button – Press momentarily to
access Menu mode.
18. MONITOR/SCAN Button – Press to
enter SCAN mode. Press and hold to enter MONITOR mode.
19. UP/WX SCAN sand DOWN
t
Buttons – Make adjustments in MENU mode. Press and hold the UP button for 3 seconds to activate the NOAA Weather Radio function.
16
15
14
12
11
10
7
6
3
2
13
17
4 5
8 9
18
19
Model T10 & T30 Series
Page 5
midlandusa.com
BATTER
Y INSTALLATION
Your radio operates with either a 3 AAANiMH batteries or optional 3 AAA alkaline batteries. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries:
1. With the back of the radio facing you, remove the belt clip (see diagram below) for easy access, then remove the Battery Cover by pressing down on the top center and sliding it down from the radio.
2. Insert 3 AAANiMH batteries or 3 AAA batteries observing the polarity as shown. Installing the batteries incorrectly will prevent the unit from operating or may damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the belt clip, making sure it locks into place.
INSTALLING THE BELT CLIP
To install the BEL T CLIP, slide the clip down into the slot on the back of the radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, pull the LOCK TAB away from the radio, then gently pull the belt clip up toward the top of the radio.
BELT CLIP LOCK TAB
BATTERY COMPARTMENT
BATTERY COMPARTMENT COVER
Press here and push down to open
BELT CLIP LATCH
Model T10 & T30 Series
Page 6
midlandusa.com
Your radio is equipped for using 3 AAA rechargeable NiMH batteries which can be recharged by inserting one end of the USB Cable into a USB power source, and the other end into the radio USB charging jack. While charging, the Battery Meter will flash from 1 to 3 bars. The LCD display will show FULL for a few seconds when charging is complete. For maximum battery life, Midland recommends charging the battery pack when the low battery icon comes on. Remove the radios from the charger when the charging is finished.
In order to ensure that the batteries are fully charged, it is recommended that the battery pack be charged for at least 12 hours with the radio turned OFF.
1. Do not attempt to charge alkaline batteries or any batteries or battery packs other than the one indicated in the manual. This may cause leakage and damage to the radio.
2. For long term storage of the radio, turn the radio OFF and remove the batteries from the radio.
BATTERY LEVEL INDICATOR
Your radio has a BATTERY LEVEL METER that shows the battery power level. The greater the number of bars visible, the stronger the battery level. When the battery level is low, the Battery Shell icon and “bt Lo” will flash in the display indicating your batteries should be replaced or recharged (Model T31 only) if using rechargeable batteries.
CHARGING THE BATTERIES (MODEL T31 only)
!
Model T10 & T30 Series
Page 7
midlandusa.com
POWER ON/OFF AND VOLUME
Press the POWER/MENU button for at least 3 seconds to turn the radio on/off. During Power On, the radio will beep 3 times with different tones, the LCD will display all icons for 1 second and the LCD display will indicate the last channel selected.
To increase/decrease the volume level, press the
s\t
buttons
during RX or STANDBY mode
RESTORING YOUR RADIO TO THE ORIGINAL SET
TING
To reset your radio to the original (default) setting, turn on the radio while pressing and holding the
s
button. The LCD display will reset
to standby mode on channel 1 with no Privacy Code.
TRANSMITTING AND RECEIVING A CALL
To communicate, all radios in your group must be set to the same channel and/or Privacy Code.
1. For maximum clarity, hold the radio 2 to 3 inches from your mouth.
2. Press and hold the PTT button and speak in a normal voice into the microphone. The TX icon will appear continuously on the LCD display while transmitting.
3. To receive a call, release the PTT button. The RX icon will appear on the display when your radio is receiving a transmission.

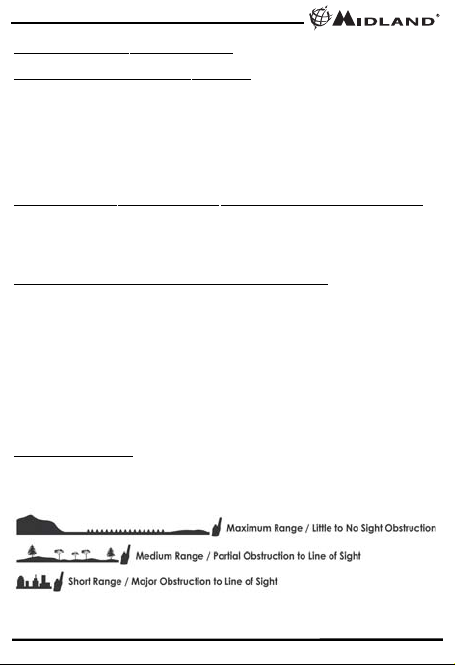

ABOUT RANGE
Your radios are designed to give you maximum range under optimum conditions.
OPERATING YOUR RADIO
Model T10 & T30 Series
Page 8
midlandusa.com
Optimum Conditions are:
l Over water l Open rural areas without obstructions l Flat areas where you can see the other person
To ensure you get maximum range: l Be sure to use fresh or fully charged batteries - low batteries will
cause low power conditions.
l Be sure you are on a GMRS channel - FRS channels are
restricted by the FCC to low power.
l Be sure to set your radio to use Hi power.

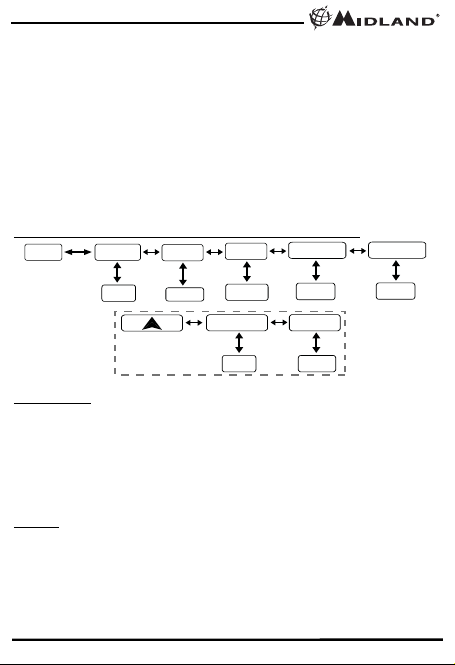

T10 & T30 SERIES QUICK REFERENCE CHART
MONITOR
Pressing and holding the MONITOR button for 3 seconds will let you hear noise so you can adjust the volume level of the radio when not receiving a signal. This could also be used to check any activity on your current channel before transmitting.
Press and hold the MONITOR button for 3 seconds again to get out of MONITOR mode.
SCAN
Your radio can scan all 22 channels for activity. To enter , quickly press the SCAN button. Repeat the same procedure to exit. Your radio will rapidly scan each of the 36 channels and stop on any active channel for 4 seconds before resuming scan.
When you press the PTT button to transmit on an active channel, the scanning function will stop and remain on the active channel. To resume scanning, quickly press the SCAN button.
MENU
Channel
CTCSS
VOX
Roger Beep
Silent Operation
1~22
Press and hold UP/WX button for 5 seconds
oF~38
On/Off
WX Channel
1~10
On/Off
WX Alert
On/Off
On/Off
Model T10 & T30 Series
Page 9
midlandusa.com
CALL ALERT
Your radio can transmit a call alert for a fixed length of time. To send a call alert, press the CALL button. The TX icon will appear while transmitting a call alert and a tone can be heard on the speaker for confirmation.
KEYPAD LOCK
To avoid accidentally changing the radio setting, press the LOCK button for 3 seconds. The icon will appear on the display. PTT and CALL will still be active. Repeat the same procedure to unlock the keypad.
CHANNEL SELECTION (GMRS/FRS BAND)
Press the MENU button once, and then the
s\t
buttons to select one of the 22 GMRS/FRS channels. To confirm the selection, press the PTT button or press the MENU button again to move to the next feature setting.
SETTING PRIVAC
Y CODES
Your radio has 38 Privacy Codes available. The selected Privacy Code may be different for each channel. To select a Privacy Code for the current channel press the MENU button twice, and then the
s\t
buttons to select one of the 38 CTCSS Codes. The Privacy
Code icon on the display will indicate CTCSS mode. To confirm the
selection, press the PTT button or press the MENU button again to move to the next feature setting.
Note : Selecting a Privacy Code of "oF" will disable the Privacy feature. To communicate between two radios, all radios in your group must be set to the same channel and/or Privacy Code selections.
VOX
To set VOX, press the MENU button until the display shows “VOX” blinking while on the right of the CHANNEL NUMBER display, an “oF” icon appears. Select “on” by pressing the
s\t
buttons and push the PTT key, or press the MENU button again to move to the next feature setting.
!
Model T10 & T30 Series
Page 10
midlandusa.com
To turn VOX off, press the MENU button until the display shows “VOX” blinking while on the right of the CHANNEL NUMBER display, a “on” icon appears. Select “oF” by pressing the
s\t
buttons and push the PTT key, or press the MENU button again to move to the next feature setting.
ROGER BEEP (end of transmission) TONE
When the PTT button is released, the radio will beep to confirm to other users that your transmission has finished.
To turn the ROGER BEEP tone on, press the MENU button until the display shows a “rb” icon while on the right of the “rb” display, an “oF” icon appears. Select “on” by pressing the
s\t
buttons and push the PTT key, or press the MENU button to move to the next feature setting.
To turn the ROGER BEEP tone off, press the MENU button until the display shows a “rb” icon while on the right of the “rb” display, an “on” icon appears. Select “oF” by pressing the
s\t
buttons and push the PTT key, or press the MENU button to move to the next feature setting.
SILENT OPERATION
Your radio has a SILENT OPERATION mode. In this mode, all “beeps” and “tones” are disabled.
To enable SILENT OPERATION and turn tones off, press the MENU button until the display shows a “bP” icon while on the right of the “bP” display, an “on” icon appears. Select “oF” by pressing the
s\t
buttons and push the PTT key or MENU button. To disable SILENT OPERATION and turn tones on, press the MENU
button until the display shows a “bP” icon while on the right of the “bP” display, an “oF” icon appears. Select “on” by pressing the
s\t
buttons and push the PTT key or MENU button.
Model T10 & T30 Series
Page 11
midlandusa.com
NOAA WEATHER RADIO
Your radio has a NOAA WEATHER RADIO function to enable the user to receive weather reports from designated NOAA stations.
To turn the NOAA WEATHER RADIOon, press and hold the UP/WX
s
button for 5 seconds while in GMRS mode. The radio will go to WX
Band mode.
To set the channel on the WX Band, press the MENU button and the display will show the current WX Band channel setting and the icon. While on WX Band mode press the
s\t
buttons to select one of the 10 NOAA WEATHER (WX) BAND channels.
To confirm, press the PTT button or press the MENU button to move to the next feature setting.
To turn the NOAA WEATHER RADIO off, press the PTT button. The current GMRS/FRS radio setting will be displayed and the icon will go off.
NOAA WEATHER
ALERT
Your radio has a NOAA WEATHER ALERT function, to enable you to automatically receive weather alerts from designated NOAA stations.
To turn the NOAA WEATHER (WX) ALERT on during normal NOAA
WEATHER RADIO mode, press the MENU button twice while in NOAA WEATHER RADIO mode. The display shows "AL," while on
the right an "oF" icon appears blinking. Select "on" by pressing the
s\t
buttons. To confirm, press the PTT button or press MENU. The radio will return to WX BAND and the icon will continue blinking. If the radio receives a WX ALERT signal from a designated NOAA station while on GMRS/FRS Radio mode, the radio will beep for 20 seconds while the display will automatically go to WX BAND.
To turn the NOAA WEATHER (WX) ALERT off, press the MENU button twice while in WX Band. The display shows "AL," while on the right an "on" icon appears blinking. Select "oF" by pressing the
s\t
buttons. To confirm, press the PTT button or press MENU.
Model T10 & T30 Series
Page 12
midlandusa.com
EXTERNAL SPEAKER/MICROPHONE JACK (Model T31 only)
Your radio can be used with an optional external speaker/ microphone or headset, freeing your hands for other tasks. To use an optional speaker/microphone or headset:
l Insert the plug(s) into the SPK/MIC jacks. l Place the earbud into your ear, and adjust the mic
into your desired position.
2-Way Radios
Marine Radios
Weather Radios
Check out these and other great products at
Bluetooth Headsets
Emergency Crank Radios
midlandusa.com
HD Wearable Video Cameras
CB Radios
Model T10 & T30 Series
Page 13
midlandusa.com
PROBLEM SOLUTION
No Power - Check battery installation and/or replace batteries. Cannot Receive
Messages
- Confirm the radios have the same channel settings.
- Make sure that you are within range of the other transceivers.
- Buildings and other structures may interfere with your communication.
Radio is not responding to button presses
- Make sure key lock is not on (See Keypad Lock, Page 9).
- Radio might need to be reset. Turn radio off then on.
Display is dim - Recharge or replace batteries. Charging not
functioning (Model T31 only)
- Ensure the USB Jack where the USB Cable is
plugged in is functioning properly.
- Check that the batteries are installed in the radio properly.
USE AND CARE
1. Use a soft damp cloth to clean the radio.
2. Do not use alcohol or cleaning solutions to clean the radio.
3. Do not immerse the radio in water.
4. Dry the radio with a dry lint-free cloth should it get wet.
5. Turn off the radio and remove the batteries during long-term storage.
If you have a problem which you believe requires service, please call first and speak with a service technician at 816-241-8500. Many problems can be remedied over the phone without returning the unit for service.
TROUBLESHOOTING GUIDE
Model T10 & T30 Series
Page 14
midlandusa.com
SPECIFICATIONS
Channels 22 GMRS/FRS Channels +38 Privacy Codes
10 NOAA Weather (WX) Band Channels
Operating Frequency UHF 462.5500 ~ 467.7125 MHz Power Source 3 AAARechargeable NiMH batteries or 3 AAA
Alkaline batteries
GMRS/FRS FREQUENCY CHART (MHz)
NOAA WEATHER (WX) RADIO FREQUENCY CHART (MHz)
PRIVACY CODES FREQUENCY CHART (Hz)
* Channel 8,9 and 10 are designated Canadian Marine Frequencies
* Channels 8~14 are low-power FRS license free channels
Note: Privacy codes can be programmed for use on Channels 1~22 only
CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq.
1 2 3 4 5 6 7 8
9 10 11 12
CH. No CH. Freq. CH. No CH. Freq.
1 2 3 4 5
Code Freq. Code Freq. Code Freq. Code Freq. Code Freq. 1 67.0 9 91.5 17 118.8 25 156.7 33 210.7 2 71.9 10 94.8 18 123.0 26 162.2 34 218.1 3 74.4 11 97.4 19 127.3 27 167.9 35 225.7 4 77.0 12 100.0 20 131.8 28 173.8 36 233.6 5 79.7 13 103.5 21 136.5 29 179.9 37 241.8 6 82.5 14 107.2 22 141.3 30 186.2 38 250.3 7 85.4 15 110.9 23 146.2 31 192.8 8 88.5 16 114.8 24 151.4 32 203.5
13
462.5625
462.5875
462.6125
462.6375
462.6625
462.6875
462.7125
467.5625
467.5875
467.6125
467.6375
467.6625
162.550
162.400
162.475
162.425
162.450
467.6875
14
467.7125
462.5500
15 16
462.5750
17
462.6000
18
462.6250
462.6500
19
462.6750
20 21
462.7000
22
462.7250
23 24
6 7 8 9
10
162.500
162.525
161.650
161.775
163.275
25 26 27 28 29 30 31 32 33 34 35 36
Model T10 & T30 Series
Page 15
midlandusa.com
LIMITED WARRANTY (United States and Canada)
Subject to the exclusions set forth below, Midland Radio Corporation will repair or replace, at its option without charge, any Midland FRS/GMRS transceiver which fails due to a defect in material or workmanship within Three Years following the initial consumer purchase.
This warranty does not apply to water damage, battery leak, abuse or misuse of unauthorized accessories, unauthorized service or modification or altered products. Accessories have a 90 day warranty from date of purchase, including any chargers, microphones, and cables.
This warranty does not include the cost of labor for removal or re-installation of the product in a vehicle or other mounting.
ANY IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED AS SET FORTH HEREIN AND TO THE DURATION OF THE LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENTAS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MIDLAND BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE, GROSS NEGLIGENCE, BODILY INJURY, PROPERTY DAMAGE AND DEATH) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY , OR FOR ANYINDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATAOR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITYOR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
For Product Purchased in the USA:
Performance of any obligation under this warranty may be obtained by returning the warranted product, prepaid freight, along with proof of purchase to:
Midland Radio Corporation Warranty Service Department 5900 Parretta Drive Kansas City, MO 64120
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
Note: The above warranty applies only to merchandise purchased in the United States of America or any of the territories or possessions thereof, or from a U.S. Military exchange.
For Product Purchased in Canada:
Performance of any obligation under this warranty may be obtained by returning the warranted product, along with proof of purchase, to your place of purchase in Canada.
This warranty gives you specified legal rights. Additional warranty rights may be provided by law in some areas within Canada.
Page 16
midlandusa.com
Model T10 & T30 Series
AVP-11 AVP-HH4
AVP-HH1 AVP-HH5
AVP-HH2 AVP-HH7
AVP-HH3 AVP-HH88
- 1 Open Face Helmet
Microphone Kit
- $49.99
- 1 Closed Face
Helmet Microphone Kit
- $49.99
- 2 Over the Ear
Mic. Headsets w/ PTT
- $19.99
ACCESSORIES
Accessories can be purchased at midlandusa.com or by filling in the form on the following page and mailing it to the address on the form.
- 2 Surveillance
Headsets
- $39.99
- 2 Behind the Head Headsets
- $39.99
- 2 Ear Wrap
Headsets
- $39.99
- 2 Mossy Oak
Around the Ear Headsets with Boom Mic
- $39.99
- 1 Action Throat
Mic with Acoustic Ear Tube
- $39.99
Model T10 & T30 Series
Page 17
midlandusa.com
Please send Money Order or fill in Visa/MasterCard information and mail to the address below. Please DO NOT send cash or checks. Make Money Order payable to Midland Radio Corporation.
Name: _____________________________________________________
Address: ___________________________________________________
City: _____________________ State: _____Zip Code: ____________
Tel: ______________________ Email: ___________________________
CC#: _____________________ Type: __________ Exp.: ____________
ACCESSORIES ORDER FORM
Mail To:
Midland Radio Corporation Consumer Dept. 5900 Parretta Drive Kansas City, MO 64120
---------------­Or Call 816.241.8500.
---------------­To order online go to
midlandusa.com
Sub-Total ___________ Tax (MO, FL, WAonly) ___________ S & H _____ $14.95
(Applies to Domestic U.S. only. For Hawaii, Alaska, and Puerto Rico S&H will be $36.25 for 1lb and $64.25 for 2lbs or more).
Total $___________
Qty Item Price Total
AVP-1 $19.99 AVP-H1 $49.99 AVP-H2 $49.99 AVP-H3 $39.99 AVP-H4 $39.99 AVP-H5 $39.99 AVP-H7 $39.99 AVP-H8 $39.99
THIS PAGE IS INTENTIONALLY LEFT BLANK
MMIIDDLLAANNDD RRAADDIIOO CCOORRPPOORRAATTIIOONN
5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500
We’d love to hear from you! Let us know what you
think of your new Midland product at
or by visiting us at
midlandusa.com
Note: Features & Specifications are subject to change without notice. MIDLAND is not responsible for unintentional errors or omissions on its packaging.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
