Top Mount Refrigerator
USER MANUAL
MTM207W
MTM239W
MTM268W
CONTENTS
Safety information ........................................ 2-3
Identifying parts of the fridge ........................................ 4
Transporting ........................................ 5
Installation ........................................ 5
Reversing the door ........................................ 6-7
Operating instructions ........................................ 8
Cleaning & Maintenance ........................................ 8-9
Energy saving tips ........................................ 10
Disconnection of the appliance ........................................ 10
Troubleshooting Guide ........................................ 11
Repairs, Service & Warranty ........................................ 12
Specifications ........................................ 13
1
SAFETY INFORMATION
Congratulations on your new Midea . This manual contains important information on fridge
the installation, use and care of your appliance. Please read this manual carefully before
use. Follow instructions and keep the manual for future reference.
The appliance is specifically constructed for domestic use and is therefore suitable for the
refrigeration and storage of fresh and frozen food and the production of ice-cubes. The
appliance has not been designed or manufactured for professional use. Midea declines all
responsibility for damage deriving from improper use of the appliance. The refrigerator has
undergone the necessary tests on the tightness of the refrigeration circuit and complies with
the safety regulations.
WARNING
WARNING
The WARNING symbol indicates information that concerns your personal safety
CAUTION
The CAUTION symbol indicates information on avoiding damage to the appliance
CAUTION
R600a WARNING LABEL
R600a
R600a Refrigerant Warning
· This appliance contains a small quantity of flammable, non-synthetic R600a
refrigerant.
R600a
· Ensure that the tubing of the refrigerant circuit is not damaged during
transportation and installation.
· Ensure careful installing, handling and disposing to avoid safety hazards. If
accidental damage occurs, keep the appliance away from open fires or devices
that produce sparks, unplug the appliance and call an authorised service agent.
Thoroughly ventilate the room in which the appliance is situated for several
minutes.
· Leaking refrigerant may cause eye injuries or could ignite.
· Hydrocarbon refrigerants have excellent refrigerant properties, minimal global
warming potential and no ozone depletion potential.
· Hydrocarbon refrigerants cannot be ‘retrofitted’ to an appliance that has not been
designed and approved to use that type of refrigerant.
· The room for installing the appliance must be at least 1m³ per 8g of refrigerant.
The amount of refrigerant in the appliance can be found on the rating plate
attached to the appliance.
2
SAFETY INFORMATION
Safety Precautions
- The refrigerator is designed to operate on a single phase power supply within a voltage
range of 220-240V/50Hz.
- Do not allow any sharp objects to come in contact with the refrigerant system to avoid
damage to the refrigerant circuit.
- This product is for indoor use only.
- Do not place electrical items or cooking equipment nearby. Keep away from substances
which could cause ignition and ensure good ventilation is always available.
- Do not use electrical appliances inside the food storage compartments of the appliance
unless they are the type recommended by the manufacturer .
- Do not place objects on top of the appliance which are magnetic, heavy or filled with
water.
- If the supply cord is damaged, it must be replaced by authorised service personnel,
service agent or similarly qualified persons in order to avoid a hazard.
- Do not store flammable, explosive, volatile and highly corrosive materials in the
refrigerator. Containers with flammable gases or liquids can leak at low temperature.
There is a risk of explosion or fire.
- Do not splash water on the appliance. It may cause malfunction or electric shock.
- Do not place or operate any electrical appliance in the refrigerator.
- Always switch off and unplug the appliance before cleaning.
- This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Safety of children
· Young children should be supervised to ensure that they do not play with the
appliance.
WARNING
· Packing (e.g. plastic wraps, polystyrene etc.) can be dangerous for children.
There is a risk of suffocation. Keep packaging materials away from children.
Information on disposal
Most of the packing material used is recyclable. Please separate the plastic and cardboard
and dispose through your local recycling depot or place in appropriate recycling collection
bins.
If disposing of this appliance, please contact your local authority for safe disposal. Incorrect
disposal may cause injury to the user or flammable gases may cause environmental
damage. Remove the doors, cut off the main cable, break or remove spring or bolt catches to
prevent children from getting trapped or harming themselves.
3

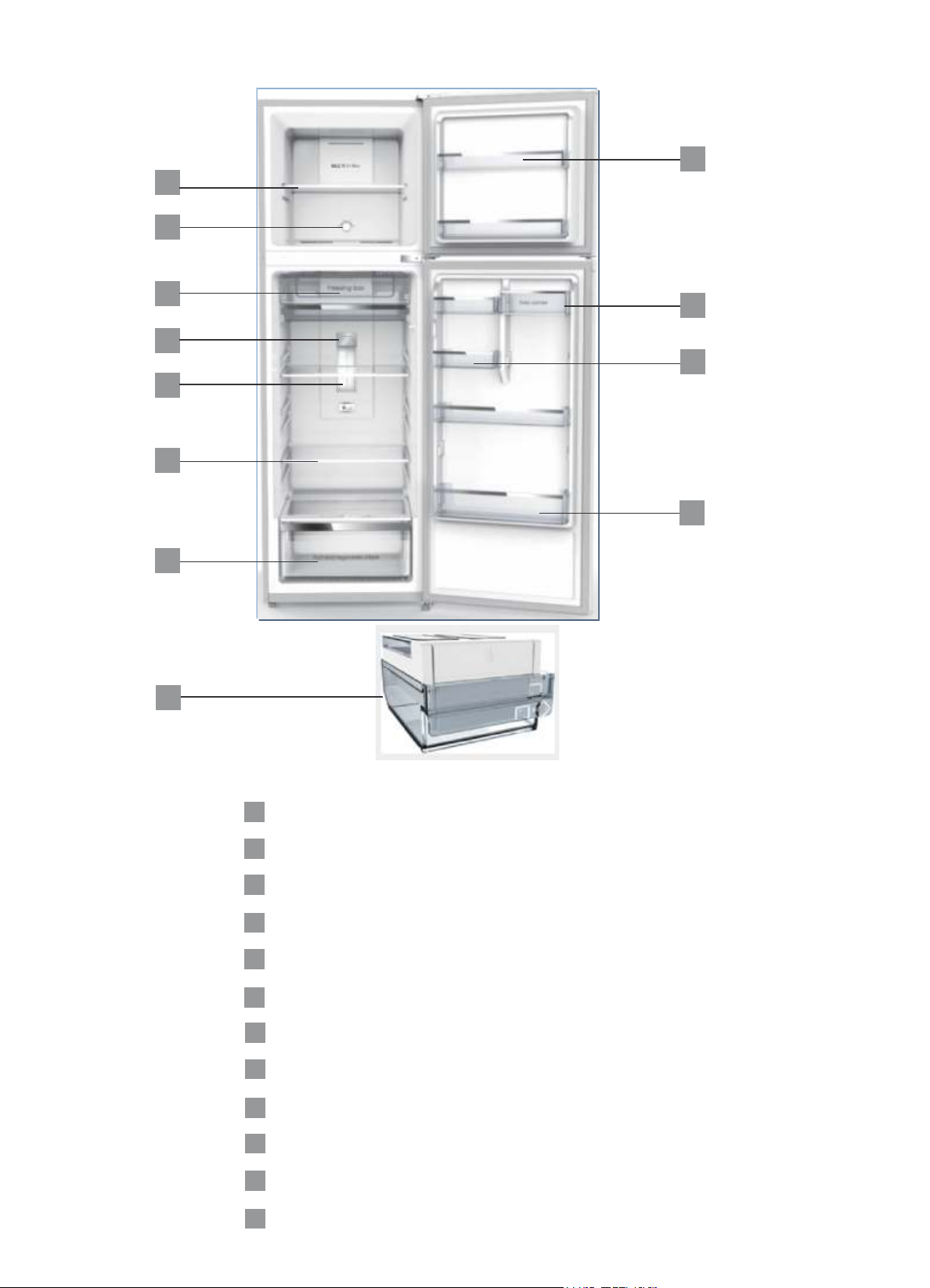

IDENTIFYING PARTS OF THE FRIDGE
1
2
8
3
4
5
5
6
7
12
9
10
11
NOTE: Photo for reference only. The interior of different model may vary slightly.
1
Freezer glass shelf
2
Knob of freezing ventilation door
3
Deli compartment
4
Refrigerator temperature control panel
5
Refrigerator LED light
6
Refrigerator glass shelf
7
Fruit & vegetable drawer
8
Freezer door bin
9
Refrigerator sealed door bin
10
Refrigerator small bottle bin
11
Refrigerator large bottle bin with egg bracket
12
Removable twist ice maker
4
TRANSPORTING
Keep the refrigerator upright and avoid squeezing or vibration during
transport. Avoid a slanting angle over 45 degrees during handling.
Avoid the door or top cap from being under excessive stress when
moving, otherwise it may become deformed.
Do not connect your refrigerator to the power supply immediately after it is placed
vertically. You should keep it standing for at least 3 hours before connection to let it
CAUTION
settle.
INSTALLATION
Remove all packaging material and adhesive tape before using your new refrigerator. This
includes the foam base and all adhesive tape holding the refrigerator accessories inside and
outside.
Clean both the inside and outside of the refrigerator with a soft cloth and lukewarm soapy
water.
Positioning your refrigerator
Place your refrigerator in a well ventilated area away from a heat source and direct sunlight.
Do not install the refrigerator in a damp or wet location as this may cause damage to the
insulation and result in leakage. Condensation may also build up on the outer cabinet
causing rust.
Use the front two adjustable feet to level the refrigerator. Rotate the feet in a clockwise
direction to raise the refrigerator and anti-clockwise to lower. Ensure the refrigerator slightly
tilts backwards so that the drawers and doors self-close to provide a consistent closed seal.
Allow for adequate ventilation around your refrigerator
Minimum
There should be a clearance of at least 300mm from the top of
your refrigerator, and 50mm from either the sides of the
refrigerator (or) the back of the unit. If the refrigerator is to sit
flush with the cabinetry, then a 50mm clearance must be
available to allow the doors to open freely and enable the
removal of bins and shelves.
The minimum clearance recommended at each side is 5mm,
if this is the case the doors must sit proud of the cabinetry by
50mm (not flush). A 5mm side clearance will require 50mm of
airspace at the back of the unit to allow for adequate
ventilation.
50mm
5mm
recommended
airspace around
refrigerator
50mm
DOOR
50mm
5mm
50mm
5
REVERSING THE DOOR
Please ensure the refrigerator is unplugged from the main power source and any
items are removed from inside the refrigerator and door bins before reversing the
WARNING
Follow below steps to reverse the door from the supplied position.
door.
1. Remove the top right hinge cover.
2. Remove the top hinge with screw driver.
3. Remove the F-door.
4. Remove the middle hinge with screw driver.
Step 1
Step 2
Step 3
Step 4
5. Remove the R-door.
6. Remove the lower hinge with screw driver.
7. Remove the hinge shaft cover, middle beam hole cover, and
the adjustable feet.
Step 5
Step 6
Step 7
6
REVERSING THE DOOR
8. Install the adjustable feet to the right side in front of the
refrigerator, mount the lower hinge subassembly to the left
side in front of the refrigerator.
9. Remove the hinge bushing and door stop of the R-door and
F-door with screw driver, and install them to the other side of
the doors.
10. Install the R-door onto the lower hinge.
11. Use a screw driver to mount the middle hinge to the left side
of the middle beam in front of the refrigerator.
Step 8
Step 9
Step 10
Step 11
12. Install the F-door onto the middle hinge.
13. Use a screw driver to mount the top hinge to the left side of
the top of the refrigerator.
14. Mount the top left hinge cover to the top hinge, mount the
hinge shaft cover to the top right of the refrigerator, mount
the middle beam hole cover to the right side hole of the
middle beam.
Step 12
Step 13
Step 14
7
OPERATING INSTRUCTIONS
Status of corresponding indicators
/Temperature control LED
Failure
Refrigerator compartment temperature sensor failure
Freezer compartment temperature sensor failure
Ambient temperature sensor failure
Controlling the temperature
Refrigerator temperature:
Press SET key to select temperature from level 1 to
level 5 (coldest). The refrigerator will run under the
setting temperature after 15 seconds automatically.
When the refrigerator is powered on, all temperature
level LED will light on for 3 seconds, and then the
current setting temperature level displays.
NOTE: Where there is no failure, the LED light
displays current setting temperature level. On the
occurrence of a failure, the corresponding LED light
will give a combined display of failure code (see
failure code section below).
Freezer temperature:
The temperature of the freezer can be controlled manually
by adjusting the knob of freezing ventilation door (page 4
item 3). Turn to Normal position for normal use or turn the
knob clockwise for colder temperature.
Level 1 Level 2 Level 3 Level 4 Level 5
Temperature level setting key
Failure code
The following table is a list of the fault indicators and corresponding alarms.
8
CLEANING & MAINTENANCE
Cleaning the appliance
Before cleaning: Turn appliance off at the power point, then remove the power
cord from the outlet. This will make sure there is no chance of electric shock.
WARNING
Interior
Clean the refrigerator interior regularly. Turn power off. Wipe the interior with a soft cloth and
lukewarm soapy water. Wipe away any food spills thoroughly. Dry all surfaces and
removable parts. Avoid getting water on the refrigerator controls. If you have taken out any
removable parts, replace them and switch on the power before re-stocking the refrigerator.
Exterior
Clean the refrigerator with only lukewarm soapy water and a soft cloth. Rinse with clean
water and then wipe the surface with a soft clean cloth to remove any soap residue.
Door seals
Take care to keep door seals clean. Sticky food and drink can cause seals to stick to the
cabinet and tear when you open the door. Wash seal with a mild detergent and warm water.
Rinse thoroughly and dry.
Never use hot water, solvents, commercial kitchen cleaners, aerosol cleaners,
metal polishers, caustic or abrasive cleaners or scourers to clean the appliance as
CAUTION
they will damage it. Many commercially available cleaning products and detergents
contain solvents that will damage your refrigerator. When cleaning, using only a
soft cloth and lukewarm soapy water.
Replacing the Interior light
The refrigerator light can only be replaced by an authorised service agent. If the light stops
working, please contact Midea Service (refer to page 12).
Please check the points below after maintenance:
(1) Is there any damage to the power lead?
(2) Can the power plug be inserted into the power socket correctly?
(3) Is the power plug and/or lead heating up?
9
ENERGY SAVING TIPS
Reduce opening the door frequently. This will increase the appliance efficiency and
1.
reduce power consumption.
2.
To maintain good air circulation within the refrigerator cabinet, keep the shelves, fruit and
vegetable drawer in the original positions as supplied.
There should always be some space between food items for proper air circulation.
3.
Hot food should be cooled down before placing into the appliance, otherwise the interior
4.
temperature and power consumption will increase.
DISCONNECTION OF THE APPLIANCE
If unplugging the appliance from the power outlet, please leave at least 5 minutes
before re-connection.
CAUTION
Power failure
1.
During a power failure, do not put additional food in the appliance and reduce opening
the door.
If power failure is anticipated beforehand, place several ice cubes into a container and
place in the top of the refrigerator.
2.
Power failure during vacation
Before departure of a short vacation, remove any items that could spoil if a power failure
occurs, and ensure the doors are closed firmly.
If going on a long vacation, remove all items, clean and wipe dry the internal of the
appliance, disconnect the power and leave the doors open.
3.
Storage of appliance
If the refrigerator needs to be switched off for a long period of time (storage), remove all
items, unplug the appliance from the power outlet, clean and wipe dry the interior. The
door should be wedged open slightly for air circulation in order to prevent unpleasant
odours.
10
TROUBLESHOOTING GUIDE
If you think something may be wrong with your refrigerator, you can carry out some easy
checks before calling for service. Y ou may locate the problem and spare yourself from
inconvenience, saving time and money.
SYMPTOM SUGGESTION
R is not operatingefrigerator
· Check that the power cord is plugged into the power outlet properly
and that the outlet is switched “ON”.
· Try running another appliance from the power outlet. If no power is
coming from the outlet you may have blown a fuse or tripped a circuit of
your household power supply.
· Try adjusting the temperature control to a slightly “colder” position.
Unusual noise
Compressor seems to run more
than expected
· The flow of refrigerant through the pipeline coil could cause gurgling,
similar to water boiling. This is the normal function of the appliance.
· It is quite normal for noise to seem louder just after the refrigerator
starts operating.
· Other strange sounds may mean that you need to check and take
action. For example, noises may mean that:
- The cabinet is not level.
- The floor is uneven or weak.
- Bottles are badly placed and rattling.
- There are vibrations from an object on top of or behind or beside
the refrigerator.
- The back of the refrigerator cabinet is touching the wall.
· Are doors kept open too long or too often?
· Are controls set too cold?
· Have large amounts of warm food just recently been stored?
· If the day is hot or the room is very warm, the refrigerator will need to
run more than normal.
· The refrigerator will run more than normal just after you install it or
when it has been turned off for a long time.
Temperature in the refrigerator
is too warm
Food is frozen inside the
refrigerator compartment
The door will not close
· Check that the appliance has enough clearance at the sides, back and
top. Refer to installation instruction on page 5.
· 8Refer to “Controlling the temperature” on page .
· You may have kept the door open too long or too frequently.
· Food containers or packaging may be holding a door open.
· Check if the food is placed near the air outlet.
· Check whether the front of the refrigerator is tilted back slightly to allow
the doors to self close.
· Check whether something is holding the door open.
The following cases are not malfunctions:
Moisture may form as condensation on the outside of the appliance during humid conditions.
To remove excess moisture, wipe clean.
It is normal that the sides of the appliance and the turnover beam will get warm as a result of
the refrigeration system operation.
11
REPAIRS, SERVICE & WARRANTY
Model No.
Serial No.
Date of purchase
Retailer
It is hazardous for anyone installing, removing, altering, repairing servicing, testing or
certifying the gas system of a gas device (i.e. charging, discharging or breaking into the
refrigeration system that uses hydrocarbon refrigerants). Only an Authorised Service
Person can carry out servicing or repairs to this appliance.
If service is required
If you have a problem which persists after you have made the checks listed in the
Troubleshooting Guide, please contact:
Midea Customer Care on 1300 132 371
Please refer to the enclosed warranty card or visit www.mideaappliances.com.au for
warranty information. Ensure you have the appliance model number and proof of
purchase handy before calling Midea Customer Care to enquire about a warranty claim.
Complete and retain the following information for your records:
Please retain proof of purchase for warranty claims.
12
SPECIFICATIONS
Model
MTM207W
MTM239W
MTM268W
Climate Class
T
T
T
Classification of Protection
Against Electric Shock
I
I
I
Rated Total
Gross
Volume
Refrigerator
140L
172L
201L
Freezer
67L
67L
67L
Voltage
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
Refrigerant type
R600a
R600a
R600a
Ambient Operating
temperature
43°C
43°C
43°C
Dimensions
Height
1372mm
1522mm
1657mm
Width
545mm
545mm
545mm
Depth
623mm
623mm
623mm
IP rating
IPX0
IPX0
IPX0
Net Weight
48Kg
51Kg
55Kg
NOTE:
· Product specifications are subject to change without prior notice.
· This product is subject to continuous improvement, which may not be completely
consistent with the manual, however the functions and operating methods will not
change.
13
V 03/16
Loading...
