OWNER S MANUAL
Inverter Split-type Room Air Conditioner
Please read the operating instructions and safety precautions carefully
and thoroughly before installing and operating your room air conditioner.
SOCIABLE REMARK
The follow contents apply only the countries of Europe.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacture will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
CONTENTS
SAFETY PRECAUTIONS .......................................................................................
PARTS NAMES .....................................................................................................
OPERATING TEMPERATURE ..............................................................................
MANUAL OPERATION .........................................................................................
ADJUSTING AIR FLOW DIRECTION.....................................................................
HOW THE AIR CONDITIONER WORKS................................................................
OPTIMAL OPERATION ..........................................................................................
MAINTENANCE.......................................................................................................
OPERATION TIPS .................................................................................................
TROUBLESHOOTING TIPS...................................................................................
Read This Manual
Inside you will find many helpful hints on how to use and maintain your
air conditioner properly. Just a little preventative care on your part can
save you a great deal of time and money over the life of your air conditioner.
You'll find many answers to common problems in the chart of troubleshooting
tips. If you review the chart of Troubleshooting Tips first, you may not need
to call for service.
1
3
4
4
5
6
6
7
9
11
CAUTION
!
Contact an authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or invalids
without supervision.
Young children should be supervised to ensure that they do not play with the
air conditioner.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorised personnel only.
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the following
instructions must be followed.
Incorrect operation due to ignoring of instructions may cause harm or damage. The
seriousness is classified by the following indications.
WARNING
!
CAUTION
!
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
Meanings of symbols used in this manual are as shown below.
Never do this.
!
!
Connect with the power
properly.
Otherwise, it may cause electric
shock or fire due to heat
generation.
Do not modify power cord
length or share the outlet
with other appliances
It may cause electric shock or
fire due to heat generation.
!
Always ensure effective
earthing.
No earthing may cause electric
shock.
!
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
It may cause fire and electric
shock.
!
Use the correctly rated
breaker or fuse.
There is risk of fire or electric
shock.
Always do this.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
It may cause electric shock or fire
excess
due to heat generation.
Do not operate with wet
hands or in damp
environment.
It may cause electric shock.
Do not allow water to run
into electric parts.
It may cause failure of machine
or electric shock.
Do not use the socket if it is
loose or damaged.
It may cause fire and electric
shock.
Do not use the power cord
close to heating appliances.
It may cause fire and electric
shock.
WARNING
!
Do not damage or use an
unspecified power cord.
It may cause electric shock or fire.
Do not direct airflow at
room occupants only.
This could damage your health.
!
Always install circuit
breaker and a dedicated
power circuit.
No installation may cause fire
and electric shock.
Do not open the unit
during operation.
It may cause electric shock.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
It may cause an explosion or fire.
!
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
It may cause explosion, fire and, burns.
Do not disassemble or modify unit.
It may cause failure and electric shock.
1
When the air filter is to be
removed, do not touch the
metal parts of the unit.
CAUTION
!
Turn the main power off
when cleaning or maintaining the product.
!
Ventilate the room well when
used together with a stove,
etc.
It may cause an injury.
!
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
!
Stop operation and close
the window in storm or
hurricane.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
Do not place obstacles
around air-inlets or inside
of air-outlet.
There is risk of electric shock.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
This could injure the pet or
plant.
!
Hold the plug by the head
of the power plug when
taking it out.
Failue to do so may cause
electric shock and damage.
!
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
An oxygen shortage may occur.
Do not use for special
purposes.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
!
Turn off the main power
switch when not sing the
u
unit for a long time.
It may cause failure of product
or fire.
!
Always insert the filters
securely. Clean filter once
every two weeks.
It may cause failure of
appliance or accident.
If bracket is damaged, there
is concern of damage due to
falling of unit.
Do not use strong detergent
such as wax or thinner. Use
a soft cloth for cleaning.
Appearance may be
deteriorated due to change
Do not place heavy object on the
power cord and take care so that
the cord is not compressed.
There is danger of fire or
electric shock.
of product color or
scratching of its surface.
!
Use caution when unpacking and
installing. Sharp edges could cause injury.
Operation without filters may
cause failure.
Do not drink water drained
from air conditioner.
It contains contaminants and
could make you sick.
!
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
2
PARTS NAMES
INDOOR UNIT
3
Air inlet
4
5
Air outlet
21
6
8
7
OUTDOOR UNIT
9
Air inlet
Air outlet
10
DISPLAY PANEL
NOTE:
The display panel on the indoor unit
would look like one of following:
12
INDOOR UNIT
1
Front panel frame
2
Front panel
3
Air filter
4
Horizontal air flow grille
5
Vertical air flow louver
6
Room temperature sensor
7
Display panel
8
Infrared signal receiver
9
Remote controller
10
Drain hose, refrigerant connecting pipe
11
Connective cable
12
Stop valve
DISPLAY PANEL
OPERATION/RUN indicator:
The indicator flashes once every second
11
after power is on and illuminates when the
air conditioner is in operation.
TIMER indicator:
The indicator illuminates when TIMER is set ON.
PRE-DEF./DEF. Indicator
This indicator illuminates when the air conditioner
starts defrosting automatically or when the Anticold air feature is activated in heating operation.
AUTO indicator:
This indicator flashes when the air conditioner
is in AUTO operation.
(For cooling& heating model only)
:
TIMER
DEF.
RUN
AUTO
Infrared signal receptor
OPERATION
Infrared signal receptor
AUTO
TIMER
PRE-DEF
Note:
All the pictures in this manual are for explanation
purpose only. They may be slightly different from
the air conditioner you purchased. The actual
shape shall prevail.
3

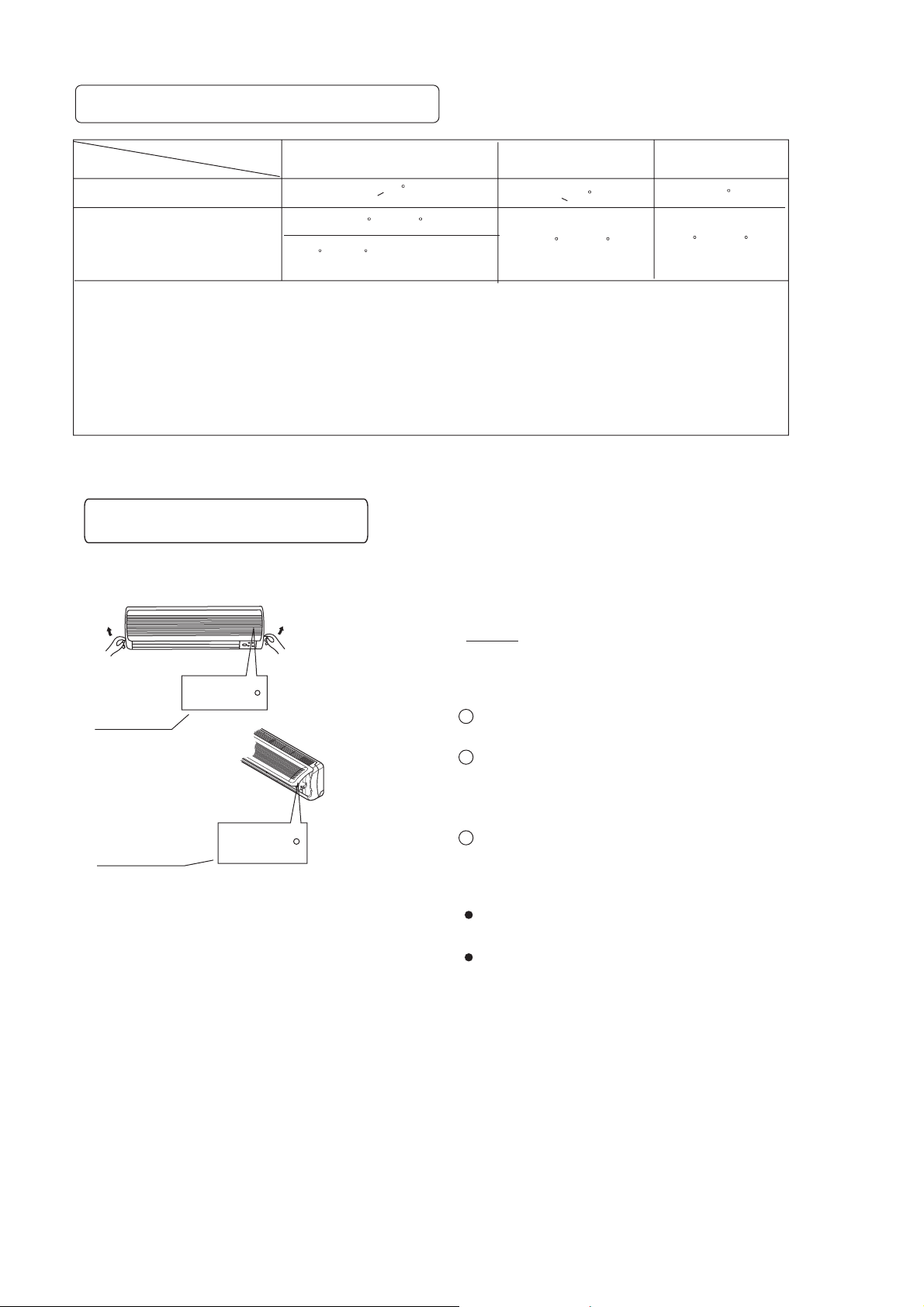

OPERATING TEMPERATURE
Mode
Temperature
Room temperature
Outdoor temperature
CAUTION:
1. If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
2. Room relative humidity less than 80%. If the air conditioner operates in excess of this
figure, the surface of the air conditioner may attract condensation. Please sets the vertical
air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.
3. Optimum performance will be achieved within these operating temperature.
Cooling operation
>17 C
0C 50C
~
( -15 C 50 C:For the models with
~
low temperature cooling system)
Heating operation
<30 C
-15 C 34 C
~
Drying operation
>10 C
0C 50C
MANUAL OPERATION
Manul operation can be used temporarily in case you can not find the remote controller or
its batteries are exhausted.
~
Manual
control button
Manual
control button
AUTO/COOL
AUTO/COOL
NOTE: The unit must be turned off before
operating the manual control button. If the
unit is operational, continue pressing the
manual control button until the unit is off.
1
Open and lift the front panel up to an angle
until it remains fixed with a clicking sound.
2
One press of the manual control button will
lead to the forced AUTO operation. If press
the button twice within five seconds, the unit
will operate under forced COOL operation.
3
Close the panel firmly to its original
position.
CAUTION:
This button is used for testing purposes
only. You had better not choose it.
To restore the remote controller operation,
use the remote controller directly.
4
ADJUSTING AIR FLOW DIRECTION
Adjust the air flow direction properly otherwise, it
might cause discomfort or cause uneven room
temperatures.
Adjust the horizontal louver using the remote
controller.
Adjust the vertical louver manually.
To set the vertical air flow(Up--Down) direction
Perform this function while the unit is in operation.
Use the remote controller to adjust the air flow
direction. The horizontal louver can be moved at
a angle of 6 for each press or set to move up
and down automatically. Please refer to the
,,
REMOTE CONTROLLER OPERATION MANUAL
for details.
To set the horizontal air flow direction (left - right)
Adjust the vertical louver manually using the lever
on the left or right side of the vertical louver arm
(Depending on model). Take care not to catch
fingers on the fan, horizontal louver or to damage
vertical louvers. When the air conditioner is in
Lever
operational and the horizontal louver is in a specific
position, move the lever at left (or right, depending
on model) end of the air outlet to the desired position.
O
,,
CAUTION
!
The DIRECTION/SWING button will be disabled when the
air conditioner is not in operation(including when the TIMER
ON
is set).
Do not operate the air conditioner for long periods the
air flow direction set downward in cooling or dry mode.
Otherwise, may occur on the surface of the
horizontal louver causing moisture to drop on to the floor or
on furnishings.
Do not move the horizontal louver manually. Always use the
DIRECTION/SWINGbutton. If you move this louver
manually, it may malfunction during operation. If the louver
malfunctions, stop the air conditioner once and restart it.
When the air conditioner is started immediately after it was
stopped, the horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver should not be set too
small, as COOLING or HEATING performance may be
impaired due to too restricted air flow area.
Do not operate unit with horizontal louver in closed position.
When the air conditioner is connected to power (initial
power), the horizontal louver may generate a sound for 10
seconds, this is a normal operation.
condensation
with
5
HOW THE AIR CONDITIONER WORKS
ECONOMIC (SLEEP) operation
1
Set
Temperature
1
1 hour
1 hour
Cooling
ECONOMIC (SLEEP) operation
Set
Temperature
1 hour
1
1 hour
Heating
AUTOMATIC OPERATION
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling/heating
models only), or fan only operation depending on what
temperature you have selected and the room temperature.
The air conditioner will control room temperature
automatically round the temperature point set by you.
If the AUTO mode is uncomfortable, you can select
desired conditions manually.
ECONOMIC(SLEEP) OPERATION
When you push ECONO (SLEEP) button on remote
1
controller during cooling, heating(cooling only type without),
or AUTO operation ,
the air conditioner will automatically
increase (cooling) or decrease (heating) 1 per hour.
The set temperature will be steady 2 hours later. The fan
speed will be automatically controlled. This feature can
maintain the most comfortable temperature and save more
energy for you.
DRYING OPERATION
The fan speed will be automatically controlled under dry
operation.
During the dry operation, if the room temperature is lower
than 10 C, the compressor stops operation and restarts
until the room temperature is above 12 C.
O
O
OPTIMAL OPERATION
To achieve optimal performance, please note the following:
Adjust the air flow direction correctly so that it is not directed on people.
Adjust the temperature to achieve the highest comfort level. Do not adjust the unit
to excessive temperature levels.
Close doors and windows on COOL or HEAT modes, or performance may be reduced.
Use TIMER ON button on the remote controller to select a time you want to start
your air conditioner.
Do not put any object near air inlet or air outlet, as the efficiency of the air conditioner
may be reduced and the air conditioner may stop running.
Clean the air filter periodically, otherwise cooling or heating performance may be reduced.
Do not operate unit with horizontal louvre in closed position.
6
MAINTENANCE
Filter Handle
WARNING
It is necessary to stop the air conditioner and disconnect the power supply before cleaning.
Cleaning the indoor unit and remote
controller
CAUTIONS
Use a dry cloth to wipe the indoor unit and
remote
A cloth dampened with cold water may be used
on
The front panel of the indoor unit can be removed
and cleaned with water. Then wipe it with a dry cloth.
Do not use a chemically treated cloth or duster to
clean the unit.
Do not use benzine, thinner, polishing powder, or
similar solvents for cleaning. These may cause
the plastic surface to crack or deform.
controller.
the indoor unit if it is very dirty.
Cleaning the air filter
A clogged air filter reduces the cooling efficiency of this
unit. Please clean the filter once every 2 weeks.
1. Lift the indoor unit panel up to an angle until it stops
with a clicking sound.
2. Take hold of the handle of the air filter and lift it up
slightly to take it out from the filter holder, then
pull it downwards.
3. Remove the AIR FILTER from the indoor unit.
Clean the AIR FILTER once two weeks.
Clean the AIR FILTER with a vacuum cleaner
or water, then dry it up in cool place.
7
MAINTENANCE
Air freshening
filter
4. Remove the air freshening filter from its support frame
(The installation and removing method of the air
freshening filter is different depending on the models,
see the pictures marked and on the left.
Clean the air freshening filter at least once a month,
and replace it every 4-5 months.
Clean it with vacuum cleaner, then dry it in cool
place.
5. Install the air freshening filter back into position.
6. Insert the upper portion of air filter back into the unit
taking care that the left and right edges line up
correctly and place filter into position.
Air freshening filter
Maintenance
If you plan to idle the unit for a long time, perform the
following:
(1) Operate the fan for about half a day to dry the
inside of the unit.
(2) Stop the air conditioner and disconnect power.
Remove the batteries from the remote controller.
(3) The outdoor unit requires periodic maintenance
and cleaning. Do not attempt to do this yourself.
Contact your dealer or servicer.
Checks before operation
Check that the wiring is not broken off or disconnected.
Check that the air filter is installed.
Check if the air outlet or inlet is blocked after the
air conditioner has not been used for a long time.
CAUTIONS
Do not touch the metal parts of the unit when
removing the filter. Injuries can occur when
handling sharp metal edges.
Do not use water to clean inside the air conditioner.
Exposure to water can destroy the insulation,
leading to possible electric shock.
When cleaning the unit, first make sure that the
power and circuit breaker are turned off.
8
OPERATION TIPS
The following events may occur during normal operation.
Protection of the air conditioner.
1.
Compressor protection
The compressor can't restart for 3 minutes after it stops.
Anti-cold air (Cooling and heating models only)
The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in
one of the following three situations and the set temperature has not been reached.
A) When heating has just starting.
B) Defrosting.
C) Low temperature heating.
The indoor or outdoor fan stop running when defrosting (Cooling and heating models only).
Defrosting (Cooling and heating models )
Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low
and humidity is high resulting in lower heating efficiency of the air conditioner.
During this condition air conditioner will stop heating operation and start defrosting automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor temperature and
the amount of frost buildup on the outdoor unit.
A white mist coming out from the indoor unit
2.
A white mist may generate due to a large temperature difference between air inlet and air outlet
on COOL mode in an indoor environment that has a high relative humidity.
A white mist may generate due to moisture generated from defrosting process when the air
conditioner restarts in HEAT mode operation after defrosting.
only
Low noise of the air conditioner
3.
You may hear a low hissing sound when the compressor is running or has just stopped running.
This sound is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or has just stopped
running. This is caused by heat expansion and cold contraction of the plastic parts in the unit
when the temperature is changing.
A noise may be heard due to louver restoring to its original position when power is first turned on.
Dust is blown out from the indoor unit.
4.
This is a normal condition when the air conditioner has not been used for a long time or during first
use of the unit.
A peculiar smell comes out from the indoor unit.
5.
This is caused by the indoor unit giving off smells permeated from furniture,
or smoke.
The air conditioner turns to FAN only mode from COOL or HEAT (For cooling and
6.
heating models only) mode.
When indoor temperature reaches the temperature setting on air conditioner, the compressor will
stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again
when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating
models only) to the set point.
from building material,
9
7. Dripping water may generate on the surface of the indoor unit when cooling in a high
relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to
the maximum air outlet position and select HIGH fan speed.
Heating mode (For cooling and heating models only)
8.
The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit
during heating operation. When the outdoor temperature falls, heat drawn in by the air
conditioner decreases accordingly. At the same time, heat loading of the air conditioner
increases due to larger difference between indoor and outdoor temperature. If a
comfortable temperature can't be achieved conditioner, we suggest you use a
supplementary heating device.
Auto-restart function
9.
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the OPERATION indicator
on the indoor unit starts flashing. To restart the operation, push the ON/OFF button on the
remote controller. For the unit with Auto-restart feature, when the power restores, the unit
restarts automatically with all the previous settings preserved by the memory function.
10. Lightning or a car wireless telephone operating nearby may cause the unit to malfunction.
Disconnect the unit with power and then re-connect the unit with power again. Push the
ON/OFF button on the remote controller to restart operation.
by the air
10
TROUBLESHOOTING TIPS
Malfunctions and Solutions
Stop the air conditioner immediately if one of the following faults occur. Disconnect the
power and contact the nearest customer service center.
OPERATION/RUN indicator or other indicators flash rapidly (5 times every second)
and this flash can't be fixed by disconnecting the power, and then connect it in again.
Trouble
Fuse blows frequently or circuit breaker trips frequently.
Other objects or water penetrate the air conditioner.
The remote controller won't work or works abnormally.
Other abnormal situations.
Malfunctions
Unit does not
start
Unit not cooling
or heating
(Cooling/ heating
models only)
room very well
while air flowing
out from the air
cond tioneri
Cause
Power cut
Unit may have become
Fuse may have blown.
Battery in Remote controller may
have been exhausted.
The time you have set with timer
is incorrect.
Inappropriate temperature
setting.
Air filter is blocked.
Doors or Windows are open.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
unplugged.
What should be done?
Wait for power to be restored.
Check that plug is securely in wall
receptacle.
Replace the fuse.
Replace the battery.
Wait or cancel timer setting.
Set temperature correctly. For
detailed method please refer to
""Using remote control section.
Clean the air filter.
Close the doors or windows.
Clear obstructions away first, then
restart the unit.
Compressor 3 minutes
protection has been activated.
If the trouble has not been corrected, please contact a local dealer or the nearest customer
service center. Be sure to inform them of the detailed malfunctions and unit model.
Wait.
Notes: Do not attempt to repair the unit yourself.
Always consult an authorised service provider.
11
The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details.
CS383-U1
202000190149
20100630
Loading...
