Midea MP120QWBA3RC1, MP140QWBA3RC1 User Manual

Item No. 888153 SKu No. 21615024 Model NO. MP120QWBA3RC1 Item No. 888 21615025 Model NO. MP140QWBA3RC1

149 SKu No.

PORTABLE AIR CONDITIONER Operator's manual

Customer Service / Service à l a clientèle:

Our Customer service staff is available to help you. For any problem with your purchase, or to receive further information about this product, please call our toll-free number.

SAVE THIS MANUAL

Keep this manual and the original sales invoice in a safe, dry place for future reference.

Notre personnel du service à la clientèle est disponible pour vous aider. En cas de problème avec votre achat, ou pour obtenir plus d’informations à propos de ce produit, veuillez composer notre numéro sans frais.

CONSERVEZ CE GUIDE

Conservez ce manuel avec la facture d’origine dans un endroit sûr et sec pour référence future.

1-866-206-0888

Table of Contents

Safety Precautions

Safety Precautions . .............................................................................................................................

Installation Instructions

Preparation

Design Notice Ambient Temperature Range For Unit Operating

Exhaust Hose Installation Choosing The Right Location

Energy Rating Information Tools Needed Accessories Window Installation Kit Installation

...............................................................................................................................

..............................................................................................................................

...............................................................................................................................

..................................................................................................

Operating Instructions

Control Panel Features Operation Instructions Other features

...............................................................................................................................

06 06

07 07 08 08 08 09

11 13 14

Maintenance

Safety Precautions Air Filter Cleaning Unit Cleaning Store the unit when not in use

...............................................................................................................................

Troubleshooting Tips

...............................................................................................................................

Remote controller lllustration

...............................................................................................................................

Air conditioner limited warranty

...............................................................................................................................

15 15 15 16

Safety

Safety Precautions

Read Safety Precautions Before Operation and Installation To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.

Safety

Precautions

WARNING

This symbol indicates the possibility of personnel injury or loss of life.

This symbol indicates the possibility of property damage or serious consequences.

CAUTION

WARNING

•

Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or ﬁre. Use only the included accessories and parts, and speciﬁed tools for the installation. Using non-

•

standard parts can cause water leakage, electrical shock, ﬁre, and injury or property damage. Make sure that the outlet you are using is grounded and has the appropriate voltage.

•

The power cord is equipped with a three-prong grounding plug to protect against shock. Voltage information can be found on the nameplate of the unit. Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you

•

intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualified electrician install the proper receptacle. Install the unit on a ﬂat, sturdy surface. Failure to do so could result in damage or excessive

•

noise and vibration. The unit must be kept free from obstruction to ensure proper function and to mitigate safety

•

hazards. Do not modify the length of the power cord or use an extension cord to power the unit.

•

Do not share a single outlet with other electrical appliances. Improper power supply can

•

cause ﬁre or electrical shock.

•

Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit. Do not install the unit in a location that may be exposed to combustible gas, as this could

•

cause ﬁre. The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as these could cause tipping. Do not operate a unit that it has been dropped or damaged.

•

The appliance with electric heater shall have at least 1 meter space to the combustible

•

materials. Do not touch the unit with wet or damp hands or when barefoot.

•

If the air conditioner is knocked over during use, turn off the unit and unplug it from the main

•

power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.

Page 3



Safety

Precautions

•

In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning. Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs. All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit. The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc. When the water drainage function is not in use, keep the upper and the lower drain plug firmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent children from choking.

CAUTION

This appliance is not intended for use by persons (including childern) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Children must be supervised around the unit at all times.

If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or

•

similarly qualified persons in order to avoid a hazard.

•

Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains. Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has

•

been dropped or damaged.

•

Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

•

Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or return to an authorized service facility for examination and/or repair. To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control

•

device. The appliance shall be installed in accordance with national wiring regulations.

•

Contact the authorised service technician for repair or maintenance of this unit. Contact the authorised installer for installation of this unit.

•

Do not cover or obstruct the inlet or outlet grilles.

•

Do not use this product for functions other than those described in this instruction manual.

•

Before cleaning, turn off the power and unplug the unit.

Page 4



Disconnect the power if strange sounds, smell, or smoke comes from it.

•

Do not press the buttons on the control panel with anything other than your fingers.

•

Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has

•

been dropped or damaged. Do not operate or stop the unit by inserting or pulling out the power cord plug.

•

Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit

•

in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc. Always transport your air conditioner in a vertical position and stand on a stable, level surface

•

during use. Always contact a qualified person to carry out repairs. If the damaged power supply cord must

•

be replaced with a new power supply cord obtained from the product manufacturer and not repaired. Hold the plug by the head of the power plug when taking it out.

•

Turn off the product when not in use.

•

Note about Fluorinated Gasses

Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO2 equivalent in tonnes of the fluorinated greenhouse gas(on some models), please refer to the relevant label on the unit itself.

Safety

Precautions

Installation, service, maintenance and repair of this unit must be performed by a certified technician.

Product uninstallation and recycling must be performed by a certified technician.

Page 5



Installation Instructions

Preparation

Installation

Instructions

NOTE: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller.

control panel horizontal louver blade (swing automatically)

handle (both sides)

remote signal receptor

Panel

Caster

upper air filter (behind the grille)

upper air intake

drain outlet

air outlet

lower air filter

lower air intake

power plug socket

drain outlet (only for pump heating mode)

power cord buckle

power cord outlet

bottom tray drain outlet

rearfront

Design Notice

In order to ensure the optimal performance of our products, the design speciﬁcations of the unit and remote control are subject to change without prior notice.

Ambient Temperature Range For Unit Operating

MODE Temperature Range MODE Temperature Range

Cool 17-35°C (62-95°F)

Dry

13-35°C (55-95°F)

Heat(pump heat mode)

Heat(electrical heat mode)

5-30°C (41-86°F)

30°C (86°F)

≥

Exhaust Hose Installation

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT (electrical heat type) mode must be removed exhaust hose.

Page 6





Choosing The Right Location

Your installation location should meet the following requirements:

19.7inch

50cm

-Make sure that you install your unit on an even surface to minimize noise and vibration.

-The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.

-The unit should be located at least 30cm (12”) from the nearest wall to ensure proper air conditioning. The horizontal louver blade should be at least 50cm

30cm

12inch

30cm

12inch

(19.7”) away from obstacles.

-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this could cause damage to the unit.

Recommend Installation

50cm

19.7 inch

Installation

Instructions

Energy Rating Information

The energy rating and noise information for this unit is based on the standard installation using an un-extended exhaust duct (Diameter:150mm, Length:1.5m) without window slider adaptor or wall exhaust adaptor A.

The unit with 3 meters extended exhaust duct is running by using 2 exhaust ducts(Diameter:150mm, Length:1.5m + Diameter: 130mm, Length: 1.5m) .The Energy rating and noise information for unit with 3 meters extended exhaust duct is not assessed.(For some models) NOTE：

We recommend that operating the unit at room temperature below 35 meters extended exhaust duct would not work at room temperature above 35 such as the lower air intake be blocked for 50%.

°C

. Since there is a risk that the unit with 3

°C

under some extreme conditions,

Page 7





Tools Needed

-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;

-Saw (On some models, to shorten window adaptor for narrow windows)

Installation

Instructions

Accessories

NOTE: Slight variations in design may occur.

Shape

Name of Accessories

Qty.

Shape

Name of Accessories

1 pc 1 setUnit Adaptor Security Bracket and 2 Screws

1 pc 1 pcExhaust Hose Drain Hose

1 pc 1 pcWindow Slider Adaptor Power Cord Buckle

1 pcWindow Slider A Bolt

LED TIMER

TIMER

OFF SHORT

CUT

TEMP

SWING

FAN

MODE

SLEEP

ON/OFF

Remote Controller and Battery

1 pcWindow Slider C

Qty.

2 pc

1 set1 pcWindow Slider B

Foam Seal A (Adhesive)

Foam Seal C (Non-adhesive)

Window Installation Kit

Exhaust hose

Unit adaptor Window slider

Type window installation

Hook

adaptor

Hole Seat

Lower groove

4 pc

2 pc Foam Seal B (Adhesive)

2 pc

Exhaust hose assembly

Make sure the adaptor is inserted into the lower groove of the air outlet.

Step One: Preparing the Exhaust Hose assembly

Press the exhaust hose into the window slider adaptor and unit adaptor, clamp automatically by elastic buckles of the adaptors.

Step Two: Install the Exhaust hose assembly to the unit

Insert unit adaptor of the Exhaust hose assembly into the lower groove of the air outlet of the unit while the hook of the adaptor is aligned with the hole seat of the air outlet and slide down the Exhaust hose assembly along the arrow direction for installation.

Page 8





Step Three: Preparing the Adjustable Window Slider

Bolts

1. Depending on the size of your window, adjust the size of the window slider.

2. If the length of the window requires two or three

Window slider A Window slider B

Window slider C

window sliders, use the bolt(s) to fasten the window sliders once they are adjusted to the proper length.

Installation

NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following two installation methods.

Type 1: Hung Window or Sliding Window Installation(For some models)

Foam seal B

(Adhesive type-shorter)

Foam seal A (Adhesive type)

Foam seal A

(Adhesive type)

Foam seal B

(Adhesive type-shorter)

Installation

Instructions

1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown.

Window slider A

Window slider

B(if required)

Window slider B (if required)

Window slider A

2. Insert the window slider assembly into the window opening.

Foam seal C

(Non-adhesive type)

Foam seal C

(Non-adhesive type)

3. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal between the glass and the window frame to prevent air and insects from getting into the room.

Page 9





Security Bracket

Installation

Instructions

2 Screws

4. If desired, install the security bracket with 2 screws as shown.

5. Insert the window slider adaptor into the hole of the window slider.

NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly. All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.

2 Screws

Page 10





Operating Instructions

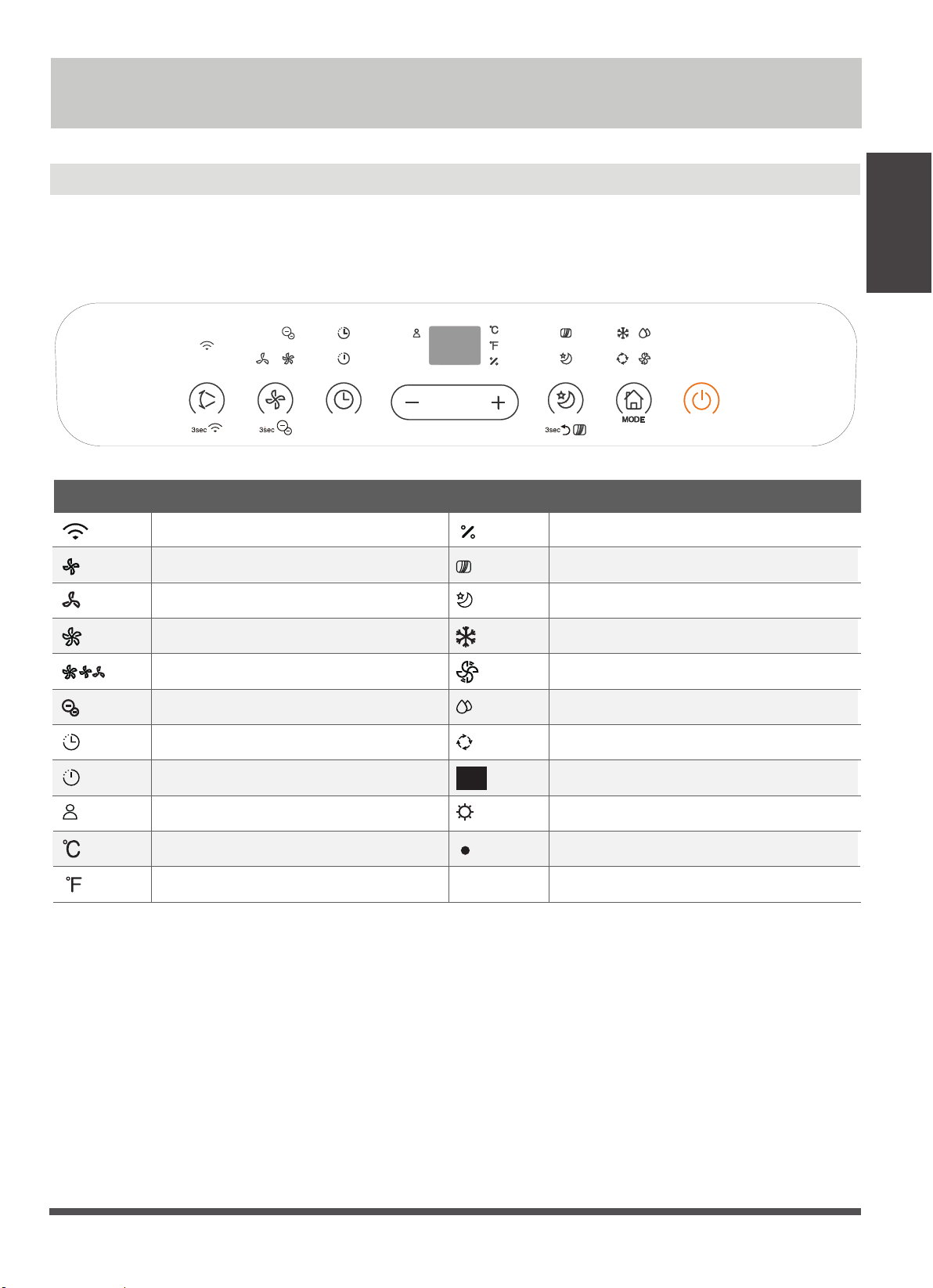

Control Panel Features

NOTE: The following control panels

are for explanation purpose only. The control panel of the unit you

Operating

Instructions

purchased may be slightly different according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail.

Indicator Function Indicator Function

Wireless light

LOW fan speed light

MED fan speed light

Humidity

FILTER light

SLEEP light

HIGH fan speed light

AUTO fan speed light(all illuminate/all dark)

ION light

Timer on light;

Timer off light;

FOLLOW ME light

Degrees Celsius

Degrees Fahrenheit

COOL mode light

FAN mode light

DRY mode light

AUTO mode light

LED display

Heat mode light;

Power light

Page 11





Operating

Instructions

Swing/Wireless(On some models) button Used to initiate the Auto swing feature. Press the SWING button can stop the louver at the desired angle.

Used to initiate the Wireless connection mode. For the first time to use Wireless function, press and hold the SWING button for 3 seconds to initiate the Wireless connection mode. The LED DISPLAY shows 'AP' to indicate you can set Wireless connection. If connection (router) is successful within 8 minutes, the unit will exit Wireless connection mode automatically and the Wireless indicator illuminates. If connection is failure within 8 minutes, the unit exits Wireless connection mode automatically. Under Wireless mode, you can press the swing and down(-) buttons at the same time for 3 seconds to turn off the Wireless and the LED DISPLAY shows 'OF' for 3 seconds , press the swing and up(+) buttons at the same time to turn on Wireless and the

LED DISPLAY shows 'O

' for 3 seconds. NOTE: When you restart the Wireless function, it may take a period of time to connect to the network automatically.

Fan/Ion button Control the fan speed. Press to select the fan speed in four steps-LOW, MED(On some models), HIGH and AUTO. The corresponding fan speed indicator light illuminates except AUTO speed. When select AUTO fan speed, all the fan indicator lights turn dark. On some models, when select AUTO fan speed, all the fan indicator lights illumiante.

NOTE: Press this button for 3 seconds to initiate ION feature. The ion generator is energized and will help to remove pollen and impurities from the air, and trap them in the filter. Press it for 3 seconds again to stop the ION feature.

Timer button Used to initiate the AUTO ON start time and

AUTO OFF stop time program, in conjuction

with the + & - buttons. The timer on/off indicator light illuminates .

Sleep(Eco)/Filter button Used to initiate the SLEEP/ECO operation.

NOTE: After 250 hours of operation, the filter indicator light illuminates. This feature is a reminder to clean the Air Filter for more efficient operation. Press this button for 3 seconds to cancel the reminder.

Mode button Press this button to choose AUTO, COOL, DRY, FAN mode. The

NOTE: On dry mode, you can adjust the

indicator light illuminates.

humidity for some models.

Power button Power switch on/off.

Up (+) and Down (-) buttons Used to adjust (increasing/decreasing)

temperature settings in 1°C/1°F(or 2°F) increments or the TIMER settings in a range of 0~24hrs or The humidity settings in a range of 35%RH(Relative Humidity) to 85% RH (Relative Humidity) in 5% incerments(For some models). NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time for 3 seconds.

LED display Shows the set temperature in °C or °F and the

Auto-timer settings and the humidity settings (only for modles with humidity sensor). While on DRY and FAN modes, it shows the room temperature. Shows Error codes and protection code: E1-Room temperature sensor error. E2-Evaporator temperature sensor error. E3-Condenser temperature sensorerror (on some models). E4-Display panel communication error. P1-Bottom tray is full--Connect the drain hose and drain the collected water away. If protection repeats,call for service.

Page 12





NOTE: When one of the above malfunctions occurs, turn off the unit, and check for any obstructions. Restart the unit, if the malfunction is still present,

Operation Instructions

turn off the unit and unplug the power cord. Contact the manufacturer or its service agents or a similar qualified person for service.

COOL operation

· Press the "MODE" button until the "COOL" indicator light comes on.

· Press the ADJUST buttons "+" or "-" to select your desired room temperature. The temperature can be set within a range of 17°C~30°C/62°F~86°F(or 88°F).

· Press the "FAN SPEED" button to choose the fanspeed.

DRY operation

· Press the "MODE" button until the "DRY" indicator light comes on.

· The fan speed or the temperature cannot be adjusted. The fan motor operates at LOW speed.

NOTE:Keep windows and doors closed for the best dehumidifying effect. Do not put the duct to window.

AUTO operation

· When you set the air conditioner in AUTO mode, it will automatically select cooling, heating(cooling only models without), or fan only operation depending on what temperature you have selected and the room temperature.

· The air conditioner will control room temperature automatically round the temperature point set by you.

· Under AUTO mode, you can not select the fan speed.

NOTE: Under AUTO mode, both the AUTO mode and the actual operation mode indicator lights illuminate On some models.

FAN operation

· Press the "MODE" button until the"FAN " indicator light comes on.

· Press the "FAN SPEED" button to choose the fan speed. The temperature can not be adjusted.

· Do not put the duct to window.

SLEEP/ECO operation

· Press this button, the selected temperature will increase(cooling) or decrease(heating) by 1°C/1°F (or 2°F) 30 minutes.The temperature will then increase (cooling) or decrease (heating) by another

1°C/1°F(or 2°F) after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep/Eco mode and the unit will continue to operate as originally programmed. NOTE: This feature is unavailabe under FAN or DRY mode.

TIMER operation

· When the unit is on, press the Timer button will initiate the Auto-off stop program, the TIMER OFF indicator light illuminates. Press the UP or down button to select the desired time. Press the TIMER button again within 5 seconds, the Auto-on start program is initiated. And the TIMER ON indicator light illuminates. Press the up or down button to select the desired Auto-on start time.

· When the unit is off, press the Timer button to initiate the Auto-on start program, press it again within five seconds will initiate the Auto-off stop program.

· Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.

· The system will automatically revert back to display the previous temperature setting if there is no operation in a 5 seconds period.

· Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/ Stop timer program.

· When the malfunction occurs, the Auto Start/Stop timed program will also be cancelled.

HEAT operation(cooling only models without)

· Press the "MODE" button until the "HEAT" indicator light comes on.

· Press the ADJUST buttons "+" or "-" to select the desired room temperature. The temperature can be set within a range of 17°C~30°C/62°F~86°F(or 88°F).

· Press the "FAN SPEED" button to choose the fan speed. For some models, the fan speed can not be adjusted under HEAT mode.

Operating

Instructions

Page 13





Other features

FOLLOW ME/TEMP SENSING feature NOTE:This feature can be activated from the remote control ONLY. The remote control serves as a remote

Operating

Instructions

thermostat allowing for the precise temperature control at its location. To activate the Follow Me/Temp Sensing feature, point the remote control towards the unit and press the Follow Me/Temp Sensing button. The remote display is actual temperature at its location. The remote control will send this signal to the air conditioner every 3 minutes interval until press the Follow Me/Temp Sensing button again. If the unit does not receive the Follow Me/Temp Sensing signal during any 7 minutes interval, the nit will exit the Follow Me/Temp Sensing mode. NOTE: This feature is unavailabe under FAN or DRY mode.

AUTO-RESTART If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting automatically when the power resumes.

Water drainage

· During dehumidifying modes, remove the upper drain plug from the back of the unit, install the drain connector(5/8" universal female mender) with 3/4" hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the hose directly over the drain area in your basement floor. NOTE: During cooling mode, please reinstall the upper drain plug to the unit securely to reach the maximum performance and avoid leakage.

· If you can set the humidity level (portable with humidity sensor), please put the back duct for best dehumidification effect, but the back duct doesn’t need to connect to window. If you can’t set the humidity level (portable without humidity sensor), please don’t put the back duct.

Remove the upper drain plug

WAIT 3 MINUTES BEFORE RESUMING OPERATION After the unit has stopped, it can not be restarted operation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

AIR FLOW DIRECTION ADJUSTMENT The louver can be adjusted automatically. Adjust the air flow direction automatically:

· When the Power is ON, the louver opens fully.

· Press the SWING button on the panel or remote controller to initiate the Auto swing feature. The louver will swing up and down automatically.

· Please do not adjust the louver manually.

Continuous drain hose

Press the power cord buckle into the rear cover.

· During heating pump mode, remove the lower drain plug from the back of the unit, install the drain connector (5/8" universal female mender) with 3/4" hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the Hose adaptor directly over the drain area in your basement floor. NOTE: Make sure the hose is secure so there are no leaks.

Remove the lower drain plug

Continuous drain hose

drain hose adaptor

√

Page 14





NOTE: Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the warter flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly. When the continuous drain hose is not used, ensure that the drain plug and knob are installed firmly to prevent leakage.

· When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows "P1" . At this time the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate(this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the machine until the "P1" symbol disappears. If the error repeats, call for service.

NOTE: Be sure to reinstall the bottom drain plug firmly to prevent leakage before using the unit.

When the water drainage function is not in use, keep the upper and the lower drain plug firmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent children from choking.

Maintenance

Safety Precautions

· Always unplug the unit before cleaning or servicing.

· DO NOT use ﬂammable liquids or chemicals to clean the unit.

· DO NOT wash the unit under running water. Doing so causes electrical danger.

· DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer.

Air Filter Cleaning

CAUTION DO NOT operate the unit without filter

Upper filter (take out)

lower filter A (Press the grill down slightly and pull the lower filter A out at the same time)

lower filter B (take out)

Remove the air filter

because dirt and lint will clog it and reduce performance.

Maintenance Tips

· Be sure to clean the air ﬁlter every 2 weeks for optimal performance.

· The water collection tray should be drained immediately after P1 error occurs, and before storage to prevent mold.

· In households with animals, you will have to periodically wipe down the grill to prevent blocked airﬂow due to animal hair.

Unit Cleaning

Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth.

Page 15





Store the unit when not in use

· Drain the unit’s water collection tray according to the instructions in the following section.

· Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.

· Turn off the appliance and unplug it.

· Clean the air ﬁlter according to the instructions in the previous section. Reinstall the clean, dry ﬁlter before storing.

· Remove the batteries from the remote control. NOTE: Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat can shorten the lifespan of the unit. NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened

Troubleshooting

Tips

in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the unit.

Troubleshooting Tips

Problem Possible Causes Solution

The Water Collection Tray is full. Turn off the

Unit does not turn on when pressing

ON/OFF button

Unit does not cool well

P1 Error Code

In COOL mode: room temperature is lower than the set temperature

The air ﬁlter is blocked with dust or animal hair

Exhaust hose is not connected or is blocked

The unit is low on refrigerant

Temperature setting is too high

The windows and doors in the room are open

The room area is too large

unit, drain the water from the Water Collection Tray and restart the unit.

Reset the temperature

Turn off the unit and clean the ﬁlter according to instructions

Turn off the unit, disconnect the hose, check for blockage and reconnect the hose

Call a service technician to inspect the unit and top off refrigerant

Decrease the set temperature

Make sure all windows and doors are closed

Double-check the cooling area

The unit is noisy and vibrates too much

The unit makes a gurgling sound

Page 16





There are heat sources inside the room

The ground is not level Place the unit on a ﬂat, level

The air ﬁlter is blocked with dust or animal hair

This sound is caused by the ﬂow of refrigerant inside the unit

Remove the heat sources if possible

Turn off the unit and clean the ﬁlter according to instructions

This is normal

surface

Remote Control Specifications

Model

Rated Voltage

Signal Receiving Range

Environment

CAUTION:

INGESTION HAZARD

- Contains small batteries, Keep out of reach of small children. If swallowed,

RG57H2(B)/BG(C)EF-M

3.0V(Dry batteries R03/LR03×2)

O O O O

-5 C~60 C(23 F~140 F)

seek immediate medical attention.

Remote controller

lllustration

Page 17





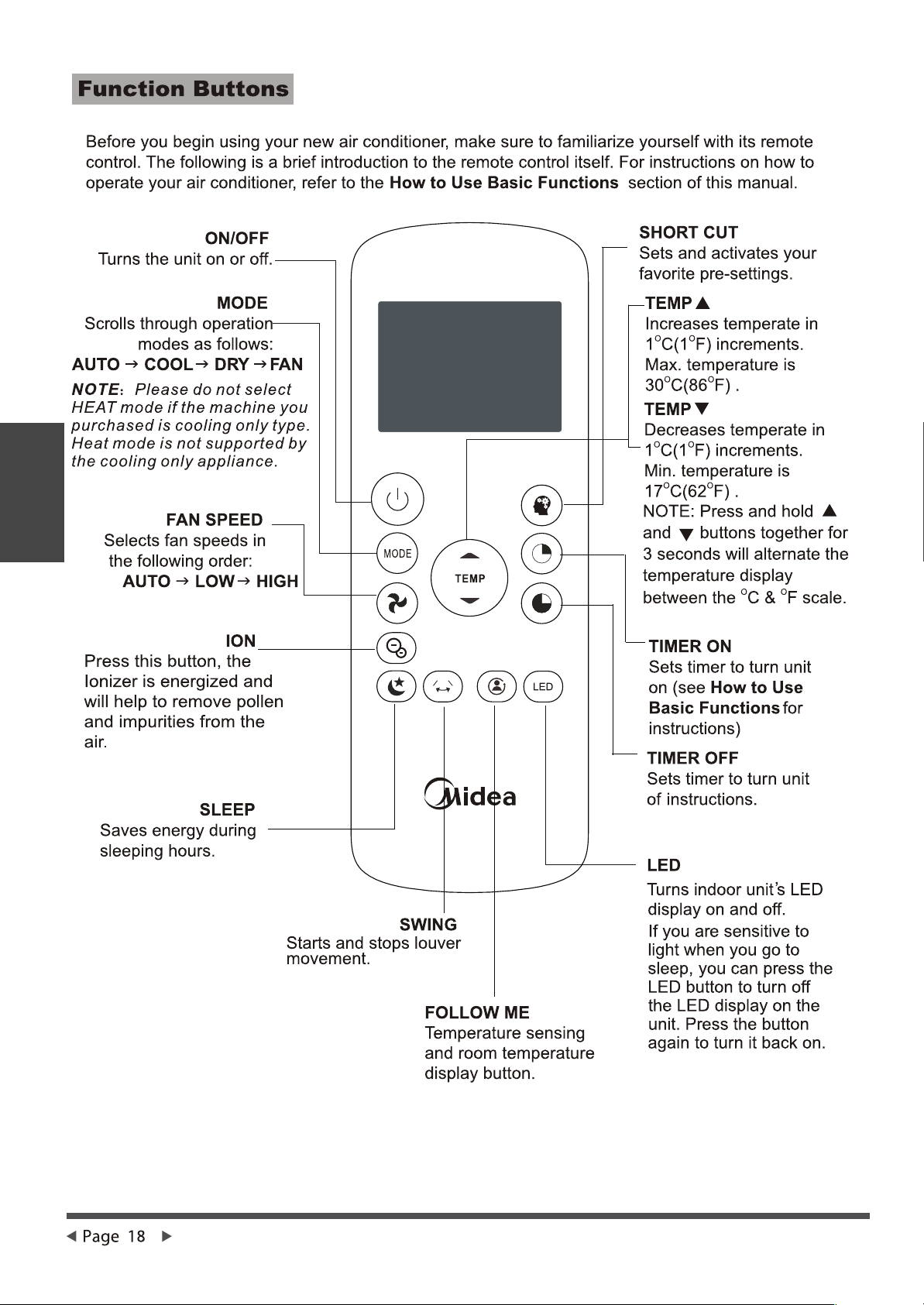

Remote controller

lllustration

Remote controller

lllustration

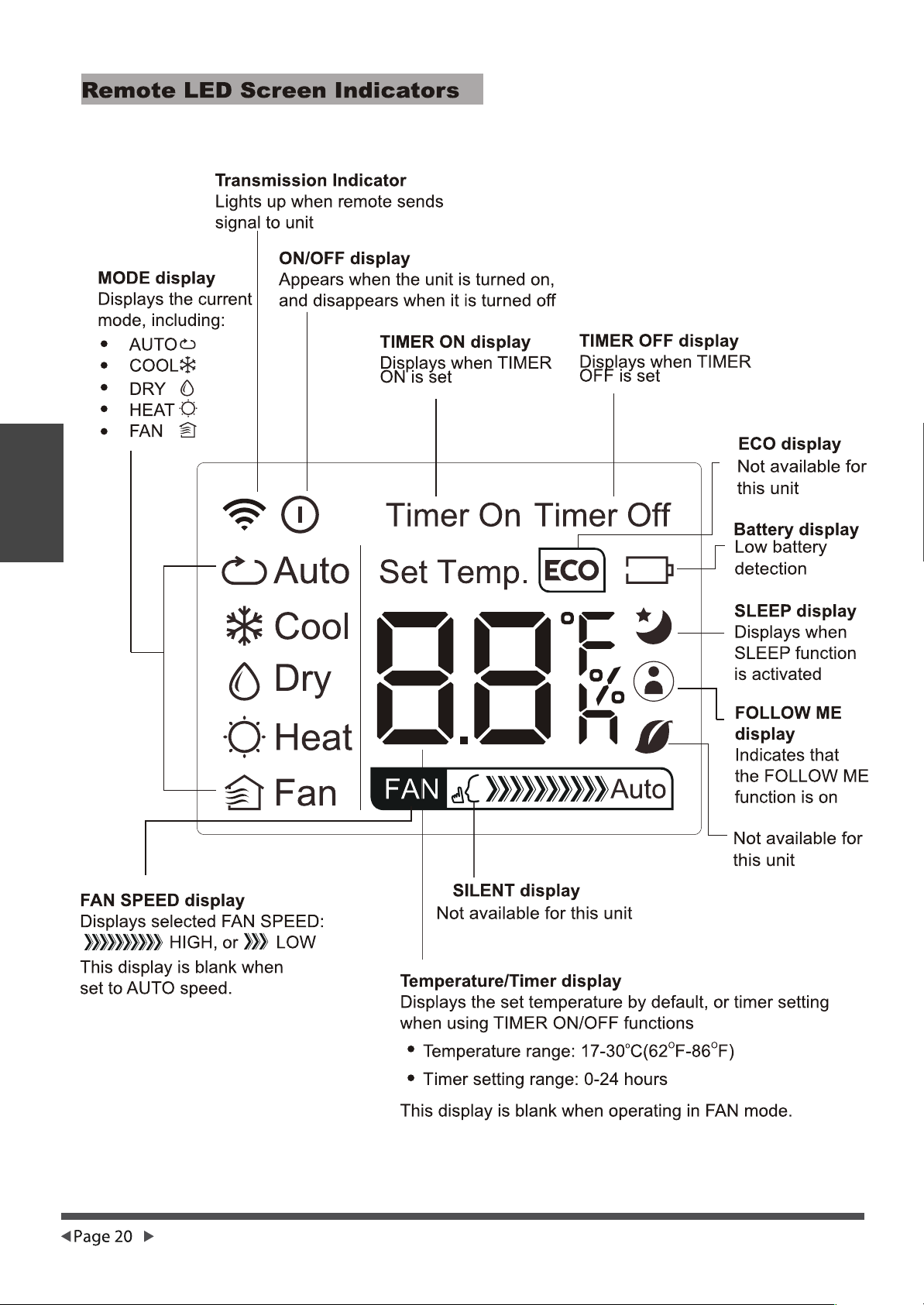

Remote controller

lllustration

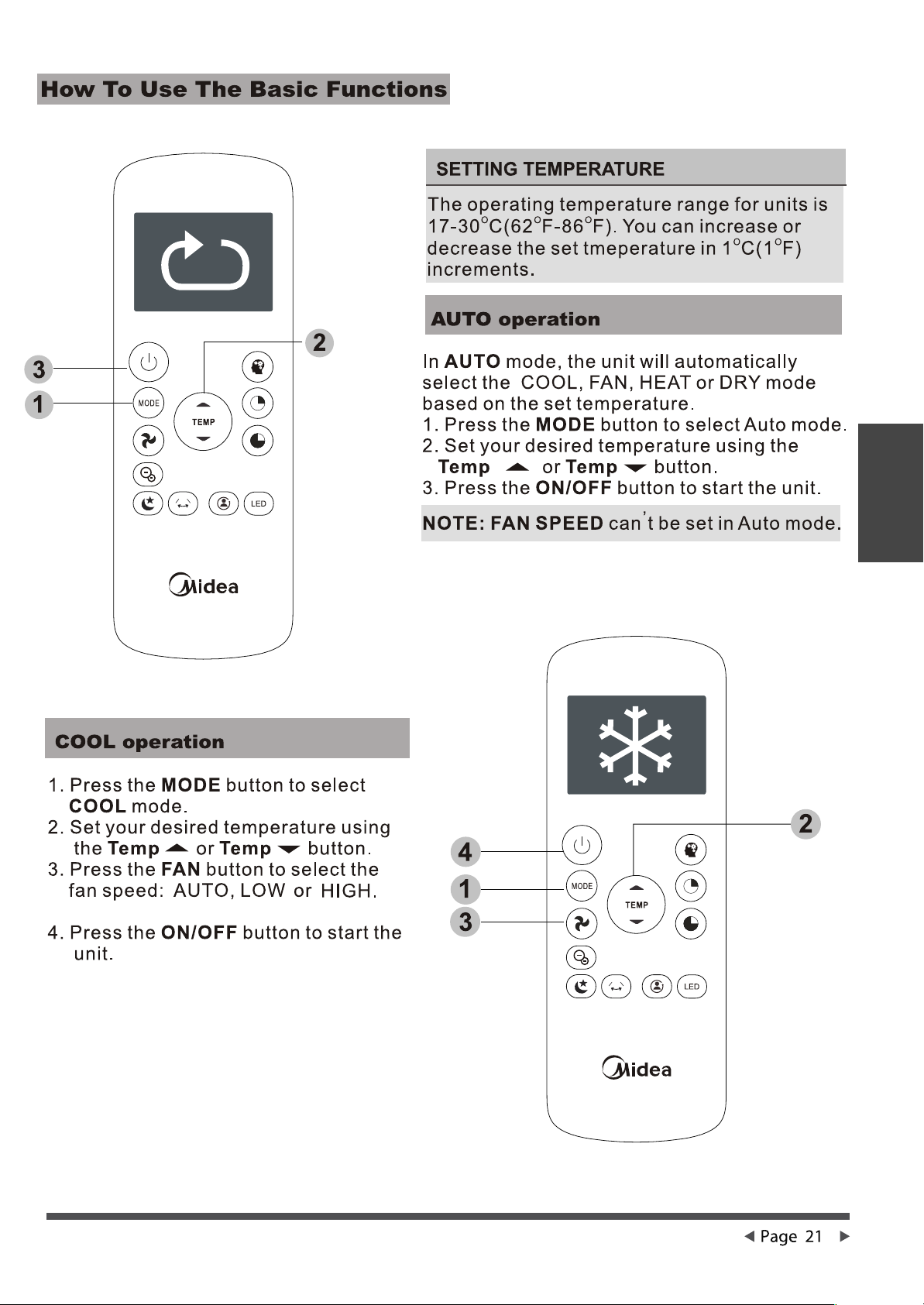

Remote controller

lllustration

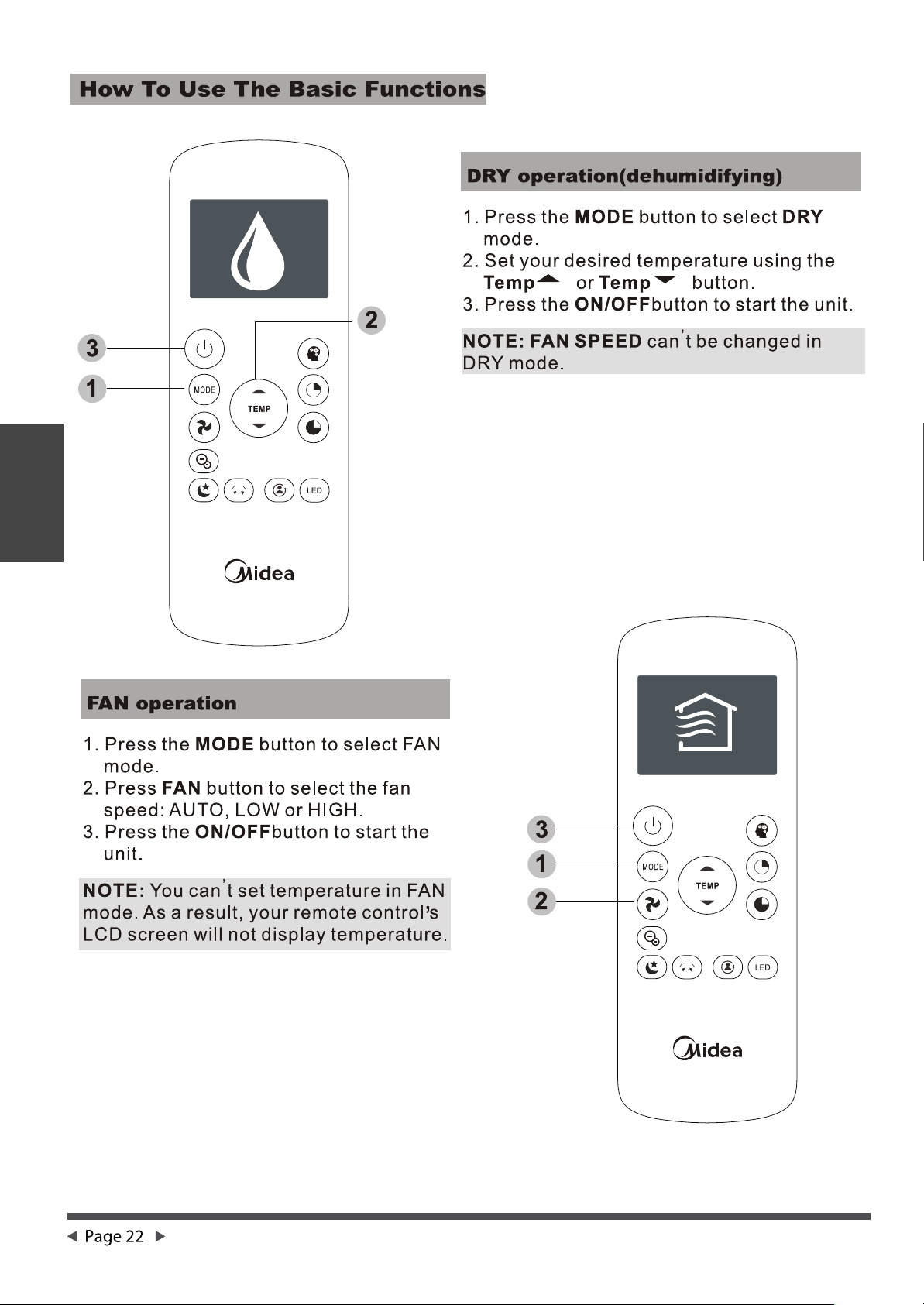

Remote controller

lllustration

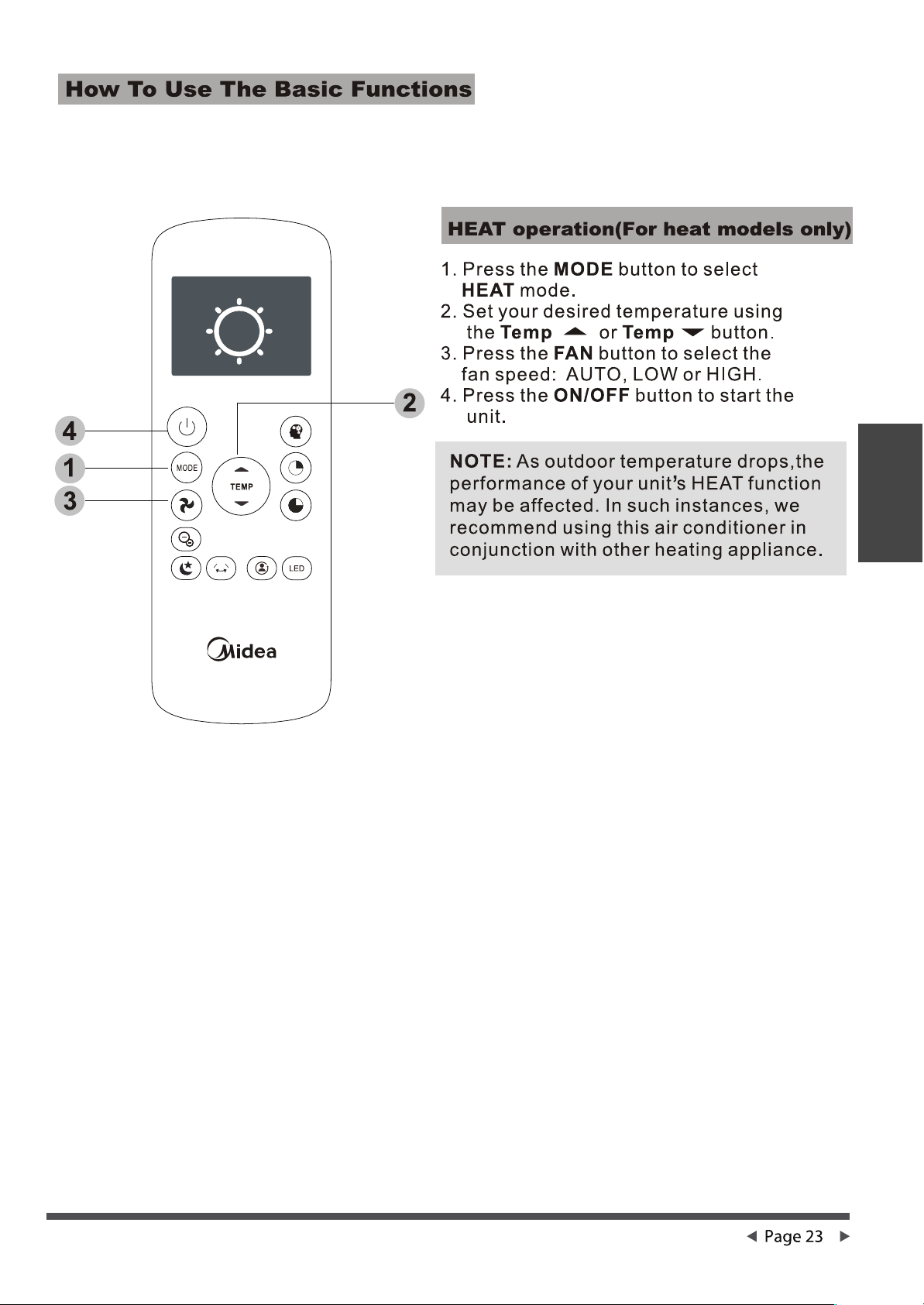

Remote controller

lllustration

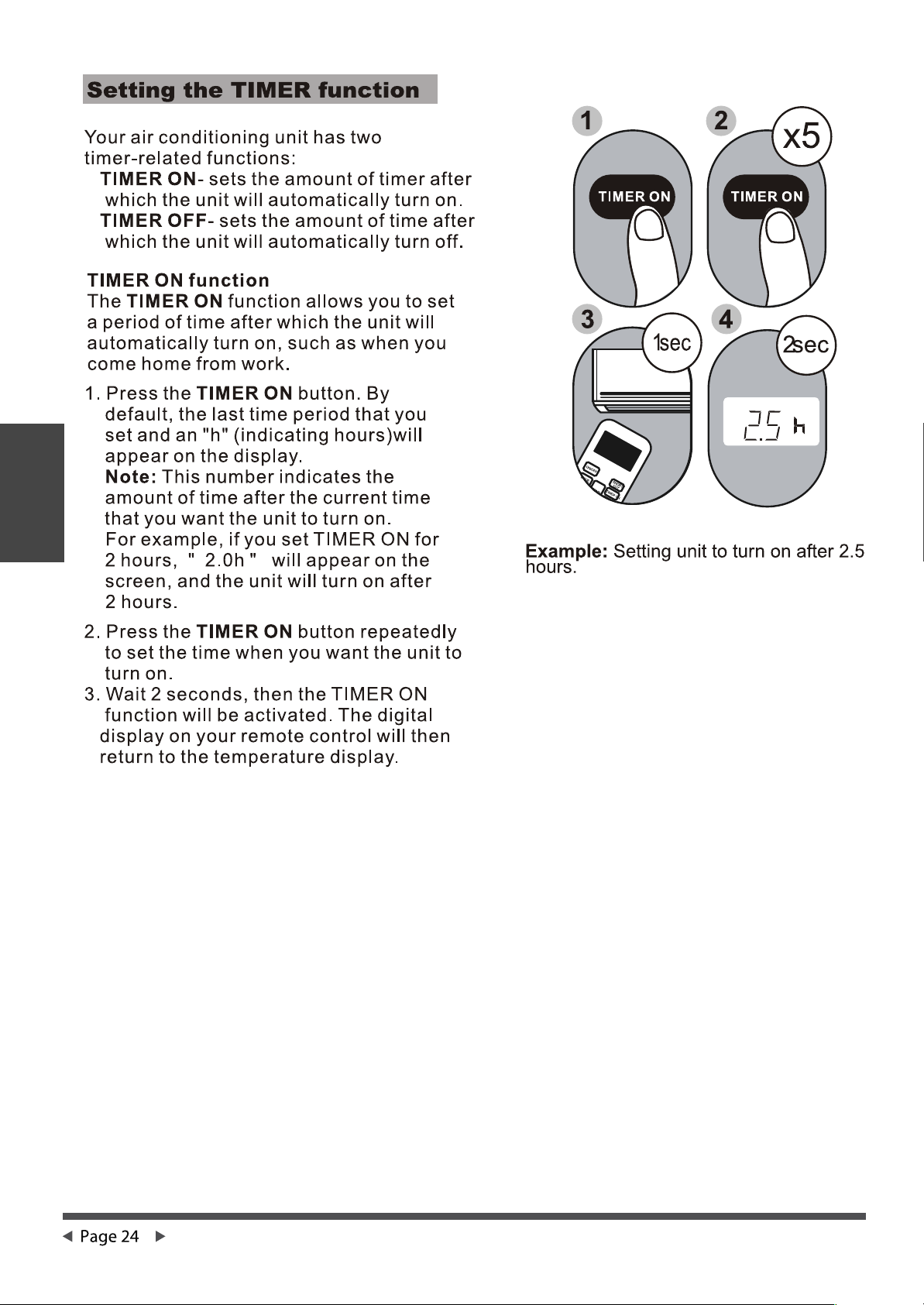

Remote controller

lllustration

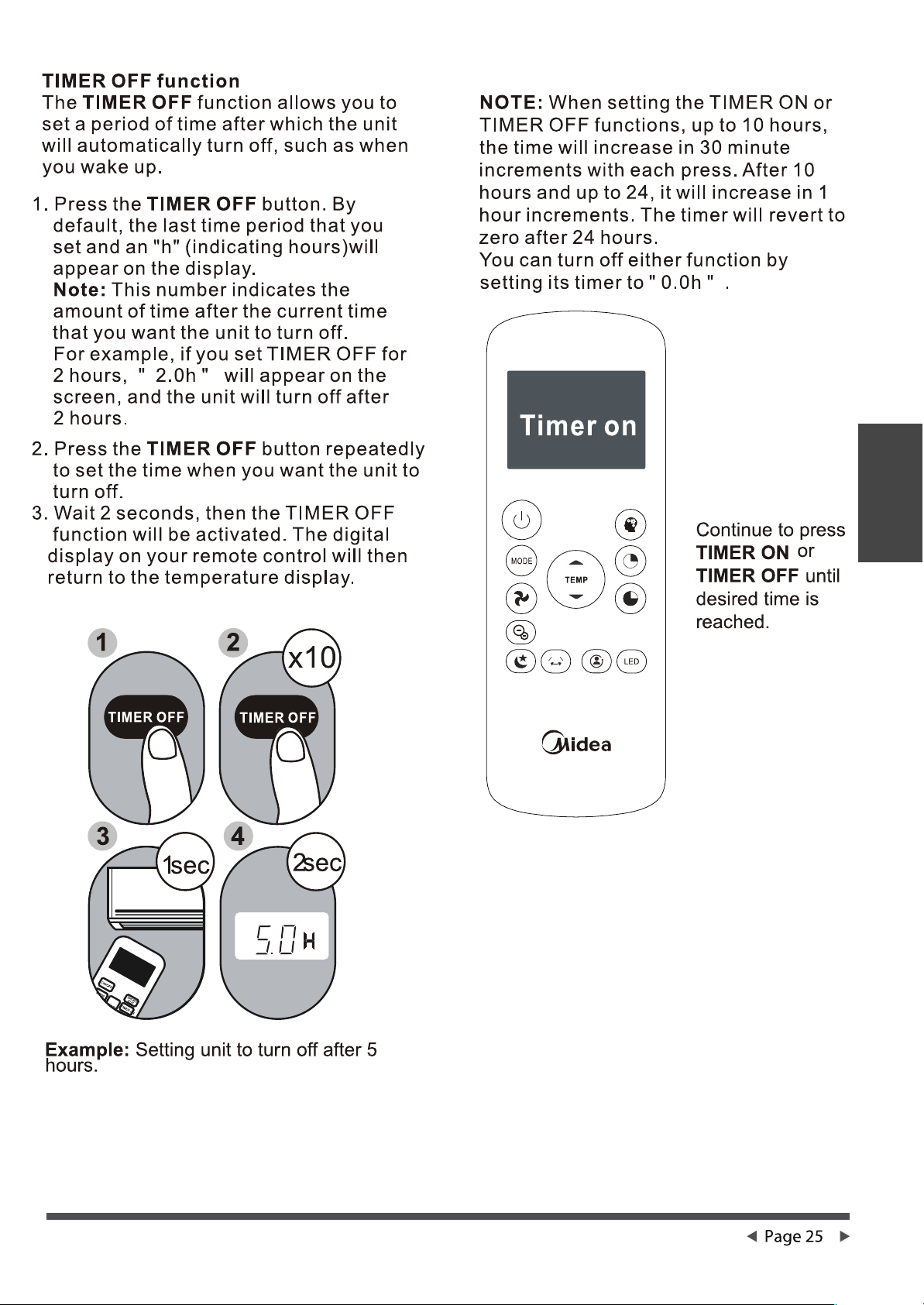

Remote controller

lllustration

Remote controller

lllustration

Remote controller

lllustration

Remote controller

lllustration

Remote controller

lllustration

Air Conditioner Limited Warranty

Air Conditioner

Warranty

Limited

Midea MP120QWBA3RC1, MP140QWBA3RC1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
