Midea MIV V4+ Mini Service Manual
DM12-01.01.05en
Service manual
MIV V4+
Mini
DC INVERTER R410A
(~220V, 50Hz, 1Ph)
MVUH80A-VA1
Contents
Part 1 General Information ............................................................... 1
Part 2 Outdoor Units ........................................................................... 6

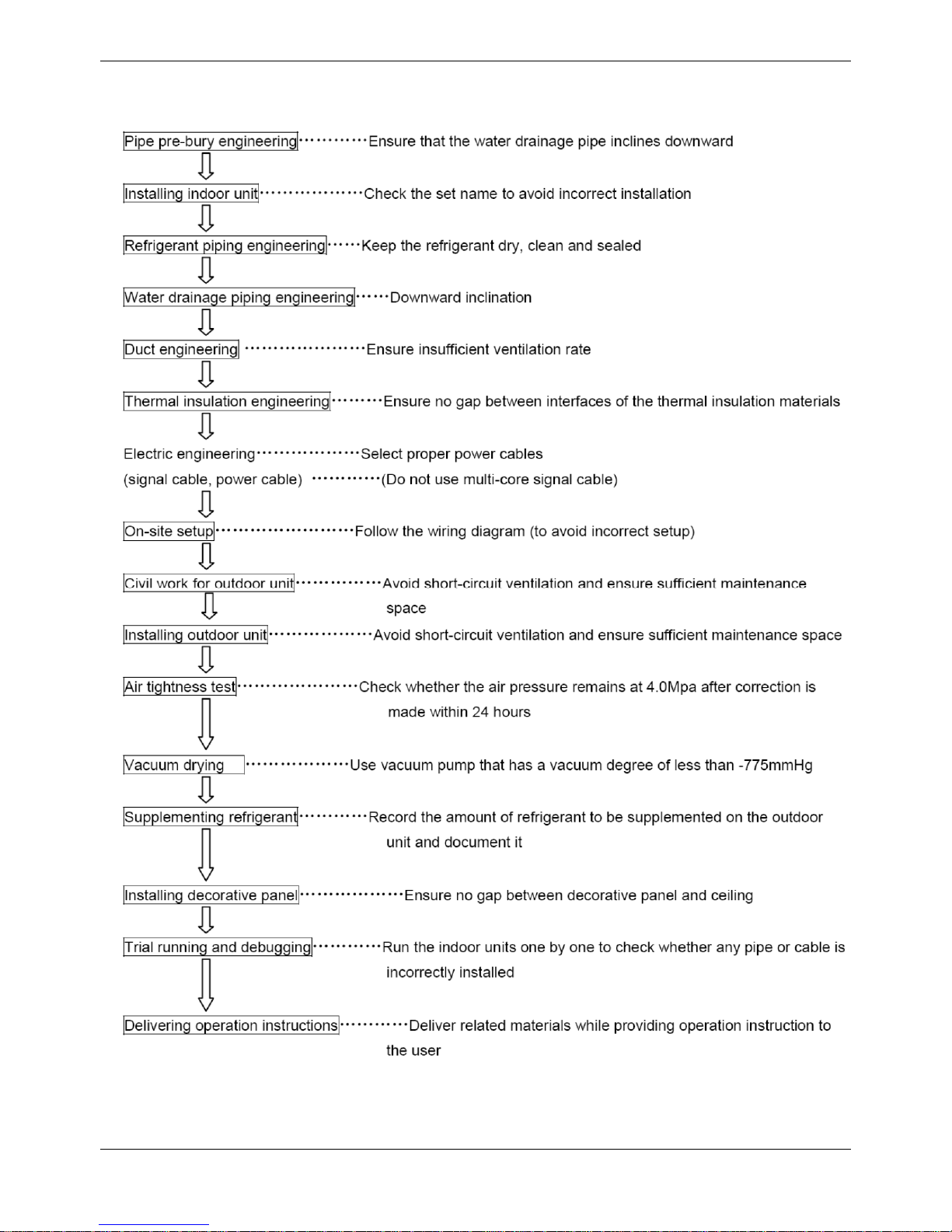

Part 3 Installation .............................................................................. 44
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
General Information 1
Part 1 General Information
1. Product Lineup .............................................................................................. 2
2. Nomenclature ................................................................................................. 3
3. Features .......................................................................................................... 5
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
2 General Information
1. Product Lineup
Outdoor Units
Model name
Dimension (mm)
Width*Height*Depth
Net/Gross weight (kg) Power supply
MVUH80A-VA1 975*862*355 66/70 220-240V~50Hz
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
General Information 3
2. Nomenclature
2.1 Outdoor unit:
MVUH80A – VA1
Power
1 - 1 phase, 50 Hz
3 - 3 phases, 50 Hz
Refrigerant
A - R410A
B - R22
Inverter
(in)V(erter) - inverter
S(tandard) – on/off
Model
A…Z
Capacity index
kW*10
The main feature of the system
air cooled:
C(ooling) – cooling only
H(eat pump) – cooling and heating
R(ecovery) – heat recovery, 3-pipe
water cooled:
Q(ooling) – cooling only
W(ater) – cooling and heating
(reco)V(ery) – heat recovery, 3-pipe
Identifier of the outdoor unit
(o)U(tdoor)
Manufacturer’s brand and class of the system
M(idea) V(RF)
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
4 General Information
2.2 Indoor unit:
MVC28A – VA1
Design features (may be absent)
For example: G(rey), W (hite) – color
Power
1 - 1 phase, 50 Hz
3 - 3 phases, 50 Hz
Refrigerant
A - R410A
B - R22
Inverter
(in)V(erter) - inverter
S(tandard) - on/off
Model
A…Z
Capacity index
kW*10
Type of the indoor unit
W(all) - wall
(ca)S(sette) – cassette 600x600
C(assette) - cassette
(o)N(e way) – 1-way cassette
T(wo way) – 2-way cassette
L(ow) – low static pressure duct
M(edium) – medium static pressure duct
H(igh) - high static pressure duct
(fle)X – ceiling & floor
F(loor standing) – floor standing (колон ны й)
E(floor-standing exposed) – floor standing exposed
D – console
Manufacturer’s brand and class of the system
M(idea) V(RF)
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
General Information 5
3. Features
1. 8 kW with different type indoor units, it is full compliance with residential and light commercial place.
2. Only two main refrigerant lines (liquid pipe and gas pipe) are required in one system.
3. In some large residential spaces or some light commercial space, such as villa, restaurant, usually it need
more than one indoor unit, so outside the building are also full of outdoor unit. Now Midea can provide an
effective solution-Midea DC inverter mini system. Since now the beauty of the building will be back.
4. Indoor unit is over 70 models in 11 type variations can be choose, including 4-way cassette, 4-way
cassette(Compact), duct, ceiling and floor, wall-mounted, floor-standing, give you the most fashionable and
comfortable living space.
5. The outdoor unit can be used as unitary type outdoor unit or multi type outdoor unit. So there can be only
one indoor unit matched with outdoor unit.
6. Indoor unit is the same as the inverter smart series, please refer to the inverter smart part.
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
6 Outdoor units
Part 2 Outdoor Units
1. Specifications ................................................................................................. 7
2. Dimensions ..................................................................................................... 8
3. Service Space ................................................................................................. 9
4. Piping Diagrams ........................................................................................... 10
5. Wiring Diagrams ........................................................................................... 11
6. Field Wiring .................................................................................................. 12
7. Capacity Tables ............................................................................................ 13
8. Electric Characteristics ............................................................................... 19
9. Sound Levels ................................................................................................ 20

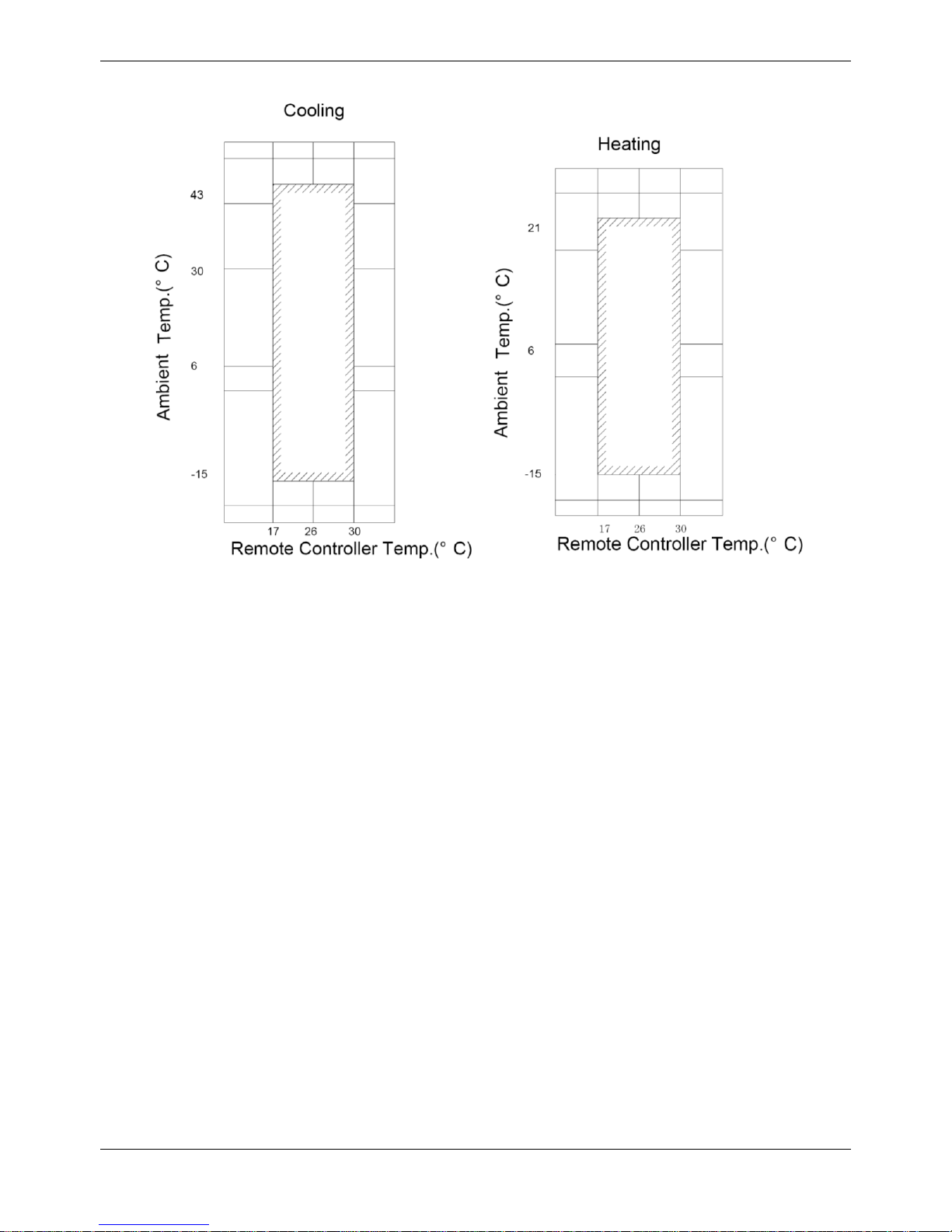

10. Operation Limits ........................................................................................ 21
11. Troubleshooting ......................................................................................... 22
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
Outdoor units 7
1. Specifications
Sale Model
MVUH80A-VA1
Power supply V-ph-Hz 220-240, 1, 50
Cooling
Capacity kW
8
Input kW
2.56
Heating
Capacity kW
9
Input W
2.71
Max. input consumption W
3766
Max. current A
17.3
Compressor
Model
TNB220FLHMC
Type
Rotary
Brand
MITSUBISHI
Supplier
MITSUBISHI
Capacity Btu/h
24334
Input W
2200
Rated current(RLA) A
9.7
Refrigerant oil ml
PVE 670ml
Outdoor fan motor
Model
YDK75-6H-1
Brand
Welling
Input W
168
Capacitor uF 5
Speed r/min 877
Outdoor coil
Number of rows 2
Tube pitch(a)x row pitch(b) mm 22*19.05
Fin spacing mm 1.7
Fin type (code)
Hydrophilic
Aluminum
Tube outside dia.and type mm
Ф7.94
Inner groove tube
Coil length x height x width mm 766*792*38.1
Number of circuits 8
Outdoor air flow m3/h 5966/4775
Sound level（sound pressure） dB(A) 57/54
Outdoor unit
Dimension(WxDxH) mm
975*355*862
Packing (WxDxH) mm
1043*395*915
Net/Gross weight kg 66/70
Refrigerant
Type R410A
Charged volume g 2800
Throttle type
Electronic
expansion valve
Design pressure MPa 4.4/2.6
Refrigerant piping
Liquid side/ Gas side mm Ф9.53/Ф15.9
Max. refrigerant pipe length m 100
Max. difference in level m 20
Connection wiring
Power wiring mm2 3 core×4
Signal wiring mm2
3 core
shielded wire, 3×0.5
Ambient temp. (Cooling -15~43)(Heating -15~21)
Application area m2 30~52.5
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
8 Outdoor units
2. Dimensions
MVUH80A-VA1
Unit:mm
MODEL A B C D E F H
MVUH80A-VA1
895 590 313 355 333 975 862
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
Outdoor units 9

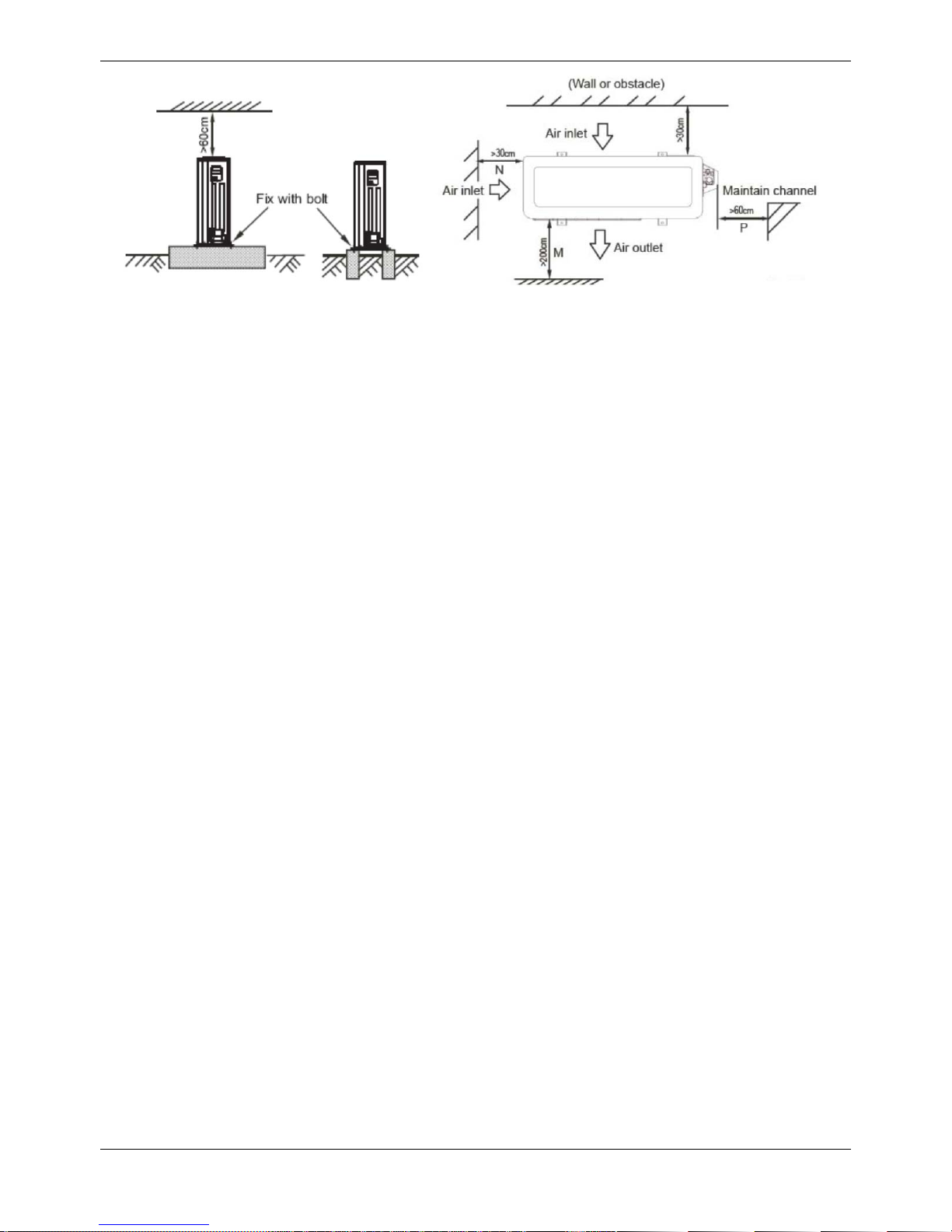

3. Service Space
>300
>600
>300
>
2
0
0
0
(Wall or obstacle)
Maintain channe
l
Air outlet
Air inlet
M
P
Air inlet
N
Single unit installation
>
6
0
c
m
Fix with bolt
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
10 Outdoor units
4. Piping Diagrams
MVUH80A-VA1
REMARK：for reference
Electronic
expansion
valve
Condenser
Oil
separator
Compressor
Low
pressure
switch
Oil return
Capillary
High pressure switch
Low pressure liquid
accumulator can
High pressure liquid
accumulator can
Electronic
expansion
valve
Evaporator
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
Outdoor units 11
5. Wiring Diagrams
MVUH80A-VA1
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
12 Outdoor units
6. Field Wiring
MVUH80A-VA1
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
Outdoor units 13
7. Capacity Tables
MVUH80A-VA1
Cooling
Combination
(%)
(Capacity
index)
Outdoor
temperat
ure(°C
DB)
Indoor temperature(°C WB)
14.00 16.00 18.00 19.00 20.00 22.00 24.00
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
130%
10.00 7.03 1.18 8.37 1.44 9.71 1.71 10.09 1.75 10.20 1.72 10.46 1.65 10.71 1.57
12.00
7.03 1.20 8.37 1.47 9.71 1.75 9.94 1.74 10.09 1.71 10.31 1.63 10.57 1.61
14.00
7.03 1.23 8.37 1.50 9.69 1.77 9.83 1.75 9.94 1.70 10.20 1.68 10.46 1.70
16.00
7.03 1.25 8.37 1.53 9.57 1.76 9.69 1.74 9.80 1.76 10.06 1.77 10.31 1.79
18.00
7.03 1.27 8.37 1.56 9.43 1.83 9.54 1.84 9.69 1.85 9.94 1.87 10.20 1.88
19.00
7.03 1.30 8.37 1.66 9.29 1.92 9.43 1.93 9.54 1.94 9.80 1.96 10.06 1.98
21.00
7.03 1.33 8.37 1.72 9.23 1.96 9.37 1.97 9.49 1.98 9.74 2.00 10.00 2.02
23.00
7.03 1.43 8.37 1.84 9.11 2.05 9.23 2.06 9.34 2.07 9.60 2.09 9.86 2.12
25.00
7.03 1.53 8.37 1.97 8.97 2.14 9.09 2.15 9.23 2.17 9.49 2.19 9.74 2.21
27.00
7.03 1.63 8.37 2.11 8.86 2.23 8.97 2.25 9.09 2.26 9.34 2.28 9.60 2.30
29.00
7.03 1.74 8.37 2.26 8.71 2.32 8.83 2.34 8.97 2.35 9.23 2.37 9.49 2.40
31.00
7.03 1.86 8.34 2.39 8.57 2.42 8.71 2.43 8.83 2.44 9.09 2.47 9.34 2.49
33.00
7.03 1.98 8.20 2.48 8.46 2.50 8.57 2.52 8.71 2.53 8.97 2.56 9.20 2.59
35.00
7.03 2.11 8.06 2.57 8.31 2.60
8.46 2.61 8.57 2.63 8.83 2.66 9.09 2.68
37.00
7.03 2.24 7.94 2.66 8.20 2.69 8.31 2.71 8.46 2.72 8.69 2.75 8.94 2.78
39.00
7.03 2.39 7.80 2.69 8.06 2.78 8.20 2.80 8.31 2.82 8.57 2.85 8.83 2.88
41.00
7.03 2.51 7.72 2.71 7.97 2.81 8.12 2.82 8.23 2.84 8.49 2.85 8.49 2.91
43.00
7.03 2.58 7.66 2.73 7.93 2.81 8.07 2.84 8.14 2.85 8.33 2.86 8.39 2.91
120%
10.00 6.49 1.08 7.71 1.31 8.97 1.56 9.60 1.69 10.06 1.76 10.29 1.69 10.51 1.63
12.00
6.49 1.10 7.71 1.34 8.97 1.59 9.60 1.72 9.91 1.75 10.14 1.69 10.37 1.62
14.00
6.49 1.12 7.71 1.37 8.97 1.62 9.60 1.76 9.77 1.74 10.03 1.68 10.26 1.69
16.00
6.49 1.14 7.71 1.39 8.97 1.66 9.54 1.77 9.66 1.75 9.89 1.76 10.11 1.78
18.00
6.49 1.16 7.71 1.42 8.97 1.71 9.40 1.83 9.51 1.84 9.74 1.85 10.00 1.87
19.00
6.49 1.18 7.71 1.48 8.97 1.84 9.29 1.92 9.40 1.93 9.63 1.94 9.86 1.96
21.00
6.49 1.19 7.71 1.53 8.97 1.91 9.20 1.96 9.31 1.97 9.57 1.99 9.80 2.01
23.00
6.49 1.28 7.71 1.64 8.97 2.04 9.09 2.05 9.20 2.06 9.43 2.08 9.66 2.10
25.00
6.49 1.36 7.71 1.75 8.83 2.13 8.94 2.14 9.06 2.15 9.31 2.17 9.54 2.19
27.00
6.49 1.46 7.71 1.87 8.71 2.22 8.83 2.23 8.94 2.24 9.17 2.26 9.40 2.28
29.00
6.49 1.55 7.71 2.00 8.57 2.31 8.69 2.32 8.80 2.33 9.03 2.36 9.29 2.38
31.00
6.49 1.66 7.71 2.14 8.43 2.40 8.57 2.41 8.69 2.43 8.91 2.45 9.14 2.47
33.00
6.49 1.76 7.71 2.28 8.31 2.49 8.43 2.50 8.54 2.52 8.77 2.54 9.00 2.57
35.00
6.49 1.88 7.71 2.43 8.17 2.58
8.29 2.59 8.43 2.61 8.66 2.64 8.89 2.66
37.00
6.49 2.00 7.71 2.59 8.06 2.67 8.17 2.69 8.29 2.70 8.51 2.73 8.74 2.76
39.00
6.49 2.13 7.69 2.73 7.91 2.76 8.03 2.78 8.14 2.79 8.40 2.83 8.63 2.85
41.00
6.49 2.18 7.62 2.75 7.85 2.78 7.97 2.80 8.08 2.81 8.34 2.83 8.38 2.87
43.00
6.49 2.22 7.58 2.77 7.79 2.80 7.90 2.81 8.02 2.82 8.19 2.84 8.25 2.93
110%
10.00 5.94 0.98 7.09 1.19 8.23 1.41 8.80 1.53 9.37 1.65 10.09 1.75 10.31 1.69
12.00
5.94 1.00 7.09 1.21 8.23 1.44 8.80 1.56 9.37 1.68 9.97 1.74 10.17 1.68
14.00
5.94 1.01 7.09 1.24 8.23 1.47 8.80 1.59 9.37 1.71 9.83 1.73 10.06 1.67
16.00
5.94 1.03 7.09 1.26 8.23 1.50 8.80 1.62 9.37 1.74 9.71 1.75 9.91 1.77
18.00
5.94 1.05 7.09 1.28 8.23 1.53 8.80 1.66 9.37 1.83 9.57 1.84 9.80 1.86
19.00
5.94 1.07 7.09 1.31 8.23 1.62 8.80 1.79 9.23 1.92 9.46 1.93 9.66 1.95
21.00
5.94 1.08 7.09 1.35 8.23 1.68 8.80 1.85 9.17 1.96 9.37 1.97 9.60 1.99
23.00
5.94 1.14 7.09 1.45 8.23 1.80 8.80 1.99 9.03 2.05 9.26 2.07 9.46 2.08
25.00
5.94 1.21 7.09 1.55 8.23 1.92 8.80 2.13 8.91 2.14 9.11 2.16 9.34 2.17
27.00
5.94 1.29 7.09 1.65 8.23 2.06 8.66 2.22 8.77 2.23 9.00 2.25 9.20 2.27
29.00
5.94 1.38 7.09 1.76 8.23 2.20 8.54 2.31 8.66 2.32 8.86 2.34 9.09 2.36
31.00
5.94 1.47 7.09 1.88 8.23 2.35 8.40 2.40 8.51 2.41 8.74 2.43 8.94 2.45
33.00
5.94 1.56 7.09 2.00 8.17 2.47 8.29 2.49 8.40 2.50 8.60 2.52 8.83 2.55
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
14 Outdoor units
35.00
5.94 1.66 7.09 2.14 8.03 2.56
8.14 2.58 8.26 2.59 8.46 2.62 8.69 2.64
37.00
5.94 1.77 7.09 2.27 7.91 2.66 8.03 2.67 8.11 2.68 8.34 2.71 8.54 2.73
39.00
5.94 1.88 7.09 2.42 7.77 2.75 7.89 2.76 8.00 2.77 8.20 2.80 8.43 2.83
41.00
5.94 1.90 7.09 2.44 7.71 2.77 7.82 2.78 7.94 2.79 8.10 2.82 8.18 2.85
43.00
5.94 1.92 7.09 2.47 7.65 2.79 7.76 2.80 7.88 2.81 8.02 2.83 8.05 2.91
100%
10.00 5.40 0.88 6.43 1.07 7.49 1.27 8.00 1.37 8.51 1.47 9.57 1.68 10.11 1.74
12.00
5.40 0.90 6.43 1.09 7.49 1.29 8.00 1.39 8.51 1.50 9.57 1.71 9.97 1.73
14.00
5.40 0.91 6.43 1.11 7.49 1.31 8.00 1.42 8.51 1.53 9.57 1.75 9.86 1.72
16.00
5.40 0.93 6.43 1.13 7.49 1.34 8.00 1.45 8.51 1.56 9.51 1.77 9.71 1.75
18.00
5.40 0.95 6.43 1.15 7.49 1.37 8.00 1.48 8.51 1.59 9.40 1.83 9.60 1.84
19.00
5.40 0.97 6.43 1.18 7.49 1.41 8.00 1.55 8.51 1.70 9.26 1.91 9.46 1.93
21.00
5.40 0.98 6.43 1.19 7.49 1.46 8.00 1.61 8.51 1.76 9.20 1.96 9.40 1.98
23.00
5.40 1.00 6.43 1.27 7.49 1.56 8.00 1.72 8.51 1.89 9.09 2.05 9.26 2.07
25.00
5.40 1.07 6.43 1.35 7.49 1.67 8.00 1.85 8.51 2.03 8.94 2.14 9.14 2.16
27.00
5.40 1.14 6.43 1.44 7.49 1.79 8.00 1.97 8.51 2.17 8.80 2.23 9.00 2.25
29.00
5.40 1.21 6.43 1.54 7.49 1.91 8.00 2.11 8.49 2.30 8.69 2.32 8.89 2.34
31.00
5.40 1.29 6.43 1.64 7.49 2.04 8.00 2.25 8.37 2.39 8.54 2.41 8.74 2.43
33.00
5.40 1.37 6.43 1.75 7.49 2.17 8.00 2.40 8.23 2.48 8.43 2.50 8.63 2.53
35.00
5.40 1.46 6.43 1.86 7.49 2.32
8.00 2.56 8.09 2.57 8.29 2.59 8.49 2.62
37.00
5.40 1.55 6.43 1.98 7.49 2.47 7.86 2.65 7.97 2.66 8.17 2.69 8.34 2.71
39.00
5.40 1.65 6.43 2.10 7.49 2.63 7.74 2.74 7.83 2.75 8.03 2.78 8.23 2.80
41.00
5.40 1.72 6.43 2.18 7.49 2.72 7.62 2.76 7.77 2.80 7.89 2.84 8.11 2.86
43.00
5.40 1.80 6.43 2.26 7.49 2.77 7.50 2.79 7.71 2.82 7.94 2.86 7.97 2.89
90%
10.00 4.86 0.79 5.80 0.95 6.74 1.12 7.20 1.21 7.66 1.30 8.60 1.49 9.54 1.68
12.00
4.86 0.80 5.80 0.97 6.74 1.15 7.20 1.23 7.66 1.33 8.60 1.52 9.54 1.71
14.00
4.86 0.82 5.80 0.99 6.74 1.17 7.20 1.26 7.66 1.35 8.60 1.55 9.54 1.74
16.00
4.86 0.83 5.80 1.00 6.74 1.19 7.20 1.28 7.66 1.38 8.60 1.58 9.51 1.77
18.00
4.86 0.85 5.80 1.02 6.74 1.21 7.20 1.31 7.66 1.41 8.60 1.61 9.40 1.83
19.00
4.86 0.86 5.80 1.05 6.74 1.24 7.20 1.34 7.66 1.46 8.60 1.73 9.26 1.91
21.00
4.86 0.87 5.80 1.06 6.74 1.26 7.20 1.38 7.66 1.51 8.60 1.79 9.20 1.96
23.00
4.86 0.89 5.80 1.10 6.74 1.35 7.20 1.48 7.66 1.62 8.60 1.92 9.06 2.05
25.00
4.86 0.93 5.80 1.17 6.74 1.44 7.20 1.58 7.66 1.73 8.60 2.06 8.94 2.14
27.00
4.86 0.99 5.80 1.25 6.74 1.54 7.20 1.69 7.66 1.85 8.60 2.20 8.80 2.23
29.00
4.86 1.06 5.80 1.33 6.74 1.64 7.20 1.80 7.66 1.98 8.51 2.30 8.69 2.32
31.00
4.86 1.12 5.80 1.42 6.74 1.75 7.20 1.93 7.66 2.11 8.37 2.39 8.54 2.41
33.00
4.86 1.19 5.80 1.51 6.74 1.86 7.20 2.05 7.66 2.25 8.26 2.48 8.43 2.50
35.00
4.86 1.27 5.80 1.60 6.74 1.98
7.20 2.19 7.66 2.40 8.11 2.57 8.29 2.59
37.00
4.86 1.35 5.80 1.70 6.74 2.11 7.20 2.33 7.66 2.56 7.97 2.66 8.17 2.68
39.00
4.86 1.43 5.80 1.81 6.74 2.25 7.20 2.48 7.66 2.73 7.86 2.76 8.03 2.78
41.00
4.86 1.48 5.80 1.90 6.74 2.33 7.20 2.55 7.66 2.74 7.80 2.83 7.97 2.84
43.00
4.86 1.55 5.80 1.98 6.74 2.41 7.20 2.61 7.66 2.80 7.76 2.86 7.91 2.89
80%
10.00 4.31 0.70 5.14 0.84 5.97 0.99 6.40 1.06 6.83 1.14 7.66 1.30 8.49 1.47
12.00
4.31 0.71 5.14 0.85 5.97 1.00 6.40 1.08 6.83 1.16 7.66 1.32 8.49 1.49
14.00
4.31 0.72 5.14 0.87 5.97 1.02 6.40 1.10 6.83 1.18 7.66 1.35 8.49 1.52
16.00
4.31 0.73 5.14 0.88 5.97 1.04 6.40 1.12 6.83 1.20 7.66 1.38 8.49 1.55
18.00
4.31 0.75 5.14 0.90 5.97 1.06 6.40 1.15 6.83 1.23 7.66 1.40 8.49 1.58
19.00
4.31 0.76 5.14 0.92 5.97 1.08 6.40 1.17 6.83 1.25 7.66 1.46 8.49 1.69
21.00
4.31 0.77 5.14 0.92 5.97 1.09 6.40 1.18 6.83 1.28 7.66 1.51 8.49 1.75
23.00
4.31 0.78 5.14 0.95 5.97 1.15 6.40 1.26 6.83 1.37 7.66 1.61 8.49 1.88
25.00
4.31 0.81 5.14 1.00 5.97 1.22 6.40 1.34 6.83 1.46 7.66 1.73 8.49 2.01
27.00
4.31 0.86 5.14 1.07 5.97 1.30 6.40 1.43 6.83 1.56 7.66 1.85 8.49 2.15
29.00
4.31 0.91 5.14 1.14 5.97 1.39 6.40 1.52 6.83 1.67 7.66 1.97 8.49 2.30
31.00
4.31 0.97 5.14 1.21 5.97 1.48 6.40 1.63 6.83 1.78 7.66 2.10 8.34 2.39
33.00
4.31 1.03 5.14 1.29 5.97 1.58 6.40 1.73 6.83 1.89 7.66 2.24 8.23 2.48
35.00
4.31 1.09 5.14 1.37 5.97 1.68
6.40 1.84 6.83 2.02 7.66 2.39 8.09 2.57
39.00
4.31 1.23 5.14 1.55 5.97 1.90 6.40 2.09 6.83 2.29 7.66 2.72 7.83 2.75
41.00
4.31 1.26 5.14 1.56 5.97 1.93 6.40 2.14 6.83 2.33 7.66 2.78 7.78 2.80
43.00
4.31 1.29 5.14 1.58 5.97 1.95 6.40 2.18 6.83 2.36 7.66 2.82 7.73 2.83
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
Outdoor units 15
70%
10.00 3.77 0.62 4.51 0.73 5.23 0.85 5.60 0.92 5.97 0.98 6.69 1.12 7.43 1.26
12.00
3.77 0.62 4.51 0.74 5.23 0.87 5.60 0.94 5.97 1.00 6.69 1.14 7.43 1.28
14.00
3.77 0.63 4.51 0.76 5.23 0.88 5.60 0.95 5.97 1.02 6.69 1.16 7.43 1.30
16.00
3.77 0.65 4.51 0.77 5.23 0.90 5.60 0.97 5.97 1.04 6.69 1.18 7.43 1.33
18.00
3.77 0.66 4.51 0.78 5.23 0.92 5.60 0.99 5.97 1.06 6.69 1.20 7.43 1.36
19.00
3.77 0.67 4.51 0.80 5.23 0.94 5.60 1.00 5.97 1.08 6.69 1.23 7.43 1.39
21.00
3.77 0.67 4.51 0.80 5.23 0.94 5.60 1.01 5.97 1.09 6.69 1.25 7.43 1.44
23.00
3.77 0.68 4.51 0.82 5.23 0.96 5.60 1.05 5.97 1.14 6.69 1.34 7.43 1.55
25.00
3.77 0.70 4.51 0.85 5.23 1.02 5.60 1.12 5.97 1.22 6.69 1.43 7.43 1.65
27.00
3.77 0.74 4.51 0.91 5.23 1.09 5.60 1.19 5.97 1.30 6.69 1.53 7.43 1.77
29.00
3.77 0.78 4.51 0.96 5.23 1.16 5.60 1.27 5.97 1.38 6.69 1.63 7.43 1.89
31.00
3.77 0.83 4.51 1.02 5.23 1.24 5.60 1.35 5.97 1.47 6.69 1.73 7.43 2.01
33.00
3.77 0.88 4.51 1.09 5.23 1.32 5.60 1.44 5.97 1.57 6.69 1.85 7.43 2.15
35.00
3.77 0.93 4.51 1.15 5.23 1.40
5.60 1.53 5.97 1.67 6.69 1.97 7.43 2.29
37.00
3.77 0.98 4.51 1.22 5.23 1.49 5.60 1.63 5.97 1.78 6.69 2.09 7.43 2.44
39.00
3.77 1.04 4.51 1.29 5.23 1.58 5.60 1.73 5.97 1.89 6.69 2.23 7.43 2.59
41.00
3.77 1.09 4.51 1.34 5.23 1.62 5.60 1.79 5.97 1.94 6.69 2.32 7.43 2.71
43.00
3.77 1.18 4.51 1.43 5.23 1.69 5.60 1.88 5.97 2.00 6.69 2.40 7.43 2.79
60%
10.00 3.23 0.53 3.86 0.63 4.49 0.73 4.80 0.78 5.11 0.83 5.74 0.94 6.37 1.06
12.00
3.23 0.55 3.86 0.64 4.49 0.74 4.80 0.79 5.11 0.85 5.74 0.96 6.37 1.07
14.00
3.23 0.55 3.86 0.65 4.49 0.75 4.80 0.81 5.11 0.86 5.74 0.98 6.37 1.09
16.00
3.23 0.56 3.86 0.66 4.49 0.77 4.80 0.82 5.11 0.88 5.74 0.99 6.37 1.11
18.00
3.23 0.57 3.86 0.67 4.49 0.78 4.80 0.83 5.11 0.89 5.74 1.01 6.37 1.13
19.00
3.23 0.58 3.86 0.68 4.49 0.79 4.80 0.85 5.11 0.91 5.74 1.03 6.37 1.16
21.00
3.23 0.58 3.86 0.69 4.49 0.80 4.80 0.86 5.11 0.92 5.74 1.04 6.37 1.17
23.00
3.23 0.59 3.86 0.70 4.49 0.81 4.80 0.88 5.11 0.93 5.74 1.08 6.37 1.25
25.00
3.23 0.60 3.86 0.71 4.49 0.85 4.80 0.92 5.11 0.99 5.74 1.16 6.37 1.33
27.00
3.23 0.62 3.86 0.76 4.49 0.90 4.80 0.98 5.11 1.06 5.74 1.23 6.37 1.42
29.00
3.23 0.66 3.86 0.80 4.49 0.96 4.80 1.04 5.11 1.13 5.74 1.31 6.37 1.51
31.00
3.23 0.70 3.86 0.85 4.49 1.02 4.80 1.11 5.11 1.20 5.74 1.40 6.37 1.61
33.00
3.23 0.74 3.86 0.90 4.49 1.08 4.80 1.18 5.11 1.28 5.74 1.49 6.37 1.72
35.00
3.23 0.78 3.86 0.96 4.49 1.15
4.80 1.25 5.11 1.36 5.74 1.58 6.37 1.83
37.00
3.23 0.83 3.86 1.01 4.49 1.21 4.80 1.32 5.11 1.44 5.74 1.68 6.37 1.95
39.00
3.23 0.87 3.86 1.07 4.49 1.29 4.80 1.40 5.11 1.53 5.74 1.79 6.37 2.07
41.00
3.23 0.90 3.86 1.12 4.49 1.33 4.80 1.46 5.11 1.58 5.74 1.87 6.37 2.16
43.00
3.23 0.93 3.86 1.16 4.49 1.38 4.80 1.50 5.11 1.64 5.74 1.95 6.37 2.26
50%
10.00 2.70 0.46 3.23 0.53 3.74 0.61 4.00 0.65 4.26 0.69 4.77 0.78 5.31 0.87
12.00
2.70 0.47 3.23 0.54 3.74 0.62 4.00 0.66 4.26 0.70 4.77 0.79 5.31 0.88
14.00
2.70 0.47 3.23 0.55 3.74 0.63 4.00 0.67 4.26 0.71 4.77 0.80 5.31 0.90
16.00
2.70 0.48 3.23 0.56 3.74 0.64 4.00 0.68 4.26 0.72 4.77 0.82 5.31 0.91
18.00
2.70 0.49 3.23 0.57 3.74 0.65 4.00 0.69 4.26 0.74 4.77 0.83 5.31 0.93
19.00
2.70 0.49 3.23 0.57 3.74 0.66 4.00 0.70 4.26 0.75 4.77 0.85 5.31 0.95
21.00
2.70 0.50 3.23 0.58 3.74 0.67 4.00 0.71 4.26 0.76 4.77 0.86 5.31 0.96
23.00
2.70 0.50 3.23 0.59 3.74 0.68 4.00 0.72 4.26 0.77 4.77 0.87 5.31 0.98
25.00
2.70 0.51 3.23 0.60 3.74 0.69 4.00 0.74 4.26 0.80 4.77 0.91 5.31 1.04
27.00
2.70 0.52 3.23 0.62 3.74 0.73 4.00 0.79 4.26 0.85 4.77 0.97 5.31 1.11
29.00
2.70 0.55 3.23 0.66 3.74 0.77 4.00 0.83 4.26 0.90 4.77 1.03 5.31 1.18
31.00
2.70 0.58 3.23 0.69 3.74 0.82 4.00 0.89 4.26 0.96 4.77 1.10 5.31 1.26
33.00
2.70 0.61 3.23 0.73 3.74 0.87 4.00 0.94 4.26 1.01 4.77 1.17 5.31 1.34
35.00
2.70 0.65 3.23 0.78 3.74 0.92
4.00 0.99 4.26 1.07 4.77 1.24 5.31 1.42
37.00
2.70 0.68 3.23 0.82 3.74 0.97 4.00 1.05 4.26 1.14 4.77 1.32 5.31 1.51
39.00
2.70 0.72 3.23 0.87 3.74 1.03 4.00 1.11 4.26 1.21 4.77 1.40 5.31 1.60
41.00
2.70 0.75 3.23 0.90 3.74 1.07 4.00 1.17 4.26 1.26 4.77 1.47 5.31 1.68
43.00
2.70 0.80 3.23 0.97 3.74 1.10 4.00 1.22 4.26 1.29 4.77 1.55 5.31 1.75
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
16 Outdoor units
Heating
Combination
(Capacity
index)
Outdoor air
temp.
Indoor temperature(°C DB)
16 18 20 21 22 24
TC PI TC PI TC PI TC PI TC PI TC PI
°C DB °C WB kW kW kW kW kW kW kW kW kW kW kW kW
130%
-13.7 -15 6.40 2.14 6.37 2.27 6.34 2.39 6.34 2.45 6.31 2.51 6.31 2.64
-11.8 -13 6.66 2.24 6.66 2.36 6.63 2.47 6.60 2.53 6.60 2.59 6.57 2.71
-9.8 -11 6.97 2.34 6.94 2.45 6.91 2.56 6.91 2.62 6.91 2.67 6.89 2.79
-9.5 -10 7.14 2.39 7.11 2.50 7.09 2.60 7.09 2.66 7.06 2.71 7.06 2.82
-8.5 -9.1 7.29 2.43 7.26 2.53 7.26 2.64 7.23 2.70 7.23 2.75 7.20 2.86
-7 -7.6 7.54 2.50 7.54 2.60 7.51 2.71 7.51 2.76 7.49 2.81 7.46 2.91
-5 -5.6 7.94 2.59 7.91 2.69 7.89 2.79 7.89 2.84 7.86 2.89 7.86 2.98
-3 -3.7 8.31 2.68 8.29 2.77 8.29 2.86 8.26 2.91 8.26 2.96 8.23 3.05
0 -0.7 8.97 2.81 8.97 2.90 8.94 2.98 8.94 3.01 8.91 3.07 8.91 3.15
3 2.2 9.68 2.92 9.66 3.01 9.63 3.09 9.63 3.13 9.63 3.17 9.60 3.25
5 4.1 10.17 3.00 10.14 3.08 10.14 3.15 10.11 3.19 10.11 3.23 10.09 3.30
7 6 10.69 3.07 10.66 3.14 10.66 3.21 10.63 3.25 10.63 3.28 10.20 3.15
9 7.9 11.23 3.13 11.20 3.20 11.20 3.27 11.17 3.30 10.94 3.23 10.20 2.96
11 9.8 11.80 3.20 11.77 3.26 11.71 3.30 11.31 3.17 10.94 3.04 10.20 2.79
13 11.8 12.43 3.26 12.40 3.32 11.71 3.09 11.31 2.97 10.94 2.85 10.20 2.62
15 13.7 13.03 3.31 12.46 3.14 11.71 2.91 11.31 2.80 10.94 2.69 10.20 2.47
120%
-13.7 -15 6.37 2.31 6.34 2.42 6.31 2.53 6.31 2.59 6.31 2.65 6.29 2.76
-11.8 -13 6.63 2.40 6.63 2.51 6.60 2.62 6.60 2.67 6.57 2.72 6.57 2.83
-9.8 -11 6.94 2.49 6.91 2.59 6.91 2.70 6.89 2.75 6.89 2.80 6.86 2.90
-9.5 -10 7.12 2.53 7.09 2.64 7.06 2.73 7.06 2.79 7.06 2.84 7.03 2.94
-8.5 -9.1 7.26 2.57 7.23 2.67 7.23 2.77 7.20 2.82 7.20 2.87 7.17 2.97
-7 -7.6 7.51 2.64 7.51 2.73 7.49 2.83 7.49 2.88 7.46 2.92 7.46 3.02
-5 -5.6 7.91 2.72 7.89 2.82 7.86 2.91 7.86 2.95 7.86 3.00 7.83 3.09
-3 -3.7 8.29 2.81 8.29 2.89 8.26 2.98 8.26 3.02 8.23 3.07 8.23 3.15
0 -0.7 8.94 2.92 8.94 3.01 8.91 3.08 8.91 3.13 8.89 3.16 8.89 3.25
3 2.2 9.66 3.03 9.63 3.11 9.63 3.18 9.60 3.22 9.60 3.26 9.40 3.24
5 4.1 10.14 3.10 10.11 3.17 10.11 3.24 10.09 3.28 10.09 3.31 9.40 3.04
7 6 10.66 3.16 10.66 3.23 10.63 3.30 10.46 3.25 10.11 3.12 9.40 2.86
9 7.9 11.20 3.23 11.17 3.29 10.80 3.18 10.46 3.06 10.11 2.93 9.40 2.69
11 9.8 11.77 3.28 11.49 3.23 10.80 2.99 10.46 2.88 10.11 2.76 9.40 2.54
13 11.8 12.20 3.25 11.49 3.03 10.80 2.81 10.46 2.70 10.11 2.59 9.40 2.39
15 13.7 12.20 3.06 11.49 2.85 10.80 2.65 10.46 2.54 10.11 2.45 9.40 2.25
110%
-13.7 -15 6.34 2.47 6.32 2.58 6.29 2.68 6.29 2.73 6.29 2.79 6.26 2.89
-11.8 -13 6.60 2.56 6.60 2.66 6.57 2.76 6.57 2.81 6.54 2.85 6.54 2.96
-9.8 -11 6.91 2.64 6.89 2.73 6.89 2.83 6.86 2.88 6.86 2.92 6.86 3.02
-9.5 -10 7.09 2.68 7.06 2.77 7.03 2.87 7.03 2.91 7.03 2.96 7.00 3.05
-8.5 -9.1 7.23 2.72 7.20 2.81 7.20 2.90 7.17 2.95 7.17 2.99 7.17 2.73
-7 -7.6 7.49 2.78 7.49 2.86 7.46 2.95 7.46 3.00 7.46 3.04 7.43 3.13
-5 -5.6 7.89 2.86 7.86 2.94 7.83 3.02 7.83 3.07 7.83 3.11 7.80 3.19
-3 -3.7 8.26 2.93 8.26 3.01 8.23 3.09 8.23 3.13 8.20 3.17 8.20 3.25
0 -0.7 8.91 3.04 8.91 3.11 8.89 3.19 8.89 3.22 8.89 3.26 8.63 3.20
3 2.2 9.63 3.14 9.60 3.21 9.60 3.28 9.57 3.31 9.26 3.17 8.63 2.91
5 4.1 10.11 3.20 10.11 3.27 9.91 3.24 9.57 3.11 9.26 2.98 8.63 2.74
7 6 10.63 3.26 10.54 3.28 9.91 3.04 9.57 2.92 9.26 2.81 8.63 2.58
9 7.9 11.17 3.32 10.54 3.09 9.91 2.86 9.57 2.75 9.26 2.64 8.63 2.43
11 9.8 11.17 3.12 10.54 2.90 9.91 2.69 9.57 2.59 9.26 2.49 8.63 2.29
13 11.8 11.17 2.92 10.54 2.72 9.91 2.53 9.57 2.44 9.26 2.34 8.63 2.16
15 13.7 11.17 2.60 10.54 2.57 9.91 2.39 9.57 2.30 9.26 2.21 8.63 2.04
100%
-13.7 -15 6.31 2.64 6.29 2.73 6.26 2.83 6.26 2.88 6.26 2.92 6.23 3.02
-11.8 -13 6.57 2.72 6.57 2.81 6.54 2.90 6.54 2.94 6.54 2.99 6.51 3.08
-9.8 -11 6.89 2.79 6.86 2.88 6.86 2.96 6.86 3.01 6.83 3.05 6.83 3.14
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
Outdoor units 17
-9.5 -10 7.06 2.83 7.03 2.91 7.03 3.00 7.00 3.04 7.00 3.08 6.97 3.17
-8.5 -9.1 7.20 2.86 7.17 2.95 7.17 3.03 7.17 3.07 7.14 3.11 7.14 3.19
-7 -7.6 7.46 2.92 7.46 3.00 7.43 3.08 7.43 3.12 7.43 3.16 7.40 3.24
-5 -5.6 7.86 2.99 7.83 3.07 7.83 3.14 7.80 3.18 7.80 3.22 7.77 3.29
-3 -3.7 8.23 3.06 8.23 2.78 8.20 3.20 8.20 3.24 8.20 3.27 7.86 3.14
0 -0.7 8.89 3.16 8.89 3.22 8.86 3.29 8.71 3.24 8.43 3.10 7.86 2.85
3 2.2 9.60 3.25 9.57 3.31 9.00 3.06 8.71 2.94 8.43 2.83 7.86 2.59
5 4.1 10.09 3.31 9.57 3.11 9.00 2.88 8.71 2.77 8.43 2.66 7.86 2.45
7 6 10.14 3.14 9.57 2.92 9.00 2.71 8.71 2.61 8.43 2.51 7.86 2.31
9 7.9 10.14 2.95 9.57 2.75 9.00 2.55 8.71 2.42 8.43 2.36 7.86 2.18
11 9.8 10.14 2.78 9.57 2.59 9.00 2.41 8.71 2.32 8.43 2.23 7.86 2.06
13 11.8 10.14 2.61 9.57 2.44 9.00 2.27 8.71 2.18 8.43 2.10 7.86 1.94
15 13.7 10.14 2.46 9.57 2.30 9.00 2.14 8.71 2.06 8.43 1.99 7.86 1.84
90%
-13.7 -15 6.27 2.81 6.25 2.89 6.25 2.98 6.22 3.02 6.22 3.06 6.22 3.15
-11.8 -13 6.53 2.88 6.53 2.96 6.50 3.04 6.50 3.08 6.50 3.12 6.47 3.20
-9.8 -11 6.85 2.94 6.85 3.02 6.82 3.10 6.82 3.14 6.82 3.18 6.79 3.26
-9.5 -10 7.02 2.98 6.99 3.05 6.99 3.13 6.96 3.17 6.96 3.21 6.96 3.28
-8.5 -9.1 7.16 3.01 7.16 3.08 7.13 3.16 7.13 3.19 7.13 3.23 7.04 3.26
-7 -7.6 7.42 3.06 7.42 3.13 7.39 3.20 7.39 3.24 7.39 3.27 7.04 3.11
-5 -5.6 7.81 3.13 7.79 3.19 7.79 3.26 7.76 3.29 7.56 3.19 7.04 2.93
-3 -3.7 8.19 3.19 8.19 3.25 8.10 3.26 7.81 3.13 7.56 3.01 7.04 2.76
0 -0.7 8.87 3.28 8.61 3.20 8.10 2.96 7.81 2.84 7.56 2.73 7.04 2.51
3 2.2 9.13 3.12 8.61 2.91 8.10 2.70 7.81 2.59 7.56 2.49 7.04 2.29
5 4.1 9.13 2.94 8.61 2.73 8.10 2.54 7.81 2.44 7.56 2.35 7.04 2.16
7 6 9.13 2.76 8.61 2.58 8.10 2.39 7.81 2.31 7.56 2.22 7.04 2.04
9 7.9 9.13 2.60 8.61 2.42 8.10 2.26 7.81 2.17 7.56 2.09 7.04 1.93
11 9.8 9.13 2.45 8.61 2.29 8.10 2.13 7.81 2.06 7.56 1.98 7.04 1.83
13 11.8 9.13 2.31 8.61 2.16 8.10 2.01 7.81 1.94 7.56 1.87 7.04 1.73
15 13.7 9.13 2.18 8.61 2.04 8.10 1.90 7.81 1.84 7.56 1.77 7.04 1.64
80%
-13.7 -15 6.26 2.97 6.23 3.05 6.23 3.13 6.23 3.16 6.20 3.20 6.20 3.28
-11.8 -13 6.51 3.03 6.51 3.11 6.49 3.18 6.49 3.21 6.49 3.25 6.29 3.16
-9.8 -11 6.83 3.09 6.83 3.16 6.80 3.23 6.80 3.27 6.74 3.26 6.29 2.99
-9.5 -10 7.00 3.13 6.97 3.19 6.97 3.26 6.97 3.29 6.74 3.16 6.29 2.90
-8.5 -9.1 7.14 3.15 6.64 3.22 7.11 3.28 6.97 3.21 6.74 3.08 6.29 2.82
-7 -7.6 7.40 3.20 7.40 3.26 7.20 3.19 6.97 3.07 6.74 2.94 6.29 2.70
-5 -5.6 7.80 3.26 7.66 3.24 7.20 3.00 6.97 2.88 6.74 2.77 6.29 2.54
-3 -3.7 8.11 3.27 7.66 3.05 7.20 2.82 6.97 2.72 6.74 2.61 6.29 2.40
0 -0.7 8.11 2.97 7.66 2.77 7.20 2.57 6.97 2.47 6.74 2.38 6.29 2.19
3 2.2 8.11 2.71 7.66 2.52 7.20 2.35 6.97 2.26 6.74 2.17 6.29 2.01
5 4.1 8.11 2.55 7.66 2.38 7.20 2.21 6.97 2.13 6.74 2.06 6.29 1.90
7 6 8.11 2.40 7.66 2.25 7.20 2.09 6.97 2.02 6.74 1.94 6.29 1.79
9 7.9 8.11 2.27 7.66 2.12 7.20 1.97 6.97 1.90 6.74 1.84 6.29 1.70
11 9.8 8.11 2.14 7.66 2.00 7.20 1.87 6.97 1.80 6.74 1.74 6.29 1.61
13 11.8 8.11 2.02 7.66 1.89 7.20 1.77 6.97 1.70 6.74 1.64 6.29 1.52
15 13.7 8.11 1.91 7.66 1.79 7.20 1.68 6.97 1.62 6.74 1.56 6.29 1.45
70%
-13.7 -15 6.21 3.14 6.19 3.21 6.19 3.27 6.07 3.22 5.87 3.09 5.47 2.84
-11.8 -13 6.47 3.19 6.47 3.26 6.30 3.18 6.07 3.05 5.87 2.93 5.47 2.69
-9.8 -11 6.78 3.24 6.70 3.24 6.30 3.00 6.07 2.89 5.87 2.77 5.47 2.54
-9.5 -10 6.96 3.27 6.70 3.15 6.30 2.91 6.07 2.80 5.87 2.69 5.47 2.47
-8.5 -9.1 7.10 3.29 6.70 3.06 6.30 2.84 6.07 2.73 5.87 2.62 5.47 2.41
-7 -7.6 7.10 3.14 6.70 2.92 6.30 2.71 6.07 2.61 5.87 2.51 5.47 2.31
-5 -5.6 7.10 2.95 6.70 2.75 6.30 2.56 6.07 2.46 5.87 2.90 5.47 2.18
-3 -3.7 7.10 2.78 6.70 2.59 6.30 2.41 6.07 2.32 5.87 2.23 5.47 2.06
0 -0.7 7.10 2.53 6.70 2.36 6.30 2.20 6.07 2.12 5.87 2.04 5.47 1.89
3 2.2 7.10 2.31 6.70 2.16 6.30 2.02 6.07 1.94 5.87 1.87 5.47 1.73
5 4.1 7.10 2.18 6.70 2.04 6.30 1.91 6.07 1.84 5.87 1.77 5.47 1.64
7 6 7.10 2.06 6.70 1.93 6.30 1.80 6.07 1.74 5.87 1.68 5.47 1.56
9 7.9 7.10 1.95 6.70 1.83 6.30 1.71 6.07 1.65 5.87 1.59 5.47 1.47
MIV V4+ Mini DC Inverter R410A (220V, 8 kW) DM12-01.01.05en
18 Outdoor units
11 9.8 7.10 1.84 6.70 1.73 6.30 1.62 6.07 1.56 5.87 1.51 5.47 1.40
13 11.8 7.10 1.74 6.70 1.64 6.30 1.53 6.07 1.48 5.87 1.43 5.47 1.33
15 13.7 7.10 1.65 6.70 1.55 6.30 1.45 6.07 1.41 5.87 1.36 5.47 1.27
60%
-13.7 -15 6.09 3.22 5.74 3.00 5.40 2.78 5.23 2.67 5.06 2.57 4.71 2.36
-11.8 -13 6.09 3.05 5.74 2.84 5.40 2.64 5.23 2.54 5.06 2.44 4.71 2.26
-9.8 -11 6.09 2.88 5.74 2.69 5.40 2.50 5.23 2.40 5.06 2.31 4.71 2.13
-9.5 -10 6.09 2.80 5.74 2.61 5.40 2.42 5.23 2.34 5.06 2.25 4.71 2.07
-8.5 -9.1 6.09 2.73 5.74 2.54 5.40 2.36 5.23 2.28 5.06 2.19 4.71 2.02
-7 -7.6 6.09 2.61 5.74 2.44 5.40 2.26 5.23 2.18 5.06 2.10 4.71 1.94
-5 -5.6 6.09 2.46 5.74 2.29 5.40 2.14 5.23 2.06 5.06 1.98 4.71 1.83
-3 -3.7 6.09 2.32 5.74 2.17 5.40 2.02 5.23 1.95 5.06 1.88 4.71 1.73
0 -0.7 6.09 2.12 5.74 1.98 5.40 1.85 5.23 1.79 5.06 1.72 4.71 1.59
3 2.2 6.09 1.94 5.74 1.82 5.40 1.70 5.23 1.64 5.06 1.59 4.71 1.47
5 4.1 6.09 1.84 5.74 1.72 5.40 1.61 5.23 1.56 5.06 1.50 4.71 1.40
7 6 6.09 1.74 5.74 1.63 5.40 1.53 5.23 1.48 5.06 1.43 4.71 1.33
9 7.9 6.09 1.65 5.74 1.55 5.40 1.45 5.23 1.40 5.06 1.35 4.71 1.26
11 9.8 6.09 1.56 5.74 1.47 5.40 1.38 5.23 1.33 5.06 1.29 4.71 1.20
13 11.8 6.09 1.48 5.74 1.39 5.40 1.31 5.23 1.27 5.06 1.22 4.71 1.14
15 13.7 6.09 1.41 5.74 1.32 5.40 1.25 5.23 1.21 5.06 1.17 4.71 1.09
50%
-13.7 -15 5.07 2.58 4.78 2.41 4.50 2.24 4.33 2.16 4.19 2.08 3.90 1.92
-11.8 -13 5.07 2.45 4.78 2.29 4.50 2.13 4.33 2.06 4.19 1.98 3.90 1.83
-9.8 -11 5.07 2.32 4.78 2.17 4.50 2.02 4.33 1.95 4.19 1.88 3.90 1.74
-9.5 -10 5.07 2.26 4.78 2.11 4.50 1.97 4.33 1.90 4.19 1.83 3.90 1.69
-8.5 -9.1 5.07 2.20 4.78 2.06 4.50 1.92 4.33 1.85 4.19 1.79 3.90 1.65
-7 -7.6 5.07 2.11 4.78 1.98 4.50 1.84 4.33 1.78 4.19 1.72 3.90 1.59
-5 -5.6 5.07 1.99 4.78 1.87 4.50 1.75 4.33 1.69 4.19 1.63 3.90 1.51
-3 -3.7 5.07 1.89 4.78 1.77 4.50 1.65 4.33 1.60 4.19 1.54 3.90 1.43
0 -0.7 5.07 1.73 4.78 1.63 4.50 1.52 4.33 1.47 4.19 1.42 3.90 1.32
3 2.2 5.07 1.59 4.78 1.50 4.50 1.40 4.33 1.36 4.19 1.31 3.90 1.22
5 4.1 5.07 1.51 4.78 1.42 4.50 1.33 4.33 1.29 4.19 1.25 3.90 1.16
7 6 5.07 1.44 4.78 1.35 4.50 1.27 4.33 1.23 4.19 1.19 3.90 1.11
9 7.9 5.07 1.36 4.78 1.28 4.50 1.21 4.33 1.17 4.19 1.13 3.90 1.06
11 9.8 5.07 1.30 4.78 1.22 4.50 1.15 4.33 1.12 4.19 1.08 3.90 1.01
13 11.8 5.07 1.23 4.78 1.16 4.50 1.09 4.33 1.06 4.19 1.03 3.90 0.96
15 13.7 5.07 1.17 4.78 1.11 4.50 1.05 4.33 1.01 4.19 0.98 3.90 0.92
DM12-01.01.05en MIV V4+ Mini DC Inverter R410A (220V, 8 kW)
Outdoor units 19
8. Electric Characteristics
Model
Outdoor Unit Power Supply Compressor OFM
Hz Voltage Min. Max. TOCA MFA RLA kW FLA
MVUH80A-VA1
50 220-240 198 253 20.5 50 9.7 0.168 0.78
Remark:
TOCA: Total Over-current Amps. (A)
MFA: Max. Fuse Amps. (A)
RLA: Rated Locked Amps. (A)
OFM: Outdoor Fan Motor.
FLA: Full Load Amps. (A)
KW: Rated Motor Output (KW)
Loading...
