AIR FRYER
INSTRUCTION MANUAL
MF-CN55D2
IMPORTANT NOTE: Please read the manual carefully before operating
your product. Retain it for future reference.
IMPORTANT SAFEGUARDS
1. This appliance is for household use only. Do not use outdoors.
2. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not
play with the appliance
4. This appliance is intended to be used in household and
similar applications such as:
-Staff kitchen areas in shops, office and other working environments;
-Farm houses;
-By clients in hotels, motels and other residential type environments;
-In bed and breakfast type environments;
5. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agentor similarly qualified persons in order to avoid a hazard.
6. Please turn off and unplug the appliance before cleaning,
maintenance or relocation and whenever it is not in use.
7. The surfaces are liable to get hot during use
8. After being used for a long time, the corresponding heating
zone of the induction hotplate is till hot. Never touch the
ceramic surface to avoid burning.
9. Do not immerse any part of the appliance in water or other
liquid.
10. Never immerse the housing, which contains electrical
components and the heating elements, in water nor rinse
under the tap. decreased sufficiently.
.
1
IMPORTANT SAFEGUARDS
11.Do not let any water or other liquid enter the appliance to
prevent electric shock.
12.Always put the ingredients to be fried in the basket, to
prevent it from coming into contact with the heating elements.
13.Do not cover the air inlet and the air outlet openings while
the appliance is operating.
14.Do not fill the pan with oil as this may cause a fire hazard.
15.Never touch the inside of the appliance while it is operating.
16.Keep the mains cord away from hot surfaces.
17.Never connect this appliance to an external timer switch or
separate remote-control system in order to avoid a hazardous situation.
18.During hot air frying, hot steam is released through the air
outlet openings. Keep your hands and face at a safe
distance from the steam and from the air outlet openings.Also becareful of hot steam and air when you remove
the pan from the appliance.
19.Immediate
coming out of the appliance. Wait for the smoke emission
to stop before you remove the pan from the appliance.
20. Please pay attention to scald where there is a high temperature symbol.
ly unplug the appliance if you see dark smoke
The appliance must not be disposed of with regular
household waste. At the end of its service life, the
appliance must be properly delivered to a collection
point for the recycling of electrical and electronic
equipment. By Collection and recycling of old appliances, you are making an important contributio
the conservation of our natural resources and
provide for environmentally sound and healthy
disposal.
2
n to
Product components
The product is subject to the actual product and configuration.
Main unit
Fried blue
Fried barrel
3
Electrical parameters
Model Voltage Power
MF-CN55D2 220-240V~ 1550-1850W
Frequency
50/60Hz
Instructions for use
4
Instructions for use

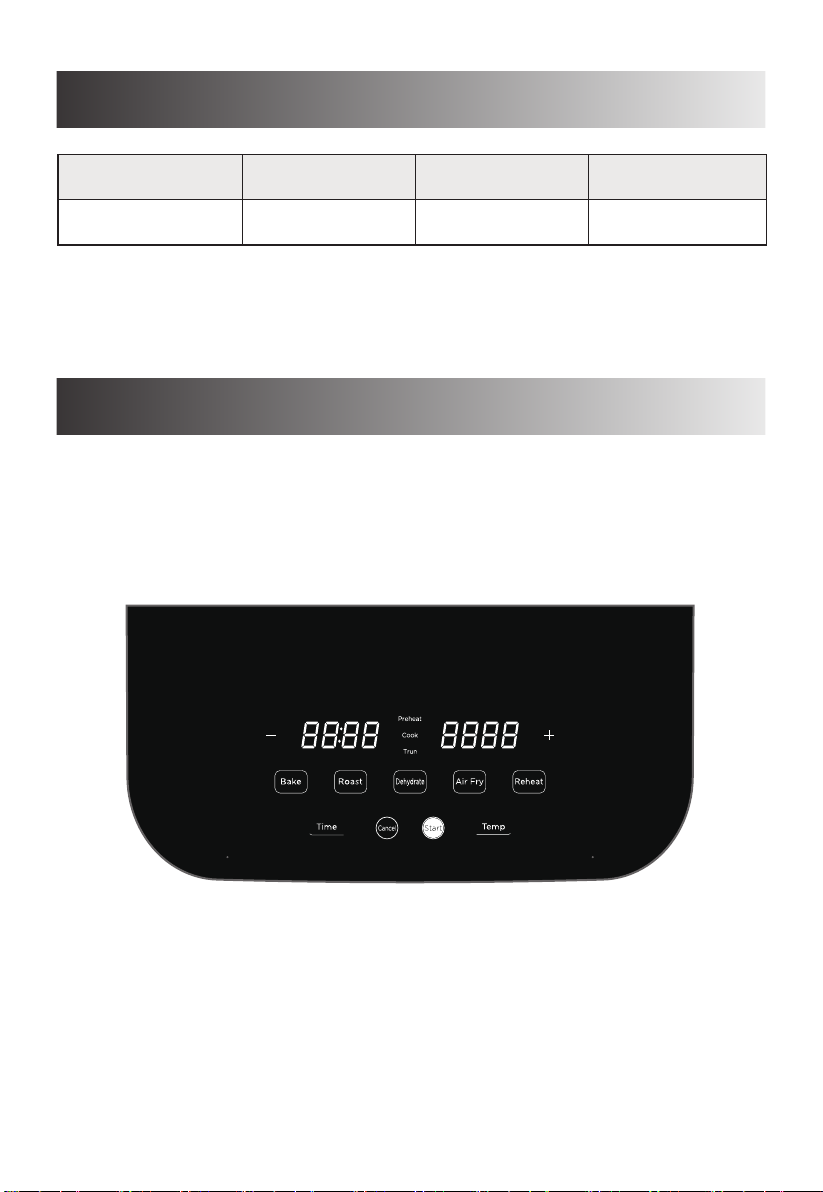

Operation process of the panel: power on the machine, touch “ ” button
(the machine enters the state of function selection mode) – touch “ ”
button to select functions (after select menu, touch “ ” button to select if
enter time or temperature setting, press the “ / ” key to DIY time and
temperature) - touch “ ” button, the product go into the working state touch the “ ” button again, the product stop working. Touch and hold
“ ” button to return to the energy saving interface.
Note: Function selection Status: function indicator light and key indicator
light are on, only the selected function light blinking, and the digital tube
displays the default temperature. If there is no operation for 2 minutes in the
off state, it will return to the energy saving state.
Setting status: The selected function indicator start blinking, while other
function lights will be on. The setting parameters displayed in the digital tube
will be blinking, if doesn’t operate within 5s, the machine will go into new set
status and continue working.
Working status: The selected function indicator light is on, while other
function lights are off. The buttons indicator lights up. Digital tube displays
countdown.
The default menu pre-sets the
heating temperature and time:
Menu
function
Defrost 80 6
French fries 180 1580-200 1-60
Chicken wings 180 1580-200 1-60
Steak 200 9
Shrimp 180 1080-200 1-60
Fish 180 1380-200 1-60
Cupcake 170 980-200 1-60
Dehydrate 70 20
Temperature
Pre-setting Adjustment range Pre-setting
35-90 1-60
80-200 1-60
35-90 1-60
5
Time (Min)
Adjustment
range
