Midea MB-FS5018, MB-FD3018 User Manual
Rice Cooker User’s Manual
This User’s Manual is applicable for:
MB-FS5018
Thank you for purchasing the Midea electric rice cooker. Please read this User’s
Manual carefully before using and keep it in a good place for future reference.
The product is subject to the physical, picture is for reference only.
Content
Safety precautions
Safety precautions
Product Instructions
Usage Instructions
Cleaning and Maintenance
Check abnormal phenomenon
To prevent any damage to persons and property, be sure to
observe the following safety precautions:
Meanings of icons in the text
Standing for “Prohibited ” content
Standing for “Prohibited ” content
Warning: can cause casualties
Caution: can cause light injuries
to persons and property losses.
Accident maybe caused by error using if not comply with the
safety warning.
The product do not consider the following:
Use by unattended children and disabled
The situation that child plays toys or appliances.
Circuit diagram
Warning
Never use this appliance to cook any
food that may jam the steam vent:
Foliaceous food (e.g. laver, Chinese
cabbage) or strip food (e.g. kelp) and
fragmentary foods (e.g. corn grit), as
this may
cause accidents or damage to
the rice cooker.
During operation, never have your face
or hands close to the steam port in
order to avoid scald.
Please use an individual earthed socket
of 13A rated current, and joint use of the
same socket with other appliance may
cause fire.
In operation, never cover the steam
port with a cloth, as this may cause
accidents or damage to the rice cooker.
No reconstruction
Any person other than a repair technician
is not allowed to dismantle or repair the
appliance to avoid fire, electric shock or
injury.
Fire or electric shock may be caused
if 240V AC is not used. Never use a
damaged power cord.
Never use the following modes for
operation to avoid fire and electric
shock due to damaged power cords.
Power cord processing, forced bending,
approach to high temperature, binding,
bearing heavy objects, etc.
Any dust in the plug must be cleaned
in a timely manner to avoid fire.
Please repair the product or replace the
parts to the professional repair office for
avoiding hidden danger caused by incor
-rect repair or incorrect parts.
The plug must be inserted into the socket
thoroughly to aovid fire, electric shock or
short circuit.
When the power cord plug is damaged or
a rocket becomes wet, never use the app
-liance to avoid fire, electric shock or short
circuit.
Never pull off the plug with a wet hand to
avoid electric shock and injury.
During operation, do not move or shake
the rice cooker.
Do not let a child operate the product unatt
-ended. Put it out of the reach of babies to
avoid electric shock, scald and other dang
-erous accidents.
Do not place the rice cooker on a location
which is unstable or wet or approaches to
fire or heat source, otherwise this may
cause damage or accident.
Never soak or dip the rice cooker in water.
Never insert a pin, wire or other object
into the intake hole and steam vent on
the bottom of the appliance to avoid
electric shock.
The damaged power cord shall be replaced
with a special flexible cord or a special com
-ponent bought from the manufacturer or
service agency.
The product only for indoor use．
Users with cardiac pacemaker or audiphon
-es and cochlea shall consult the authorized
doctors and refer to the instructions provided
by the medical equipments provider before
using the product.
Safety precautions
The adult should supervise the children in
order to make sure the children can not play
with the appliance.
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacture or its
service agent.
Safety precautions
Note
Warm Tips
The rice cooker must match the
supplied inner pot to avoid over
-heat or abnormal circumstance.
Do not have the inner pot to fall off,
which may cause deformation.
Do not hit the inner port with a hard
object to avoid deformation.
During use or immediately after use,
do not touch the inner pot with hands
to avoid scald due to high-temperature.
Before the rice cooker works, be sure
to wipe away the water inside the inner
port to avoid any fault.
Before the rice cooker works, please
remove water drops and rice grains
between the inner pot and heating
plate to avoid overheat or short circuit.
The product is subject to the physical if there’s difference between the picture
and real product.
Before the rice cooker works, check the inner pot and steam valve for in-place
to avoid any malfunction.
During use, the product may generate tiny sound of “click” or “sizz”, which is a
normal sound of operation, and do not have a panic.
Never have the rice cooker to operate again immediately after cooking. Wait at
least for 15 minutes so as to have the heating plate cool down.
Never cook rice with hot water as this may affect the temperature judgment by
the thermostat thus degrade cooking effect.
Please clean the steam valve on a regular basis.
The height above sea level for normal operation of the product is within 0-2000m.
Please repair the product and replace parts in a professional maintenance agency
authorized by to get professional and high-quality service. Please keep this Manual
in a good place. Thank you！
This appliance is not intended for use
by persons (including children ) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction. concerning
use of the appliance by a person
responsible for their safety.
This appliance is intended to be used
in household and similar applications
such as: -staff kitchen areas in shops,
offices and other working environments;
-farm houses;-by clients in hotels, motels
and other residential type environments ;
-bed and breakfast type environments.
Note: Some important parts, such as fuse, if improper repair or unauthorized short
circuit may make the product protection failure, resulting in overheating or fire.
Product Instructions
Accessories
Power Wire
Component
Scoop Soup ladle
Measuring
Cup
Spare parts Instructions
Inner pot
Do not heat the inner pot in
other
stoves, otherwise, it may distort
under high temperature.
Take out the inner cooker pot,
wash
with household detergent and
soft cloth,
wipe the water
on the
surface of the inner pot.
Do not use
metal brush or other coarse comedy
wiping the inner
pot, avoid damage
to the inner
pot.
According to the frequency of use,
the inner pot may occur discoloration or speckle phenomena, but do
not affect the health and use.
Food steamer
Spoon Shelf
Specific accessories are different according to the model of product .
Cover
Uncovering
button
Handle
Steam valve
Spoon rack
mounting position
Control panel
Main unit
Socket cover
Use FSJ product as an example
Product specification
Model
Rated Volage Rated Power(W)
Rice Cooking
Amount (Cup)
L x W x H (mm)
Rated
Capacity(L)
MB-FS5018 860 1.8 2 ~ 10 365X272X243
Product Instructions
Usage Instructions
The use of the function button
START key MENU key
Refined
Cooking
Standard
Cooking
Super-quick
Cooking
Congee
Porridge
/Soup
Steaming
Cold Rice
Heating
Minor
Cereals
Press "Start" button, indicator light will
turn to shine from twinkle, indicate to
enter the working state, at the same
time also means confirmation for your
function selection, heating starts.
Press "Menu" button, indicator light will
show the function chosen, after selection,
you have to press the “Start” button then
function starts.
Twinkle
Shine
Usage Instructions

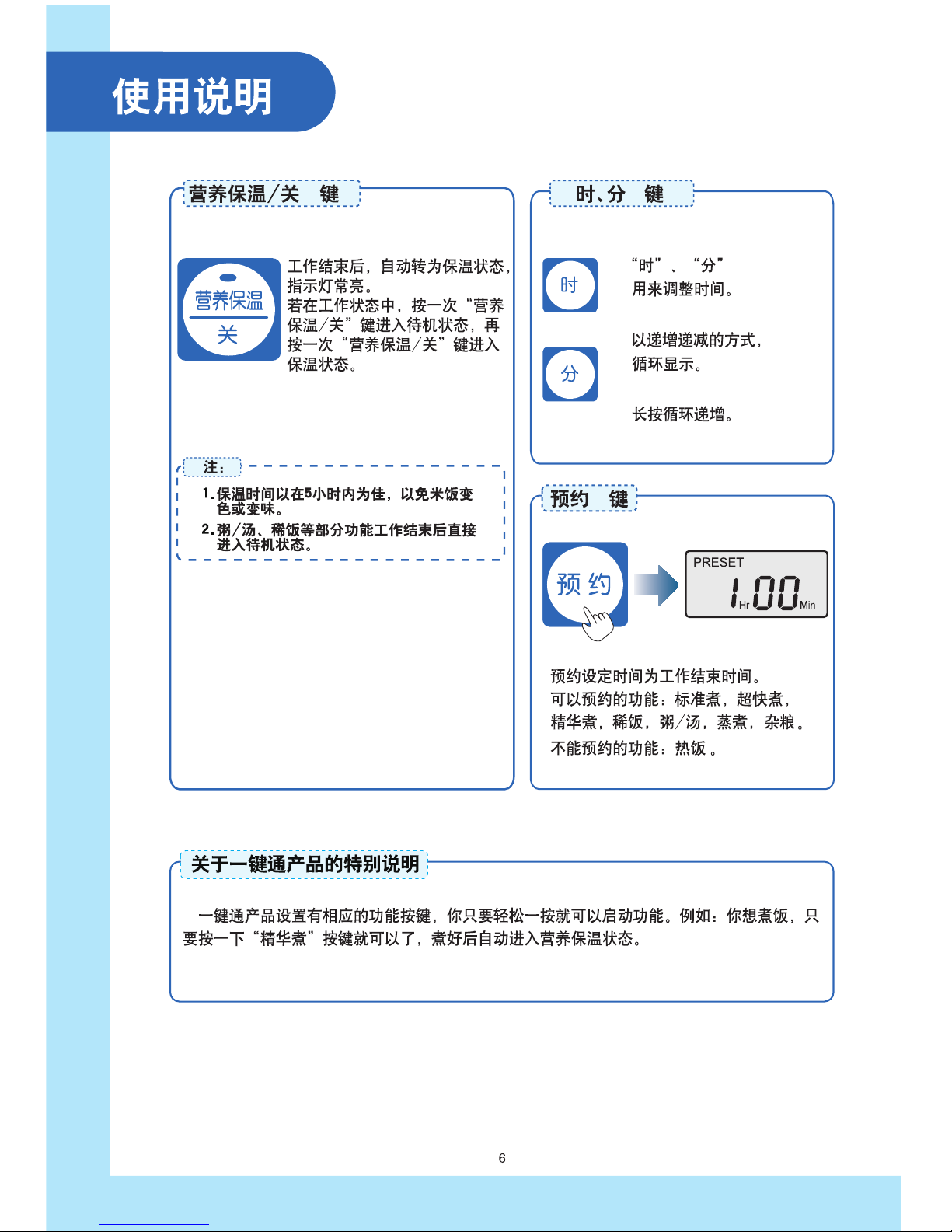

KEEP WARM/OFF key
After working finish, it would
automatically turn into the
insulating state, indicating
light shines.
If in the working state, press
the " nutritional insulation / off "
button to enter the standby
state, One more to enter the
insulation state．
1.Holding time to within 5 hours is better,
so as to avoid discoloration or stale rice.
2.Porridge/Soup、Congee and so on some
functions after the end of the work directly
into the standby state.
Note:
Press to work product provides the corresponding function buttons, you just need
to gently press then the function starts. For example: you want to cook, just need to
press the " cooking" button, It would automatically enter the nutritional insulation
state after cooked.
Adjust time with the “Hour”
“Minute” key.
With the increasing
or decreasing way,
circulation display.
Circulation increasing if
pressing for long time.
Special instruction about the one key pass product.
TIMER key
Preset time is the working completing
time.
Function with preset: Standard cooking,
Super-quick cooking,Refined cooking,
Congnee,Porridge/Soup,Steamer,
Minor cereals .
Function without preset: Cold rice
heating.
Usage Instructions
Put the clean rice into the inner pot, select suitable
water level mark according to the rice amount, incr
-ease or decrease water according to personal taste.
Note: Do not exceed the max mark of corresponding function, otherwise, it may cause
overflow and short circuit.
Usage Method
Take rice (one cup of rice is about 150g) with
measuring cup.
Please do not directly wash rice in the inner pot
for avoiding scratching the inner pot.
one cup of rice
is about 150g
How to use water line
While Cooking
While adding water, look at the rice line. For example:
3 cups, put the washed rice into the pot, add water to
water level scale marked "3".
（Diagram 1）
While Congee
While adding water, look at the middle congee line. For
example: 1 cup, put the washed rice into the pot, add
water to water level scale marked “congee”and"1"．
While Porridge
While adding water, look at the right porridge line. For
example: half cup, put the washed rice into the pot, add
water to water level scale marked “porridge”and"1/2"．
Steaming
add water according to the actual need, water in appro
-priate amount, avoid boiling water to overflow the
steaming rack.
you can fine-tune the ratio of
rice and water based on individual
preferences, but the total quantity
of rice and water can not exceed
the highest water level in the pot.
Wipe the external surface of inner pot and water
from the coil panel, put it into the Rice Cooker In
order to make the pot bottom and heating plate
can be tightly attached to the inner cooker, please
rotate left and right
back to 2-3；install the cover
till it makes "click” sound.
Note: Do not heat the inner pot in other stoves, otherwise,
it may distort under high temperature; it is not allowed to
substitute the inner pot in the hot plate with other container.
Plug in the power plug
Please ensure the pot body plug and the power
plug already insert in place
Press the function button to select the desired function, then press " start" button to enter
the working state, or press the corresponding function button to enter working state directly.
Cooking Function
Model
The minimum
amount of rice
The maximum
amount of rice
Congee Function
Model
The minimum
amount of rice
The maximum
amount of rice
If using a dry cereals for grains function, it needs
to use hot water soak 2-3 hours in advance.
Porridge/Soup Function
Model
The maximum
amount of rice
The minimum
amount of rice
Loading...
