Midea MB-FC3020, MB-FC4020, MB-FC5020 User Manual

Rice Cooker User’s Manual

Thank you for purchasing the Midea electric rice cooker. Please read this User’s Manual carefully before using and keep it in a good place for future reference.

The product is subject to the physical, picture is for reference only.

Model:

MB-FC3020 MB-FC4020 MB-FC5020

Safety Instruction

Product Instructions

Usage Instructions

Cleaning and Maintenance

Troubleshooting

Content

IMPORTANT NOTICES

IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONS

-EQUENTIAL, EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR INABI

-LITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR INJURY, LOSS OF PROPERTY, BUSINESS PROFITS, BUSINESS INTERRUPTION) OR FROM ANY BREACH OF WARRANTY, EVEN IF OUR COMPANY OR SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL OUR COMPANY OR SUPPLIER’S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT.

Specifications, designs and dimensions subject to change without prior notice.

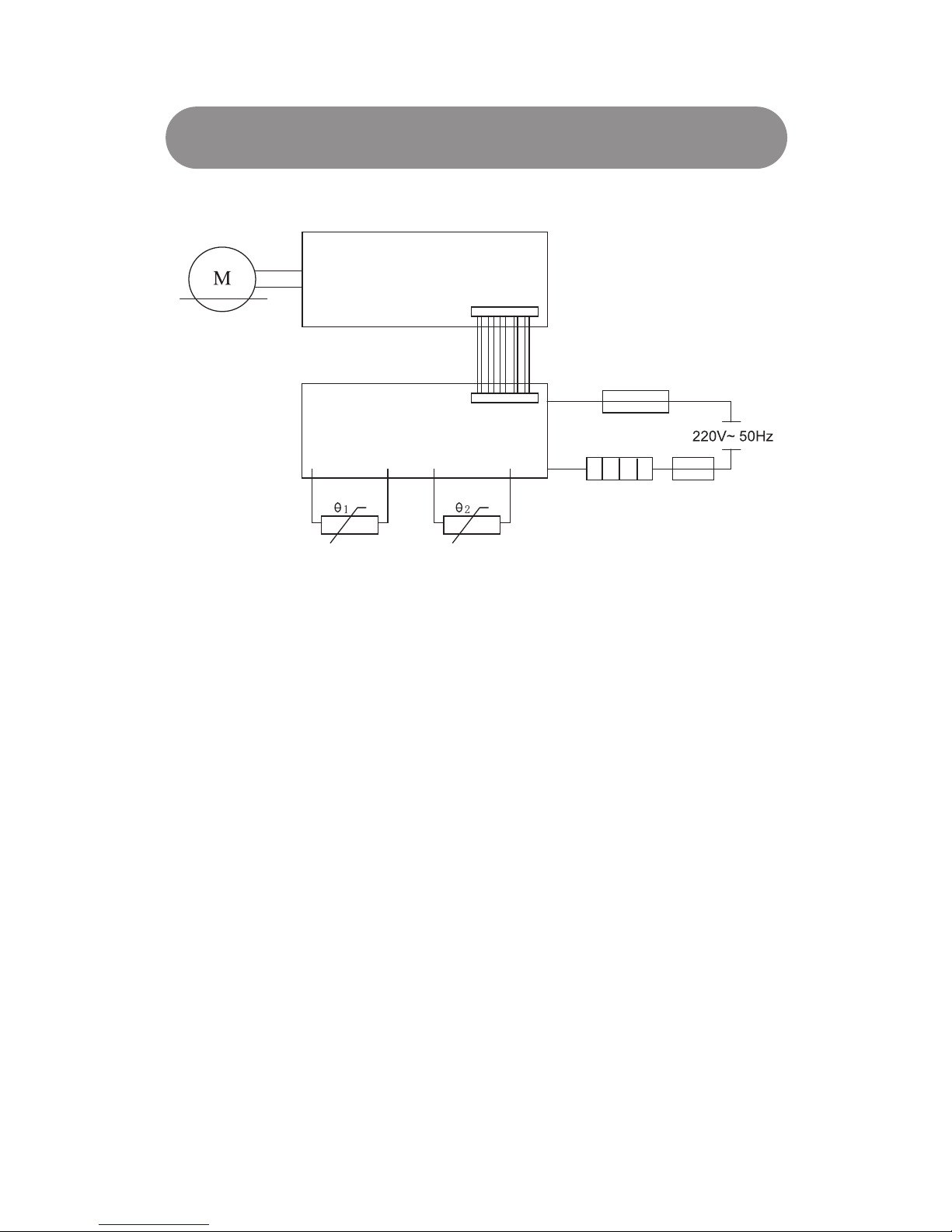

Circuit diagram

Note

The rice cooker must operate with the provided inner pot to avoid over

-heat or abnormal circumstance.

Do not fall the inner pot offwhich

may cause deformation.

Do not hit the inner port with a hard object to avoid deformation.

During use or few minutes just after use, do not touch the inner pot by hands to avoid scald by high-temperature.

Wipe away water outside the inner port

before cooking󰷅to avoid any fault.

Please clean out water drops and rice grains between the inner pot and heating

plate before cooking󰷅to avoid overheat

or short circuit.

Safety instruction

2. Never immerse the appliance in water or other liquids.

3. Never operate the appliance if any cable or part has been damaged or malfunctioned.

4. Electrical appliance is only to be repaired by qualified personal, improper repair work can be a source of considerable danger to the appliance.

5.Children and the disabled are not aware of the hazards of electric appliance. Therefore, never allow them to operate the appliance unless properly supervised.

6. Please turn off and unplug the appliance before cleaning, maintenance or relocation, and whenever it is not in use.

7. This appliance is for household use only and please use suitable voltage and frequency (220V~ 50Hz).

8. Do not place any objects on the appliance.

9. Please put the power cord in the right place in order to avoid tripping the unit over.

10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

11. When the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

12.The device should be installed at minimum distant of 10cm from the wall or other obstacle.

13.Do not use bug sprays or other flammable cleaners to the unit and keep away from any fire and heat sources.

1. To reduce electric shock, risk of fire or injury, please read the operating instructions carefully before using the appliance for the first time and keep them for future reference.

Note: To avoid any malfunction or damage, do not tilt or crossing place the unit under any operation.

Warning

Never use this appliance to cook any food that may jam the steam valve:

Foliaceous food (e.g. laver, Chinese cabbage) or strip food (e.g. kelp) and fragmentary foods (e.g. corn grit), as these may

cause accidents or damage

to the rice cooker.

Please use an individual earthed socket of 10A rated current, if joint use of the same socket with other appliance may cause fire.

In operation, never cover the steam valve with a cloths, as this may cause accidents or damage to the rice cooker.

No reconstruction Any person other than a repair technician is not allowed to dismantle or repair the appliance to avoid fire, electric shock or injury.

During operation, never put your face or hands close to the steam valve in order to avoid scald.

Never use the following modes for oper

-ation to avoid fire and electric shock due to damaged power cords.

Power cord processing, forced bending, approach to high temperature, binding, bearing heavy objects, etc.

Cleaning the plug regularly to avoid fire.

The plug must be inserted into the socket thoroughly to aovid fire, electric shock or short circuit.

When the plug is damaged or wet, never use the appliance to avoid fire, electric shock or short circuit.

Never pull the plug with a wet hand to avoid electric shock and injury.

During operation, do not move or shake the rice cooker.

Do not place the rice cooker on a location which is unstable, wet or near to fire or heat source, otherwise this may cause damage or accident.

Never insert any object into the intake hole and steam value on the bottom of the appliance to avoid electric shock.

Do not use it outdoor

Users with cardiac pacemaker or audiph on

es and cochlea shall consult the authori

-zed doctors and refer to the instructions provided

by the medical equipments

provider before using the product.

Safety insturction

Warm Tips

If there is any inconsistency between the picture and the real product, the real product will be taken as final standard.

Before using the rice cooker , please check the inner pot and steam valve are installed in-place to avoid any malfunction.

During operation, the product may generate tiny sound of “click” or “sizz”, which is a normal sound of operation.

Never operate the rice cooker again immediately after cooking. Wait at least 15 minutes to cool down the heating plate to the room temperature.

Never cook rice with hot water as this may affect the temperature judgment by the thermostat and degrade the cooking effect.

Please clean the steam valve regularly. Please repair the product and replace parts by an authorized maintenance agency to

get professional and high-quality service. Please keep this manual for future reference

Spare parts Instructions

Product Instructions

Accessories

Power Wire Component

Scoop Soup ladle

Measuring Cup

Food steamer

Specific accessories are different according to the model of product .

Inner pot

Do not heat the inner pot in

other stoves, otherwise, it may distort under high temperature.

Take out the inner cooker pot, wash

with household detergent and

soft cloth,

wipe the water

on the

surface of the inner pot.

Do not use metal brush or other coarse comedy wiping the inner

pot, avoid damage

to the inner

pot.

According to the frequency of use, the inner pot may occur discoloration or speckle phenomena, but do not affect the health and use.

Dismounting method:

Buckle type disassembly

Note: spill-proof moisture-keeping steam valve, fore

-ign body should be removed in time, to avoid eff

-ect on the quality of cooking

Spill proof moisture

steam valve

Cover

Uncovering button

Main unit

Socket cover

Carrying handle

The removable cover

Turbine

Product Instructions

Usage Instructions

Product specification

Model

Rated Volage

Rated Power (W)

Rice Cooking Amount (Cup)

L x W x H (mm)

Rated Capacity(L)

220V~ 50Hz

605

760

1.0

1.5

1.8

1 ~ 5.5

2 ~ 8

2 ~10

MB-FC3020

MB-FC4020

MB-FC5020

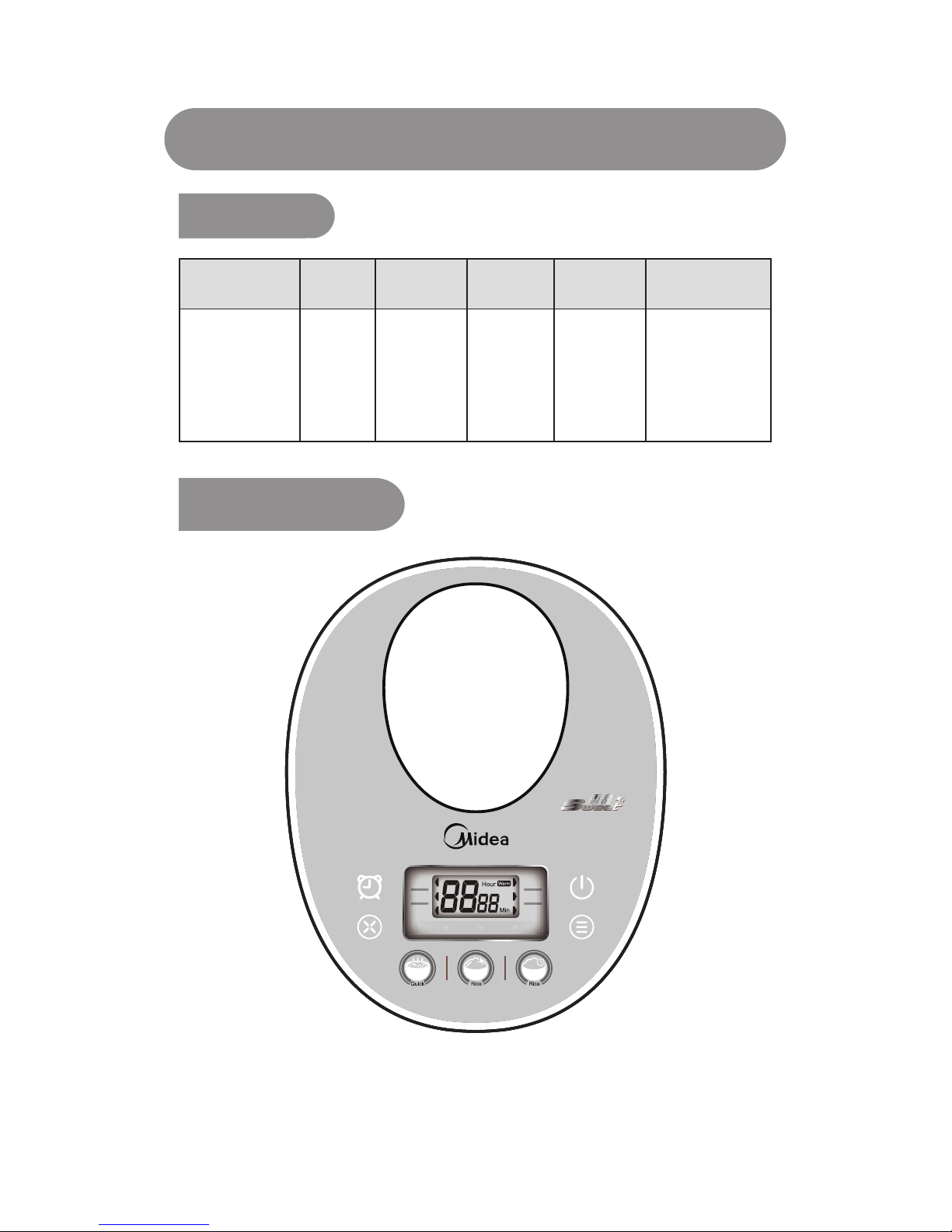

MB-FC Panel

TIMER

Ꮎ!Ꮦ

ན!ሿ

OFF

START

ఎ!ဪ

৖!ถ

NENU

ᓉ!ᒶ

CONGEE

Refined Cooking

Congee

Porridge

Soup

Reheat

Baby Food Brown Rice Keep Warm

Features

REFINED COOKING

ற!ᓉ ౐!ᓉ

QUICK COOKING

Quick Cooking

353X229X237

353X275X237

373X275X267

Use of the function button

Usage Instructions

REFINED COOKING

ற!ᓉᓉ!ᒶ

CONGEE

౐!ᓉ

QUICK COOKING

MENU key

START key

START START

Shine

Series

Baby Food Brown Rice Keep Warm

Features

Refined Cooking

Congee

Porridge

Soup

Reheat

Quick Cooking

Press the "Function" button, select the appropriate function, the corresponding function displays a prompt. After choosing the desired function, Then press the "Start" button to start.

Press "Start" button, the indicator changes from flashing to steady, which means that to enter the work state, But also to confirm the function of your cho

-ice before start working.

OFF key

OFF

In the course of their work, continuously press the "OFF" button, you can go directly to the standby state.

TIMER key

Series

TIMER

Baby Food Brown Rice Keep Warm

Features

Refined Cooking

Congee

Porridge

Soup

Reheat

Quick Cooking

Set an appointment time for the working end time. You can make an appointment features:

Refined cooking, Quick cooking, Baby porridge, Congee,

Porridge, Soup, Brown rice. Reservation can not function: Reheat, Keep warm.

1.Press the "Timer" button to set an appointment time, each time you press the "Timer" button to increase appointment Half an hour.

2.Press the "Function" key to select the desired cooking mode.

3.Finally, press the "Start" button to enter the working state.

Special Note button

Simply click the above functions can be carried out to select the shortcut key, press the "Start" you can start cooking functions accordingly. For example: You want porridge, just click the "Porridge" and then "Start" on it.

Put the clean rice into the inner pot, select suitable water level mark according to the rice amount, incr

-ease or decrease water according to personal taste.

Note: Do not exceed the max mark of corresponding function, otherwise, it may cause

overflow and short circuit.

Usage Method

Take rice (one cup of rice is about 150g) with measuring cup.

Please do not directly wash rice in the inner pot for avoiding scratching the inner pot.

one cup of rice is about 150g

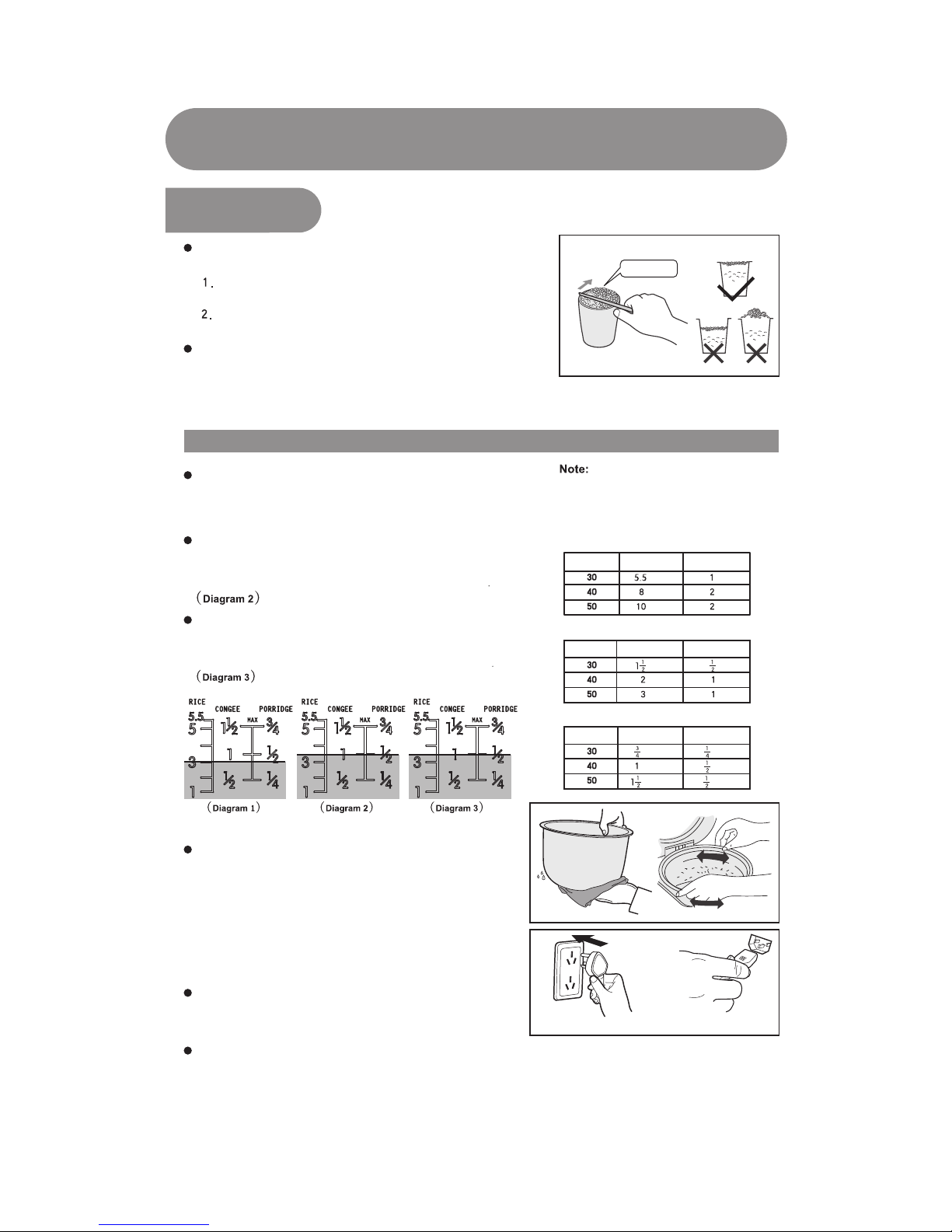

How to use water line

While Cooking

While adding water, look at the rice line. For example: 3 cups, put the washed rice into the pot, add water to water level scale marked "3".

（Diagram 1 ）

While Porridge

While adding water, look at the right porridge line. For example: half cup, put the washed rice into the pot, add water to water level scale marked “porridge”and"1/2"

While Congee

While adding water, look at the middle congee line. For example: 1 cup, put the washed rice into the pot, add water to water level scale marked “congee”and"1"

you can fine-tune the ratio of rice and water based on individual preferences, but the total quantity of rice and water can not exceed the highest water level in the pot.

Cooking Function

Model

The minimum amount of rice

The maximum amount of rice

Porridge/Soup Function

Wipe the external surface of inner pot and water from the coil panel, put it into the Rice Cooker In order to make the pot bottom and heating plate can be tightly attached to the inner cooker, please rotate left and right

back to 2-3；install the cover

till it makes "click” sound.

Note: Do not heat the inner pot in other stoves, otherwise, it may distort under high temperature; it is not allowed to substitute the inner pot in the hot plate with other container.

Power plug Main unit plug

Plug in the power plug Please ensure the pot body plug and the power plug already insert in place

Press the function button to select the desired function, then press " start" button to enter the working state, or press the corresponding function button to enter working state directly.

Model

Congee Function

Model

The minimum amount of rice

The maximum amount of rice

The minimum amount of rice

Cup

If using a dry cereals for grains function, it needs to use hot water soak 2-3 hours in advance.

Usage Instructions

How to Remove and Clean the Coverplate

Open the upper cover to remove the coverplate

Clean the coverplate

Install the coverplate

The water in the water storage tank should be wiped dry with a semi-dry rag.

Rice grains should be removed with a toothpick or rag.

Any water on the heating plate should be wiped dry with a rag. The grains of cooked rice may be removed with steel wool or sand paper.

Before putting in the inner pot, be sure to wipe away the water and rice grains around and on the bottom.

Use a damp cloth to wipe the insulation

seat board positionbut never wash it

with water directly.

Cleaning and Maintenance

Clean the body

Pressing here

Cleaning and Maintenance

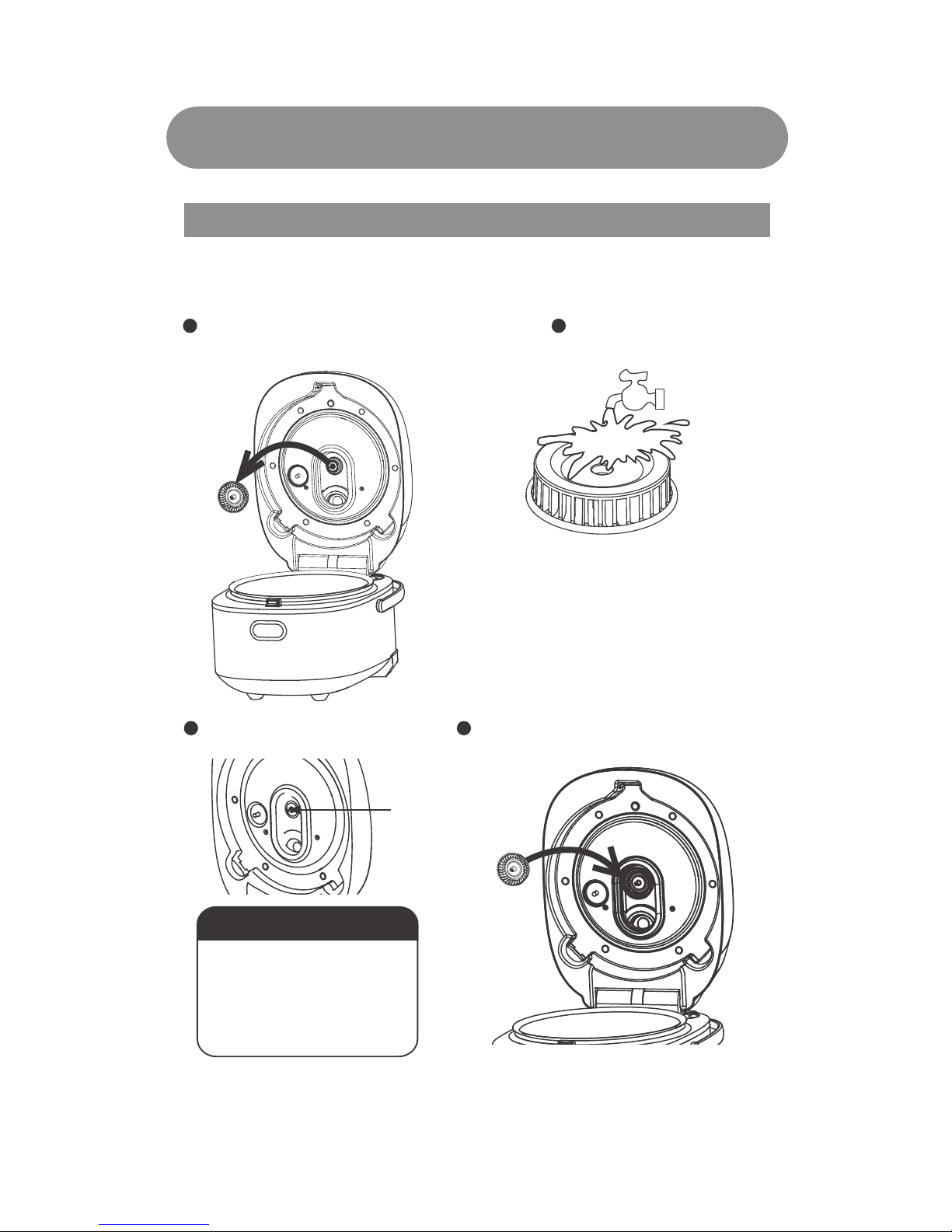

Turbine disassembly, cleaning, oiling, installation

Note: We recommend regular cleaning, coating of vegetable oil (such as

peanut oil, vegetable oil, etc.), to ensure smooth operation, please wash after cooling to prevent burns.

After removing the cover, remove the Turbine out

Cleaning Turbine

Anointment After cleaning, the turbine shaft holes

in the turbine shaft turbine installed

Turbine shaft

Tips:

In order to enhance the product life, regularly (one week) on the turbine shaft edible vegetable oil painting (Such as peanut oil, cooking oil, etc.), in order to increase lubricity.

Removal of steam valveCleaning and Installation

Note: The moveable cover plate must be cleaned after every use, to ensure the steam vent to be smooth. After cooling down, clean it and avoid scald.

with a hand, hold the rear side, and lift it up.

A sketch of opening. Wash it with water after opening.

Note: If the gasket falls off, push it in.

Press down to install the steam valve.

Cleaning and Maintenance

As shown, suppress the steam valve bankai pinch open the steam valve

As shown: two buckle bit after the close alignment of the steam valve, fasten pinch, it would be correct if you can hear a noise.

Troubleshooting

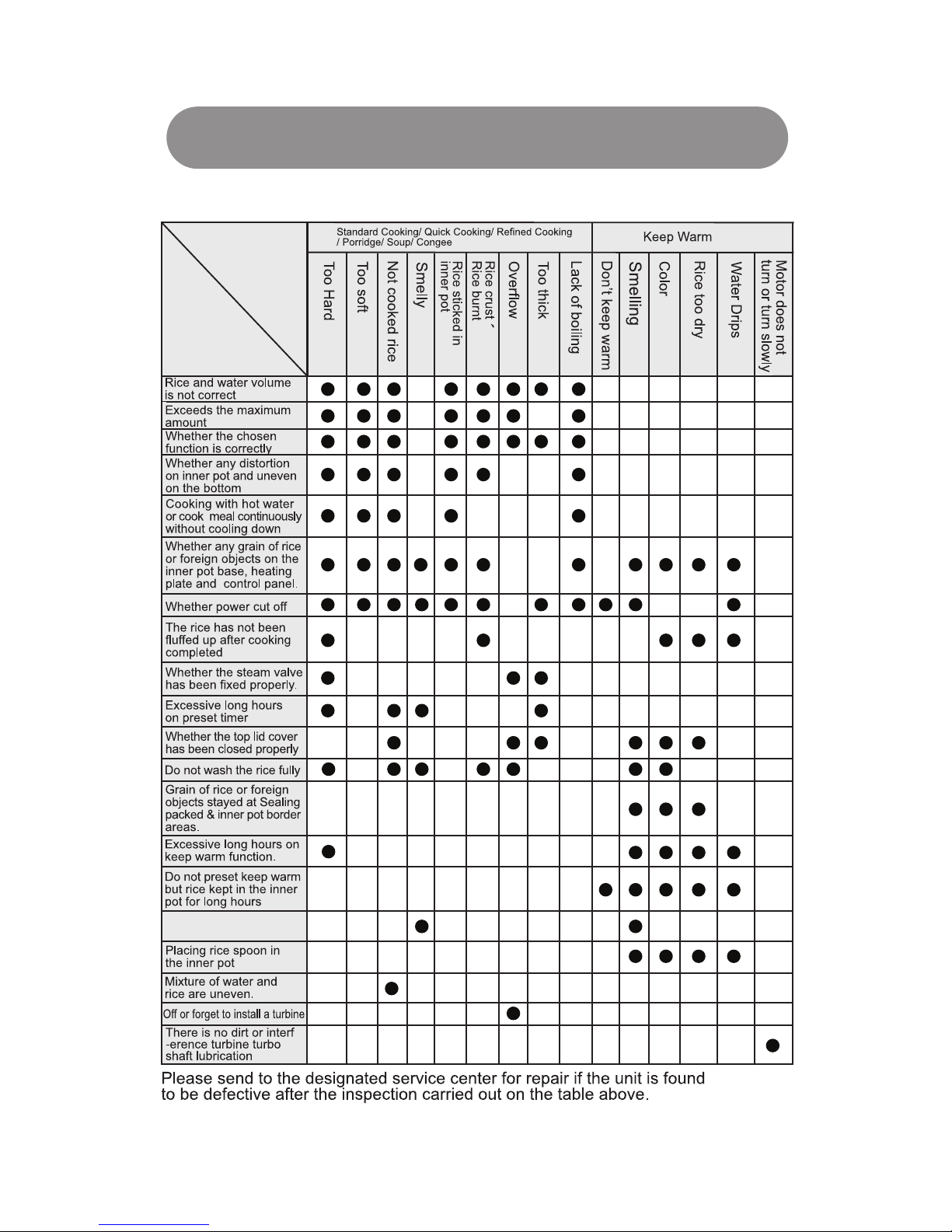

When you found the cooking is in any abnormal conditions, please refer to below table.

Issue

Checklist

Not yet cleaned the inner pot

Troubleshooting

When you think something is wrong with the product, when to repair outlets before repairs, check the following circumstances, for confirmation.

Unusual circumstances Please confirm Corresponding method

Before cooking

Cooking in

Display abnormal

Odor

Button does not respond to the "Start" light is not flashing, not in standby mode.

Can not close the cover

Plug the power cord loose

Plug the power cord securely

"Start" lights

Press the "Cancel" button to return to the standby mode

After power-up, the display always shows "12:00" flashes

Does not affect the normal use, is caused by a dead battery or battery replacement delivery service outlets

No installation activities cover

Please install the cover activities

Outside of the inner pot is no clean water droplets

Please clean

Leaks from outside the local steam valve

Deformation of the inner pot injury

Go to the store or aftermarket replacement outlets

Pressure cover damage, seal is not damaged

Go to the store or aftermarket replacement outlets

The cover autom

-atically bounce

Slight "click" sound

Voice relay work, is a normal phenomenon

Non-failure, continue to use

Smooth sound

Rotating turbine sound, is a normal phenomenon

Non-failure, continue to use the turbine shaft smear vegetable oil (such as peanut oil, cooking oil, etc.) will be better

Abnormal noise

Turbines not installed in place,Insufficient lubrication

A turbine mounted in place, periodic (once a week) applied to the turbine shaft edible vegetable oils (such as peanut oil, cooking oil, etc.) to increase the lubrication

LCD text display inside look blurry

The text has a liquid crystal observation range (

angle of view not a directly above, are partial front directly above, and the plane angle of probably 60 degrees)

Not a faultappropriately adjustments to

right perspective angle

Viewed from the perspective of each

The battery is low, replace the battery

Display screen water vapor, obscurity display

Plastic smell

There is water left on the outside part of the inner pot

Close the upper cover

Without closing the upper cover

Close the upper cover

Without closing the upper cover

When using this new cooker there is smell of plastic, after a period

of time will slowly disappear

Sealing of cover is damaged or contaminated by foreign substances

Circuit diagram

Connection flat cable

Power circuit board

Temperature fuse

Cover thermistor

Control board

The motor

Heating plate

Master thermostat

FC30/40/5020 series circuit diagram

Midea MB-FC3020, MB-FC4020, MB-FC5020 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
