Storage Electric Water Heater

Instruction Manual

For Model: D30-20ED6

D50-20ED6

D80-20ED6

D100-20ED6

The diagram above is just for reference. Please take the

appearance of the actual product as the standard.

Thank you very much for purchasing our water heater. Before installing and operating your water heater, please read this manual carefully and keep it for future reference.

General Remark

●

The installation and maintenance has to be carried out by qualified professionals or Midea authorized technicians.

●

The manufacturer shall not be held responsible for any damage or malfunction caused by wrong installation or failing to comply with following instructions included in this pamphlet.

●

For more detailed installation and maintenance guidelines, please refer to below chapters.

TABLE OF CONTENTS

TITLE PAGE

1.Cautions ...........................................................................................................................(2)

2.Product introduction .........................................................................................................(3)

3.Unit installation .................................................................................................................(5)

4.Methods of using ..............................................................................................................(8)

5.Maintenance.....................................................................................................................(9)

6.Troubleshooting.............................................................................................................. (10)

7.Produce information with EU regulation ......................................................................... (11)

1. CAUTIONS

Before installing this water heater,check and confirm that the earthing on the supply socket is reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not use extension boards. Incorrect installation and use of this electrical water heater may result in serious injuries and loss of property.

Special Cautions

●

The supply socket must be earthed reliably. The rated current of the socket shall not be lower than 10A. The socket and plug shall be kept dry to prevent electrical leakage.

●

The installation height of the supply socket shall not be lower than 1.8m.

●

The wall in which the electrical water heater is installed shall be able to bear the load more than two times of the heater filled fully with water without distortion and cracks. Otherwise, other strengthening measures shall be adopted.

●

The pressure relief valve attached with the heater must be installed at the cold water inlet of this heater(see Fig.1), and make sure it is not exposed in the foggy. The water may be outflowed from pressure relief valve, so the outflow pipe must open wide in the air; The pressure relief valve need to be checked and cleaned regularly, so as to make sure it will not be blocked.

Thread screw

Drain handle

Pressure relief valve

Hot water

●

When using the heater for the first time(or the first use after maintenance), the heater can not be switched on until it has been filled fully with water. When filling the water, at least one of the outlet valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed after the heater has been filled fully with water.

●

The water heater is not intended for use by persons(including children)with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the heater.

●

During heating, there may be drops of water dripping from the pressure release hole of the pressure relief valve. This is a normal phenomenon. If there is a large amount of water leak, please contact customer care center for repair. This pressure release hole shall, under no circumstances, be blocked; otherwise, the heater may be damaged, even resulting in accidents.

●

The drainage pipe connected to the pressure release hole must be kept sloping downwards.

●

Since the water temperature inside the heater can reach up to 75℃, the hot water must not be exposed to human bodies when it is initially used. Adjust the water temperature to a suitable temperature to avoid scalding.

●

If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be selected, and replaced by the professional maintenance personnel.

Cold water

Pressure release hole

(Fig.1)

●

If any parts and components of this electrical water heater are damaged please contact customer care center for repair.

●

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

●

Children should be supervised to ensure that they do not play with the appliance.

●

The maximum inlet water pressure is 0.5MPa; the minimum inlet water pressure is 0.1MPa, if this is necessary for the correct operation of the appliance.

●

The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere; The pressure-relief device is to be operated regularly to remove lime deposits and to verify that it is not blocked.

●

In order to drain away the water inside the inner container, it can be drained away from the pressure release valve. Twist the thread screw of the pressure release valve off, and lift the drain handle upwards.(See Fig.1) A discharge pipe connected to the pressure-relief device is to be installed in a continuously downward direction and in a frost-free environment.

2. PRODUCT INTRODUCTION

2.1 Nomenclature

D -

②③③④④

①

is the product code of the storage electric water heater;

②

is the capacity (L);

represents the rated power (*100W);

represents the pattern code (eg : A,B,C...);

represents the extension of pattern (eg : 1,2,3...);

⑤

NOTE

This manual is applicable to the storage electric water heaters (D *-***) manufactured by this company.

2.2 Technical Performance Parameters

Model

D30-20ED6 D50-20ED6 D80-20ED6

Volume

(L)

27 47 74

Rated Power

(W) 2000 2000

2000

Rated

Voltage

(ACV) 220-240 220-240

220-240

Rated

Pressure

(MPa)

0.75

Max Of Water

Temperature

(℃)

75 75 75

Protection

Class

I I I I

Waterproof

Grade

IPX4 IPX4 IPX4 IPX4750.75220-240200093D100-20ED6

2.3 Brief introduction of product structure

PRODUCT STRUCTURE FOR D*-*D

D30-20ED6 A B C D E F

2.4 Internal Wire Diagram

469 589 245 365 183 302

D50-20ED6

469 875 245 365 183 470

D80-20ED6

569 902 295 485 265 365

(Note:All dimensions are in mm)

D100-20ED6

569 1087 295

485

265

550

Brown

Blue

Yellow/Green

Thermal Cut Out

Q Q

Thermal Cut Out

WIRING DIAGRAM

Thermostat

Heating Indicator

Heating Element

switch

Thermostat

Heating Element

3. UNIT INSTALLATION

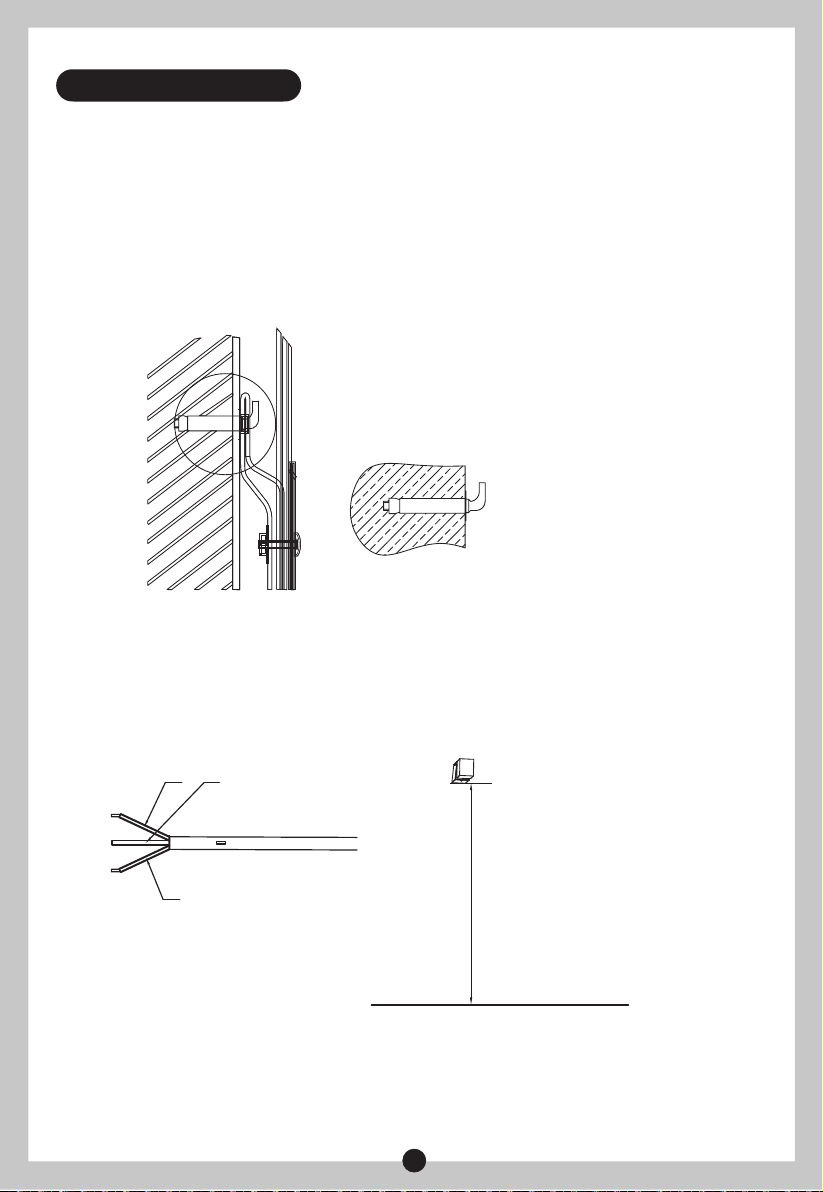

3.1 Installation Instruction

This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot

①

bear the load equal to two times of the total weight of the heater filled fully with water, it is then necessary to install a special support. Incase of hollow bricks wall, ensure to fill it with cement concrete completely. After selecting a proper location, determine the positons of the two install holes used for

②

expansion bolts with hook, Make two holes in the wall with the corresponding depth by using a chopping bit with the size matching the expansion bolts attached with the machine, insert the screws, make the hook upwards, tighten the nuts to fix firmly, and then hang the electrical water heater on it (see Fig.2).

Expansion bolt (with hook)

Install the supply socket in the wall. The requirements for the socket are as follows: 250V/10A,

③

single phase, three electrodes. It is recommended to placed the socket on the right above the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3).If there is fault on power cable, it should be replaced by the manufacturers, agencies or qualified person who is able to do this so as to ensure the safety.

(Fig.2)

L (Brown)

If the bathroom is too small, the heater can be installed at another place. However, in order

④

to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location shall be as near as possible to the heater.

E (Yellow/Green)

N (Blue)

≥1.8m

Ground

(Fig.3)

3.2 Pipelines Connection

①

The dimension of each pipe part is G1/2” ; The massive pressure of inlet should use Pa as the unit; The minimum pressure of inlet should use Pa as the unit.

②

Connection of pressure relief valve with the heater on the inlet of the water heater.

In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with

③

the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).

Power cord

Rubber seal gaskets

Hot water outlet

Adjusting handle for mixing valve

Hot water

④

If the users want to realize a multi-way supply system, refer to the method shown in fig.5 and fig.6 for connection of the pipelines.

Triple joint

Hot water outlet

Cold water inlet

Rubber seal gaskets

Pressure relief valve

Pressure release hole

Joint screw for cold water inlet

Power cord

Pressure relief valve

Water inlet valve

Shower nozzle

Water inlet valve

(Fig.4)

Water pool

Running water pipeMixing valve

VERTICAL INSTALLATION

(Fig.5)

Power cord

Hot

Triple joint

Water pool

Horizontal installation, the direction of the water pipe must be on the left, if you want to

⑤

change the direction of the control box, must be professional operation!

1) First of all, the power supply must be disconnected and the power cord plug must be removed;

2) Second, use a tool to pry open the reserved opening on the control box, and then install it after rotating the direction

3) Third, check whether the control box is installed around

water outlet

Cold water inlet

HORIZONTAL INSTALLATION

Pressure relief valve

Water inlet valve

Shower nozzle

Water inlet valve

Running water pipeMixing valve

(Fig.6)

(Fig.7)

Only professional personnel are required for this operation

NOTE

Please be sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from the wall, resulting in damage of the heater, even serious accidents of injury. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater, to convenient the maintenance of the heater, if necessary.

4. METHODS OF USING

●

First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies that the heater has been filled fully with water, and the outlet valve can be closed.

NOTE

During normal operation, the inlet valve shall be always kept open.

Insert the supply plug into the supply socket, the indicator will light up this time.

●

The thermostat will automatically control the temperature. When the water temperature inside

●

the heater has reached the set temperature, it will switch off automatically, when the water temperature falls below the set point the heater will be turned on automatically to restore the heating.

4.1 Operating Of The Unit

PRODUCT FOR D*-*D

7 8 9 10 11

14 12 13

5 4

12 3

①

“1”is the key to turn on or off the product by touching the switch 1;

②

“2”“3” is the temperature control key；Touch "+" - "to adjust the temperature of the water heater. Each time you click the" + "-" key, set the temperature to increase / decrease by 1 ℃. If you press this key for a long time, it will increase / decrease at the rate of 5 ℃ / s

“4” is the wifi connection key. In the power on state, long press the switch “4” to connect the

③

product and WiFi. At this time, the icon “8” starts to flash. After the connection is successful, the icon lights up

“5 ”is the appointment heating key. When you touch the key “5”, the icon “7” will light up,

④

the display “13” will turn into 55°C and “12 ”will flash. Press "+" - "to set the time (press “+”“- ”1 hour for each time). The time range is 2-23, and there is no action in 5S or click“ 5” again to confirm. At this time, the time has been confirmed and “13 ”will start flashing. Press" + "-" to set the temperature.There is no action in 5S or click “5 ”again to confirm the completion. After the completion of the whole operation,the reservation setting is completed.

(Fig.8)

⑤

"6" is the mode key. When touching 6, if the icon 9 lights up, it means that the intelligent learning mode is entered. At this time, the default temperature is 75 ℃; After one week of use, the product enters memory water mode.

⑥

Touch the key 6. If the icon 10 lights up, it means that the high temperature bacteriostasis mode is entered. At this time, the default temperature is 80 ℃, and the temperature cannot be adjusted; After heating for 5 minutes, it will automatically return to double tank heating mode.

Touch key 6. When 11 on the screen lights up, it means that the single tank mode is entered. At

⑦

this time, only one tank is heated.

14 ”is the hot water quantity display, all full grid shows that the hot water has been completely

⑧

heated, and the flashing state shows that it is heating.

4.2 Error code for serviceman’s use

E2: Dry Ashing---Top up with water and re-heat. E3: Overheating---Check the heating system or replace it. E4: Sensor Fault---Check the sensor or replace it.

5. MAINTENANCE

●

Temperature limiter cut off electricty if water heater is overheated or thermostat damages.Manual resetting is needed. Ressetting knob is as follows (see Fig.9).

Manual reset button

Non-professionals are not allowed to disassemble temperature limiter to reset . Please contact prefessionals to maintain. Otherwise our company will not take responsiblity if any quality accident happens because of this

●

Check the power supply plug and socket frequently to make sure that they have good, reliable contact and are well grounded without overheating phenomenon.

●

If the heater is not used for a long time, especially in the regions with low atmospheric temperature(lower than 0℃), the water inside the heater shall be drained away. This will prevent the damage to the heater due to water freezing in the inner container, (Refer Cautions in this manual for the method to drain away the water from the inner container).

●

In order to ensure that the water heater operates efficiently for a long time, it is recommended to clean the inner container and the deposits on the electrical heating components periodically.

●

It is recommended to examine the magnesium anode protection materials every six months or so. If all the material has been consumed, please replace with the new material.

WARNING

(Fig.9)

Do cut off power supply before maintenance, to avoid danger like electric shock.

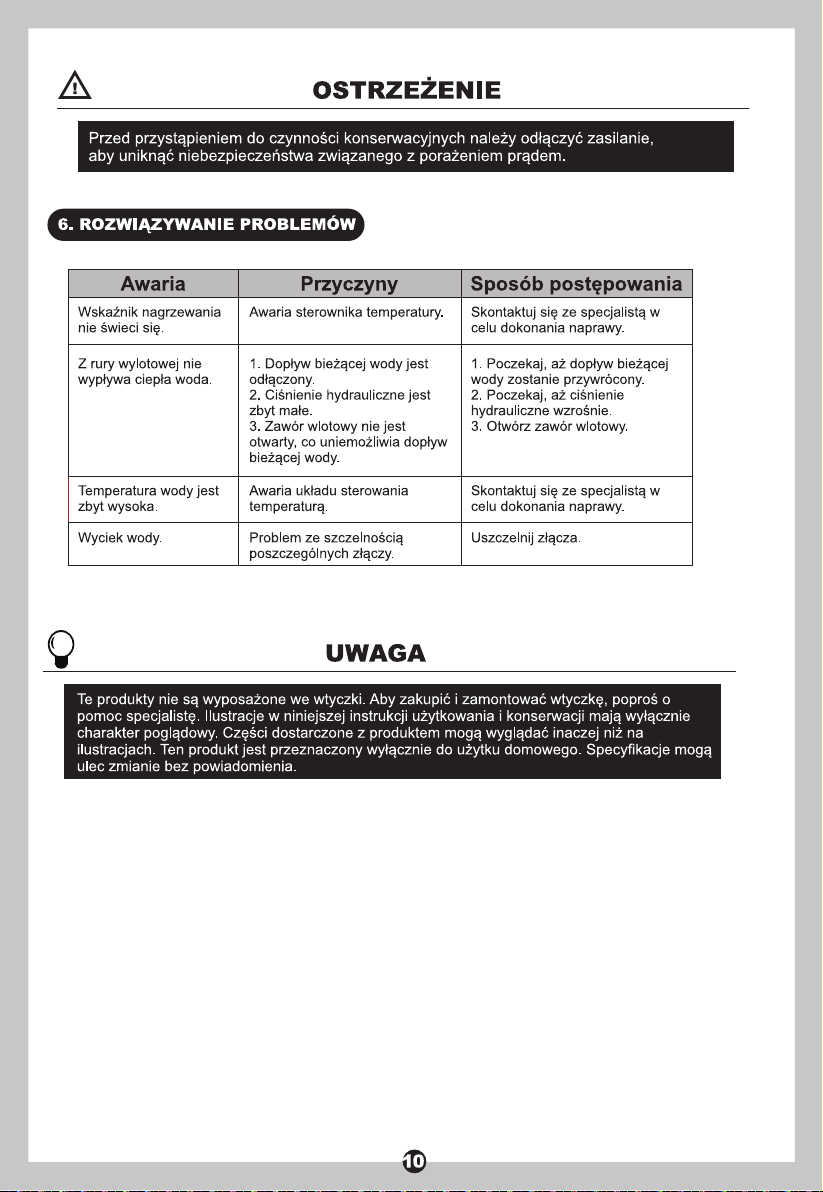

6. TROUBLESHOOTING

WARNING

NOTE

This products are not equipped with plug. Please contact prefessionals to purchase and install plug. Parts illustrated in this use and care manual are indicative only, parts provided with the product may differ with illustrations.This product is intended for household use only. Specifications are subject to change without notice.

7. Produce information with EU regulation

The electrical storage water heater D30-20ED6 of the company MIDEA Ltd. was tested with a declared load profile of the size “S” The product fulfills and corresponds to the requirements of the commission regulation standards (No

814/2013) for electrical storage water heater and achieved a water heating energy efficiency of that correspond to the water heating efficiency class “A”

In accordance with AnnexⅡ Enercy Efficiency

Classes article 1 of the commission regulation (No

wh=38%

812/2013) The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q

elec, water heating energy efficiency ηwh and mixed water at 40°C (V40).

Description Parameter Value Unit

k-Value Smart control compliance

Smart control factor

Conversion coefficient

Ambient correction term Q

Referenct energy Useful energy content

Correction ratio of reference and useful energy

Daily electricity consumption (measured)

Water temperature at the beginning of the 24h measurement cycle

Water temperature at the end of the 24h measurement cycle

Storage volume

Daily electricity consumption (corrected)

Sequence of SMART tapping cycles used during the test

Useful energy content of the hot water drawn-off during smart period Q

reference,H2O expressed in kWh:

Useful energy content of the hot water drawn-off during smart period Q

smart,H2O expressed in kWh:

The weekly electricity consumption with smart controls

The weekly electricity consumption without smart controls

Water heating energy efficiency

Annual Electricity Consumption

Water heating energy efficiency class

Water temperature without tapping

Average water temperature of inlet cold water

Normalised value of the average temperature Calculated volume that delivered hot water of at least 40℃

Qreference,H2O

Qsmart,H2O

Qelec,week,smart

Qelec,week

smart

SCF

cor

ref

H2O

ref/QH2O

test_elec

act

elec

AEC

set

0.23 1

23.2

2.5

-0.082

2.100

2.867

0.732

3.925

74.9

73.0

2.920

S/XS/S/XS/S

12.602

11.299

11.625

15.137

38.0

485.290

64.5

11.4

57.7

kWh

kWh kWh

kWh

℃

kWh

℃ ℃

℃

The electrical storage water heater D50-20ED6 of the company MIDEA Ltd. was tested with a declared load profile of the size “M” The product fulfills and corresponds to the requirements of the commission regulation standards (No

814/2013) for electrical storage water heater and achieved a water heating energy efficiency of that correspond to the water heating efficiency class “B”

In accordance with AnnexⅡ Enercy Efficiency

Classes article 1 of the commission regulation (No

wh=39%

Electricity consumption Q

elec, water heating energy efficiency ηwh and mixed water at 40°C (V40).

Description Parameter Value Unit

k-Value Smart control compliance

Smart control factor

Conversion coefficient

Ambient correction term Q

Referenct energy Useful energy content

Correction ratio of reference and useful energy

Daily electricity consumption (measured)

Water temperature at the beginning of the 24h measurement cycle

Water temperature at the end of the 24h measurement cycle

Storage volume

Daily electricity consumption (corrected)

Sequence of SMART tapping cycles used during the test

Useful energy content of the hot water drawn-off during smart period Q

reference,H2O expressed in kWh:

Useful energy content of the hot water drawn-off during smart period Q

smart,H2O expressed in kWh:

The weekly electricity consumption with smart controls

The weekly electricity consumption without smart controls

Water heating energy efficiency

Annual Electricity Consumption

Water heating energy efficiency class

Water temperature without tapping

Average water temperature of inlet cold water

Normalised value of the average temperature Calculated volume that delivered hot water of at least 40℃

Qreference,H2O

Qsmart,H2O

Qelec,week,smart

Qelec,week

smart

SCF

cor

ref

H2O

ref/QH2O

test_elec

act

elec

AEC

set

0.23 1

21.5

2.5

-0.107

5.845

6.918

0.845

8.979

72.0

69.9

7.683

M/S/M/S/M

26.012

23.898

22.100

28.153

39.0

1315.1

63.6

11.1

60.6

kWh

kWh kWh

kWh

℃

kWh

℃ ℃

℃

The electrical storage water heater D80-20ED6 of the company MIDEA Ltd. was tested with a declared load profile of the size “M” The product fulfills and corresponds to the requirements of the commission regulation standards (No

814/2013) for electrical storage water heater and achieved a water heating energy efficiency of that correspond to the water heating efficiency class “B”

In accordance with AnnexⅡ Enercy Efficiency

Classes article 1 of the commission regulation (No

wh=39%

Electricity consumption Q

elec, water heating energy efficiency ηwh and mixed water at 40°C (V40).

Description Parameter Value Unit

k-Value Smart control compliance

Smart control factor

Conversion coefficient

Ambient correction term Q

Referenct energy Useful energy content

Correction ratio of reference and useful energy

Daily electricity consumption (measured)

Water temperature at the beginning of the 24h measurement cycle

Water temperature at the end of the 24h measurement cycle

Storage volume

Daily electricity consumption (corrected)

Sequence of SMART tapping cycles used during the test

Useful energy content of the hot water drawn-off during smart period Q

reference,H2O expressed in kWh:

Useful energy content of the hot water drawn-off during smart period Q

smart,H2O expressed in kWh:

The weekly electricity consumption with smart controls

The weekly electricity consumption without smart controls

Water heating energy efficiency

Annual Electricity Consumption

Water heating energy efficiency class

Water temperature without tapping

Average water temperature of inlet cold water

Normalised value of the average temperature Calculated volume that delivered hot water of at least 40℃

smart

SCF

cor

ref

H2O

ref/QH2O

test_elec

act

elec

Qreference,H2O

Qsmart,H2O

Qelec,week,smart

Qelec,week

AEC

set

0.23

38.1

2.5

-0.108

5.845

8.524

0.686

14.177

71.0

70.6

9.745

M/S/M/S/M

32.610

27.109

21.513

34.754

39.0

1315.2

64.7

10.6

108

kWh

kWh kWh

kWh

℃

kWh

℃ ℃

℃

The electrical storage water heater D100-20ED6 of the company MIDEA Ltd. was tested with a declared load profile of the size “M” The product fulfills and corresponds to the requirements of the commission regulation standards (No

814/2013) for electrical storage water heater and achieved a water heating energy efficiency of that correspond to the water heating efficiency class “B”

In accordance with AnnexⅡ Enercy Efficiency

Classes article 1 of the commission regulation (No

wh=39%

Electricity consumption Q

elec, water heating energy efficiency ηwh and mixed water at 40°C (V40).

Description Parameter Value Unit

k-Value Smart control compliance

Smart control factor

Conversion coefficient

Ambient correction term Q

Referenct energy Useful energy content

Correction ratio of reference and useful energy

Daily electricity consumption (measured)

Water temperature at the beginning of the 24h measurement cycle

Water temperature at the end of the 24h measurement cycle

Storage volume

Daily electricity consumption (corrected)

Sequence of SMART tapping cycles used during the test

Useful energy content of the hot water drawn-off during smart period Q

reference,H2O expressed in kWh:

Useful energy content of the hot water drawn-off during smart period Q

smart,H2O expressed in kWh:

The weekly electricity consumption with smart controls

The weekly electricity consumption without smart controls

Water heating energy efficiency

Annual Electricity Consumption

Water heating energy efficiency class

Water temperature without tapping

Average water temperature of inlet cold water

Normalised value of the average temperature Calculated volume that delivered hot water of at least 40℃

Qreference,H2O

Qsmart,H2O

Qelec,week,smart

Qelec,week

smart

SCF

cor

ref

H2O

ref/QH2O

test_elec

act

elec

AEC

set

0.23

28.6

2.5

-0.1114

5.845

8.476

0.690

12.115

73.1

71.7

8.458

M/S/M/S/M

31.852

26.403

23.124

32.387

39.0

1316.3

64.3

11.0

59.7

144

kWh

kWh kWh

kWh

℃

kWh

℃ ℃

℃

The product is subject to change without notice.

Please keep this manual properly.

www.midea.com/global

MIDEA D80-20ED6, D100-20ED6, D50-20ED6 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
