Model: C16-RTY1619-GL
C16-RTY1619-BK
Induction Cooker
User’s Manual
Thank you for purchasing this Midea induction cooker. Please thoroughly
read through this instruction manual before use and store it carefully for
future use.
The pictures are only for reference, please keep the real product as a
standard.
I.SAFETY INSTRUCTIONS
For safety reasons and to avoid damage to the appliance or
injuries to people, please abide by all the safety instructions
below.
Ignoring safety warnings may result in injuries.
This appliance does not take into consideration the following
situations:
--- use by children or disabled people without supervision;
— children treating it as a toy.
Symbols:
AttentionWarning
MandatoryForbidden
Do not directly rinse this
induction cooker under water.
Do not spill water or soup
into the internal parts of the
induction cooker.
Never heat foods in sealed
containers, such as
compressed products, cans,
orcoffee pots, to avoid
explosion caused by heat
expansion.
To avoid affecting product
performance and to prevent
injury, do not heat empty pots.
When in use, do not leave the
appliance without supervision
for a long time. When leaving
the appliance without
supervision, make sure there
is enough water in the pot.
To avoid accidents, do not
place the induction cooker,
when in use, on a gas
stove(the magnetic lines
can heat the metal parts of
the gas stove).
1
Do not heat iron items on the
induction cooker heating
plate to avoid danger caused
by high temperatures.
The utensils provided for the
induction cooker can only be
used for cooking with it.
These cooking utensils
cannot be used on both
induction cooker and gas
stove.
To avoid injuries such as
scalding, do not let children
operate the appliance alone.
Unplug the power cord from
the outlet after use to avoid
fire and/or damaging the
electronic components,
caused by prolonged
electrical connection.
To avoid danger, do not
insert any foreign object,
such as iron wire, nor block
the air ventilation opening or
air entry port.
People with heart
pacemakers should consult a
doctor. Only use the
appliance after confirming that
it does not affect the
pacemaker.
I.SAFETY INSTRUCTIONS
2
>10cm
>10cm

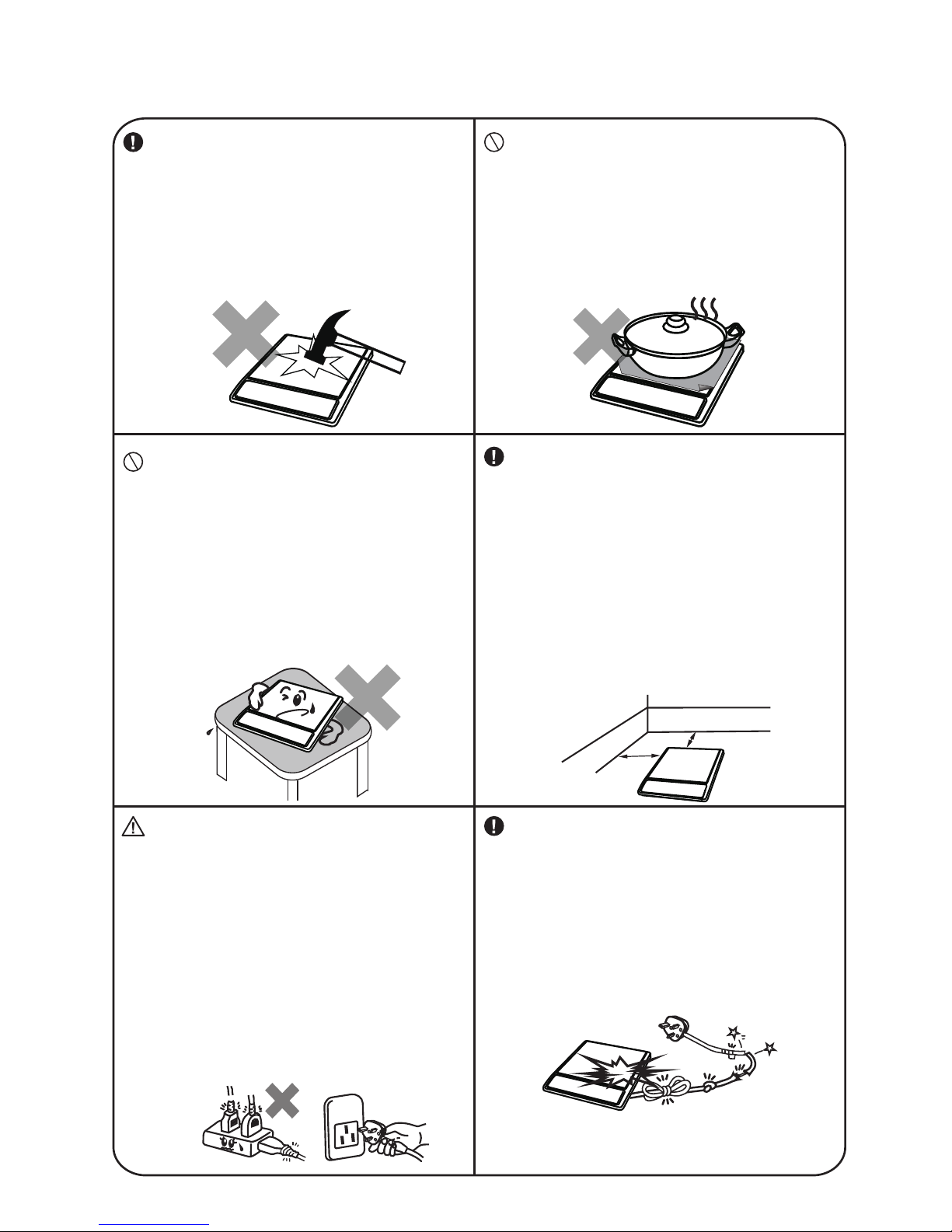

To avoid damage, avoid
causing impacts on the
heating plate.
WARNING: If the surfaceis
cracked, switch off the
appliance to avoid the
possibility of electric shock.
To avoid danger, do not place
paper, aluminium foil, cloth or
other unsuitable articles onto
the induction cooker heating
plate for indirect heating.
When using the induction
cooker, place it horizontally
and allow at least 10cm of
free space between the sides
and back of the induction
cooker and the wall.Do not
use the induction cooker in
narrow spaces.To avoid
hindering release of heat,do
not cover the ventilation
opening.
When using the induction
cooker, do not put it on any
metal platform (such as iron,
stainless steel, aluminium),
or place a non-metal pad
less than 10cm thick on the
heating plate.
Please use a dedicated and
high quality power outlet,
with high power rating, equal
to or above 13A. Do not use
poor quality outlets. Do not
share the power outlet with
electrical appliances with
high power ratings, such as
air conditioners,electrical
stoves etc to
avoid fires
caused by overburdening the
outlet.
To avoid danger, if the power
cord is damaged, have it
replaced by agents of the
manufacturer, its
maintenance department or
specialized personnel from a
similar department.
I.SAFETY INSTRUCTIONS
13A
3
Do not touch the cooker plate
with sharp tools to avoid
cracking or damaging the
plate. If cracking is found on
the cooker plate, turn off the
appliance to avoid any
electrical shock that might
occur.
When using the induction
cooker or after use, please
keep it clean. Protect the
induction cooker from bugs,
dust and humidity. Avoid
letting cockroaches etc fall
into the internal parts of
induction cooker and causing
a short circuit of the electrical
board. When not in use for a
long period, please clean it
and put it into a plastic bag to
store it.
The cooker cannot be
overloaded.
Overloading the plate may
damage the plastic cover and
cooker plate.
Metallic objects such as
knives, forks, spoons and lids
should not be placed on the
hotplate since they can get
hot.
Do not use the induction
cooker near a gas stove,
kerosene stove, gas cooker
or in any space with an open
fire or an environment with
high temperature.
Do not use the induction
cooker by putting it onto a
carpet, tablecloth or thin
paper to avoid blocking the
air inlet opening or air outlet
opening, which results in
influencing heat emission.
I.SAFETY INSTRUCTIONS
4
Danger of
scalding
Danger of
scalding
Mandatory
Mandatory
Warning
Always clean the induction
cooker to prevent mess from
getting into the fan, which
could influence the normal
operation of the appliance.
When operating the appliance
or after moving the pot, the
cooking area will remain hot
for a period of time. Do not
touch it, be careful of scalding
caused by the high
temperature.
This appliance is intended to
be used in household and
similar applications such as:staff kitchen areas in
shops,offices and other
working environments; -farm
houses;-by clients in hotels,
motels and other residential
type environments ; -bed and
breakfast type
environments.Indoor use only.
This appliance is not intended for
use by persons (including
children) with reduced physical,
sensory or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use of the
appliance by a person responsible
for their safety.
We suggest that
you should
periodically check that there
are no object (glass, paper, etc)
that could obstruct the inlet
under your induction cooker.
Never have the induction cooker
to work without food inside,
otherwise its operational
performance may be affected
and danger may happen.
Warning
Children should be supervised
to ensure that they do not play
with the appliance.
The instructions shall state that
appliances are not intended to be
operated by means of an external
timer or separate remote-control
system.
Warning
Mandatory
I.SAFETY INSTRUCTIONS
5
II.PRODUCT INTRODUCTION
Model
C16-RTY1619-GL
C16-RTY1619-BK
Applied
voltage/frequency
Rated
power
Dimension
(mm)
Weight
(kg)
220-240V~ 50/60Hz
1600W
280x280x65
2.1
Control knob
Performance Parameters
Product Sketch Map
The induction cooker is able to meet various kinds of
cooking demands by electroma gn et ic he ating, high
thermal efficiency, is safe and reliable, easy to clean.
Power cord
Air entry
Air vent
Ceramic plate
Control knob
Counter clockwise direction: decrease power setting
Clockwise direction: increase power setting
Cooking zone
indicator
6
II.PRODUCT INTRODUCTION
Before using New Induction cooker
Read this guide, taking special note of the “Safety
Instructions” section.
Remove any protective film that may still be on your
ceramic plate.
Make sure the air vents are not blocked and keep
utensils away from the immediate surrounds of the
ceramic plate.
Make sure the cookware which has food or liquid is
placed in the center of ceramic plate.
Put the pot on the ceramic plate
7
III. OPERATION INSTRUCTIONS
Plug in
Heating
Turn the control knob clockwise, a deep will be heard, the
LED will light, the power setting from 1 to 5 level, the
induction cooker starts heating.
The default heating time is 2 hours. After 2 hours, the
induction cooker will stop heating automatically, the LED
will flash indicating that induction cooker is return in
standby mode.
After the power supply is connected, a beep will be
heard. The LED flash, indicating that the induction
cooker is in standby mode.
Switch Off
Turn the control knob counter clockwise to the left, a
beep will be heard, the induction cooker switches off.
8
IV. COMPATIBLE COOKWARE

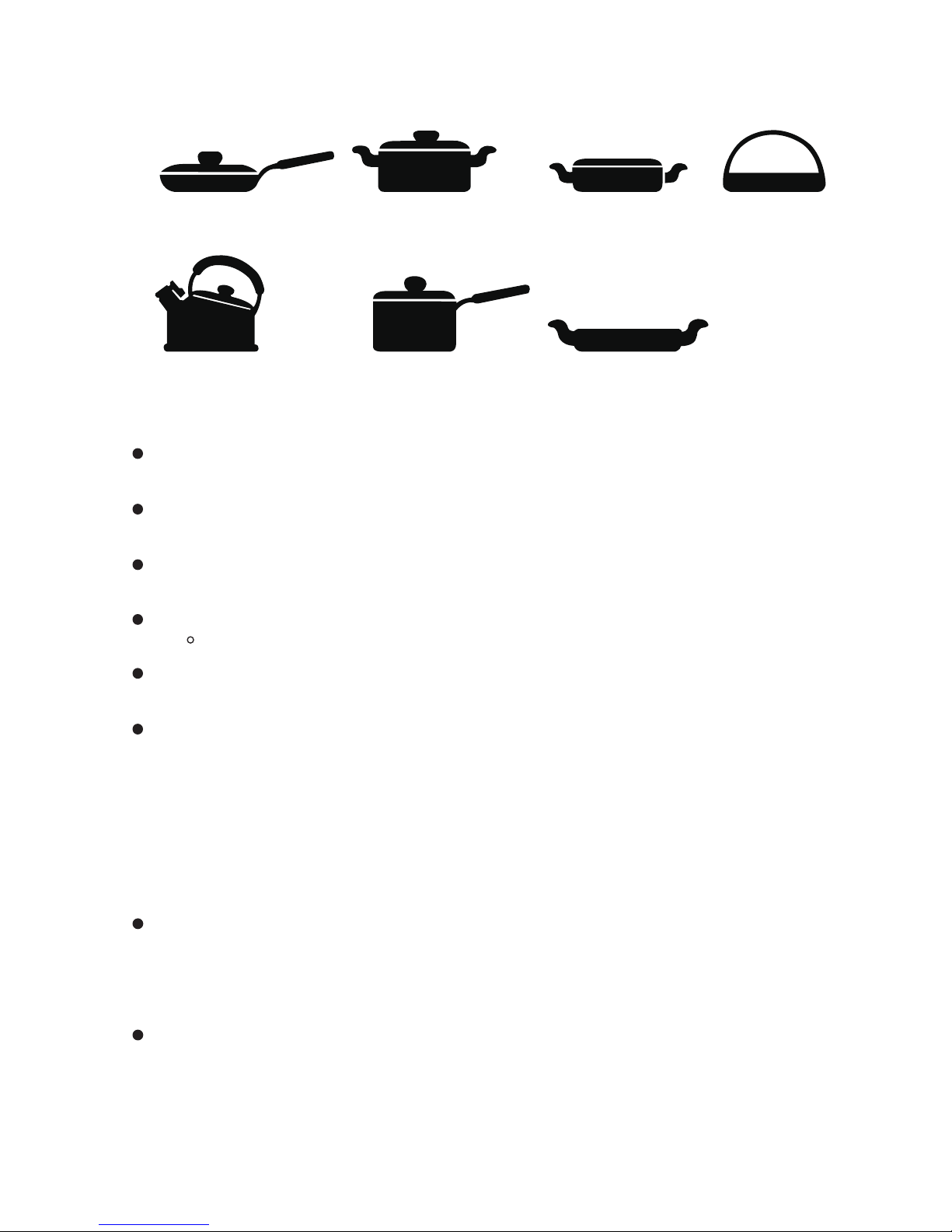

Iron oil frying
pan
Stainless steel pot Iron pan Iron kettle
Enamel stainless
steel kettle
Enamel cooking
utensil
Iron plate
V. CLEANING AND MAINTENANCE
Before cleaning, please switch off the appliance first and
then disconnect the power plug from the power outlet.
Wait till the cooker plate of the induction cooker is not hot
and start cleaning.
After using the induction cooker for a long time, the
opening of air inlet/air outlet will pile up with dust or other
dirt, please wipe it with a soft dry cloth. Dust in the air inlet
and outlet can be cleaned by using a soft brush or a mini
vacuum cleaner.
Note: Please do not rinse it with water.
Requirement for pot materials: containing magnetic
inducting materials.
Shape requirement: plat bottom, with the diameter more
than 14.5 cm and less than 18 cm.
After the first use, some white spots would appear at the
bottom of the pot. This is normal.
Please pour some vinegar into the pot, heat it at about 60-
80 C, then wipe the spots away with brush.
Incompatible pots material: glass, ceramic, aluminium,
copper and other non magnetic material.
If the pot removed, the induction cooker will st
op heating
immediately. After the buzzer sounds for 1 minute, it will
go into standby mode automatically.
9
V. CLEANING AND MAINTENANCE
For oil spots on the cooker plate, wipe the cooker plate by
using a soft moist cloth with a little tooth paste or mild
detergent. And then use a soft moist cloth to wipe it until
no stain remains.
When not using it for a long time, please disconnect the
power plug from the power outlet and protect the
induction cooker from any dust or bugs.
VI. TROUBLESHOOTING
Abnormalities
Key checking points and trouble shooting
After plug ging in the p ower c ord an d
pressin g th e “ ” key, t he ON/STANDBY
indicat or and di splay do not l ight up .
The “ ” indicator lights ON/STANDBY
up and t he displa y works n ormally,
but heating does n ot start.
Heating suddenl y s tops during the
process .
Is the power plug pr operly connecte d?
Is the switch, powe r outlet, fuse or power cord
damaged ?
Is the pot materia l proper?
Is the appliance i n a “Preset” workin g status?
For othe r ca uses, ple ase take the app
liance to a
repairi ng and ma intenanc e site to b e fixed.
Is the tem perature of the oil too high when frying
dishes?
Is the temperatu re of the surroundi ngs very high?
Is the air inlet o r ai r outlet of the induc tion cook er
blocked ?
Is the default heating time of the induction coo ker
over?
The self-safe ty protection of the induction cooke r
starts, wait for several minutes and connect pow er
to use it.
Emergency
During using, if there are some abnormal cases, please unplug
immediat
ely and disconnect power.
For any failure of the product, please contact the special maintenance
department or the customer service center.
10
Loading...
