Middleby Marshall Oven PS536GS User Manual

Principle

Middleby Marshall PS Series conveyor ovens bake both
faster and at a lower temperature than other ovens.
Vertical columns of hot air move heat aerodynamically
instead of using high temperatures. The streams of hot air
remove the boundary layers of cool heavy air which tend
to insulate the product. All Middleby ovens are designed
to cook a multitude of products including pizza, seafood,
sandwiches, bagels, ethnic foods and more.

PS536GS

Direct Gas Fired Conveyor Oven

General Information

The PS536GS conveyor oven is ideally suited for Kiosk and
express-style locations where smaller ovens are required.

Standard Features

• Patented EMS Energy Management System* reduces

gas consumption and increases cooking efciency

• 36” (914mm) long cooking chamber with

• 18”(457.2mm) wide 60”(1524mm) long conveyor belt

• Stackable up to three high.

• Patented “Jet Sweep” impingement process that deliv­ers constant heat to the chamber

• Microprocessor-controlled bake time/conveyor speed

• Customer-specic adjustable jet ngers that allow
control of heating zones in 8”(203mm) zones

• Stainless steel front, sides, top and interior

• Front-loading window with cool handle

• Reversible conveyor direction

• Stainless steel lower shelf (single and double ovens)

Optional Features

• Split belt - two 9”/229mm belts with individually adjustable

speed settings

• High speed conveyor (Range of 1:00 - 10:00)

• 76”/1930mm-long conveyor

• Stainless steel lower shelf (triple ovens)

Conserves Energy

Unit incorporates a patented Energy Management System - EMS.

Middleby ovens provide very efcient heat transfer to product.

Energy is conserved as air is recycled from heater to product,
with minimum loss. Oven is cool to the touch.

Cleanability

PS536GS Ovens are designed for easy cleaning. Removable
parts include: crumb pans, end panels, air ngers, exit tray, and

a removable conveyor belt assembly.

Easily Services

Control compartment is designed for quick and easy access.

Warranty

All PS536GS models have a one year parts and labor warranty.
Oven start-up included at no additional charge (USA Only)

Ventilation

For installation under a ventilation hood only.

* Photos show ovens equipped with lower shelf and/or casters
Lower shelf is optional on triple ovens. Some installation codes require the
use of adjustable feet instead of casters.

1401 Toastmaster Drive
Elgin, IL 60120 USA
[phone] Fax: [phone]

Middleby Marshall reserves the right to change specications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.

Form 4506 Rev 1 11/08

www.middleby.com

PS536GS-1

PS536GS

Direct Gas Fired Conveyor Oven

NOTE: Height dimensions are shown for standard leg extensions.

Customer-specic leg extensions will affect these dimensions.

NOTE: All units are shown with casters. CE-approved ovens use
6”/152mm adjustable feet instead of casters.

FRONT VIEW

TOP VIEW

BACK VIEW

Form 4506 Rev 1 11/08

SIDE VIEW

PS536ES-2

PS536GS

Direct Gas Fired Conveyor Oven

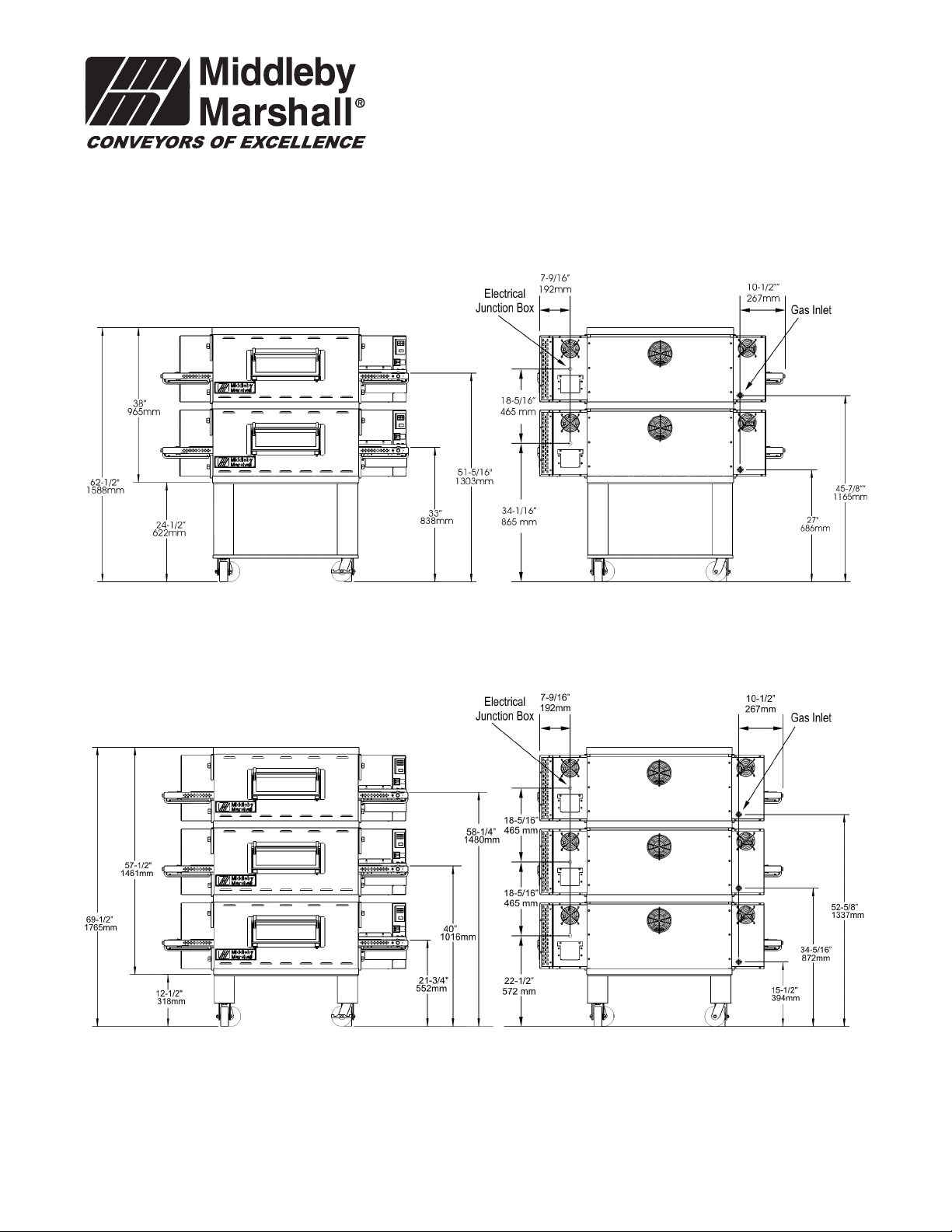

NOTE: Height dimensions are shown for standard leg extensions.

Customer-specic leg extensions will affect these dimensions.

NOTE: All units are shown with casters. CE-approved ovens use
6”/152mm adjustable feet instead of casters.

FRONT VIEW

PS536ES-3

FRONT VIEW

BACK VIEW

BACK VIEW

Form 4506 Rev 1 11/08

PS536GS

Direct Gas Fired Conveyor Oven

RECOMMENDED MINIMUM CLEARANCES

Rear of Oven to Wall Control end of conveyor to wall Non-control end of conveyor to wall

3” (76mm) 1” (25.4mm) 1” (25.4mm)

GENERAL SPECIFICATIONS

Overall Length Maximum Bake
Heating Baking Belt Belt (exit trays Operating Time Ship Ship
Zone Area Length Width installed) Height Depth Temp Range Wt Cube

PS536-1 36” 5 ft2 60” 18” 60” 43-1/2” * 43-3/8” 5500F 3-30 min 734lbs 75.1ft
with 17.5” 914mm 0.465 m2 1524mm 457mm 1524mm 1105mm 1102mm 2880C or 333kg 2.13m
(446mm) or or or 1-10 min
leg extensions 76” 2x9” 76”
1930mm 229mm 1930mm
PS536-2 72” 10 ft2 60” 18” 60” 62-1/2” * 43-3/8” 5500F 3-30 min 1468 lbs 150.2 ft
with 17.5” 1828mm 0.930m2 1524 mm 457mm 1524mm 1588mm 1102mm 2880C or 666 kg 4.25m
(446mm) or or or 1-10 min
leg extensions 76” 2x9” 76”
1930mm 229mm 1930mm
PS536-3 108” 15 ft2 60” 18” 60” 69-1/2” * 43-3/8” 5500F 3-30 min 2202 lbs 225.3 ft
with 6” 2743mm 1.395 m2 1524 mm 457mm 1524mm 1765mm 1102mm 2880C or 999 kg 6.38m
(152mm) or or or 1-10 min
leg extensions 76” 2x9” 76”
1930mm 229mm 1930mm

* Overall height is shown for standard leg extensions. Customer-specic leg extensions will affect the overall height of the oven

3

3

3

3

3

3

ELECTRICAL SPECIFICATIONS

Version Voltage Phase Freq Current Draw Supply Breakers

Domestic and 208/240v 1 50/60 hz 1.5 Amp 2 pole, 3 wire As per

std. export (2 hot, 1 ground) local codes

* The current draw rating shown above are maximum values for normal operation, amperage draw will be less than the listed value.

NOTE: Each oven includes a 6 ft cord with NEMA# L6-20P plug. Customer to provide NEMA# L6-20R receptacle.

GAS SUPPLY SPECIFICATIONS

Version Gas Type Supply (inlet) Regulated Rated Heat
Pressure Pressure Input

Domestic & Natural 6-12” W.C. 4” W.C. 75,000 BTU
std export Gas (14.9-29.9mbar) * (9.95mbar) (21.98 kW-hr)

Domestic & Propane 11-14”W.C. 10.5” W.C. 75,000 BTU
std export Gas (27.4-34.9mbar) * (26.15mbar) (21.98 kW-hr)

* The required gas supply pressures of other locations are dependent on the local gas type and on all applicable local codes.

Minimum Gas Pipe Sizes:

* Natural Gas - 1 1/2” (50.8 mm) main supply line. One 3/4” (19mm) NPT branch per oven cavity with individual full-ow shutoff valve.
* Propane Gas - 1 1/2” (31.8 mm) main supply line. One 3/4” (19mm) NPT branch per oven cavity with individual full-ow shutoff valve

NOTE: Each oven includes (1) 3/4”(19mm)NPT x 48”(1219mm) exible, vinyl coated stainless steel braided gas hose.

ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Middleby Marshall, in accord with its policy to continually improve its products, reserves the right to

change materials or specications without notice. Such revisions do not entitle the buyer to correspond-

ing changes, improvements, additions, or replacements for previously purchased equipment.
