96-01101 / rev. 2b / 03-03-10
Uninterruptible Power Supply
m i d d l e a t l a n t i c . c o m
Uninterruptible Power Supply with Energy Saver design that
is optimized to address the needs of A/V systems
Features
• Pure Sine Wave technology with Automatic Voltage Regulation
to improve the quality of power provided to the A/V system
• Control system integration via RS-232 and USB and analog I/O
• Load shedding allows extended run time for system-critical
components by disconnecting power to less-critical components
• Line Interactive Technology
• Power Manager software allows extensive configuration
and event notification capabilities
UPS-1000R
• Energy Saver design reduces power consumption by
up to 75% when compared with traditional UPS designs
• 9’ SignalSafe™ power cord minimizes stray magnetic fields
• UL Listed in the US and Canada
Architects and Engineers’ Specifications
Rackmount Uninterruptible Power Supply (UPS) shall be Middle Atlantic
Products model # UPS- __ R (refer to chart). UPS shall be line interactive
with AVR. Unit shall measure 19.00” W x 3.50” H x 19.00” D and occupy
2 rackspaces. UPS shall have a rear mounting range of 19” to 32” and
not require more than one person to mount. Unit shall operate on 120
VAC/60Hz current. Unit shall have a nominal output of 120V. Unit shall
have a capacity of __ VA and __ W (refer to chart). Unit shall have (8)
NEMA 5- __ receptacles on the rear of the unit (refer to chart). Unit shall
have a priority outlet bank consisting of 4 outlets dedicated to ensure
maximum run time of critical components. Unit shall have a non-critical
outlet bank consisting of 4 outlets dedicated to load shedding. Rackmount
UPS shall include a 9’ __ (refer to chart) SignalSafe™ power cord with
NEMA __ (refer to chart) plug. Rackmount UPS shall have a hot swappable
battery that allows for a __ minute run time at half load and a __ (refer
to chart) minute run time at full load. Rear of unit shall have inputs that
allow for the installation of up to 10 additional hot swappable batteries.
Rackmount UPS shall utilize Middle Atlantic Power Manager™ software.
Rackmount UPS shall be warrantied to be free from defects in materials
and workmanship under normal use and conditions for a period of 3 years;
battery shall be warrantied for a period of 1 year. Rackmount UPS shall be
UL listed in US and Canada.
Expansion Battery
Rackmount expansion battery pack shall be Middle Atlantic Products model
# UPS-EBPR. Expansion battery pack shall be suitable for use with both
UPS-1000R and UPS-2200R. UPS-EBPR shall measure 19.00” W x 3.50”
H x 19.29” D and occupy 2 rackspaces. With __ hot swappable batteries
connected to the unit, there is a __ minute run time at half load and a
__ minute run time at full load (refer to chart). Rackmount expansion
battery pack shall be warrantied for a period of 1 year.
Replacement Battery
Replacement Battery Pack for the UPS shall be Middle Atlantic Products
model # UPS-RBP. Replacement battery pack shall be suitable for use with
both UPS-1000R and UPS-2200R. Replacement battery shall be warrantied
to be free from defects in materials and workmanship under normal use
and conditions for a period of 1 year.
UPS-EBPR
96-01101 / rev. 2b / 03-03-10 / Uninterruptible Power Supply
Exceptional Support & Protection Products
™

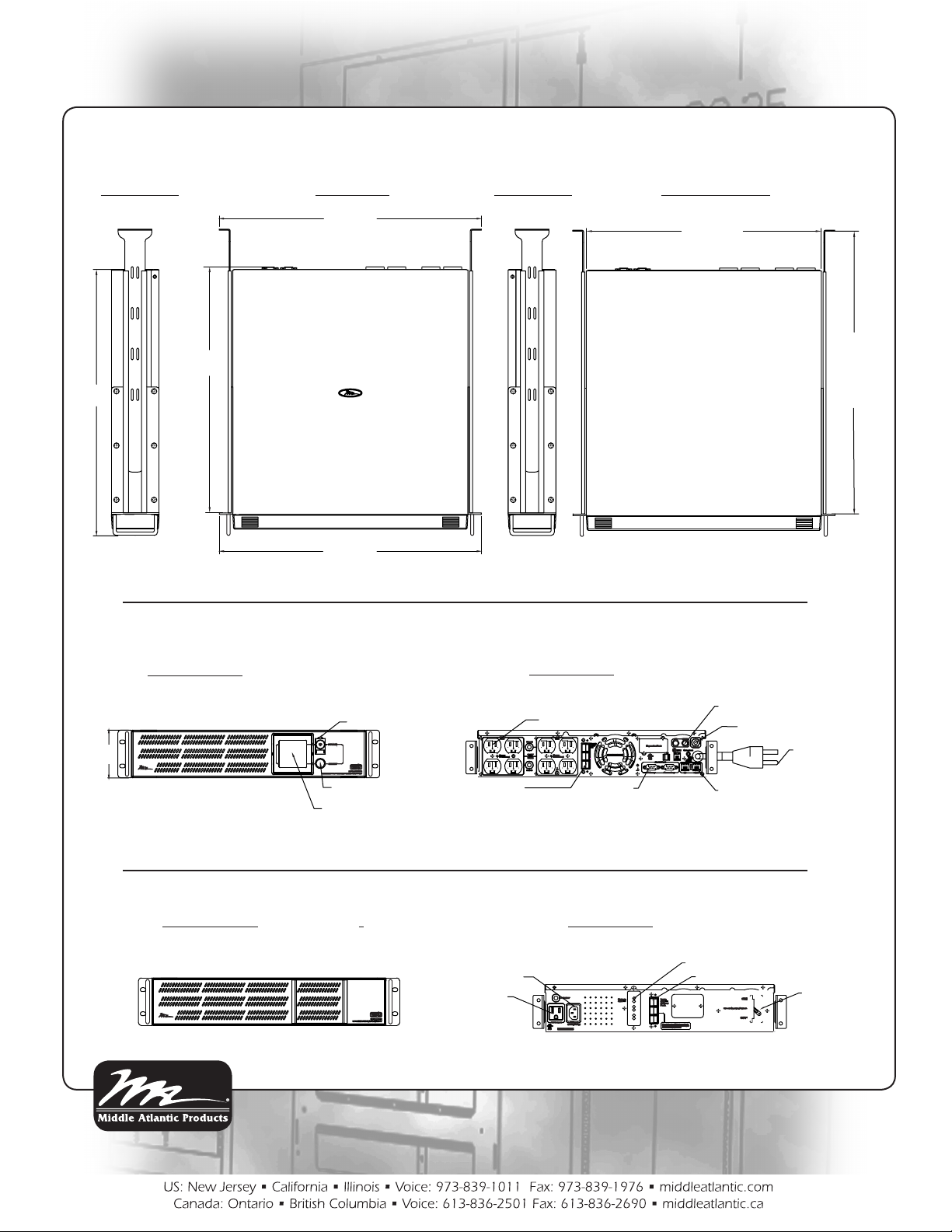

UPS basic dimensions
All dimensions in inches unless otherwise noted [All dimensions in brackets are in millimeters]
SIDE VIEW SIDE VIEW
17. 829
[452.9]
19.29
[490 ]
TOP VIEW BOTTOM VIEW
19.00 [48 3]
19.00 [48 3]
17.0 47 [433 ]
REAR
MOUNT ING
RANG E
19” [483 ]
TO
32” [ 813]
3.465
[88 ]
FRONT VIEW (UPS-xx00R)
FUNCT ION SELECT
LCD DISP LAY
POWER SW ITCH
EXPANS ION
BATTERY CO NNECTO R
REAR VIEW (UPS-xx00R)
8X NEMA 5 -20R ( UPS-2 200R )
8X NEMA 5 -15R (UPS -1000R )
SERIA L
CONTR OL PORTS
CATV SURG E PROTECT ION
ETHER NET SU RGE
PROTECT ION
FRONT VIEW (UPS-EBPR) REAR VIEW (UPS-EBPR)
48V DC BATT ERY OUTP UT
AC INPUT
AC OUTPUT
NEMA5 -15R
48V DC BATT ERY INPU T
15/20A C IRCUIT BREA KER
15/20A
SIGNA LSAFE ™
CORD
POWER
SWITCH
General Information
Model No. UPS-1000R UPS-2200R
Input
Nominal Input Voltage 120 V 120 V
Input Voltage Range 80VAC – 145VAC 80VAC – 145VAC
Input Frequency 60 Hz +/- 3 Hz (auto sensing) 60 Hz +/- 3 Hz (auto sensing)
Input Protection Type Resettable thermal fuse Resettable thermal fuse
Cord Length / Cord Type / Plug Type 9 ft. / 14/3 / NEMA 5-15P 9 ft. / 12/3 / NEMA 5-20P
Output
Green Mode Consumption Less than 9W at full battery capacity Less than 9W at full battery capacity
Nominal Output Voltage 120 V 120 V
Capacity (VA) 1000VA 2150VA
Capacity (Watts) 750W 1650W
Waveform Pure Sine Wave Pure Sine Wave
On Line Output Frequency 57 - 63 Hz for 60 Hz nominal 57 - 63 Hz for 60 Hz nominal
On Battery Output Frequency 60 Hz +/- .1 Hz 60 Hz +/- .1 Hz
Transfer Time (Typical) 4 ms typical line to battery / battery to line 4 ms typical line to battery / battery to line
Overload Protection (on line mode)
100%≤ Load< 110% warning, 120 sec shutdown
110%≤ Load< 125% warning, 40 sec shutdown
125%≤ Load warning, 10 sec shutdown
100%≤ Load< 110% warning, 120 sec shutdown
110%≤ Load< 125% warning, 40 sec shutdown
125%≤ Load warning, 10 sec shutdown
Overload Protection (on battery mode)
100%≤ Load< 110% warning, 30 sec shutdown
110%≤ Load< 125% warning, 10 sec shutdown
125%≤ Load warning, 3 sec shutdown
100%≤ Load< 110% warning, 30 sec shutdown
110%≤ Load< 125% warning, 10 sec shutdown
125%≤ Load warning, 3 sec shutdown
Total Harmonic Distortion (THD)
Total System Load 0% 20% 60% 100%
Utility Mains* THD 2.0% 2.0% 2.0% 2.0%
Battery Backup THD 1.9% 1.3% 1.5% 5.2%
*typical 120V power with 2%-4% THD
Surge Protection and Filtering UPS-1000R UPS-2200R
Lightning / Surge Protection L-N=>381 J (127J x 3) Clamp voltage 270V
(Max energy 10 / 1000 µs)
RJ11 / RJ45 Protection Sidactorx1 Clamp Voltage 275V
Fuse (.75A / 250V) x 2
L-N=>381 J (127J x 3) Clamp voltage 270V
(Max energy 10 / 1000 µs)
Sidactorx1 Clamp Voltage 275V
Fuse (.75A / 250V) x 2
Physical
Output Receptacles (8) NEMA 5-15R (8) NEMA 5-20R
Dimensions (in.) 19.00” [423] W x 3.50” [89] H x 19.29” [490] D 19.00” [423] W x 3.50” [89] H x 19.29” [490] D
Weight (lb.) 68 lbs. 77 lbs.
Battery
Rating 12V / 9.0 AH x 4 12V / 9.0 AH x 4
Auto Charger 1A 1A
Hot Swappable External Battery Yes Yes
Run Time at Half Load 26 minutes 13 minutes
Run Time at Full Load 13 minutes 6.4 minutes
Warning Diagnostics
Control Panel LCD Display Indicators, Power On LCD Display Indicators, Power On
Audible Alarms On Battery, Low Battery On Battery, Low Battery
Environmental
Operating Temperature 32°F to 104°F ( 0°C to 40°C) 32°F to 104°F ( 0°C to 40°C)
Operating Relative Humidity 0 to 95% Non-Condensing 0 to 95% Non-Condensing
Communication
Software Middle Atlantic Power Manager
™
Middle Atlantic Power Manager
™
Management
Self-Test Manual Self-Test via front panel Manual Self-Test via front panel
Auto-Charger/ Auto-Restart Yes Yes
COM Interface Primary: - RS232 Communication + Control
- Analog Status Notification + Control
Secondary: - Analog status notification only
Built-in USB Interface Yes Yes
Primary: - RS232 Communication + Control
- Analog Status Notification + Control
Secondary: - Analog status notification only
Expansion Battery Estimated Run Times
UPS-1000R
Load (VA) 120 240 360 480 600 720 840 960
Load (W)* 84 168 252 336 420 504 588 672
Load (A) 1 2 3 4 5 6 7 8
Number of
expansion batteries
UPS only 102 51 34 26 20 17 15 13
1 561 283 190 143 114 94 80 69
2 1020 515 345 260 207 171 145 125
3 1479 747 501 377 300 249 211 181
4 1938 979 657 494 394 326 276 238
5 2397 1211 813 611 487 403 341 294
6 2856 1443 968 728 580 480 407 350
7 3315 1676 1124 845 674 557 472 406
8 3774 1908 1280 962 767 635 537 463
9 4233 2140 1435 1079 860 712 603 519
10 4692 2372 1591 1196 954 789 668 575
*Assuming a Power Factor of .7
ESTIMATED RUN TIME (Minutes)
UPS-2200R
Load (VA) 120 240 360 480 600 720 840 960 1080 1200 1320 1440 1560 1680 1800 1920
Load (W)* 90 180 270 360 450 540 630 720 810 900 990 1080 1170 1260 1350 1440
Load (A) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Number of
expansion batteries
UPS only 102 51 34 26 20 17 15 13 11 10 9 9 8 7 7 6
1 561 283 190 143 114 94 80 69 60 53 47 42 37 33 29 26
2 1020 515 345 260 207 171 145 125 109 96 84 75 66 58 51 45
3 1479 747 501 377 300 249 211 181 158 139 122 108 95 84 74 64
4 1938 979 657 494 394 326 276 238 207 181 160 141 124 109 96 84
5 2397 1211 813 611 487 403 341 294 256 224 197 174 153 135 118 103
6 2856 1443 968 728 580 480 407 350 305 267 235 207 182 161 141 122
7 3315 1676 1124 845 674 557 472 406 353 310 272 240 212 186 163 142
8 3774 1908 1280 962 767 635 537 463 402 352 310 273 241 212 185 161
9 4233 2140 1435 1079 860 712 603 519 451 395 348 306 270 237 208 181
10 4692 2372 1591 1196 954 789 668 575 500 438 385 339 299 263 230 200
*Assuming a Power Factor of .75
ESTIMATED RUN TIME (Minutes)
